2.  Earthquakes constitute one of the worst natural hazards
which often turn into disaster causing widespread destruction
and loss to human life.
 The effects of earthquake vary upon the magnitude and
intensity. Earthquakes occur every now and then all round the
world, except in some places where earthquakes occur rarely.
 No structure on the planet can be constructed 100%
earthquake proof, Only its resistance to earthquake can be
increased.
16-06-2017 2

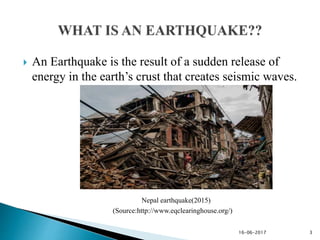

3.  An Earthquake is the result of a sudden release of
energy in the earth’s crust that creates seismic waves.
Nepal earthquake(2015)
(Source:http://www.eqclearinghouse.org/)
16-06-2017 3

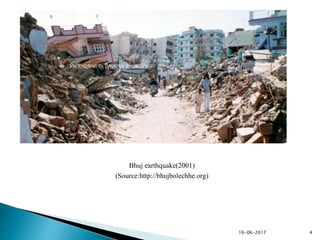

4. Bhuj earthquake(2001)
(Source:http://bhujbolechhe.org)
16-06-2017 4

5.  Roll of Inertial Force,
F=M*a
Effect of Inertia in a building when shaken at its base.
(Source: www.nicee.org/EQTips.php)
16-06-2017 5

6. 1. Energy dissipation device
2. Bracing
3. Isolation
4. Bands
5. Shear walls
16-06-2017 6

7.  Its also called Dampers.
 Dampers act like hydraulic shock absorbers.
 Which absorb vibrations caused due to earthquakes.
 Usually for protecting tall buildings.
 Reduces the swaying of buildings.
 Installed along with Bracings
16-06-2017 7

8.  Viscous Dampers
 Friction Dampers
 Yielding Dampers
16-06-2017 8

9. (Source: www.nicee.org/EQTips.php)
16-06-2017 9

10.  Braced frames are prevalently utilized as
lateral load resisting system.
 Bracing is usually seen with two digonal
supports placed in an X shaped manner.
 Steel cables can be used for bracing.
16-06-2017 10

11. Single Diagonals
(Source:www.slideshare.net)
Cross bracing
(Source:www.slideshare.net)
16-06-2017 11

12. John Hancock Tower in chicago
(Source:www.nexus.globalquakemodel.org)
16-06-2017 12

13.  New kind of energy dissipating frame
 Energy absorbing fuse
 Provide excellent ductility and lateral stiffness.
 Timber pieces and mild steel are used
16-06-2017 13

14. Knee bracings
(source:www.ideers.bris.ac.uk)
Knee bracings
(source:httpsembed.widencdn.net)
16-06-2017 14

15.  Base isolated structure is supported by a series of
bearing pads which are placed between building and
building foundation.
 Principle is easy and widely used.
 The main feature of the base isolation technology is
that it introduces flexibility in the structures.
 Reduce the building acceleration by ¼ the acceleration
of fixed base building
 Base Isolation Using tyre pads is an economical
method.
16-06-2017 15

16. 16-06-2017 16

17. 16-06-2017 17
Seismic base isolation pads using scrap automobile tires
(Source:www.sefindia.org/forum/files/low)

18. Pasadena city hall
(Source:www.cityofpasadena.net)
16-06-2017 18

19.  CITY OF PAS
CITY OF PASADENA(USA)
(Source:www.clarkconstruction.com)
16-06-2017 19

20.  Horizontal bands are the most important
earthquake-resistant feature in masonry
buildings
 They hold a masonry building as a single unit
by tying all the walls together
 There are Four types of bands in a typical
masonry building,
Gable band, Roof band, Lintel band and Plinth
band
16-06-2017 20

21. 16-06-2017 21
Horizontal Bands in masonry building
(Source: www.nicee.org/EQTips.php)

22. (Source: www.nicee.org/EQTips.php)
16-06-2017 22

23. The 1993 Latur Earthquake(Central India)-one masonry house in Killari village had horizontal
lintel band and sustained the shaking without damage
(Source: Murty.C.V.R, 2015)
16-06-2017 23

24.  Vertically oriented wide beams
 It carries seismic loads down to the bottom of
foundation
 Provides large strength and stiffness to buildings
 Thickness generally varies from 150mm to 400mm in
high rise buildings
16-06-2017 24

25. Reinforced concrete shear walls in buildings Types of shear walls
(Source: Murty.C.V.R, 2015) (Source: Murty.C.V.R, 2015)
16-06-2017 25

26. Two-storey building with multiple Two-storey building with multiple
load paths in X direction load paths in Y direction
(Source:www.recoveryplatform.org)
16-06-2017 26

27. Reinforcement details of RC walls
(Source:www.recoveryplatform.org)
16-06-2017 27

28.  The work in the field of earthquake resistant techniques is very
important to have safe structures.
 Techniques for earthquake resistance is not strengthen the
building, but to reduce the earthquake generated forces acing
upon it.
 Effects made by the Earthquake mainly depends on
acceleration of base and mass of building.
16-06-2017 28
