1. Spiral Antennas
Sr. No. Design Name Solver
1 Coaxial Fed Single arm Spiral Antenna FEM
2 Rectangular Spiral Antenna FEM
3 Vivaldi Spiral Antenna FEM
4 Two arm Circular Spiral Antenna FDTD
Anil Pandey

2. Coaxial Fed Single arm Spiral Antenna
Solver – FEM (Direct)
1

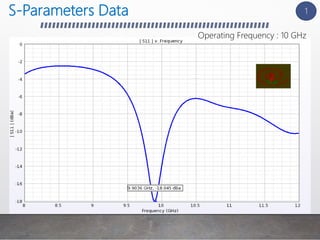

3. S-Parameters Data
Operating Frequency : 10 GHz
1

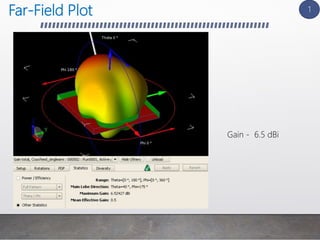

4. Far-Field Plot
Gain - 6.5 dBi
1

5. Rectangular Spiral Antenna
Solver - FEM
2

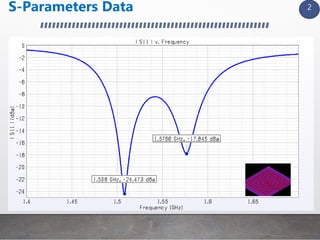

6. 2S-Parameters Data

7. Far Field Plot
Gain – 1.2 dBi
2

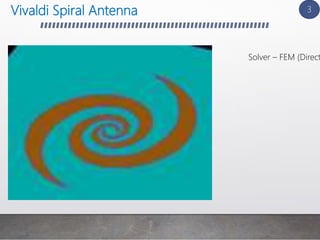

8. Vivaldi Spiral Antenna
Solver – FEM (Direct
3

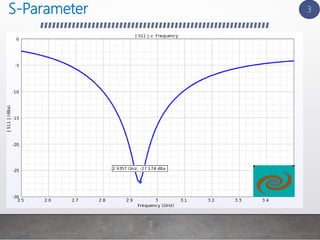

9. S-Parameter 3

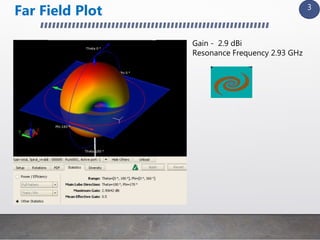

10. Gain - 2.9 dBi
Resonance Frequency 2.93 GHz
3
Far Field Plot

11. Two arm Circular Spiral Antenna
Solver – FDTD
Conformal Meshing
CUDA Card
4

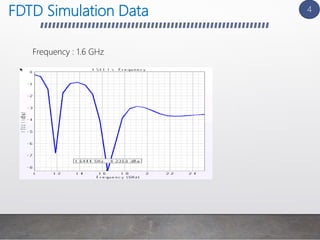

12. FDTD Simulation Data
Frequency : 1.6 GHz
4
