The document discusses a project seminar on a solar panel system equipped with a dual-axis sun position tracking mechanism. It highlights the advantages of solar energy as a renewable and cost-effective power source, emphasizing its potential to mitigate energy crises through improved efficiency. The dual-axis tracker is noted for its ability to increase energy output by approximately 30-40%, though it may require more maintenance and has a higher initial cost compared to stationary systems.

1. A
PROJECT SEMINOR
ON
SOLAR PANNEL WITH SUN POSITION TRACKING
SYSTEM
Submitted By:-
Abhilash prajapati(1516220901)
Amit Mishra(1516220904)
Ritanshu sonkar(1516220910)
Ritesh Tiwari(1516220911)

2. • Introduction
• Dual axis tracker
• Block diagram
• Circuit diagram
• Advantages
• Disadvantages
• Conclusion

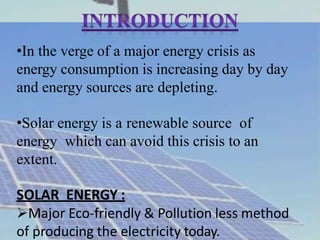

3. •In the verge of a major energy crisis as
energy consumption is increasing day by day
and energy sources are depleting.
•Solar energy is a renewable source of
energy which can avoid this crisis to an
extent.
SOLAR ENERGY :
Major Eco-friendly & Pollution less method
of producing the electricity today.

4. •Solar power ,the best alternative
for a renewable source.
•Cost effective.
•Improved operating efficiency.
•Unlimited reserve because
source is sun .
Solar panels ,modern
technology of solar
energy absorption
Solar panels absorbs
maximum sunlight and
converts it to electricity

5. • For orienting panel
towards the sun
• Have light sensors and
mechanical arrangement
• Tracks maximum
intensity

6. DUAL AXIS SOLAR TRACKER :
• Double axis solar trackers
have both a horizontal and a
vertical axle and so can track
the Sun's apparent motion
exactly anywhere in the
world.
•Dual axis trackers track the sun
both East to West and North to
South for added power output
(approx 40% gain) and
convenience.

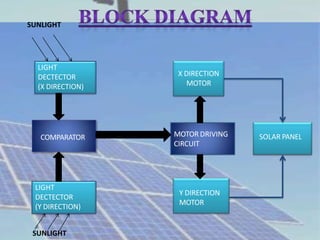

7. X DIRECTION
MOTOR
LIGHT
DECTECTOR
(X DIRECTION)
LIGHT
DECTECTOR
(Y DIRECTION)
COMPARATOR MOTOR DRIVING
CIRCUIT
Y DIRECTION
MOTOR
SUNLIGHT
SUNLIGHT
SOLAR PANEL

8. •Used to sense or detect light
•Resistor whose resistance
decreases with increase in intensity
of light
•Made of high resistance
semiconductor

9. CIRCUIT DIAGRAM

10. L293D

11. •H bridge motor driving circuit
•Controls two motors in both direction
•Takes digital input

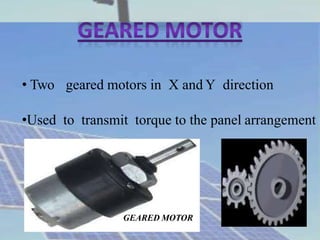

12. • Two geared motors in X and Y direction
•Used to transmit torque to the panel arrangement
GEARED MOTOR

13. •Standard switching diode
•Low cost, long life and dependable
•Used in switching application up
to
100 MHz

14. • More efficient compared to normal
arrangement.
• Energy output increases up to 30-
40% than normal stationary.
arrangement.
• High degree of accuracy.
• Eco friendly.

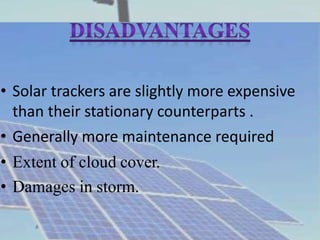

15. • Solar trackers are slightly more expensive
than their stationary counterparts .
• Generally more maintenance required
• Extent of cloud cover.
• Damages in storm.

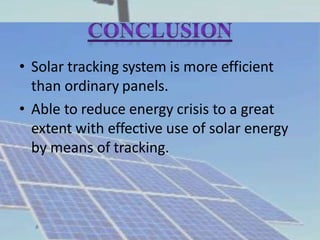

16. • Solar tracking system is more efficient
than ordinary panels.
• Able to reduce energy crisis to a great
extent with effective use of solar energy
by means of tracking.
