1. Assignment on
Solar Refrigeration System:
Theory & Application
Submitted By:
Mohammad Shakil Khan
MS in Renewable Energy Technology
Institute of Energy
3rd
Batch, Roll: 01
3rd
Semester, Session: 2013-14
2. Introduction
As a source of abundant free energy from the sun, solar energy has vast prospect to utilize in
several areas to mitigate the energy demand of everyday use. Besides the conventional lighting
purpose, solar energy can be harnessed to use for refrigeration system, mainly in off-grid areas.
Solar refrigeration can be expected a new dimension in utilizing solar electricity use.
Refrigeration
Refrigeration is a process in which work is done to move heat from one place to another. In this
process heat is removed from a material or space, so that it’s temperature is lower than that of
surroundings.
When refrigerant absorbs the unwanted heat, this raises the refrigerant’s temperature (―Saturation
Temperature‖) so that it changes from a liquid to a gas — it evaporates. The system then uses
condensation to release the heat and change the refrigerant back into a liquid. This is called
―Latent Heat‖. This cycle is based on the physical principle, that a liquid extracts heat from the
surrounding area as it expands (boils) into a gas. To accomplish this, the refrigerant is pumped
through a closed looped pipe system. The closed looped pipe system stops the refrigerant from
becoming contaminated and controls its stream. The refrigerant will be both a vapor and a liquid
in the loop.
Solar Refrigeration: Theory
Refrigerator which runs on electricity provided by solar energy is known as solar refrigeration. A
solar-powered refrigerator is a refrigerator which runs on energy directly provided by sun, and
may include photovoltaic or solar thermal energy. Solar Photovoltaic refrigerators operate on the
same principle as normal compression refrigerators but incorporate low voltage (12 or 24V) dc
compressors and motors, rather than mains voltage ac types. A photovoltaic refrigerator has
higher levels of insulation around the storage compartments to maximize energy efficiency, a
battery bank for electricity storage, a battery charge regulator and a controller which converts the
power from the battery to a form required by the compressor motor. A typical solar refrigerator
layout is as shown below (Figure 1). Most refrigerators include a freezer compartment for ice
pack freezing. Other systems have separate units to provide solely for refrigeration or freezing.
Available sizes range between 10 and 85 litres of vaccine storage capacity with ice production
rates of up to 6.4 kg per 24 hours.
3. Figure 1: Solar Refrigeration System
How Solar Refrigeration Works
Solar-powered refrigeration system employs a PV panel, vapor compressor, thermal storage and
reservoir and electronic controls. The process that makes the refrigeration possible is the
conversion of sunlight into DC electrical power, achieved by the PV panel. The DC electrical
power drives the compressor to circulate refrigerant through a vapor compression refrigeration
loop that extracts heat from an insulated enclosure. This enclosure includes the thermal reservoir
and a phase change material. This material freezes as heat is extracted from the enclosure. This
process effectively creates an "ice pack," enabling temperature maintenance inside the enclosure
in the absence of sunlight.
Proper sizing of the highly insulated cabinet, phase change thermal storage, variable speed
compressor and solar PV panel allow the refrigerator to stay cold all year long. To optimize the
conversion of solar power into stored thermal energy, a compressor control method fully exploits
the available energy. Other power optimization measures include:
Smoothing the power voltage via a capacitor, providing additional current during
compressor start-up
Monitoring the rate of change of the smoothed power voltage using a controller to
determine if the compressor is operating below or above the available maximum power,
enabling adjustment of the compressor speed if necessary
Replacing the capillary tube in the refrigerator system with an expansion valve,
improving energy efficiency in certain operating conditions
These adjustments to the compressor operation contribute to the conversion of the majority of the
available solar power into stored thermal energy. Applications may include a cold side water
loop or incorporation of the evaporator into the thermal storage.
4. Types of Solar Refrigeration
Photovoltaic Operated Refrigeration Cycle
Solar Mechanical Refrigeration
Absorption Refrigeration
Photovoltaic Operated Refrigeration Cycle:
Photovoltaics (PV) involve the direct conversion of solar radiation to direct current (dc)
electricity using semiconducting materials. In concept, the operation of a PV-powered solar
refrigeration cycle is simple. Solar photovoltaic panels produce dc electrical power that can
be used to operate a dc motor, which is coupled to the compressor of a vapor compression
refrigeration system. The major considerations in designing a PV-refrigeration cycle
involve appropriately matching the electrical characteristics of the motor driving the
compressor with the available current and voltage being produced by the PV array. The rate of
electrical power capable of being generated by a PV system is typically provided by
manufacturers of PV modules for standard rating conditions, i.e., incident solar radiation of
1,000 W/m2
(10800 W/ft2
) and a module temperature of 25°C (77°F).
System Regarding Considerations:
Must match voltage imposed on PV array to the motor characteristics and power
requirements of the refrigeration cycle
For given operating condition (solar radiation and module temperature), single voltage
provides maximum power output.
Must find compressor motor closely matched to the electric characteristics of the PV
module.

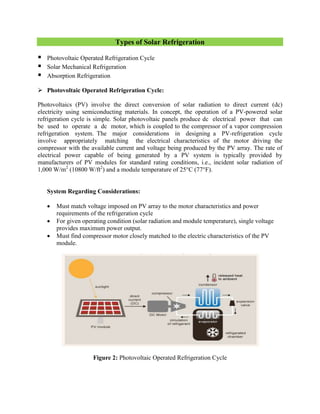

Figure 2: Photovoltaic Operated Refrigeration Cycle
5. Solar Mechanical Refrigeration:
Solar mechanical refrigeration uses a conventional vapor compression system driven by
mechanical power that is produced with a solar-driven heat power cycle. The heat power
cycle usually considered for this application is a Rankine cycle in which a fluid is vaporized
at an elevated pressure by heat exchange with a fluid heated by solar collectors. A storage
tank can be included to provide some high temperature thermal storage. The vapor flows
through a turbine or piston expander to produce mechanical power, as shown in Figure 3.
The fluid exiting the expander is condensed and pumped back to the boiler pressure where it
is again vaporized. The efficiency of the Rankine cycle increases with increasing temperature
of the vaporized fluid entering the expander. The efficiency of a solar collector, however,
decreases with increasing temperature of the delivered energy. High temperatures can be
obtained from concentrating solar collectors that track the sun’s position in one or two
dimensions. Tracking systems add cost, weight and complexity to the system. If tracking is to
be avoided, evacuated tubular, compound parabolic or advanced multi-cover flat plate
collectors can be used to produce fluid temperatures ranging between 100°C – 200°C (212°F
– 392°F). The efficiency of solar collectors depends on both solar radiation and the
difference in temperature between the entering fluid and ambient. The overall efficiency of
solar mechanical refrigeration, defined as the ratio of mechanical energy produced to the
incident solar radiation, is the product of the efficiencies of the solar collector and the power
cycle. Because of the competing effects with temperature, there is an optimum efficiency at
any solar radiation. Solar mechanical systems are competitive only at higher temperatures for
which tracking solar collectors are required. Because of its economy-of-scale, this option
would only be applicable for large refrigeration systems (e.g., 1,000 tons or 3,517 kWT)
System Regarding Considerations:
Efficiency optimization based on delivery temperature
Efficiency of Rankine cycle increases with increased heat exchanger temperature
Efficiency of solar collector decreases with increase in temperature

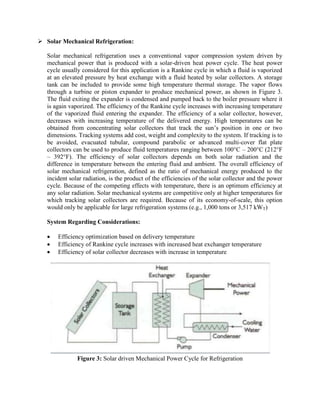

Figure 3: Solar driven Mechanical Power Cycle for Refrigeration

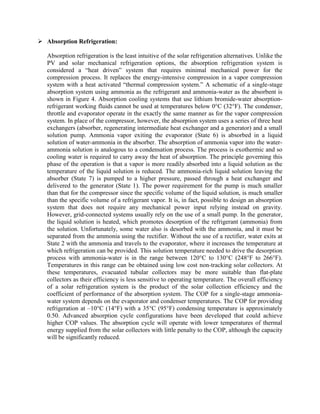

6. Absorption Refrigeration:
Absorption refrigeration is the least intuitive of the solar refrigeration alternatives. Unlike the
PV and solar mechanical refrigeration options, the absorption refrigeration system is
considered a ―heat driven‖ system that requires minimal mechanical power for the
compression process. It replaces the energy-intensive compression in a vapor compression
system with a heat activated ―thermal compression system.‖ A schematic of a single-stage
absorption system using ammonia as the refrigerant and ammonia-water as the absorbent is
shown in Figure 4. Absorption cooling systems that use lithium bromide-water absorption-
refrigerant working fluids cannot be used at temperatures below 0°C (32°F). The condenser,
throttle and evaporator operate in the exactly the same manner as for the vapor compression
system. In place of the compressor, however, the absorption system uses a series of three heat
exchangers (absorber, regenerating intermediate heat exchanger and a generator) and a small
solution pump. Ammonia vapor exiting the evaporator (State 6) is absorbed in a liquid
solution of water-ammonia in the absorber. The absorption of ammonia vapor into the water-
ammonia solution is analogous to a condensation process. The process is exothermic and so
cooling water is required to carry away the heat of absorption. The principle governing this
phase of the operation is that a vapor is more readily absorbed into a liquid solution as the
temperature of the liquid solution is reduced. The ammonia-rich liquid solution leaving the
absorber (State 7) is pumped to a higher pressure, passed through a heat exchanger and
delivered to the generator (State 1). The power requirement for the pump is much smaller
than that for the compressor since the specific volume of the liquid solution, is much smaller
than the specific volume of a refrigerant vapor. It is, in fact, possible to design an absorption
system that does not require any mechanical power input relying instead on gravity.
However, grid-connected systems usually rely on the use of a small pump. In the generator,
the liquid solution is heated, which promotes desorption of the refrigerant (ammonia) from
the solution. Unfortunately, some water also is desorbed with the ammonia, and it must be
separated from the ammonia using the rectifier. Without the use of a rectifier, water exits at
State 2 with the ammonia and travels to the evaporator, where it increases the temperature at
which refrigeration can be provided. This solution temperature needed to drive the desorption
process with ammonia-water is in the range between 120°C to 130°C (248°F to 266°F).
Temperatures in this range can be obtained using low cost non-tracking solar collectors. At
these temperatures, evacuated tubular collectors may be more suitable than flat-plate
collectors as their efficiency is less sensitive to operating temperature. The overall efficiency
of a solar refrigeration system is the product of the solar collection efficiency and the
coefficient of performance of the absorption system. The COP for a single-stage ammonia-
water system depends on the evaporator and condenser temperatures. The COP for providing
refrigeration at –10°C (14°F) with a 35°C (95°F) condensing temperature is approximately
0.50. Advanced absorption cycle configurations have been developed that could achieve
higher COP values. The absorption cycle will operate with lower temperatures of thermal
energy supplied from the solar collectors with little penalty to the COP, although the capacity
will be significantly reduced.

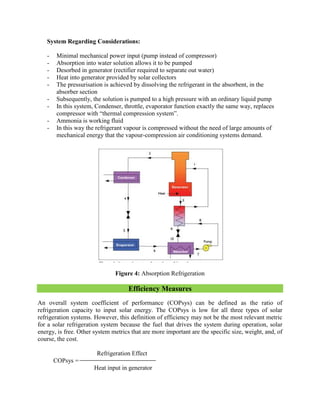

7. System Regarding Considerations:
- Minimal mechanical power input (pump instead of compressor)
- Absorption into water solution allows it to be pumped
- Desorbed in generator (rectifier required to separate out water)
- Heat into generator provided by solar collectors
- The pressurisation is achieved by dissolving the refrigerant in the absorbent, in the
absorber section
- Subsequently, the solution is pumped to a high pressure with an ordinary liquid pump
- In this system, Condenser, throttle, evaporator function exactly the same way, replaces
compressor with ―thermal compression system‖.
- Ammonia is working fluid
- In this way the refrigerant vapour is compressed without the need of large amounts of
mechanical energy that the vapour-compression air conditioning systems demand.
Figure 4: Absorption Refrigeration
Efficiency Measures
An overall system coefficient of performance (COPsys) can be defined as the ratio of
refrigeration capacity to input solar energy. The COPsys is low for all three types of solar
refrigeration systems. However, this definition of efficiency may not be the most relevant metric
for a solar refrigeration system because the fuel that drives the system during operation, solar
energy, is free. Other system metrics that are more important are the specific size, weight, and, of
course, the cost.
Refrigeration Effect
COPsys =
Heat input in generator
8. Application of Solar Refrigeration
Household and Commercial indoor cooling purpose
Refrigeration in off-grid rural areas for preserving food and vaccine
Use in cold storage system to preserve rotten-prone food
Use to make ice cream and other related products
Cooling purpose for Transportation vehicle like bus, car etc
Importance of Solar Refrigeration
There is environmental concern regarding conventional refrigeration technologies including
contribution to ozone layer depletion and global warming. Refrigerators which contain ozone
depleting and global warming substances such as chlorofluorocarbons (CFCs),
hydrochlorofluorocarbons (HCFCs) in their insulation foam or their refrigerant cycle, are the
most harmful. If a conventional refrigerator is inefficient or used inefficiently, it will also
contribute more to global warming than a highly efficient refrigerator. The use of solar
energy to power refrigeration strives to minimize the negative impacts refrigerators have on
the environment.
All vaccines have to be kept within a limited temperature range throughout transportation
and storage. The provision of refrigeration for this, known as the Vaccine 'Cold Chain', is a
major logistical undertaking in areas where electricity supplies are non-existent or erratic.
The performance of refrigerators fuelled by kerosene and bottled gas is often inadequate.
Diesel powered systems frequently suffer fuel supply problems. Solar power is therefore of
great importance to health care.
Conclusion
The World Health Organization (WHO) estimates that nearly two billion people in the world are
without access to electricity that is essential for storage of vaccines and medicine. Using solar
energy in refrigeration system could save a huge energy demand as well as reduce the GHG
related impact in its entire life cycle. Solar powered refrigerators and freezers are cost-effective
and can be powered by solar, wind, fuel cells and batteries as well with low energy consumption,
less expensive power systems and low operating expense, excellent reliability and long life.
Reference
1. https://en.wikipedia.org/wiki/Solar-powered_refrigerator
2. http://www.neerg.cn/appliances-solar-refrigerator-freezer.htm
3. https://www.nasa.gov/centers/johnson/techtransfer/technology/MSC-22970-1_Solar-
Refrigerator-TOP.html
4. http://www.nasa.gov/centers/johnson/home/solarfridge.html
