1. Damian Gordon

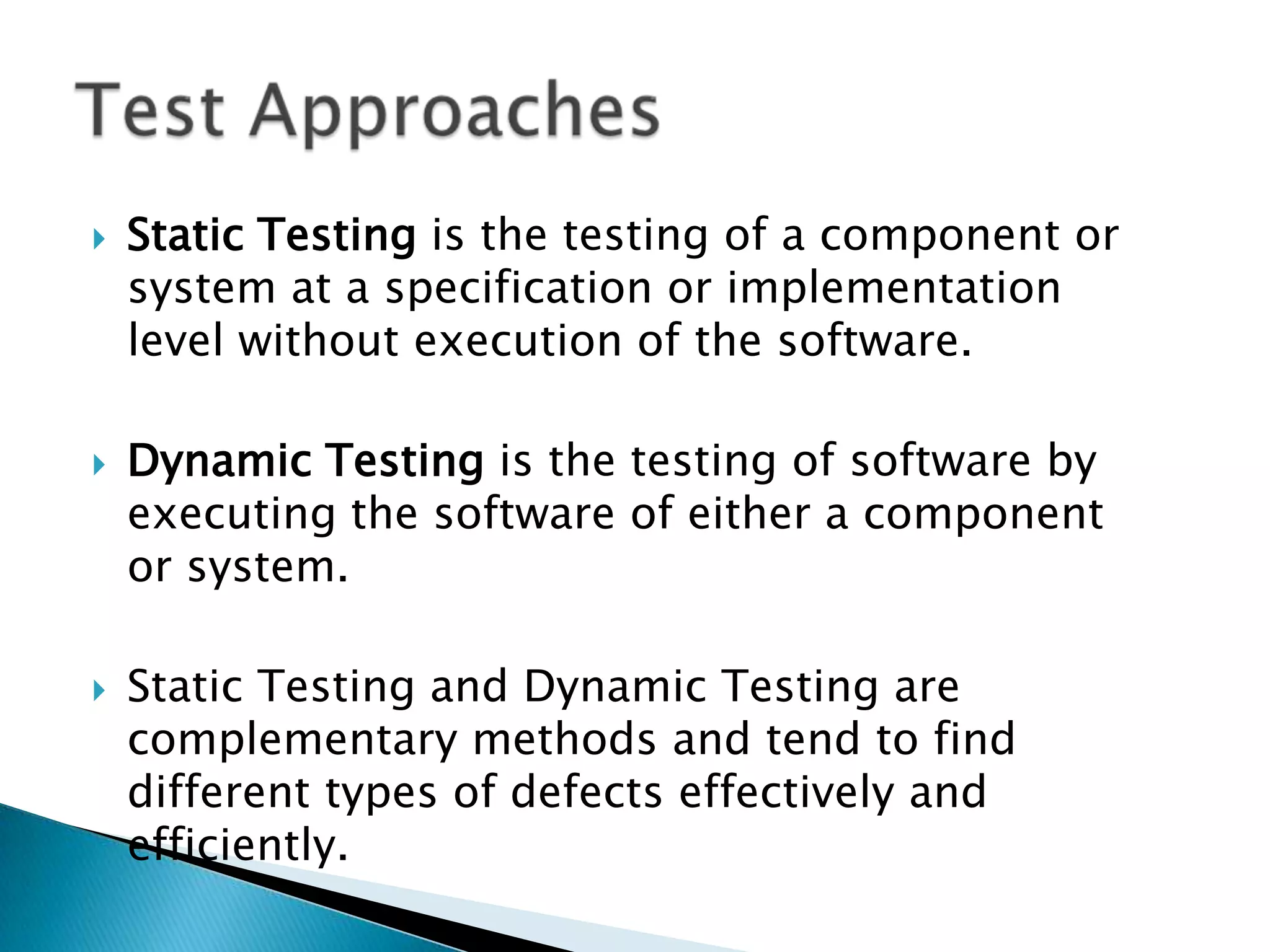

2.  Static Testing is the testing of a component or
system at a specification or implementation
level without execution of the software.
 Dynamic Testing is the testing of software by
executing the software of either a component
or system.
 Static Testing and Dynamic Testing are
complementary methods and tend to find
different types of defects effectively and
efficiently.

3.  Static Testing detects defects such as
deviations from standards, missing
requirements, design defects, non-
maintainable code and inconsistent
interface specifications.
 Dynamic Testing detects defects such as
checking if outputs from the expected
values.

4.  One key approach in Static Testing is the
Review Process.
 Reviews can find defects, are informational,
communicational, and educational.
 Participants in the review learn the content
of the software systems, the role of their
own work, help planning for future stages of
the work.
 Reviews often represent milestones, and
support the establishments of a baseline for
the software product.

6.  The type and quantity of defects found
during the review stage can help focus the
testing process.
 In some cases customers or users attend the
review process and provide feedback to the
developers and document authors.
 Studies have shown the reviews significantly
increase productivity and product quality.

7.  They can be either informal or formal.
 The formality of the review process is
related to factors such as the maturity of the
development process, any legal or
regulatory requirements or the need for an
audit trail.
 In practice most reviews are informal.
 A two-person team can conduct an informal
review, as the developer/author can get a
colleague to review the code and
documentation.

8.  Phases of a Formal Review
1. Planning
2. Kick-Off
3. Preparation
4. Review Meeting
5. Rework
6. Follow-up

9.  1. Planning
 The authors/developers request a review.
 A moderator is assigned – this is the leader
of the review process.
 The project planning needs to incorporate
time to undertake the review.
 The planning must start with deciding an
entry criteria to ensure that document is
ready for review.

10.  1. Planning
 Entry Criteria
 The set of generic and specific conditions
for permitting a process to go forward with
a defined task, e.g. Test phase. The purpose
of entry criteria is to prevent a task from
starting which would entail more (wasted)
effort compared to the effort needed to
remove the failed entry criteria.

11.  1. Planning
 Minimum set of criteria for performing entry
check:
◦ A short check of a product sample by the moderator
does not reveal a large number of defects, e.g. After
30 minutes of checking, no more than 3 major defects
are found in a single page or fewer than 10 major
defects in total in a set of 5 pages.
◦ The document to be reviewed is available with line
numbers.
◦ The document has been cleaned up by running any
automated checks that apply.
◦ References needed for the inspection are stable and
available.
◦ The document author is prepared to join the review
team and feels confident with the quality of the
document.

12.  1. Planning
 The review will focus on a few different
things:
◦ Focus on higher-level documents, e.g. Does the
design comply to the requirements
◦ Focus on standards, e.g. Internal consistency,
clarity, naming conventions, templates
◦ Focus on related documents at the same level,
e.g. Interfaces between software functions
◦ Focus on usage, e.g. For testability and
maintainablity

13.  2. Kick-Off
 The review starts with a kick-off meeting, to
make sure everyone is on the same
wavelength regarding the document under
review.
 The meeting consists of a short introduction
to the objectives of the review and the
documents.
 Role assignments, checking rate, the pages
to be checked, process changes and
possible other questions are discussed at
this meeting.

14.  3. Preparation
 Participants identify defects, questions, and
comments, according to their understanding
of the document and their role.
 A checking rate is decided, which is the
number of pages checked per hour, usually
about 5 to 10 pages per hour, depending on
complexity.

15.  4. Review Meeting
 Usually made up of the following phases:
◦ Logging phase
◦ Discussion phase
◦ Decision phase

16.  4. Review Meeting
 Logging Phase:
 The issues that have been identified in the
Preparation stage are logged.
 To ensure progress and efficiency, no real
discussion is allowed during the logging
phase.
 Each defect is logged with a severity:
◦ Critical: defects will cause downstream damage.
◦ Major: defects could cause downstream damage.
◦ Minor: defects are not likely to cause downstream
damage.

17.  4. Review Meeting
 Discussion Phase:
 Each of the defects that require discussion
are discussed, with a chairman preventing
discussions from getting too personal.

18.  4. Review Meeting
 Decision Phase:
 At the end of the discussion phase, a
decision is taken about the document under
review. If the number of defects found per
page exceeds a certain level, the document
may need to be reworked, and reviewed
again.

19.  5. Rework
 Based on the defects detects, the author will
improve the document under review, step-
by-step.

21.  Always, every, all, none, never, … (absolutely
sure?)
 Certainly, therefore, clearly, obviously,
customarily, most, … (persuasion lingo)
 Some, sometimes, often, usually, ordinarily,
customarily, most, … (vague)
 etc., and so forth, and so on, such as, … (not
testable)
 Good, fast, cheap, efficient, small, stable, …
(unquantifiable)
 Handled, processed, rejected, skipped,
eliminated…
 If … then … (missing else)

22.  Roles and Responsibilities
 The moderator
 The author
 The scribe
 The reviewers
 The manager

23.  Roles and Responsibilities
 The moderator serves as the review leader,
they determine the type of review, approach
and the composition of the review team.
 The moderator performs the entry check,
and the follow-up on the rework.
 The moderator also schedules meetings,
disseminates documents, leads discussions
and stores relevant data.

24.  Roles and Responsibilities
 The author writes the original document and
seeks to improve the quality of the
document by working with others.

25.  Roles and Responsibilities
 The scribe records all of the defects during
the logging meetings.

26.  Roles and Responsibilities
 The reviewers (also called checkers and
inspectors) check the documents for
defects.
 Reviewers are chosen to represent different
perspectives in the review.

27.  Roles and Responsibilities
 The manager decides on the execution of
reviews and determines whether review
process objectives have been met.

28.  Types of Reviews
 Walkthrough
 Technical Review
 Inspection

29.  Types of Reviews
 Walkthrough
 The author guides the review team through
the document, to achieve a common
understanding and gather feedback.
 This means the author does a range of
preparation, and the review team don’t need
to do a detailed study before the meeting.
 A walkthrough is especially useful for
higher-level documents, like requirements
specifications and architectural documents.

30.  Types of Reviews
 Technical Review
 This approach focuses on developing a
consensus about the technical content of
the document.
 Defects are found by technical experts, who
focus on the content of the document (as
opposed to considering any relevant
legislation and standards, referenced
documents, and intended readership).

31.  Types of Reviews
 Inspection
 This approach is the most formal review type.
 The document is inspected thoroughly be the
reviews before the meeting, comparing the
work product with its sources and other
referenced documents, and using rules and
checklists.
 The defects found are logged and any
discussion is postponed until the discussion
phase.
 This makes the inspection meeting a very
efficient meeting.

32.  Let’s do one.
