SNMP is a widely used network management protocol that allows communication between network managers and agents using simple request/response messages. Managed elements contain SNMP agents that collect and store management data defined in MIB variables. Network management stations can send Get, GetNext, Set, and Trap messages to agents to read/write variables and receive asynchronous event notifications. The MIB defines managed objects using an ASN.1 tree structure and numeric identifiers to ensure unique naming.

1. An Introduction of Simple Network Management Protocol www.sriinduit.blogspot.com

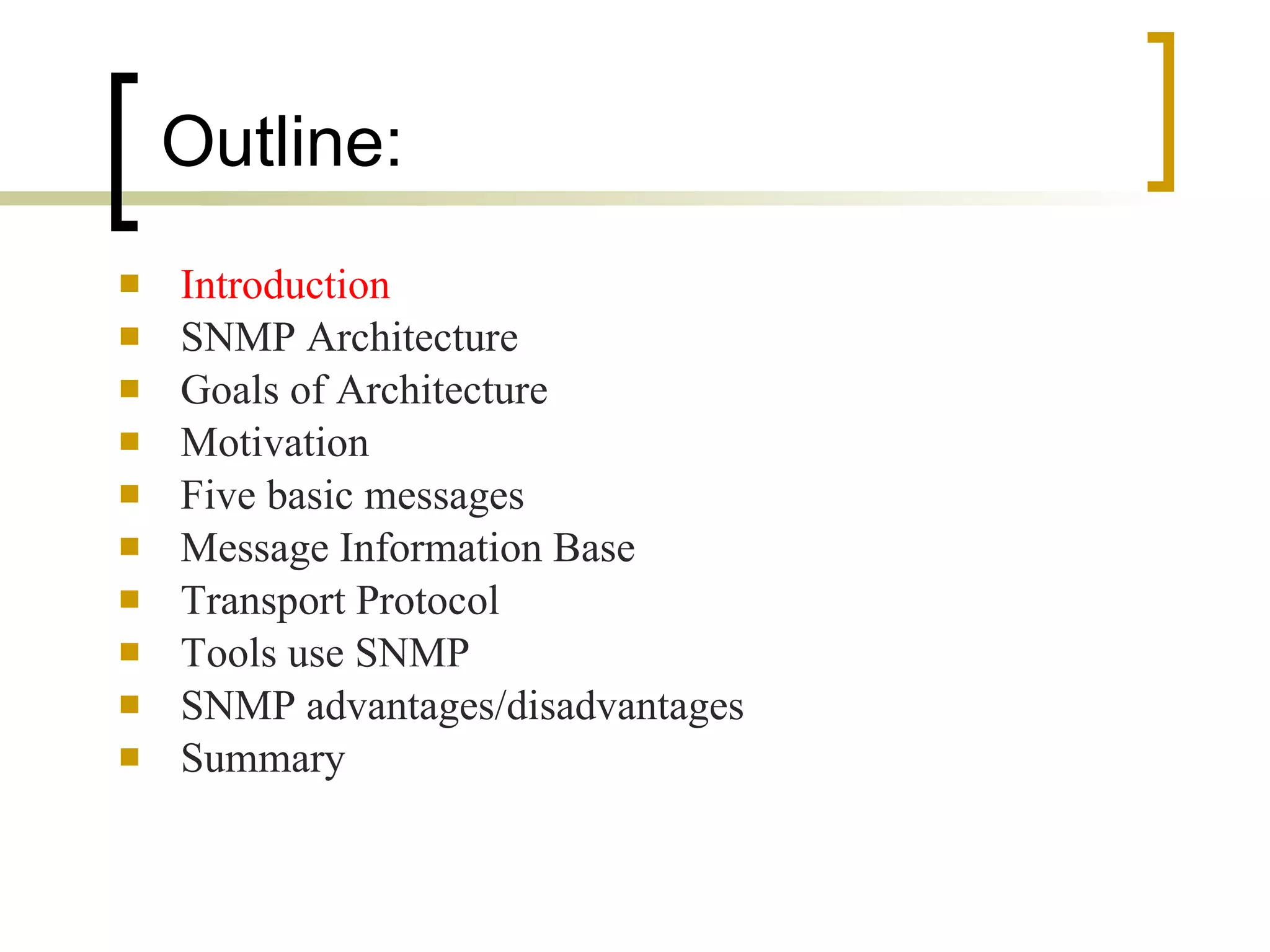

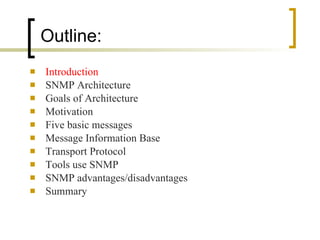

2. Introduction SNMP Architecture Goals of Architecture Motivation Five basic messages Message Information Base Transport Protocol Tools use SNMP SNMP advantages/disadvantages Summary Outline:

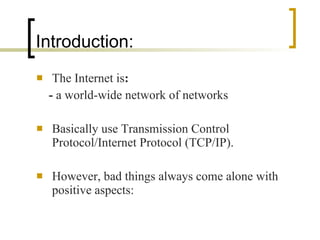

3. Introduction: The Internet is : - a world-wide network of networks Basically use Transmission Control Protocol/Internet Protocol (TCP/IP). However, bad things always come alone with positive aspects:

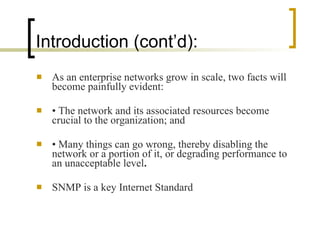

4. Introduction (cont’d): As an enterprise networks grow in scale, two facts will become painfully evident: • The network and its associated resources become crucial to the organization; and • Many things can go wrong, thereby disabling the network or a portion of it, or degrading performance to an unacceptable level . SNMP is a key Internet Standard

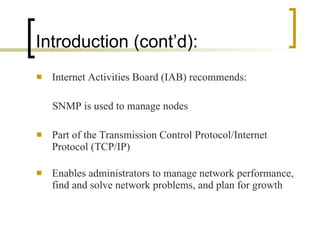

5. Introduction (cont’d): Internet Activities Board (IAB) recommends: SNMP is used to manage nodes Part of the Transmission Control Protocol/Internet Protocol (TCP/IP) Enables administrators to manage network performance, find and solve network problems, and plan for growth

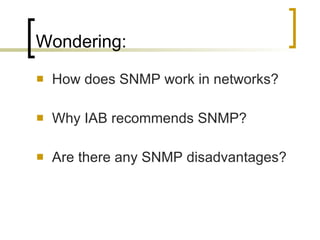

6. Wondering: How does SNMP work in networks? Why IAB recommends SNMP? Are there any SNMP disadvantages?

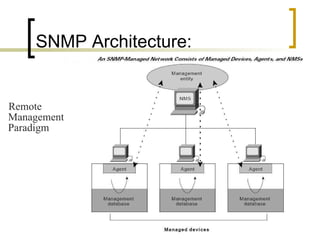

7. SNMP Architecture: Remote Management Paradigm

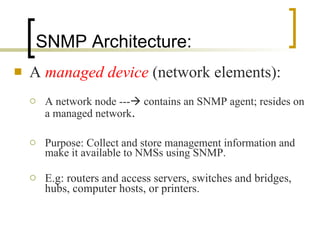

8. SNMP Architecture: A managed device (network elements): A network node ---  contains an SNMP agent; resides on a managed network . Purpose: Collect and store management information and make it available to NMSs using SNMP. E.g: routers and access servers, switches and bridges, hubs, computer hosts, or printers.

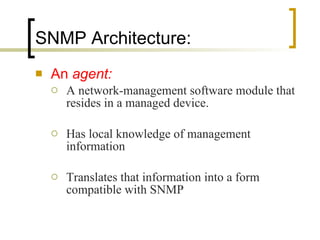

9. SNMP Architecture: An agent: A network-management software module that resides in a managed device. Has local knowledge of management information Translates that information into a form compatible with SNMP

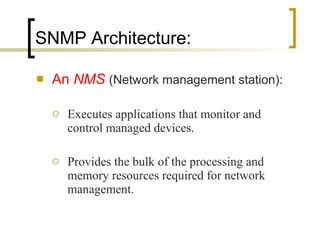

10. SNMP Architecture: An NMS (Network management station): Executes applications that monitor and control managed devices. Provides the bulk of the processing and memory resources required for network management.

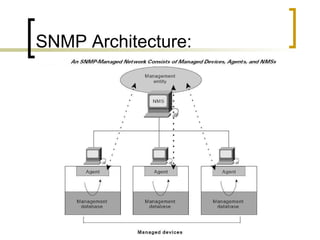

11. SNMP Architecture:

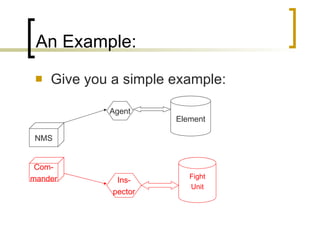

12. An Example: Give you a simple example: Com- mander NMS Agent Ins- pector Element Fight Unit

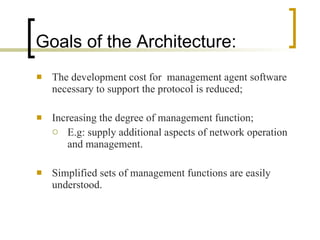

13. Goals of the Architecture: The development cost for management agent software necessary to support the protocol is reduced; Increasing the degree of management function; E.g: supply additional aspects of network operation and management. Simplified sets of management functions are easily understood.

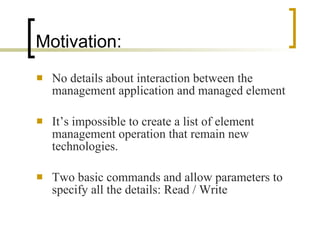

14. Motivation: No details about interaction between the management application and managed element It’s impossible to create a list of element management operation that remain new technologies. Two basic commands and allow parameters to specify all the details: Read / Write

15. In summary, Management information NMS Agents (In the network elements) How can a Message be exchanged? Motivation:

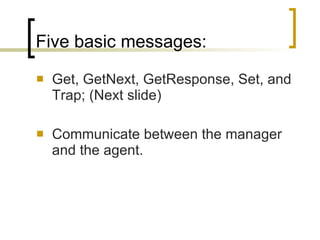

16. Five basic messages: Get, GetNext, GetResponse, Set, and Trap; (Next slide) Communicate between the manager and the agent.

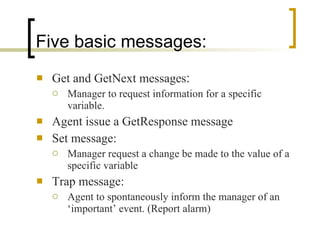

17. Five basic messages: Get and GetNext messages : Manager to request information for a specific variable. Agent issue a GetResponse message Set message: Manager request a change be made to the value of a specific variable Trap message: Agent to spontaneously inform the manager of an ‘important’ event. (Report alarm)

18. Five basic messages: Message flow: Massager Element Get packet Response packet Assemble Interested object Find the match information Assembled Sent

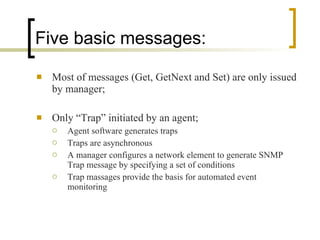

19. Five basic messages: Most of messages (Get, GetNext and Set) are only issued by manager; Only “Trap” initiated by an agent; Agent software generates traps Traps are asynchronous A manager configures a network element to generate SNMP Trap message by specifying a set of conditions Trap massages provide the basis for automated event monitoring

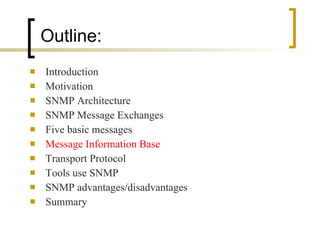

20. Introduction Motivation SNMP Architecture SNMP Message Exchanges Five basic messages Message Information Base Transport Protocol Tools use SNMP SNMP advantages/disadvantages Summary Outline:

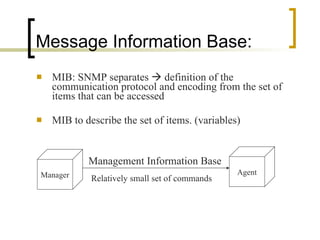

21. Message Information Base: MIB: SNMP separates  definition of the communication protocol and encoding from the set of items that can be accessed MIB to describe the set of items. (variables) Manager Agent Management Information Base Relatively small set of commands

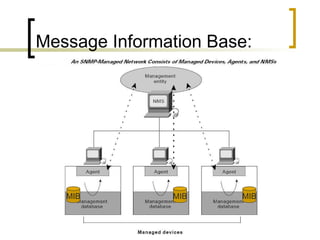

22. Message Information Base: MIB MIB MIB

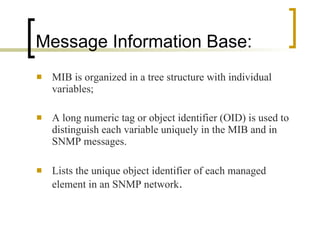

23. Message Information Base: MIB is organized in a tree structure with individual variables; A long numeric tag or object identifier (OID) is used to distinguish each variable uniquely in the MIB and in SNMP messages. Lists the unique object identifier of each managed element in an SNMP network .

24. Example of MIB variables MIB Variable Category Meaning ipDefaultTTL tcpMaxConn IP Routing table ip ip Value IP uses in time-to-live field ipRoutingTable tcp Maximum TCP connections allowed ipRoutingTable: Define contents of a routing table entry, allow network management protocols to reference the data for individual entries.

25. Message Information Base: All in all, MIB document define a name for each variable , in order to let variable can be managed Problem: Number of variables always getting lager, single MIB document could not collect all of them. Divide the MIB into multiple documents and can change independently. However, still may creating conflicts. Hierarchical namespace is being used.

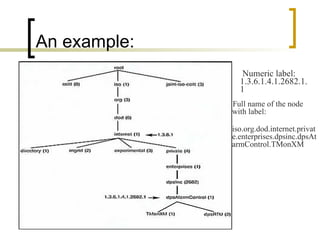

26. An example: Numeric label: 1.3.6.1.4.1.2682.1.1 Full name of the node with label: iso.org.dod.internet.private.enterprises.dpsinc.dpsAtarmControl.TMonXM

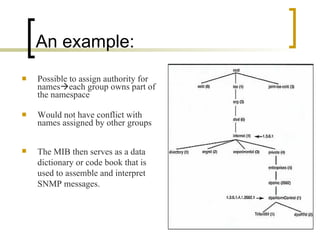

27. An example: Possible to assign authority for names  each group owns part of the namespace Would not have conflict with names assigned by other groups The MIB then serves as a data dictionary or code book that is used to assemble and interpret SNMP messages.

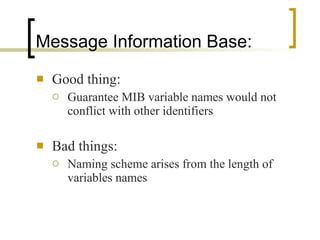

28. Message Information Base: Good thing: Guarantee MIB variable names would not conflict with other identifiers Bad things: Naming scheme arises from the length of variables names

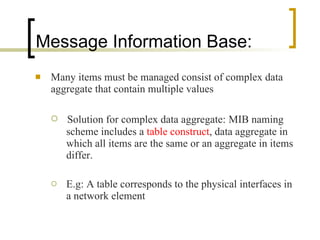

29. Message Information Base: Many items must be managed consist of complex data aggregate that contain multiple values Solution for complex data aggregate: MIB naming scheme includes a table construct , data aggregate in which all items are the same or an aggregate in items differ. E.g: A table corresponds to the physical interfaces in a network element

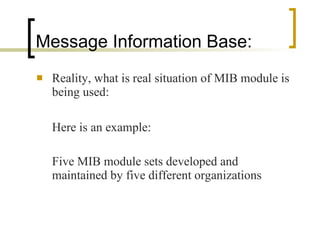

30. Message Information Base: Reality, what is real situation of MIB module is being used: Here is an example: Five MIB module sets developed and maintained by five different organizations

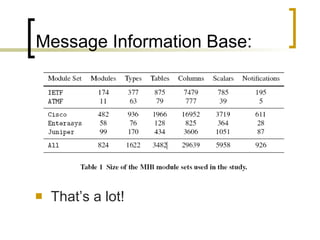

31. Message Information Base: That’s a lot!

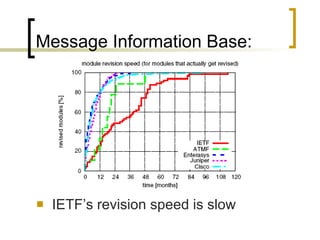

32. Message Information Base: IETF’s revision speed is slow

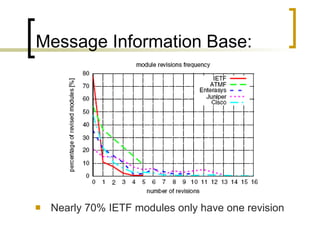

33. Message Information Base: Nearly 70% IETF modules only have one revision

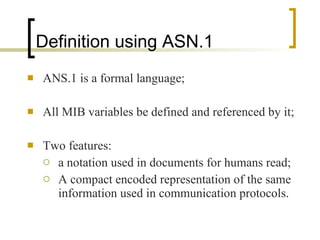

34. Definition using ASN.1 ANS.1 is a formal language; All MIB variables be defined and referenced by it; Two features: a notation used in documents for humans read; A compact encoded representation of the same information used in communication protocols.

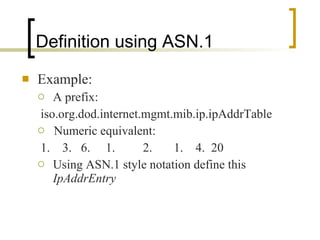

35. Definition using ASN.1 Example: A prefix: iso.org.dod.internet.mgmt.mib.ip.ipAddrTable Numeric equivalent: 1. 3. 6. 1. 2. 1. 4. 20 Using ASN.1 style notation define this IpAddrEntry

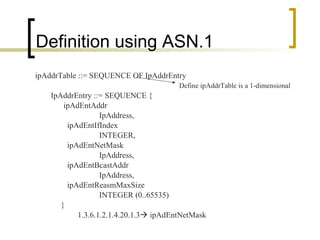

36. Definition using ASN.1 ipAddrTable ::= SEQUENCE OF IpAddrEntry IpAddrEntry ::= SEQUENCE { ipAdEntAddr IpAddress, ipAdEntIfIndex INTEGER, ipAdEntNetMask IpAddress, ipAdEntBcastAddr IpAddress, ipAdEntReasmMaxSize INTEGER (0..65535) } 1.3.6.1.2.1.4.20.1.3  ipAdEntNetMask Define ipAddrTable is a 1-dimensional

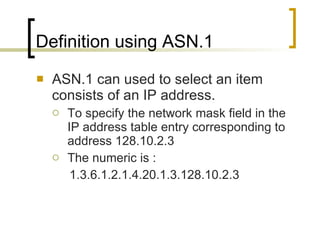

37. Definition using ASN.1 ASN.1 can used to select an item consists of an IP address. To specify the network mask field in the IP address table entry corresponding to address 128.10.2.3 The numeric is : 1.3.6.1.2.1.4.20.1.3.128.10.2.3

38. Introduction Motivation SNMP Architecture SNMP Message Exchanges Five basic messages Message Information Base Transport Protocol Tools use SNMP SNMP advantages/disadvantages Summary Outline:

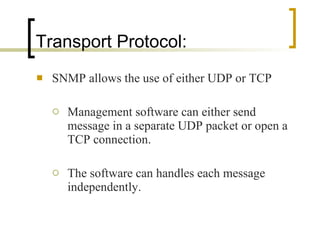

39. Transport Protocol: SNMP allows the use of either UDP or TCP Management software can either send message in a separate UDP packet or open a TCP connection. The software can handles each message independently.

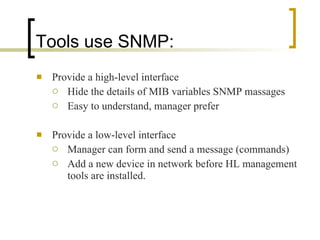

40. Tools use SNMP: Provide a high-level interface Hide the details of MIB variables SNMP massages Easy to understand, manager prefer Provide a low-level interface Manager can form and send a message (commands) Add a new device in network before HL management tools are installed.

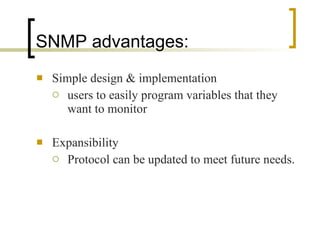

41. SNMP advantages: Simple design & implementation users to easily program variables that they want to monitor Expansibility Protocol can be updated to meet future needs.

42. SNMP Disadvantages: Security gaps Intruders access to the information carried along the network SNMP version 2 has fixed some security issues Not a particularly efficient protocol Bandwidth is wasted with needless information E.g:SNMP version multiple length

43. Summary ： Give you a simple example: Com- mander NMS Agent Ins- pector Element Fight Unit GPS MIB Five basic messages Commands Follow messages Return

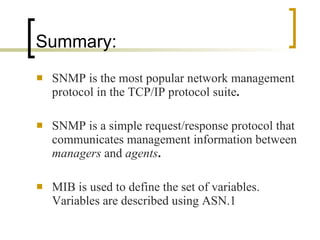

44. Summary: SNMP is the most popular network management protocol in the TCP/IP protocol suite . SNMP is a simple request/response protocol that communicates management information between managers and agents . MIB is used to define the set of variables. Variables are described using ASN.1

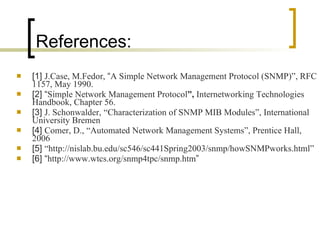

45. References: [1] J.Case, M.Fedor, “ A Simple Network Management Protocol (SNMP)”, RFC 1157, May 1990. [2] “ Simple Network Management Protocol ”, Internetworking Technologies Handbook, Chapter 56. [3] J. Schonwalder, “Characterization of SNMP MIB Modules”, International University Bremen [4] Comer, D., “Automated Network Management Systems”, Prentice Hall, 2006 [5] “http://nislab.bu.edu/sc546/sc441Spring2003/snmp/howSNMPworks.html” [6] “ http://www.wtcs.org/snmp4tpc/snmp.htm ”

46. Thank you ! Any Comments? The End

47. Update, Messages, Atomicity SNMP guarantees that either all Set commands in a given message must succeed or none of them should be performed. E.g: Management software sends Set requests to multiple elements: succeed or fail

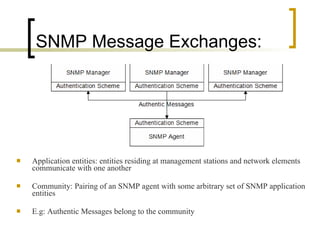

48. SNMP Message Exchanges: Application entities: entities residing at management stations and network elements communicate with one another Community: Pairing of an SNMP agent with some arbitrary set of SNMP application entities E.g: Authentic Messages belong to the community

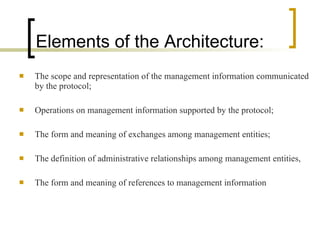

49. Elements of the Architecture: The scope and representation of the management information communicated by the protocol; Operations on management information supported by the protocol; The form and meaning of exchanges among management entities; The definition of administrative relationships among management entities, The form and meaning of references to management information

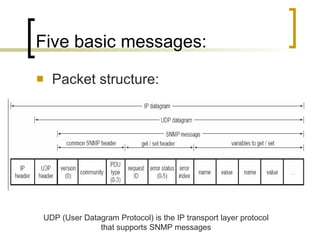

50. Five basic messages: Packet structure: UDP (User Datagram Protocol) is the IP transport layer protocol that supports SNMP messages
