Perforce integration in a AAA game engine
The Strength of the C++ API
Marc Desfossés
Lead Tools Programmer
Jean-Sébastien Pelletier
Technical Lead
Perforce integration in a AAA game engine
Ubisoft Entertainment

2. 2
Introduction
The organized chaos of the game industry

3. 3

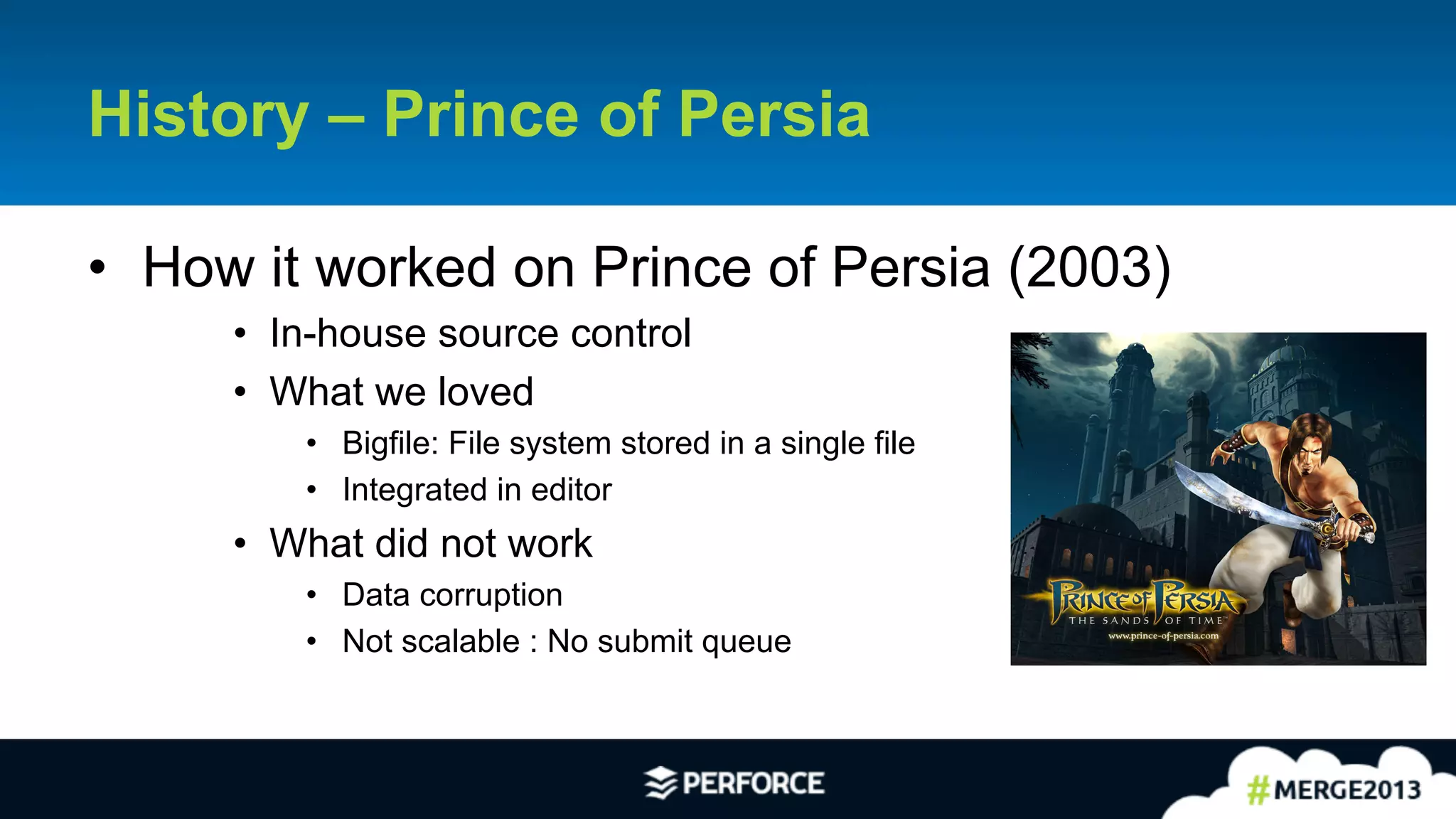

History – Prince of Persia
• How it worked on Prince of Persia (2003)
• In-house source control
• What we loved
• Bigfile: File system stored in a single file
• Integrated in editor
• What did not work
• Data corruption
• Not scalable : No submit queue

4. 4
History – Starting from scratch
Foundations of a new engine (2004)
• Full Perforce Integration
• Keep Bigfile’s concepts
• AAA game title
• Big teams
• Lots of assets

5. 5

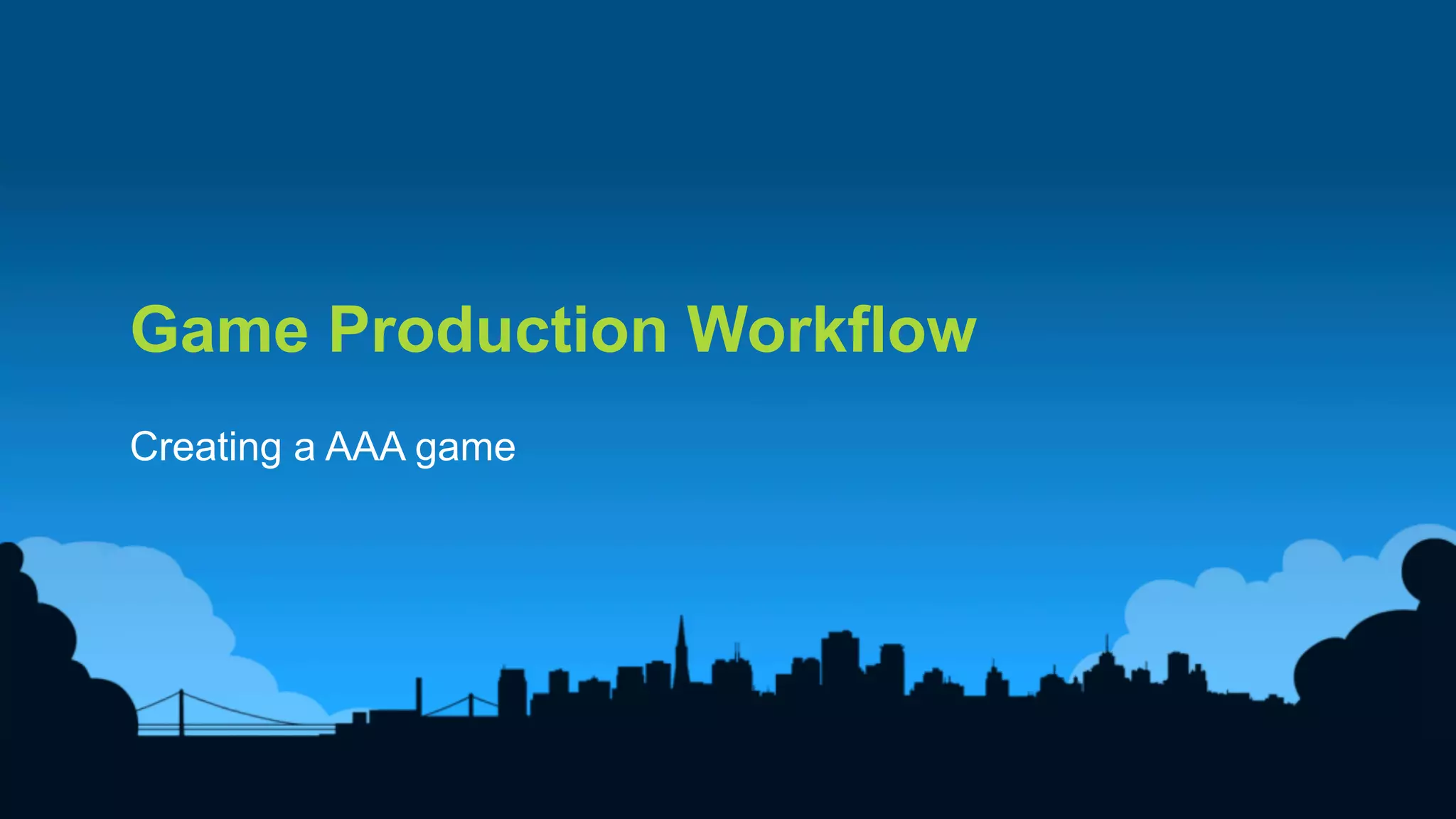

Game Production Workflow
Creating a AAA game

6. 6

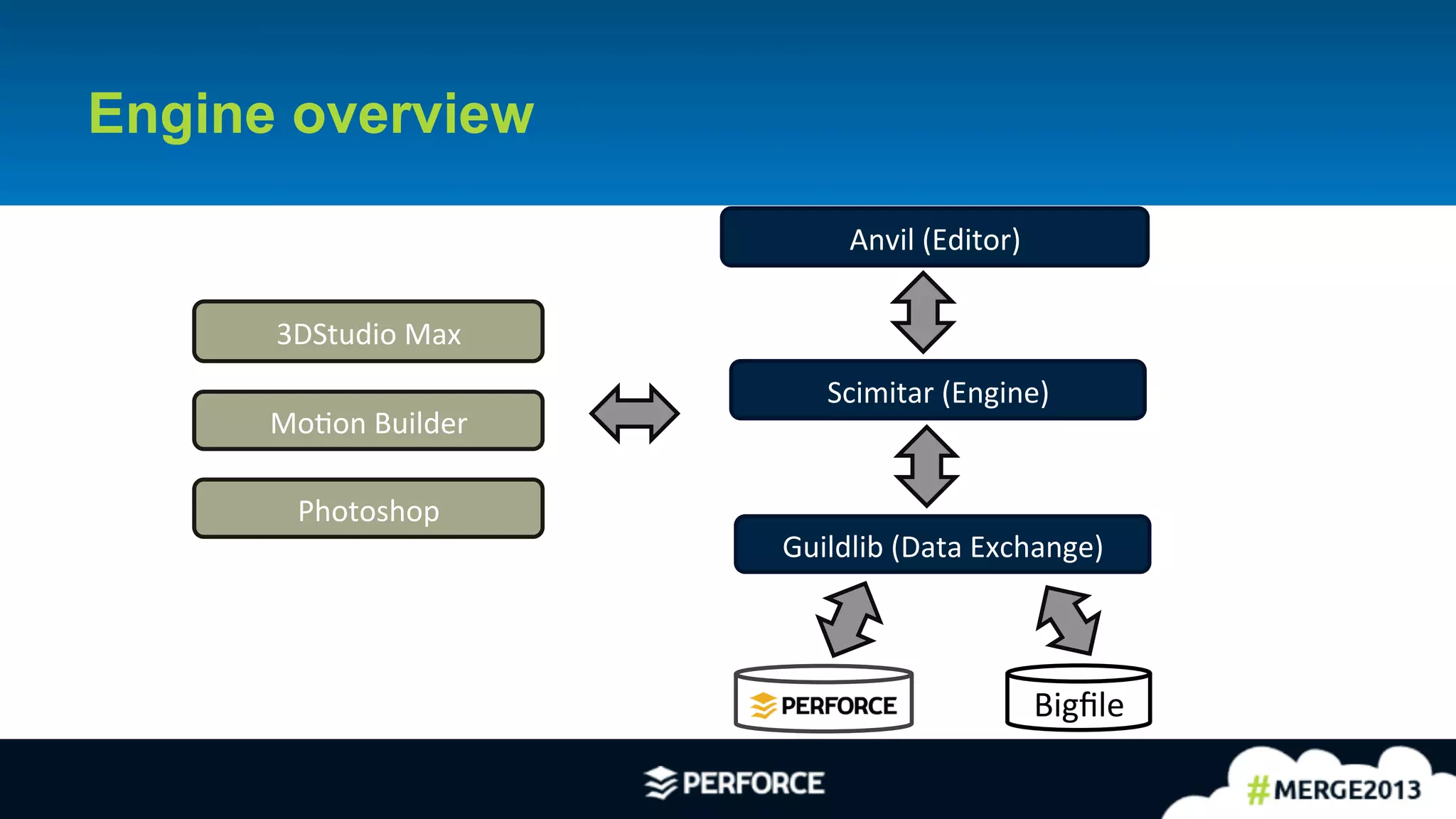

Engine overview
Guildlib
(Data
Exchange)
Scimitar
(Engine)
Anvil
(Editor)
3DStudio
Max
MoAon
Builder
P4
Photoshop
Bigfile

7. 7

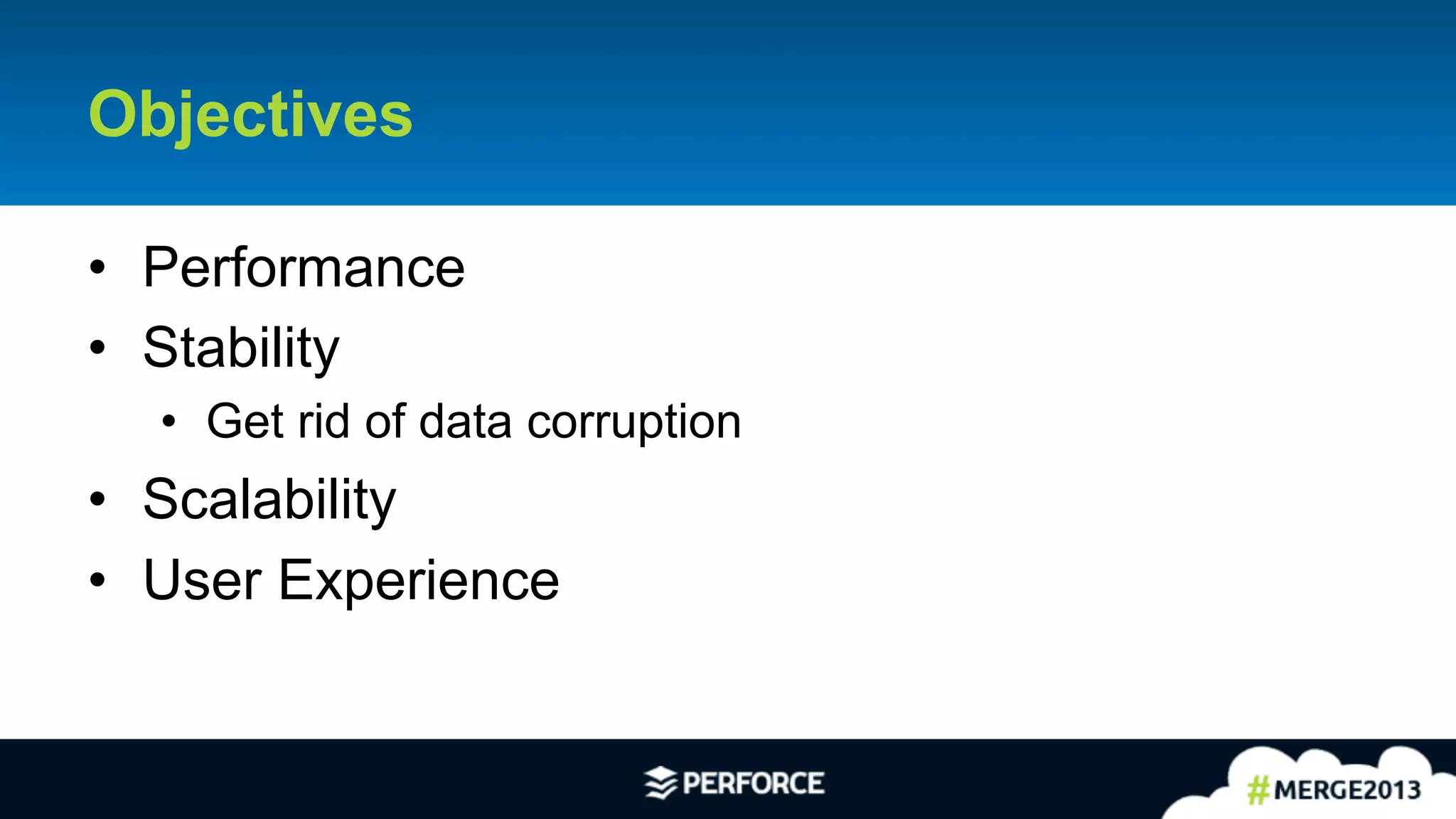

Objectives
• Performance
• Stability
• Get rid of data corruption
• Scalability
• User Experience

8. 8

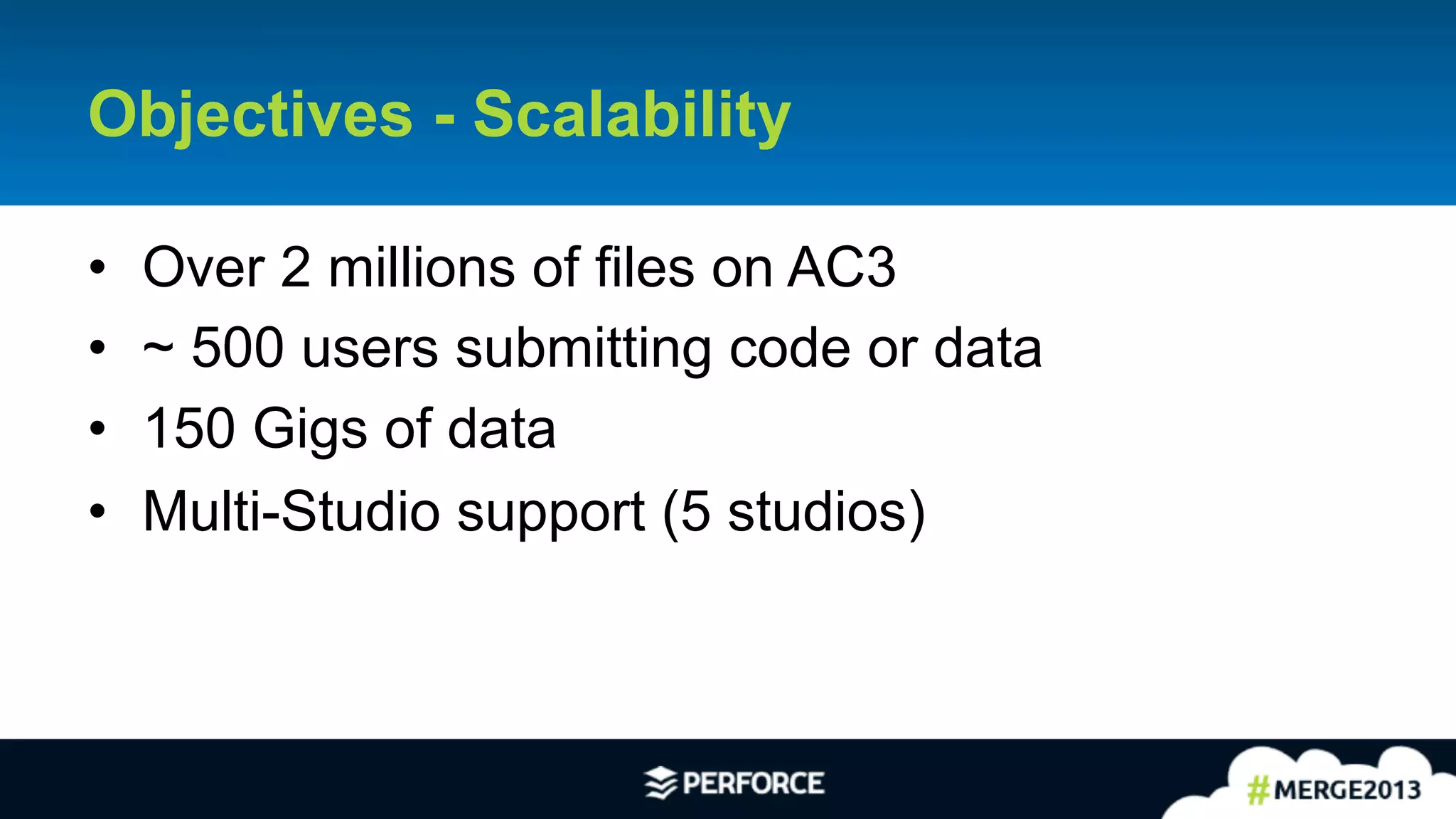

Objectives - Scalability
• Over 2 millions of files on AC3
• ~ 500 users submitting code or data
• 150 Gigs of data
• Multi-Studio support (5 studios)

9. 9

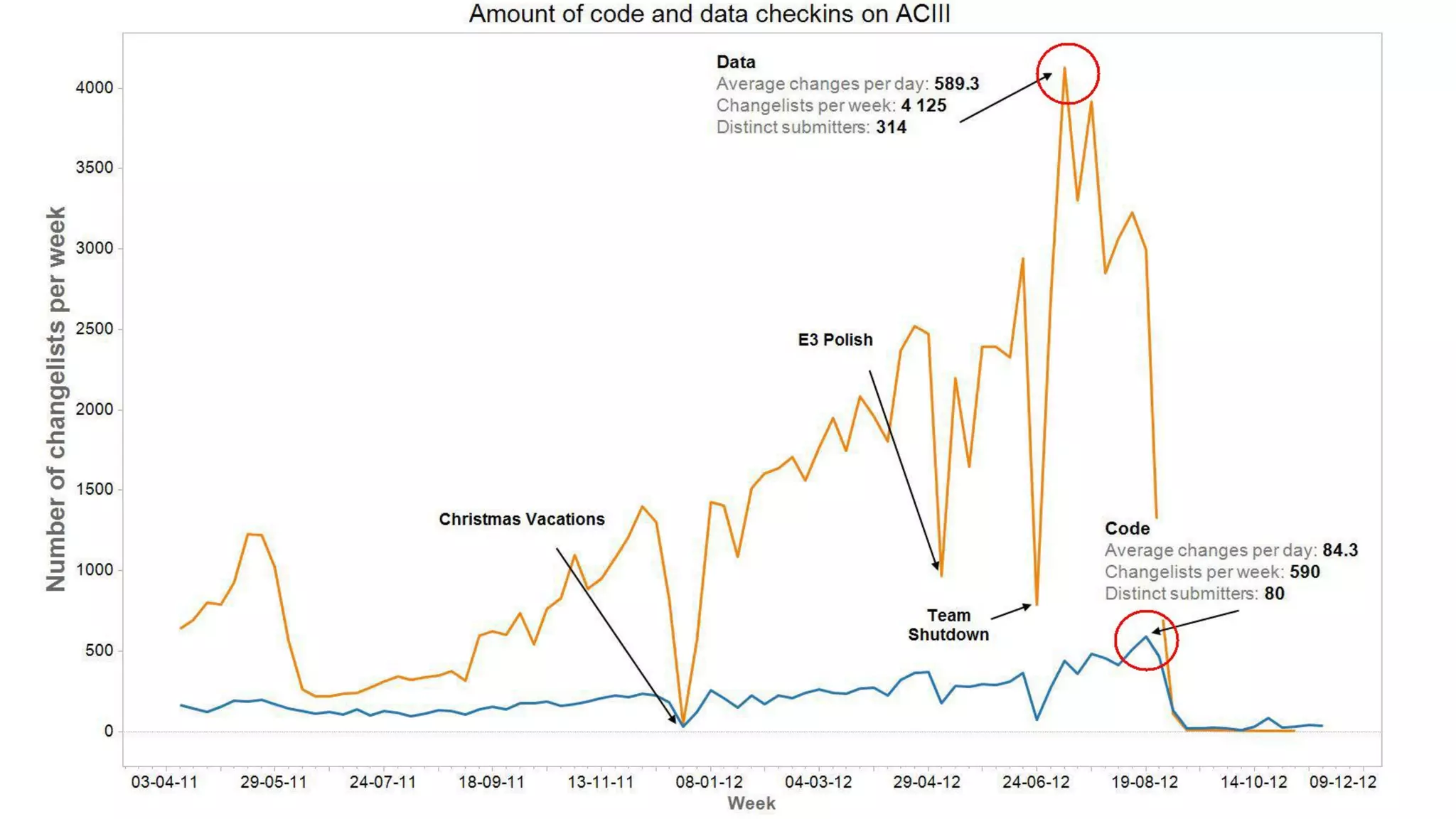

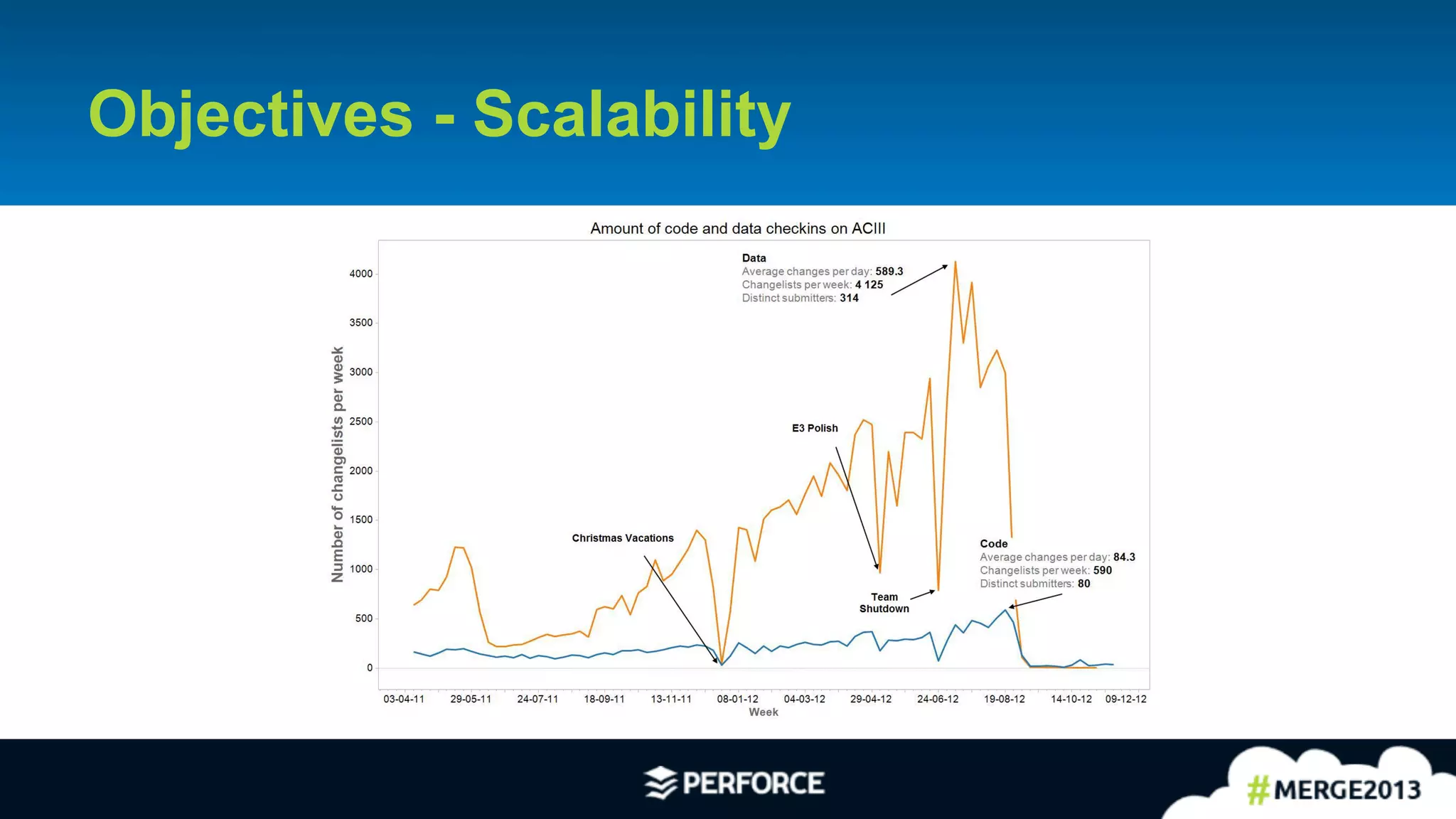

Objectives - Scalability

11. 11

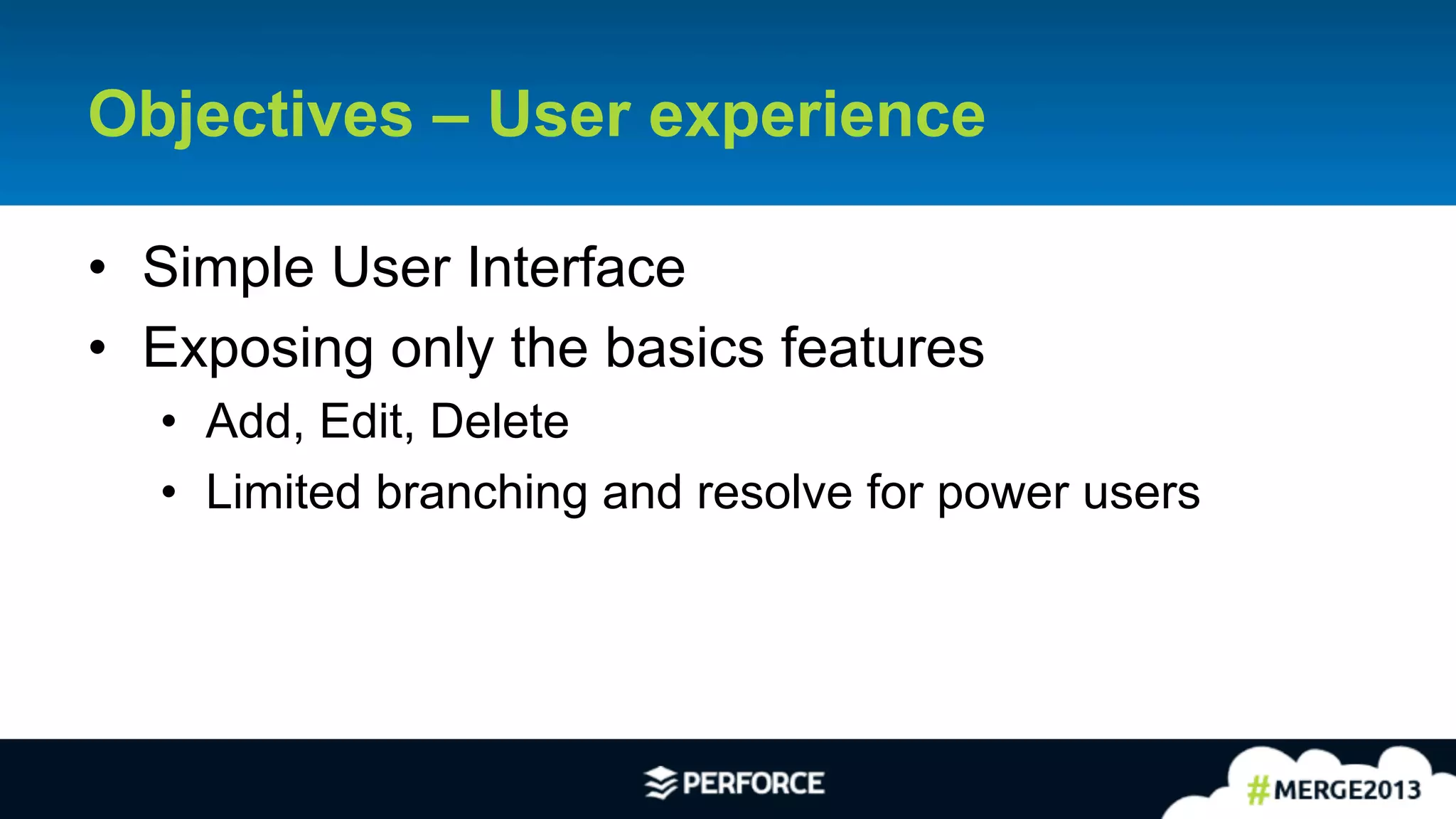

Objectives – User experience
• Simple User Interface
• Exposing only the basics features
• Add, Edit, Delete
• Limited branching and resolve for power users

12. 12
User Experience - Custom dialogs
Anvil
Editor

13. 13

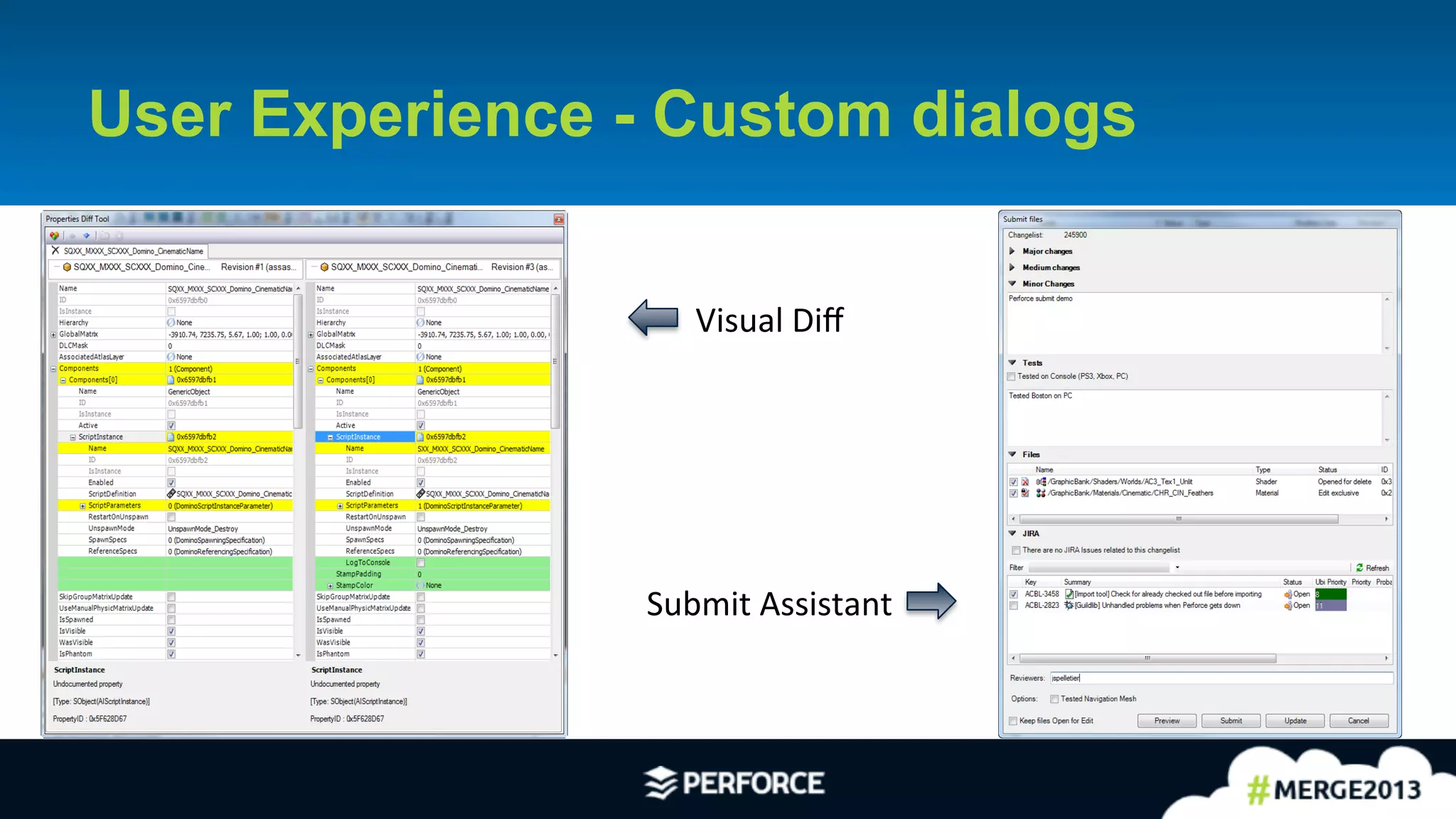

User Experience - Custom dialogs
Visual
Diff
Submit
Assistant

14. 14
Architecture
Leveraging the C++ API

15. 15

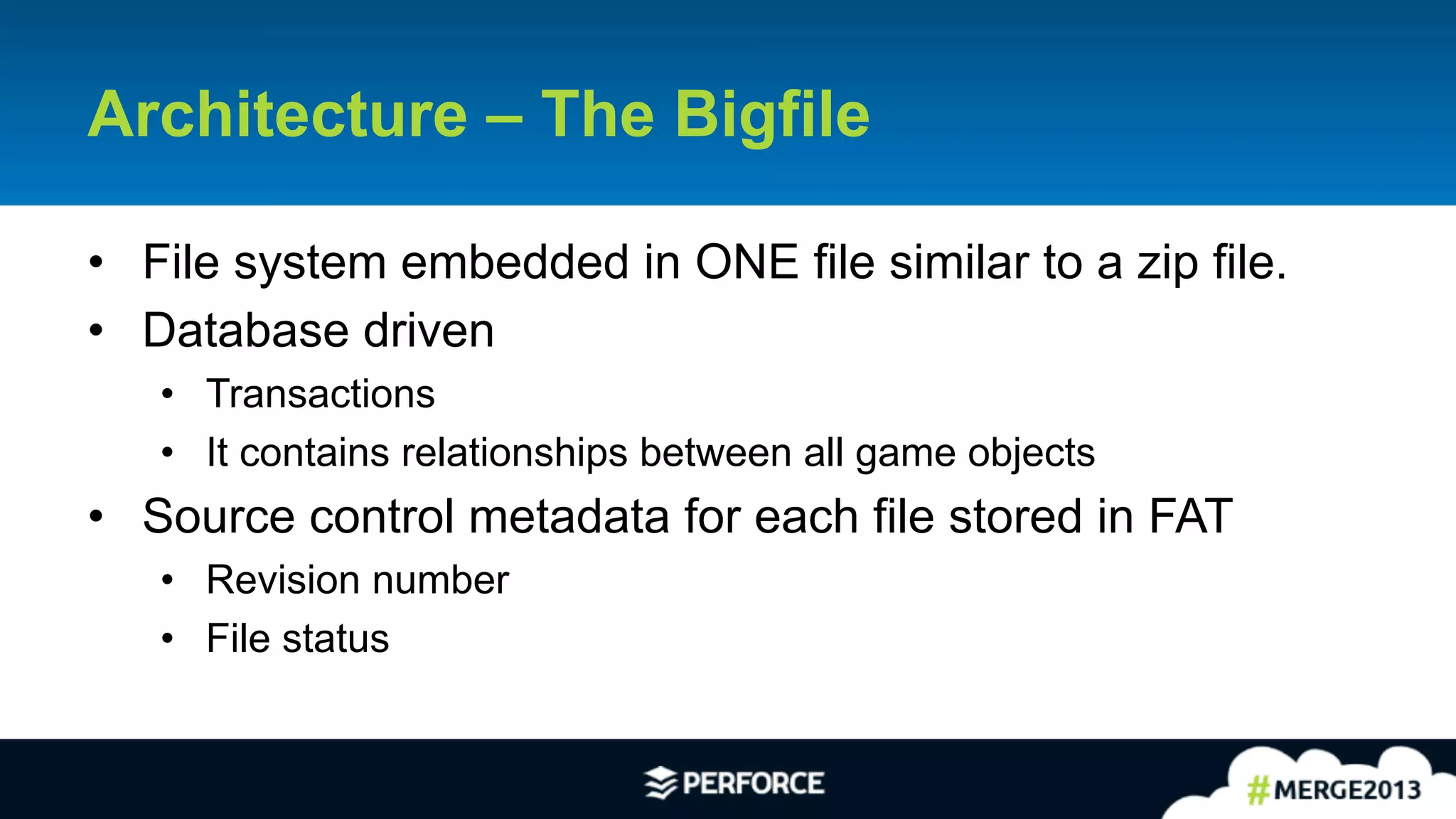

Architecture – The Bigfile
• File system embedded in ONE file similar to a zip file.
• Database driven
• Transactions
• It contains relationships between all game objects
• Source control metadata for each file stored in FAT
• Revision number
• File status

16. 16

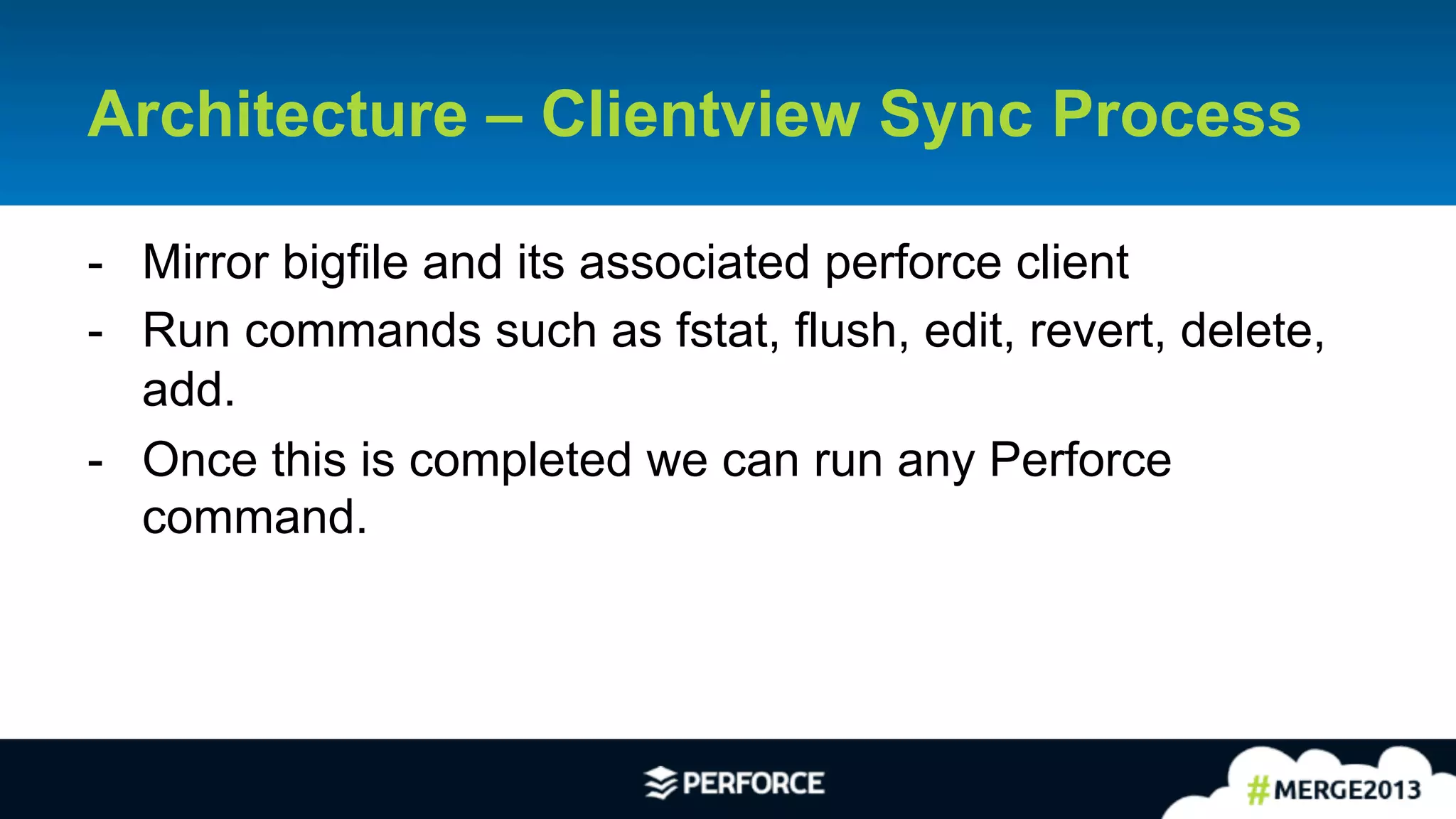

Architecture – Clientview Sync Process
- Mirror bigfile and its associated perforce client
- Run commands such as fstat, flush, edit, revert, delete,
add.
- Once this is completed we can run any Perforce
command.

17. 17

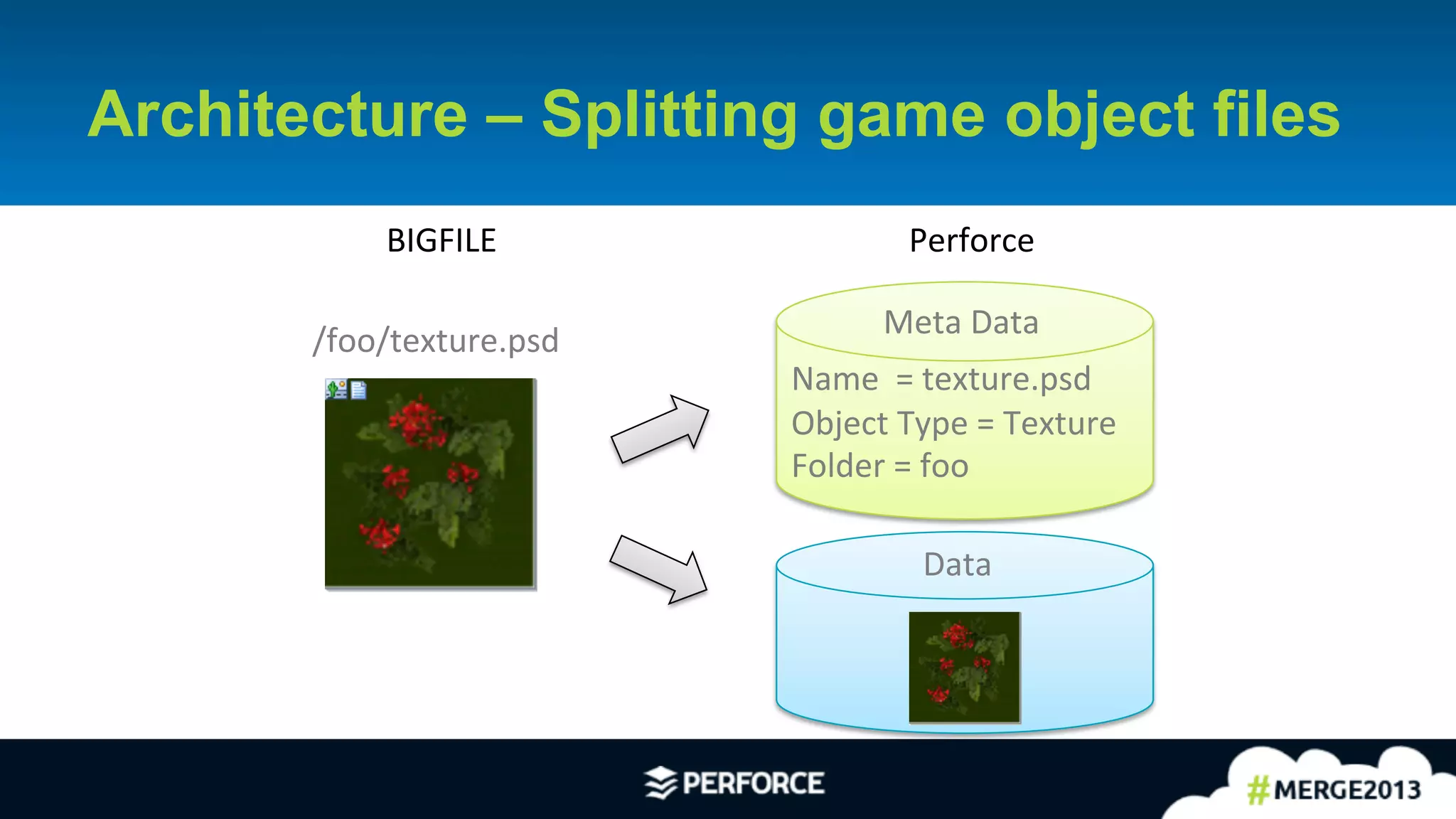

Architecture – Splitting game object files
Name
=
texture.psd
Object
Type
=
Texture
Folder
=
foo
Meta
Data
Data
/foo/texture.psd
BIGFILE
Perforce

18. 18

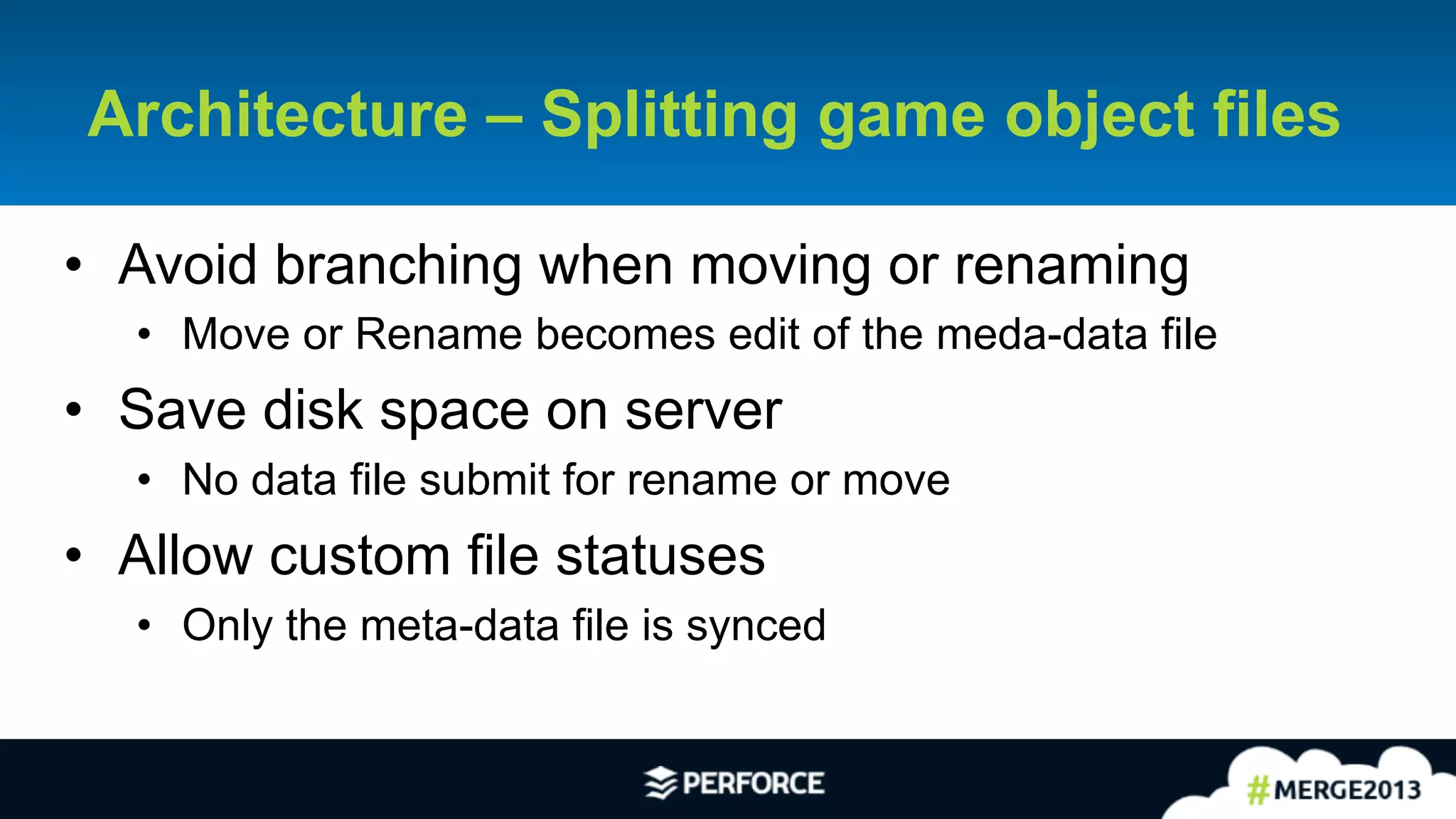

Architecture – Splitting game object files
• Avoid branching when moving or renaming
• Move or Rename becomes edit of the meda-data file
• Save disk space on server
• No data file submit for rename or move
• Allow custom file statuses
• Only the meta-data file is synced

19. 19

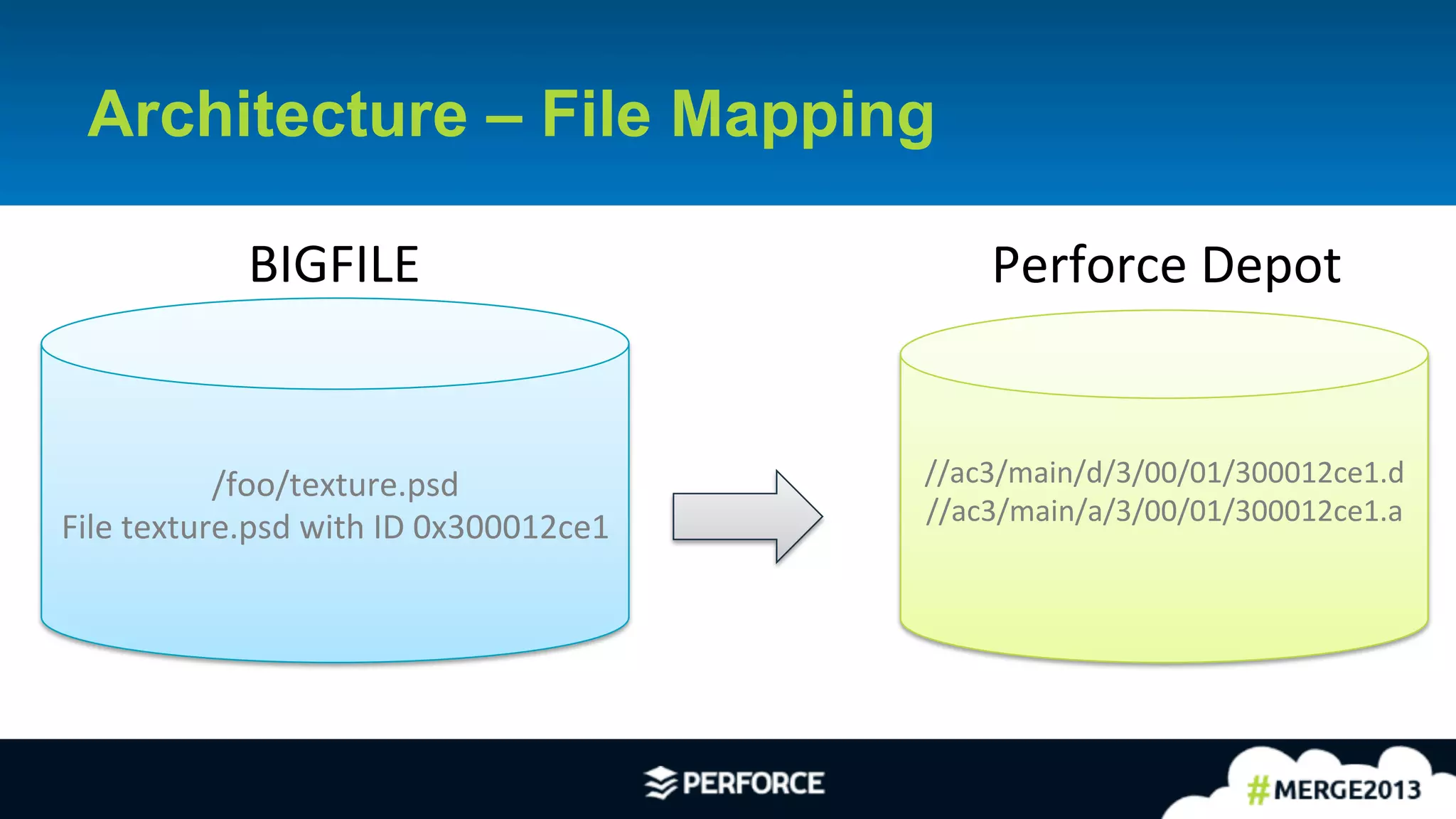

Architecture – File Mapping
//ac3/main/d/3/00/01/300012ce1.d
//ac3/main/a/3/00/01/300012ce1.a
/foo/texture.psd
File
texture.psd
with
ID
0x300012ce1
Perforce
Depot
BIGFILE

20. 20

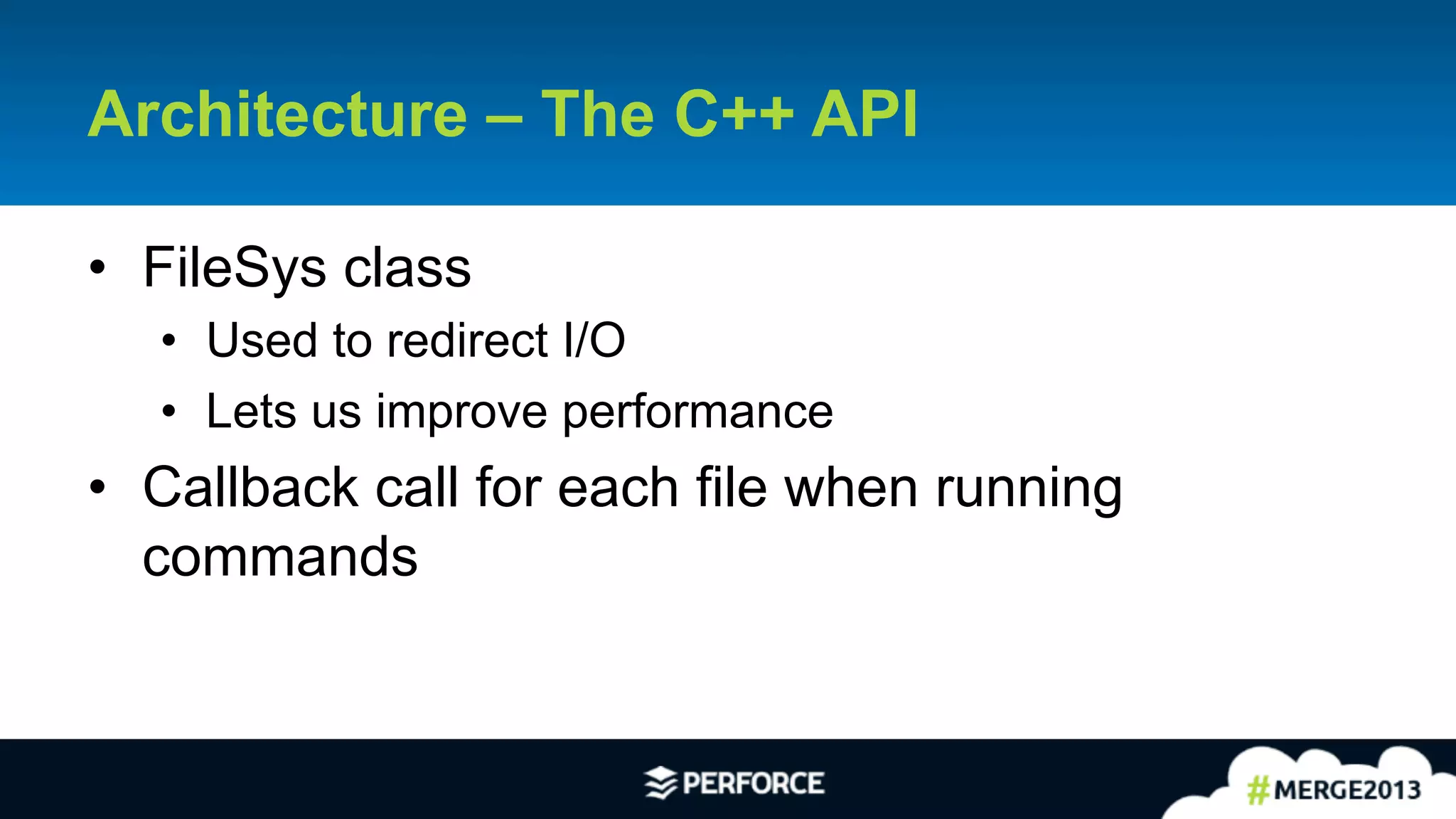

• FileSys class
• Used to redirect I/O
• Lets us improve performance
• Callback call for each file when running
commands
Architecture – The C++ API

21. 21

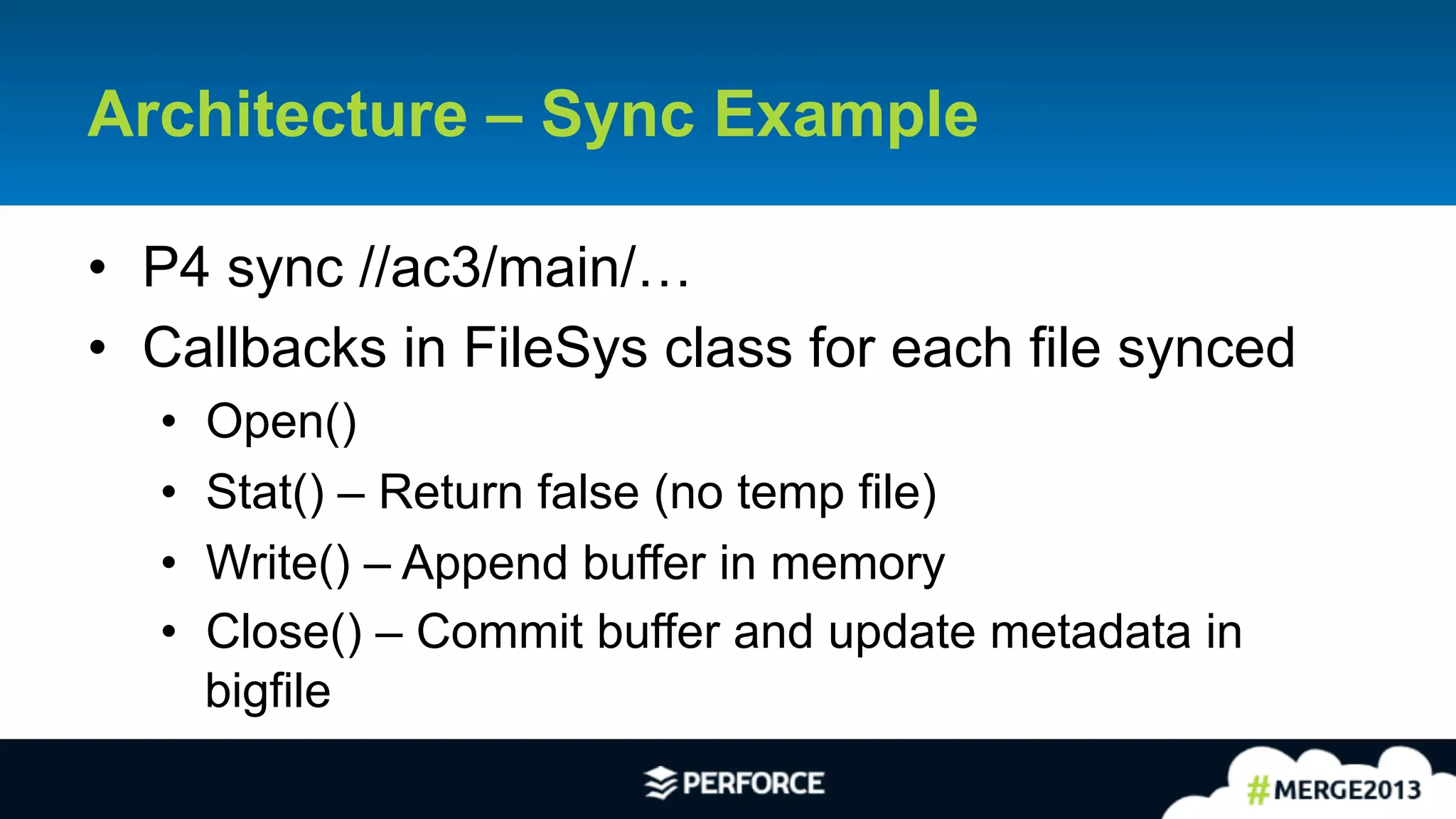

• P4 sync //ac3/main/…
• Callbacks in FileSys class for each file synced
• Open()
• Stat() – Return false (no temp file)
• Write() – Append buffer in memory
• Close() – Commit buffer and update metadata in
bigfile
Architecture – Sync Example

22. 22

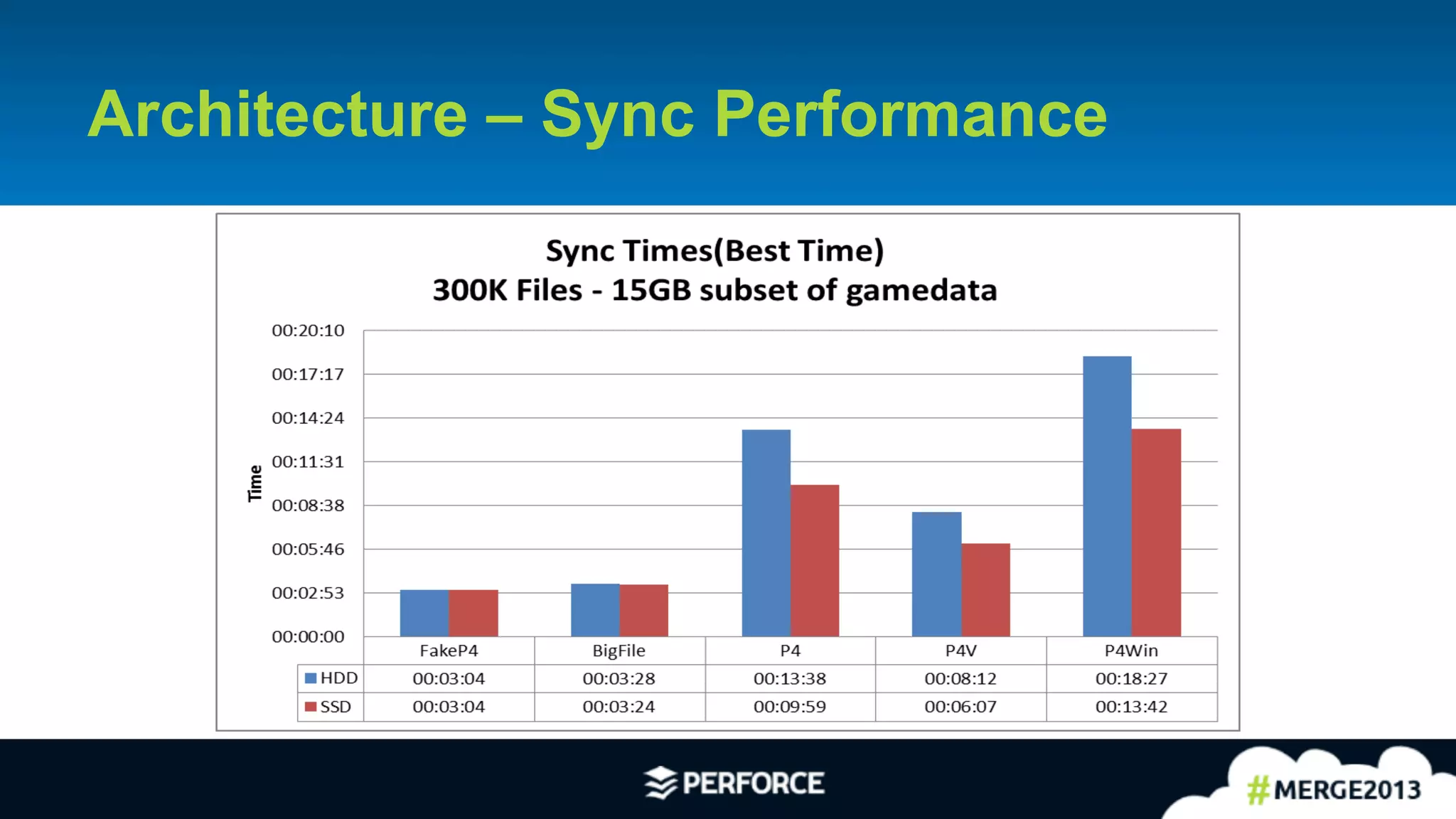

Architecture – Sync Performance

23. 23

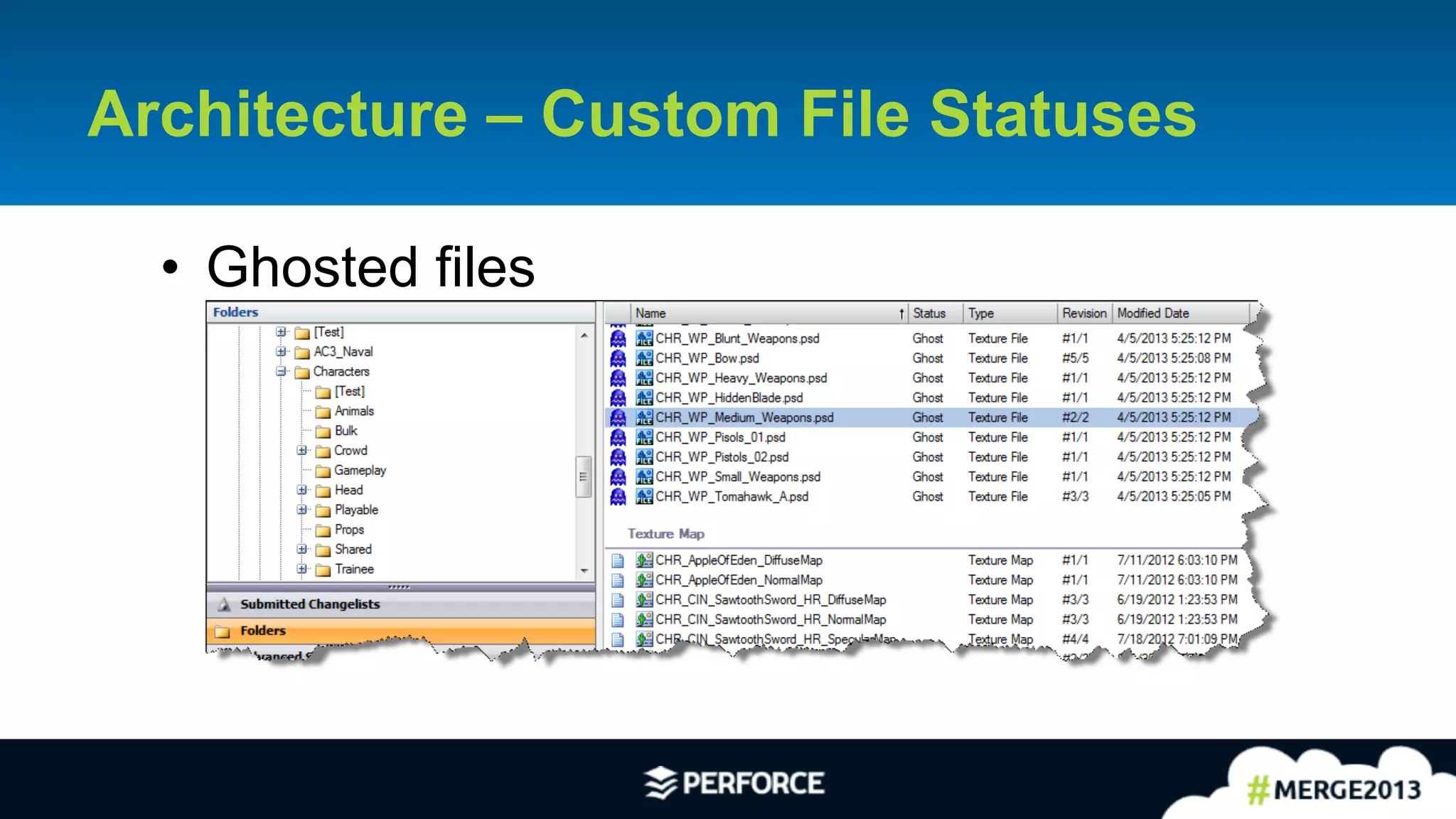

Architecture – Custom File Statuses
• Ghosted files

24. 24

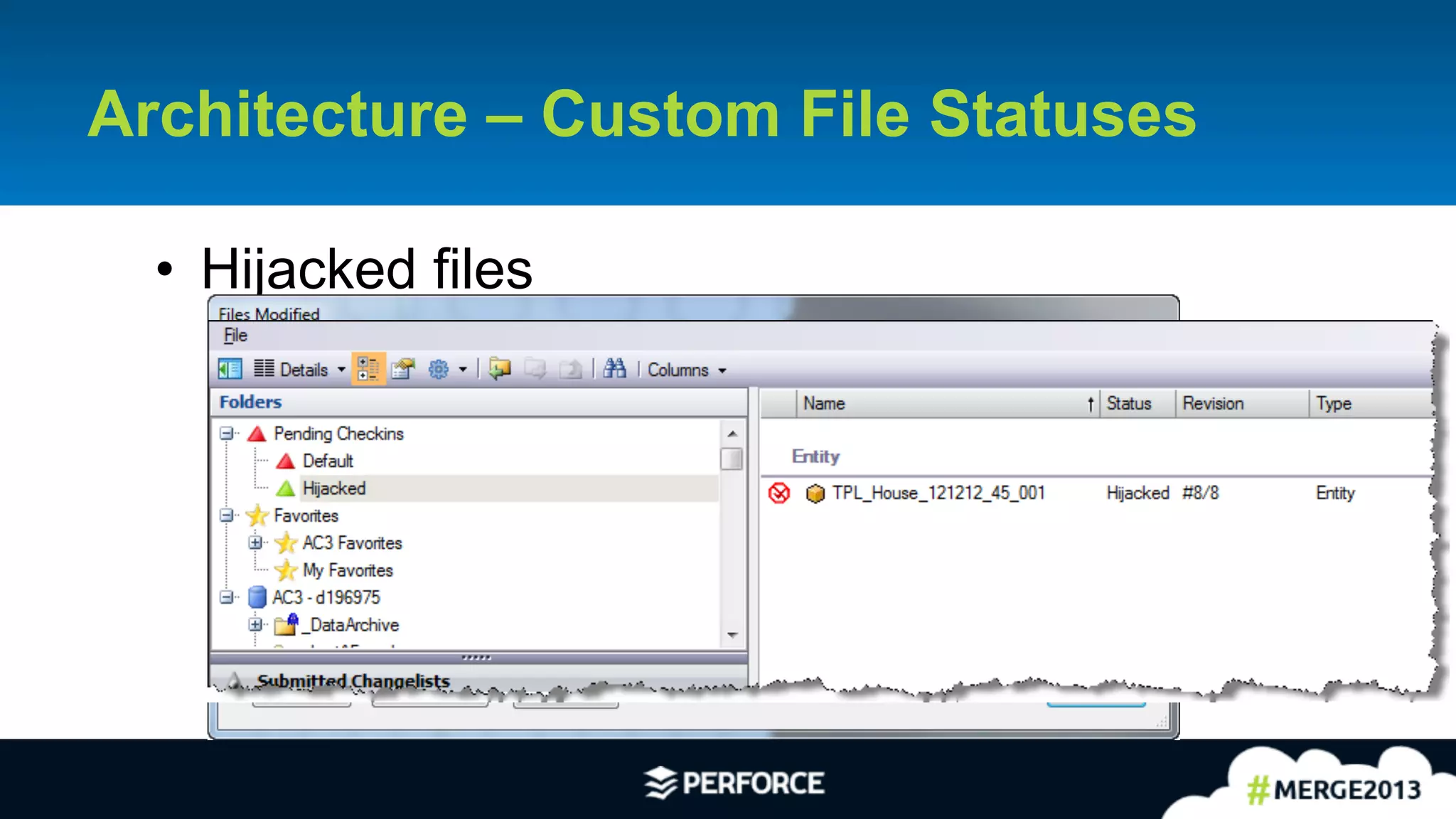

Architecture – Custom File Statuses
• Hijacked files
• Clobbered files that can be reverted
• Skipped during sync
• Contained in a special changelist

25. 25

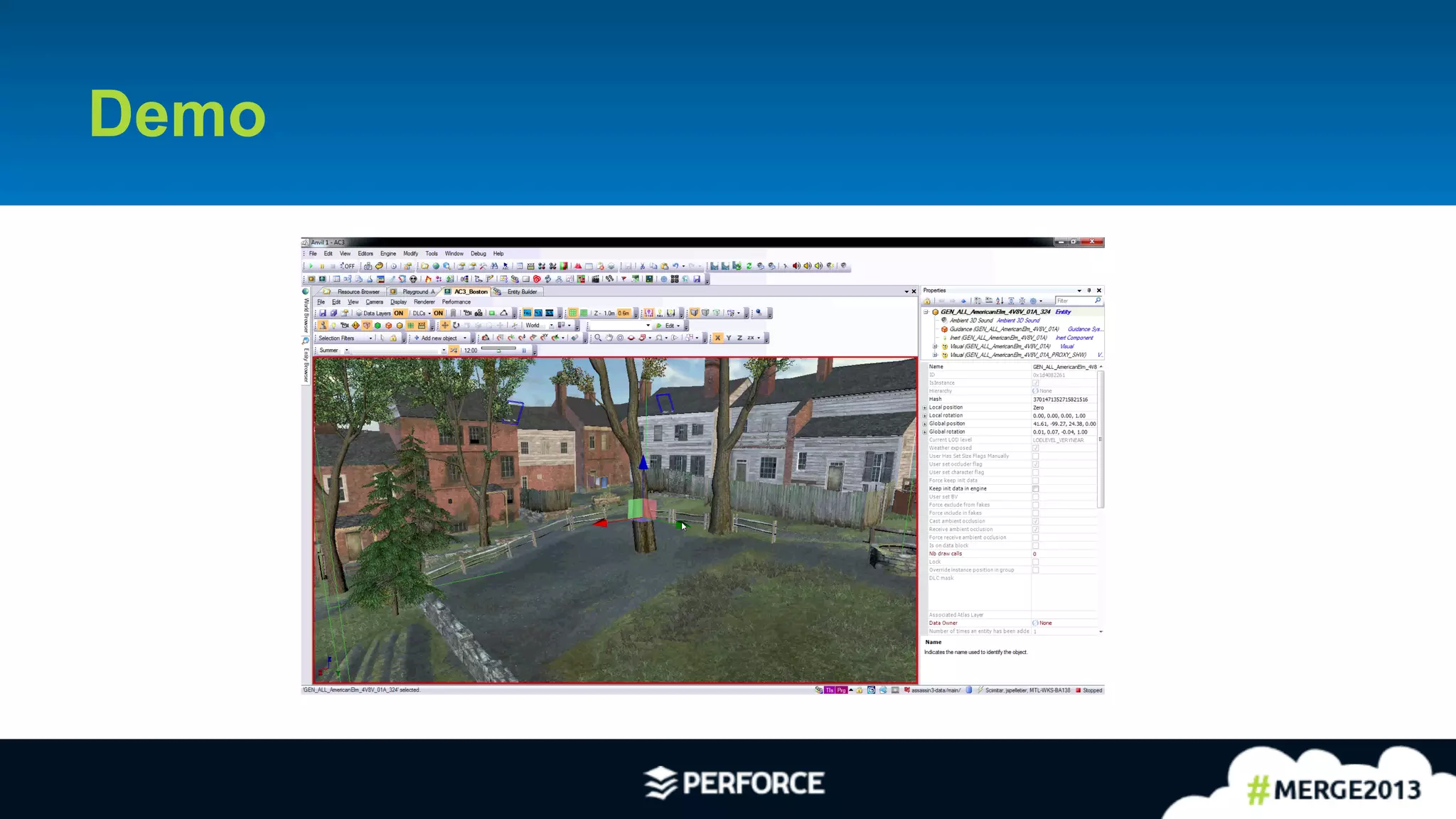

Demo

26. 26
Benefits vs Costs
Is it really worth it ?

27. 27

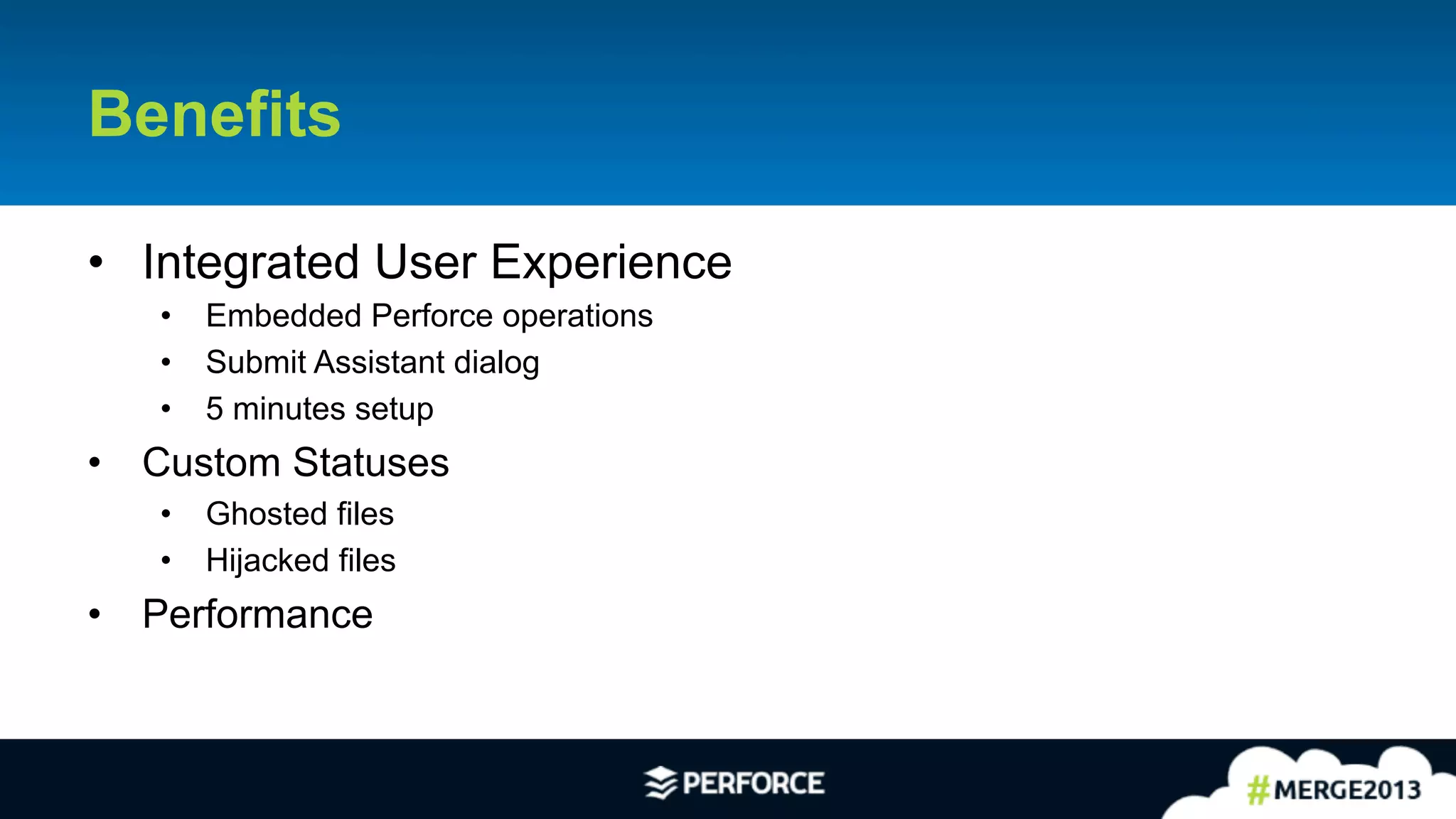

Benefits
• Integrated User Experience
• Embedded Perforce operations
• Submit Assistant dialog
• 5 minutes setup
• Custom Statuses
• Ghosted files
• Hijacked files
• Performance

28. 28

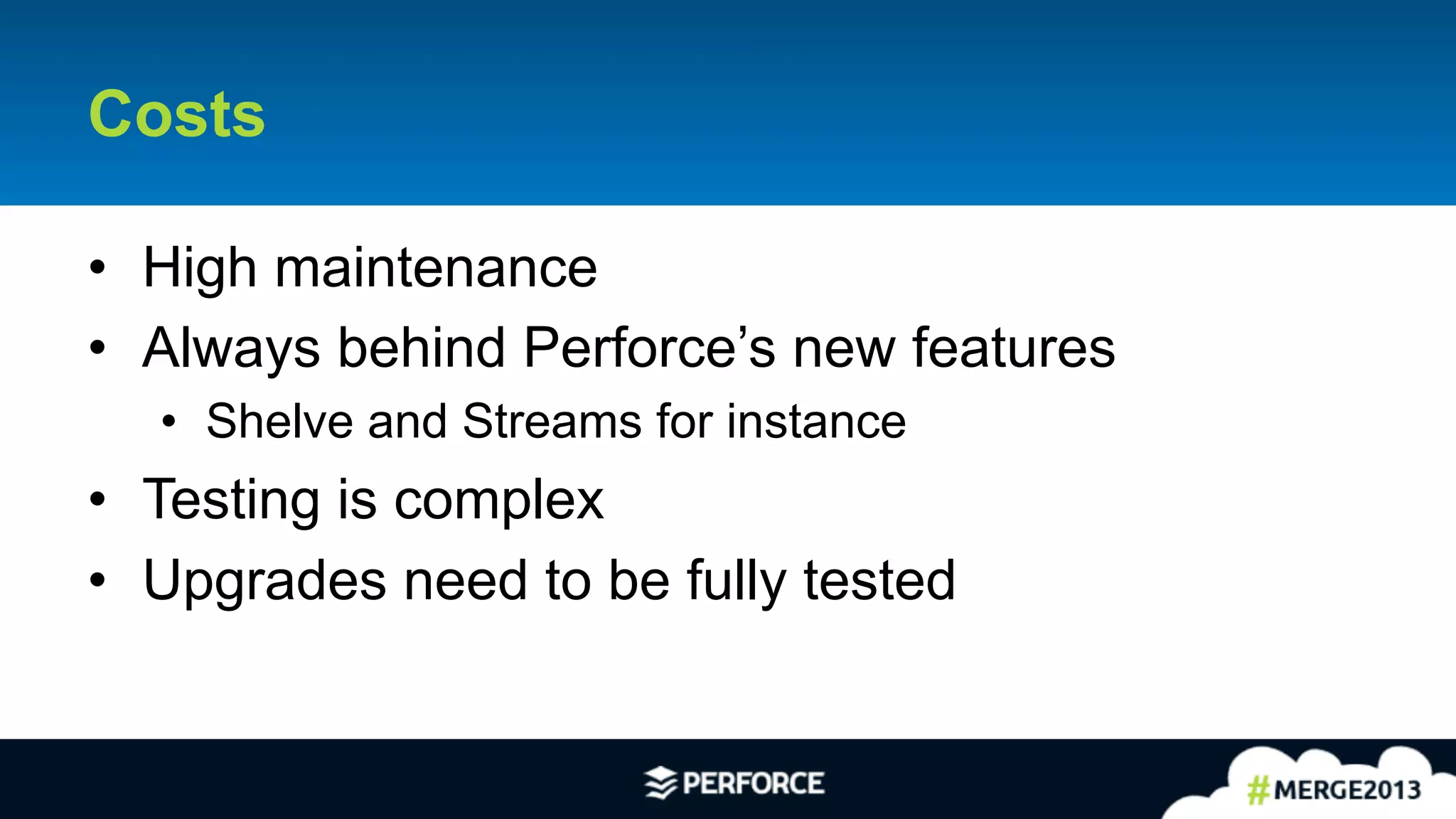

Costs
• High maintenance
• Always behind Perforce’s new features
• Shelve and Streams for instance
• Testing is complex
• Upgrades need to be fully tested

29. 29
Final words

30. 30

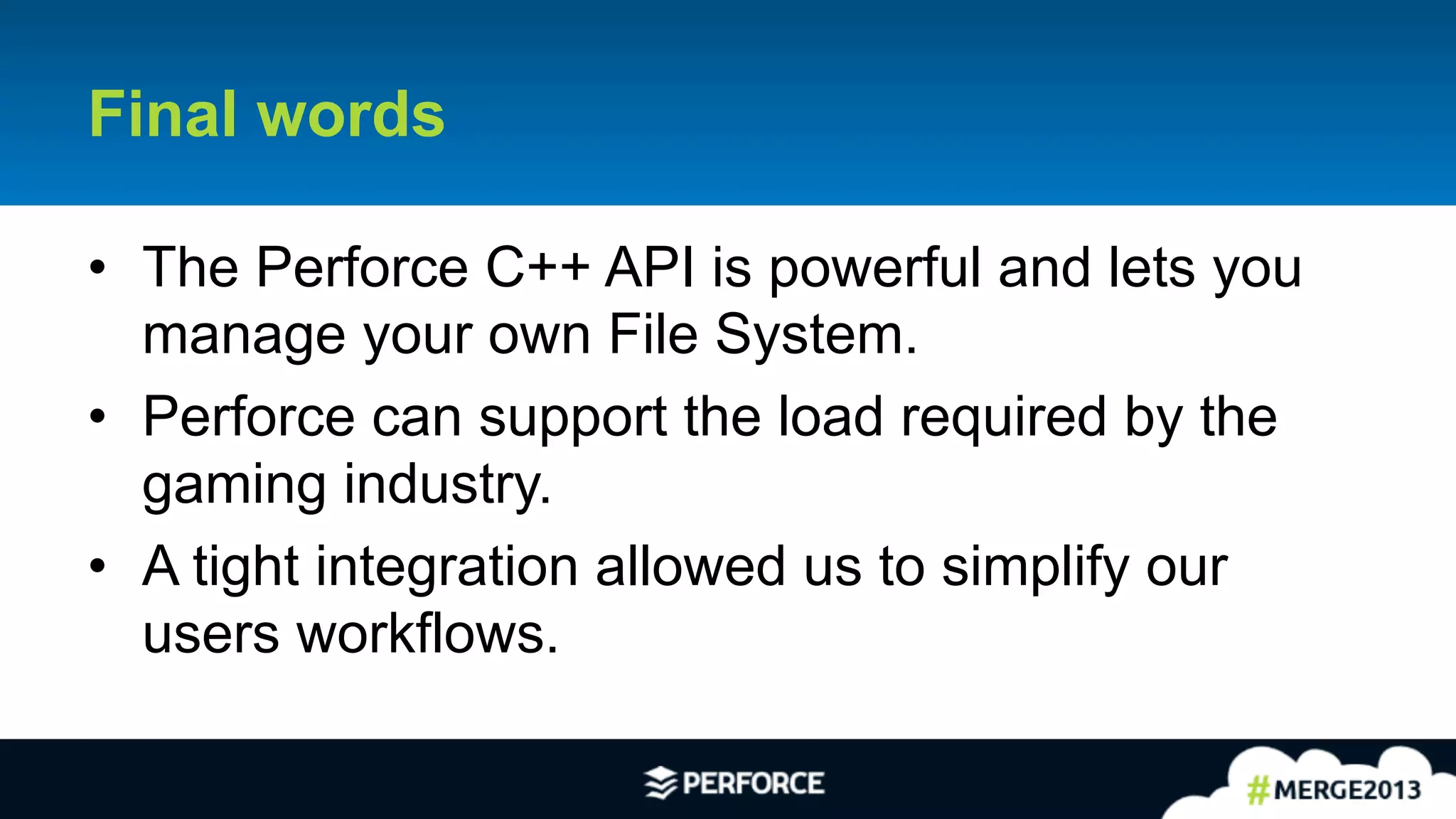

Final words
• The Perforce C++ API is powerful and lets you
manage your own File System.
• Perforce can support the load required by the
gaming industry.
• A tight integration allowed us to simplify our
users workflows.

31. 31
Questions ?
