Unreal Open Day 2017 UE4 for Mobile: The Future of High Quality Mobile Games

UNREAL OPEN DAY 2017
UE4 for Mobile:
The Future of High Quality Mobile Games

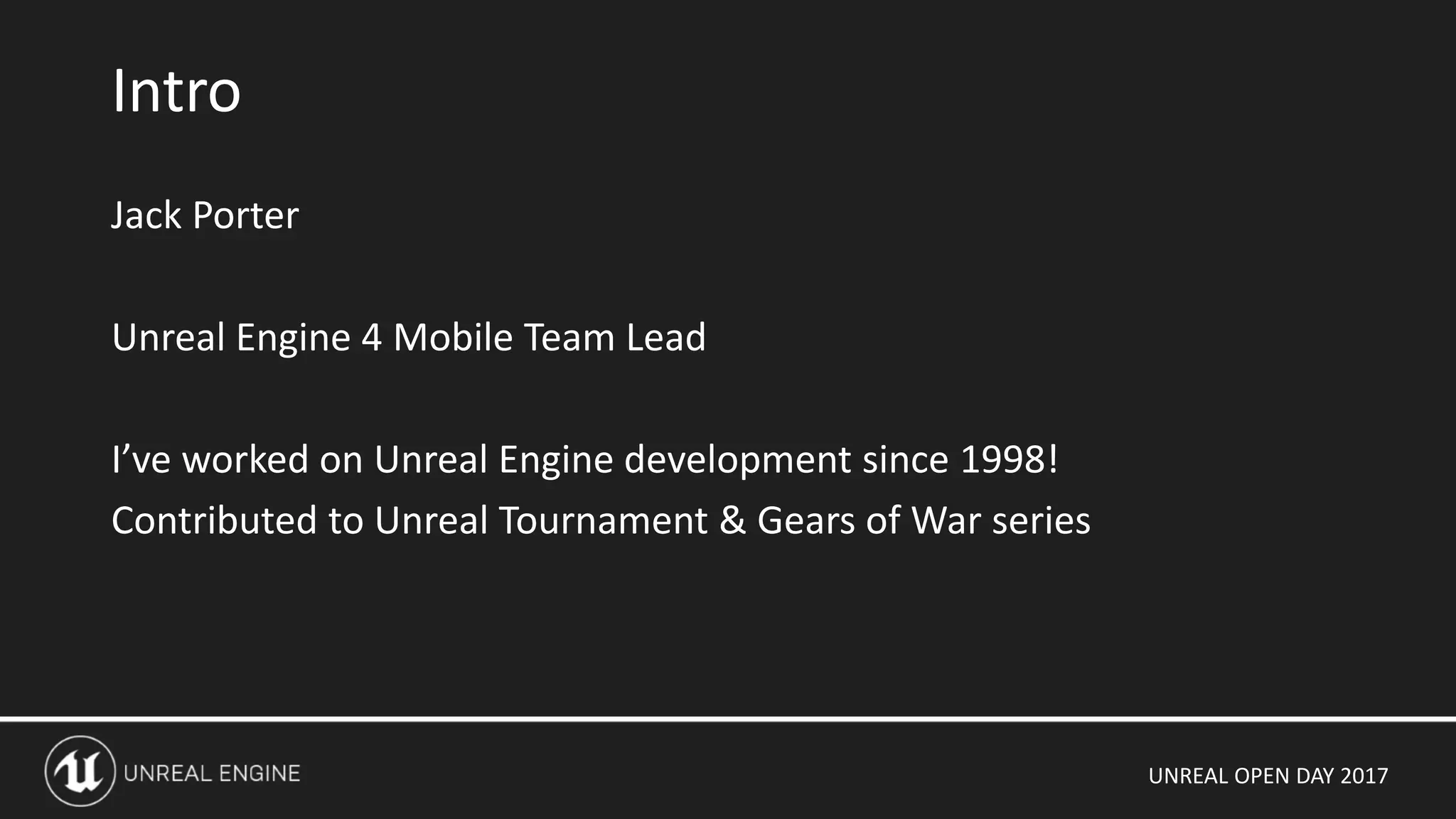

Jack Porter
Unreal Engine 4 Mobile Team Lead
I’ve worked on Unreal Engine development since 1998!
Contributed to Unreal Tournament & Gears of War series
Intro

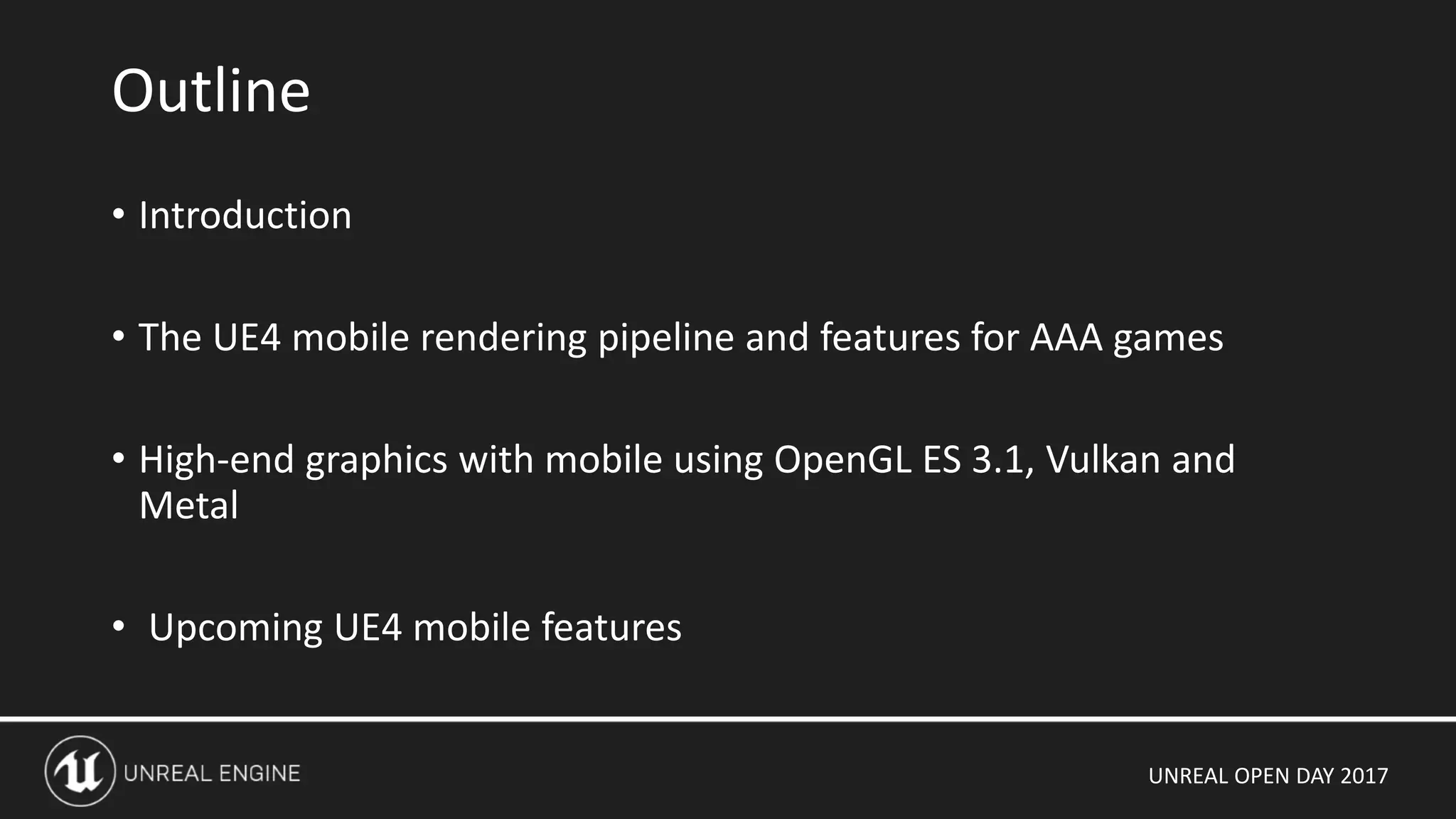

• Introduction
• The UE4 mobile rendering pipeline and features for AAA games
• High-end graphics with mobile using OpenGL ES 3.1, Vulkan and
Metal
• Upcoming UE4 mobile features
Outline

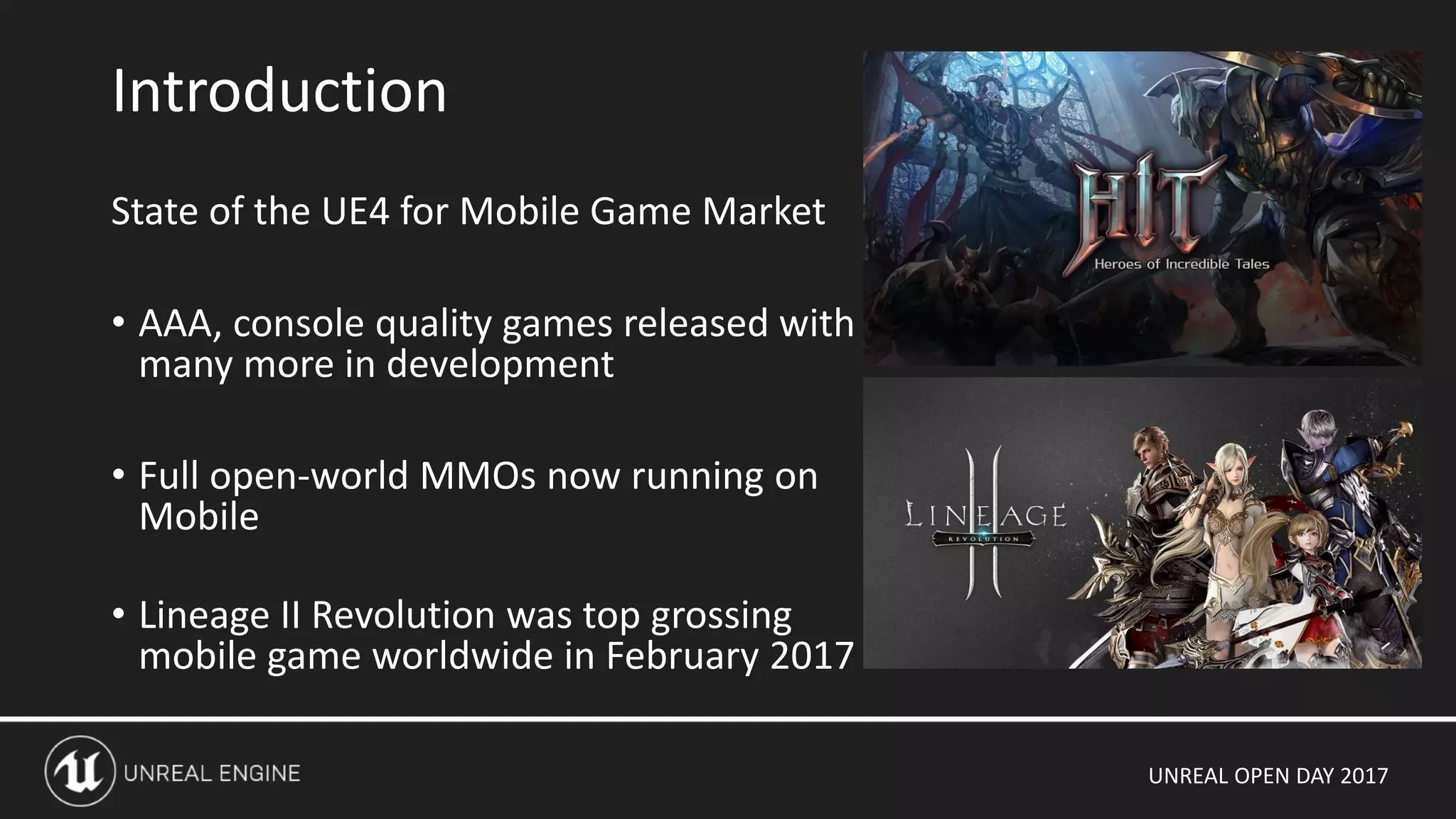

State of the UE4 for Mobile Game Market
• AAA, console quality games released with
many more in development
• Full open-world MMOs now running on
Mobile
• Lineage II Revolution was top grossing
mobile game worldwide in February 2017
Introduction

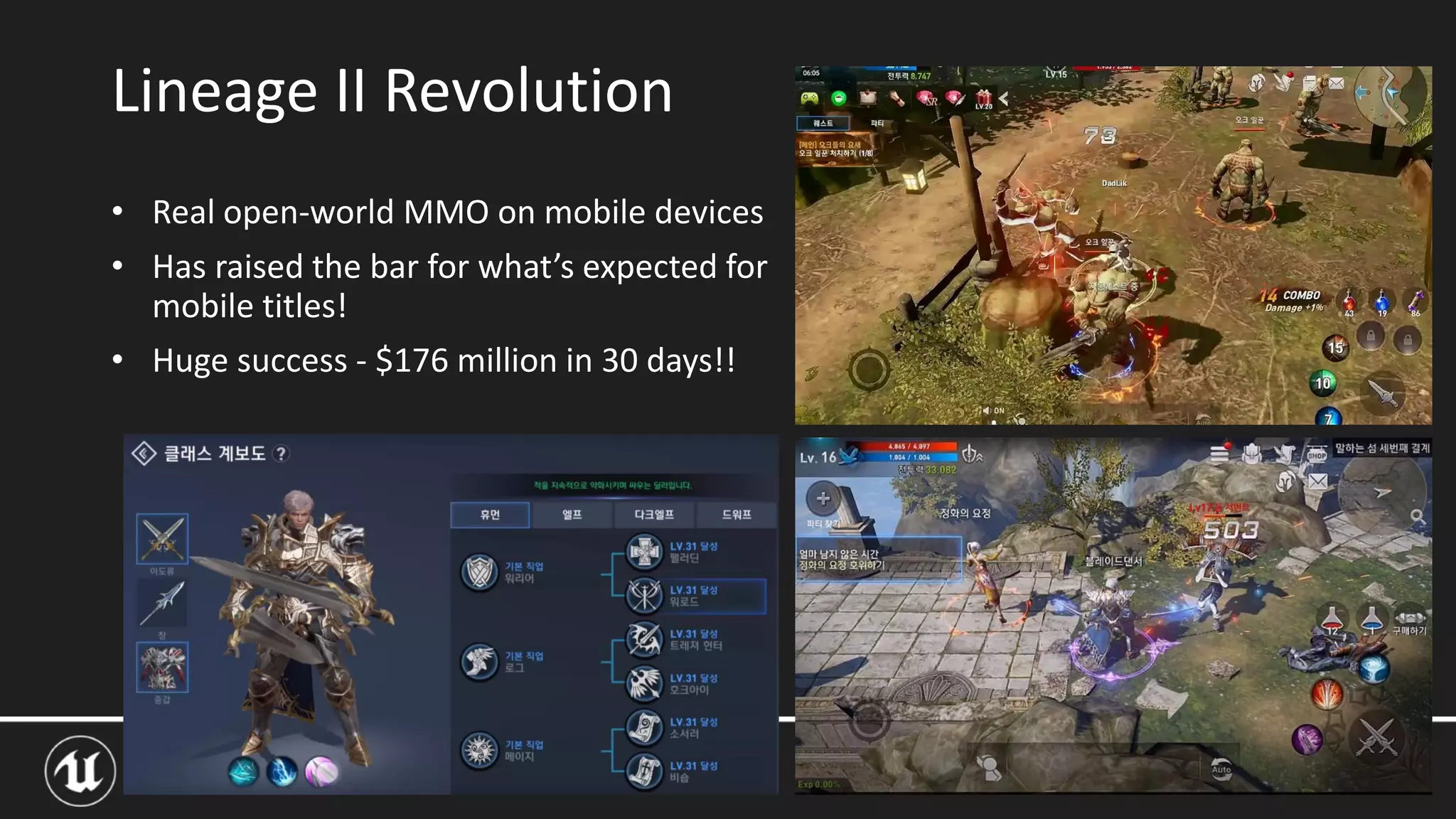

• Real open-world MMO on mobile devices
• Has raised the bar for what’s expected for
mobile titles!
• Huge success - $176 million in 30 days!!
Lineage II Revolution

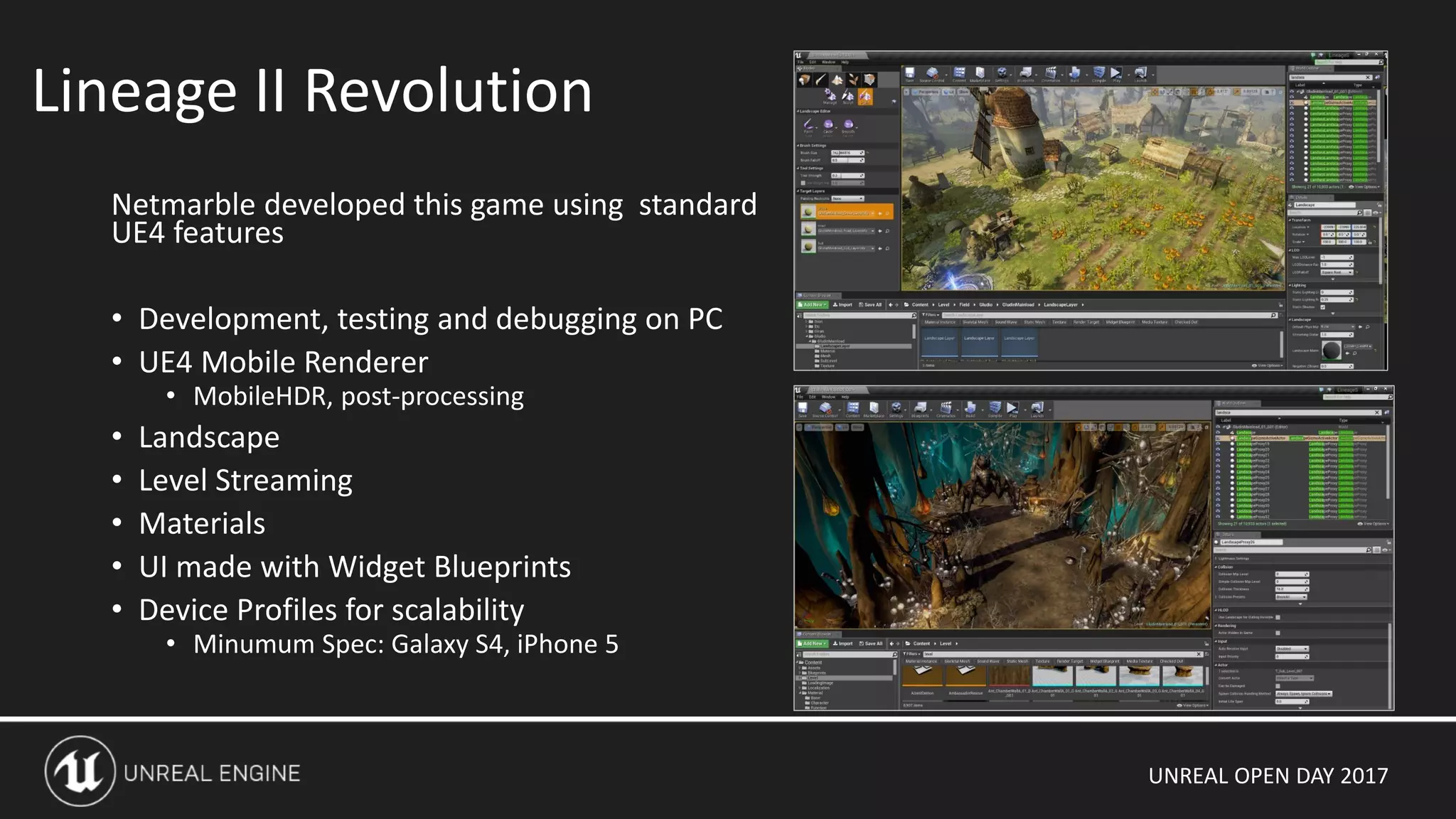

Netmarble developed this game using standard
UE4 features
• Development, testing and debugging on PC
• UE4 Mobile Renderer
• MobileHDR, post-processing
• Landscape
• Level Streaming
• Materials
• UI made with Widget Blueprints
• Device Profiles for scalability
• Minumum Spec: Galaxy S4, iPhone 5
Lineage II Revolution

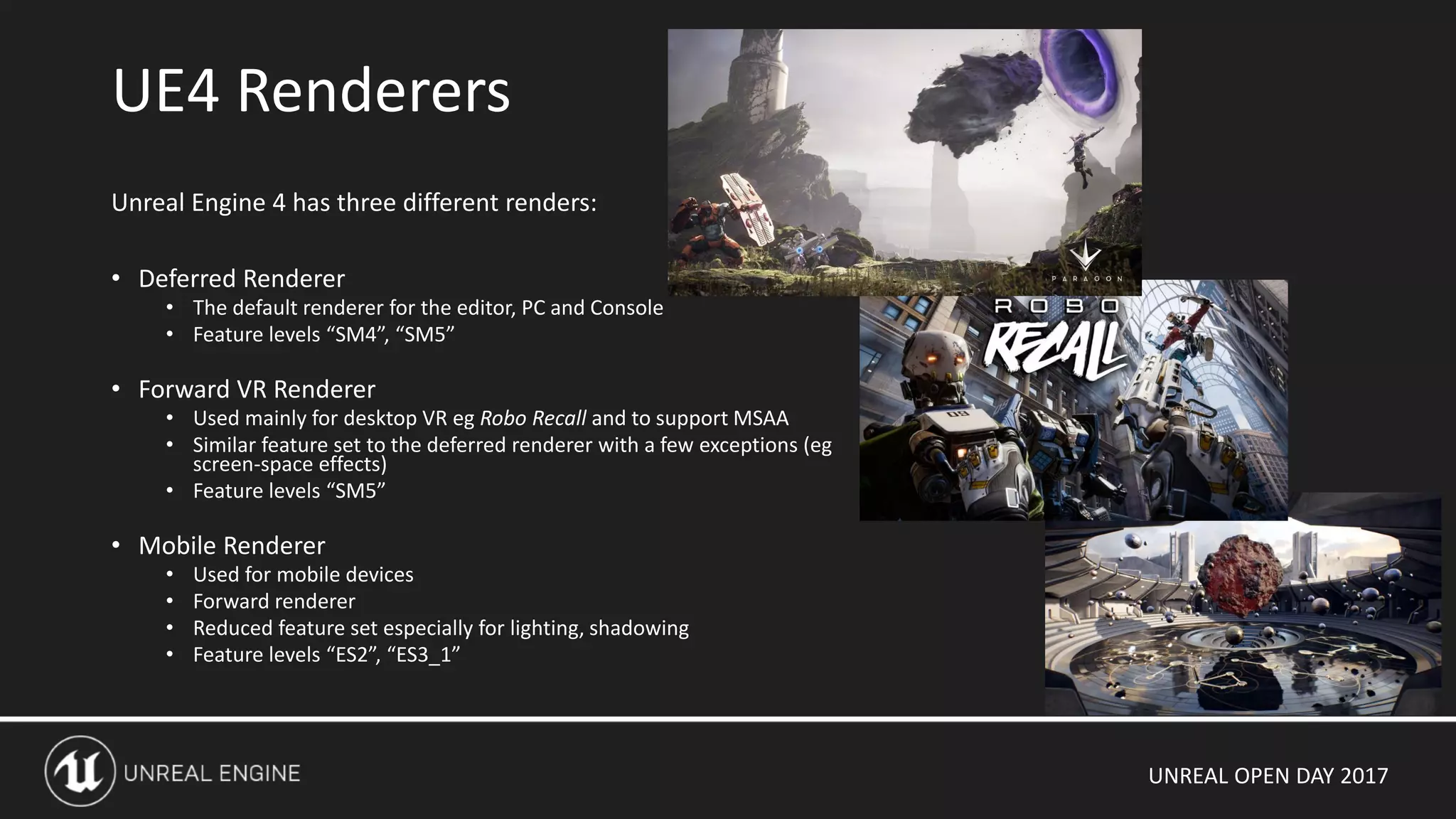

UE4 Mobile Renderer

Unreal Engine 4 has three different renders:
• Deferred Renderer
• The default renderer for the editor, PC and Console
• Feature levels “SM4”, “SM5”
• Forward VR Renderer
• Used mainly for desktop VR eg Robo Recall and to support MSAA
• Similar feature set to the deferred renderer with a few exceptions (eg
screen-space effects)
• Feature levels “SM5”
• Mobile Renderer
• Used for mobile devices
• Forward renderer
• Reduced feature set especially for lighting, shadowing
• Feature levels “ES2”, “ES3_1”
UE4 Renderers

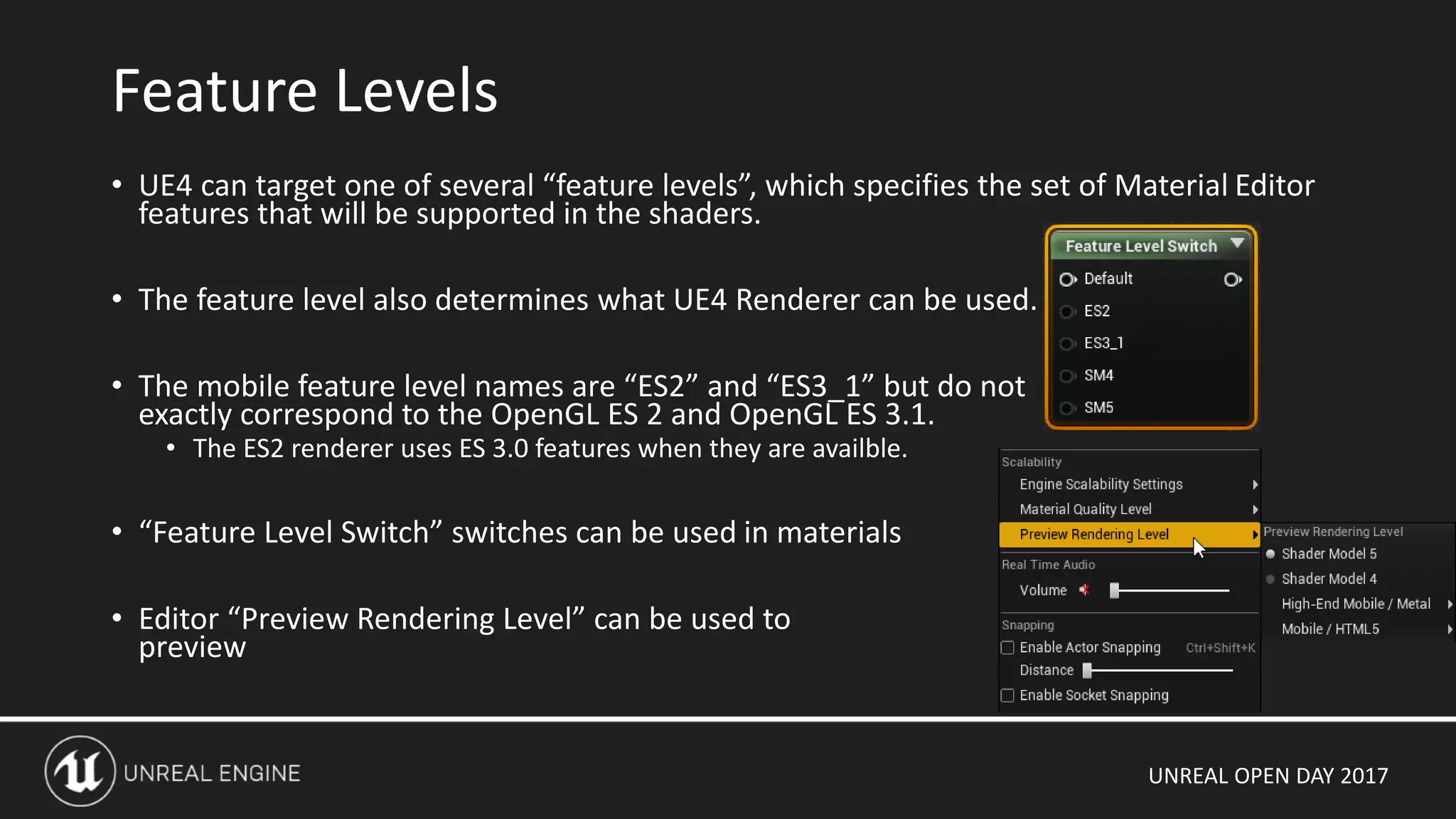

• UE4 can target one of several “feature levels”, which specifies the set of Material Editor
features that will be supported in the shaders.
• The feature level also determines what UE4 Renderer can be used.
• The mobile feature level names are “ES2” and “ES3_1” but do not
exactly correspond to the OpenGL ES 2 and OpenGL ES 3.1.
• The ES2 renderer uses ES 3.0 features when they are availble.
• “Feature Level Switch” switches can be used in materials
• Editor “Preview Rendering Level” can be used to
preview
Feature Levels

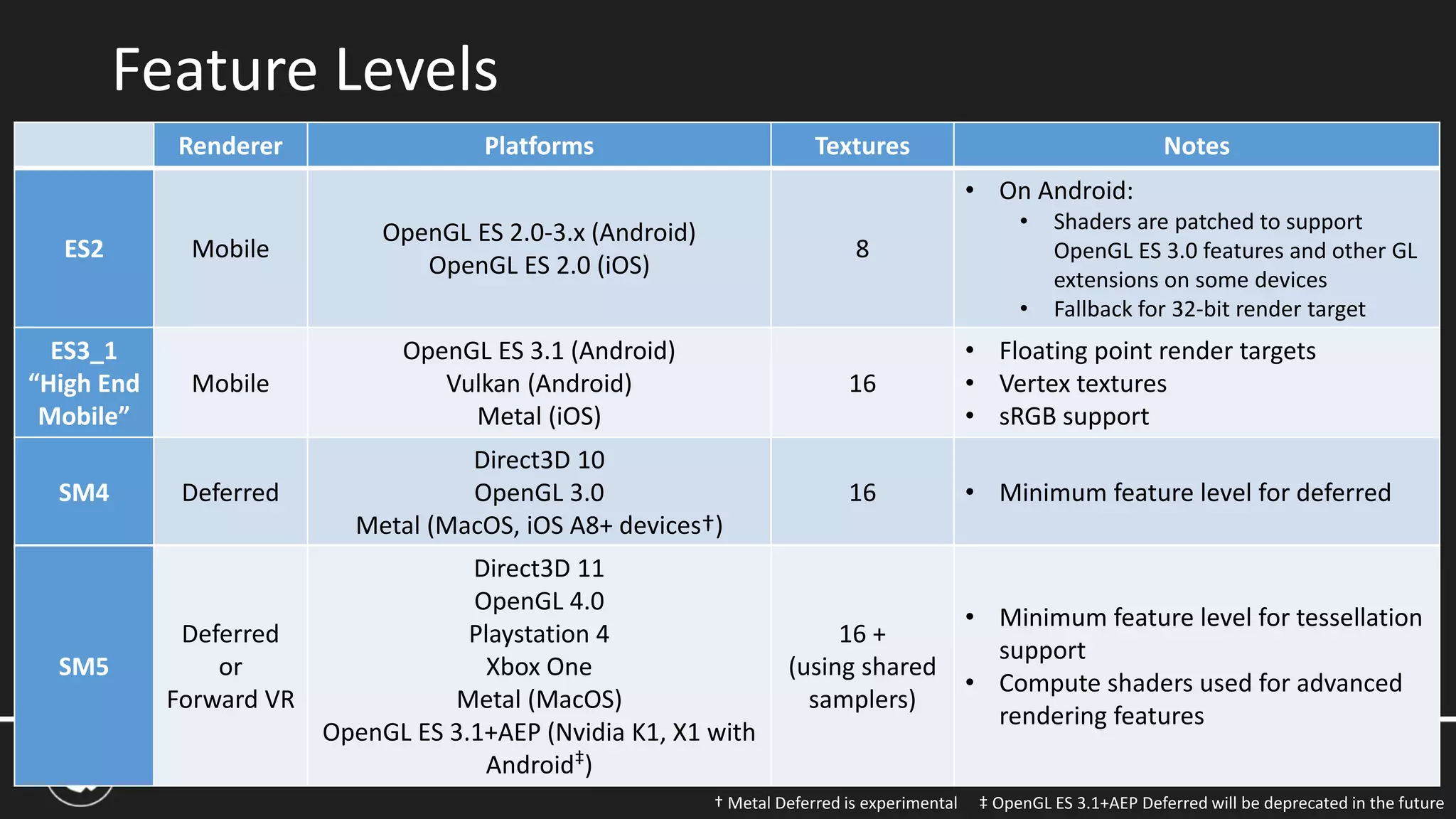

Feature Levels
Renderer Platforms Textures Notes
ES2 Mobile
OpenGL ES 2.0-3.x (Android)
OpenGL ES 2.0 (iOS)
8
• On Android:
• Shaders are patched to support
OpenGL ES 3.0 features and other GL
extensions on some devices
• Fallback for 32-bit render target
‡ OpenGL ES 3.1+AEP Deferred will be deprecated in the future† Metal Deferred is experimental

Feature Levels
ES2 Mobile
OpenGL ES 2.0 (iOS)
8
• On Android:
‡ OpenGL ES 3.1+AEP Deferred will be deprecated in the future
ES3_1
“High End
Mobile”
Mobile
OpenGL ES 3.1 (Android)
Vulkan (Android)
Metal (iOS)
16
• Floating point render targets
• Vertex textures
• sRGB support
† Metal Deferred is experimental

Feature Levels
ES2 Mobile
OpenGL ES 2.0 (iOS)
8
• On Android:
‡ OpenGL ES 3.1+AEP Deferred will be deprecated in the future
ES3_1
“High End
Mobile”
Mobile
OpenGL ES 3.1 (Android)
Vulkan (Android)
Metal (iOS)
16
• Floating point render targets
• Vertex textures
• sRGB support
SM4 Deferred
Direct3D 10
OpenGL 3.0
Metal (MacOS, iOS A8+ devices†)
16 • Minimum feature level for deferred
SM5
Deferred
or
Forward VR
Direct3D 11
OpenGL 4.0
Playstation 4
Xbox One
Metal (MacOS)
OpenGL ES 3.1+AEP (Nvidia K1, X1 with
Android‡)
16 +
(using shared
samplers)
• Minimum feature level for tessellation
support
• Compute shaders used for advanced
rendering features
† Metal Deferred is experimental

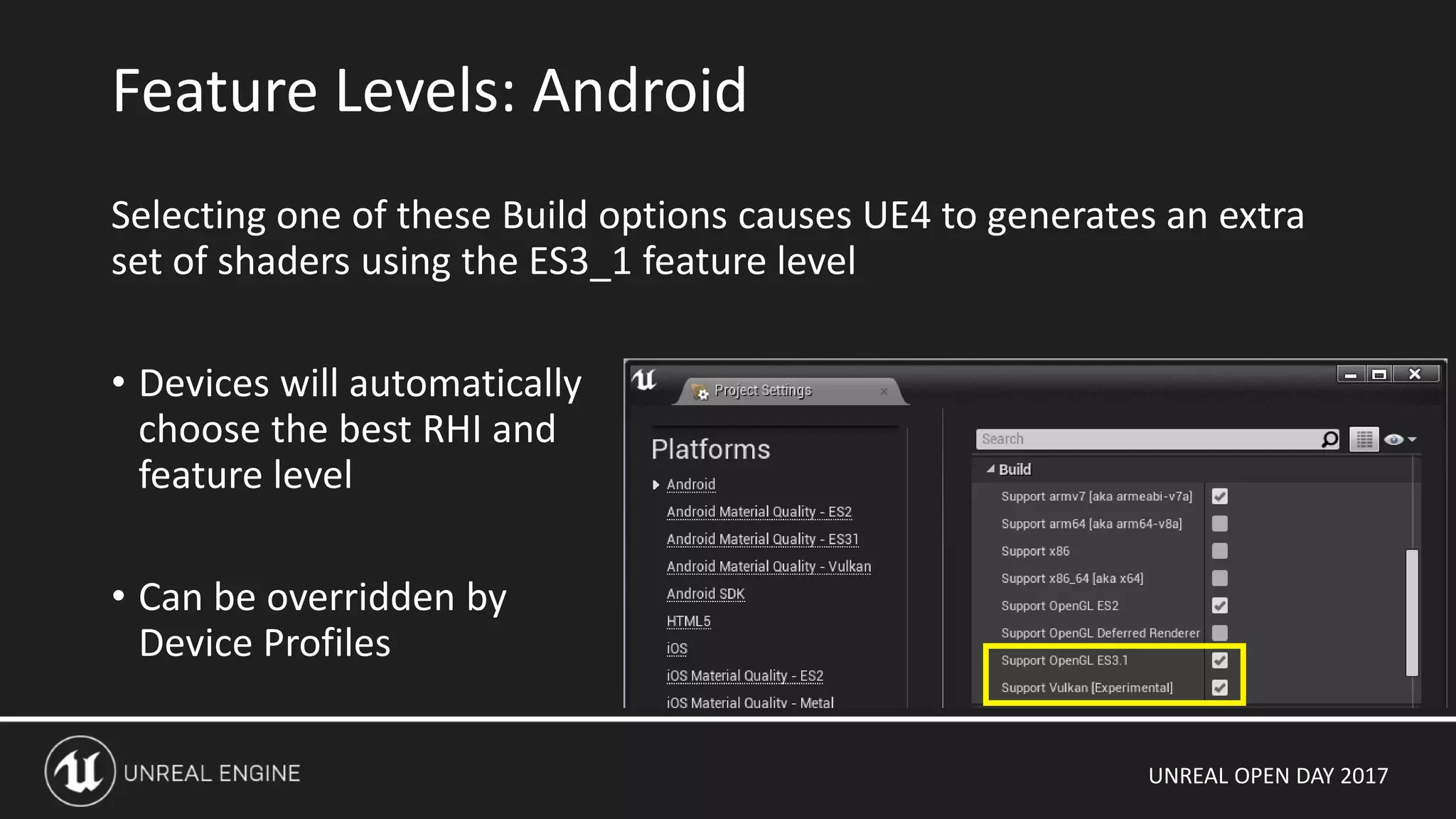

Selecting one of these Build options causes UE4 to generates an extra
set of shaders using the ES3_1 feature level
• Devices will automatically
choose the best RHI and
feature level
• Can be overridden by
Device Profiles
Feature Levels: Android

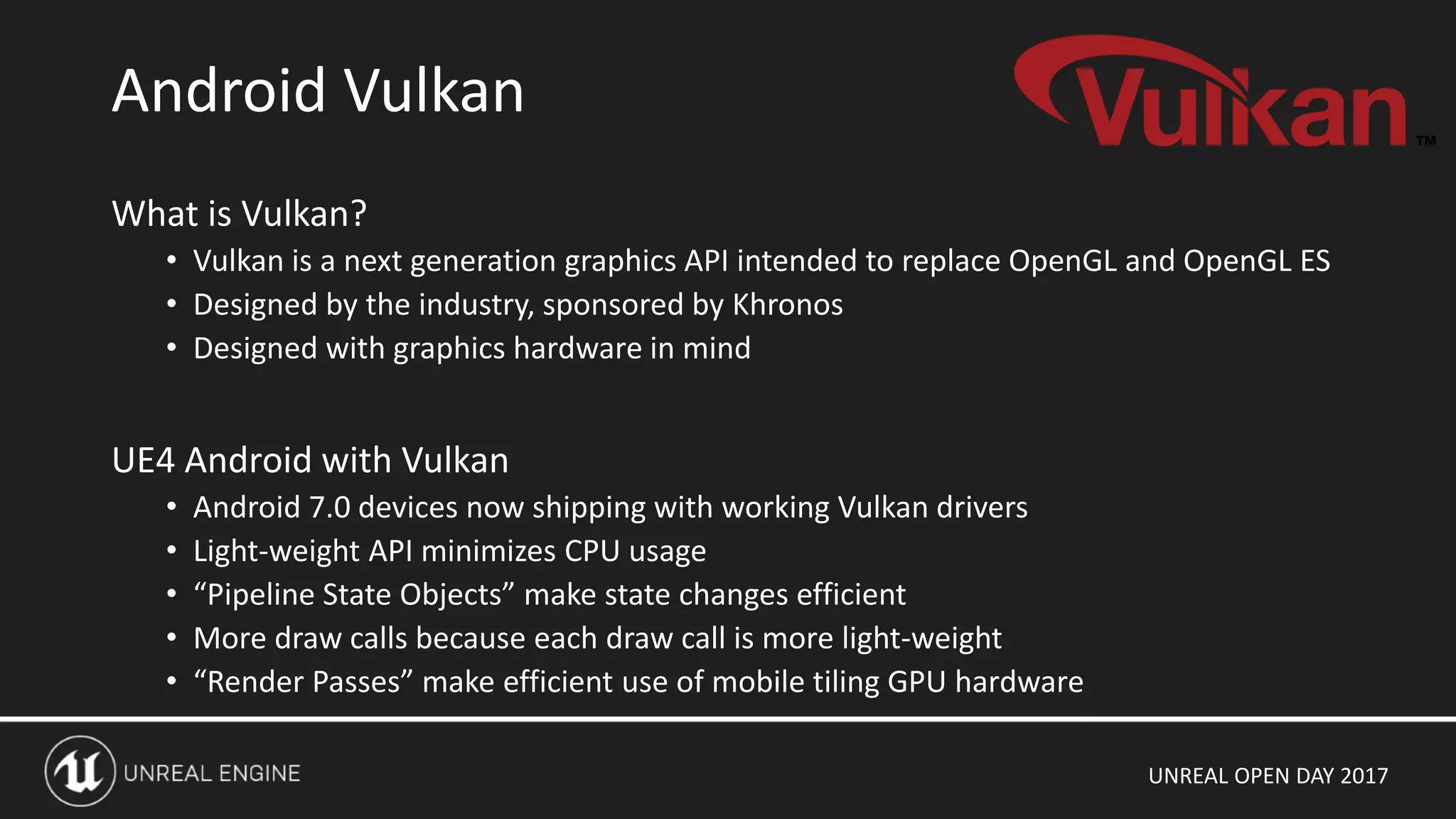

What is Vulkan?
• Vulkan is a next generation graphics API intended to replace OpenGL and OpenGL ES
• Designed by the industry, sponsored by Khronos
• Designed with graphics hardware in mind
UE4 Android with Vulkan
• Android 7.0 devices now shipping with working Vulkan drivers
• Light-weight API minimizes CPU usage
• “Pipeline State Objects” make state changes efficient
• More draw calls because each draw call is more light-weight
• “Render Passes” make efficient use of mobile tiling GPU hardware
Android Vulkan

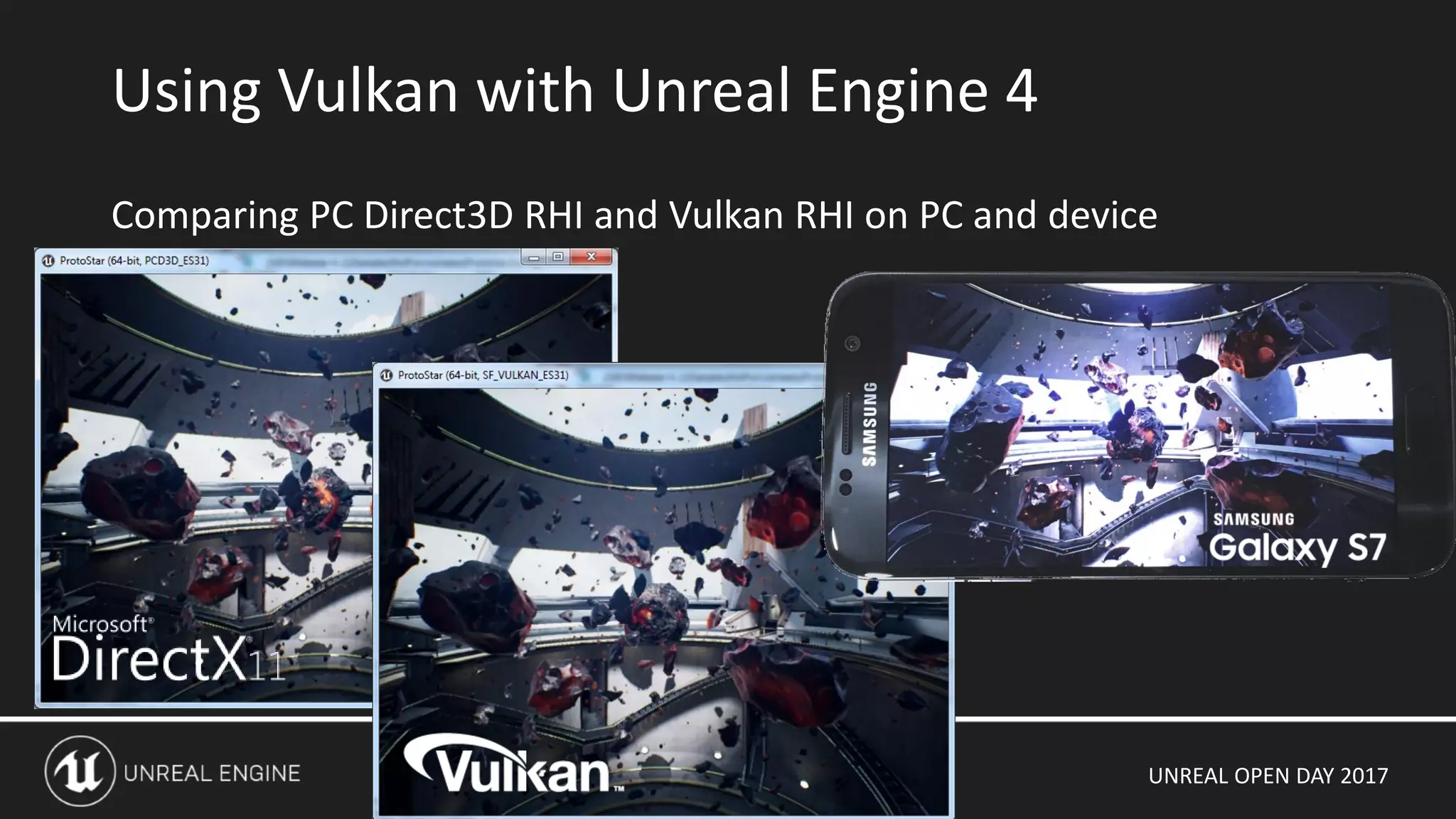

Comparing PC Direct3D RHI and Vulkan RHI on PC and device
Using Vulkan with Unreal Engine 4

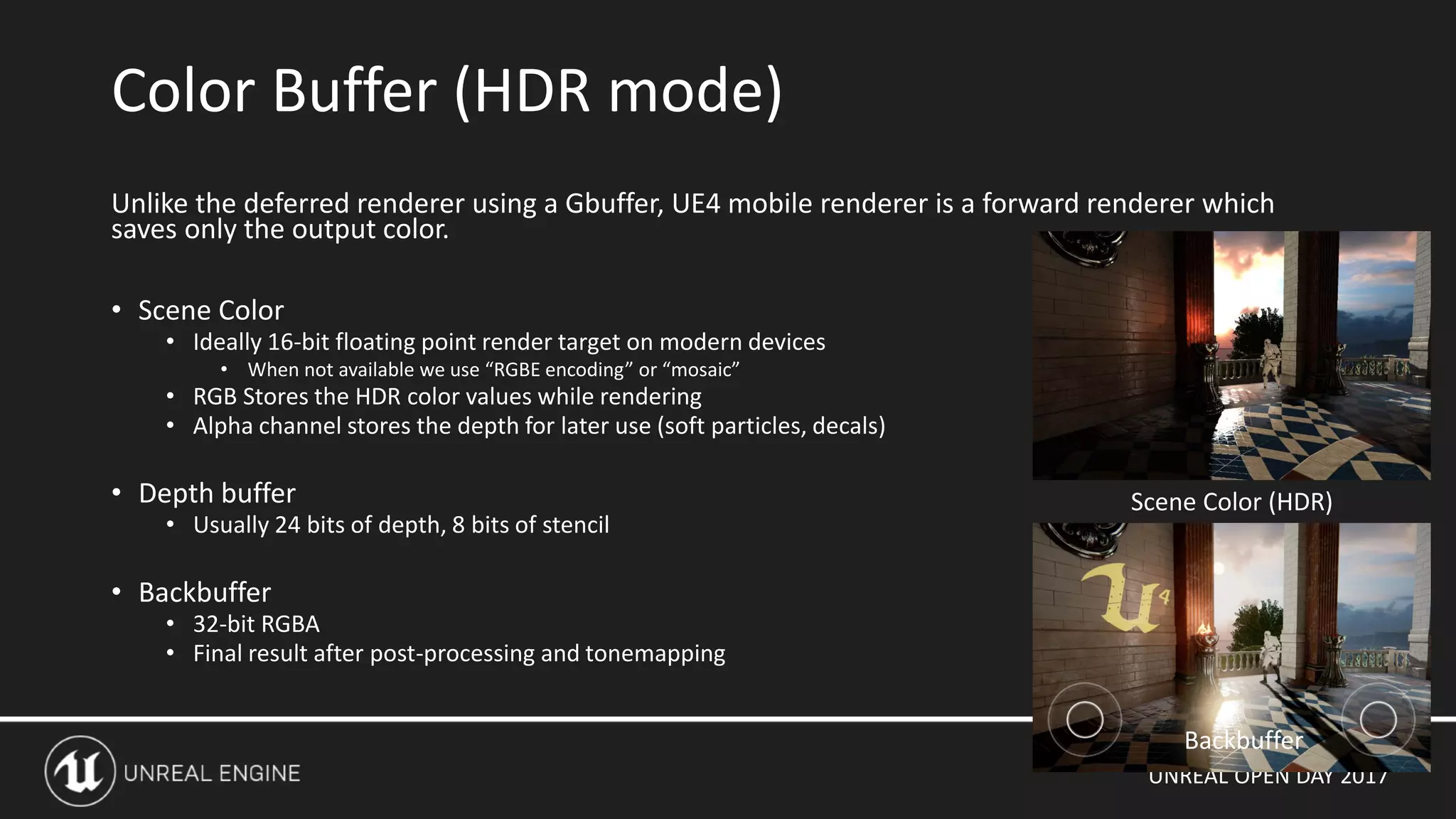

Unlike the deferred renderer using a Gbuffer, UE4 mobile renderer is a forward renderer which
saves only the output color.
• Scene Color
• Ideally 16-bit floating point render target on modern devices
• When not available we use “RGBE encoding” or “mosaic”
• RGB Stores the HDR color values while rendering
• Alpha channel stores the depth for later use (soft particles, decals)
• Depth buffer
• Usually 24 bits of depth, 8 bits of stencil
• Backbuffer
• 32-bit RGBA
• Final result after post-processing and tonemapping
Color Buffer (HDR mode)
Backbuffer
Scene Color (HDR)

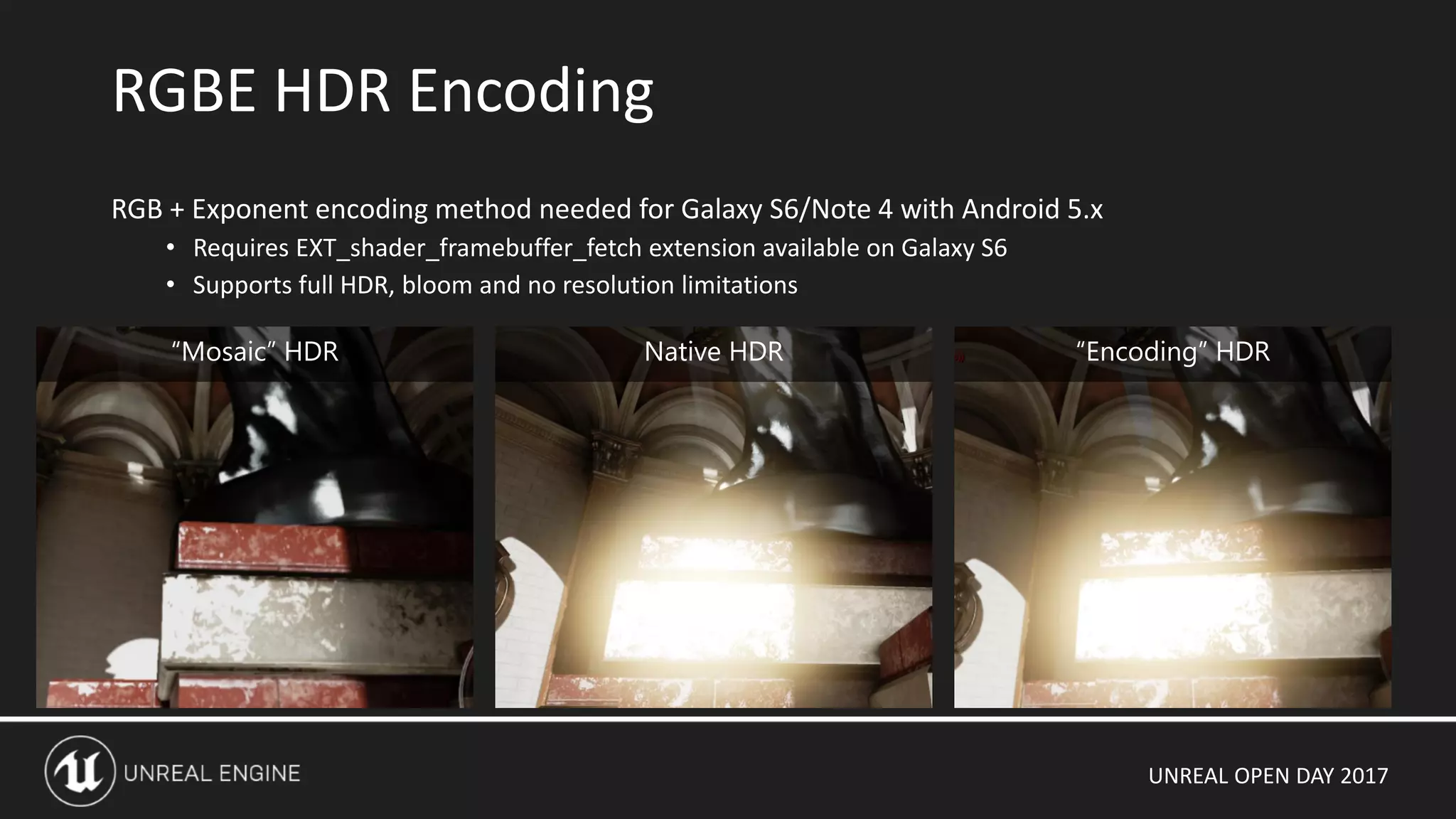

RGBE HDR Encoding
RGB + Exponent encoding method needed for Galaxy S6/Note 4 with Android 5.x
• Requires EXT_shader_framebuffer_fetch extension available on Galaxy S6
• Supports full HDR, bloom and no resolution limitations
“Mosaic” HDR Native HDR “Encoding” HDR

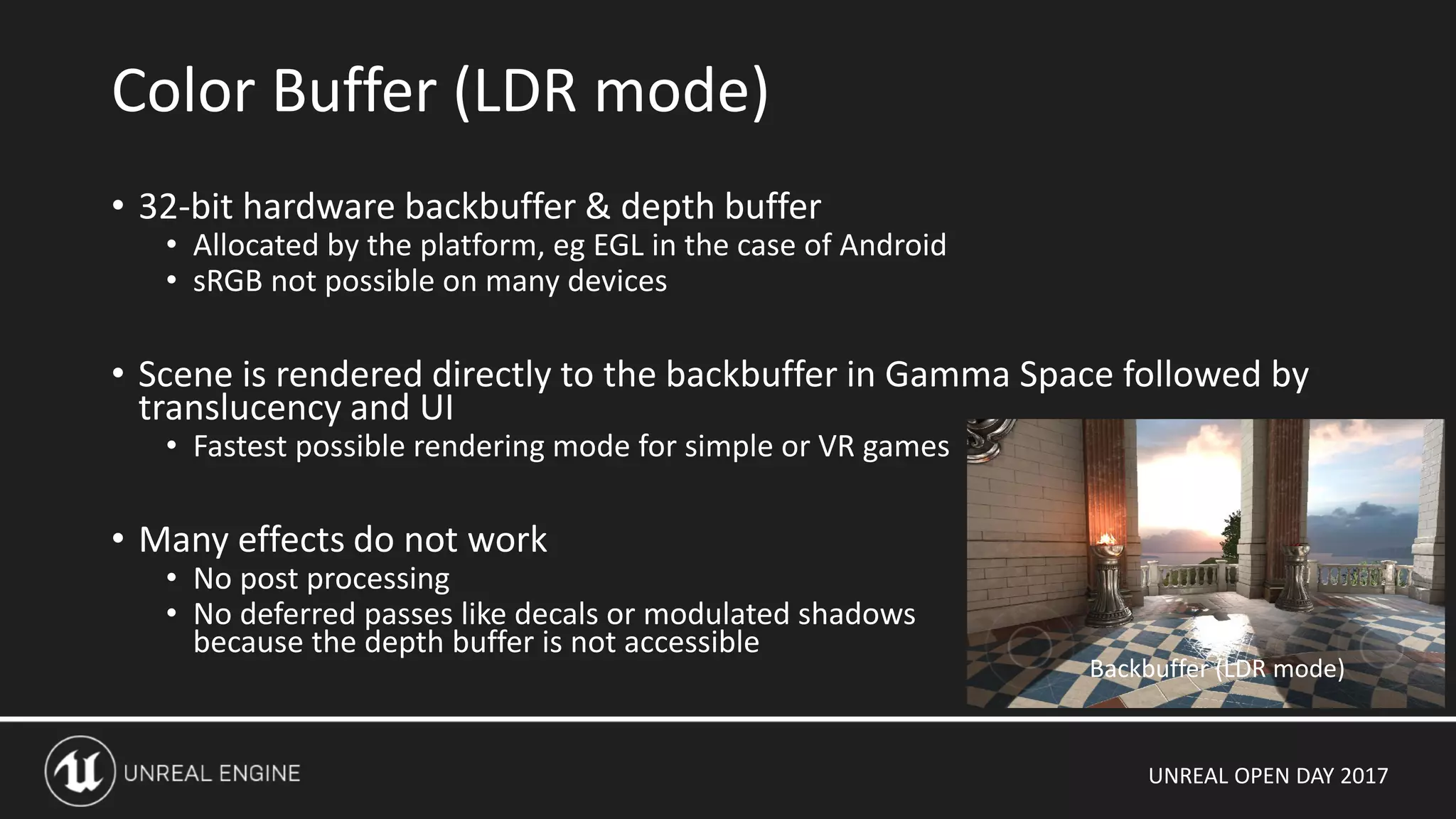

• 32-bit hardware backbuffer & depth buffer
• Allocated by the platform, eg EGL in the case of Android
• sRGB not possible on many devices
• Scene is rendered directly to the backbuffer in Gamma Space followed by
translucency and UI
• Fastest possible rendering mode for simple or VR games
• Many effects do not work
• No post processing
• No deferred passes like decals or modulated shadows
because the depth buffer is not accessible
Color Buffer (LDR mode)
Backbuffer (LDR mode)

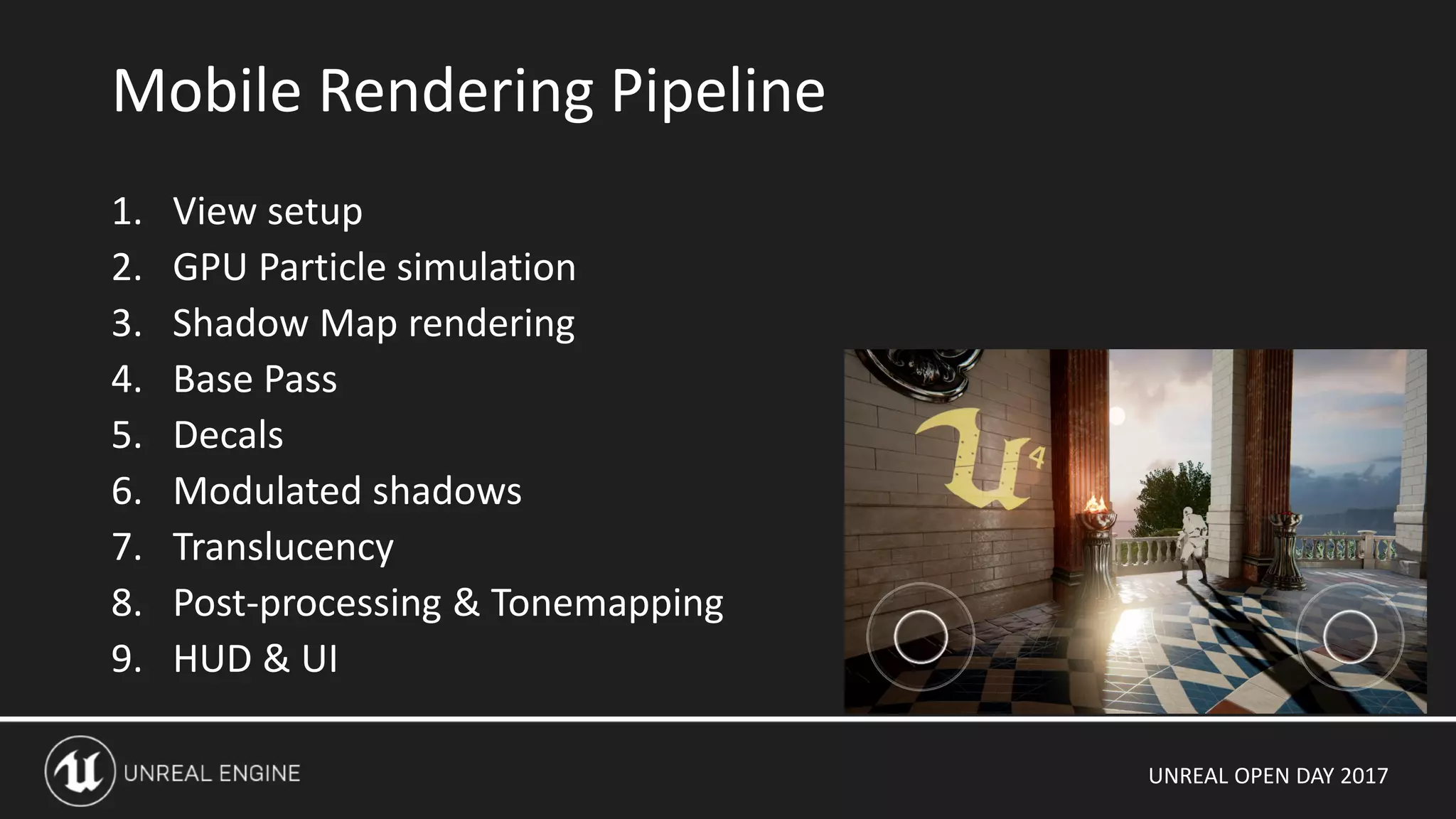

1. View setup
2. GPU Particle simulation
3. Shadow Map rendering
4. Base Pass
5. Decals
6. Modulated shadows
7. Translucency
8. Post-processing & Tonemapping
9. HUD & UI
Mobile Rendering Pipeline

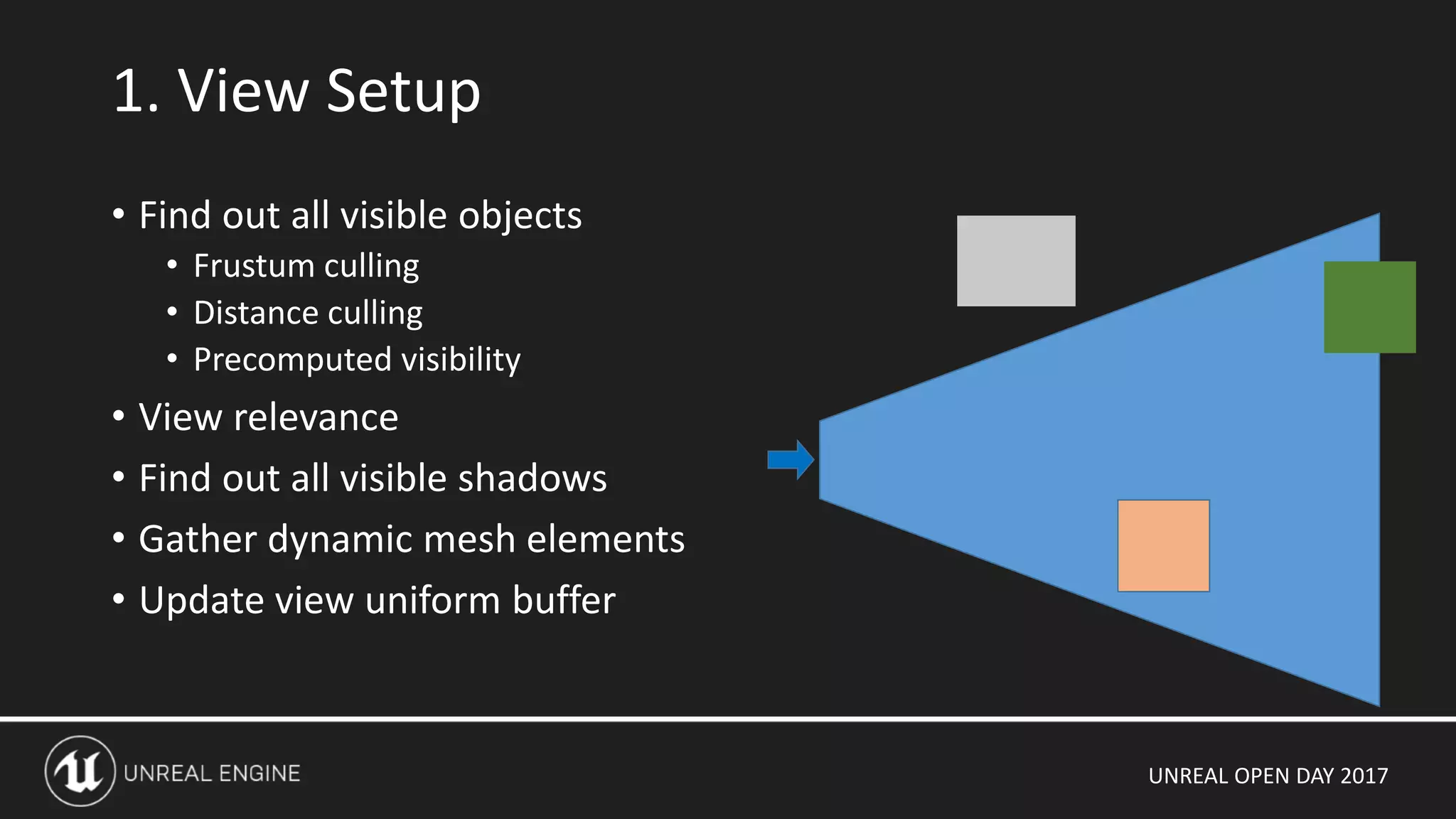

• Find out all visible objects
• Frustum culling
• Distance culling
• Precomputed visibility
• View relevance
• Find out all visible shadows
• Gather dynamic mesh elements
• Update view uniform buffer
1. View Setup

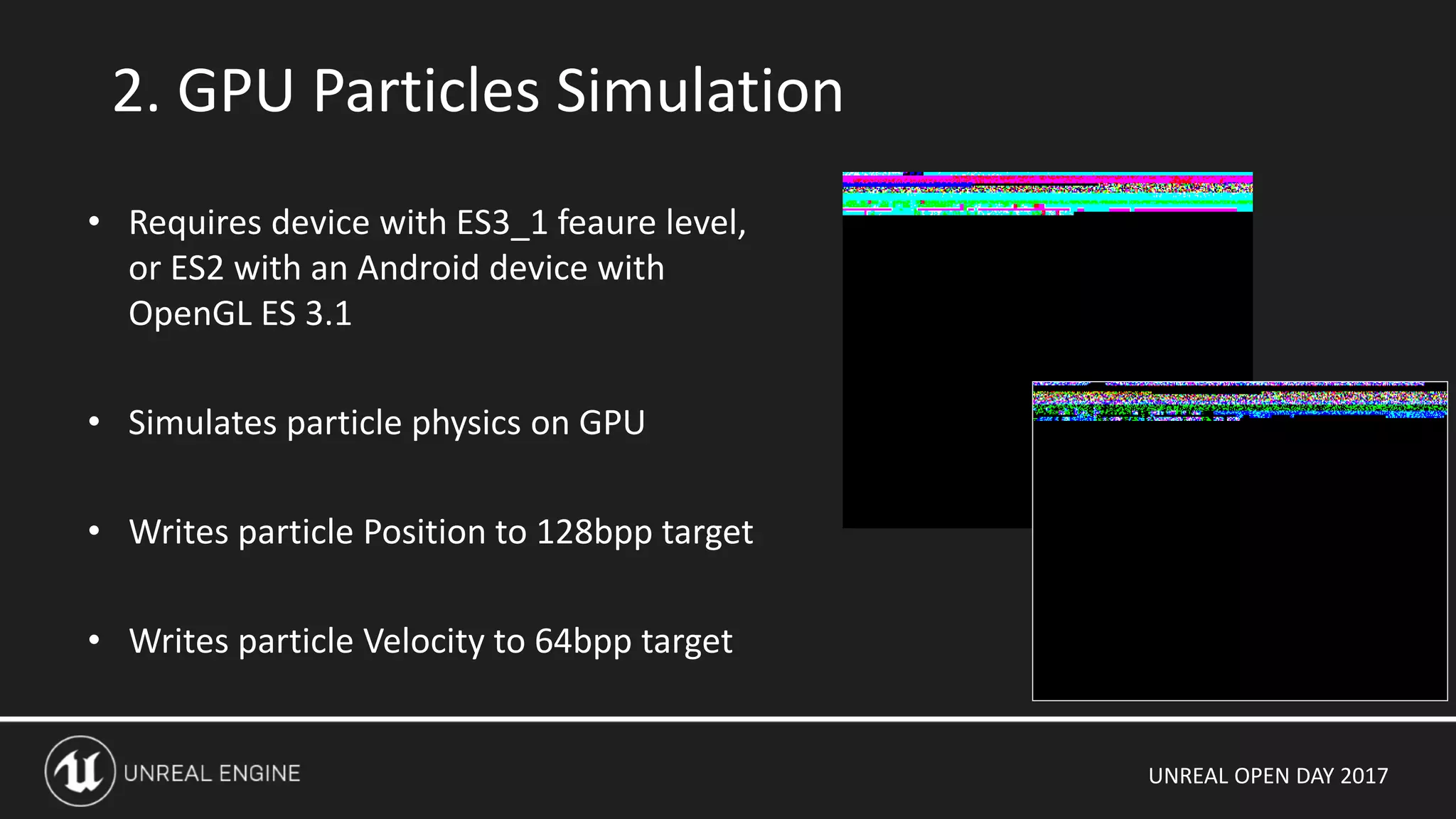

2. GPU Particles Simulation
• Requires device with ES3_1 feaure level,
or ES2 with an Android device with
OpenGL ES 3.1
• Simulates particle physics on GPU
• Writes particle Position to 128bpp target
• Writes particle Velocity to 64bpp target

• Setup depth render target
• Find out which objects need shadows
• Render them using main light view
• Shadow map used later
• During base pass for CSM shadows
• After, for modulated shadow projections
3. Shadow Map Rendering

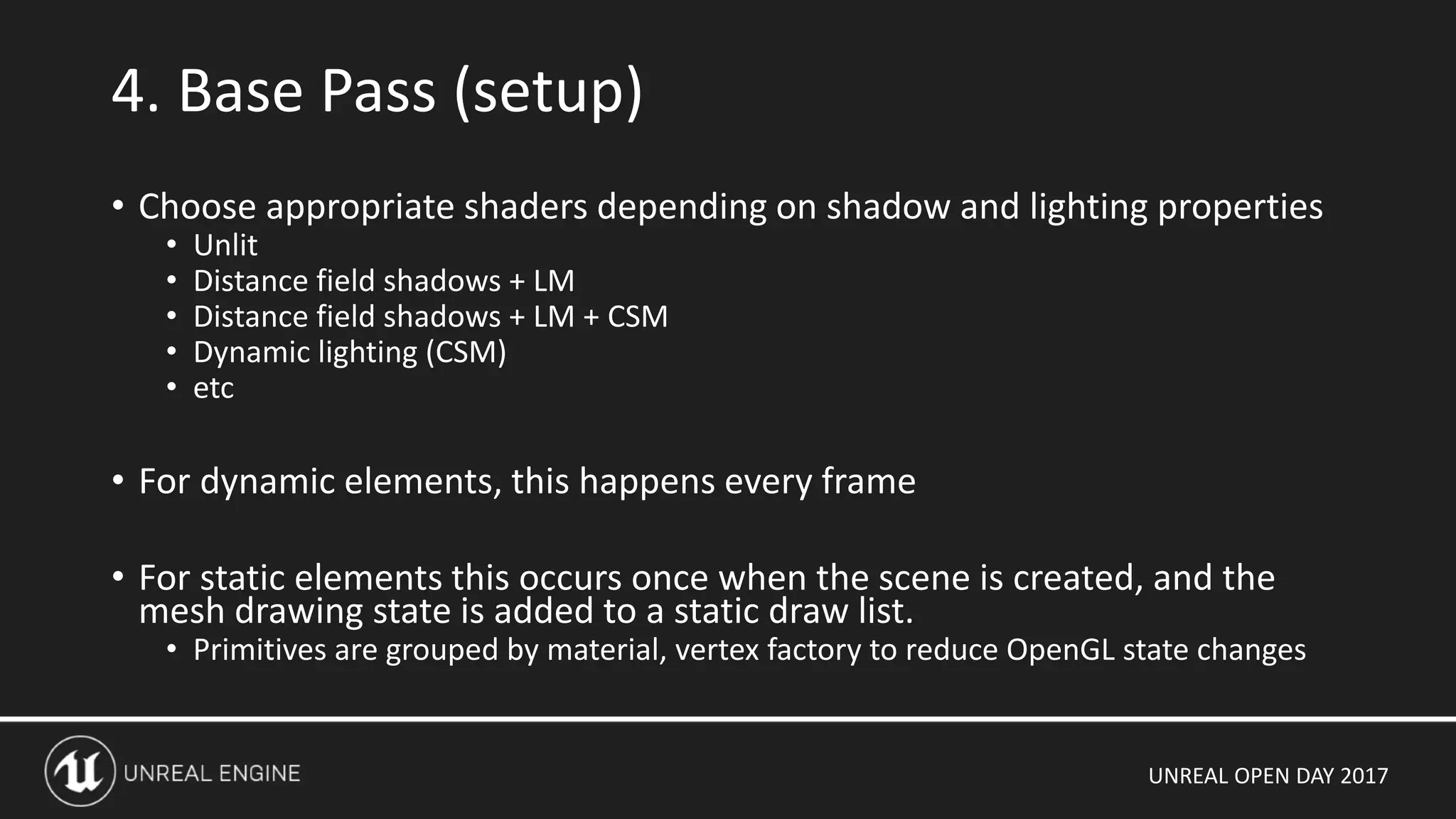

• Choose appropriate shaders depending on shadow and lighting properties
• Unlit
• Distance field shadows + LM
• Distance field shadows + LM + CSM
• Dynamic lighting (CSM)
• etc
• For dynamic elements, this happens every frame
• For static elements this occurs once when the scene is created, and the
mesh drawing state is added to a static draw list.
• Primitives are grouped by material, vertex factory to reduce OpenGL state changes
4. Base Pass (setup)

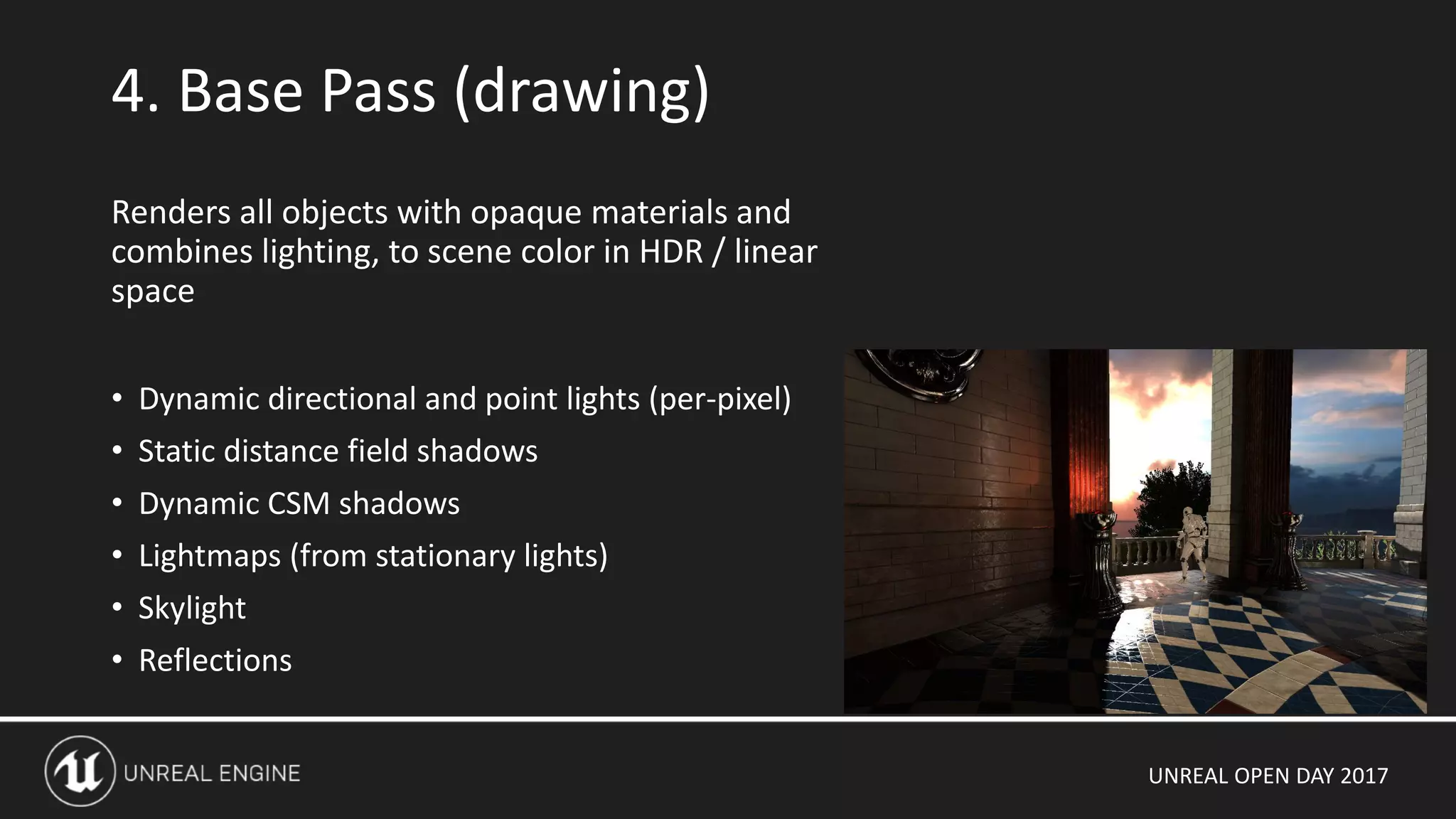

4. Base Pass (drawing)
Renders all objects with opaque materials and
combines lighting, to scene color in HDR / linear
space
• Dynamic directional and point lights (per-pixel)
• Static distance field shadows
• Dynamic CSM shadows
• Lightmaps (from stationary lights)
• Skylight
• Reflections

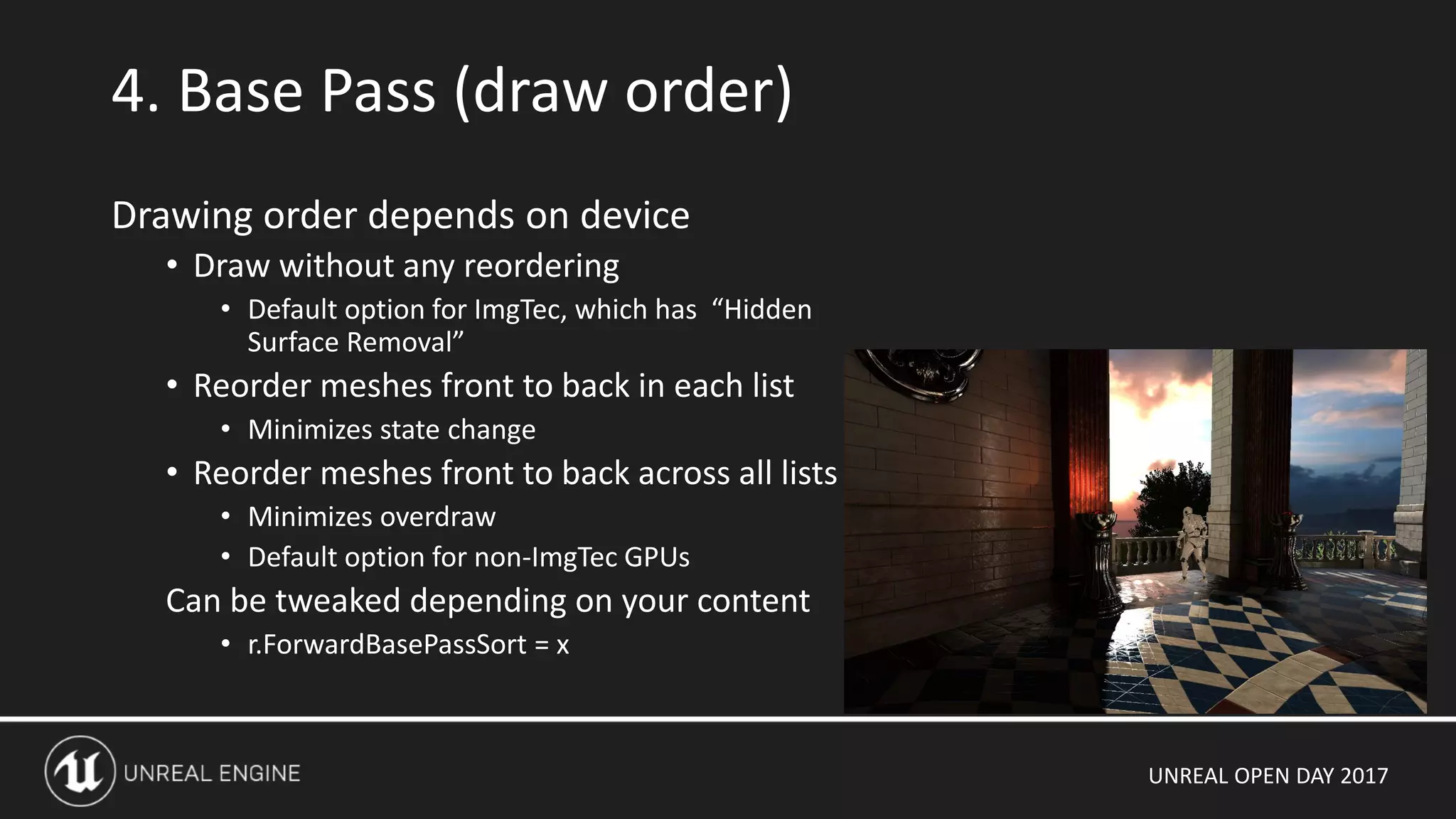

4. Base Pass (draw order)
Drawing order depends on device
• Draw without any reordering
• Default option for ImgTec, which has “Hidden
Surface Removal”
• Reorder meshes front to back in each list
• Minimizes state change
• Reorder meshes front to back across all lists
• Minimizes overdraw
• Default option for non-ImgTec GPUs
Can be tweaked depending on your content
• r.ForwardBasePassSort = x

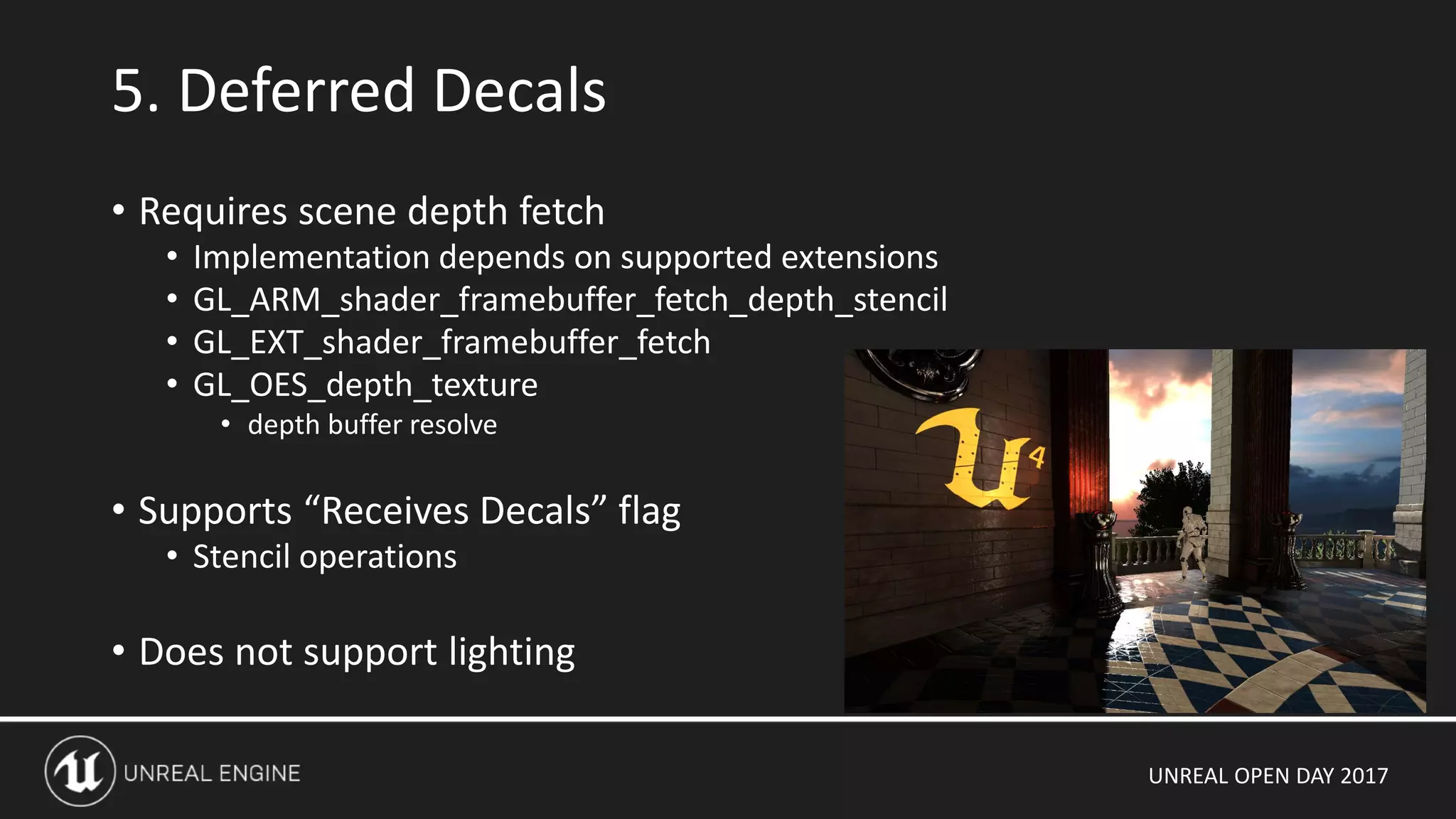

• Requires scene depth fetch
• Implementation depends on supported extensions
• GL_ARM_shader_framebuffer_fetch_depth_stencil
• GL_EXT_shader_framebuffer_fetch
• GL_OES_depth_texture
• depth buffer resolve
• Supports “Receives Decals” flag
• Stencil operations
• Does not support lighting
5. Deferred Decals

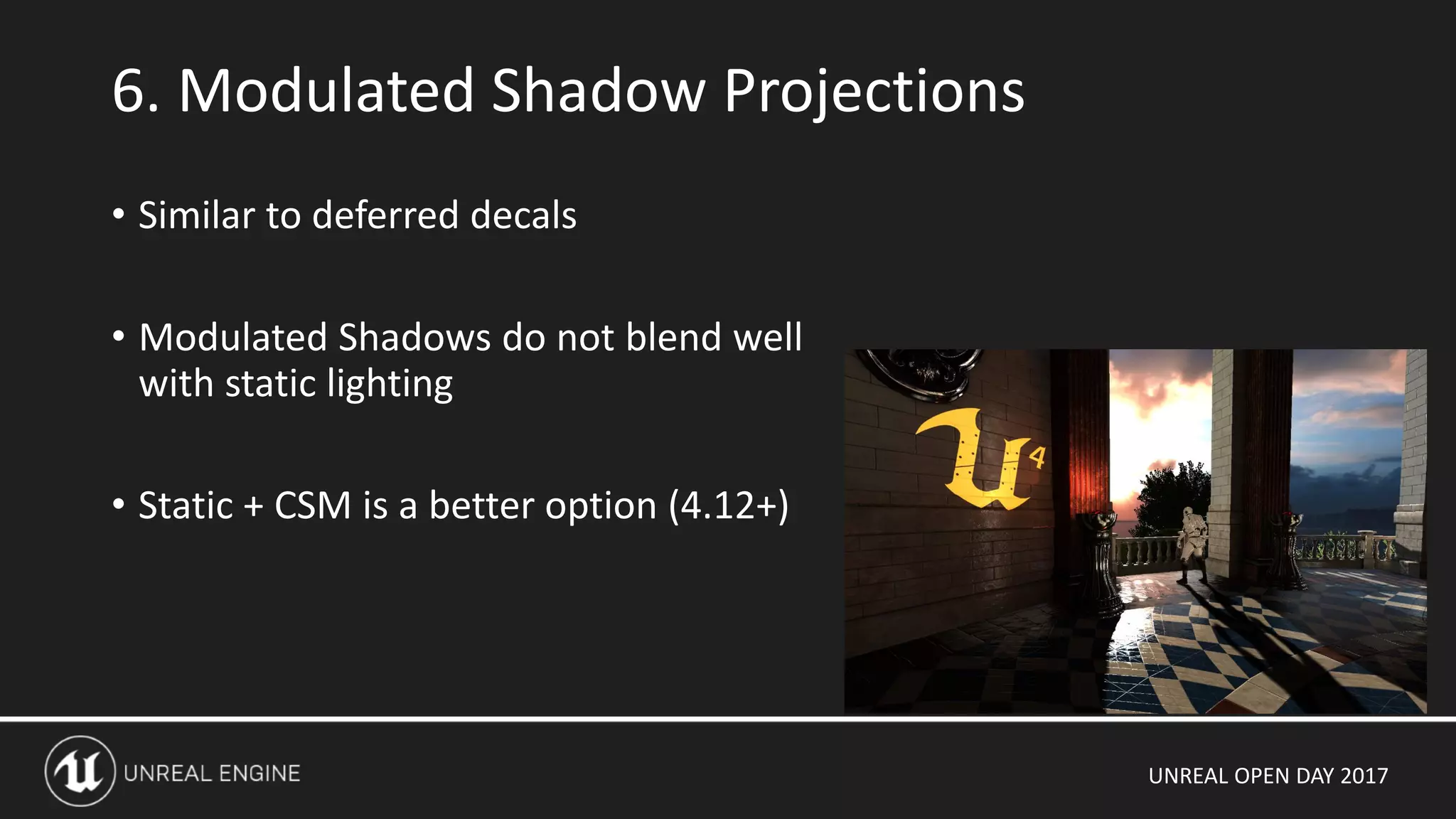

• Similar to deferred decals
• Modulated Shadows do not blend well
with static lighting
• Static + CSM is a better option (4.12+)
6. Modulated Shadow Projections

• Draw primitives with non-Opaque blend mode using the same
shaders as the Base Pass
• Does not write to depth buffer
• Refraction supported
• Requires full copy of scene color
7. Translucency

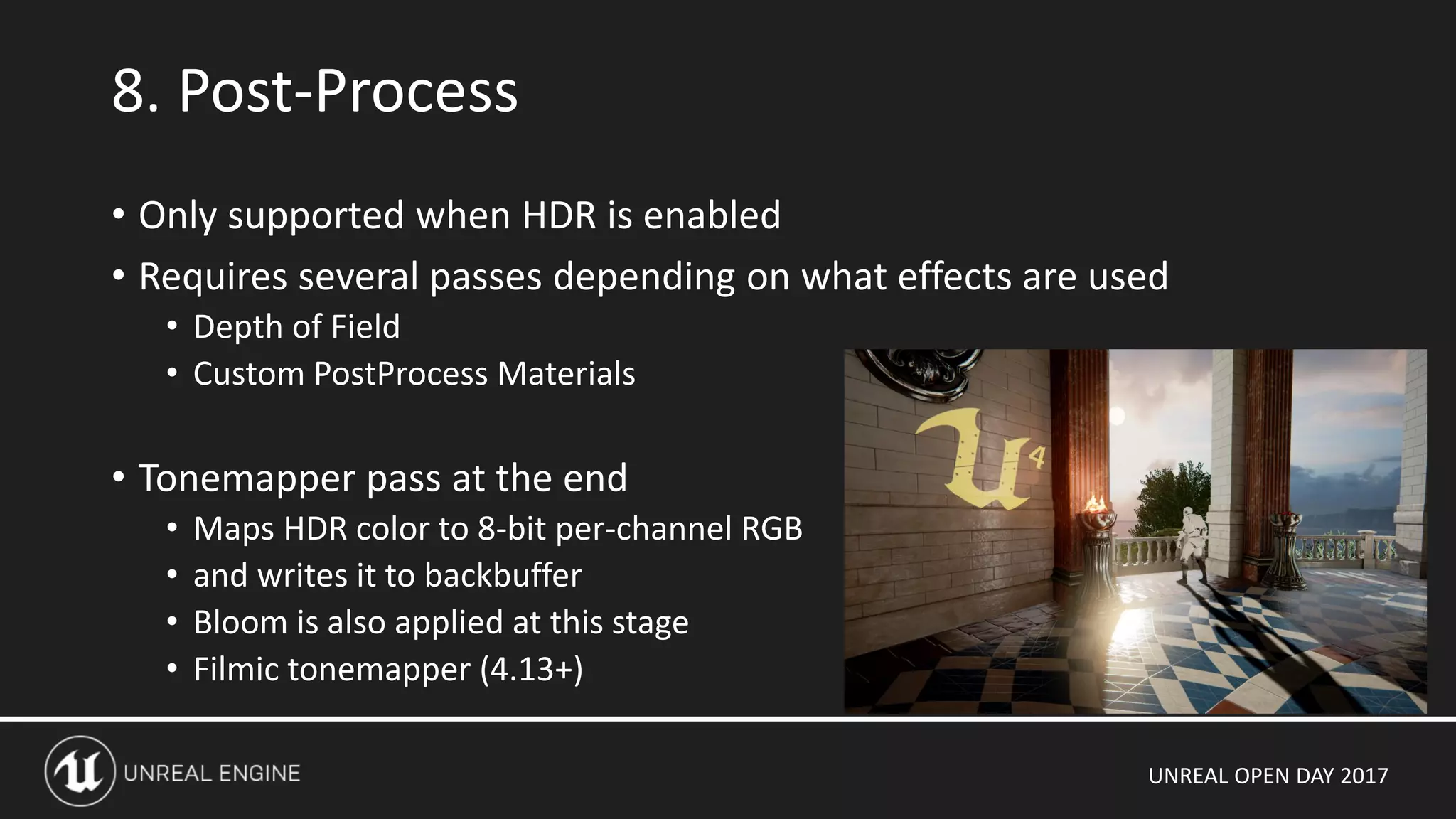

8. Post-Process
• Only supported when HDR is enabled
• Requires several passes depending on what effects are used
• Depth of Field
• Custom PostProcess Materials
• Tonemapper pass at the end
• Maps HDR color to 8-bit per-channel RGB
• and writes it to backbuffer
• Bloom is also applied at this stage

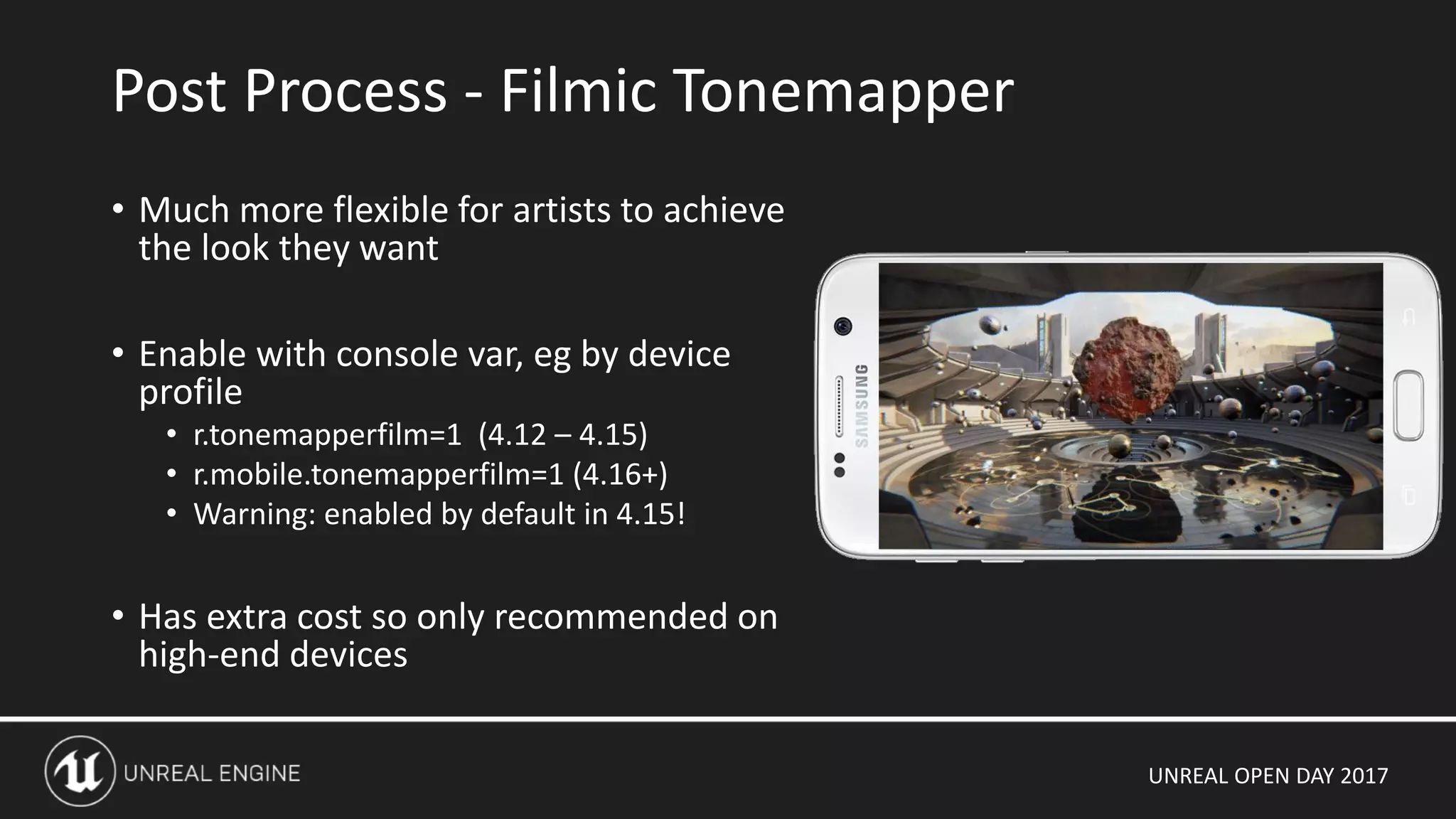

• Filmic tonemapper (4.13+)

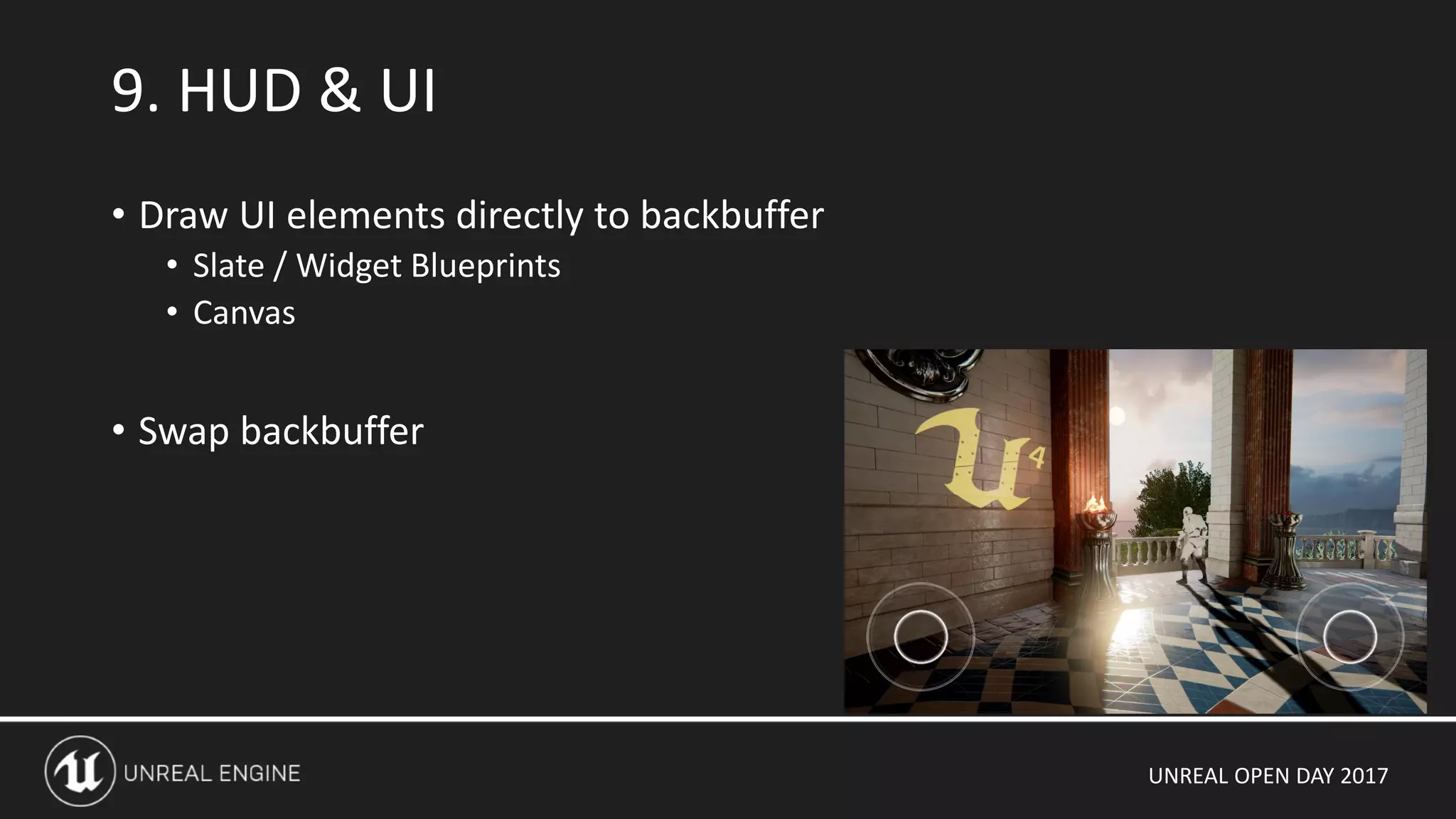

• Draw UI elements directly to backbuffer
• Slate / Widget Blueprints
• Canvas
• Swap backbuffer
9. HUD & UI

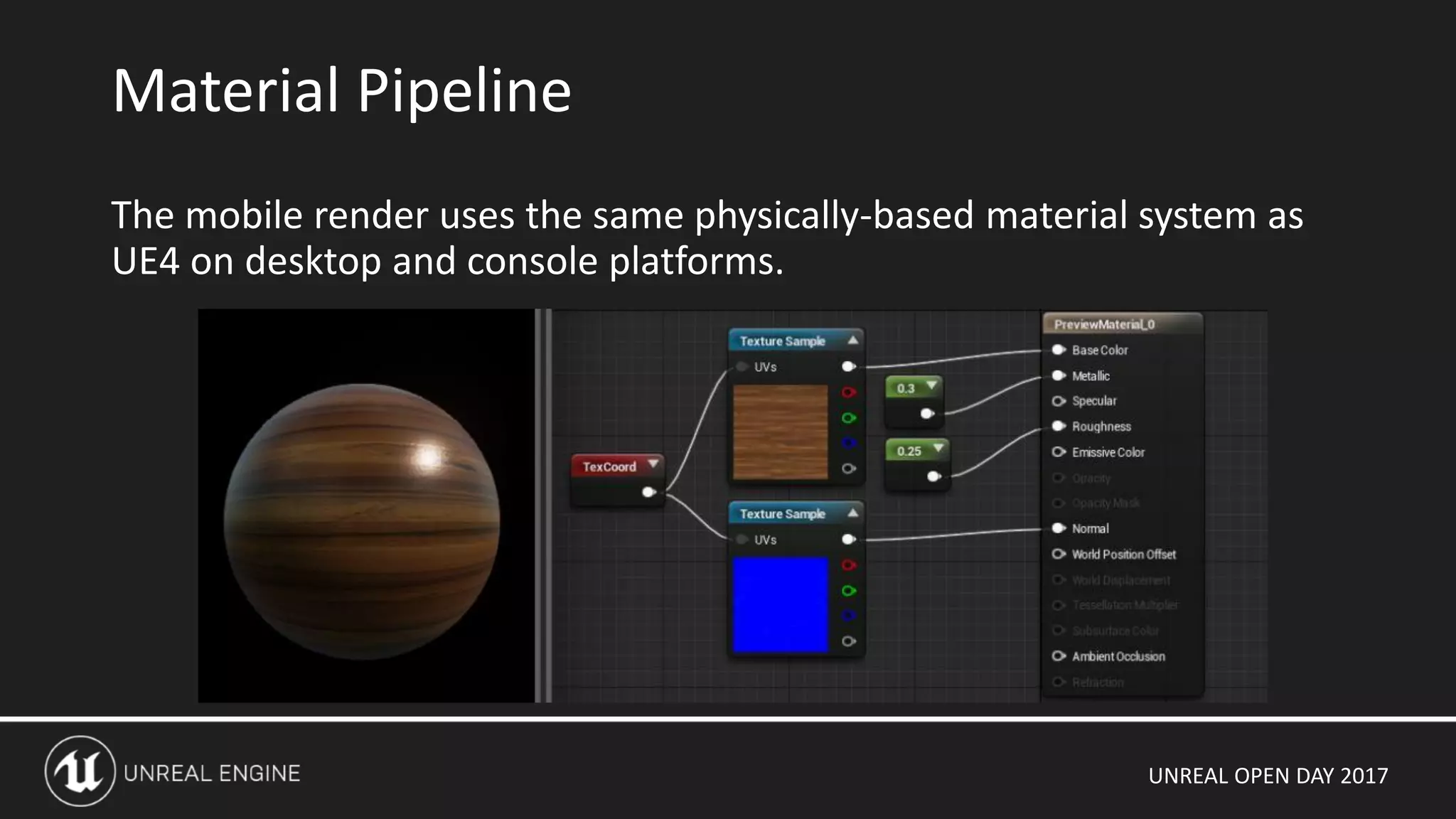

The mobile render uses the same physically-based material system as
UE4 on desktop and console platforms.
Material Pipeline

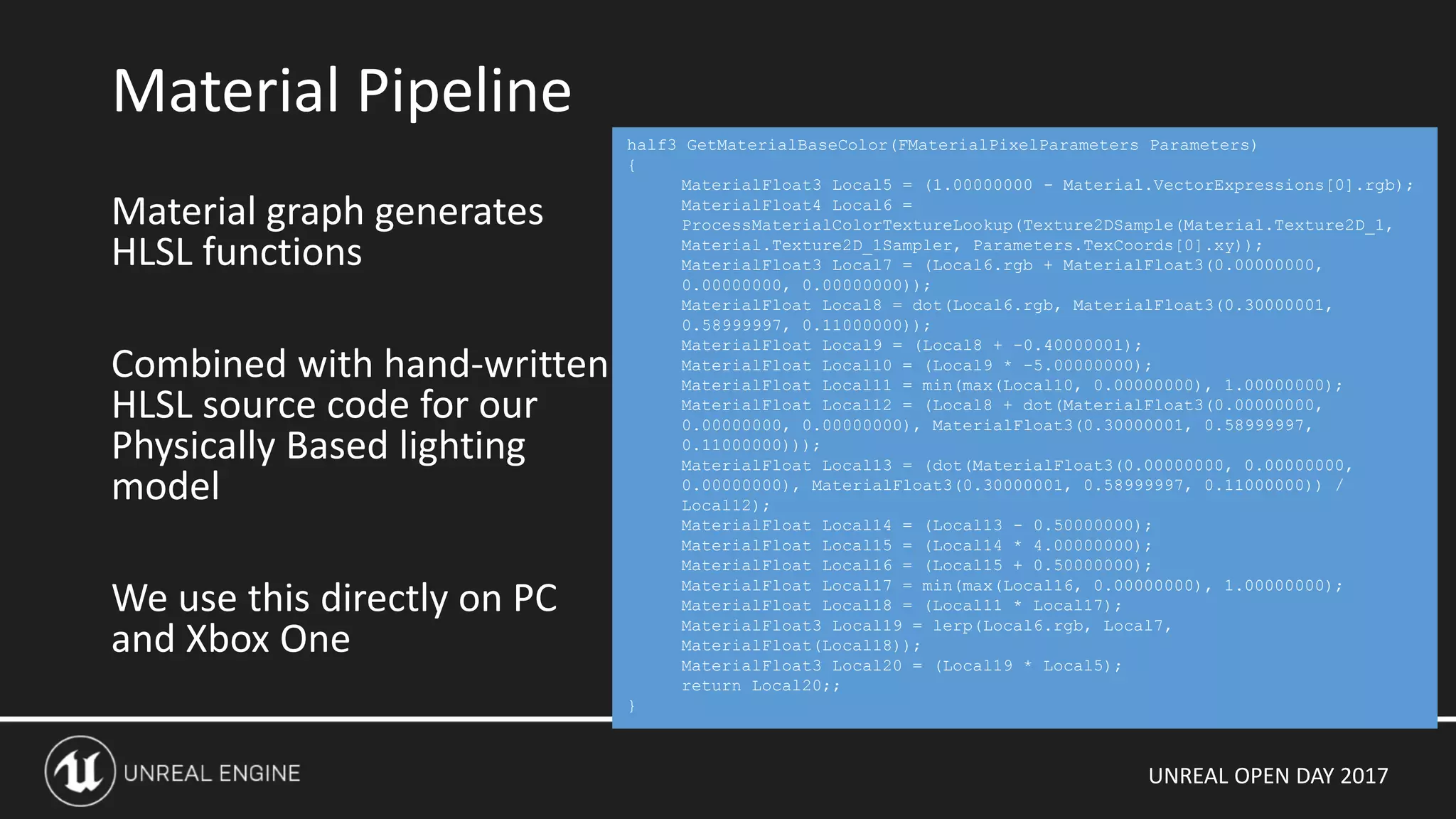

Material graph generates
HLSL functions
Combined with hand-written
HLSL source code for our
Physically Based lighting
model
We use this directly on PC
and Xbox One
Material Pipeline
half3 GetMaterialBaseColor(FMaterialPixelParameters Parameters)
{
MaterialFloat3 Local5 = (1.00000000 - Material.VectorExpressions[0].rgb);
MaterialFloat4 Local6 =
ProcessMaterialColorTextureLookup(Texture2DSample(Material.Texture2D_1,
Material.Texture2D_1Sampler, Parameters.TexCoords[0].xy));
MaterialFloat3 Local7 = (Local6.rgb + MaterialFloat3(0.00000000,
0.00000000, 0.00000000));
MaterialFloat Local8 = dot(Local6.rgb, MaterialFloat3(0.30000001,
0.58999997, 0.11000000));
MaterialFloat Local9 = (Local8 + -0.40000001);
MaterialFloat Local10 = (Local9 * -5.00000000);
MaterialFloat Local11 = min(max(Local10, 0.00000000), 1.00000000);
MaterialFloat Local12 = (Local8 + dot(MaterialFloat3(0.00000000,
0.00000000, 0.00000000), MaterialFloat3(0.30000001, 0.58999997,
0.11000000)));
MaterialFloat Local13 = (dot(MaterialFloat3(0.00000000, 0.00000000,
0.00000000), MaterialFloat3(0.30000001, 0.58999997, 0.11000000)) /
Local12);
MaterialFloat Local14 = (Local13 - 0.50000000);
MaterialFloat Local15 = (Local14 * 4.00000000);
MaterialFloat Local16 = (Local15 + 0.50000000);
MaterialFloat Local17 = min(max(Local16, 0.00000000), 1.00000000);
MaterialFloat Local18 = (Local11 * Local17);
MaterialFloat3 Local19 = lerp(Local6.rgb, Local7,
MaterialFloat(Local18));
MaterialFloat3 Local20 = (Local19 * Local5);
return Local20;;
}

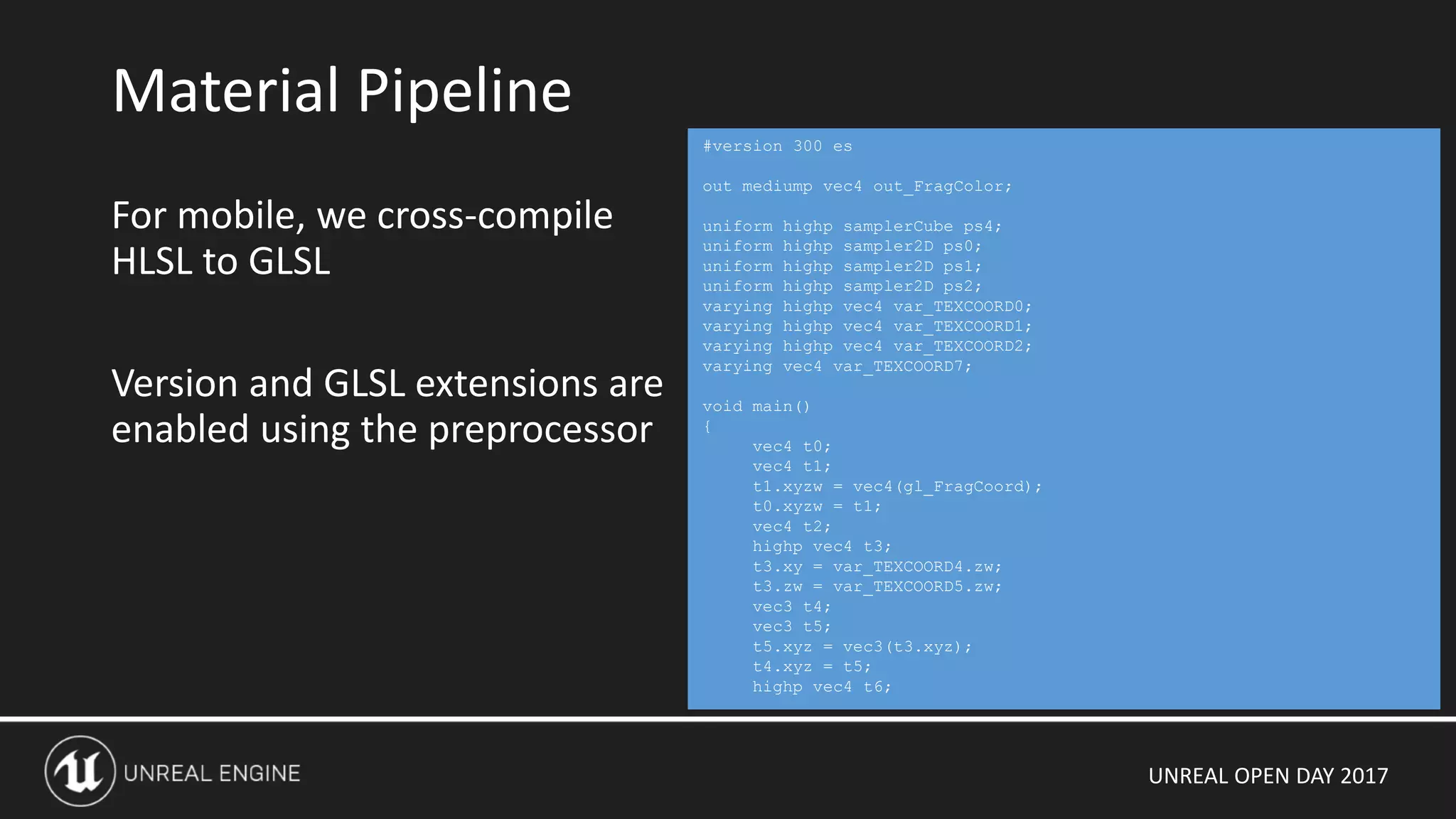

For mobile, we cross-compile
HLSL to GLSL
Version and GLSL extensions are
enabled using the preprocessor
Material Pipeline
#version 300 es
out mediump vec4 out_FragColor;
uniform highp samplerCube ps4;
uniform highp sampler2D ps0;
varying highp vec4 var_TEXCOORD0;
varying vec4 var_TEXCOORD7;
void main()
{
vec4 t0;
vec4 t1;
t1.xyzw = vec4(gl_FragCoord);
t0.xyzw = t1;
vec4 t2;
highp vec4 t3;
t3.xy = var_TEXCOORD4.zw;
t3.zw = var_TEXCOORD5.zw;
vec3 t4;
vec3 t5;
t5.xyz = vec3(t3.xyz);
t4.xyz = t5;
highp vec4 t6;

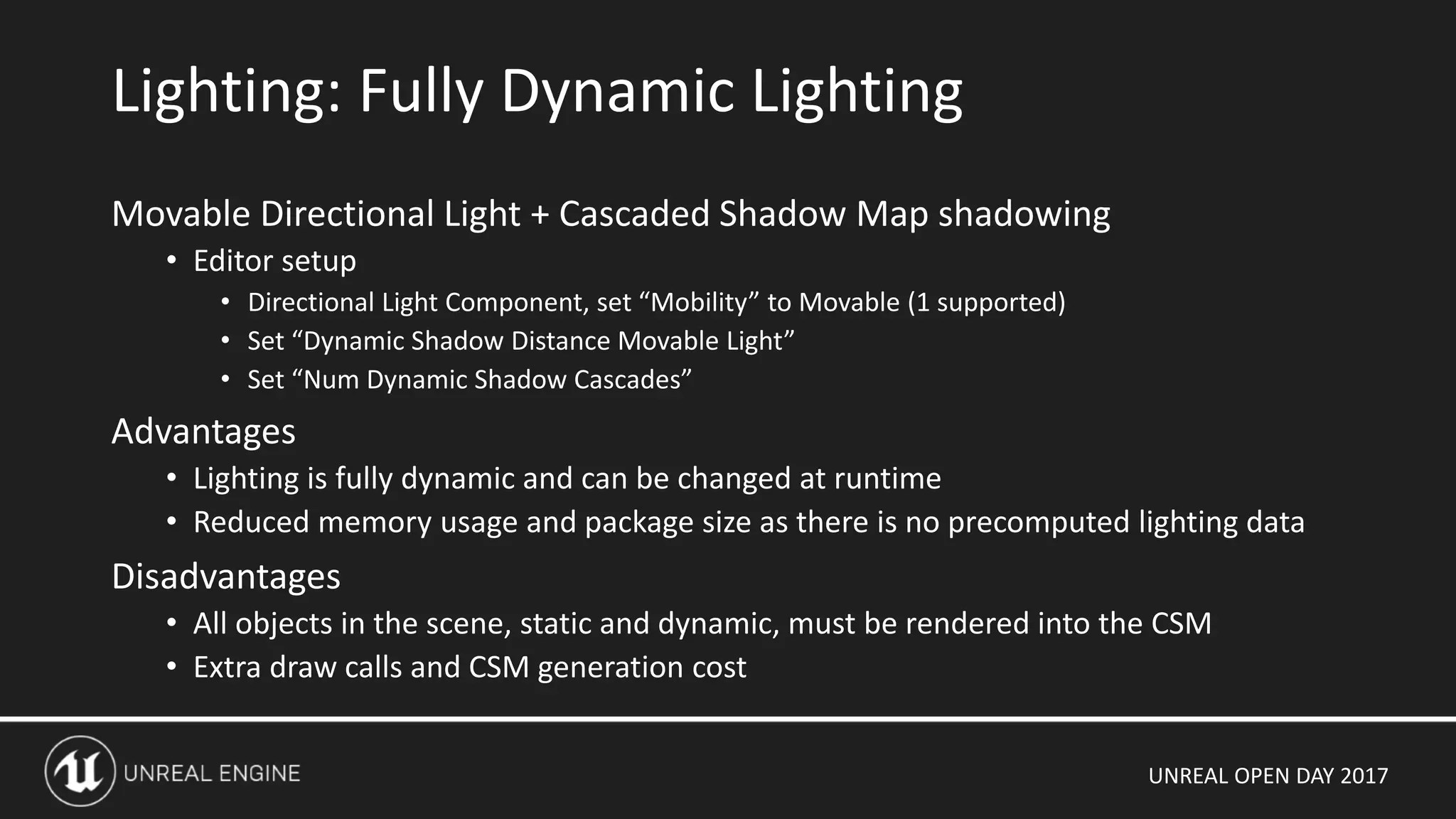

Movable Directional Light + Cascaded Shadow Map shadowing
• Editor setup
• Directional Light Component, set “Mobility” to Movable (1 supported)
• Set “Dynamic Shadow Distance Movable Light”
• Set “Num Dynamic Shadow Cascades”
Advantages
• Lighting is fully dynamic and can be changed at runtime
• Reduced memory usage and package size as there is no precomputed lighting data
Disadvantages
• All objects in the scene, static and dynamic, must be rendered into the CSM
• Extra draw calls and CSM generation cost
Lighting: Fully Dynamic Lighting

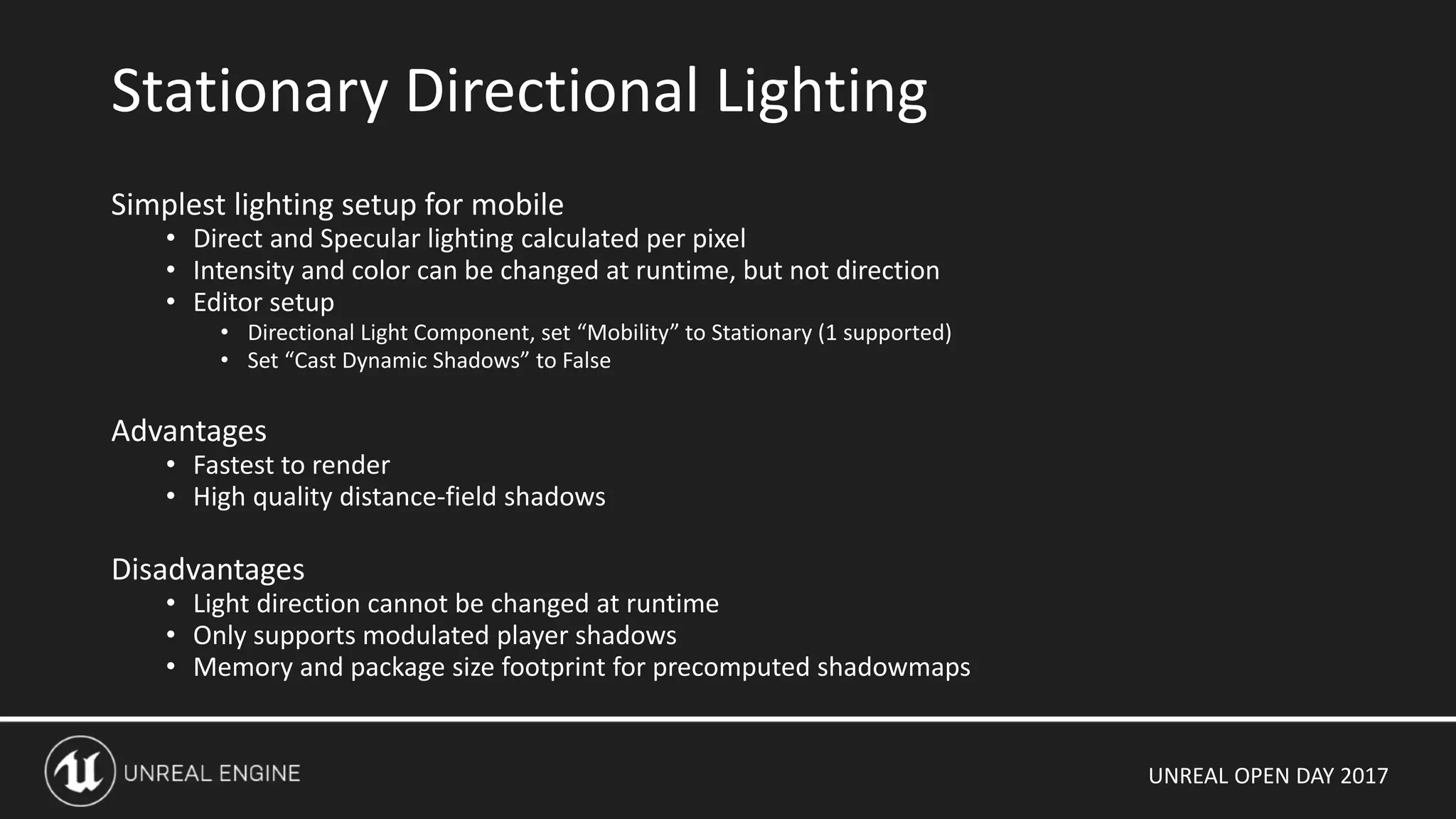

Simplest lighting setup for mobile
• Direct and Specular lighting calculated per pixel
• Intensity and color can be changed at runtime, but not direction
• Editor setup
• Directional Light Component, set “Mobility” to Stationary (1 supported)
• Set “Cast Dynamic Shadows” to False
Advantages
• Fastest to render
• High quality distance-field shadows
Disadvantages
• Light direction cannot be changed at runtime
• Only supports modulated player shadows
• Memory and package size footprint for precomputed shadowmaps
Stationary Directional Lighting

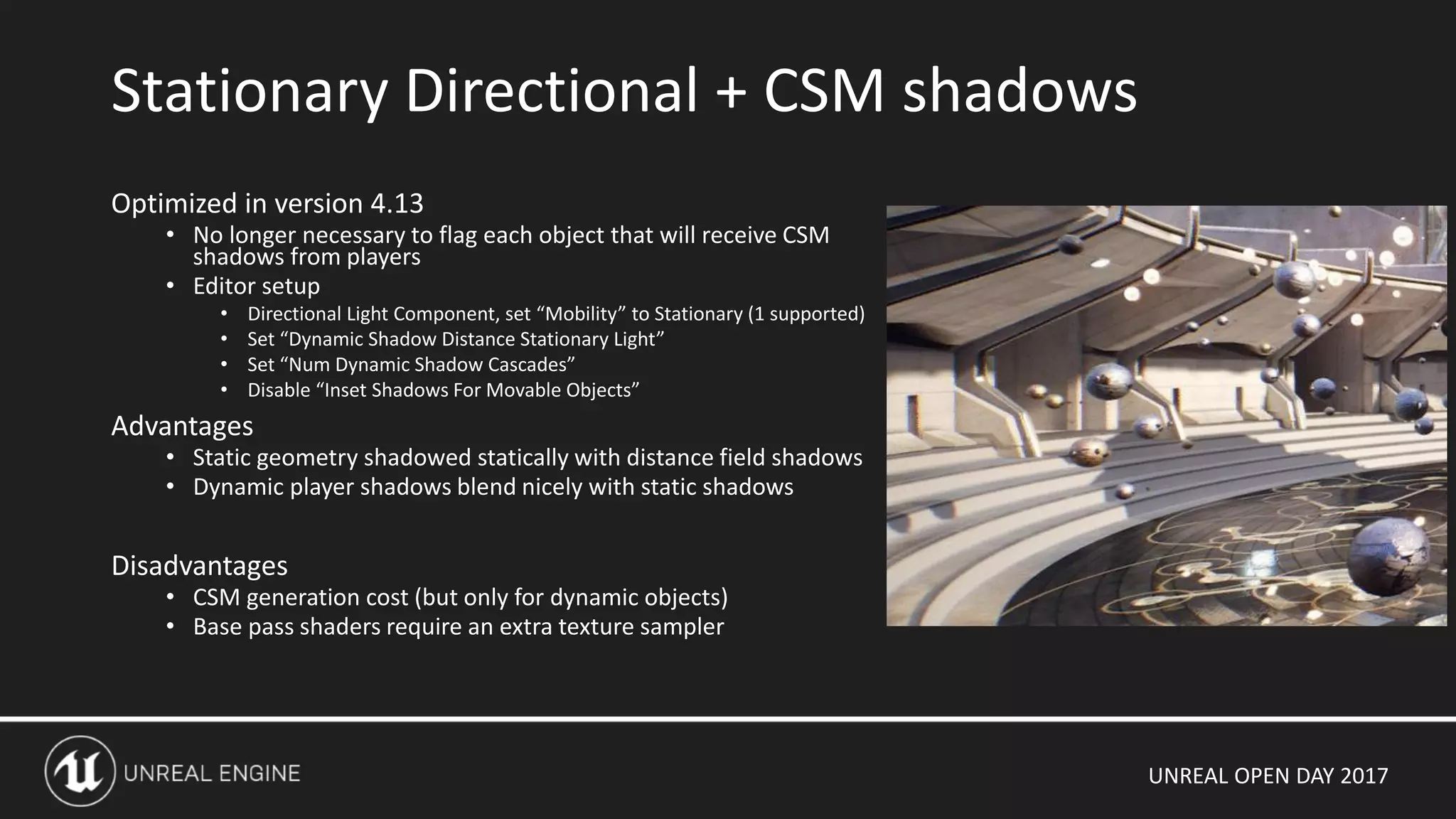

Optimized in version 4.13
• No longer necessary to flag each object that will receive CSM
shadows from players
• Editor setup
• Directional Light Component, set “Mobility” to Stationary (1 supported)
• Set “Dynamic Shadow Distance Stationary Light”
• Set “Num Dynamic Shadow Cascades”
• Disable “Inset Shadows For Movable Objects”
Advantages
• Static geometry shadowed statically with distance field shadows
• Dynamic player shadows blend nicely with static shadows
Disadvantages
• CSM generation cost (but only for dynamic objects)
• Base pass shaders require an extra texture sampler
Stationary Directional + CSM shadows

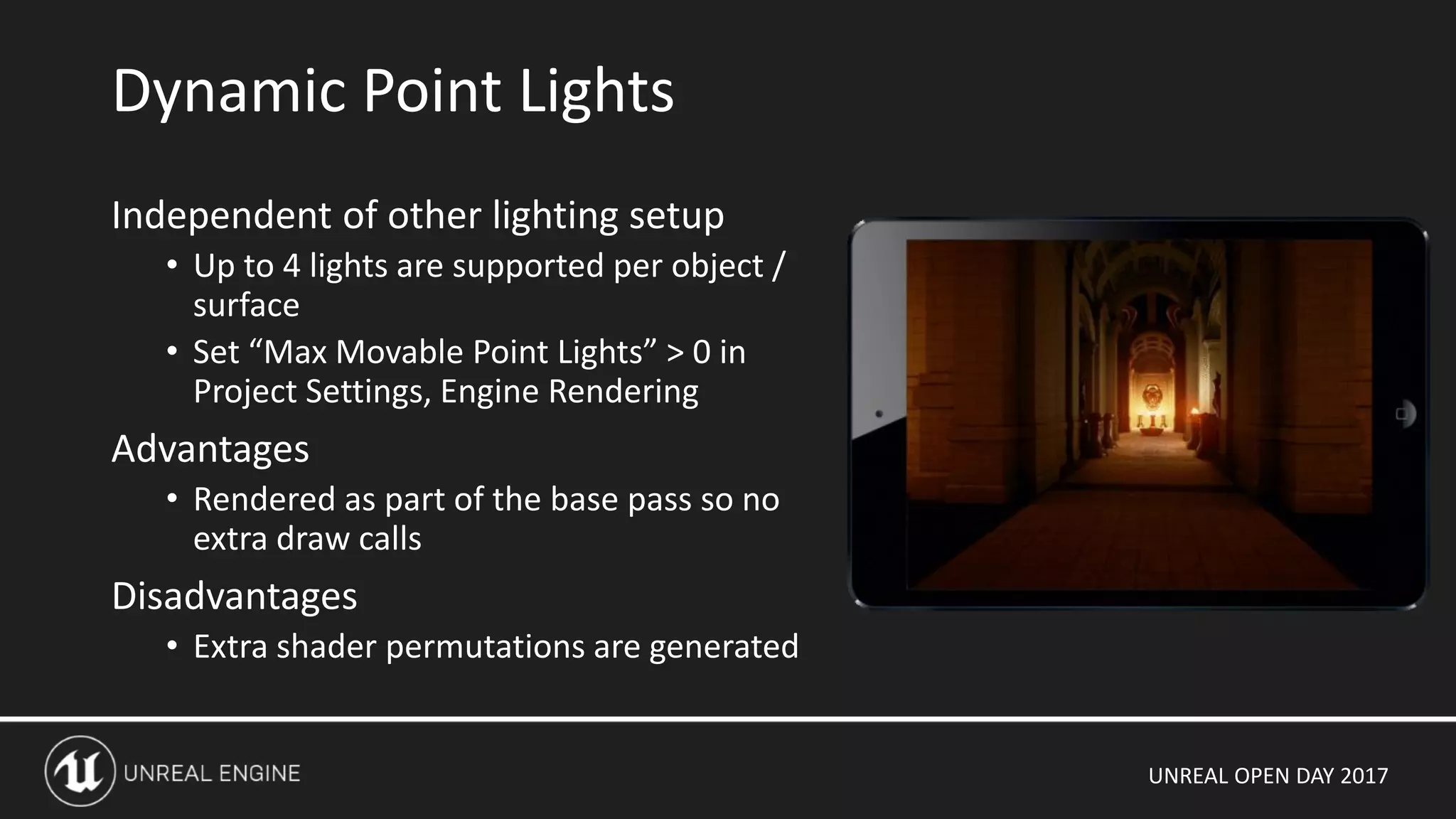

Independent of other lighting setup
• Up to 4 lights are supported per object /
surface
• Set “Max Movable Point Lights” > 0 in
Project Settings, Engine Rendering
Advantages
• Rendered as part of the base pass so no
extra draw calls
Disadvantages
• Extra shader permutations are generated
Dynamic Point Lights

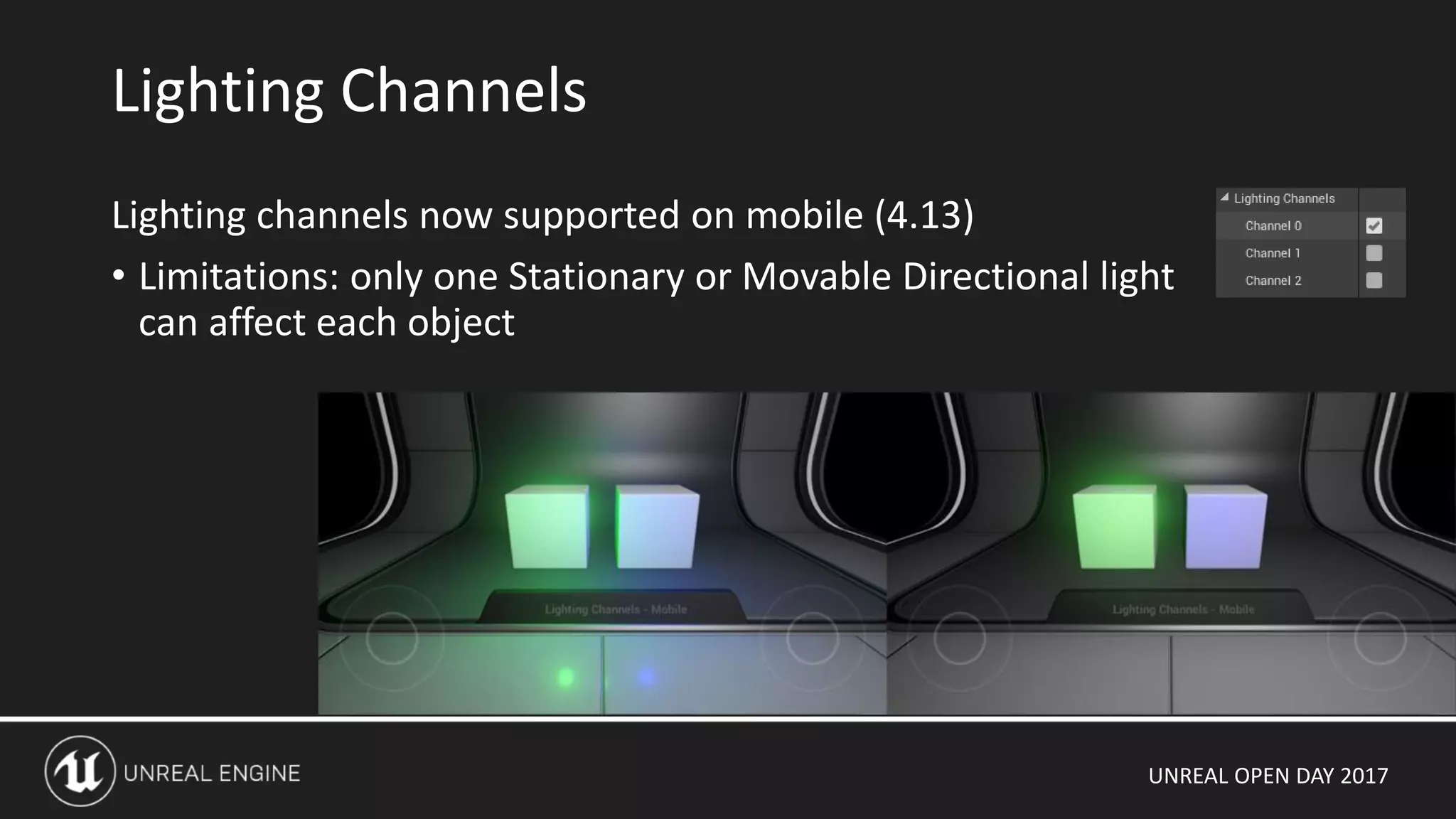

Lighting channels now supported on mobile (4.13)
• Limitations: only one Stationary or Movable Directional light
can affect each object
Lighting Channels

• Much more flexible for artists to achieve
the look they want
• Enable with console var, eg by device
profile
• r.tonemapperfilm=1 (4.12 – 4.15)
• r.mobile.tonemapperfilm=1 (4.16+)
• Warning: enabled by default in 4.15!
• Has extra cost so only recommended on
high-end devices
Post Process - Filmic Tonemapper

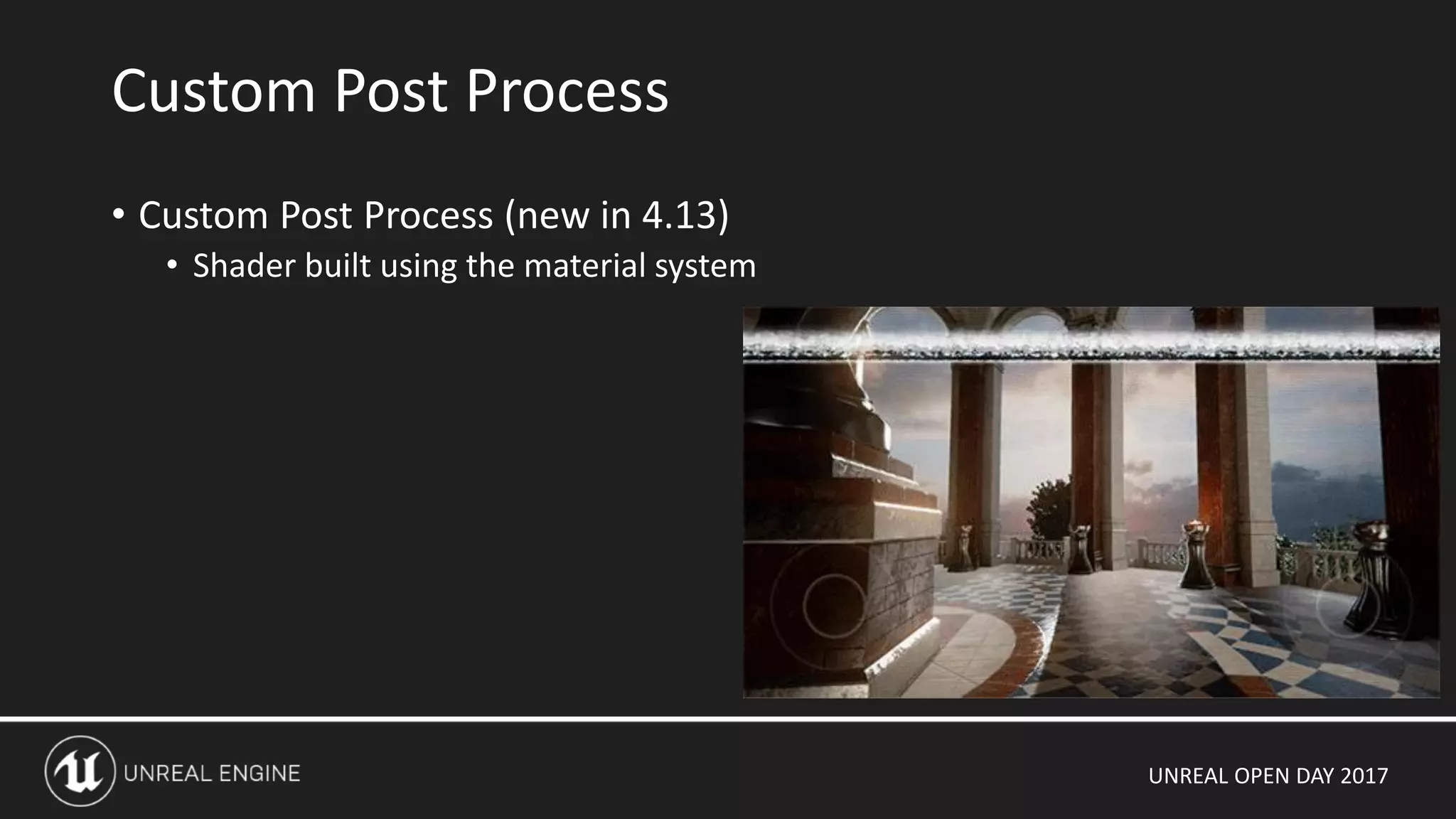

• Custom Post Process (new in 4.13)
• Shader built using the material system
Custom Post Process

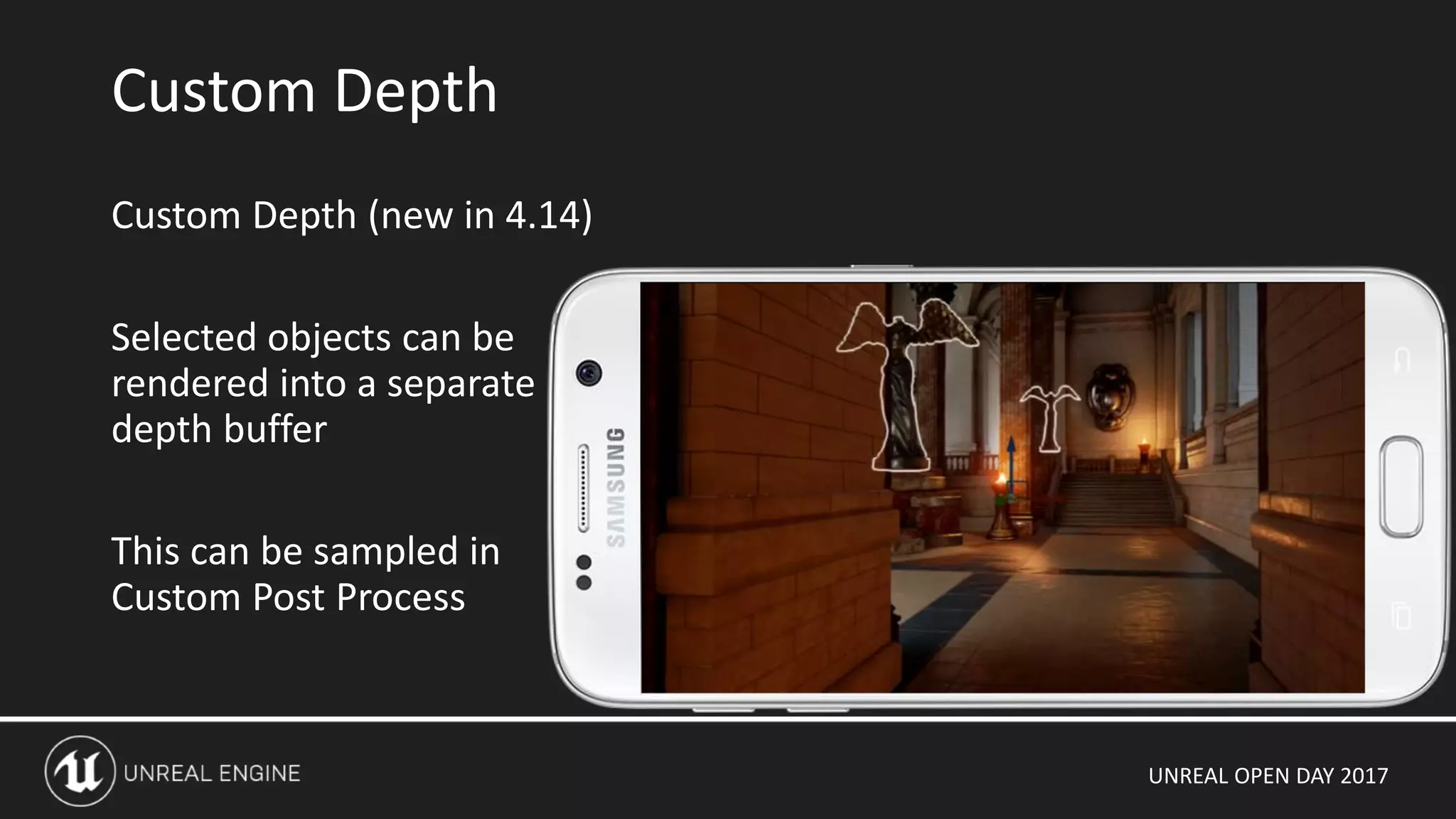

Custom Depth (new in 4.14)
Selected objects can be
rendered into a separate
depth buffer
This can be sampled in
Custom Post Process
Custom Depth

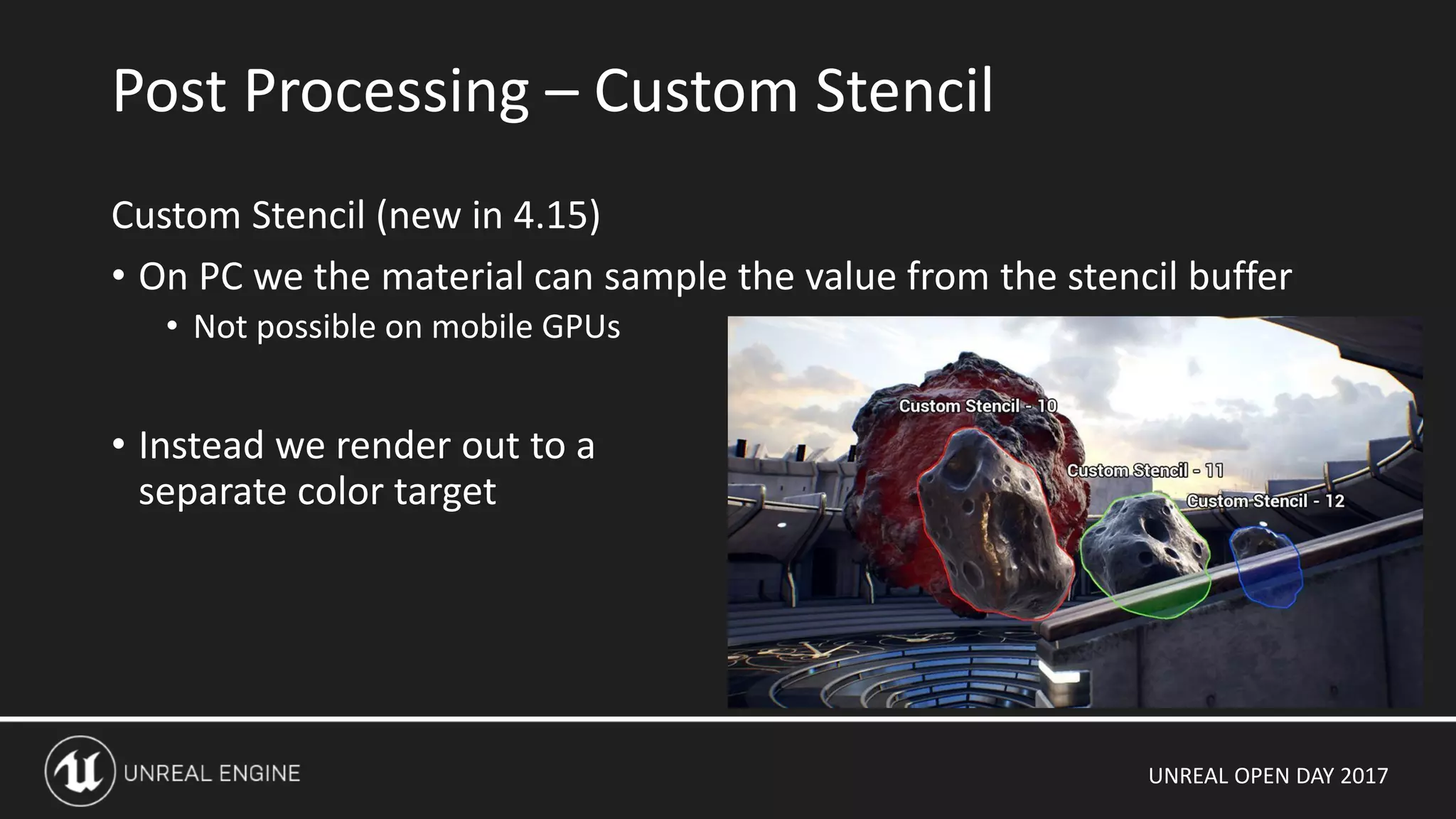

Custom Stencil (new in 4.15)
• On PC we the material can sample the value from the stencil buffer
• Not possible on mobile GPUs
• Instead we render out to a
separate color target
Post Processing – Custom Stencil

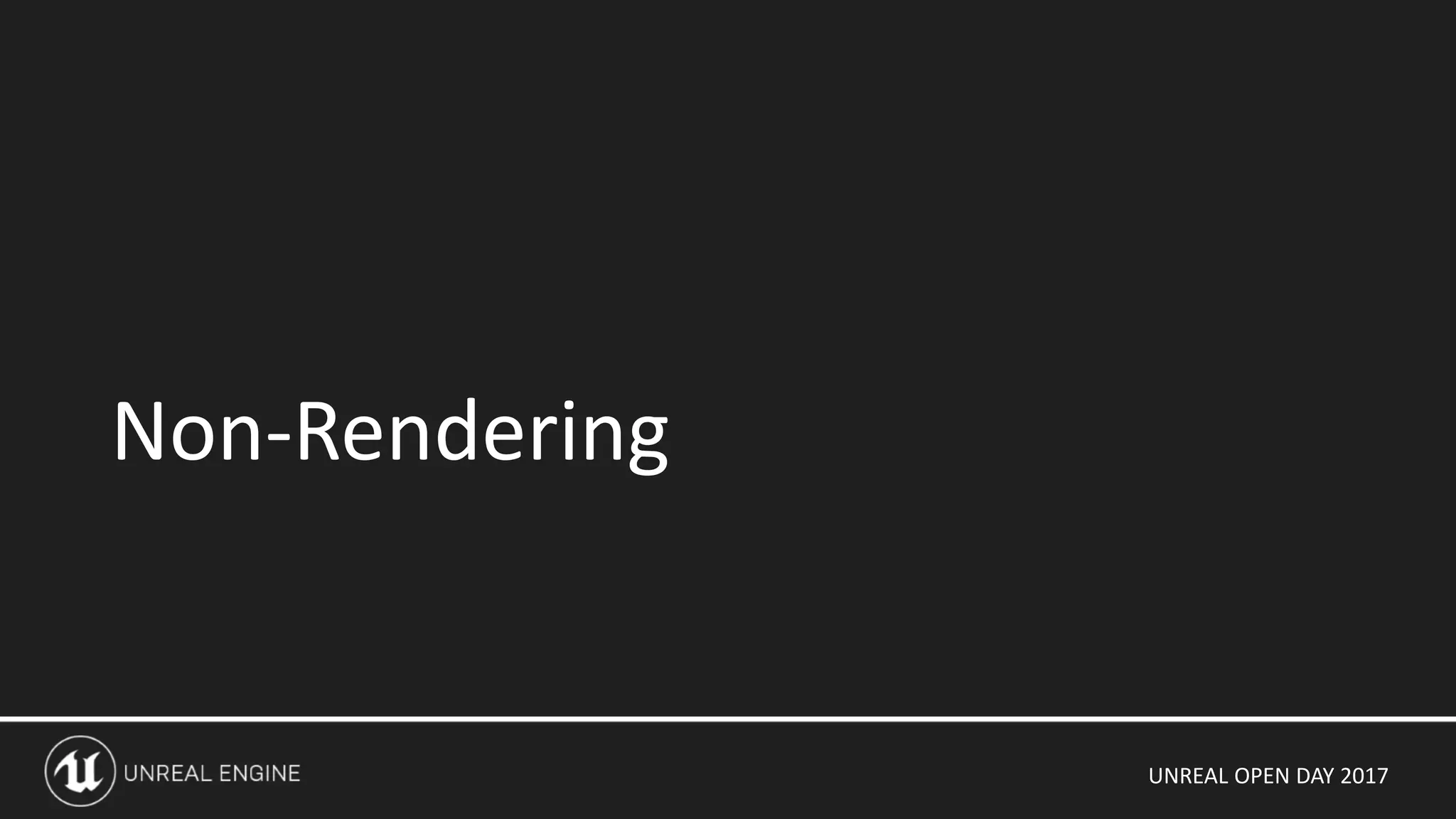

Non-Rendering

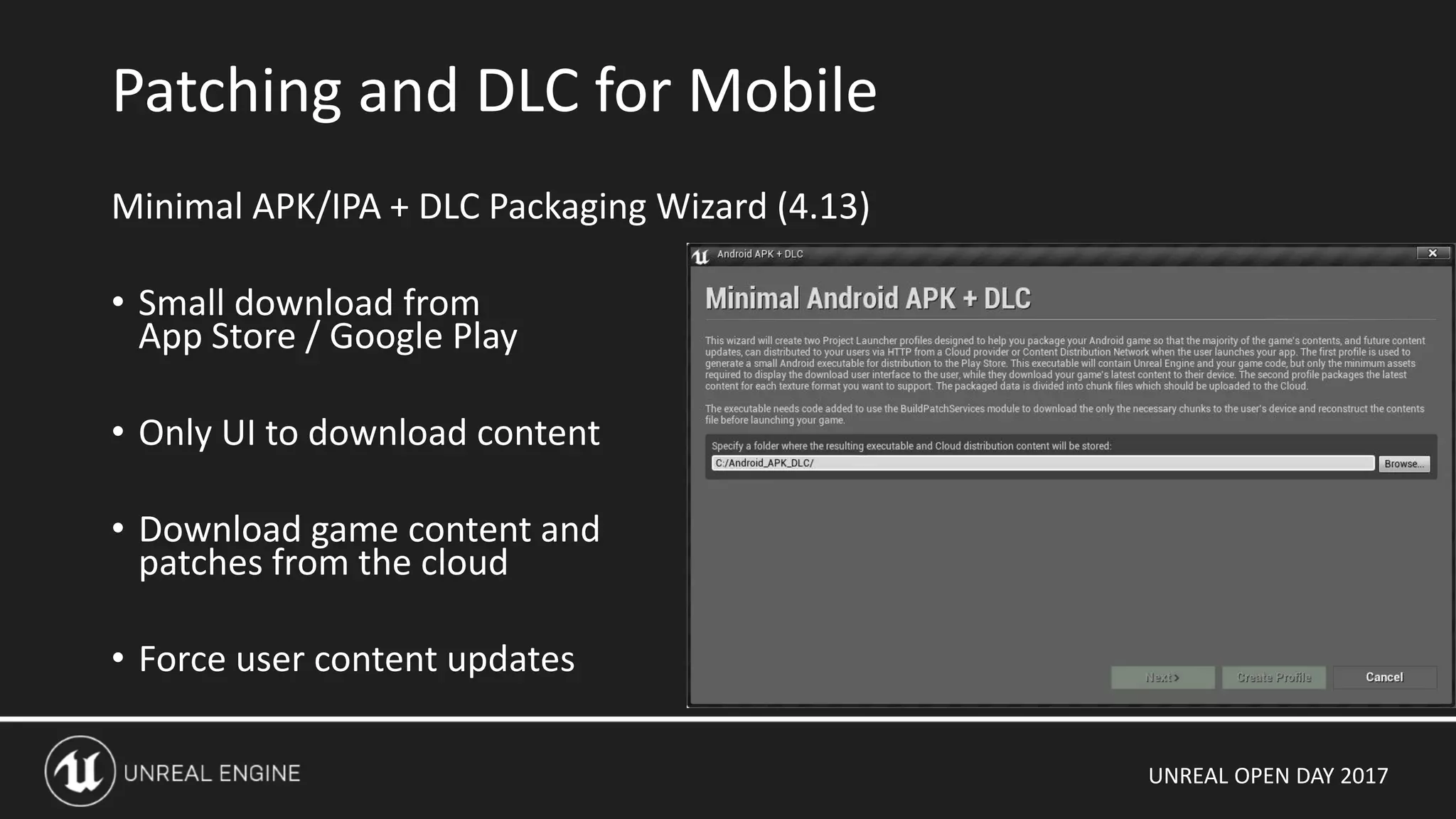

Minimal APK/IPA + DLC Packaging Wizard (4.13)
• Small download from
App Store / Google Play
• Only UI to download content
• Download game content and
patches from the cloud
• Force user content updates
Patching and DLC for Mobile

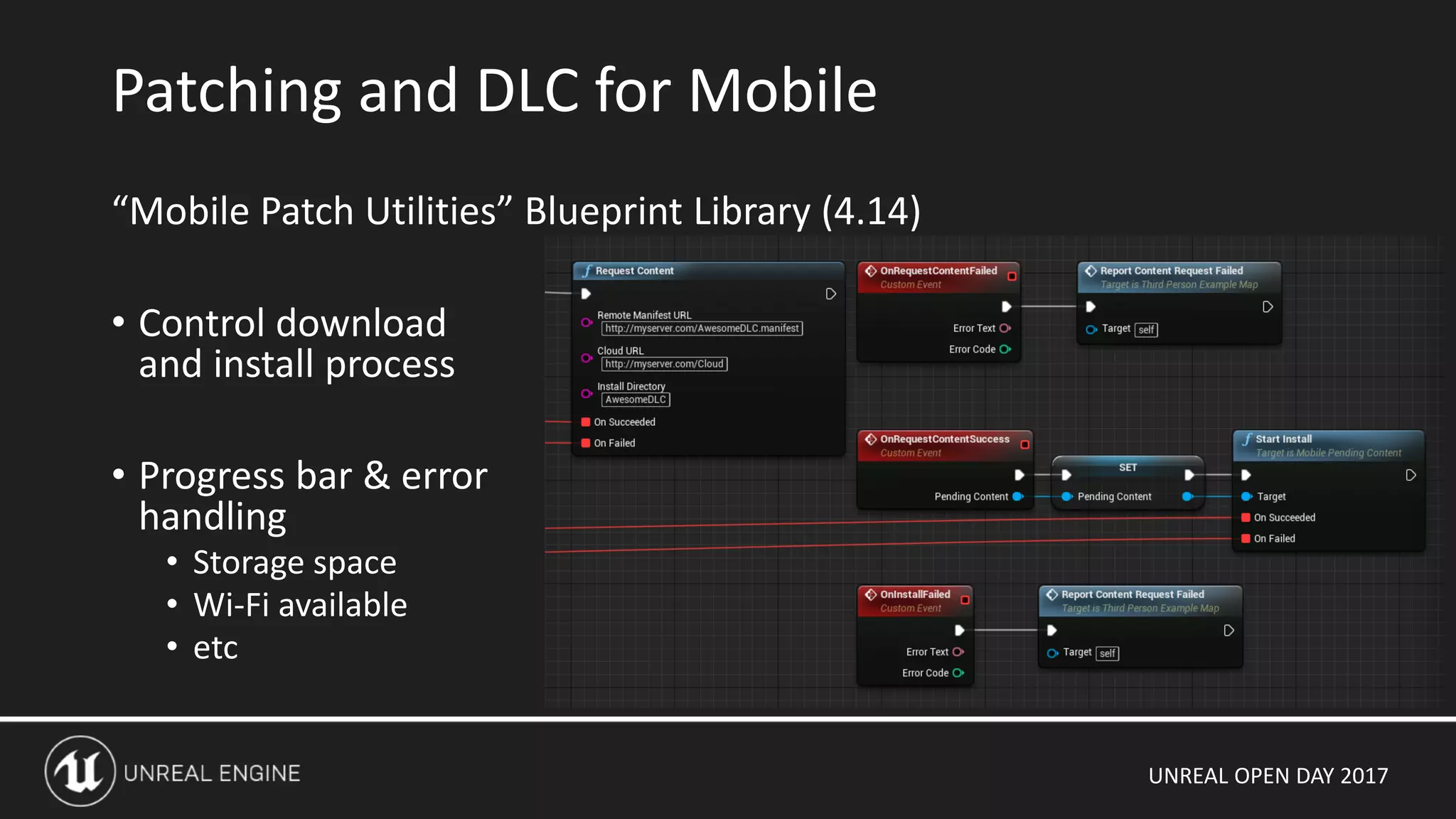

“Mobile Patch Utilities” Blueprint Library (4.14)
• Control download
and install process
• Progress bar & error
handling
• Storage space
• Wi-Fi available
• etc
Patching and DLC for Mobile

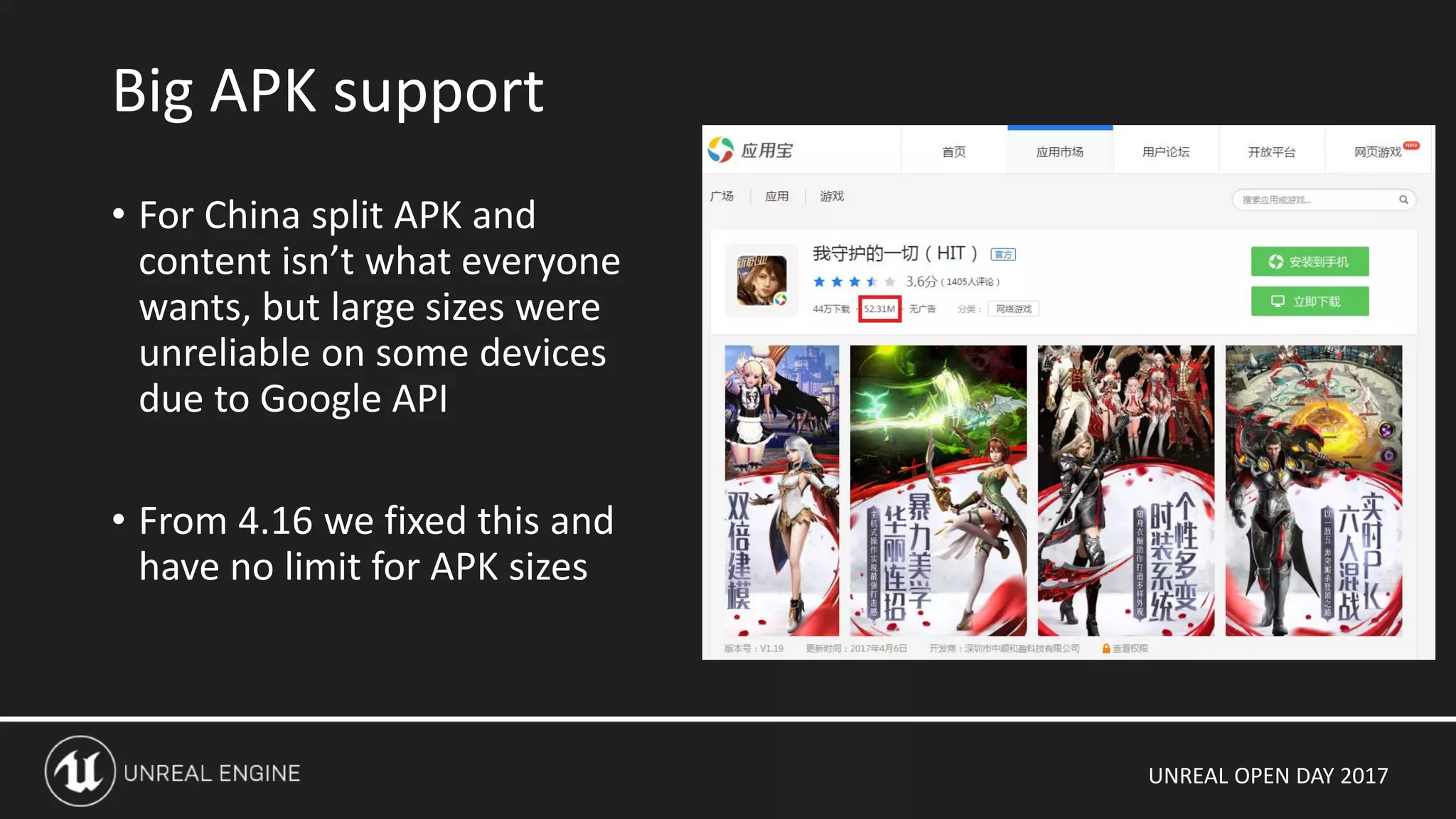

• For China split APK and
content isn’t what everyone
wants, but large sizes were
unreliable on some devices
due to Google API
• From 4.16 we fixed this and
have no limit for APK sizes
Big APK support

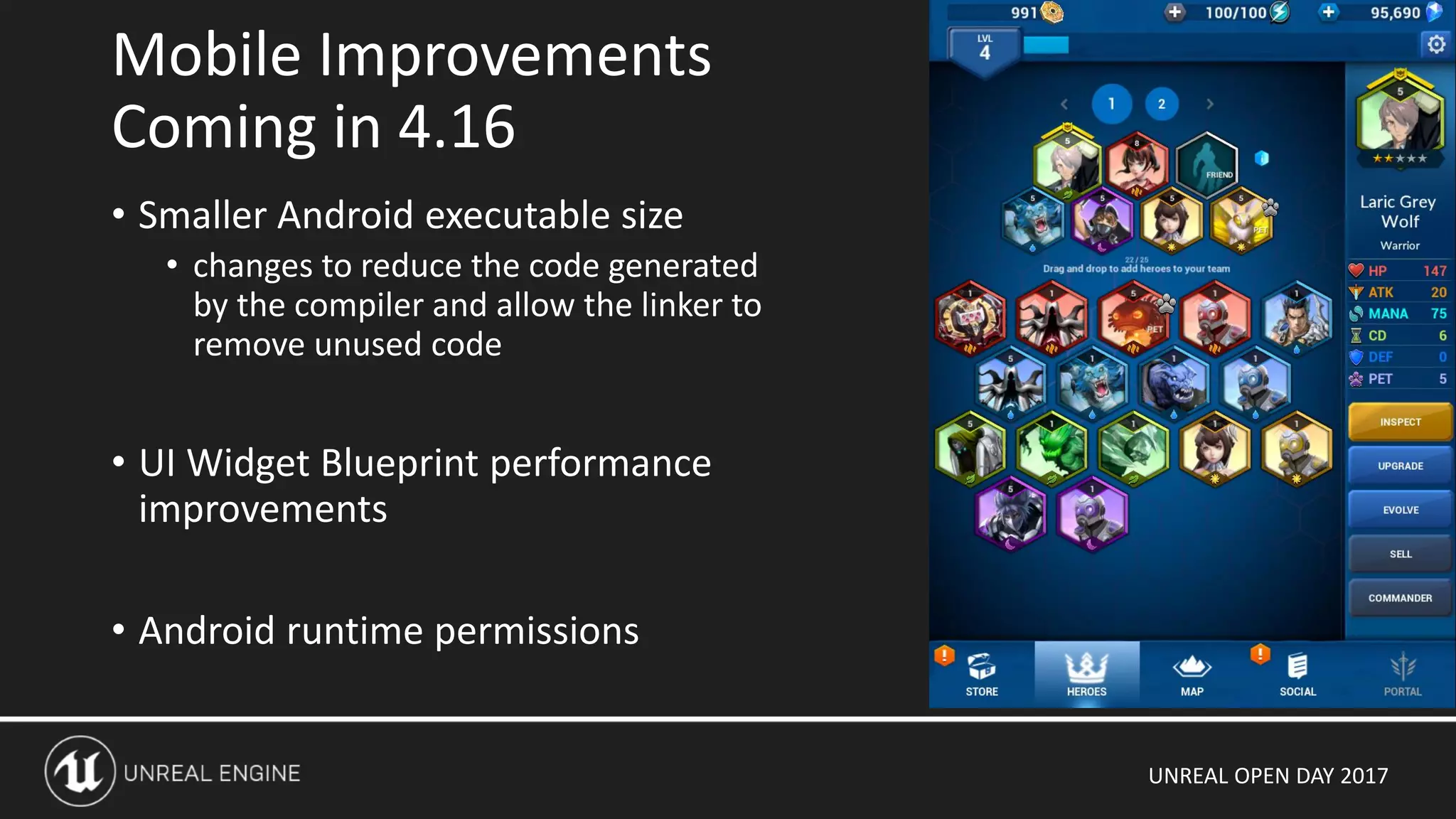

• Smaller Android executable size
• changes to reduce the code generated
by the compiler and allow the linker to
remove unused code
• UI Widget Blueprint performance
improvements
• Android runtime permissions
Mobile Improvements
Coming in 4.16

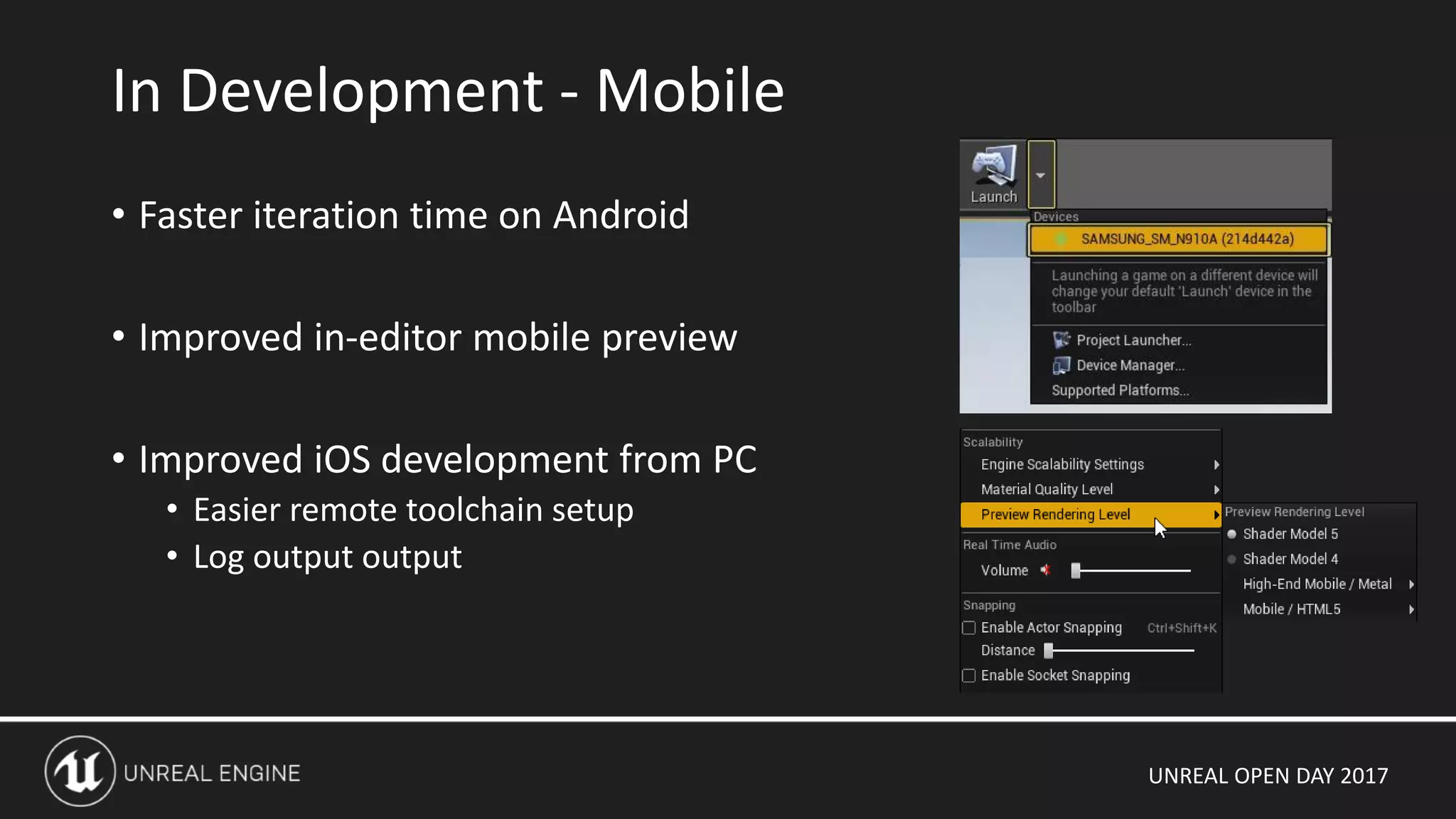

• Faster iteration time on Android
• Improved in-editor mobile preview
• Improved iOS development from PC
• Easier remote toolchain setup
• Log output output
In Development - Mobile

Thanks, Questions and Requests

Unreal Open Day 2017 UE4 for Mobile: The Future of High Quality Mobile Games

More Related Content

What's hot

Viewers also liked

Similar to Unreal Open Day 2017 UE4 for Mobile: The Future of High Quality Mobile Games

More from Epic Games China

Recently uploaded

In this document

Unreal Open Day 2017 UE4 for Mobile: The Future of High Quality Mobile Games
