The presentation discusses the key aspects of skyscrapers including their structural components, needs, advantages, disadvantages and safety considerations. It notes that skyscrapers are very tall buildings with many floors that provide space and views in expensive, dense urban areas. The structural components include sub-structures like foundations and super-structures above ground with frames. Orientation and stability are important design factors. The tallest buildings ever built include Burj Khalifa and challenges of heightening safety and sustainability are ongoing.

1. TEAM 18 PRESESNTATION:
DEEWAS KHARKA 103
BISTEERNA MEDHI M45
PENCHEN LEPCHA 101
YIGO RIBA E14

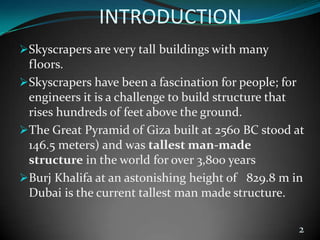

2. INTRODUCTION
Skyscrapers are very tall buildings with many
floors.
Skyscrapers have been a fascination for people; for
engineers it is a challenge to build structure that
rises hundreds of feet above the ground.
The Great Pyramid of Giza built at 2560 BC stood at
146.5 meters) and was tallest man-made
structure in the world for over 3,800 years
Burj Khalifa at an astonishing height of 829.8 m in
Dubai is the current tallest man made structure.
2

3. NEEDS FOR SKYSCRAPERS
 Expensive land Pricing
 Economic Status of a city
 Military Surveillance
 Broadcasting
Figure 1:World one, Mumbai 3

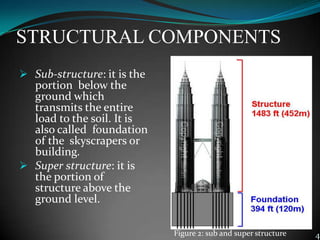

4. STRUCTURAL COMPONENTS
 Sub-structure: it is the
portion below the
ground which
transmits the entire
load to the soil. It is
also called foundation
of the skyscrapers or
building.
 Super structure: it is
the portion of
structure above the
ground level.
4Figure 2: sub and super structure

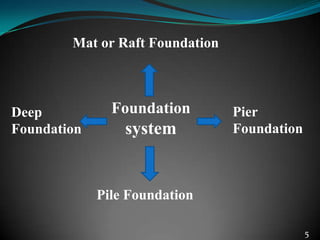

5. Foundation
system
Pile Foundation
Deep
Foundation
Mat or Raft Foundation
Pier
Foundation
5

6. SUPERSTRUCTURE
The portion of the building that
remains above the ground level.
A) Load bearing structural part: it
transmits dead load and live load
to the foundation.
B) Non load bearing structural part
: It does not carry load but perform
functions for aesthesis, partition
and
privacy, illumination, ventilation, e
gress etc.
Shear wall, Steel frame, tube
frame, Trussed tube and X-bracing. 6

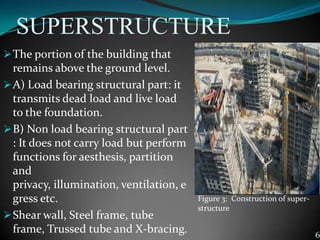

Figure 3: Construction of super-
structure

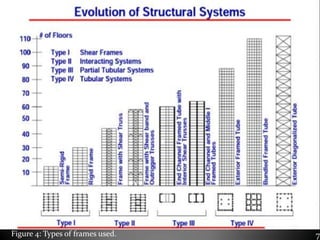

7. 7Figure 4: Types of frames used.

8. NON STRUCTURAL COMPONENTS
Elevators: It is a necessity in a skyscraper to transport
people and goods to different floors. Taller the
building more elevators are needed. Placement of
elevators needs to be properly planned and designed
to maximize the profitability of the skyscraper.
8
Figure 5: Elevators

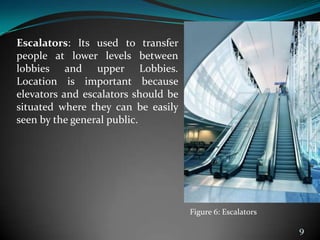

9. Escalators: Its used to transfer
people at lower levels between
lobbies and upper Lobbies.
Location is important because
elevators and escalators should be
situated where they can be easily
seen by the general public.
9
Figure 6: Escalators

10. BUILDING ORIENTATION
 Orientation is very important to make a skyscraper
energy efficient and to enjoy the gifts of nature.
10

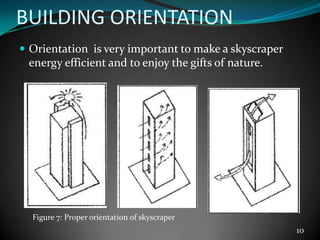

Figure 7: Proper orientation of skyscraper

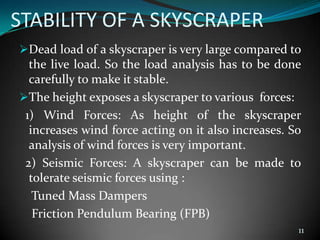

11. STABILITY OF A SKYSCRAPER
Dead load of a skyscraper is very large compared to
the live load. So the load analysis has to be done
carefully to make it stable.
The height exposes a skyscraper to various forces:
1) Wind Forces: As height of the skyscraper
increases wind force acting on it also increases. So
analysis of wind forces is very important.
2) Seismic Forces: A skyscraper can be made to
tolerate seismic forces using :
Tuned Mass Dampers
Friction Pendulum Bearing (FPB)
11

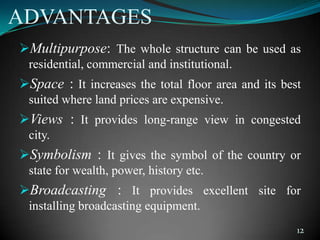

12. ADVANTAGES
Multipurpose: The whole structure can be used as
residential, commercial and institutional.
Space : It increases the total floor area and its best
suited where land prices are expensive.
Views : It provides long-range view in congested
city.
Symbolism : It gives the symbol of the country or
state for wealth, power, history etc.
Broadcasting : It provides excellent site for
installing broadcasting equipment.
12

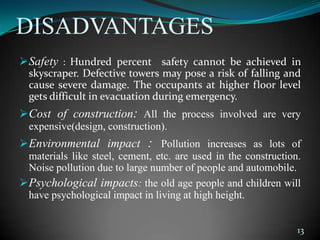

13. DISADVANTAGES
Safety : Hundred percent safety cannot be achieved in
skyscraper. Defective towers may pose a risk of falling and
cause severe damage. The occupants at higher floor level
gets difficult in evacuation during emergency.
Cost of construction: All the process involved are very
expensive(design, construction).
Environmental impact : Pollution increases as lots of
materials like steel, cement, etc. are used in the construction.
Noise pollution due to large number of people and automobile.
Psychological impacts: the old age people and children will
have psychological impact in living at high height.
13

14. SKYSCRAPER SAFETY
Design of a skyscraper is of
prime importance to make it
safe and stable against the loads
acting on it.
Fire safety and management
plans are needed to minimize
the danger on lives.
There should be egress planned
for evacuation in case of
emergency.
14
Figure 8: Terror attacks on WTC

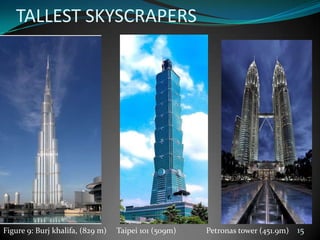

15. TALLEST SKYSCRAPERS
15Figure 9: Burj khalifa, (829 m) Taipei 101 (509m) Petronas tower (451.9m)

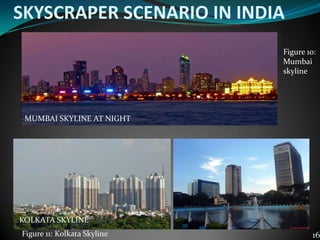

16. SKYSCRAPER SCENARIO IN INDIA
MUMBAI SKYLINE AT NIGHT
KOLKATA SKYLINE
16
Figure 10:
Mumbai
skyline
Figure 11: Kolkata Skyline

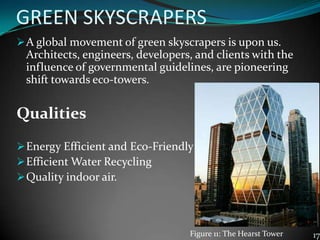

17. GREEN SKYSCRAPERS
A global movement of green skyscrapers is upon us.
Architects, engineers, developers, and clients with the
influence of governmental guidelines, are pioneering
shift towards eco-towers.
Qualities
Energy Efficient and Eco-Friendly
Efficient Water Recycling
Quality indoor air.
17Figure 11: The Hearst Tower

18. CONCLUSION
“Sky is the limit” foremost learning of the project. The
competition for the tallest is never going to end. More
ambitious projects are coming up around the world
including World One in Mumbai.
The greed to make the tallest has compromised the
need to make a safe skyscraper. This was highlighted
during 9/11 terror attacks on World Trade Center.
The need for Green Skyscraper is immense to reduce
impact on the environment.
New generation engineers have a lot to innovate and
make skyscrapers green and safe.
18

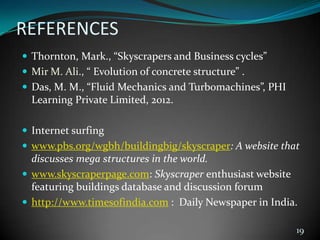

19. REFERENCES
 Thornton, Mark., “Skyscrapers and Business cycles”
 Mir M. Ali., “ Evolution of concrete structure” .
 Das, M. M., “Fluid Mechanics and Turbomachines”, PHI
Learning Private Limited, 2012.
 Internet surfing
 www.pbs.org/wgbh/buildingbig/skyscraper: A website that
discusses mega structures in the world.
 www.skyscraperpage.com: Skyscraper enthusiast website
featuring buildings database and discussion forum
 http://www.timesofindia.com : Daily Newspaper in India.
19
