Simulink software allows users to model, simulate, and analyze dynamic systems. It provides a graphical interface for building models as block diagrams using premade blocks or custom blocks. Models can represent systems from various industries and can be linear or nonlinear, continuous or discrete. Simulink is integrated with MATLAB, allowing users to define inputs, store outputs, and perform analyses.

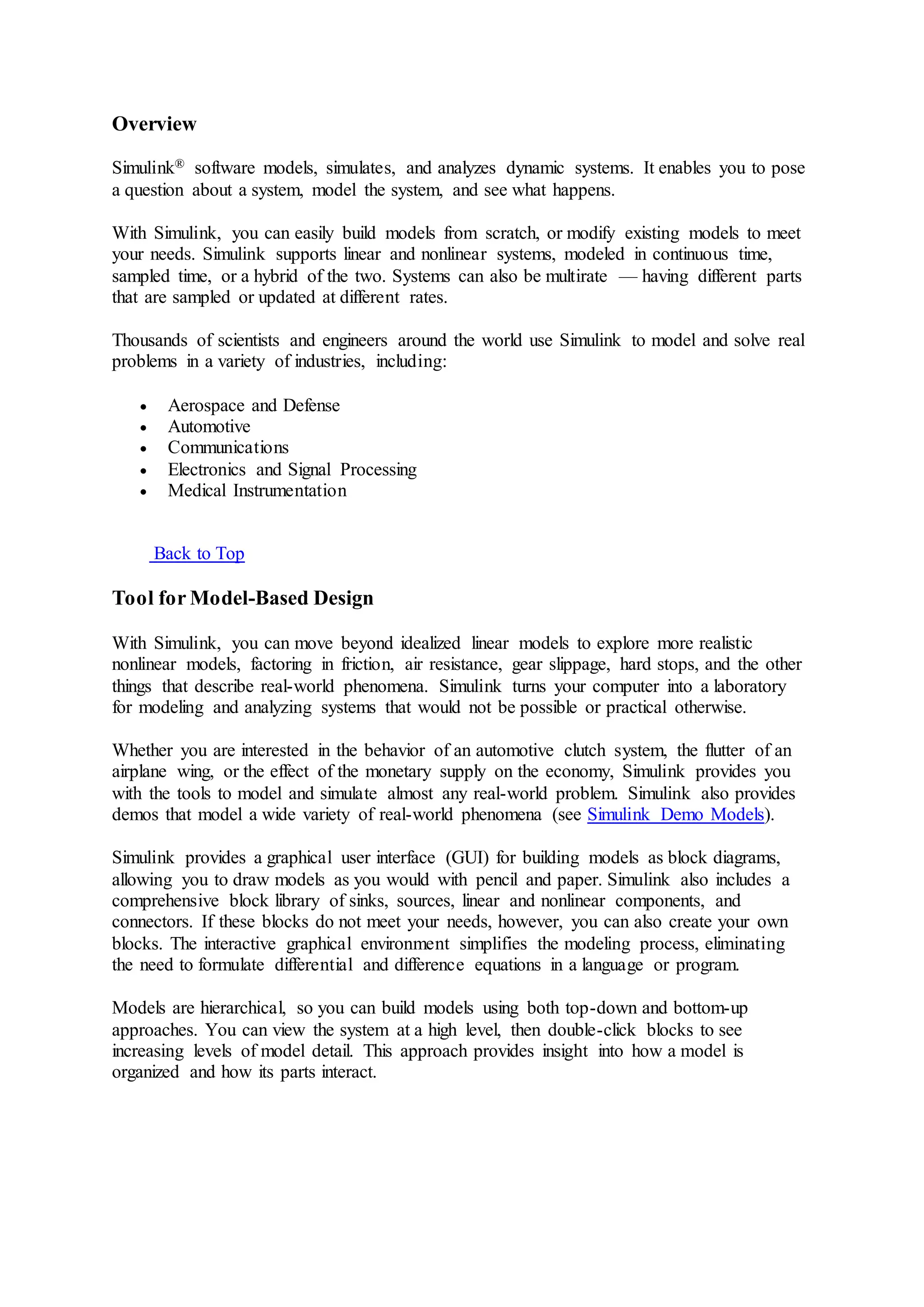

1. Overview
Simulink® software models, simulates, and analyzes dynamic systems. It enables you to pose
a question about a system, model the system, and see what happens.
With Simulink, you can easily build models from scratch, or modify existing models to meet
your needs. Simulink supports linear and nonlinear systems, modeled in continuous time,
sampled time, or a hybrid of the two. Systems can also be multirate — having different parts
that are sampled or updated at different rates.
Thousands of scientists and engineers around the world use Simulink to model and solve real
problems in a variety of industries, including:
 Aerospace and Defense
 Automotive
 Communications
 Electronics and Signal Processing
 Medical Instrumentation
Back to Top
Tool for Model-Based Design
With Simulink, you can move beyond idealized linear models to explore more realistic
nonlinear models, factoring in friction, air resistance, gear slippage, hard stops, and the other
things that describe real-world phenomena. Simulink turns your computer into a laboratory
for modeling and analyzing systems that would not be possible or practical otherwise.
Whether you are interested in the behavior of an automotive clutch system, the flutter of an
airplane wing, or the effect of the monetary supply on the economy, Simulink provides you
with the tools to model and simulate almost any real-world problem. Simulink also provides
demos that model a wide variety of real-world phenomena (see Simulink Demo Models).
Simulink provides a graphical user interface (GUI) for building models as block diagrams,
allowing you to draw models as you would with pencil and paper. Simulink also includes a
comprehensive block library of sinks, sources, linear and nonlinear components, and
connectors. If these blocks do not meet your needs, however, you can also create your own
blocks. The interactive graphical environment simplifies the modeling process, eliminating
the need to formulate differential and difference equations in a language or program.
Models are hierarchical, so you can build models using both top-down and bottom-up
approaches. You can view the system at a high level, then double-click blocks to see
increasing levels of model detail. This approach provides insight into how a model is
organized and how its parts interact.

2. Back to Top

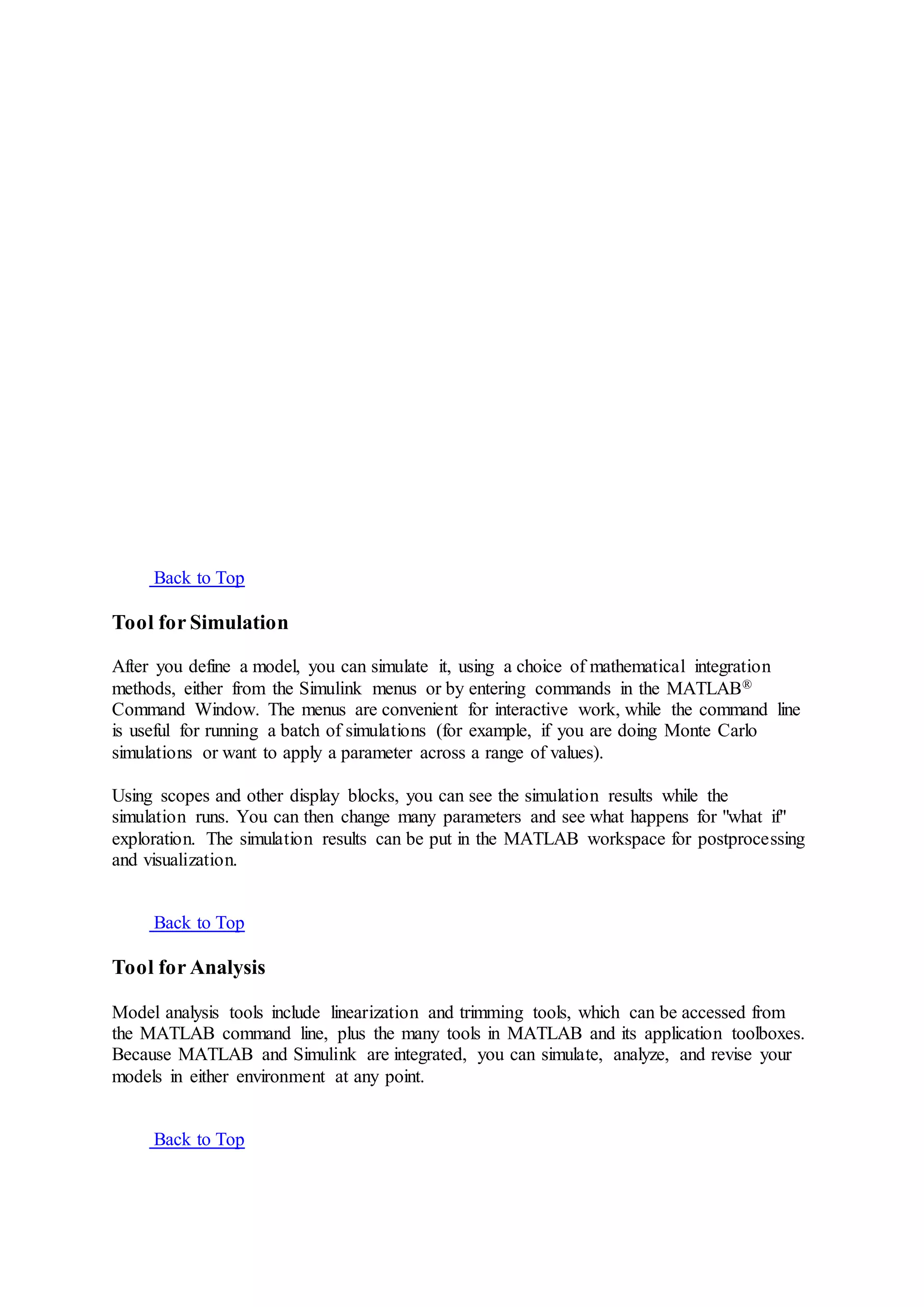

Tool for Simulation
After you define a model, you can simulate it, using a choice of mathematical integration
methods, either from the Simulink menus or by entering commands in the MATLAB®
Command Window. The menus are convenient for interactive work, while the command line
is useful for running a batch of simulations (for example, if you are doing Monte Carlo
simulations or want to apply a parameter across a range of values).
Using scopes and other display blocks, you can see the simulation results while the
simulation runs. You can then change many parameters and see what happens for "what if"
exploration. The simulation results can be put in the MATLAB workspace for postprocessing
and visualization.
Back to Top
Tool for Analysis
Model analysis tools include linearization and trimming tools, which can be accessed from
the MATLAB command line, plus the many tools in MATLAB and its application toolboxes.
Because MATLAB and Simulink are integrated, you can simulate, analyze, and revise your
models in either environment at any point.
Back to Top

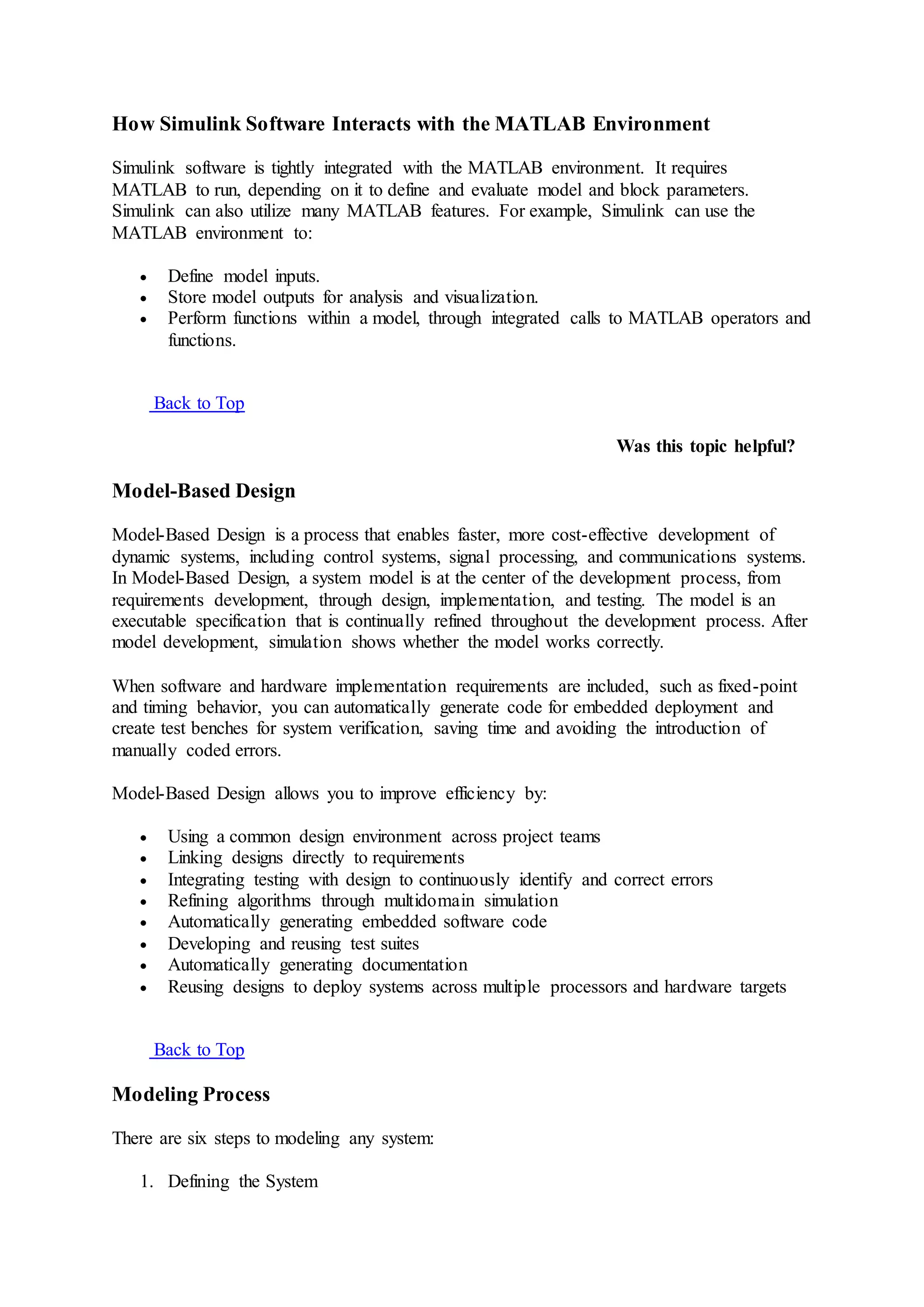

3. How Simulink Software Interacts with the MATLAB Environment
Simulink software is tightly integrated with the MATLAB environment. It requires
MATLAB to run, depending on it to define and evaluate model and block parameters.
Simulink can also utilize many MATLAB features. For example, Simulink can use the
MATLAB environment to:
 Define model inputs.
 Store model outputs for analysis and visualization.
 Perform functions within a model, through integrated calls to MATLAB operators and
functions.
Back to Top
Was this topic helpful?
Model-Based Design
Model-Based Design is a process that enables faster, more cost-effective development of
dynamic systems, including control systems, signal processing, and communications systems.
In Model-Based Design, a system model is at the center of the development process, from
requirements development, through design, implementation, and testing. The model is an
executable specification that is continually refined throughout the development process. After
model development, simulation shows whether the model works correctly.
When software and hardware implementation requirements are included, such as fixed-point
and timing behavior, you can automatically generate code for embedded deployment and
create test benches for system verification, saving time and avoiding the introduction of
manually coded errors.
Model-Based Design allows you to improve efficiency by:
 Using a common design environment across project teams
 Linking designs directly to requirements
 Integrating testing with design to continuously identify and correct errors
 Refining algorithms through multidomain simulation
 Automatically generating embedded software code
 Developing and reusing test suites
 Automatically generating documentation
 Reusing designs to deploy systems across multiple processors and hardware targets
Back to Top
Modeling Process
There are six steps to modeling any system:
1. Defining the System

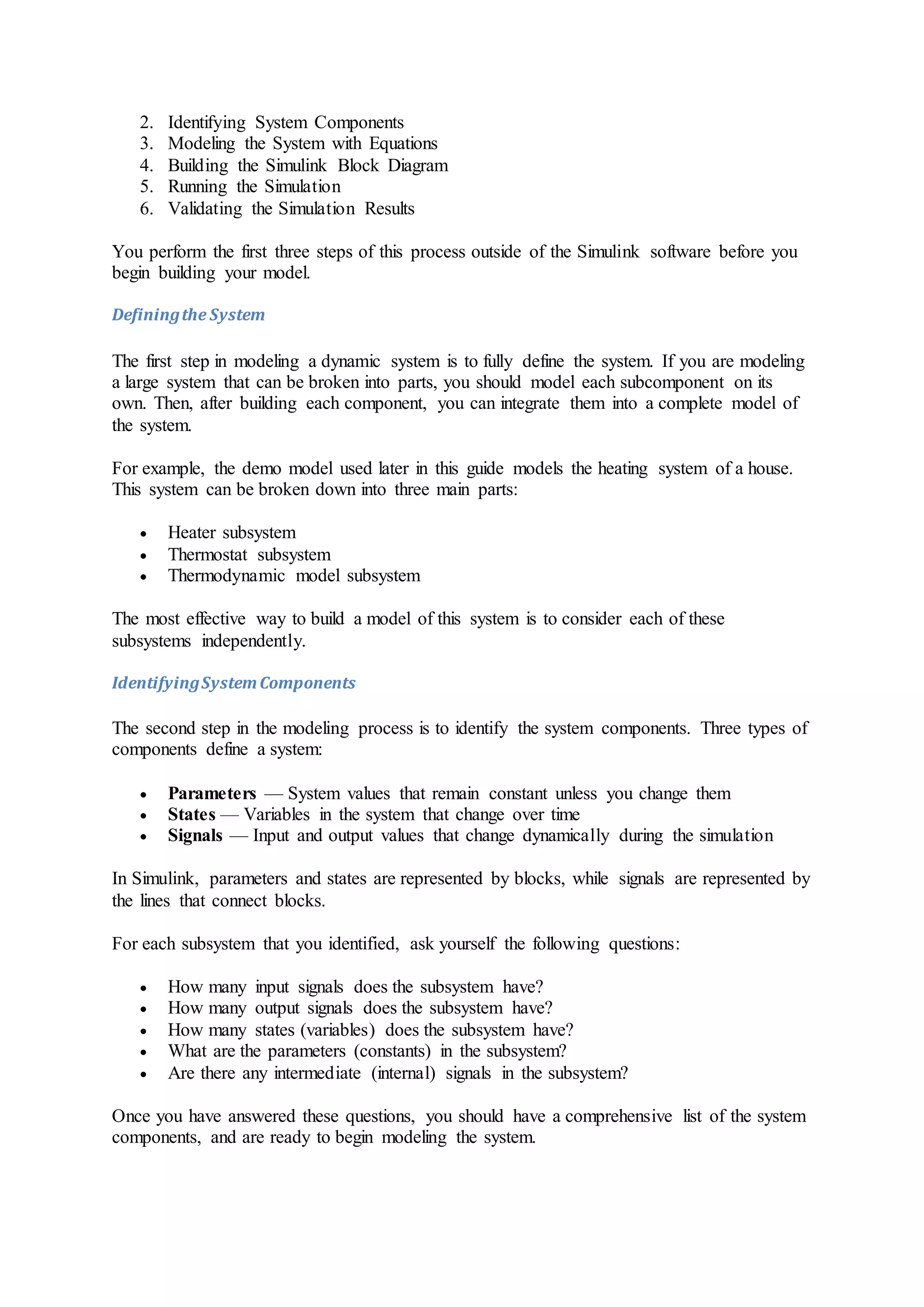

4. 2. Identifying System Components
3. Modeling the System with Equations
4. Building the Simulink Block Diagram
5. Running the Simulation
6. Validating the Simulation Results
You perform the first three steps of this process outside of the Simulink software before you
begin building your model.
Definingthe System
The first step in modeling a dynamic system is to fully define the system. If you are modeling
a large system that can be broken into parts, you should model each subcomponent on its
own. Then, after building each component, you can integrate them into a complete model of
the system.
For example, the demo model used later in this guide models the heating system of a house.
This system can be broken down into three main parts:
 Heater subsystem
 Thermostat subsystem
 Thermodynamic model subsystem
The most effective way to build a model of this system is to consider each of these
subsystems independently.
IdentifyingSystemComponents
The second step in the modeling process is to identify the system components. Three types of
components define a system:
 Parameters — System values that remain constant unless you change them
 States — Variables in the system that change over time
 Signals — Input and output values that change dynamically during the simulation
In Simulink, parameters and states are represented by blocks, while signals are represented by
the lines that connect blocks.
For each subsystem that you identified, ask yourself the following questions:
 How many input signals does the subsystem have?
 How many output signals does the subsystem have?
 How many states (variables) does the subsystem have?
 What are the parameters (constants) in the subsystem?
 Are there any intermediate (internal) signals in the subsystem?
Once you have answered these questions, you should have a comprehensive list of the system
components, and are ready to begin modeling the system.

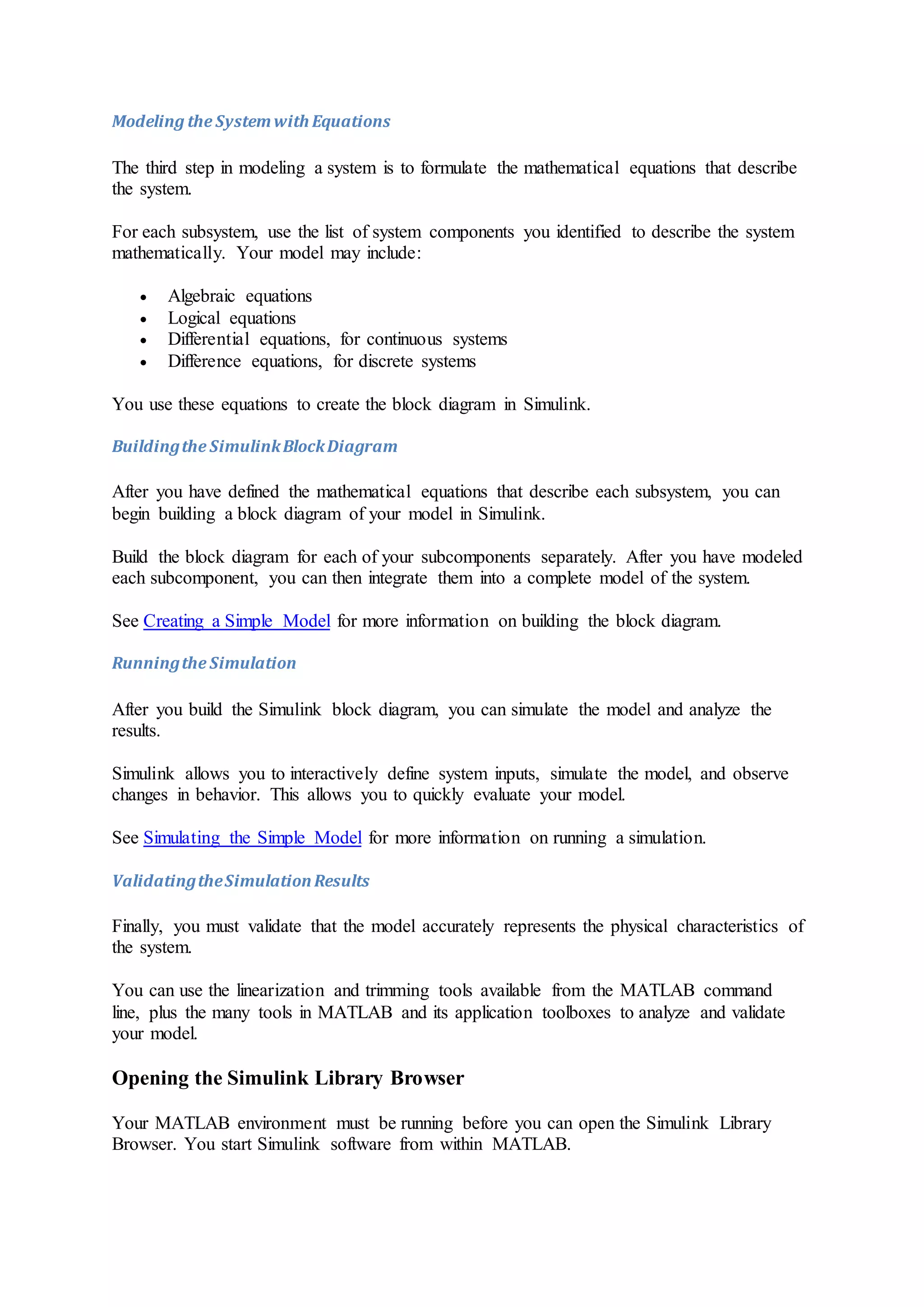

5. Modeling the Systemwith Equations
The third step in modeling a system is to formulate the mathematical equations that describe
the system.
For each subsystem, use the list of system components you identified to describe the system
mathematically. Your model may include:
 Algebraic equations
 Logical equations
 Differential equations, for continuous systems
 Difference equations, for discrete systems
You use these equations to create the block diagram in Simulink.
Buildingthe SimulinkBlockDiagram
After you have defined the mathematical equations that describe each subsystem, you can
begin building a block diagram of your model in Simulink.
Build the block diagram for each of your subcomponents separately. After you have modeled
each subcomponent, you can then integrate them into a complete model of the system.
See Creating a Simple Model for more information on building the block diagram.
Runningthe Simulation
After you build the Simulink block diagram, you can simulate the model and analyze the
results.
Simulink allows you to interactively define system inputs, simulate the model, and observe
changes in behavior. This allows you to quickly evaluate your model.
See Simulating the Simple Model for more information on running a simulation.
ValidatingtheSimulationResults
Finally, you must validate that the model accurately represents the physical characteristics of
the system.
You can use the linearization and trimming tools available from the MATLAB command
line, plus the many tools in MATLAB and its application toolboxes to analyze and validate
your model.
Opening the Simulink Library Browser
Your MATLAB environment must be running before you can open the Simulink Library
Browser. You start Simulink software from within MATLAB.

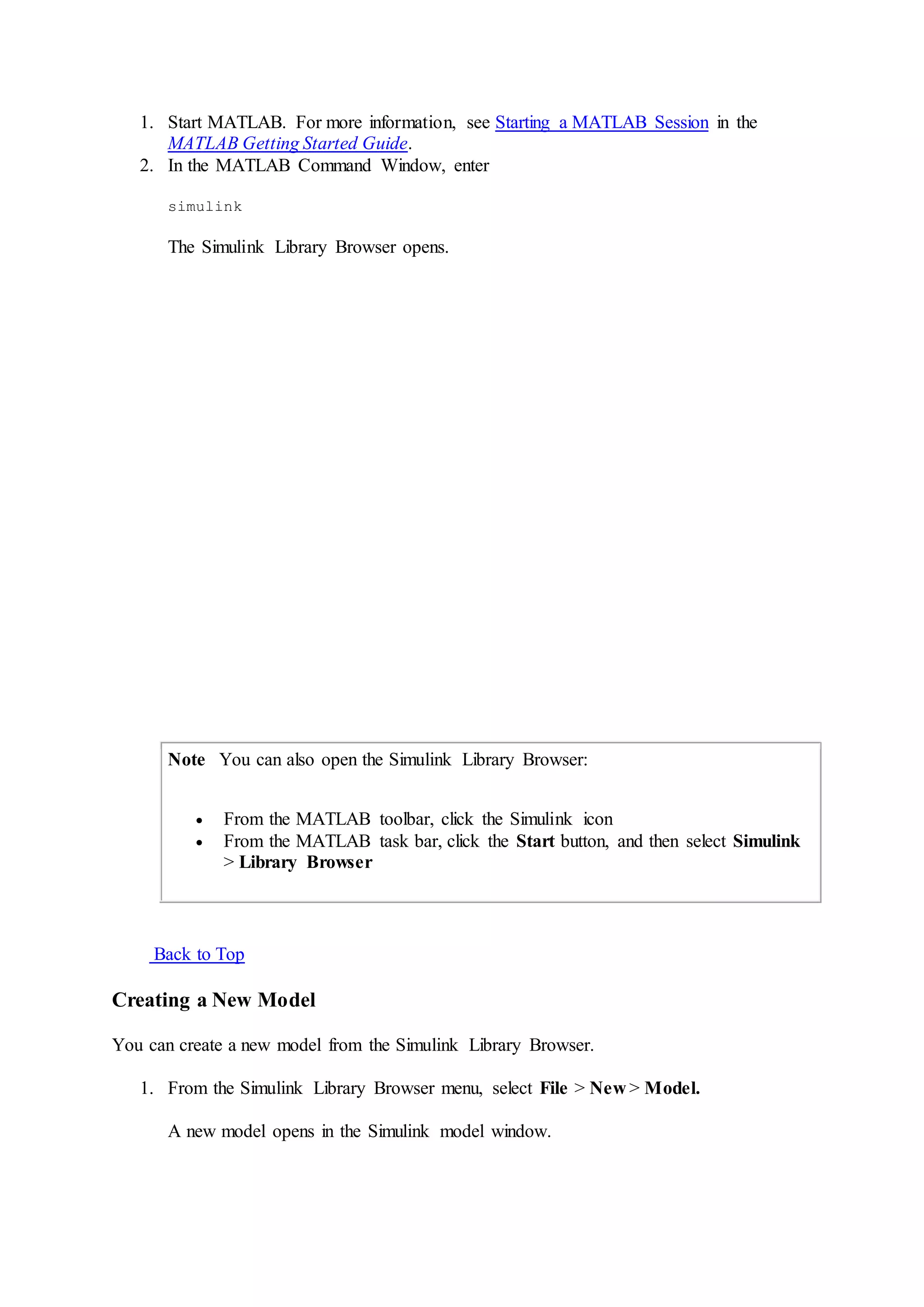

6. 1. Start MATLAB. For more information, see Starting a MATLAB Session in the
MATLAB Getting Started Guide.
2. In the MATLAB Command Window, enter
simulink
The Simulink Library Browser opens.
Note You can also open the Simulink Library Browser:
 From the MATLAB toolbar, click the Simulink icon
 From the MATLAB task bar, click the Start button, and then select Simulink
> Library Browser
Back to Top
Creating a New Model
You can create a new model from the Simulink Library Browser.
1. From the Simulink Library Browser menu, select File > New > Model.
A new model opens in the Simulink model window.

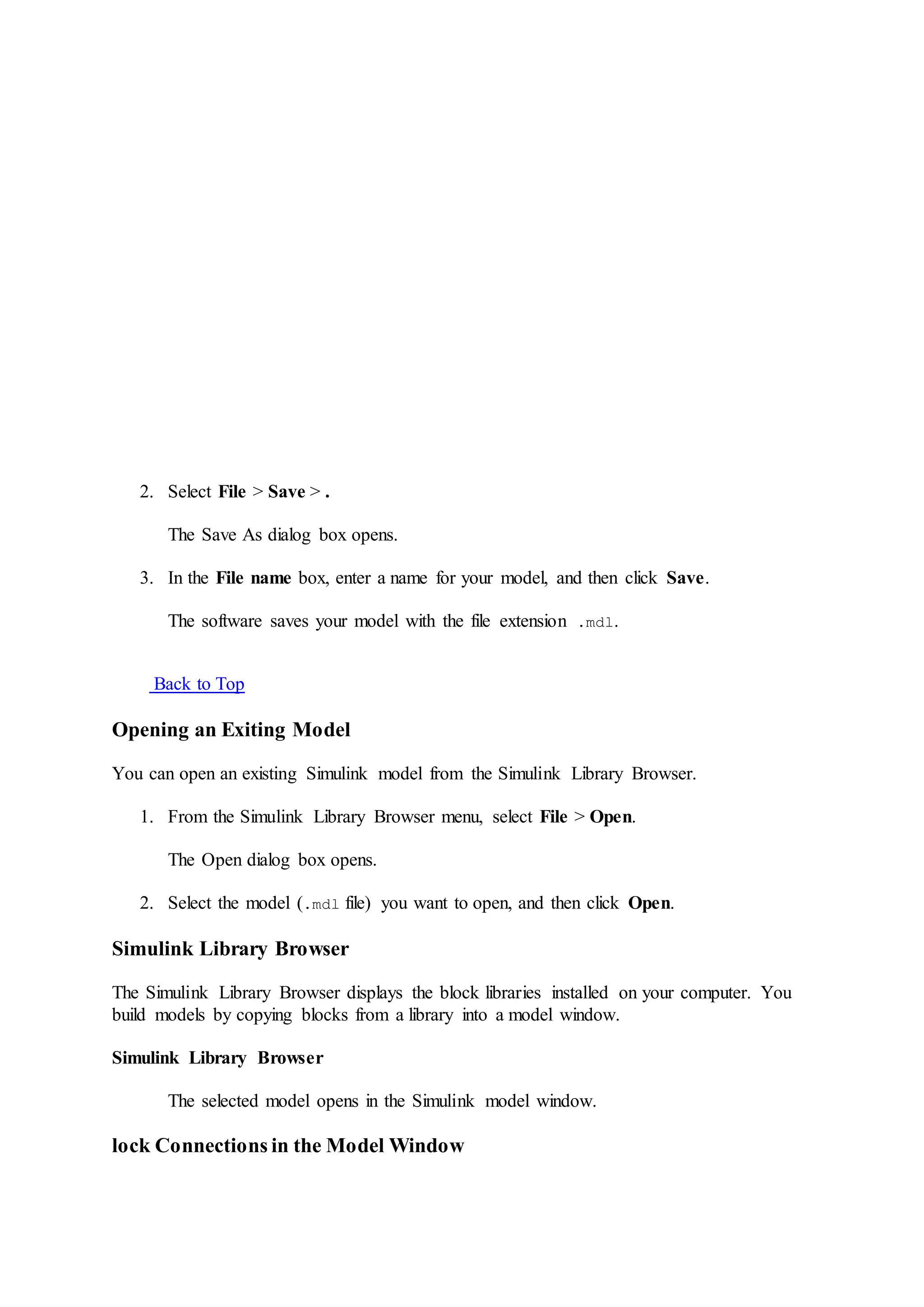

7. 2. Select File > Save > .
The Save As dialog box opens.
3. In the File name box, enter a name for your model, and then click Save.
The software saves your model with the file extension .mdl.
Back to Top
Opening an Exiting Model
You can open an existing Simulink model from the Simulink Library Browser.
1. From the Simulink Library Browser menu, select File > Open.
The Open dialog box opens.
2. Select the model (.mdl file) you want to open, and then click Open.
Simulink Library Browser
The Simulink Library Browser displays the block libraries installed on your computer. You
build models by copying blocks from a library into a model window.
Simulink Library Browser
The selected model opens in the Simulink model window.
lock Connections in the Model Window

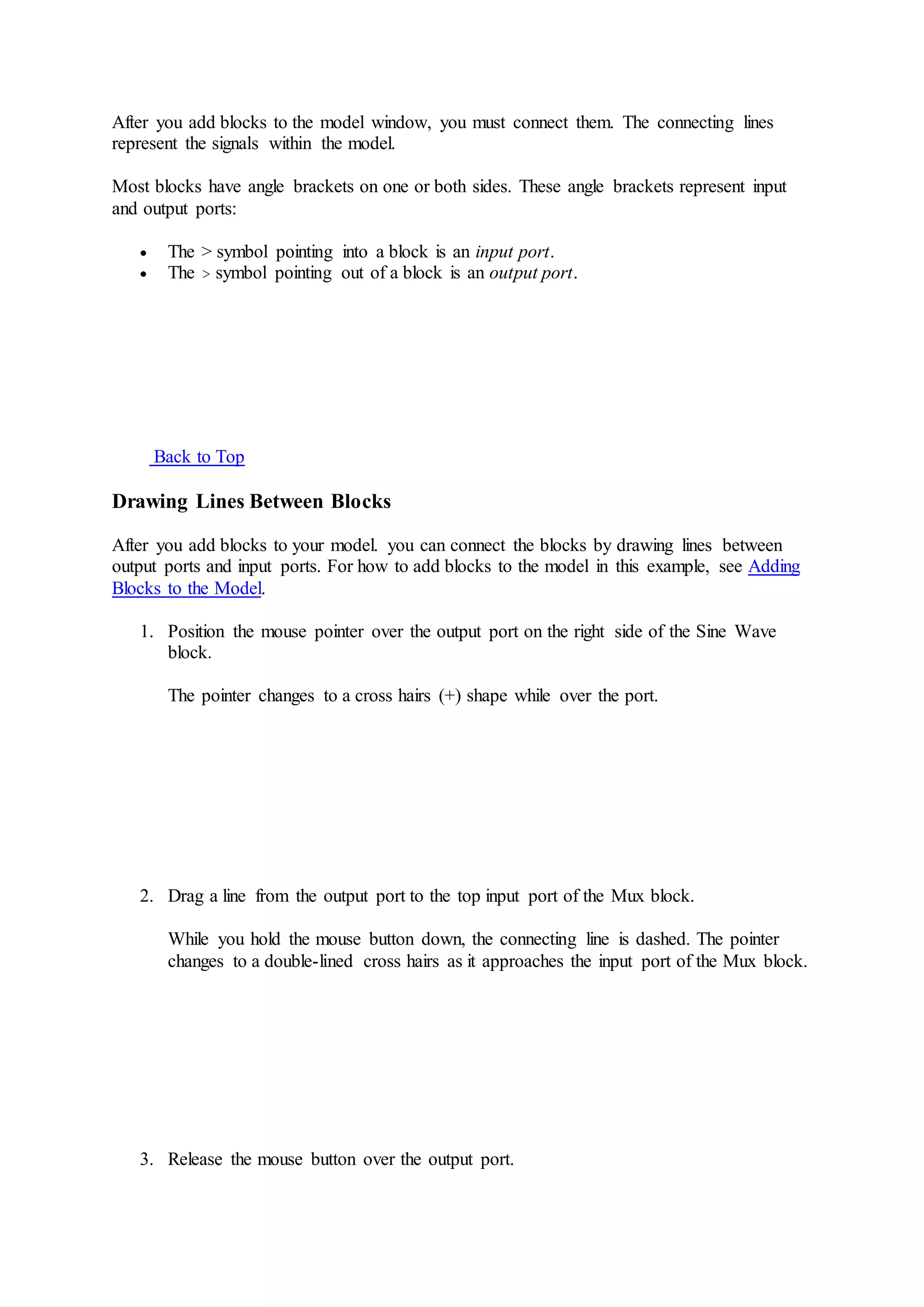

8. After you add blocks to the model window, you must connect them. The connecting lines
represent the signals within the model.
Most blocks have angle brackets on one or both sides. These angle brackets represent input
and output ports:
 The > symbol pointing into a block is an input port.
 The > symbol pointing out of a block is an output port.
Back to Top
Drawing Lines Between Blocks
After you add blocks to your model. you can connect the blocks by drawing lines between
output ports and input ports. For how to add blocks to the model in this example, see Adding
Blocks to the Model.
1. Position the mouse pointer over the output port on the right side of the Sine Wave
block.
The pointer changes to a cross hairs (+) shape while over the port.
2. Drag a line from the output port to the top input port of the Mux block.
While you hold the mouse button down, the connecting line is dashed. The pointer
changes to a double-lined cross hairs as it approaches the input port of the Mux block.
3. Release the mouse button over the output port.

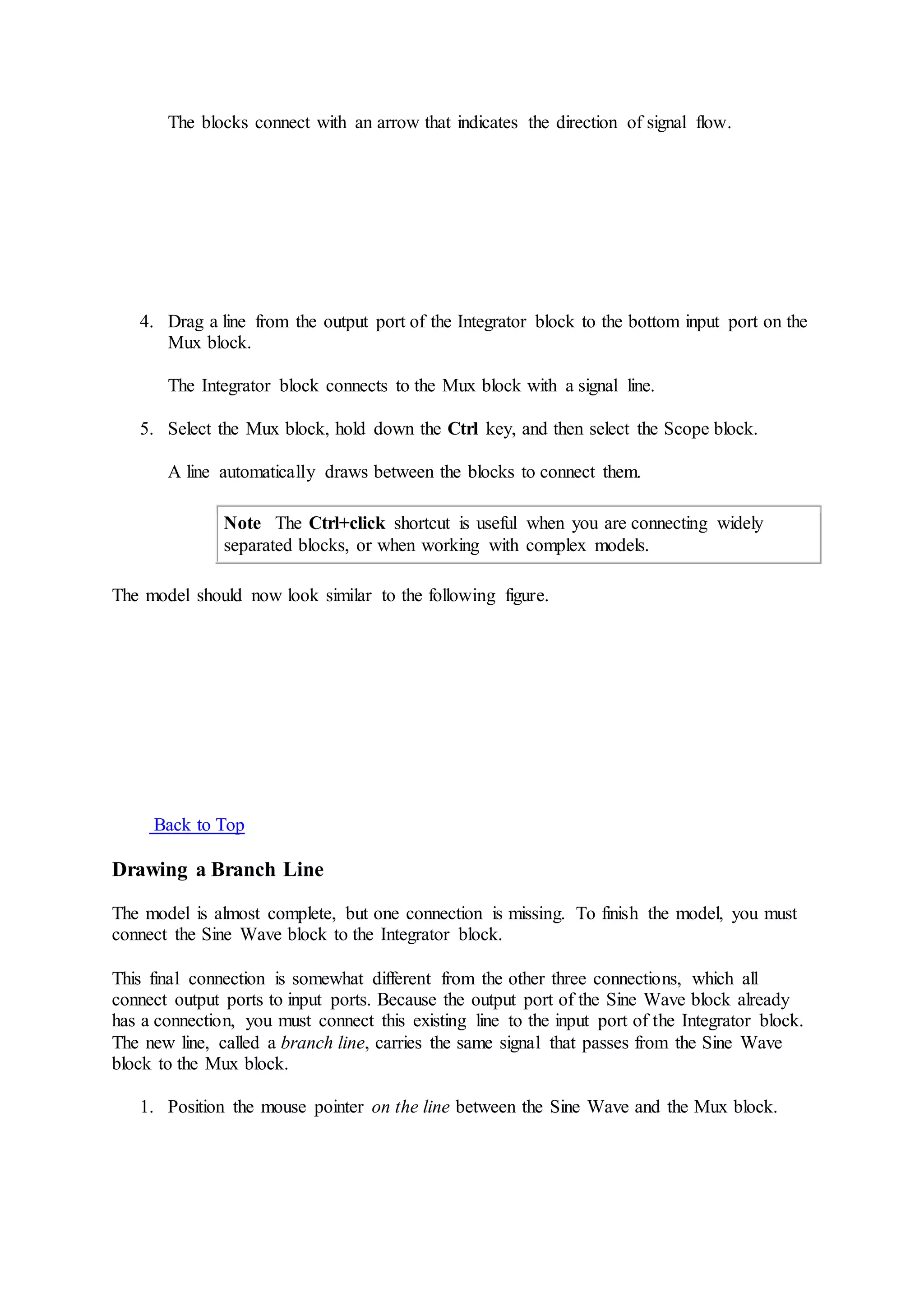

9. The blocks connect with an arrow that indicates the direction of signal flow.
4. Drag a line from the output port of the Integrator block to the bottom input port on the
Mux block.
The Integrator block connects to the Mux block with a signal line.
5. Select the Mux block, hold down the Ctrl key, and then select the Scope block.
A line automatically draws between the blocks to connect them.
Note The Ctrl+click shortcut is useful when you are connecting widely
separated blocks, or when working with complex models.
The model should now look similar to the following figure.
Back to Top
Drawing a Branch Line
The model is almost complete, but one connection is missing. To finish the model, you must
connect the Sine Wave block to the Integrator block.
This final connection is somewhat different from the other three connections, which all
connect output ports to input ports. Because the output port of the Sine Wave block already
has a connection, you must connect this existing line to the input port of the Integrator block.
The new line, called a branch line, carries the same signal that passes from the Sine Wave
block to the Mux block.
1. Position the mouse pointer on the line between the Sine Wave and the Mux block.

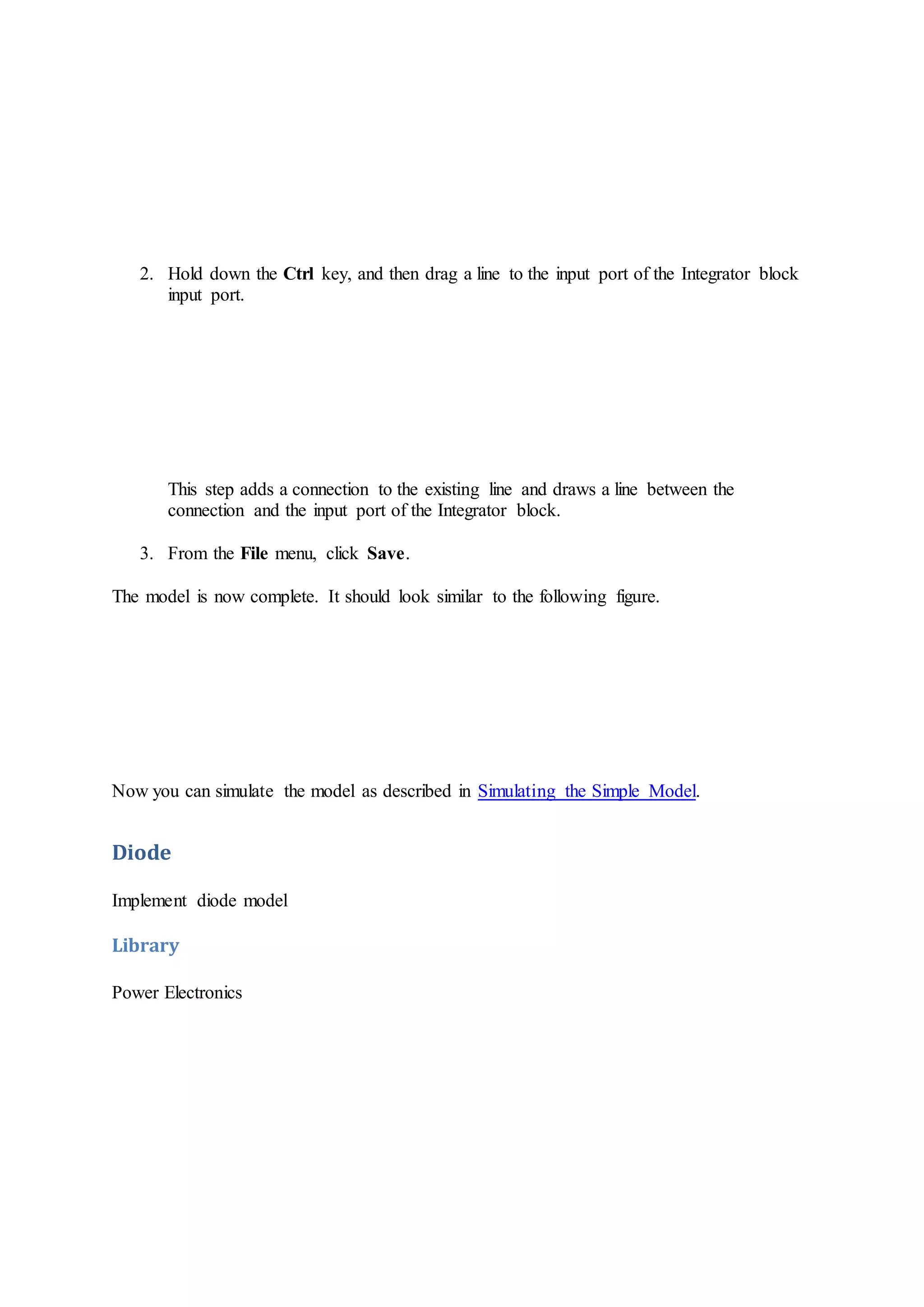

10. 2. Hold down the Ctrl key, and then drag a line to the input port of the Integrator block
input port.
This step adds a connection to the existing line and draws a line between the
connection and the input port of the Integrator block.
3. From the File menu, click Save.
The model is now complete. It should look similar to the following figure.
Now you can simulate the model as described in Simulating the Simple Model.
Diode
Implement diode model
Library
Power Electronics

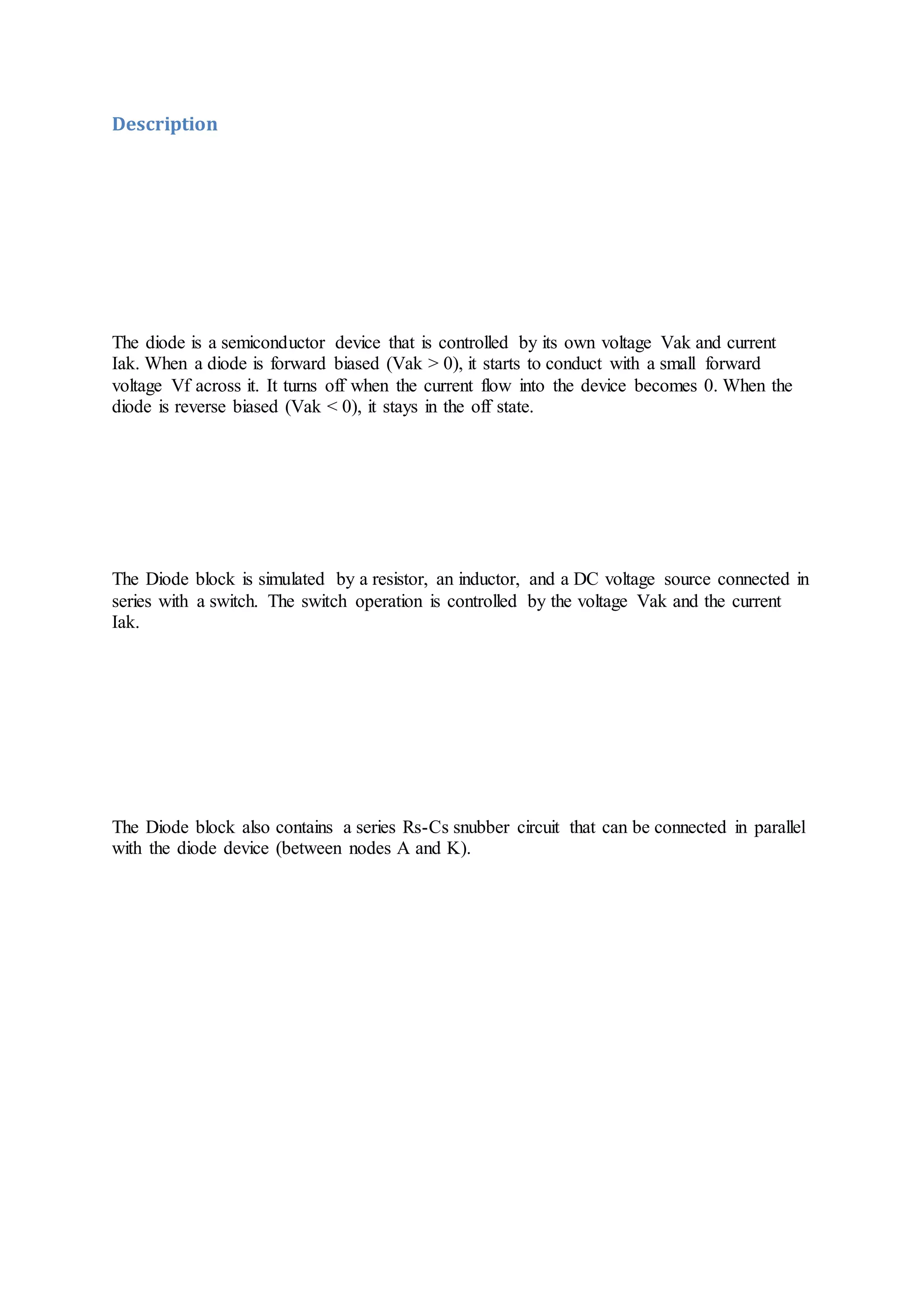

11. Description
The diode is a semiconductor device that is controlled by its own voltage Vak and current
Iak. When a diode is forward biased (Vak > 0), it starts to conduct with a small forward
voltage Vf across it. It turns off when the current flow into the device becomes 0. When the
diode is reverse biased (Vak < 0), it stays in the off state.
The Diode block is simulated by a resistor, an inductor, and a DC voltage source connected in
series with a switch. The switch operation is controlled by the voltage Vak and the current
Iak.
The Diode block also contains a series Rs-Cs snubber circuit that can be connected in parallel
with the diode device (between nodes A and K).

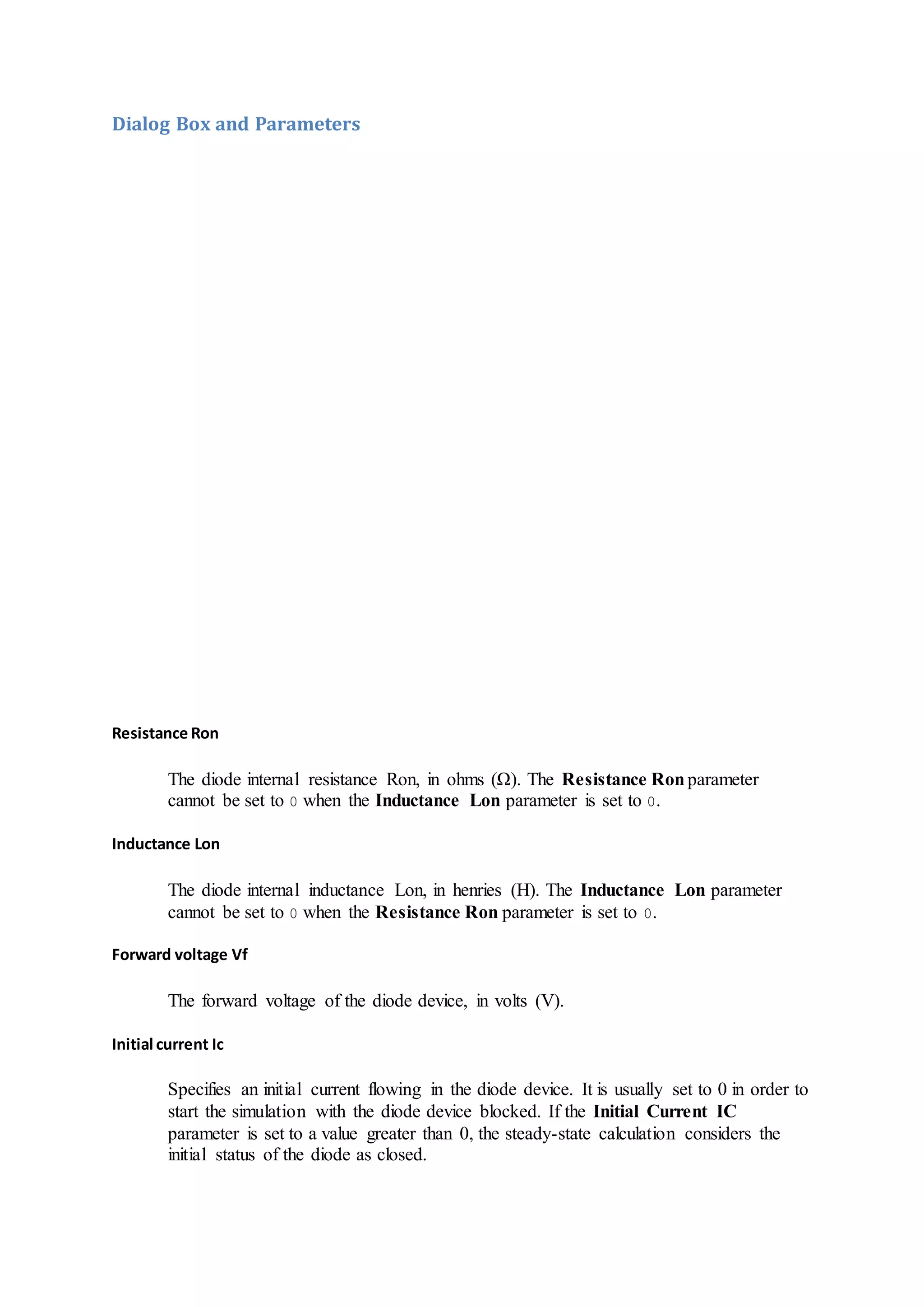

12. Dialog Box and Parameters
Resistance Ron
The diode internal resistance Ron, in ohms (Ω). The Resistance Ronparameter
cannot be set to 0 when the Inductance Lon parameter is set to 0.
Inductance Lon
The diode internal inductance Lon, in henries (H). The Inductance Lon parameter
cannot be set to 0 when the Resistance Ron parameter is set to 0.
Forward voltage Vf
The forward voltage of the diode device, in volts (V).
Initial current Ic
Specifies an initial current flowing in the diode device. It is usually set to 0 in order to
start the simulation with the diode device blocked. If the Initial Current IC
parameter is set to a value greater than 0, the steady-state calculation considers the
initial status of the diode as closed.

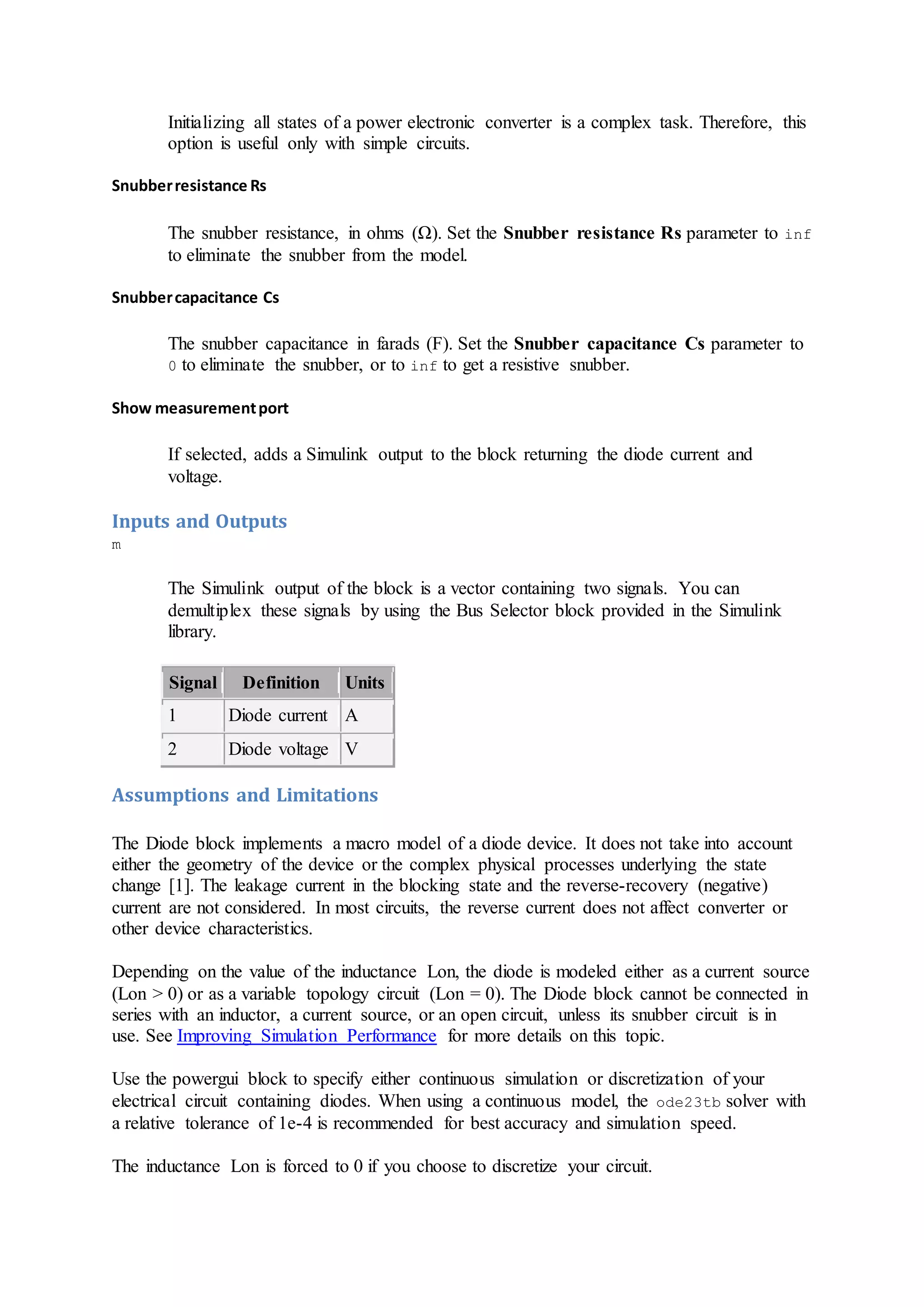

13. Initializing all states of a power electronic converter is a complex task. Therefore, this
option is useful only with simple circuits.
Snubberresistance Rs
The snubber resistance, in ohms (Ω). Set the Snubber resistance Rs parameter to inf
to eliminate the snubber from the model.
Snubbercapacitance Cs
The snubber capacitance in farads (F). Set the Snubber capacitance Cs parameter to
0 to eliminate the snubber, or to inf to get a resistive snubber.
Show measurementport
If selected, adds a Simulink output to the block returning the diode current and
voltage.
Inputs and Outputs
m
The Simulink output of the block is a vector containing two signals. You can
demultiplex these signals by using the Bus Selector block provided in the Simulink
library.
Signal Definition Units
1 Diode current A
2 Diode voltage V
Assumptions and Limitations
The Diode block implements a macro model of a diode device. It does not take into account
either the geometry of the device or the complex physical processes underlying the state
change [1]. The leakage current in the blocking state and the reverse-recovery (negative)
current are not considered. In most circuits, the reverse current does not affect converter or
other device characteristics.
Depending on the value of the inductance Lon, the diode is modeled either as a current source
(Lon > 0) or as a variable topology circuit (Lon = 0). The Diode block cannot be connected in
series with an inductor, a current source, or an open circuit, unless its snubber circuit is in
use. See Improving Simulation Performance for more details on this topic.
Use the powergui block to specify either continuous simulation or discretization of your
electrical circuit containing diodes. When using a continuous model, the ode23tb solver with
a relative tolerance of 1e-4 is recommended for best accuracy and simulation speed.
The inductance Lon is forced to 0 if you choose to discretize your circuit.

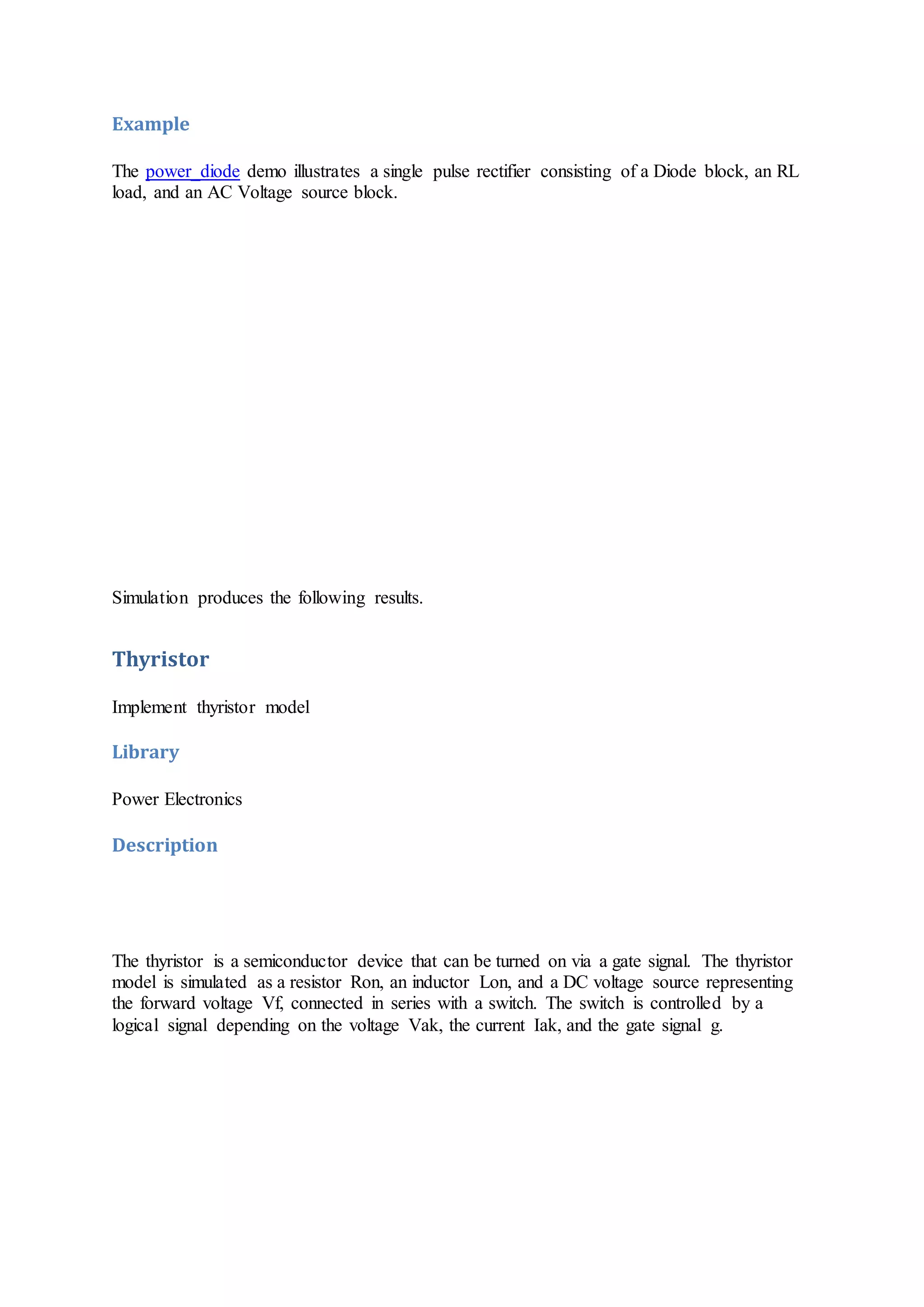

14. Example
The power_diode demo illustrates a single pulse rectifier consisting of a Diode block, an RL
load, and an AC Voltage source block.
Simulation produces the following results.
Thyristor
Implement thyristor model
Library
Power Electronics
Description
The thyristor is a semiconductor device that can be turned on via a gate signal. The thyristor
model is simulated as a resistor Ron, an inductor Lon, and a DC voltage source representing
the forward voltage Vf, connected in series with a switch. The switch is controlled by a
logical signal depending on the voltage Vak, the current Iak, and the gate signal g.

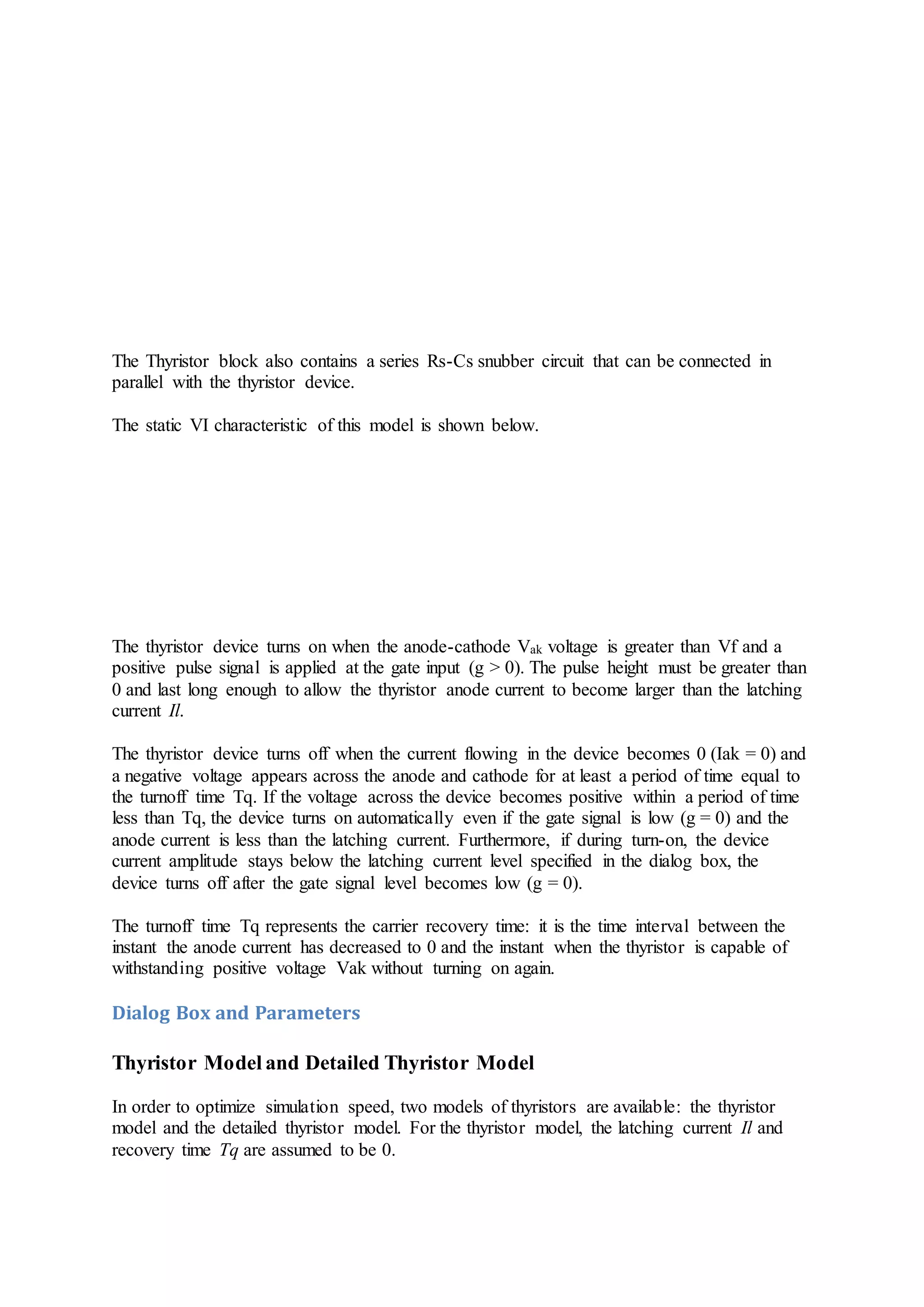

15. The Thyristor block also contains a series Rs-Cs snubber circuit that can be connected in
parallel with the thyristor device.
The static VI characteristic of this model is shown below.
The thyristor device turns on when the anode-cathode Vak voltage is greater than Vf and a
positive pulse signal is applied at the gate input (g > 0). The pulse height must be greater than
0 and last long enough to allow the thyristor anode current to become larger than the latching
current Il.
The thyristor device turns off when the current flowing in the device becomes 0 (Iak = 0) and
a negative voltage appears across the anode and cathode for at least a period of time equal to
the turnoff time Tq. If the voltage across the device becomes positive within a period of time
less than Tq, the device turns on automatically even if the gate signal is low (g = 0) and the
anode current is less than the latching current. Furthermore, if during turn-on, the device
current amplitude stays below the latching current level specified in the dialog box, the
device turns off after the gate signal level becomes low (g = 0).
The turnoff time Tq represents the carrier recovery time: it is the time interval between the
instant the anode current has decreased to 0 and the instant when the thyristor is capable of
withstanding positive voltage Vak without turning on again.
Dialog Box and Parameters
Thyristor Model and Detailed Thyristor Model
In order to optimize simulation speed, two models of thyristors are available: the thyristor
model and the detailed thyristor model. For the thyristor model, the latching current Il and
recovery time Tq are assumed to be 0.

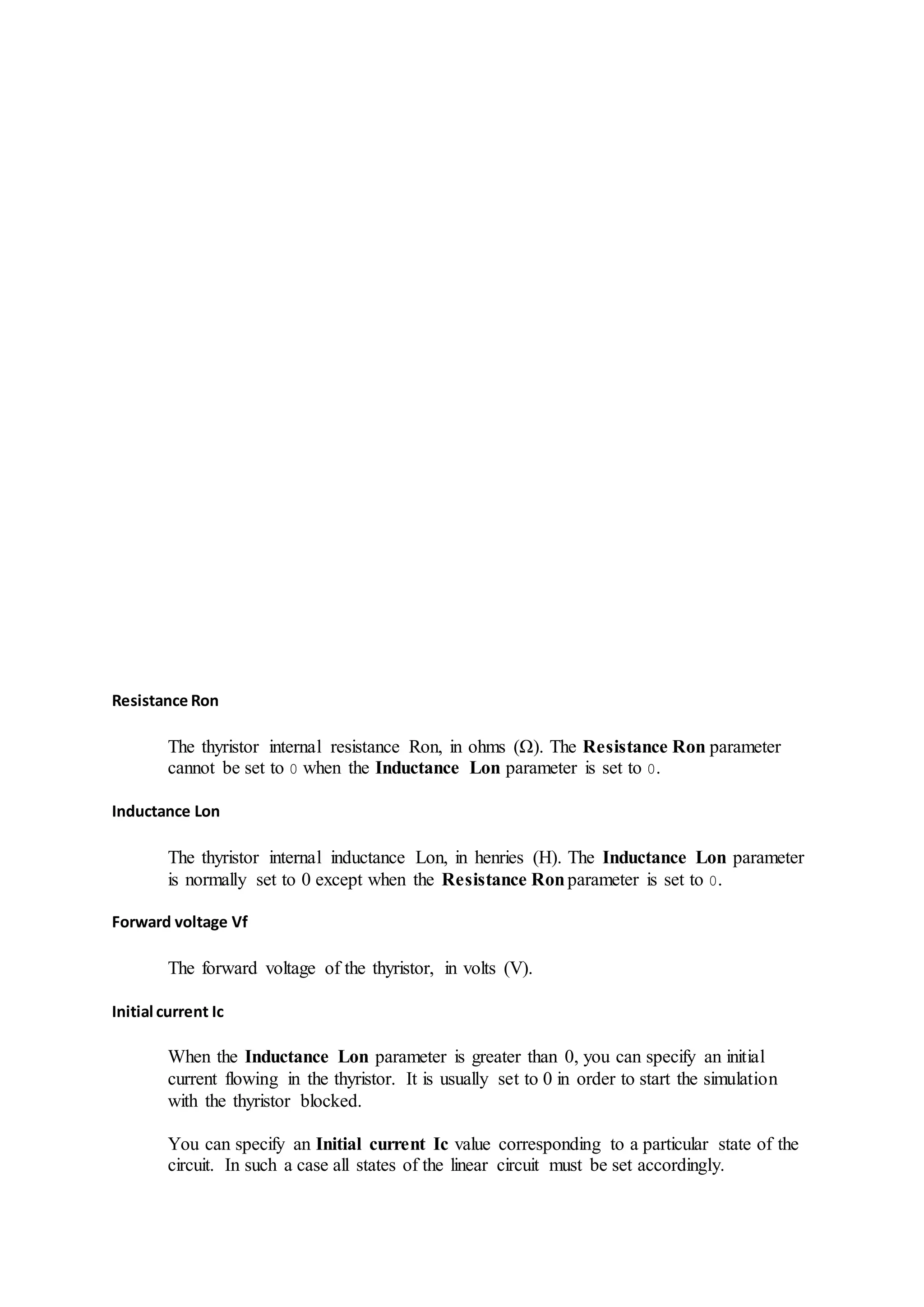

16. Resistance Ron
The thyristor internal resistance Ron, in ohms (Ω). The Resistance Ron parameter
cannot be set to 0 when the Inductance Lon parameter is set to 0.
Inductance Lon
The thyristor internal inductance Lon, in henries (H). The Inductance Lon parameter
is normally set to 0 except when the Resistance Ronparameter is set to 0.
Forward voltage Vf
The forward voltage of the thyristor, in volts (V).
Initial current Ic
When the Inductance Lon parameter is greater than 0, you can specify an initial
current flowing in the thyristor. It is usually set to 0 in order to start the simulation
with the thyristor blocked.
You can specify an Initial current Ic value corresponding to a particular state of the
circuit. In such a case all states of the linear circuit must be set accordingly.

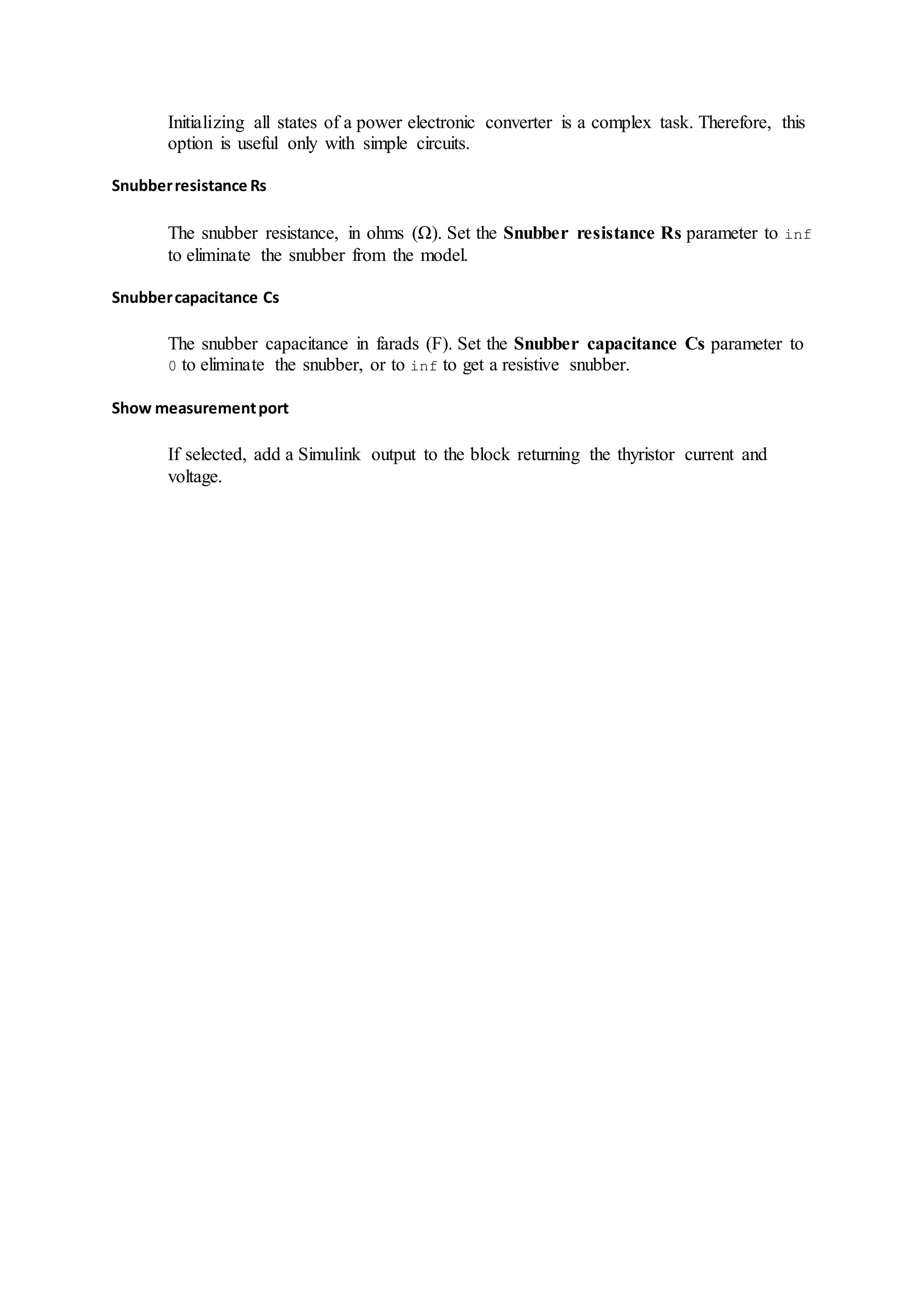

17. Initializing all states of a power electronic converter is a complex task. Therefore, this
option is useful only with simple circuits.
Snubberresistance Rs
The snubber resistance, in ohms (Ω). Set the Snubber resistance Rs parameter to inf
to eliminate the snubber from the model.
Snubbercapacitance Cs
The snubber capacitance in farads (F). Set the Snubber capacitance Cs parameter to
0 to eliminate the snubber, or to inf to get a resistive snubber.
Show measurementport
If selected, add a Simulink output to the block returning the thyristor current and
voltage.

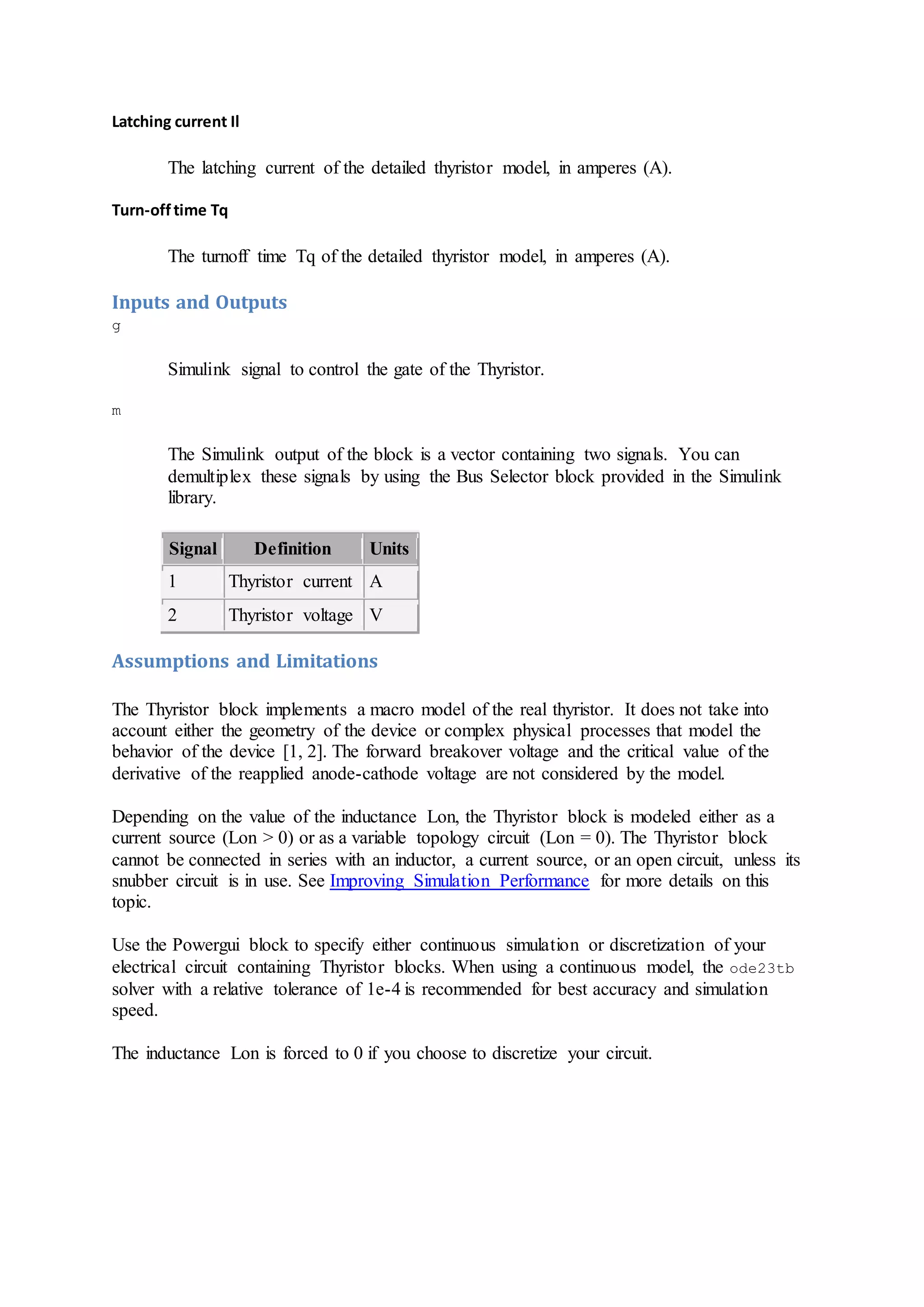

18. Latching current Il
The latching current of the detailed thyristor model, in amperes (A).
Turn-offtime Tq
The turnoff time Tq of the detailed thyristor model, in amperes (A).
Inputs and Outputs
g
Simulink signal to control the gate of the Thyristor.
m
The Simulink output of the block is a vector containing two signals. You can
demultiplex these signals by using the Bus Selector block provided in the Simulink
library.
Signal Definition Units
1 Thyristor current A
2 Thyristor voltage V
Assumptions and Limitations
The Thyristor block implements a macro model of the real thyristor. It does not take into
account either the geometry of the device or complex physical processes that model the
behavior of the device [1, 2]. The forward breakover voltage and the critical value of the
derivative of the reapplied anode-cathode voltage are not considered by the model.
Depending on the value of the inductance Lon, the Thyristor block is modeled either as a
current source (Lon > 0) or as a variable topology circuit (Lon = 0). The Thyristor block
cannot be connected in series with an inductor, a current source, or an open circuit, unless its
snubber circuit is in use. See Improving Simulation Performance for more details on this
topic.
Use the Powergui block to specify either continuous simulation or discretization of your
electrical circuit containing Thyristor blocks. When using a continuous model, the ode23tb
solver with a relative tolerance of 1e-4 is recommended for best accuracy and simulation
speed.
The inductance Lon is forced to 0 if you choose to discretize your circuit.

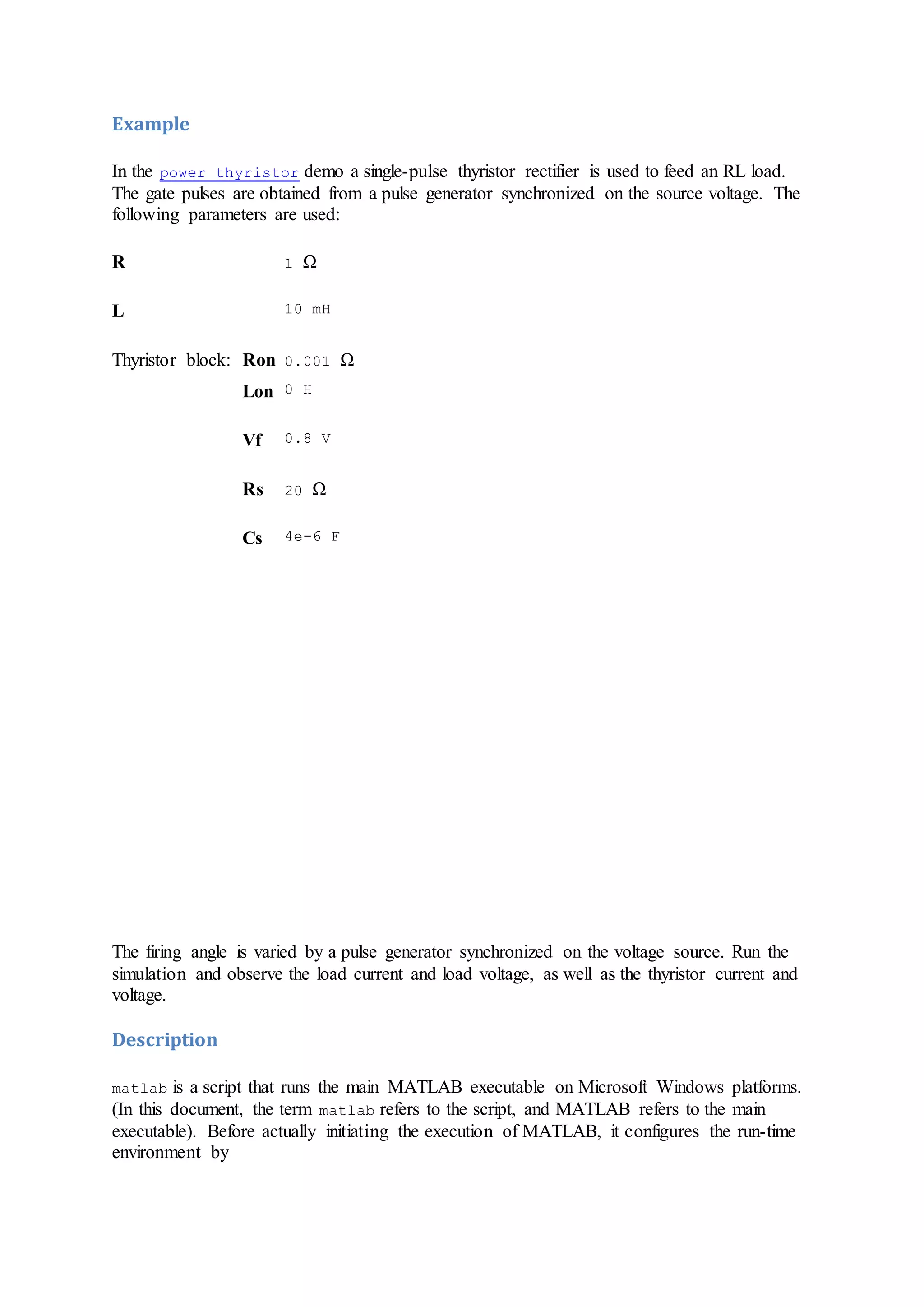

19. Example
In the power_thyristor demo a single-pulse thyristor rectifier is used to feed an RL load.
The gate pulses are obtained from a pulse generator synchronized on the source voltage. The
following parameters are used:
R 1 Ω
L 10 mH
Thyristor block: Ron 0.001 Ω
Lon 0 H
Vf 0.8 V
Rs 20 Ω
Cs 4e-6 F
The firing angle is varied by a pulse generator synchronized on the voltage source. Run the
simulation and observe the load current and load voltage, as well as the thyristor current and
voltage.
Description
matlab is a script that runs the main MATLAB executable on Microsoft Windows platforms.
(In this document, the term matlab refers to the script, and MATLAB refers to the main
executable). Before actually initiating the execution of MATLAB, it configures the run-time
environment by

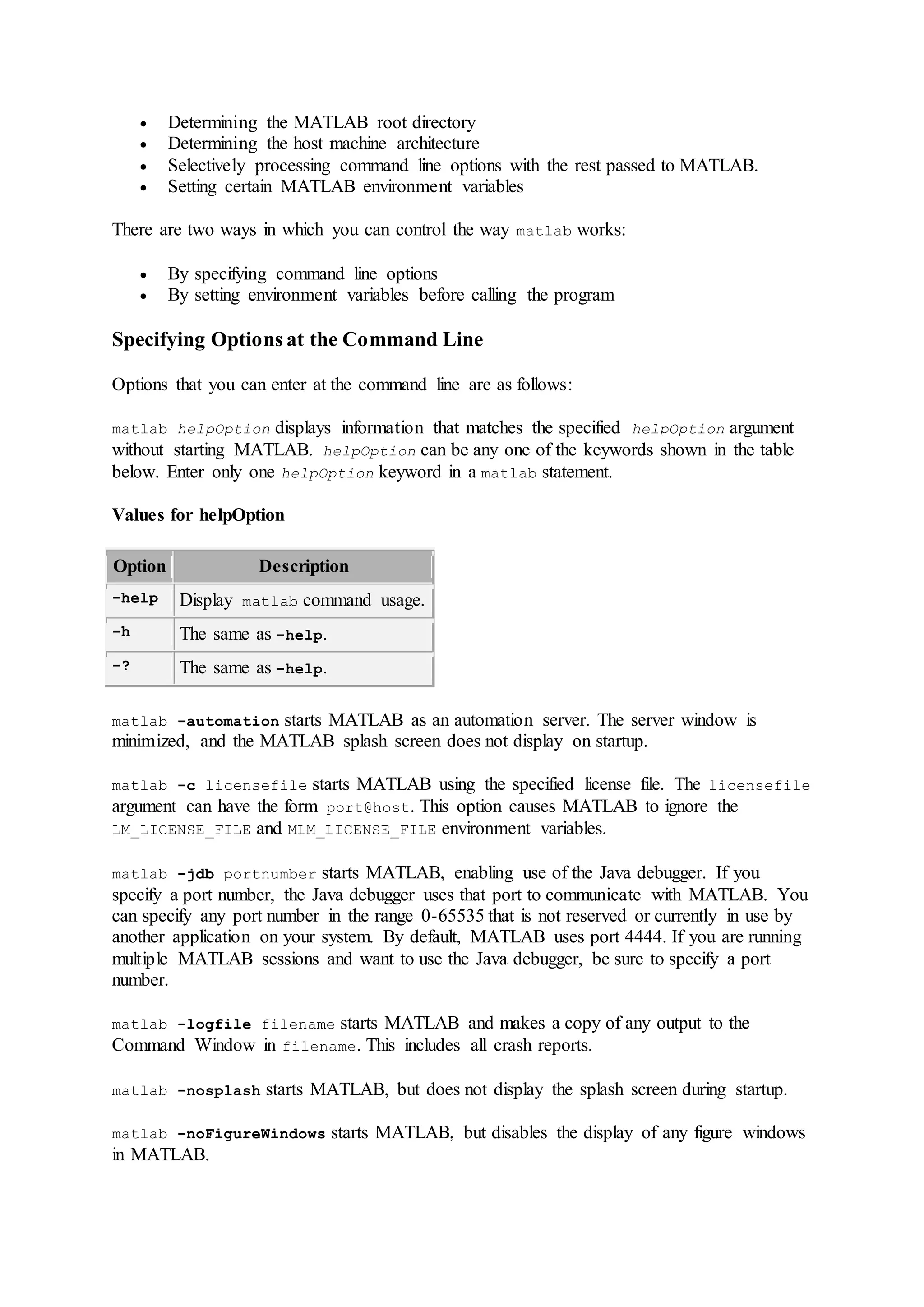

20.  Determining the MATLAB root directory
 Determining the host machine architecture
 Selectively processing command line options with the rest passed to MATLAB.
 Setting certain MATLAB environment variables
There are two ways in which you can control the way matlab works:
 By specifying command line options
 By setting environment variables before calling the program
Specifying Options at the Command Line
Options that you can enter at the command line are as follows:
matlab helpOption displays information that matches the specified helpOption argument
without starting MATLAB. helpOption can be any one of the keywords shown in the table
below. Enter only one helpOption keyword in a matlab statement.
Values for helpOption
Option Description
-help Display matlab command usage.
-h The same as -help.
-? The same as -help.
matlab -automation starts MATLAB as an automation server. The server window is
minimized, and the MATLAB splash screen does not display on startup.
matlab -c licensefile starts MATLAB using the specified license file. The licensefile
argument can have the form port@host. This option causes MATLAB to ignore the
LM_LICENSE_FILE and MLM_LICENSE_FILE environment variables.
matlab -jdb portnumber starts MATLAB, enabling use of the Java debugger. If you
specify a port number, the Java debugger uses that port to communicate with MATLAB. You
can specify any port number in the range 0-65535 that is not reserved or currently in use by
another application on your system. By default, MATLAB uses port 4444. If you are running
multiple MATLAB sessions and want to use the Java debugger, be sure to specify a port
number.
matlab -logfile filename starts MATLAB and makes a copy of any output to the
Command Window in filename. This includes all crash reports.
matlab -nosplash starts MATLAB, but does not display the splash screen during startup.
matlab -noFigureWindows starts MATLAB, but disables the display of any figure windows
in MATLAB.

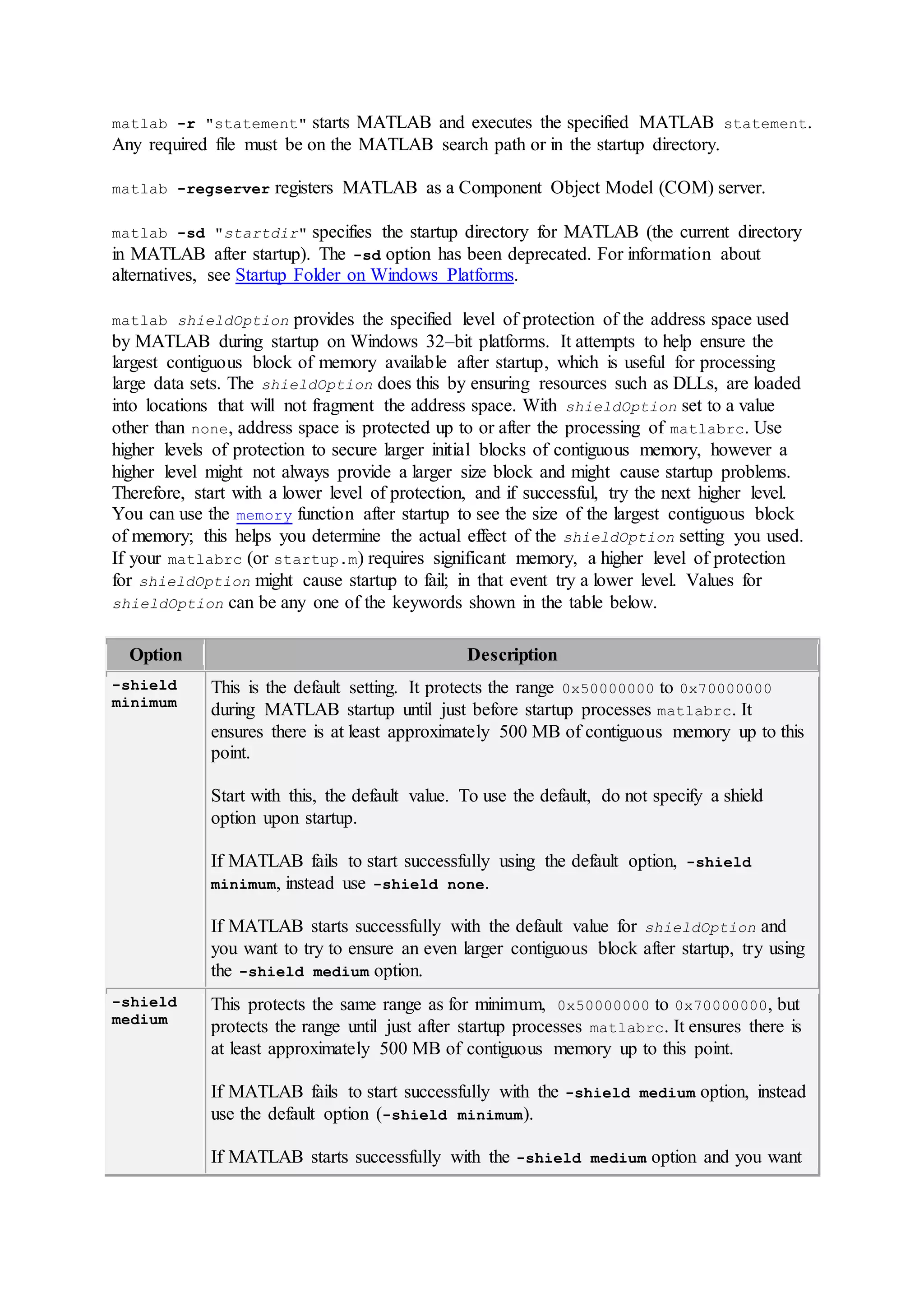

21. matlab -r "statement" starts MATLAB and executes the specified MATLAB statement.
Any required file must be on the MATLAB search path or in the startup directory.
matlab -regserver registers MATLAB as a Component Object Model (COM) server.
matlab -sd "startdir" specifies the startup directory for MATLAB (the current directory
in MATLAB after startup). The -sd option has been deprecated. For information about
alternatives, see Startup Folder on Windows Platforms.
matlab shieldOption provides the specified level of protection of the address space used
by MATLAB during startup on Windows 32–bit platforms. It attempts to help ensure the
largest contiguous block of memory available after startup, which is useful for processing
large data sets. The shieldOption does this by ensuring resources such as DLLs, are loaded
into locations that will not fragment the address space. With shieldOption set to a value
other than none, address space is protected up to or after the processing of matlabrc. Use
higher levels of protection to secure larger initial blocks of contiguous memory, however a
higher level might not always provide a larger size block and might cause startup problems.
Therefore, start with a lower level of protection, and if successful, try the next higher level.
You can use the memory function after startup to see the size of the largest contiguous block
of memory; this helps you determine the actual effect of the shieldOption setting you used.
If your matlabrc (or startup.m) requires significant memory, a higher level of protection
for shieldOption might cause startup to fail; in that event try a lower level. Values for
shieldOption can be any one of the keywords shown in the table below.
Option Description
-shield
minimum
This is the default setting. It protects the range 0x50000000 to 0x70000000
during MATLAB startup until just before startup processes matlabrc. It
ensures there is at least approximately 500 MB of contiguous memory up to this
point.
Start with this, the default value. To use the default, do not specify a shield
option upon startup.
If MATLAB fails to start successfully using the default option, -shield
minimum, instead use -shield none.
If MATLAB starts successfully with the default value for shieldOption and
you want to try to ensure an even larger contiguous block after startup, try using
the -shield medium option.
-shield
medium
This protects the same range as for minimum, 0x50000000 to 0x70000000, but
protects the range until just after startup processes matlabrc. It ensures there is
at least approximately 500 MB of contiguous memory up to this point.
If MATLAB fails to start successfully with the -shield medium option, instead
use the default option (-shield minimum).
If MATLAB starts successfully with the -shield medium option and you want

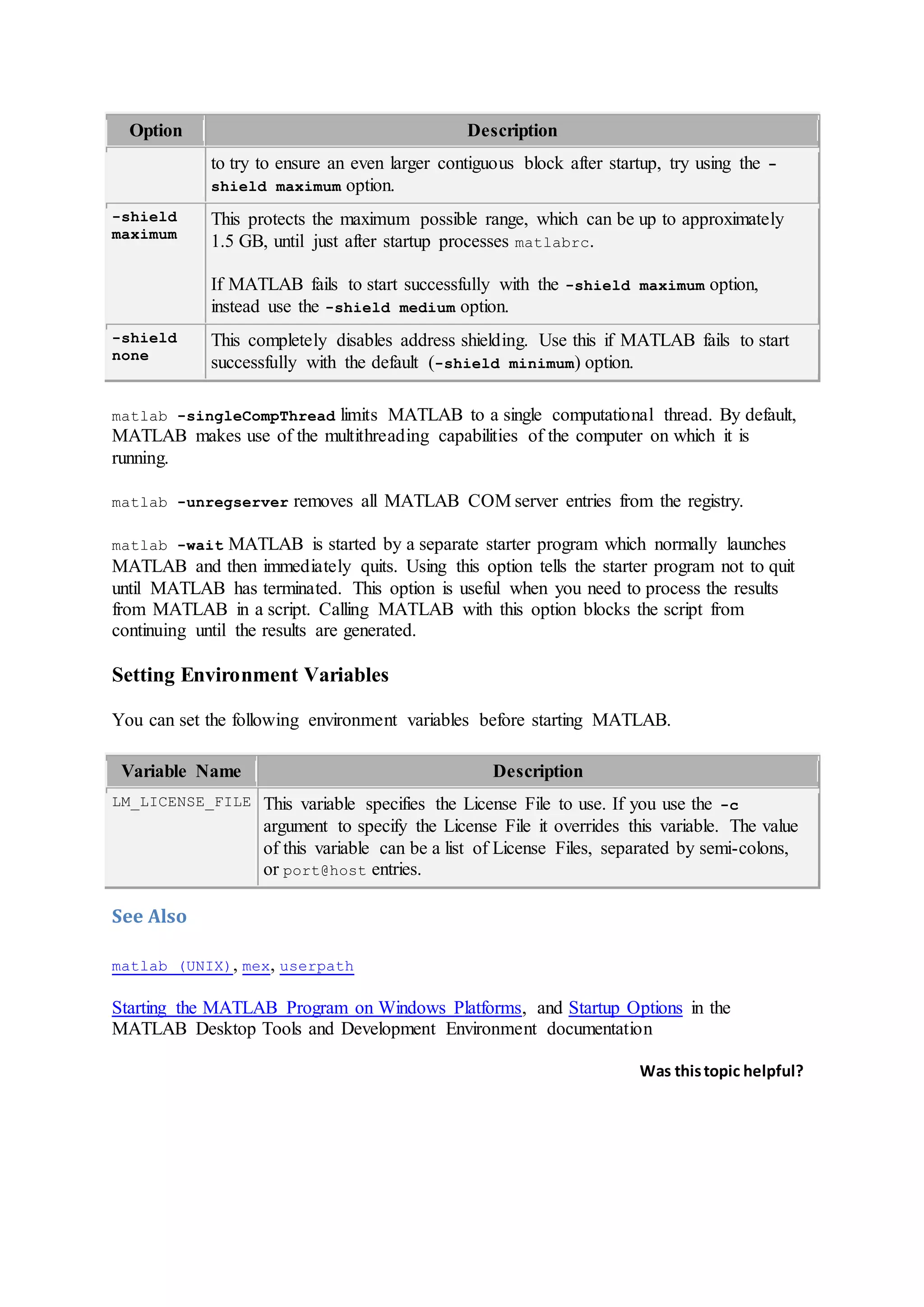

22. Option Description
to try to ensure an even larger contiguous block after startup, try using the -
shield maximum option.
-shield
maximum
This protects the maximum possible range, which can be up to approximately
1.5 GB, until just after startup processes matlabrc.
If MATLAB fails to start successfully with the -shield maximum option,
instead use the -shield medium option.
-shield
none
This completely disables address shielding. Use this if MATLAB fails to start
successfully with the default (-shield minimum) option.
matlab -singleCompThread limits MATLAB to a single computational thread. By default,
MATLAB makes use of the multithreading capabilities of the computer on which it is
running.
matlab -unregserver removes all MATLAB COM server entries from the registry.
matlab -wait MATLAB is started by a separate starter program which normally launches
MATLAB and then immediately quits. Using this option tells the starter program not to quit
until MATLAB has terminated. This option is useful when you need to process the results
from MATLAB in a script. Calling MATLAB with this option blocks the script from
continuing until the results are generated.
Setting Environment Variables
You can set the following environment variables before starting MATLAB.
Variable Name Description
LM_LICENSE_FILE This variable specifies the License File to use. If you use the -c
argument to specify the License File it overrides this variable. The value
of this variable can be a list of License Files, separated by semi-colons,
or port@host entries.
See Also
matlab (UNIX), mex, userpath
Starting the MATLAB Program on Windows Platforms, and Startup Options in the
MATLAB Desktop Tools and Development Environment documentation
Was thistopic helpful?

23. © 1984-2010 The MathWorks, Inc. • Terms of Use • Patents • Trademarks •
Acknowledgments

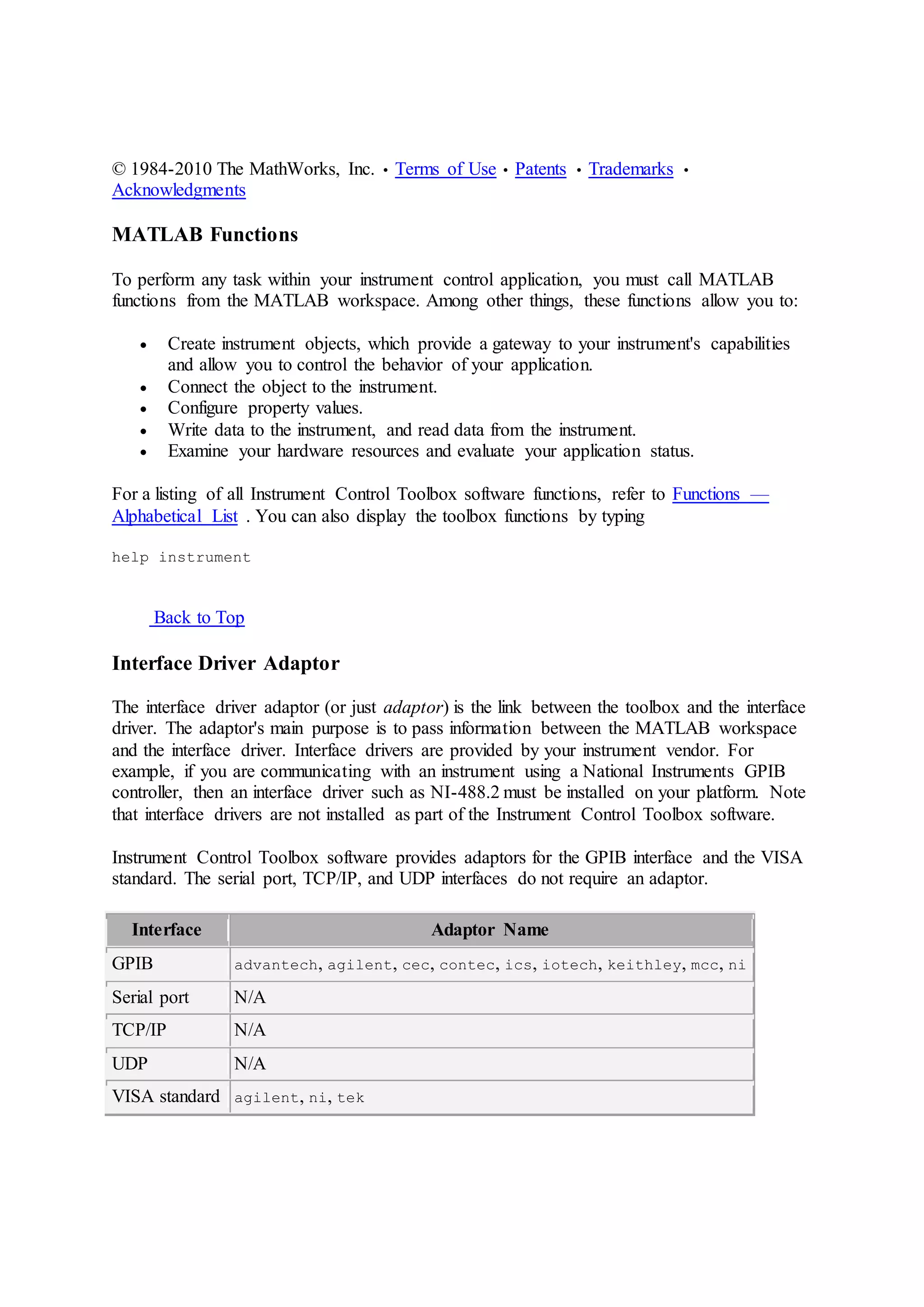

MATLAB Functions
To perform any task within your instrument control application, you must call MATLAB
functions from the MATLAB workspace. Among other things, these functions allow you to:
 Create instrument objects, which provide a gateway to your instrument's capabilities
and allow you to control the behavior of your application.
 Connect the object to the instrument.
 Configure property values.
 Write data to the instrument, and read data from the instrument.
 Examine your hardware resources and evaluate your application status.
For a listing of all Instrument Control Toolbox software functions, refer to Functions —
Alphabetical List . You can also display the toolbox functions by typing
help instrument
Back to Top
Interface Driver Adaptor
The interface driver adaptor (or just adaptor) is the link between the toolbox and the interface
driver. The adaptor's main purpose is to pass information between the MATLAB workspace
and the interface driver. Interface drivers are provided by your instrument vendor. For
example, if you are communicating with an instrument using a National Instruments GPIB
controller, then an interface driver such as NI-488.2 must be installed on your platform. Note
that interface drivers are not installed as part of the Instrument Control Toolbox software.
Instrument Control Toolbox software provides adaptors for the GPIB interface and the VISA
standard. The serial port, TCP/IP, and UDP interfaces do not require an adaptor.
Interface Adaptor Name
GPIB advantech, agilent, cec, contec, ics, iotech, keithley, mcc, ni
Serial port N/A
TCP/IP N/A
UDP N/A
VISA standard agilent, ni, tek

24. As described in Examining Your Hardware Resources, you can list the supported interfaces
and adaptor names with the instrhwinfo function. For a list of vendor driver requirements
and limitations, refer to Vendor Driver Requirements and Limitations.

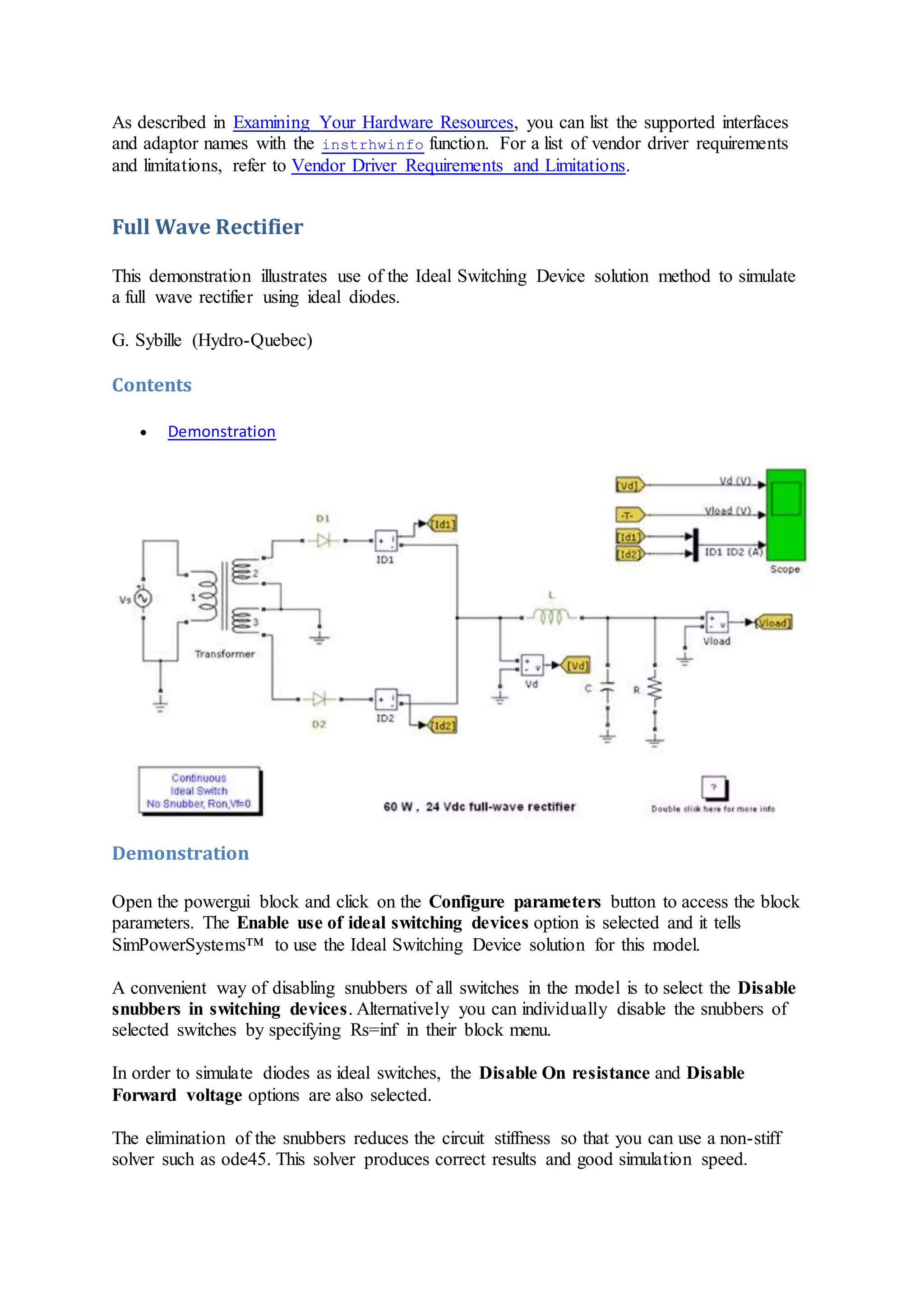

Full Wave Rectifier
This demonstration illustrates use of the Ideal Switching Device solution method to simulate
a full wave rectifier using ideal diodes.
G. Sybille (Hydro-Quebec)
Contents
 Demonstration
Demonstration
Open the powergui block and click on the Configure parameters button to access the block
parameters. The Enable use of ideal switching devices option is selected and it tells
SimPowerSystems™ to use the Ideal Switching Device solution for this model.
A convenient way of disabling snubbers of all switches in the model is to select the Disable
snubbers in switching devices. Alternatively you can individually disable the snubbers of
selected switches by specifying Rs=inf in their block menu.
In order to simulate diodes as ideal switches, the Disable On resistance and Disable
Forward voltage options are also selected.
The elimination of the snubbers reduces the circuit stiffness so that you can use a non-stiff
solver such as ode45. This solver produces correct results and good simulation speed.

25. To simulate this circuit with the original SimPowerSystems simulation method, you need to
use snubbers across diodes D1 and D2 because these elements are connected in series with
inductances (transformer leakage inductances of the two secondary windings and filter
inductance L). Otherwise, when you start the simulation SimPowerSystems will prompt an
error message. In this case if you attempt to simulate this circuit with specified resistive
snubbers (Rs=1e6 ohms) by using the ode45 solver, you will observe a slow simulation speed
and numerical oscillations. If you use instead the ode23tb recommended solver, you will
observe wrong simulation results unless you use a relative tolerance of 1e-6.

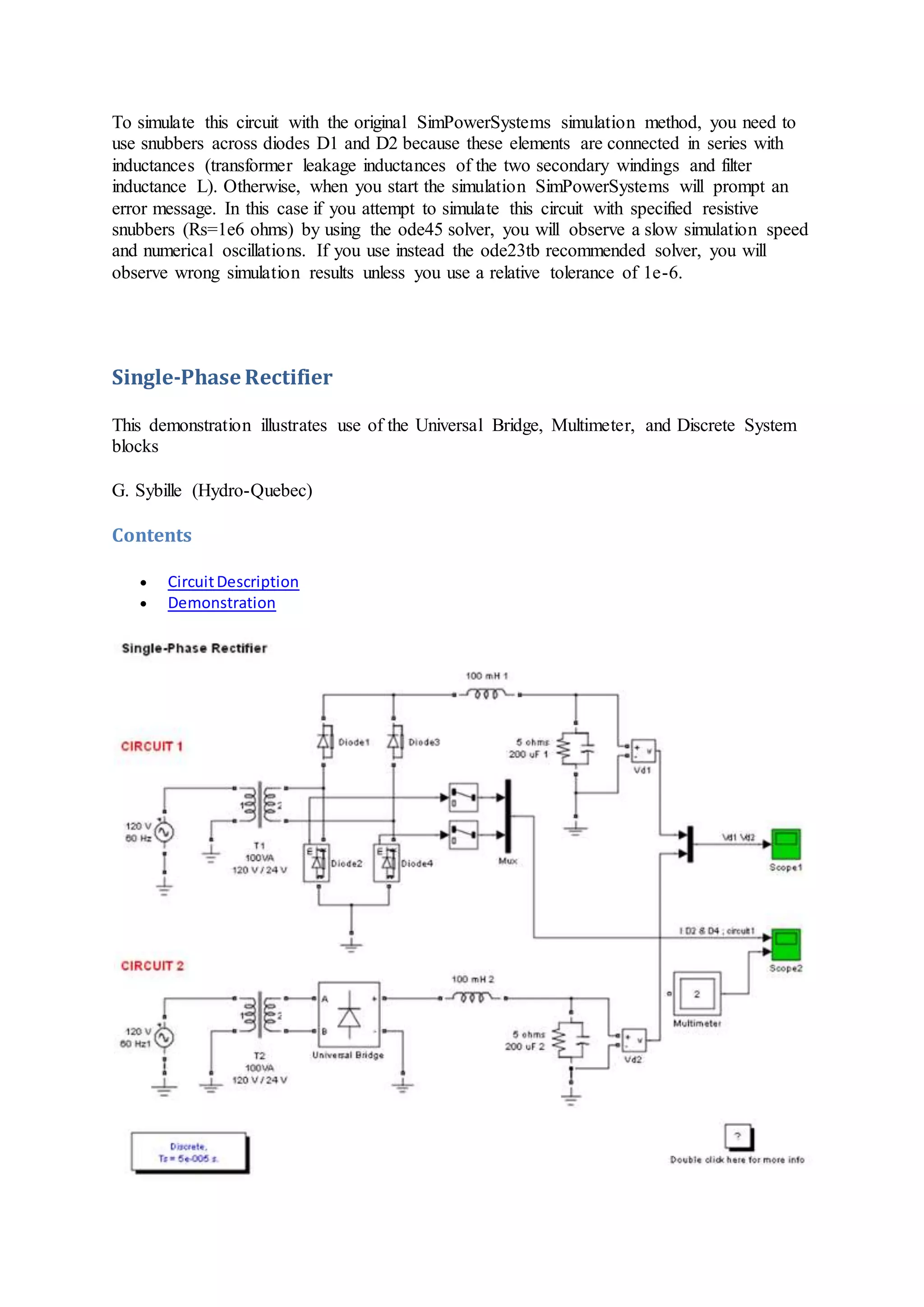

Single-Phase Rectifier
This demonstration illustrates use of the Universal Bridge, Multimeter, and Discrete System
blocks
G. Sybille (Hydro-Quebec)
Contents
 CircuitDescription
 Demonstration

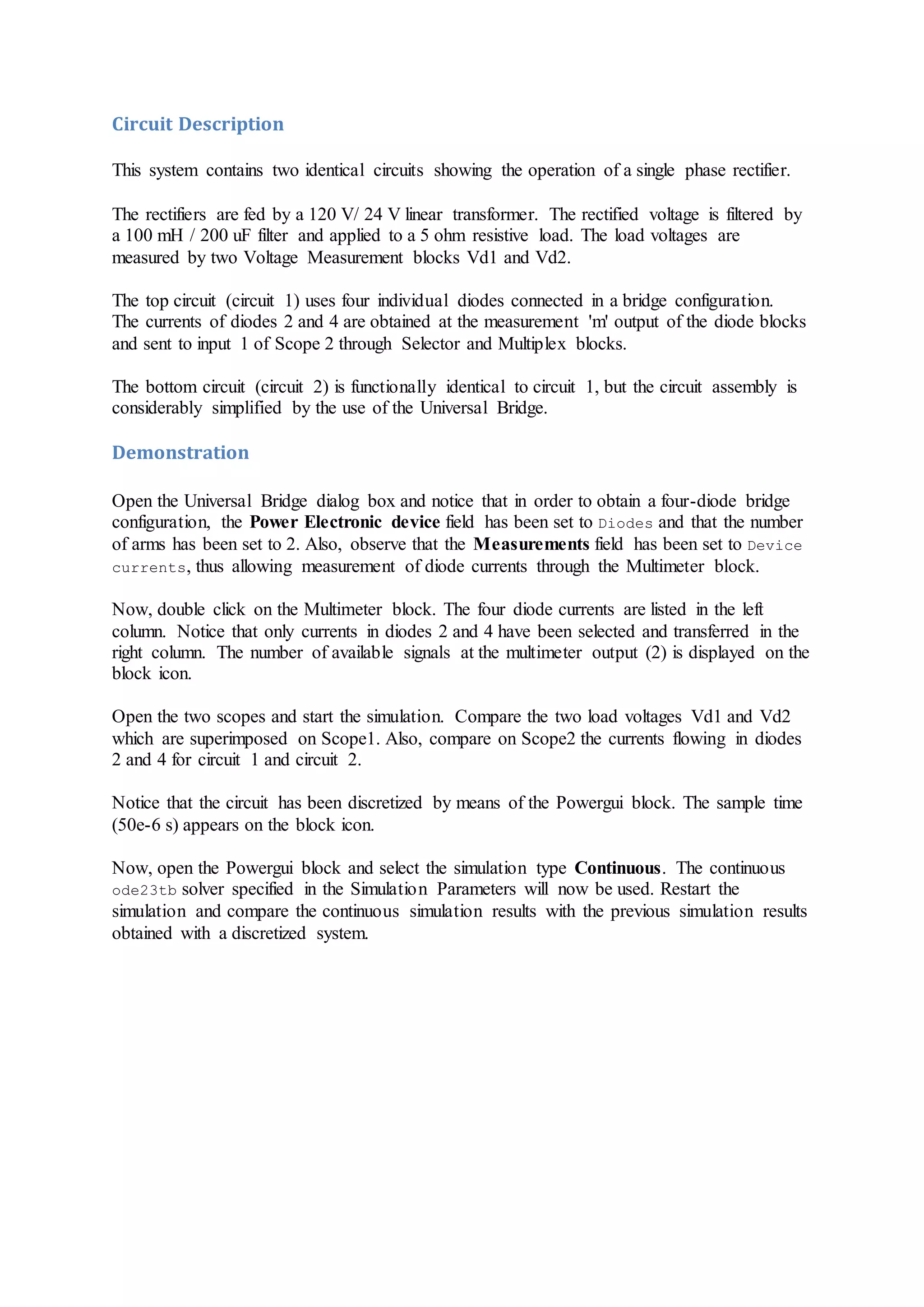

26. Circuit Description
This system contains two identical circuits showing the operation of a single phase rectifier.
The rectifiers are fed by a 120 V/ 24 V linear transformer. The rectified voltage is filtered by
a 100 mH / 200 uF filter and applied to a 5 ohm resistive load. The load voltages are
measured by two Voltage Measurement blocks Vd1 and Vd2.
The top circuit (circuit 1) uses four individual diodes connected in a bridge configuration.
The currents of diodes 2 and 4 are obtained at the measurement 'm' output of the diode blocks
and sent to input 1 of Scope 2 through Selector and Multiplex blocks.
The bottom circuit (circuit 2) is functionally identical to circuit 1, but the circuit assembly is
considerably simplified by the use of the Universal Bridge.
Demonstration
Open the Universal Bridge dialog box and notice that in order to obtain a four-diode bridge
configuration, the Power Electronic device field has been set to Diodes and that the number
of arms has been set to 2. Also, observe that the Measurements field has been set to Device
currents, thus allowing measurement of diode currents through the Multimeter block.
Now, double click on the Multimeter block. The four diode currents are listed in the left
column. Notice that only currents in diodes 2 and 4 have been selected and transferred in the
right column. The number of available signals at the multimeter output (2) is displayed on the
block icon.
Open the two scopes and start the simulation. Compare the two load voltages Vd1 and Vd2
which are superimposed on Scope1. Also, compare on Scope2 the currents flowing in diodes
2 and 4 for circuit 1 and circuit 2.
Notice that the circuit has been discretized by means of the Powergui block. The sample time
(50e-6 s) appears on the block icon.
Now, open the Powergui block and select the simulation type Continuous. The continuous
ode23tb solver specified in the Simulation Parameters will now be used. Restart the
simulation and compare the continuous simulation results with the previous simulation results
obtained with a discretized system.
