1. Department of Electrical Engineering
HCET
Aditi Tiwari

2. To MATLAB

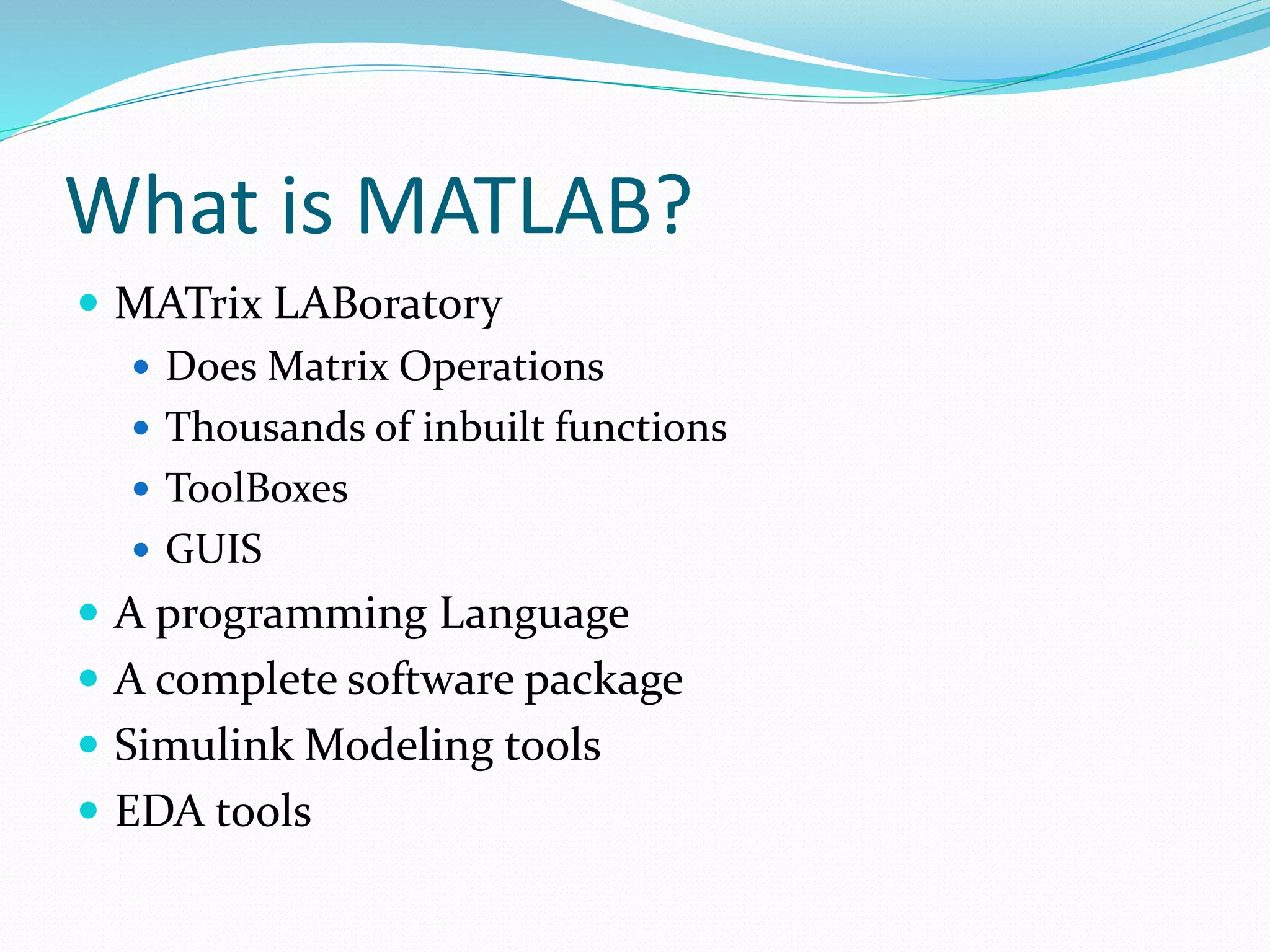

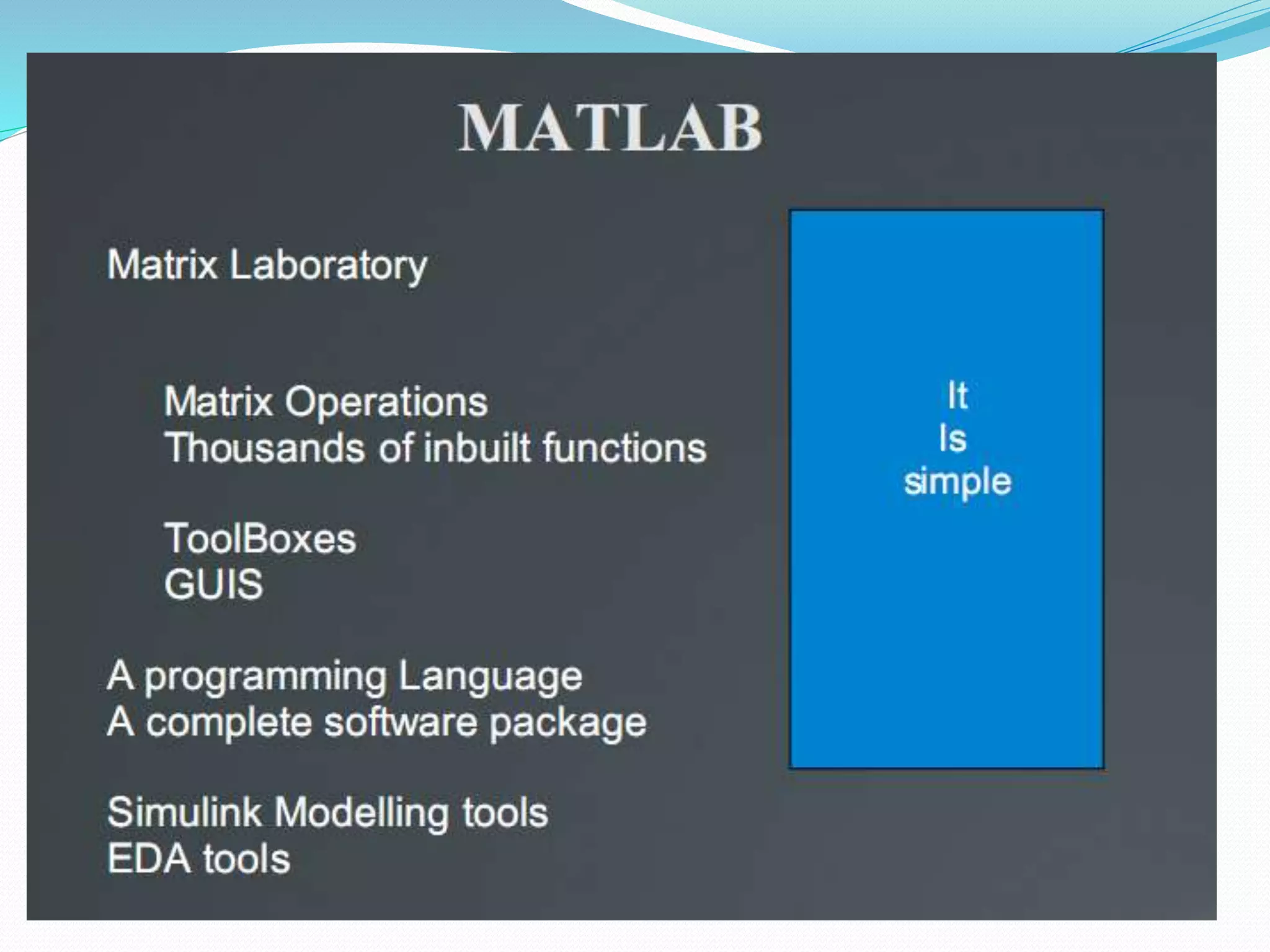

3. What is MATLAB?
 MATrix LABoratory
 Does Matrix Operations
 Thousands of inbuilt functions
 ToolBoxes
 GUIS
 A programming Language
 A complete software package
 Simulink Modeling tools
 EDA tools

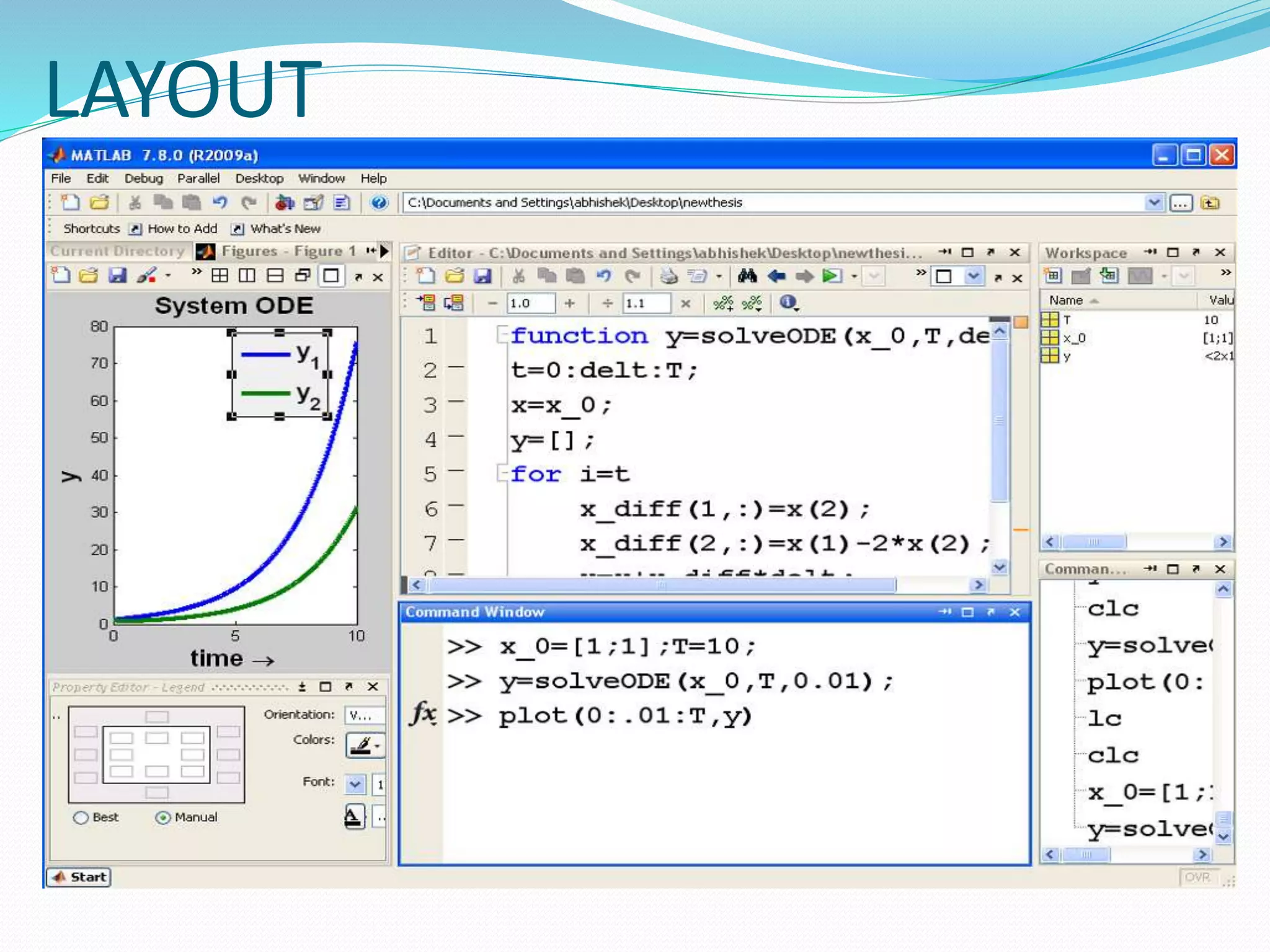

4. LAYOUT

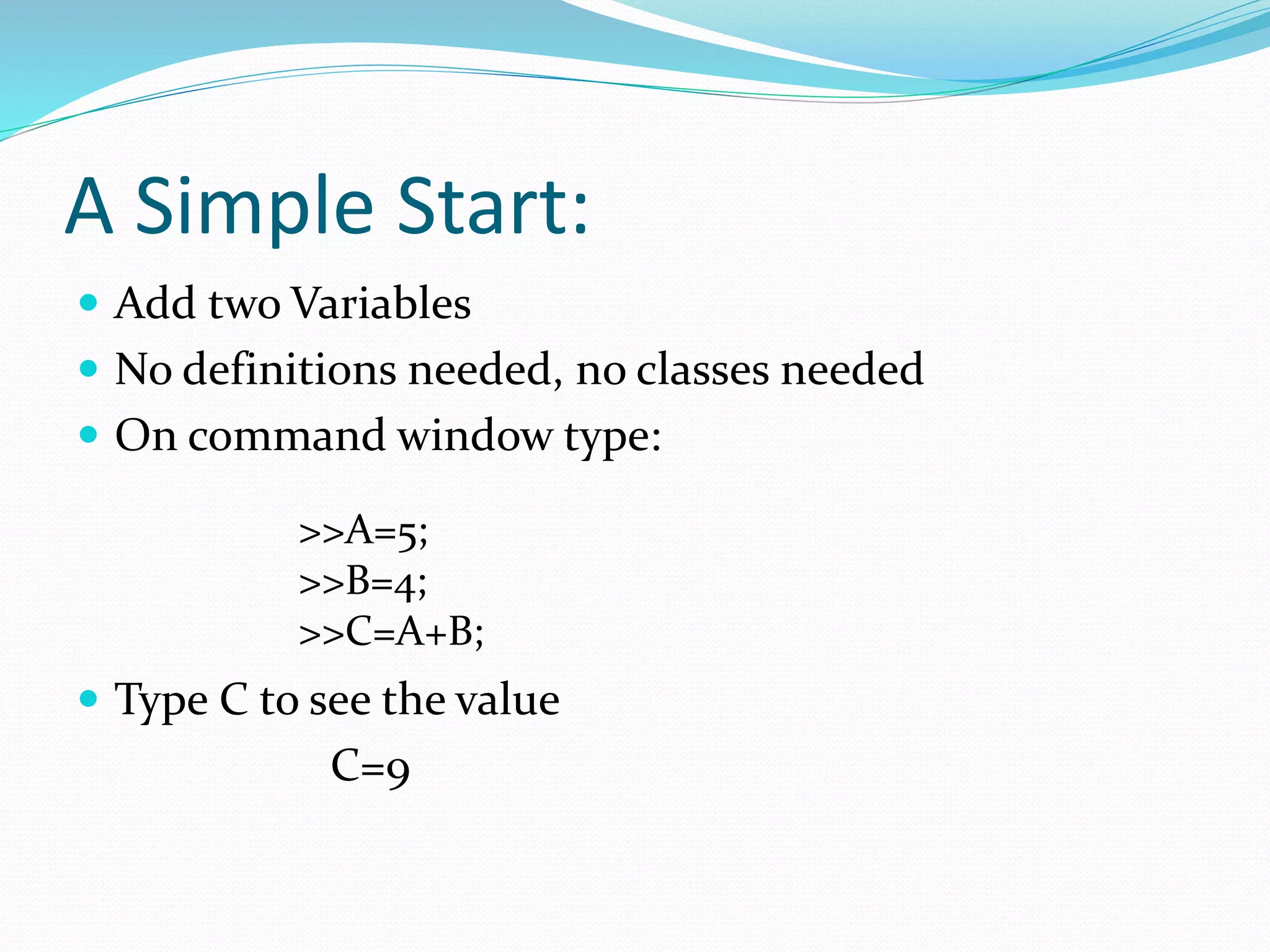

5. A Simple Start:
 Add two Variables
 No definitions needed, no classes needed
 On command window type:
 Type C to see the value
C=9
>>A=5;
>>B=4;
>>C=A+B;

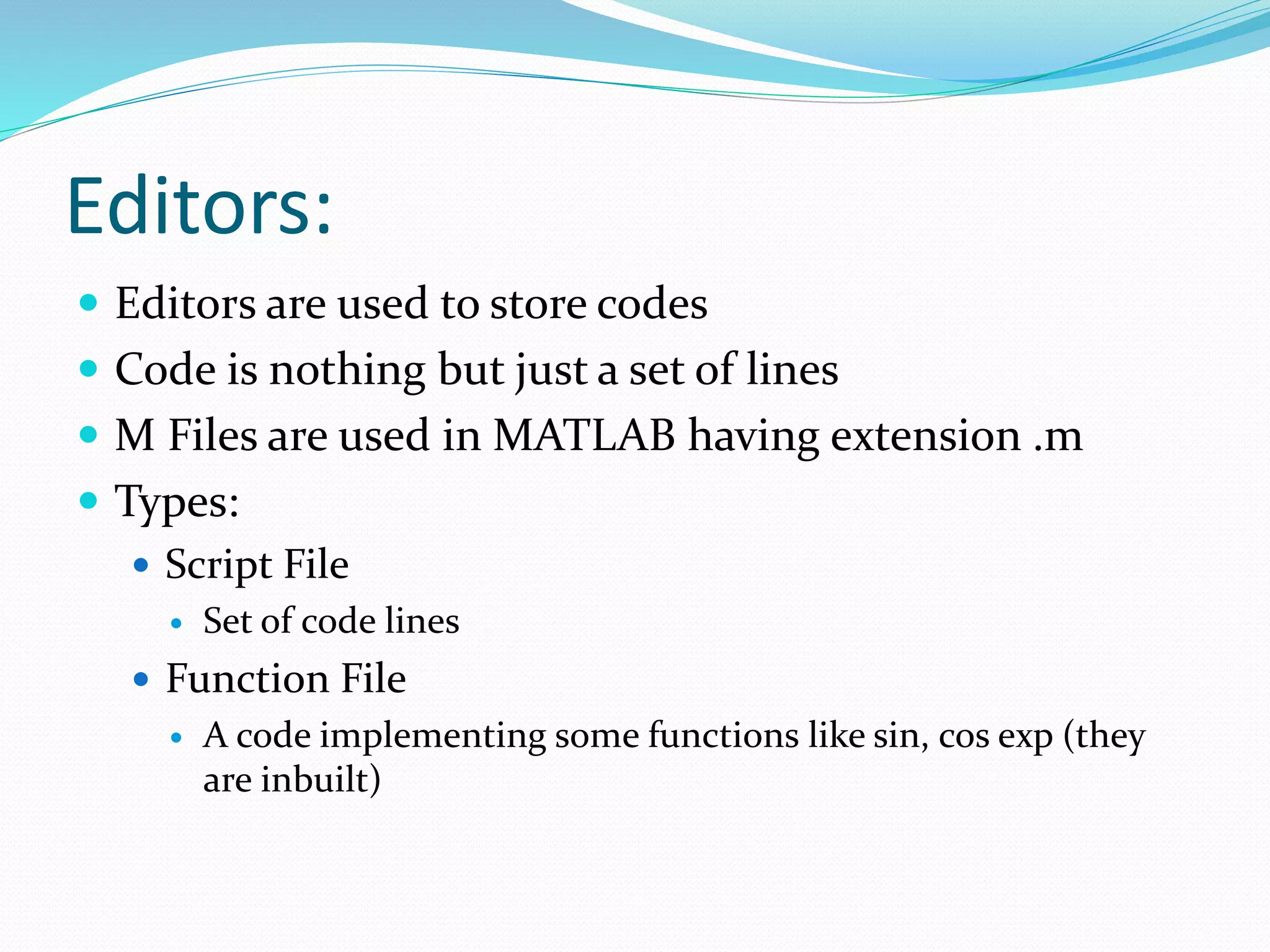

6. Editors:
 Editors are used to store codes
 Code is nothing but just a set of lines
 M Files are used in MATLAB having extension .m
 Types:
 Script File
 Set of code lines
 Function File
 A code implementing some functions like sin, cos exp (they
are inbuilt)

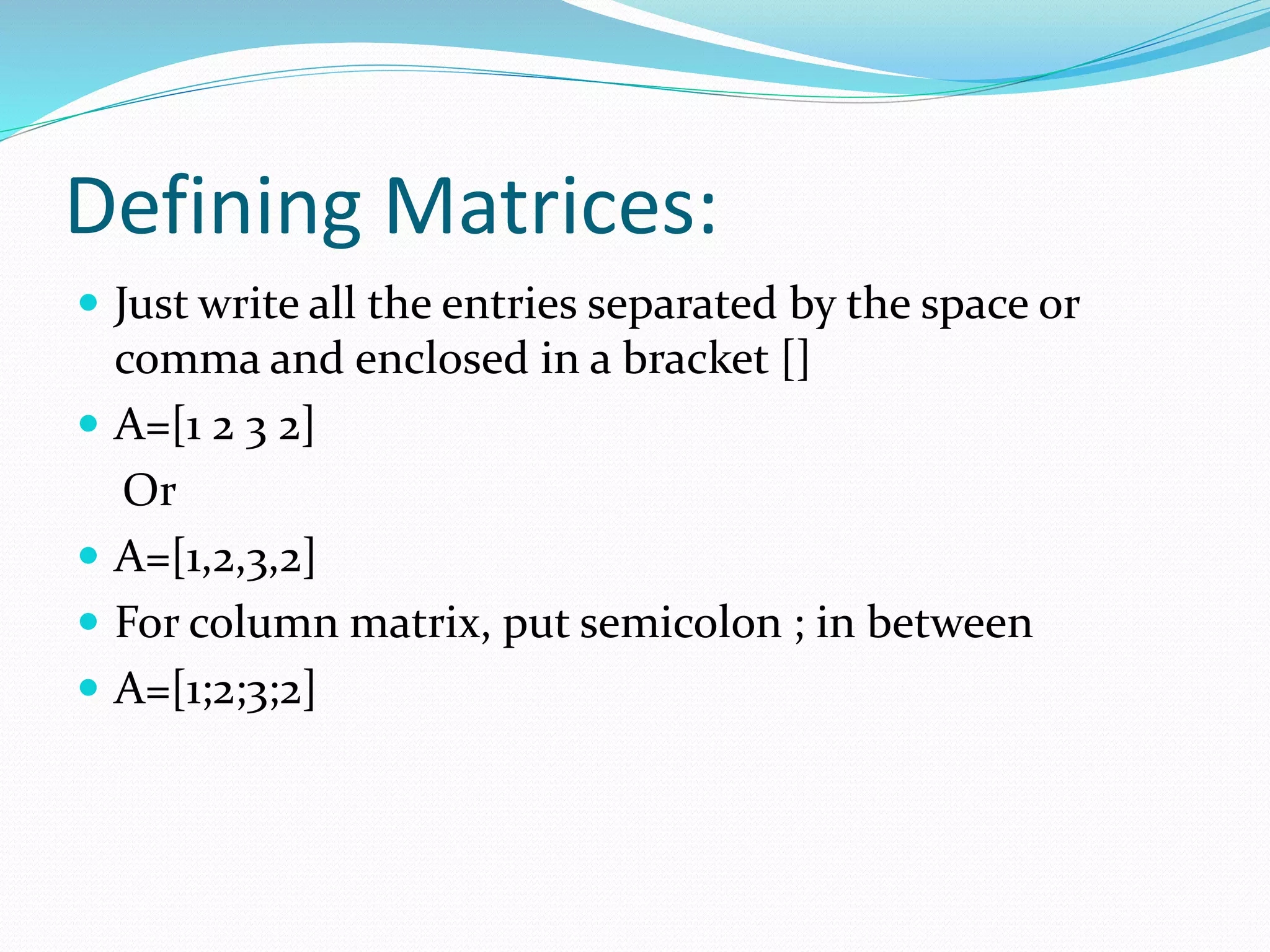

7. Defining Matrices:
 Just write all the entries separated by the space or
comma and enclosed in a bracket []
 A=[1 2 3 2]
Or
 A=[1,2,3,2]
 For column matrix, put semicolon ; in between
 A=[1;2;3;2]

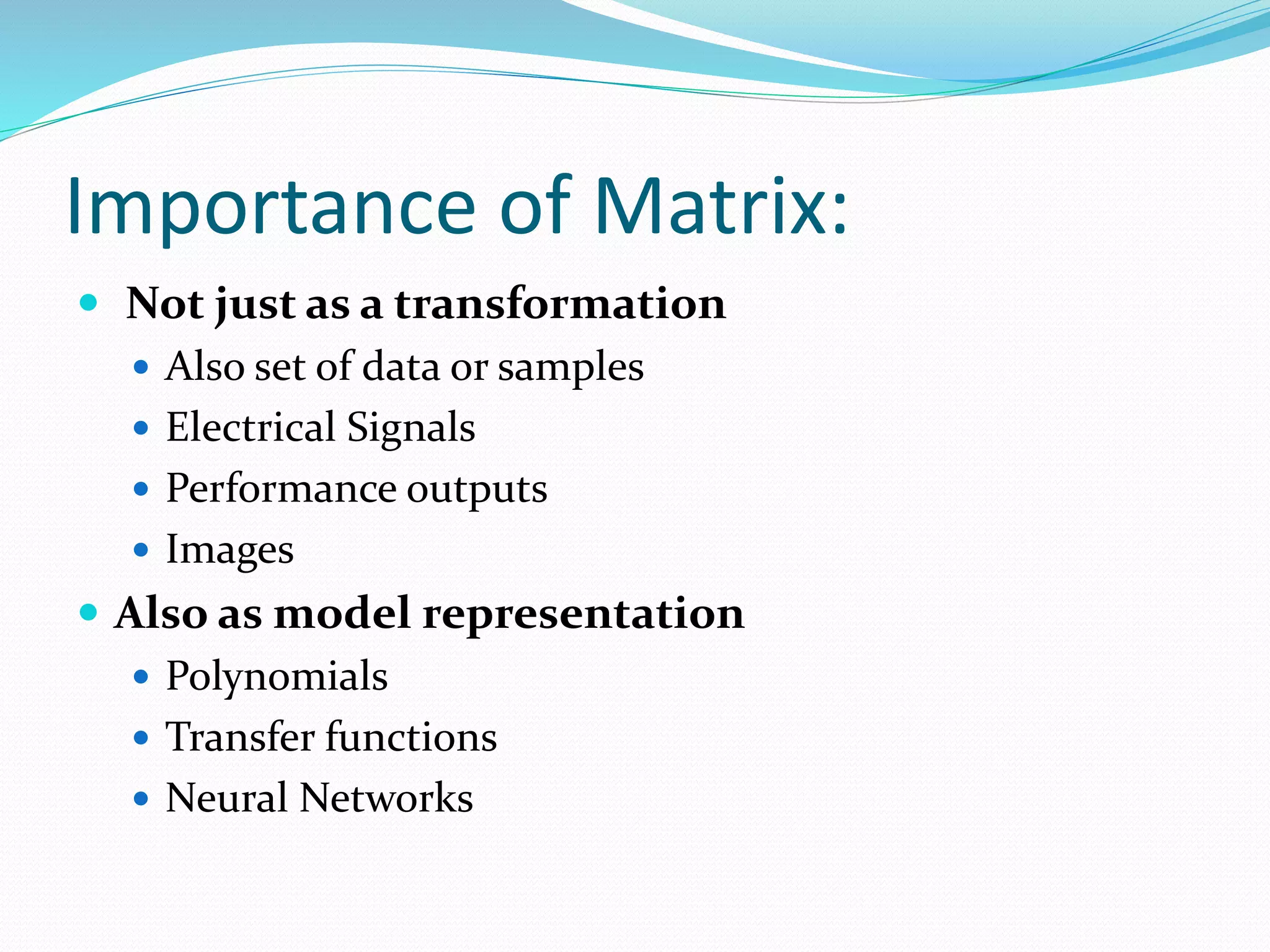

8. Importance of Matrix:
 Not just as a transformation
 Also set of data or samples
 Electrical Signals
 Performance outputs
 Images
 Also as model representation
 Polynomials
 Transfer functions
 Neural Networks

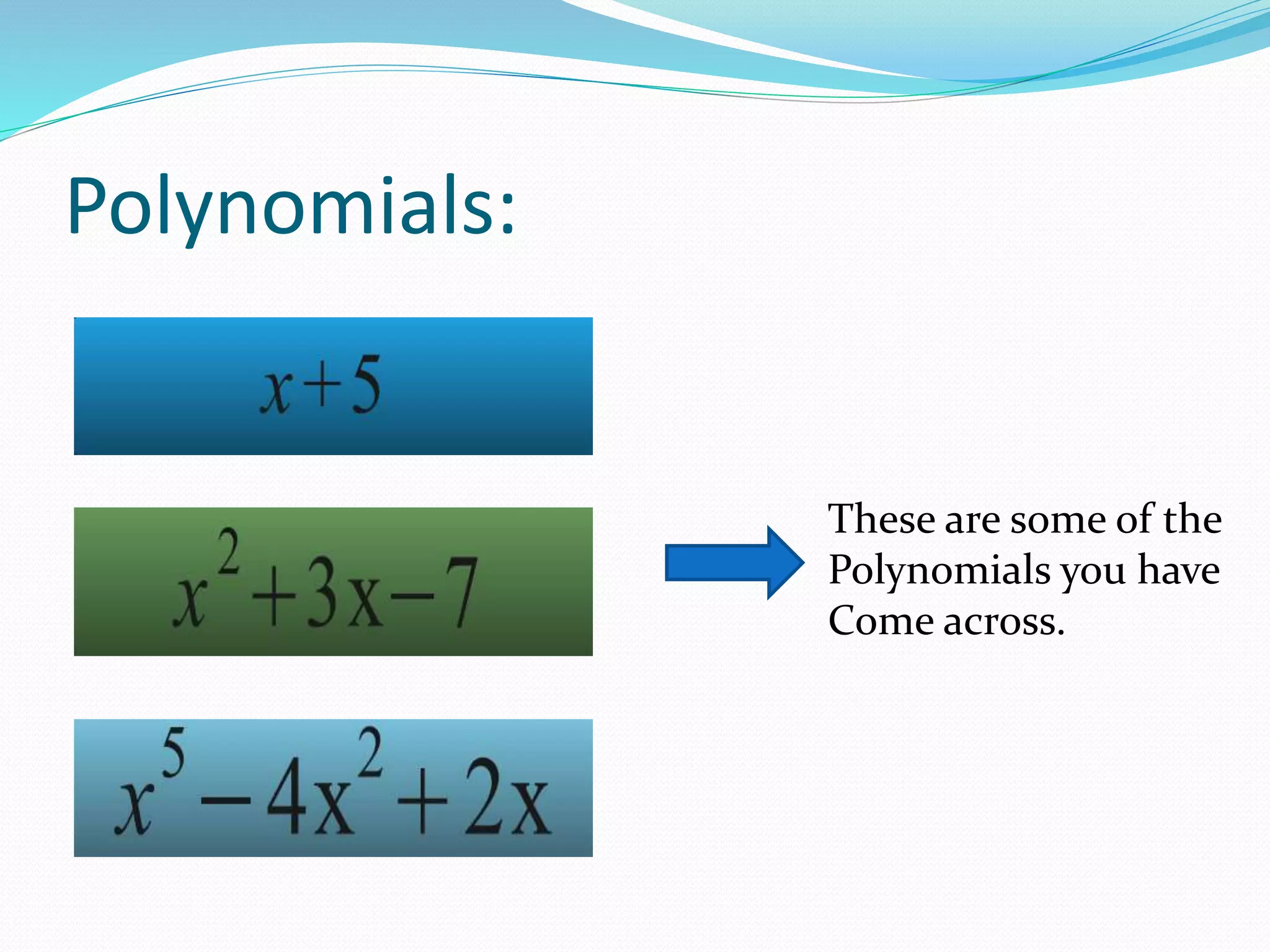

9. Polynomials:
These are some of the
Polynomials you have
Come across.

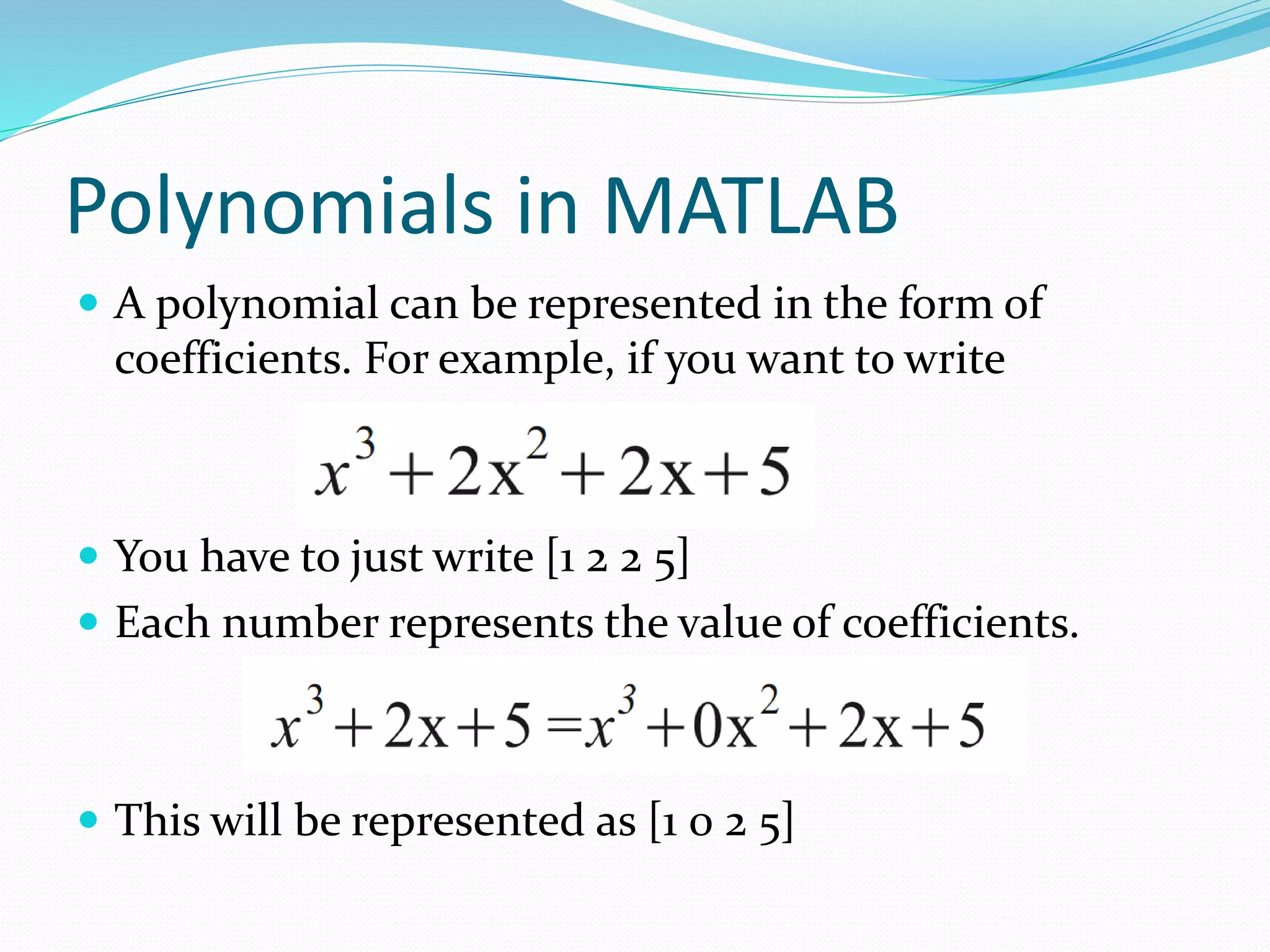

10. Polynomials in MATLAB
 A polynomial can be represented in the form of
coefficients. For example, if you want to write
 You have to just write [1 2 2 5]
 Each number represents the value of coefficients.
 This will be represented as [1 0 2 5]

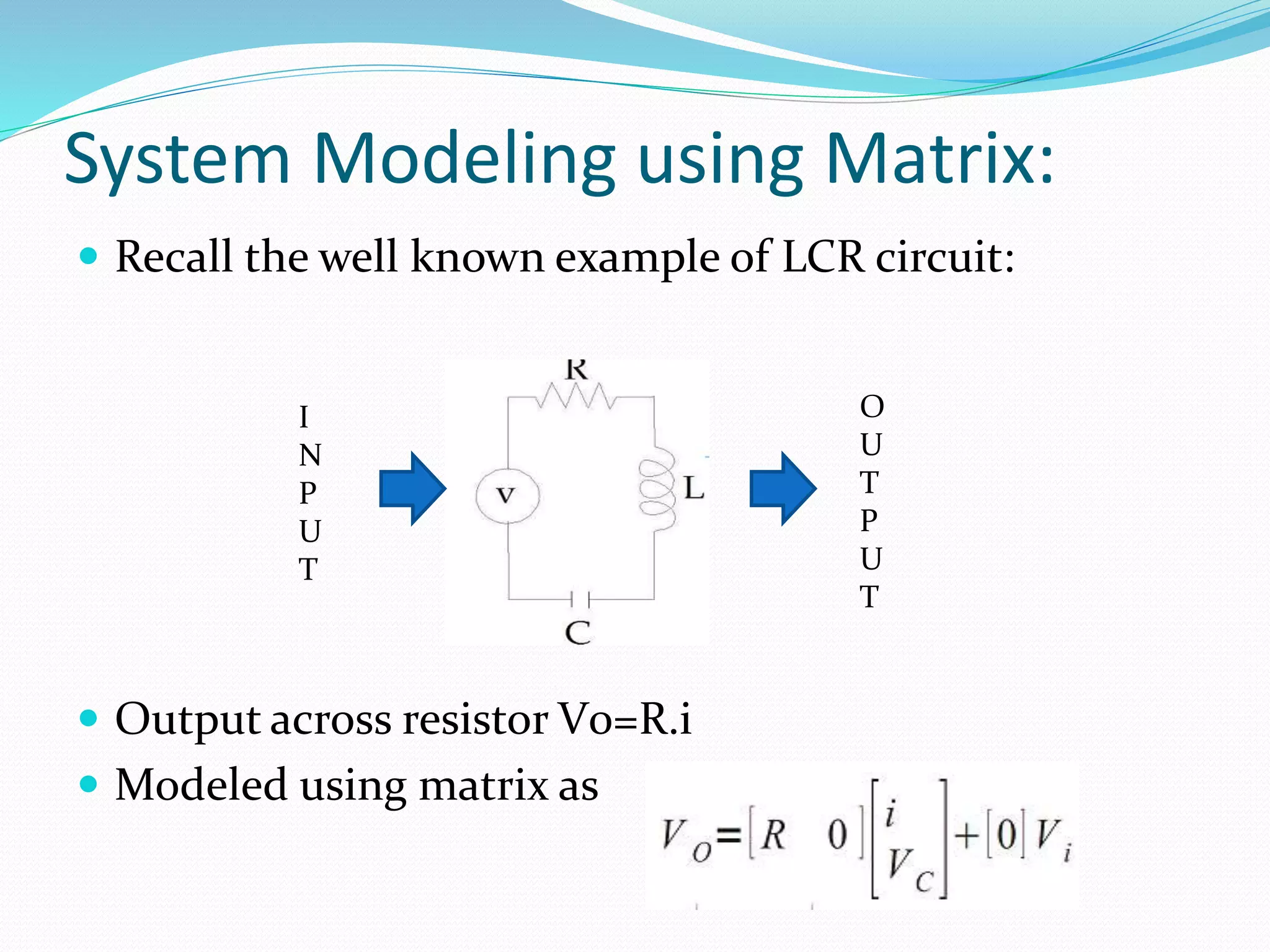

11. System Modeling using Matrix:
 Recall the well known example of LCR circuit:
 Output across resistor V0=R.i
 Modeled using matrix as
I
N
P
U
T
O
U
T
P
U
T

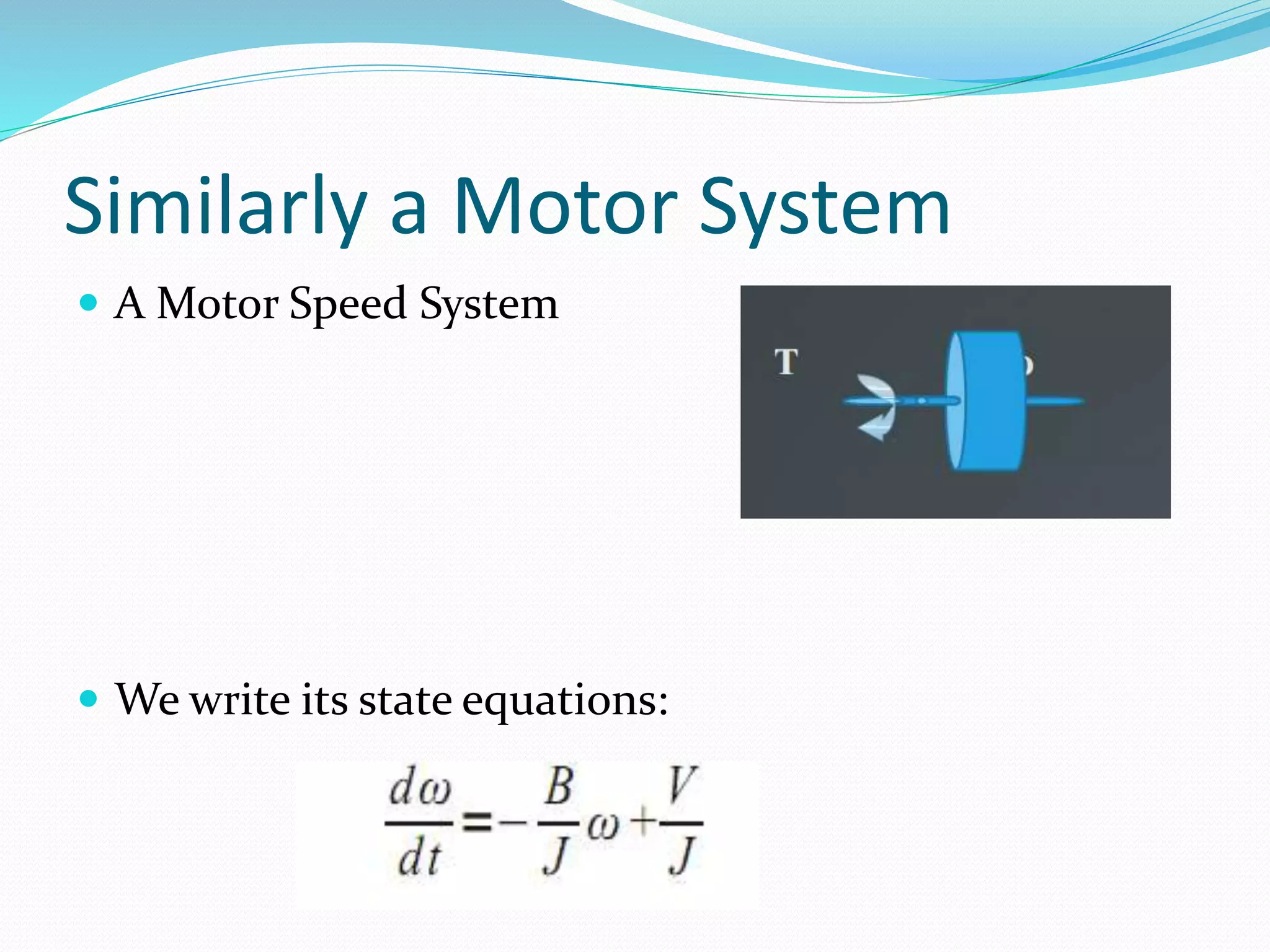

12. Similarly a Motor System
 A Motor Speed System
 We write its state equations:

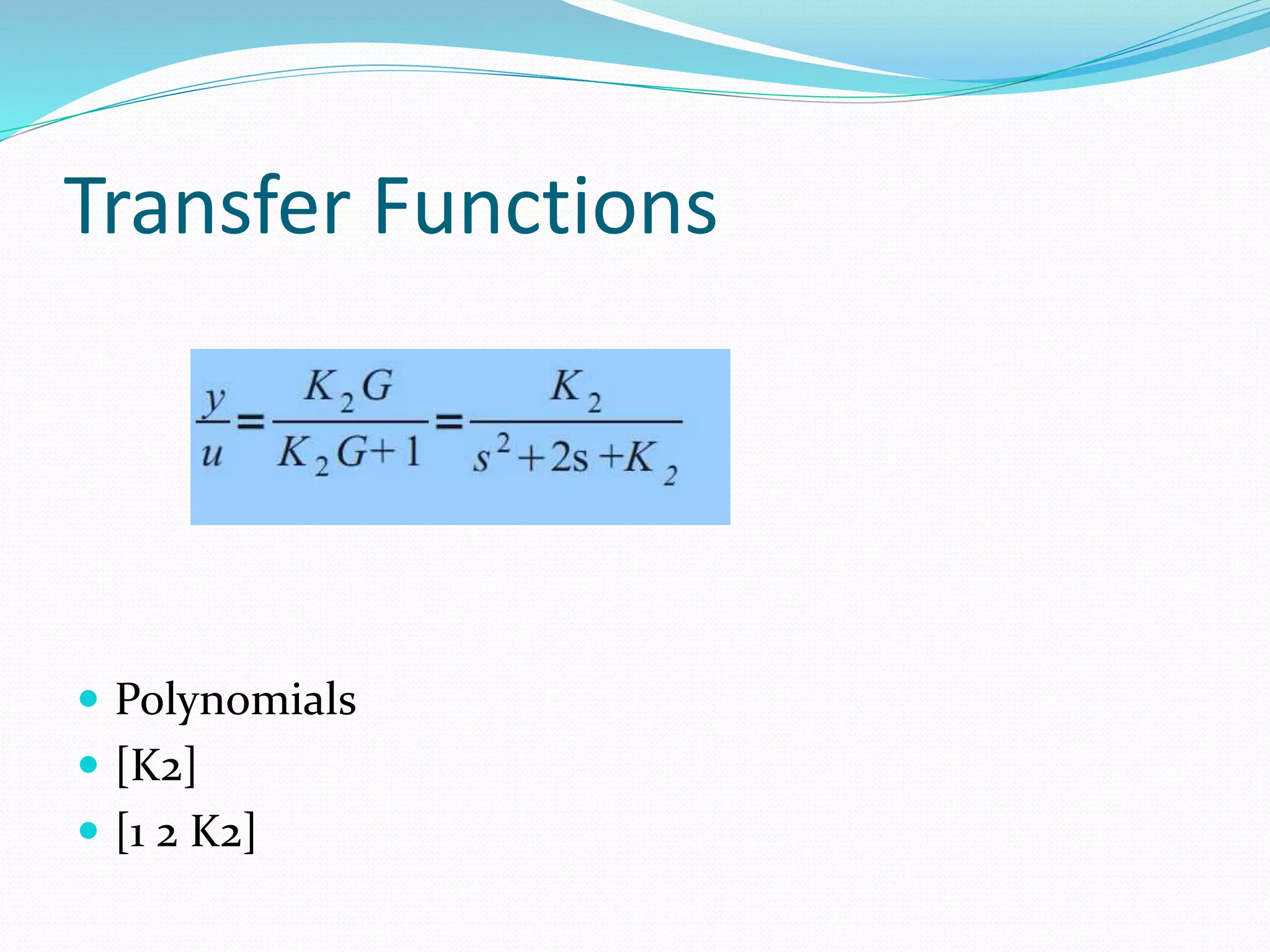

13. Transfer Functions
 Polynomials
 [K2]
 [1 2 K2]

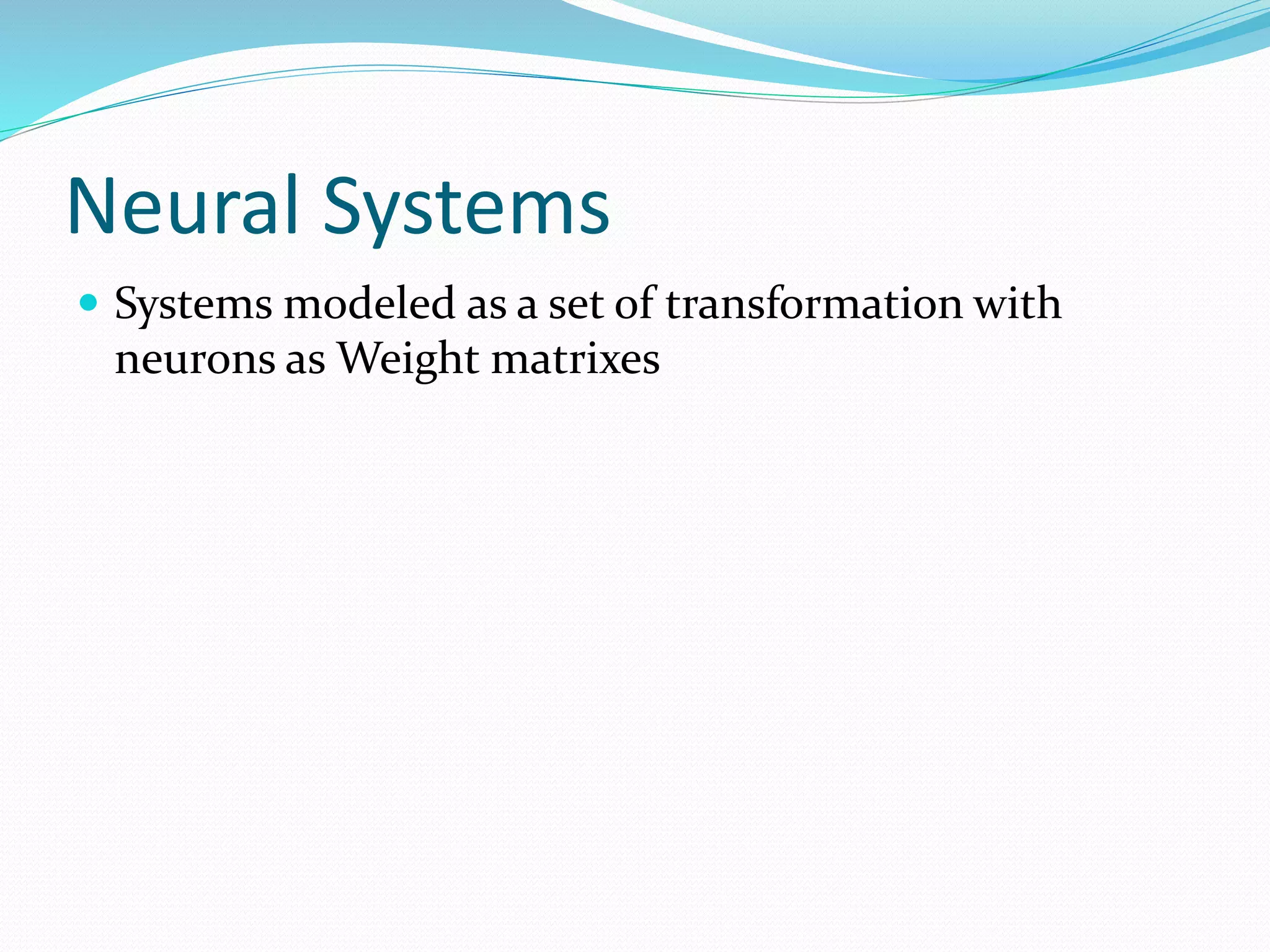

14. Neural Systems
 Systems modeled as a set of transformation with
neurons as Weight matrixes

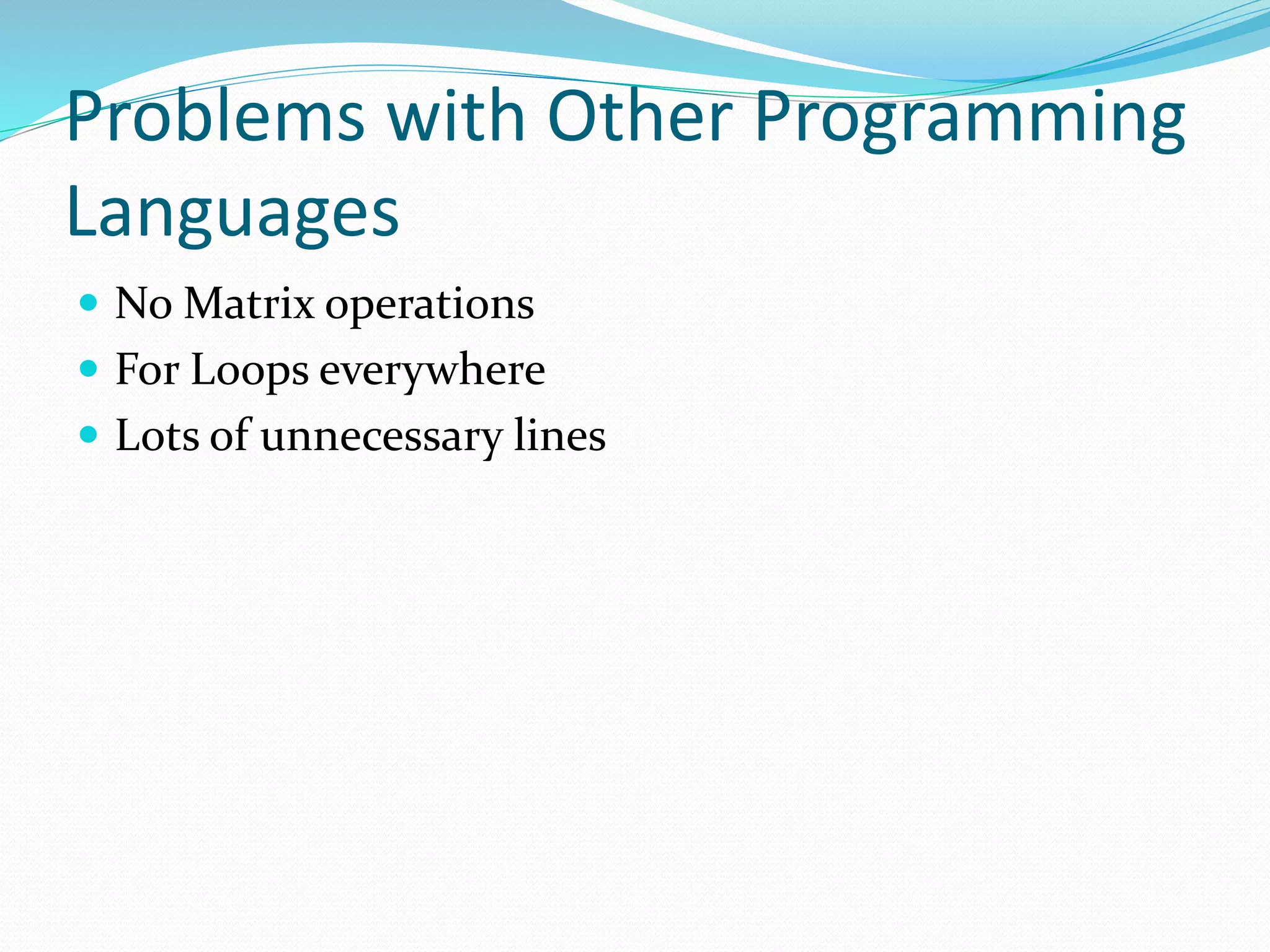

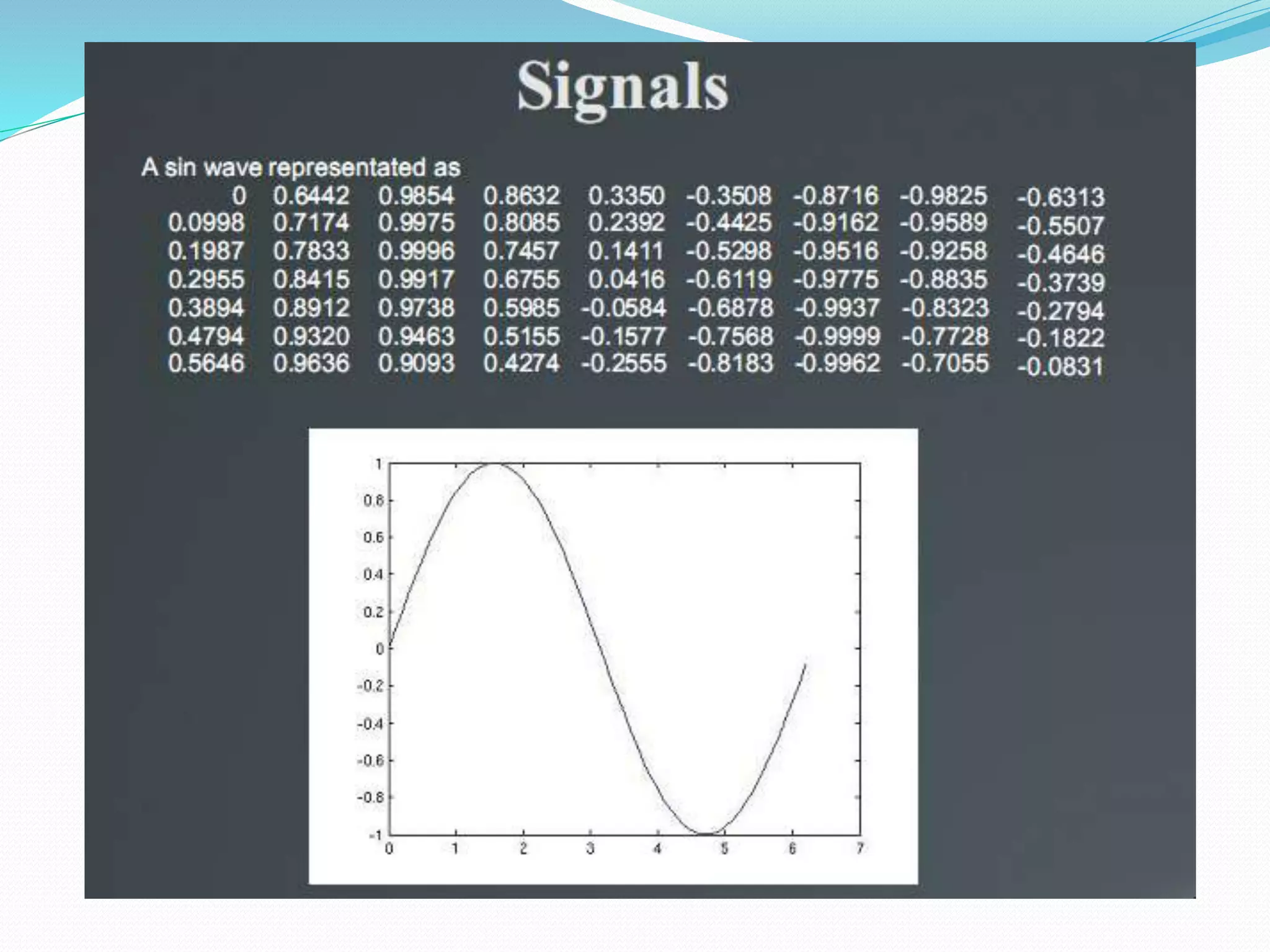

16. Problems with Other Programming
Languages
 No Matrix operations
 For Loops everywhere
 Lots of unnecessary lines

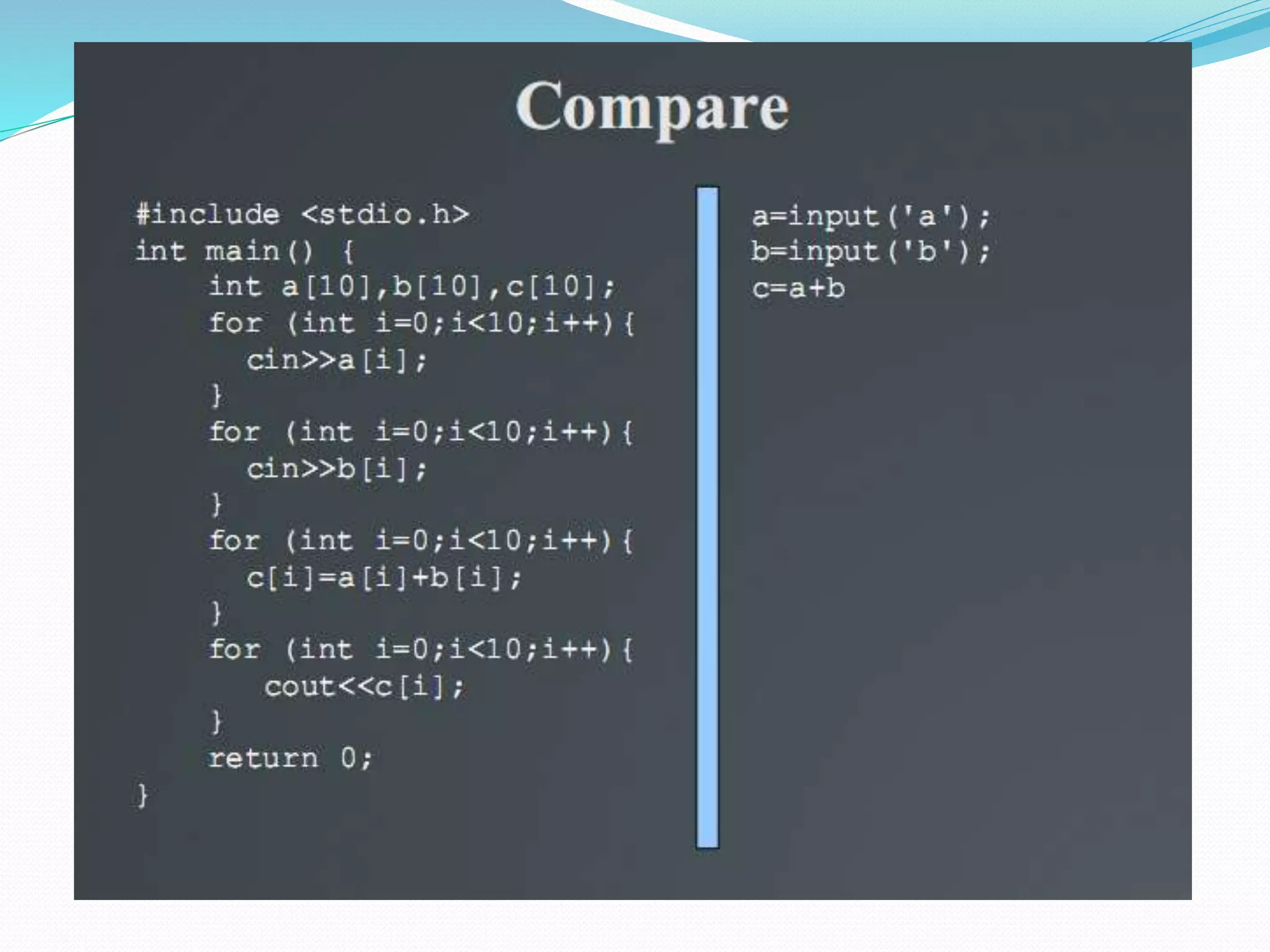

19. with MALTAB

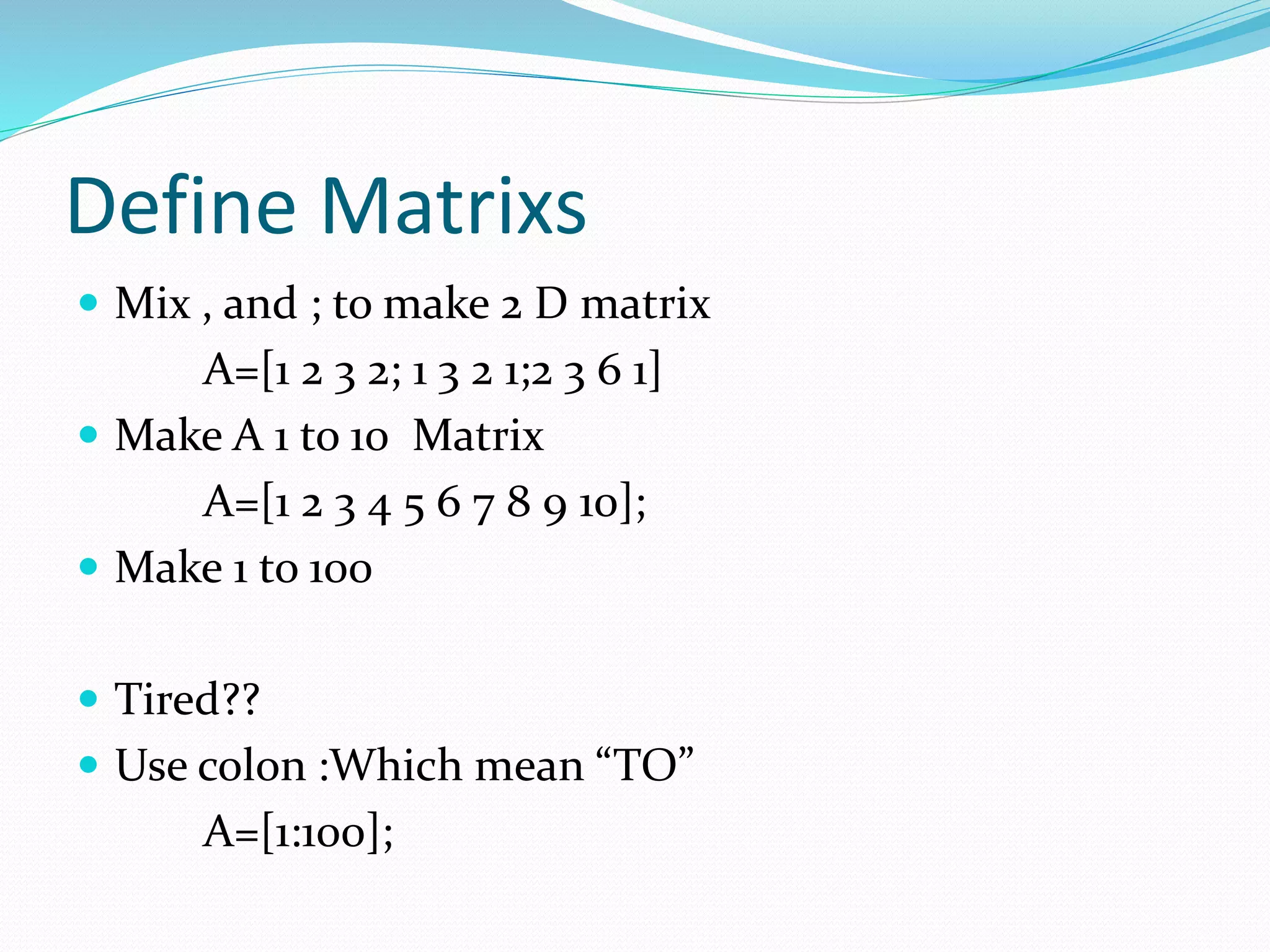

20. Define Matrixs
 Mix , and ; to make 2 D matrix
A=[1 2 3 2; 1 3 2 1;2 3 6 1]
 Make A 1 to 10 Matrix
A=[1 2 3 4 5 6 7 8 9 10];
 Make 1 to 100
 Tired??
 Use colon :Which mean “TO”
A=[1:100];

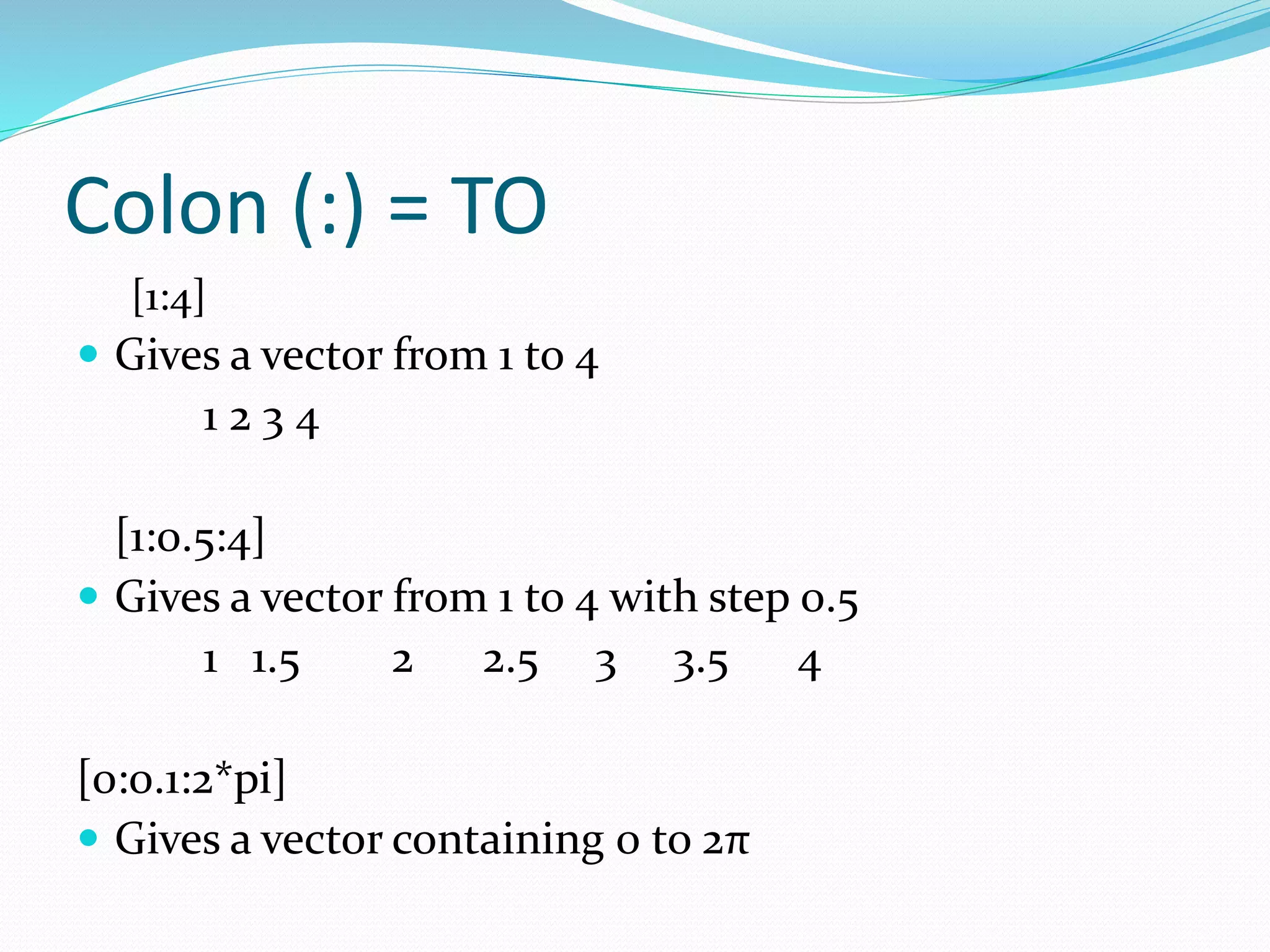

21. Colon (:) = TO
[1:4]
 Gives a vector from 1 to 4
1 2 3 4
[1:0.5:4]
 Gives a vector from 1 to 4 with step 0.5
1 1.5 2 2.5 3 3.5 4
[0:0.1:2*pi]
 Gives a vector containing 0 to 2π

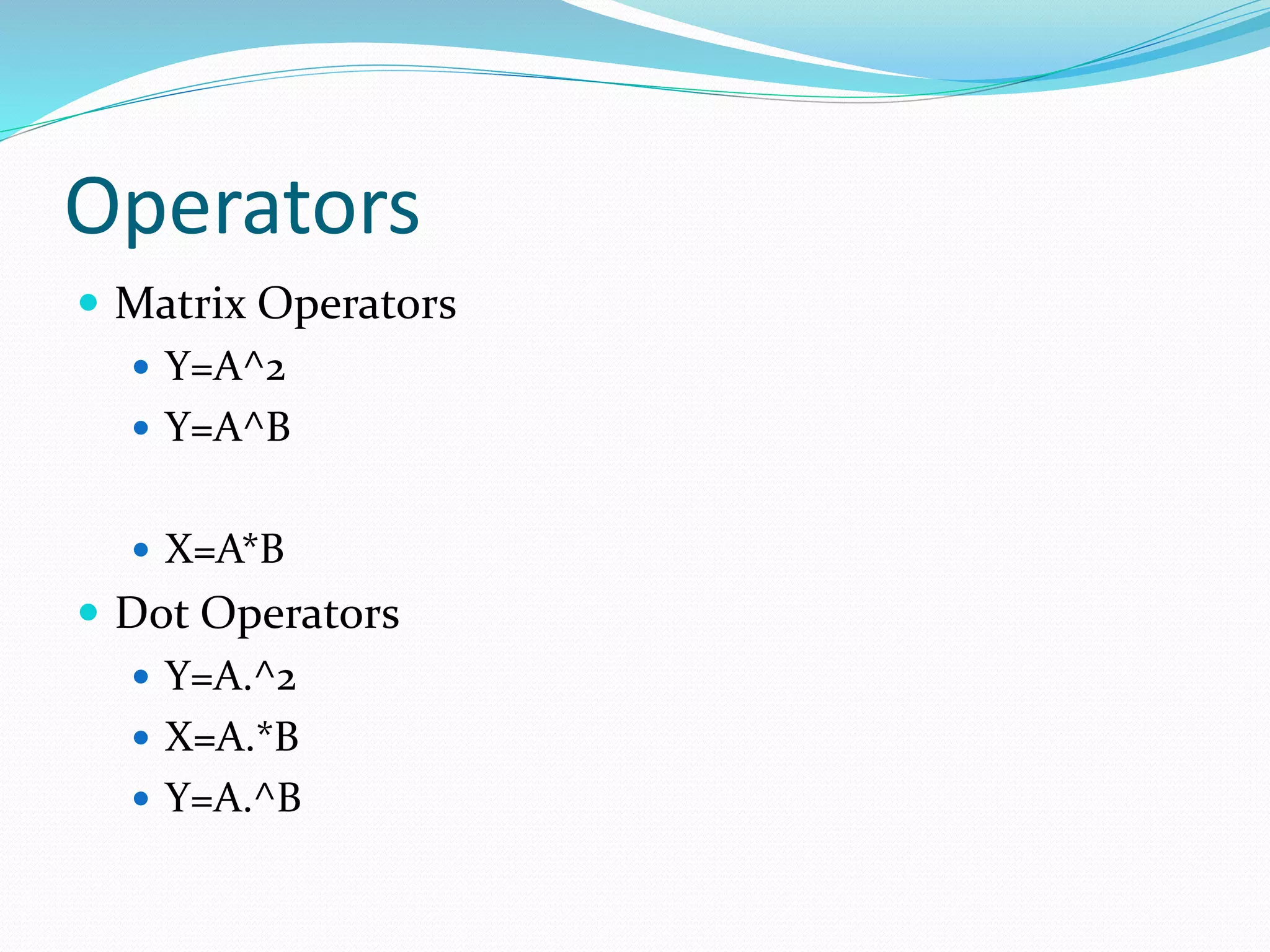

22. Operators
 Matrix Operators
 Y=A^2
 Y=A^B
 X=A*B
 Dot Operators
 Y=A.^2
 X=A.*B
 Y=A.^B

23. Functions
Subscripting

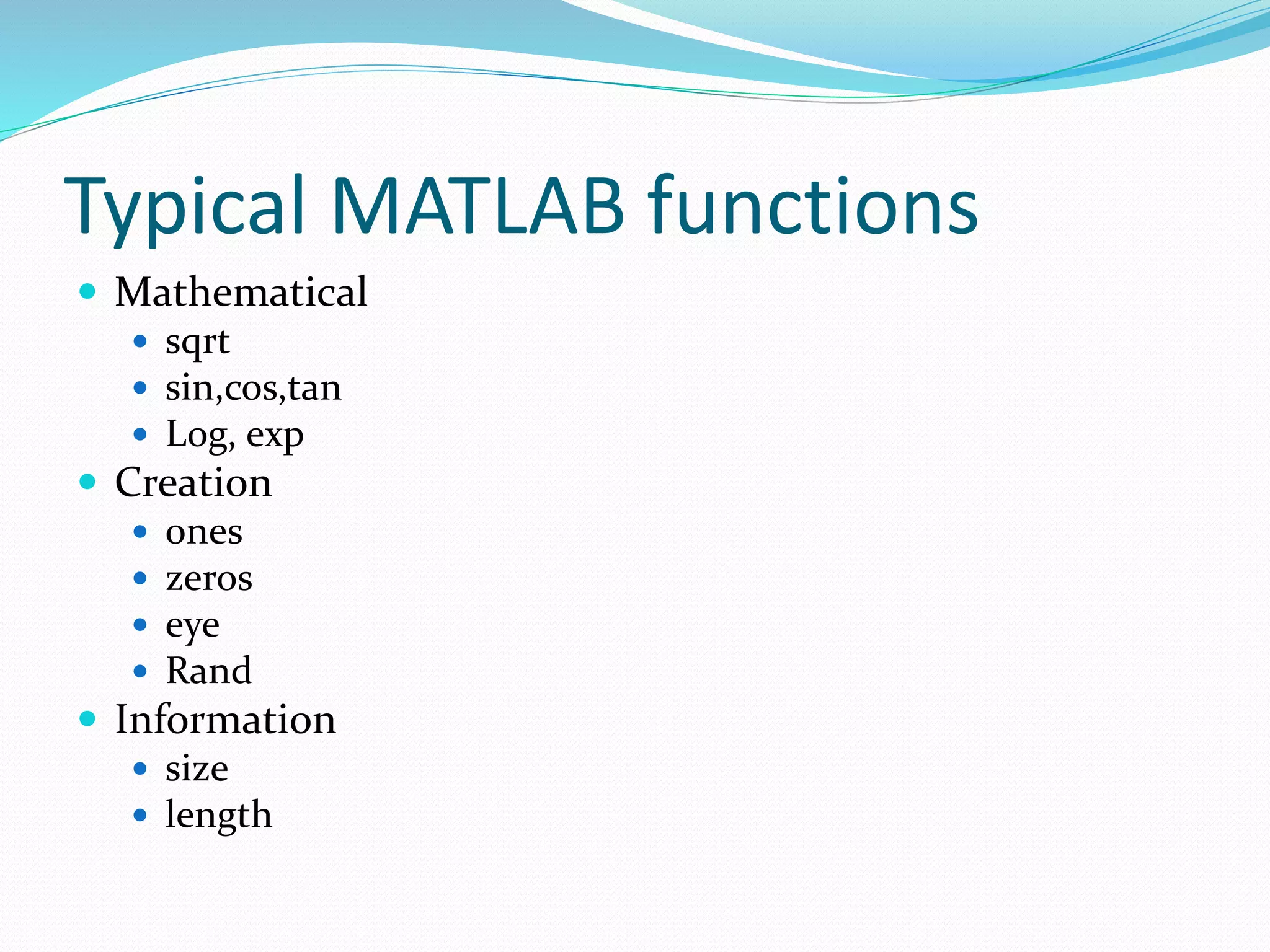

24. Typical MATLAB functions
 Mathematical
 sqrt
 sin,cos,tan
 Log, exp
 Creation
 ones
 zeros
 eye
 Rand
 Information
 size
 length

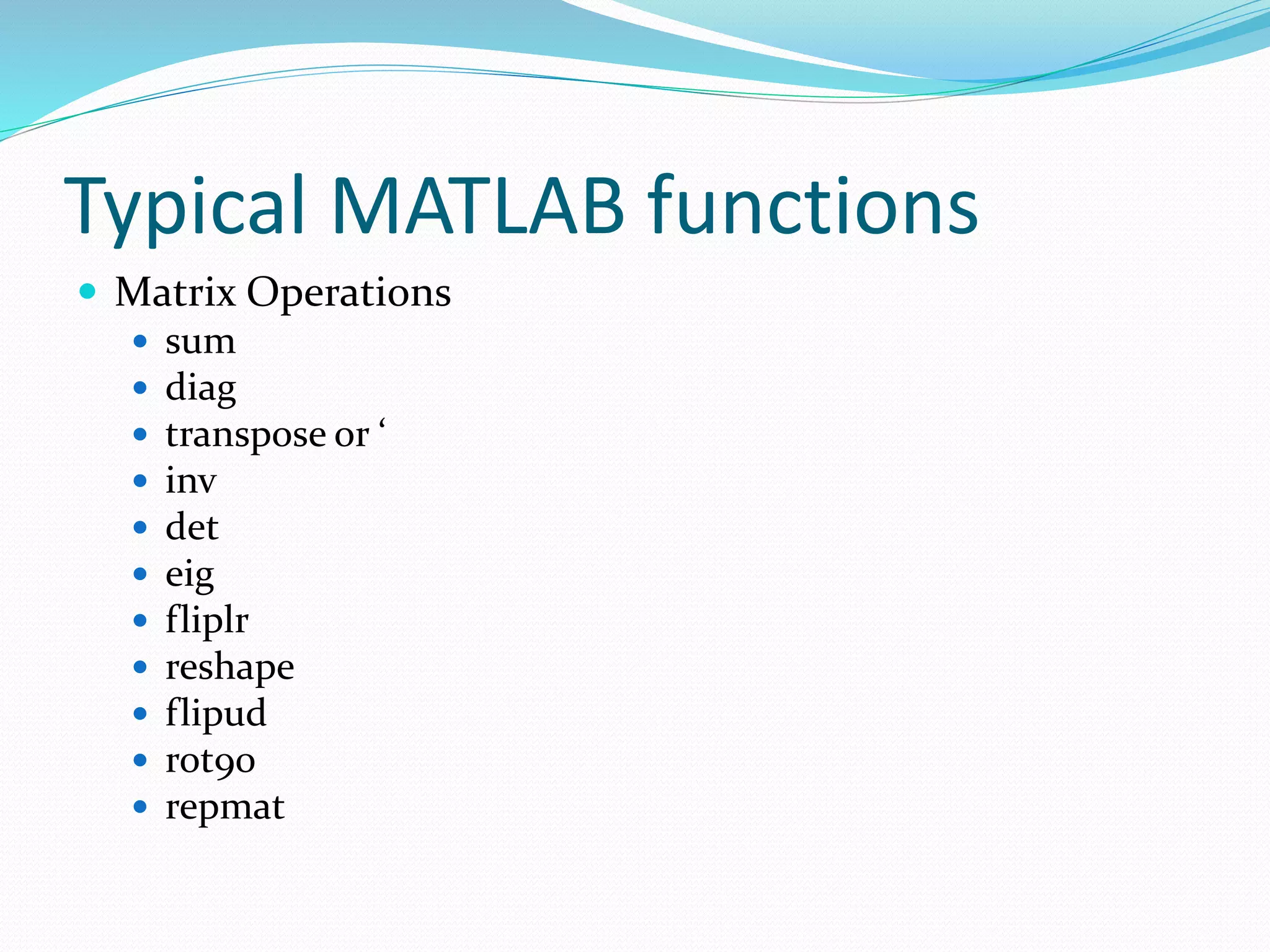

25. Typical MATLAB functions
 Matrix Operations
 sum
 diag
 transpose or ‘
 inv
 det
 eig
 fliplr
 reshape
 flipud
 rot90
 repmat

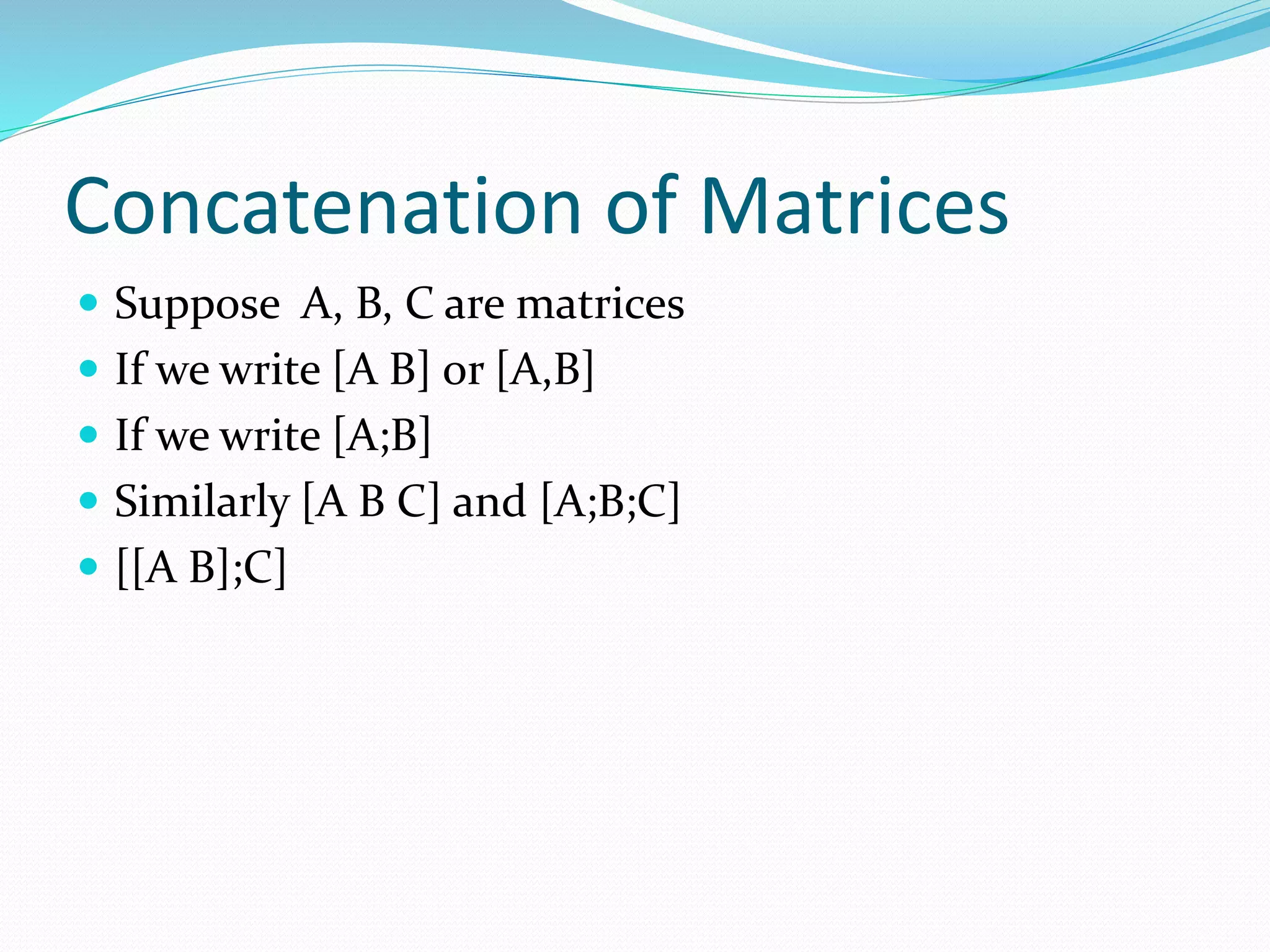

26. Concatenation of Matrices
 Suppose A, B, C are matrices
 If we write [A B] or [A,B]
 If we write [A;B]
 Similarly [A B C] and [A;B;C]
 [[A B];C]

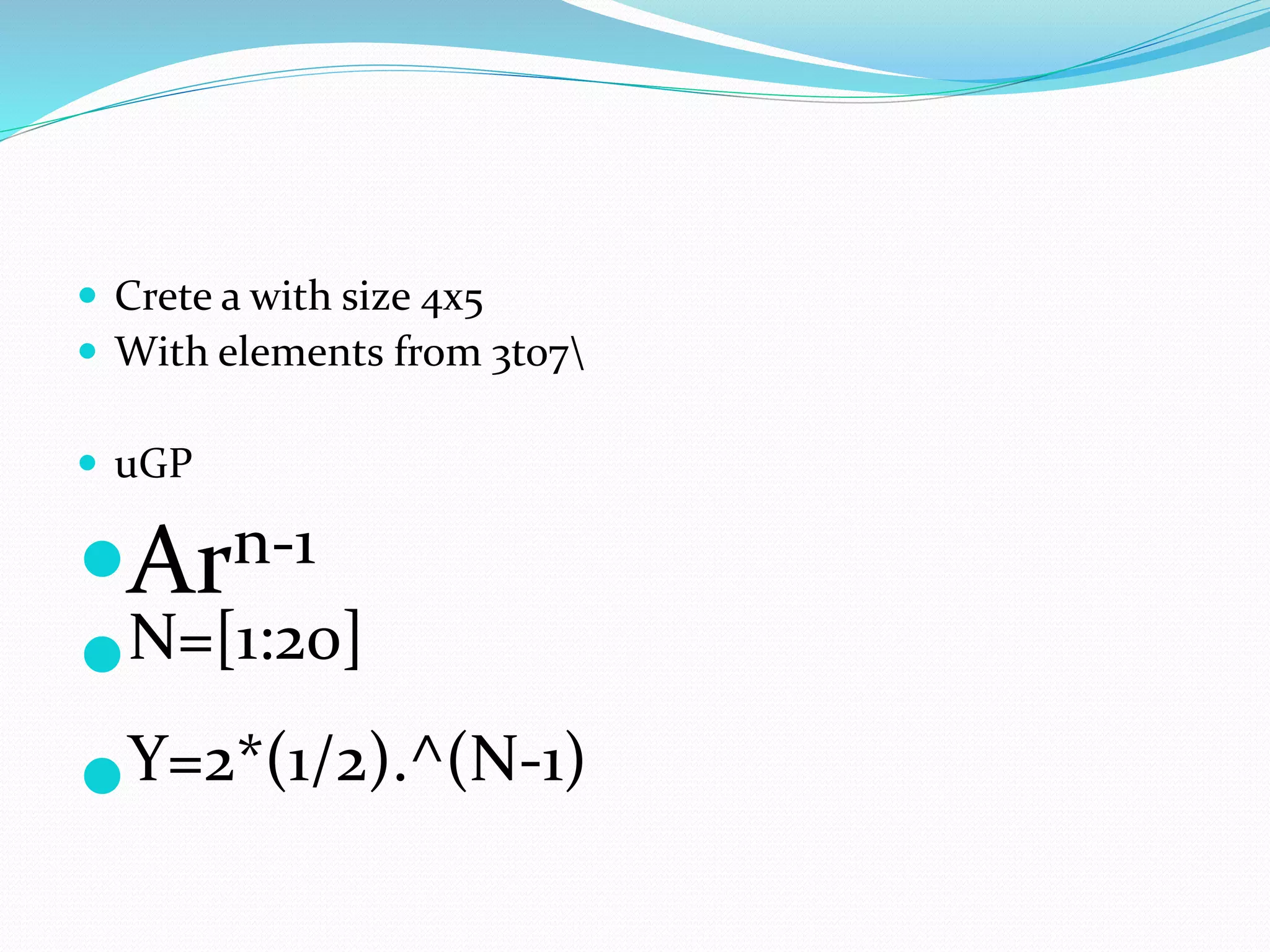

27.  Crete a with size 4x5
 With elements from 3to7
 uGP
Arn-1
N=[1:20]
Y=2*(1/2).^(N-1)
