SFHUG presentation from February 2, 2016. One of the key values of the Hadoop ecosystem is its flexibility. There is a myriad of components that make up this ecosystem, allowing Hadoop to tackle otherwise intractable problems. However, having so many components provides a significant integration, implementation, and usability burden. Features that ought to work in all the components often require sizable per-component effort to ensure correctness across the stack. Lenni Kuff explores RecordService, a new solution to this problem that provides an API to read data from Hadoop storage managers and return them as canonical records. This eliminates the need for components to support individual file formats, handle security, perform auditing, and implement sophisticated IO scheduling and other common processing that is at the bottom of any computation. Lenni discusses the architecture of the service and the integration work done for MapReduce and Spark. Many existing applications on those frameworks can take advantage of the service with little to no modification. Lenni demonstrates how this provides fine grain (column level and row level) security, through Sentry integration, and improves performance for existing MapReduce and Spark applications by up to 5×. Lenni concludes by discussing how this architecture can enable significant future improvements to the Hadoop ecosystem. About the speaker: Lenni Kuff is an engineering manager at Cloudera. Before joining Cloudera, he worked at Microsoft on a number of projects including SQL Server storage engine, SQL Azure, and Hadoop on Azure. Lenni graduated from the University of Wisconsin-Madison with degrees in computer science and computer engineering.

1. 1© Cloudera, Inc. All rights reserved.
Introducing RecordService
Lenni Kuff

2. 2© Cloudera, Inc. All rights reserved.

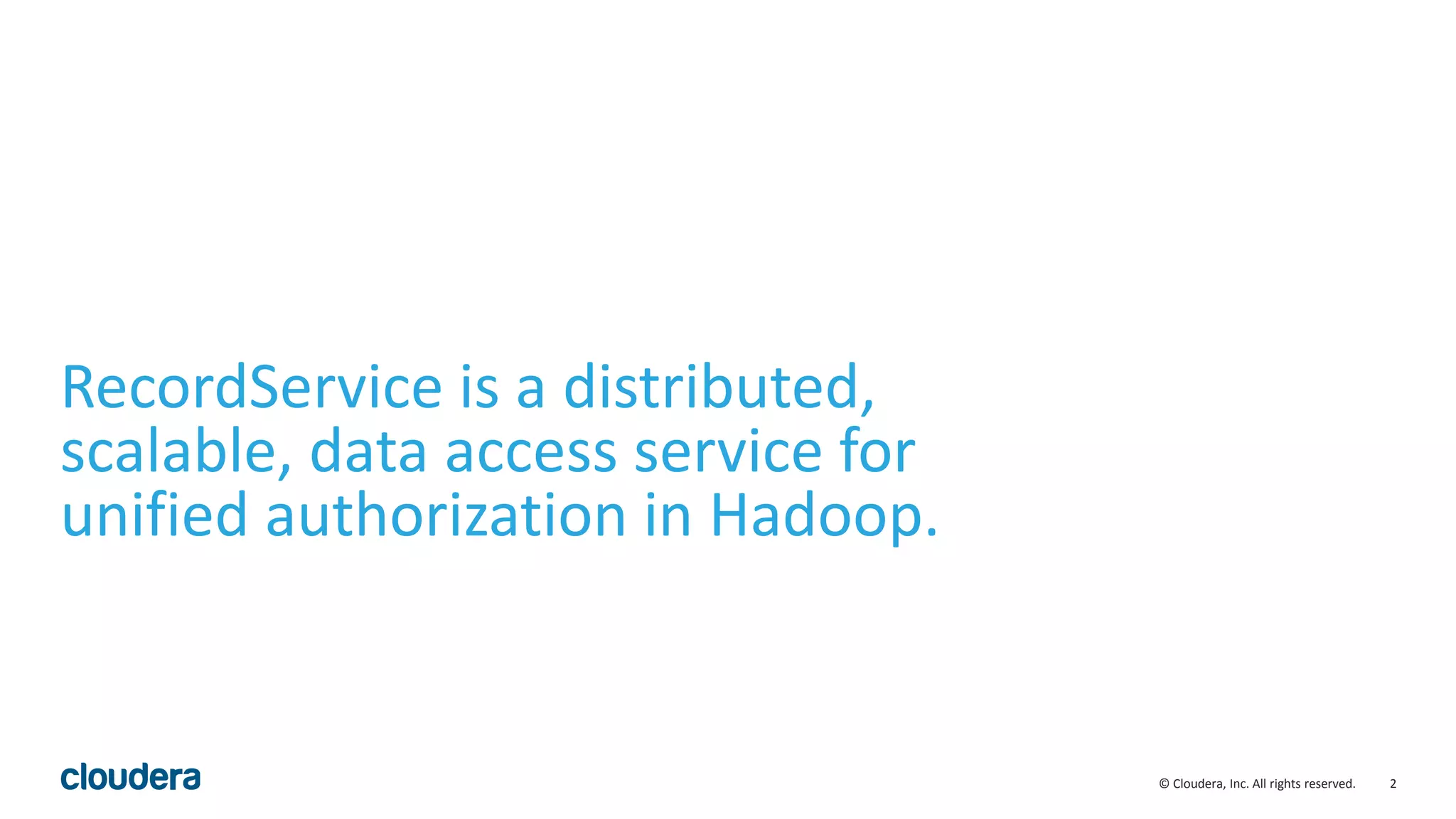

RecordService is a distributed,
scalable, data access service for
unified authorization in Hadoop.

3. 3© Cloudera, Inc. All rights reserved.
Motivation
• As the Hadoop ecosystem expands, new components continue to be added
• Speaks to the overall flexibility of Hadoop
• This is good - more functionality, more workloads, more use cases.
• As use cases for Hadoop mature, user requirements and expectations increase:
• Security
• Performance
• Compatibility
• The flexibility of Hadoop has come at cost of increased complexity

4. 4© Cloudera, Inc. All rights reserved.
Storage
Compute

5. 5© Cloudera, Inc. All rights reserved.
Storage
Compute
…

6. 6© Cloudera, Inc. All rights reserved.
Example: Security
Challenge: Provide unified fine-grained security across compute frameworks
• Integrating consistent security layer into every components is not scalable.
• Securing data at file-level precludes fine grained access control (column/row)
• File ACLs not enough - User can view all or nothing.
• Currently, must split files, duplicate data – large operational cost.
Solution: Add a level of abstraction - secure service to access datasets in “record”
format
• Can now apply fine-grained constraints on projection of dataset
• Same access control policy can be applied uniformly across compute
frameworks; uncoupled from underlying storage layer

7. 7© Cloudera, Inc. All rights reserved.
Introducing RecordService

8. 8© Cloudera, Inc. All rights reserved.
Record Service - Overview
• Simplifies
• Provides a higher level, logical abstraction for data (ie Tables or Views)
• Returns schemed objects (instead of paths and bytes). No need for applications
to worry about storage APIs and file formats.
• HCatalog? Similar concept - RecordService is secure, performant. Plan to
support HCatalog as a data model on RecordService.
• Secures
• Central location for all authorization checks using Sentry metadata.
• Secure service that does not execute arbitrary user code
• Accelerates
• Unified data access path allows platform-wide performance improvements.

9. 9© Cloudera, Inc. All rights reserved.
Architecture

10. 10© Cloudera, Inc. All rights reserved.
Architecture
• Runs as a distributed service: Planner Servers & Worker Servers
• Servers do not store any state
• Easy HA, fault tolerance.
• Planner Servers responsible for request planning
• Retrieve and combine metadata (NN, HMS, Sentry)
• Split generation -> Creates tasks for workers
• Performs authorization
• Worker Servers reads from storage and constructs records.
• IO, file parsing, predicate evaluation
• Runs as the “source” for a DAG computation

11. 11© Cloudera, Inc. All rights reserved.
Architecture – Server APIs
• Planner and Worker services expose thrift APIs
• PlanRequest(), Exec(), Fetch()
• PlanRequest()
• Accepts SQL to specify request: Support SELECT and PROJECT
• Access to tables and views stored in HMS
• Does not run operators that require data exchange; “map only”
• Generates a list of tasks which contain the request, each with locality
• Exec()/Fetch()
• Returns records in a canonical optimized, columnar-format.

12. 12© Cloudera, Inc. All rights reserved.
Architecture – Fault tolerance
• Cluster state persisted in ZK
• Membership, delegation tokens, secret keys
• Servers do not communicate with each other directly => scalability
• Planner services
• Expected to run a few (i.e. 3) for HA
• Fault tolerance handled with clients getting a list of planners and failing over
• Plan requests are short
• Worker services
• Expect to run on each node in the cluster with data
• Fault tolerance handled by framework (e.g. MR) rescheduling task

13. 13© Cloudera, Inc. All rights reserved.
Architecture – Security
• Authentication using Kerberos and delegation tokens
• Planner authorizes request using metadata in Sentry
• Column level ACLs
• Row level ACLs – create a view with a predicate
• Masking – create a view with the masking function in the select list
• Tasks generated by the planner are signed with a shared key
• Worker runs generated tasks.
• Does not authorize, relies on signed tasks
• Runs as user with full access to data, does not run user code

14. 14© Cloudera, Inc. All rights reserved.
Architecture – Security example
CREATE VIEW v as
SELECT mask(credit_card_number) as ccn,
name, balance, region
FROM data WHERE region = “Europe”
1. Restrict access to the data set: disable access to ‘data’ table and underlying
files in HDFS.
2. Give access by creating view, v
3. Set column level permissions on v per user if necessary
Write path (ingest) unchanged. Job expected to run as privileged user.

15. 15© Cloudera, Inc. All rights reserved.
Client APIs – Integration with ecosystem
• Similar APIs designed to integrate with MapReduce and Spark
• Client APIs make things simpler
• Don’t need to interact with HMS
• Care about the underlying storage format: worker always returns records in a
canonical format.
• Storage engine details (e.g. s3)

16. 16© Cloudera, Inc. All rights reserved.
Client Integration APIs
• Drop in replacements for common existing InputFormats
• Text, Avro
• Can be used with Spark as well
• SparkSQL: integration with the Data Sources API
• Predicate pushdown, projection
• Migration should be easy

17. 17© Cloudera, Inc. All rights reserved.
MR Example
//FileInputFormat.setInputPaths(job, new Path(args[0]));
//job.setInputFormatClass(AvroKeyInputFormat.class);
RecordServiceConfig.setInputTable(configuration, null, args[0]);
job.setInputFormatClass(
com.cloudera.recordservice.avro.mapreduce.AvroKeyInputFormat.class);

18. 18© Cloudera, Inc. All rights reserved.
Spark Example
// Comment out one or the other
val file = sc.recordServiceTextFile(path)
//val file = sc.textFile(path)

19. 19© Cloudera, Inc. All rights reserved.
Spark SQL Example
ctx.sql(s"""
|CREATE TEMPORARY TABLE $tbl
|USING com.cloudera.recordservice.spark.DefaultSource
|OPTIONS (
| RecordServiceTable '$db.$tbl',
| RecordServiceTableSize '$size'
|)
""".stripMargin)

20. 20© Cloudera, Inc. All rights reserved.
Performance
• Shares some core components with Impala
• IO management, optimized C++ code, runtime code generation, uses low level
storage APIs
• Highly efficient implementation of the scan functionality
• Optimized columnar on wire format
• Inspired by Apache Parquet
• Accelerates performance for many workloads

21. 21© Cloudera, Inc. All rights reserved.
Terasort
• ~Worst case scenario. Minimal schema: a single STRING column
• Custom RecordServiceTeraInputFormat (similar to TeraInputFormat)
• 78 Node cluster (12 cores/24 Hyper-Threaded, 12 disks)
• Ran on 1 billion, 50 billion and 1 trillion (~100TB) scales
• See Github repo for more details and runnable examples.

22. 22© Cloudera, Inc. All rights reserved.
TeraChecksum
1
0.48
0.23
1.03
0.8
0.85
0
0.2
0.4
0.6
0.8
1
1.2
1B (MapReduce) 50B (MapReduce) 1T (MapReduce) 1B (Spark) 50B (Spark) 1T (Spark)
Normalizedjobtime
TeraChecksum
Without RecordService
With RecordService

23. 23© Cloudera, Inc. All rights reserved.
Spark SQL
• Represents a more expected use case
• Data is fully schemed
• TPCDS
• 500GB scale factor, on parquet
• Cluster
• 5 node cluster

24. 24© Cloudera, Inc. All rights reserved.
0
50
100
150
200
250
300
350
TPCDS
SparkSQL
SparkSQL
SparkSQL with RecordService
Spark SQL
~15% improvement in query times; queries are not scan bound

25. 25© Cloudera, Inc. All rights reserved.
Spark SQL
29.5
31
14
23.5
0
5
10
15
20
25
30
35
2% Selective Scan Sum(col)
SparkSQL
SparkSQL
SparkSQL with RecordService

26. 26© Cloudera, Inc. All rights reserved.
State of the project
• Available in v0.2 beta:
• Integration with Spark, MR, Pig (via HCatalog)
• Planner HA
• Apache 2.0 Licensed
• Sentry Column-Level Privilege Support
• Mini Roadmap:
• Improved multi-tenancy
• Complex types
• More InputFormat support / integration options
• Intend to donate to Apache Software Foundation

27. 27© Cloudera, Inc. All rights reserved.
Conclusion
• RecordService provides a schemed data access service for Hadoop
• Logical data access instead of physical
• Much more powerful abstraction
• Demonstrated security enforcement, improved performance
• Simpler: clients don’t need to worry about low level details: storage APIs, file
formats
• Opens the door for future improvements

28. 28© Cloudera, Inc. All rights reserved.
Contributing!
• Mailing list: recordservice-user@googlegroups.com
• Discussion forum: http://community.cloudera.com/t5/Beta-Releases/bd-
p/Beta
• Contributions: http://github.com/cloudera/RecordServiceClient/
• Documentation: http://cloudera.github.io/RecordServiceClient/
• Bug Reporting: https://issues.cloudera.org/projects/RS
• Beta Download:
http://www.cloudera.com/downloads/beta/record-service/0-2-0.html

29. 29© Cloudera, Inc. All rights reserved.
Thank you
