Simple machines levers
Simple machines include the inclined plane, lever, pulley, wheel and axle, and gears. A lever is a straight or bent bar that turns around a fixed point called the fulcrum. There are three classes of levers - class 1 levers multiply force but reduce speed, class 2 levers always multiply force, and class 3 levers always increase speed but reduce force. Examples of all three classes of levers can be found in the human body.
More Related Content
Simple machines levers
- 1.
- 2.
- 3.
- 4. LEVERS • Lever –straight/bent bar, turns about the fulcrum • Fulcrum (F) – axis about which the lever turns, fixed point • Effort arm • Load arm • Principle of a lever – Moment of load about F = Moment of effort about F Law of lever: M.A. = Effort arm (derivation) Load arm
- 5.
- 6. CLASS I LEVER(fulcrum) • Force multipliers - M.A. > 1, V.R. > 1 (greater effort arm)

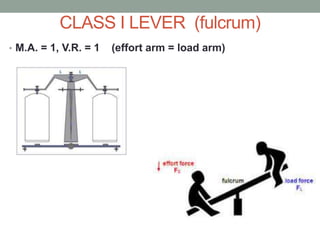

- 7. CLASS I LEVER(fulcrum) • M.A. = 1, V.R. = 1 (effort arm = load arm)
- 8. CLASS I LEVER(fulcrum) • Gain in speed - M.A. < 1, V.R. < 1 (shorter effort arm)

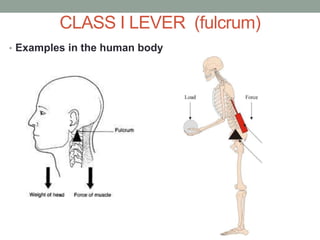

- 9. CLASS I LEVER(fulcrum) • Examples in the human body
- 10. CLASS II LEVER(load) • Always force multipliers - M.A. > 1, V.R. > 1 (larger effort arm always)

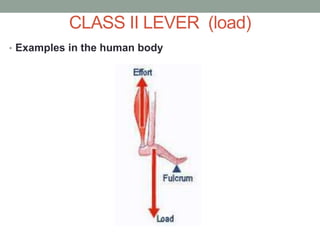

- 11. CLASS II LEVER(load) • Examples in the human body
- 12. CLASS III LEVER(effort) • Produce gain in speed always - M.A. < 1, V.R. <1 (shorter effort arm always)

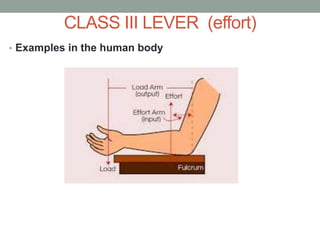

- 13. CLASS III LEVER(effort) • Examples in the human body
