SEPARATING AND TREATING WELL FLUIDS
1

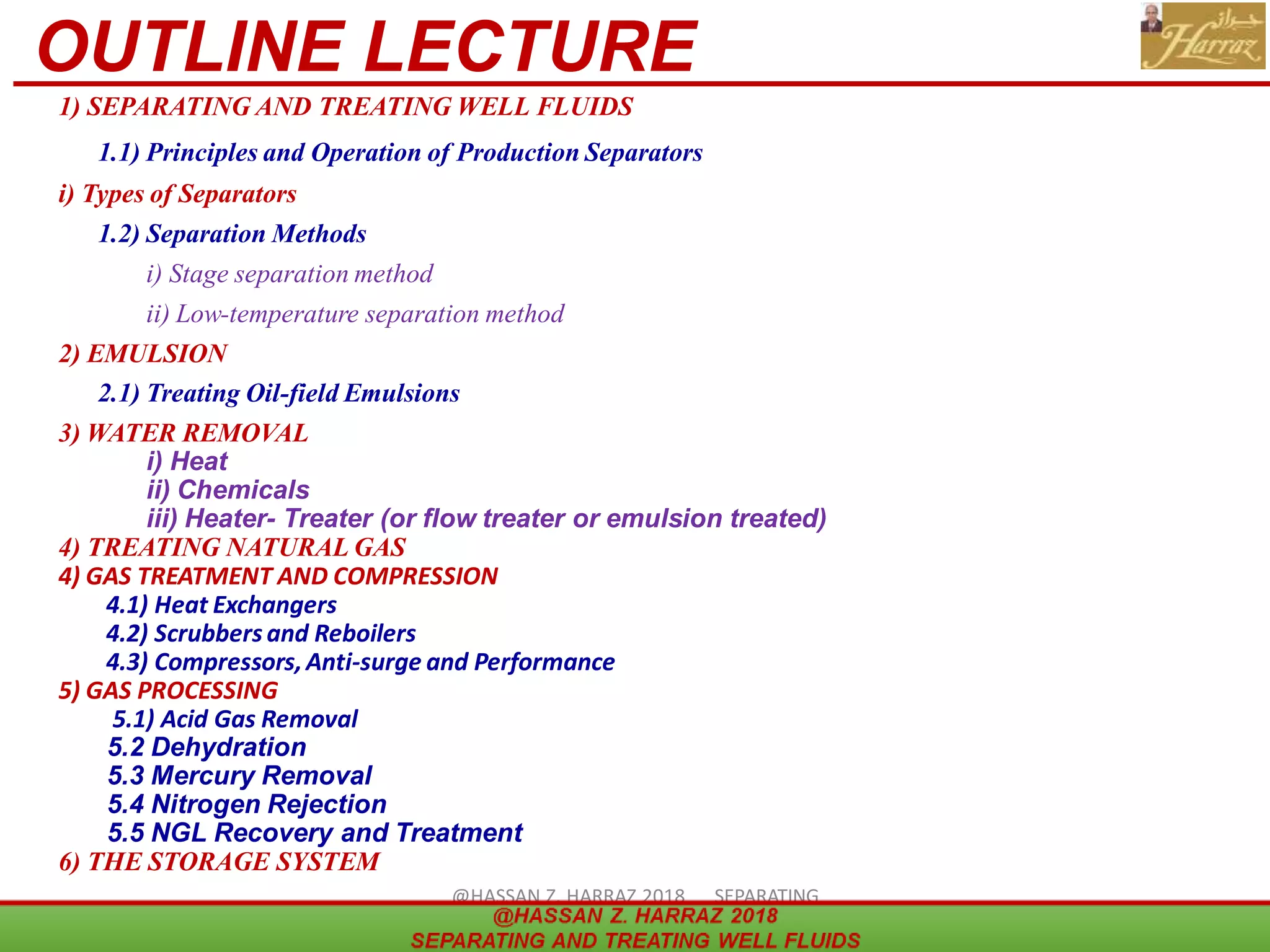

2. OUTLINE LECTURE
1) SEPARATING AND TREATING WELL FLUIDS
1.1) Principles and Operation of Production Separators
i) Types of Separators
1.2) Separation Methods
i) Stage separation method
ii) Low-temperature separation method
2) EMULSION
2.1) Treating Oil-field Emulsions
3) WATER REMOVAL
i) Heat
ii) Chemicals
iii) Heater- Treater (or flow treater or emulsion treated)
4) TREATING NATURAL GAS
4) GAS TREATMENT AND COMPRESSION
4.1) Heat Exchangers
4.2) Scrubbers and Reboilers
4.3) Compressors,Anti-surge and Performance
5) GAS PROCESSING
5.1) Acid Gas Removal
5.2 Dehydration
5.3 Mercury Removal
5.4 Nitrogen Rejection
5.5 NGL Recovery and Treatment
6) THE STORAGE SYSTEM
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
2

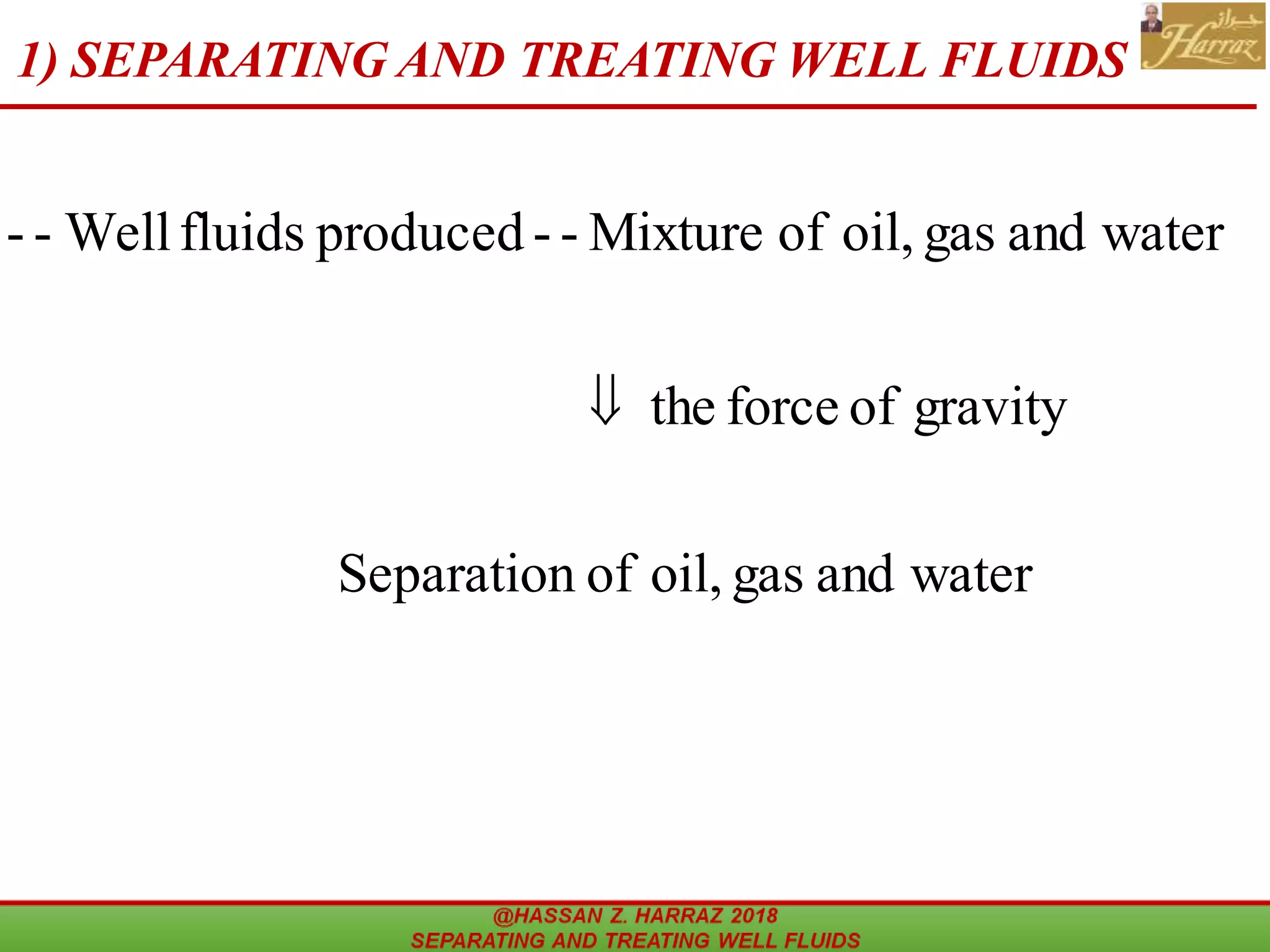

3. 1) SEPARATING AND TREATING WELL FLUIDS
waterandgasoil,ofSeparation
gravityofforcethe
waterandgasoil,ofMixture--producedfluidsWell--

@HASSAN Z. HARRAZ 2018 SEPARATING
3

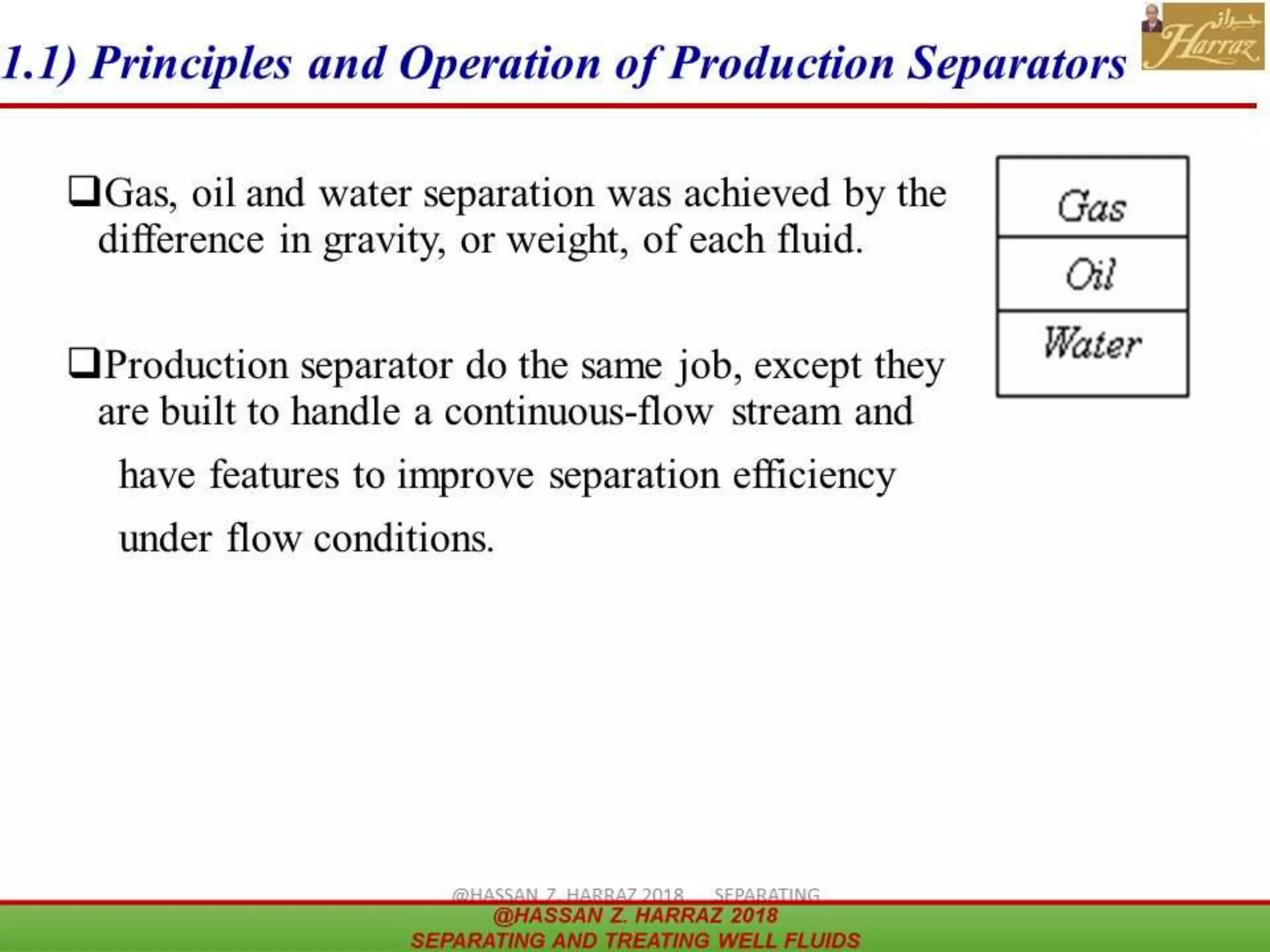

4. 1.1) Principles and Operation of Production Separators

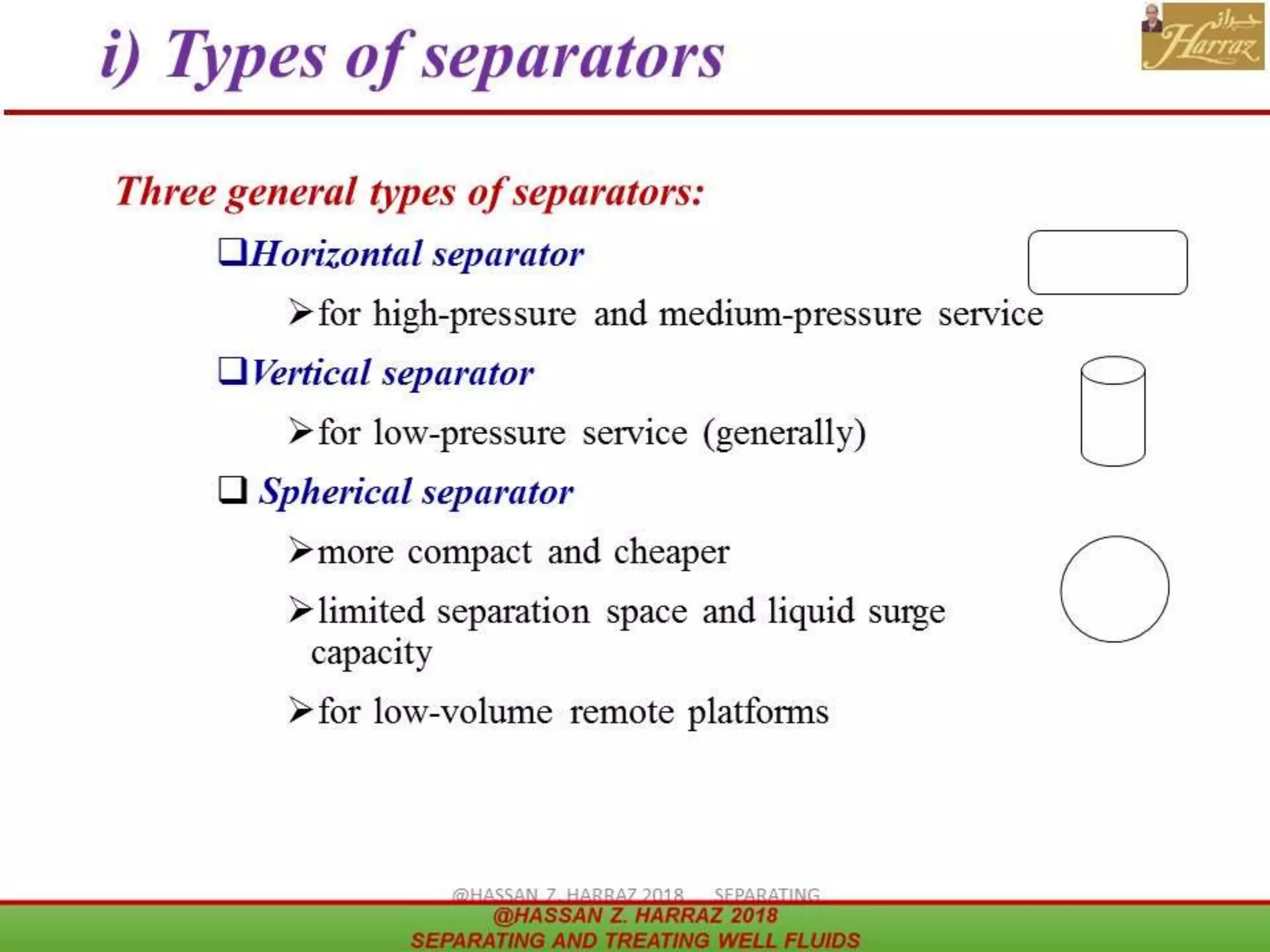

5. i) Types of separators

6. 6
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

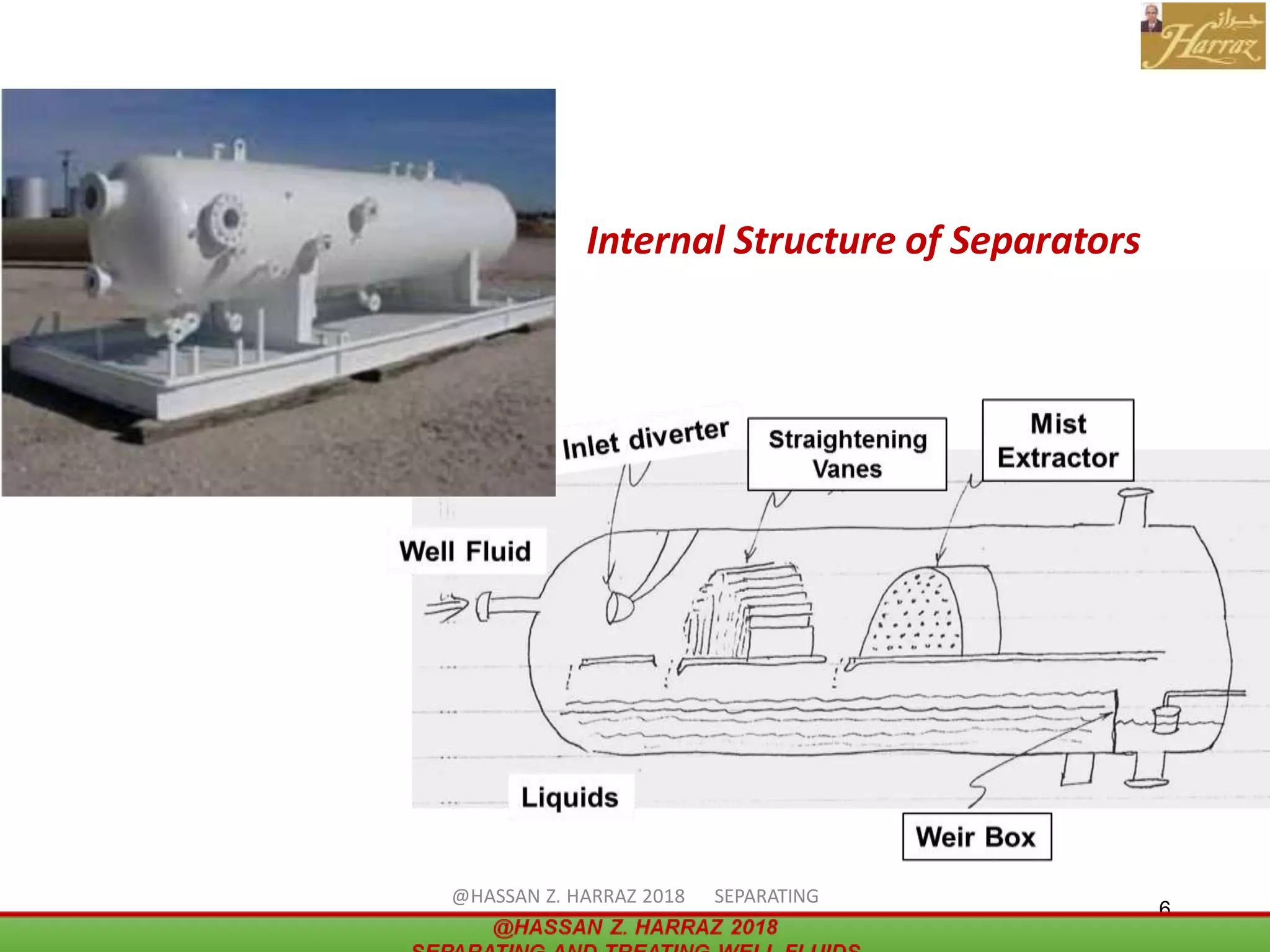

Internal Structure of Separators

7. 7
@HASSAN Z. HARRAZ 2018 SEPARATING

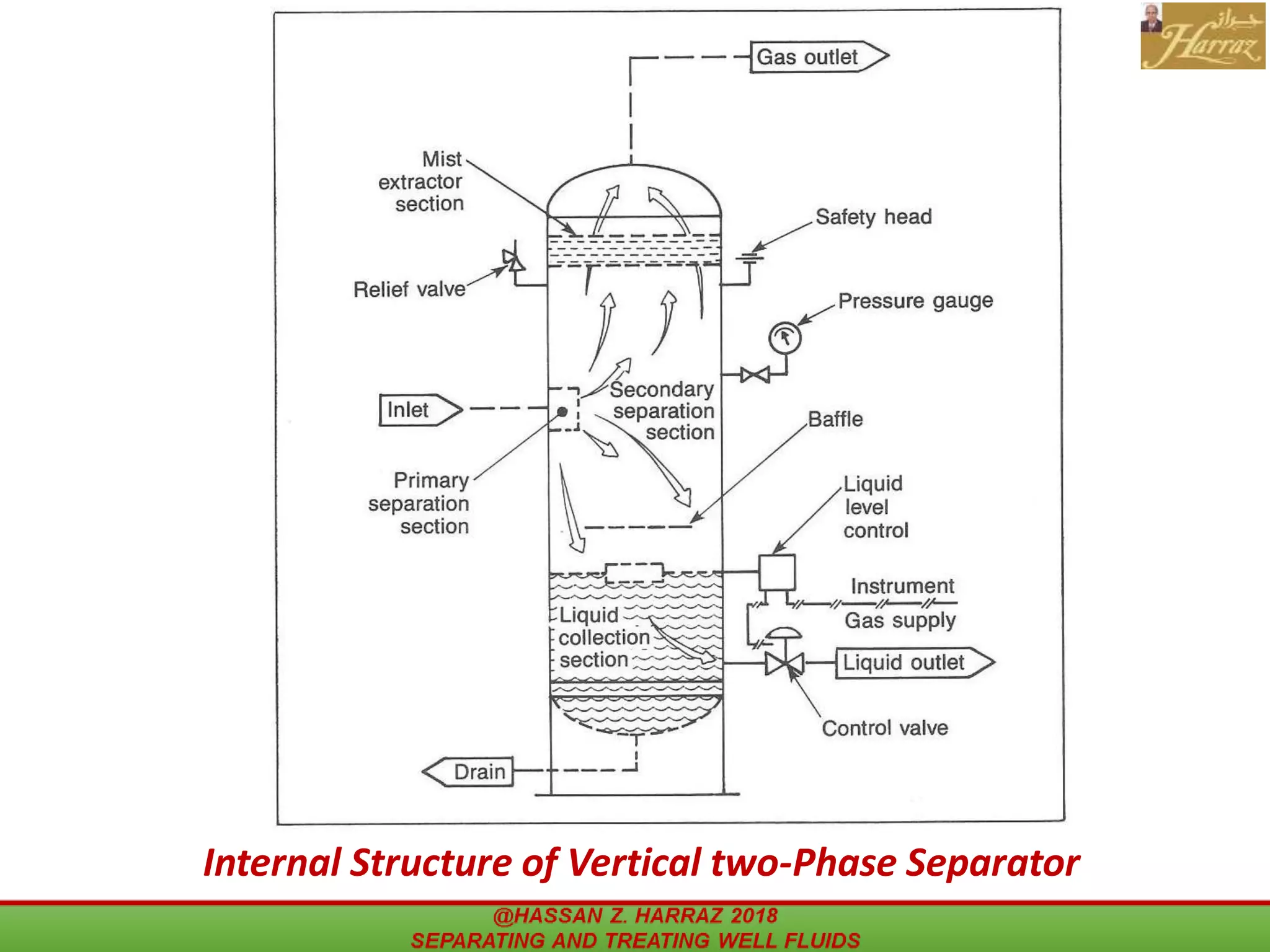

Internal Structure of Vertical two-Phase Separator

8. 8

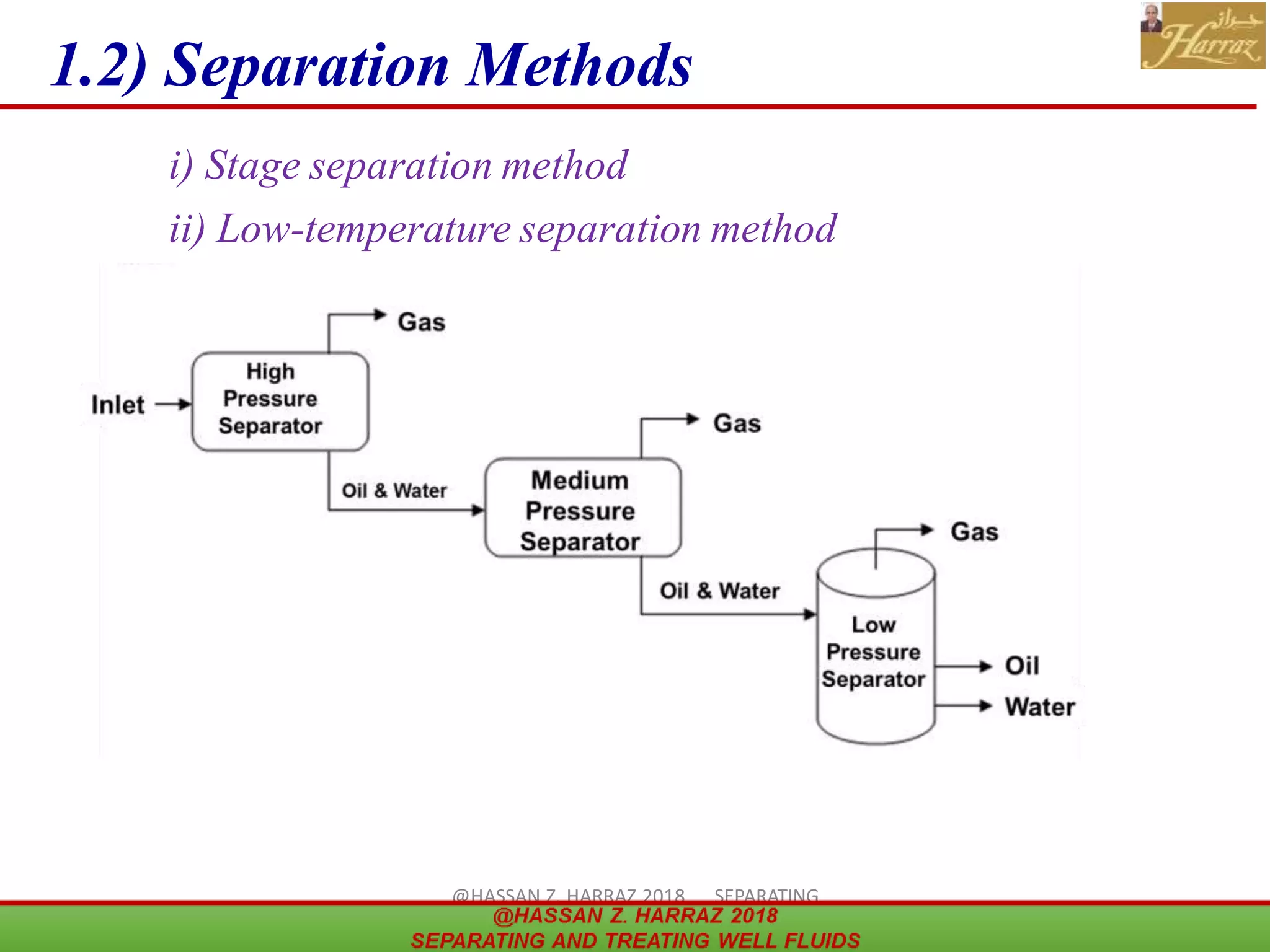

1.2) Separation Methods
i) Stage separation method
ii) Low-temperature separation method
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

9. 9

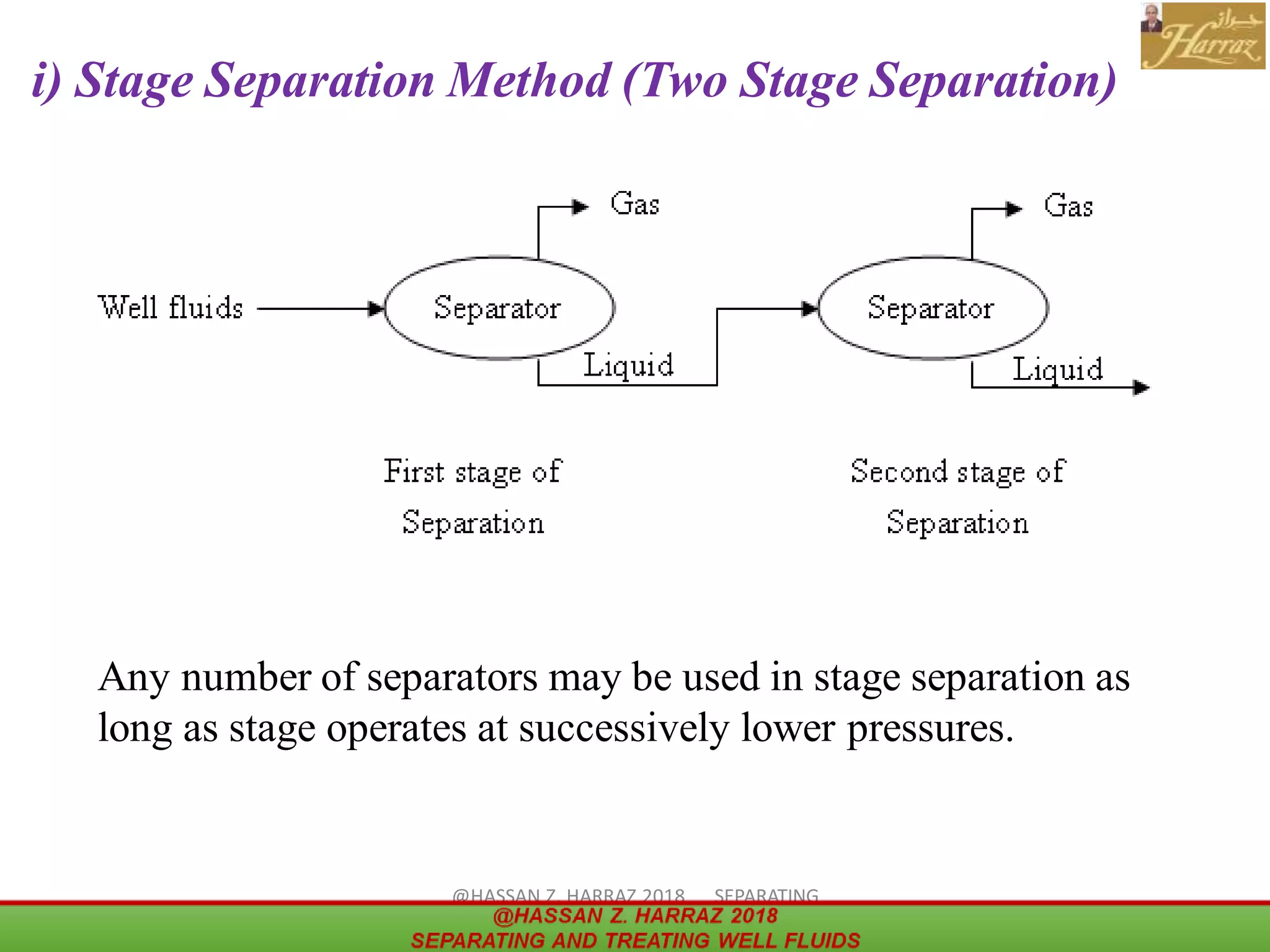

i) Stage Separation Method (Two Stage Separation)
Any number of separators may be used in stage separation as
long as stage operates at successively lower pressures.
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

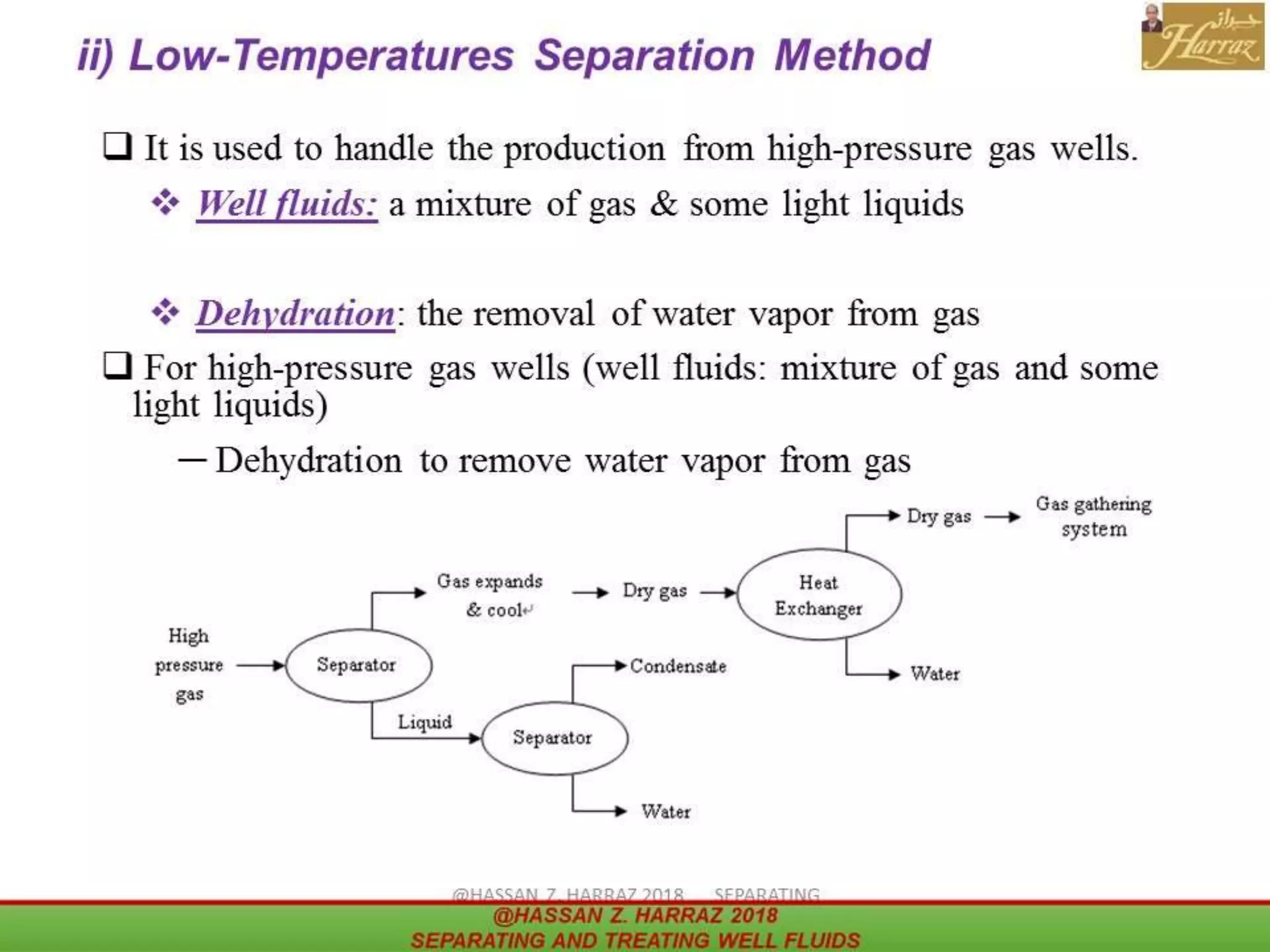

10. ii) Low-Temperatures Separation Method

11. 11

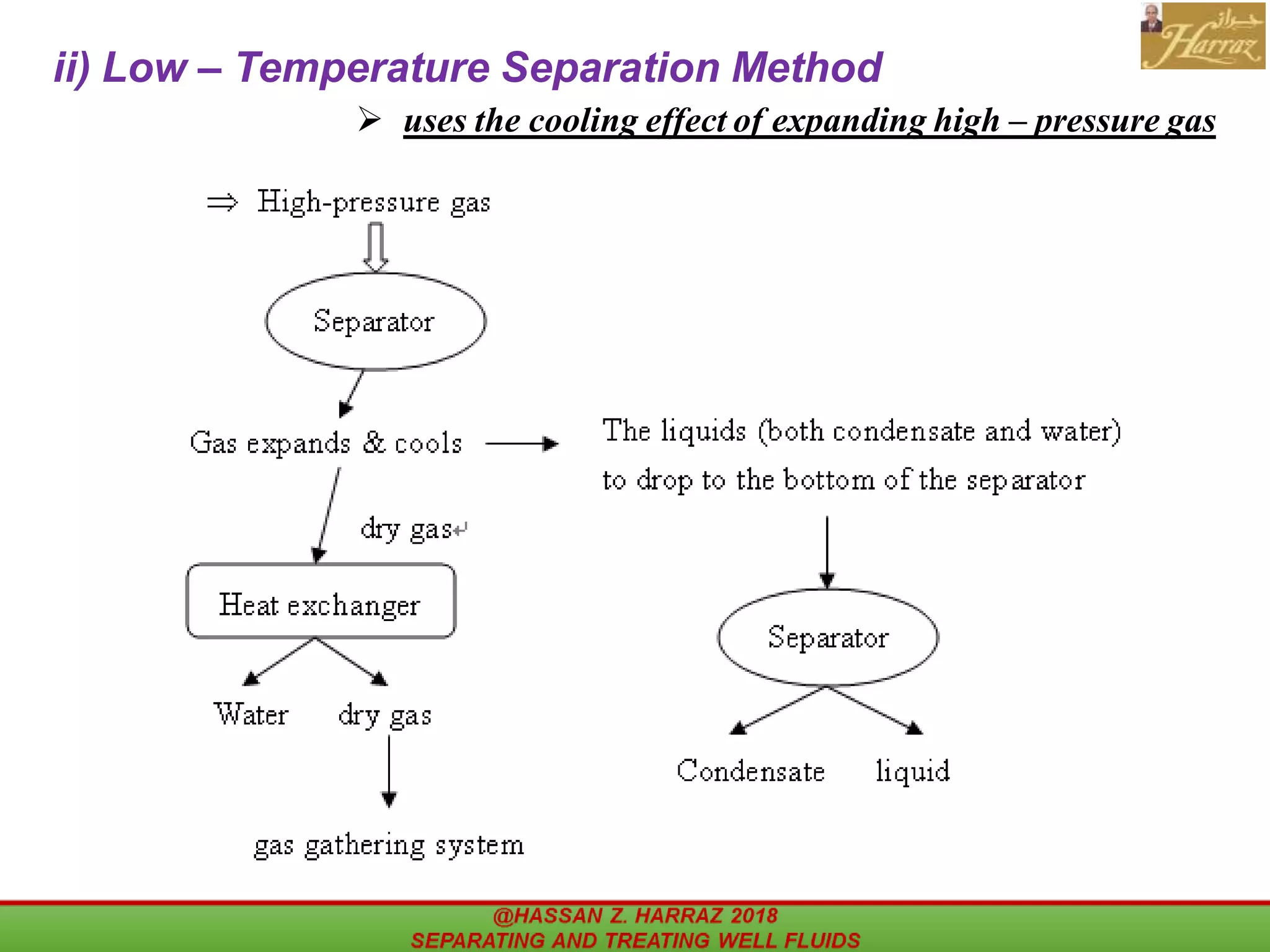

ii) Low – Temperature Separation Method
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
 uses the cooling effect of expanding high – pressure gas

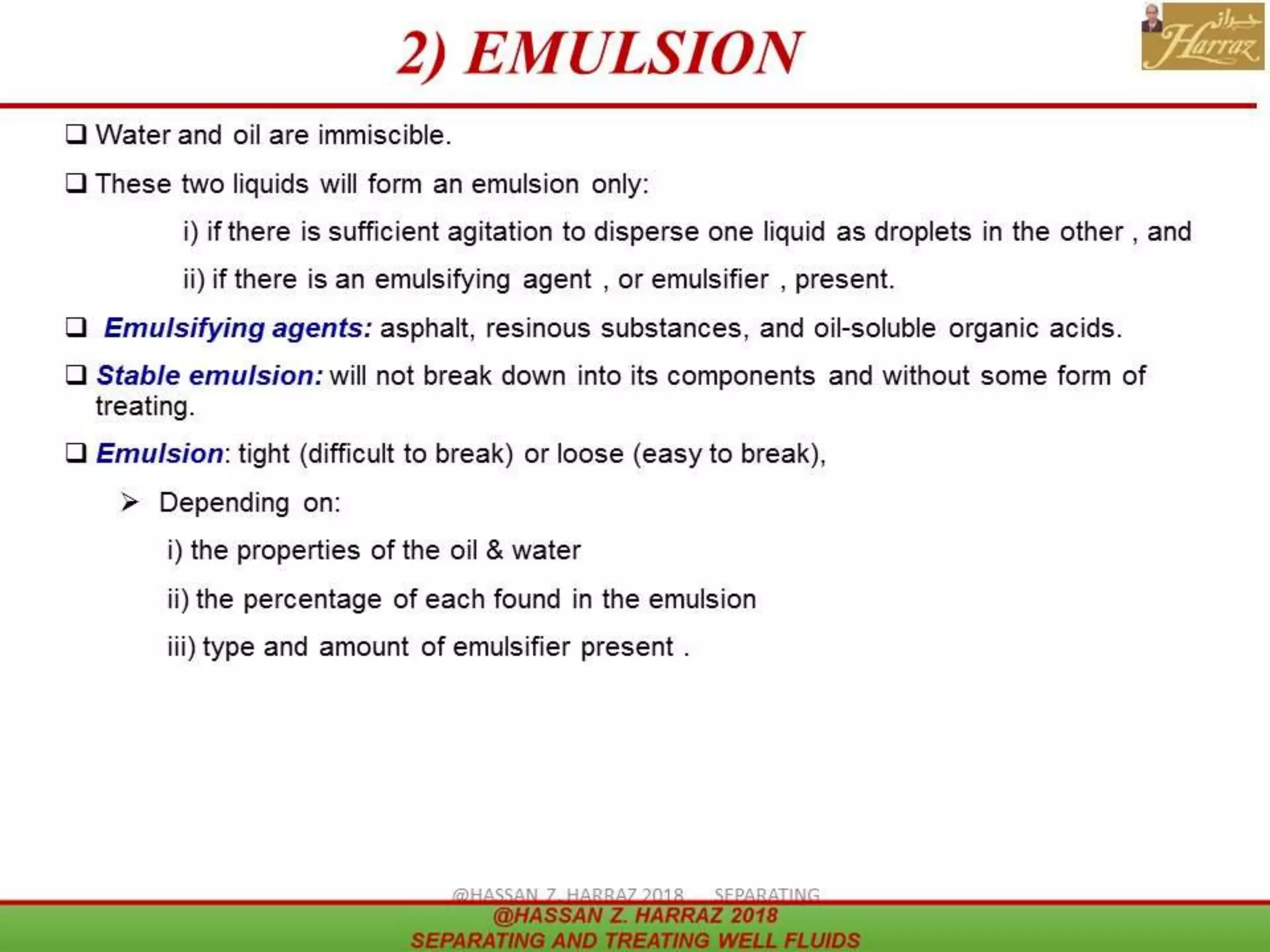

12. 2) EMULSION

13. 13

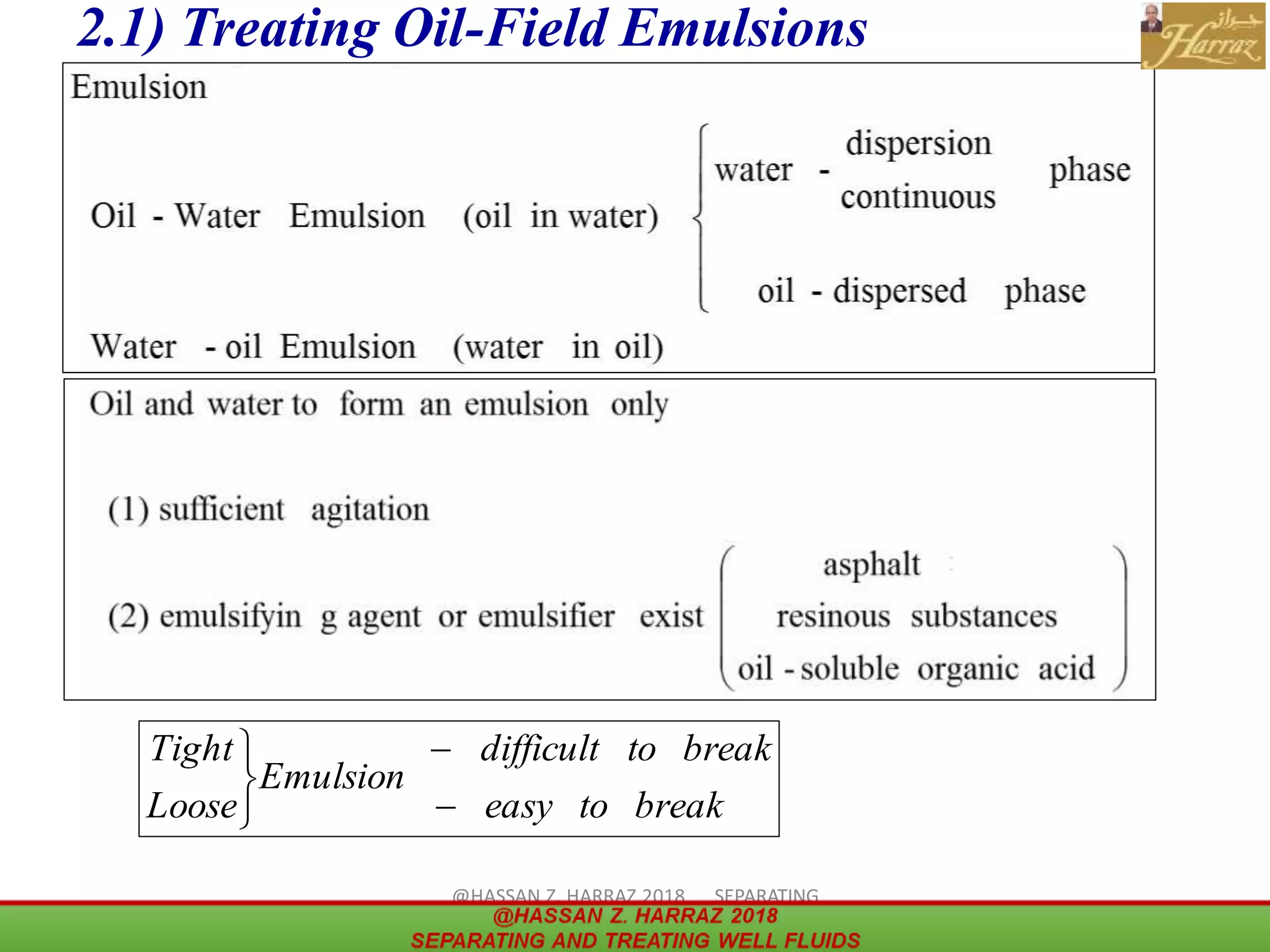

2.1) Treating Oil-Field Emulsions
breaktoeasy
breaktodifficult
Emulsion
Loose
Tight





@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

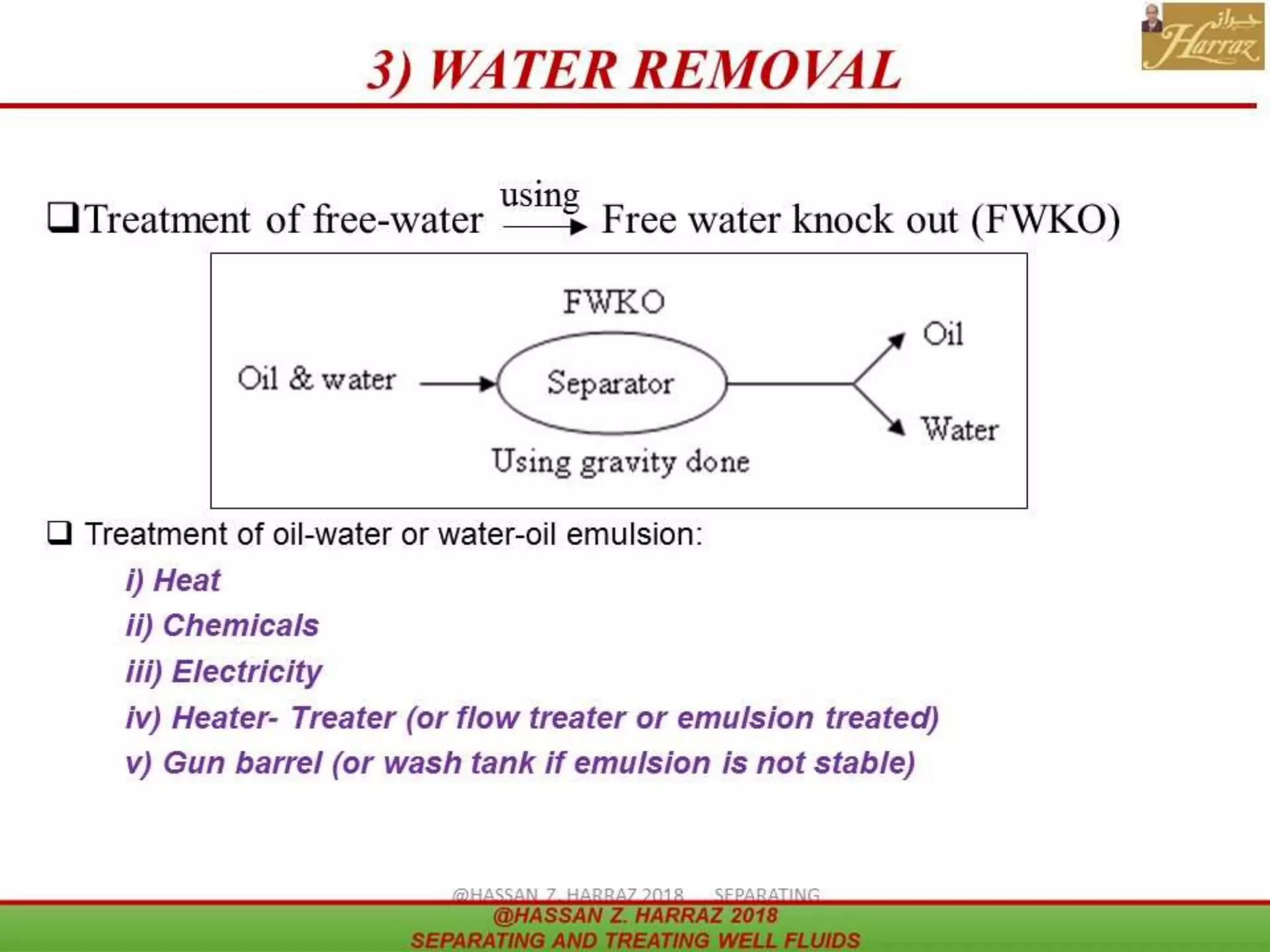

14. 3) WATER REMOVAL

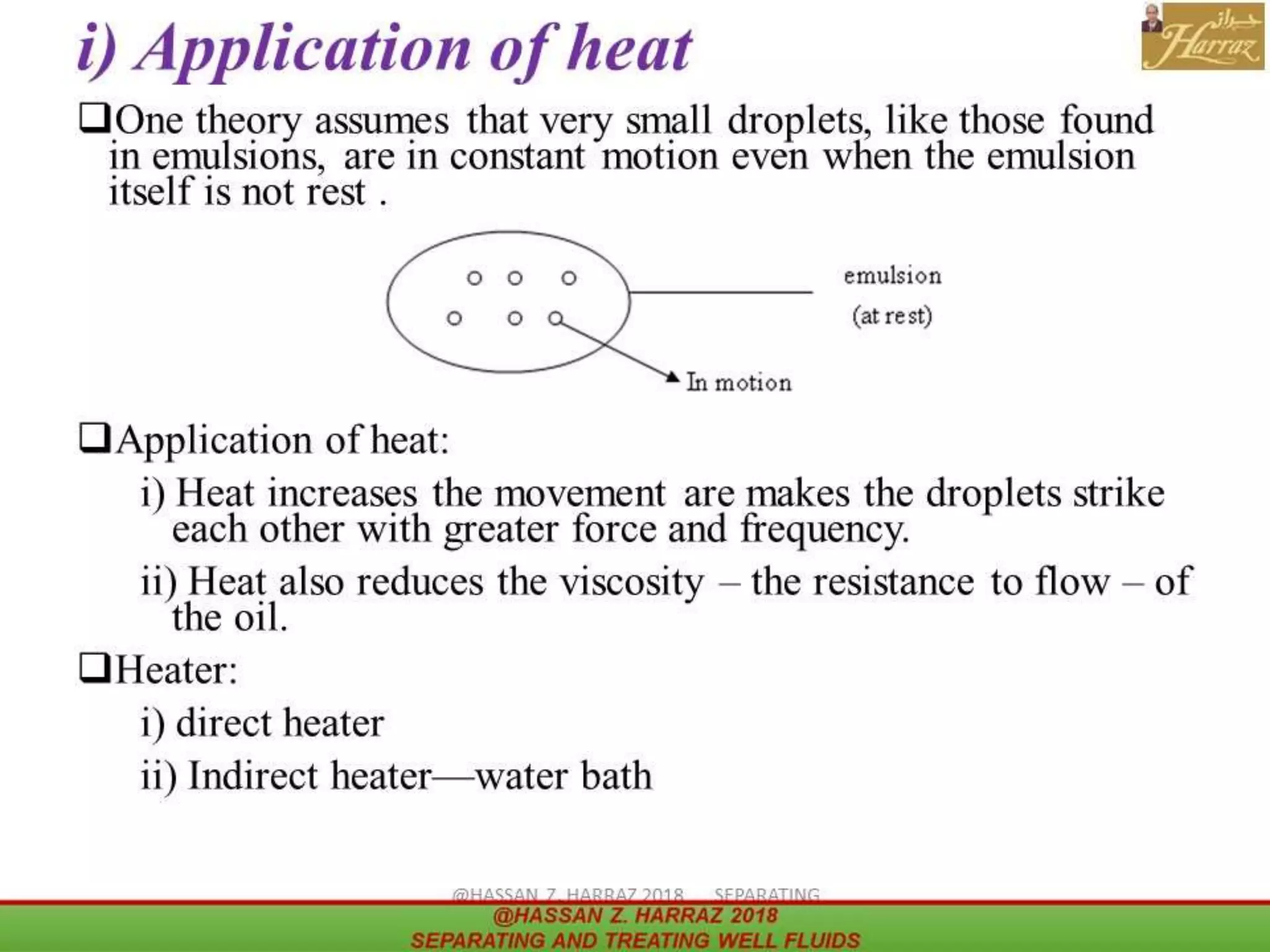

15. i) Application of heat

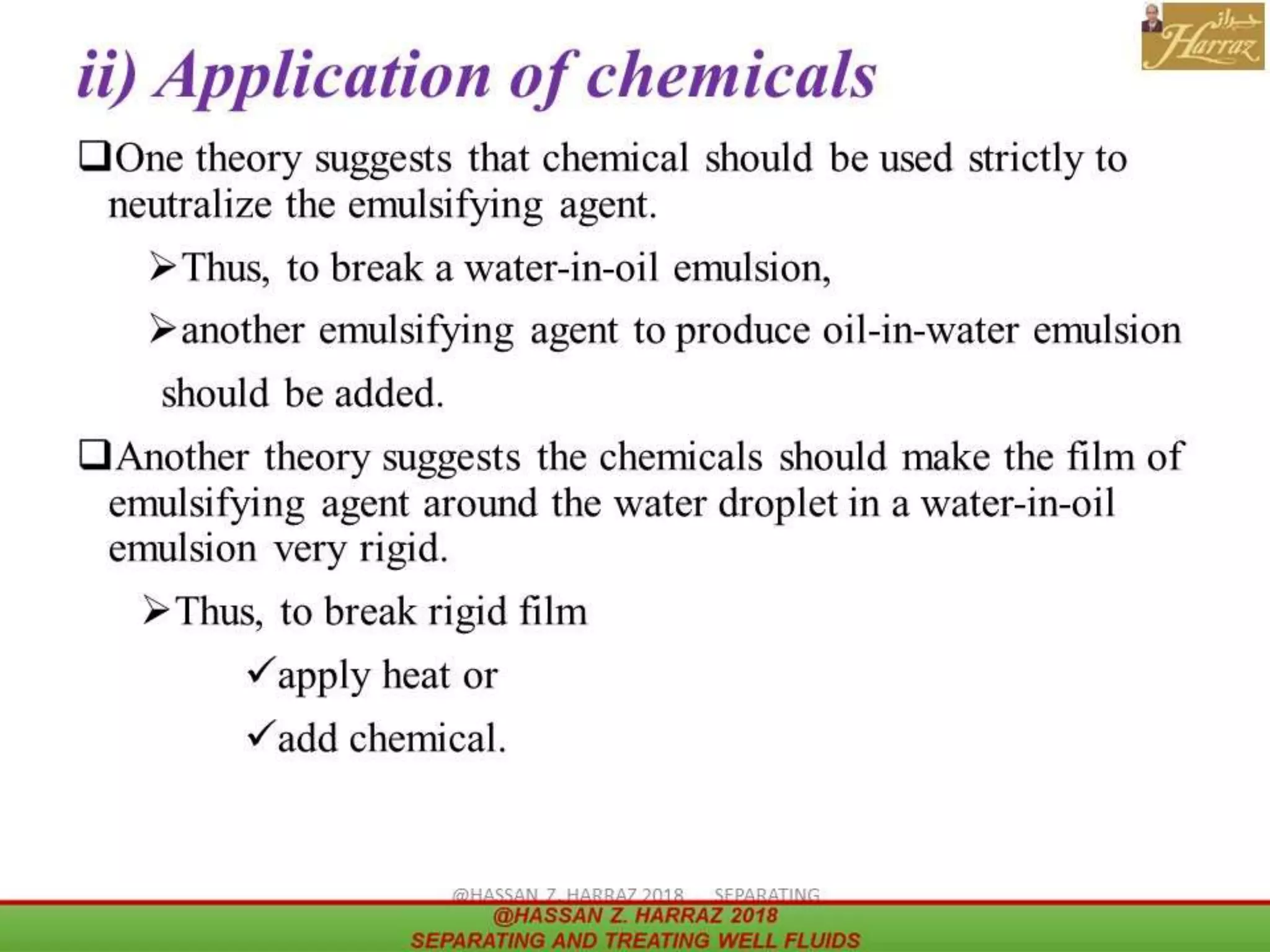

16. ii) Application of chemicals

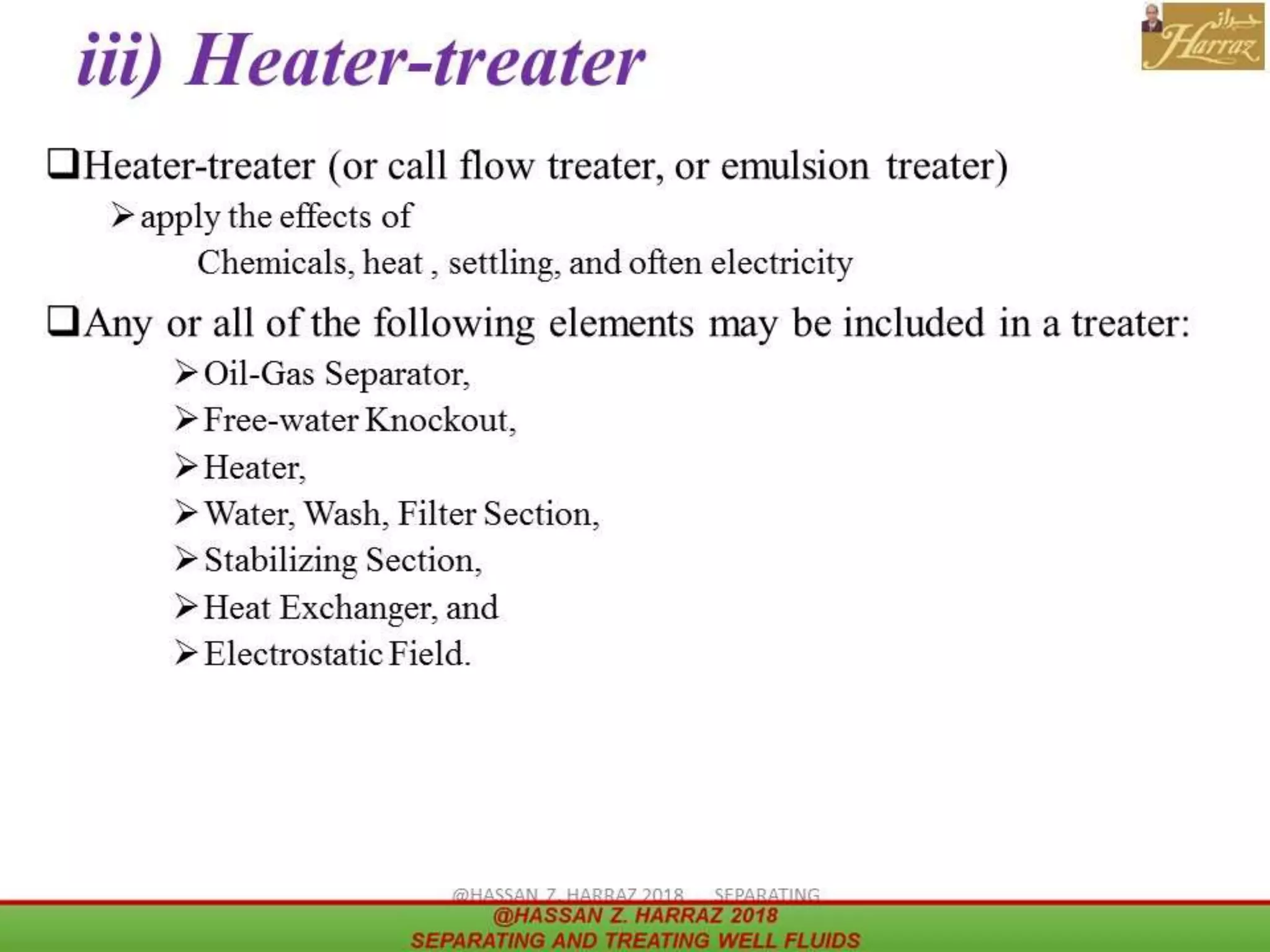

17. iii) Heater-treater

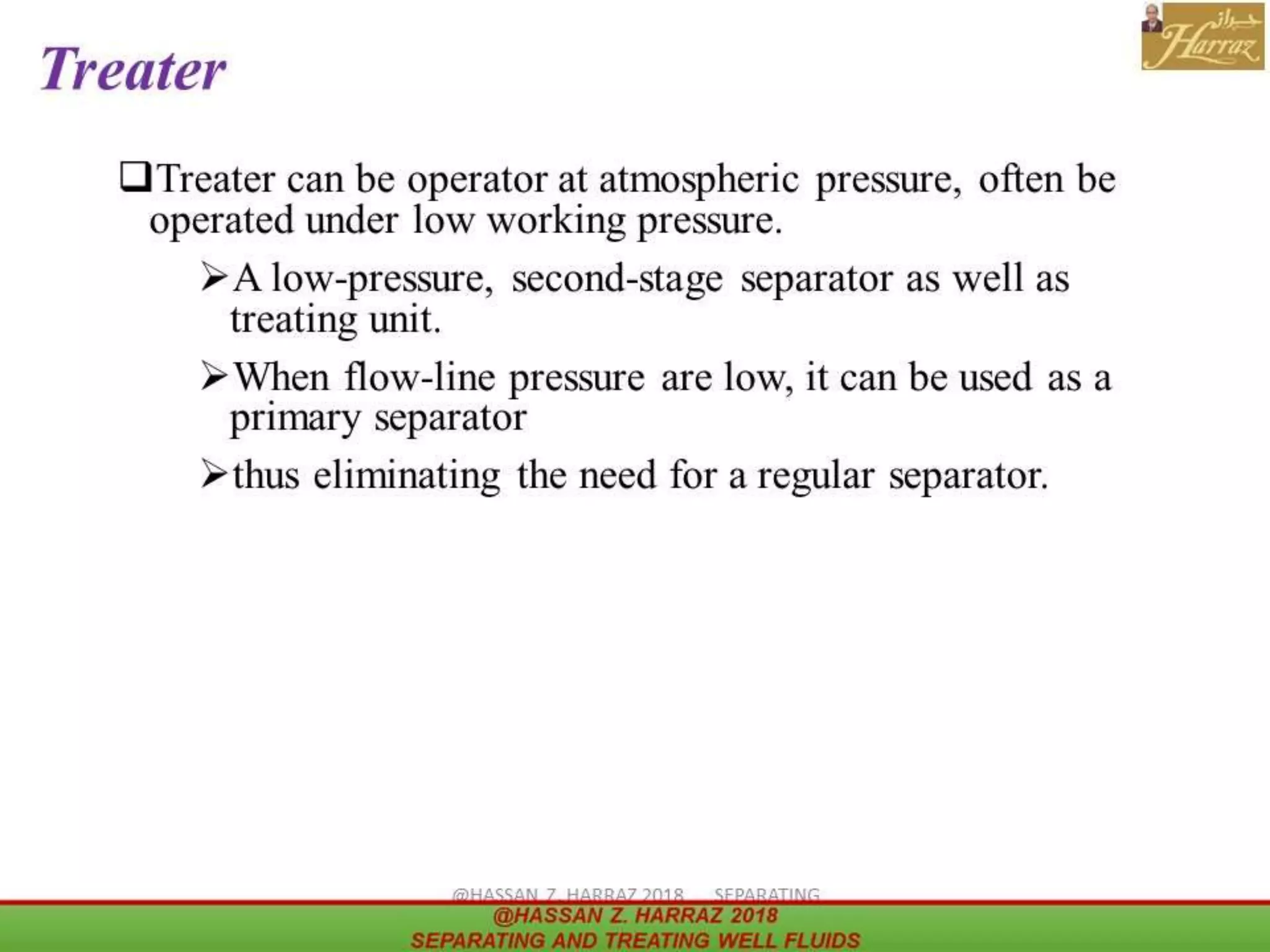

18. Treater

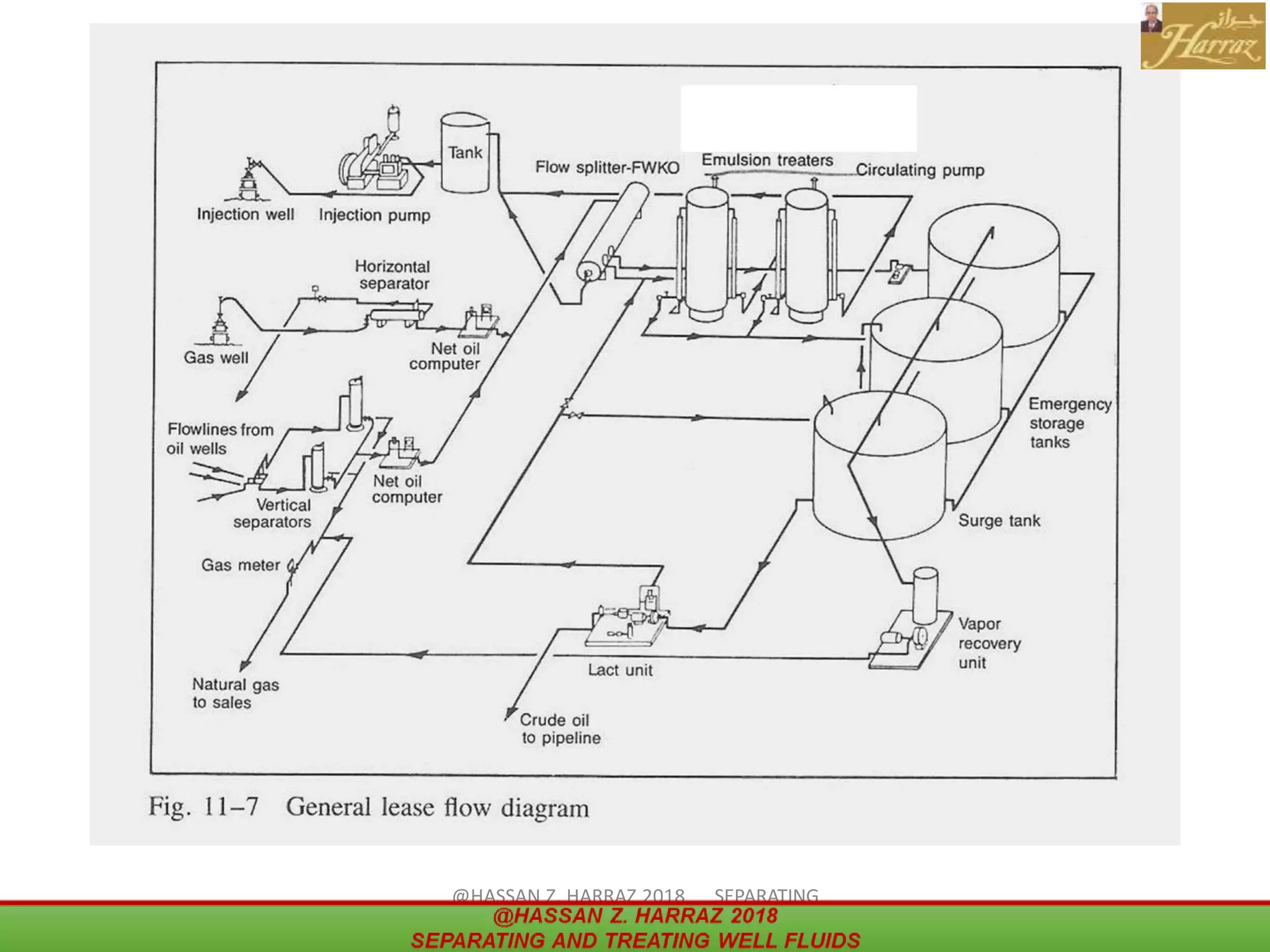

19. 19
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

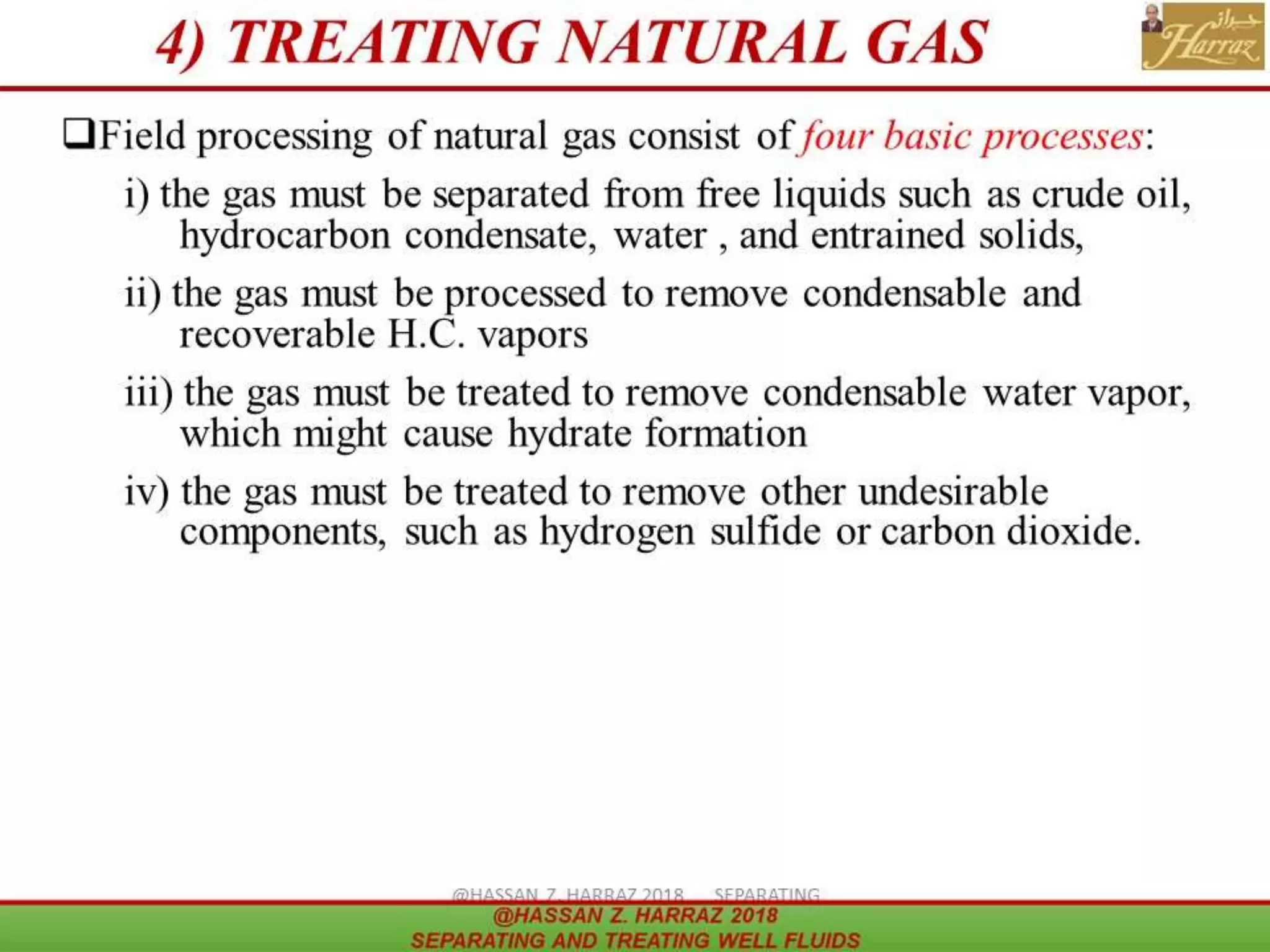

20. 4) TREATING NATURAL GAS

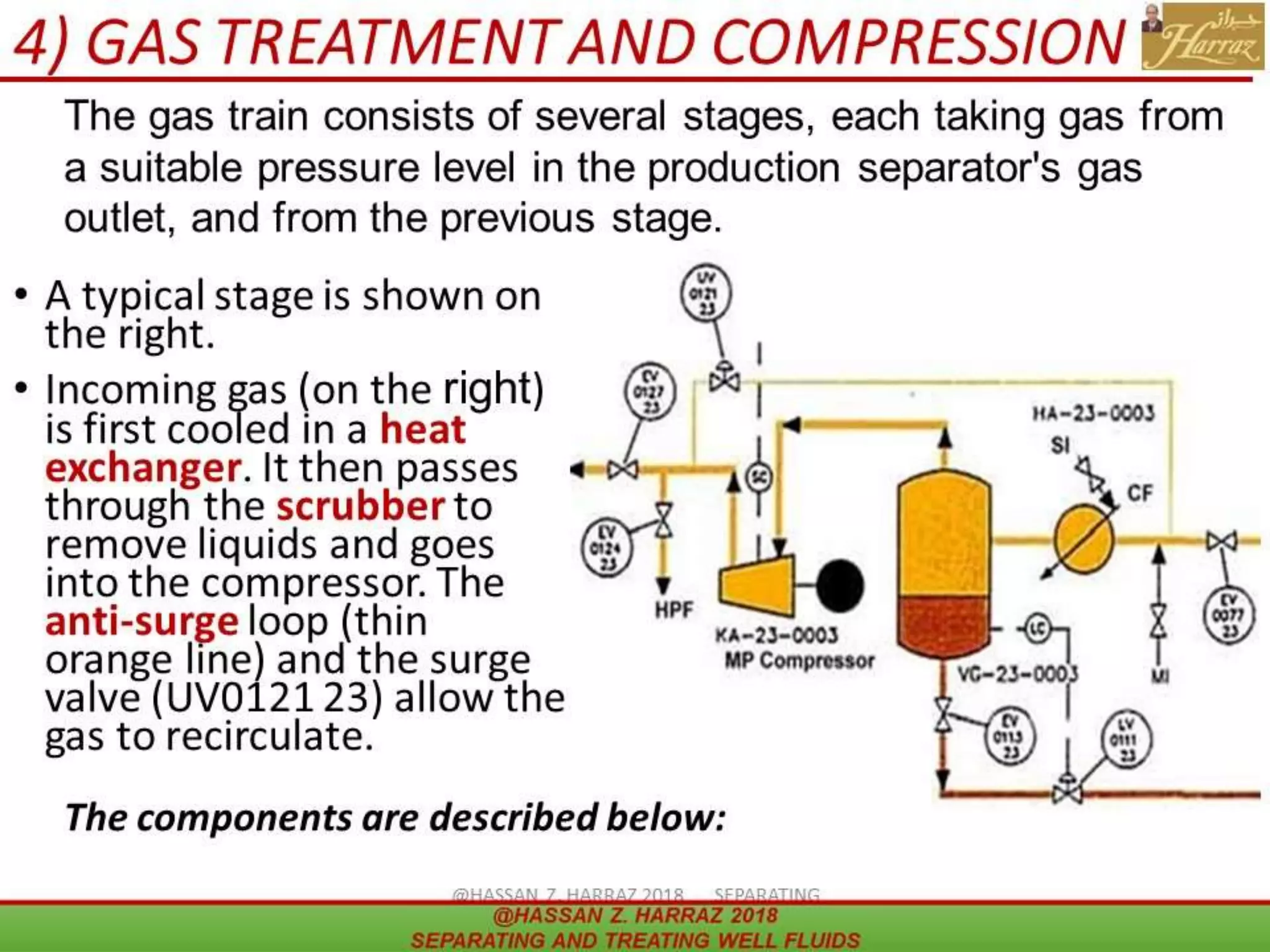

21. 4) GAS TREATMENT AND COMPRESSION

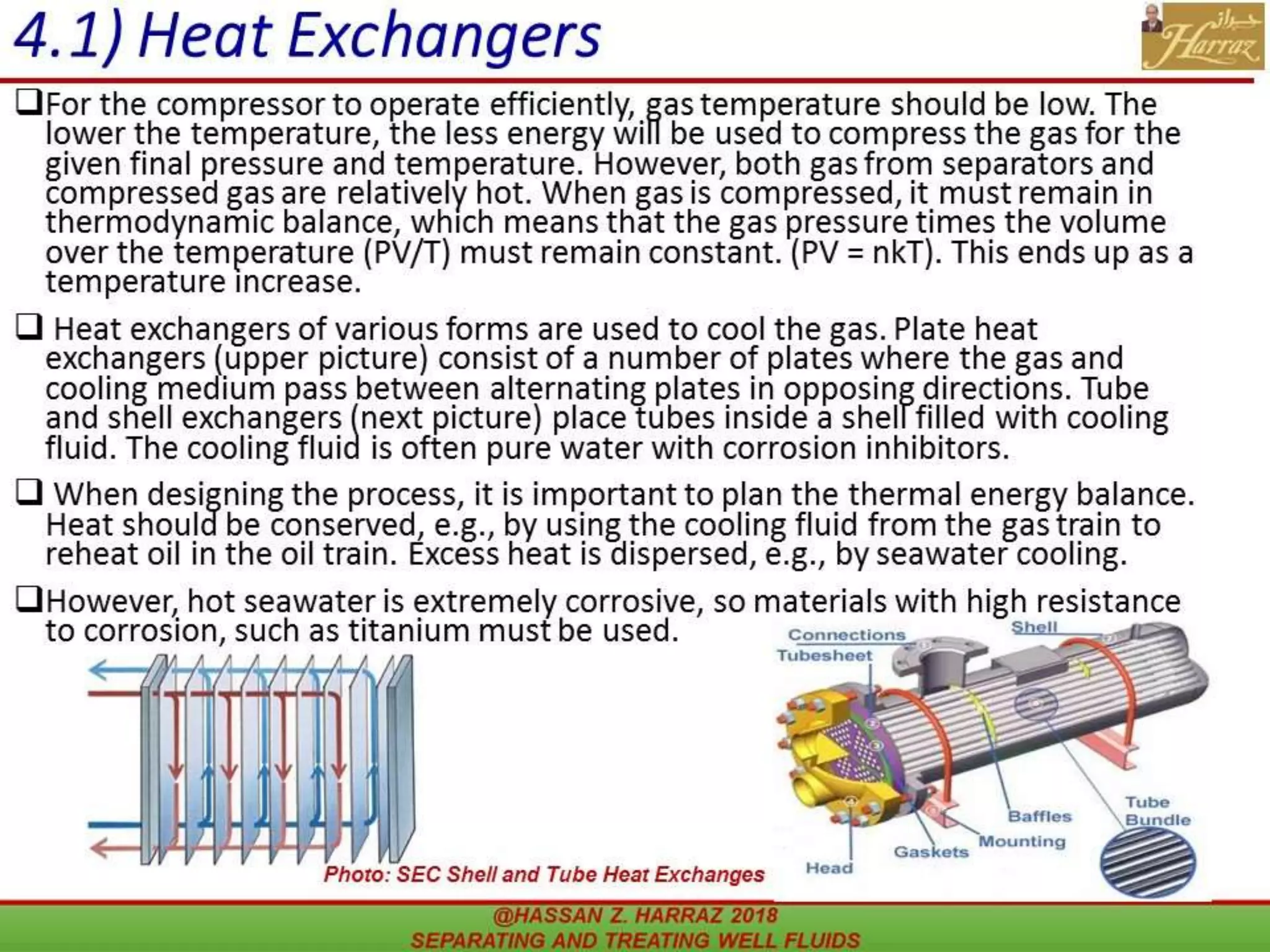

22. 4.1) Heat Exchangers

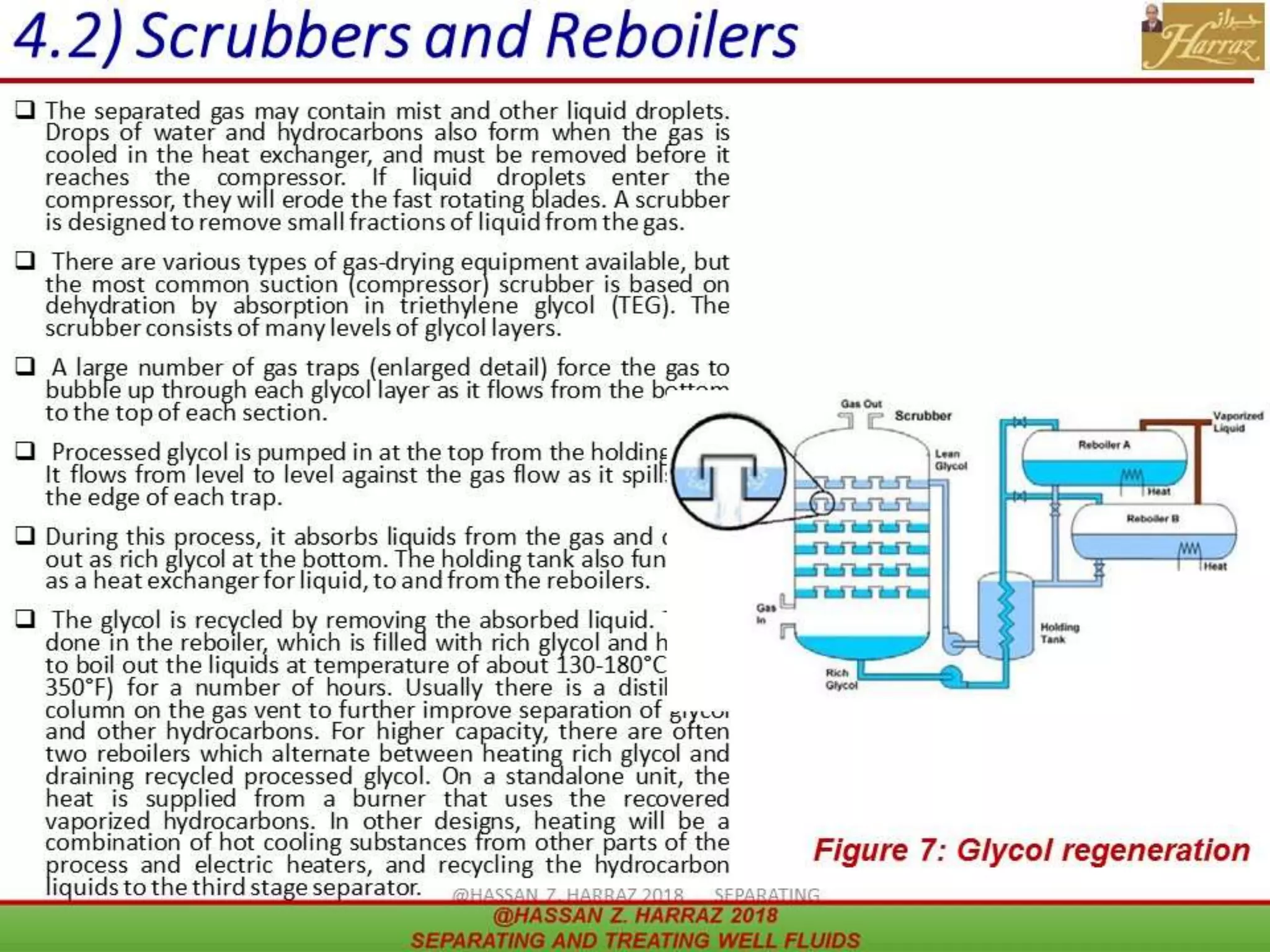

23. 4.2) Scrubbers and Reboilers

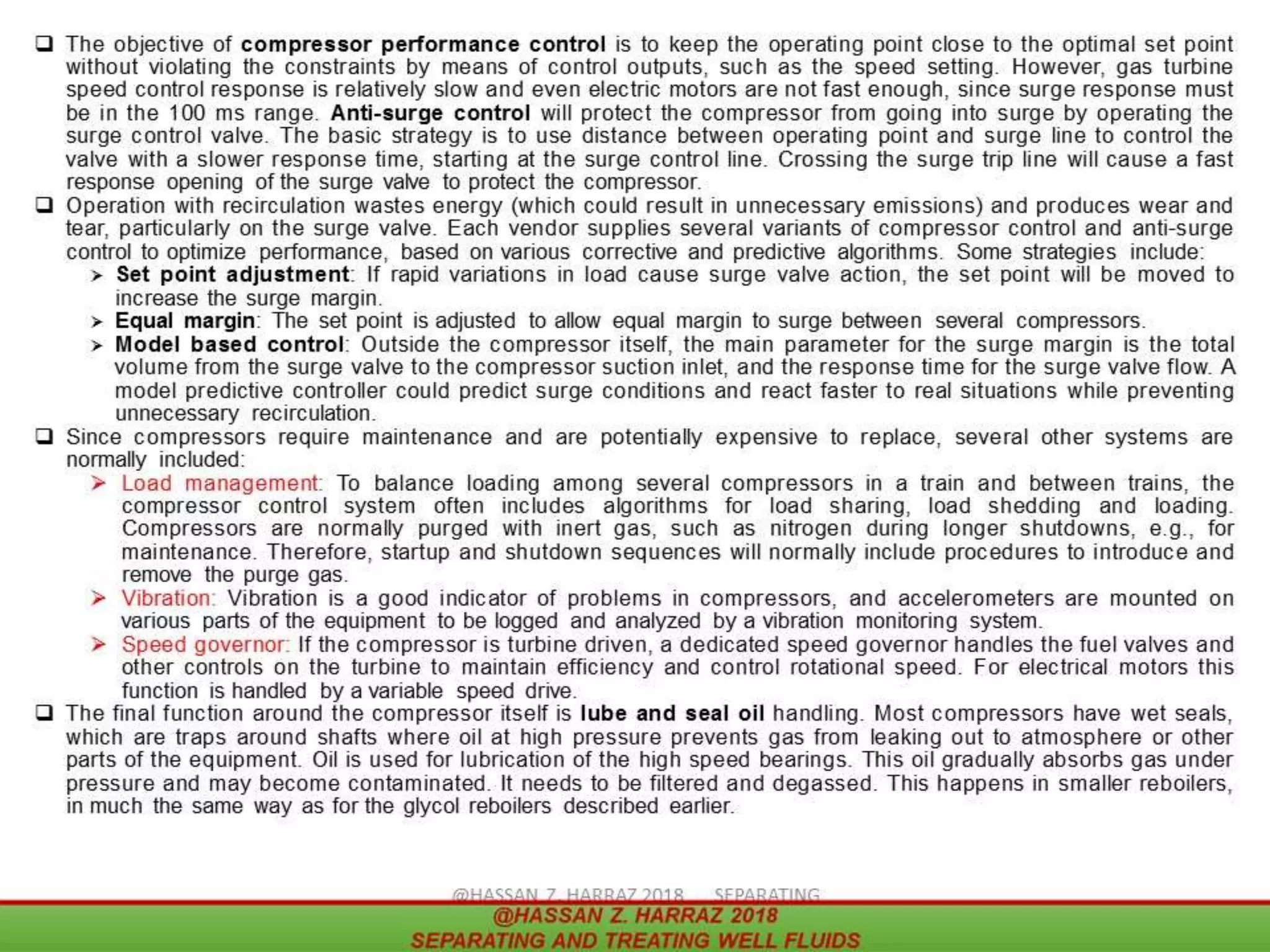

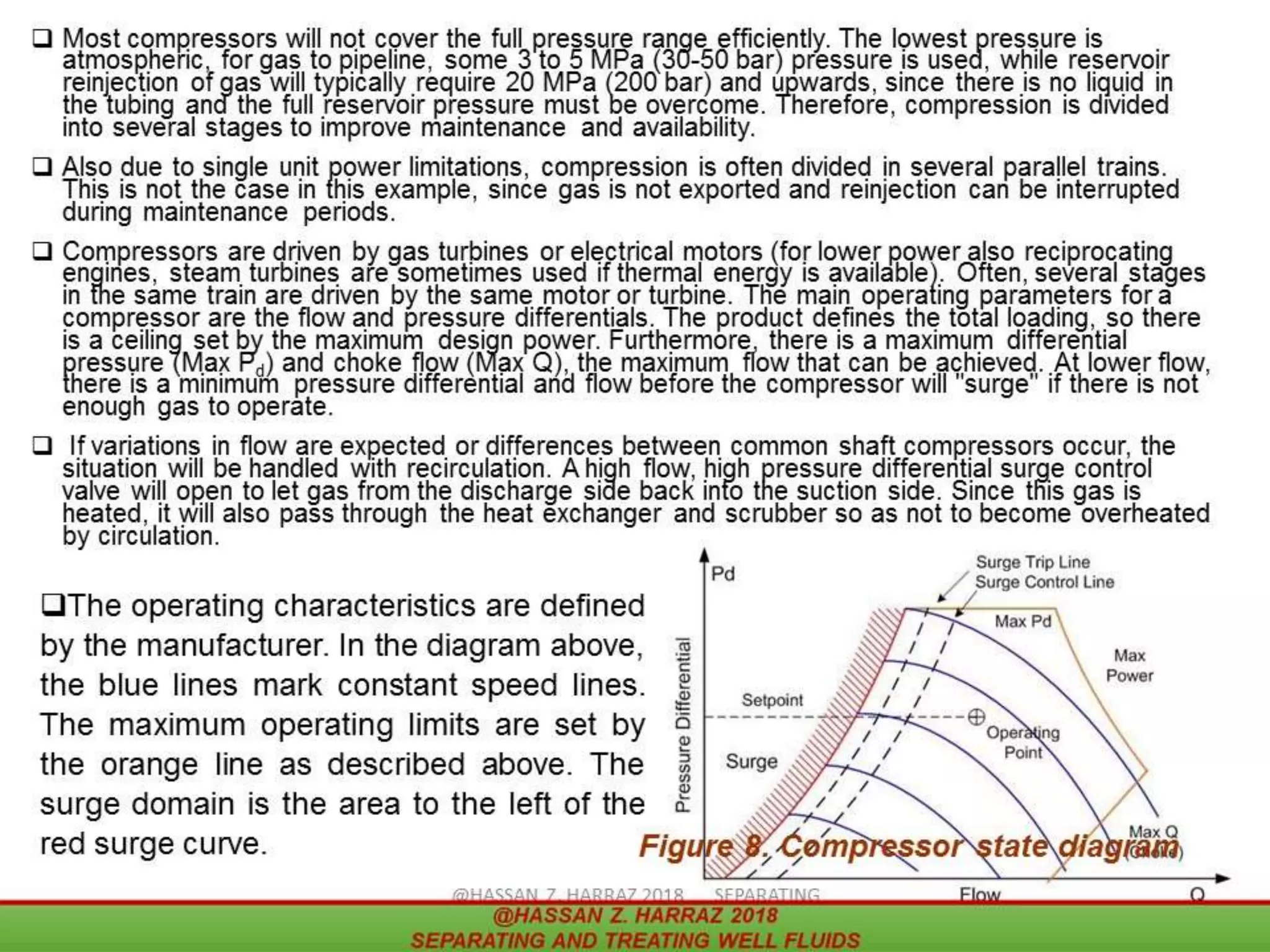

24. 4.3) Compressors, Anti-surge and Performance

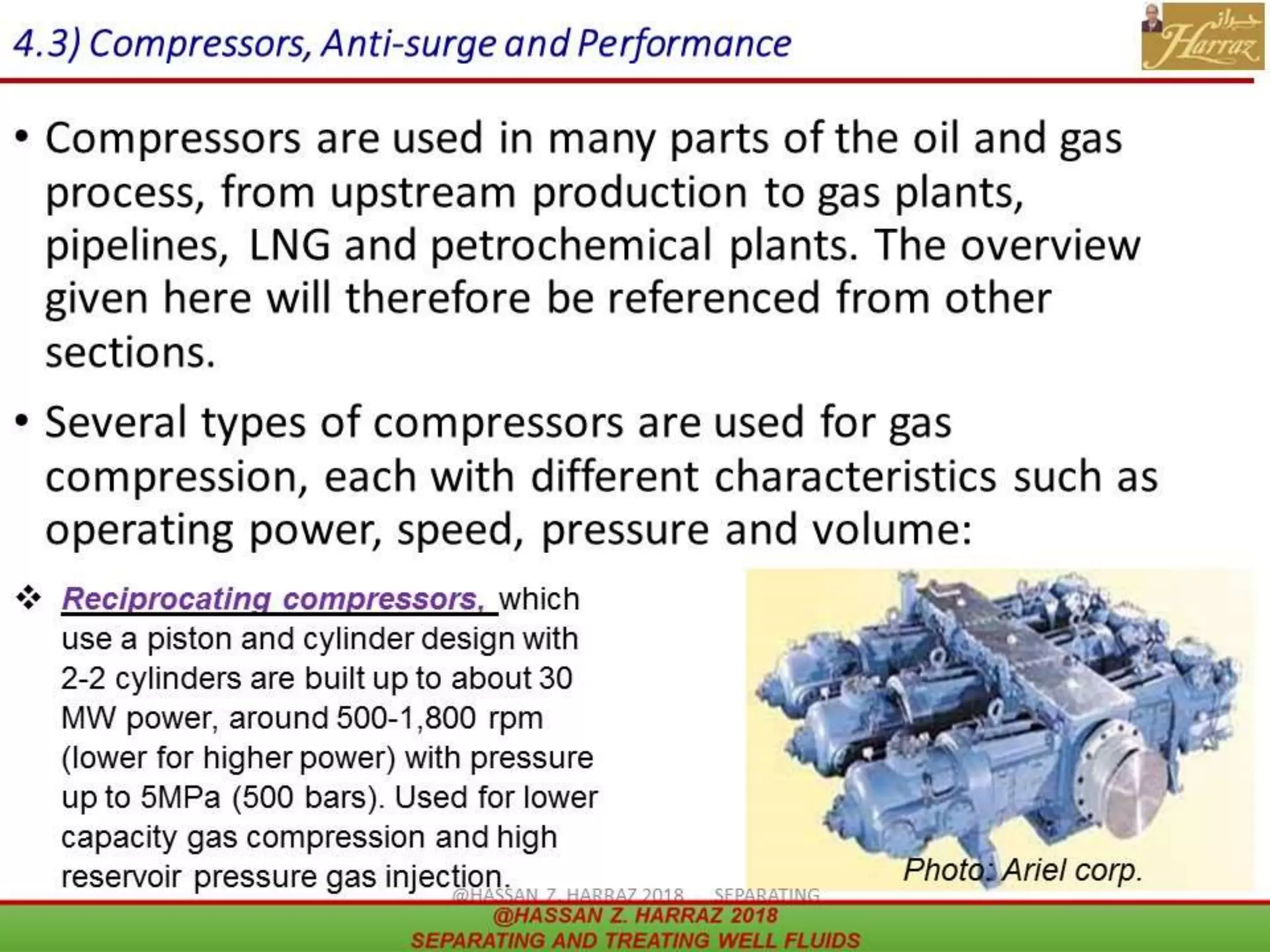

 Reciprocating compressors

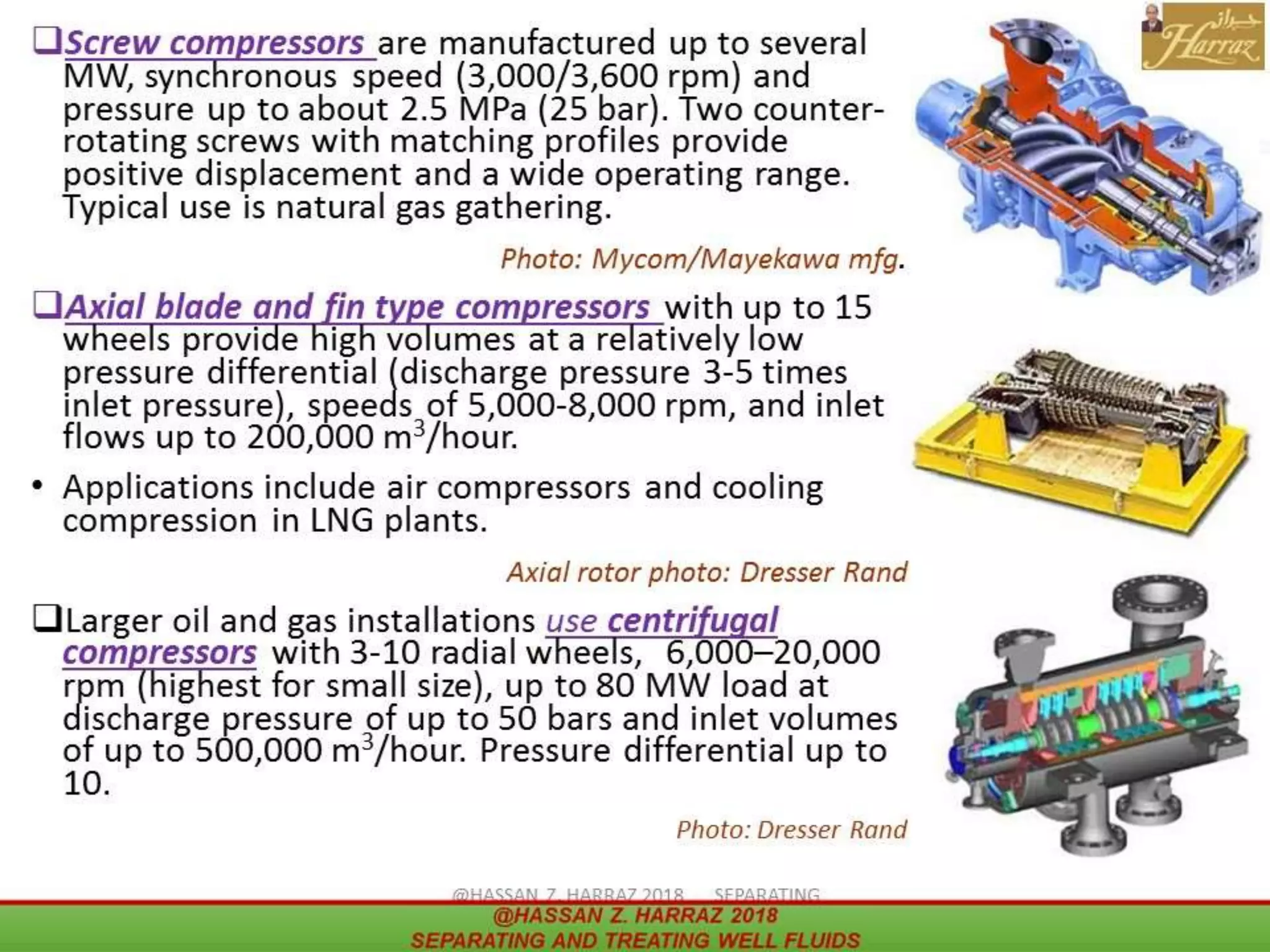

25. Screw compressors
Axial blade and fin type compressors
centrifugal compressors

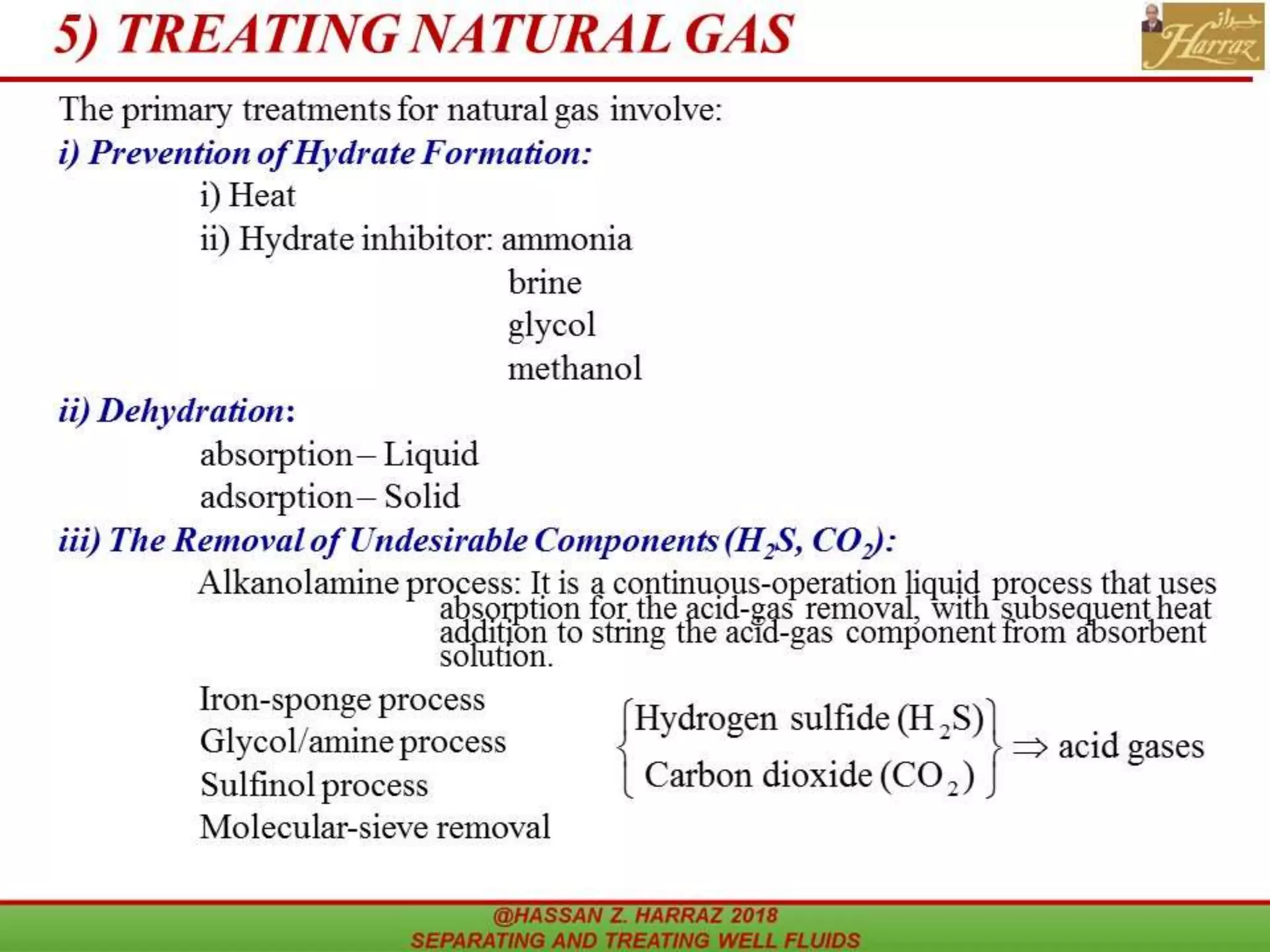

28. 5) TREATING NATURAL GAS

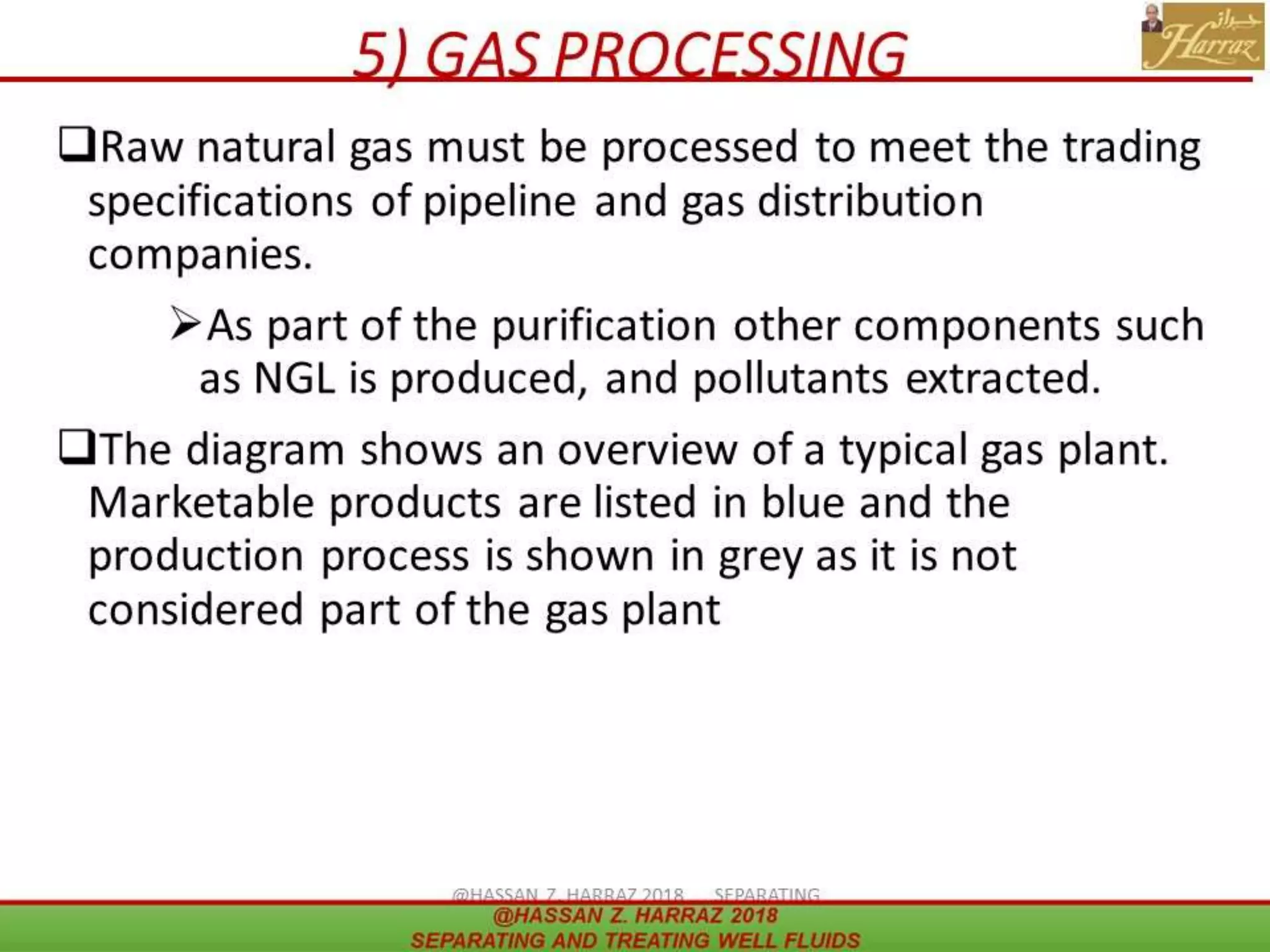

29. 5) GAS PROCESSING

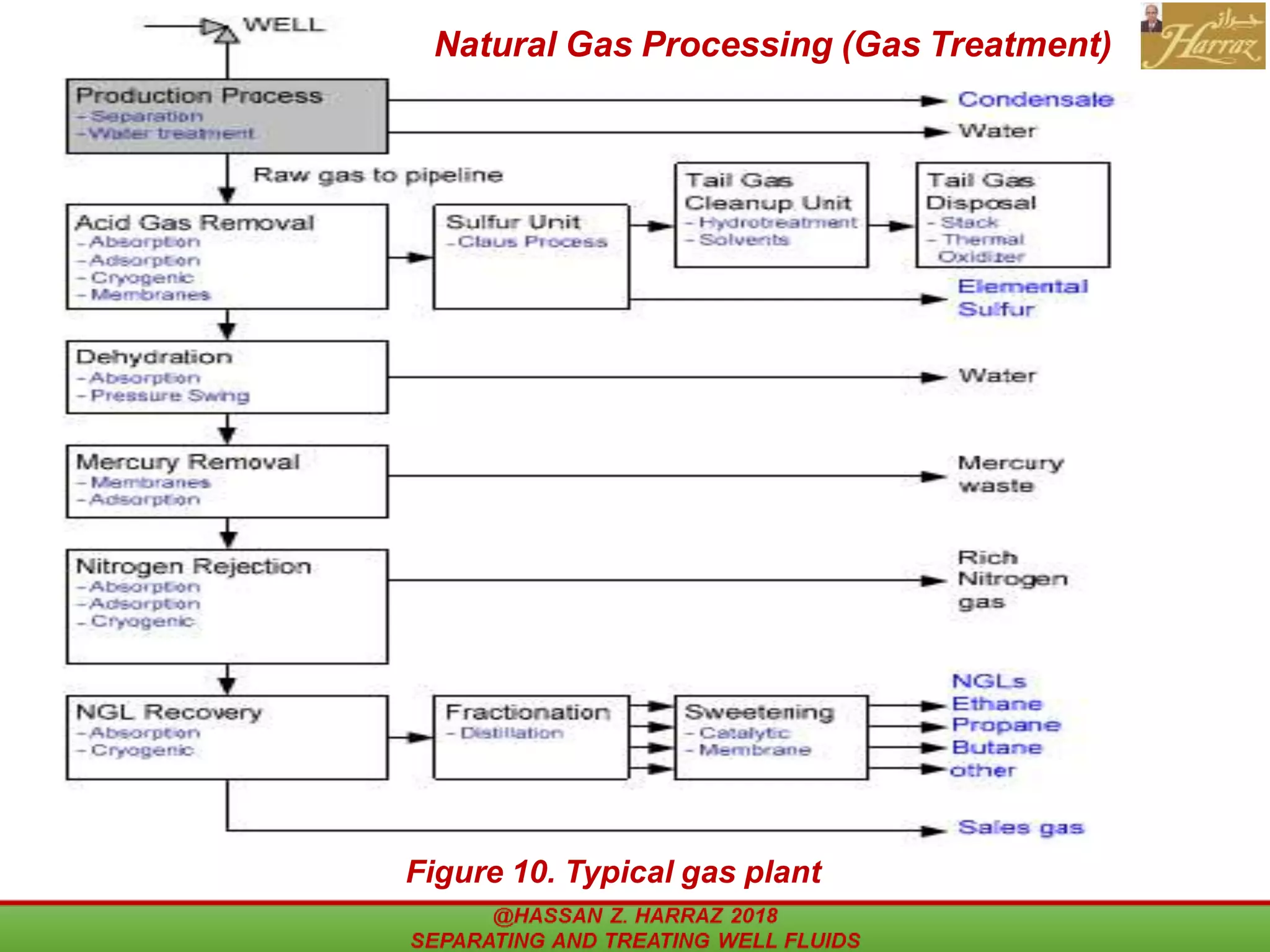

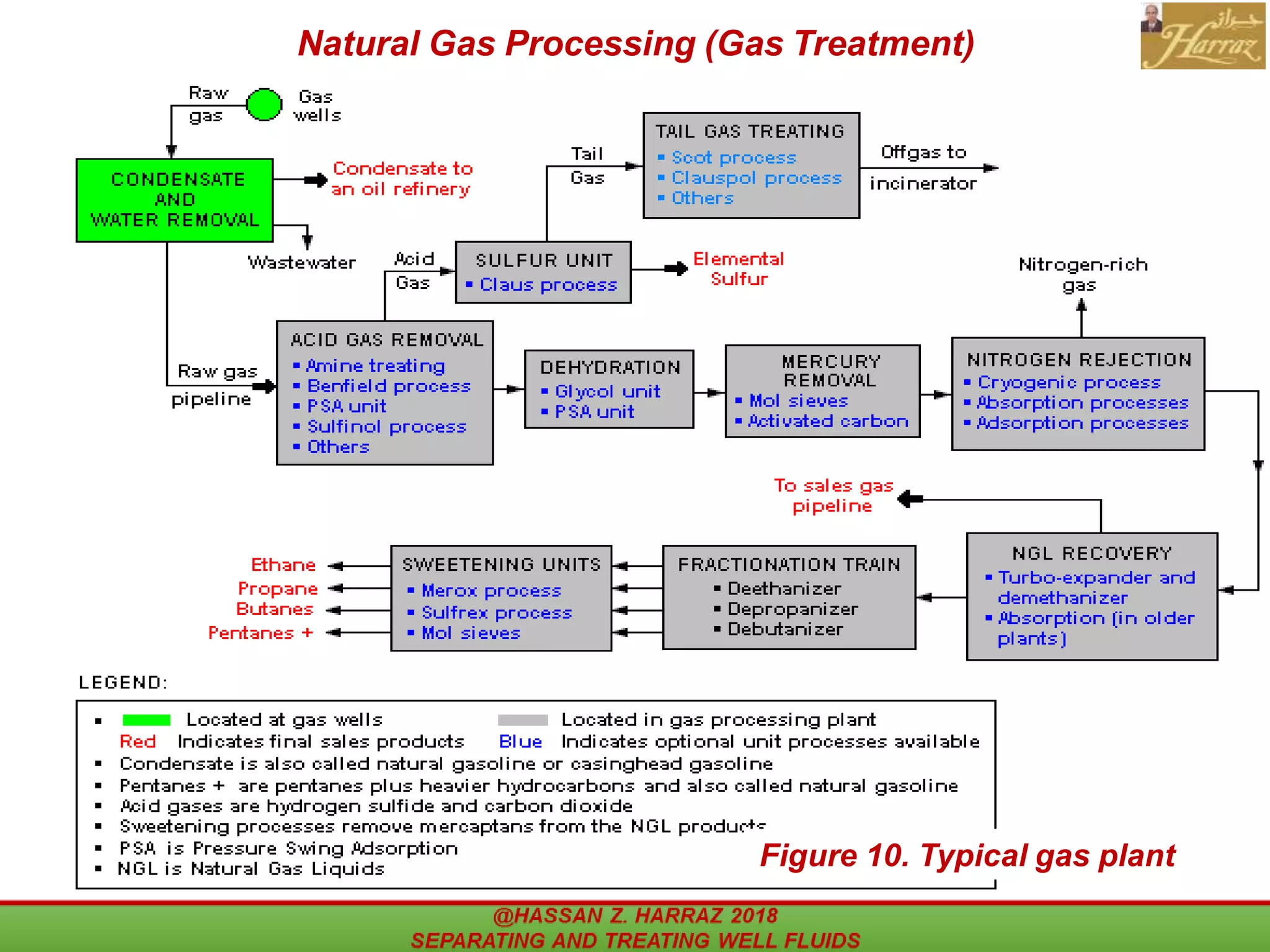

30. Figure 10. Typical gas plant
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
Natural Gas Processing (Gas Treatment)
30

31. @HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
Figure 10. Typical gas plant
Natural Gas Processing (Gas Treatment)
31

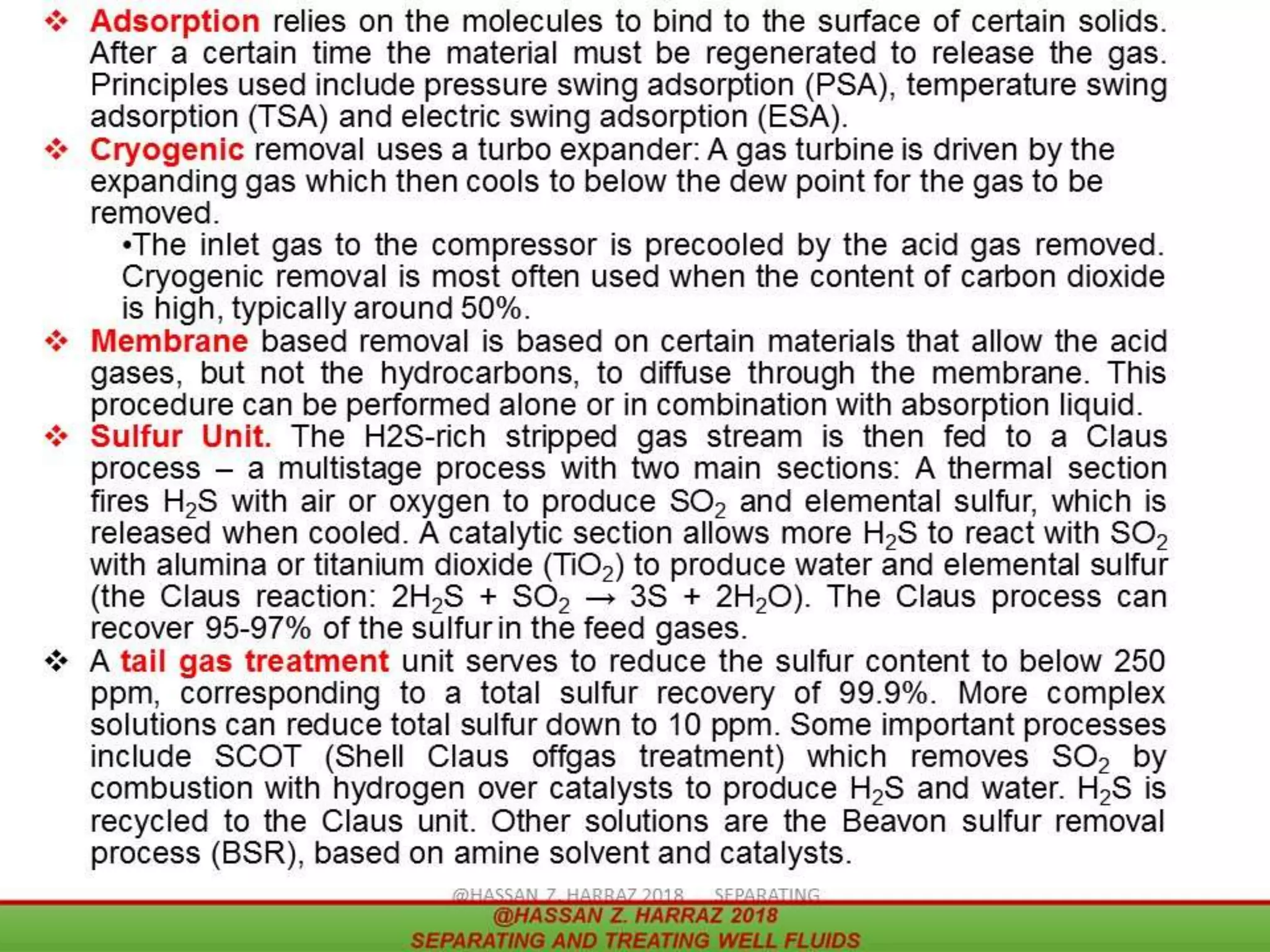

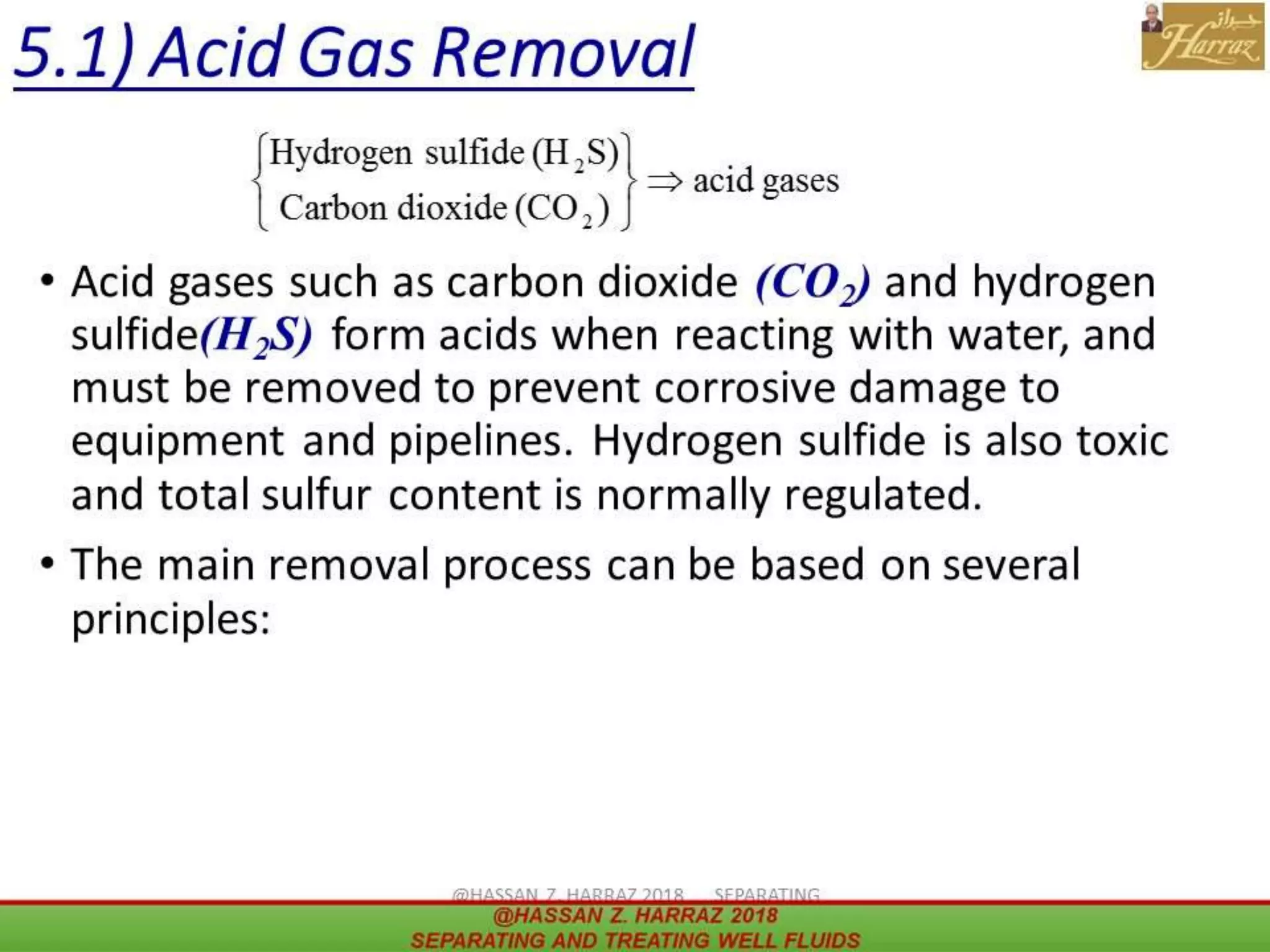

32. 5.1) Acid Gas Removal

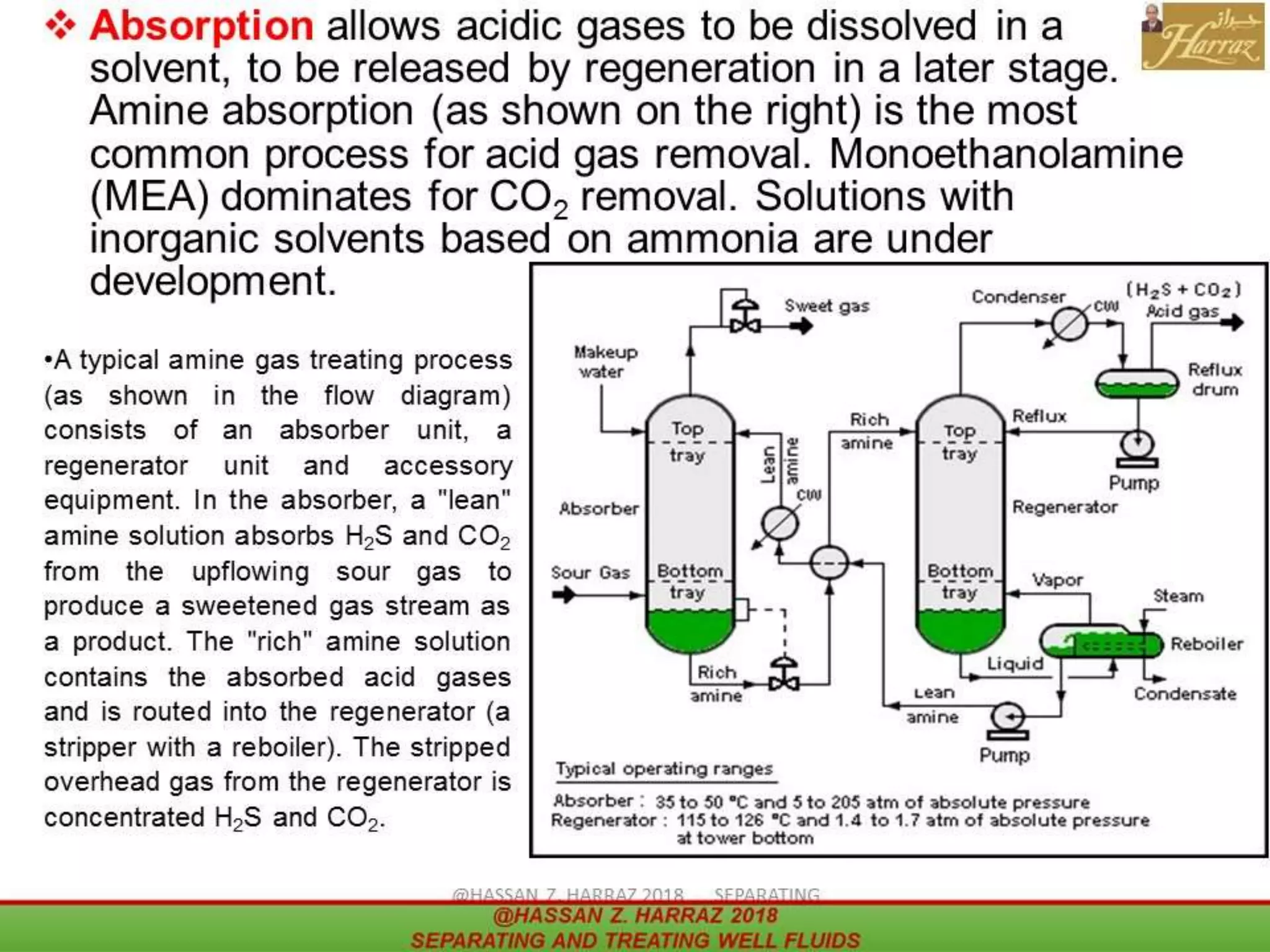

33. Absorption

34. Adsorption
Cryogenic
Membrane
Sulfur Unit.
tail gas treatment

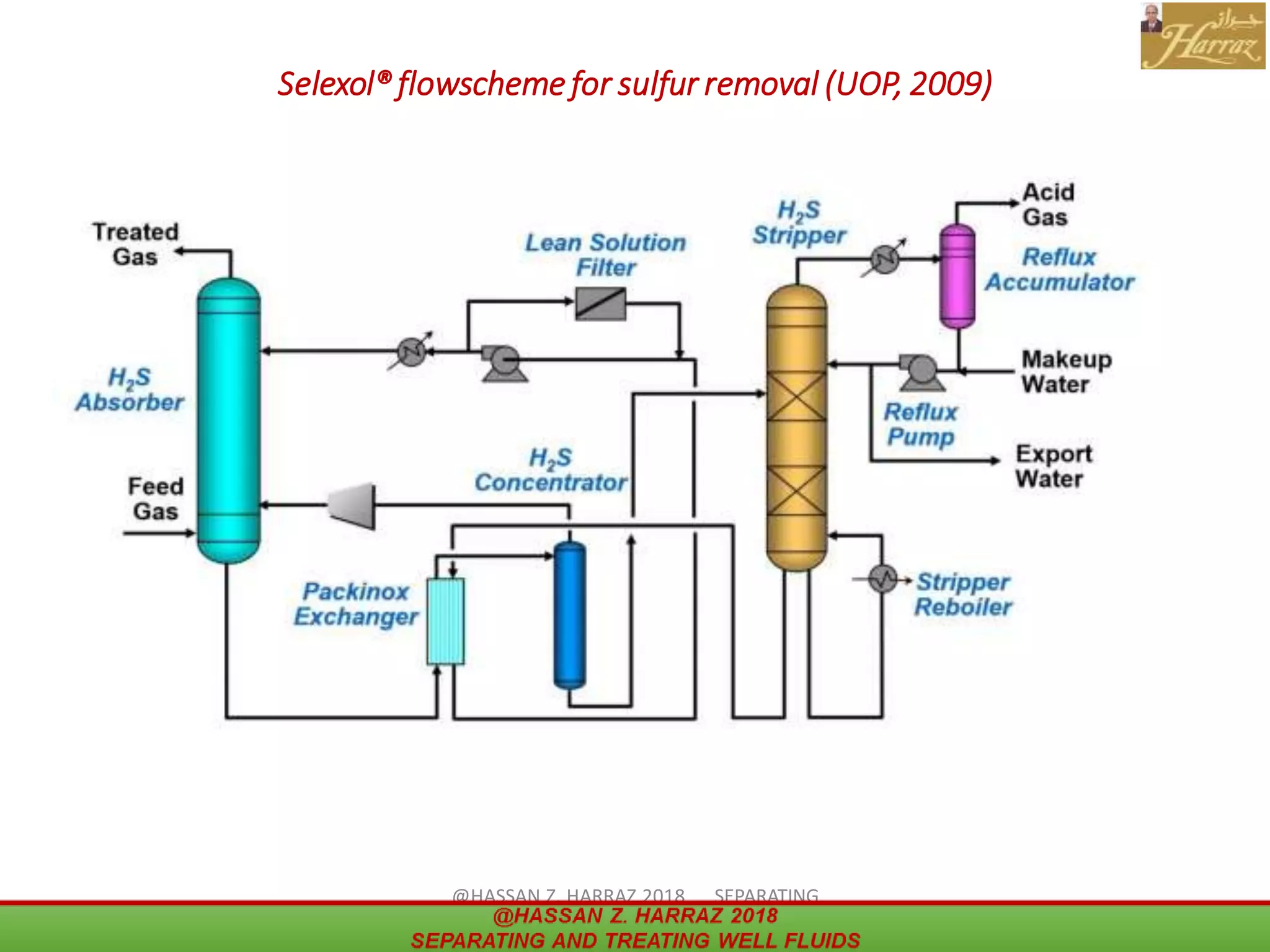

35. Selexol® flowscheme for sulfur removal (UOP, 2009)
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
35

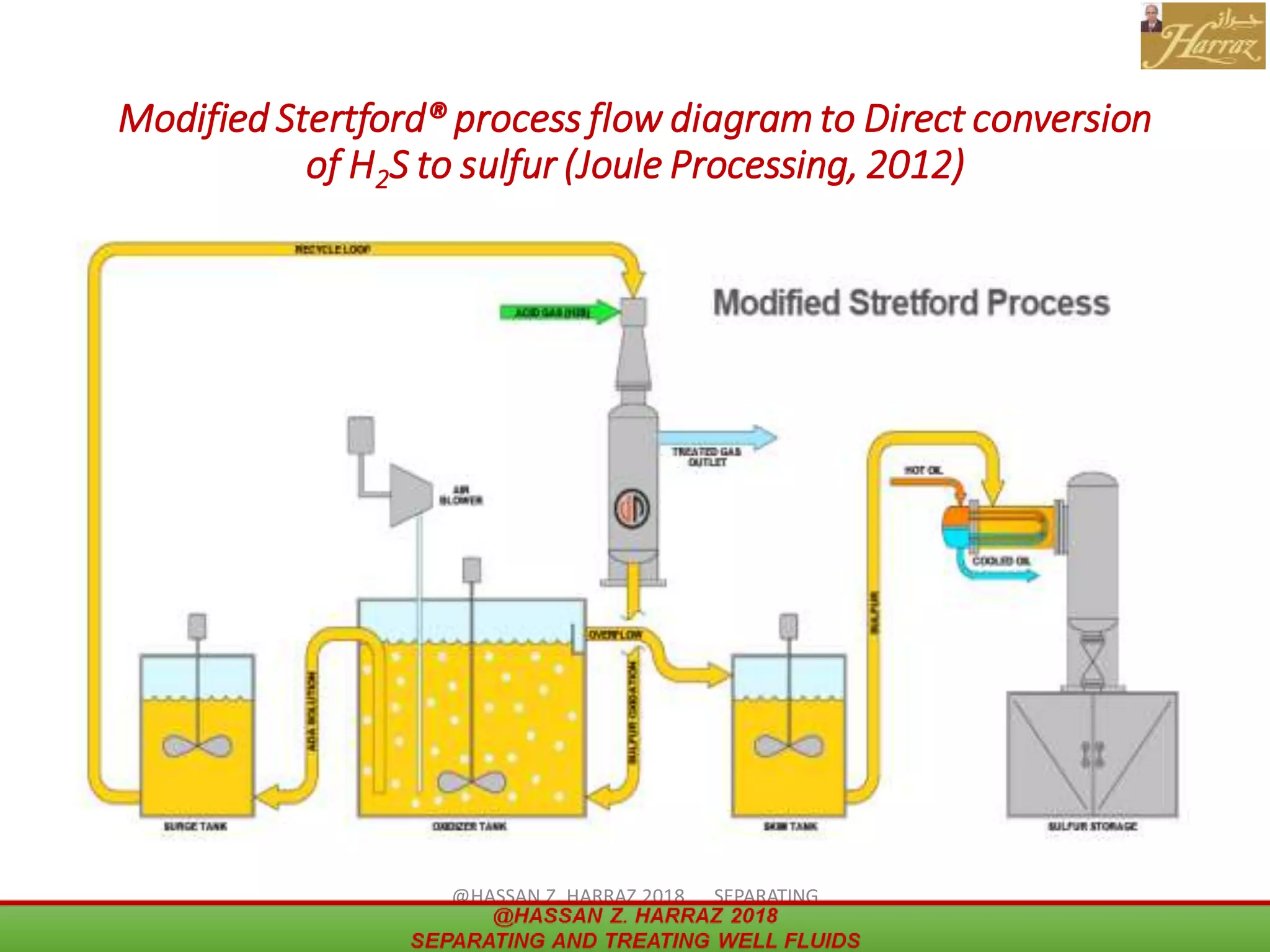

36. Modified Stertford® process flow diagram to Direct conversion
of H2S to sulfur (Joule Processing, 2012)
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS
36

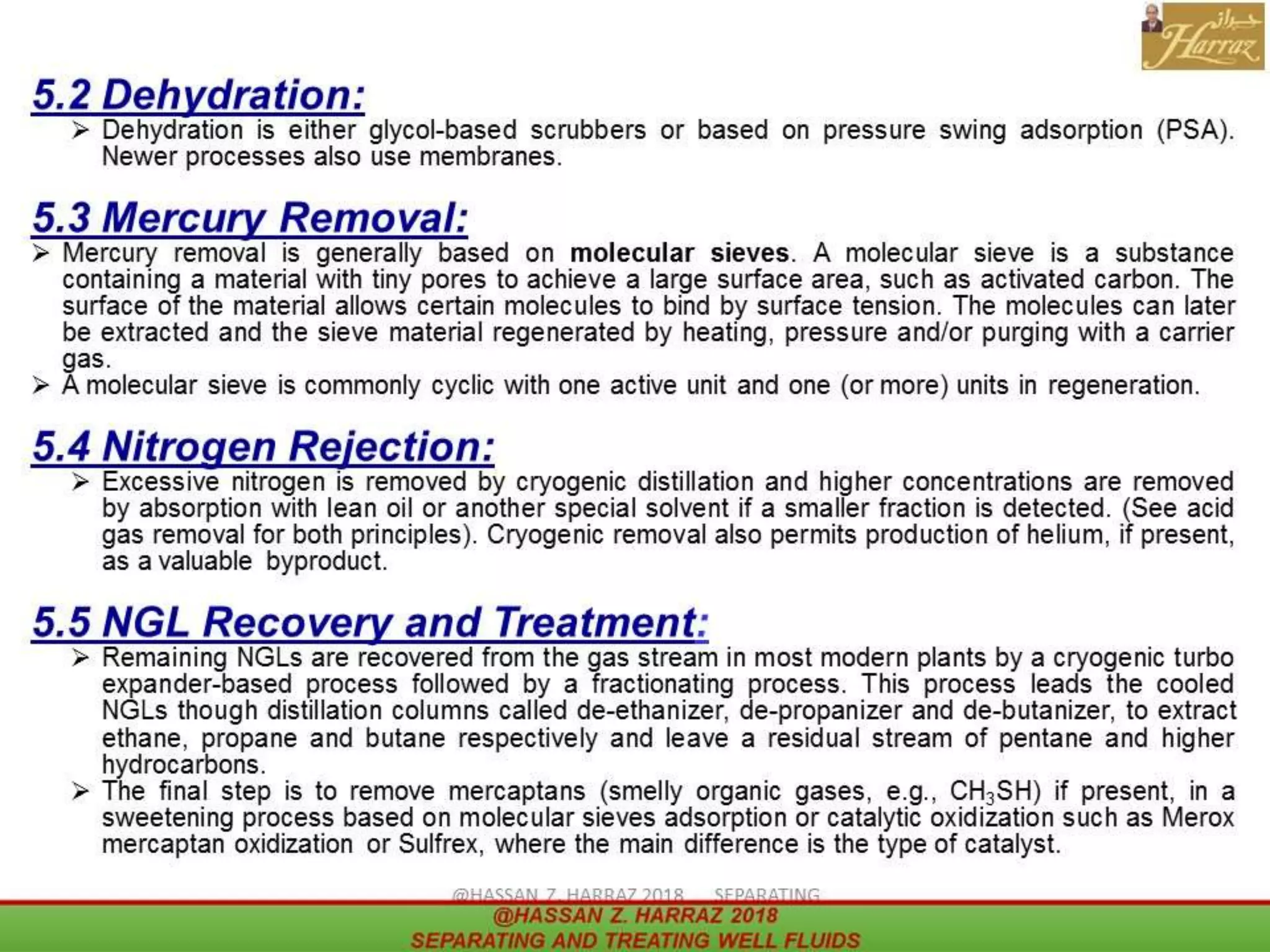

37. 5.2 Dehydration:
5.3 Mercury Removal:
5.4 Nitrogen Rejection:
5.5 NGL Recovery and
Treatment:

38. 38

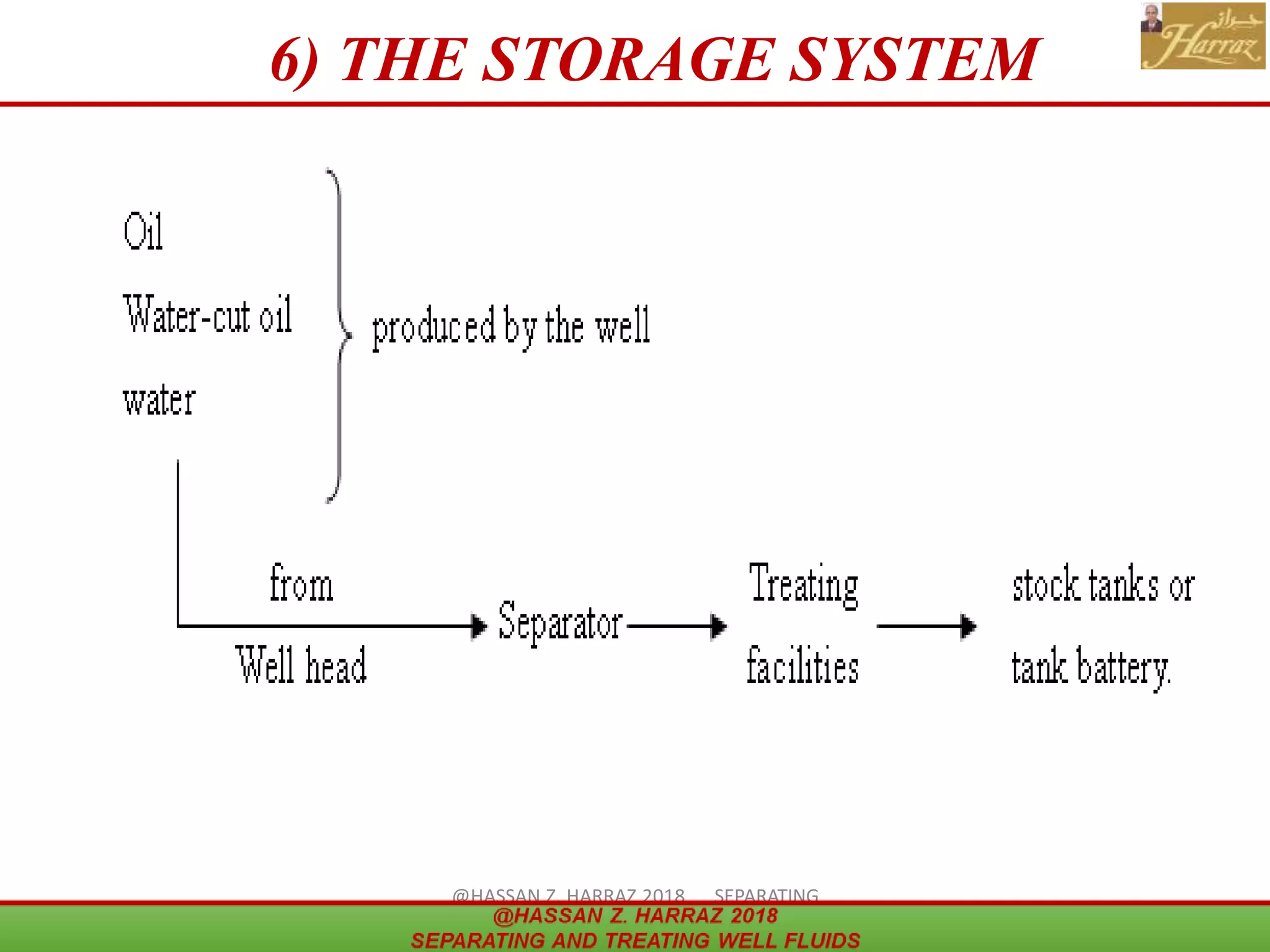

6) THE STORAGE SYSTEM
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

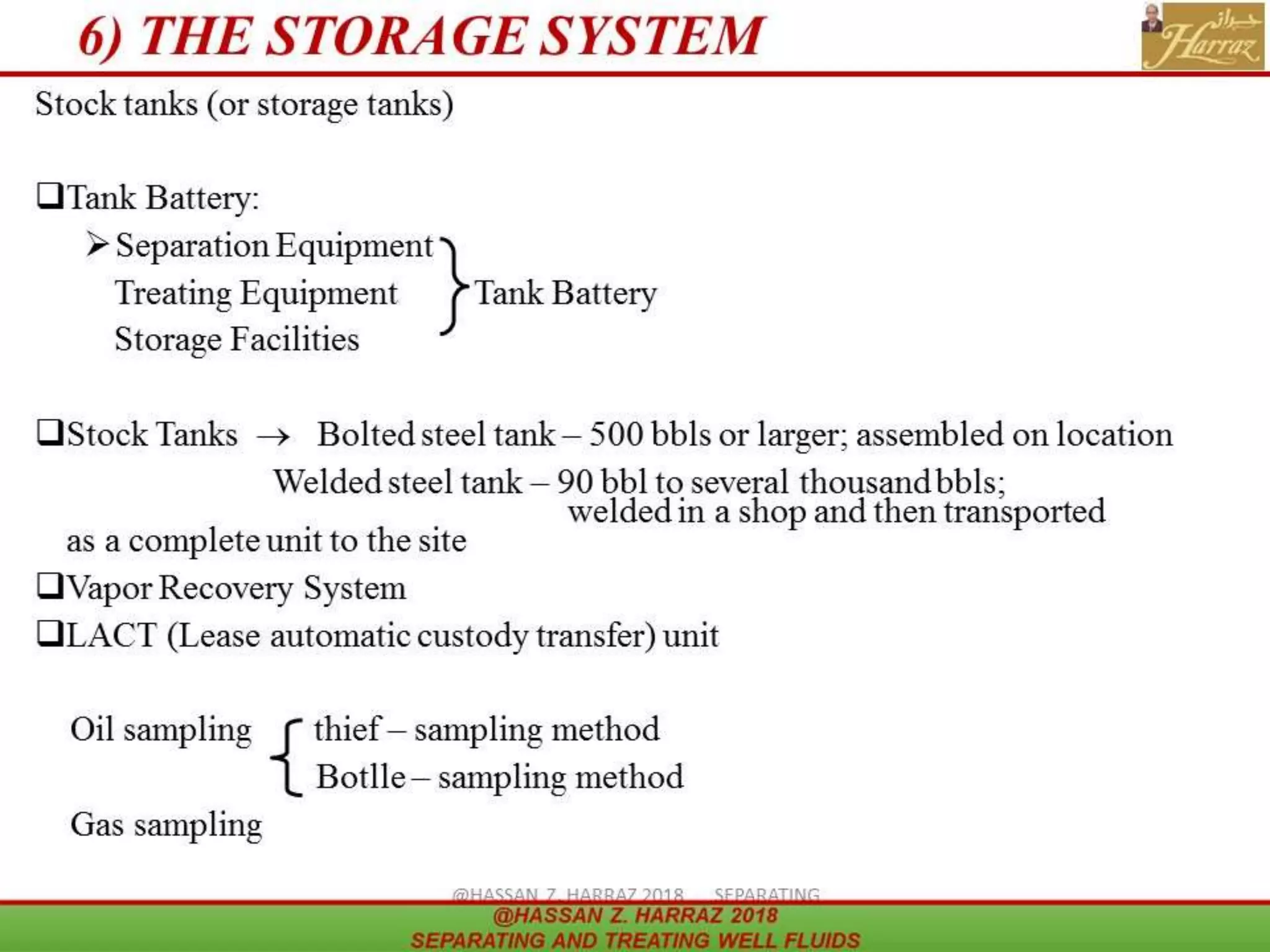

39. 6) THE STORAGE SYSTEM

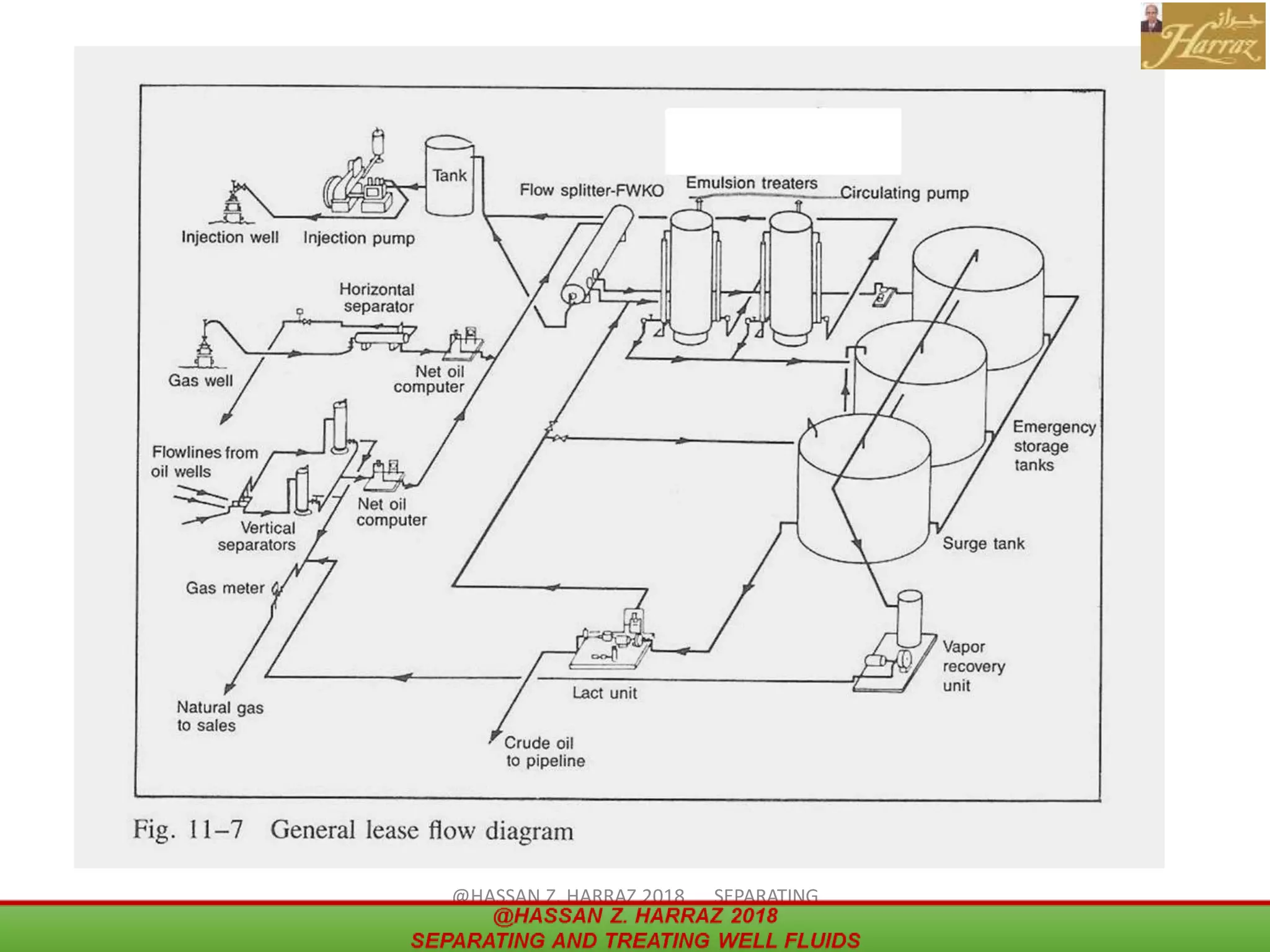

40. 40
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

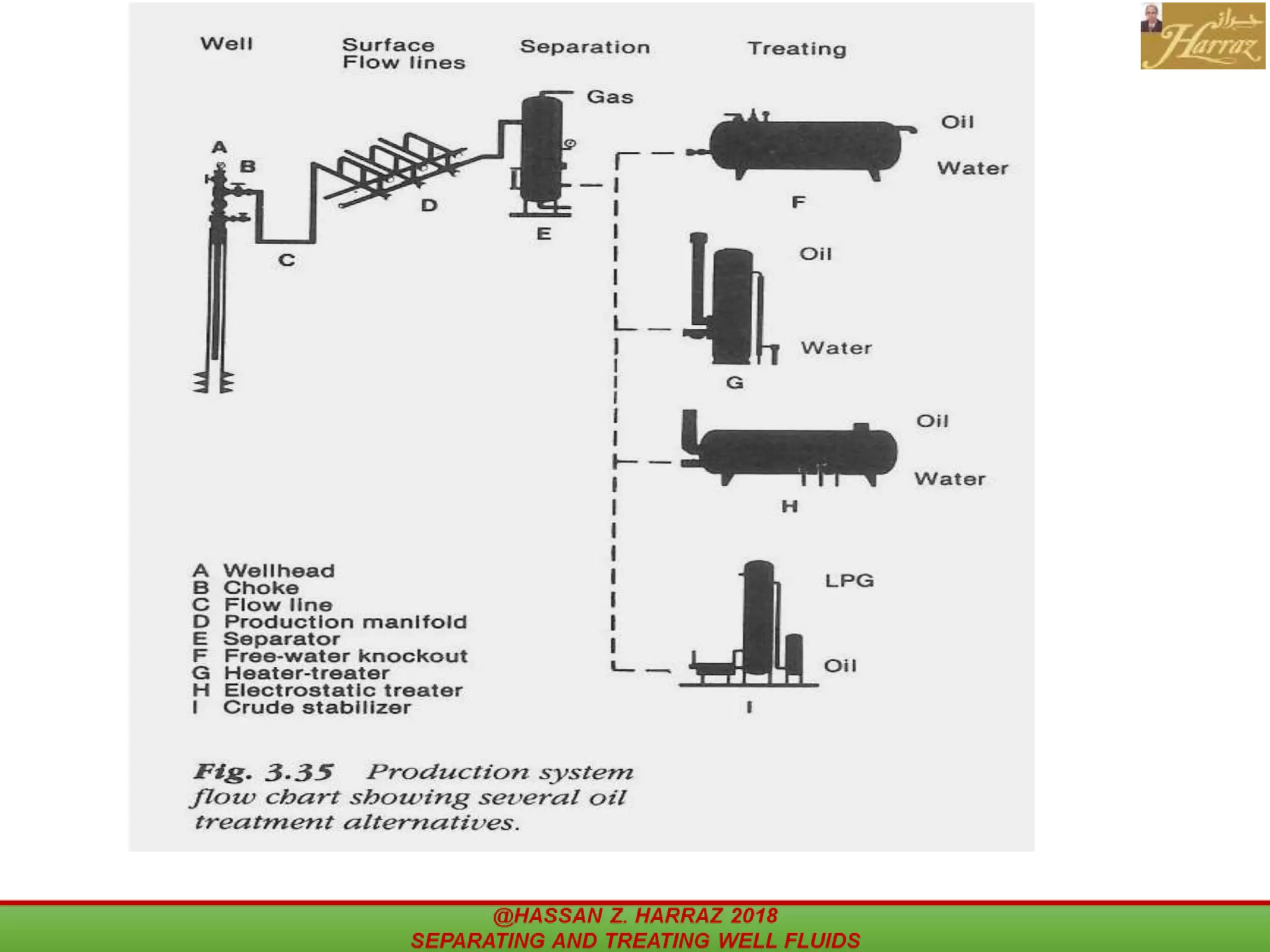

41. 41@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

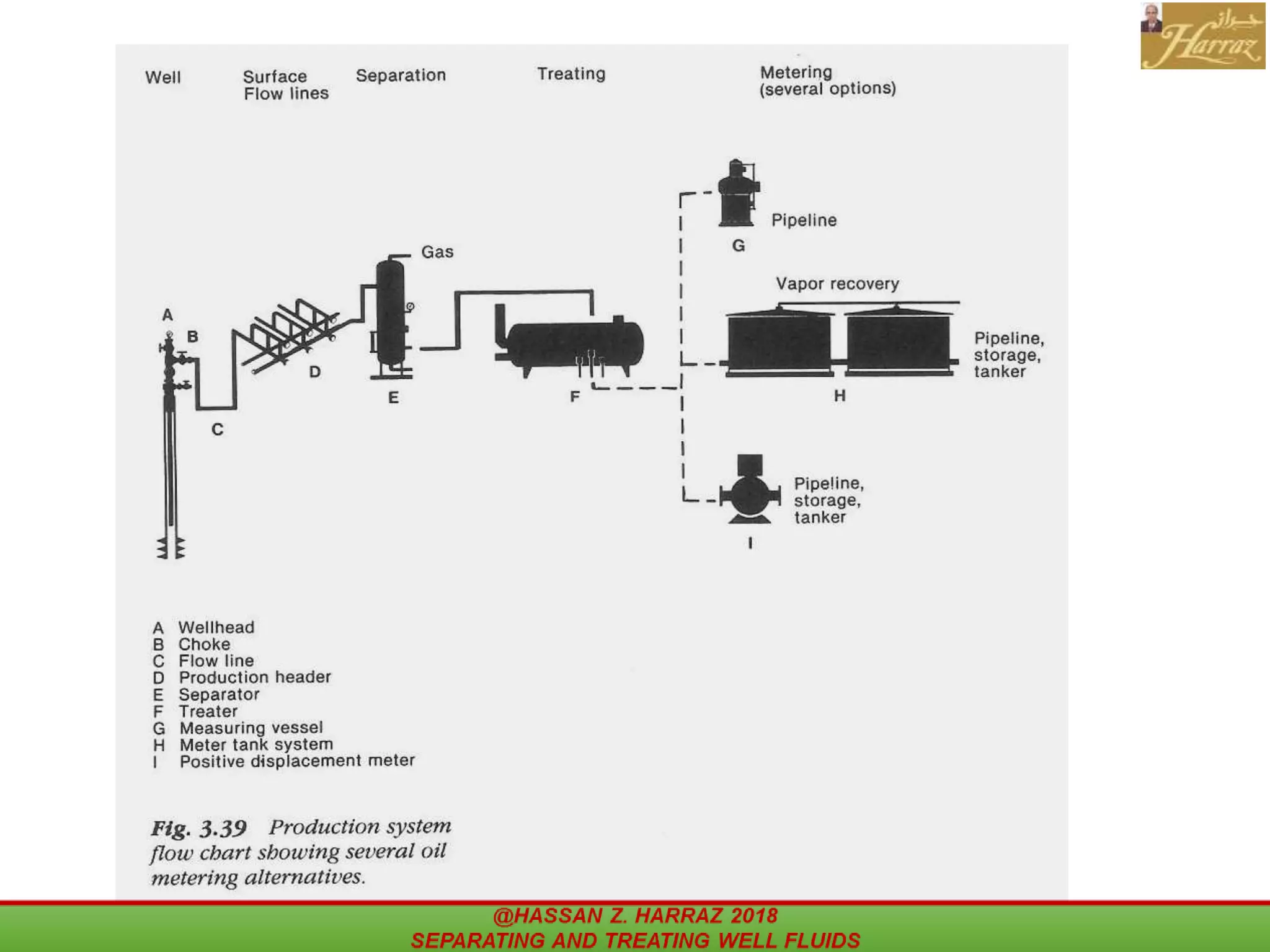

42. 42@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

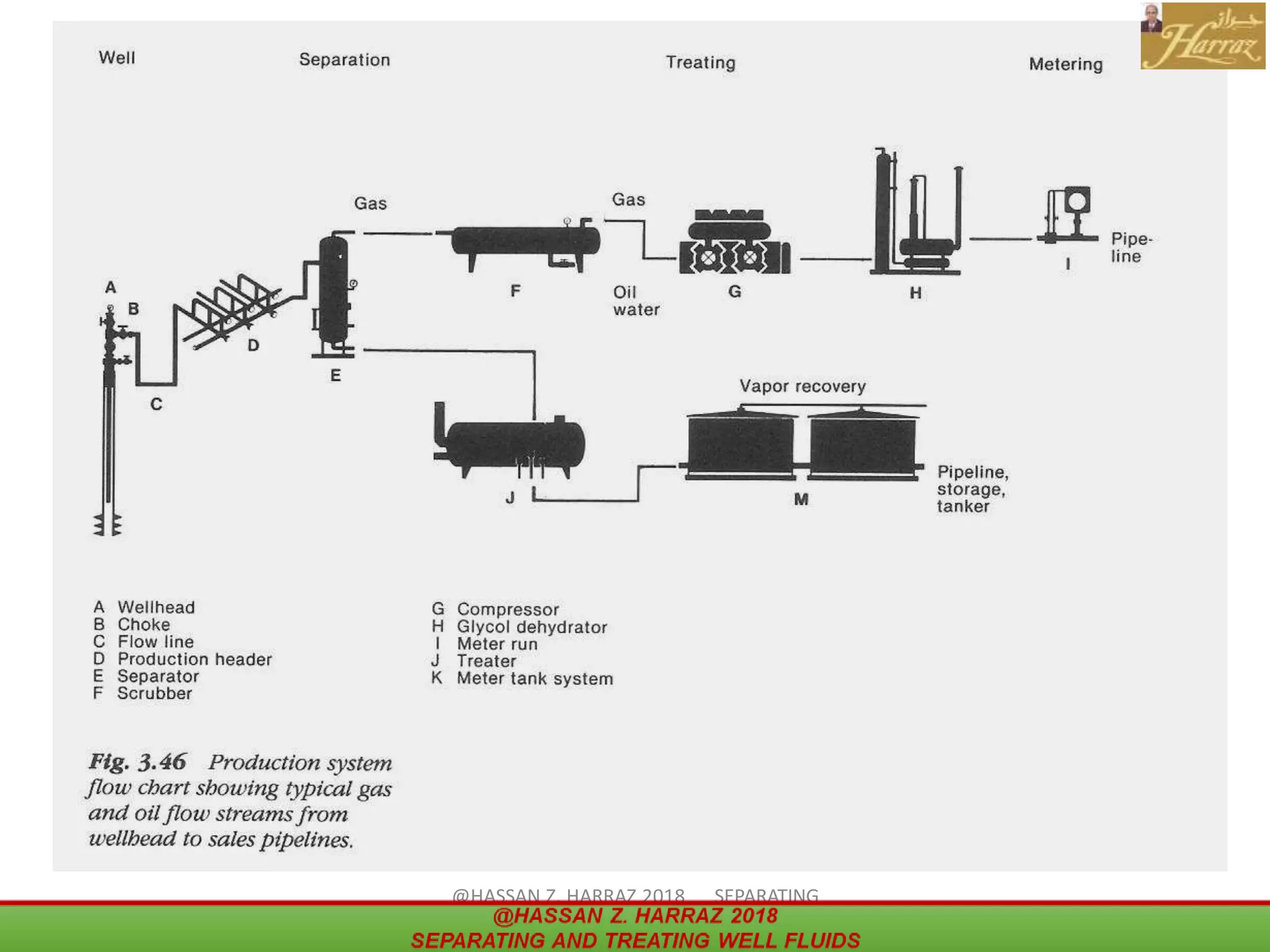

43. 43
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

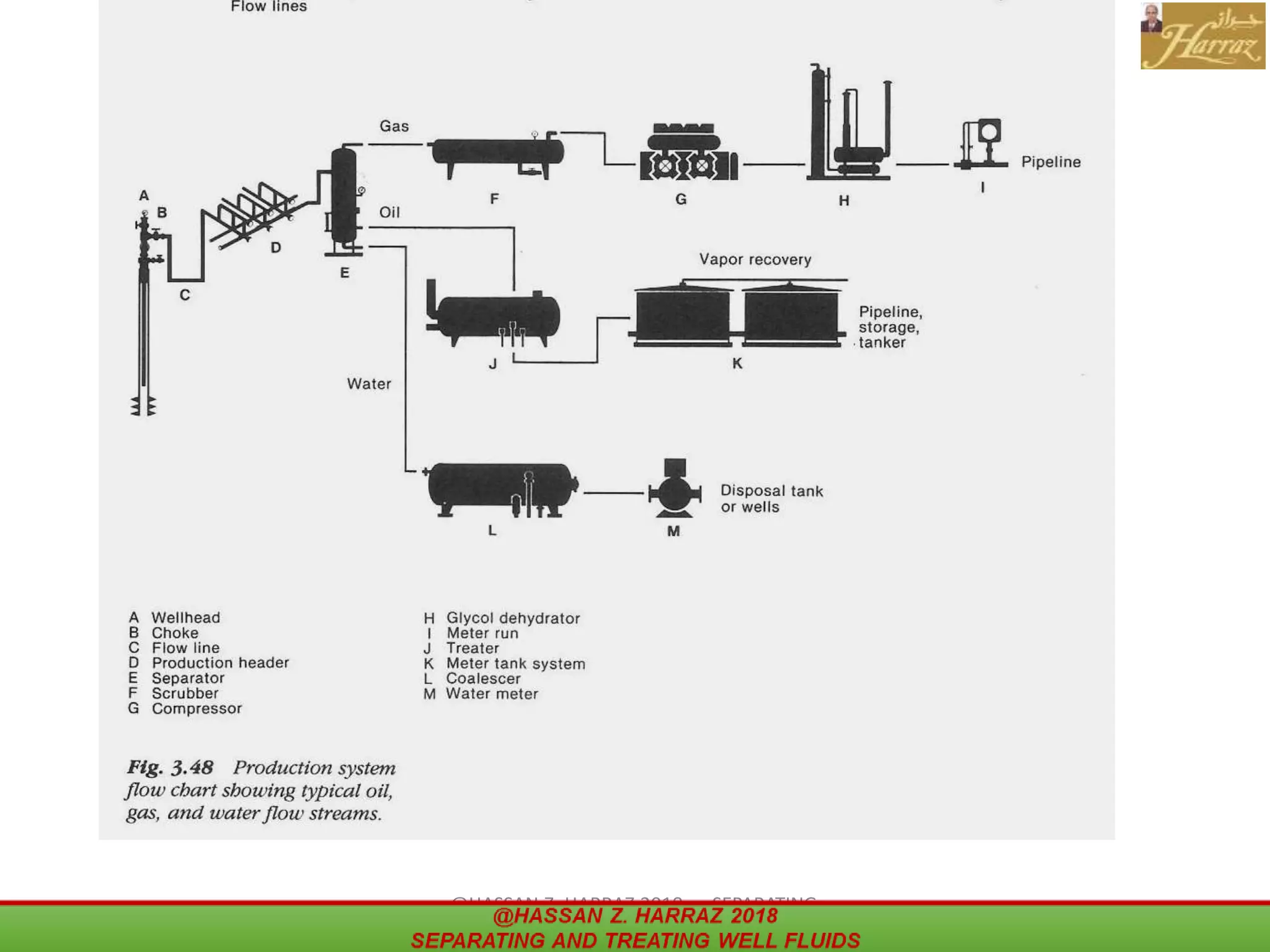

44. 44@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

45. 45
Typical Natural Gas Components
@HASSAN Z. HARRAZ 2018 SEPARATING
AND TREATING WELL FLUIDS

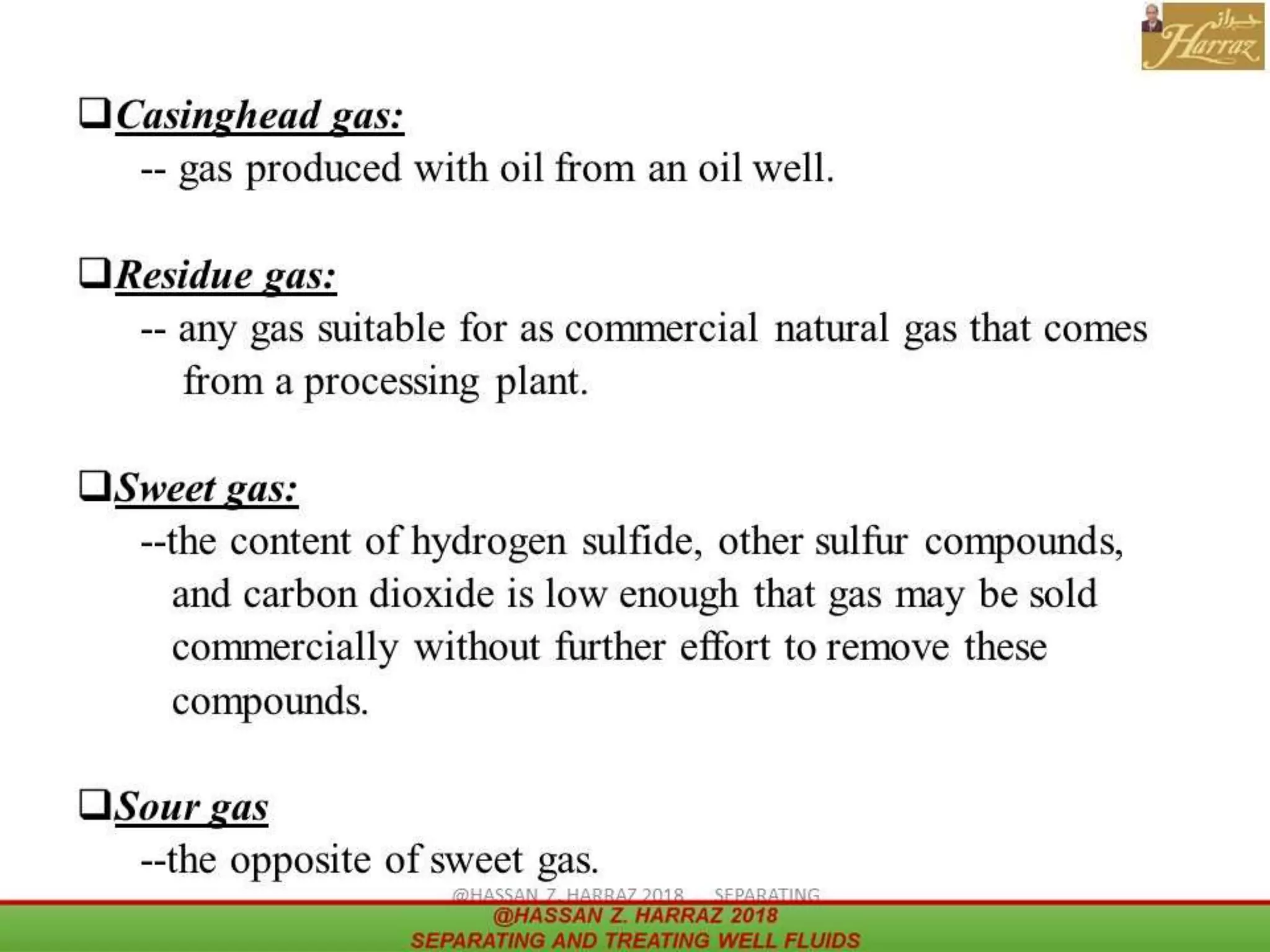

46. Casinghead gas:
Residue gas:
Sweet gas:
Sour gas

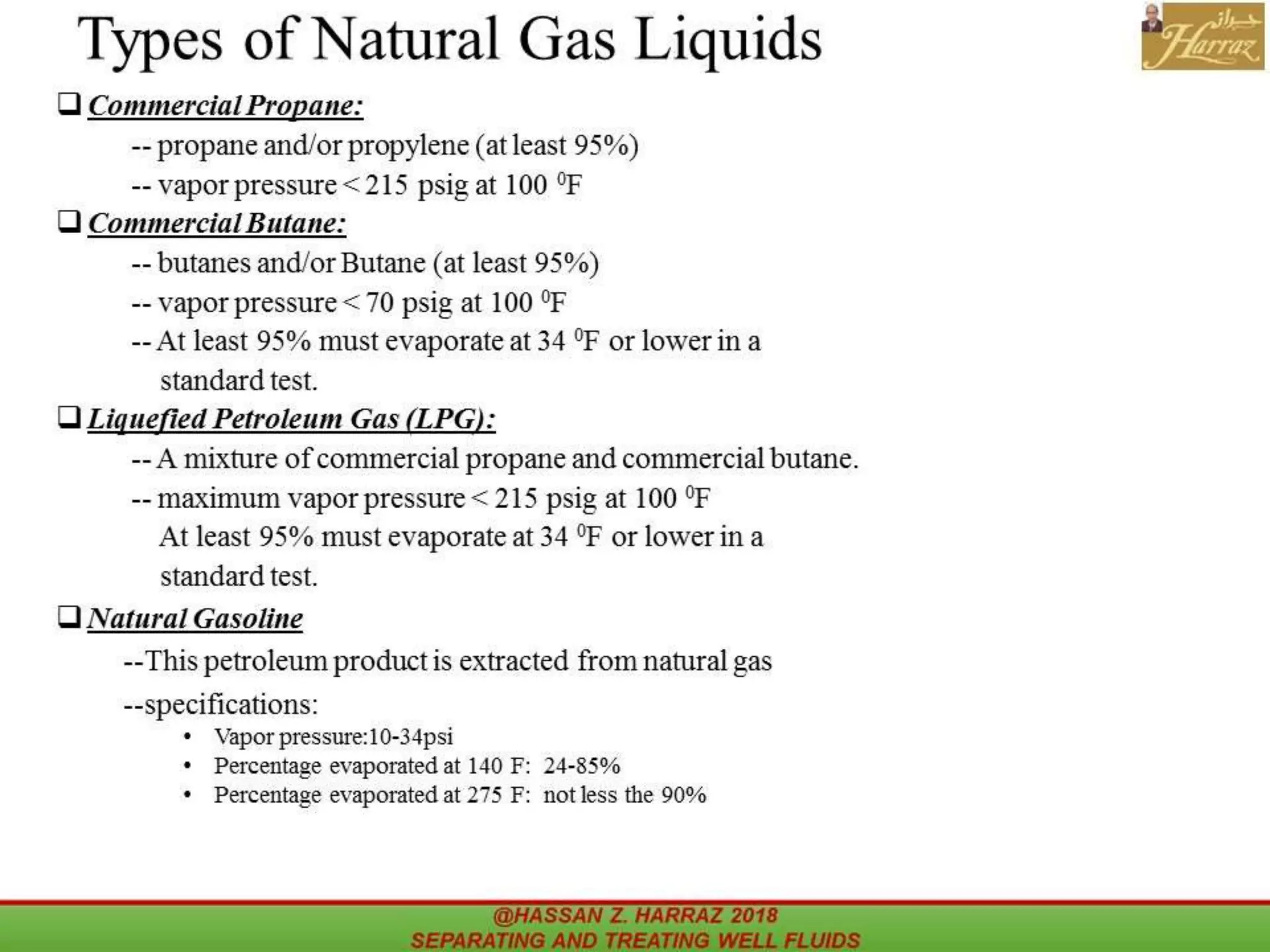

47. Types of Natural Gas Liquids
Commercial Propane:
Commercial Butane:
Liquefied Petroleum Gas (LPG):
Natural Gasoline

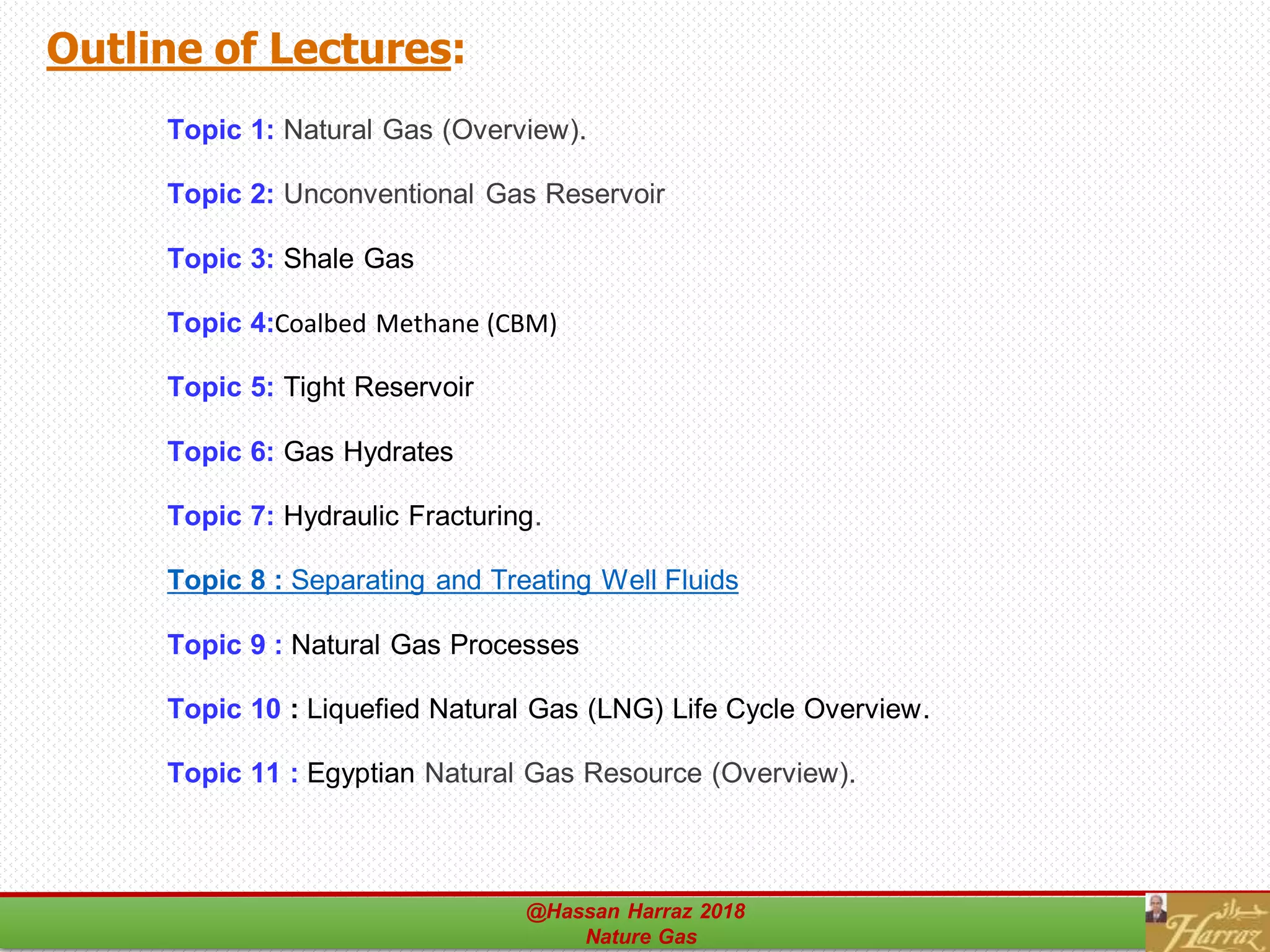

48. Outline of Lectures:
Topic 1: Natural Gas (Overview).
Topic 2: Unconventional Gas Reservoir
Topic 3: Shale Gas
Topic 4:Coalbed Methane (CBM)
Topic 5: Tight Reservoir
Topic 6: Gas Hydrates
Topic 7: Hydraulic Fracturing.
Topic 8 : Separating and Treating Well Fluids
Topic 9 : Natural Gas Processes
Topic 10 : Liquefied Natural Gas (LNG) Life Cycle Overview.
Topic 11 : Egyptian Natural Gas Resource (Overview).
@Hassan Harraz 2018
Nature Gas
48
