1. 10.3 Hyperbola.notebook December 01, 2010

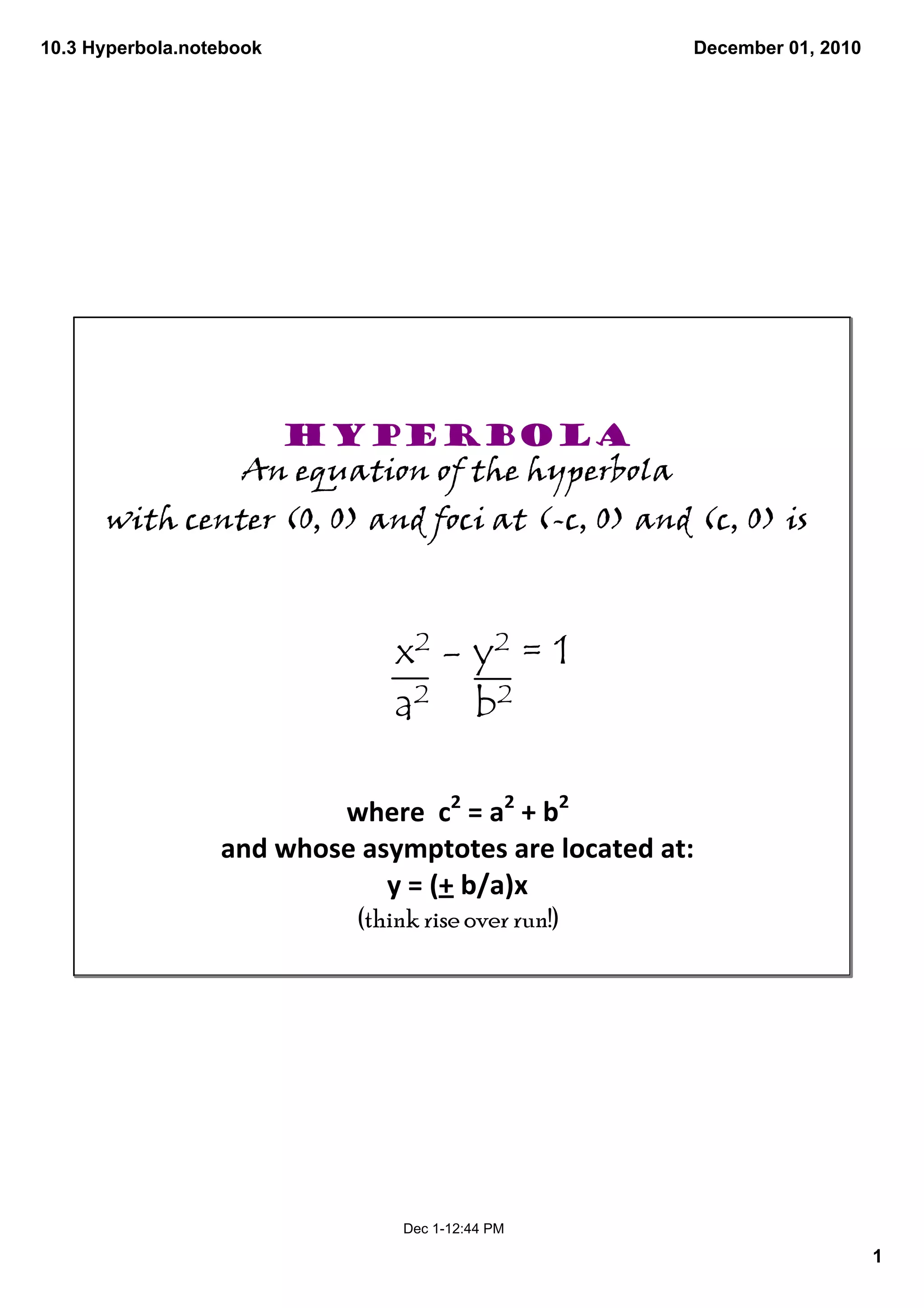

hyperbola
An equation of the hyperbola
with center (0, 0) and foci at (-c, 0) and (c, 0) is
x2 - y2 = 1
a2 b2
where c2 = a2 + b2
and whose asymptotes are located at:
y = (+ b/a)x
(think rise over run!)
Dec 1­12:44 PM
1

2. 10.3 Hyperbola.notebook December 01, 2010

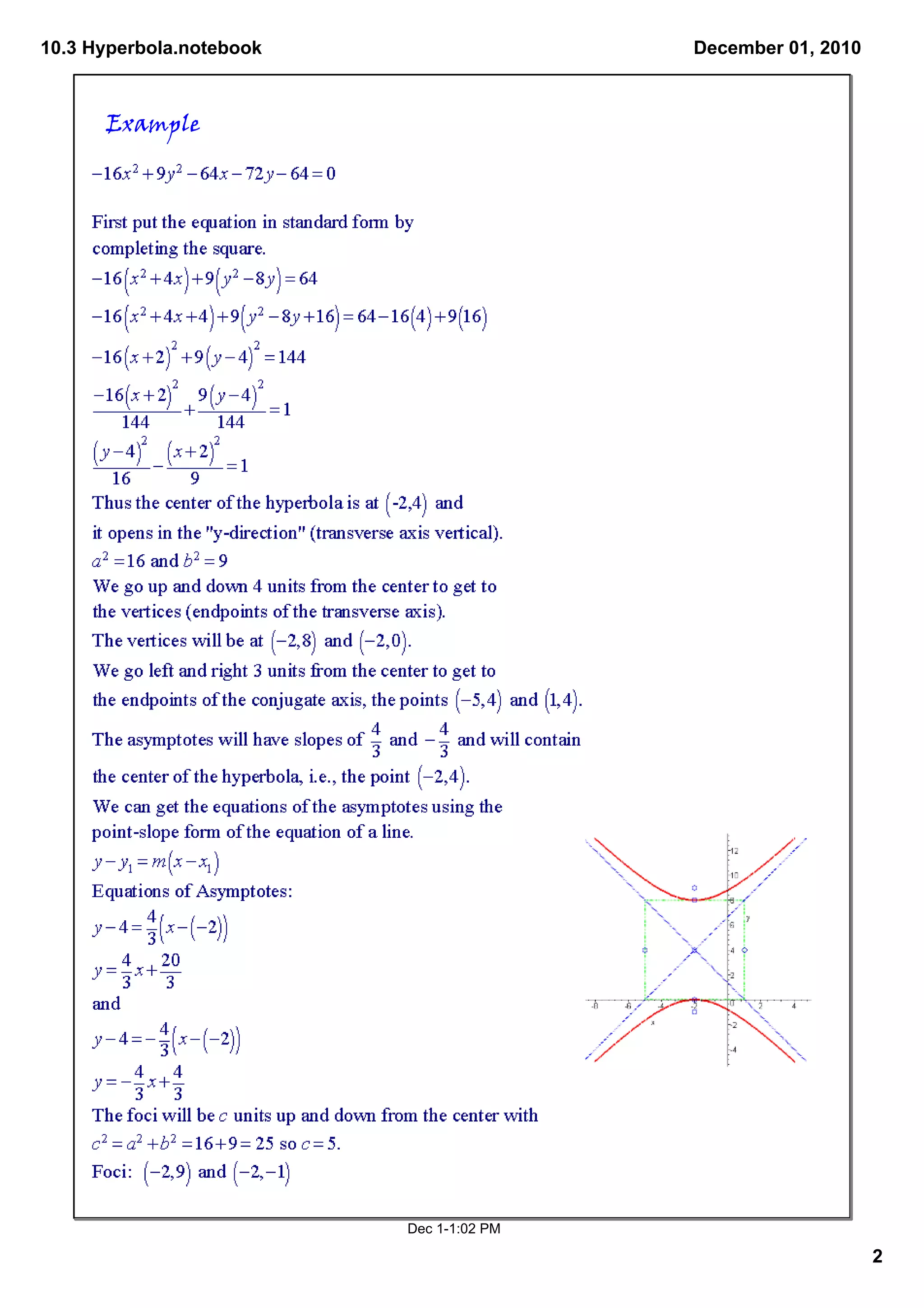

Example
Focus pt
Focus pt
Dec 1­1:02 PM
2

3. 10.3 Hyperbola.notebook December 01, 2010

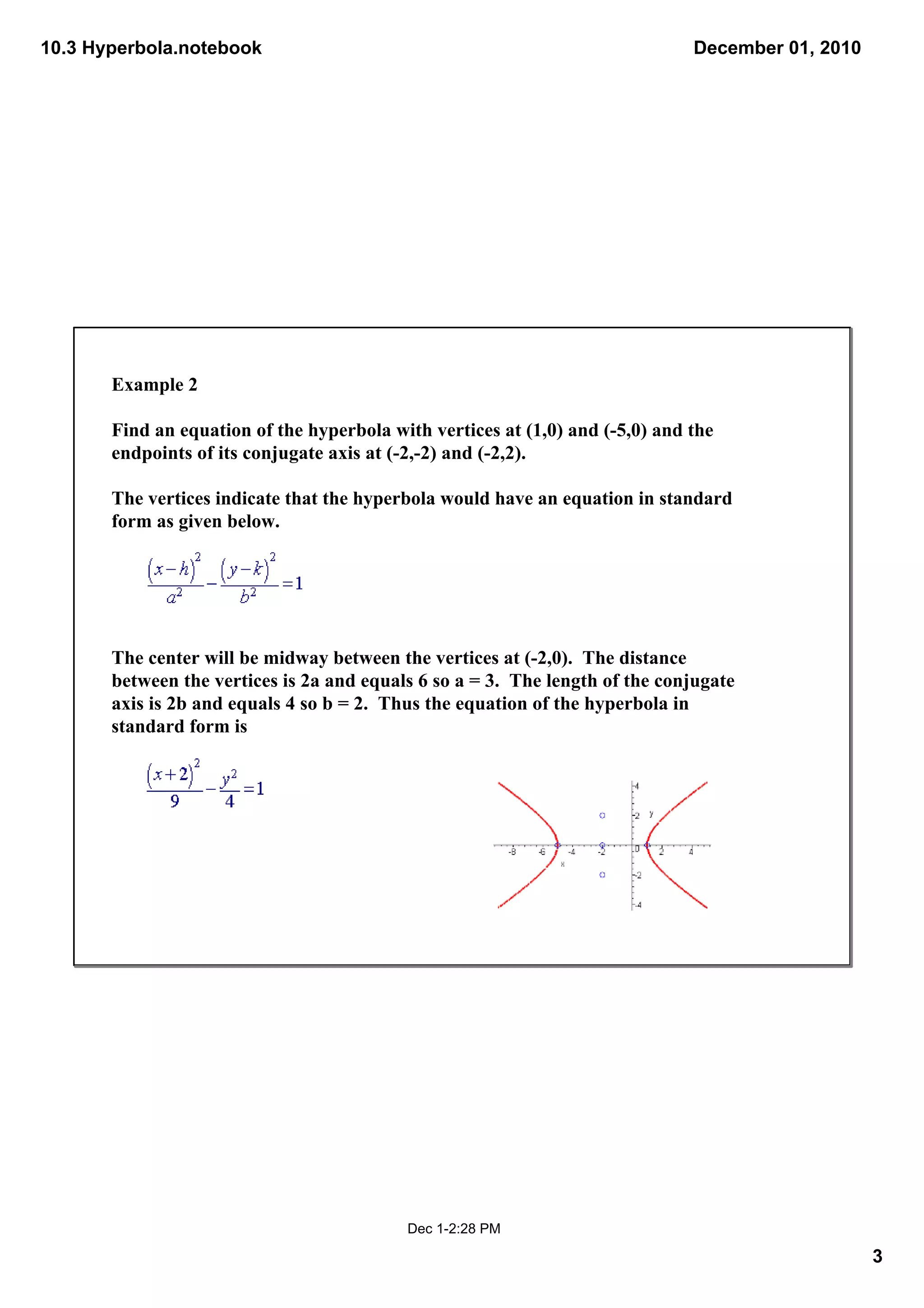

Example 2
Find an equation of the hyperbola with vertices at (1,0) and (­5,0) and the
endpoints of its conjugate axis at (­2,­2) and (­2,2).
The vertices indicate that the hyperbola would have an equation in standard
form as given below.
The center will be midway between the vertices at (­2,0). The distance
between the vertices is 2a and equals 6 so a = 3. The length of the conjugate
axis is 2b and equals 4 so b = 2. Thus the equation of the hyperbola in
standard form is
Dec 1­2:28 PM
3

4. 10.3 Hyperbola.notebook December 01, 2010
Dec 1­2:39 PM
4
