1. The document describes a canvas-based presentation tool that uses Scalable Vector Graphics (SVG) and JavaScript. 2. It was built using libraries like jQuery, jQuery SVG, and jQuery UI to programmatically manipulate SVG elements on the canvas. 3. The tool allows users to insert shapes, text, images onto the canvas and perform operations like rotation, styling and export the final presentation.

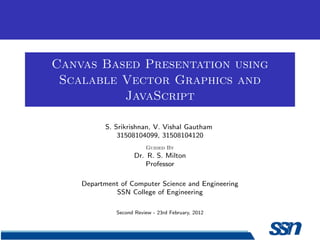

1. Canvas Based Presentation using
Scalable Vector Graphics and
JavaScript
S. Srikrishnan, V. Vishal Gautham
31508104099, 31508104120
Guided By
Dr. R. S. Milton
Professor
Department of Computer Science and Engineering
SSN College of Engineering
Second Review - 23rd February, 2012

2. Outline
1 Recap
2 Using jQuery SVG
3 Architecture
4 Implementation
5 Future enhancements
6 References

3. Recap
Slide based paradigm
Information is organized into slides
Each slide typically consists of a list of bulleted points
Disadvantage
Single pre-set path
Tendency to skip slides – distracts the audience
Edward Tufte’s views
Canvas based paradigm
The material to be presented is laid out in a large canvas
without any page (slide) boundaries
Advantages
Reflects the presenter’s flow of thought process
Emphasis more on the central idea

4. Technological Aspects
Scalable Vector Graphics (SVG)
Animates the presentation elements
Open standard
Supported by modern browsers
JavaScript
Programmatically manipulate the components of the
presentation
W3 Compliant web browser as presentation tool

5. Upto Second Review
Work done till Zeroth review:
Collection of background data
Exploring design possibilities
Work done till First review:
Decision on design technique
Study of various JavaScript libraries
Implementation
Work done till Second review:
Further implementation

6. Using jQuery SVG
Written as a plugin to jQuery library
Lets you interact with an SVG canvas
Advantages
Provides native access to the elements — what we wanted!
Has an extensible architecture — plugins can be added
Suitable for complex implementation
Code can be easily written if SVG elements and their
attributes are known

7. More on jQuery SVG
Main package for drawing primitives: jquery.svg.js
Many extensions also available for jQuery SVG
jquery.svganim.js
jquery.svgfilter.js
jquery.svggraphs.js
Using jQuery plugin is simple
Include the CSS and the Javascript file
Add any extension package needed
Attach a SVG canvas to <div> using its selector
Once loaded, retrieve the SVG instance to use it
Additional parameters may be passed to the initial attachment
call — supports overloading

8. SVG and jQuerySVG
SVG
<rect x="20" y="50" width="100" height="50"
fill="yellow" stroke="navy" stroke-width="5">
<g transform="translate(175 220)>"
jQuery SVG
svg.rect(20, 50, 100, 50,{fill: ’yellow’,
stroke: ’navy’, strokeWidth: 5});
var g = svg.group({transform: ’translate(175 220)’});

9. Building Canscape
The presentation editor is a combination of the following
Graphics Editor: To add shapes, perform operations on it such
as rotate, resize etc.
Text Editor: To add text, perform formatting operations such
as styling, aligning, bulleting, etc.
Animation Editor: To pan and zoom the viewport to focus on
the region of interest

10. Libraries Used
jQuery
jQueryUI
Panzoom
jQuerySVG
jQuery SVG anim
jWYSIWYG
Farbtastic

11. Architecture Diagram

12. Workflow Diagram

13. Implementation
Viewport panning and zooming
Shapes and lines insertion and drag and drop
Adding text by WYSIWYM
Adding color picker to change shapes/text color
Viewport transformation required during presentation
Server side scripting
Adding image to the canvas
Exporting presentation

14. Screenshot - User Interface

15. Screenshot - Element Insertion, Color picker

16. Screenshot - Adding text to canvas

17. Screenshot - Adding image to canvas

18. Screenshot - Adding image to canvas

19. Screenshot - Rotating elements

20. Screenshot - Presentation Paths

21. Screenshot - Exporting presentation

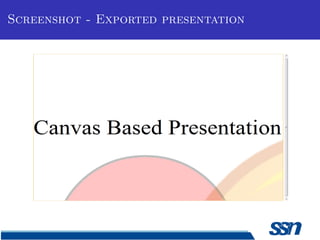

22. Screenshot - Exported presentation

23. Future enhancements
Text popups on images
Grouping of elements
Inserting graphs and charts
Inserting tables
Export as PDF

24. References
[1] Edward R. Tufte, The Visual Display of Quantitative
Information, Second Edition, Graphics Press LLC, 2001.
[2] W3C Recommendations, Scalable Vector Graphics (SVG) 1.1
(Second Edition), http://www.w3.org/TR/SVG/
[3] Raphael.js, a cross-browser JavaScript library for drawing vector
graphics, http://www.raphaeljs.com
[4] Apache Batik, Java classes for manipulating SVG,
http://xmlgraphics.apache.org/batik/javadoc/
[5] Prezi, a cloud based SaaS presentation software,
http://www.prezi.com

25. References
[6] jQuery, a JavaScript library to simplify scripting in HTML,
http://www.jquery.com/
[7] jQuery UI, a jQuery user interface library,
http://www.jqueryui.com/
[8] jQuery SVG, a jQuery plugin to interact with SVG,
http://keithwood.name/svg.html
[9] Farbtastic, a jQuery plugin for color picker,
http://acko.net/blog/farbtasticjquery-color-picker-plug-in/
[10] jWysiwyg, a jQuery plugin for inline content editor,
http://akzhan.github.com/jwysiwyg/
