This document provides an overview of a tutorial on building reproducible network data visualization workflows using Cytoscape and IPython Notebook. The tutorial will cover integrating data, analyzing networks, visualizing results, and preparing outputs for publication. It will demonstrate setting up a portable data analysis environment using Docker and sharing work through GitHub. The bulk of the tutorial will focus on using IPython Notebook as an electronic lab notebook for interactive and reproducible experiments with Cytoscape.

1. SDCSB Advanced
Cytoscape Tutorial
4/17/2015 @Sanford
Keiichiro Ono
UCSD Trey Ideker Lab
Cytoscape Core Team
Building Reproducible Network
Data Visualization Workflows with
Cytoscape and IPython Notebook

2. Thanks for Attending!
You are about to learn modern tools boosting your productivity!
REST

3. Keiichiro Ono

4. Keiic
Work
Research
Bioinformatics workflow
Visualization pipeline
Data
Visualization
Networks
Other Biological Data
Integration
Molecular Interactions
Pathways
Annotations
Software Development
Cytoscape
NeXO
Cyberinfrastructure
All kinds of small tools

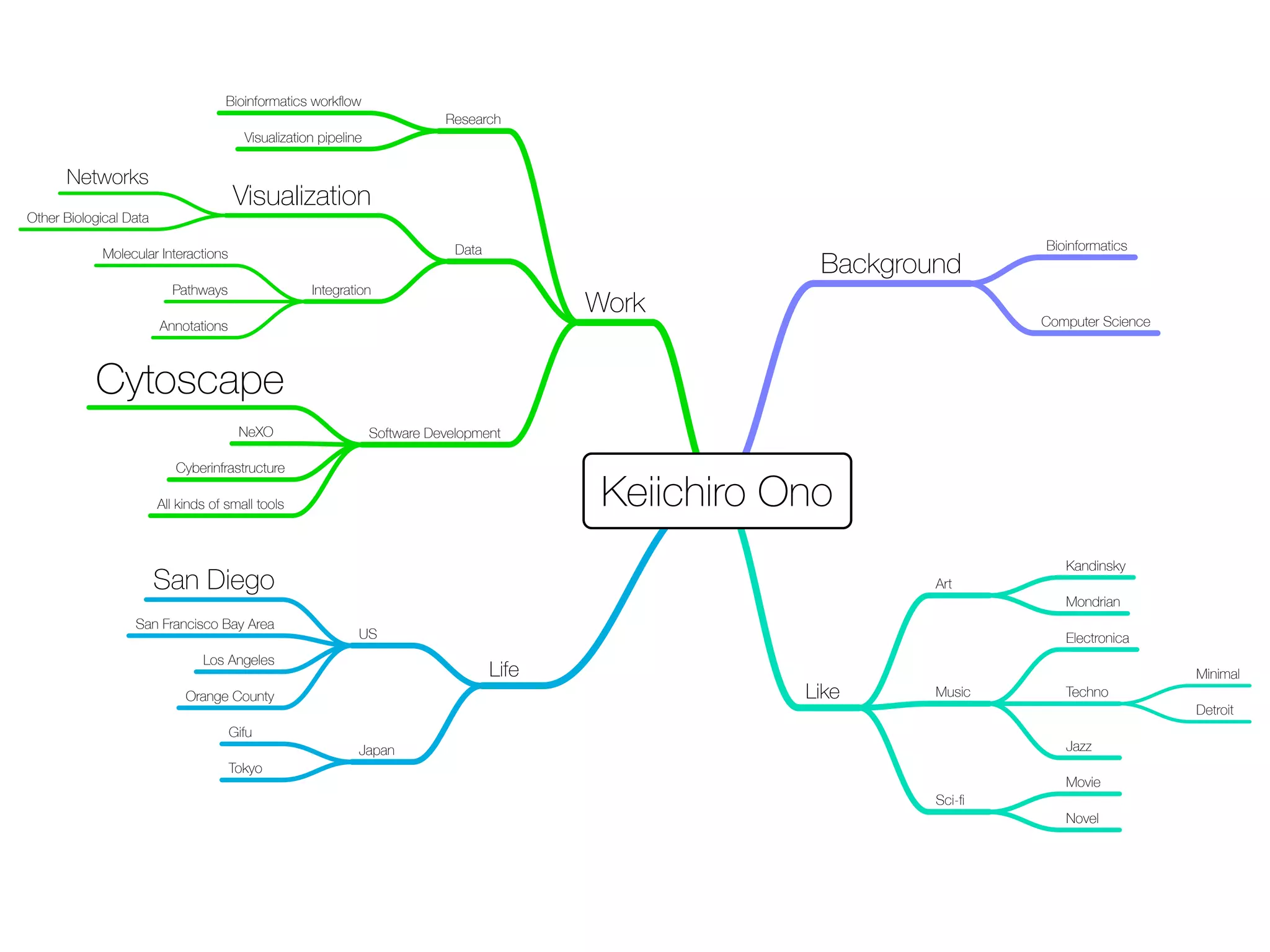

5. Keiichiro Ono
Background
Bioinformatics
Computer Science
Work
Research
Bioinformatics workflow
Visualization pipeline
Data
Visualization
Networks
Other Biological Data
Integration
Molecular Interactions
Pathways
Annotations
Software Development
Cytoscape
NeXO
Cyberinfrastructure
All kinds of small tools
Like
Art
Kandinsky
Mondrian
Music
Electronica
Techno
Minimal
Detroit
Jazz
Sci-fi
Movie
Novel
Life
US
San Diego
San Francisco Bay Area
Los Angeles
Orange County
Japan
Gifu
Tokyo

6. Computer Science Biology

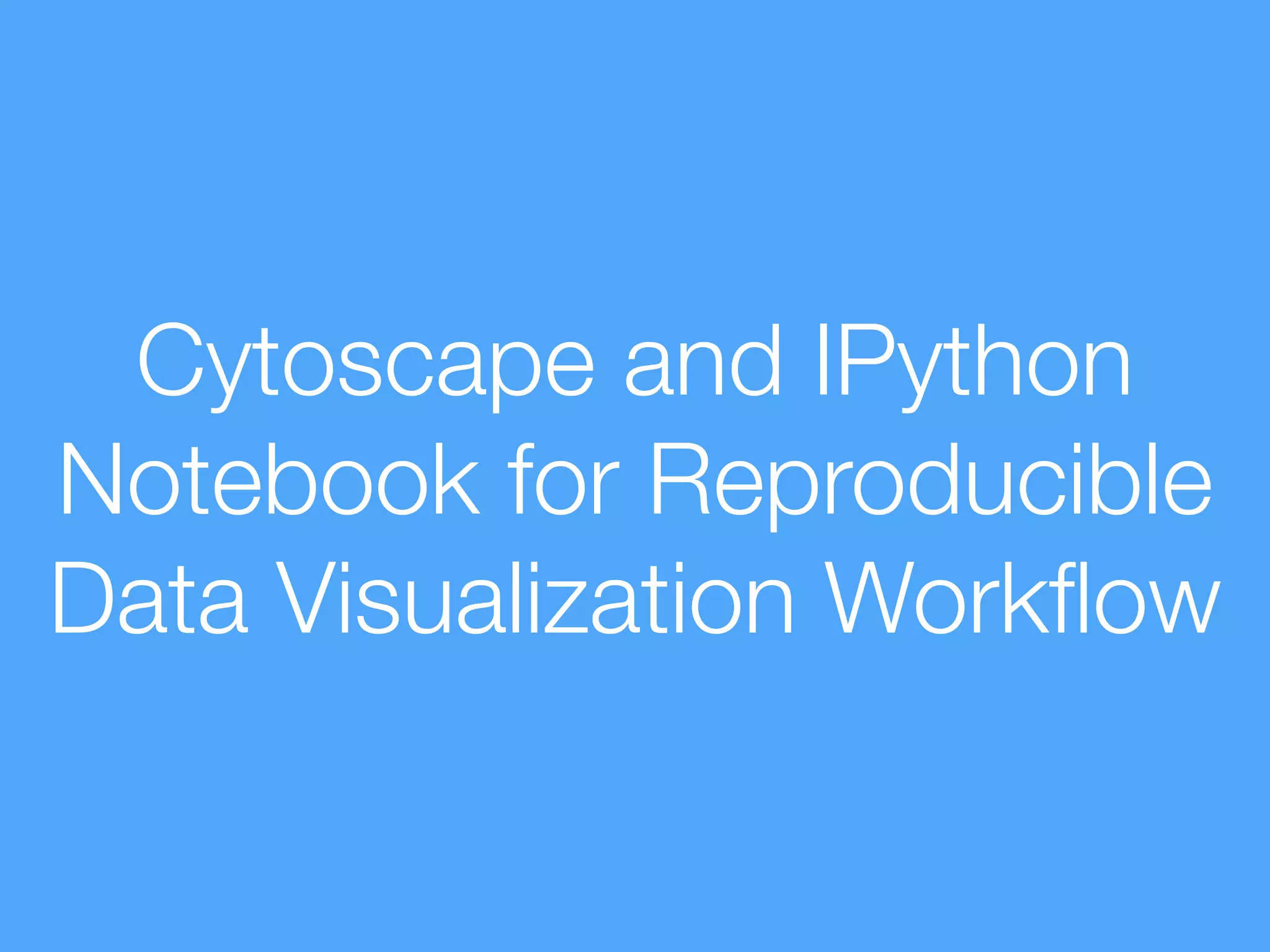

7. Cytoscape and IPython
Notebook for Reproducible
Data Visualization Workflow

8. Review:
Basic Data Visualization
Workflow with Cytoscape

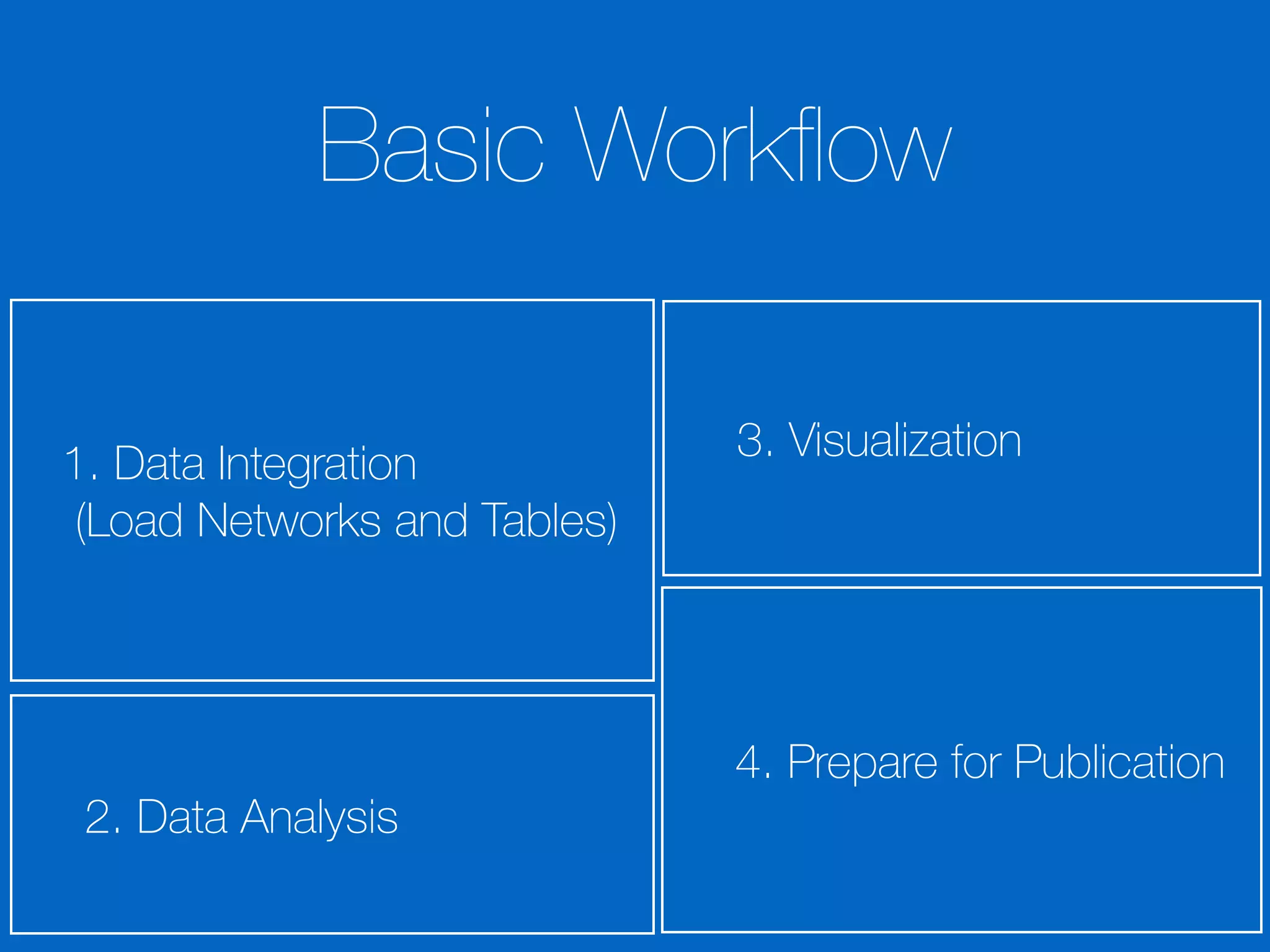

9. 1. Data Integration
(Load Networks and Tables)
2. Data Analysis
3. Visualization
Basic Workflow
4. Prepare for Publication

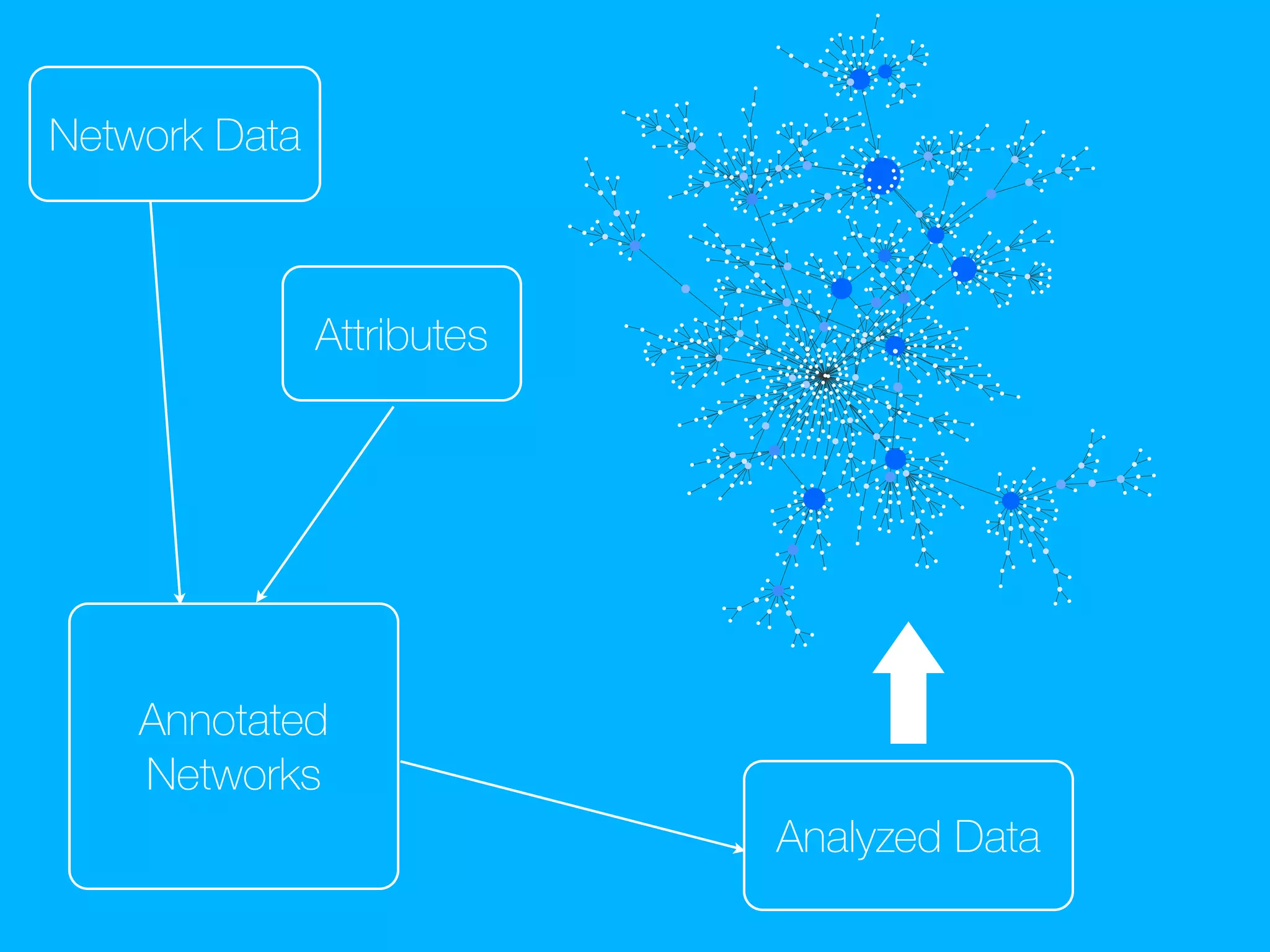

10. Network Data
Annotated
Networks
Attributes
Analyzed Data

11. Cline, Melissa S., et al. "Integration of
biological networks and gene expression
data using Cytoscape." Nature protocols
2.10 (2007): 2366-2382.

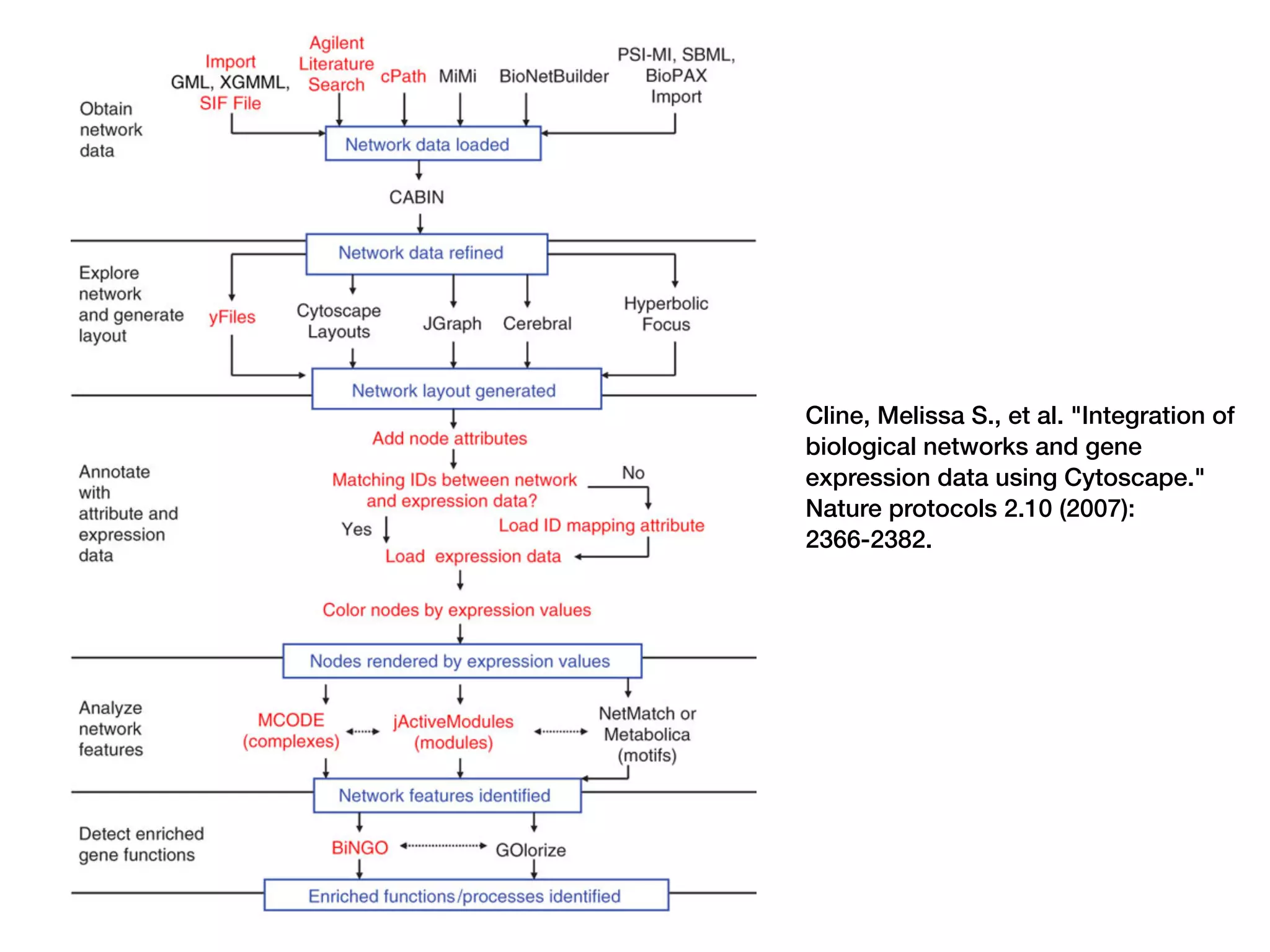

12. Cline, Melissa S., et al. "Integration of
biological networks and gene
expression data using Cytoscape."
Nature protocols 2.10 (2007):
2366-2382.

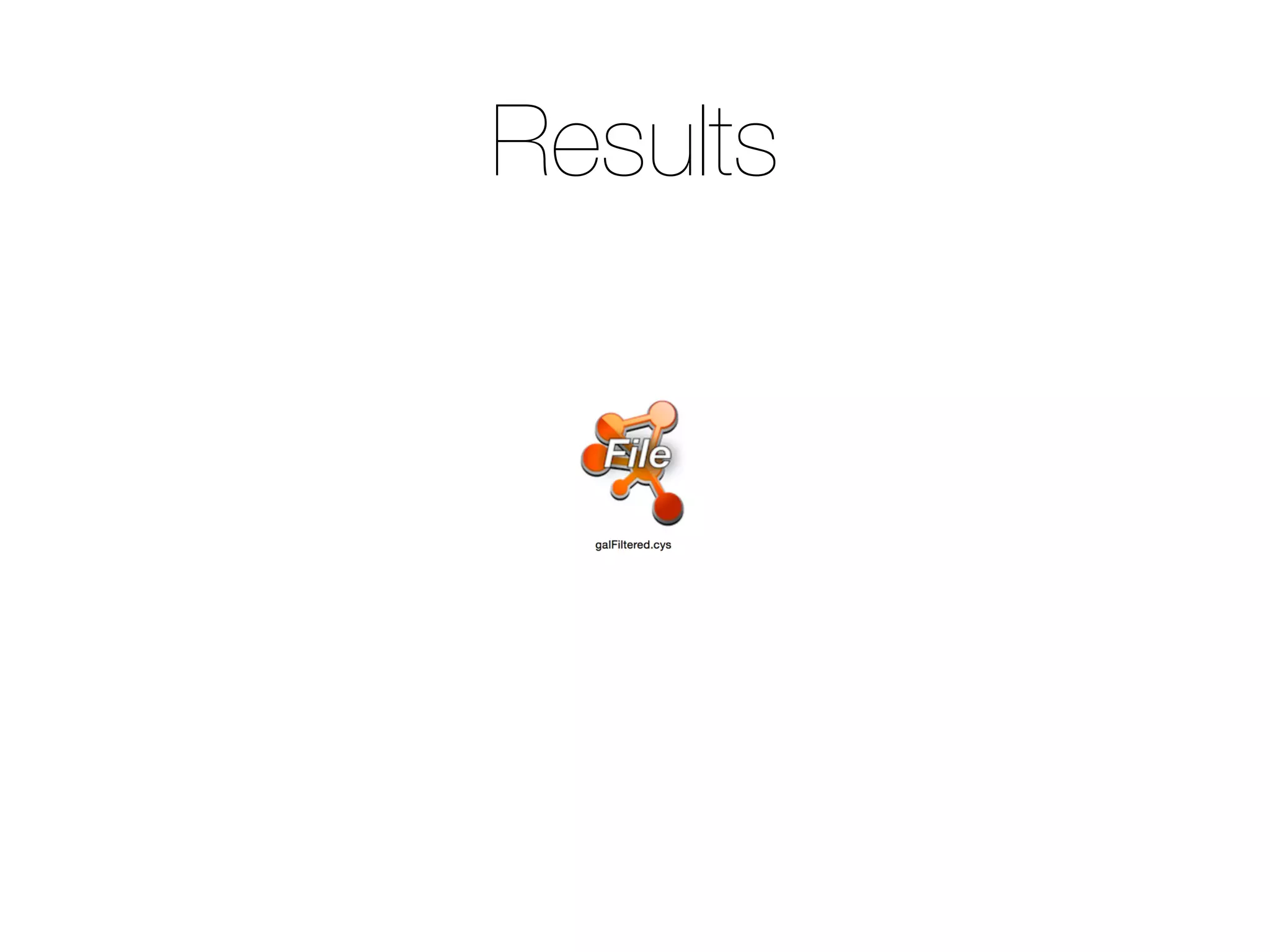

13. Results

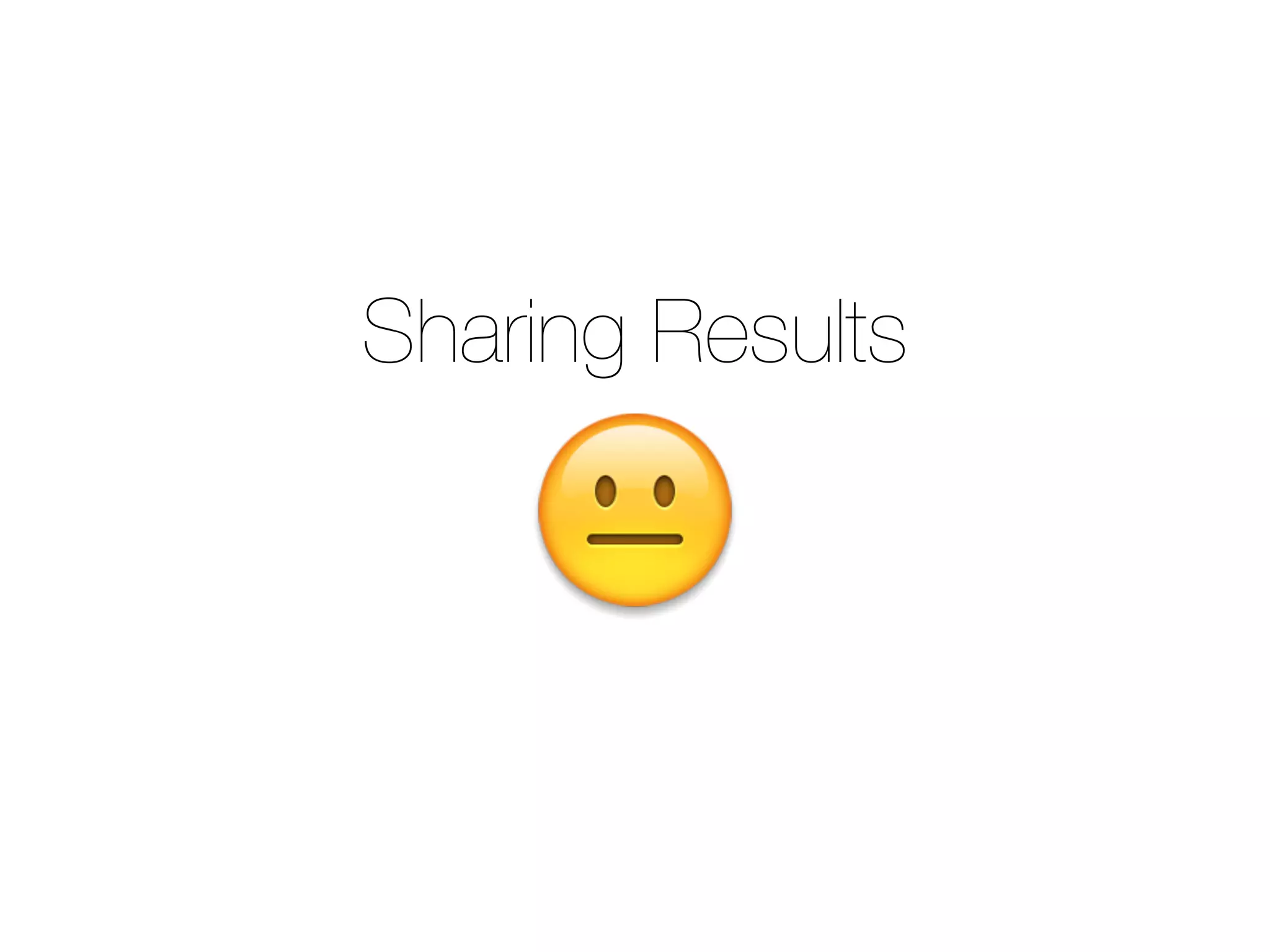

14. Sharing Results
😐

15. Sharing Results and Process
😃

16. Point & Click
Operation is Easy, but
not Reproducible…

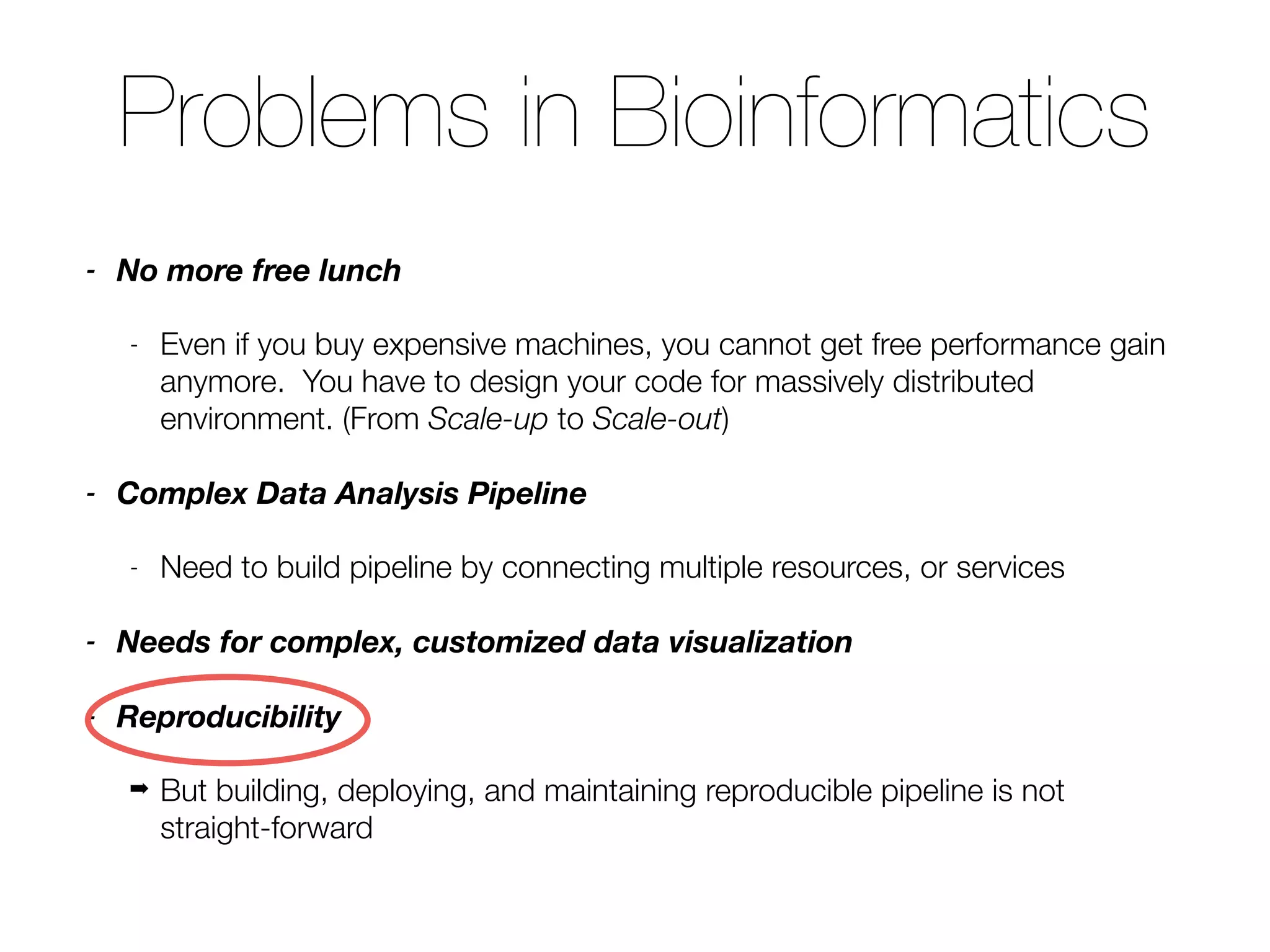

17. Problems in Bioinformatics
- No more free lunch
- Even if you buy expensive machines, you cannot get free performance gain
anymore. You have to design your code for massively distributed
environment. (From Scale-up to Scale-out)
- Complex Data Analysis Pipeline
- Need to build pipeline by connecting multiple resources, or services
- Needs for complex, customized data visualization
- Reproducibility
➡ But building, deploying, and maintaining reproducible pipeline is not
straight-forward

18. Goal:
Reproducible Science

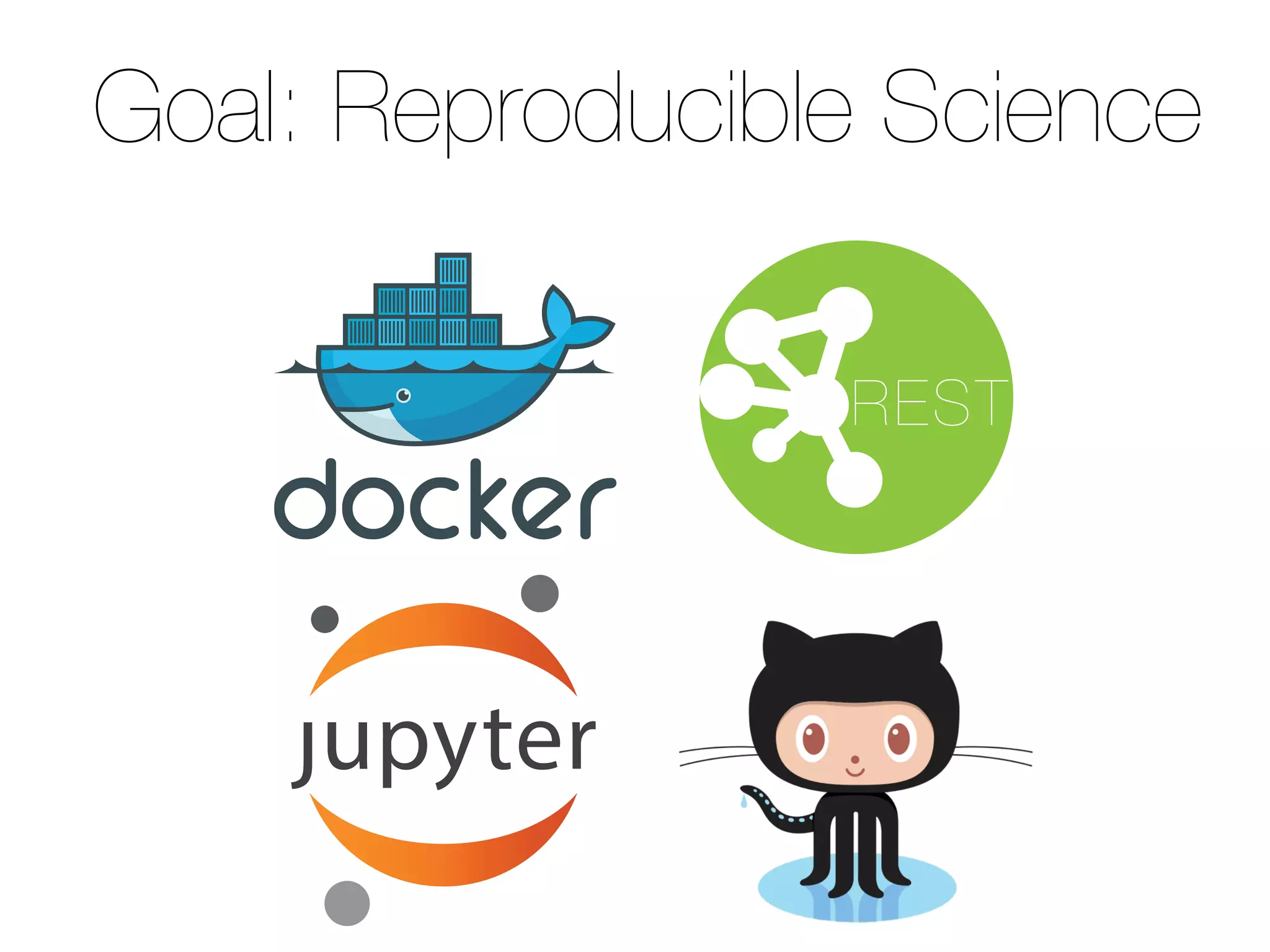

19. Goal: Reproducible Science
REST

20. Tools You Need

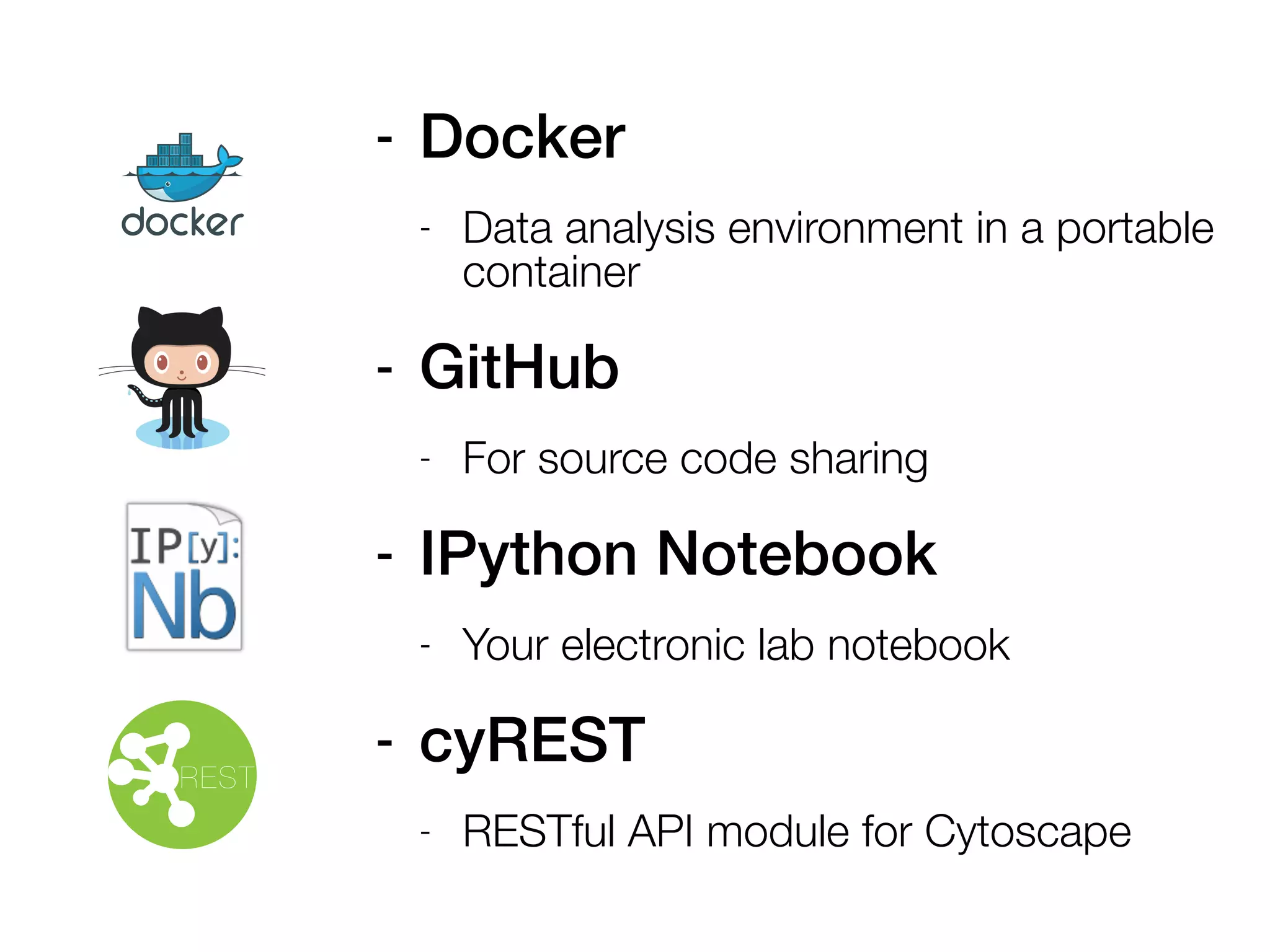

21. REST
- Docker
- Data analysis environment in a portable
container
- GitHub
- For source code sharing
- IPython Notebook
- Your electronic lab notebook
- cyREST
- RESTful API module for Cytoscape

23. Why ?

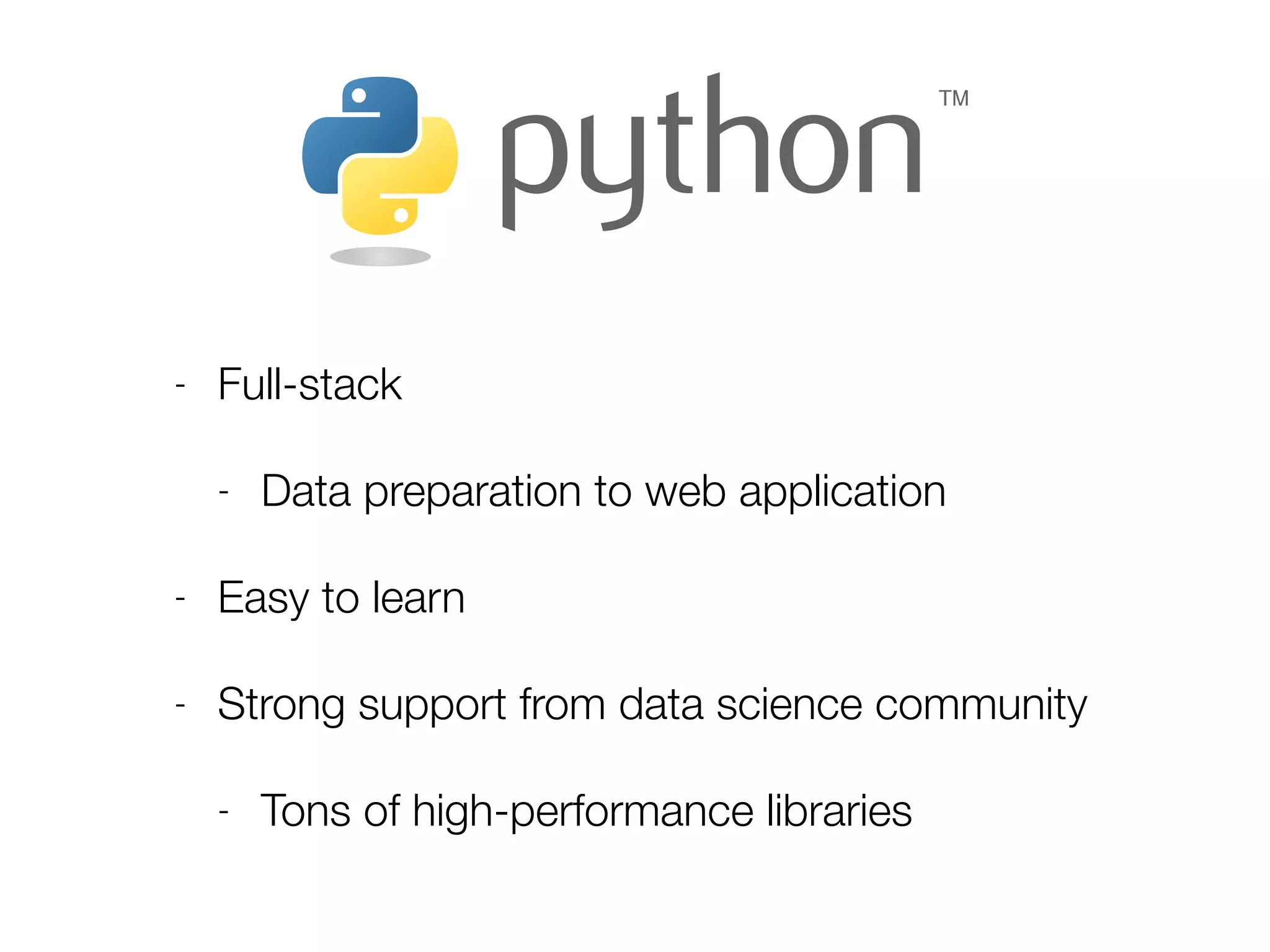

24. - Full-stack
- Data preparation to web application
- Easy to learn
- Strong support from data science community
- Tons of high-performance libraries

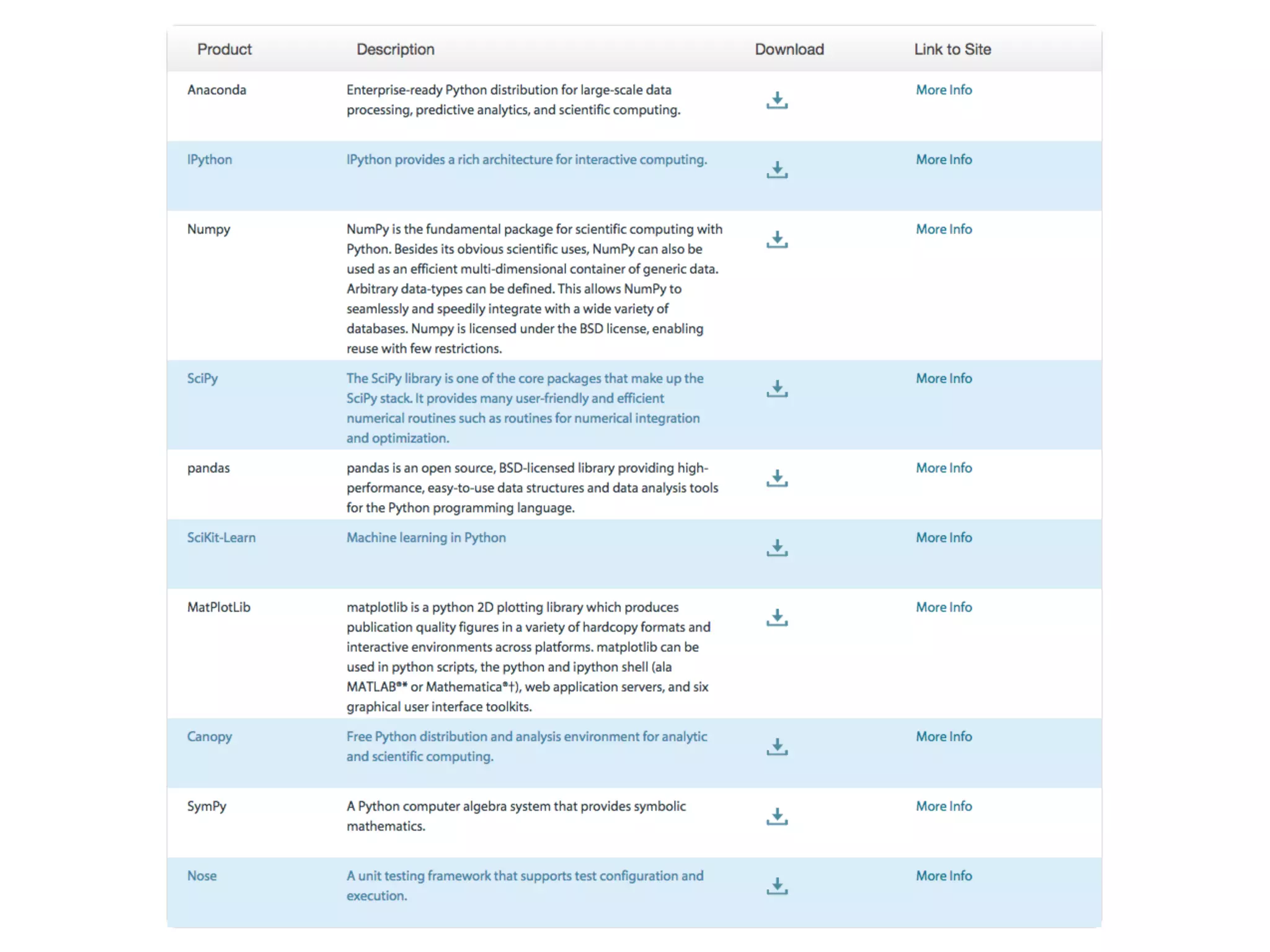

25. A community for developers and users of Python data tools
pydata.org

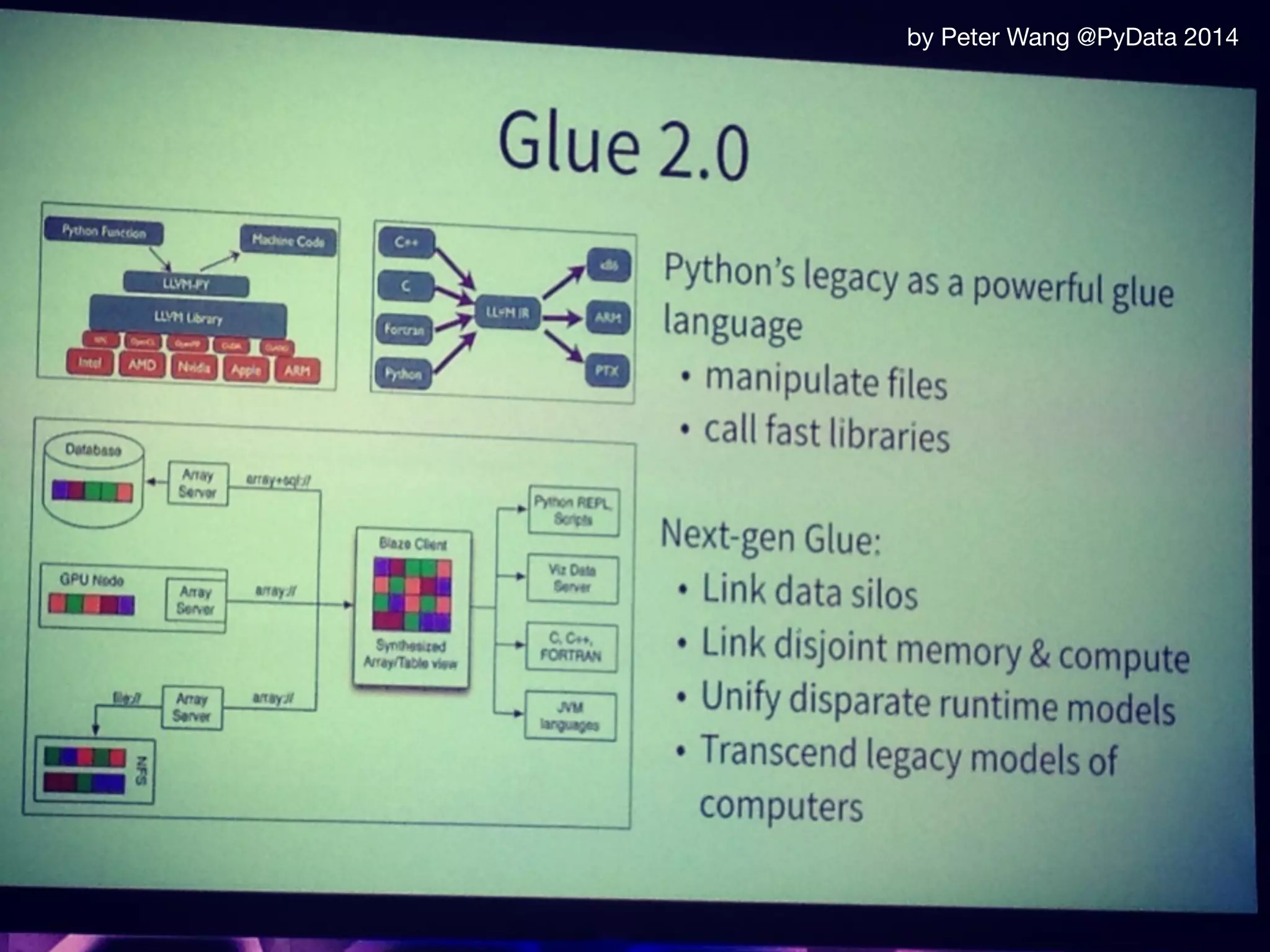

26. by Peter Wang @PyData 2014

28. But most of the tools are language-agnostic!

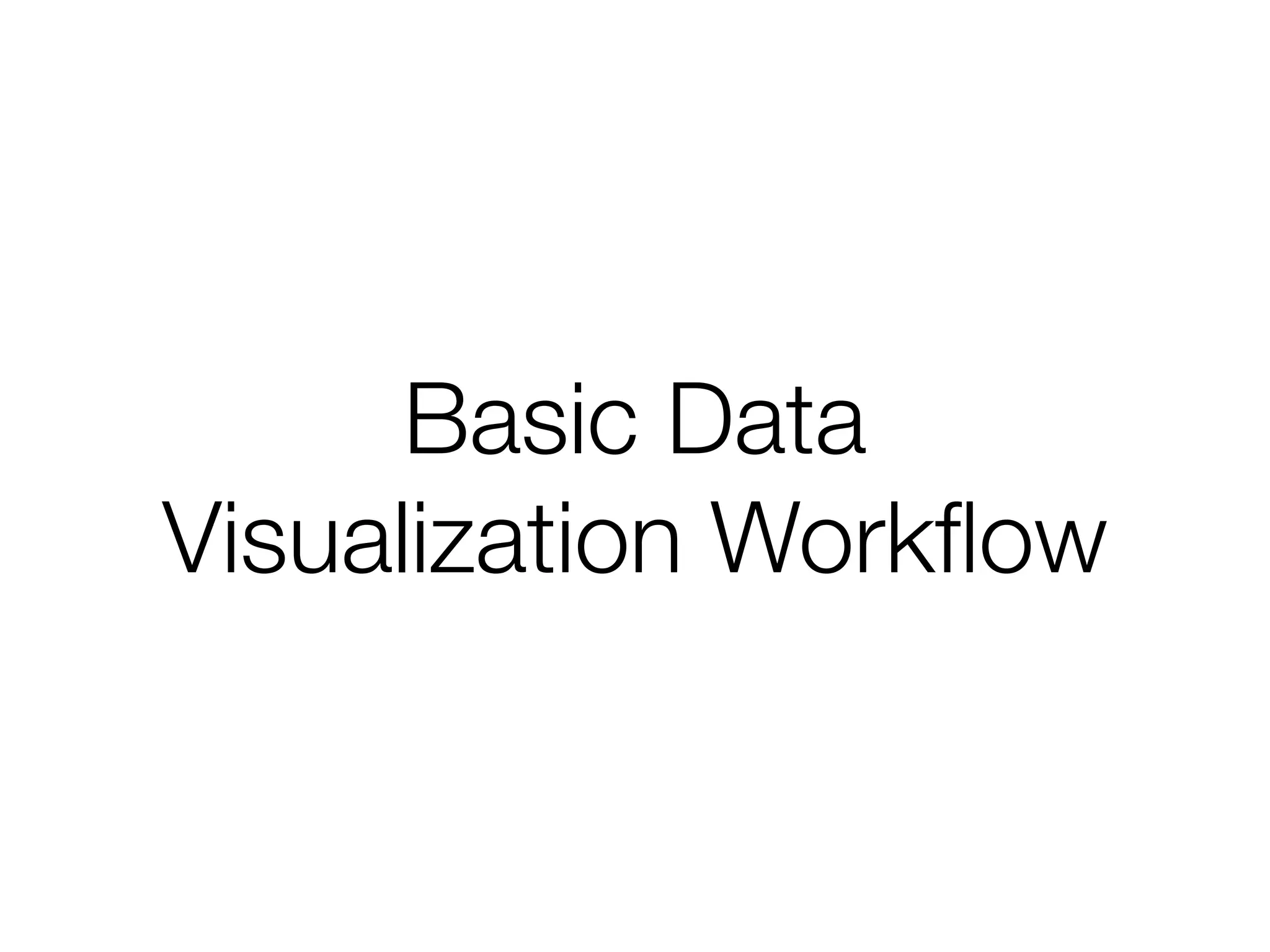

29. Basic Data
Visualization Workflow

30. Data
Preparation
Analysis Visualization

31. Data Preparation

32. Data
Preparation
- Cleansing
- Normalization
- Missing values
- Corrupted values
- Reformat
- Conversion

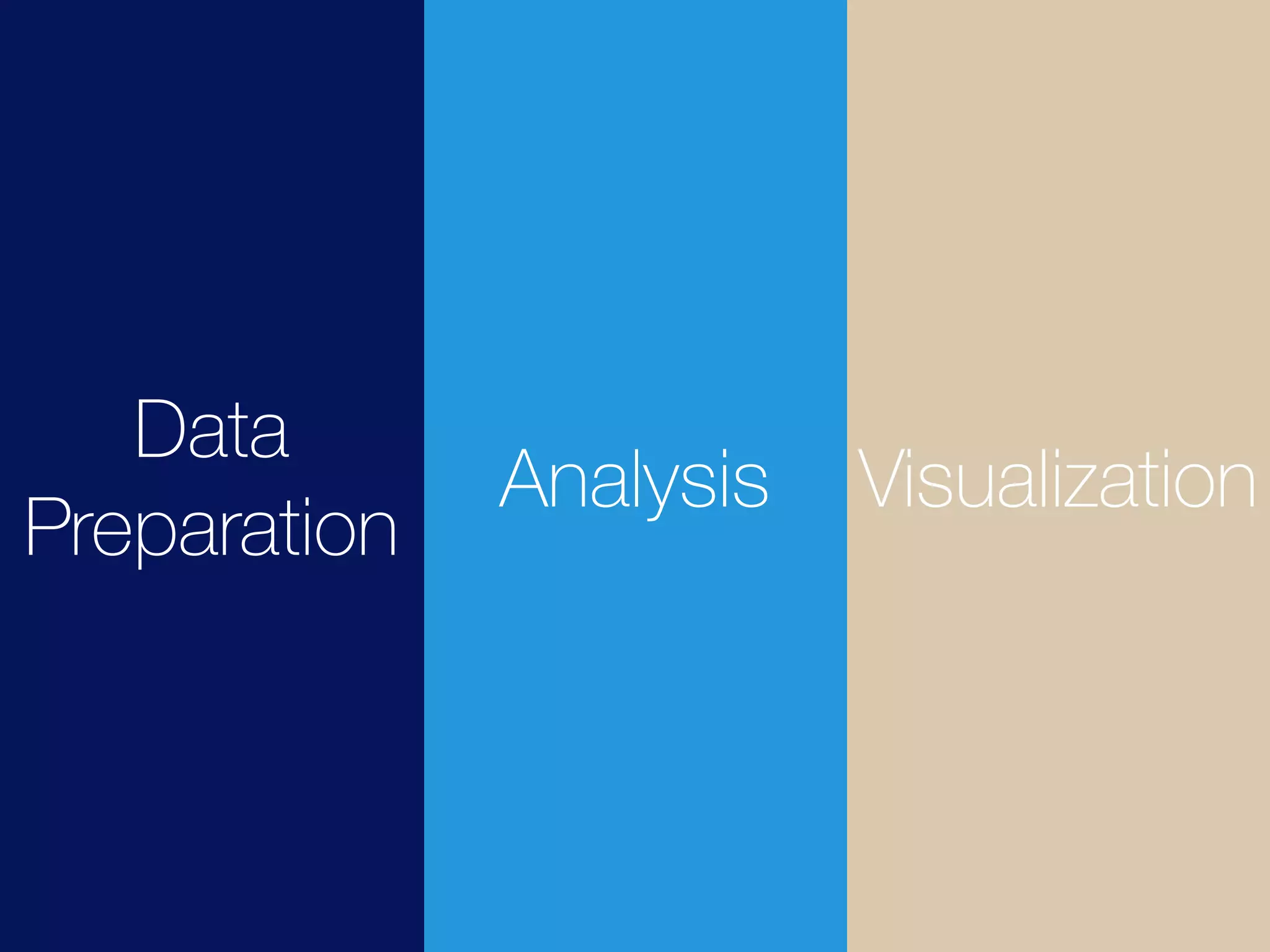

33. Data
Preparation
Analysis Visualization

34. Analysis

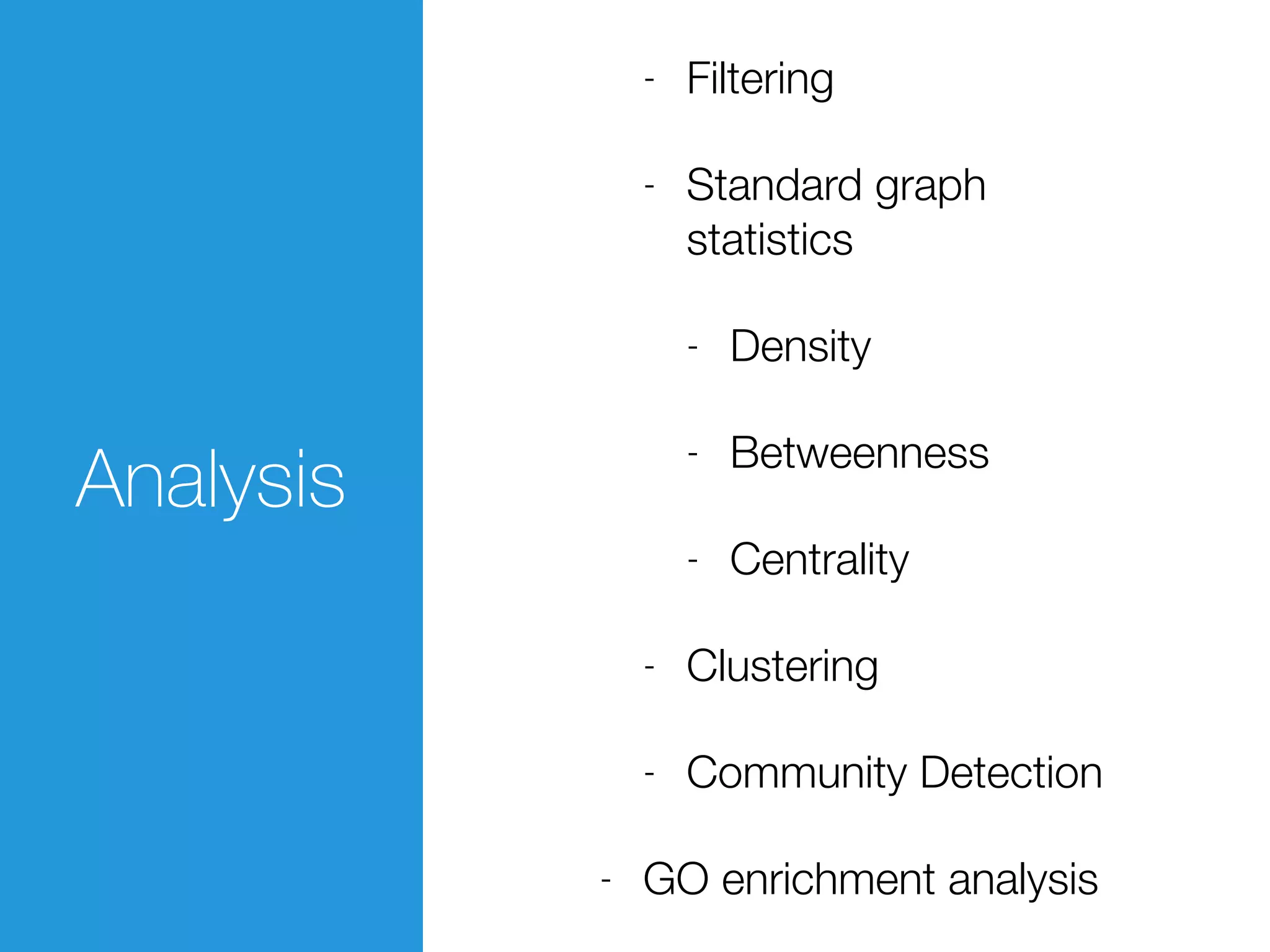

35. Analysis
- Filtering
- Standard graph
statistics
- Density
- Betweenness
- Centrality
- Clustering
- Community Detection
- GO enrichment analysis

36. Data
Preparation
Analysis Visualization

37. Visualization

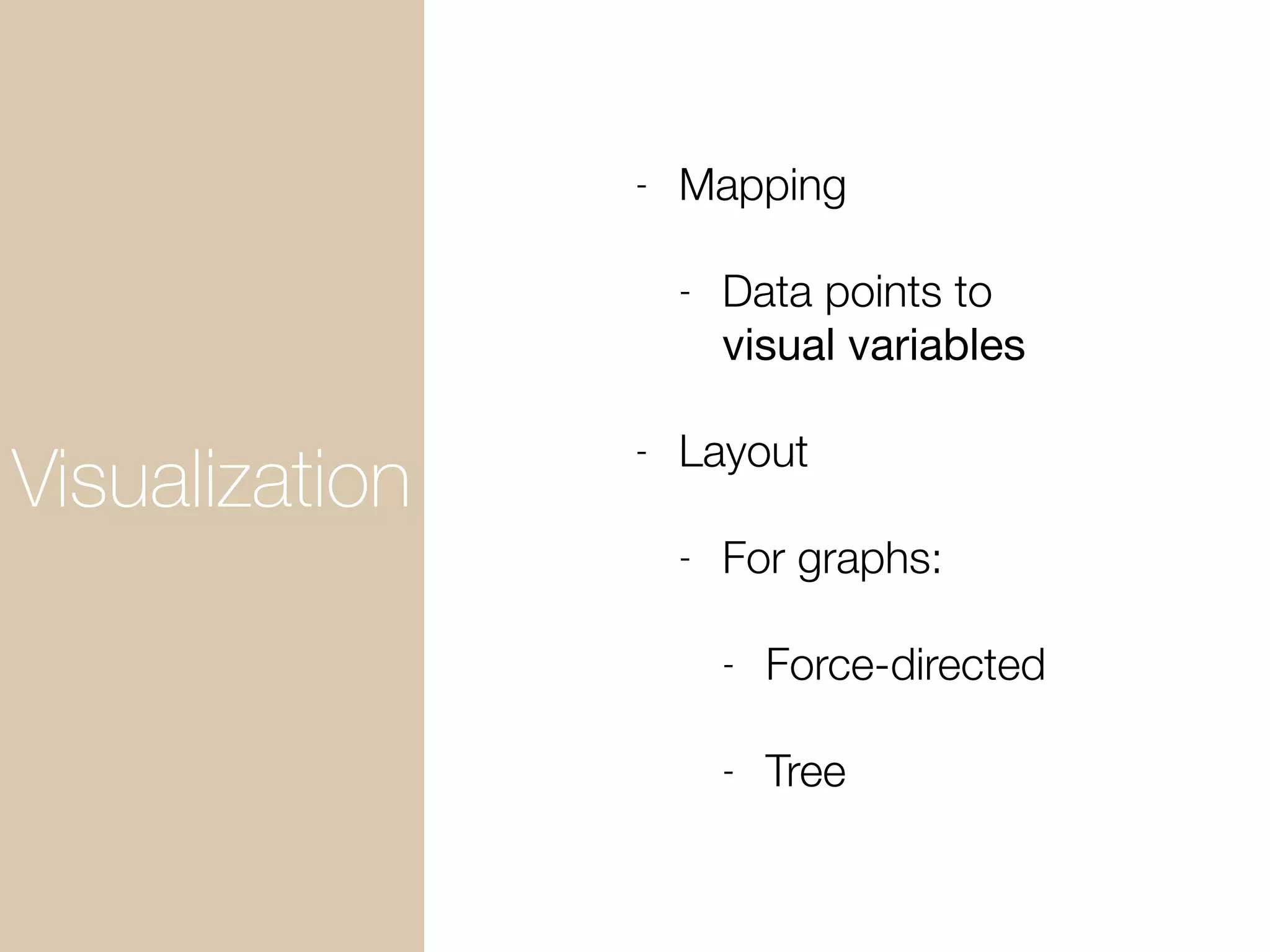

38. Visualization
- Mapping
- Data points to
visual variables
- Layout
- For graphs:
- Force-directed
- Tree

39. Data
Preparation
Analysis Visualization

40. Data
Preparation
Analysis Visualization

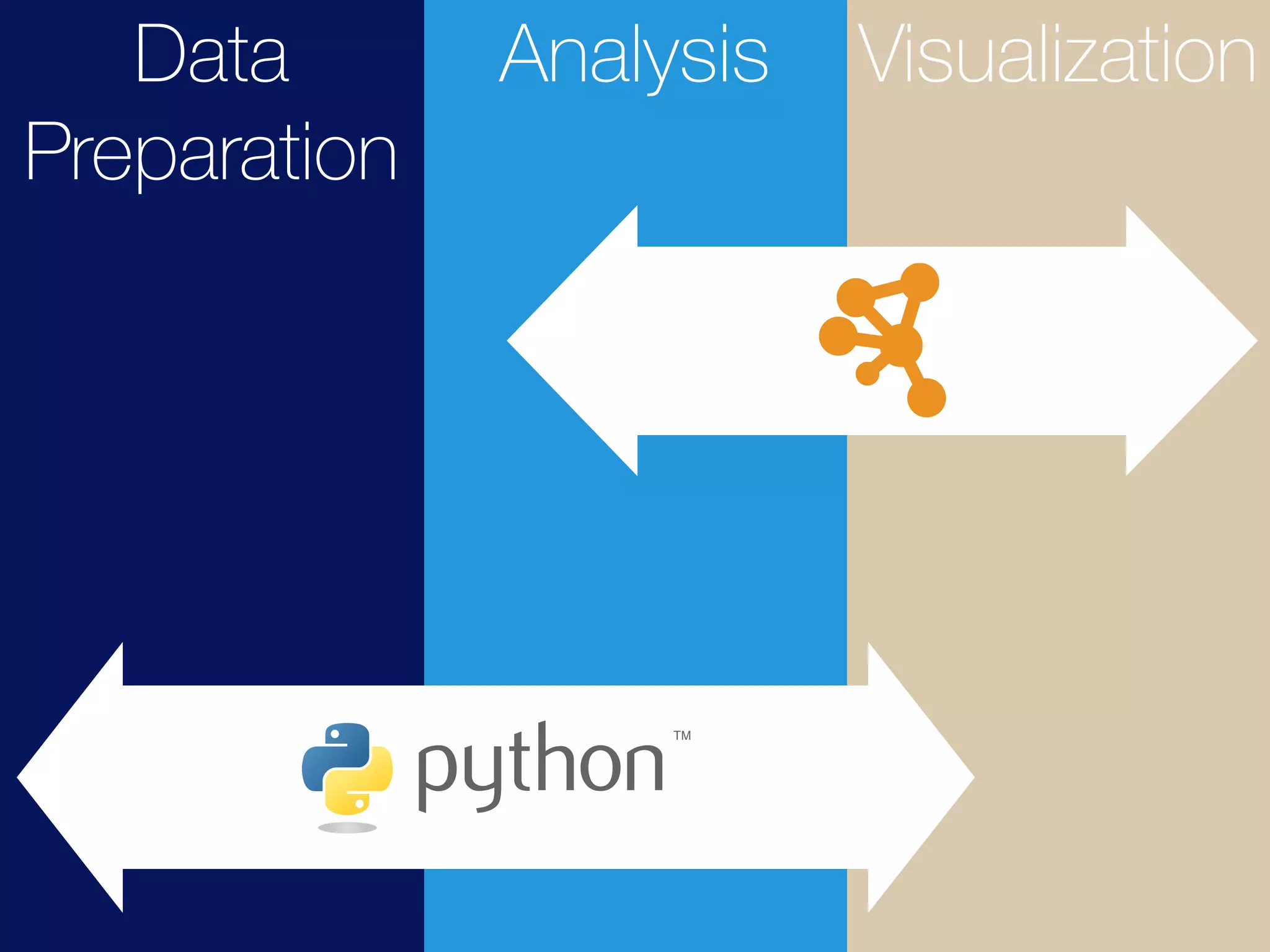

41. Data
Preparation
Analysis Visualization

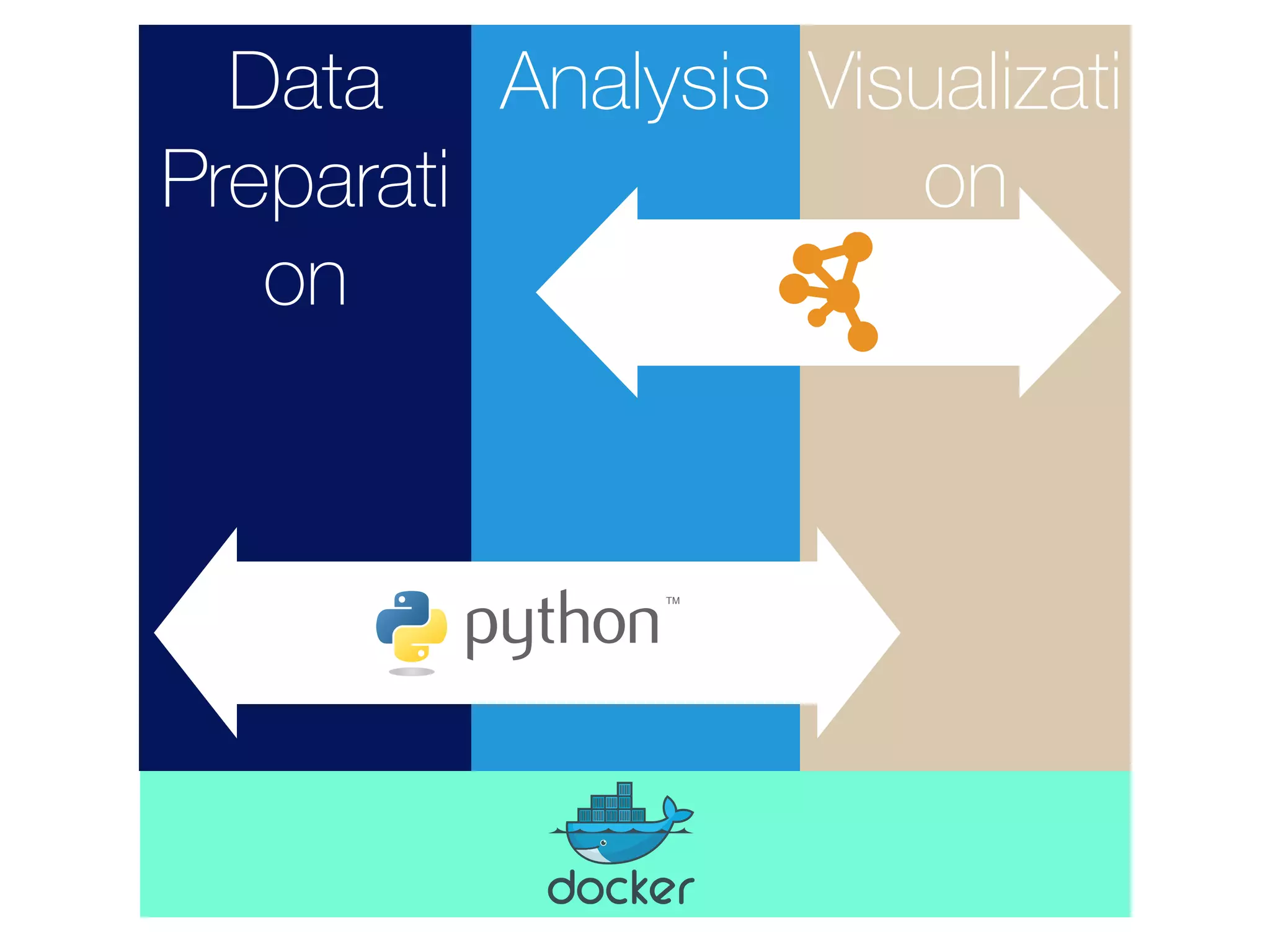

42. Data
Preparati
on
Analysis Visualizati
on

43. REST

44. Git/GitHub For Sharing Code/Notebooks

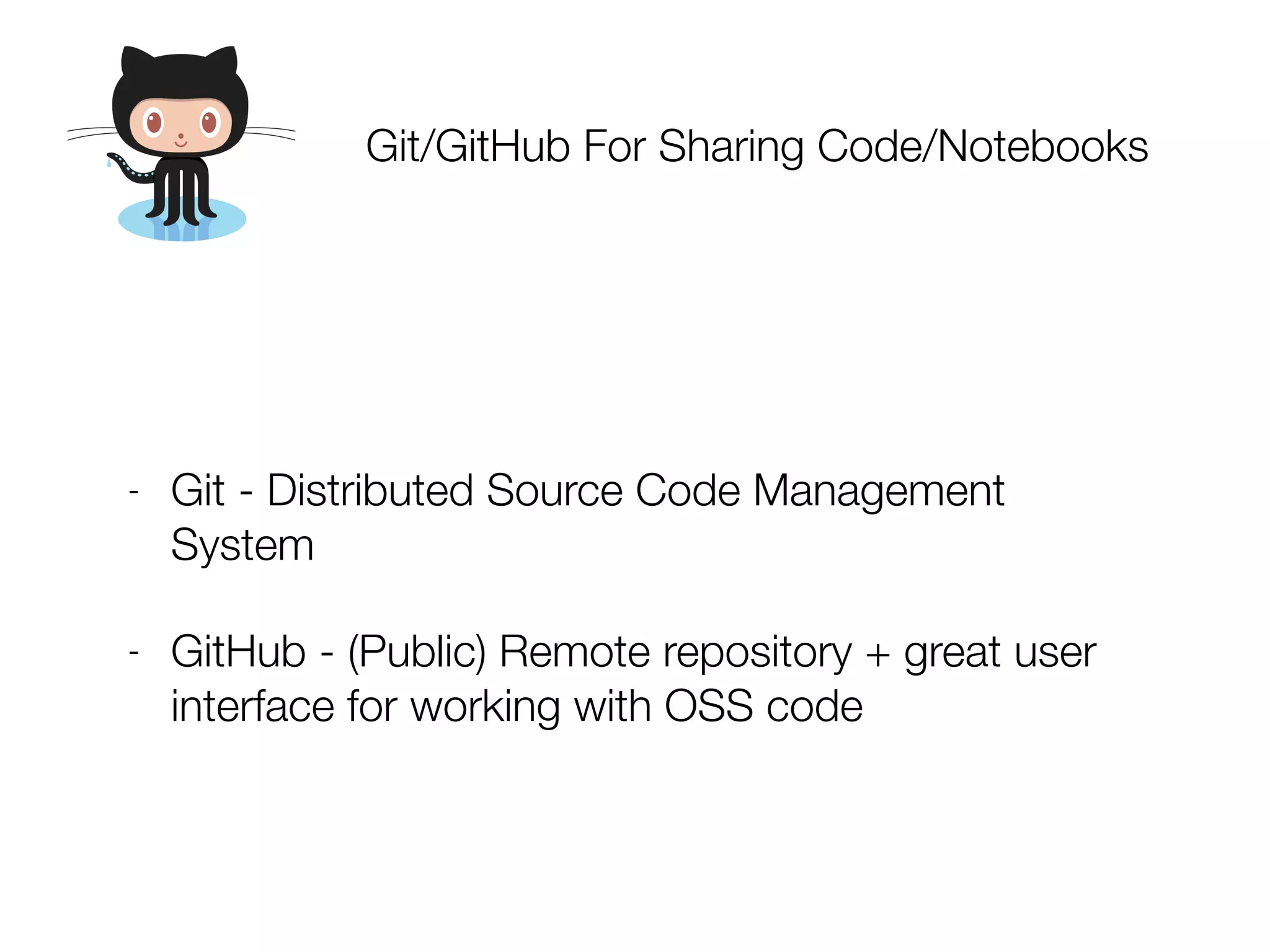

45. Git/GitHub For Sharing Code/Notebooks
- Git - Distributed Source Code Management
System
- GitHub - (Public) Remote repository + great user
interface for working with OSS code

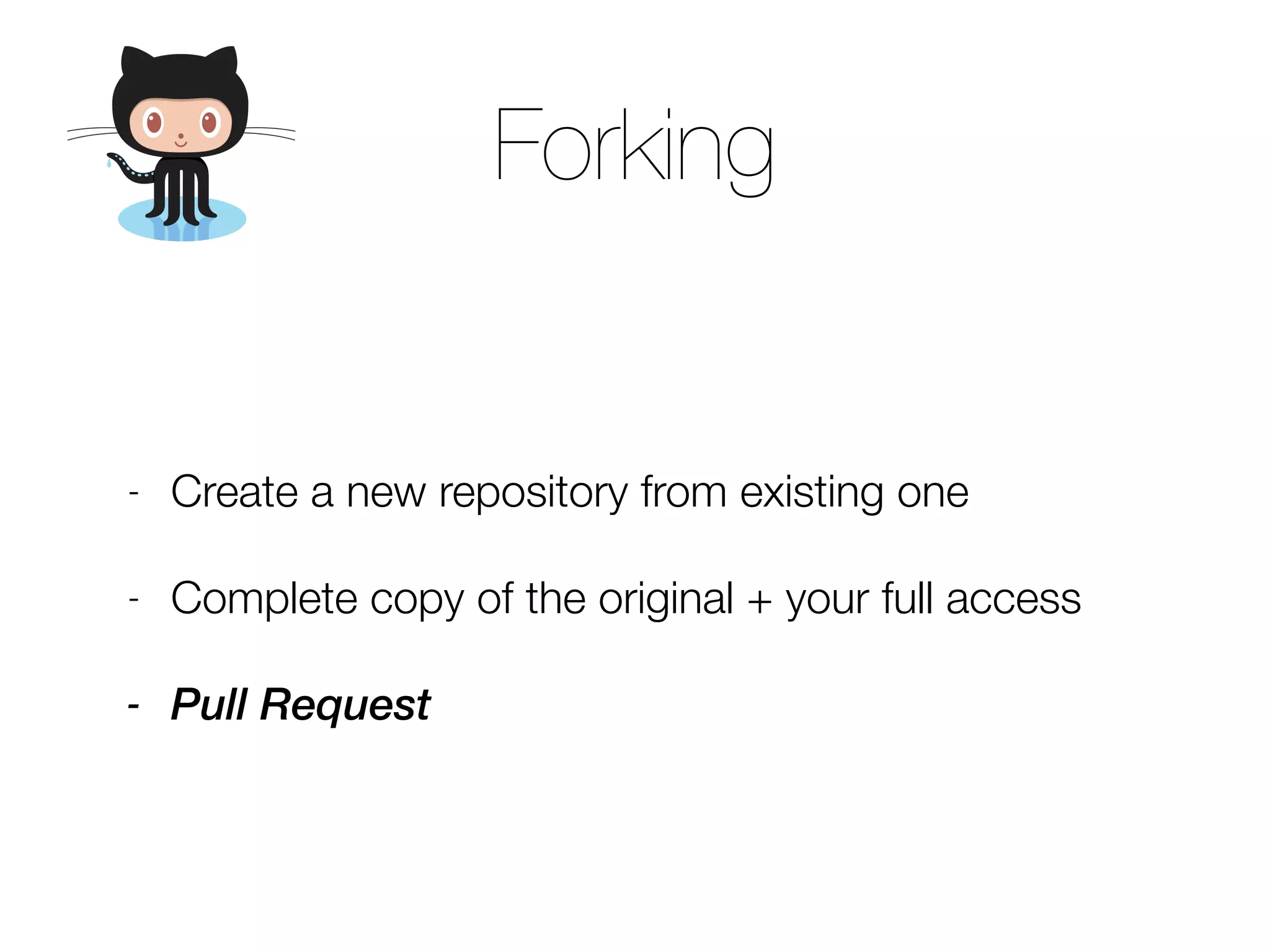

46. - Create a new repository from existing one
- Complete copy of the original + your full access
- Pull Request
Forking

47. Exercise:
Fork Repository

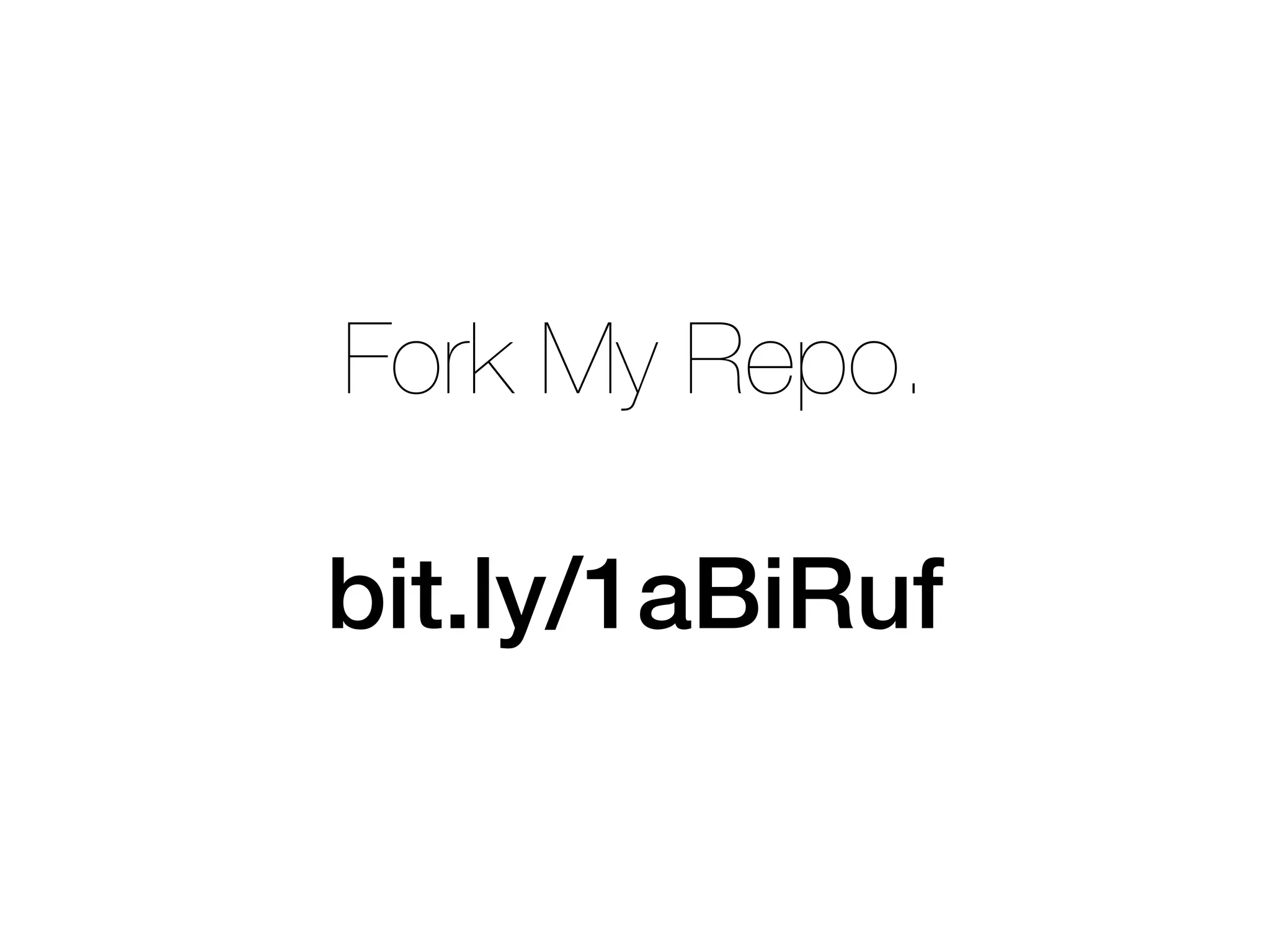

48. Fork My Repo.
bit.ly/1aBiRuf

49. Prepare Environment to
Run Notebooks

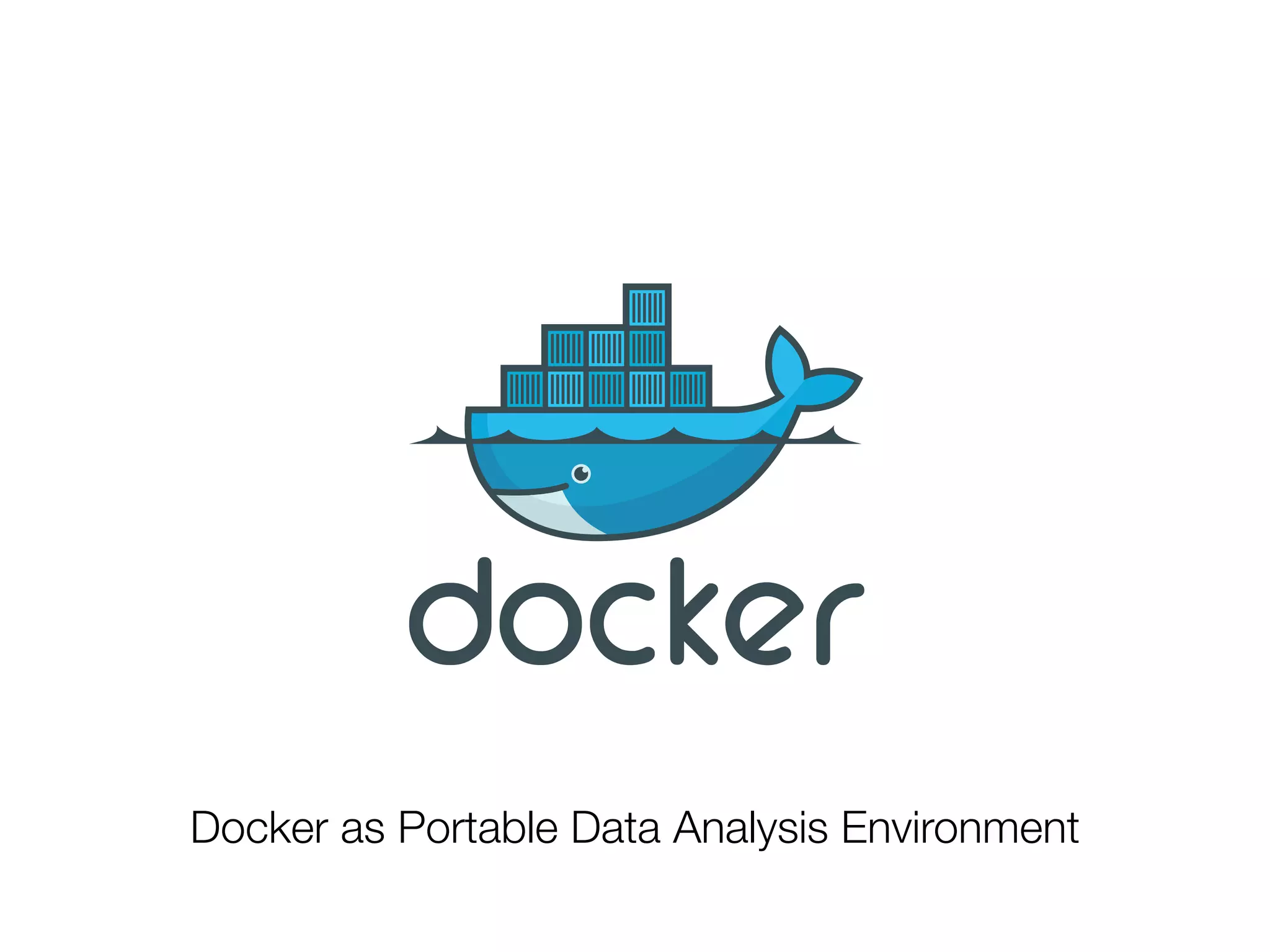

50. Docker as Portable Data Analysis Environment

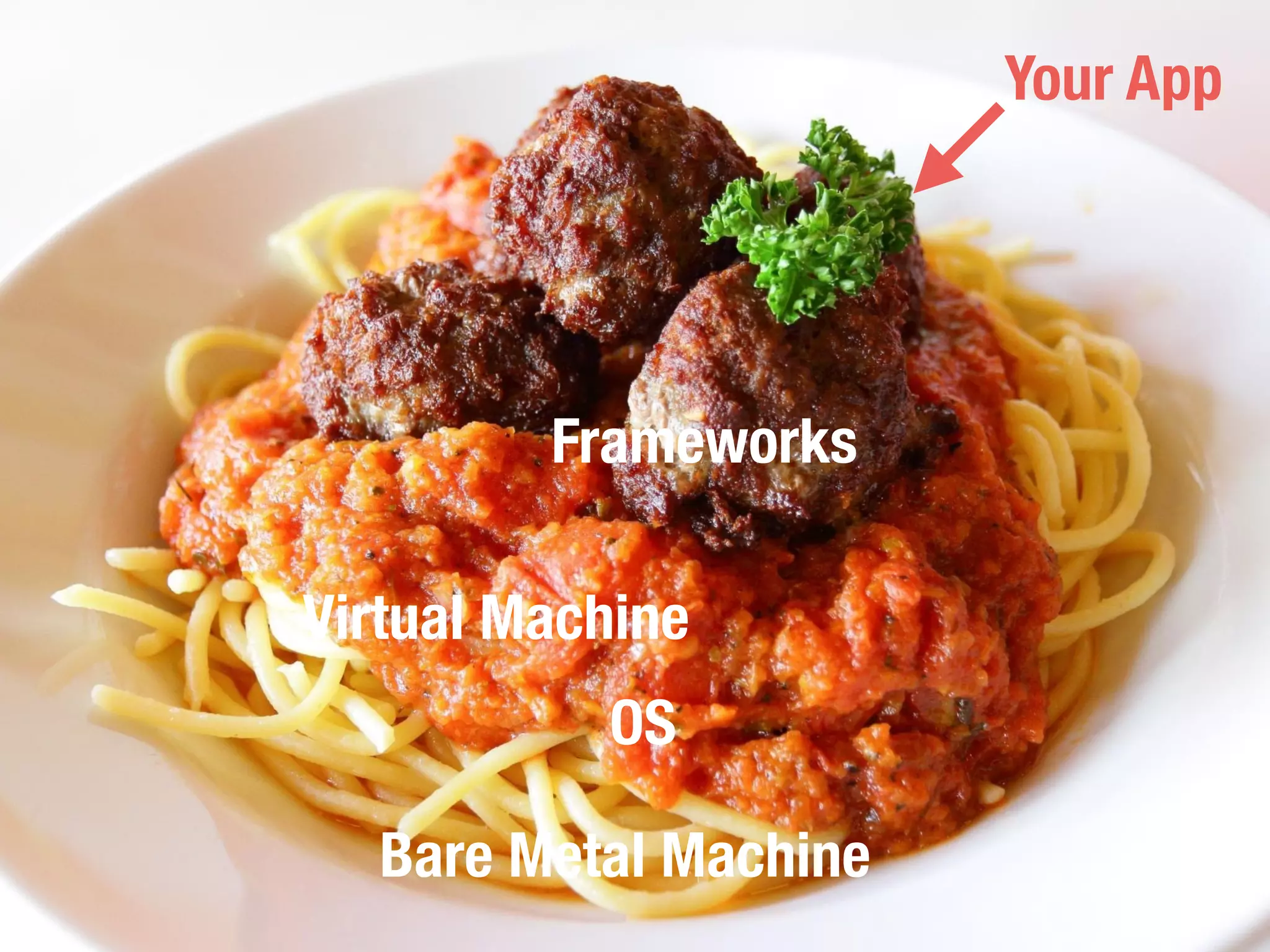

51. Bare Metal Machine
OS
Virtual Machine
Frameworks
Your App

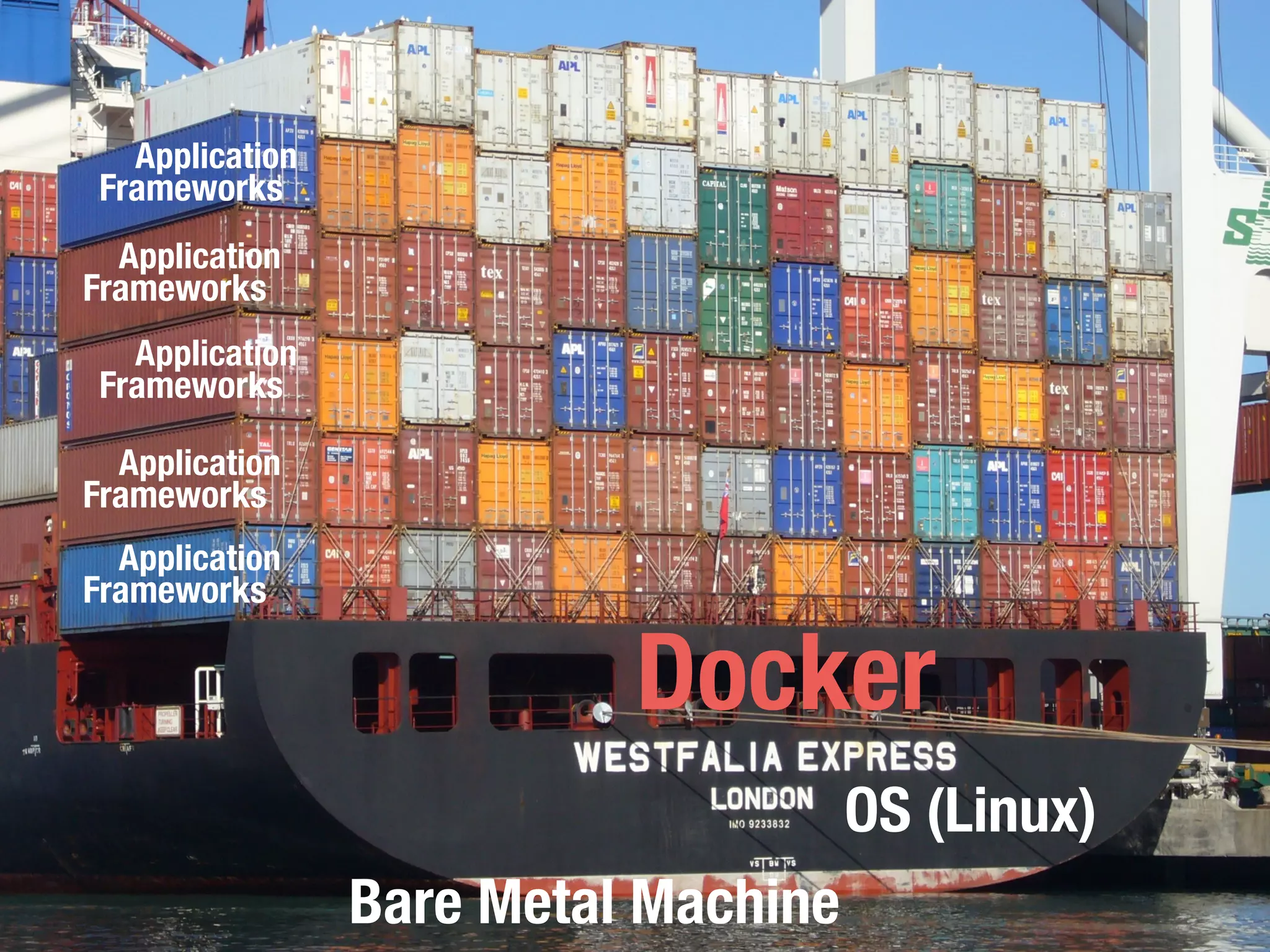

52. Bare Metal Machine
OS (Linux)
Docker
Frameworks
Application
Frameworks
Application
Frameworks
Application
Frameworks
Application
Frameworks
Application

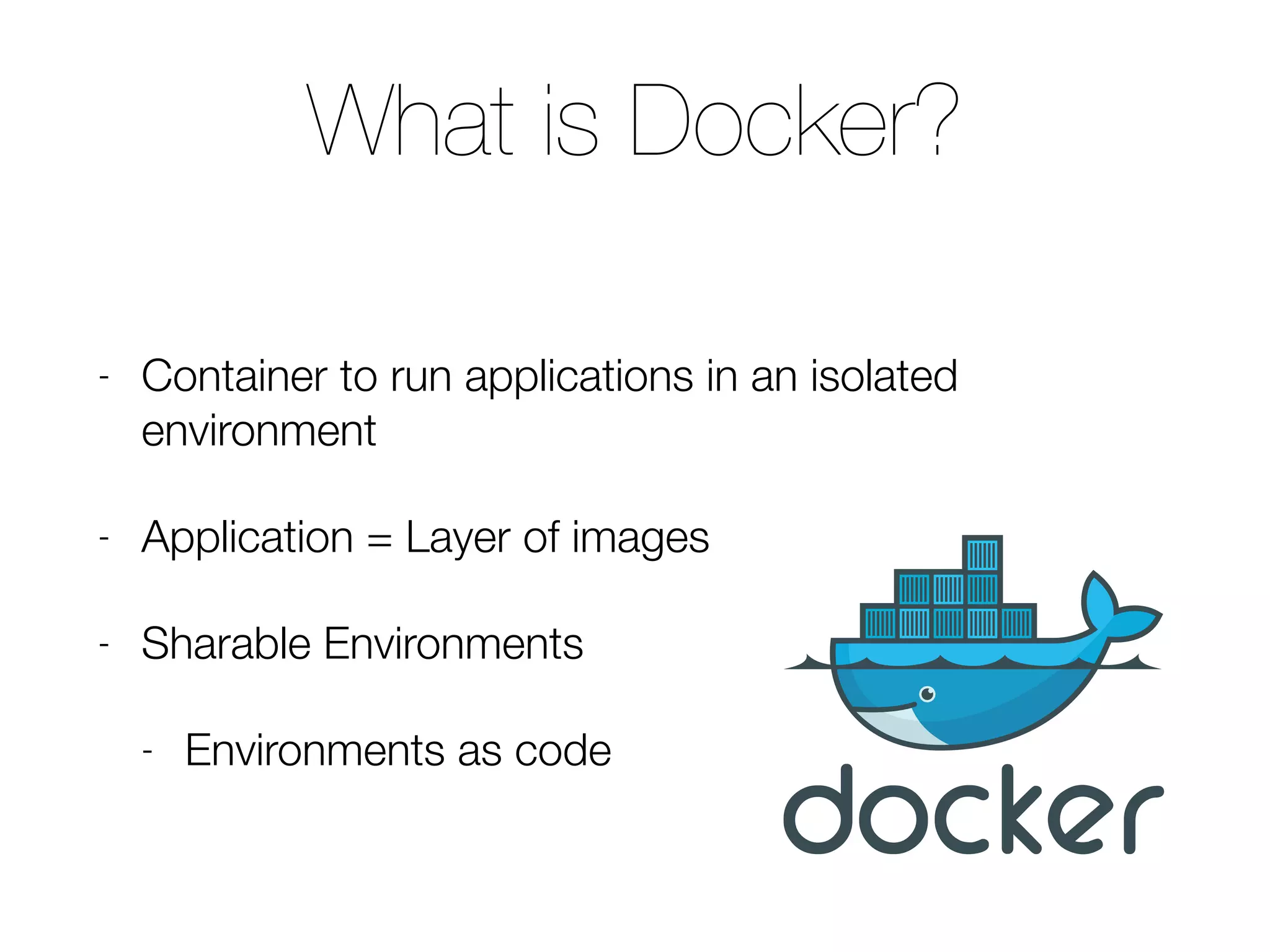

54. What is Docker?
- Container to run applications in an isolated
environment
- Application = Layer of images
- Sharable Environments
- Environments as code

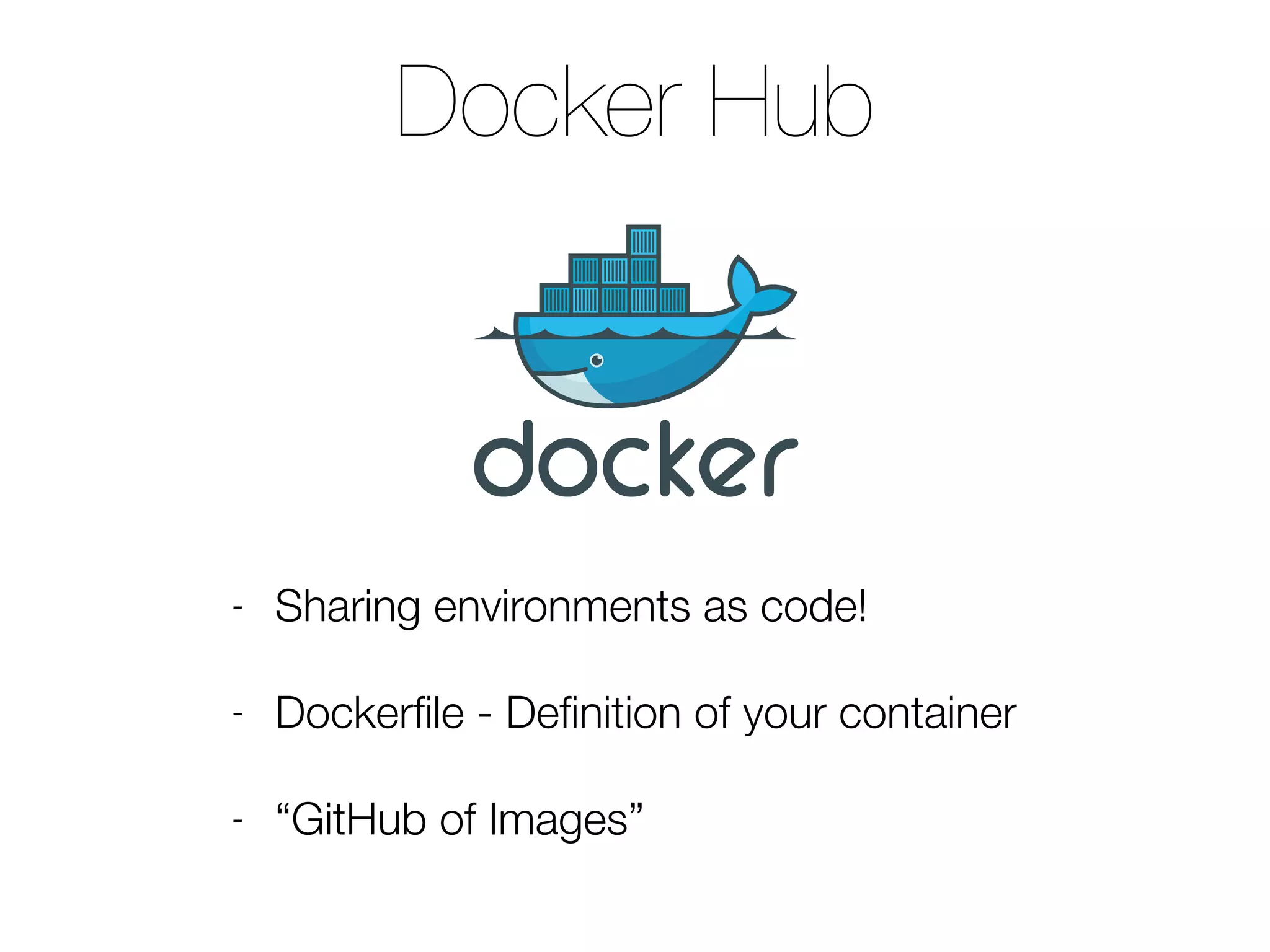

55. Docker Hub
- Sharing environments as code!
- Dockerfile - Definition of your container
- “GitHub of Images”

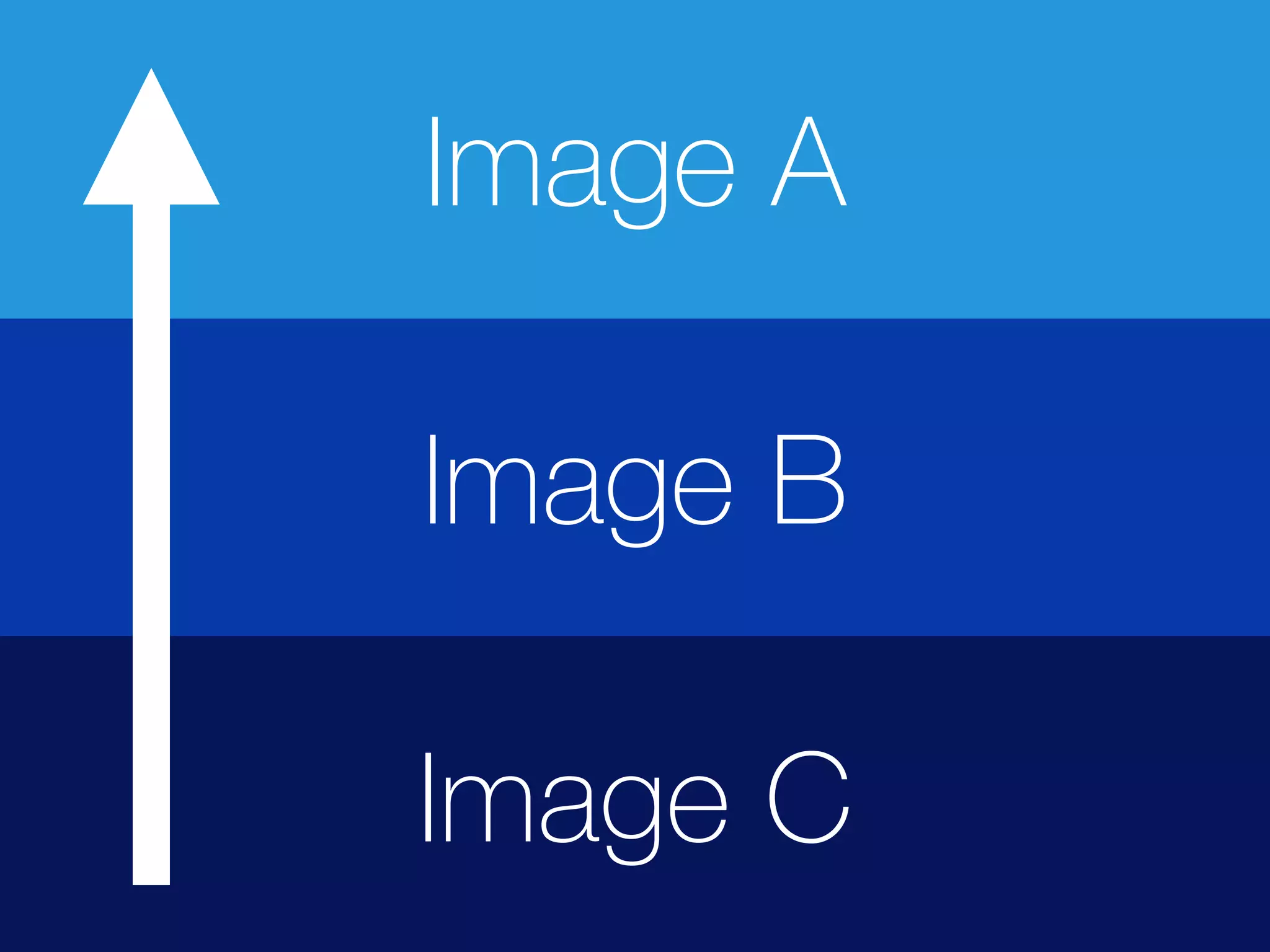

56. Image B
Image C
Image A

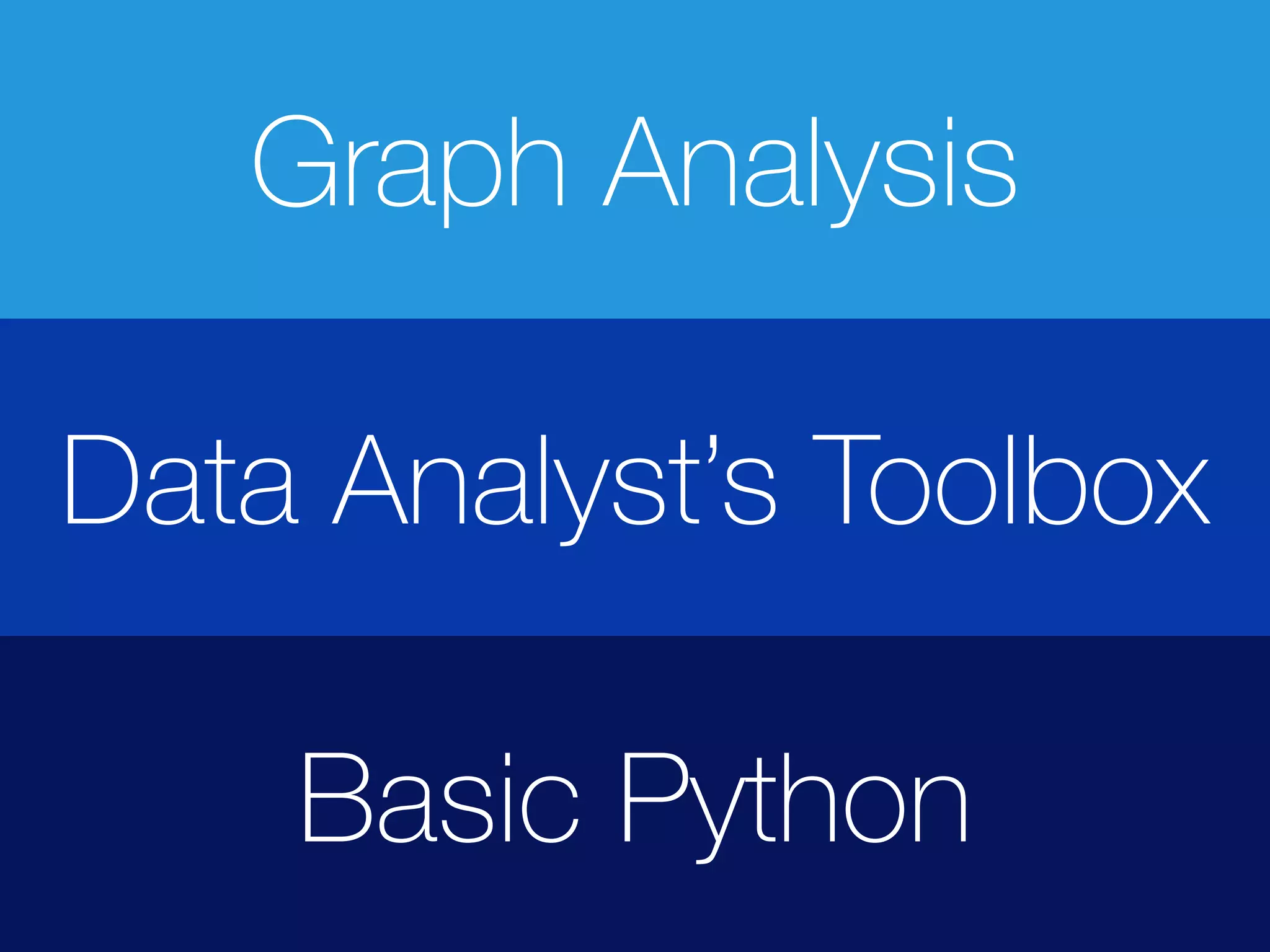

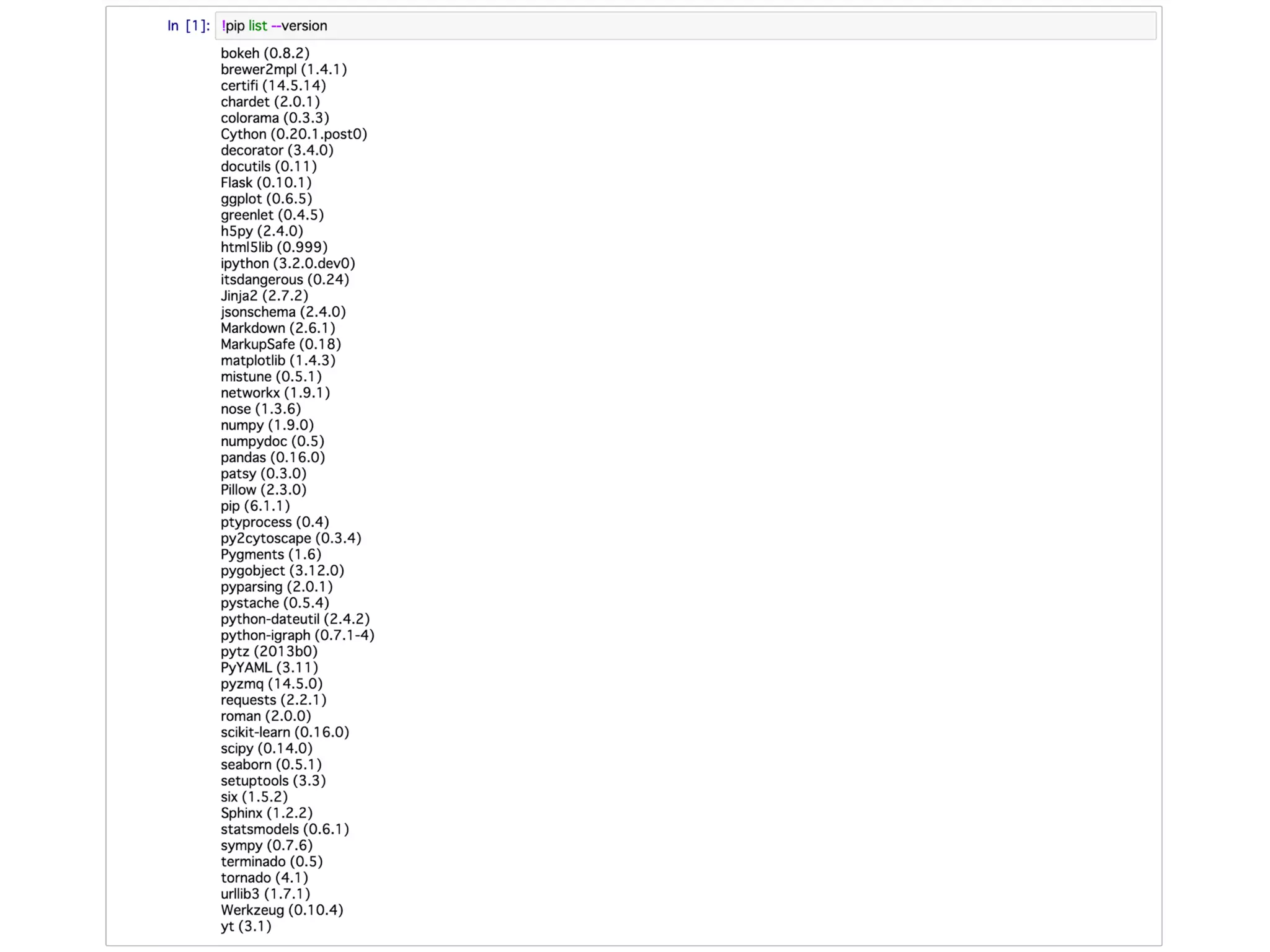

57. Data Analyst’s Toolbox
Basic Python
Graph Analysis

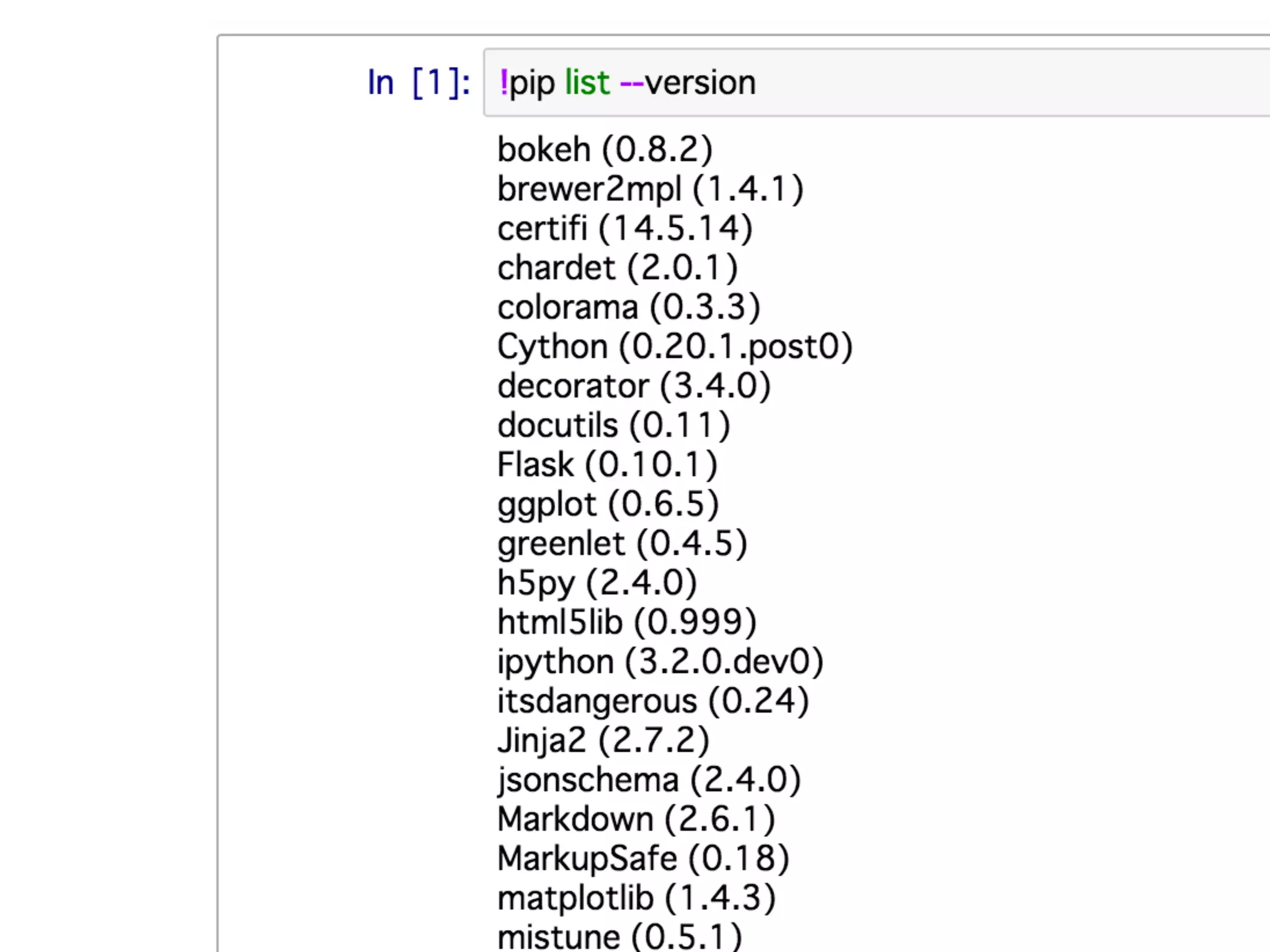

60. Run a Container

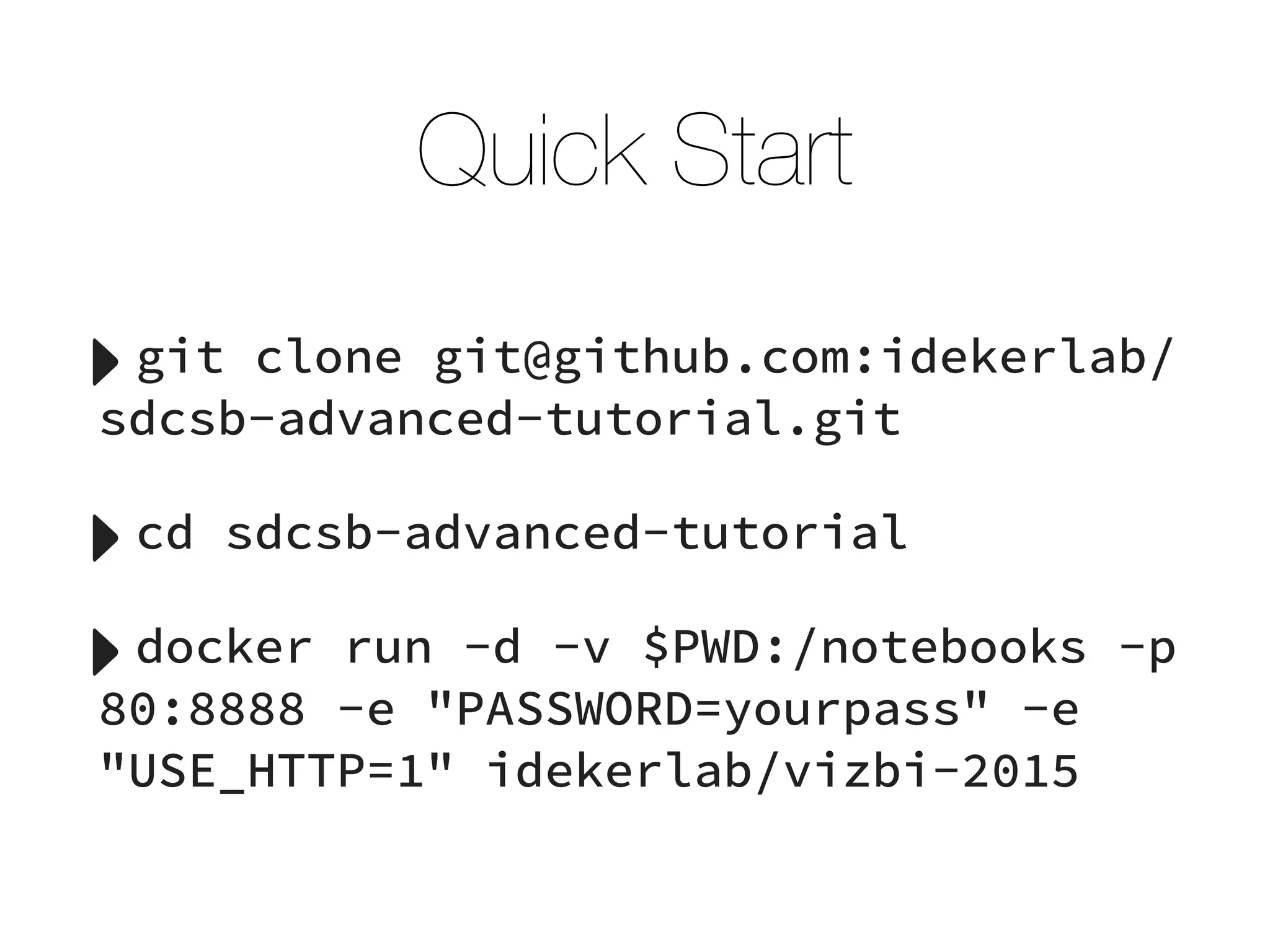

61. Quick Start
‣git clone git@github.com:idekerlab/
sdcsb-advanced-tutorial.git
‣cd sdcsb-advanced-tutorial
‣docker run -d -v $PWD:/notebooks -p
80:8888 -e "PASSWORD=yourpass" -e
"USE_HTTP=1" idekerlab/vizbi-2015

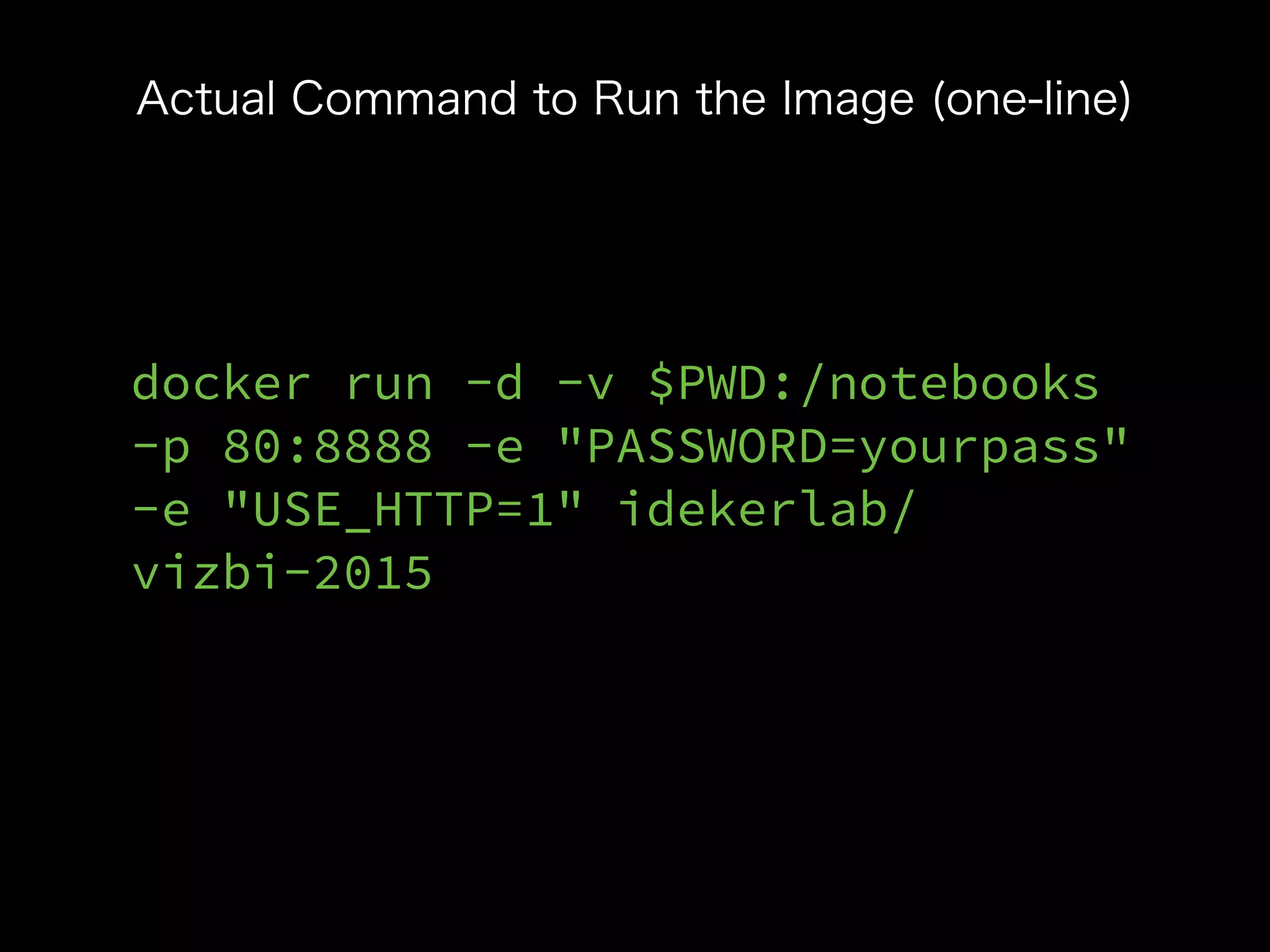

62. docker run -d -v $PWD:/notebooks
-p 80:8888 -e "PASSWORD=yourpass"
-e "USE_HTTP=1" idekerlab/
vizbi-2015
Actual Command to Run the Image (one-line)

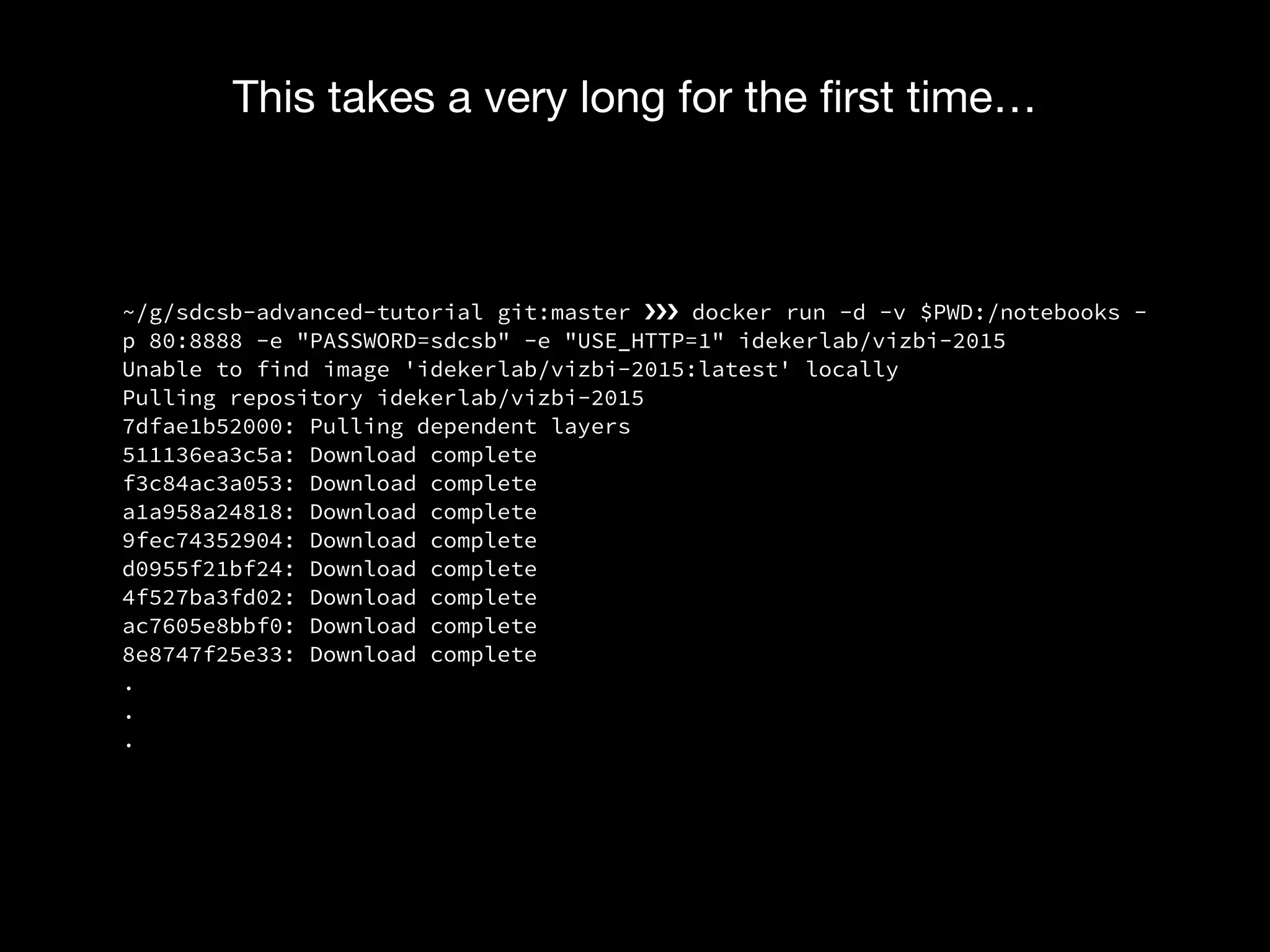

63. ~/g/sdcsb-advanced-tutorial git:master ›❯›❯›❯ docker run -d -v $PWD:/notebooks -
p 80:8888 -e "PASSWORD=sdcsb" -e "USE_HTTP=1" idekerlab/vizbi-2015
Unable to find image 'idekerlab/vizbi-2015:latest' locally
Pulling repository idekerlab/vizbi-2015
7dfae1b52000: Pulling dependent layers
511136ea3c5a: Download complete
f3c84ac3a053: Download complete
a1a958a24818: Download complete
9fec74352904: Download complete
d0955f21bf24: Download complete
4f527ba3fd02: Download complete
ac7605e8bbf0: Download complete
8e8747f25e33: Download complete
.
.
.
This takes a very long for the first time…

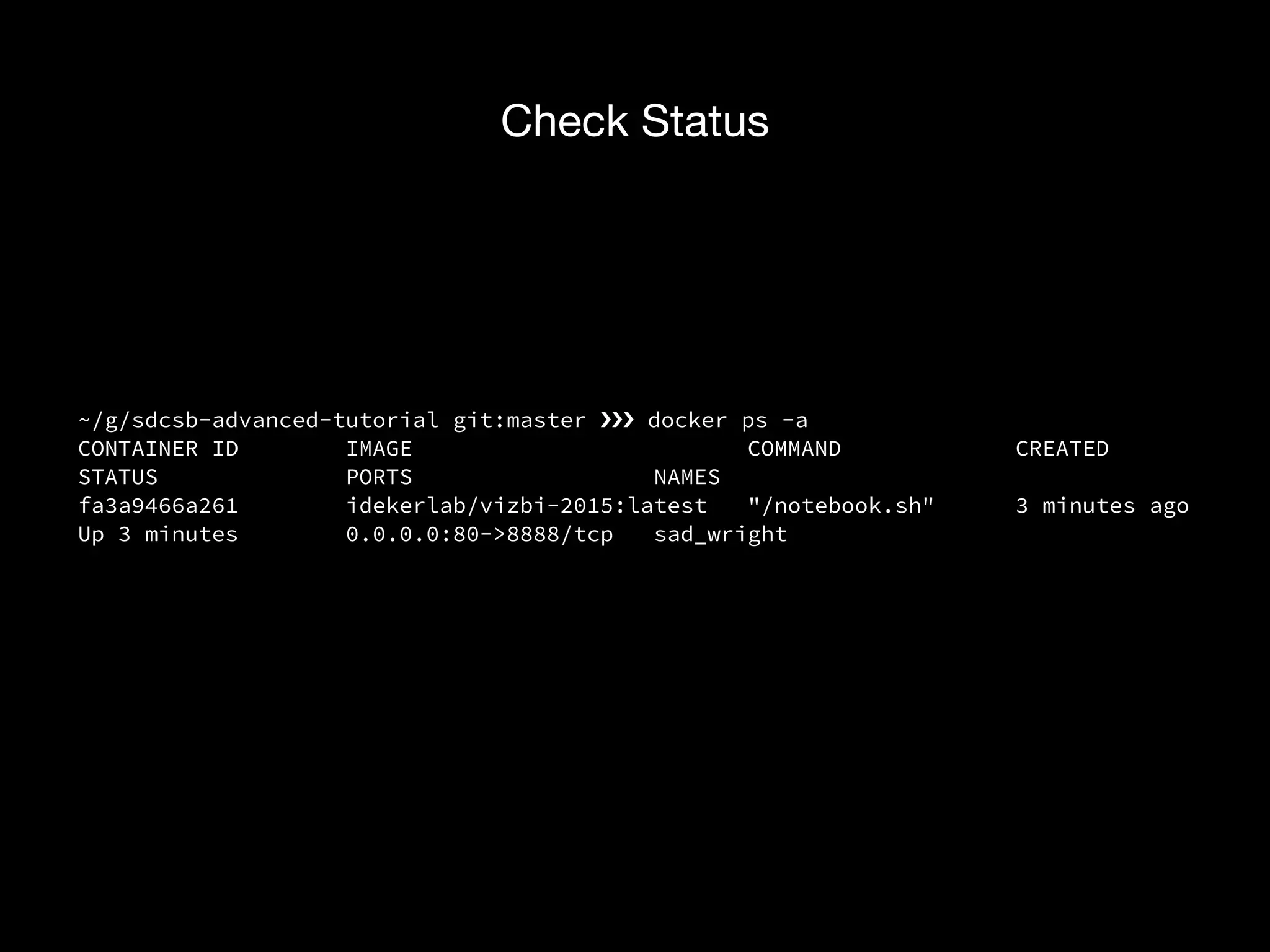

64. ~/g/sdcsb-advanced-tutorial git:master ›❯›❯›❯ docker ps -a
CONTAINER ID IMAGE COMMAND CREATED
STATUS PORTS NAMES
fa3a9466a261 idekerlab/vizbi-2015:latest "/notebook.sh" 3 minutes ago
Up 3 minutes 0.0.0.0:80->8888/tcp sad_wright
Check Status

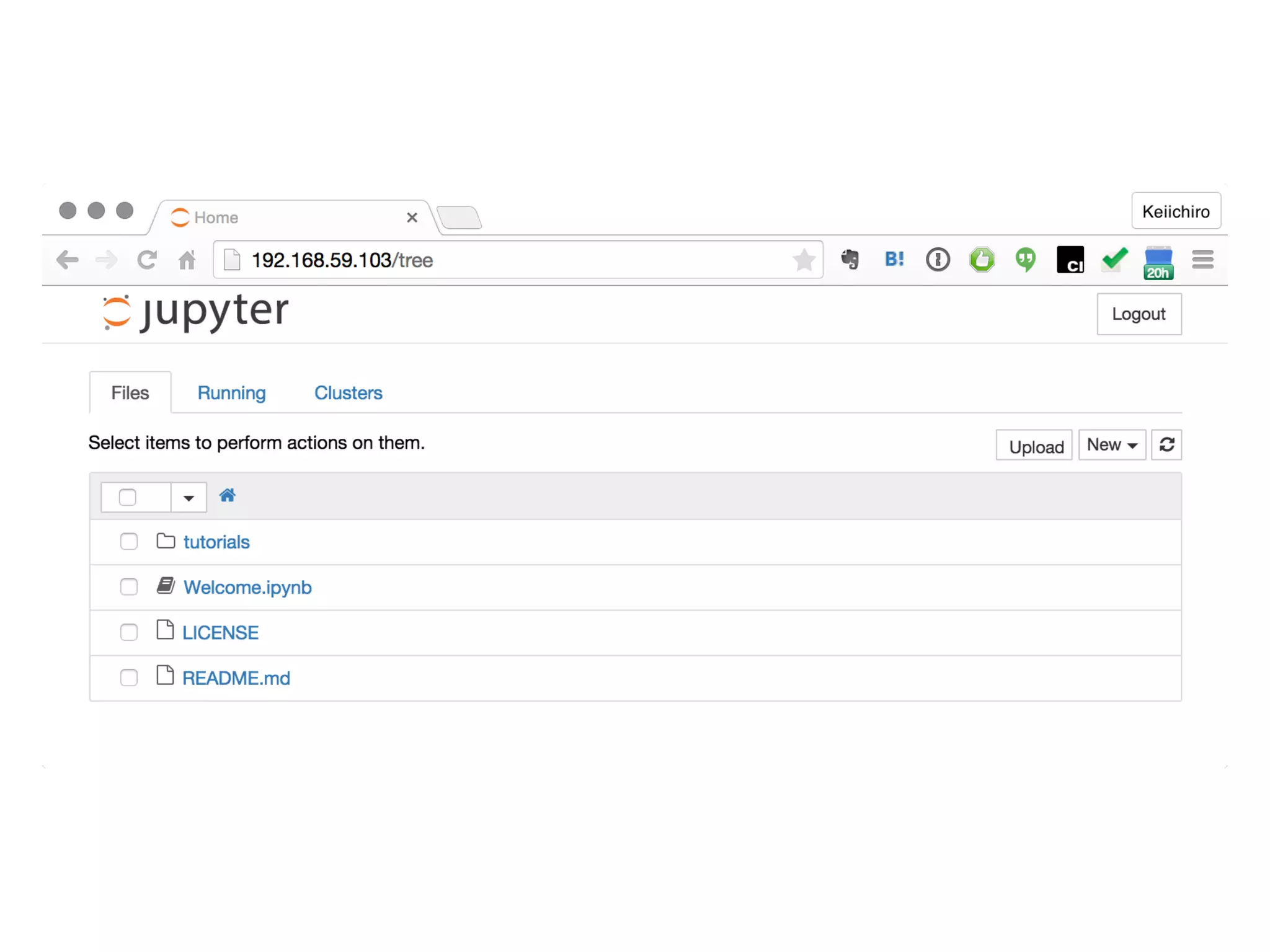

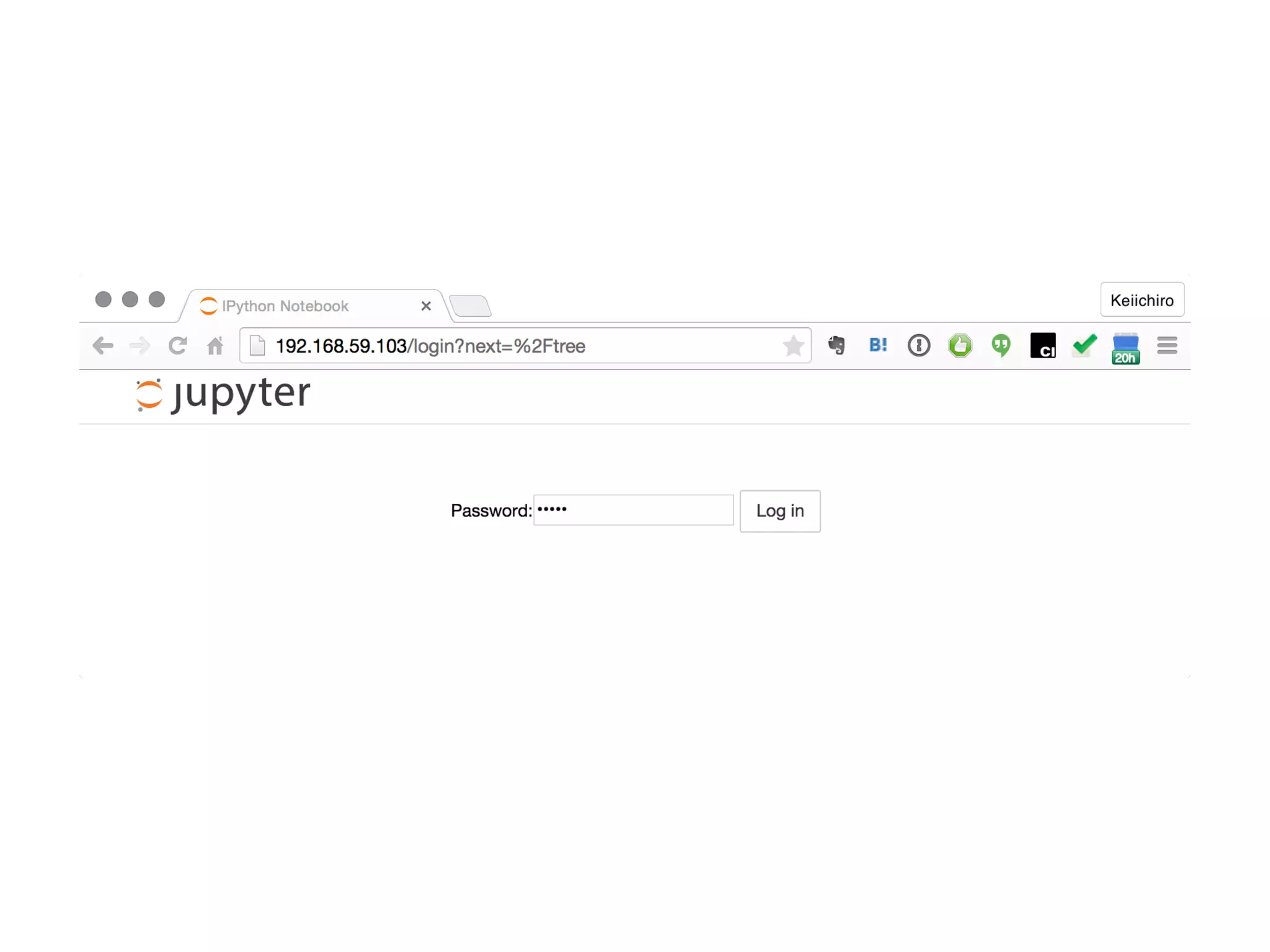

69. IPython Notebook as your electronic lab notebook

72. Jupyter as a Lab Notebook for Dry Experiments

73. Interactive Command-Line
+
Markdown-based Documents

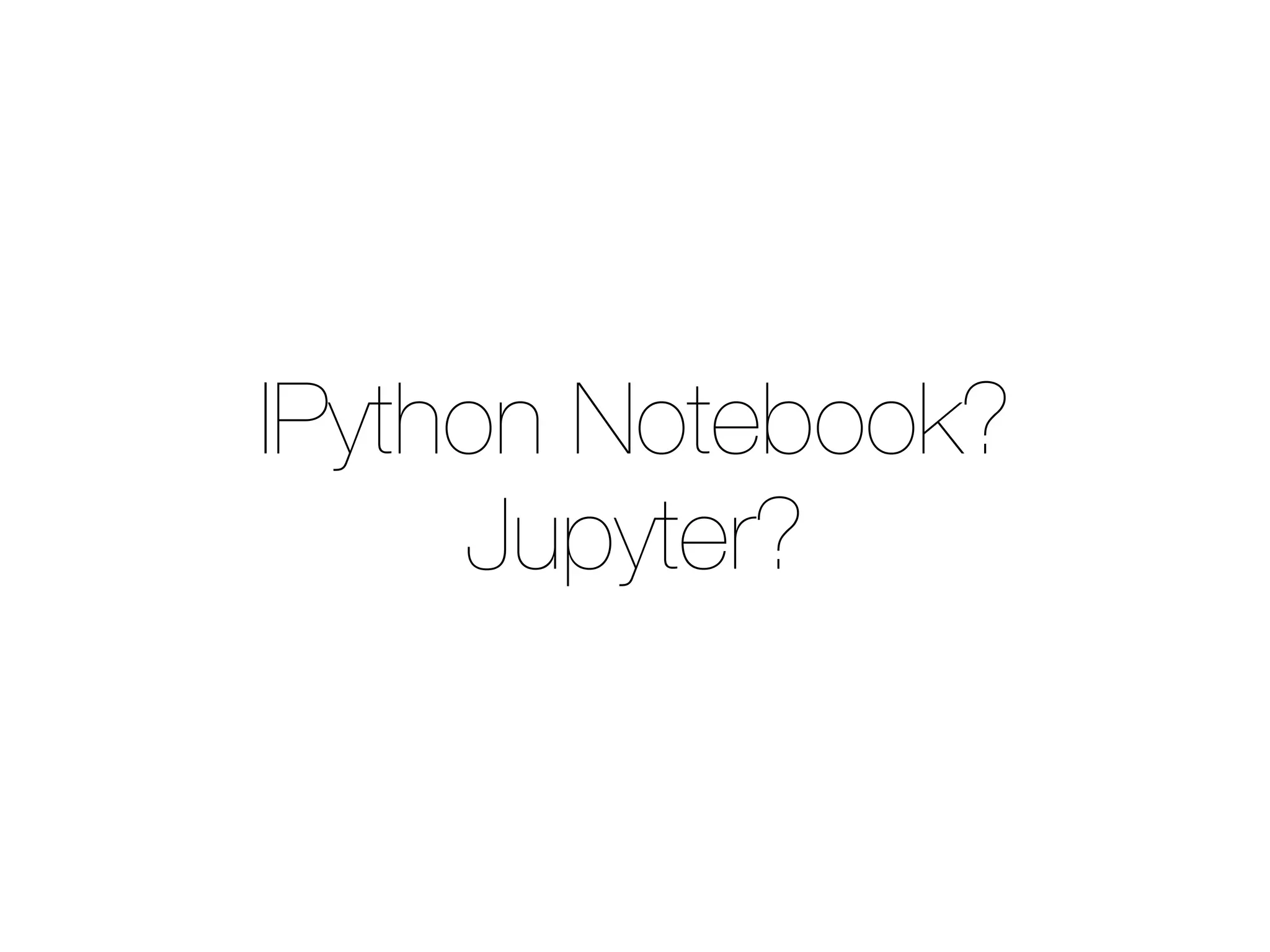

74. IPython Notebook?
Jupyter?

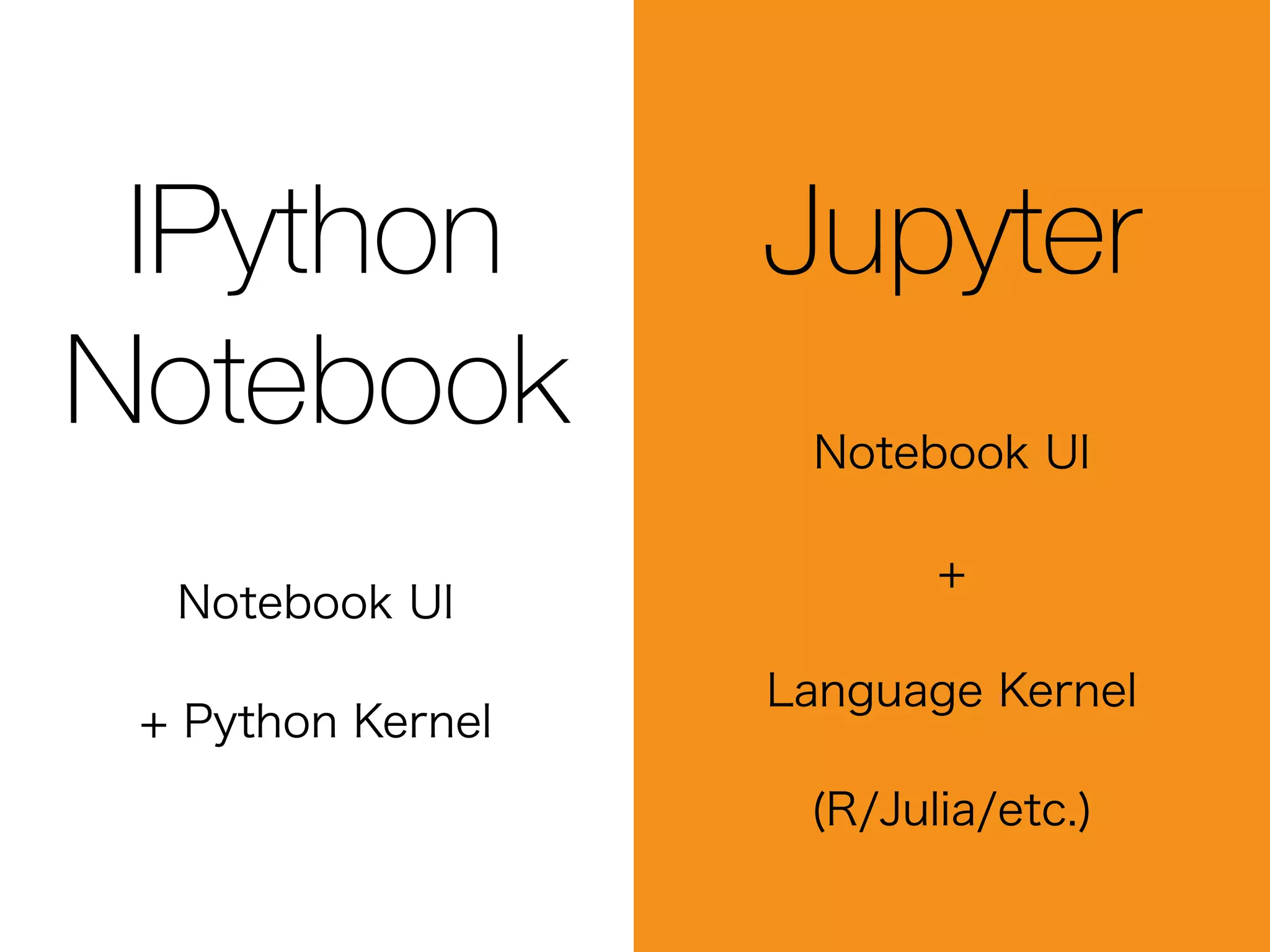

75. IPython
Notebook
Notebook UI
+ Python Kernel
Jupyter
Notebook UI
+
Language Kernel
(R/Julia/etc.)

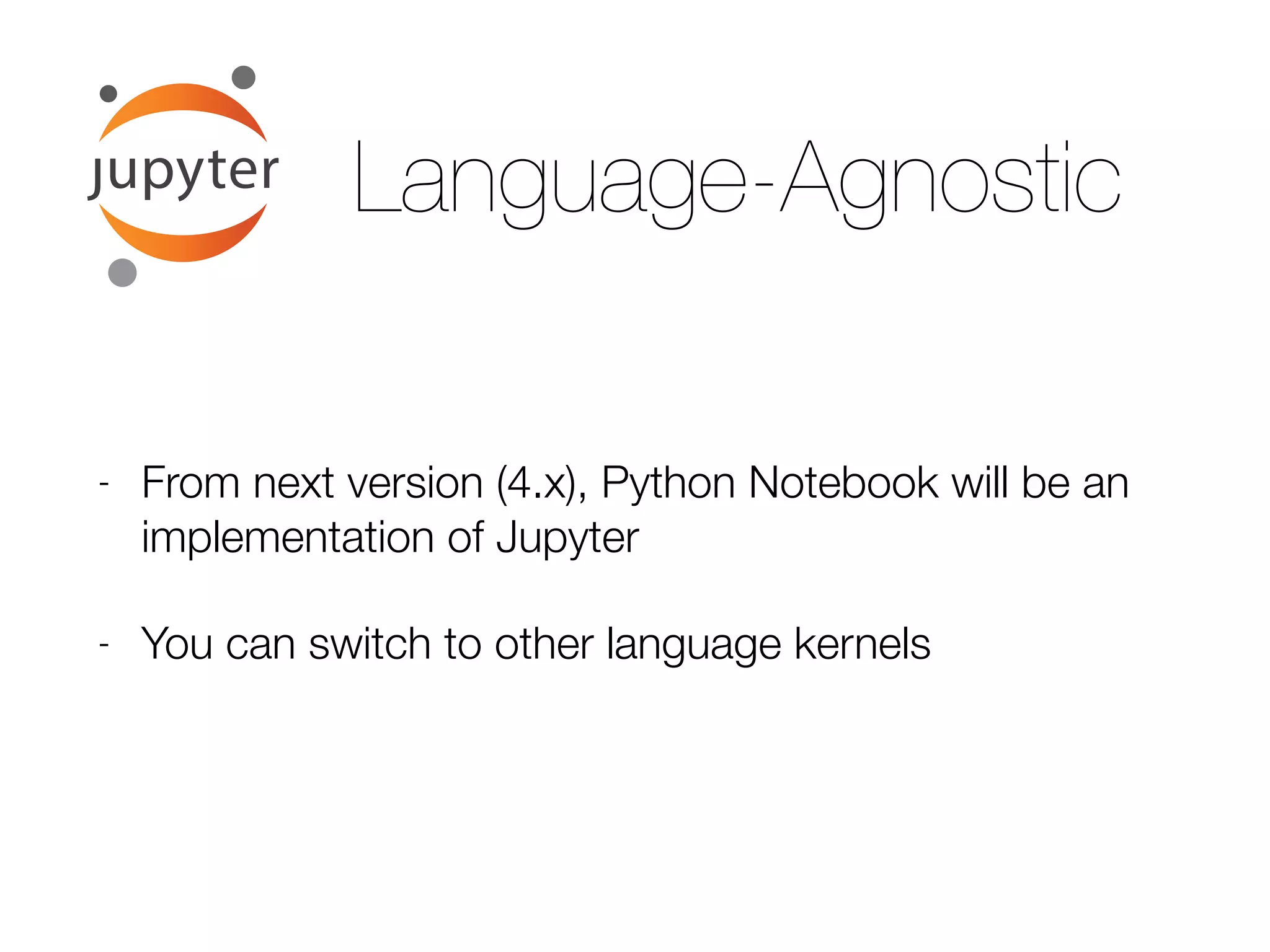

76. Language-Agnostic
- From next version (4.x), Python Notebook will be an
implementation of Jupyter
- You can switch to other language kernels

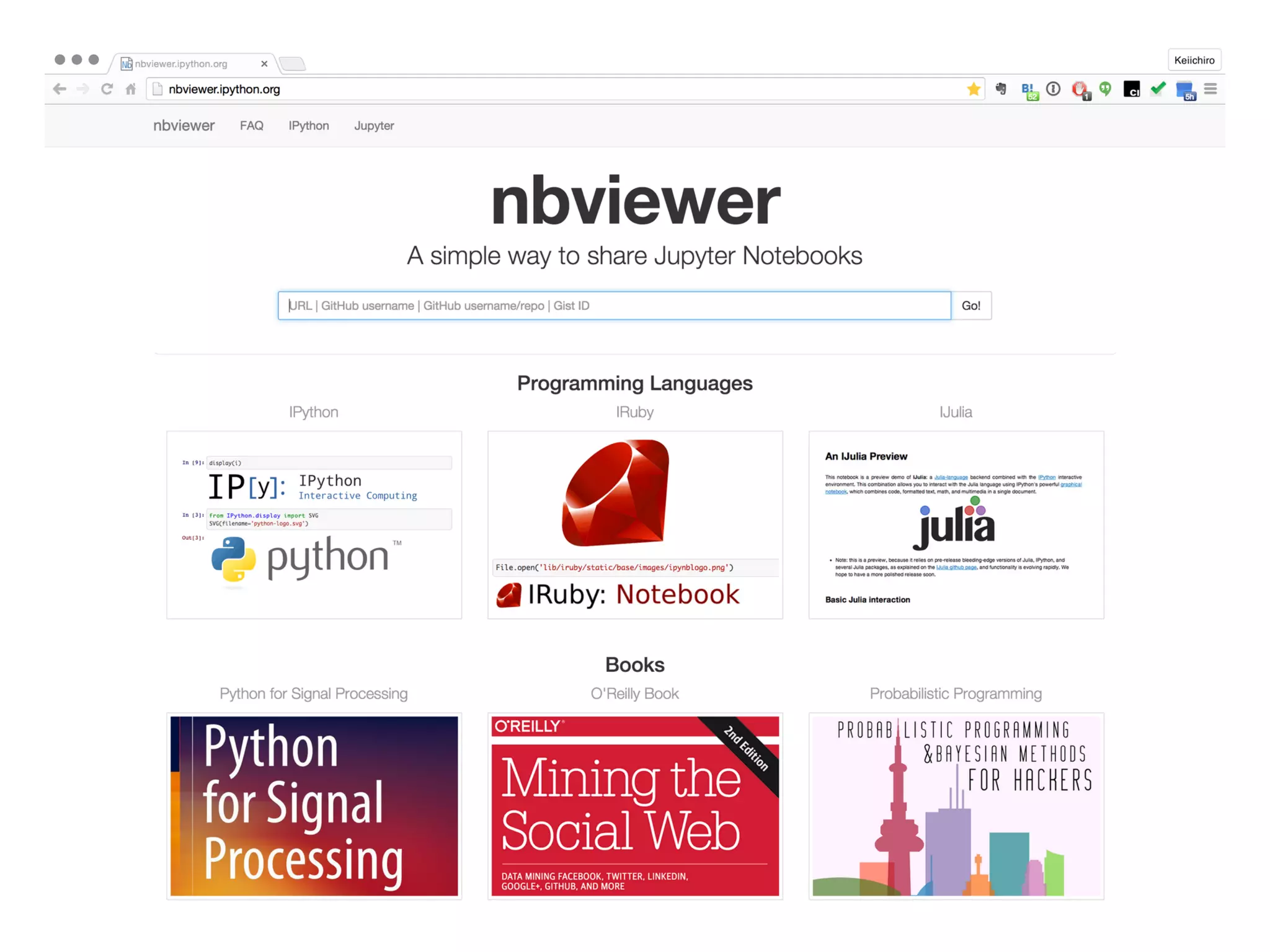

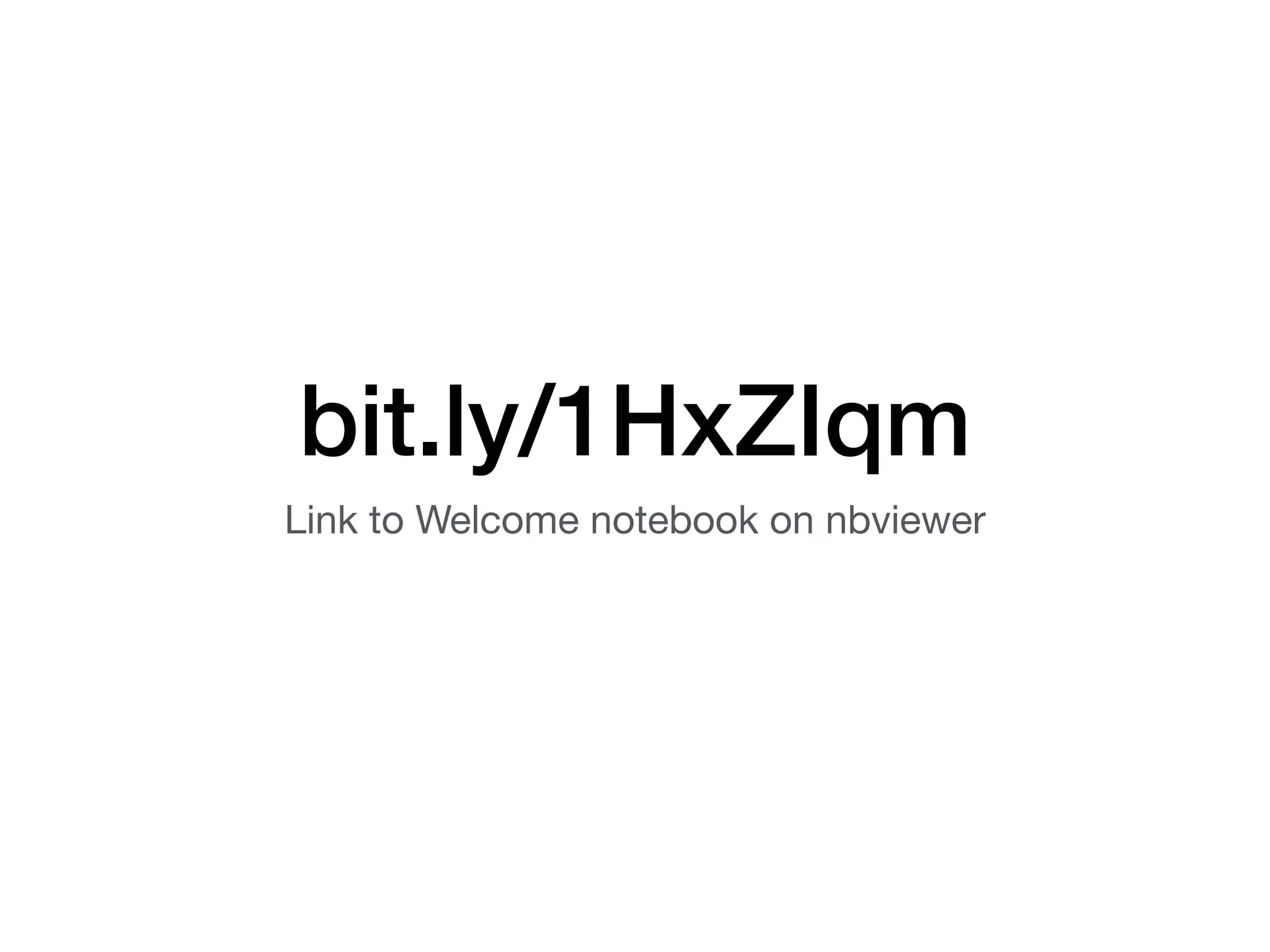

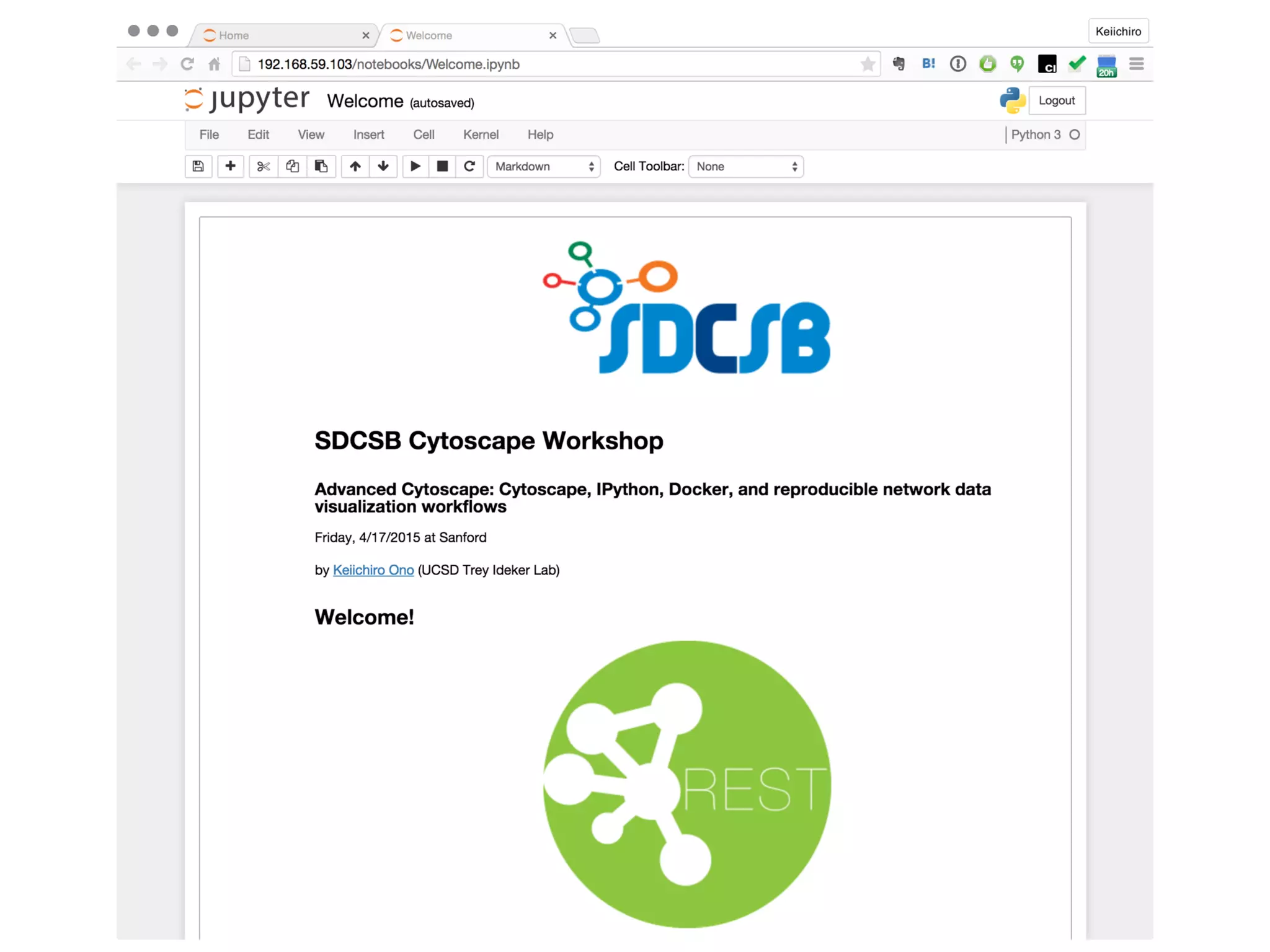

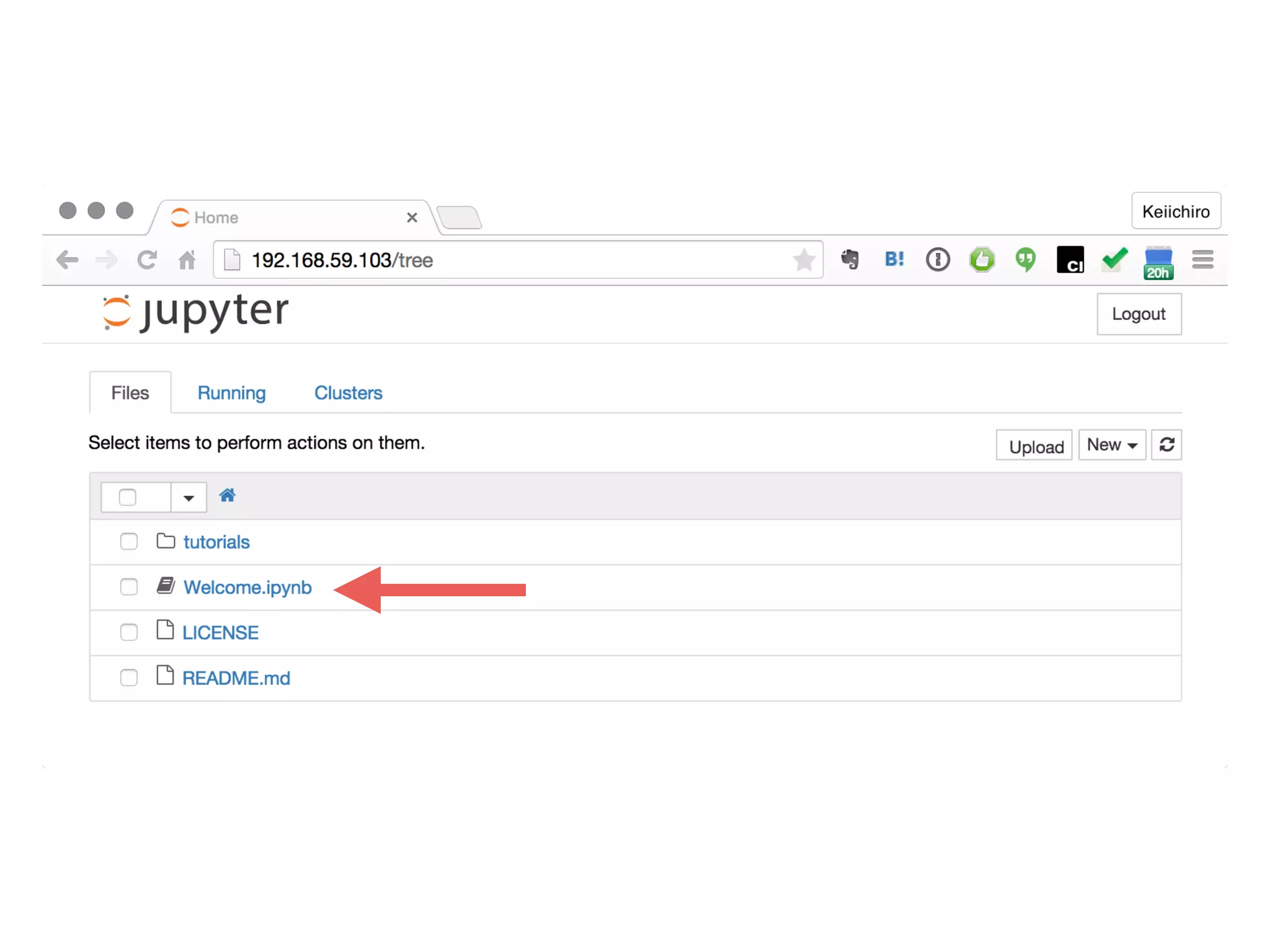

78. bit.ly/1HxZIqm
Link to Welcome notebook on nbviewer

79. Let’s start: Lesson 0

80. 2015 Keiichiro Ono
kono@ucsd.edu

81. • https://flic.kr/p/bFZpyg
• https://flic.kr/p/bmXUz1

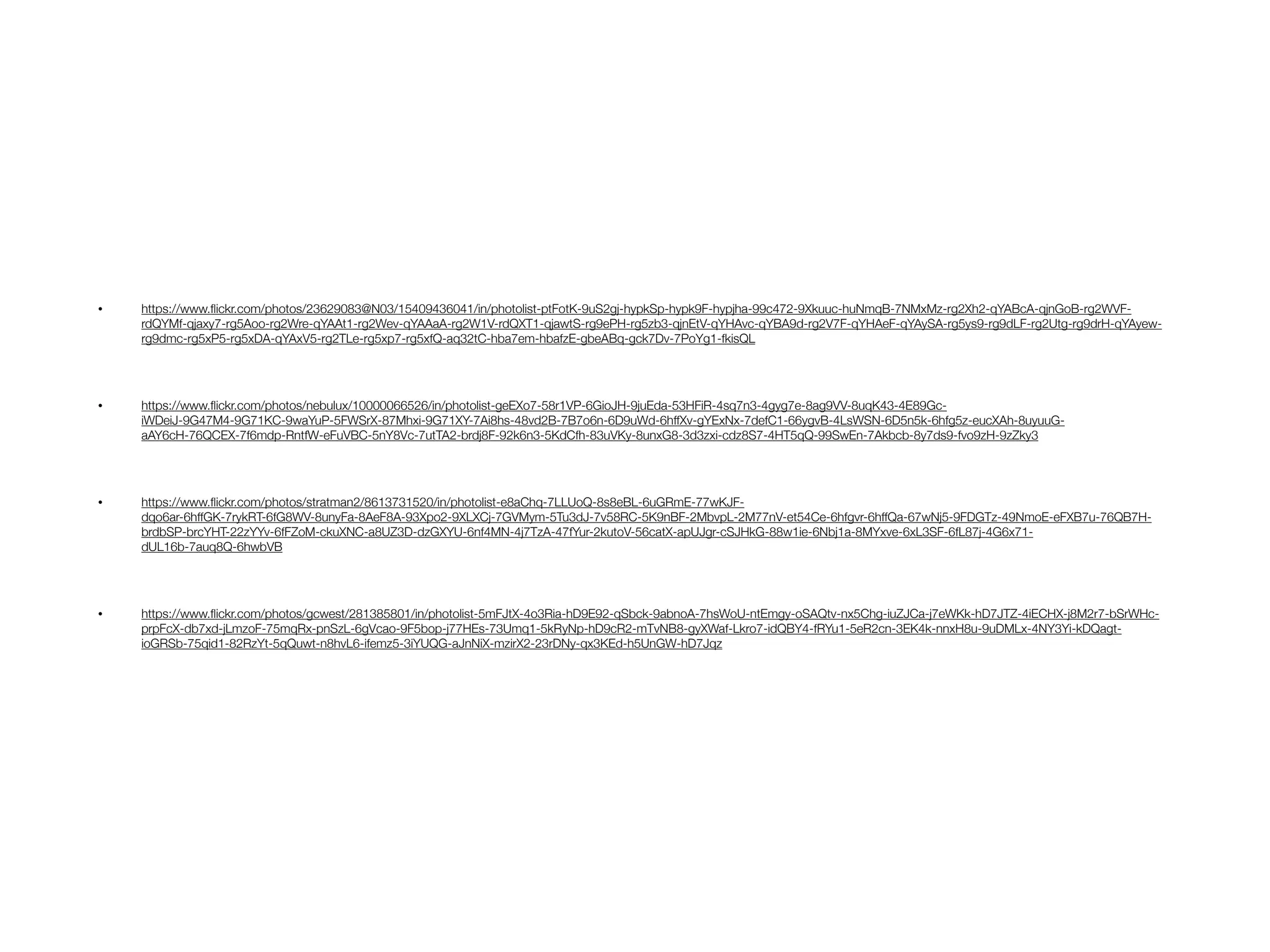

Photo Credits
