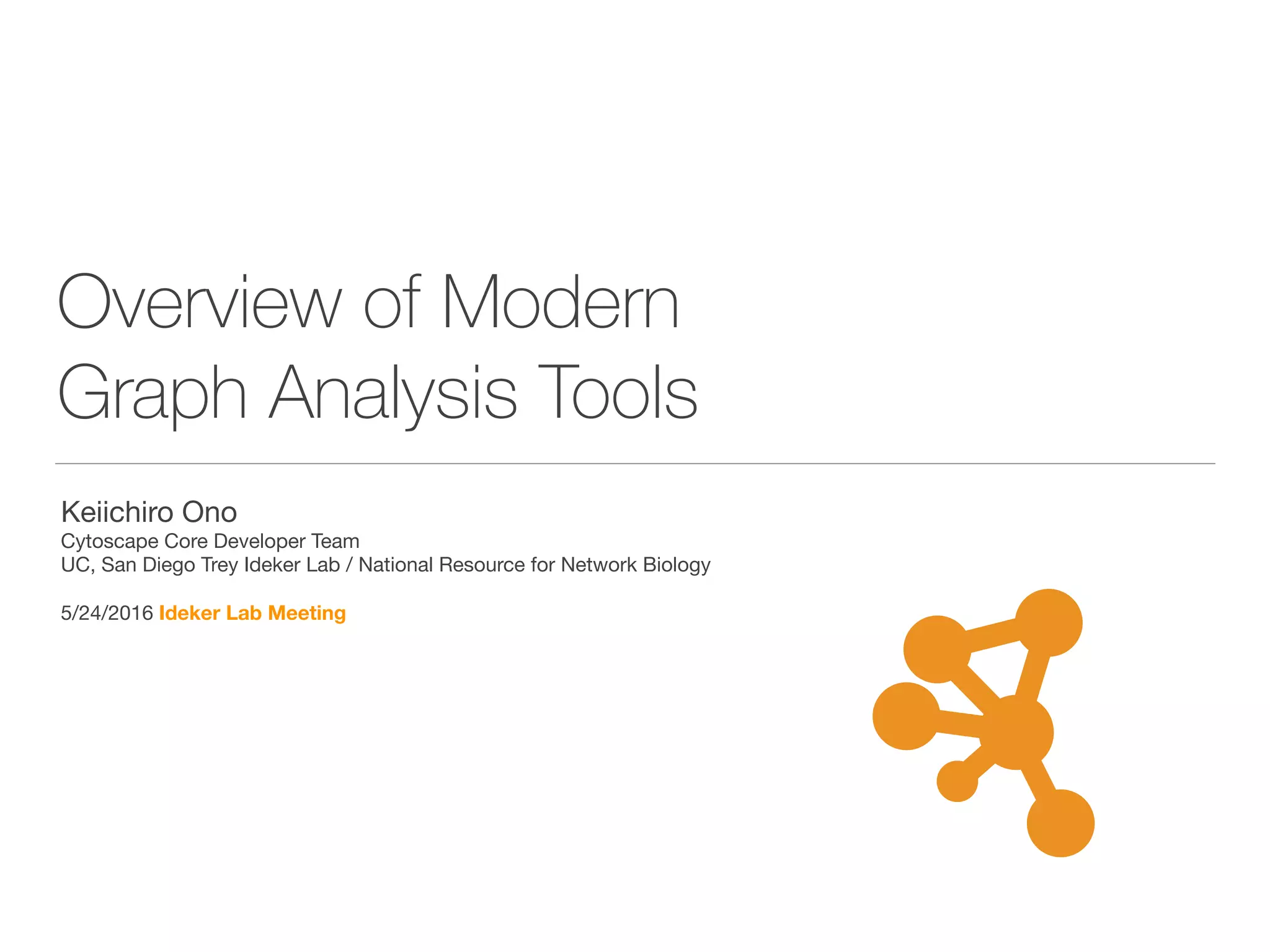

1. Overview of Modern
Graph Analysis Tools
Keiichiro Ono
Cytoscape Core Developer Team
UC, San Diego Trey Ideker Lab / National Resource for Network Biology
5/24/2016 Ideker Lab Meeting

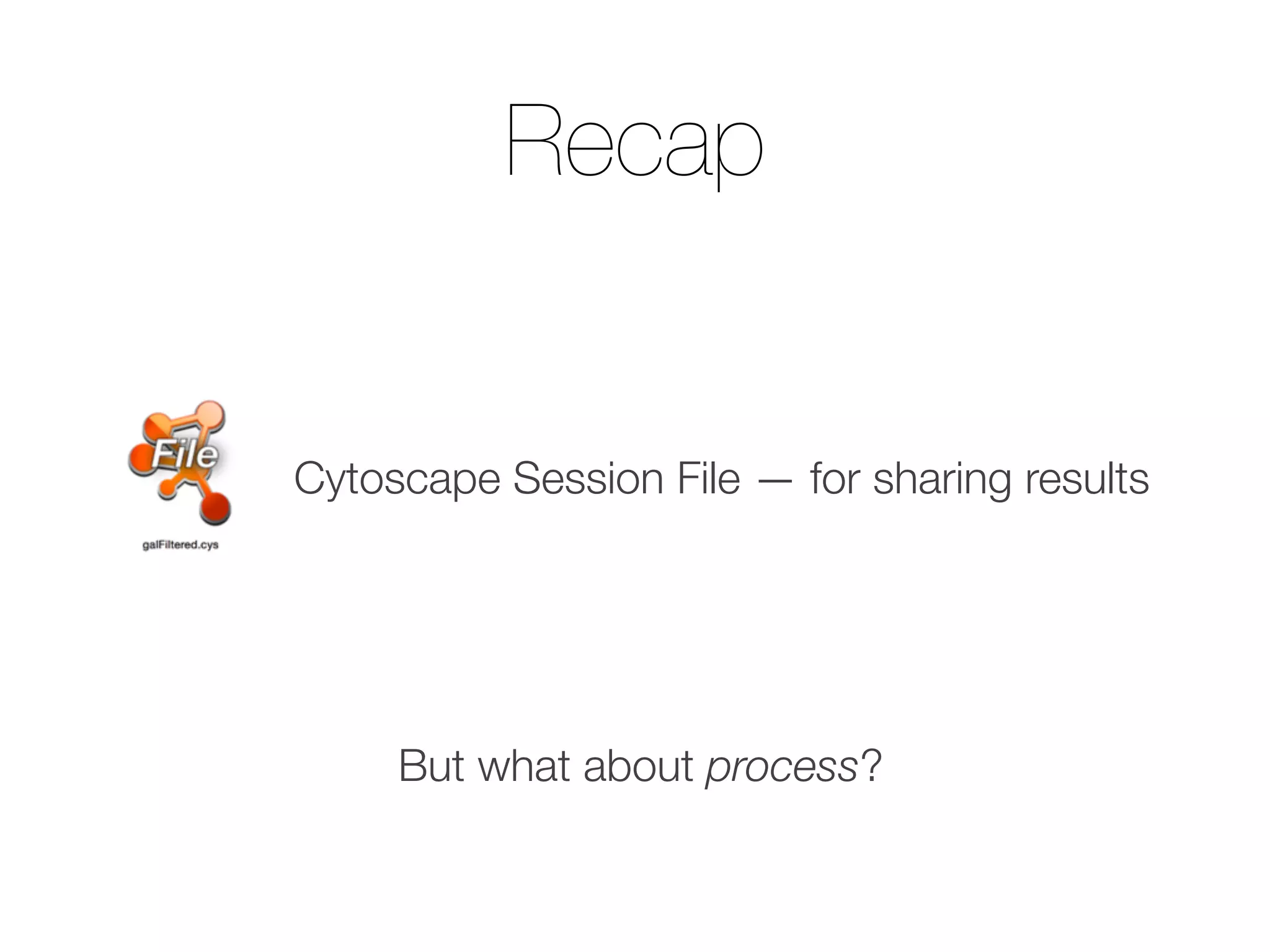

2. Recap
Cytoscape Session File — for sharing results
But what about process?

3. http://www.the-scientist.com/?articles.view/articleNo/43632/title/Get-With-the-Program/
https://theconversation.com/how-computers-broke-science-and-what-we-can-do-to-fix-it-49938http://www.nature.com/nature/journal/v483/n7391/full/483531a.html

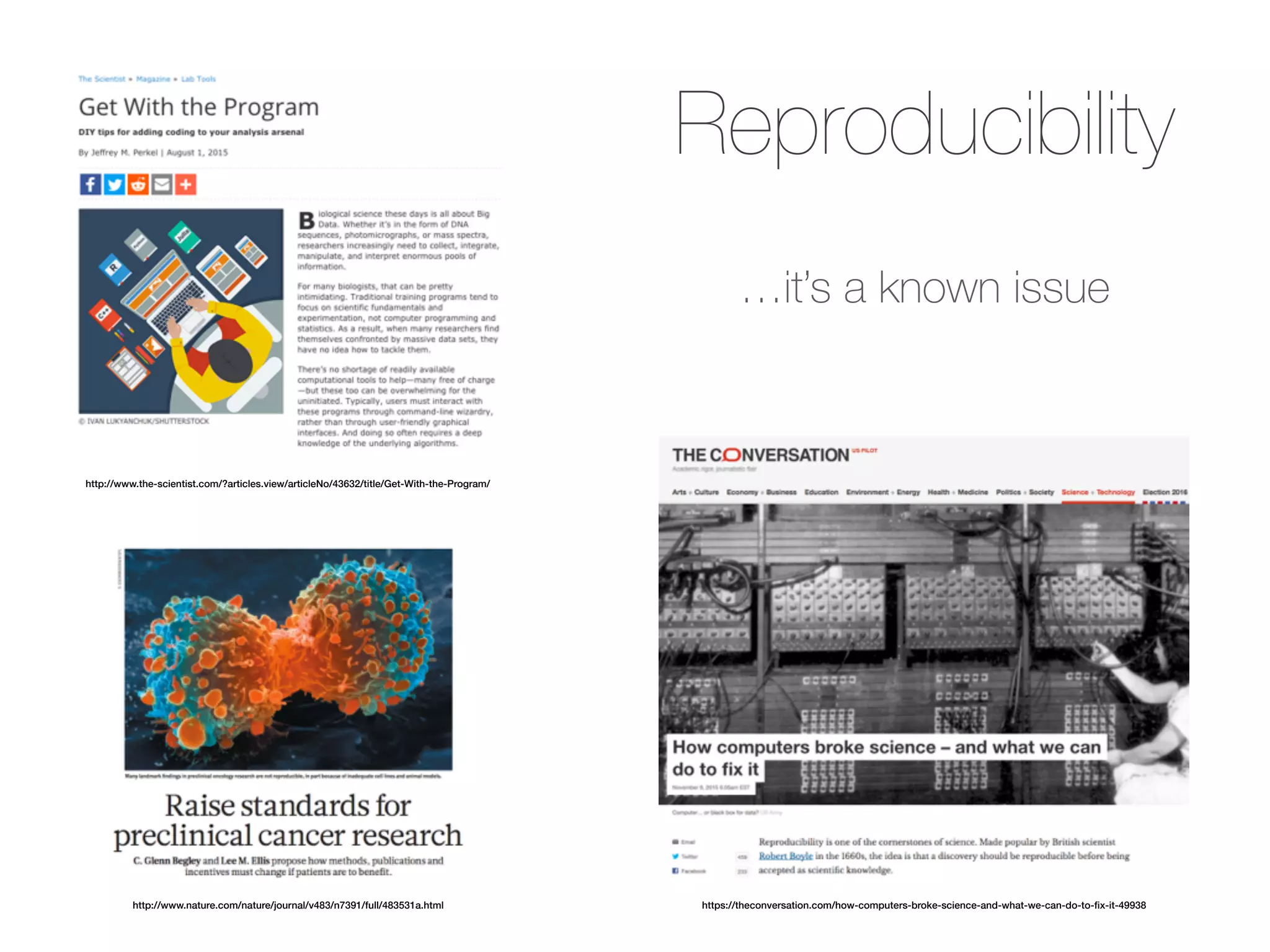

Reproducibility
…it’s a known issue

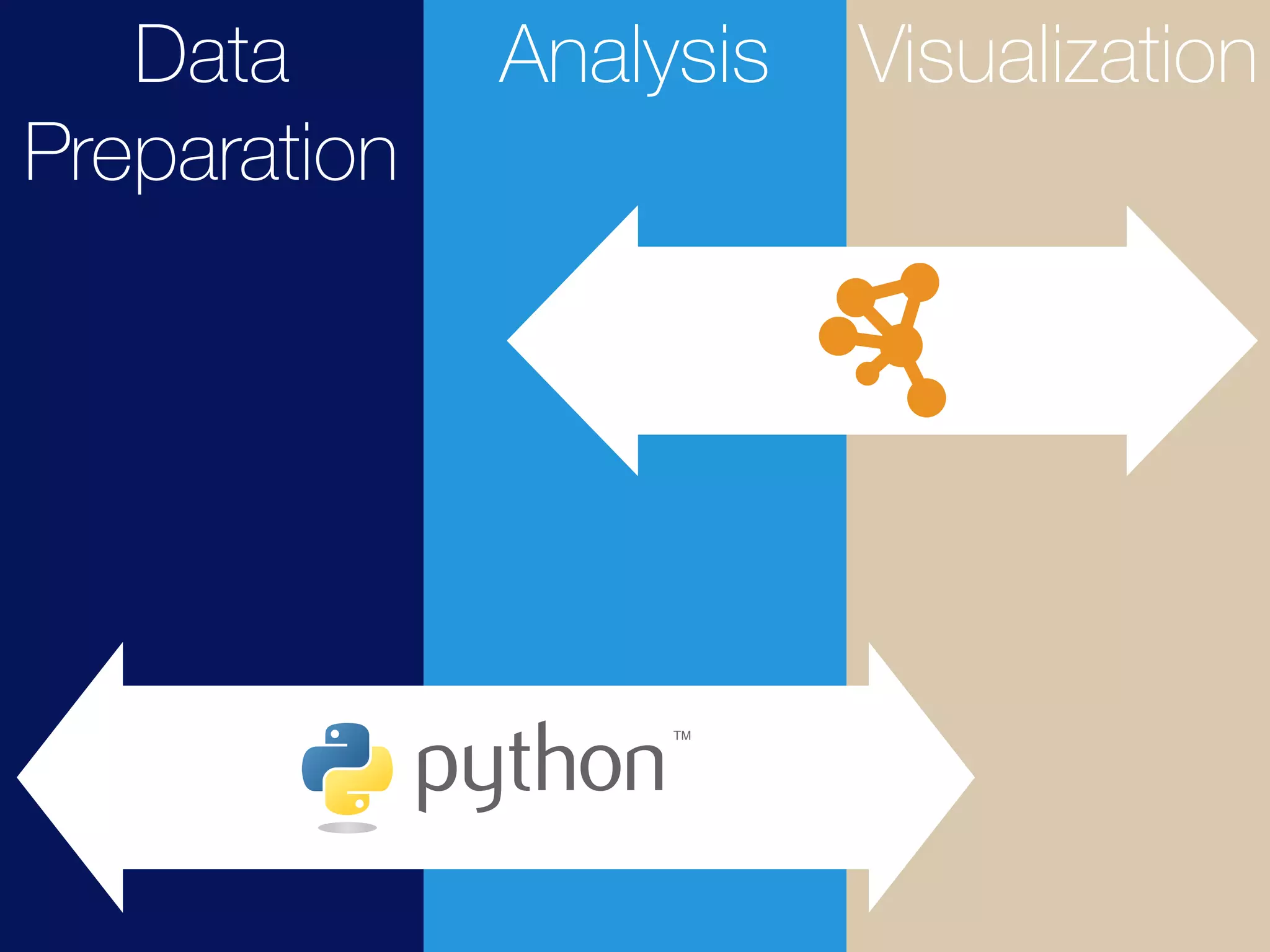

4. Data
Preparation
Analysis Visualization

5. Advanced Users:
Cytoscape for Interactive Visualization
R/Python for Data Manipulation / Analysis

6. Lab Notebook for in silico Experiments

7. Interactive Command-Line
+
Markdown-based Documents

8. Question
• Cytoscape is a desktop application
• Point & click GUI operation
• Easy to use, but how can we
make our workflow
reproducible?

9. REST

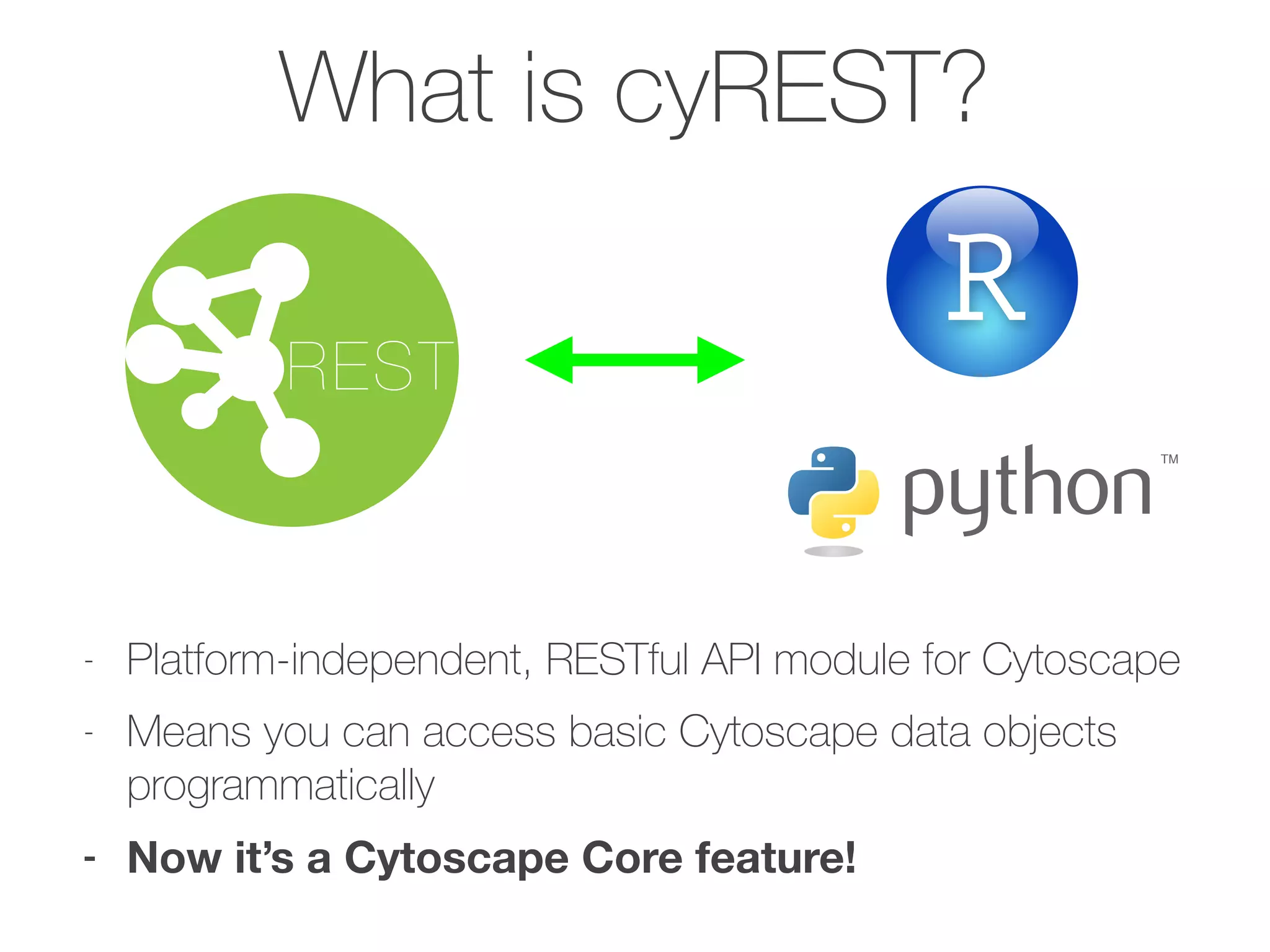

10. What is cyREST?
- Platform-independent, RESTful API module for Cytoscape
- Means you can access basic Cytoscape data objects
programmatically
- Now it’s a Cytoscape Core feature!
REST

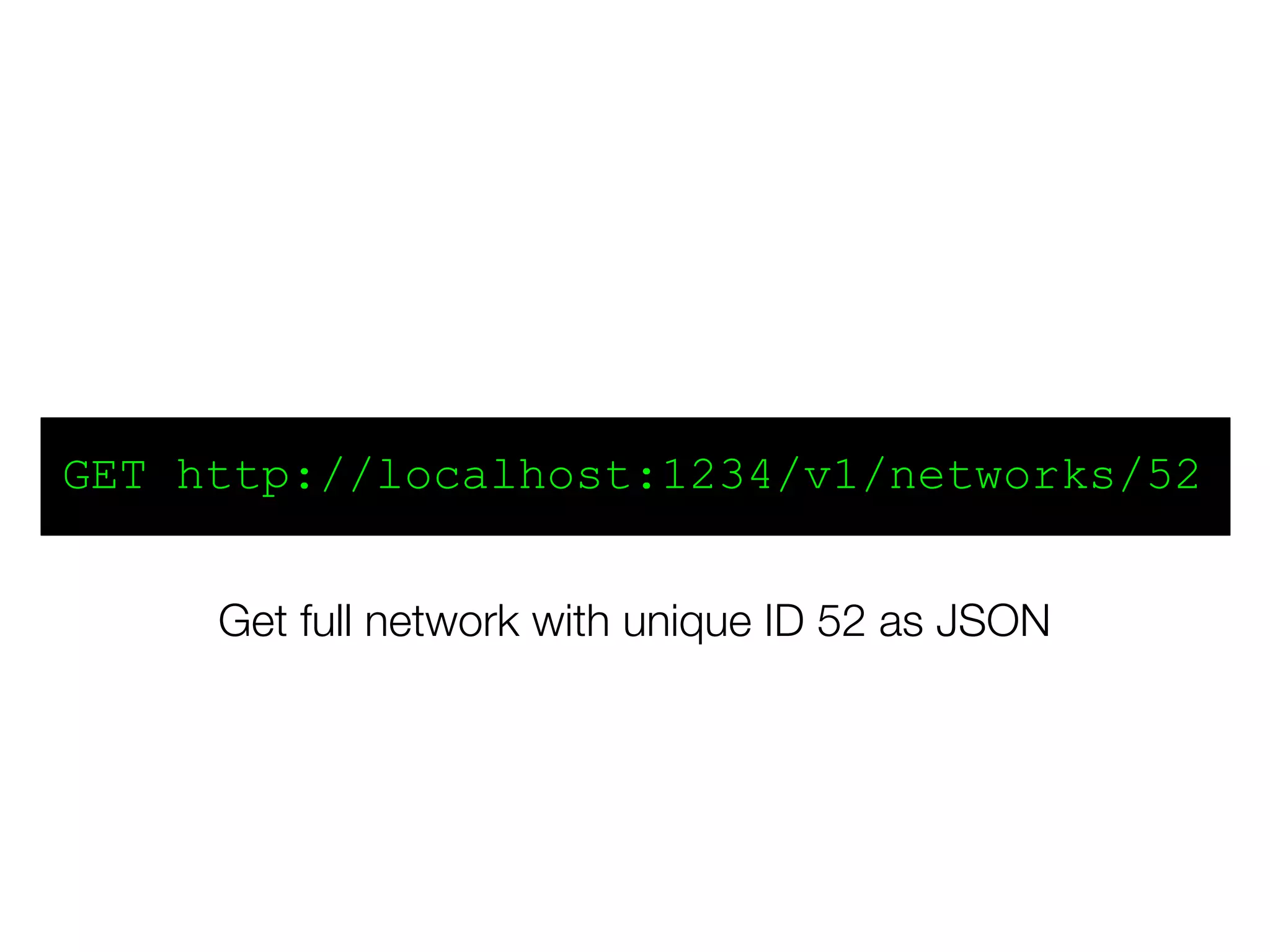

11. Get full network with unique ID 52 as JSON
GET http://localhost:1234/v1/networks/52

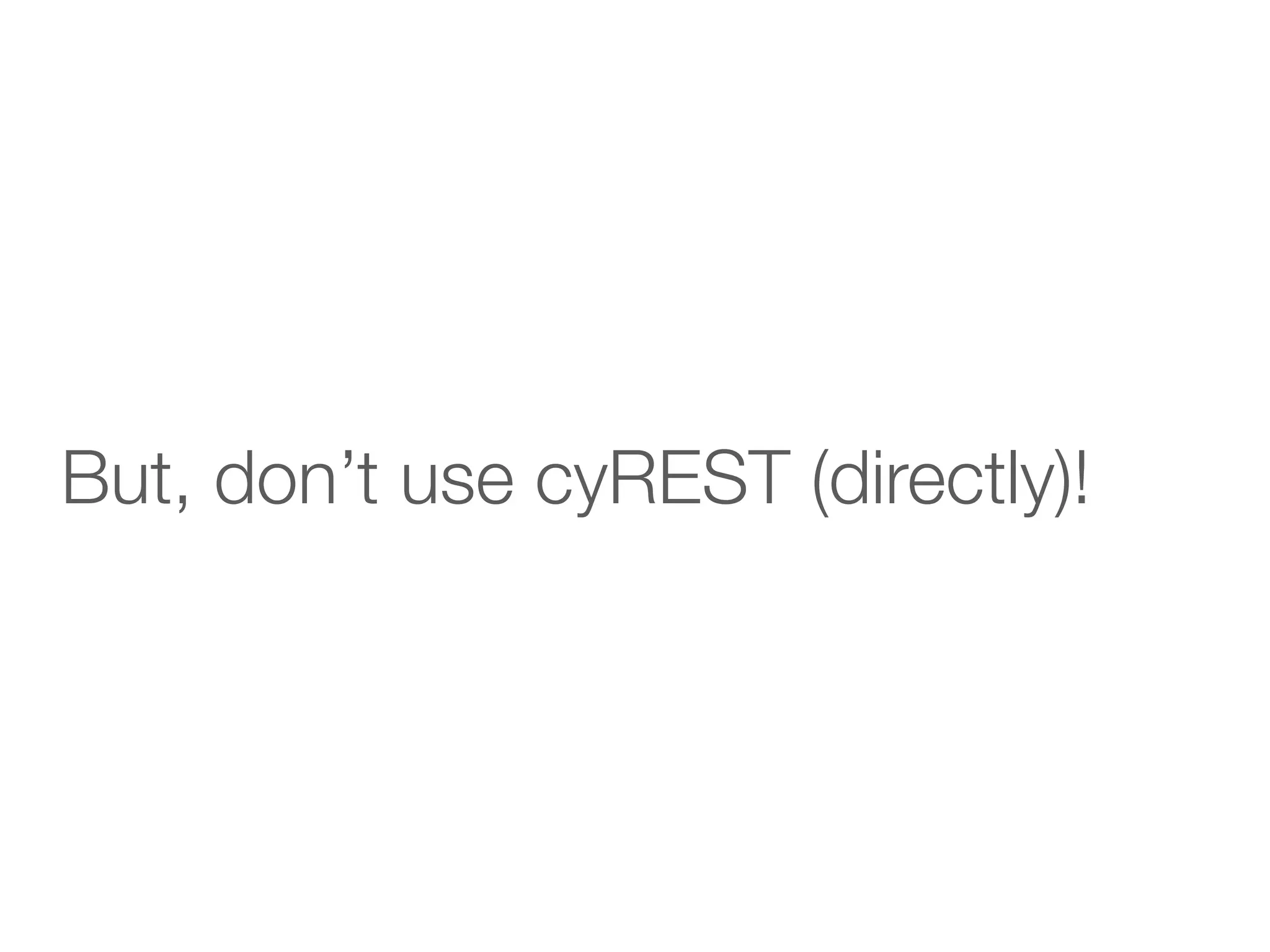

12. But, don’t use cyREST (directly)!

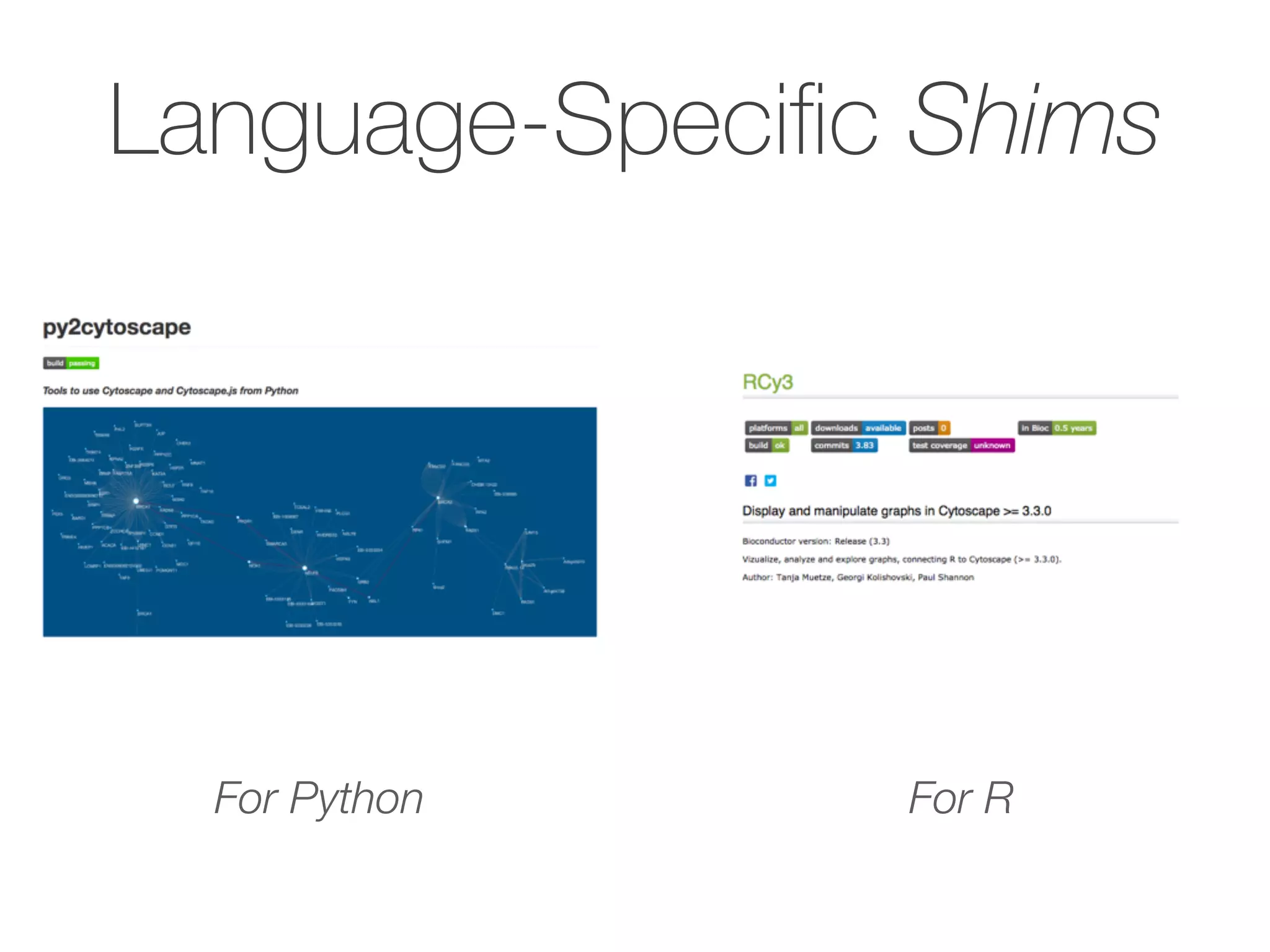

13. Language-Specific Shims
For Python For R

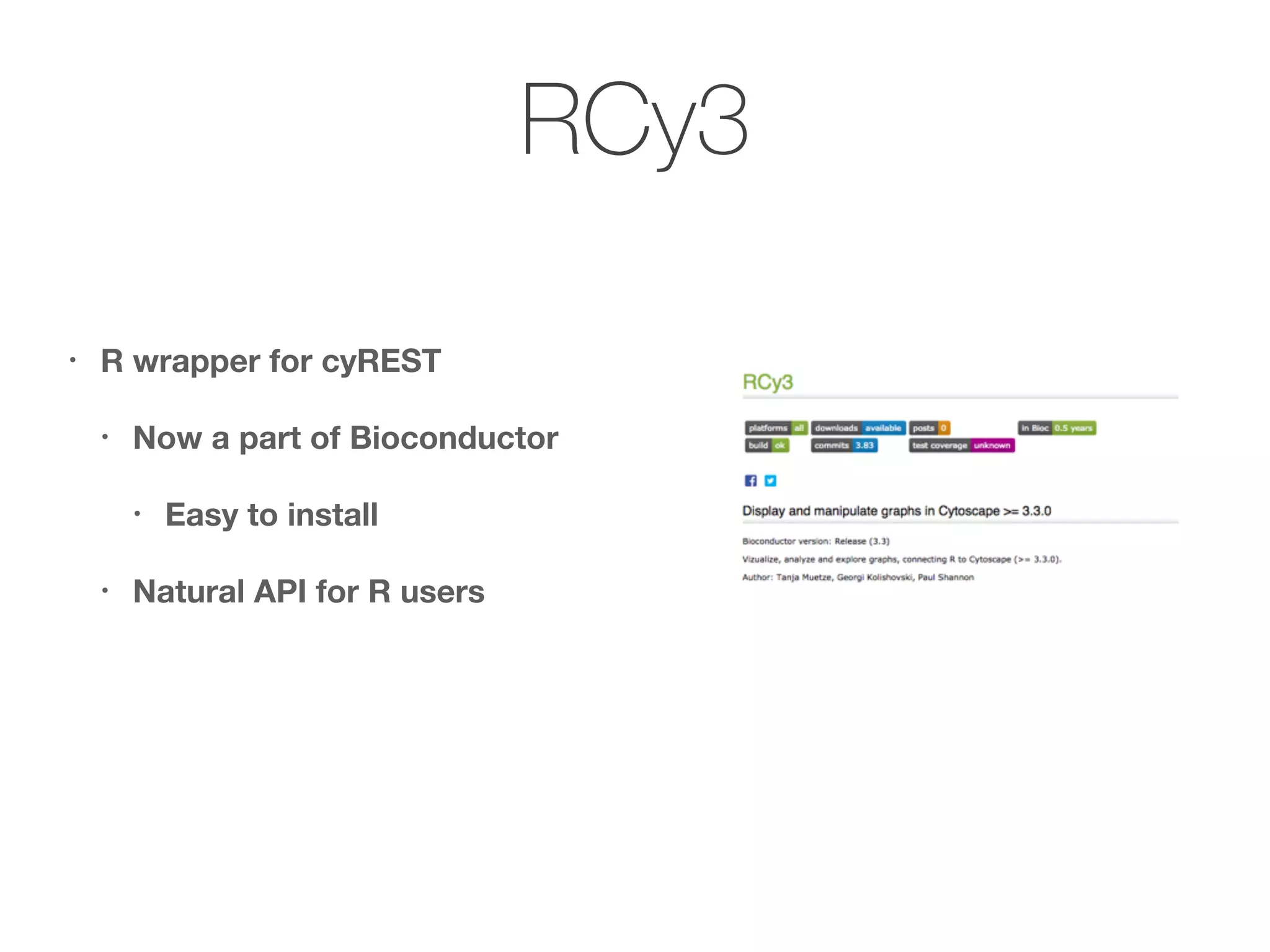

14. RCy3
• R wrapper for cyREST
• Now a part of Bioconductor
• Easy to install
• Natural API for R users

15. py2cytoscape
• Python wrapper for cyREST
• Supports high-level API
• Cytoscape.js viewer included
• Supports for iOS/Android

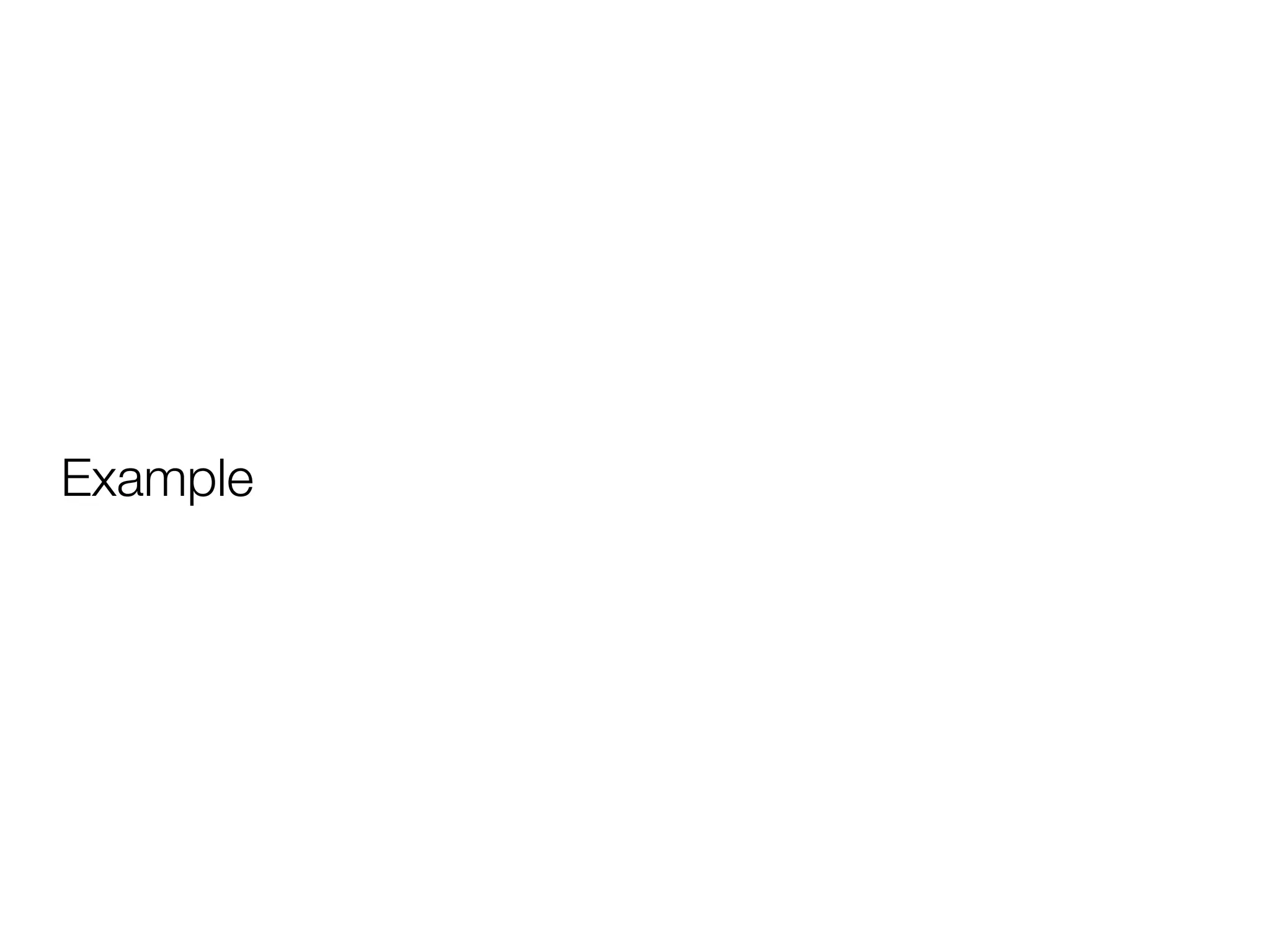

16. Example

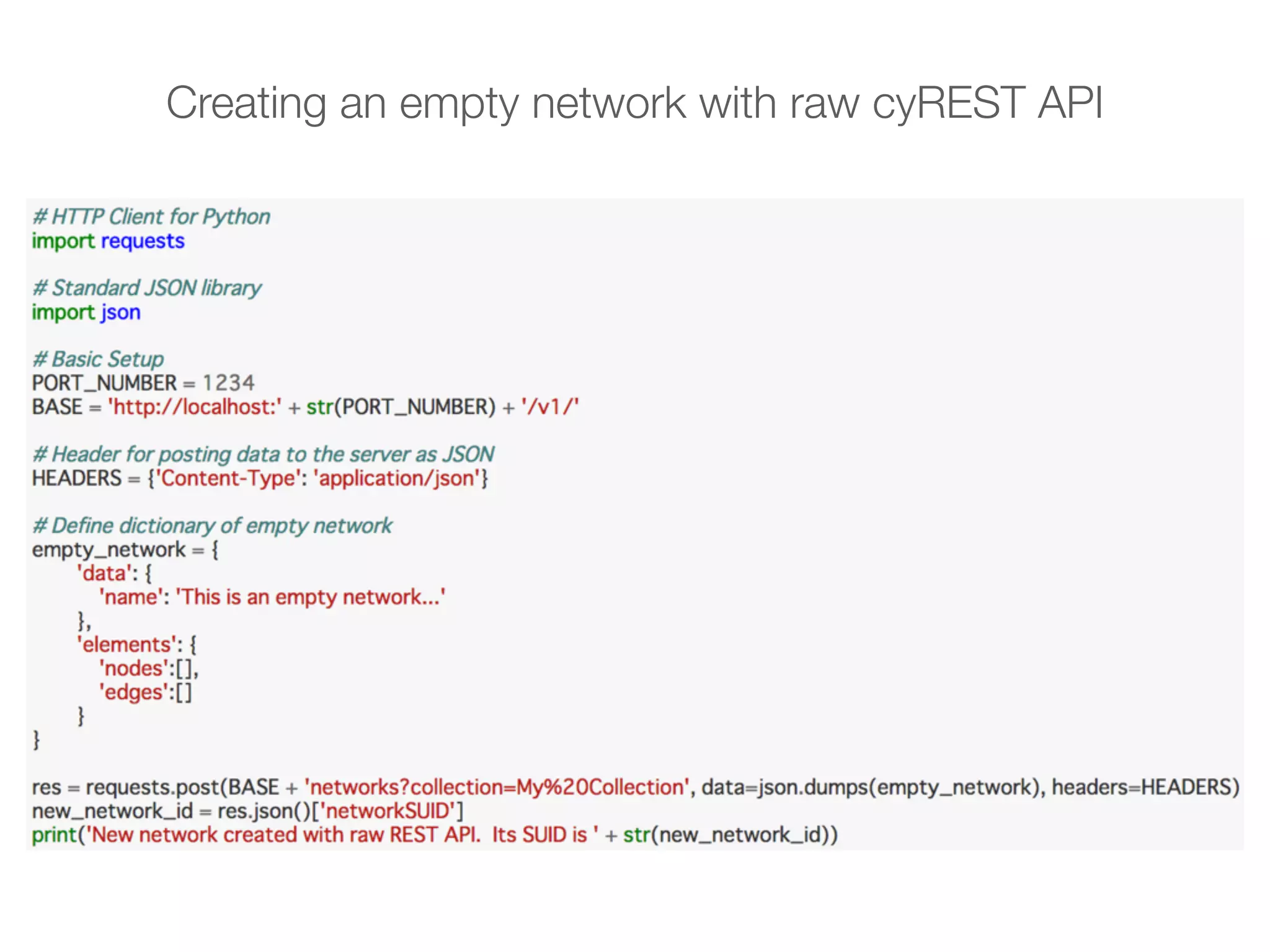

17. Creating an empty network with raw cyREST API

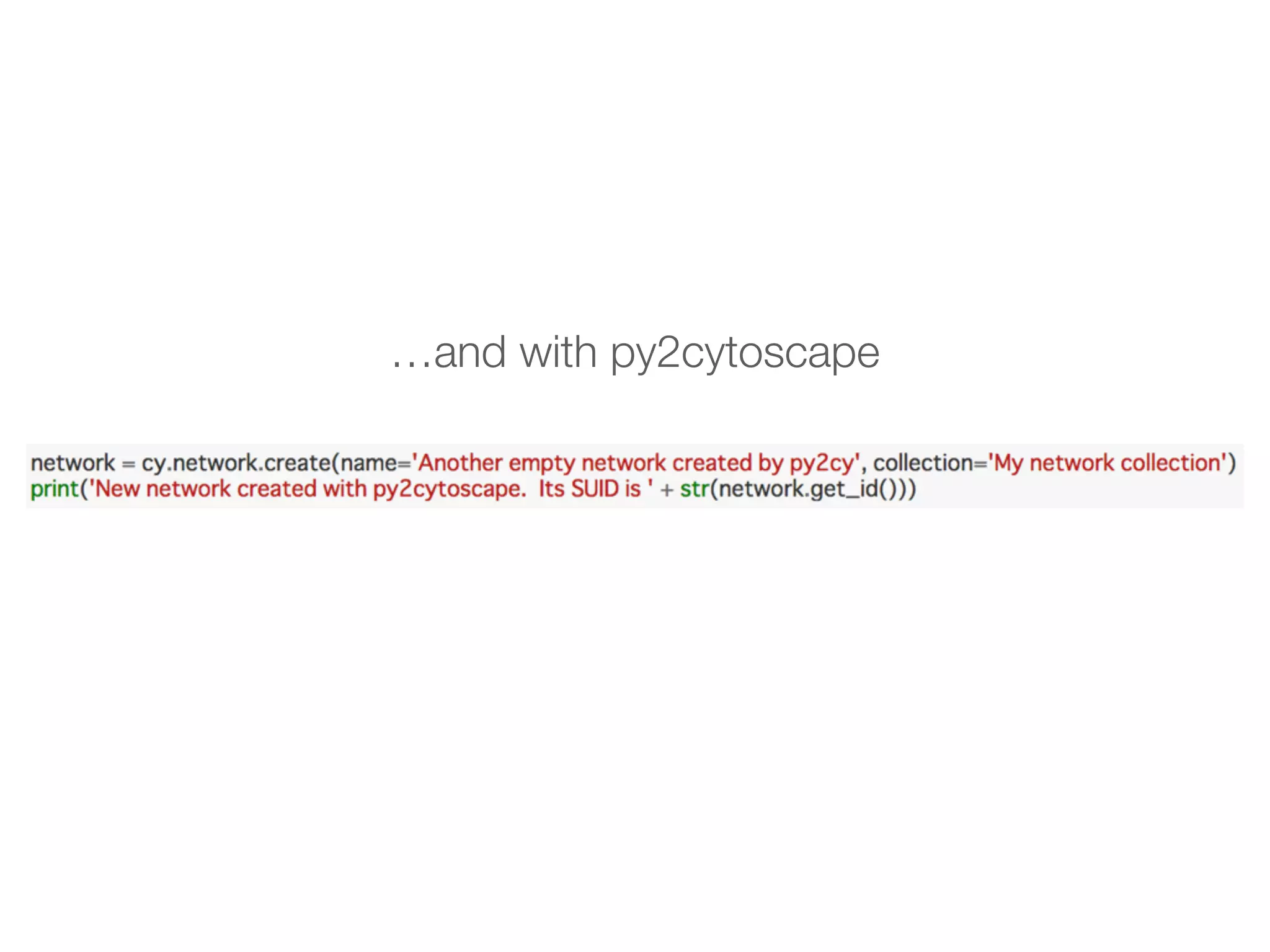

18. …and with py2cytoscape

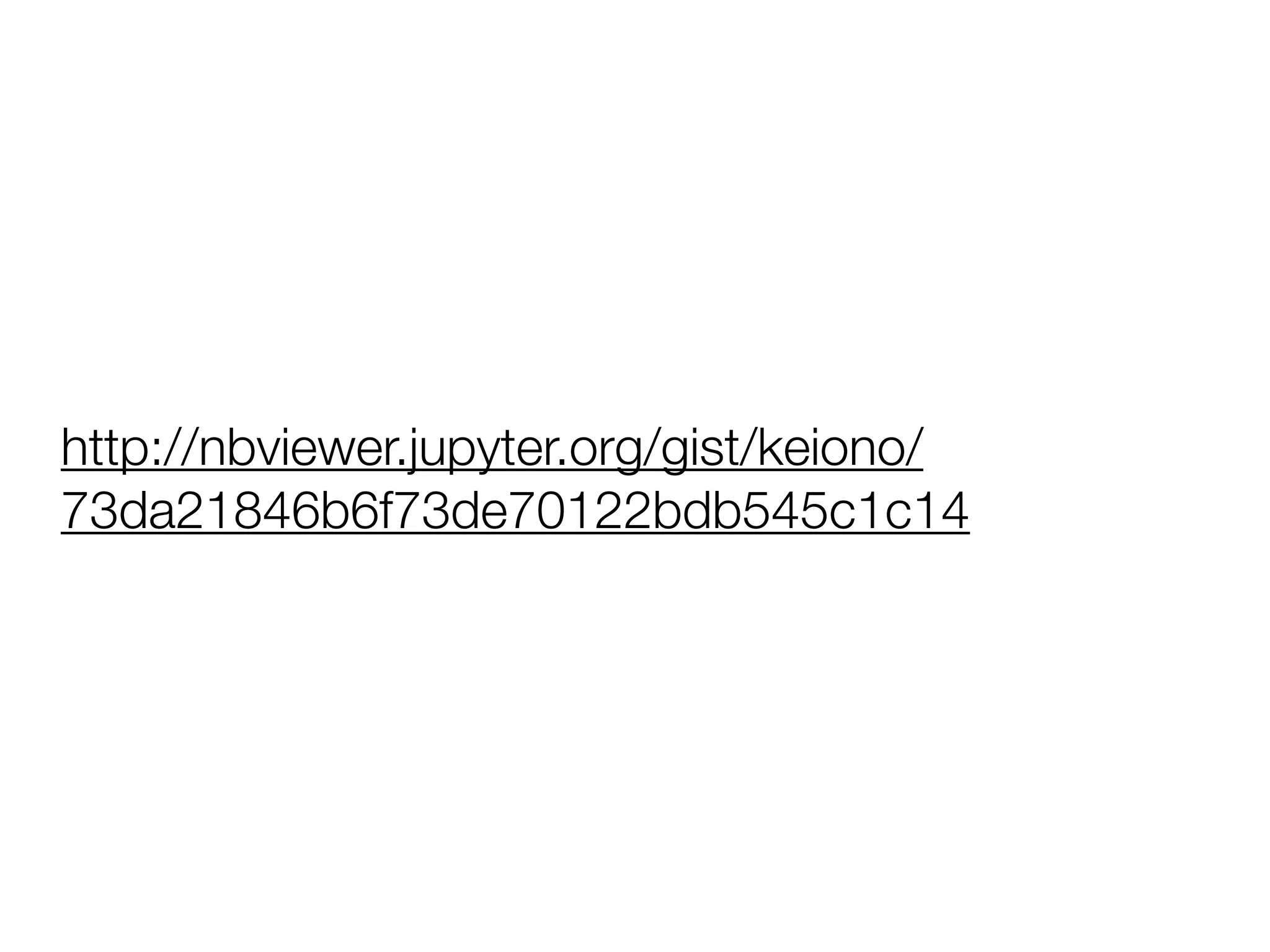

19. http://nbviewer.jupyter.org/gist/keiono/
73da21846b6f73de70122bdb545c1c14

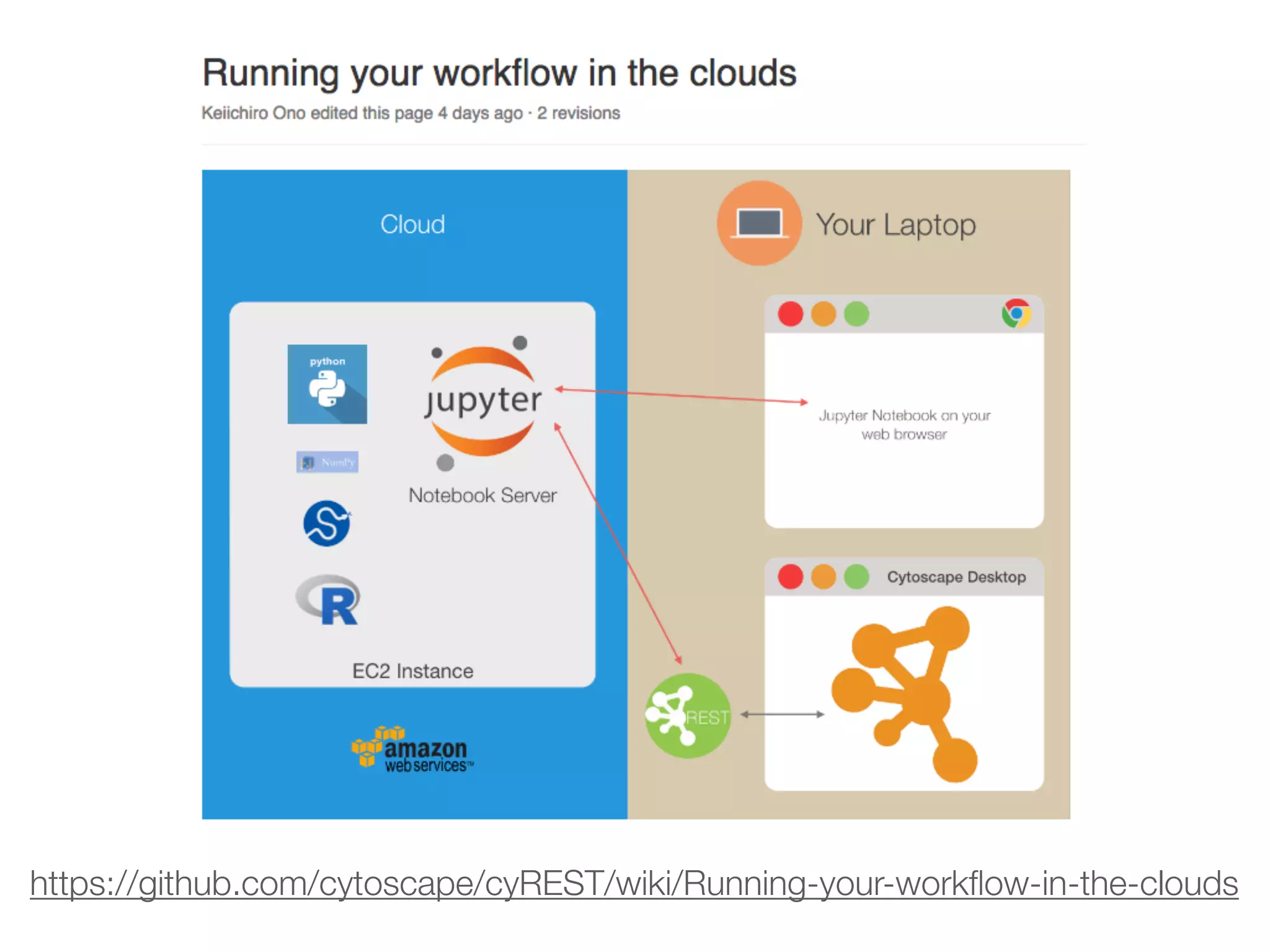

20. https://github.com/cytoscape/cyREST/wiki/Running-your-workflow-in-the-clouds

21. Now you have…
• Programmatic access to Cytoscape functions
• Notebooks to run your workflows
• Remote machines (clusters/clouds) for CPU intensive
tasks

22. Graph Libraries as Analytic Engine for Cytoscape

23. In-Memory Graph Analysis
N < millions

24. NetworkX
Pros:
- Easy to install
- Most of basic
graph operations
Cons:
- Slow!

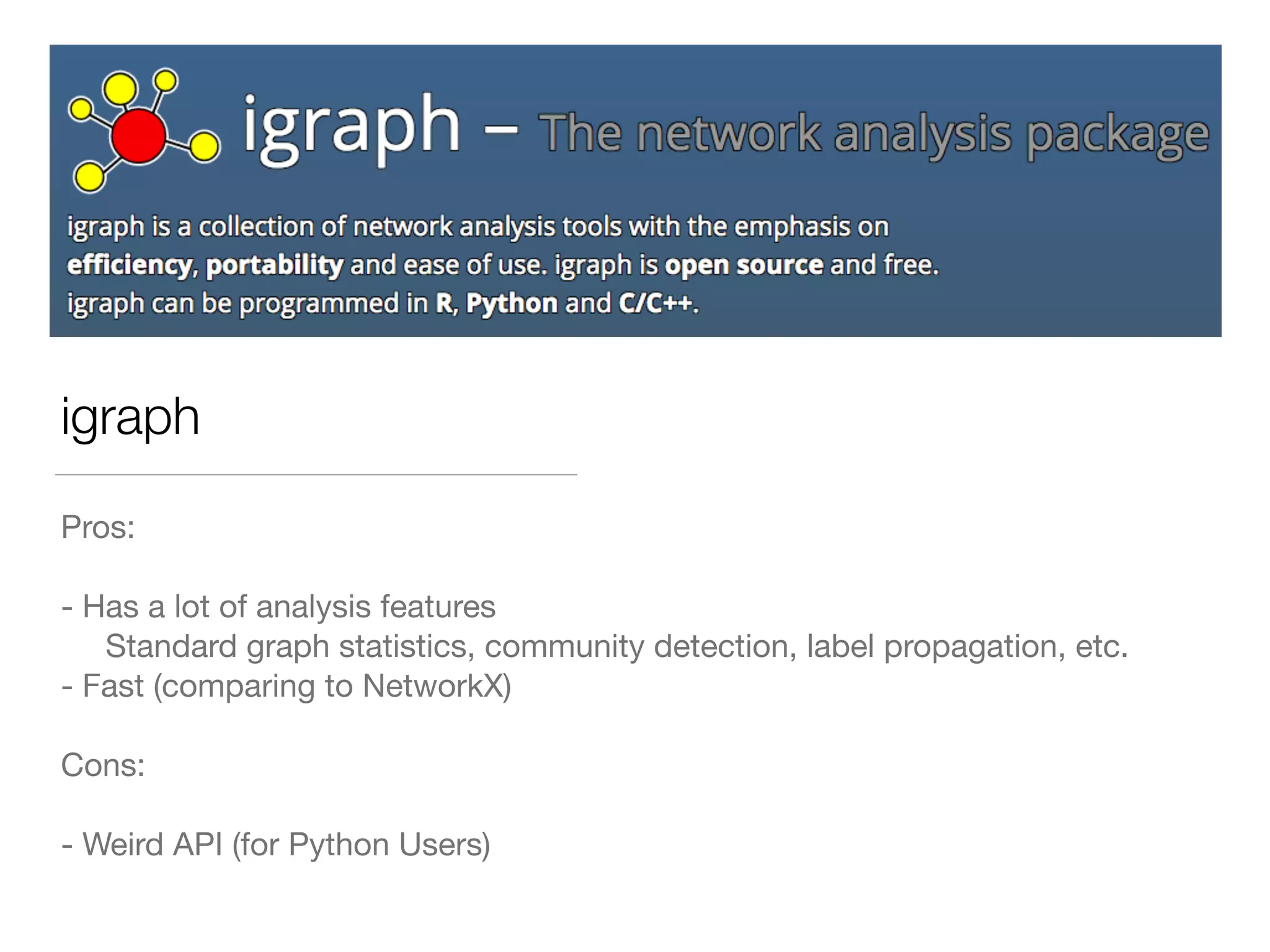

25. igraph
Pros:
- Has a lot of analysis features
Standard graph statistics, community detection, label propagation, etc.
- Fast (comparing to NetworkX)
Cons:
- Weird API (for Python Users)

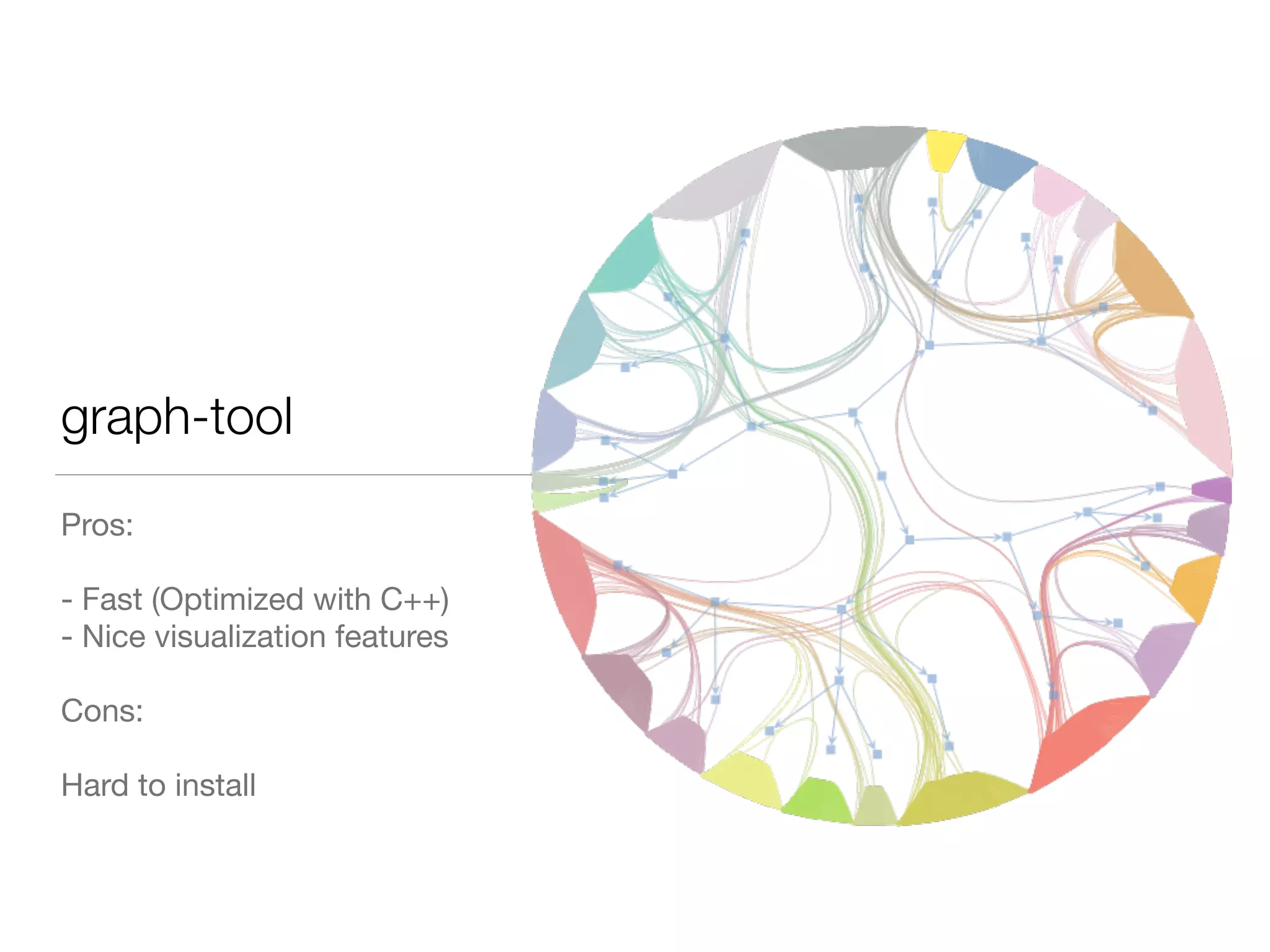

26. graph-tool
Pros:
- Fast (Optimized with C++)
- Nice visualization features
Cons:
Hard to install

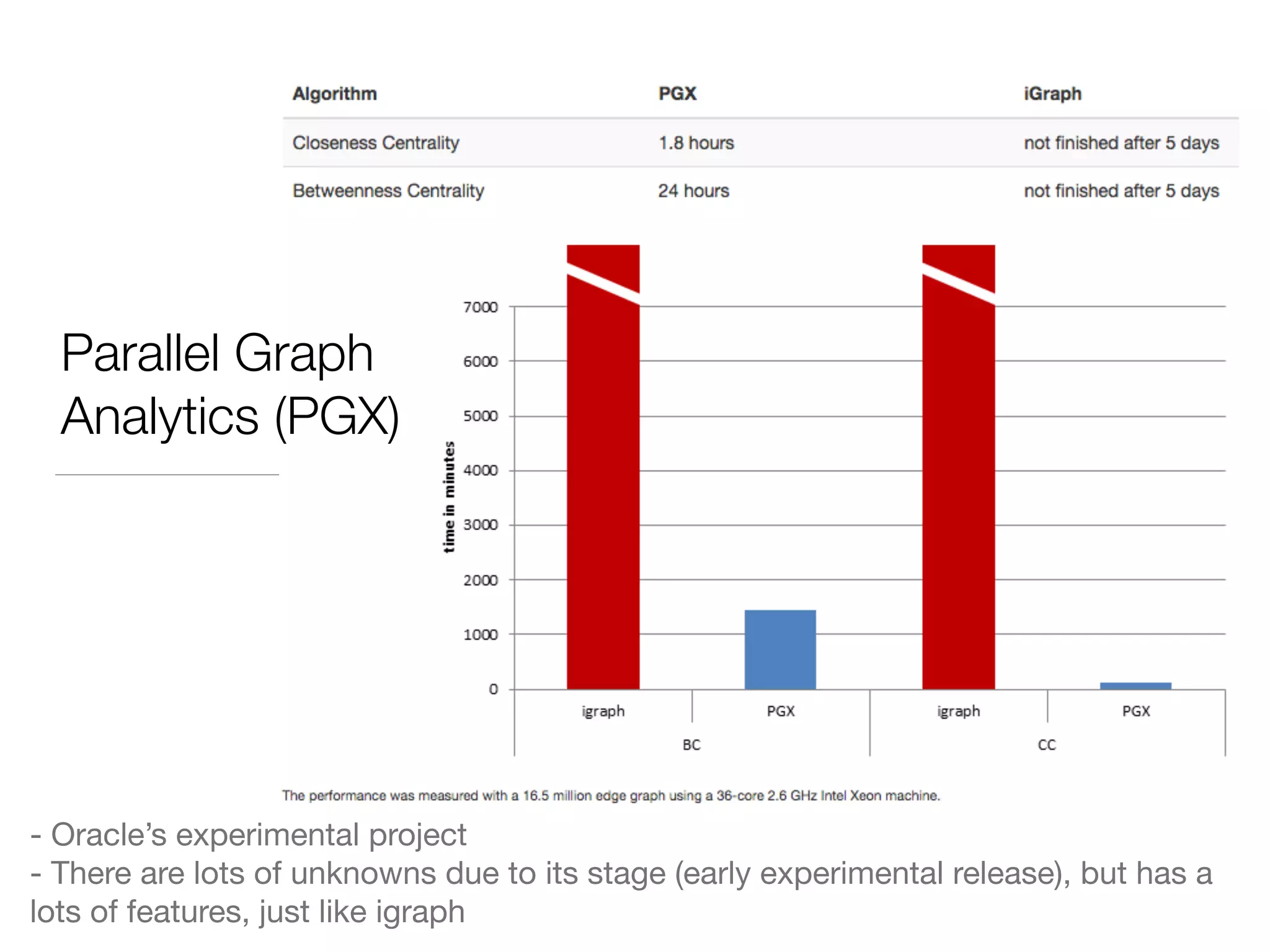

27. Parallel Graph
Analytics (PGX)
- Oracle’s experimental project
- There are lots of unknowns due to its stage (early experimental release), but has a
lots of features, just like igraph

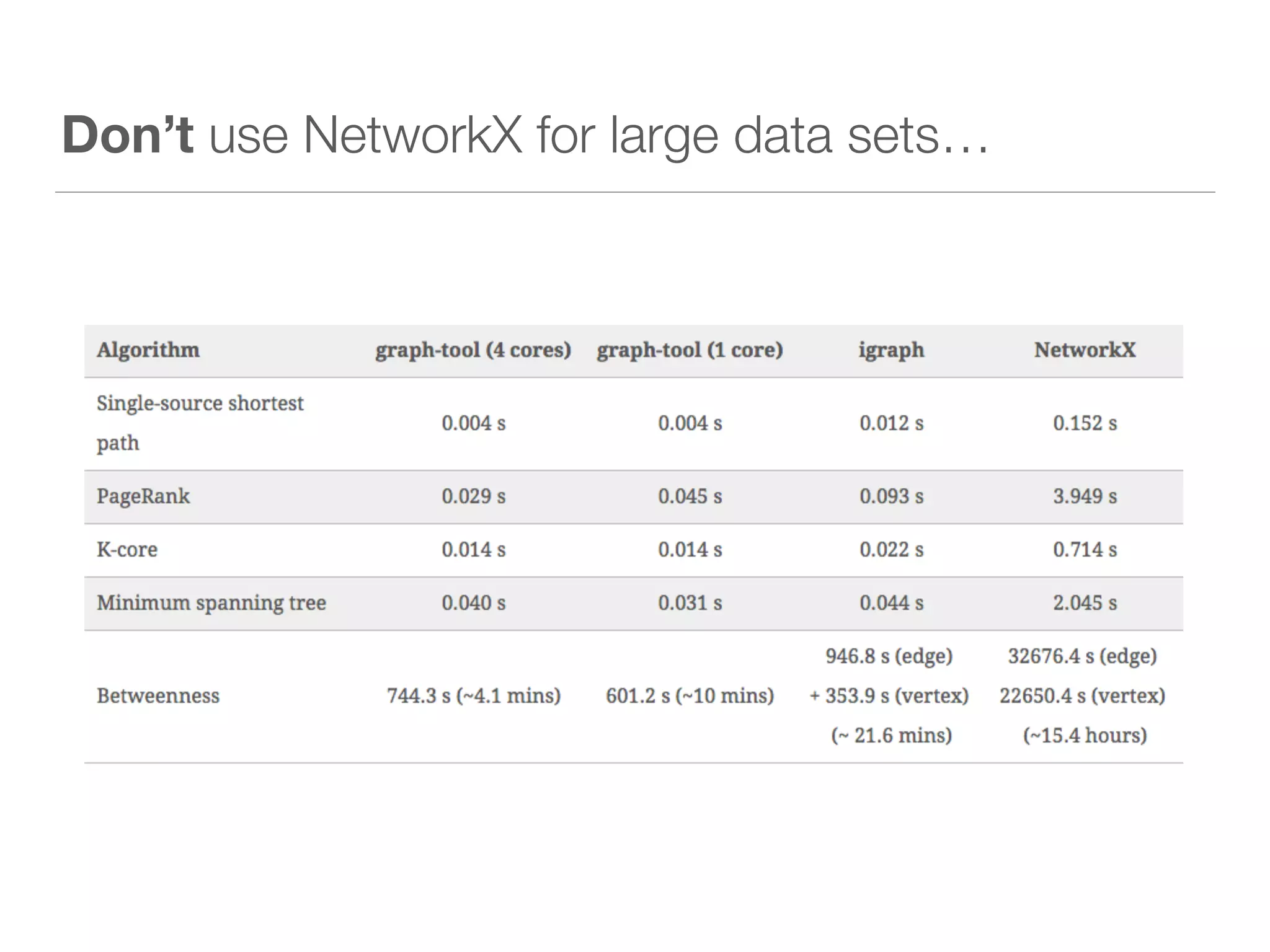

28. Don’t use NetworkX for large data sets…

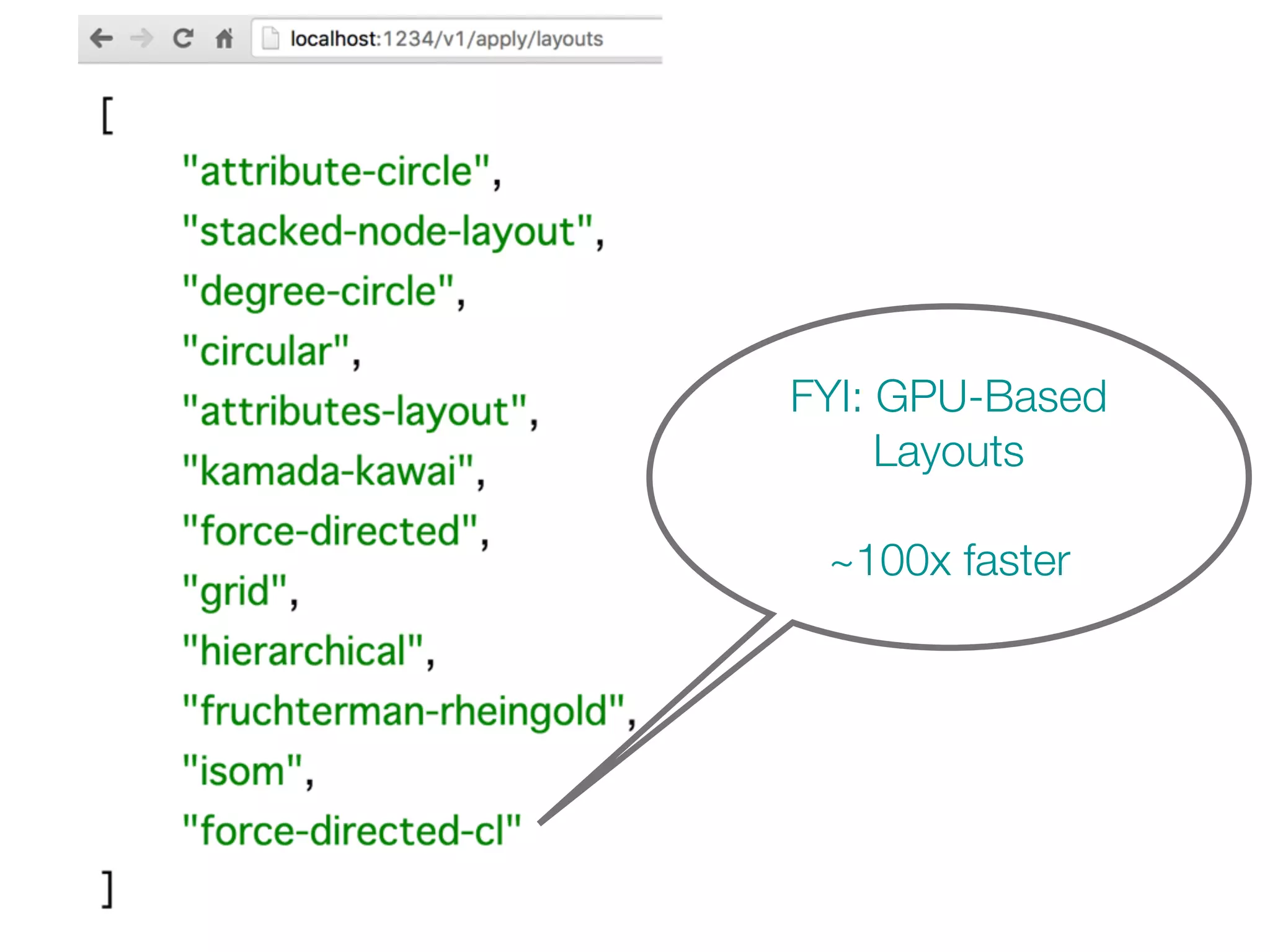

29. FYI: GPU-Based
Layouts
~100x faster

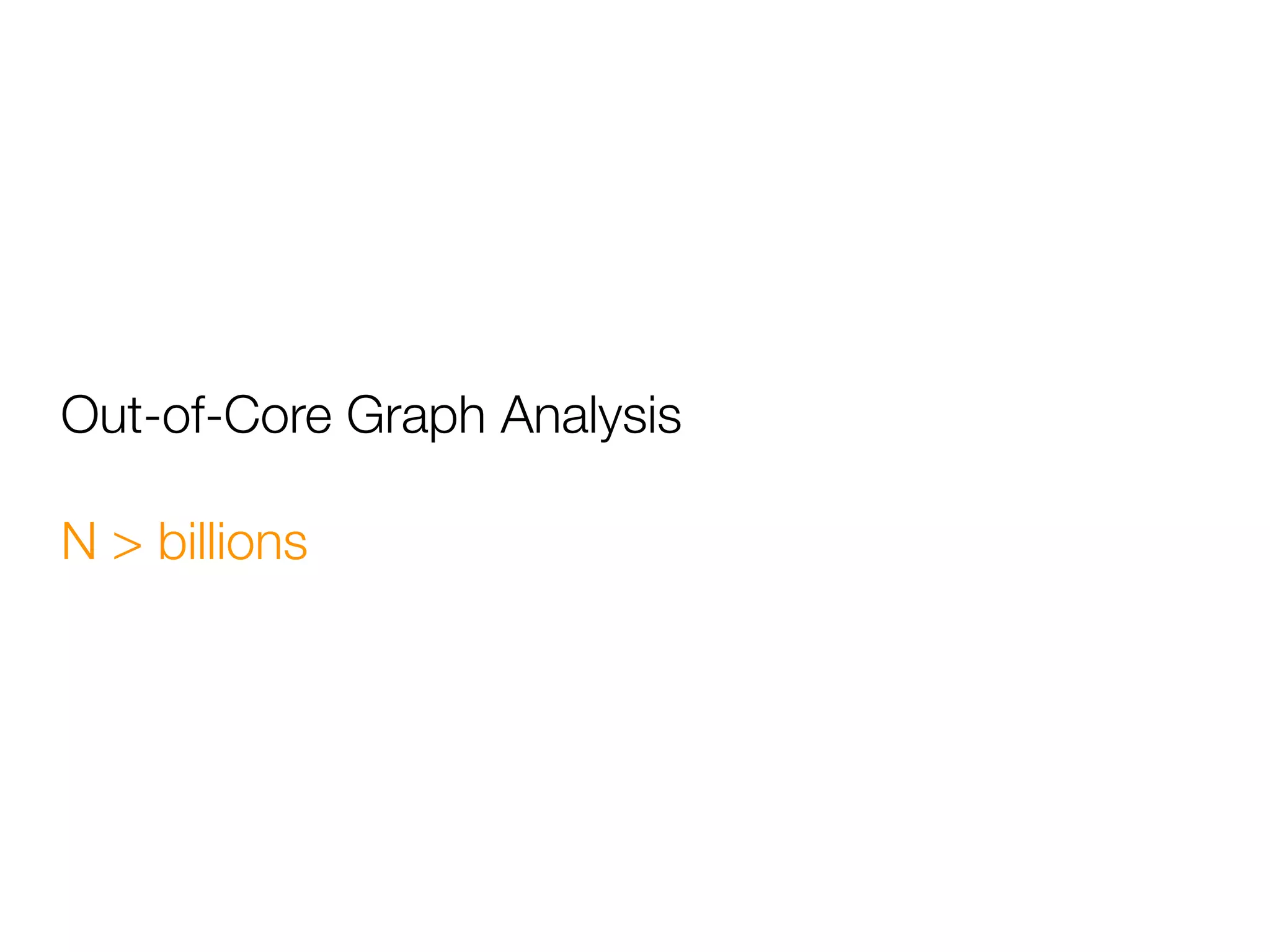

30. Out-of-Core Graph Analysis
N > billions

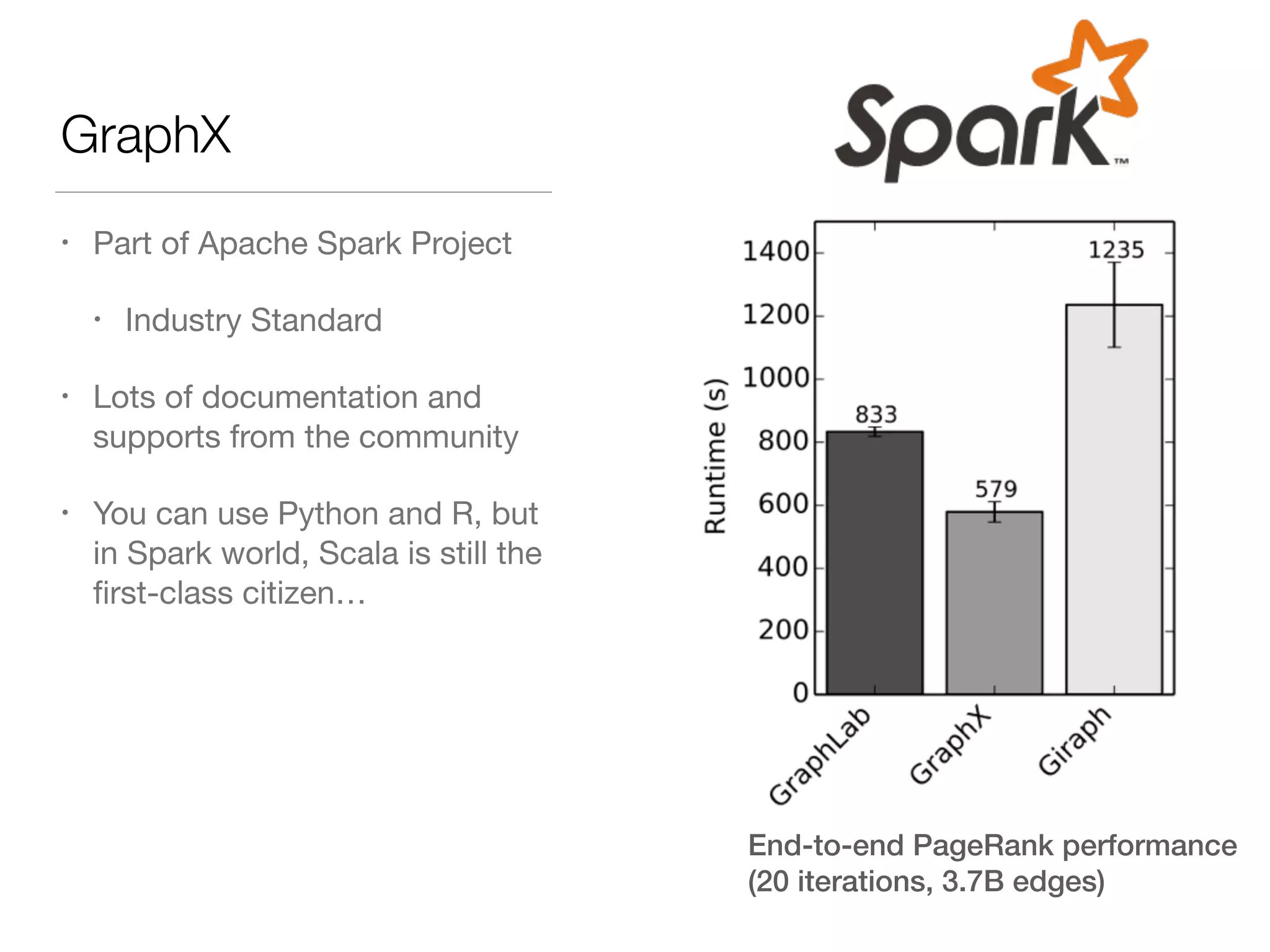

31. GraphX
• Part of Apache Spark Project
• Industry Standard
• Lots of documentation and
supports from the community
• You can use Python and R, but
in Spark world, Scala is still the
first-class citizen…
End-to-end PageRank performance
(20 iterations, 3.7B edges)

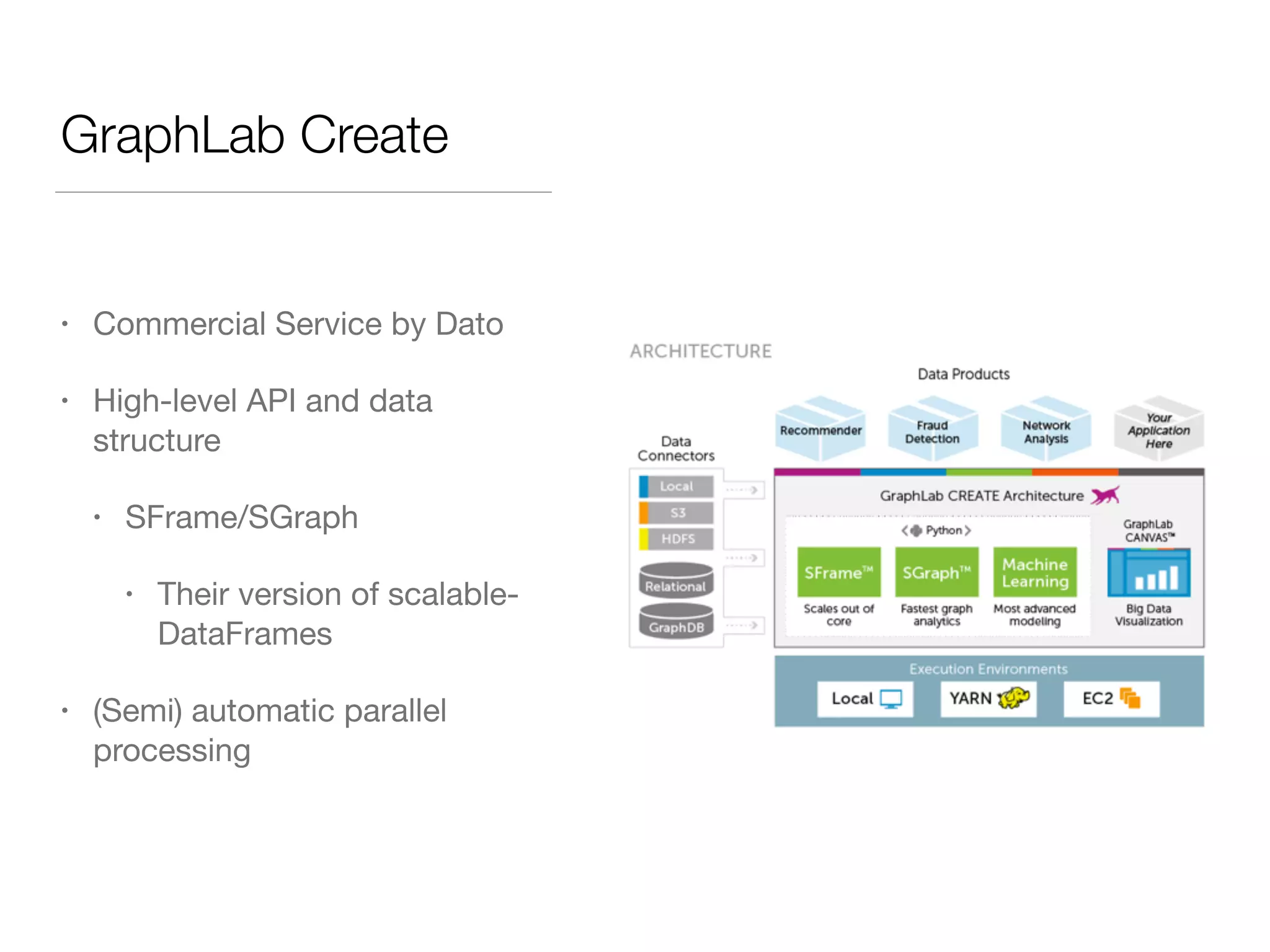

32. GraphLab Create
• Commercial Service by Dato
• High-level API and data
structure
• SFrame/SGraph
• Their version of scalable-
DataFrames
• (Semi) automatic parallel
processing

33. Neo4j v3
- This one focuses on storing arbitrary large graph (billions of nodes /edges)
data
- Has some analysis features
- Now natively support Python

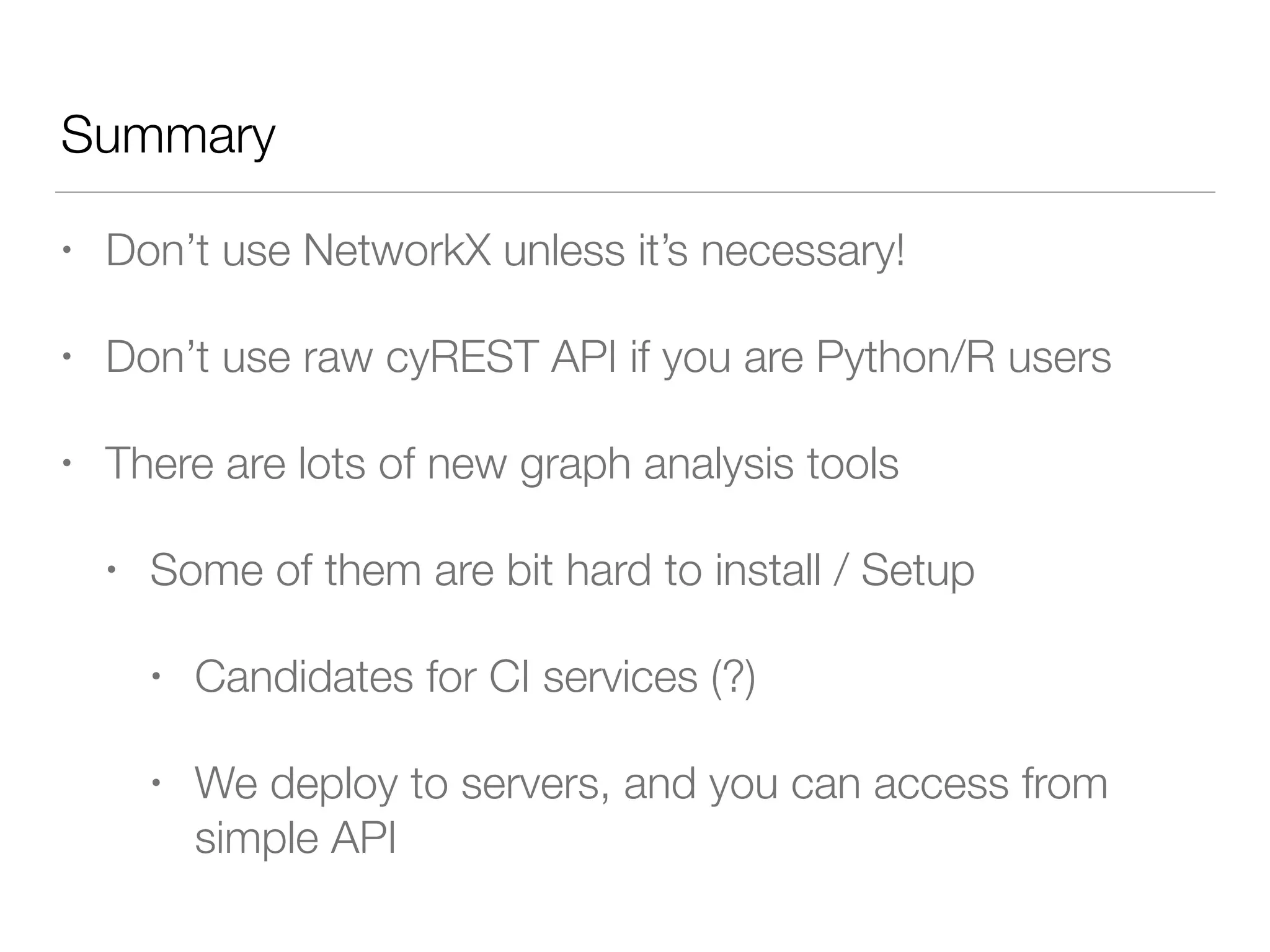

34. Summary
• Don’t use NetworkX unless it’s necessary!
• Don’t use raw cyREST API if you are Python/R users
• There are lots of new graph analysis tools
• Some of them are bit hard to install / Setup
• Candidates for CI services (?)
• We deploy to servers, and you can access from
simple API
