Azure Bootcamp 2016 - Docker Orchestration on Azure with Rancher
This document discusses Docker orchestration on Azure using Rancher. It begins with an introduction to Docker concepts like containers, images and the Docker workflow. It then demonstrates deploying a Rancher server on Azure, adding nodes, upgrading a sample application, enabling cross-region networking, auto-scaling services, and using a Docker volume plugin to connect to Azure File Storage for persistent storage. The document includes code samples and step-by-step demonstrations of these Rancher and Docker capabilities on Azure.
More Related Content
![[AWS Dev Day] 앱 현대화 | AWS Fargate를 사용한 서버리스 컨테이너 활용 하기 - 삼성전자 개발자 포털 사례 - 정영준...](https://cdn.slidesharecdn.com/ss_thumbnails/appmodernizationawsfargate-190930044252-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Azure Bootcamp 2016 - Docker Orchestration on Azure with Rancher
Azure Bootcamp 2016 - Docker Orchestration on Azure with Rancher
- 1. Docker Orchestration onAzure with Rancher
- 2. Who am I? CloudSolution Architect @ Xylos ICT Started in IT about 15 years ago Heterogeneous Background Focused on Business Outcome about.kvaes.be @kvaes blog.kvaes.be Karim Vaes

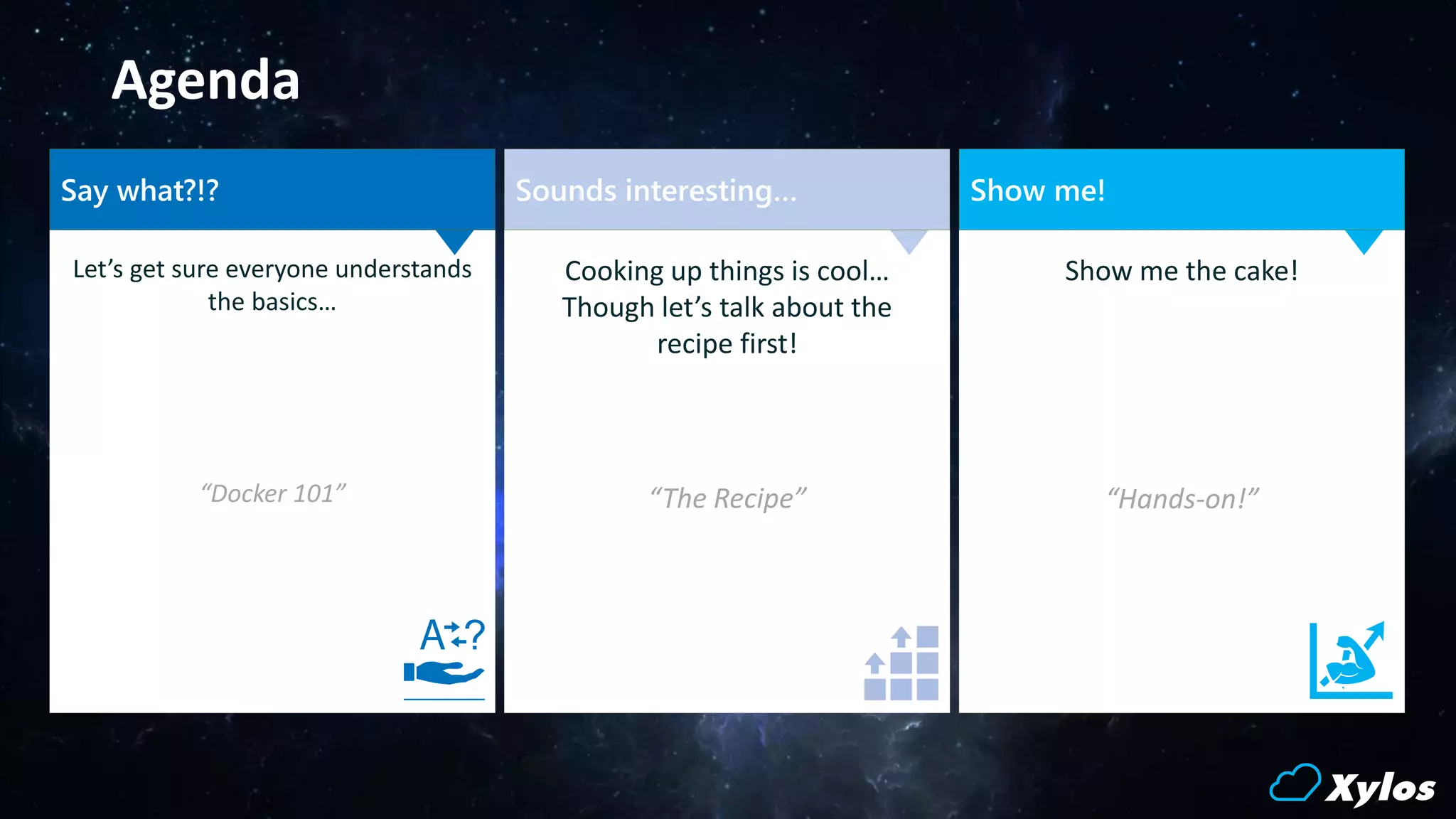

- 3. Agenda Let’s get sureeveryone understands the basics… “Docker 101” Show me the cake! “Hands-on!” Cooking up things is cool… Though let’s talk about the recipe first! “The Recipe” Sounds interesting… Show me!Say what?!?
- 4.

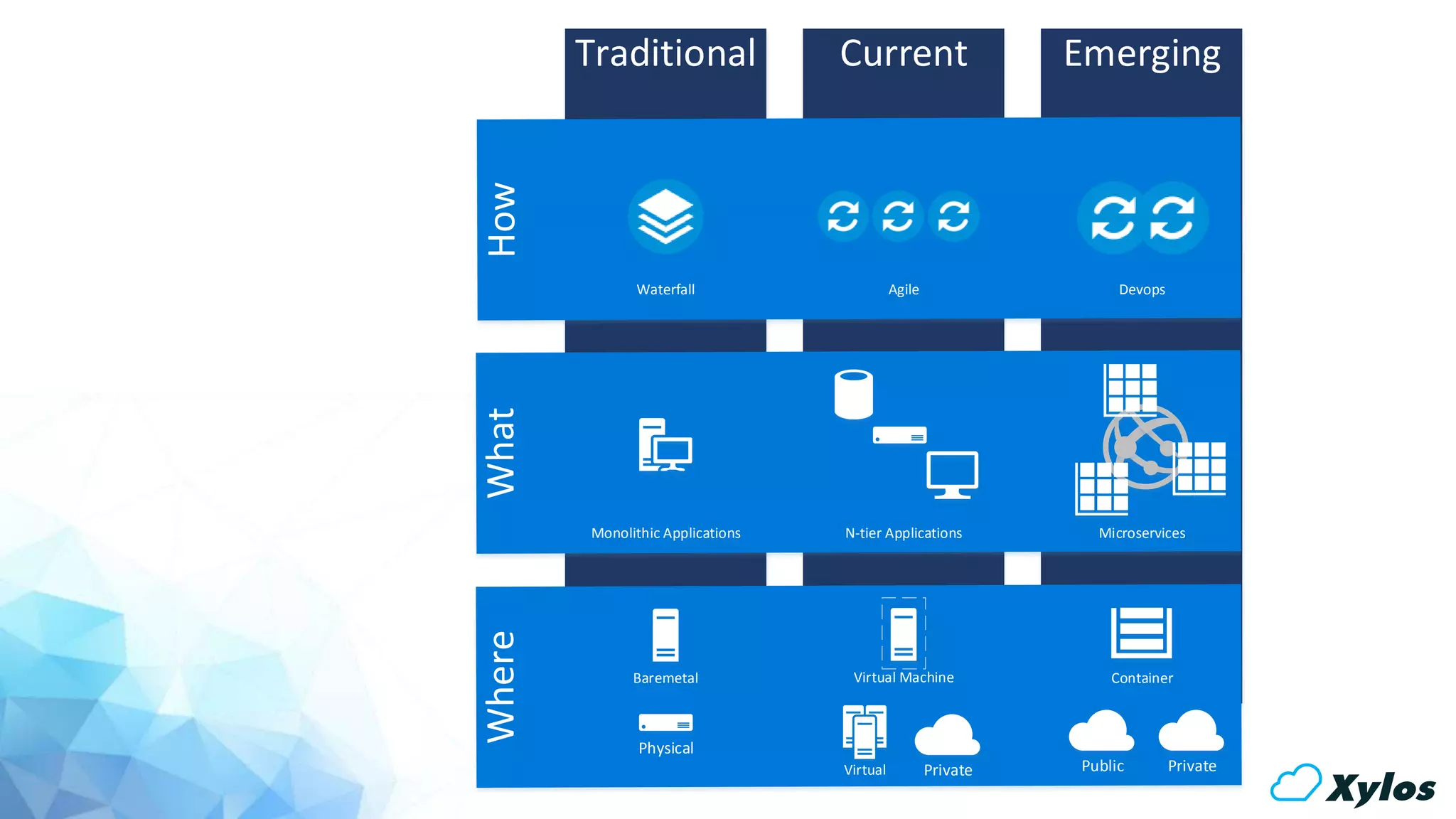

- 5. Traditional Current Emerging VirtualPublic Private Container Physical Baremetal Virtual Machine Private N-tier Applications MicroservicesMonolithic Applications Agile DevopsWaterfall

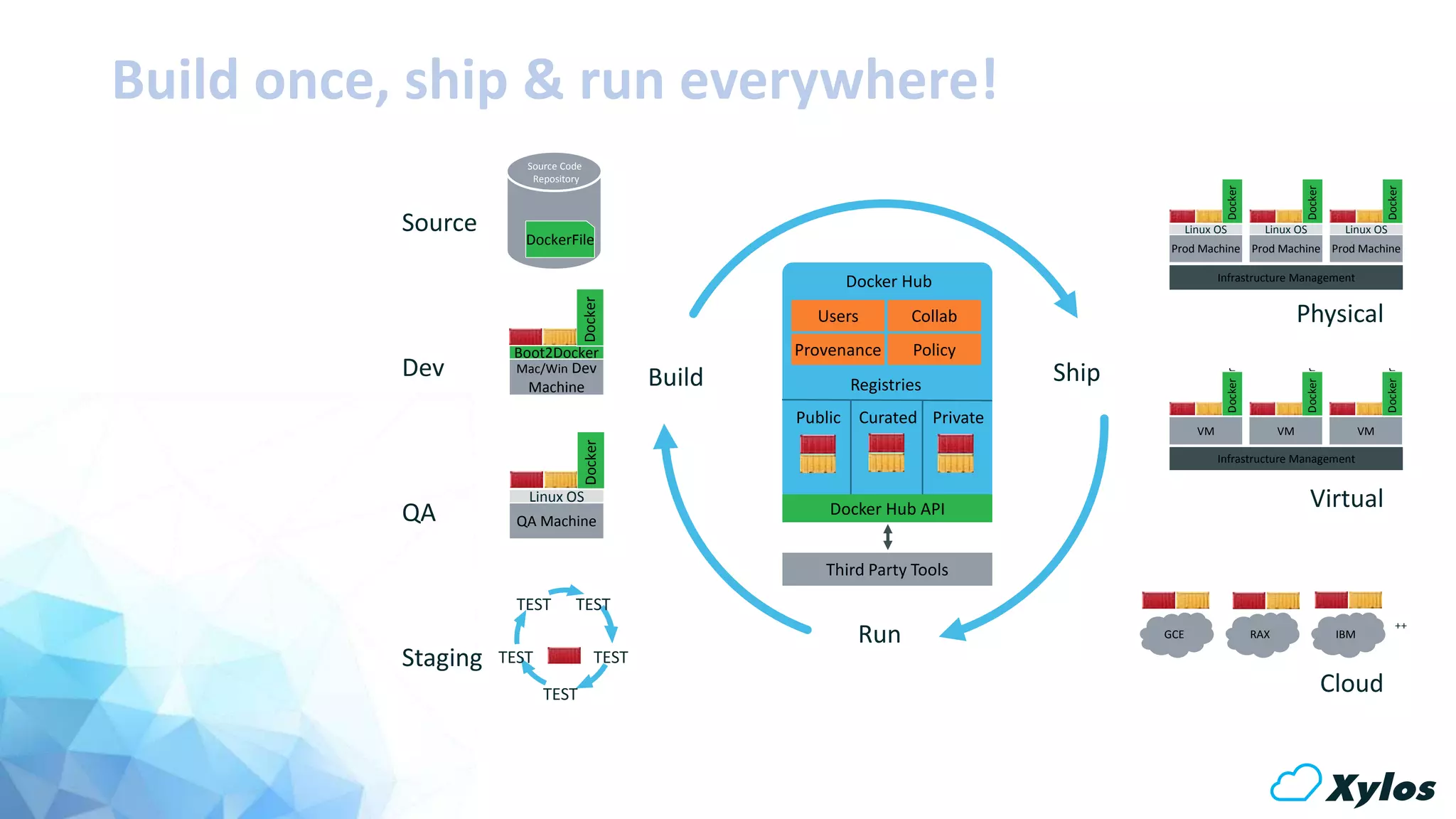

- 6. Build Ship Run Dev QA Source Staging Physical Virtual Cloud Infrastructure Management InfrastructureManagement DockerFile Source Code Repository TESTTEST TESTTEST TEST GCE RAX IBM Mac/Win Dev Machine Boot2Docker Docker Analytics DB Prod Machine Linux OS DockerDocker ++ Users Collab Provenance Policy Docker Hub Registries Public Curated Private Docker Hub API Third Party Tools Prod Machine Linux OS DockerDocker Prod Machine Linux OS DockerDocker VM DockerDocker VM DockerDocker VM DockerDocker QA Machine Linux OS DockerDocker Build once, ship & run everywhere!

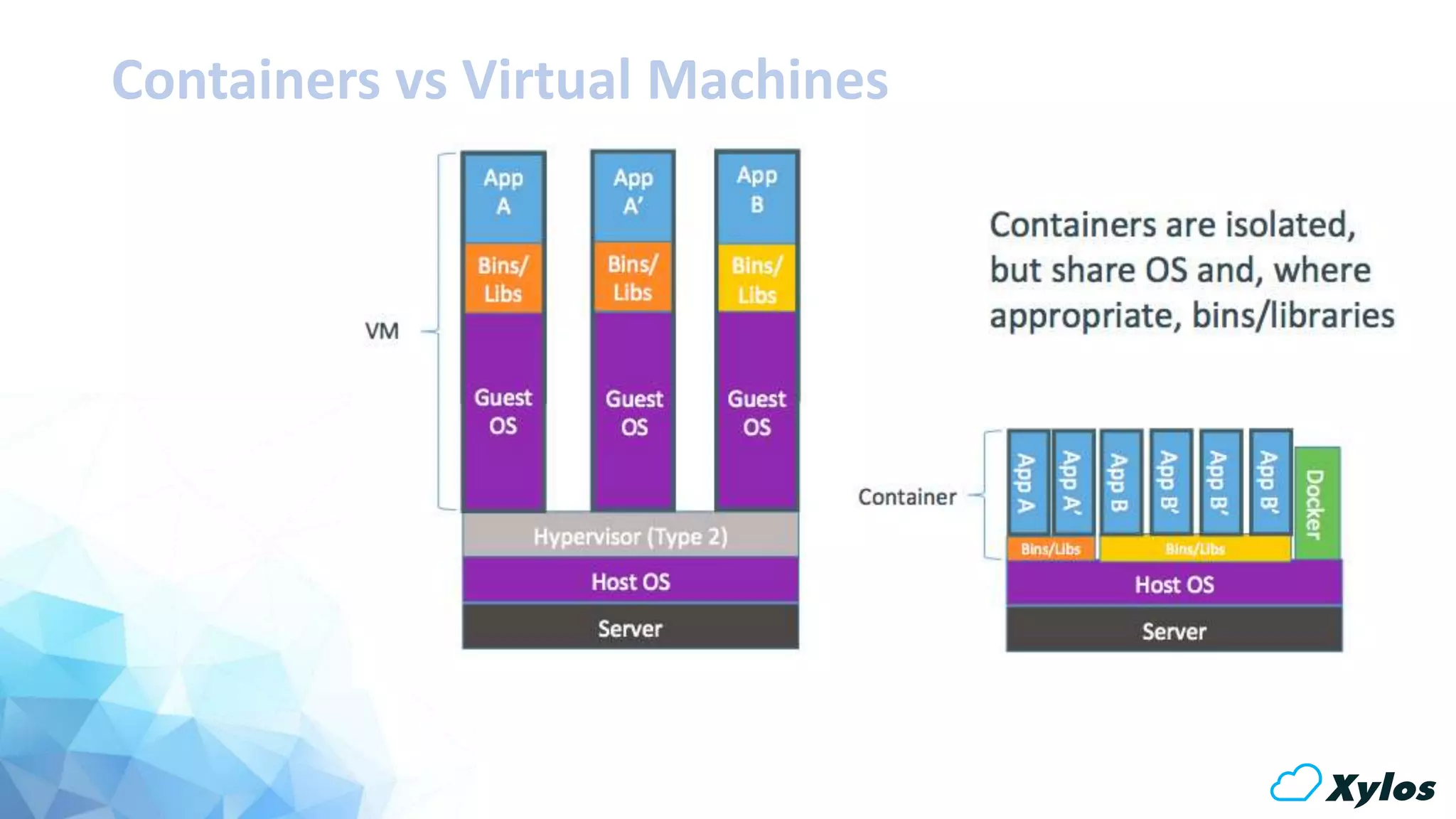

- 7. Containers vs VirtualMachines

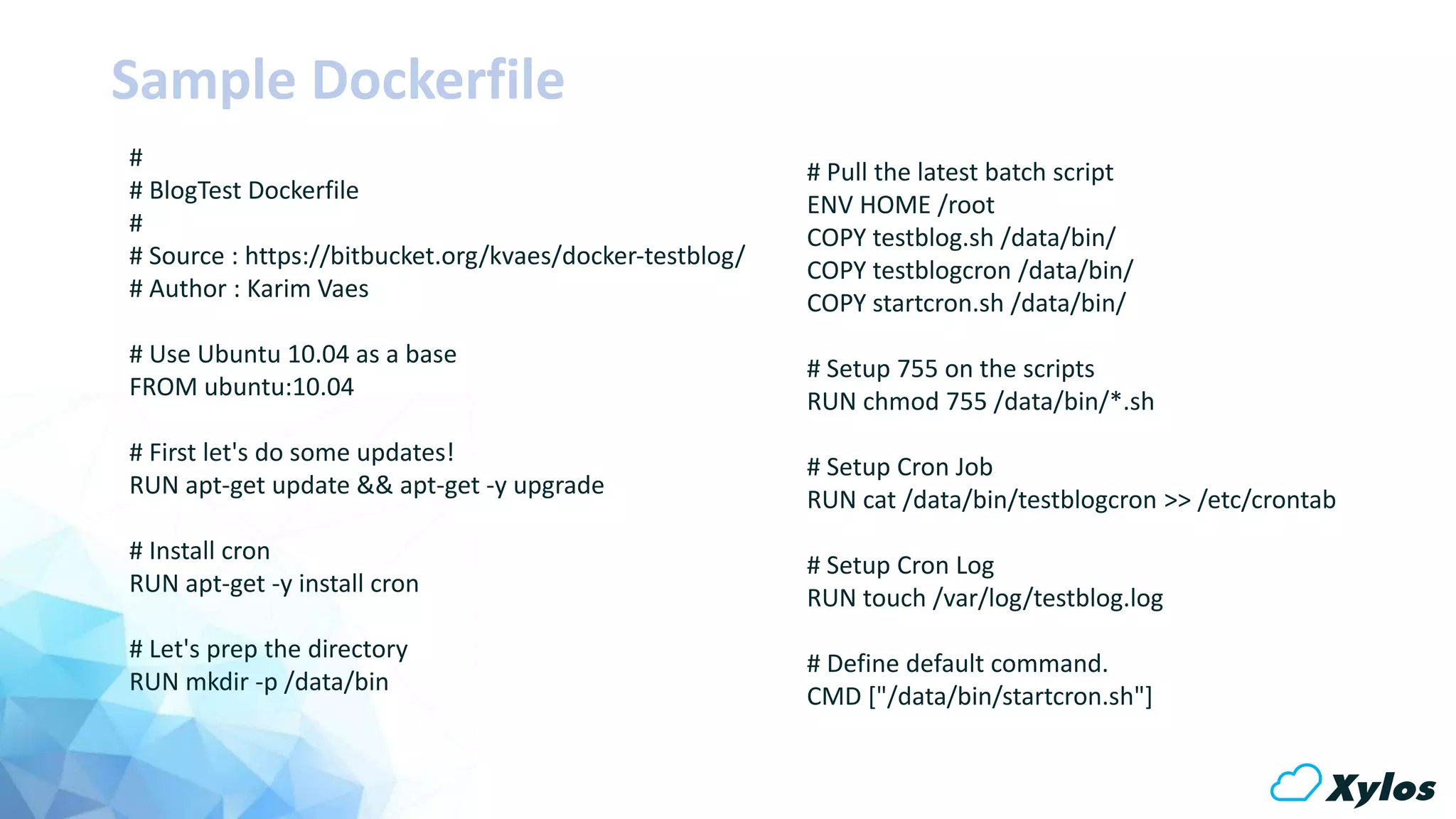

- 8. Sample Dockerfile # Pullthe latest batch script ENV HOME /root COPY testblog.sh /data/bin/ COPY testblogcron /data/bin/ COPY startcron.sh /data/bin/ # Setup 755 on the scripts RUN chmod 755 /data/bin/*.sh # Setup Cron Job RUN cat /data/bin/testblogcron >> /etc/crontab # Setup Cron Log RUN touch /var/log/testblog.log # Define default command. CMD ["/data/bin/startcron.sh"] # # BlogTest Dockerfile # # Source : https://bitbucket.org/kvaes/docker-testblog/ # Author : Karim Vaes # Use Ubuntu 10.04 as a base FROM ubuntu:10.04 # First let's do some updates! RUN apt-get update && apt-get -y upgrade # Install cron RUN apt-get -y install cron # Let's prep the directory RUN mkdir -p /data/bin

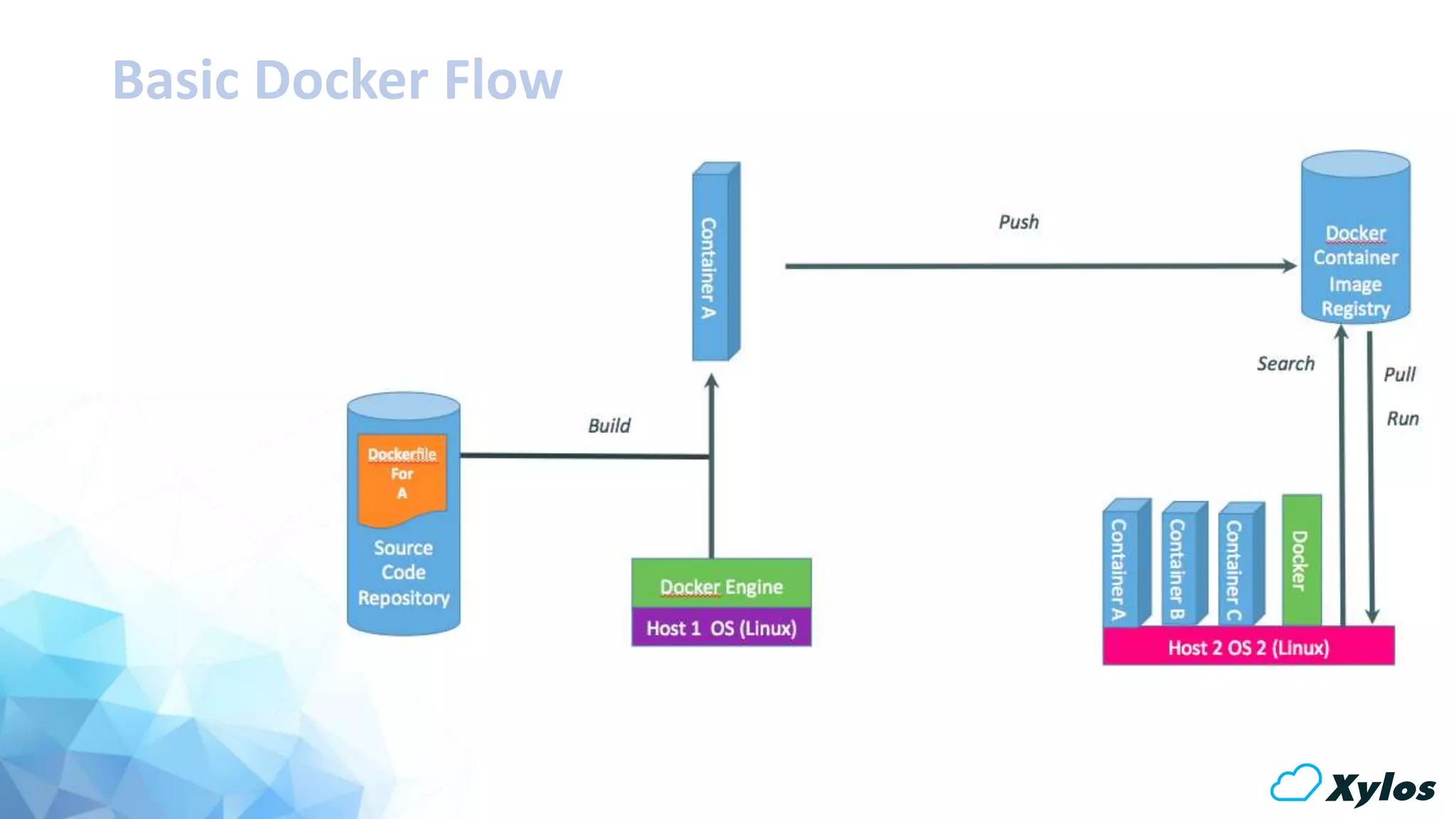

- 9.

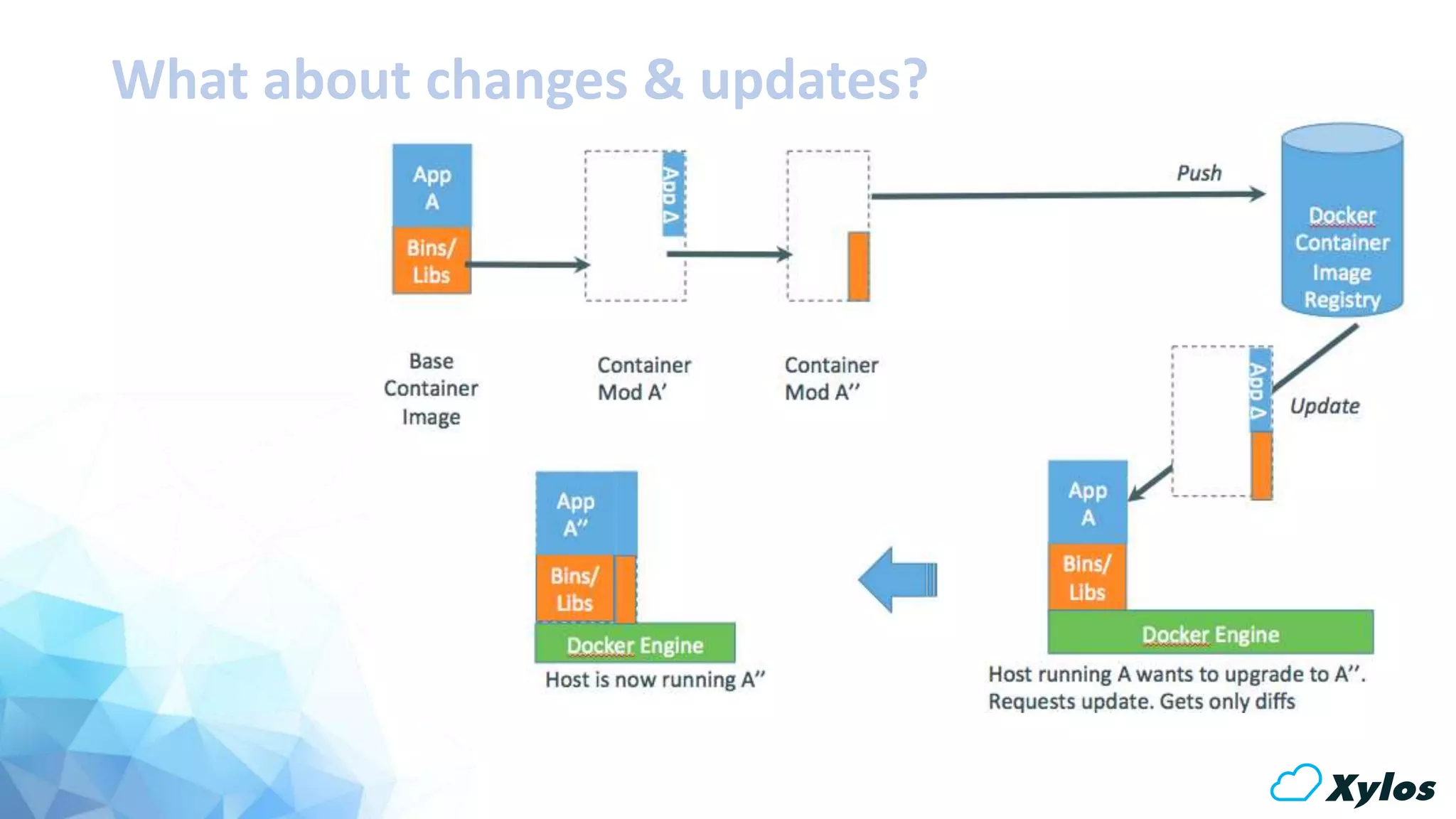

- 10. What about changes& updates?
- 11. What makes containerslightweight?
- 12. Sounds Interesting… aka “TheRecipe”
- 13. The Recipe fortoday’s dish!

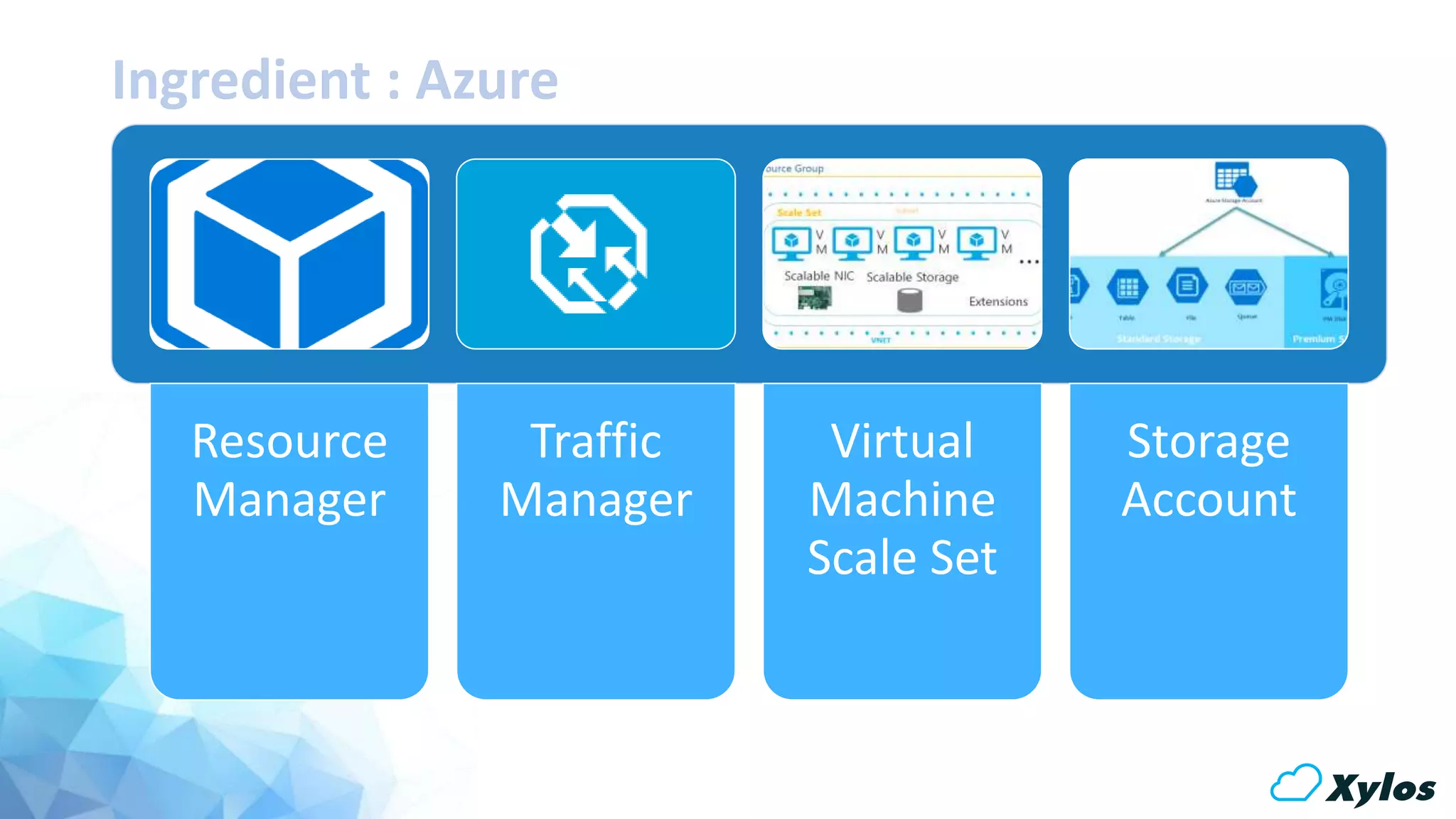

- 14. Ingredient : Azure Resource Manager Traffic Manager Virtual Machine ScaleSet Storage Account
- 15.
- 16.

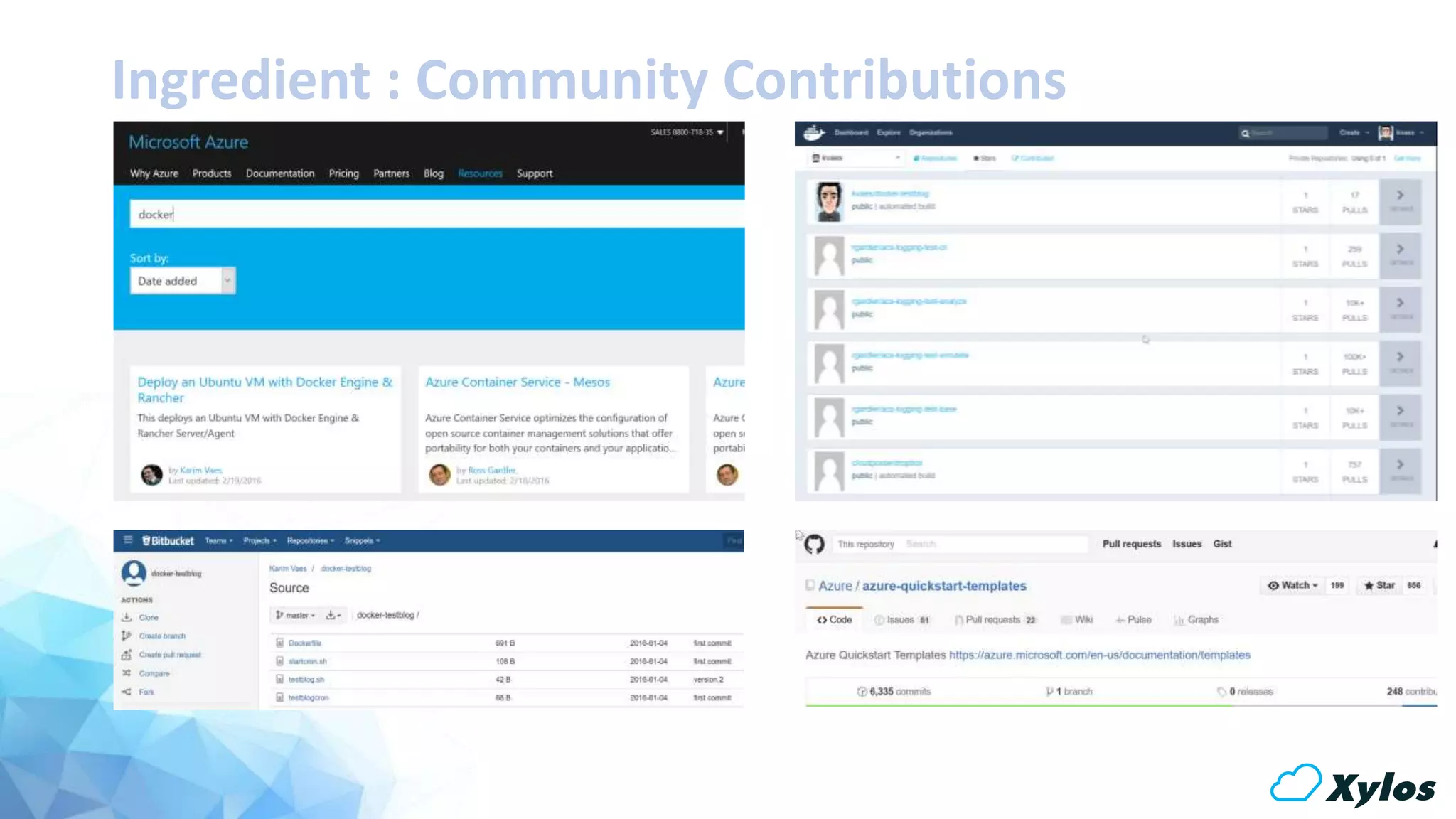

- 17. Ingredient : CommunityContributions

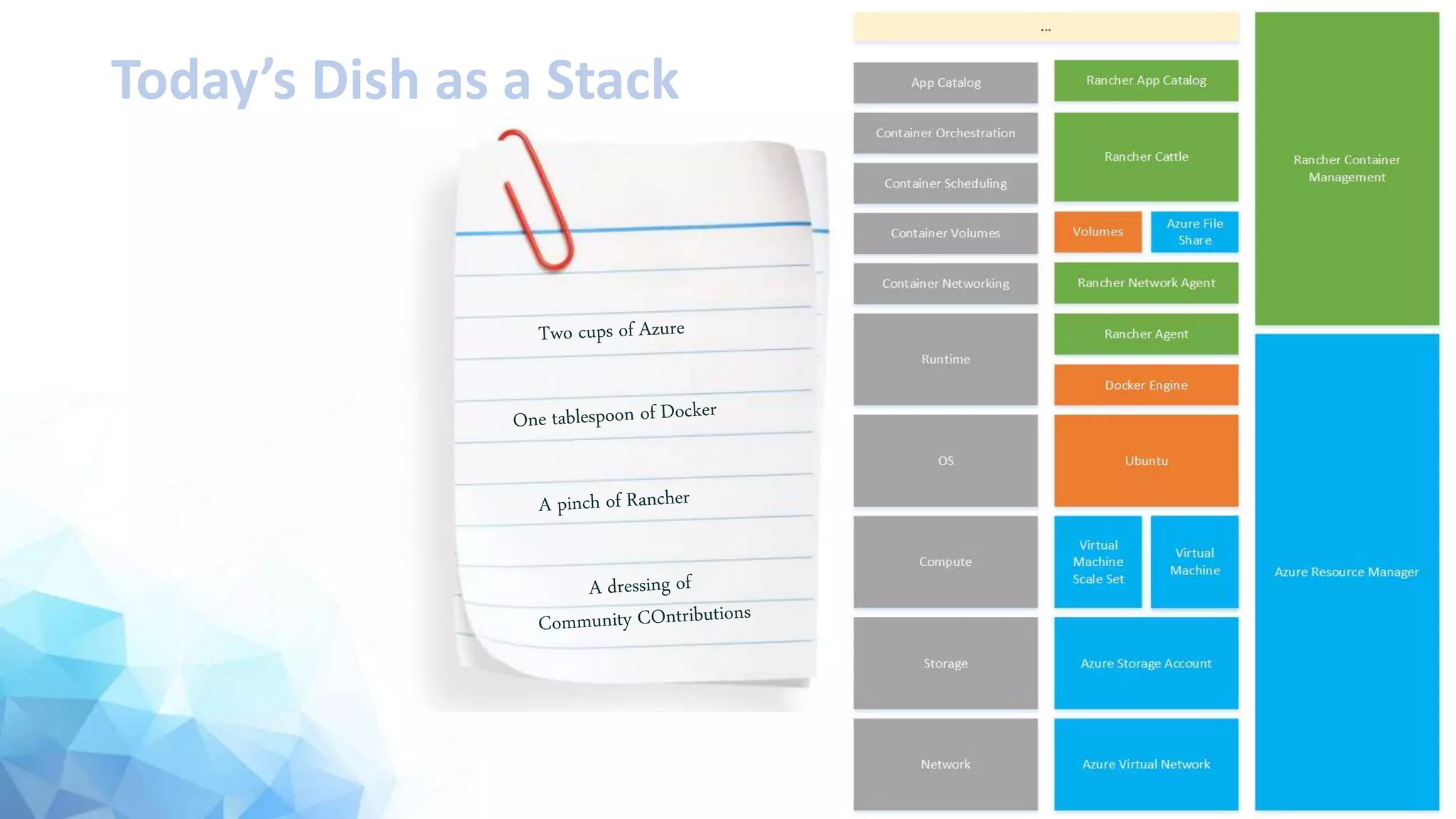

- 18. Today’s Dish asa Stack
- 19.
- 20. Demo : Deployour base setup

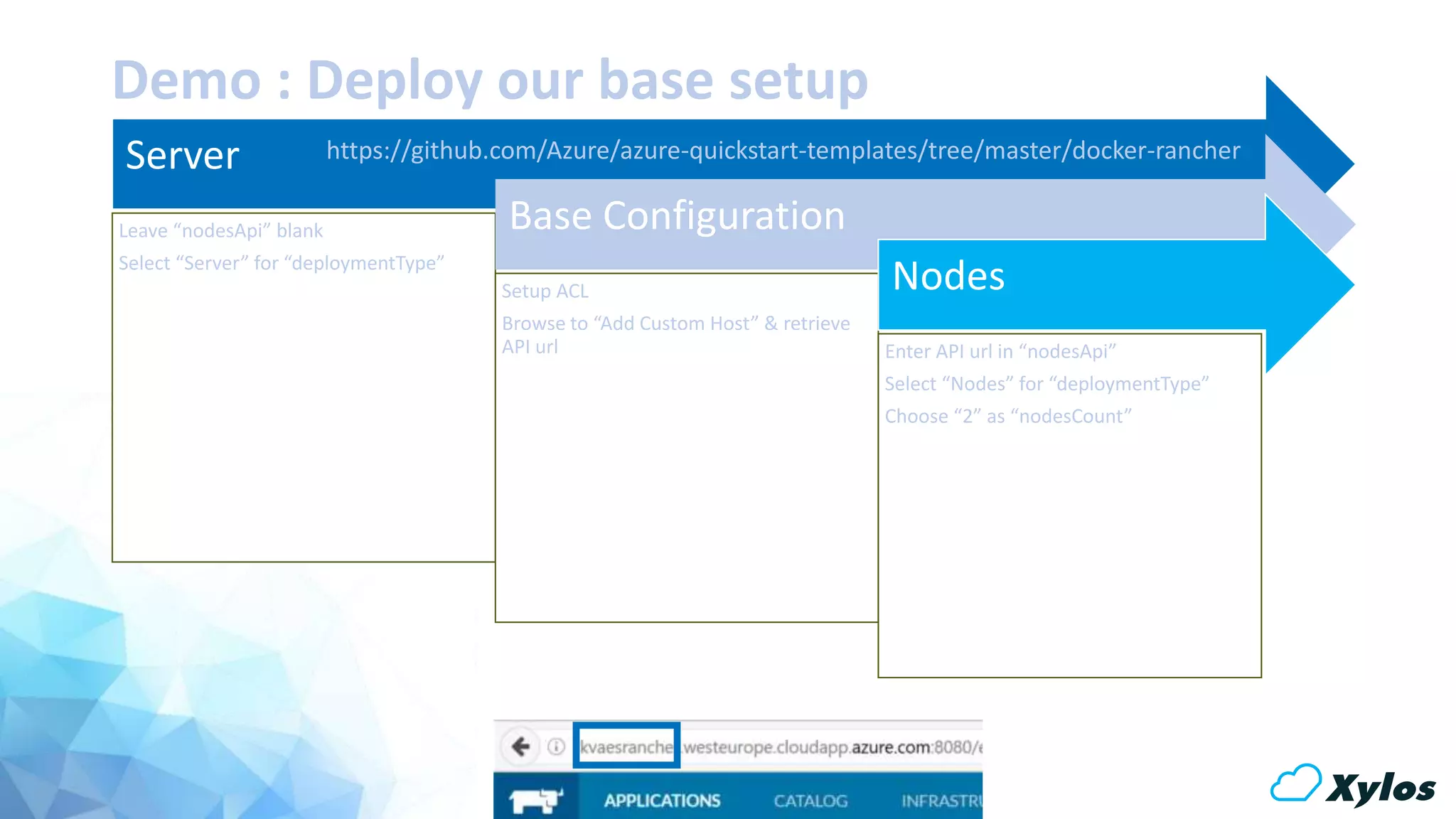

- 21. Demo : Deployour base setup Server Leave “nodesApi” blank Select “Server” for “deploymentType” Base Configuration Setup ACL Browse to “Add Custom Host” & retrieve API url Nodes Enter API url in “nodesApi” Select “Nodes” for “deploymentType” Choose “2” as “nodesCount” https://github.com/Azure/azure-quickstart-templates/tree/master/docker-rancher
- 22. Demo : ServiceUpgrade

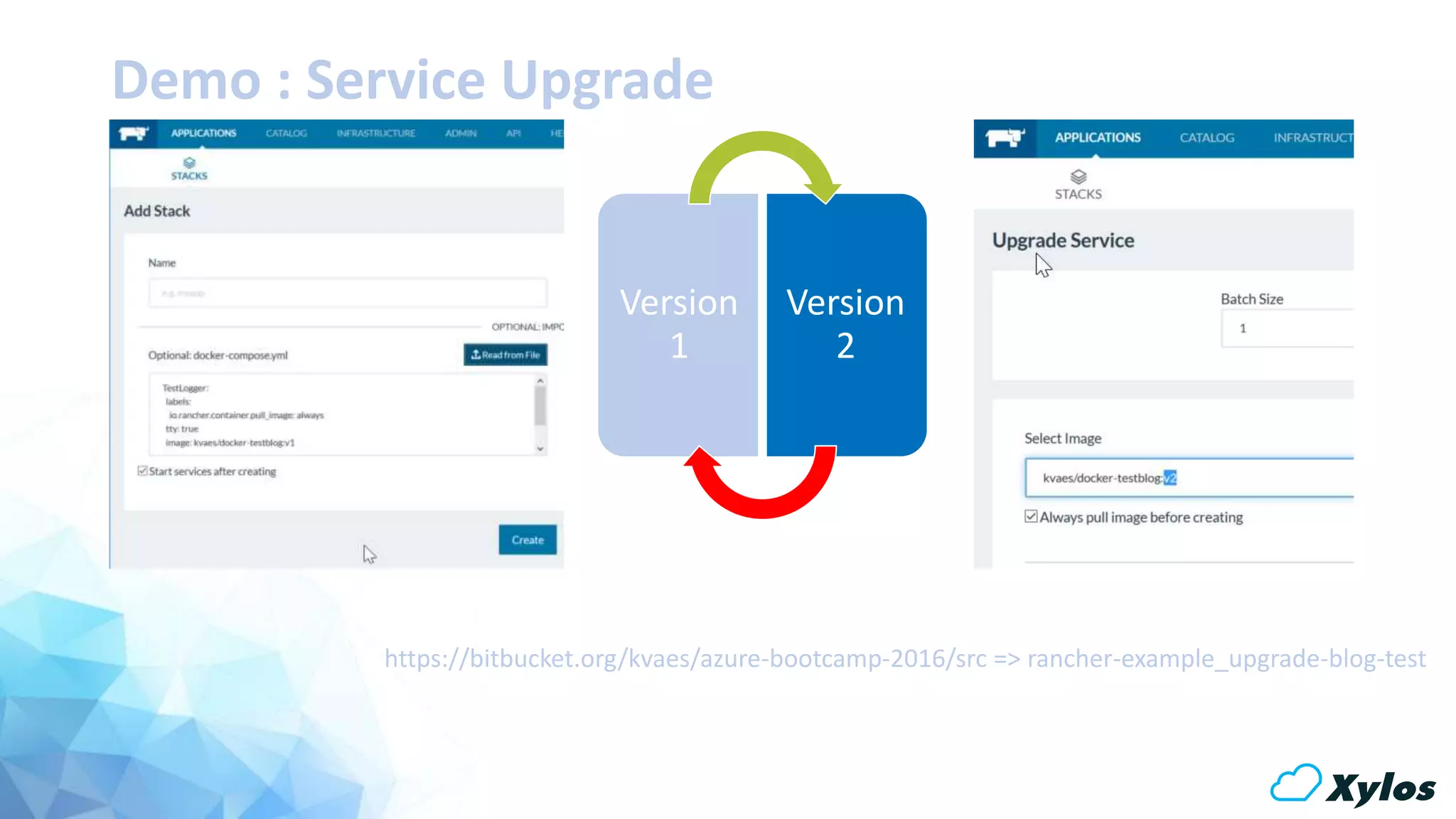

- 23. Demo : ServiceUpgrade Version 1 Version 2 https://bitbucket.org/kvaes/azure-bootcamp-2016/src => rancher-example_upgrade-blog-test
- 24. Demo : Cross-Region/HostNetworking

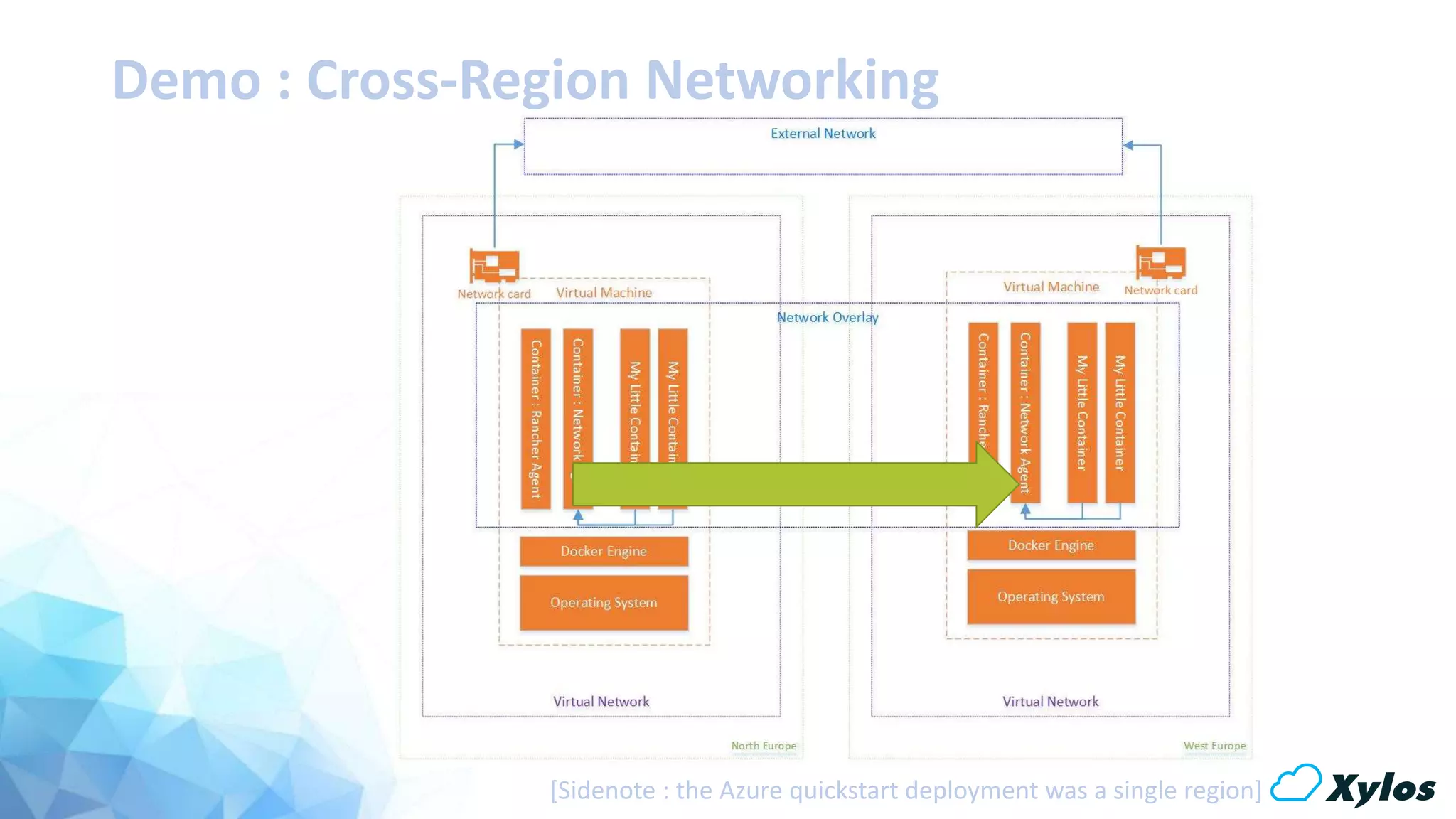

- 25. Demo : Cross-RegionNetworking [Sidenote : the Azure quickstart deployment was a single region]
- 26. Demo : ServiceScaling with a Shared Storage Account

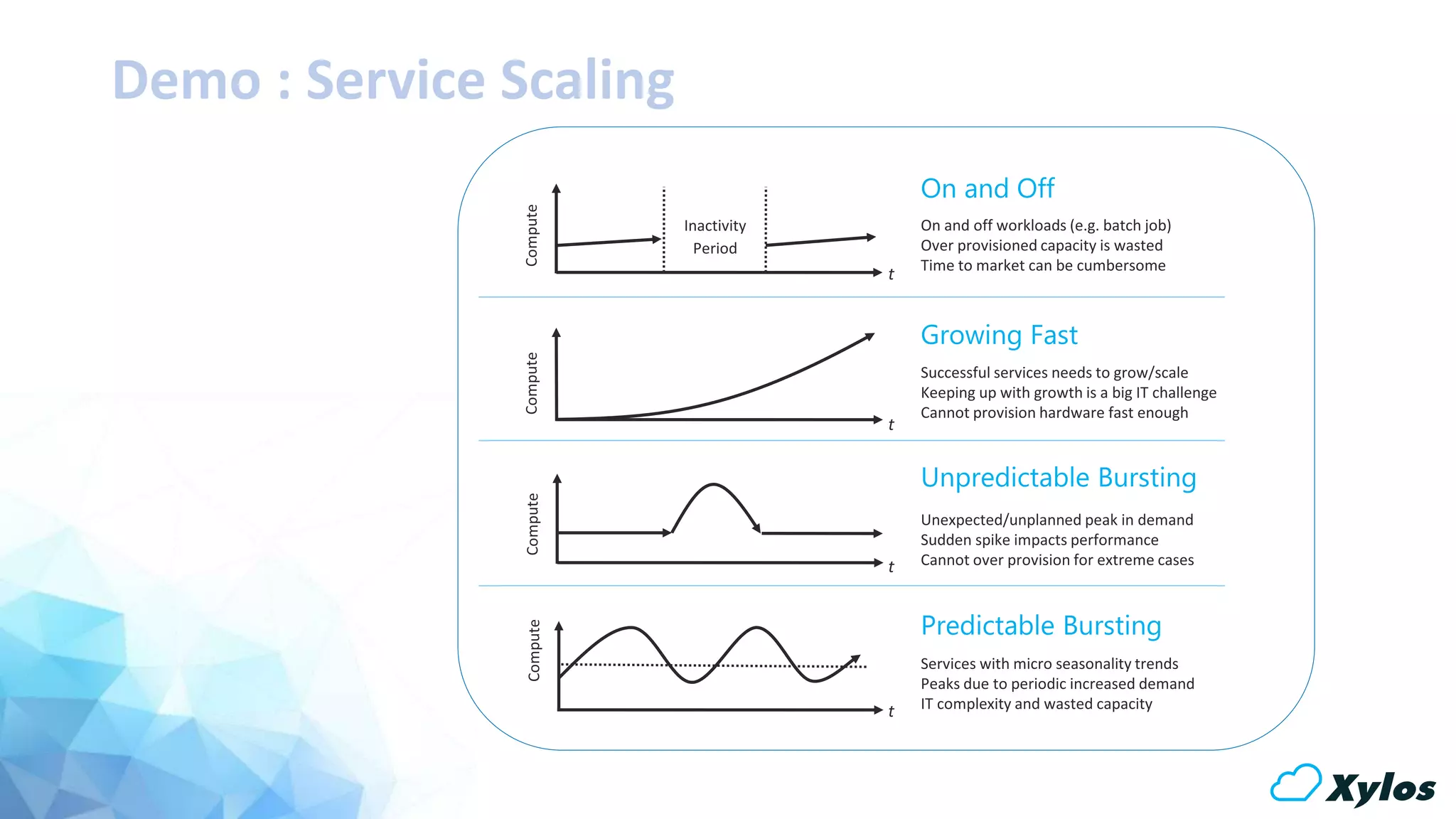

- 27. Demo : ServiceScaling

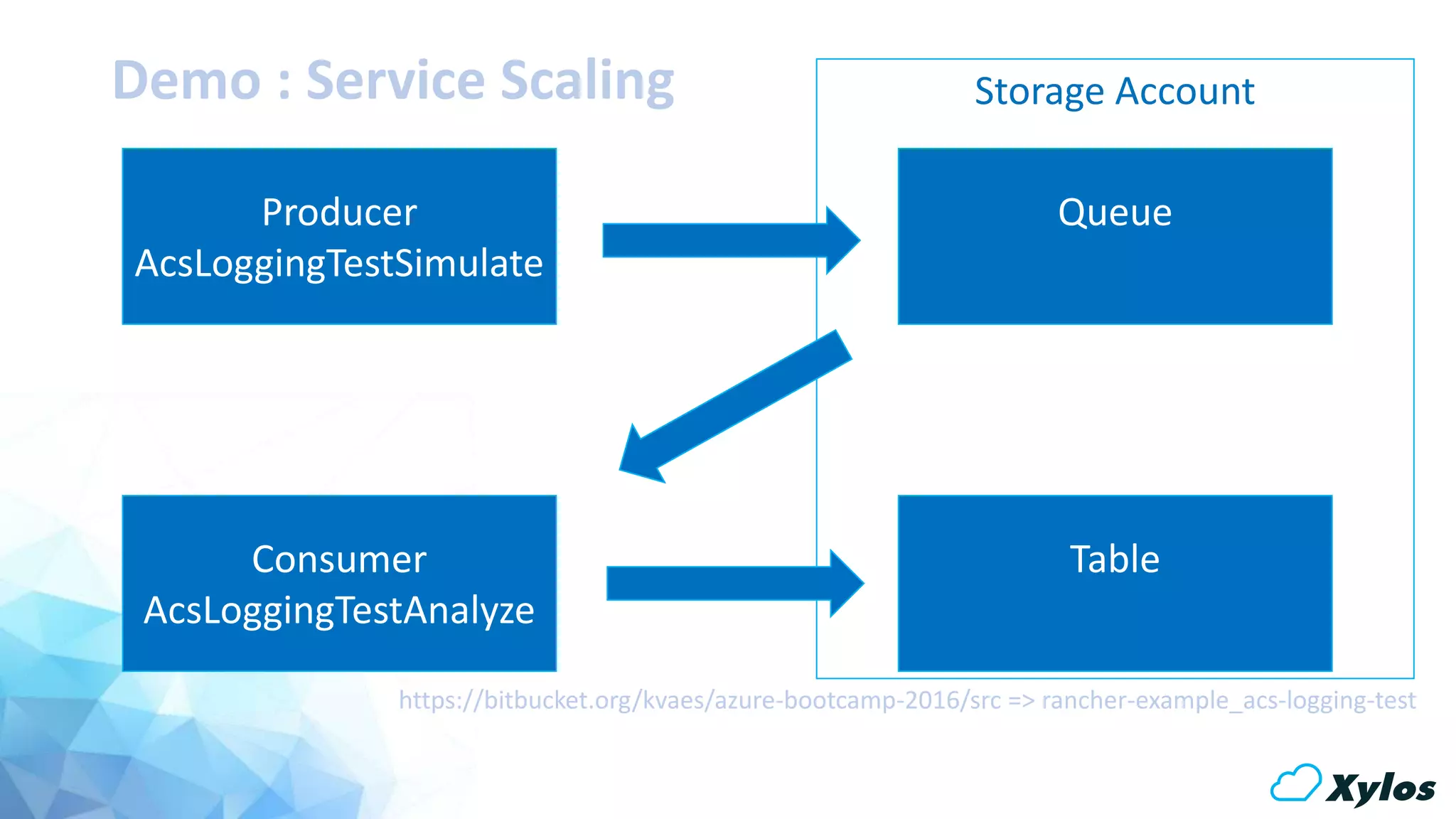

- 28. Demo : ServiceScaling Producer AcsLoggingTestSimulate Consumer AcsLoggingTestAnalyze Queue Table Storage Account https://bitbucket.org/kvaes/azure-bootcamp-2016/src => rancher-example_acs-logging-test

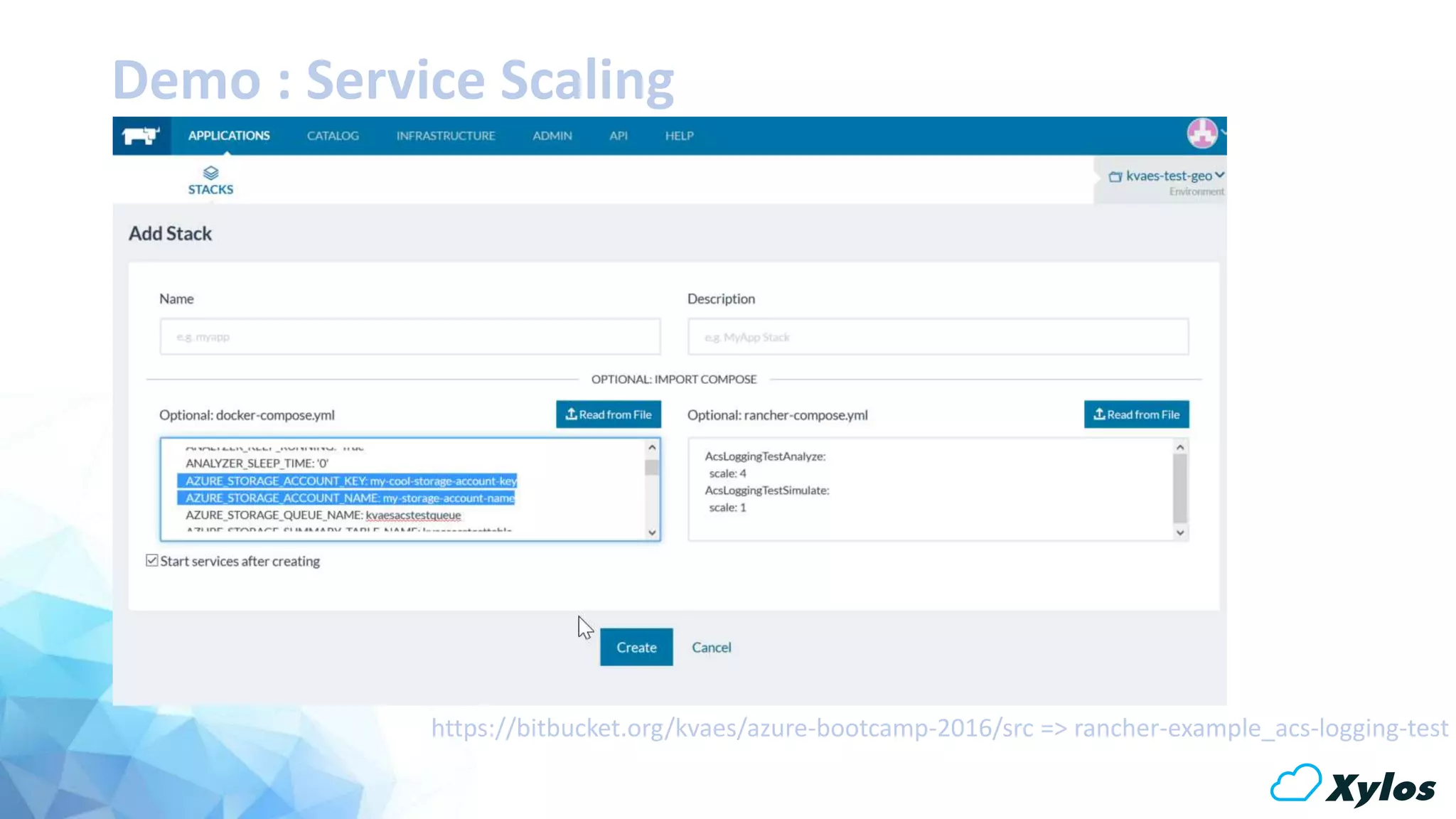

- 29. Demo : ServiceScaling https://bitbucket.org/kvaes/azure-bootcamp-2016/src => rancher-example_acs-logging-test
- 30. Demo : AzureAutoScaling

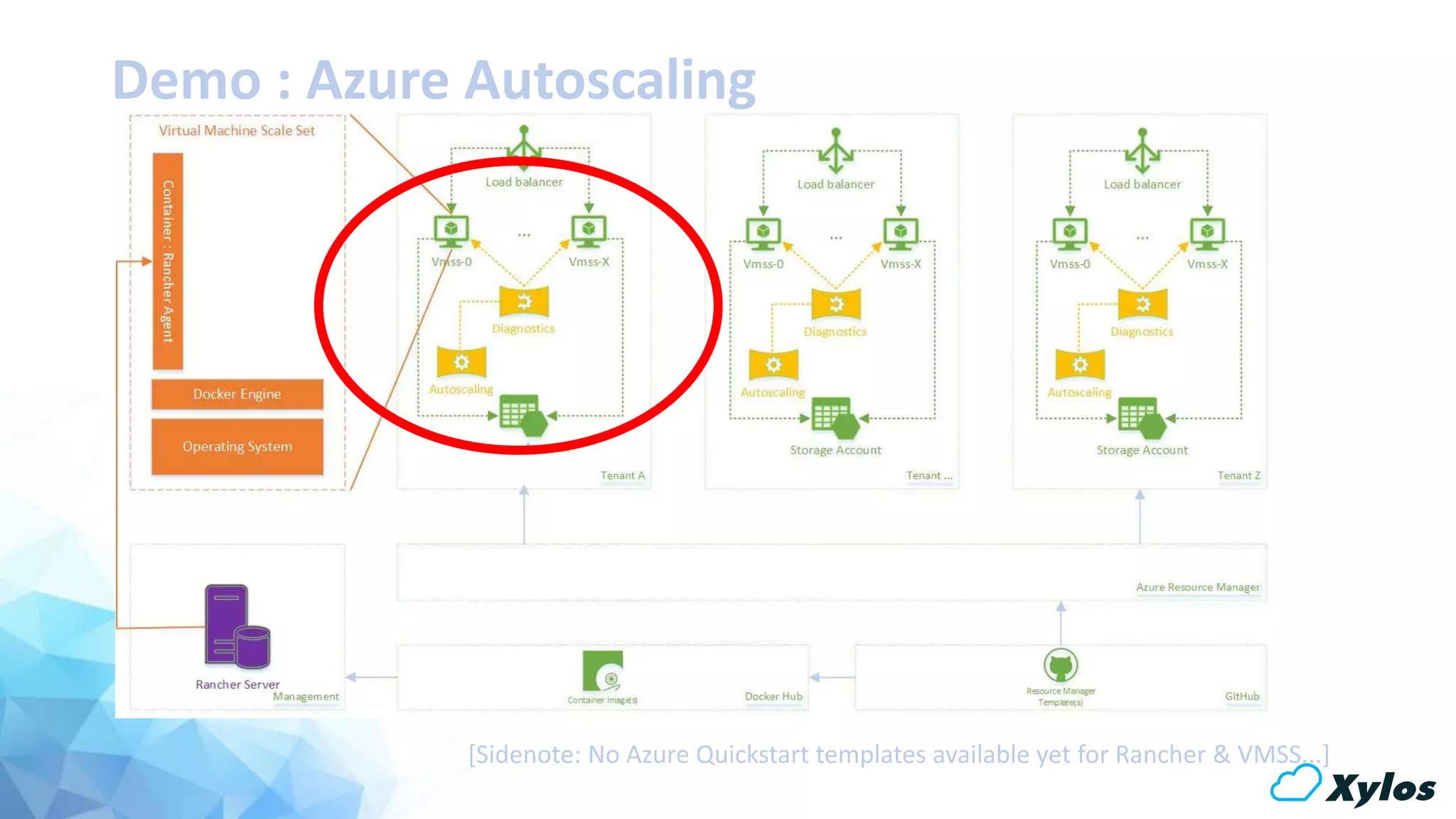

- 31. Demo : AzureAutoscaling [Sidenote: No Azure Quickstart templates available yet for Rancher & VMSS...]
- 32. Demo : DockerVolume Plugin for Azure File Storage

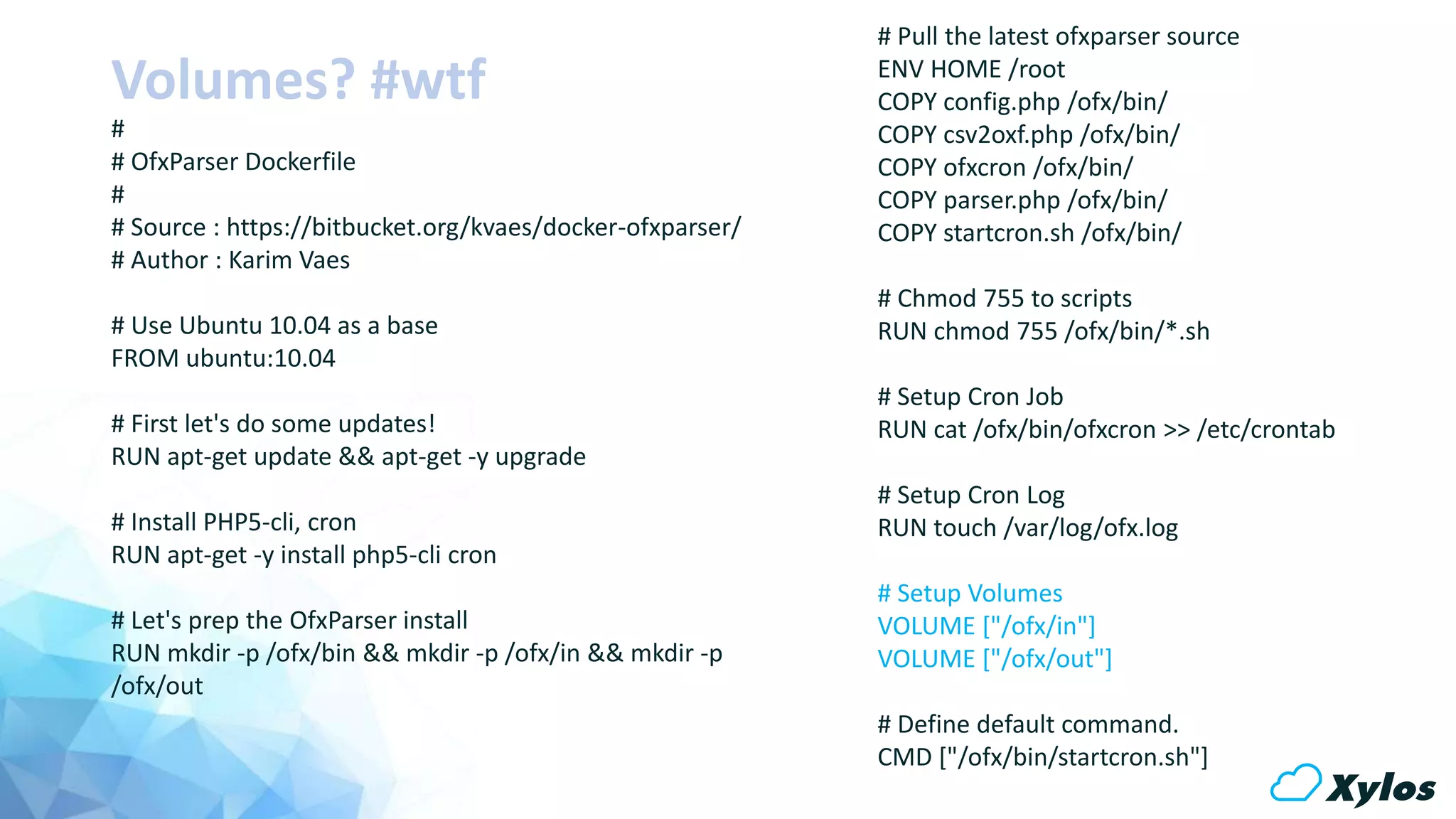

- 33. Volumes? #wtf # # OfxParserDockerfile # # Source : https://bitbucket.org/kvaes/docker-ofxparser/ # Author : Karim Vaes # Use Ubuntu 10.04 as a base FROM ubuntu:10.04 # First let's do some updates! RUN apt-get update && apt-get -y upgrade # Install PHP5-cli, cron RUN apt-get -y install php5-cli cron # Let's prep the OfxParser install RUN mkdir -p /ofx/bin && mkdir -p /ofx/in && mkdir -p /ofx/out # Pull the latest ofxparser source ENV HOME /root COPY config.php /ofx/bin/ COPY csv2oxf.php /ofx/bin/ COPY ofxcron /ofx/bin/ COPY parser.php /ofx/bin/ COPY startcron.sh /ofx/bin/ # Chmod 755 to scripts RUN chmod 755 /ofx/bin/*.sh # Setup Cron Job RUN cat /ofx/bin/ofxcron >> /etc/crontab # Setup Cron Log RUN touch /var/log/ofx.log # Setup Volumes VOLUME ["/ofx/in"] VOLUME ["/ofx/out"] # Define default command. CMD ["/ofx/bin/startcron.sh"]

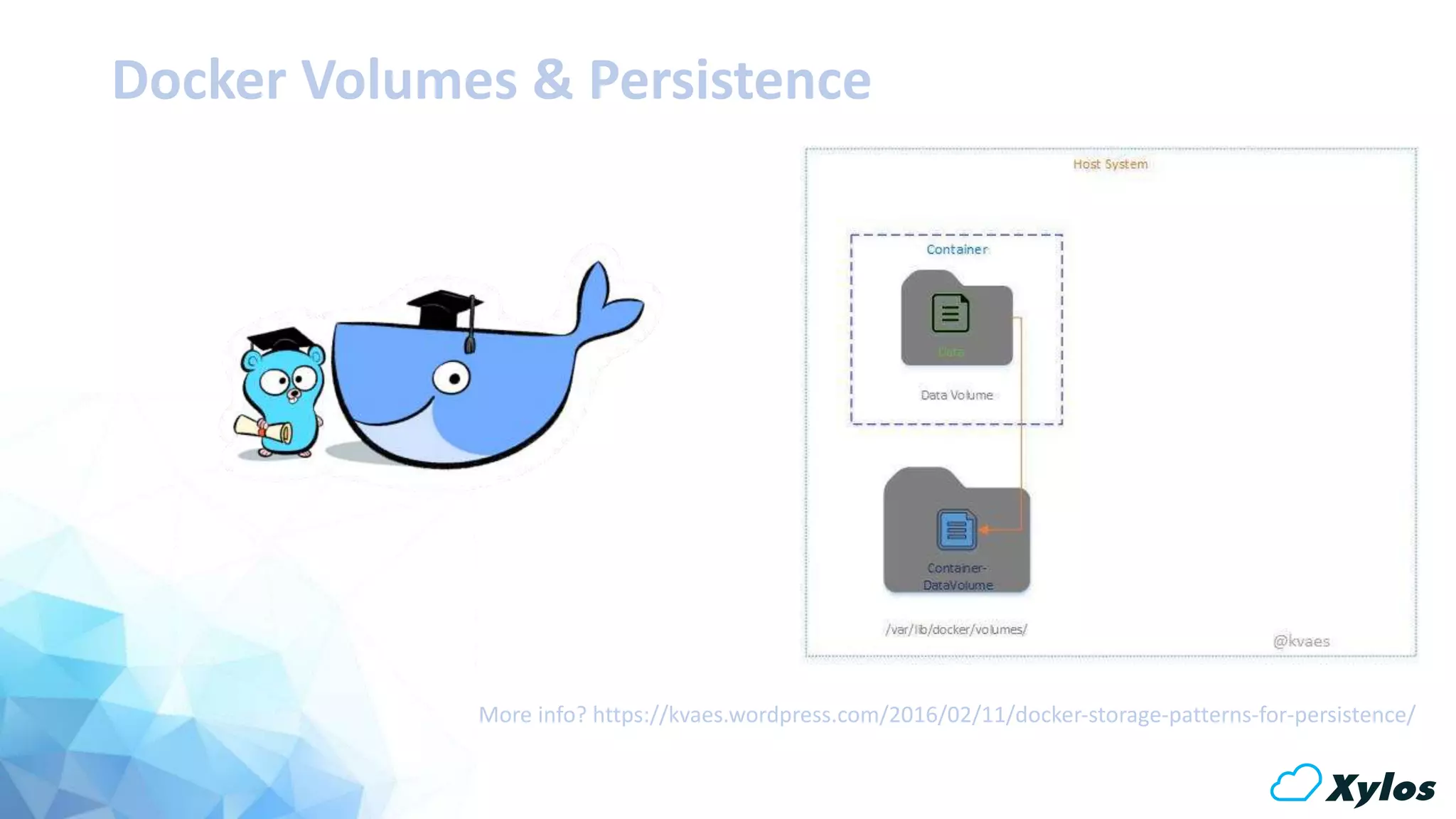

- 34. Docker Volumes &Persistence More info? https://kvaes.wordpress.com/2016/02/11/docker-storage-patterns-for-persistence/

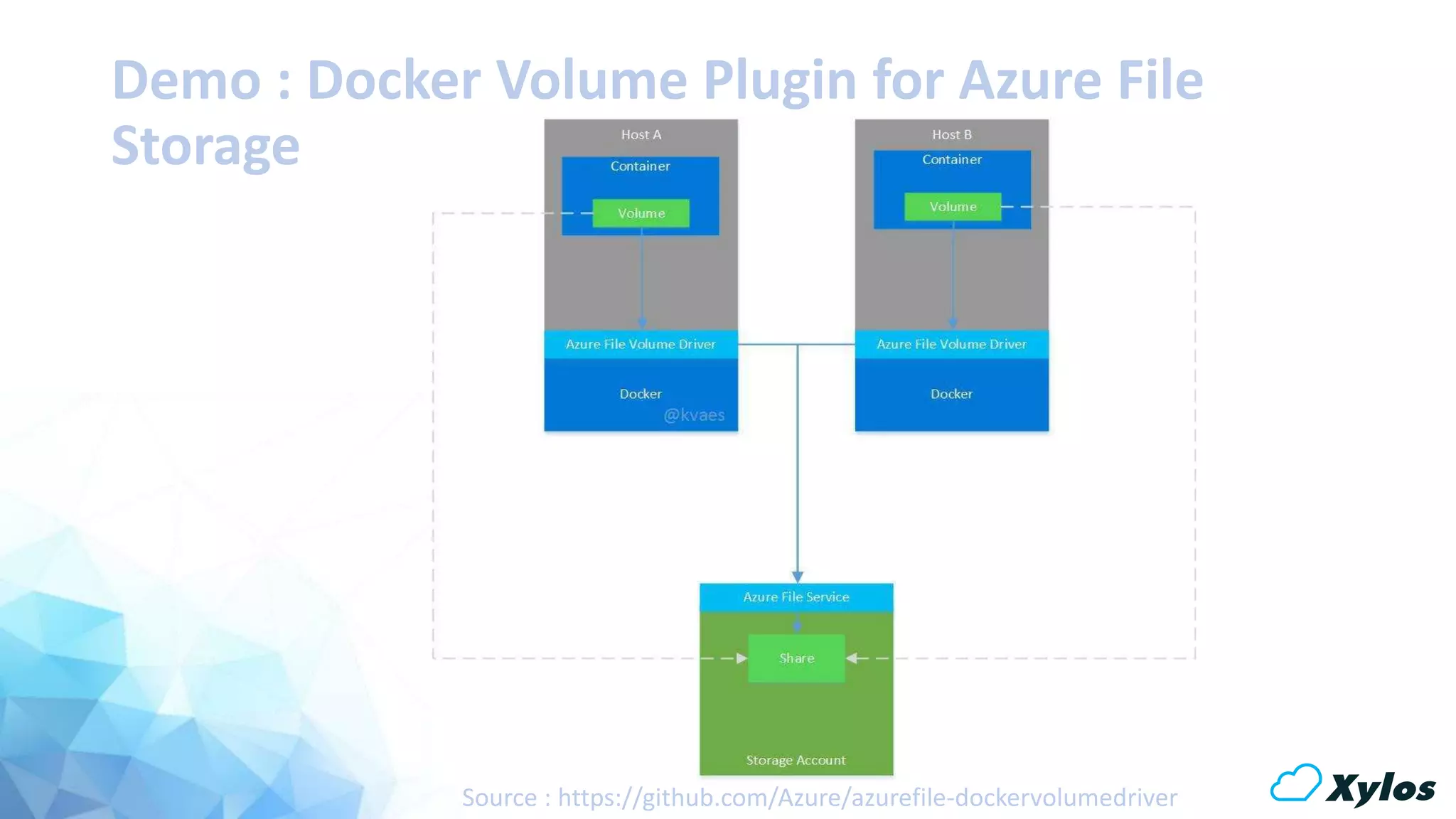

- 35. Demo : DockerVolume Plugin for Azure File Storage Source : https://github.com/Azure/azurefile-dockervolumedriver

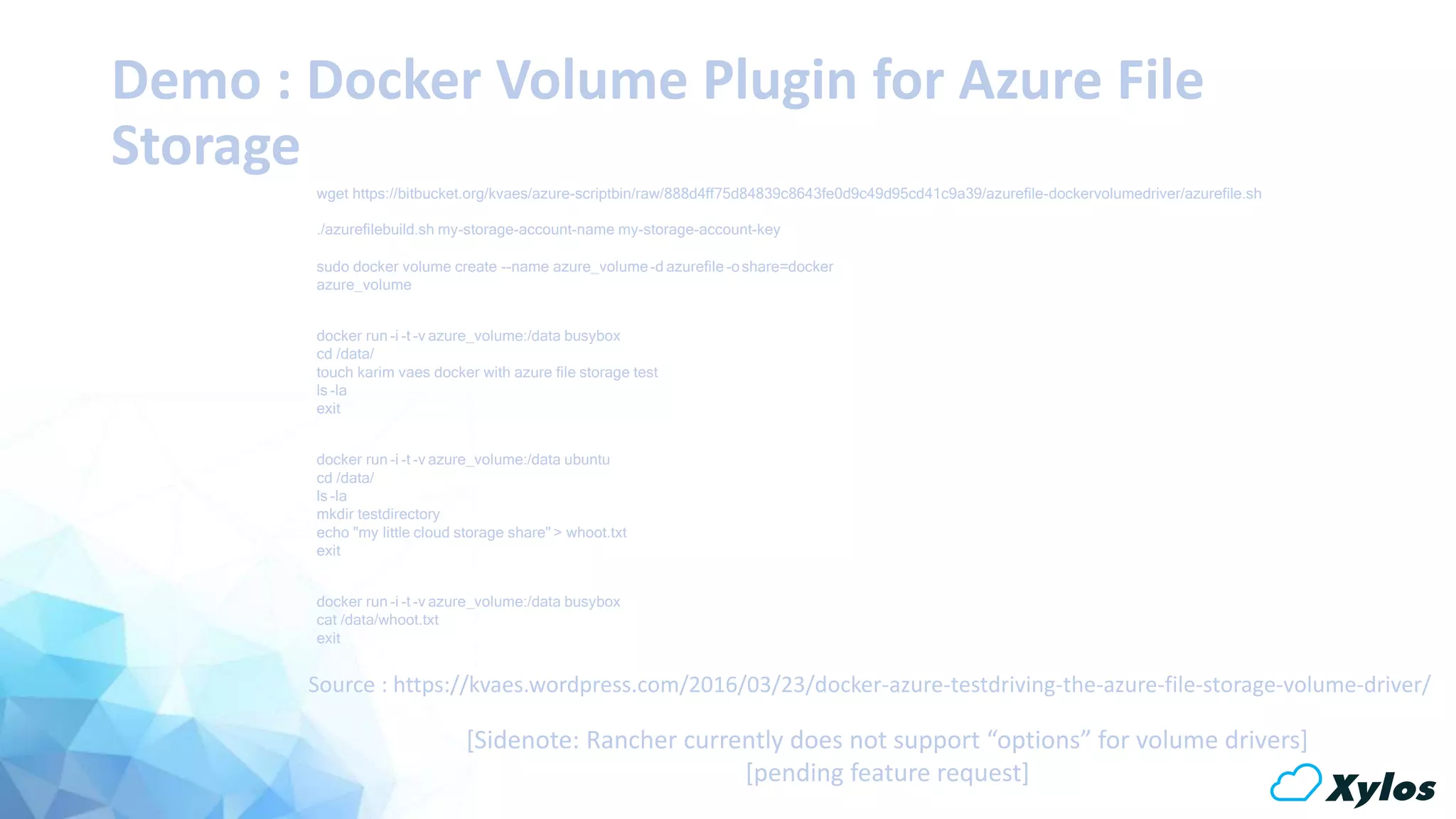

- 36. Demo : DockerVolume Plugin for Azure File Storage wget https://bitbucket.org/kvaes/azure-scriptbin/raw/888d4ff75d84839c8643fe0d9c49d95cd41c9a39/azurefile-dockervolumedriver/azurefile.sh ./azurefilebuild.sh my-storage-account-name my-storage-account-key sudo docker volume create --name azure_volume-d azurefile-oshare=docker azure_volume docker run -i -t -v azure_volume:/data busybox cd /data/ touch karim vaes docker with azure file storage test ls -la exit docker run -i -t -v azure_volume:/data ubuntu cd /data/ ls -la mkdir testdirectory echo "my little cloud storage share" > whoot.txt exit docker run -i -t -v azure_volume:/data busybox cat /data/whoot.txt exit Source : https://kvaes.wordpress.com/2016/03/23/docker-azure-testdriving-the-azure-file-storage-volume-driver/ [Sidenote: Rancher currently does not support “options” for volume drivers] [pending feature request]
- 37.
- 38. Images courtesy ofPokkO / Shutterstock.com, Lewis Hine - http://www.archives.gov/research_room/research_topics/american_cities/images/american_cities_069.jpg The right approach to containers matters!
- 39. “Any questions Ican help you with?”
- 40. Thank you foryour time!
