- 1. Deploying WSO2 Middleware onKubernetes Imesh Gunaratne Senior Technical Lead, WSO2
- 2. Agenda ● PaaS Solutionsfor WSO2 Middleware ● Deploying WSO2 Middleware on Kubernetes ○ Kubernetes Architecture ○ Kubernetes Features Used ○ WSO2 Docker Images ○ WSO2 Carbon Reference Architectures for Kubernetes ○ Deployment Workflow ○ WSO2 Kubernetes Artifacts ○ Monitoring
- 3.

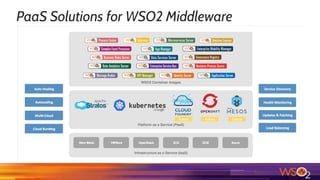

- 4. PaaS Solutions forWSO2 Middleware

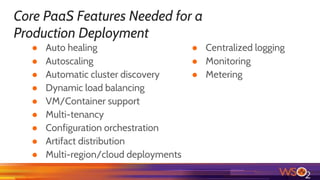

- 5. Core PaaS FeaturesNeeded for a Production Deployment ● Auto healing ● Autoscaling ● Automatic cluster discovery ● Dynamic load balancing ● VM/Container support ● Multi-tenancy ● Configuration orchestration ● Artifact distribution ● Multi-region/cloud deployments ● Centralized logging ● Monitoring ● Metering
- 6. Deploying WSO2 Middleware onKubernetes

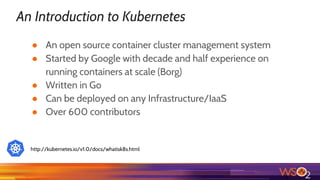

- 7. An Introduction toKubernetes ● An open source container cluster management system ● Started by Google with decade and half experience on running containers at scale (Borg) ● Written in Go ● Can be deployed on any Infrastructure/IaaS ● Over 600 contributors http://kubernetes.io/v1.0/docs/whatisk8s.html

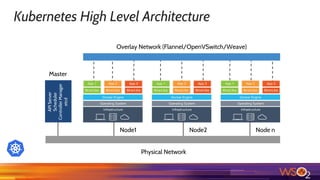

- 8. Kubernetes High LevelArchitecture Node1 Node2 Node n Physical Network Master Overlay Network (Flannel/OpenVSwitch/Weave)APIServer Scheduler ControllerManager etcd
- 9.

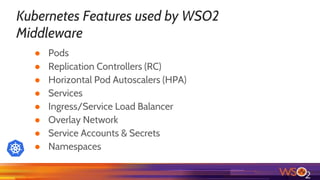

- 10. Kubernetes Features usedby WSO2 Middleware ● Pods ● Replication Controllers (RC) ● Horizontal Pod Autoscalers (HPA) ● Services ● Ingress/Service Load Balancer ● Overlay Network ● Service Accounts & Secrets ● Namespaces
- 11. Kubernetes Pods ● Agroup of containers which can share resources and context ● Shared namespaces: ○ PID namespace (processes visible globally) ○ network namespace (same IP and port space) ○ IPC namespace (SystemV IPC or POSIX) ○ UTS namespace (share a hostname) http://kubernetes.io/v1.0/docs/user-guide/pods.html Pod C1 C2 C3

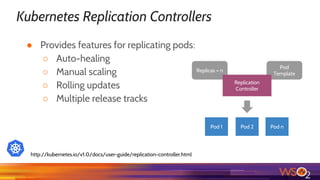

- 12. Kubernetes Replication Controllers ●Provides features for replicating pods: ○ Auto-healing ○ Manual scaling ○ Rolling updates ○ Multiple release tracks http://kubernetes.io/v1.0/docs/user-guide/replication-controller.html Pod Template Replicas = n Pod 1 Pod 2 Pod n Replication Controller

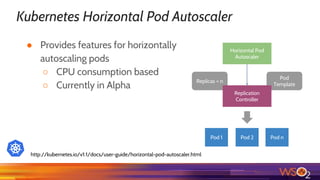

- 13. Kubernetes Horizontal PodAutoscaler ● Provides features for horizontally autoscaling pods ○ CPU consumption based ○ Currently in Alpha http://kubernetes.io/v1.1/docs/user-guide/horizontal-pod-autoscaler.html Pod Template Replicas = n Pod 1 Pod 2 Pod n Replication Controller Horizontal Pod Autoscaler

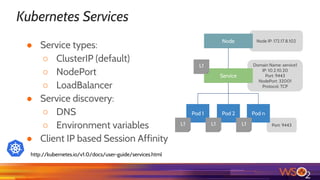

- 14. ● Service types: ○ClusterIP (default) ○ NodePort ○ LoadBalancer ● Service discovery: ○ DNS ○ Environment variables ● Client IP based Session Affinity http://kubernetes.io/v1.0/docs/user-guide/services.html Kubernetes Services Node IP: 172.17.8.102 Port: 9443 Domain Name: service1 IP: 10.2.10.20 Port: 9443 NodePort: 32001 Protocol: TCP Pod 1 Pod 2 Pod n Service L1 L1 L1 L1 Node

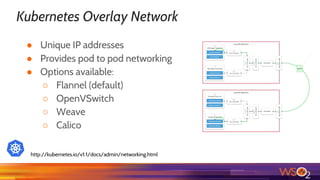

- 15. ● Unique IPaddresses ● Provides pod to pod networking ● Options available: ○ Flannel (default) ○ OpenVSwitch ○ Weave ○ Calico http://kubernetes.io/v1.1/docs/admin/networking.html Kubernetes Overlay Network
- 16.
- 17. WSO2 Carbon ReferenceArchitecture 1 Pod 1 Pod 2 Manager Cluster Services Pod 3 Pod 4 Pod n Worker Cluster Services Manager Replication Controller Worker Replication Controller Client Gov Reg Conf Reg User Store
- 18. WSO2 Carbon ReferenceArchitecture 2 Pod 1 Gateway Mgr Services Pod 2 Pod 3 Gateway Worker Services Client Pod 4 Pod 5 Key Manager Services Pod 6 Pod 7 Store Services Gateway Mgr RC Gateway Worker RC Key Manager RC Store RCGov Reg Conf Reg User Store API-M DB A volume mount for synchronizing API artifacts Pod 8 Pod 9 Publisher Services Publisher RC

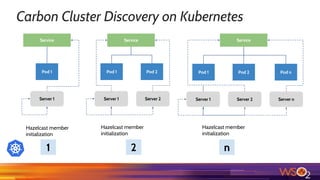

- 19. Carbon Cluster Discoveryon Kubernetes Pod 1 Pod 2 Pod n Service Server 1 Server 2 Server n Pod 1 Service Server 1 Pod 1 Pod 2 Service Server 1 Server 2 Hazelcast member initialization Hazelcast member initialization Hazelcast member initialization 1 2 n

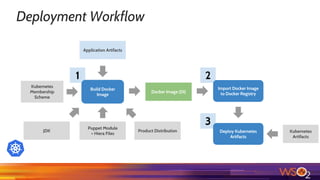

- 20. Deployment Workflow 3 1 2 BuildDocker Image Import Docker Image to Docker Registry Application Artifacts Kubernetes Membership Scheme Product Distribution Docker Image (DI) Puppet Module + Hiera Files JDK Deploy Kubernetes Artifacts Kubernetes Artifacts

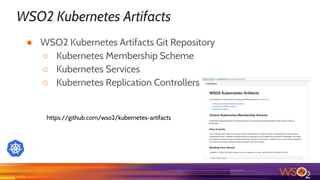

- 21. WSO2 Kubernetes Artifacts ●WSO2 Kubernetes Artifacts Git Repository ○ Kubernetes Membership Scheme ○ Kubernetes Services ○ Kubernetes Replication Controllers https://github.com/wso2/kubernetes-artifacts
- 22.

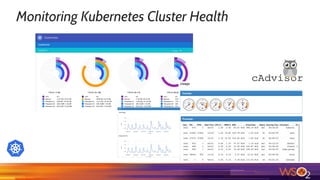

- 23. Monitoring Kubernetes Cluster/Node/Pod Health cAdvisorcAdvisor Node1 cAdvisor Heapster Node 2 Node n Grafana InfluxDB
