Skip Ashton, Vice President of Software at Silicon Labs, discusses the development of low-power embedded mesh networks and the challenges of IoT in home automation. He highlights the importance of measuring processor loading for optimizing device performance and presents findings on CPU loading with Zigbee and Bluetooth devices. The document also notes that while energy efficiency is crucial, understanding processor load can lead to design improvements and power savings.

2. Speaker: Skip Ashton
Vice President of Software, Silicon Labs
Skip has been working with low-power embedded mesh
networks since 2003 with Ember and now Silicon Labs. Skip is
on the Board of Directors for the ZigBee Alliance, Thread
Group and the Connected Lighting Alliance, and he chairs the
technical committee for ZigBee and Thread. Skip has been
involved in the development and deployment of low-power
mesh networking stacks in home and business applications
around the world.

3. The Internet of Things (IoT)
 Local and Remote Access
 Location Awareness
 Personalization
 Device Interoperability
 Simple Unified Control

4. The Challenge of IoT
Home Control Hub
Health &
Fitness
Lighting
Securit
y
Internet
Home
Appliances
Safety
P
Comfor
t
Wi-Fi Access Point
HVAC

5. Helping Designers Build Devices and Systems
 Engineers building products want to know what is possible and
how to optimize their devices and systems
 As part of our stack development, we work to publish metrics to
assist developers
 Device performance – sleep/wake times, battery consumption, performance
 System performance – latency, throughput, scalability
 As customers put applications on our stacks, they need to know
how loaded is the MCU and how much headroom does it have

6. Measuring MCU Loading
 Cortex-M class devices generally in use
 Do not have MCU monitoring capabilities of higher end
processors
 Instead use idle loop counter
 Baseline counter on unloaded chip
 Compare baseline to counter during operation in network
 Packet rate and packet size can vary
% 𝐶𝑃𝑈 𝑈𝑠𝑎𝑔𝑒 = 100(1 −
𝑏𝑎𝑠𝑒𝑙𝑖𝑛𝑒 − 𝑙𝑜𝑜𝑝𝑠 𝑟𝑢𝑛
𝑏𝑎𝑠𝑒𝑙𝑖𝑛𝑒
)

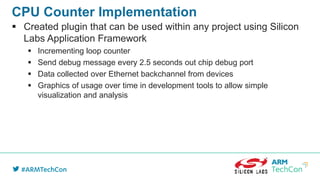

7. CPU Counter Implementation
 Created plugin that can be used within any project using Silicon
Labs Application Framework
 Incrementing loop counter
 Send debug message every 2.5 seconds out chip debug port
 Data collected over Ethernet backchannel from devices
 Graphics of usage over time in development tools to allow simple
visualization and analysis

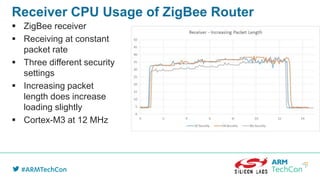

8. Receiver CPU Usage of ZigBee Router
 ZigBee receiver
 Receiving at constant
packet rate
 Three different security
settings
 Increasing packet
length does increase
loading slightly
 Cortex-M3 at 12 MHz

9. CPU Loading with Increasing Packet Rate
 Fixed length
packet
 Decrease time
between packets
 Home automation
security
 Little impact until
hitting loading
point

10. CPU Loading with Packet Rate and Size
 Test to increase packet
rate and increase
packet length
 Able to load receiver to
near 100 percent at
longest packet and
highest rate
 Transmitting device
load is always lower
Time
between
messages
Packet Length Increasing

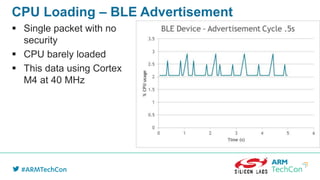

11. CPU Loading – BLE Advertisement
 Single packet with no
security
 CPU barely loaded
 This data using Cortex
M4 at 40 MHz

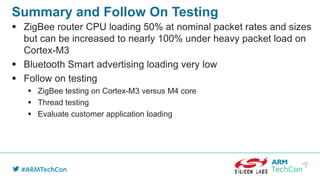

12. Summary and Follow On Testing
 ZigBee router CPU loading 50% at nominal packet rates and sizes
but can be increased to nearly 100% under heavy packet load on
Cortex-M3
 Bluetooth Smart advertising loading very low
 Follow on testing
 ZigBee testing on Cortex-M3 versus M4 core
 Thread testing
 Evaluate customer application loading

13. Thank-you
Skip Ashton, Vice President of Software
Silicon Labs
Special Thanks to Interns:
Emily Tumang - Olin and Daniel Benson - WPI
For underlying work on CPU loading

14. Abstract
 The growth of devices connected to each other and the internet
and the growth of wireless and security protocols means these
embedded ARM processors are doing more and more processing.
While developers and designers have focused on energy
efficiency, evaluation of processor loading can also reveal design
improvements and power savings.
