1. 5 Clock Tree Design Techniques to Optimize 10/25/40/56 Gb/s SerDes
Performance for Networking and Data Centers
O C T O B E R 2 0 1 7

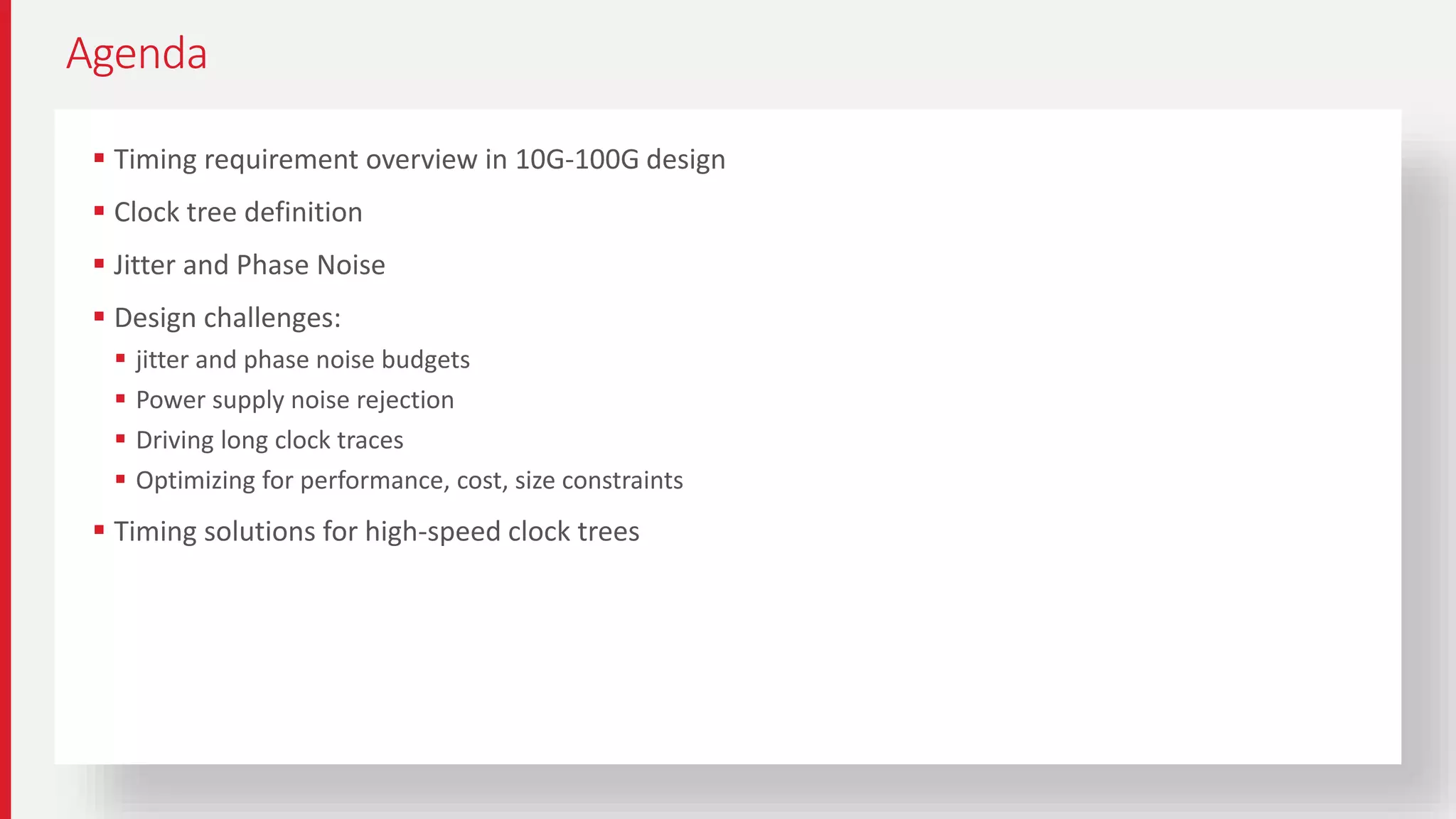

2.  Timing requirement overview in 10G-100G design
 Clock tree definition
 Jitter and Phase Noise
 Design challenges:
 jitter and phase noise budgets
 Power supply noise rejection
 Driving long clock traces
 Optimizing for performance, cost, size constraints
 Timing solutions for high-speed clock trees
Agenda

3. Timing Requirements in 10G-100G Design

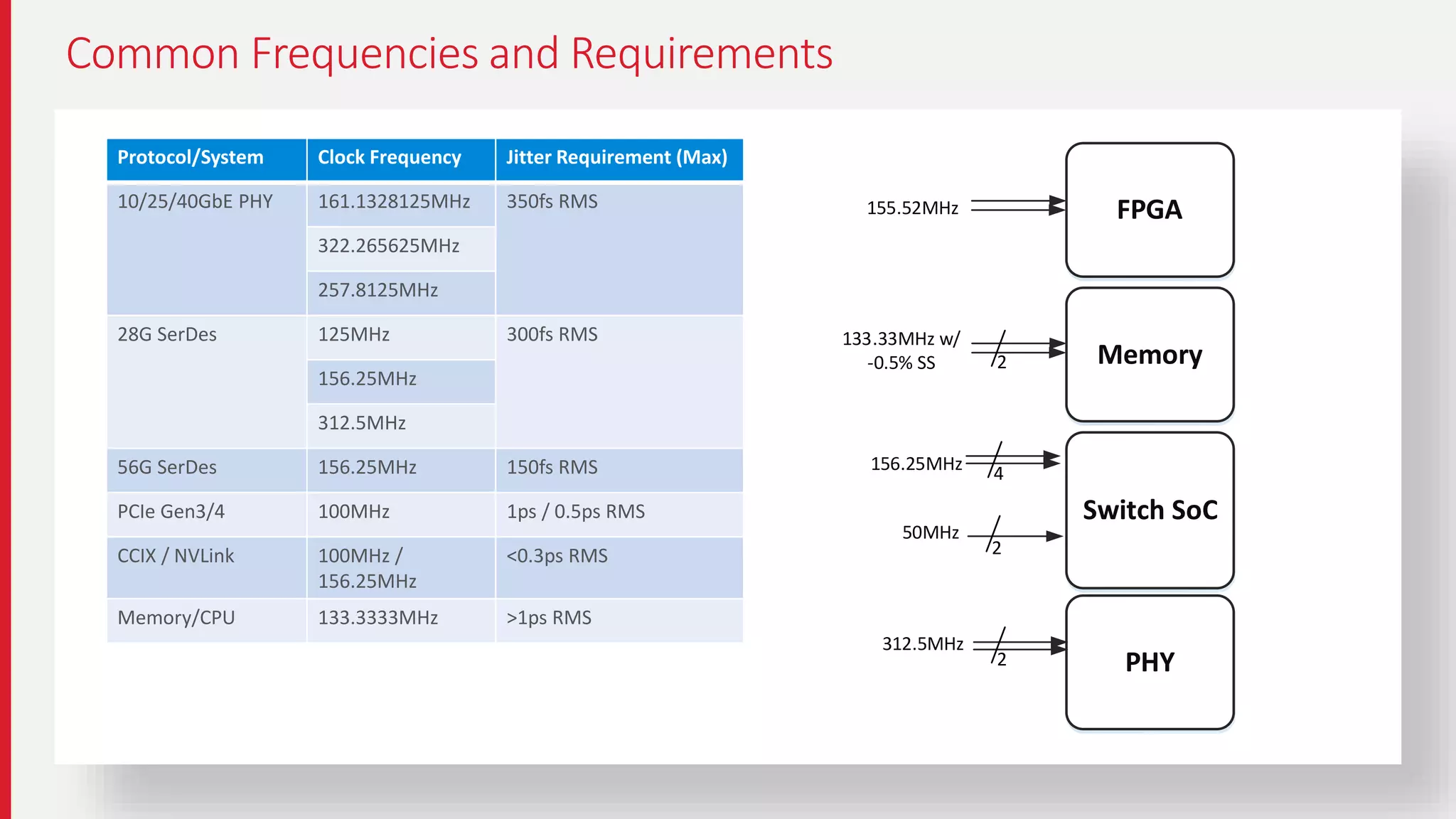

4. Common Frequencies and Requirements
Protocol/System Clock Frequency Jitter Requirement (Max)
10/25/40GbE PHY 161.1328125MHz 350fs RMS
322.265625MHz
257.8125MHz
28G SerDes 125MHz 300fs RMS
156.25MHz
312.5MHz
56G SerDes 156.25MHz 150fs RMS
PCIe Gen3/4 100MHz 1ps / 0.5ps RMS
CCIX / NVLink 100MHz /
156.25MHz
<0.3ps RMS
Memory/CPU 133.3333MHz >1ps RMS
156.25MHz
133.33MHz w/
-0.5% SS
155.52MHz FPGA
312.5MHz
50MHz
Switch SoC
Memory
PHY
4
2
2
2

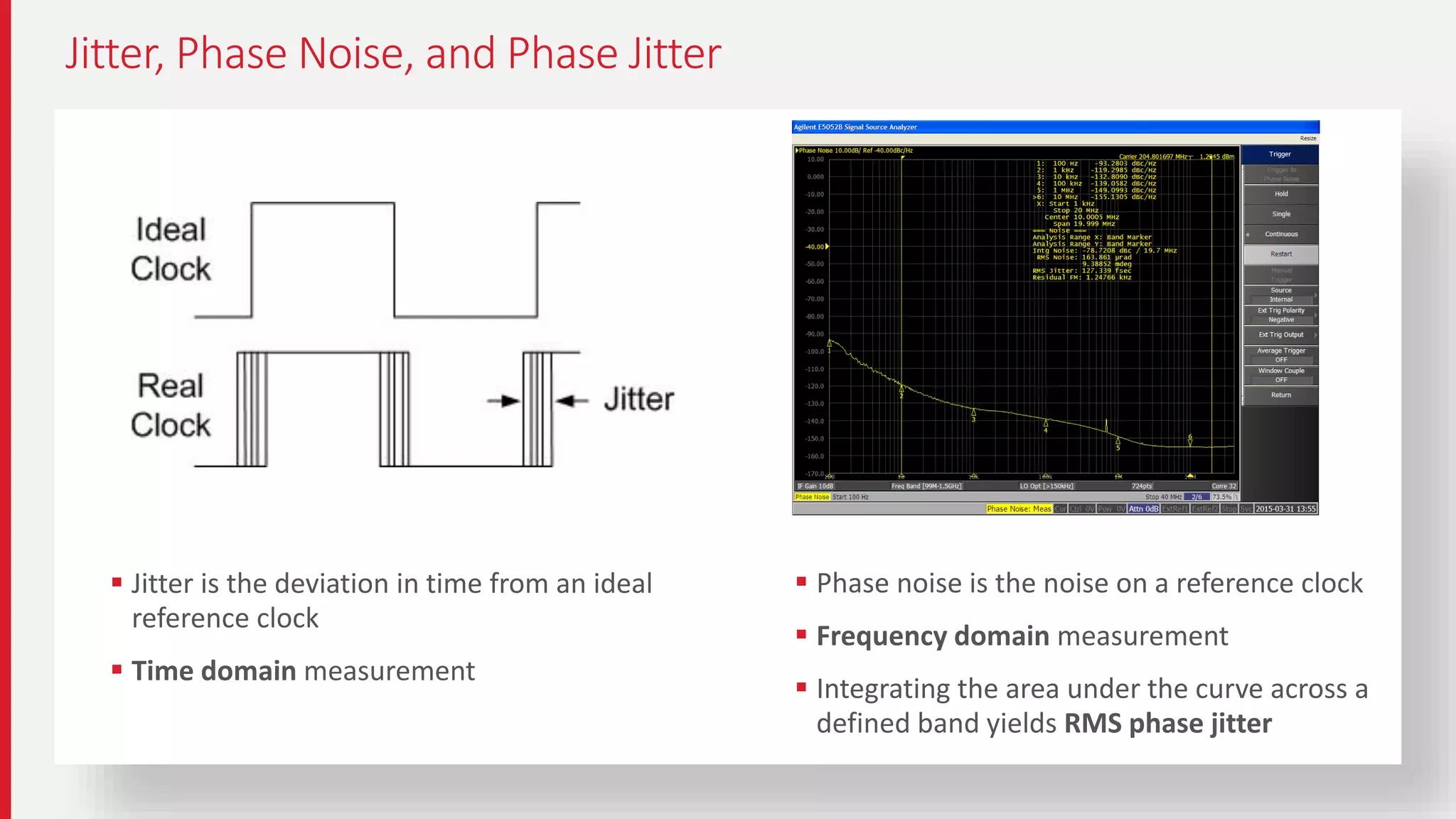

5. Jitter, Phase Noise, and Phase Jitter
 Jitter is the deviation in time from an ideal
reference clock
 Time domain measurement
 Phase noise is the noise on a reference clock
 Frequency domain measurement
 Integrating the area under the curve across a
defined band yields RMS phase jitter

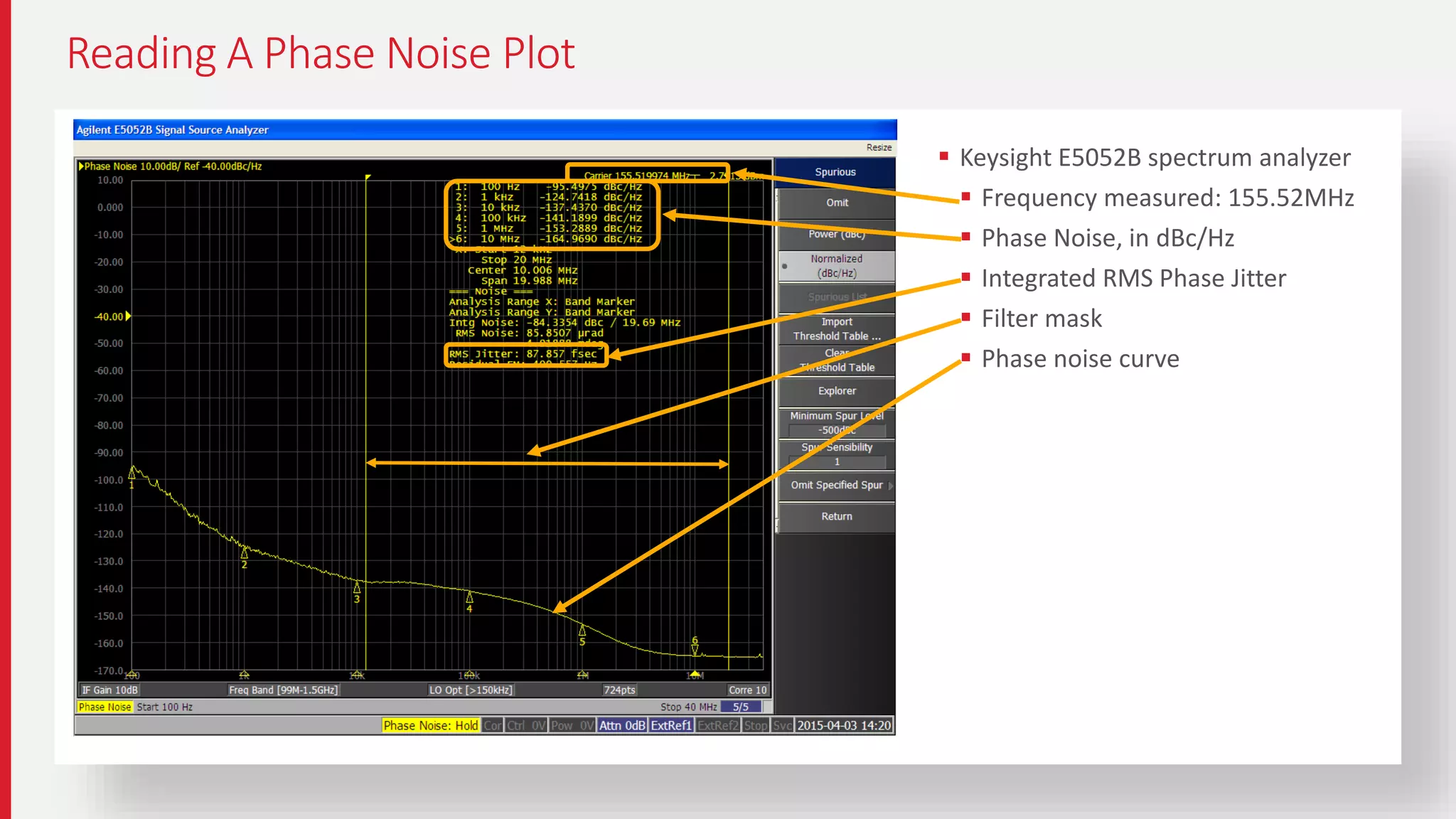

6.  Keysight E5052B spectrum analyzer
 Frequency measured: 155.52MHz
 Phase Noise, in dBc/Hz
 Integrated RMS Phase Jitter
 Filter mask
 Phase noise curve
Reading A Phase Noise Plot

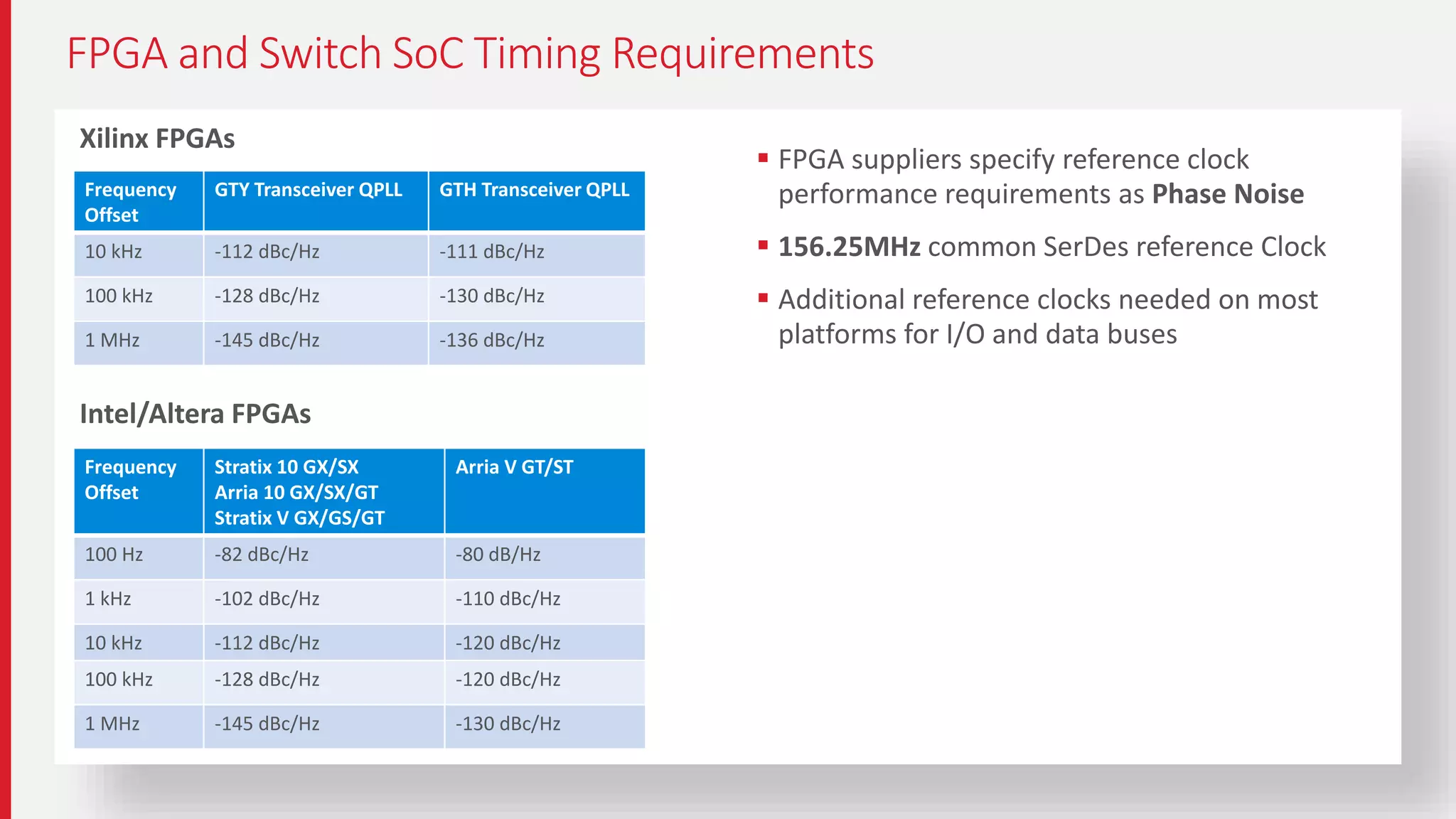

7. FPGA and Switch SoC Timing Requirements
Xilinx FPGAs
Intel/Altera FPGAs
Frequency
Offset
GTY Transceiver QPLL GTH Transceiver QPLL
10 kHz -112 dBc/Hz -111 dBc/Hz
100 kHz -128 dBc/Hz -130 dBc/Hz
1 MHz -145 dBc/Hz -136 dBc/Hz
Frequency
Offset
Stratix 10 GX/SX
Arria 10 GX/SX/GT
Stratix V GX/GS/GT
Arria V GT/ST
100 Hz -82 dBc/Hz -80 dB/Hz
1 kHz -102 dBc/Hz -110 dBc/Hz
10 kHz -112 dBc/Hz -120 dBc/Hz
100 kHz -128 dBc/Hz -120 dBc/Hz
1 MHz -145 dBc/Hz -130 dBc/Hz
 FPGA suppliers specify reference clock
performance requirements as Phase Noise
 156.25MHz common SerDes reference Clock
 Additional reference clocks needed on most
platforms for I/O and data buses

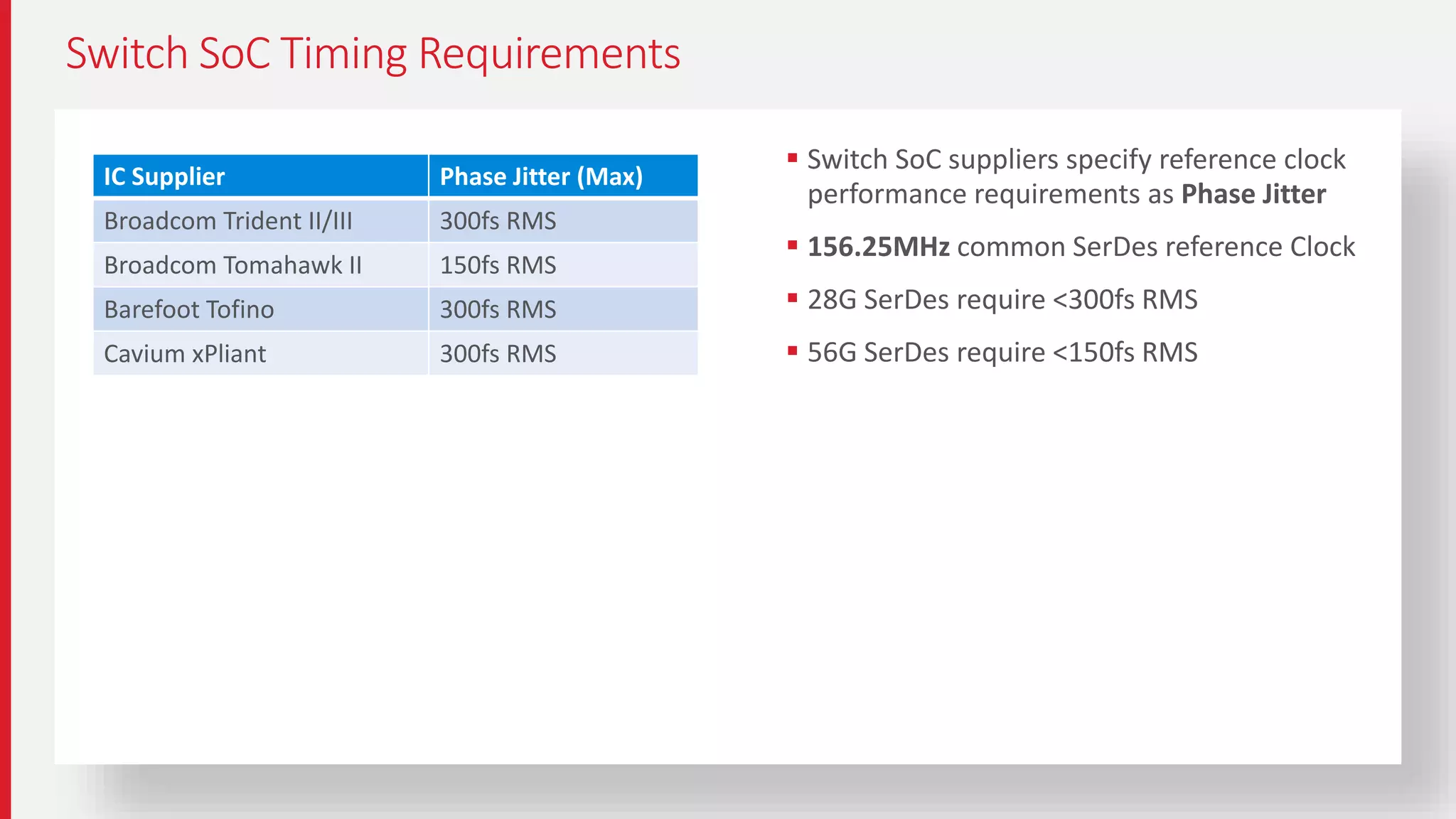

8. Switch SoC Timing Requirements
IC Supplier Phase Jitter (Max)
Broadcom Trident II/III 300fs RMS
Broadcom Tomahawk II 150fs RMS
Barefoot Tofino 300fs RMS
Cavium xPliant 300fs RMS
 Switch SoC suppliers specify reference clock
performance requirements as Phase Jitter
 156.25MHz common SerDes reference Clock
 28G SerDes require <300fs RMS
 56G SerDes require <150fs RMS

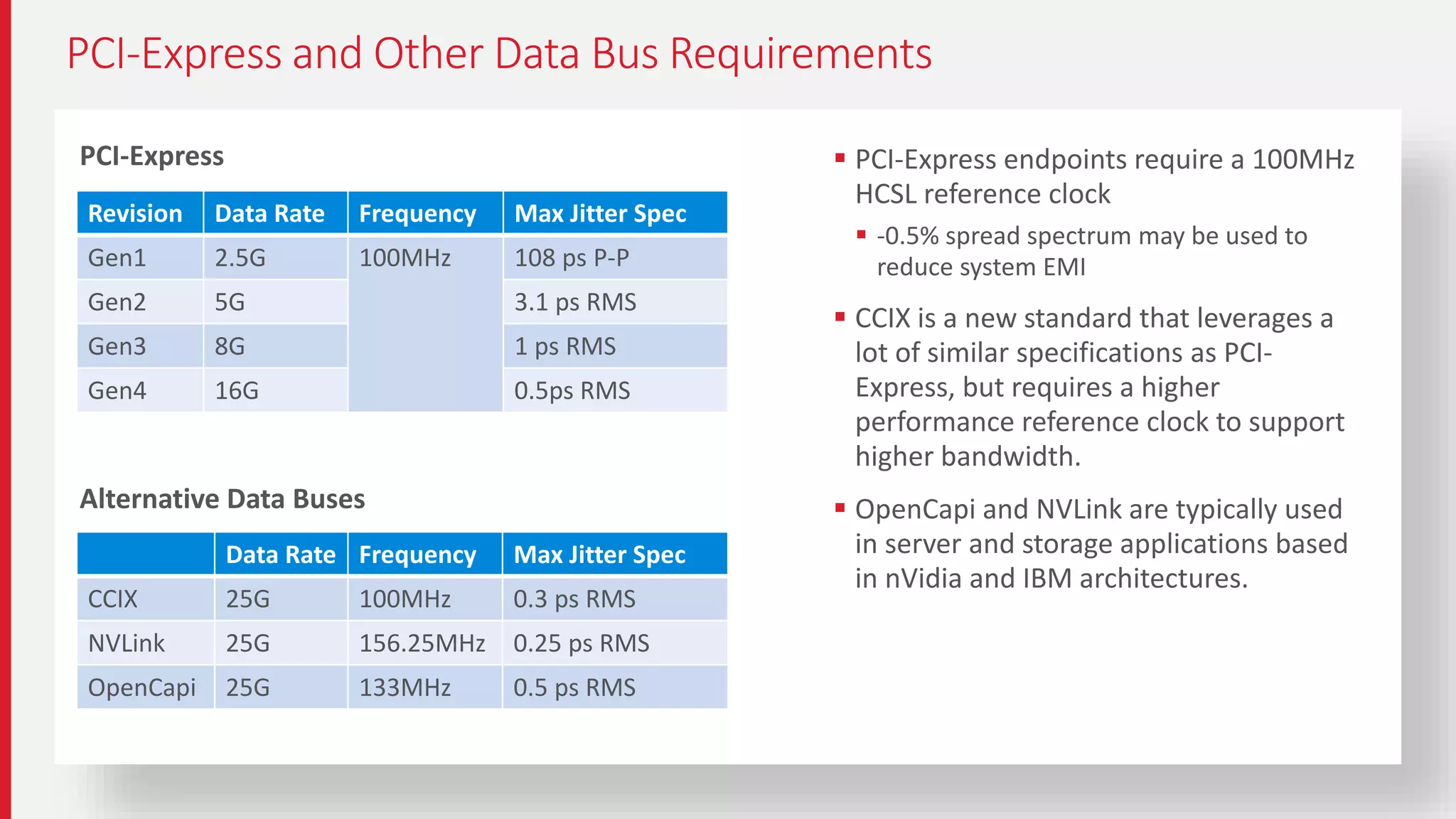

9. PCI-Express and Other Data Bus Requirements
 PCI-Express endpoints require a 100MHz
HCSL reference clock
 -0.5% spread spectrum may be used to
reduce system EMI
 CCIX is a new standard that leverages a
lot of similar specifications as PCI-
Express, but requires a higher
performance reference clock to support
higher bandwidth.
 OpenCapi and NVLink are typically used
in server and storage applications based
in nVidia and IBM architectures.
PCI-Express
Alternative Data Buses
Revision Data Rate Frequency Max Jitter Spec
Gen1 2.5G 100MHz 108 ps P-P
Gen2 5G 3.1 ps RMS
Gen3 8G 1 ps RMS
Gen4 16G 0.5ps RMS
Data Rate Frequency Max Jitter Spec
CCIX 25G 100MHz 0.3 ps RMS
NVLink 25G 156.25MHz 0.25 ps RMS
OpenCapi 25G 133MHz 0.5 ps RMS

10. Defining A Clock Tree

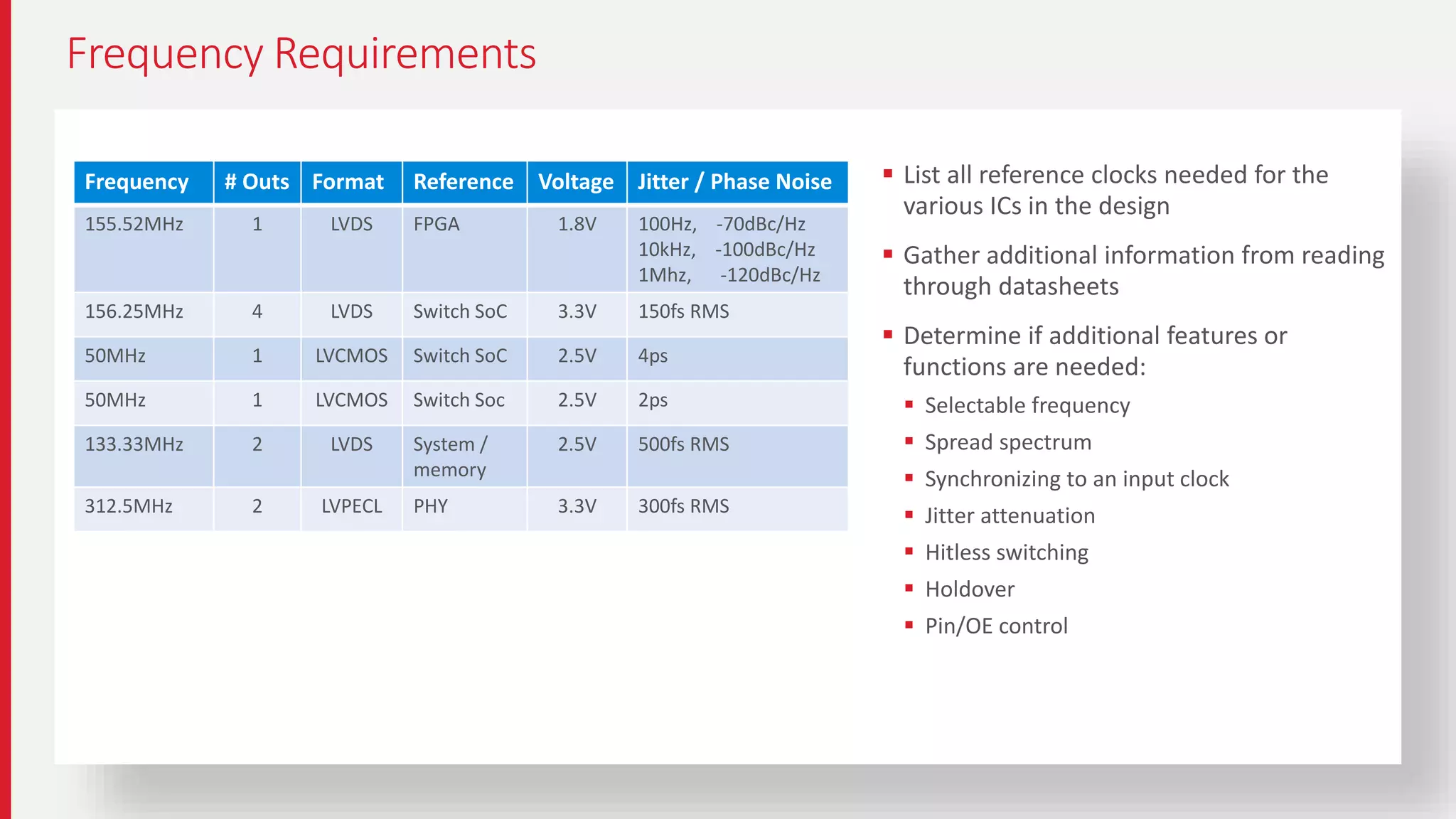

11.  List all reference clocks needed for the
various ICs in the design
 Gather additional information from reading
through datasheets
 Determine if additional features or
functions are needed:
 Selectable frequency
 Spread spectrum
 Synchronizing to an input clock
 Jitter attenuation
 Hitless switching
 Holdover
 Pin/OE control
Frequency Requirements
Frequency # Outs Format Reference Voltage Jitter / Phase Noise
155.52MHz 1 LVDS FPGA 1.8V 100Hz, -70dBc/Hz
10kHz, -100dBc/Hz
1Mhz, -120dBc/Hz
156.25MHz 4 LVDS Switch SoC 3.3V 150fs RMS
50MHz 1 LVCMOS Switch SoC 2.5V 4ps
50MHz 1 LVCMOS Switch Soc 2.5V 2ps
133.33MHz 2 LVDS System /
memory
2.5V 500fs RMS
312.5MHz 2 LVPECL PHY 3.3V 300fs RMS

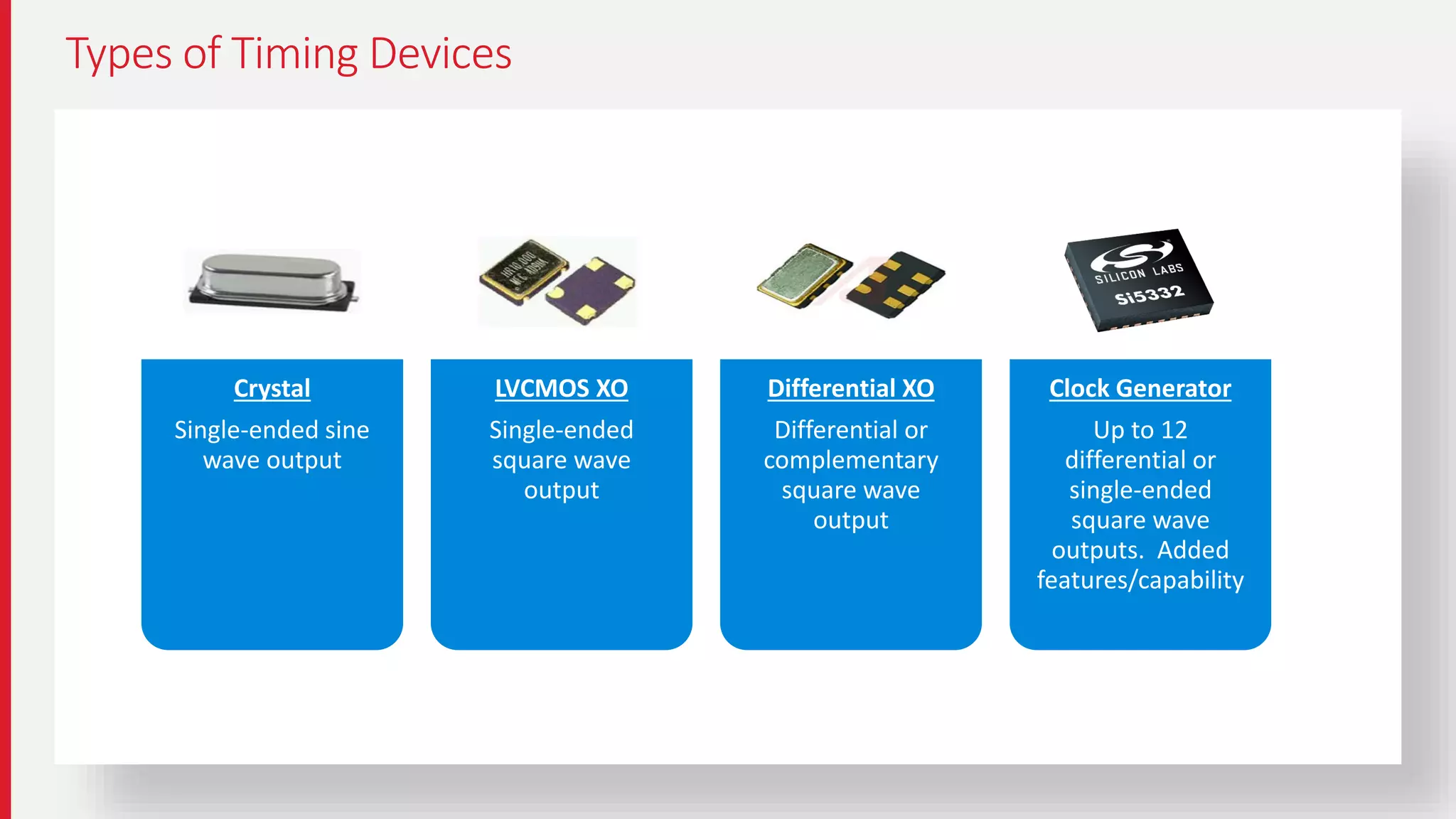

12. Types of Timing Devices
Crystal
Single-ended sine
wave output
LVCMOS XO
Single-ended
square wave
output
Differential XO
Differential or
complementary
square wave
output
Clock Generator
Up to 12
differential or
single-ended
square wave
outputs. Added
features/capability

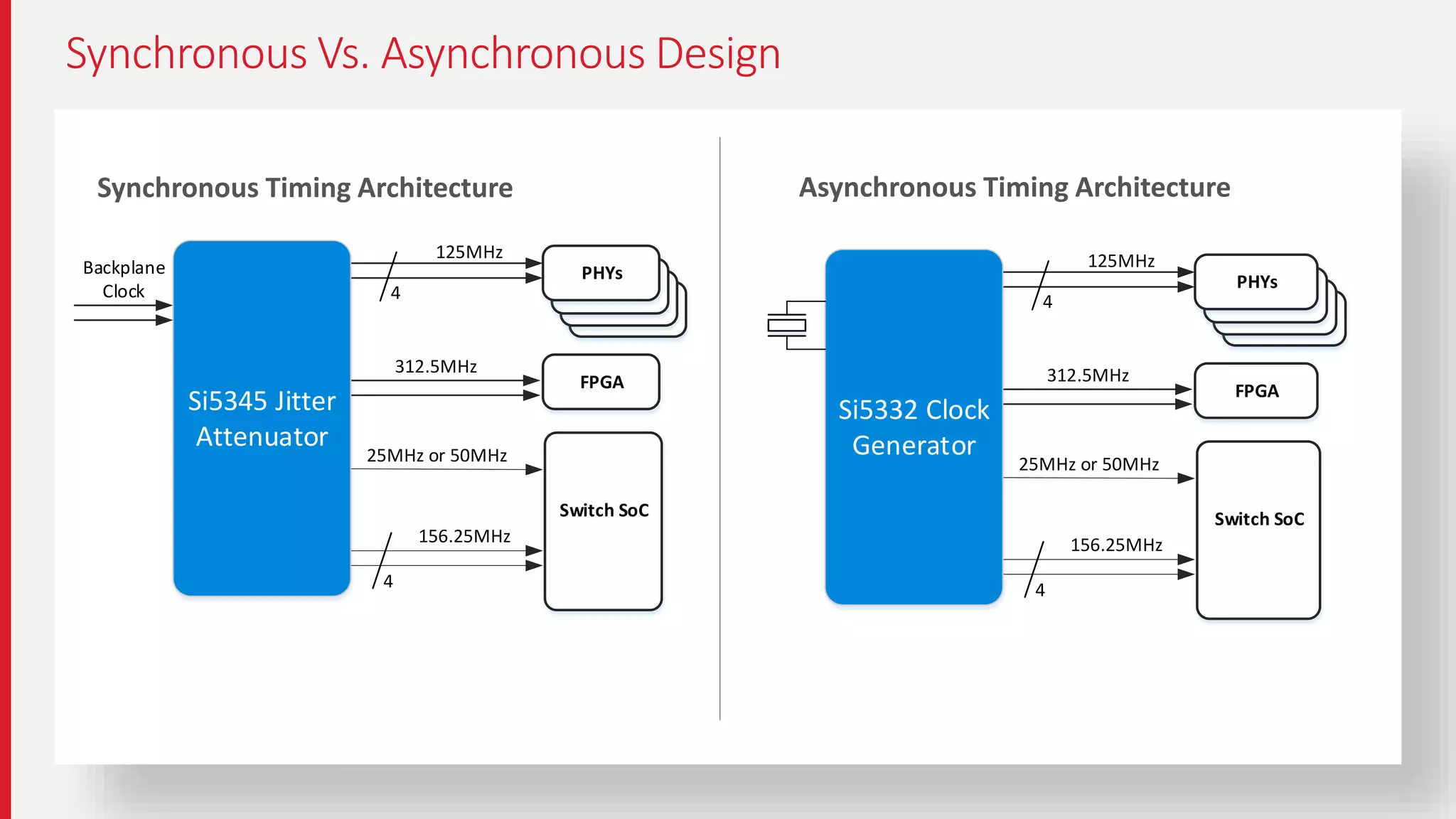

13. Synchronous Vs. Asynchronous Design
Asynchronous Timing ArchitectureSynchronous Timing Architecture
PHYs
PHYs
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4 PHYs
PHYs
Si5332 Clock
Generator
PHYs
PHYs
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4 PHYs
PHYs
Si5345 Jitter
Attenuator
Backplane
Clock

14. Jitter and Phase Noise Budgets

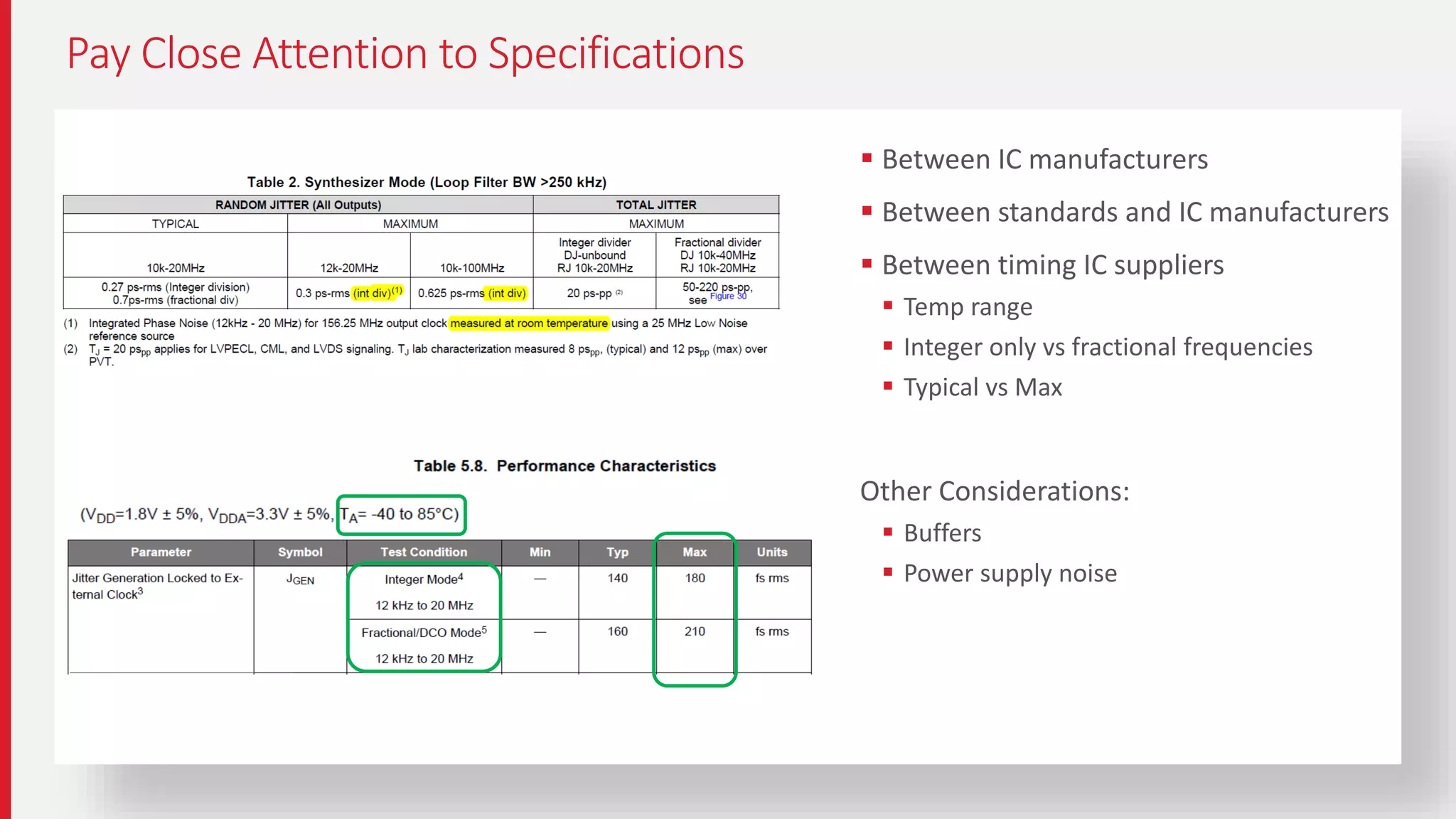

15.  Between IC manufacturers
 Between standards and IC manufacturers
 Between timing IC suppliers
 Temp range
 Integer only vs fractional frequencies
 Typical vs Max
Other Considerations:
 Buffers
 Power supply noise
Pay Close Attention to Specifications

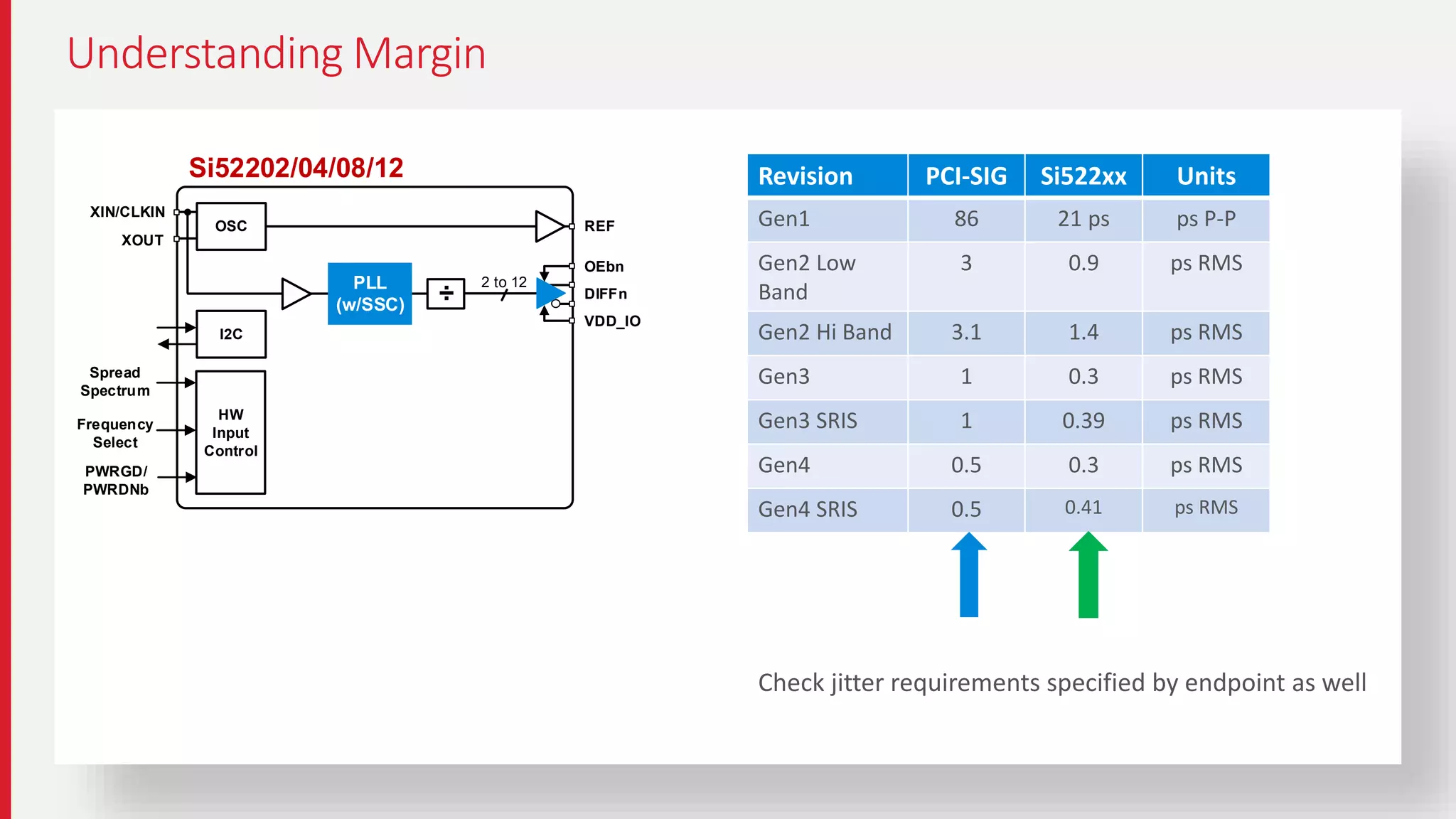

16. Understanding Margin
Si52202/04/08/12
PLL
(w/SSC)
XIN/CLKIN
DIFFn÷
I2C
XOUT
REF
HW
Input
Control
Spread
Spectrum
Frequency
Select
PWRGD/
PWRDNb
OSC
2 to 12
VDD_IO
OEbn
Revision PCI-SIG Si522xx Units
Gen1 86 21 ps ps P-P
Gen2 Low
Band
3 0.9 ps RMS
Gen2 Hi Band 3.1 1.4 ps RMS
Gen3 1 0.3 ps RMS
Gen3 SRIS 1 0.39 ps RMS
Gen4 0.5 0.3 ps RMS
Gen4 SRIS 0.5 0.41 ps RMS
Check jitter requirements specified by endpoint as well

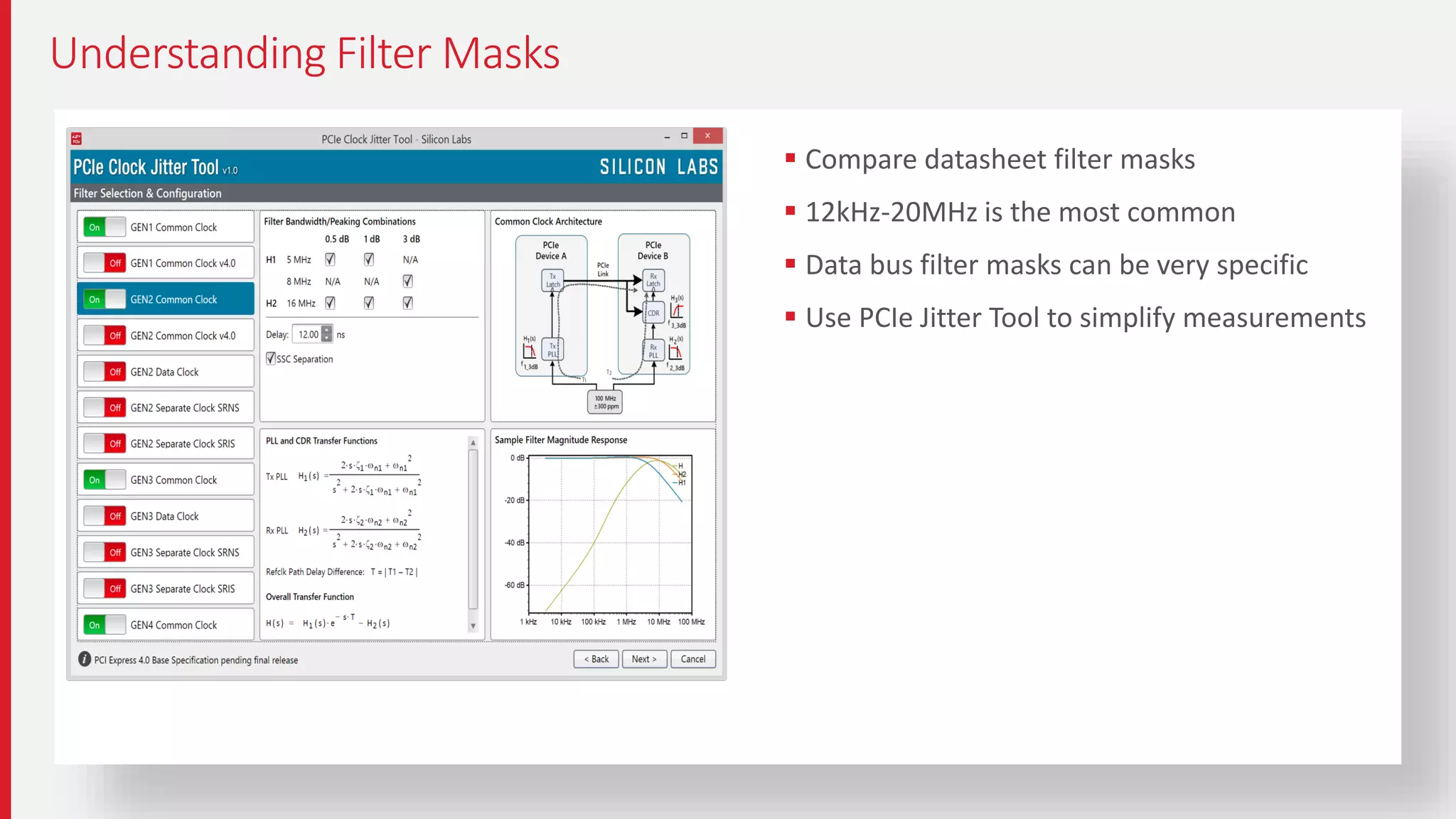

17. Understanding Filter Masks
 Compare datasheet filter masks
 12kHz-20MHz is the most common
 Data bus filter masks can be very specific
 Use PCIe Jitter Tool to simplify measurements

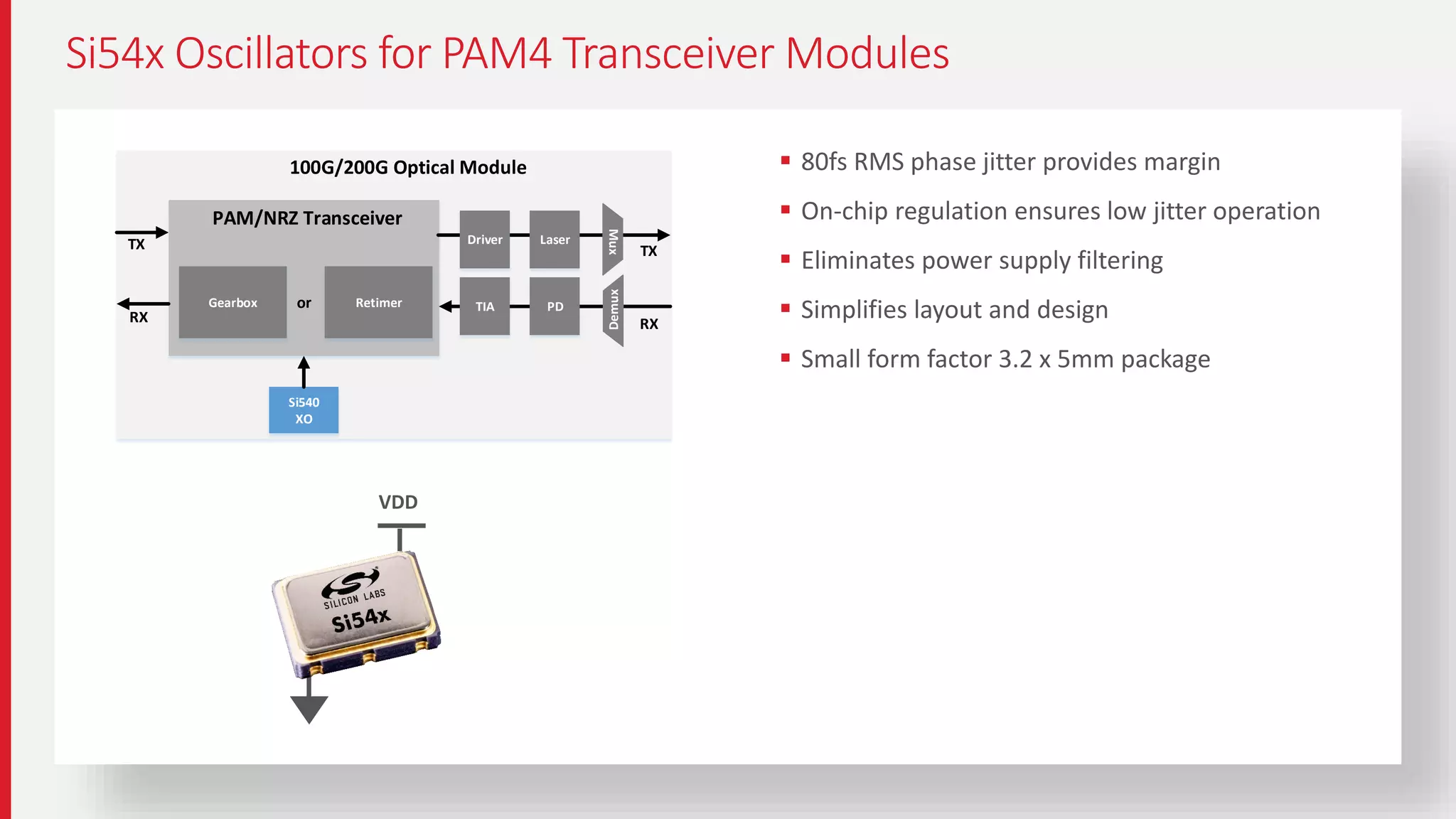

18. Si54x Oscillators for PAM4 Transceiver Modules
 80fs RMS phase jitter provides margin
 On-chip regulation ensures low jitter operation
 Eliminates power supply filtering
 Simplifies layout and design
 Small form factor 3.2 x 5mm package
VDD
Gearbox
TX
RX
PAM/NRZ Transceiver
Retimeror
Si540
XO
TX
RX
Driver Laser
Mux
TIA PD
Demux
100G/200G Optical Module

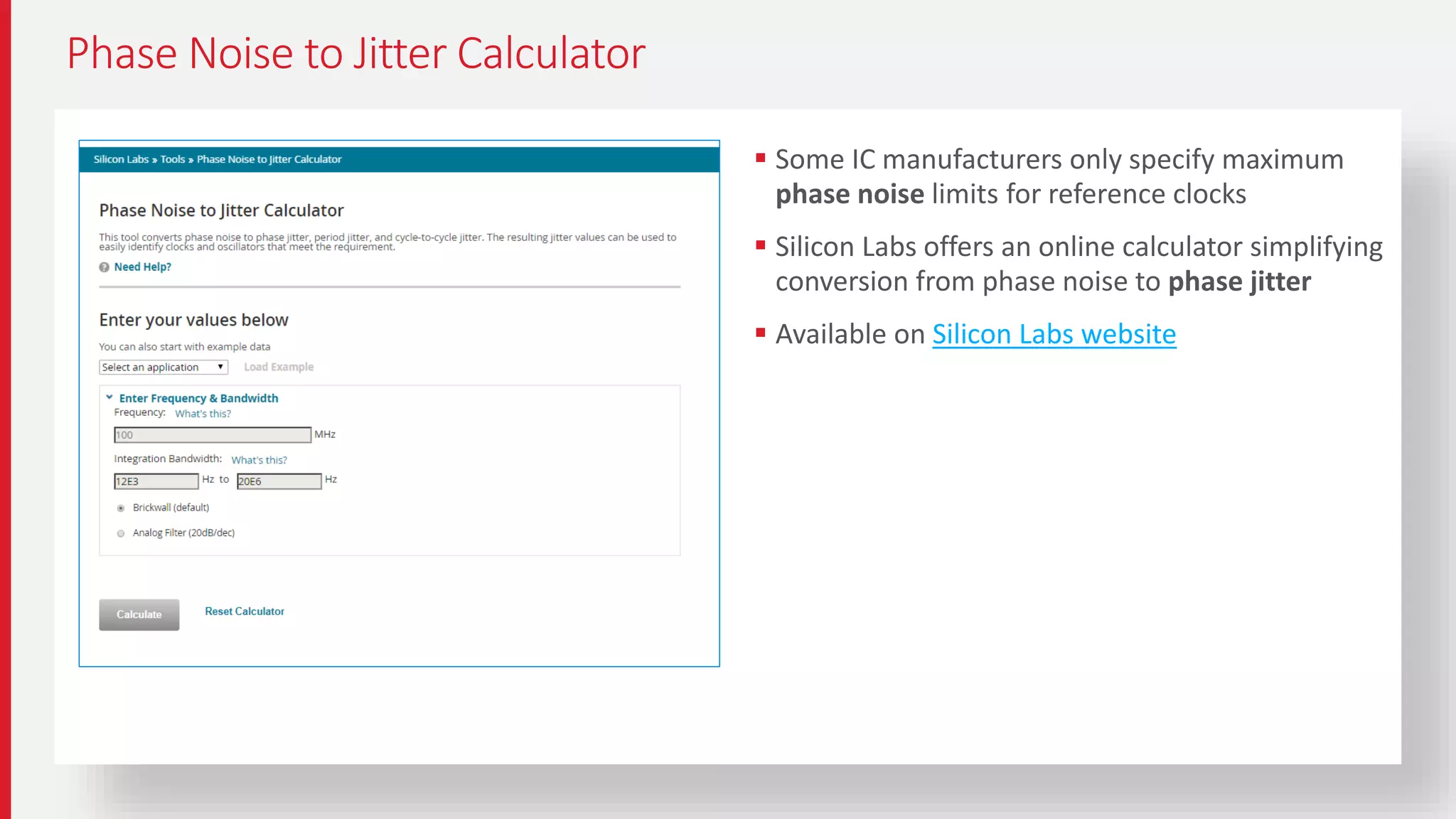

19.  Some IC manufacturers only specify maximum
phase noise limits for reference clocks
 Silicon Labs offers an online calculator simplifying
conversion from phase noise to phase jitter
 Available on Silicon Labs website
Phase Noise to Jitter Calculator

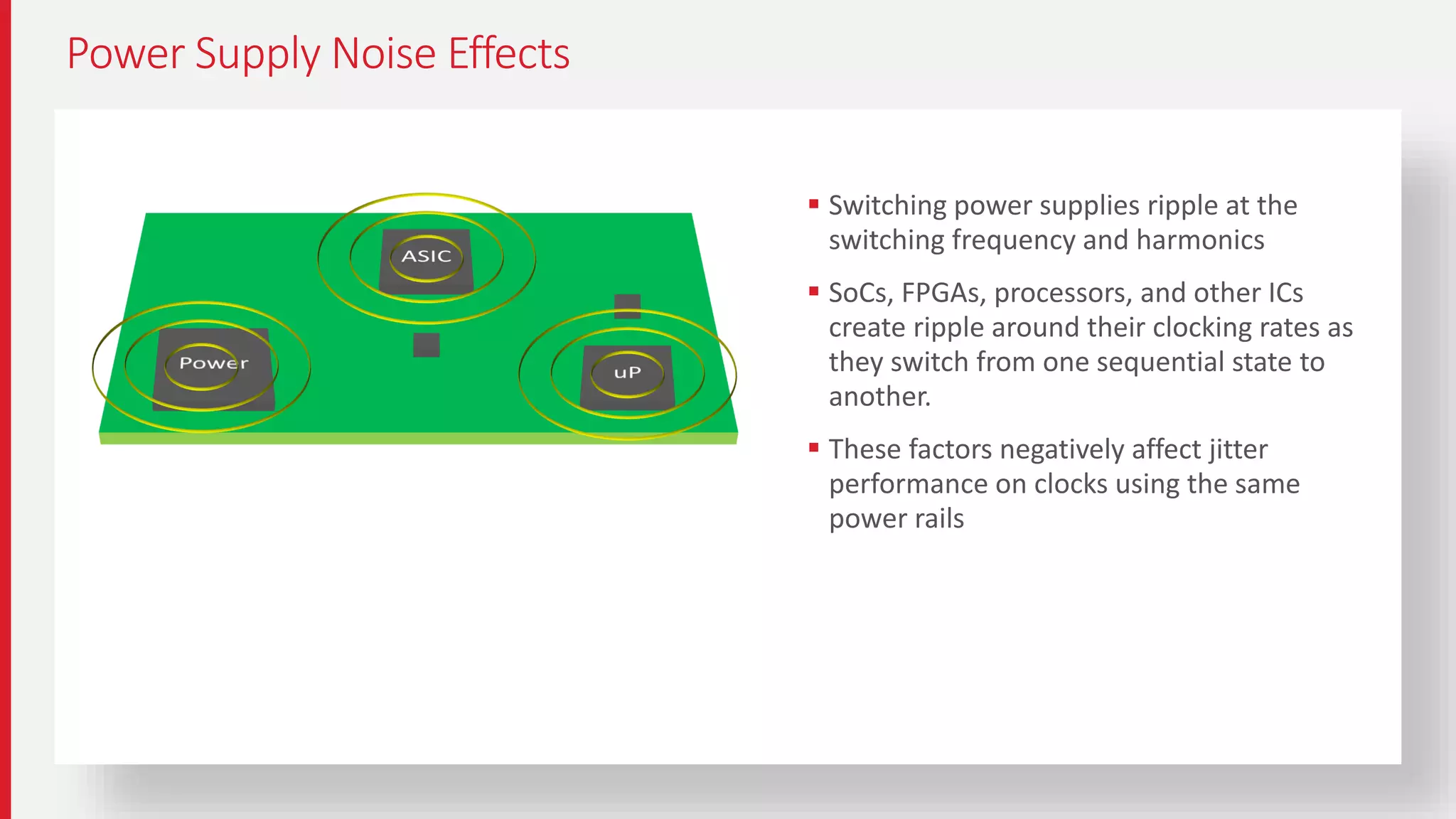

20. Power Supply Noise Rejection

21.  Switching power supplies ripple at the
switching frequency and harmonics
 SoCs, FPGAs, processors, and other ICs
create ripple around their clocking rates as
they switch from one sequential state to
another.
 These factors negatively affect jitter
performance on clocks using the same
power rails
Power Supply Noise Effects

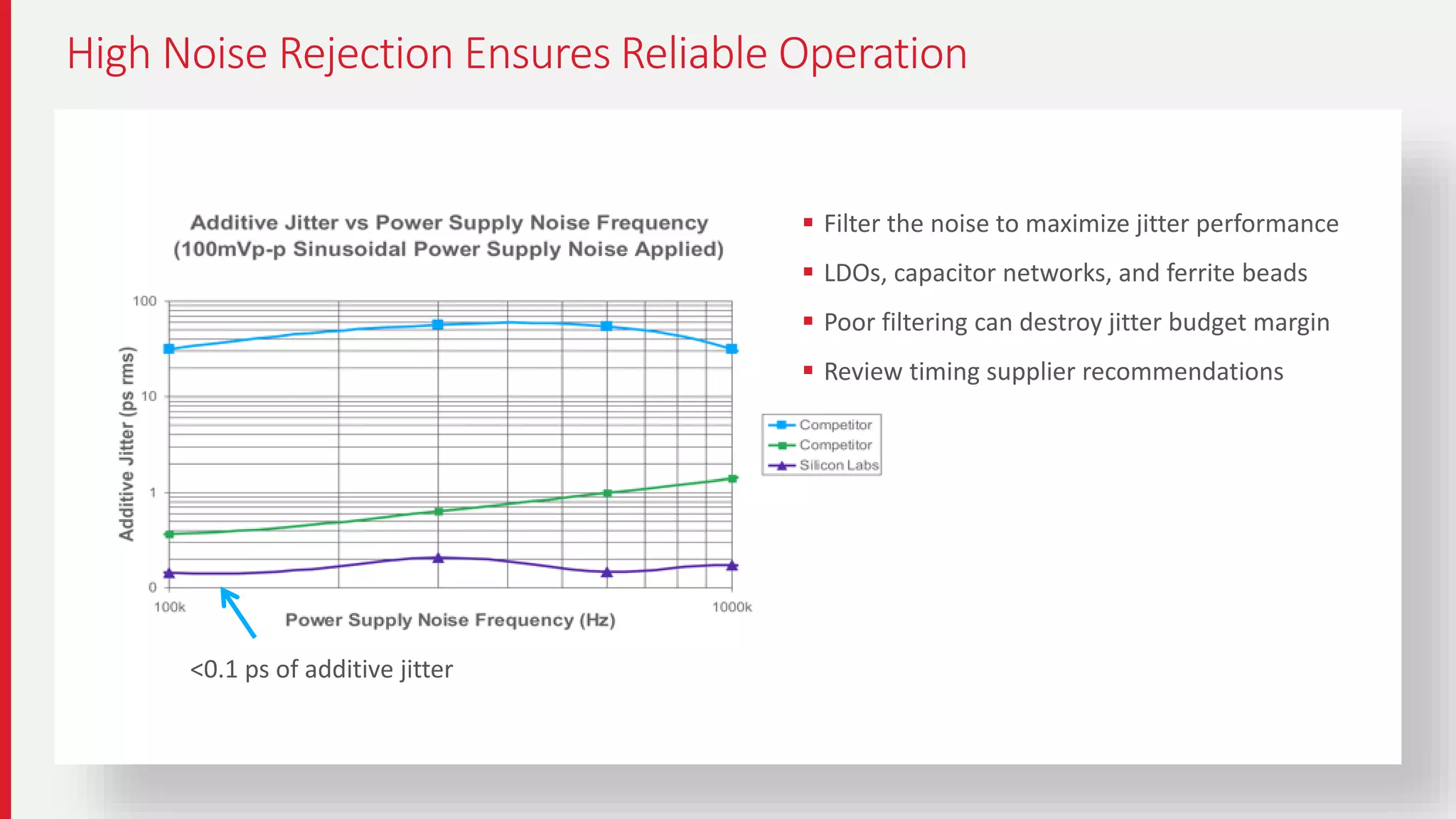

22. High Noise Rejection Ensures Reliable Operation
<0.1 ps of additive jitter
 Filter the noise to maximize jitter performance
 LDOs, capacitor networks, and ferrite beads
 Poor filtering can destroy jitter budget margin
 Review timing supplier recommendations

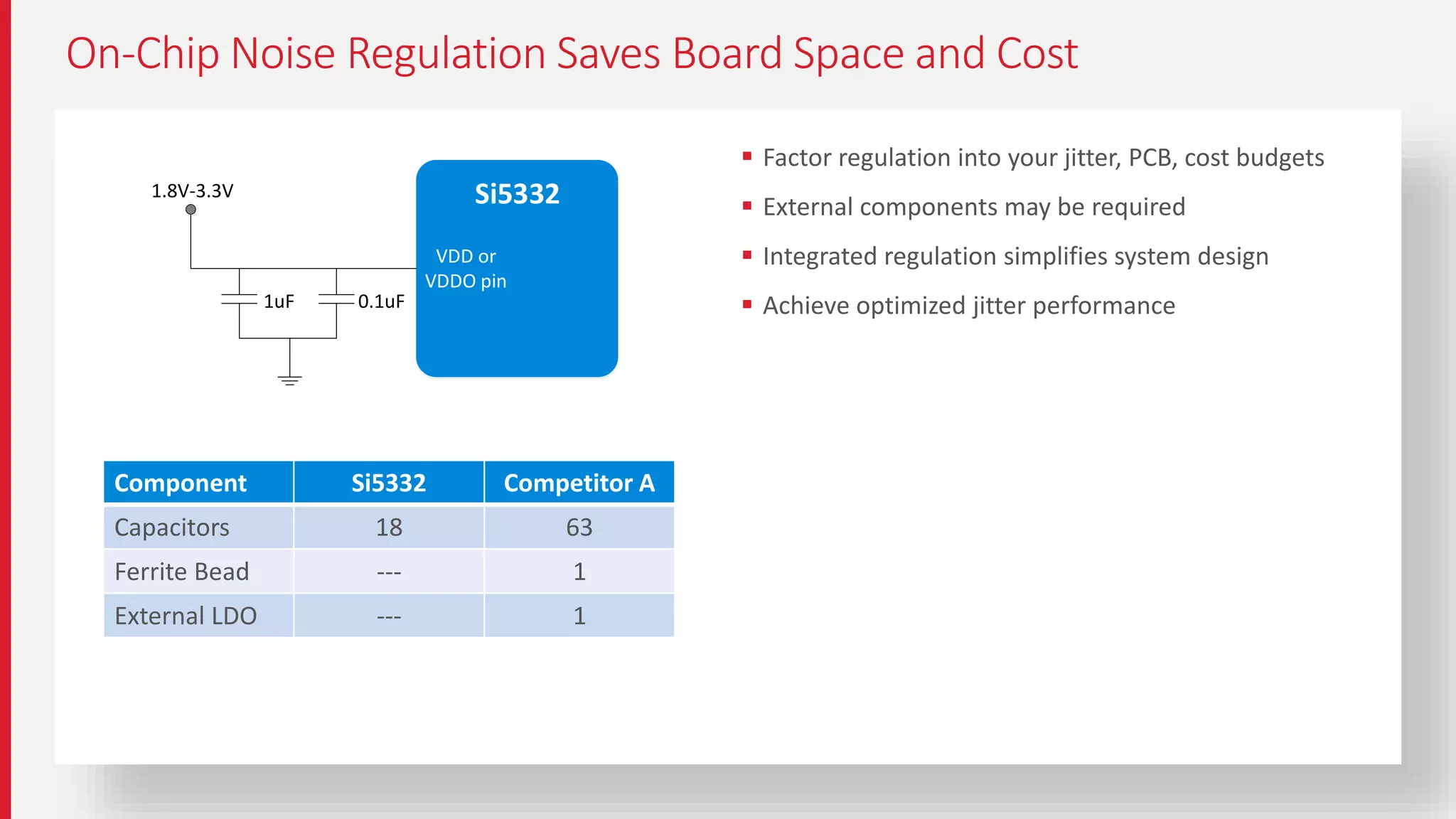

23.  Factor regulation into your jitter, PCB, cost budgets
 External components may be required
 Integrated regulation simplifies system design
 Achieve optimized jitter performance
On-Chip Noise Regulation Saves Board Space and Cost
Si5332
1uF 0.1uF
VDD or
VDDO pin
1.8V-3.3V
Component Si5332 Competitor A
Capacitors 18 63
Ferrite Bead --- 1
External LDO --- 1

24. Driving Long Clock Traces

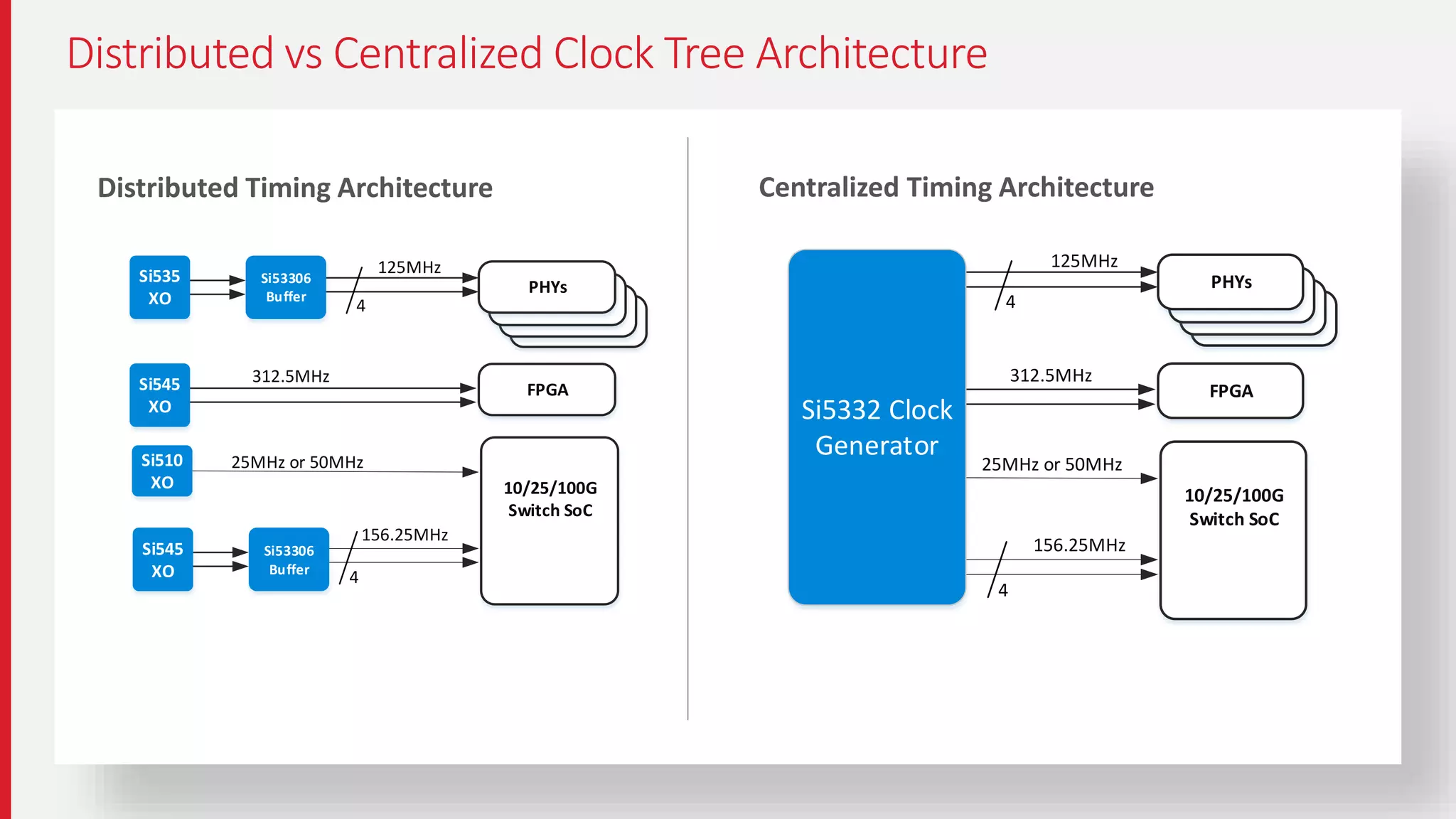

25. Distributed vs Centralized Clock Tree Architecture
Centralized Timing ArchitectureDistributed Timing Architecture
PHYs
PHYs
10/25/100G
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4 PHYs
PHYs
Si5332 Clock
Generator
PHYs
PHYs
10/25/100G
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4
Si53306
Buffer
Si535
XO
Si53306
Buffer
Si545
XO
Si510
XO
Si545
XO
PHYs
PHYs

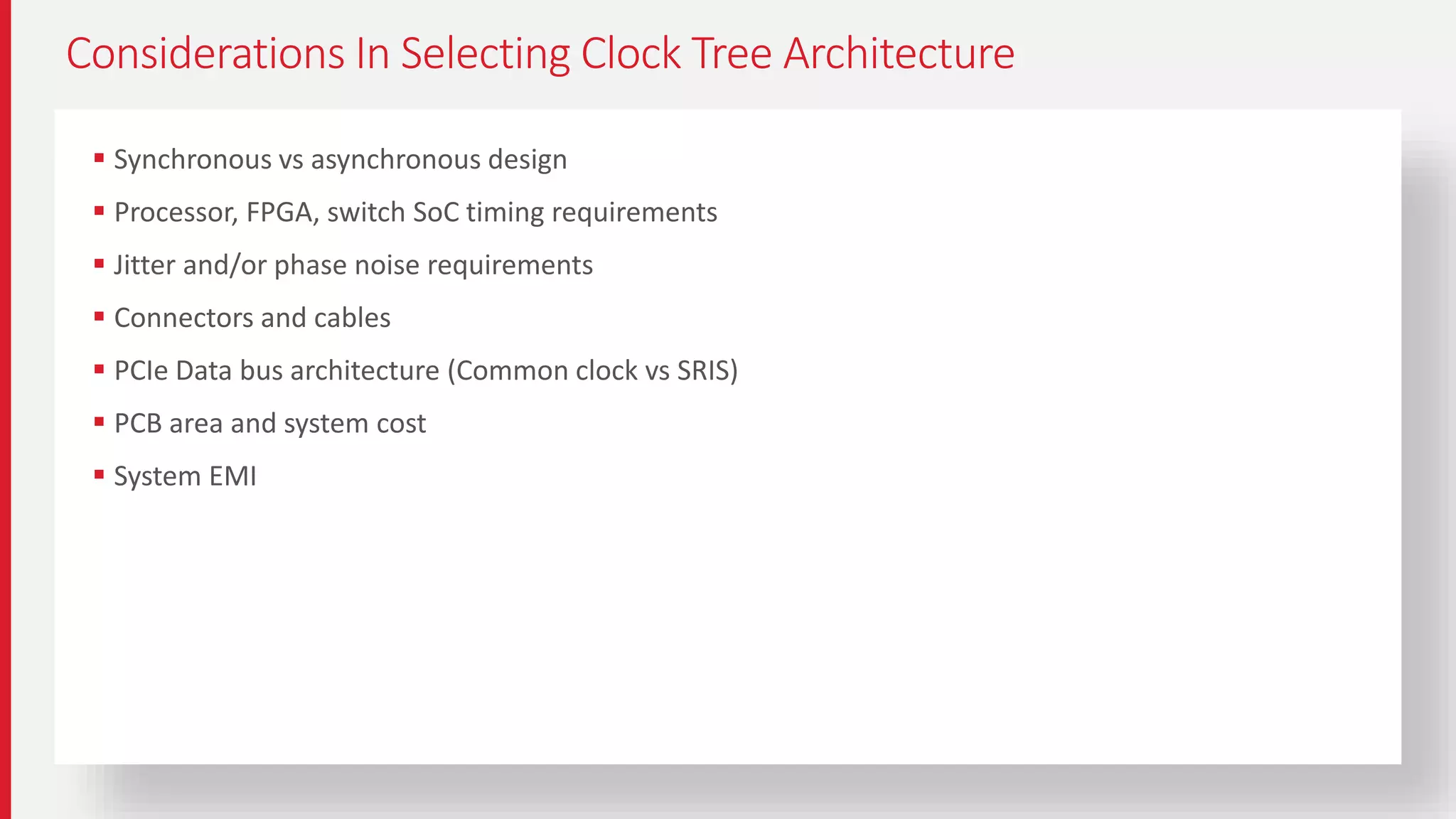

26.  Synchronous vs asynchronous design
 Processor, FPGA, switch SoC timing requirements
 Jitter and/or phase noise requirements
 Connectors and cables
 PCIe Data bus architecture (Common clock vs SRIS)
 PCB area and system cost
 System EMI
Considerations In Selecting Clock Tree Architecture

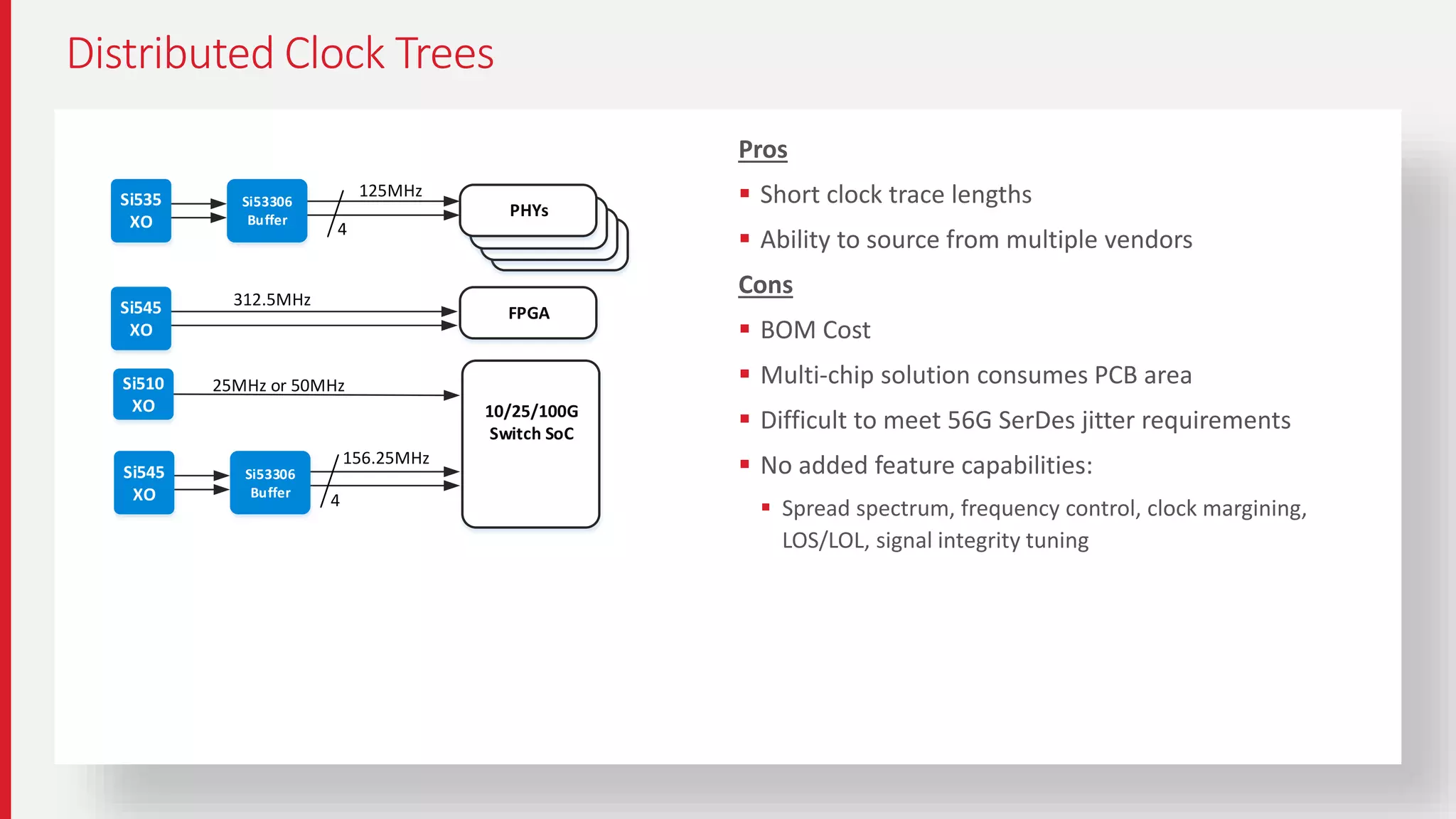

27. Pros
 Short clock trace lengths
 Ability to source from multiple vendors
Cons
 BOM Cost
 Multi-chip solution consumes PCB area
 Difficult to meet 56G SerDes jitter requirements
 No added feature capabilities:
 Spread spectrum, frequency control, clock margining,
LOS/LOL, signal integrity tuning
Distributed Clock Trees
PHYs
PHYs
10/25/100G
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4
Si53306
Buffer
Si535
XO
Si53306
Buffer
Si545
XO
Si510
XO
Si545
XO
PHYs
PHYs

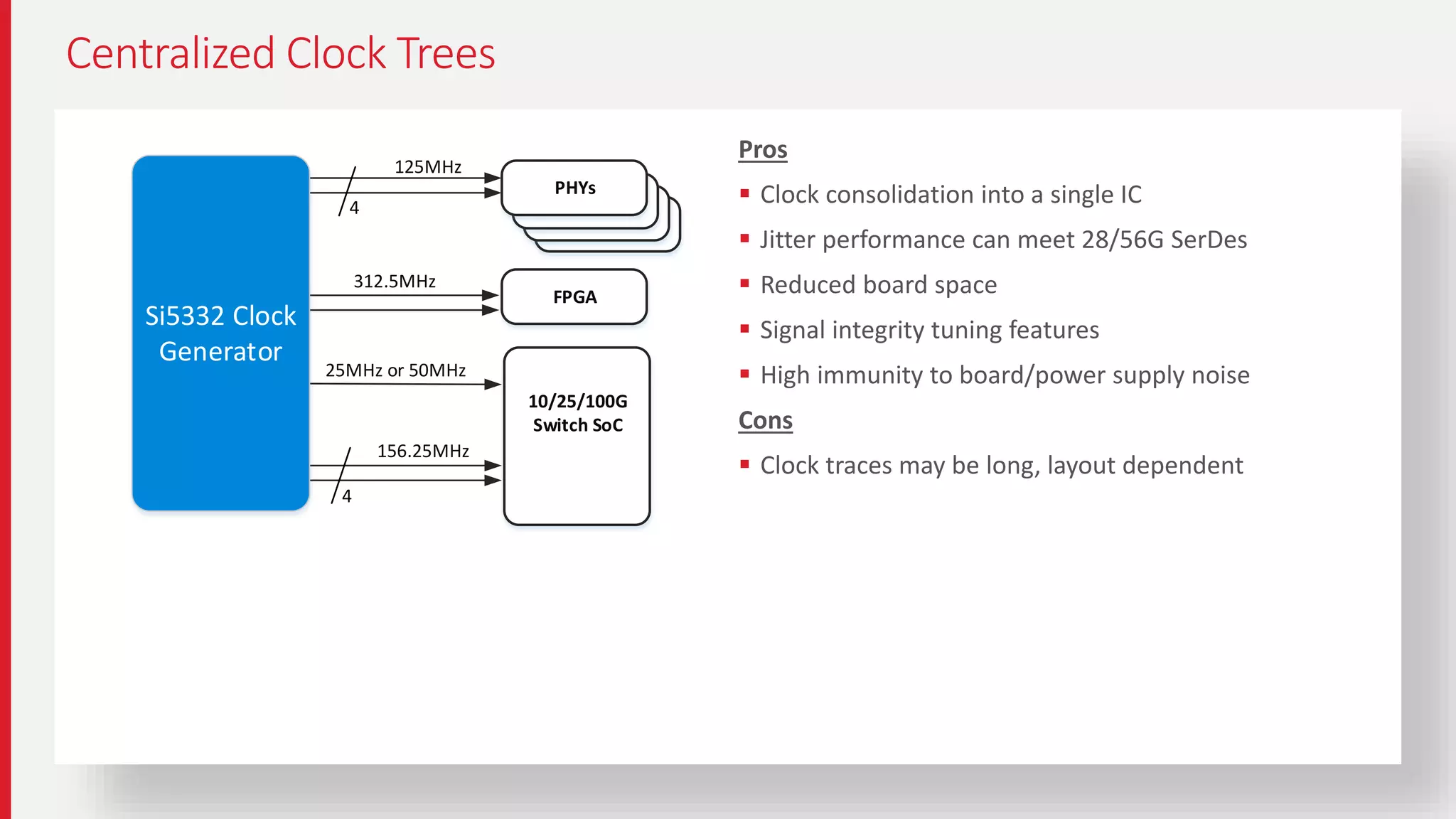

28. Pros
 Clock consolidation into a single IC
 Jitter performance can meet 28/56G SerDes
 Reduced board space
 Signal integrity tuning features
 High immunity to board/power supply noise
Cons
 Clock traces may be long, layout dependent
Centralized Clock Trees
PHYs
PHYs
10/25/100G
Switch SoC
312.5MHz
125MHz
4
25MHz or 50MHz
FPGA
156.25MHz
4 PHYs
PHYs
Si5332 Clock
Generator

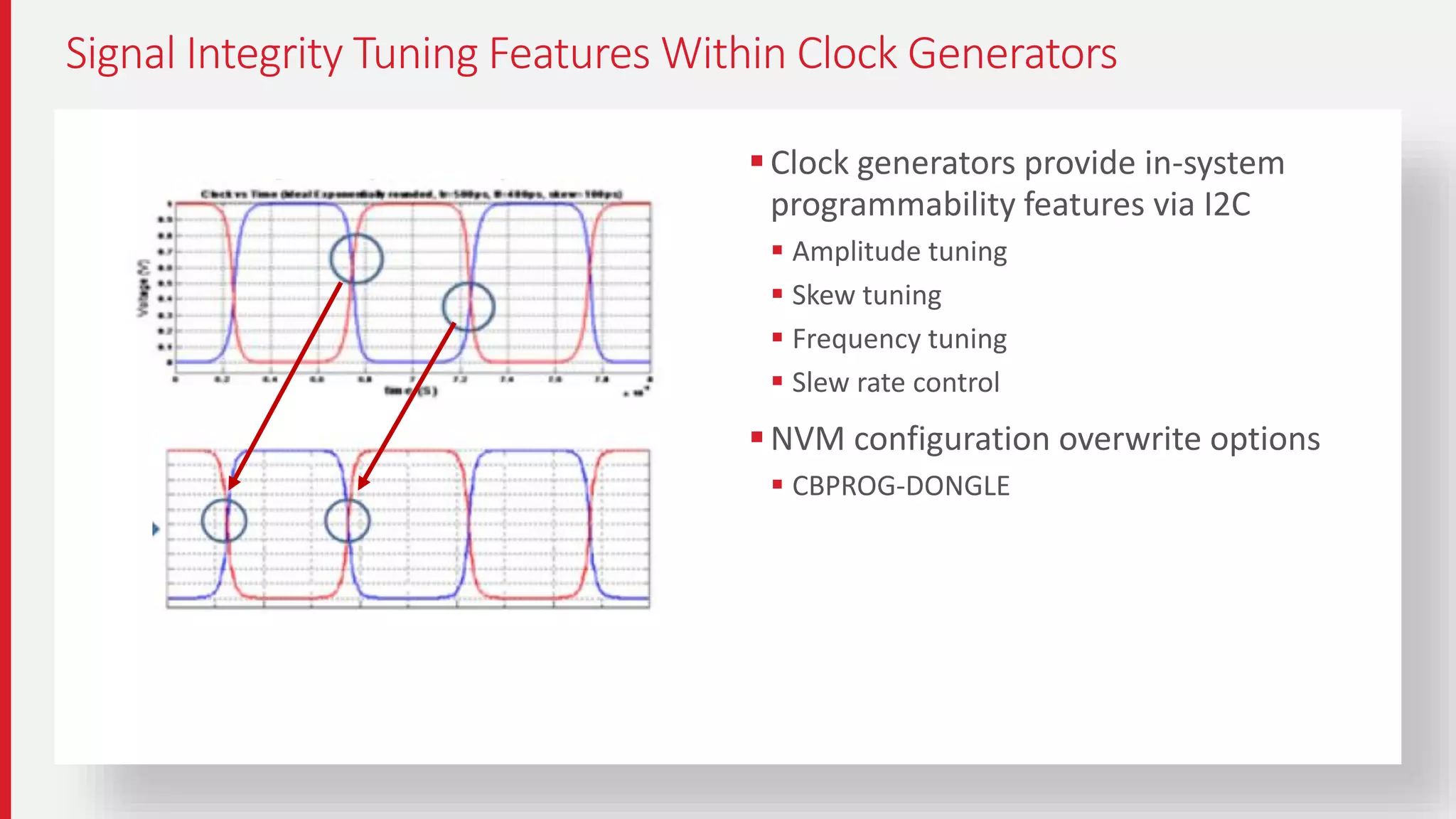

29. Clock generators provide in-system
programmability features via I2C
 Amplitude tuning
 Skew tuning
 Frequency tuning
 Slew rate control
NVM configuration overwrite options
 CBPROG-DONGLE
Signal Integrity Tuning Features Within Clock Generators

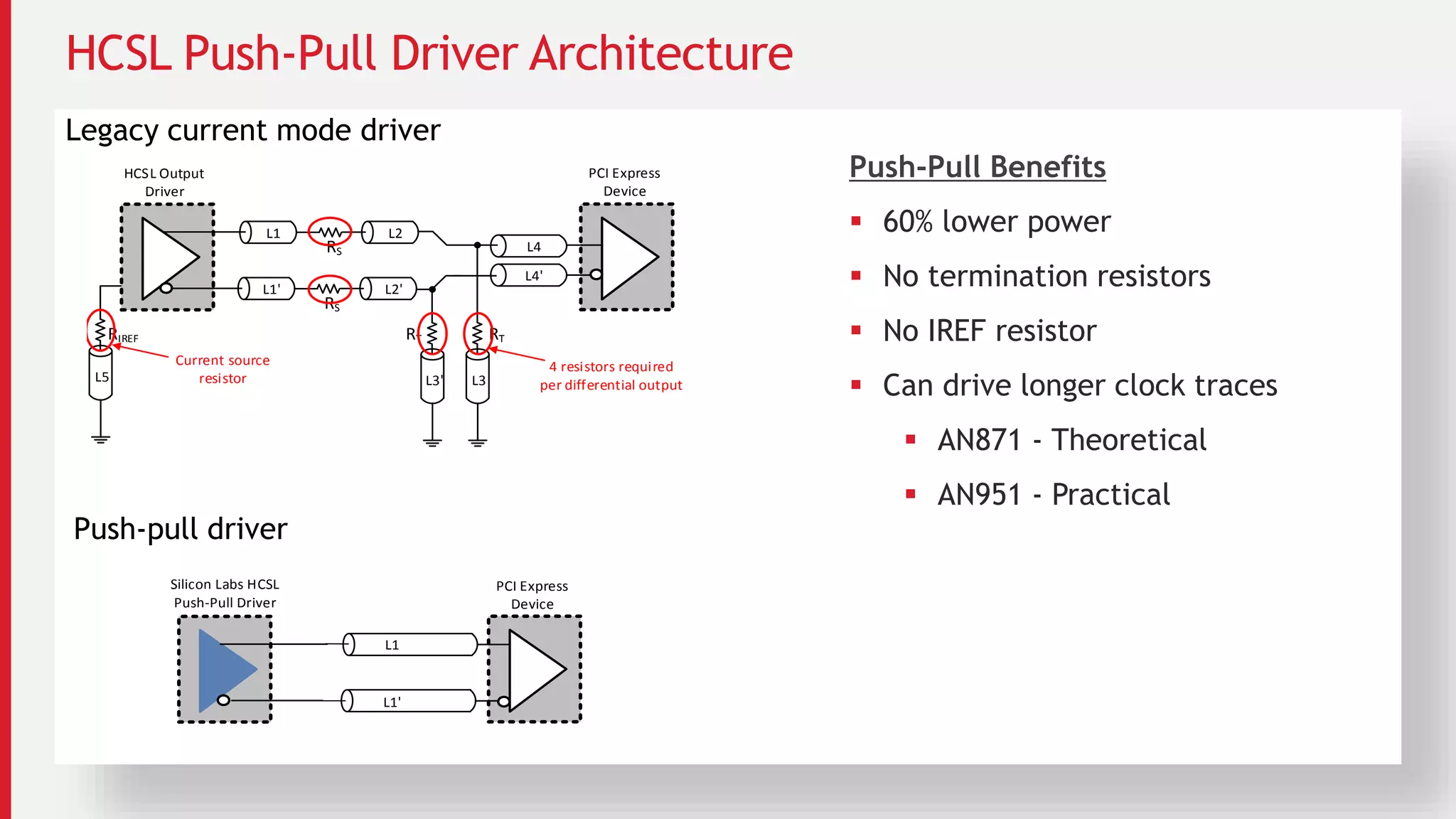

30. HCSL Push-Pull Driver Architecture
Legacy current mode driver
Push-pull driver
Silicon Labs HCSL
Push-Pull Driver
PCI Express
Device
L1
L1'
L2
L2'
L1
RIREF
L1'
HCSL Output
Driver
L5
RS
RS
L3' L3
L4
L4'
PCI Express
Device
RT RT
4 resistors required
per differential output
Current source
resistor
Push-Pull Benefits
 60% lower power
 No termination resistors
 No IREF resistor
 Can drive longer clock traces
 AN871 - Theoretical
 AN951 - Practical

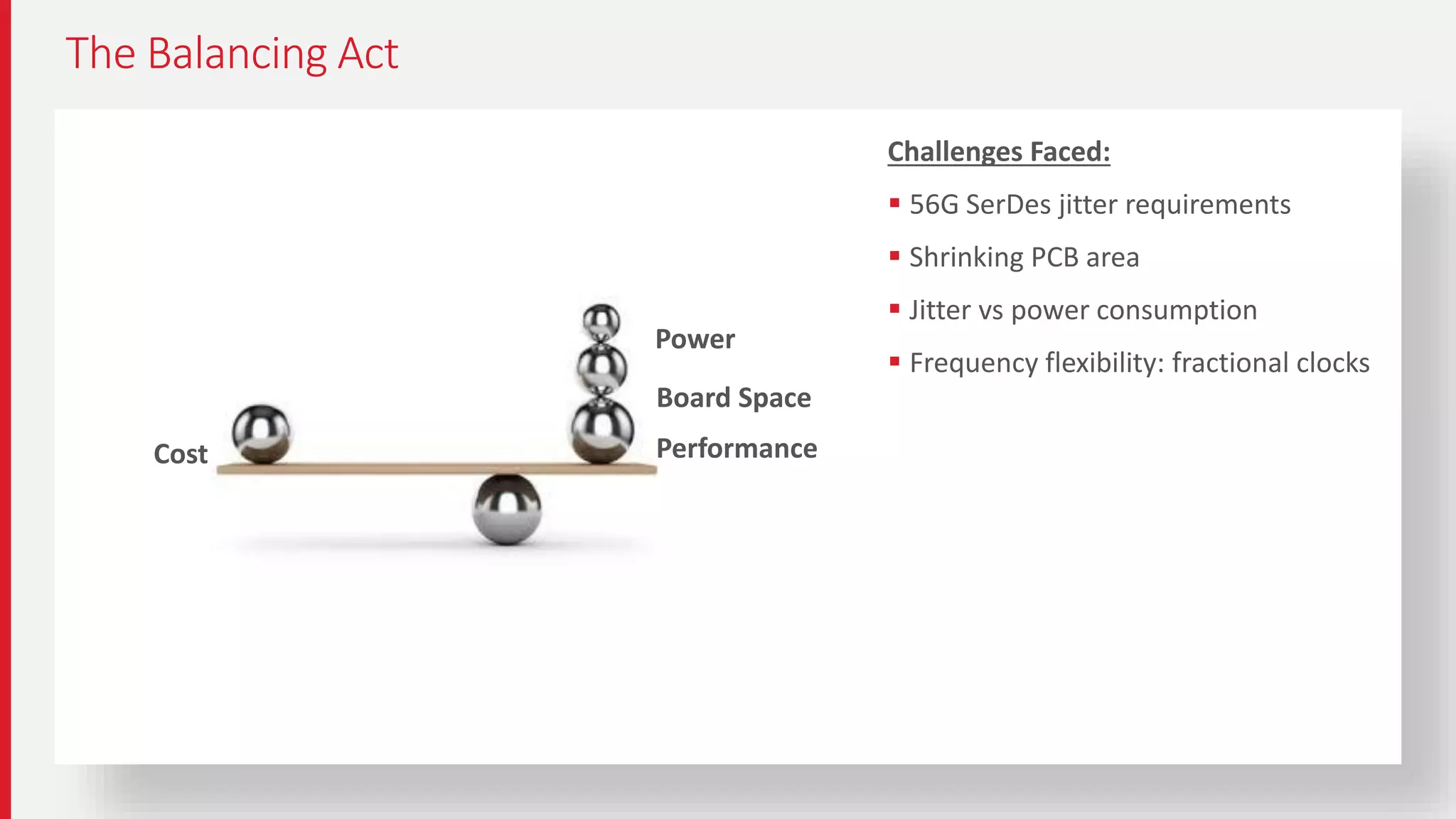

31. Cost, Performance, PCB Area Constraints

32. Challenges Faced:
 56G SerDes jitter requirements
 Shrinking PCB area
 Jitter vs power consumption
 Frequency flexibility: fractional clocks
The Balancing Act
Cost Performance
Board Space
Power

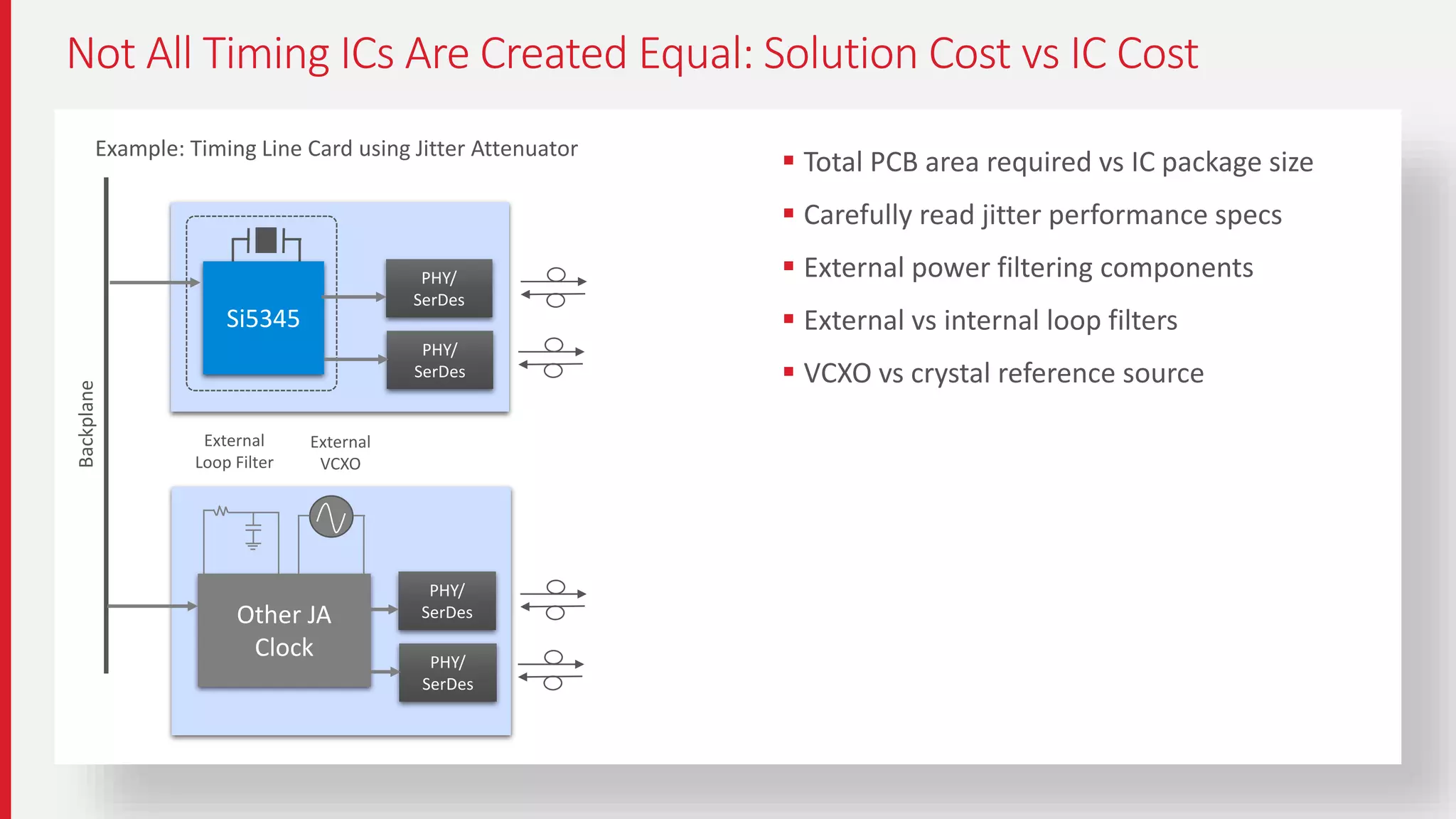

33.  Total PCB area required vs IC package size
 Carefully read jitter performance specs
 External power filtering components
 External vs internal loop filters
 VCXO vs crystal reference source
Not All Timing ICs Are Created Equal: Solution Cost vs IC Cost
Backplane
PHY/
SerDes
PHY/
SerDes
Si5345
PHY/
SerDes
PHY/
SerDes
Other JA
Clock
External
Loop Filter
External
VCXO
Example: Timing Line Card using Jitter Attenuator

34. Clock Tree Solutions For High-Speed Clock Trees

35. Complete Timing Portfolio
 Leader in high performance clocks and oscillators
 Frequency flexibility + ultra-low jitter
 Best-in-class integration  single IC clock trees
 Highly programmable with quick-turn samples
XO/VCXO Clock BuffersClock Generators
Jitter Attenuating ClocksSynchronization Wireless Clocks

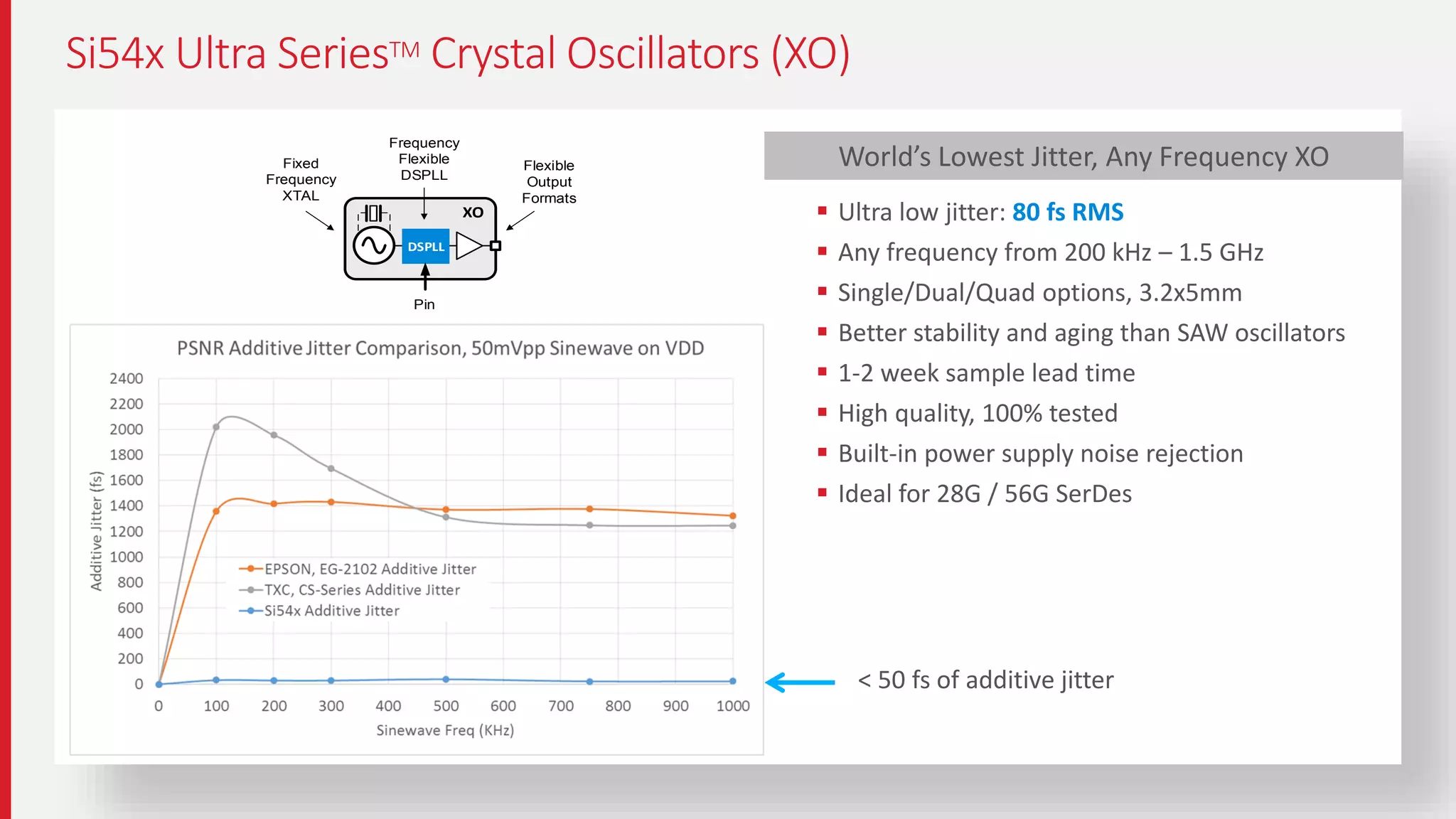

36. Si54x Ultra SeriesTM Crystal Oscillators (XO)
 Ultra low jitter: 80 fs RMS
 Any frequency from 200 kHz – 1.5 GHz
 Single/Dual/Quad options, 3.2x5mm
 Better stability and aging than SAW oscillators
 1-2 week sample lead time
 High quality, 100% tested
 Built-in power supply noise rejection
 Ideal for 28G / 56G SerDes
DSPLL
Pin
XO
Fixed
Frequency
XTAL
Frequency
Flexible
DSPLL
Flexible
Output
Formats
< 50 fs of additive jitter
World’s Lowest Jitter, Any Frequency XO

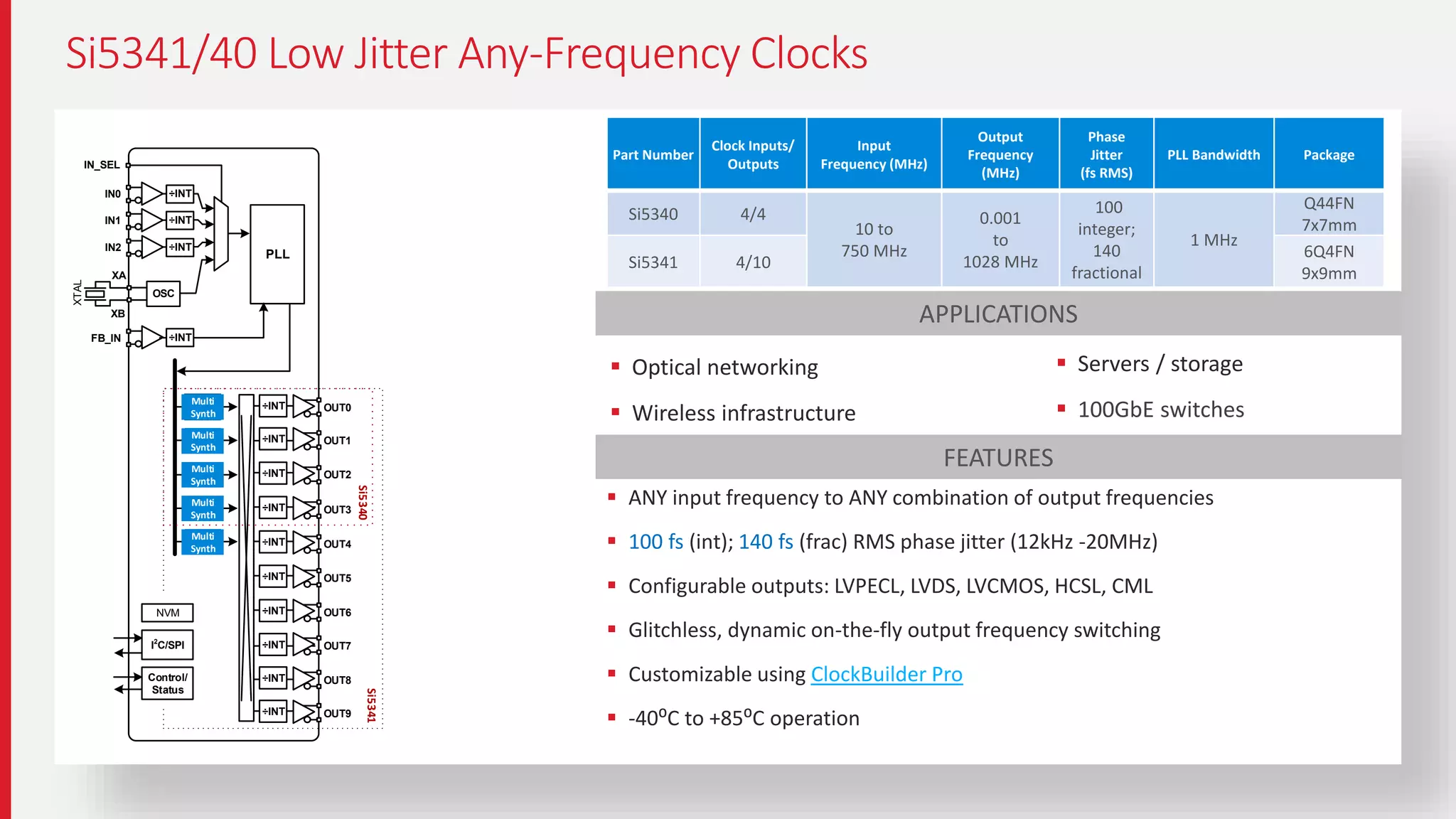

37.  Optical networking
 Wireless infrastructure
Si5341/40 Low Jitter Any-Frequency Clocks
 ANY input frequency to ANY combination of output frequencies
 100 fs (int); 140 fs (frac) RMS phase jitter (12kHz -20MHz)
 Configurable outputs: LVPECL, LVDS, LVCMOS, HCSL, CML
 Glitchless, dynamic on-the-fly output frequency switching
 Customizable using ClockBuilder Pro
 -40⁰C to +85⁰C operation
FB_IN
IN0
IN_SEL
IN1
IN2
XB
XA
XTAL
÷INT
÷INT
÷INT
OSC
Multi
Synth
OUT0÷INT
OUT1÷INT
OUT2÷INT
OUT3÷INT
OUT4÷INT
OUT5÷INT
OUT6÷INT
OUT7÷INT
OUT8÷INT
OUT9÷INT
Multi
Synth
Multi
Synth
Multi
Synth
Multi
Synth
Si5340
Si5341
PLL
÷INT
NVM
I2
C/SPI
Control/
Status
Part Number
Clock Inputs/
Outputs
Input
Frequency (MHz)
Output
Frequency
(MHz)
Phase
Jitter
(fs RMS)
PLL Bandwidth Package
Si5340 4/4
10 to
750 MHz
0.001
to
1028 MHz
100
integer;
140
fractional
1 MHz
Q44FN
7x7mm
Si5341 4/10
6Q4FN
9x9mm
APPLICATIONS
FEATURES
 Servers / storage
 100GbE switches

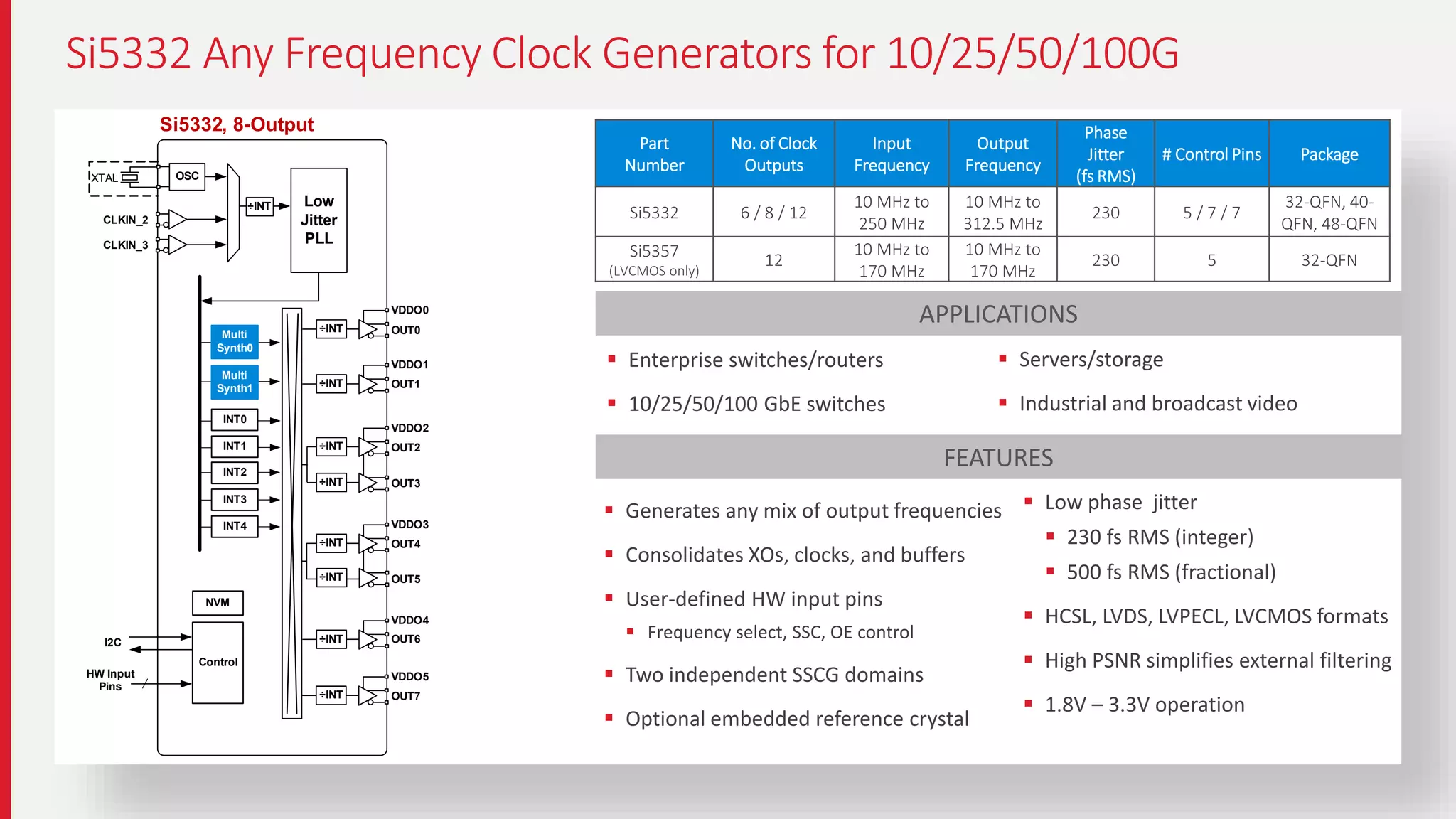

38. Si5332 Any Frequency Clock Generators for 10/25/50/100G
Si5332, 8-Output
NVM
Control
Low
Jitter
PLL
OUT0
VDDO0
VDDO3
OUT4
OUT1
VDDO1
OUT2
VDDO2
÷INT
÷INT
÷INT
÷INT
VDDO4
OUT6÷INT
VDDO5
OUT7÷INT
OUT3÷INT
OUT5÷INT
CLKIN_3
CLKIN_2
XTAL OSC
÷INT
Multi
Synth1
INT4
Multi
Synth0
INT3
INT2
INT1
INT0
I2C
HW Input
Pins
 Generates any mix of output frequencies
 Consolidates XOs, clocks, and buffers
 User-defined HW input pins
 Frequency select, SSC, OE control
 Two independent SSCG domains
 Optional embedded reference crystal
Part
Number
No. of Clock
Outputs
Input
Frequency
Output
Frequency
Phase
Jitter
(fs RMS)
# Control Pins Package
Si5332 6 / 8 / 12
10 MHz to
250 MHz
10 MHz to
312.5 MHz
230 5 / 7 / 7
32-QFN, 40-
QFN, 48-QFN
Si5357
(LVCMOS only)
12
10 MHz to
170 MHz
10 MHz to
170 MHz
230 5 32-QFN
 Enterprise switches/routers
 10/25/50/100 GbE switches
 Low phase jitter
 230 fs RMS (integer)
 500 fs RMS (fractional)
 HCSL, LVDS, LVPECL, LVCMOS formats
 High PSNR simplifies external filtering
 1.8V – 3.3V operation
APPLICATIONS
FEATURES
 Servers/storage
 Industrial and broadcast video

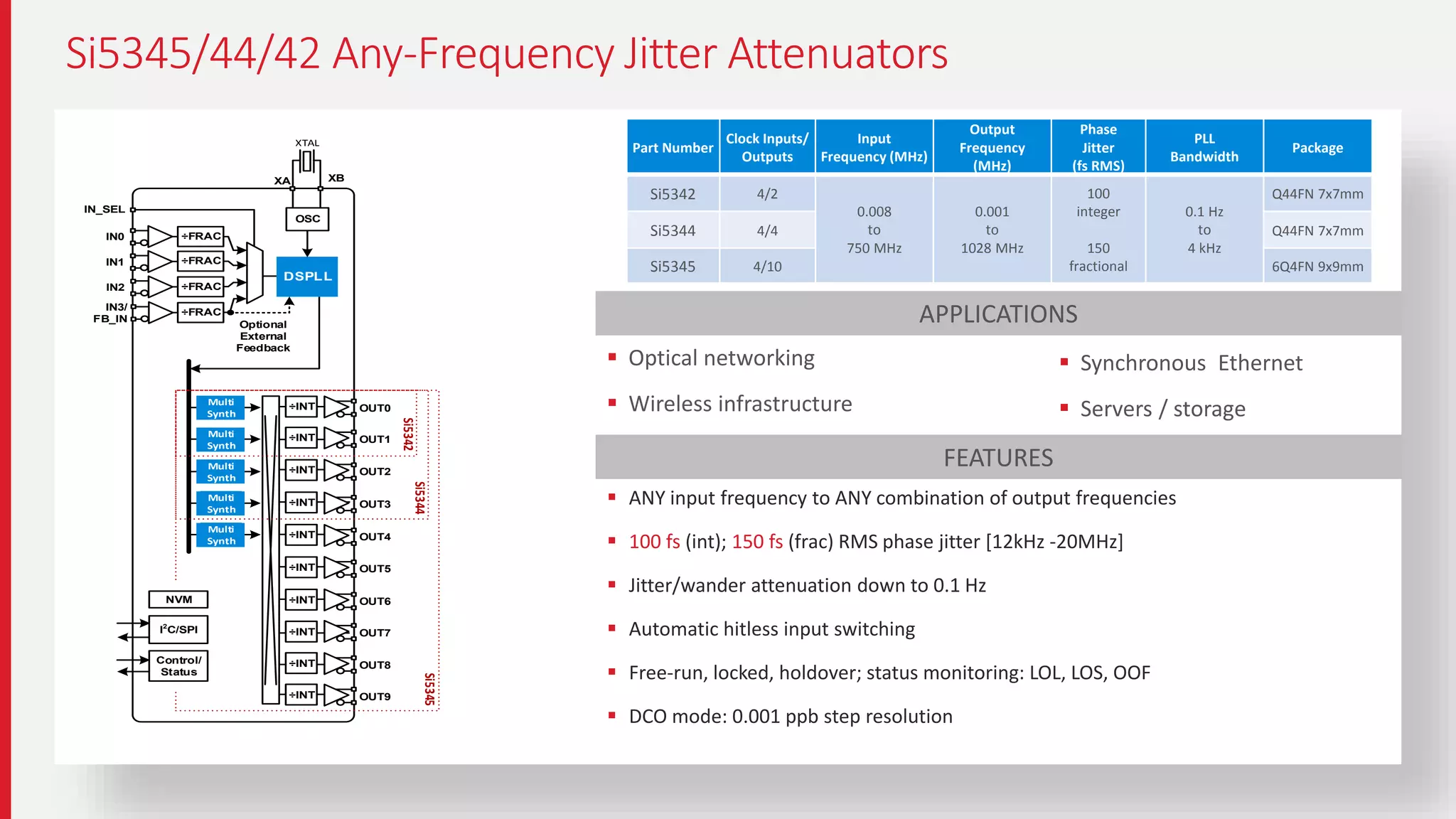

39. Si5345/44/42 Any-Frequency Jitter Attenuators
 Optical networking
 Wireless infrastructure
 ANY input frequency to ANY combination of output frequencies
 100 fs (int); 150 fs (frac) RMS phase jitter [12kHz -20MHz]
 Jitter/wander attenuation down to 0.1 Hz
 Automatic hitless input switching
 Free-run, locked, holdover; status monitoring: LOL, LOS, OOF
 DCO mode: 0.001 ppb step resolution
DSPLL
IN0
IN_SEL
IN1
IN2
IN3/
FB_IN
÷FRAC
÷FRAC
÷FRAC
÷FRAC
XTAL
XBXA
OSC
Optional
External
Feedback
Multi
Synth
OUT0÷INT
OUT1÷INT
OUT2÷INT
OUT3÷INT
OUT4÷INT
OUT5÷INT
OUT6÷INT
OUT7÷INT
OUT8÷INT
OUT9÷INT
Multi
Synth
Multi
Synth
Multi
Synth
Multi
Synth
Si5344
Si5342
Si5345
NVM
I2
C/SPI
Control/
Status
Part Number
Clock Inputs/
Outputs
Input
Frequency (MHz)
Output
Frequency
(MHz)
Phase
Jitter
(fs RMS)
PLL
Bandwidth
Package
Si5342 4/2
0.008
to
750 MHz
0.001
to
1028 MHz
100
integer
150
fractional
0.1 Hz
to
4 kHz
Q44FN 7x7mm
Si5344 4/4 Q44FN 7x7mm
Si5345 4/10 6Q4FN 9x9mm
APPLICATIONS
FEATURES
 Synchronous Ethernet
 Servers / storage

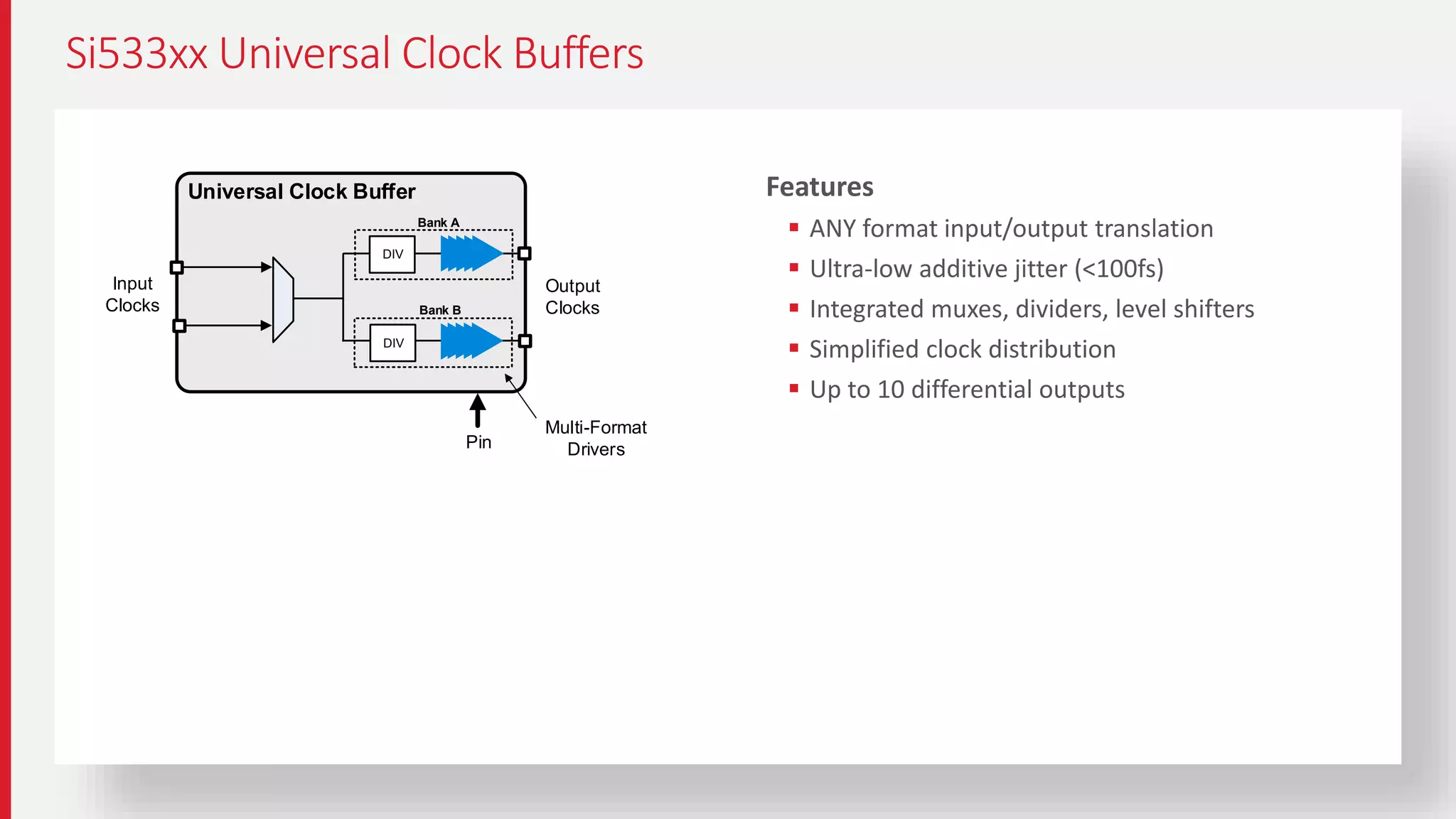

40. Features
 ANY format input/output translation
 Ultra-low additive jitter (<100fs)
 Integrated muxes, dividers, level shifters
 Simplified clock distribution
 Up to 10 differential outputs
Si533xx Universal Clock Buffers
Pin
Universal Clock Buffer
Output
Clocks
Input
Clocks
Bank A
Bank B
DIV
DIV
Multi-Format
Drivers

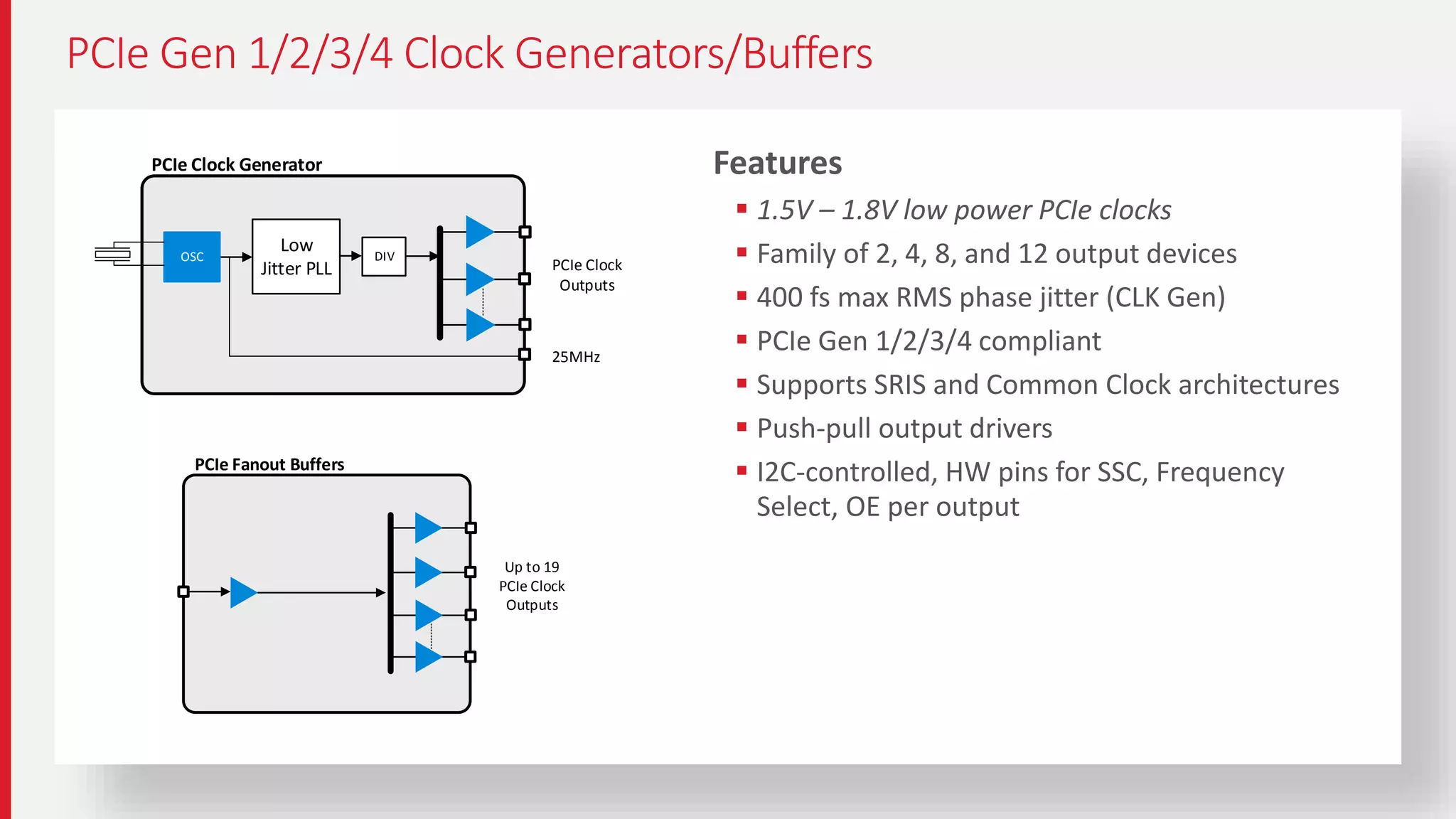

41. Features
 1.5V – 1.8V low power PCIe clocks
 Family of 2, 4, 8, and 12 output devices
 400 fs max RMS phase jitter (CLK Gen)
 PCIe Gen 1/2/3/4 compliant
 Supports SRIS and Common Clock architectures
 Push-pull output drivers
 I2C-controlled, HW pins for SSC, Frequency
Select, OE per output
PCIe Gen 1/2/3/4 Clock Generators/Buffers
Low
Jitter PLL
PCIe Clock Generator
PCIe Clock
Outputs
DIVOSC
25MHz
PCIe Fanout Buffers
Up to 19
PCIe Clock
Outputs

42. S I L A B S . C O M
Thank you.
