1) A grassland community is pictured above. Grasses are considered producers. 2) The drawing illustrates the law of conservation of mass. The atoms before and after a chemical reaction remain the same. 3) Stars must be much farther from Earth than planets, providing evidence that stars appear as points of light while planets appear larger. 4) Rabbits having long hair is an advantage over having short hair in environments with low temperatures.

1. STAAR Review

2. A grassland community is pictured above. Grasses are considered--
A. Secondary Consumers
B. Primary consumers
C. Decomposers
D. producers

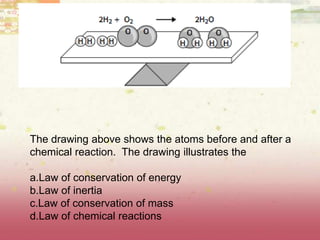

3. The drawing above shows the atoms before and after a
chemical reaction. The drawing illustrates the
a.Law of conservation of energy
b.Law of inertia
c.Law of conservation of mass
d.Law of chemical reactions

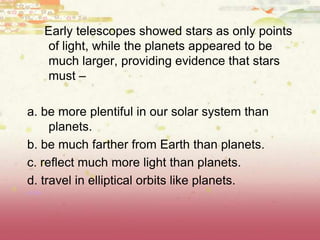

4. Early telescopes showed stars as only points
of light, while the planets appeared to be
much larger, providing evidence that stars
must –
a. be more plentiful in our solar system than
planets.
b. be much farther from Earth than planets.
c. reflect much more light than planets.
d. travel in elliptical orbits like planets.
(8.8B)

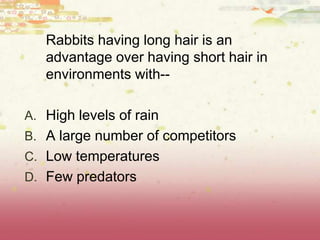

5. Rabbits having long hair is an
advantage over having short hair in
environments with--
A. High levels of rain
B. A large number of competitors
C. Low temperatures
D. Few predators

6. Ryan is collecting information about
the average temperature in a nearby
stream to determine if it is in the range
for a certain species of fish to survive.
Which of the following is the most
useful instrument for Ryan to have?
A. Thermometer B. anemometer
C. Graduated cylinder D. microscope

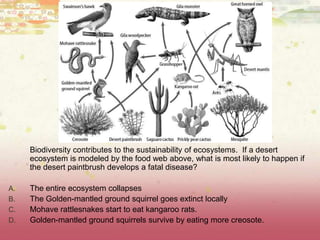

7. Biodiversity contributes to the sustainability of ecosystems. If a desert
ecosystem is modeled by the food web above, what is most likely to happen if
the desert paintbrush develops a fatal disease?
A. The entire ecosystem collapses
B. The Golden-mantled ground squirrel goes extinct locally
C. Mohave rattlesnakes start to eat kangaroo rats.
D. Golden-mantled ground squirrels survive by eating more creosote.

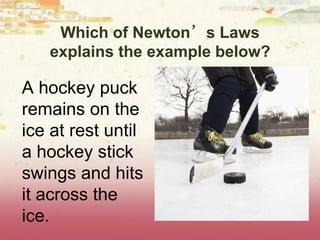

8. Which of Newton’s Laws
explains the example below?
A hockey puck
remains on the
ice at rest until
a hockey stick
swings and hits
it across the
ice.

9. Which is an example of competition?
A. Two species of insects that feed
on the same rare plant.
B. A bobcat and a jackrabbit
C. An African lioness feeding her
cubs
D. A tick living on a dog.

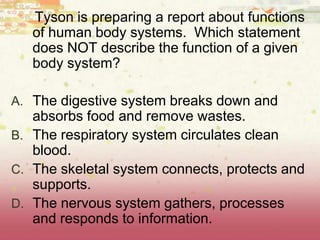

10. Tyson is preparing a report about functions
of human body systems. Which statement
does NOT describe the function of a given
body system?
A. The digestive system breaks down and
absorbs food and remove wastes.
B. The respiratory system circulates clean
blood.
C. The skeletal system connects, protects and
supports.
D. The nervous system gathers, processes
and responds to information.

11. Which process causes substances
to react to form one or more new
substances?
a. Chemical change
b. Physical change
c. Evaporation
d. Freezing

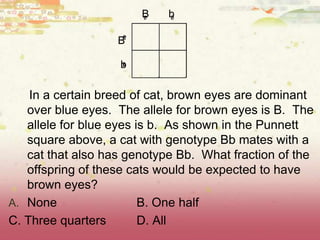

12. In a certain breed of cat, brown eyes are dominant
over blue eyes. The allele for brown eyes is B. The
allele for blue eyes is b. As shown in the Punnett
square above, a cat with genotype Bb mates with a
cat that also has genotype Bb. What fraction of the
offspring of these cats would be expected to have
brown eyes?
A. None B. One half
C. Three quarters D. All
B
b
bB

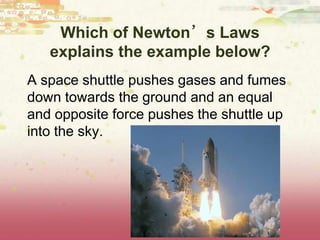

13. Which of Newton’s Laws
explains the example below?
A space shuttle pushes gases and fumes
down towards the ground and an equal
and opposite force pushes the shuttle up
into the sky.

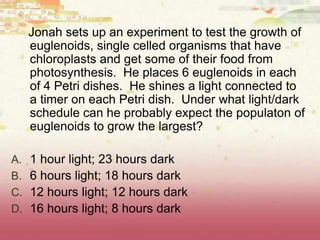

14. Jonah sets up an experiment to test the growth of
euglenoids, single celled organisms that have
chloroplasts and get some of their food from
photosynthesis. He places 6 euglenoids in each
of 4 Petri dishes. He shines a light connected to
a timer on each Petri dish. Under what light/dark
schedule can he probably expect the populaton of
euglenoids to grow the largest?
A. 1 hour light; 23 hours dark
B. 6 hours light; 18 hours dark
C. 12 hours light; 12 hours dark
D. 16 hours light; 8 hours dark

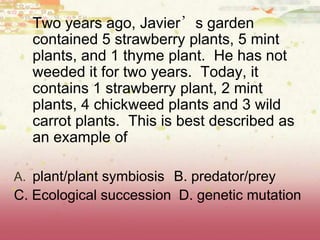

15. Two years ago, Javier’s garden
contained 5 strawberry plants, 5 mint
plants, and 1 thyme plant. He has not
weeded it for two years. Today, it
contains 1 strawberry plant, 2 mint
plants, 4 chickweed plants and 3 wild
carrot plants. This is best described as
an example of
A. plant/plant symbiosis B. predator/prey
C. Ecological succession D. genetic mutation

16. The dichotomous key
above helps identify
species of spiders that
are often mistaken for
the brown recluse.
Ashley finds a spider
with a rounded body, six
eyes, black stripes, and
two body parts. What
type of spider is it?
A. daddy longlegs
B. spitting spider
C. cellar spider
D. pirate spider
Species of Spiders
1 a . Has two body parts Go to 2.
1 b . Has one body part daddy longle g s
2 a . Has six eyes Go to 3.
2 b . Has eight eyes Go to 4.
3 a . Has a plain body or a
violin design on its bod y
brown reclu se
3 b . Has black stripes on a
round bo d y
spitting spider
4 a . Has a long body shape cellar spide r
4 b . Has rounded body
shape
pirate spide r

17. A lichen is a combination of fungus and
algae that lives on the sides of
trees, rocks, and other materials. The
fungus provides the algae with water
and minerals and the algae uses the
water and minerals to make food for
both organisms. What type of
relationship does the lichen represent?
A. parasitism B. commensalism
C. mutualism D. decomposer

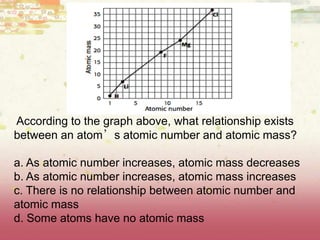

18. According to the graph above, what relationship exists
between an atom’s atomic number and atomic mass?
a. As atomic number increases, atomic mass decreases
b. As atomic number increases, atomic mass increases
c. There is no relationship between atomic number and
atomic mass
d. Some atoms have no atomic mass

19. Which describes motion in which the person or
object is accelerating?
A A bird flies straight from a tree to the ground
without changing speed.
B A dog walks at a constant speed along a
straight sidewalk.
C A girl runs along a straight path the same
distance each second.
D A truck moves around a curve without
changing speed.

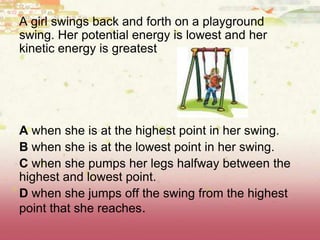

20. A girl swings back and forth on a playground
swing. Her potential energy is lowest and her
kinetic energy is greatest
A when she is at the highest point in her swing.
B when she is at the lowest point in her swing.
C when she pumps her legs halfway between the
highest and lowest point.
D when she jumps off the swing from the highest
point that she reaches.

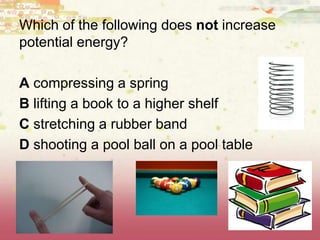

21. Which of the following does not increase
potential energy?
A compressing a spring
B lifting a book to a higher shelf
C stretching a rubber band
D shooting a pool ball on a pool table

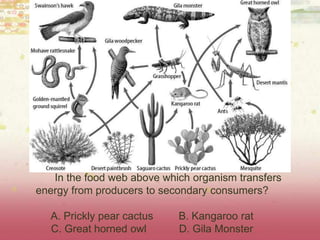

22. In the food web above which organism transfers
energy from producers to secondary consumers?
A. Prickly pear cactus B. Kangaroo rat
C. Great horned owl D. Gila Monster

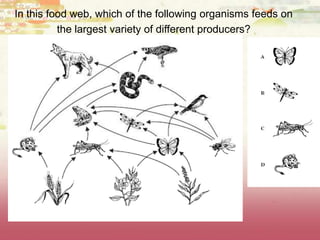

23. In this food web, which of the following organisms feeds on
the largest variety of different producers?

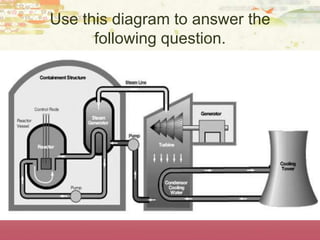

24. Use this diagram to answer the
following question.

25. An engineer measures the amount of energy in each
step in the power plant labeled above. Predict what
he is likely to find.
A The amount of nuclear energy released from
atoms will equal the amount of electrical energy
output because of conservation of energy.
B The amount of electrical energy output will be
greater than the amount of nuclear energy because
energy is gained in each energy transformation.
C The amount of electrical energy output will be less
then the amount of nuclear energy produced
because energy is transformed to heat in each
transformation.
D The total amount of energy in the power plant is
always constant, because energy can never be
created or destroyed.

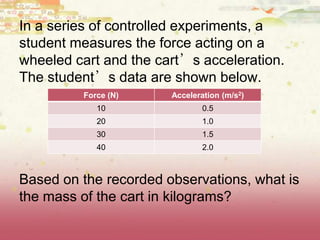

26. In a series of controlled experiments, a
student measures the force acting on a
wheeled cart and the cart’s acceleration.
The student’s data are shown below.
Based on the recorded observations, what is
the mass of the cart in kilograms?
Force (N) Acceleration (m/s2)
10 0.5
20 1.0
30 1.5
40 2.0

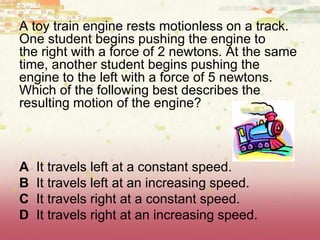

27. A toy train engine rests motionless on a track.
One student begins pushing the engine to
the right with a force of 2 newtons. At the same
time, another student begins pushing the
engine to the left with a force of 5 newtons.
Which of the following best describes the
resulting motion of the engine?
A It travels left at a constant speed.
B It travels left at an increasing speed.
C It travels right at a constant speed.
D It travels right at an increasing speed.

28. The box below is stationary. Determine whether or not
an unbalanced force exists on the box if forces are
applied as shown, and then determine which statement
is correct.
A An unbalanced force will
move the box at a
velocity of 3 m/s to the
left.
B The net force on the box
is 13 N, which will
accelerate the box to the
left.
C An unbalanced force of
3N will accelerate the
box to the left.
D The forces on the box
will be balanced, and it
will remain stationary.
3N
5N
2N
3N

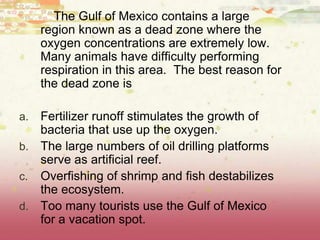

29. The Gulf of Mexico contains a large
region known as a dead zone where the
oxygen concentrations are extremely low.
Many animals have difficulty performing
respiration in this area. The best reason for
the dead zone is
a. Fertilizer runoff stimulates the growth of
bacteria that use up the oxygen.
b. The large numbers of oil drilling platforms
serve as artificial reef.
c. Overfishing of shrimp and fish destabilizes
the ecosystem.
d. Too many tourists use the Gulf of Mexico
for a vacation spot.

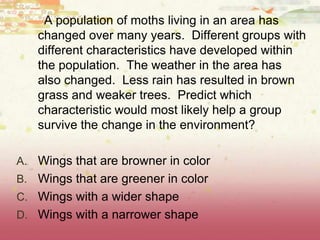

30. A population of moths living in an area has
changed over many years. Different groups with
different characteristics have developed within
the population. The weather in the area has
also changed. Less rain has resulted in brown
grass and weaker trees. Predict which
characteristic would most likely help a group
survive the change in the environment?
A. Wings that are browner in color
B. Wings that are greener in color
C. Wings with a wider shape
D. Wings with a narrower shape

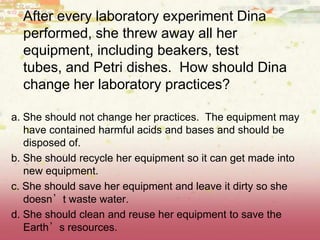

31. After every laboratory experiment Dina
performed, she threw away all her
equipment, including beakers, test
tubes, and Petri dishes. How should Dina
change her laboratory practices?
a. She should not change her practices. The equipment may
have contained harmful acids and bases and should be
disposed of.
b. She should recycle her equipment so it can get made into
new equipment.
c. She should save her equipment and leave it dirty so she
doesn’t waste water.
d. She should clean and reuse her equipment to save the
Earth’s resources.

32. Use this image to answer the
following 2 questions.

33. In a classroom experiment, Samuel measures
the motion of a wind up toy car. He finds that it
after 1 s it has moved 10 cm left of the starting
point, after 2 s it has moved 20 cm left of the
starting point, and after 3 s it has moved 30 cm
left of the starting point. Which of the graphs
above could Samuel use to represent the
motion of the toy car?
A A and B
B B and D
C A and E
D C and F

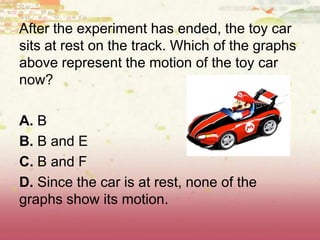

34. After the experiment has ended, the toy car
sits at rest on the track. Which of the graphs
above represent the motion of the toy car
now?
A. B
B. B and E
C. B and F
D. Since the car is at rest, none of the
graphs show its motion.

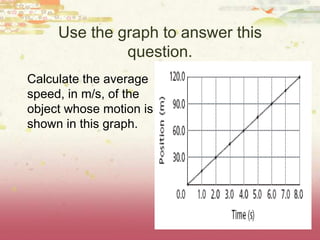

35. Use the graph to answer this
question.
Calculate the average
speed, in m/s, of the
object whose motion is
shown in this graph.

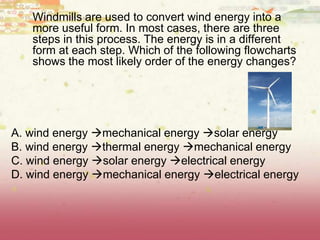

36. Windmills are used to convert wind energy into a
more useful form. In most cases, there are three
steps in this process. The energy is in a different
form at each step. Which of the following flowcharts
shows the most likely order of the energy changes?
A. wind energy mechanical energy solar energy
B. wind energy thermal energy mechanical energy
C. wind energy solar energy electrical energy
D. wind energy mechanical energy electrical energy

37. What energy transformation happens in a
toaster?
a. Mechanical  Electrical
b. Electrical  Thermal
c. Thermal  Chemical

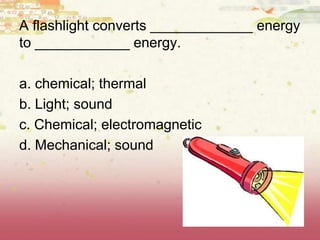

38. A flashlight converts _____________ energy
to ____________ energy.
a. chemical; thermal
b. Light; sound
c. Chemical; electromagnetic
d. Mechanical; sound

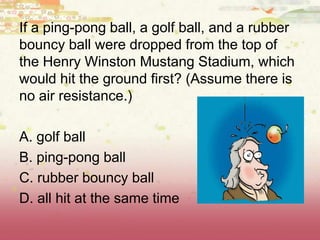

39. If a ping-pong ball, a golf ball, and a rubber
bouncy ball were dropped from the top of
the Henry Winston Mustang Stadium, which
would hit the ground first? (Assume there is
no air resistance.)
A. golf ball
B. ping-pong ball
C. rubber bouncy ball
D. all hit at the same time

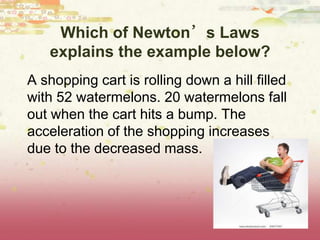

40. Which of Newton’s Laws
explains the example below?
A shopping cart is rolling down a hill filled
with 52 watermelons. 20 watermelons fall
out when the cart hits a bump. The
acceleration of the shopping increases
due to the decreased mass.

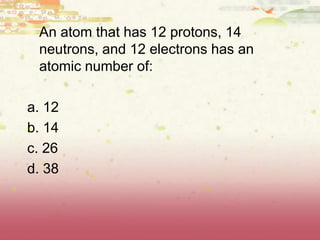

41. An atom that has 12 protons, 14
neutrons, and 12 electrons has an
atomic number of:
a. 12
b. 14
c. 26
d. 38

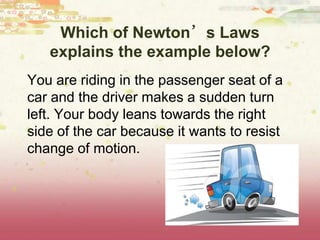

42. Which of Newton’s Laws
explains the example below?
You are riding in the passenger seat of a
car and the driver makes a sudden turn
left. Your body leans towards the right
side of the car because it wants to resist
change of motion.

43. Who explained that gravity keeps
objects in orbit?
a. Kepler
b. Galileo
c. Brahe
d. Newton
(6.11B)

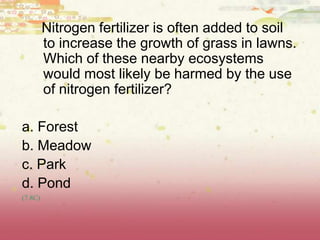

44. Nitrogen fertilizer is often added to soil
to increase the growth of grass in lawns.
Which of these nearby ecosystems
would most likely be harmed by the use
of nitrogen fertilizer?
a. Forest
b. Meadow
c. Park
d. Pond
(7.8C)

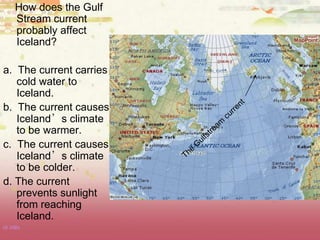

45. How does the Gulf
Stream current
probably affect
Iceland?
a. The current carries
cold water to
Iceland.
b. The current causes
Iceland’s climate
to be warmer.
c. The current causes
Iceland’s climate
to be colder.
d. The current
prevents sunlight
from reaching
Iceland.
(8.10B)

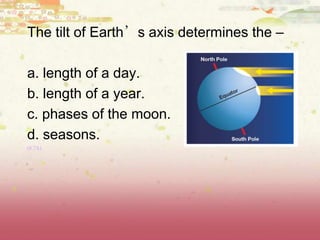

46. The tilt of Earth’s axis determines the –
a. length of a day.
b. length of a year.
c. phases of the moon.
d. seasons.
(8.7A)

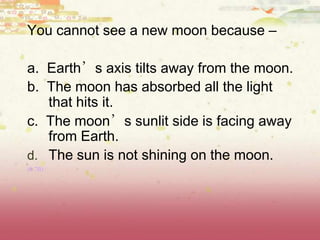

47. You cannot see a new moon because –
a. Earth’s axis tilts away from the moon.
b. The moon has absorbed all the light
that hits it.
c. The moon’s sunlit side is facing away
from Earth.
d. The sun is not shining on the moon.
(8.7B)

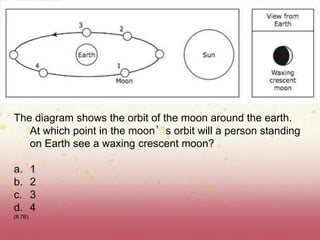

48. The diagram shows the orbit of the moon around the earth.
At which point in the moon’s orbit will a person standing
on Earth see a waxing crescent moon?
a. 1
b. 2
c. 3
d. 4
(8.7B)

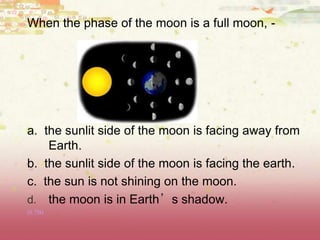

49. When the phase of the moon is a full moon, -
a. the sunlit side of the moon is facing away from
Earth.
b. the sunlit side of the moon is facing the earth.
c. the sun is not shining on the moon.
d. the moon is in Earth’s shadow.
(8.7B)

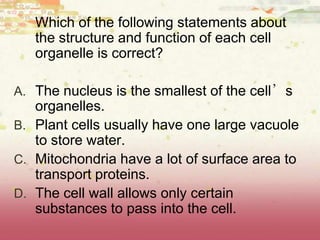

50. Which of the following statements about
the structure and function of each cell
organelle is correct?
A. The nucleus is the smallest of the cell’s
organelles.
B. Plant cells usually have one large vacuole
to store water.
C. Mitochondria have a lot of surface area to
transport proteins.
D. The cell wall allows only certain
substances to pass into the cell.

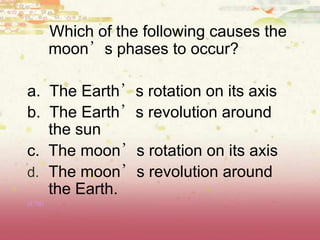

51. Which of the following causes the
moon’s phases to occur?
a. The Earth’s rotation on its axis
b. The Earth’s revolution around
the sun
c. The moon’s rotation on its axis
d. The moon’s revolution around
the Earth.
(8.7B)

52. Lydia made a hypothesis that all metals
were solids at room temperature. Is her
hypothesis correct?
a. No; mercury is a metal, but is liquid at
room temperature
b. No; the noble gases in group 18 are
metals
c. There is no relationship between
atomic number and atomic mass
d. Some atoms have no atomic mass

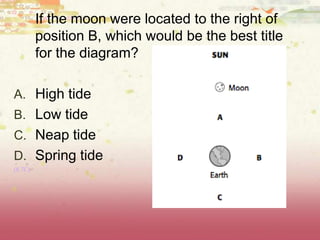

53. If the moon were located to the right of
position B, which would be the best title
for the diagram?
A. High tide
B. Low tide
C. Neap tide
D. Spring tide
(8.7C)

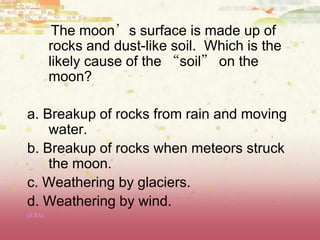

54. The moon’s surface is made up of
rocks and dust-like soil. Which is the
likely cause of the “soil” on the
moon?
a. Breakup of rocks from rain and moving
water.
b. Breakup of rocks when meteors struck
the moon.
c. Weathering by glaciers.
d. Weathering by wind.
(8.8A)

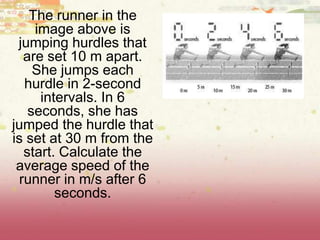

55. The runner in the
image above is
jumping hurdles that
are set 10 m apart.
She jumps each
hurdle in 2-second
intervals. In 6
seconds, she has
jumped the hurdle that
is set at 30 m from the
start. Calculate the
average speed of the
runner in m/s after 6
seconds.

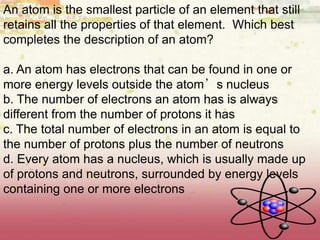

56. An atom is the smallest particle of an element that still
retains all the properties of that element. Which best
completes the description of an atom?
a. An atom has electrons that can be found in one or
more energy levels outside the atom’s nucleus
b. The number of electrons an atom has is always
different from the number of protons it has
c. The total number of electrons in an atom is equal to
the number of protons plus the number of neutrons
d. Every atom has a nucleus, which is usually made up
of protons and neutrons, surrounded by energy levels
containing one or more electrons

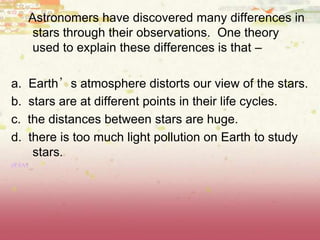

57. Astronomers have discovered many differences in
stars through their observations. One theory
used to explain these differences is that –
a. Earth’s atmosphere distorts our view of the stars.
b. stars are at different points in their life cycles.
c. the distances between stars are huge.
d. there is too much light pollution on Earth to study
stars.
(8.8A)

58. The Sun is a main sequence, yellow
star in the Milky Way galaxy, which is
described as a(n)–
a. dwarf galaxy.
b. elliptical galaxy.
c. irregular galaxy.
d. spiral galaxy.
(8.8B)

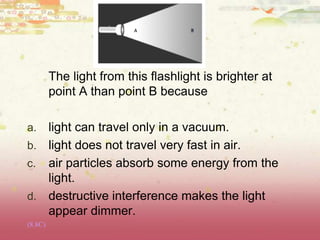

59. The light from this flashlight is brighter at
point A than point B because
a. light can travel only in a vacuum.
b. light does not travel very fast in air.
c. air particles absorb some energy from the
light.
d. destructive interference makes the light
appear dimmer.
(8.8C)

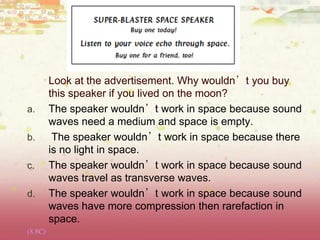

60. Look at the advertisement. Why wouldn’t you buy
this speaker if you lived on the moon?
a. The speaker wouldn’t work in space because sound
waves need a medium and space is empty.
b. The speaker wouldn’t work in space because there
is no light in space.
c. The speaker wouldn’t work in space because sound
waves travel as transverse waves.
d. The speaker wouldn’t work in space because sound
waves have more compression then rarefaction in
space.
(8.8C)

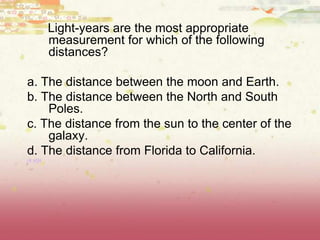

61. Light-years are the most appropriate
measurement for which of the following
distances?
a. The distance between the moon and Earth.
b. The distance between the North and South
Poles.
c. The distance from the sun to the center of the
galaxy.
d. The distance from Florida to California.
(8.8D)

62. Look at the chart,
which shows some
ions and their
charges. According
to the chart, an
aluminum ion has-
a. 3 electrons.
b. 3 neutrons.
c. 3 fewer protons than electrons.
d. 3 more protons than electrons.

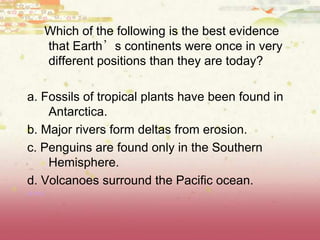

63. Which of the following is the best evidence
that Earth’s continents were once in very
different positions than they are today?
a. Fossils of tropical plants have been found in
Antarctica.
b. Major rivers form deltas from erosion.
c. Penguins are found only in the Southern
Hemisphere.
d. Volcanoes surround the Pacific ocean.
(8.9A)

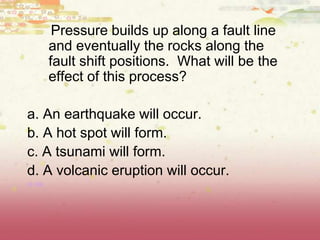

64. Pressure builds up along a fault line
and eventually the rocks along the
fault shift positions. What will be the
effect of this process?
a. An earthquake will occur.
b. A hot spot will form.
c. A tsunami will form.
d. A volcanic eruption will occur.
(8.9B)

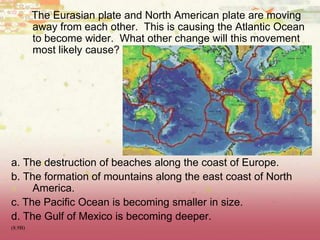

65. The Eurasian plate and North American plate are moving
away from each other. This is causing the Atlantic Ocean
to become wider. What other change will this movement
most likely cause?
a. The destruction of beaches along the coast of Europe.
b. The formation of mountains along the east coast of North
America.
c. The Pacific Ocean is becoming smaller in size.
d. The Gulf of Mexico is becoming deeper.
(8.9B)

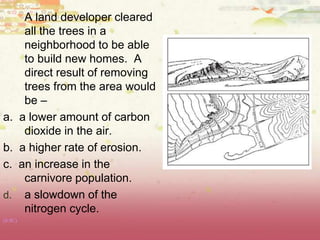

66. A land developer cleared
all the trees in a
neighborhood to be able
to build new homes. A
direct result of removing
trees from the area would
be –
a. a lower amount of carbon
dioxide in the air.
b. a higher rate of erosion.
c. an increase in the
carnivore population.
d. a slowdown of the
nitrogen cycle.
(8.9C)

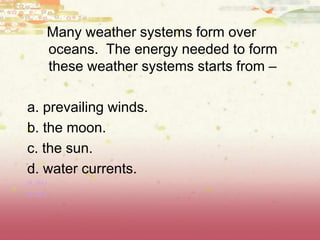

67. Many weather systems form over
oceans. The energy needed to form
these weather systems starts from –
a. prevailing winds.
b. the moon.
c. the sun.
d. water currents.
(8.10A)
(8.10C)

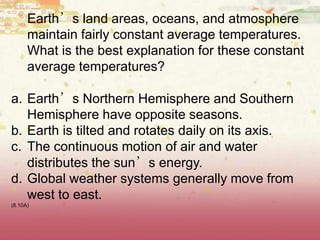

68. Earth’s land areas, oceans, and atmosphere
maintain fairly constant average temperatures.
What is the best explanation for these constant
average temperatures?
a. Earth’s Northern Hemisphere and Southern
Hemisphere have opposite seasons.
b. Earth is tilted and rotates daily on its axis.
c. The continuous motion of air and water
distributes the sun’s energy.
d. Global weather systems generally move from
west to east.
(8.10A)

69. A current carries water from Canada and
Alaska to the south along the California
coast. How does this current most likely
affect California’s climate?
a. The current causes floods in California.
b. The current caused droughts in
California.
c. The current cools California.
d. The current warms California.
(8.10B)

70. Look at the drawing above. How many
neutrons are found in a Carbon-14
nucleus?

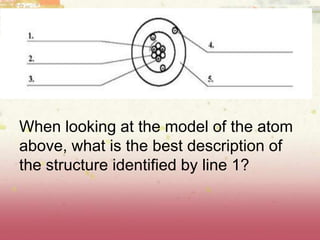

71. When looking at the model of the atom
above, what is the best description of
the structure identified by line 1?

72. Two groups of children are playing tug-of-war, a
contest in which each team tugs on a rope to pull
the other across a line. Everyone is tugging on the
rope, but no one is moving. This is because
A the forces acting on the rope are balanced.
B the children do not have enough mass to create
force.
C the rope resists any change in motion.
D there is too much friction for the rope to move.

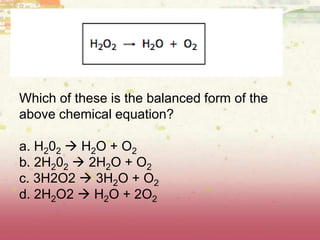

73. Which of these is the balanced form of the
above chemical equation?
a. H202  H2O + O2
b. 2H202  2H2O + O2
c. 3H2O2  3H2O + O2
d. 2H2O2  H2O + 2O2

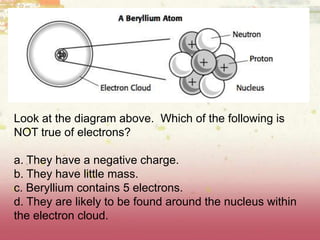

74. Look at the diagram above. Which of the following is
NOT true of electrons?
a. They have a negative charge.
b. They have little mass.
c. Beryllium contains 5 electrons.
d. They are likely to be found around the nucleus within
the electron cloud.

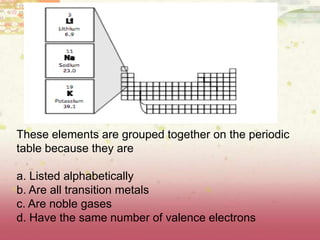

75. These elements are grouped together on the periodic
table because they are
a. Listed alphabetically
b. Are all transition metals
c. Are noble gases
d. Have the same number of valence electrons

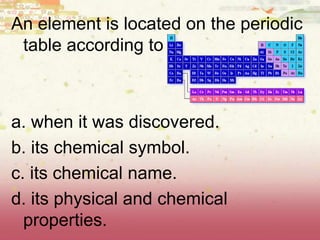

76. An element is located on the periodic
table according to
a. when it was discovered.
b. its chemical symbol.
c. its chemical name.
d. its physical and chemical
properties.

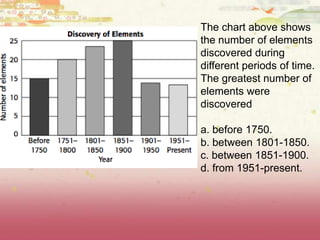

77. The chart above shows
the number of elements
discovered during
different periods of time.
The greatest number of
elements were
discovered
a. before 1750.
b. between 1801-1850.
c. between 1851-1900.
d. from 1951-present.

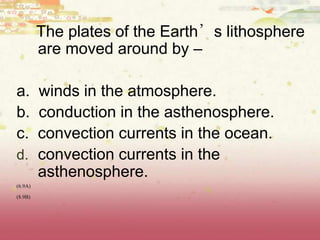

78. The plates of the Earth’s lithosphere
are moved around by –
a. winds in the atmosphere.
b. conduction in the asthenosphere.
c. convection currents in the ocean.
d. convection currents in the
asthenosphere.
(6.9A)
(8.9B)

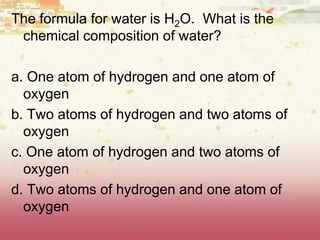

79. The formula for water is H2O. What is the
chemical composition of water?
a. One atom of hydrogen and one atom of
oxygen
b. Two atoms of hydrogen and two atoms of
oxygen
c. One atom of hydrogen and two atoms of
oxygen
d. Two atoms of hydrogen and one atom of
oxygen

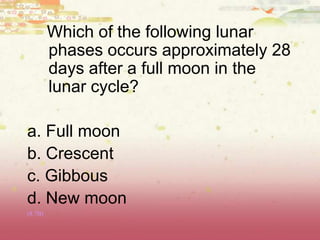

80. Which of the following lunar
phases occurs approximately 28
days after a full moon in the
lunar cycle?
a. Full moon
b. Crescent
c. Gibbous
d. New moon
(8.7B)

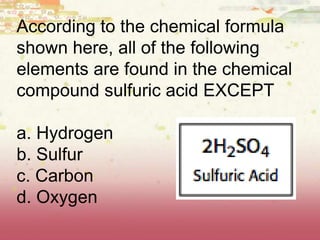

81. According to the chemical formula
shown here, all of the following
elements are found in the chemical
compound sulfuric acid EXCEPT
a. Hydrogen
b. Sulfur
c. Carbon
d. Oxygen

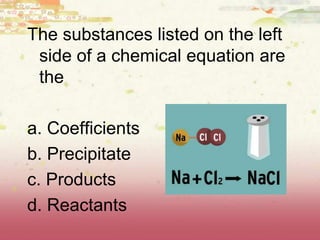

82. The substances listed on the left
side of a chemical equation are
the
a. Coefficients
b. Precipitate
c. Products
d. Reactants

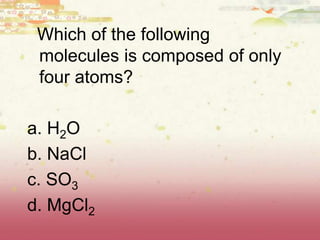

83. Which of the following
molecules is composed of only
four atoms?
a. H2O
b. NaCl
c. SO3
d. MgCl2

84. What effect would a shoulder belt and a lap belt
have on the inertia of a crash-test dummy when the
car hits a barrier?
A The shoulder and lap belts cause an unbalanced
force to act on the crash-test dummy, causing it to
stop moving in the direction the car was traveling.
B The shoulder and lap belt would increase the
momentum of the crash-test dummy.
C The shoulder and lap belt would allow the crash-
test dummy to continue moving with constant
velocity in the direction the car was traveling.
D The shoulder and lap belt would have no effect on
the crash-test dummy.

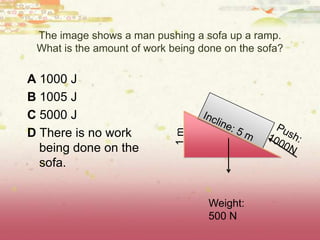

85. The image shows a man pushing a sofa up a ramp.
What is the amount of work being done on the sofa?
A 1000 J
B 1005 J
C 5000 J
D There is no work
being done on the
sofa.
Weight:
500 N
1m

86. Which cell
belongs to a
prokaryote?
