The document discusses Morgan Advanced Materials' involvement in the UK Faraday Battery Challenge. It notes that Morgan has expertise in lithium-ion batteries and ceramic processes. The Faraday Battery Challenge allows Morgan to work with academics on battery technologies and focus on production, while receiving government funding. Solid-state batteries are a promising next-generation technology but challenges remain around cost, processing, and interfaces. Morgan is developing a novel ceramic fiber-polymer composite solid electrolyte that shows potential to meet performance targets at a lower cost through a scalable process. The establishment of a battery supply chain in the UK is important as the automotive industry transitions to electrification.

1. www.morganadvancedmaterials.com
Richard Clark – Global Lead, Energy Storage
Morgan Advanced Materials
richard.clark@morganplc.com
The Faraday Battery Challenge –
Challenges and Solutions

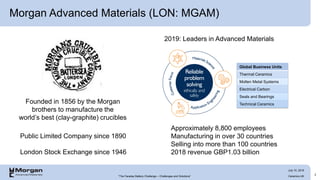

2. Morgan Advanced Materials (LON: MGAM)
Global Business Units
Thermal Ceramics
Molten Metal Systems
Electrical Carbon
Seals and Bearings
Technical CeramicsFounded in 1856 by the Morgan
brothers to manufacture the
world’s best (clay-graphite) crucibles
Public Limited Company since 1890
London Stock Exchange since 1946
Approximately 8,800 employees
Manufacturing in over 30 countries
Selling into more than 100 countries
2018 revenue GBP1.03 billion
2019: Leaders in Advanced Materials
2
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

3. The Faraday Battery Challenge and Morgan
3
Morgan named as prospective industry partner in
four full proposal stage Round 2 projects
Funding for each project (Round 2) is GBP12 million/project (4 years)
Agreement on Faraday funding for supporting
Morgan in-house Solid State Electrolyte (SSE) work
Round 1 projects
Round 2 projects
Morgan industry partner in Round 1 Solid State
Batteries (SOLBAT) program (U. Oxford leading)
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

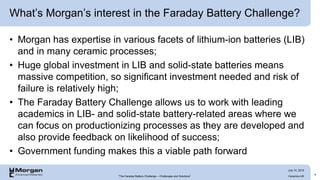

4. What’s Morgan’s interest in the Faraday Battery Challenge?
• Morgan has expertise in various facets of lithium-ion batteries (LIB)
and in many ceramic processes;
• Huge global investment in LIB and solid-state batteries means
massive competition, so significant investment needed and risk of
failure is relatively high;
• The Faraday Battery Challenge allows us to work with leading
academics in LIB- and solid-state battery-related areas where we
can focus on productionizing processes as they are developed and
also provide feedback on likelihood of success;
• Government funding makes this a viable path forward
4
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

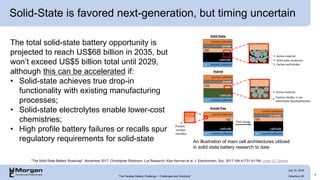

5. Solid-State is favored next-generation, but timing uncertain
5
The total solid-state battery opportunity is
projected to reach US$68 billion in 2035, but
won’t exceed US$5 billion total until 2029,
although this can be accelerated if:
• Solid-state achieves true drop-in
functionality with existing manufacturing
processes;
• Solid-state electrolytes enable lower-cost
chemistries;
• High profile battery failures or recalls spur
regulatory requirements for solid-state
“The Solid-State Battery Roadmap”, November 2017, Christopher Robinson, Lux Research; Kian Kerman et al. J. Electrochem. Soc. 2017;164:A1731-A1744, under CC license
An illustration of main cell architectures utilized
in solid state battery research to date
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

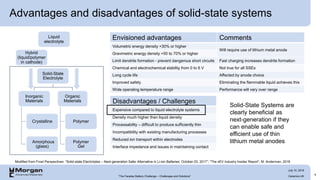

6. Advantages and disadvantages of solid-state systems
6
Envisioned advantages Comments
Volumetric energy density +30% or higher
Will require use of lithium metal anode
Gravimetric energy density +50 to 70% or higher
Limit dendrite formation - prevent dangerous short circuits Fast charging increases dendrite formation
Chemical and electrochemical stability from 0 to 6 V Not true for all SSEs
Long cycle life Affected by anode choice
Improved safety Eliminating the flammable liquid achieves this
Wide operating temperature range Performance will vary over range
Disadvantages / Challenges
Expensive compared to liquid electrolyte systems
Density much higher than liquid density
Processability – difficult to produce sufficiently thin
Incompatibility with existing manufacturing processes
Reduced ion transport within electrodes
Interface impedance and issues in maintaining contact
Solid-State Systems are
clearly beneficial as
next-generation if they
can enable safe and
efficient use of thin
lithium metal anodes
Modified from Frost Perspectives: “Solid-state Electrolytes – Next-generation Safer Alternative in Li-ion Batteries: October 03, 2017”; “The xEV Industry Insider Report”; M. Anderman, 2018
Solid-State
Electrolyte
Inorganic
Materials
Crystalline
Amorphous
(glass)
Organic
Materials
Polymer
Polymer
Gel
Liquid
electrolyte
Hybrid
(liquid/polymer
in cathode)
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

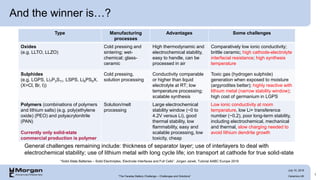

7. And the winner is…?
Type Manufacturing
processes
Advantages Some challenges
Oxides
(e.g. LLTO, LLZO)
Cold pressing and
sintering; wet-
chemical; glass-
ceramic
High thermodynamic and
electrochemical stability,
easy to handle, can be
processed in air
Comparatively low ionic conductivity;
brittle ceramic; high cathode-electrolyte
interfacial resistance; high synthesis
temperature
Sulphides
(e.g. LGPS, Li7P3S11, LSPS, Li6PS5X,
(X=Cl, Br, I))
Cold pressing,
solution processing
Conductivity comparable
or higher than liquid
electrolyte at RT; low
temperature processing;
scalable synthesis
Toxic gas (hydrogen sulphide)
generation when exposed to moisture
(argyrodites better); highly reactive with
lithium metal (narrow stability window);
high cost of germanium in LGPS
Polymers (combinations of polymers
and lithium salts) (e.g. poly(ethylene
oxide) (PEO) and polyacrylonitrile
(PAN)
Currently only solid-state
commercial production is polymer
Solution/melt
processing
Large electrochemical
stability window (~0 to
4.2V versus Li), good
thermal stability, low
flammability, easy and
scalable processing, low
toxicity, cheap
Low ionic conductivity at room
temperature, low Li+ transference
number (~0.2), poor long-term stability,
including electrochemical, mechanical
and thermal, slow charging needed to
avoid lithium dendrite growth
7
General challenges remaining include: thickness of separator layer; use of interlayers to deal with
electrochemical stability; use of lithium metal with long cycle life; ion transport at cathode for true solid-state
“Solid-State Batteries – Solid Electrolytes, Electrode Interfaces and Full Cells”: Jürgen Janek, Tutorial AABC Europe 2019
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

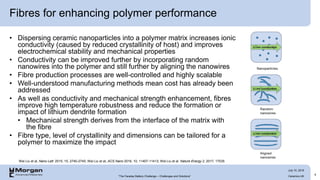

8. Fibres for enhancing polymer performance
• Dispersing ceramic nanoparticles into a polymer matrix increases ionic
conductivity (caused by reduced crystallinity of host) and improves
electrochemical stability and mechanical properties
• Conductivity can be improved further by incorporating random
nanowires into the polymer and still further by aligning the nanowires
• Fibre production processes are well-controlled and highly scalable
• Well-understood manufacturing methods mean cost has already been
addressed
• As well as conductivity and mechanical strength enhancement, fibres
improve high temperature robustness and reduce the formation or
impact of lithium dendrite formation
• Mechanical strength derives from the interface of the matrix with
the fibre
• Fibre type, level of crystallinity and dimensions can be tailored for a
polymer to maximize the impact
8
Wei Liu et al, Nano Lett. 2015, 15, 2740-2745; Wei Liu et at, ACS Nano 2016, 10, 11407-11413; Wei Liu et al. Nature Energy 2, 2017, 17035
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

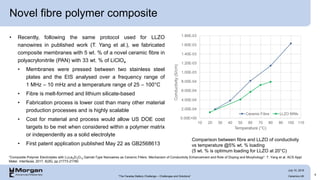

9. Novel fibre polymer composite
• Recently, following the same protocol used for LLZO
nanowires in published work (T. Yang et al.), we fabricated
composite membranes with 5 wt. % of a novel ceramic fibre in
polyacrylonitrile (PAN) with 33 wt. % of LiClO4
• Membranes were pressed between two stainless steel
plates and the EIS analysed over a frequency range of
1 MHz – 10 mHz and a temperature range of 25 – 100°C
• Fibre is melt-formed and lithium silicate-based
• Fabrication process is lower cost than many other material
production processes and is highly scalable
• Cost for material and process would allow US DOE cost
targets to be met when considered within a polymer matrix
or independently as a solid electrolyte
• First patent application published May 22 as GB2568613
9
“Composite Polymer Electrolytes with Li7La3Zr2O12 Garnet-Type Nanowires as Ceramic Fillers: Mechanism of Conductivity Enhancement and Role of Doping and Morphology”: T. Yang et al. ACS Appl.
Mater. Interfaces, 2017, 9(26), pp 21773-21780
Comparison between fibre and LLZO of conductivity
vs temperature @5% wt. % loading
(5 wt. % is optimum loading for LLZO at 20°C)
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

10. Conclusions
• Global flux in automotive supply chain as it transitions from
Internal Combustion Engine (ICE) and diesel to more electrified
vehicles;
• Establishment of a full battery supply chain within the UK is of
critical importance as the UK seeks to preserve and expand the
current domestic automotive industry;
• Support from The Faraday Battery Challenge allows companies
like Morgan to get engaged in this rapidly growing field without an
unacceptably high level of funding and risk
10
“The Faraday Battery Challenge – Challenges and Solutions” Ceramics UK
July 10, 2019

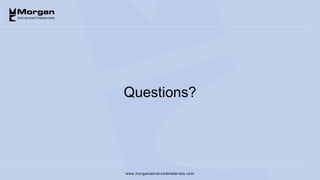

11. www.morganadvancedmaterials.com
Questions?
