rfid based car PARKING SYSTEM
1

2. 2
Introdution
Block diagram
Working
What is rfid
Circuit diagram
Features
Advantage
Application
Future scope
Conclusion

3. We have built a system which will
automatically sense the entry and exit of
cars.
 We have developed a
microcontroller which is used to sense
the movement of cars.
3

4. 4
In this block diagram We
consist of following blocks
Microcontroller
Motor Driver
Power Supply
LCD
RFID Module
IR Module

5. 1. RFID is a general term that is
used to describe a system that
transmits a unique serial
number of an object
wirelessly, using radio waves.
2. The RFID card reader read the
RFID tag in range and outputs
unique identification code of the
tag at baud rate of 9600.
3. The data from RFID reader can
be interfaced to be read by
microcontroller or PC.

6. 6
Circuit Diagram

7. 7

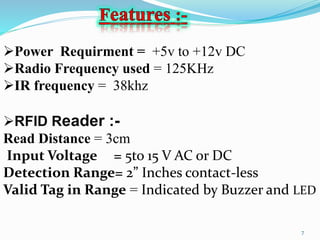

Power Requirment = +5v to +12v DC
Radio Frequency used = 125KHz
IR frequency = 38khz
RFID Reader :-
Read Distance = 3cm
Input Voltage = 5to 15 V AC or DC
Detection Range= 2” Inches contact-less
Valid Tag in Range = Indicated by Buzzer and LED

8. 8

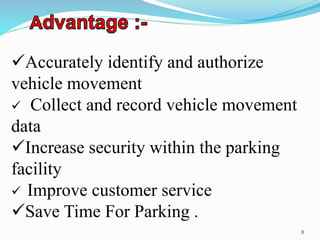

Accurately identify and authorize
vehicle movement
 Collect and record vehicle movement
data
Increase security within the parking
facility
 Improve customer service
Save Time For Parking .

9. It used in pay& park
place.
It used in Market place,
cinema theotre ,
hotels,Hosptial,in crowed
cities…etc.

10. 10
1. This project can be enhanced for
tracking the vehicle speed on the roads
2. To differentiate the vehicles from VIPs
and staff.
3. The camera can be used for security.
4. By using GPS system we can find where
the car park and also we can find number of
vacancy available in parking system.

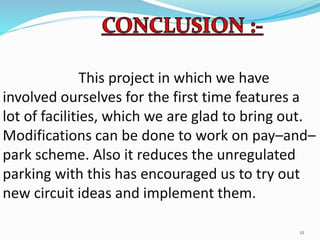

12. This project in which we have
involved ourselves for the first time features a
lot of facilities, which we are glad to bring out.
Modifications can be done to work on pay–and–
park scheme. Also it reduces the unregulated
parking with this has encouraged us to try out
new circuit ideas and implement them.
12

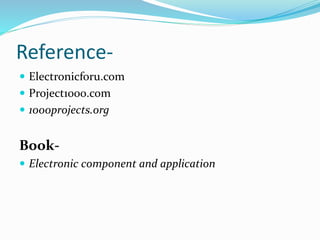

13. Reference-
 Electronicforu.com
 Project1000.com
 1000projects.org
Book-
 Electronic component and application
