SlideShare a Scribd company logo
Retinoscopy and its
principles
Presenter : Dr.Rasika Thakur
Moderator: Dr.Monica Samant
Mr.Kunal Kishor
Introduction
History
Types of retinoscope
Far point
Optical principle
Types of retinoscopy
Problems in retinoscopy
Introduction
An accurate objective measurement of the refractive
state of an eye can be made using the retinoscope
The technique is called retinoscopy
Pupilloscopy, shadowscopy, skiascopy,
umbrascopy, scotoscopy

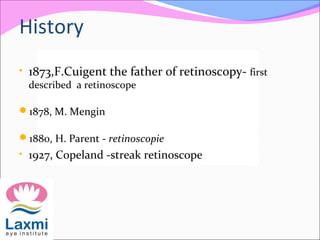

History
• 1873,F.Cuigent the father of retinoscopy- first
described a retinoscope
1878, M. Mengin
1880, H. Parent - retinoscopie
• 1927, Copeland -streak retinoscope

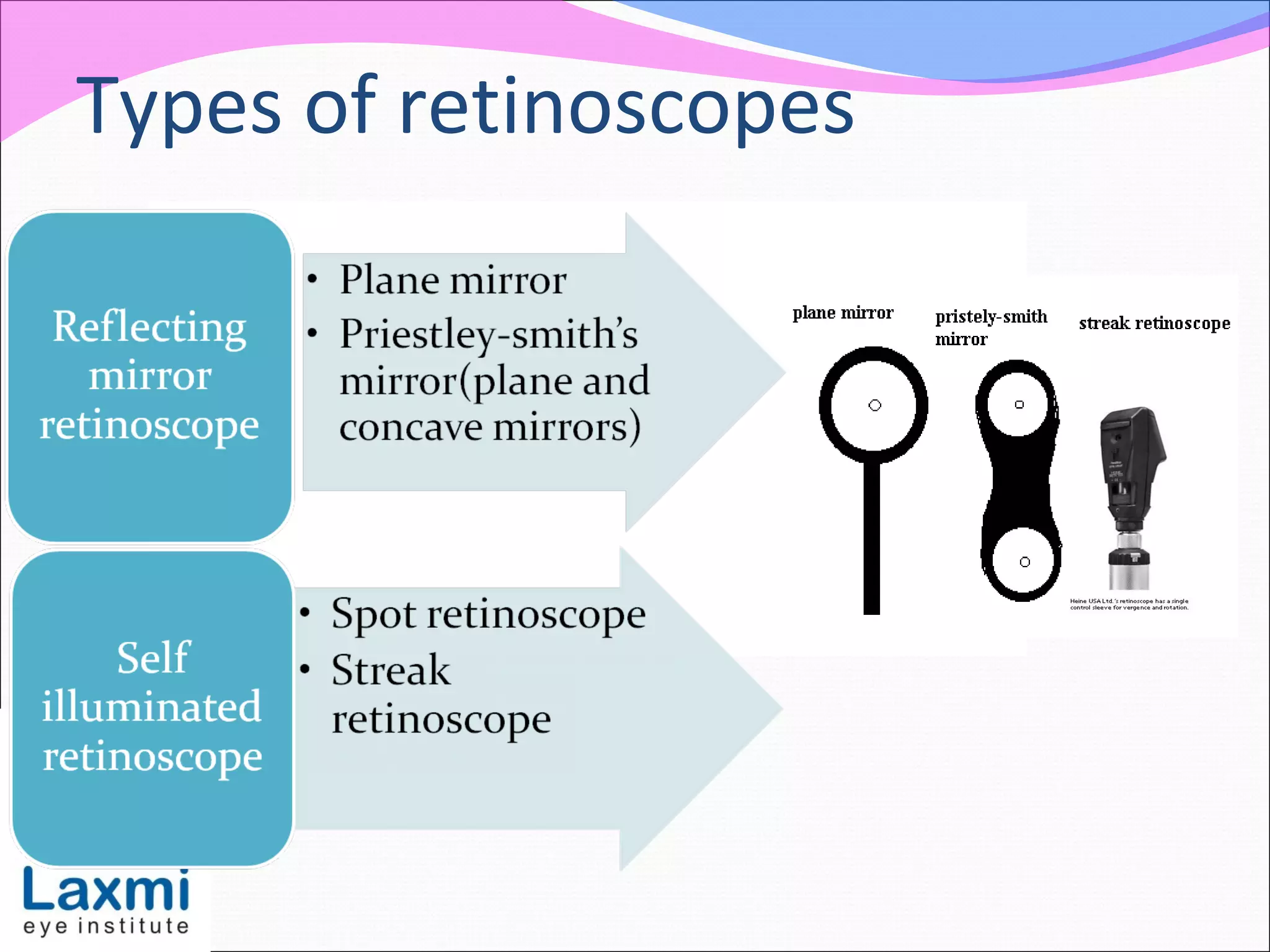

Types of retinoscopes
Reflecting mirror retinoscope

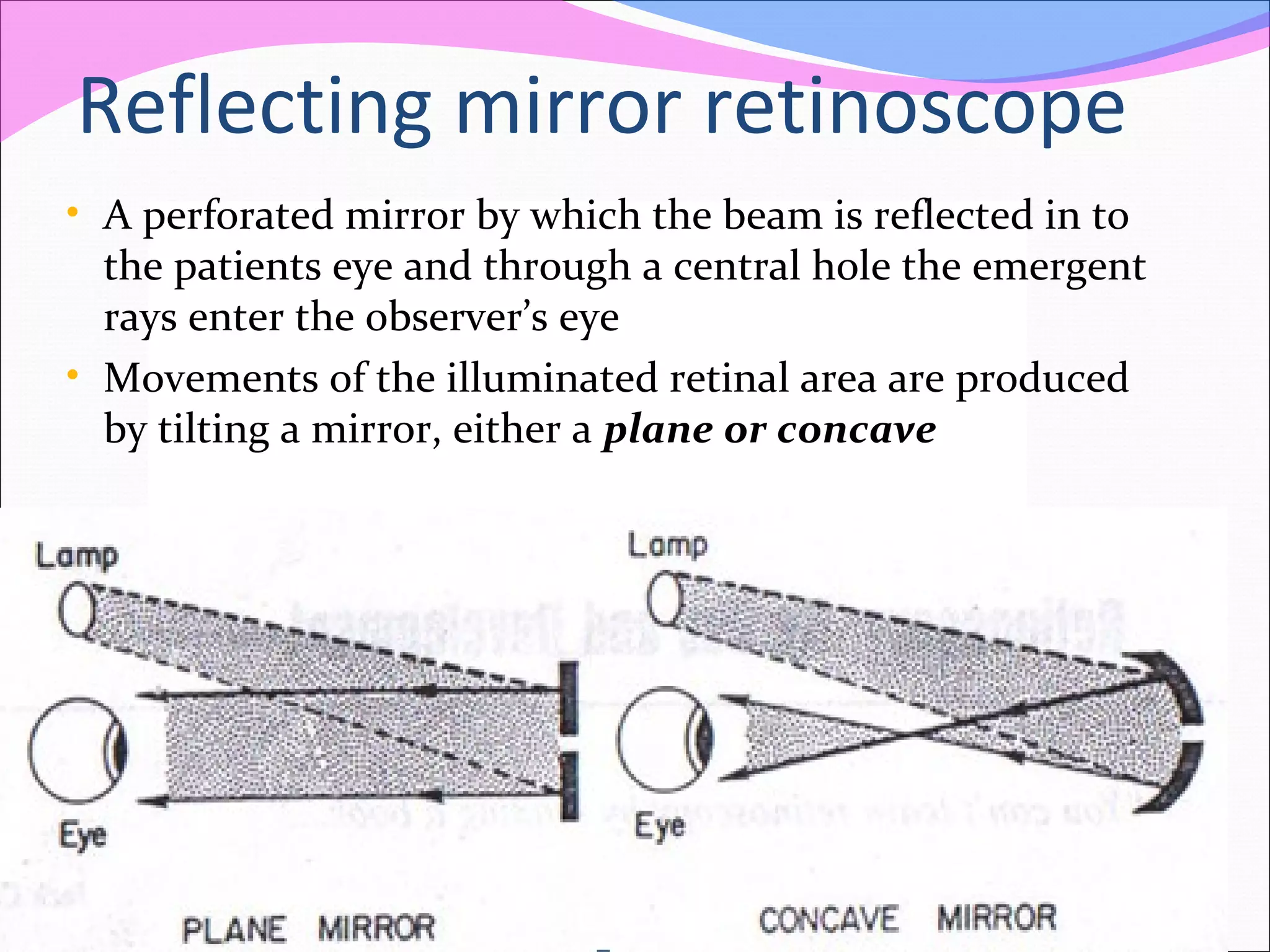

• A perforated mirror by which the beam is reflected in to
the patients eye and through a central hole the emergent
rays enter the observer’s eye
• Movements of the illuminated retinal area are produced
by tilting a mirror, either a plane or concave

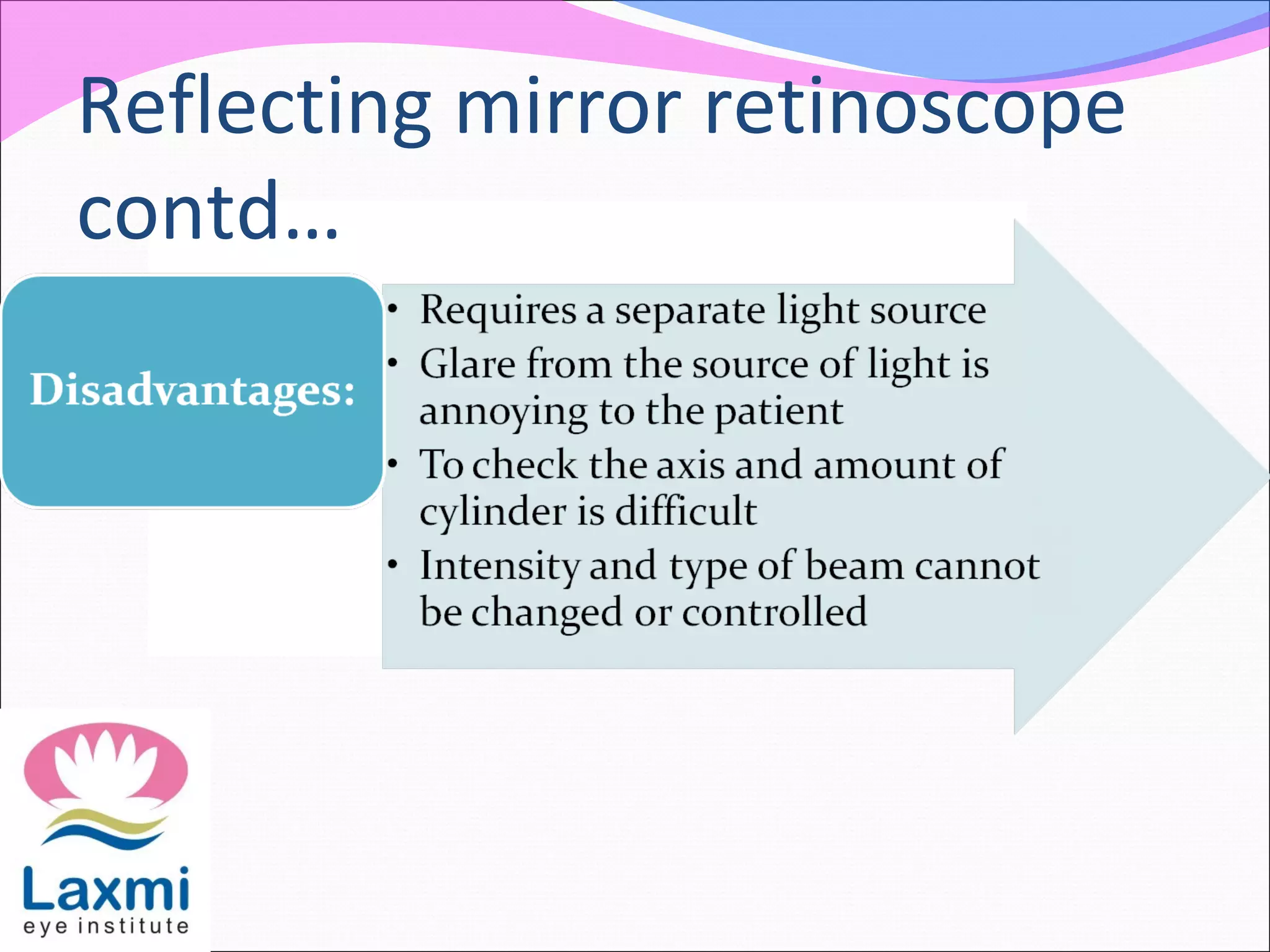

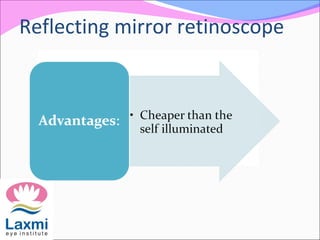

Reflecting mirror retinoscope
Reflecting mirror retinoscope
contd…

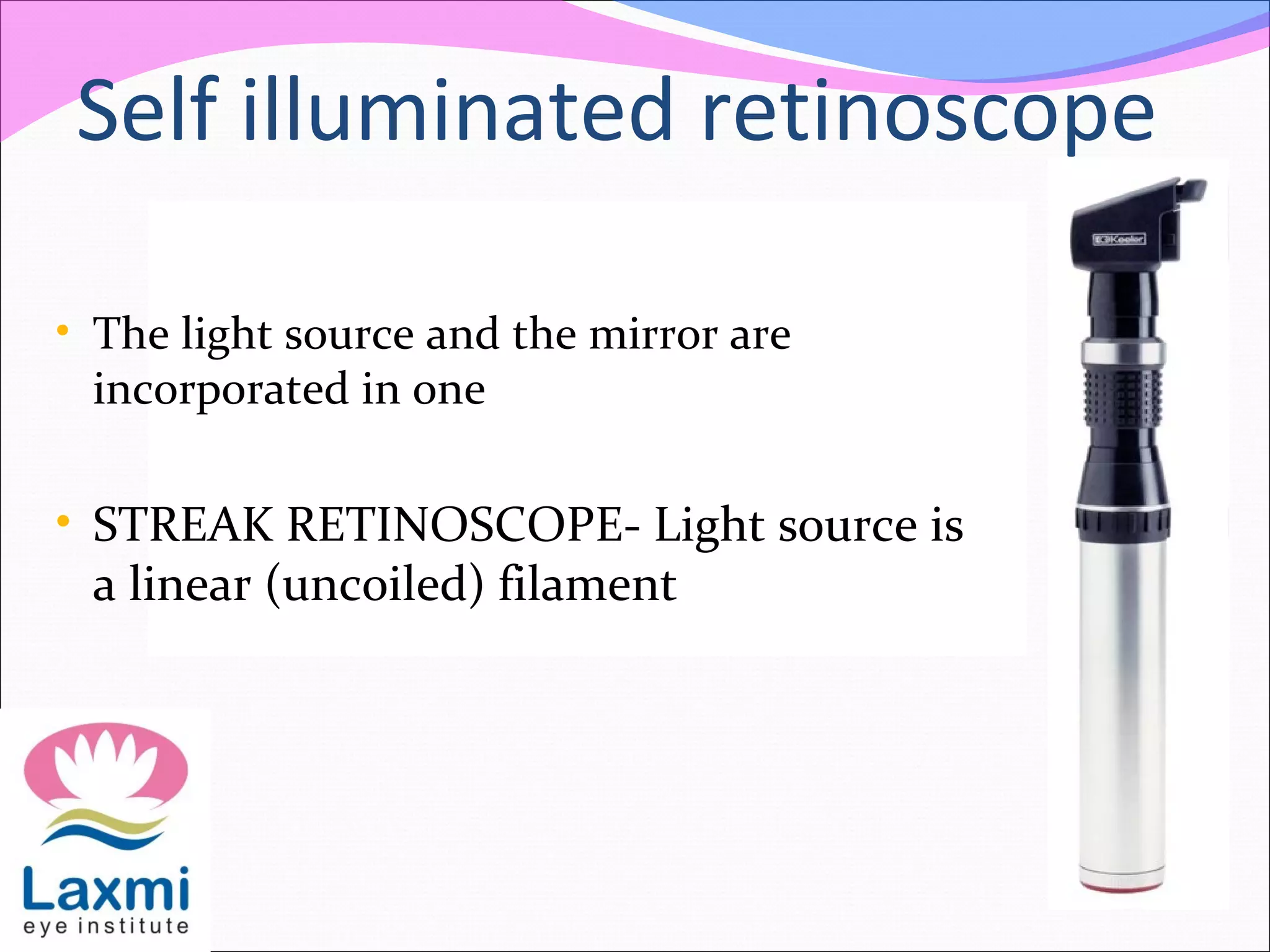

Self illuminated retinoscope
• The light source and the mirror are
incorporated in one

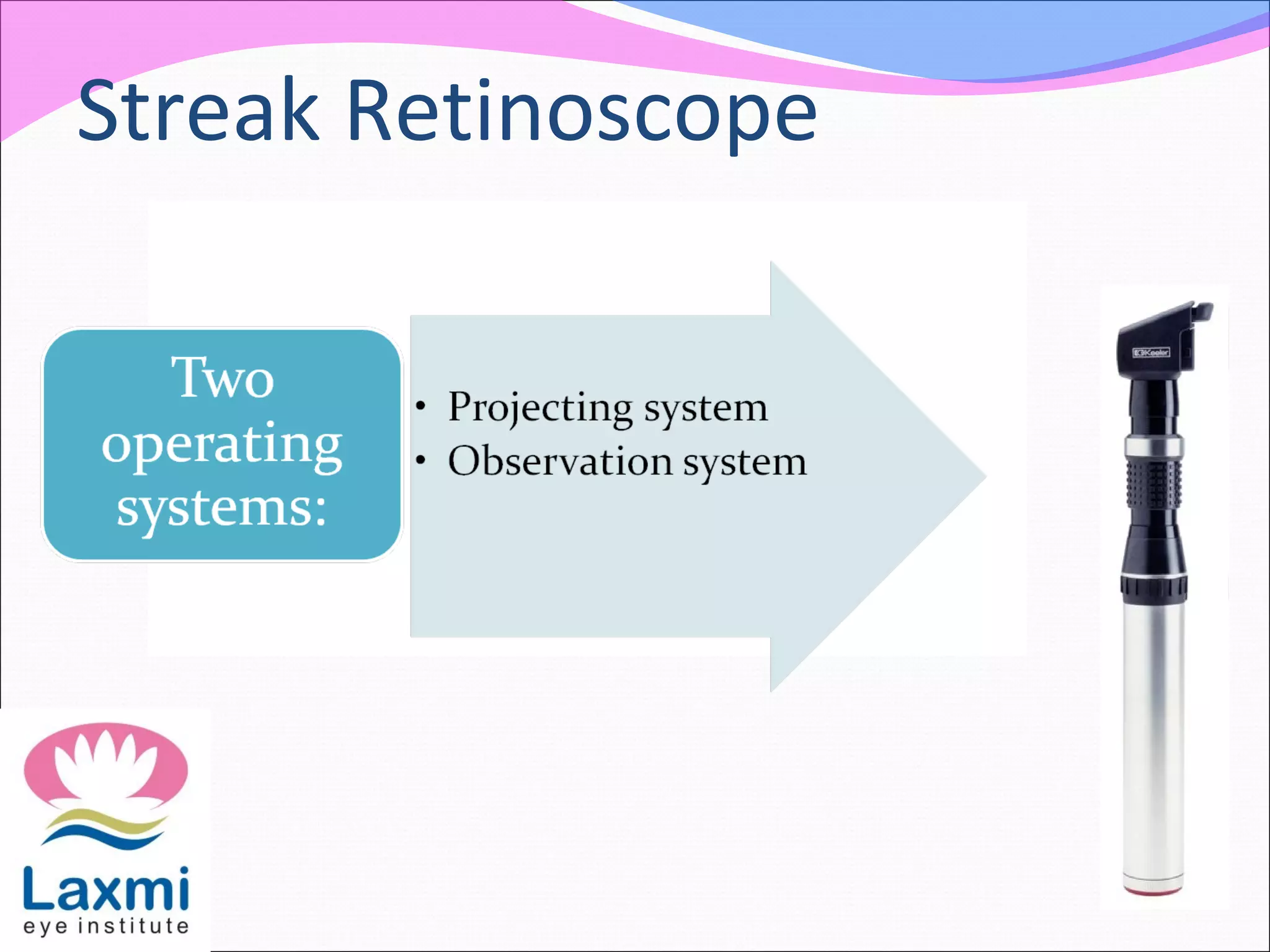

• STREAK RETINOSCOPE- Light source is
a linear (uncoiled) filament
Streak Retinoscope

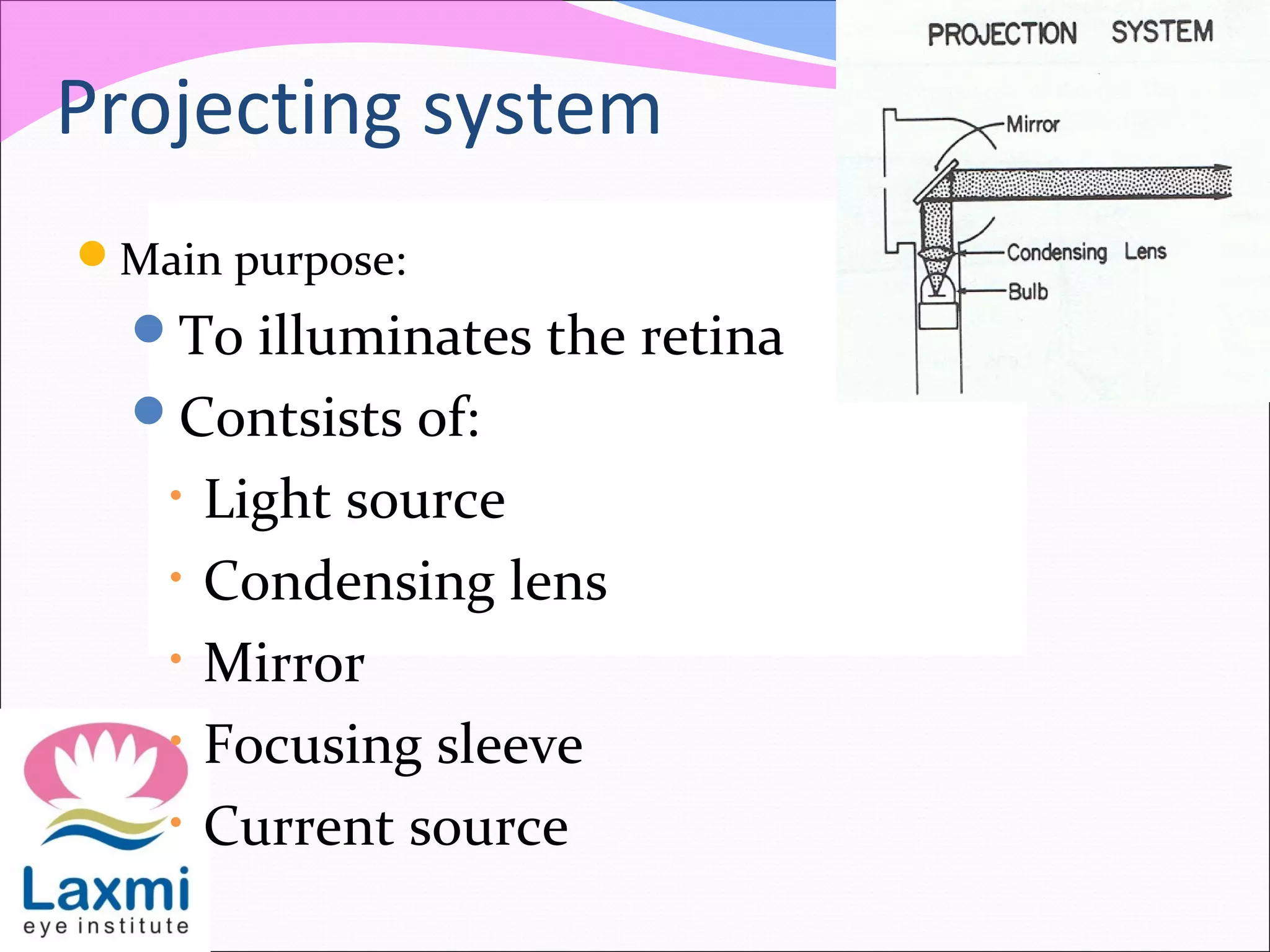

Projecting system
Main purpose:
To illuminates the retina
Contsists of:
• Light source
• Condensing lens
• Mirror
• Focusing sleeve
• Current source

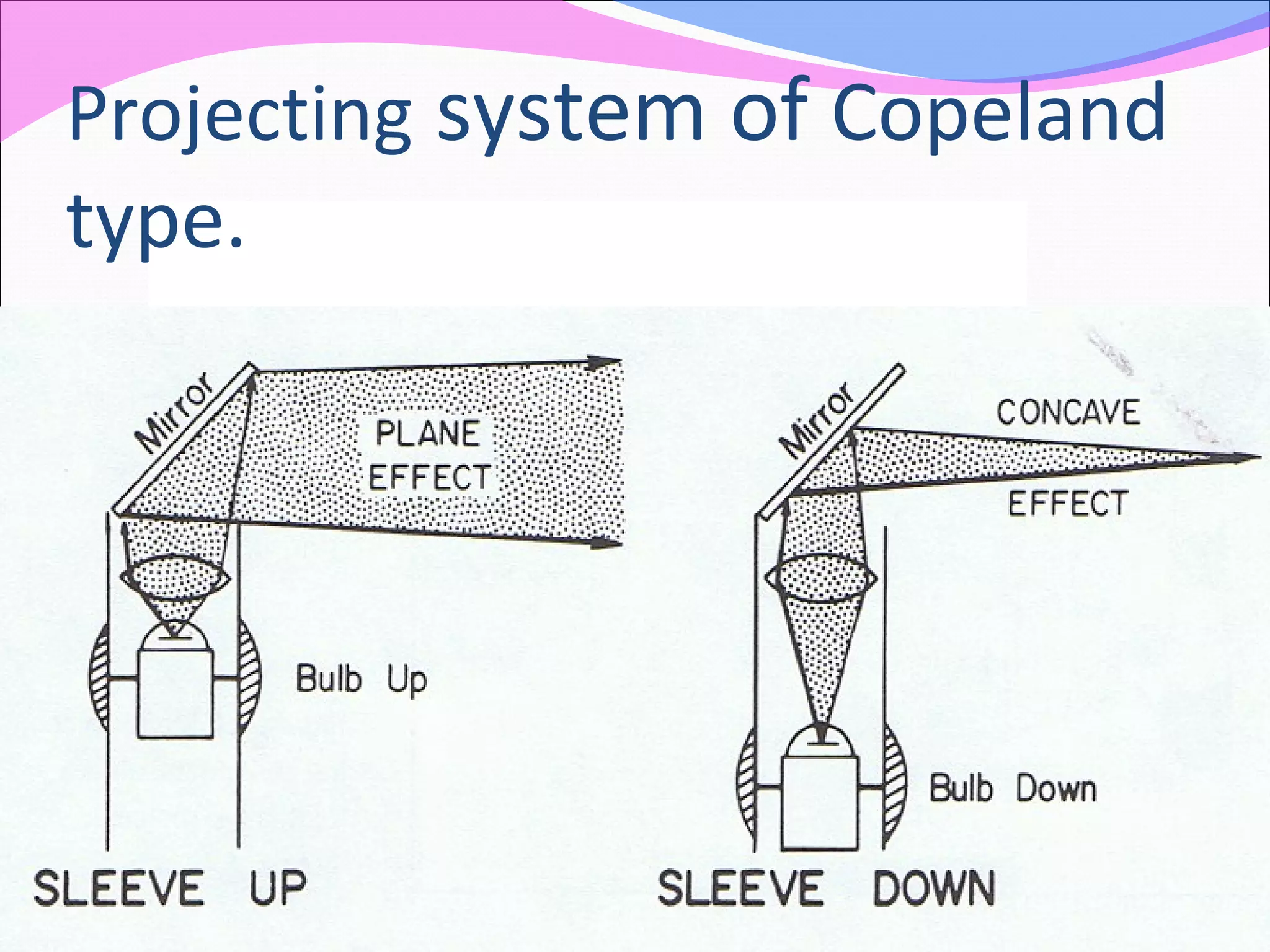

Projecting system of Copeland
type.

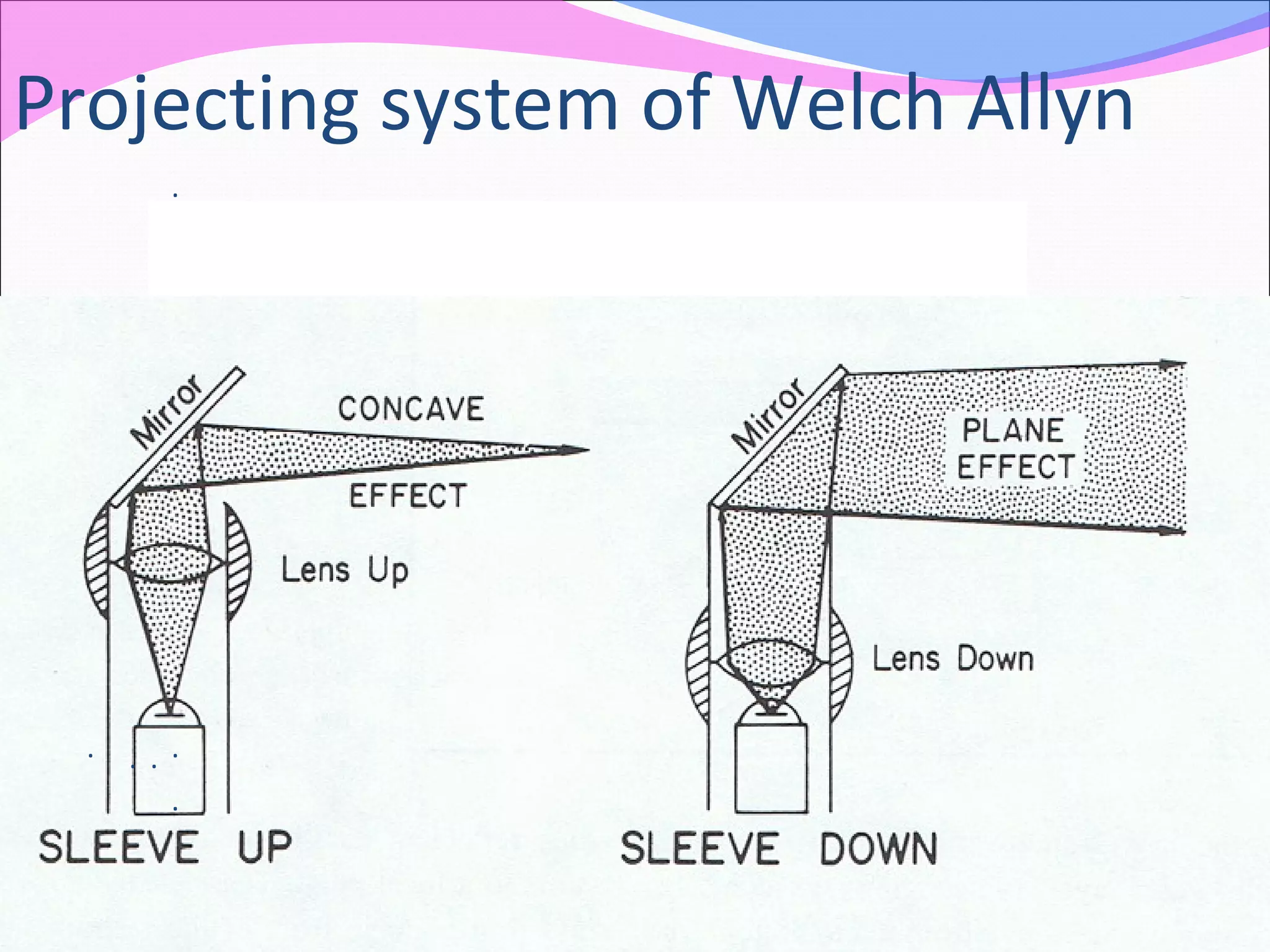

Projecting system of Welch Allyn
.
....
.

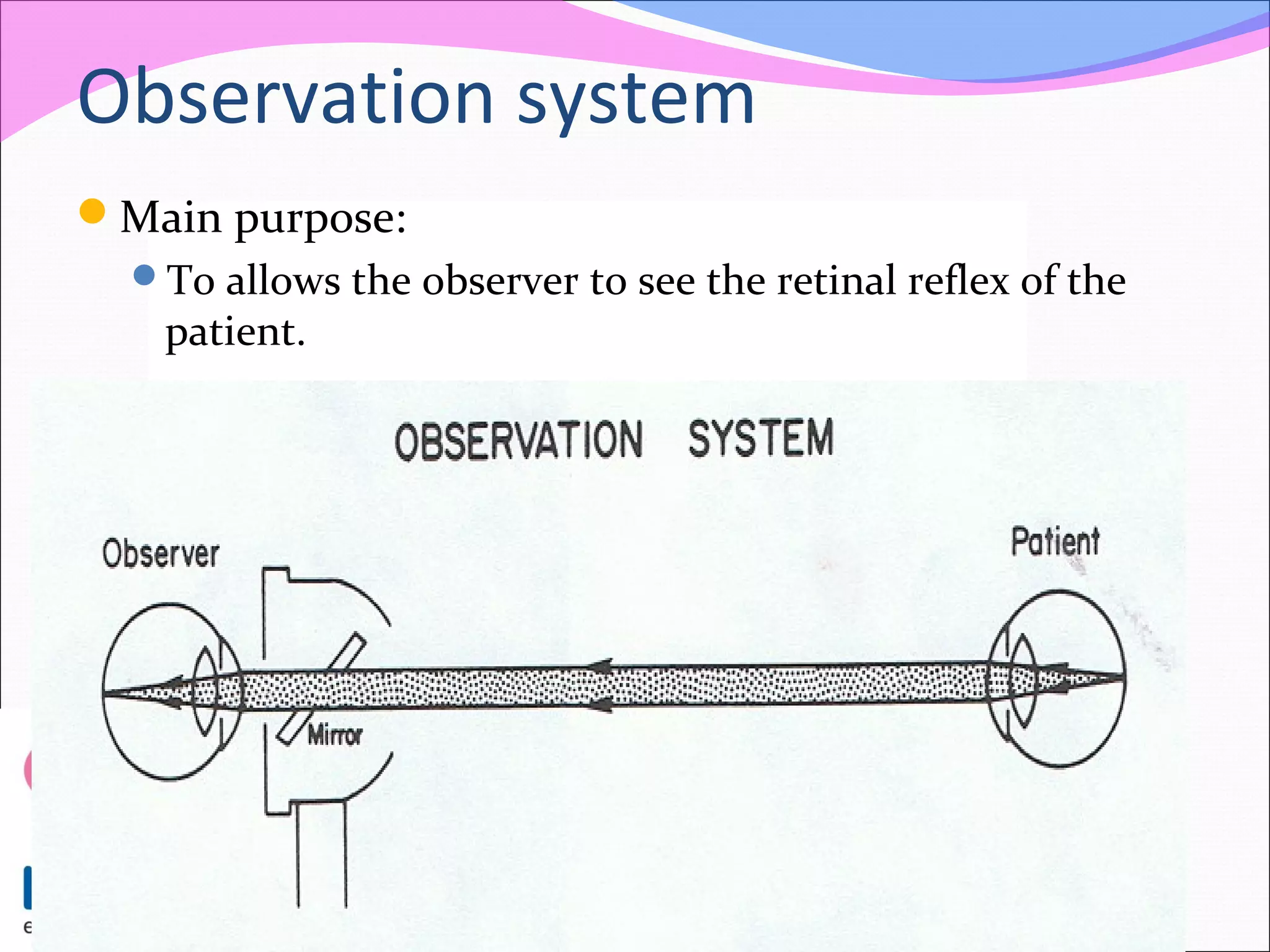

Observation system
Main purpose:
To allows the observer to see the retinal reflex of the
patient.

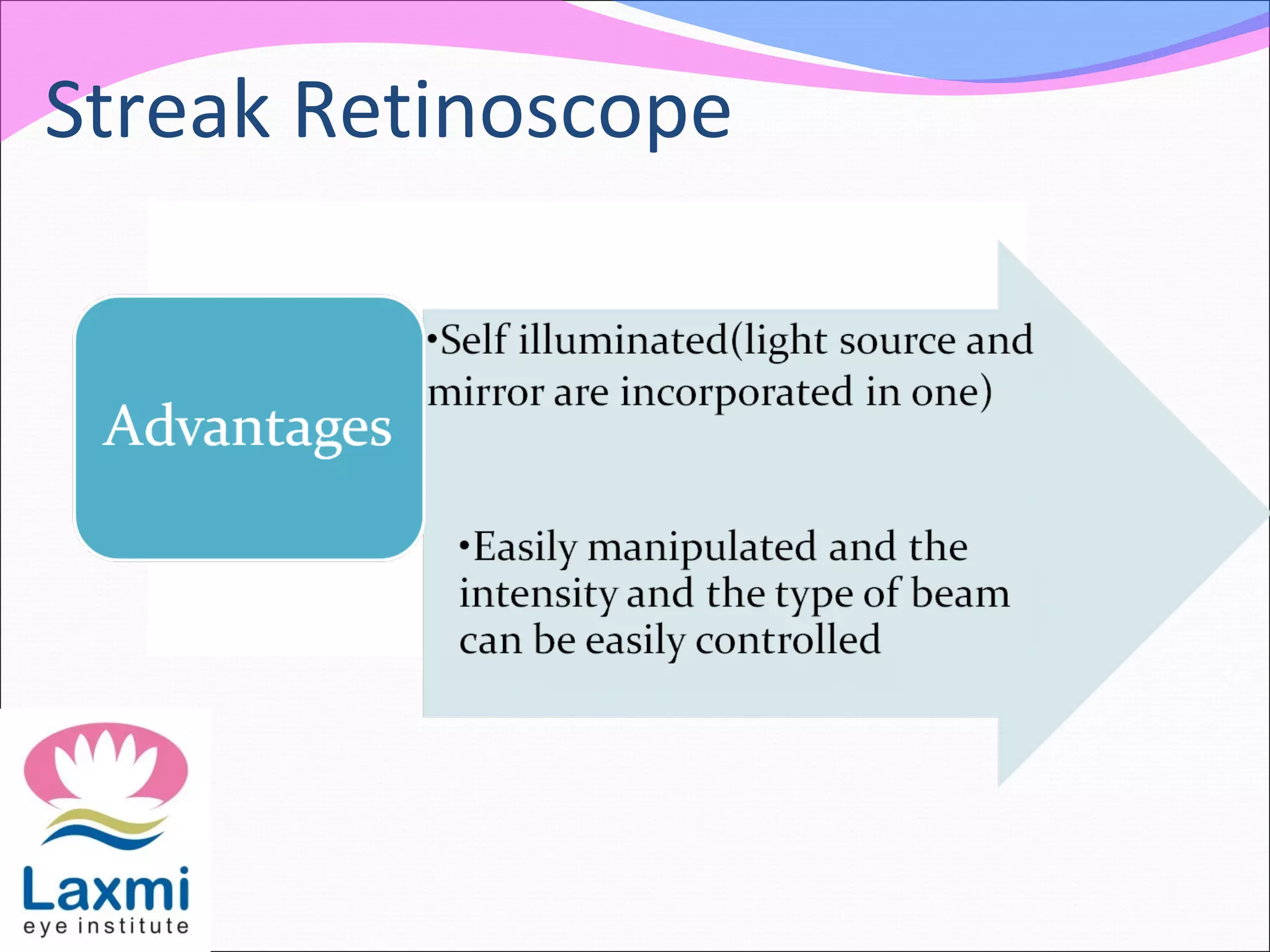

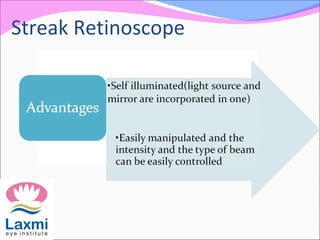

Streak Retinoscope

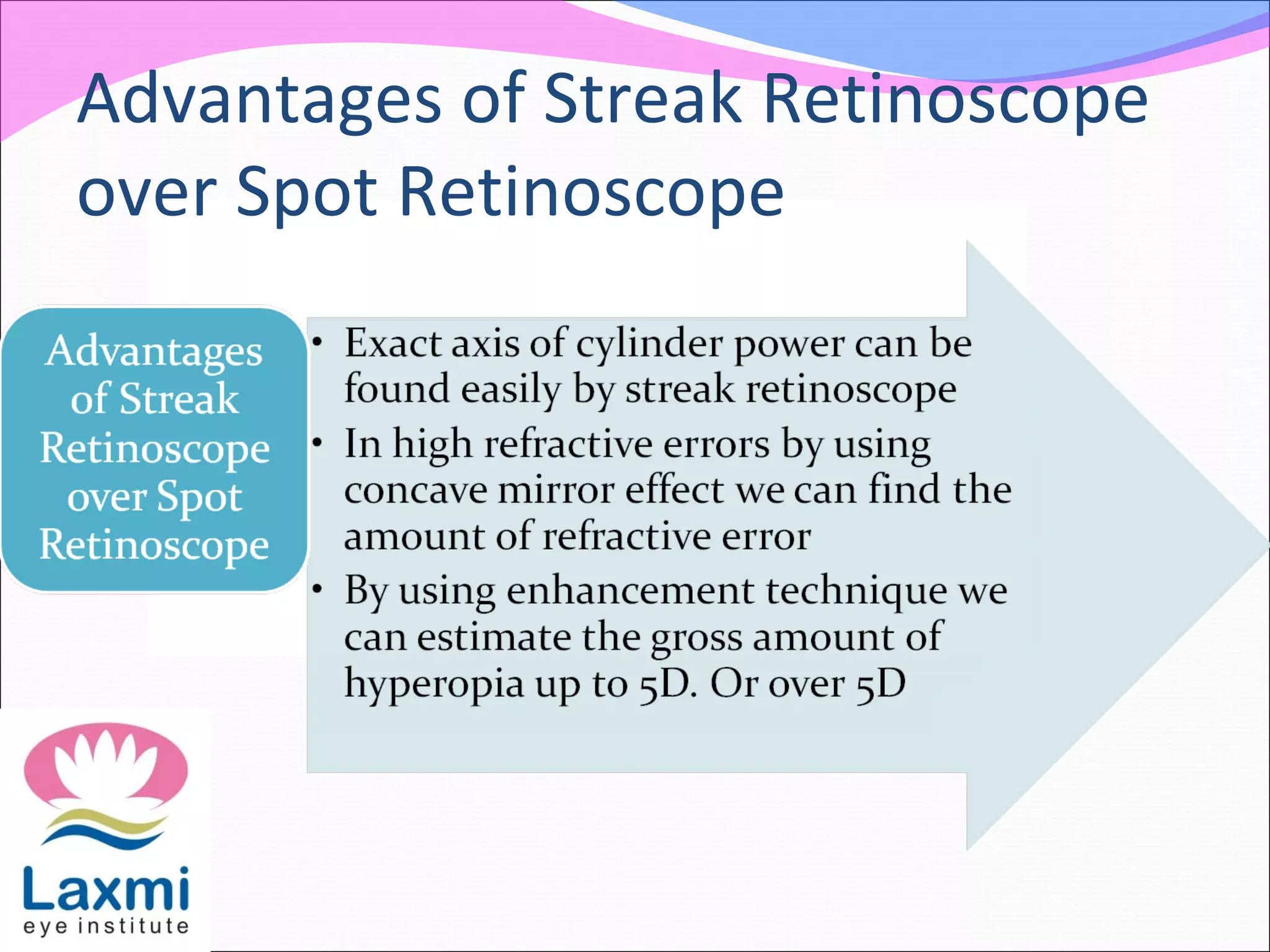

Advantages of Streak Retinoscope
over Spot Retinoscope

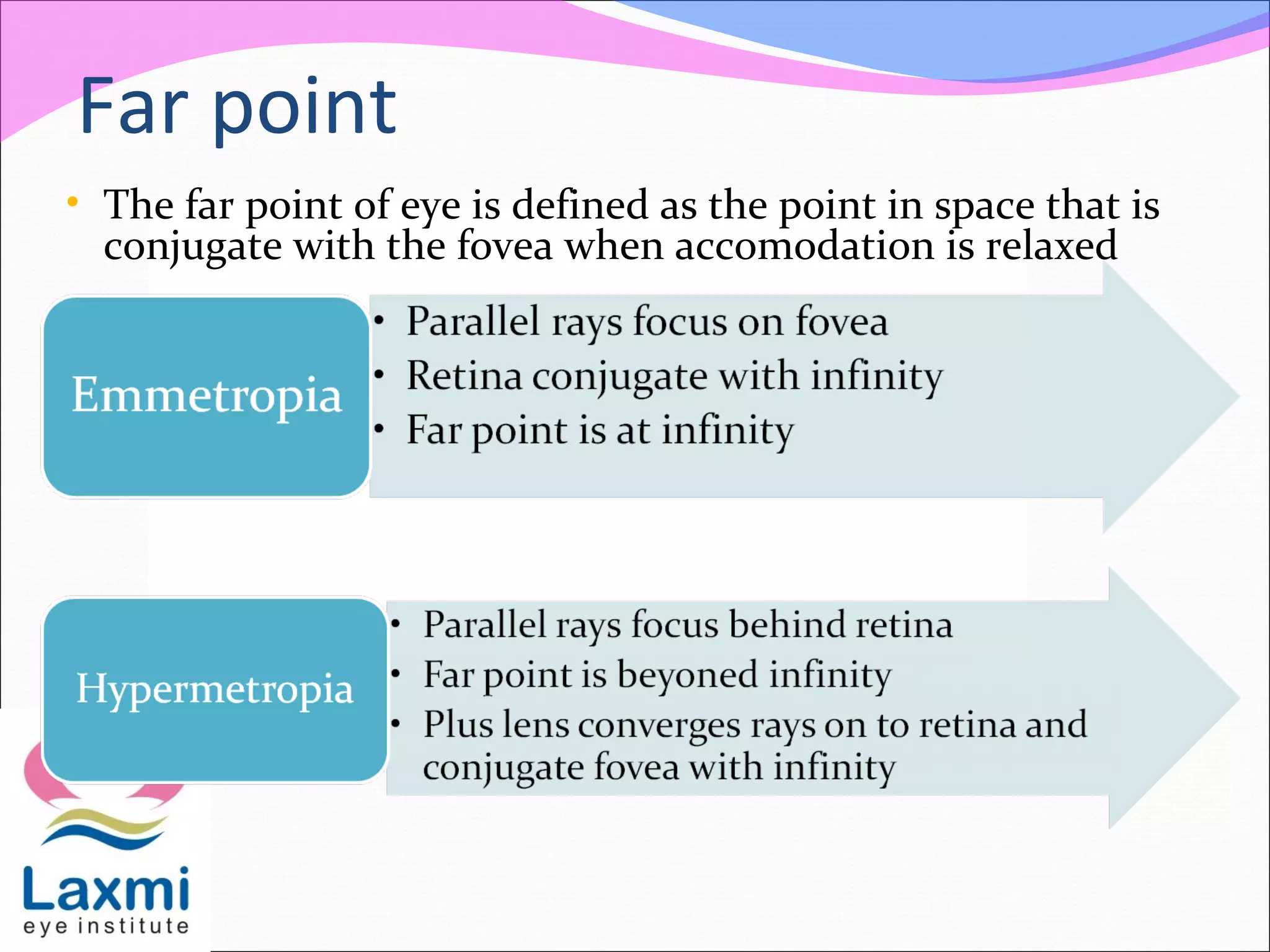

Far point
• The far point of eye is defined as the point in space that is
conjugate with the fovea when accomodation is relaxed

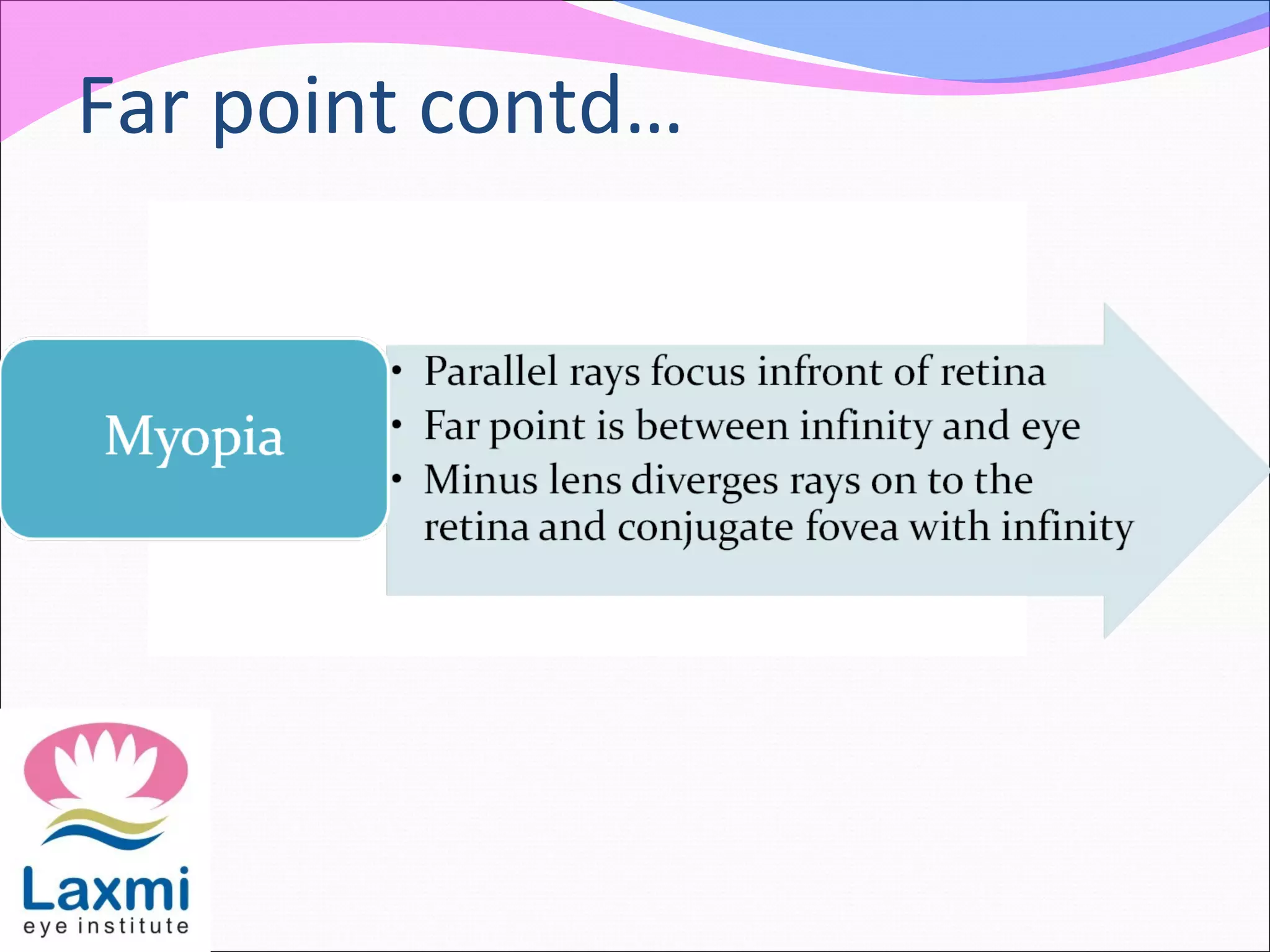

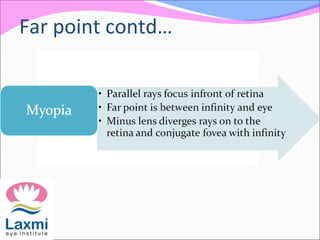

Far point contd…
Optical Principle

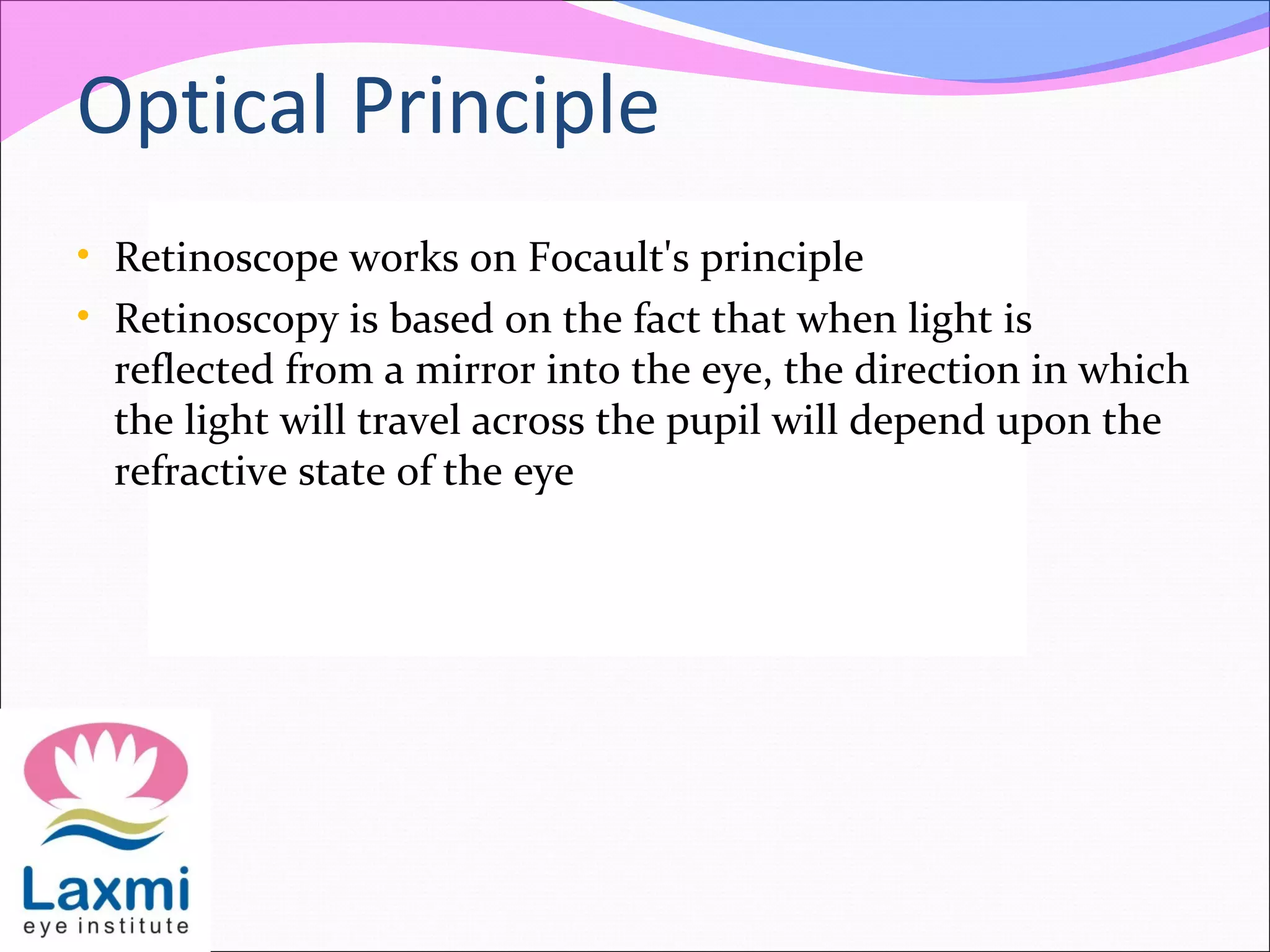

• Retinoscope works on Focault's principle
• Retinoscopy is based on the fact that when light is
reflected from a mirror into the eye, the direction in which
the light will travel across the pupil will depend upon the
refractive state of the eye

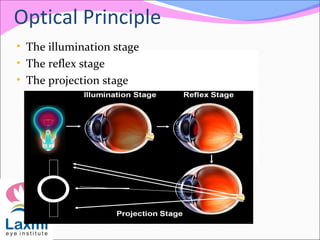

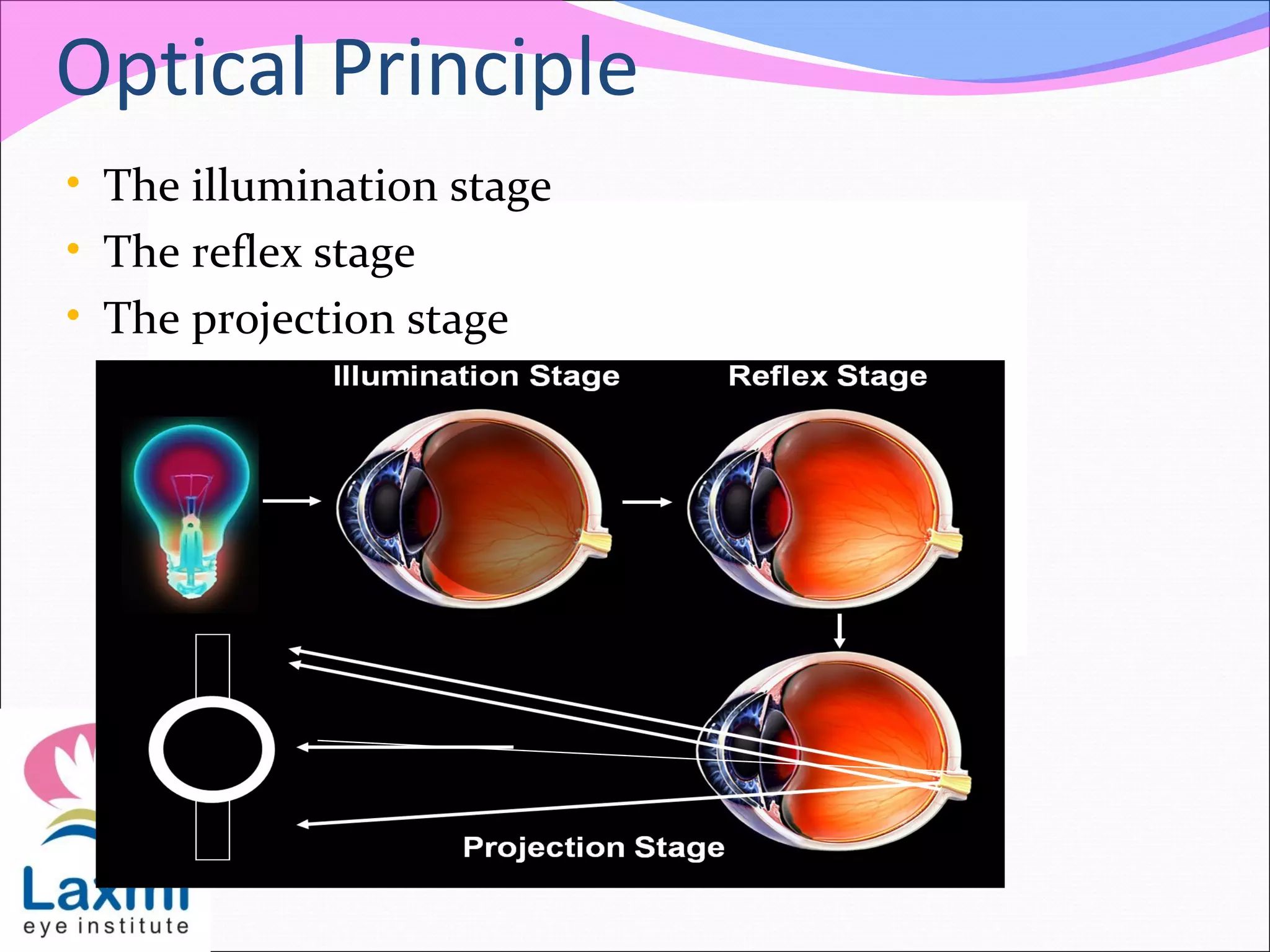

Optical Principle
• The illumination stage
• The reflex stage
• The projection stage

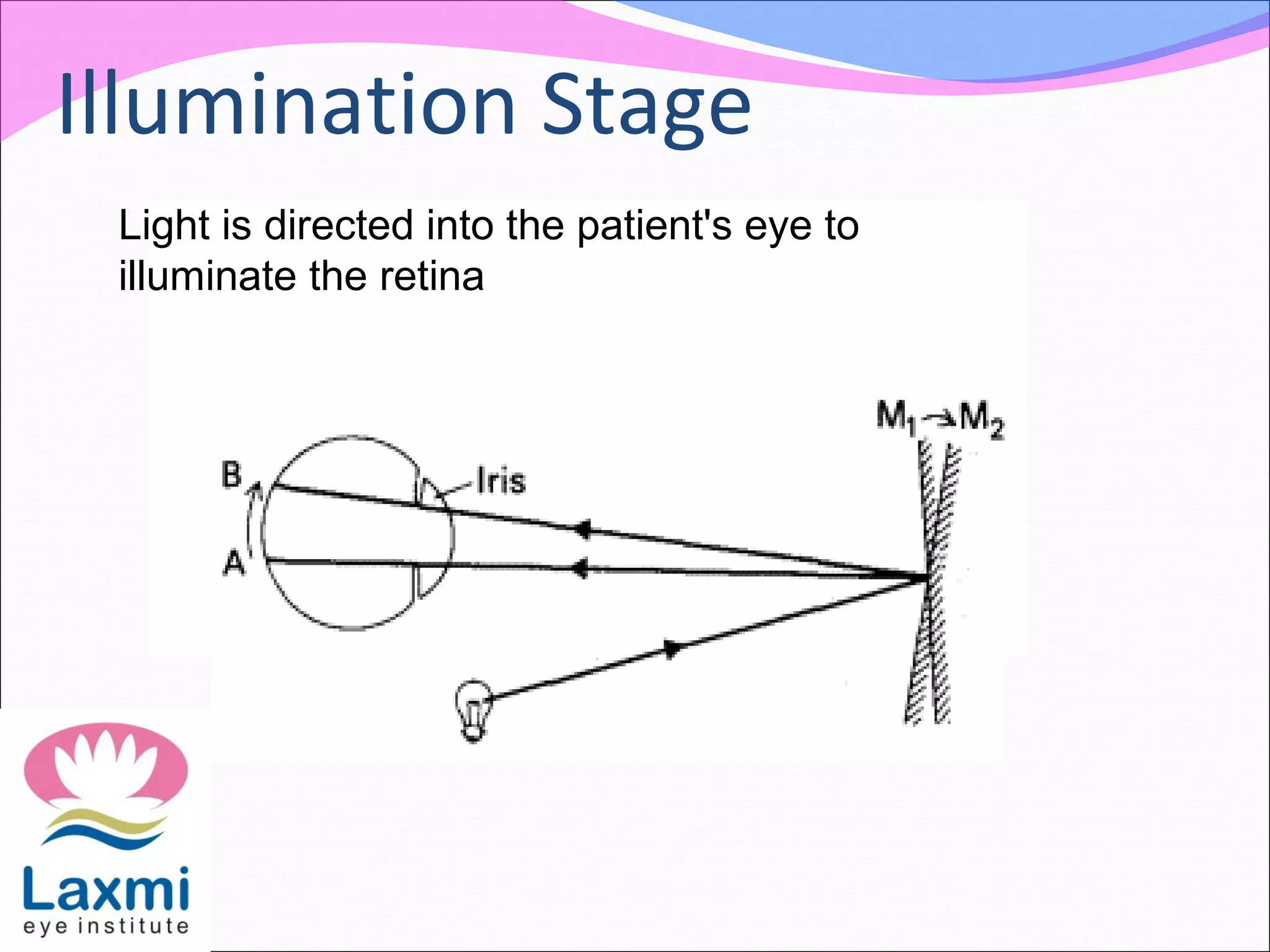

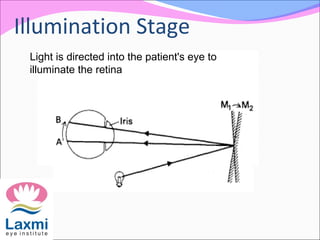

Illumination Stage
Light is directed into the patient's eye to
illuminate the retina

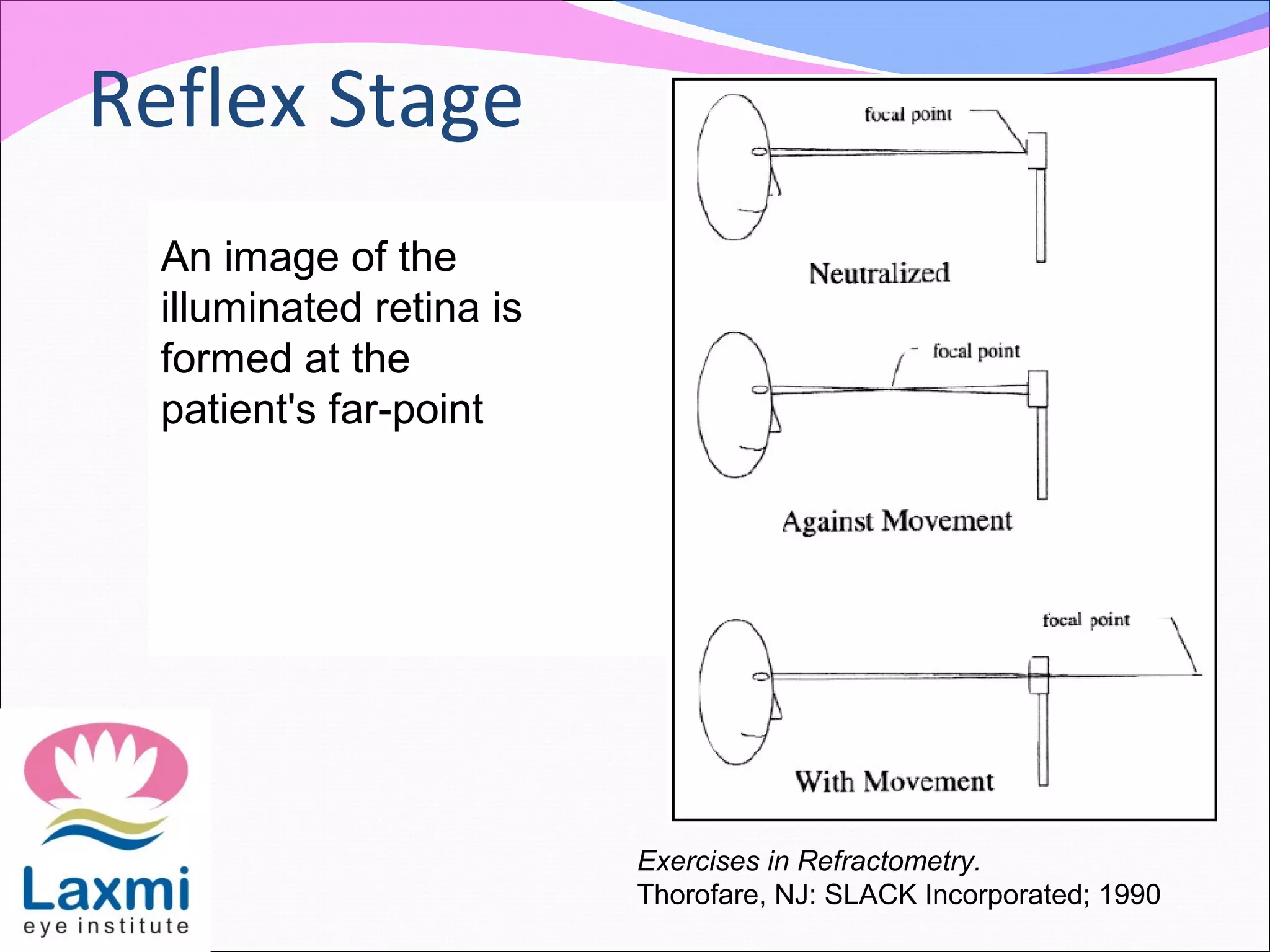

Reflex Stage
An image of the
illuminated retina is
formed at the
patient's far-point
Exercises in Refractometry.
Thorofare, NJ: SLACK Incorporated; 1990

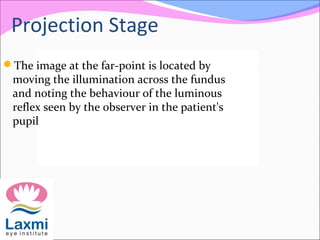

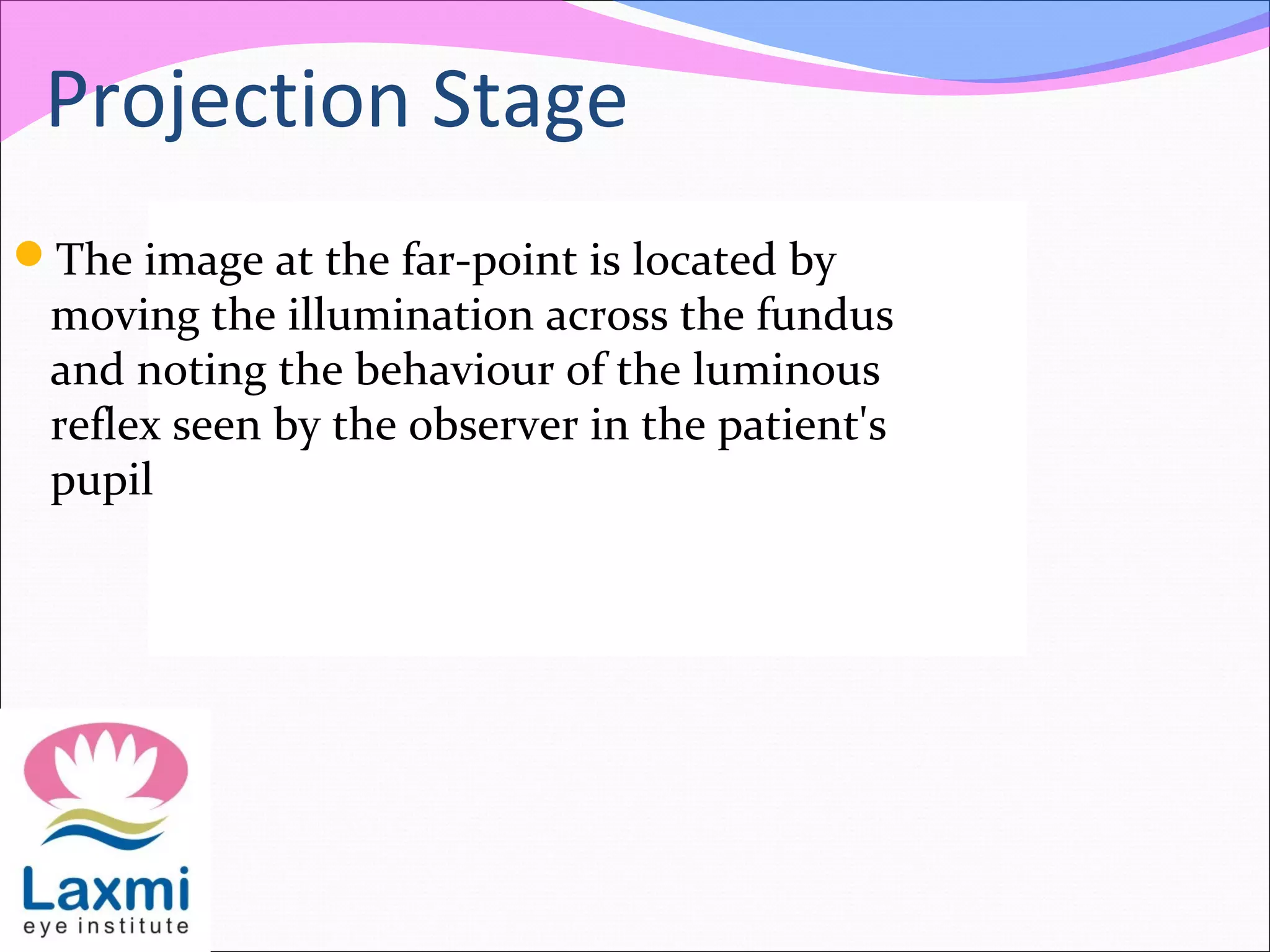

Projection Stage
The image at the far-point is located by
moving the illumination across the fundus
and noting the behaviour of the luminous
reflex seen by the observer in the patient's
pupil

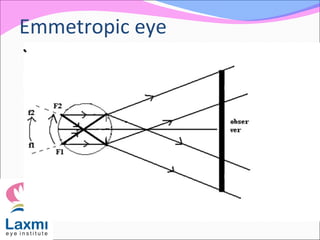

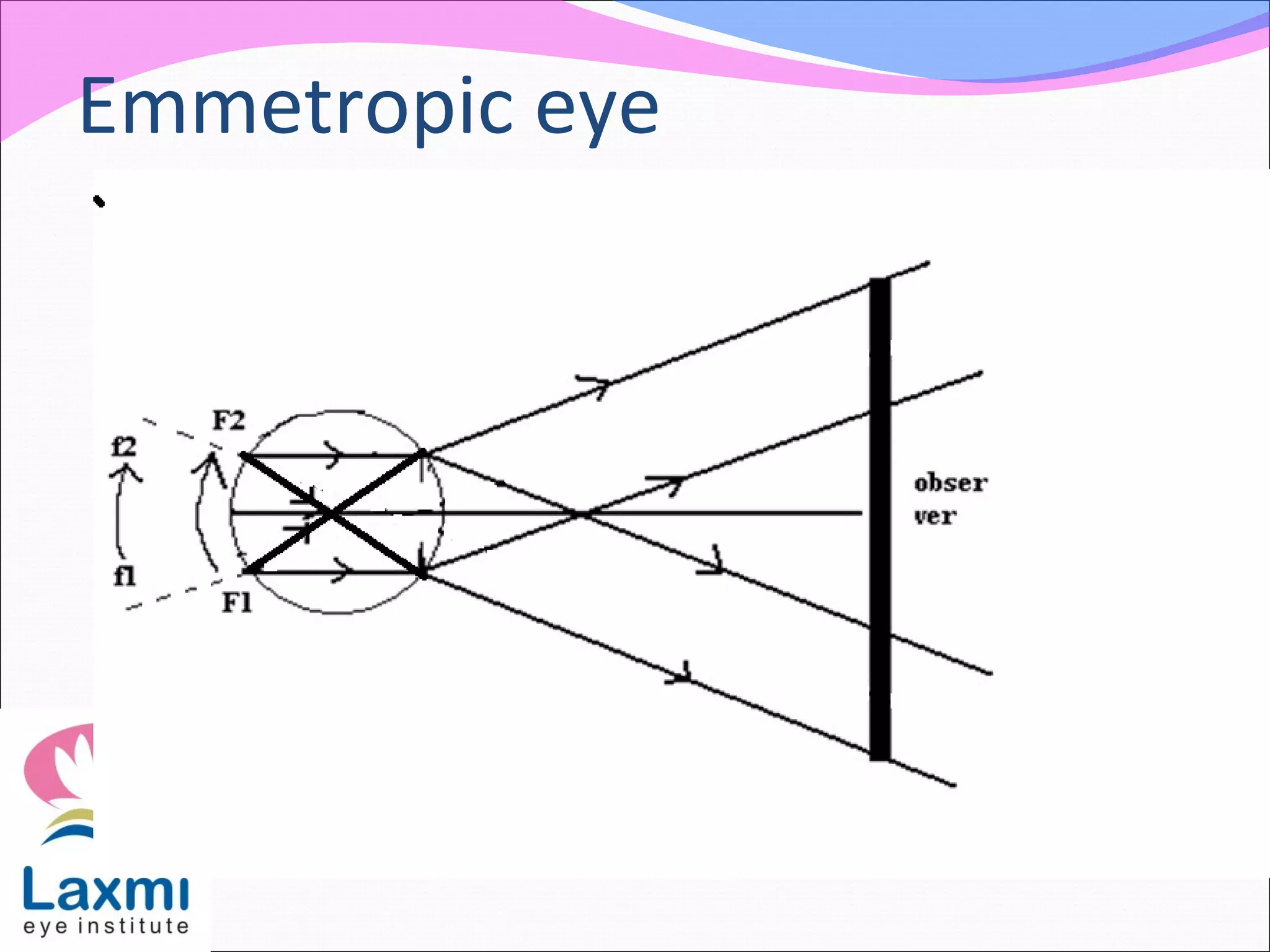

Emmetropic eye

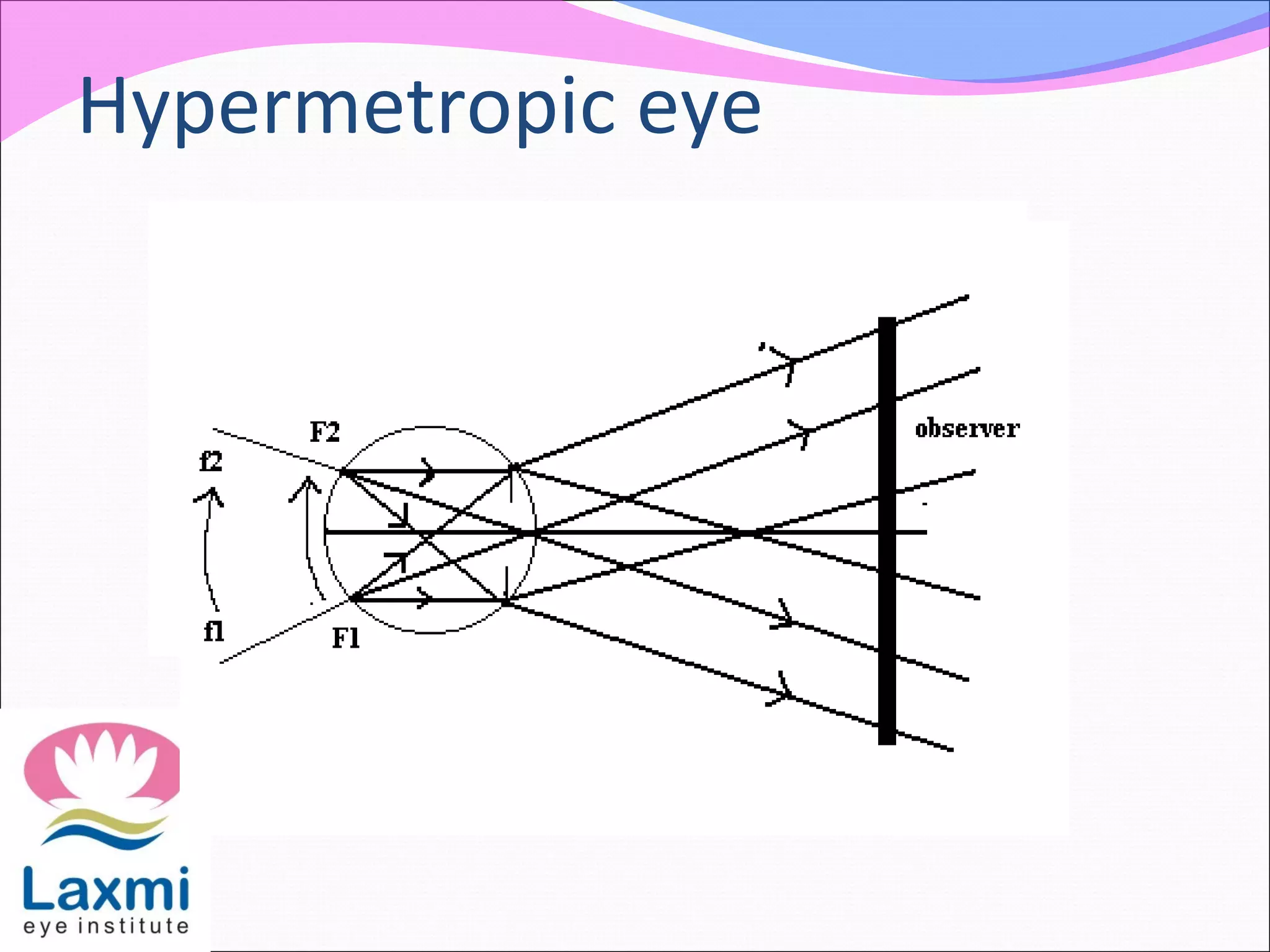

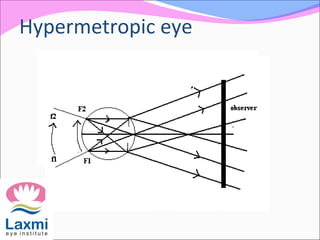

Hypermetropic eye

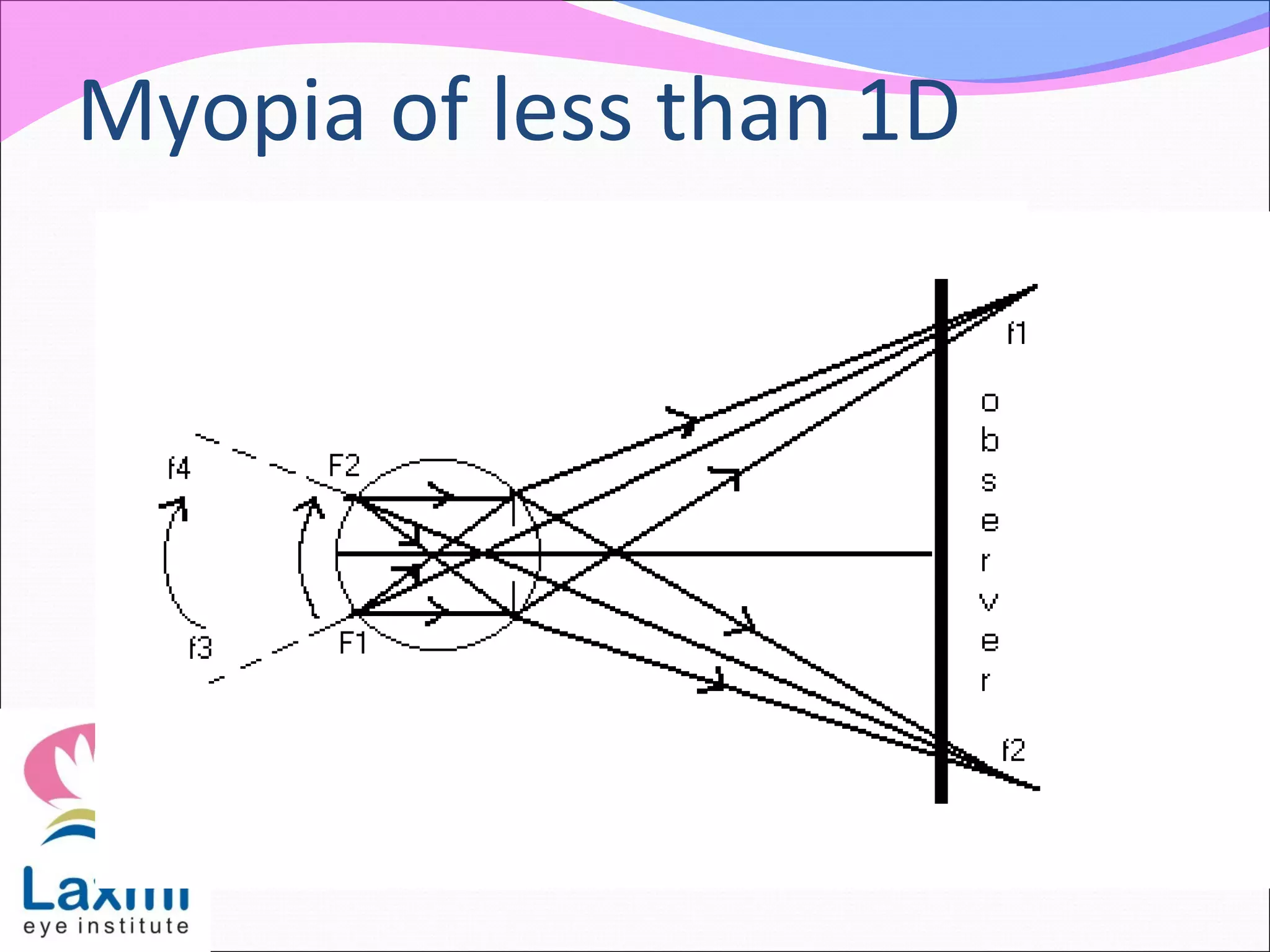

Myopia of less than 1D

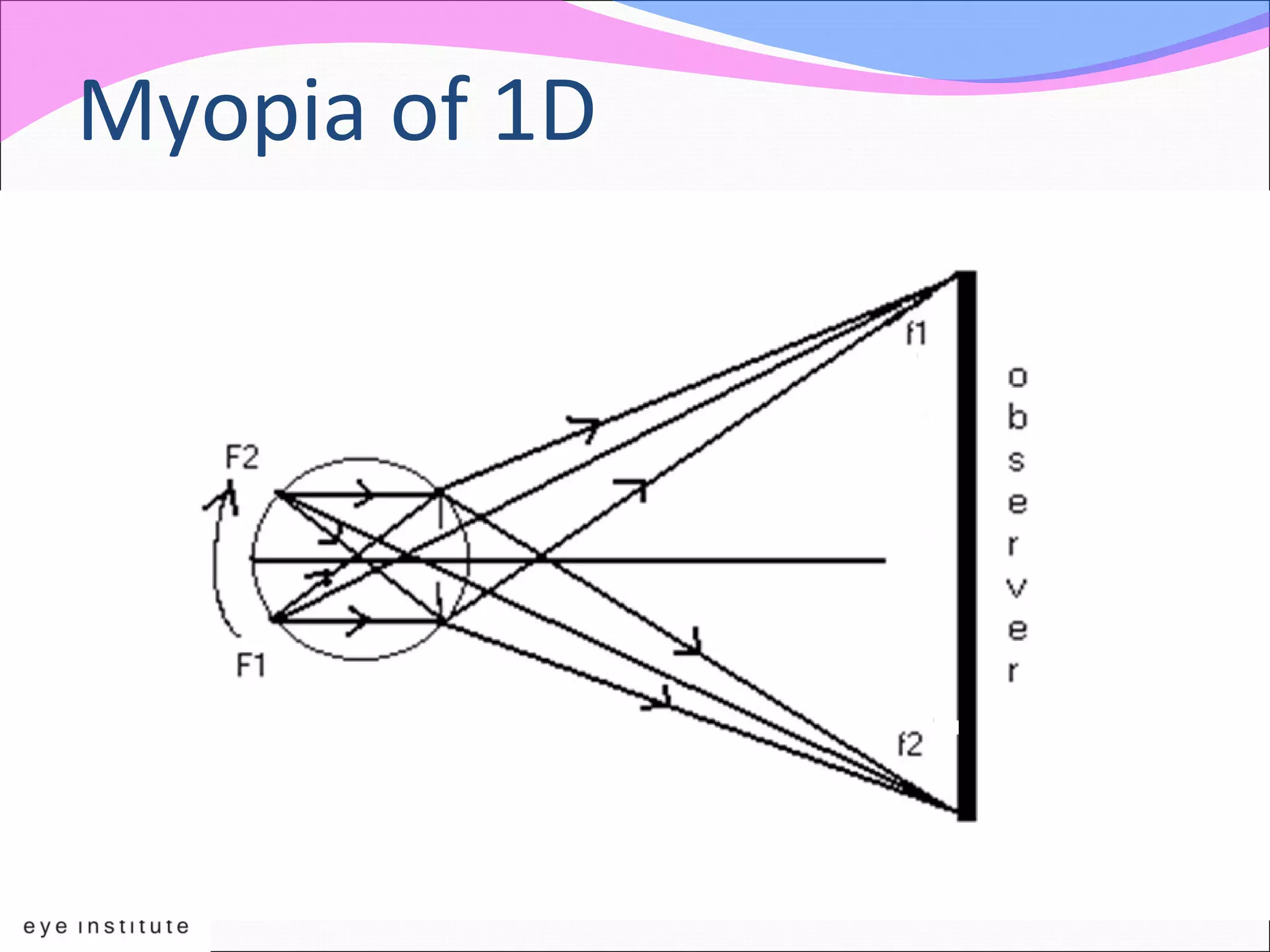

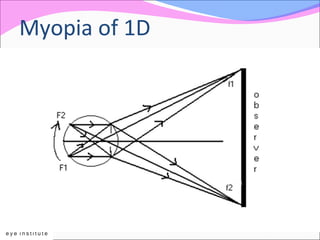

Myopia of 1D

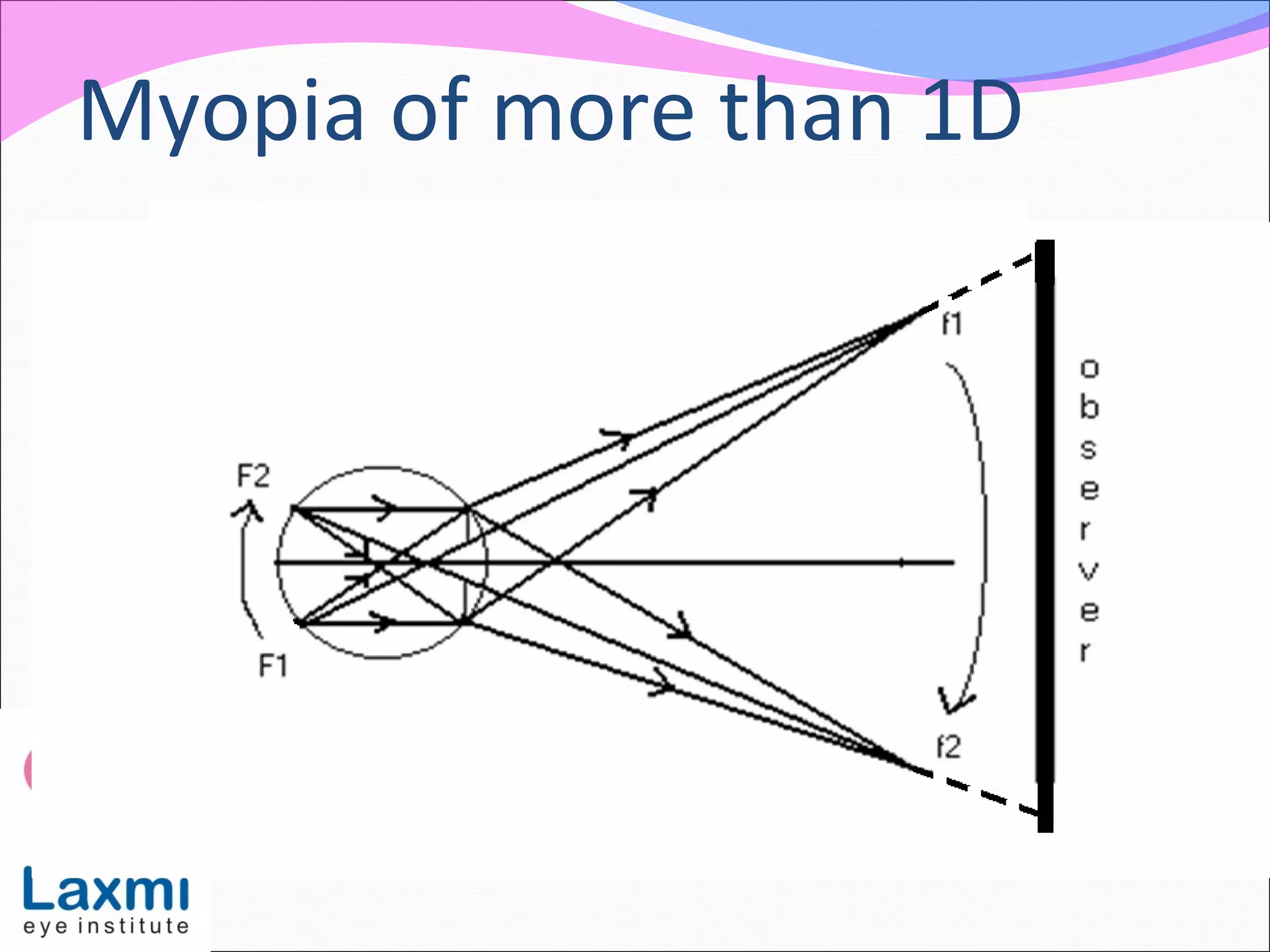

Myopia of more than 1D
Projection Stage

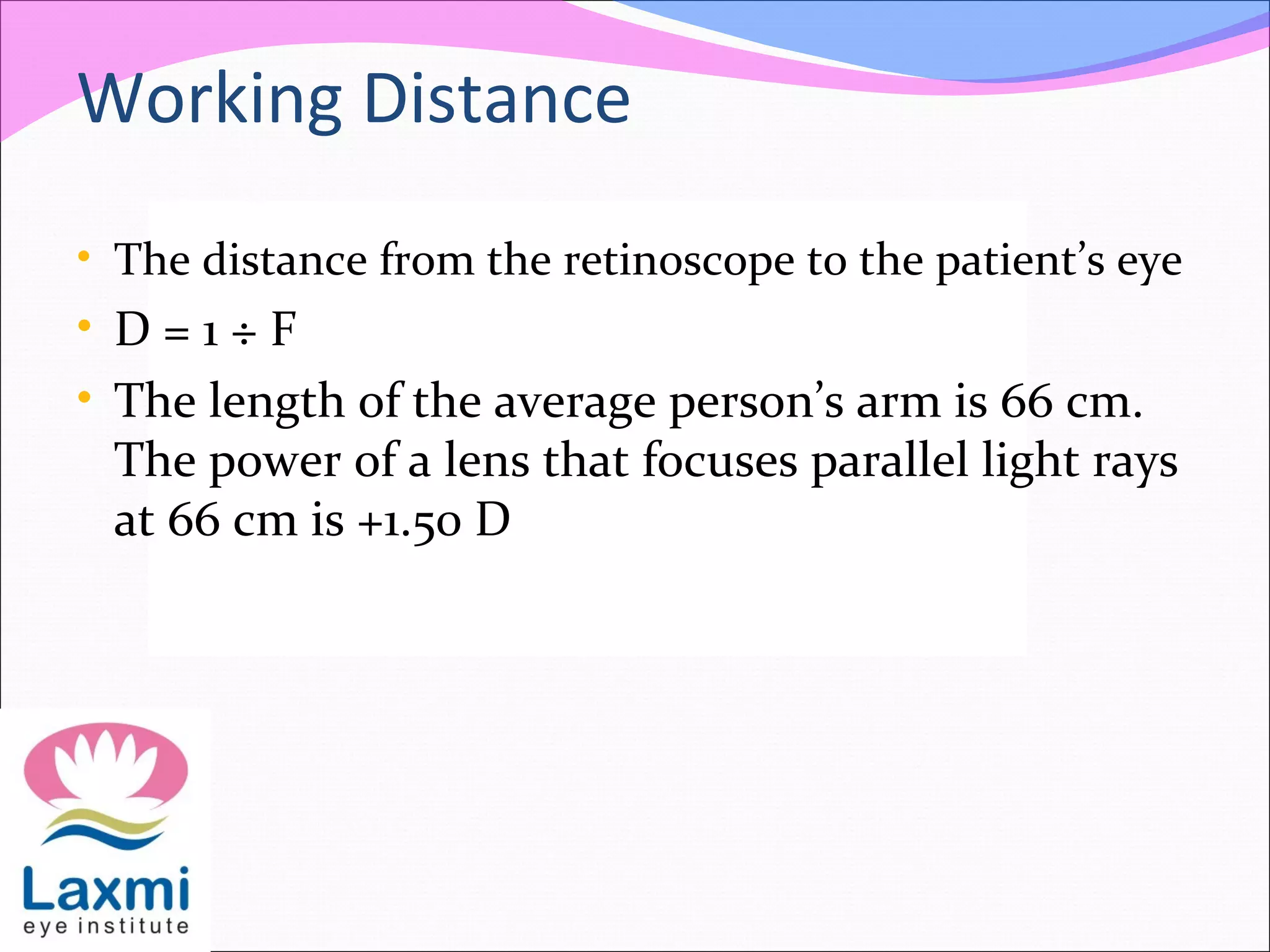

Working Distance
• The distance from the retinoscope to the patient’s eye
• D = 1 ÷ F
• The length of the average person’s arm is 66 cm.
The power of a lens that focuses parallel light rays
at 66 cm is +1.50 D

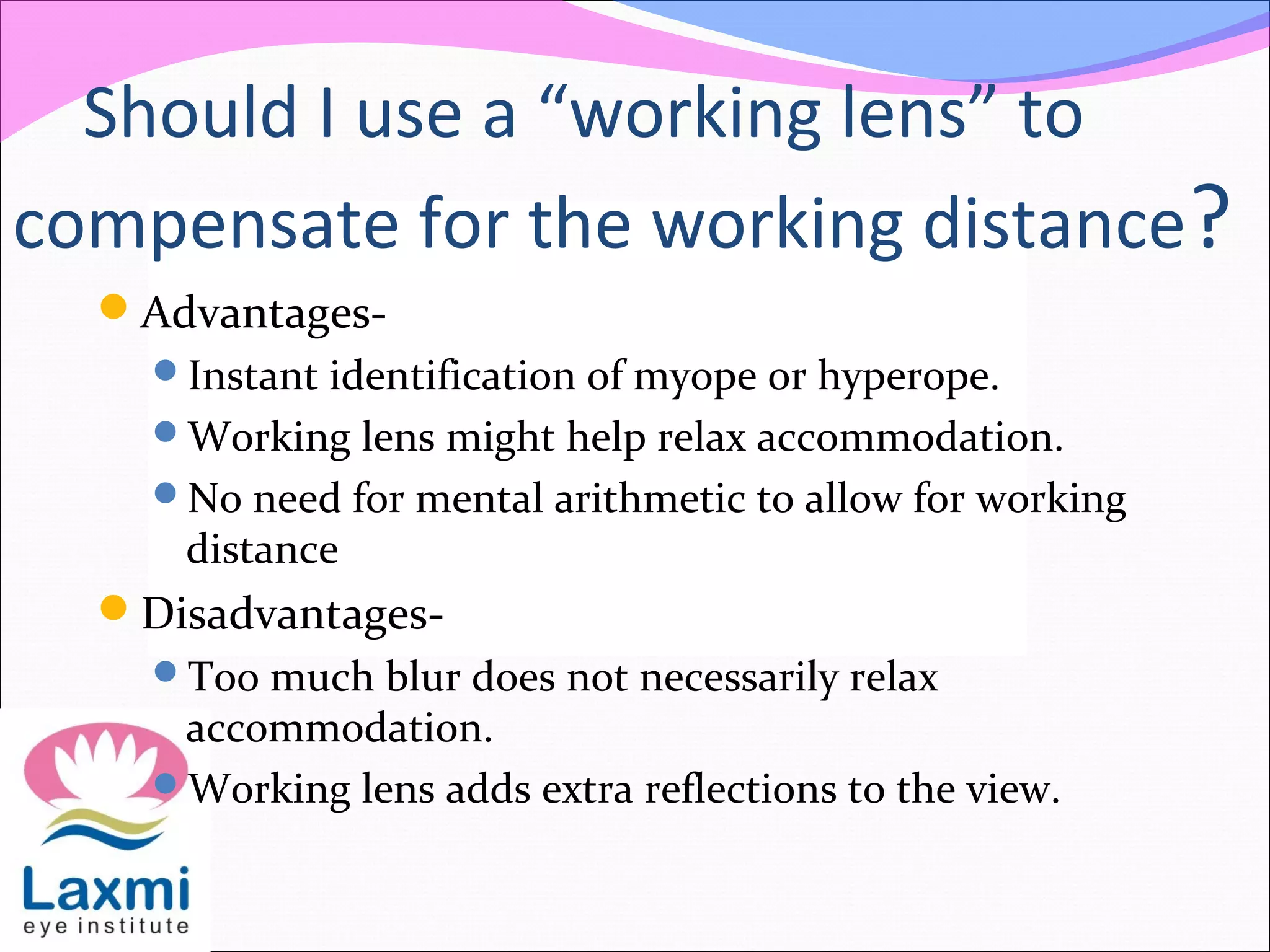

Should I use a “working lens” to
compensate for the working distance?
Advantages-
Instant identification of myope or hyperope.
Working lens might help relax accommodation.
No need for mental arithmetic to allow for working
distance
Disadvantages-
Too much blur does not necessarily relax
accommodation.
Working lens adds extra reflections to the view.

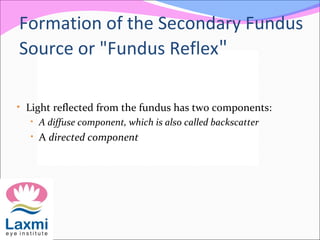

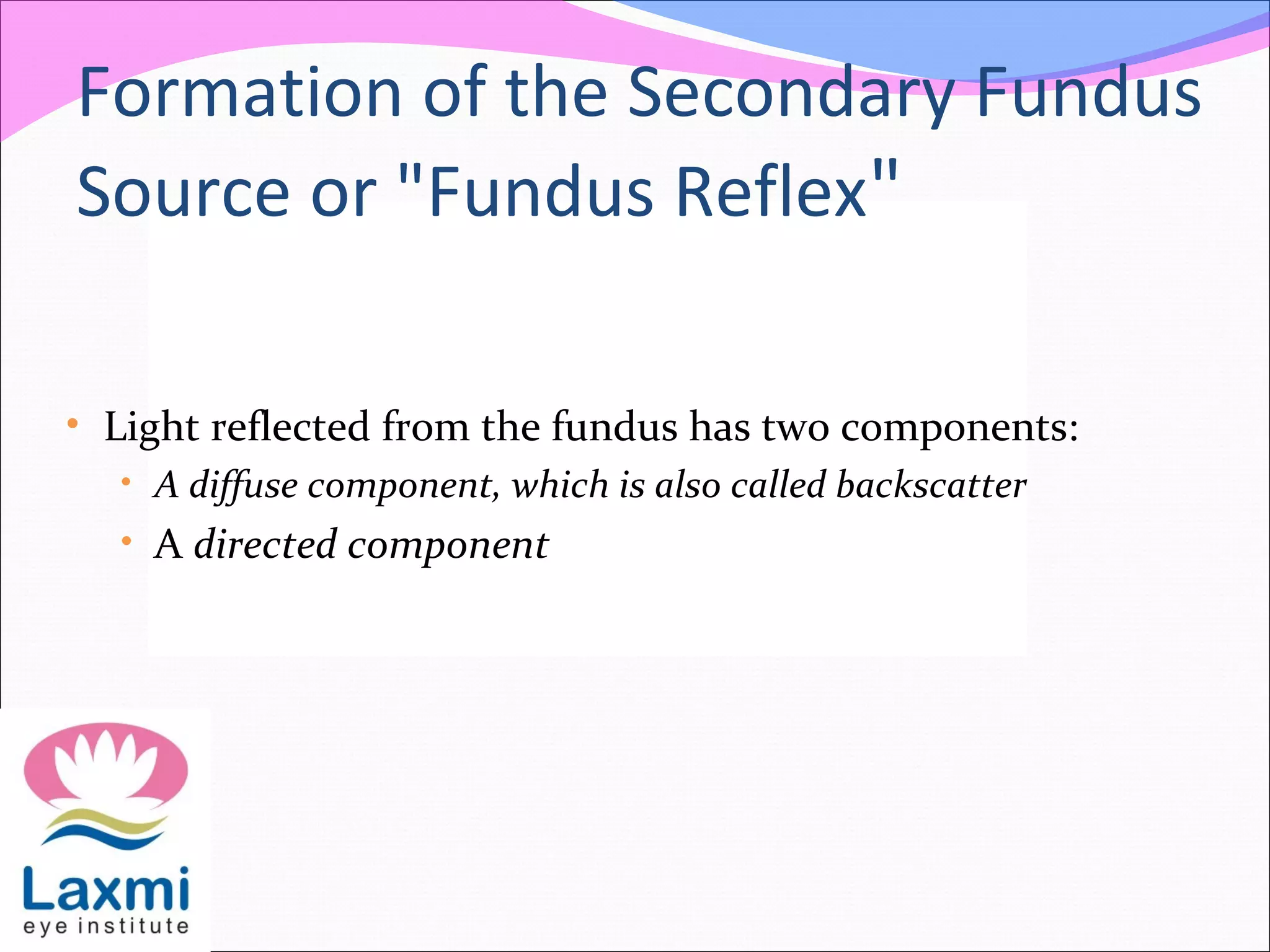

Formation of the Secondary Fundus
Source or "Fundus Reflex"
• Light reflected from the fundus has two components:
• A diffuse component, which is also called backscatter
• A directed component

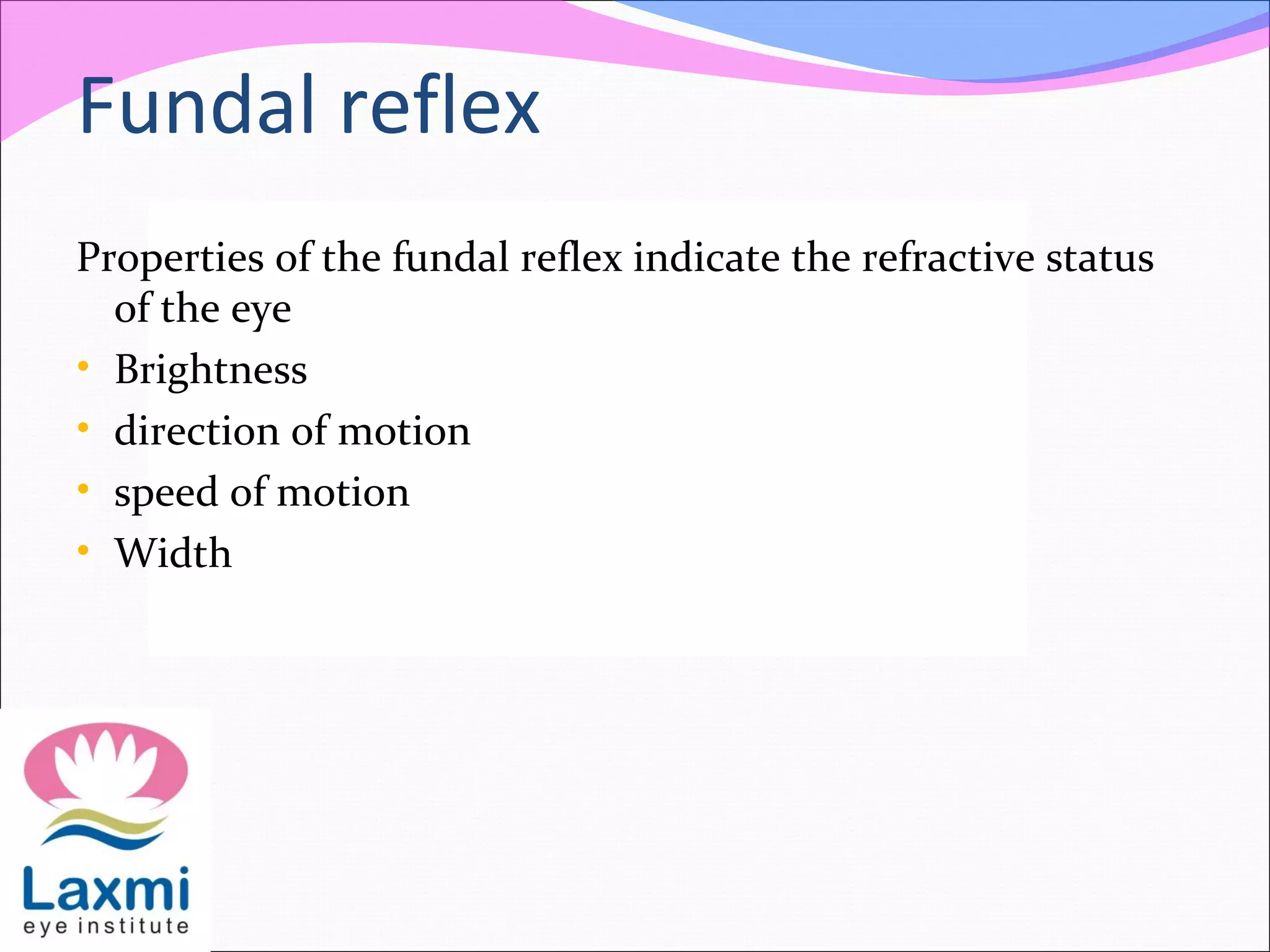

Fundal reflex
Properties of the fundal reflex indicate the refractive status
of the eye
• Brightness
• direction of motion
• speed of motion
• Width

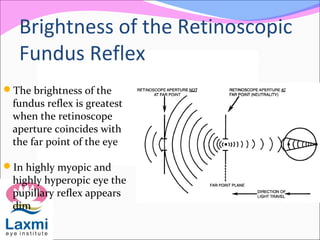

Brightness of the Retinoscopic
Fundus Reflex
The brightness of the
fundus reflex is greatest
when the retinoscope
aperture coincides with
the far point of the eye
In highly myopic and
highly hyperopic eye the
pupillary reflex appears
dim

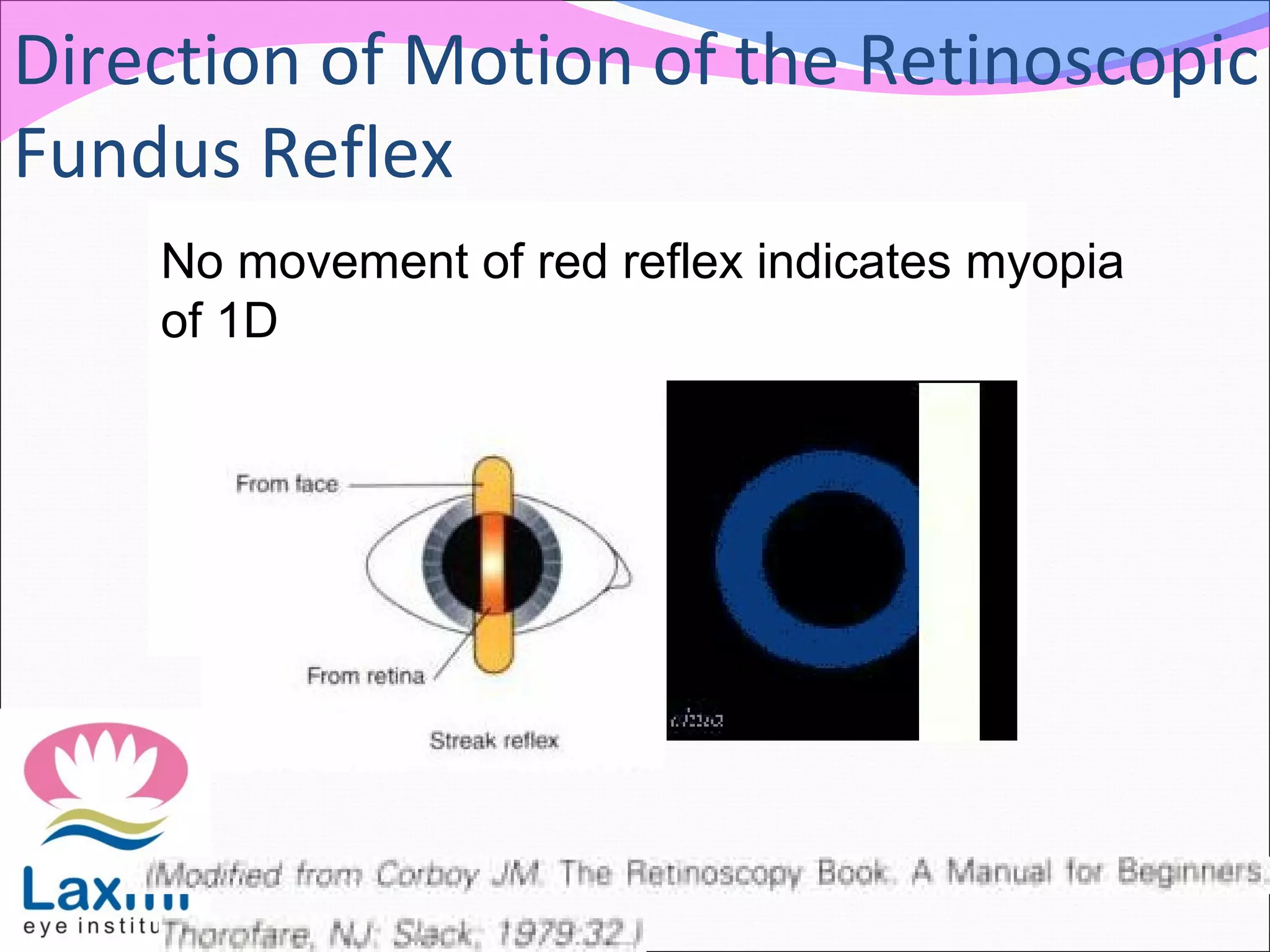

Direction of Motion of the Retinoscopic
Fundus Reflex
No movement of red reflex indicates myopia
of 1D
Contd..

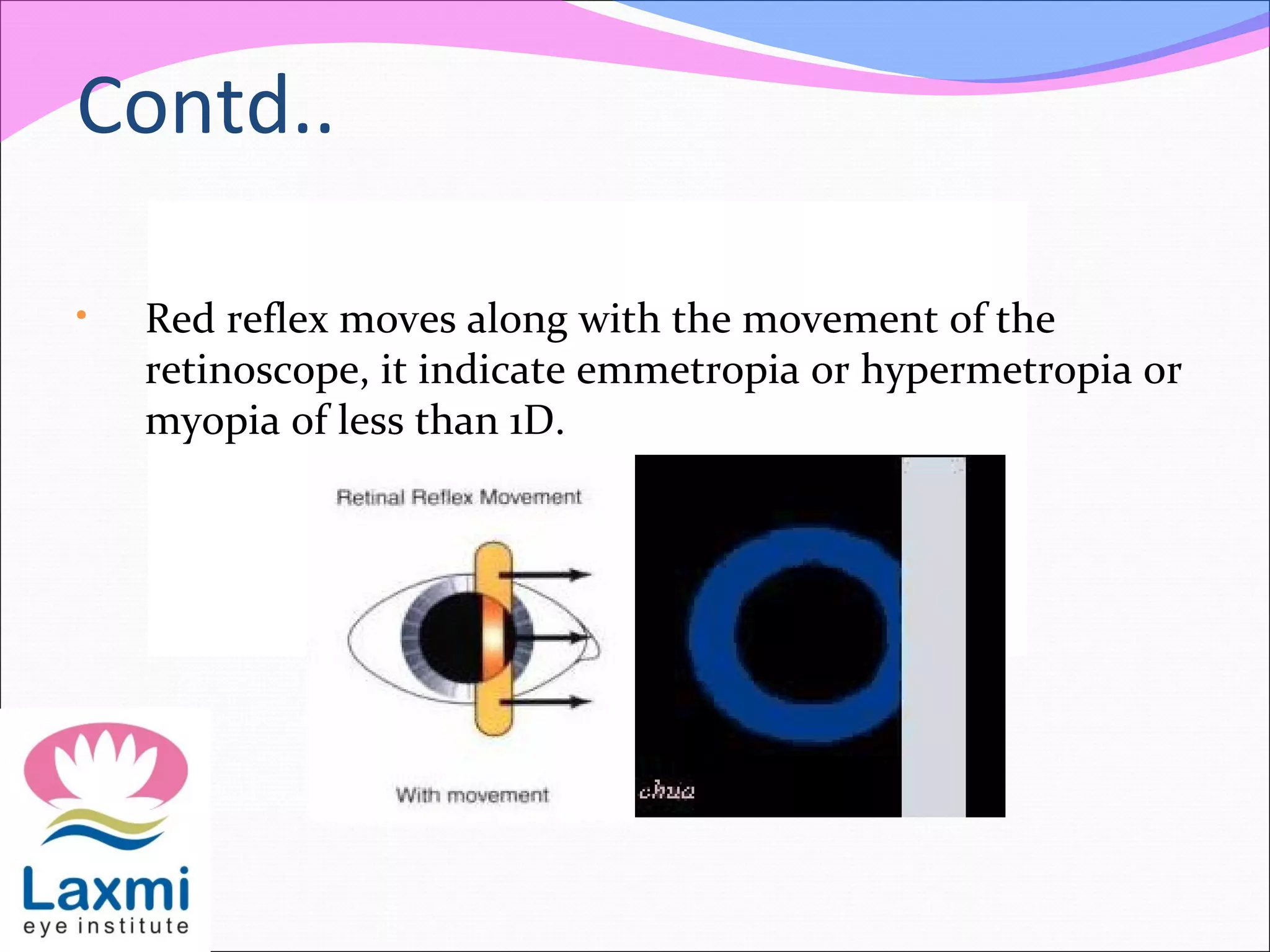

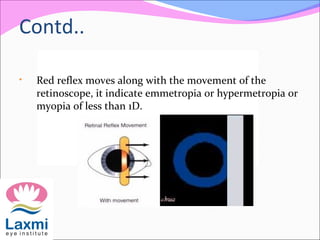

• Red reflex moves along with the movement of the
retinoscope, it indicate emmetropia or hypermetropia or
myopia of less than 1D.
Contd..

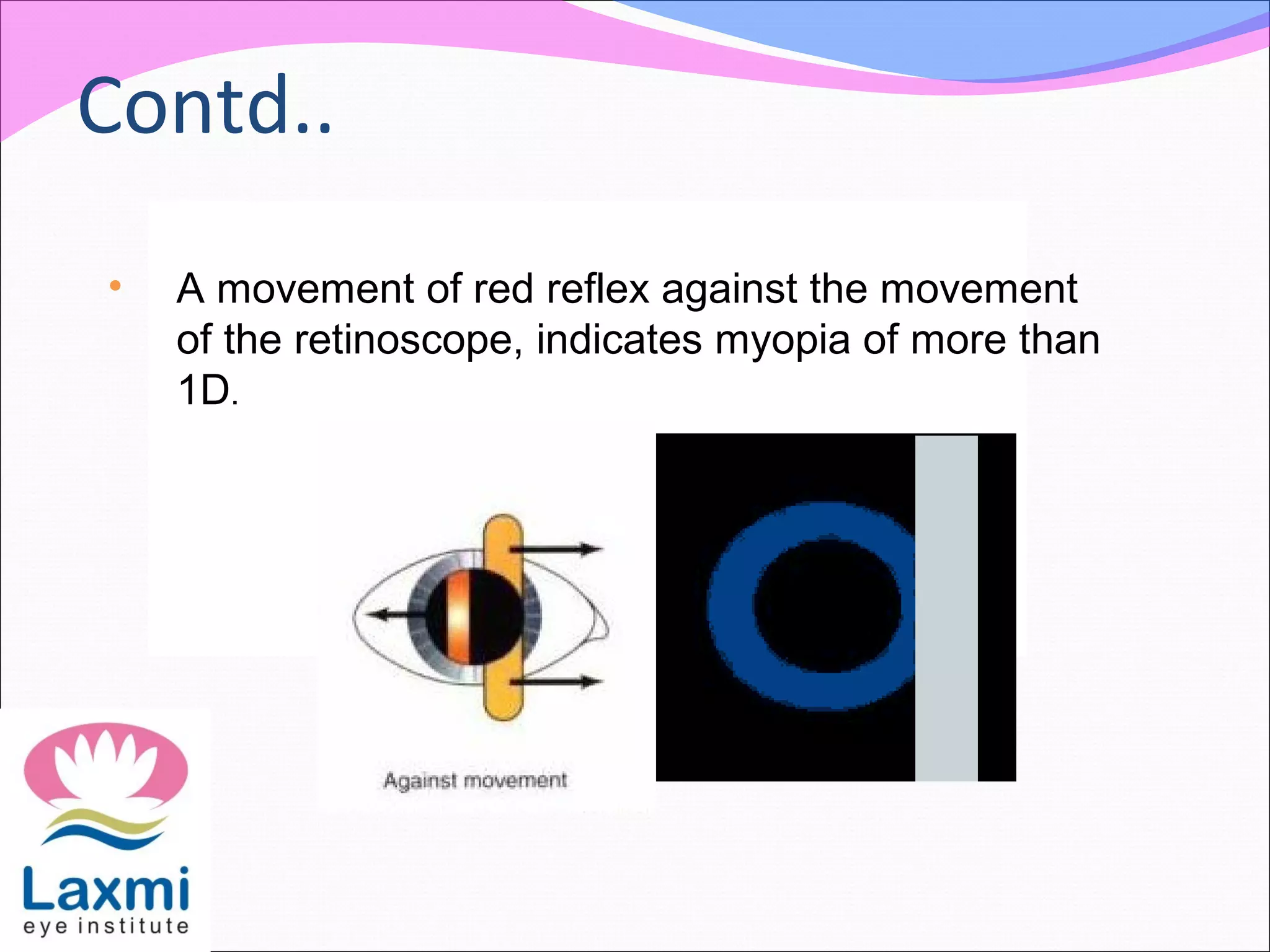

• A movement of red reflex against the movement
of the retinoscope, indicates myopia of more than
1D.

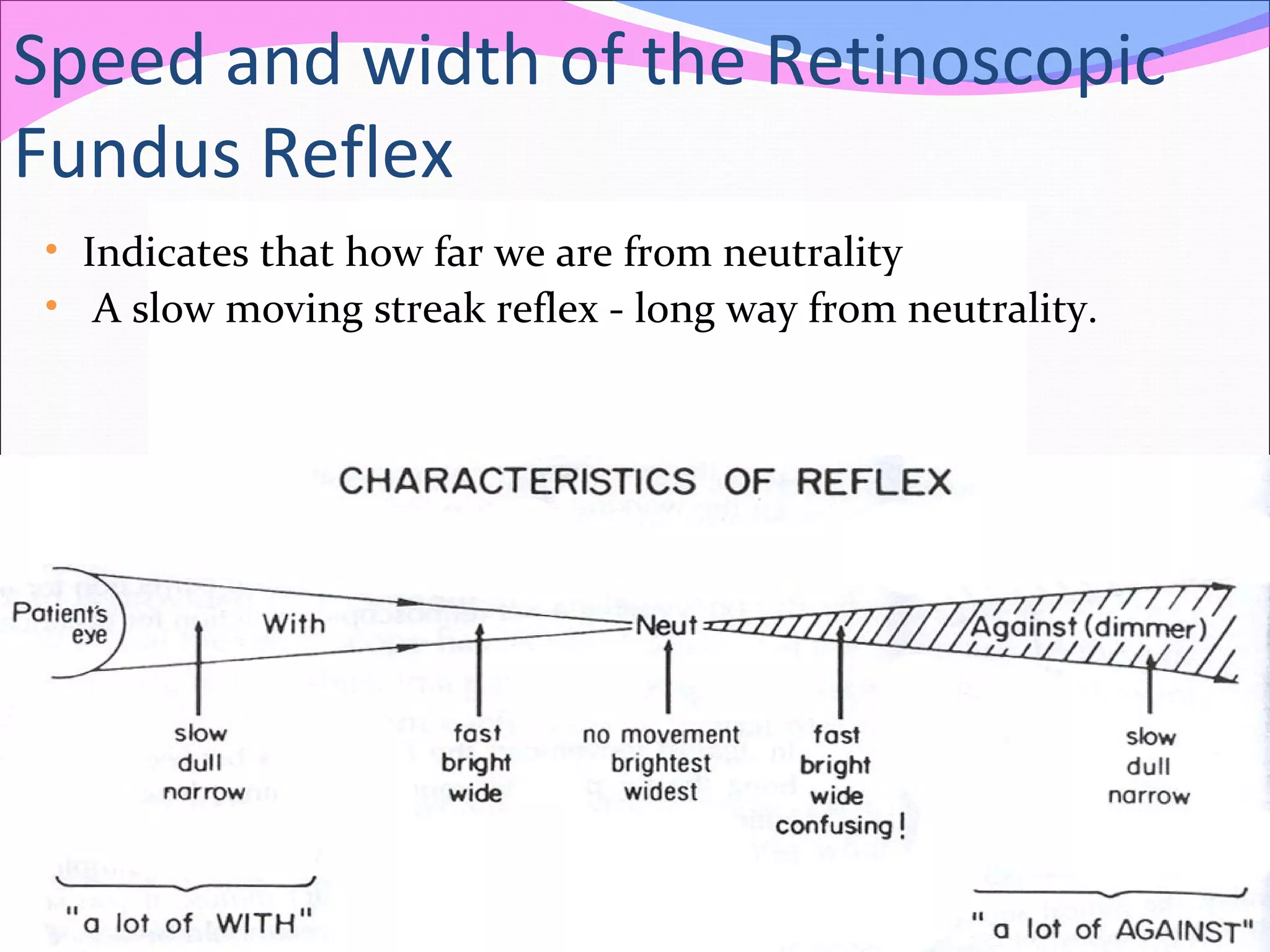

Speed and width of the Retinoscopic
Fundus Reflex
• Indicates that how far we are from neutrality
• A slow moving streak reflex - long way from neutrality.

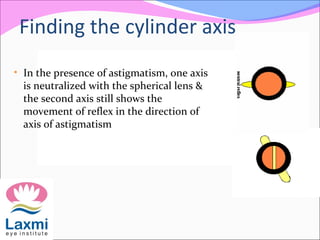

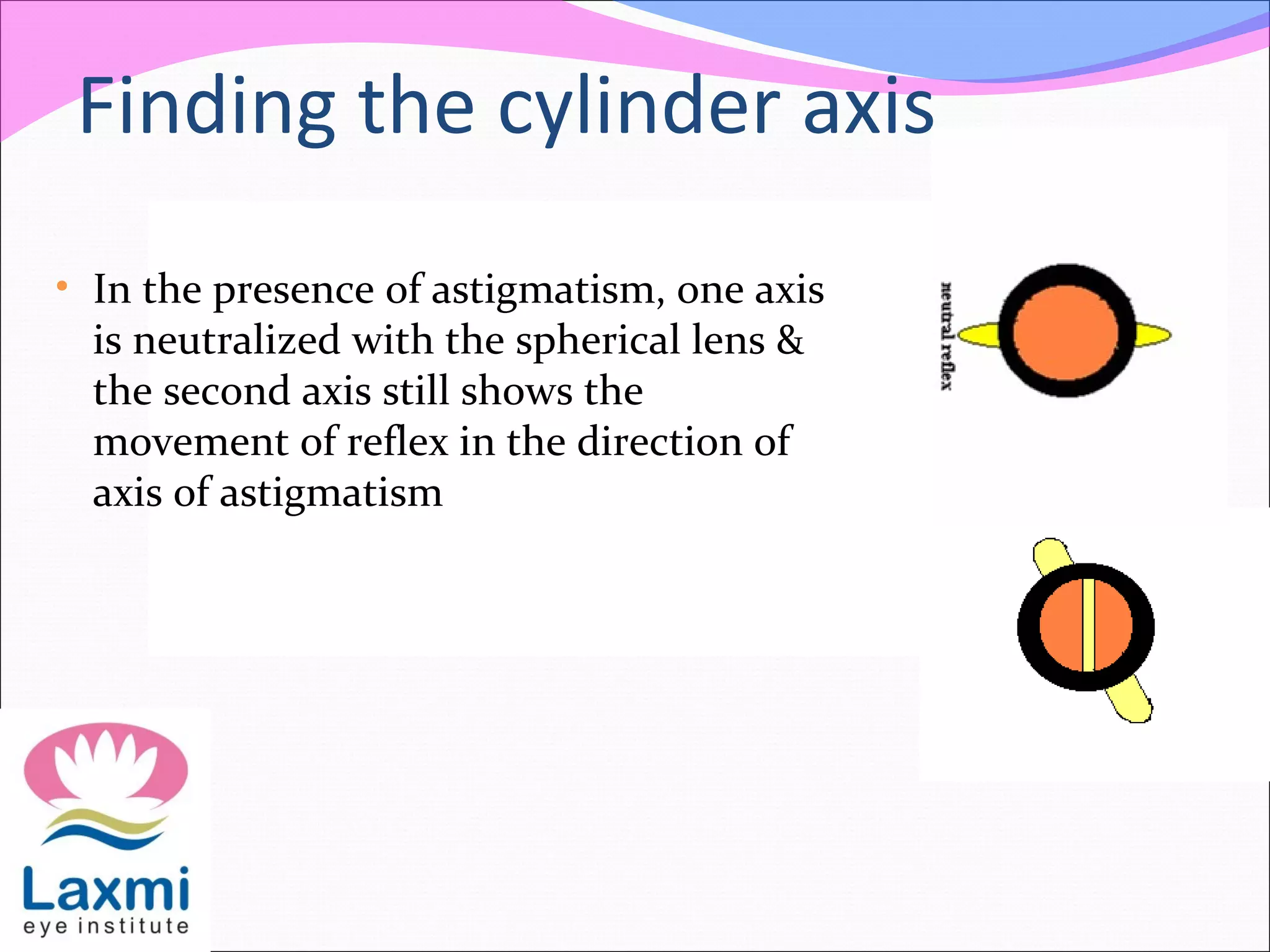

Finding the cylinder axis
• In the presence of astigmatism, one axis
is neutralized with the spherical lens &
the second axis still shows the
movement of reflex in the direction of
axis of astigmatism
Finding the cylinder axis
Break

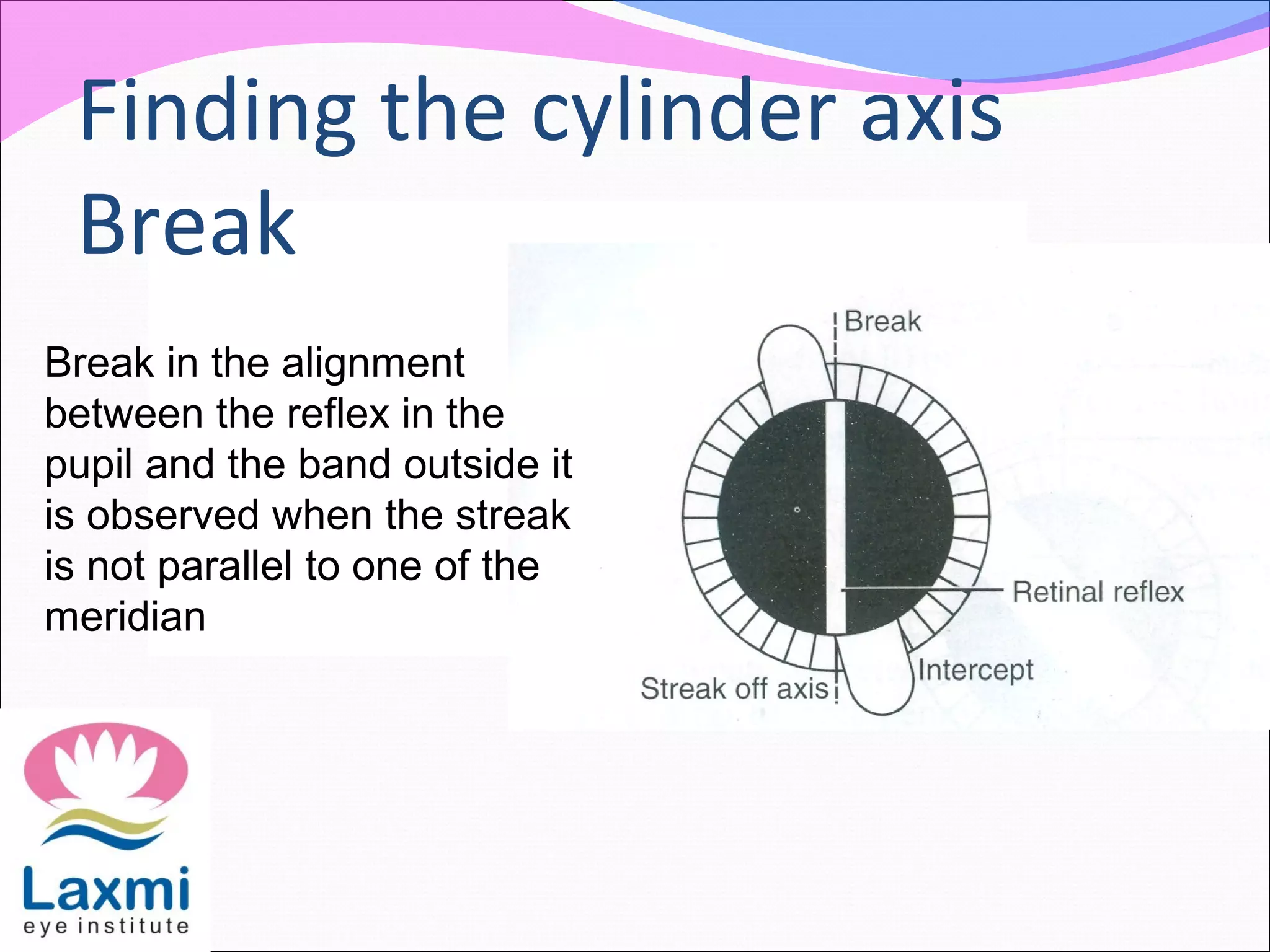

Break in the alignment
between the reflex in the
pupil and the band outside it
is observed when the streak
is not parallel to one of the
meridian

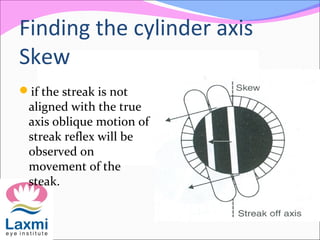

Finding the cylinder axis

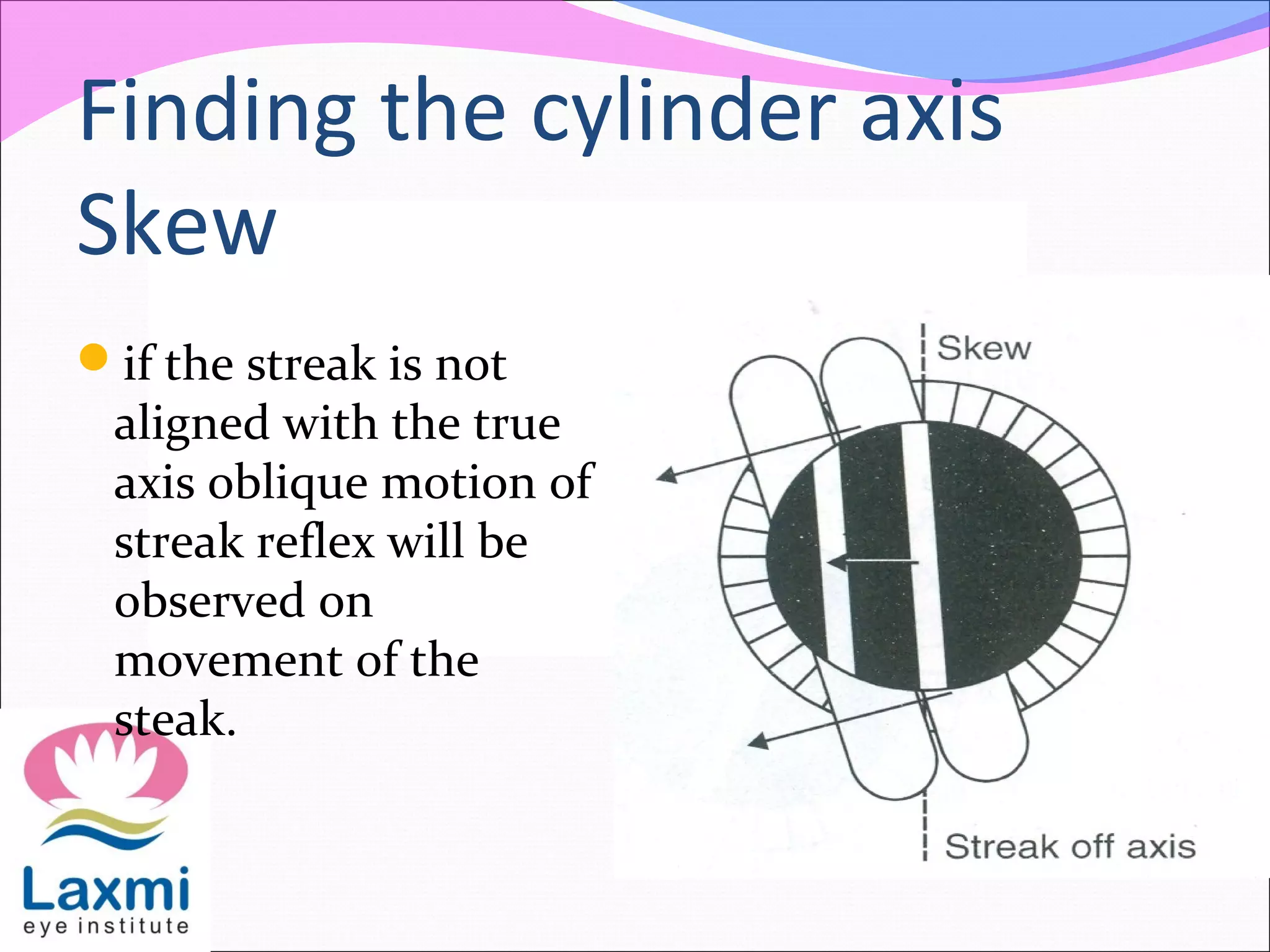

Skew
if the streak is not
aligned with the true
axis oblique motion of
streak reflex will be
observed on
movement of the
steak.

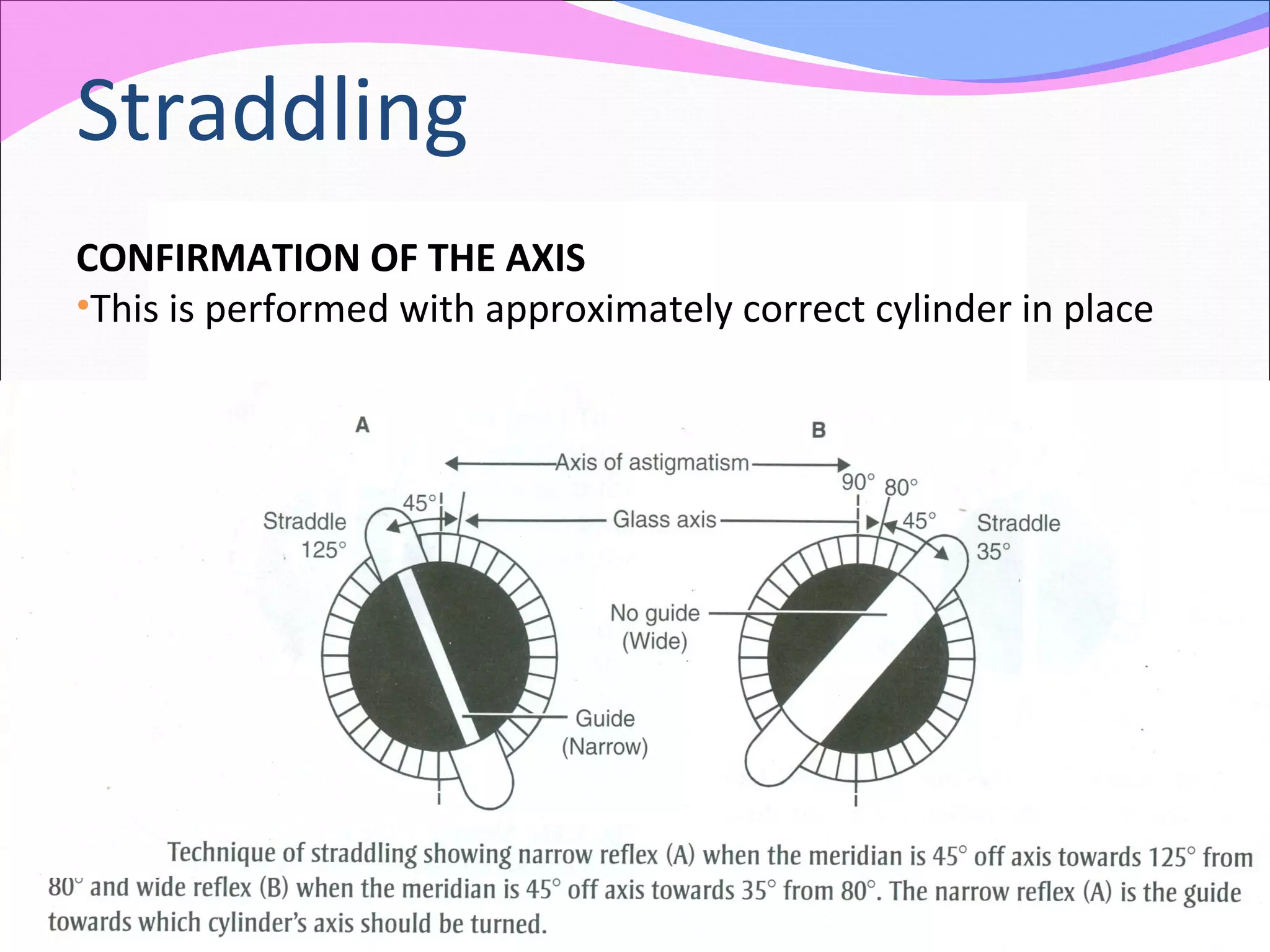

Straddling
CONFIRMATION OF THE AXIS
•This is performed with approximately correct cylinder in place

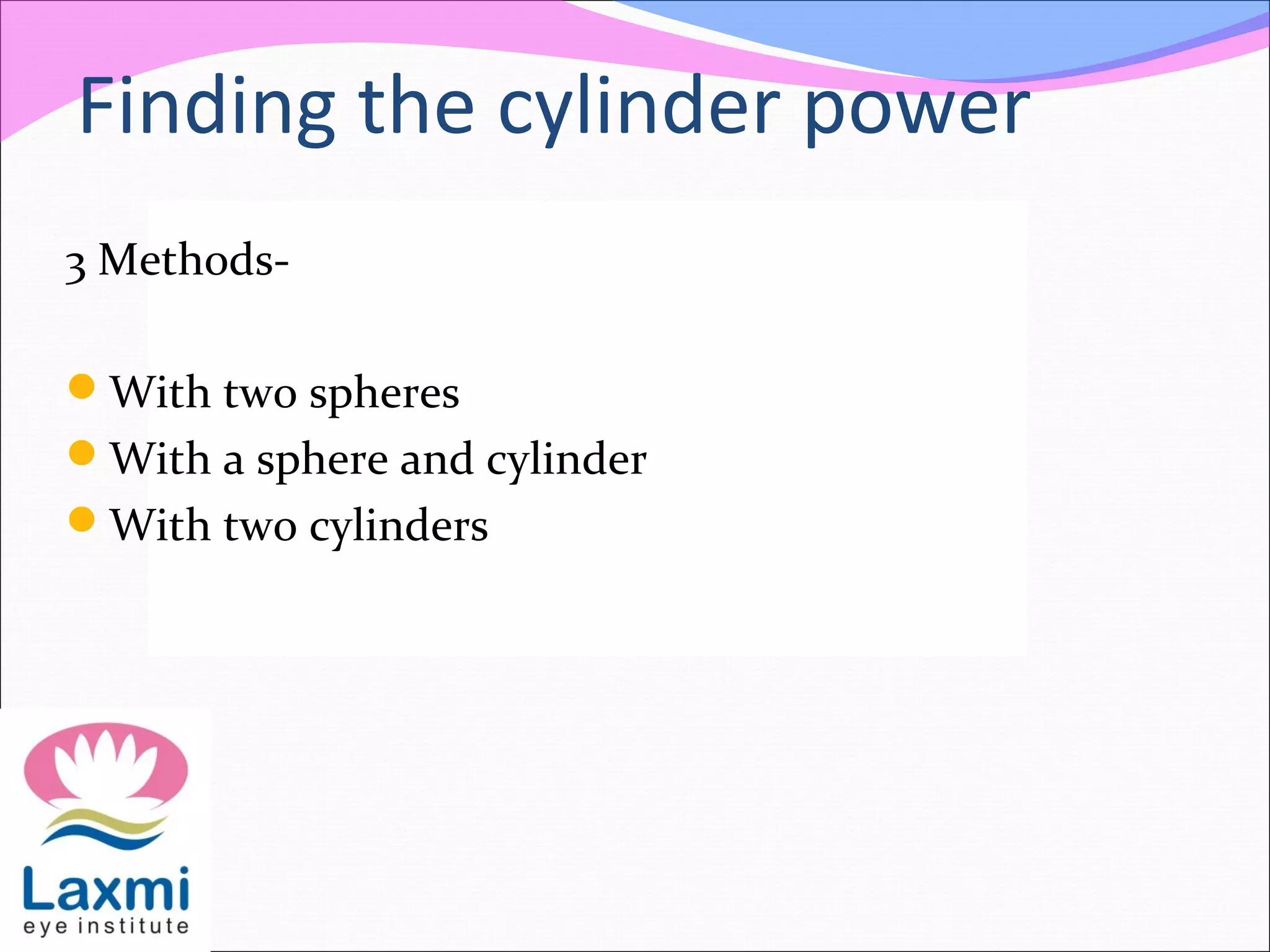

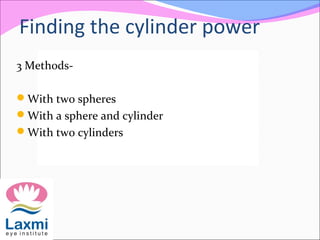

Finding the cylinder power
3 Methods-
With two spheres
With a sphere and cylinder
With two cylinders

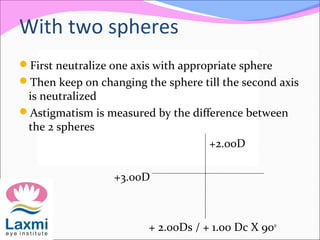

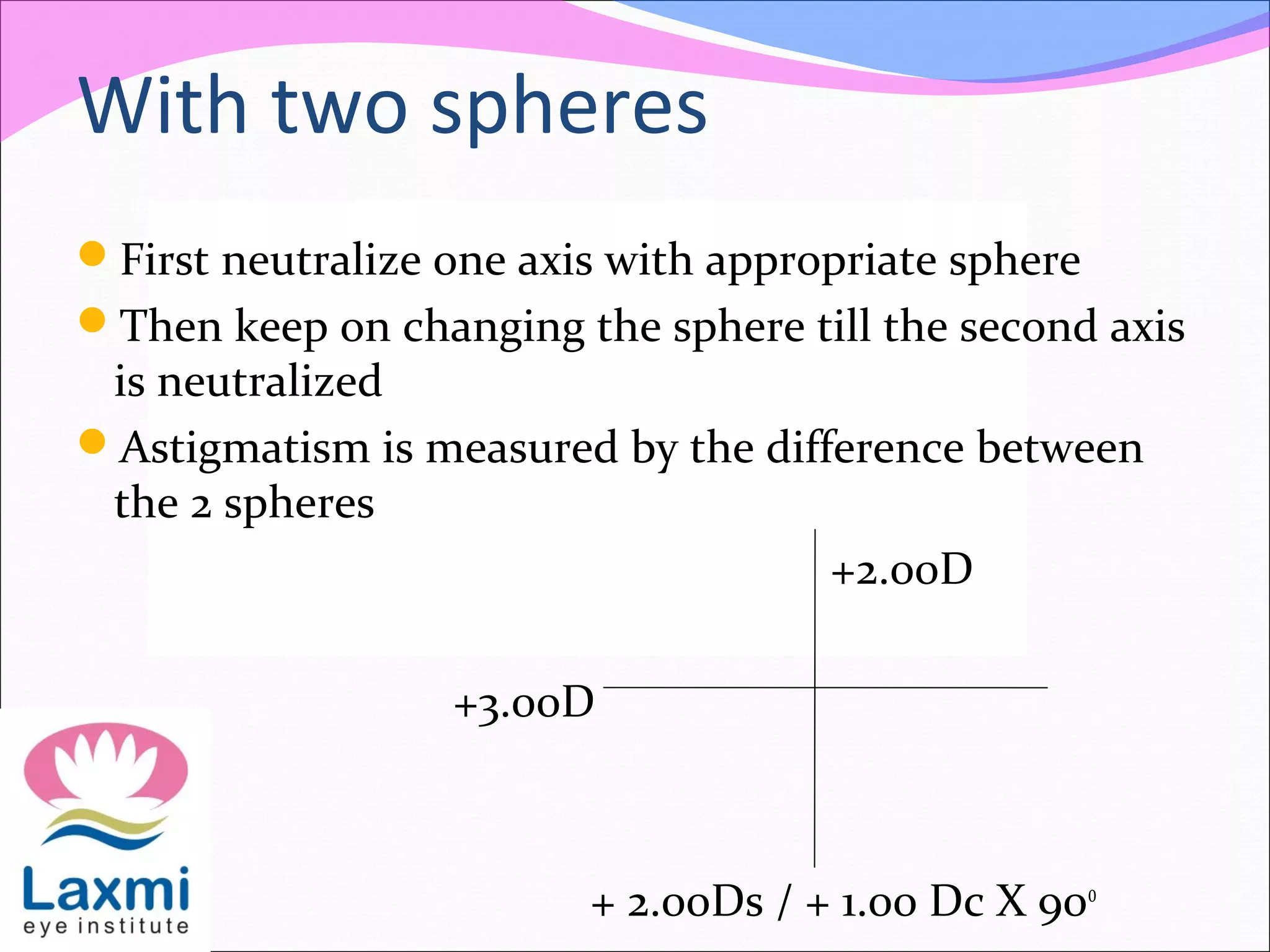

With two spheres
First neutralize one axis with appropriate sphere
Then keep on changing the sphere till the second axis
is neutralized
Astigmatism is measured by the difference between
the 2 spheres
+2.00D
+3.00D
+ 2.00Ds / + 1.00 Dc X 900

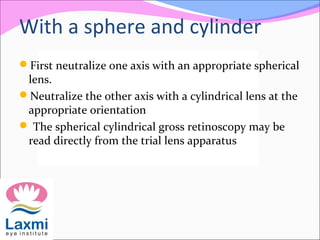

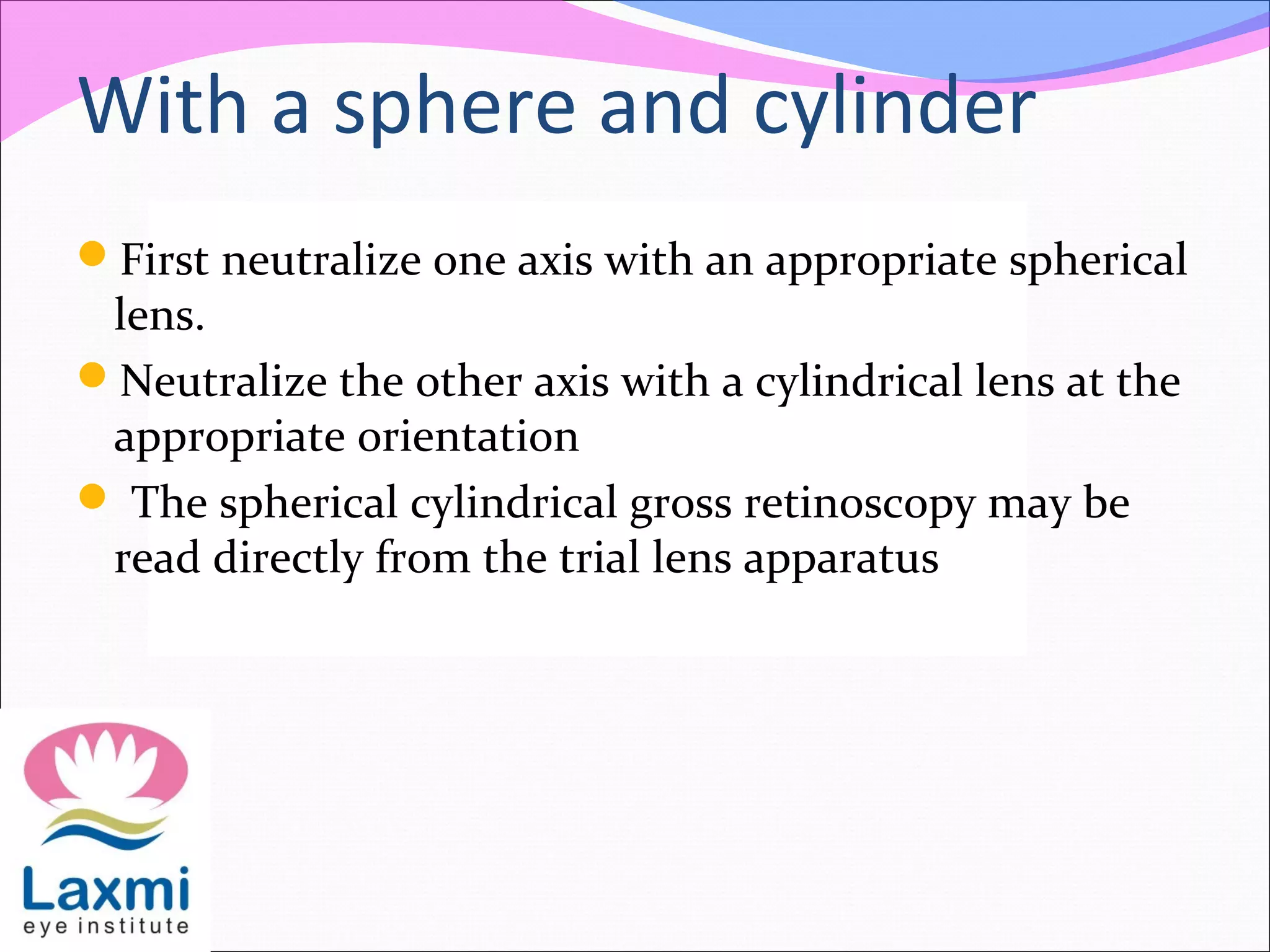

With a sphere and cylinder
First neutralize one axis with an appropriate spherical
lens.
Neutralize the other axis with a cylindrical lens at the
appropriate orientation
 The spherical cylindrical gross retinoscopy may be
read directly from the trial lens apparatus

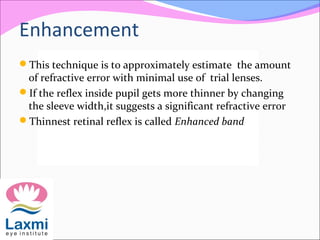

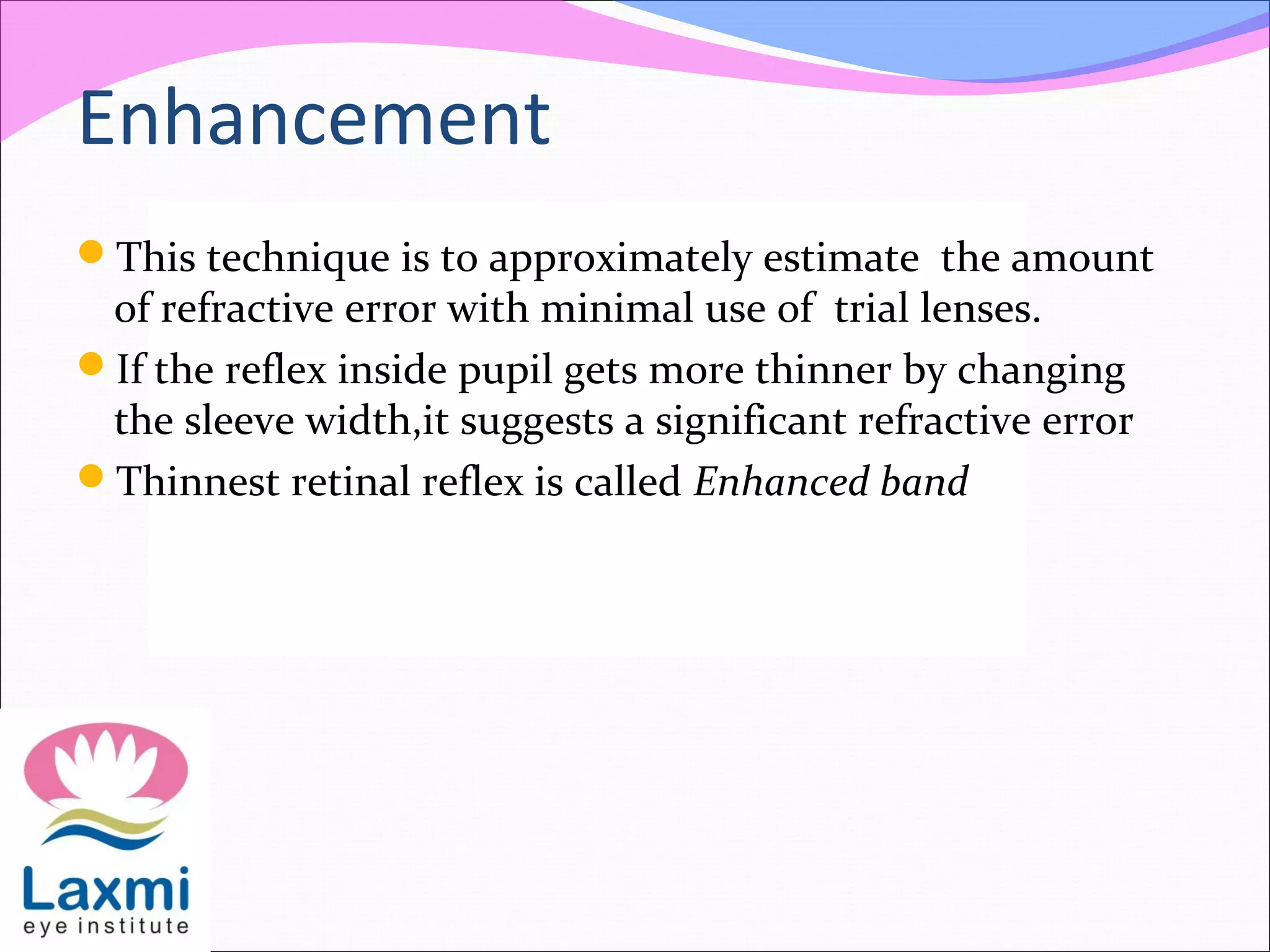

Enhancement
This technique is to approximately estimate the amount
of refractive error with minimal use of trial lenses.
If the reflex inside pupil gets more thinner by changing
the sleeve width,it suggests a significant refractive error
Thinnest retinal reflex is called Enhanced band
Enhancement

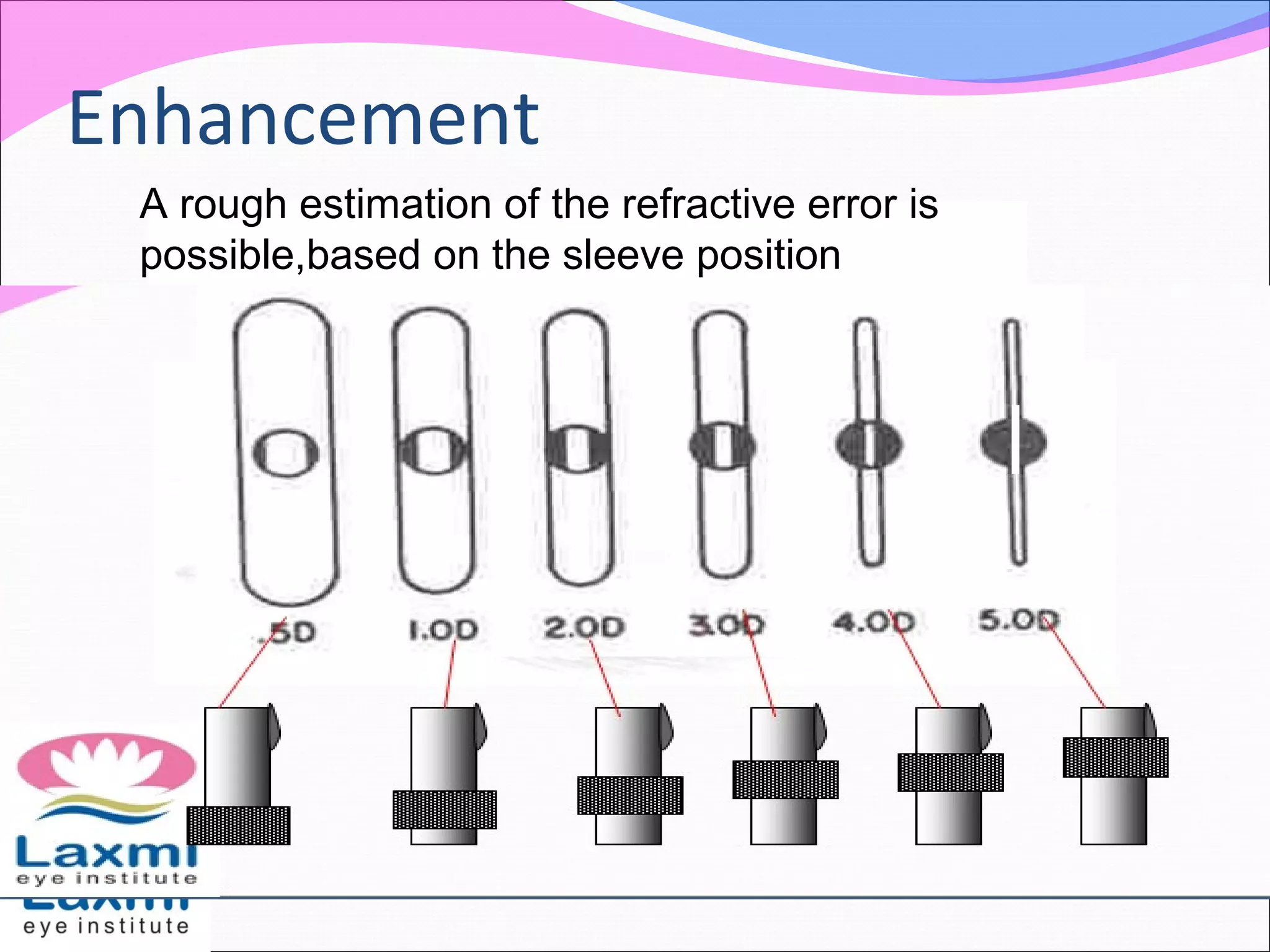

A rough estimation of the refractive error is
possible,based on the sleeve position

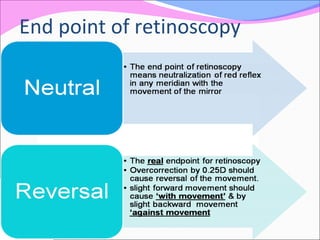

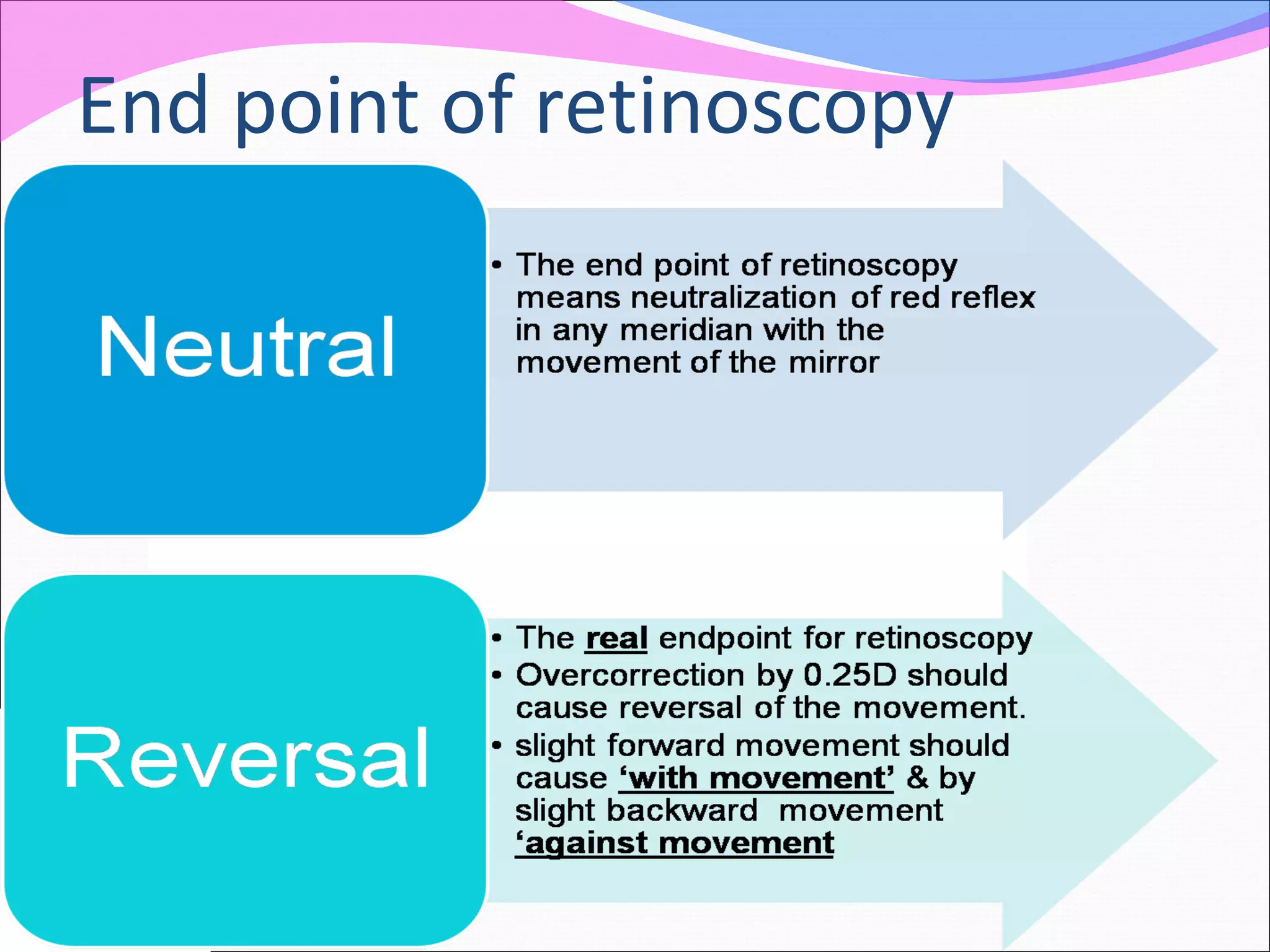

End point of retinoscopy

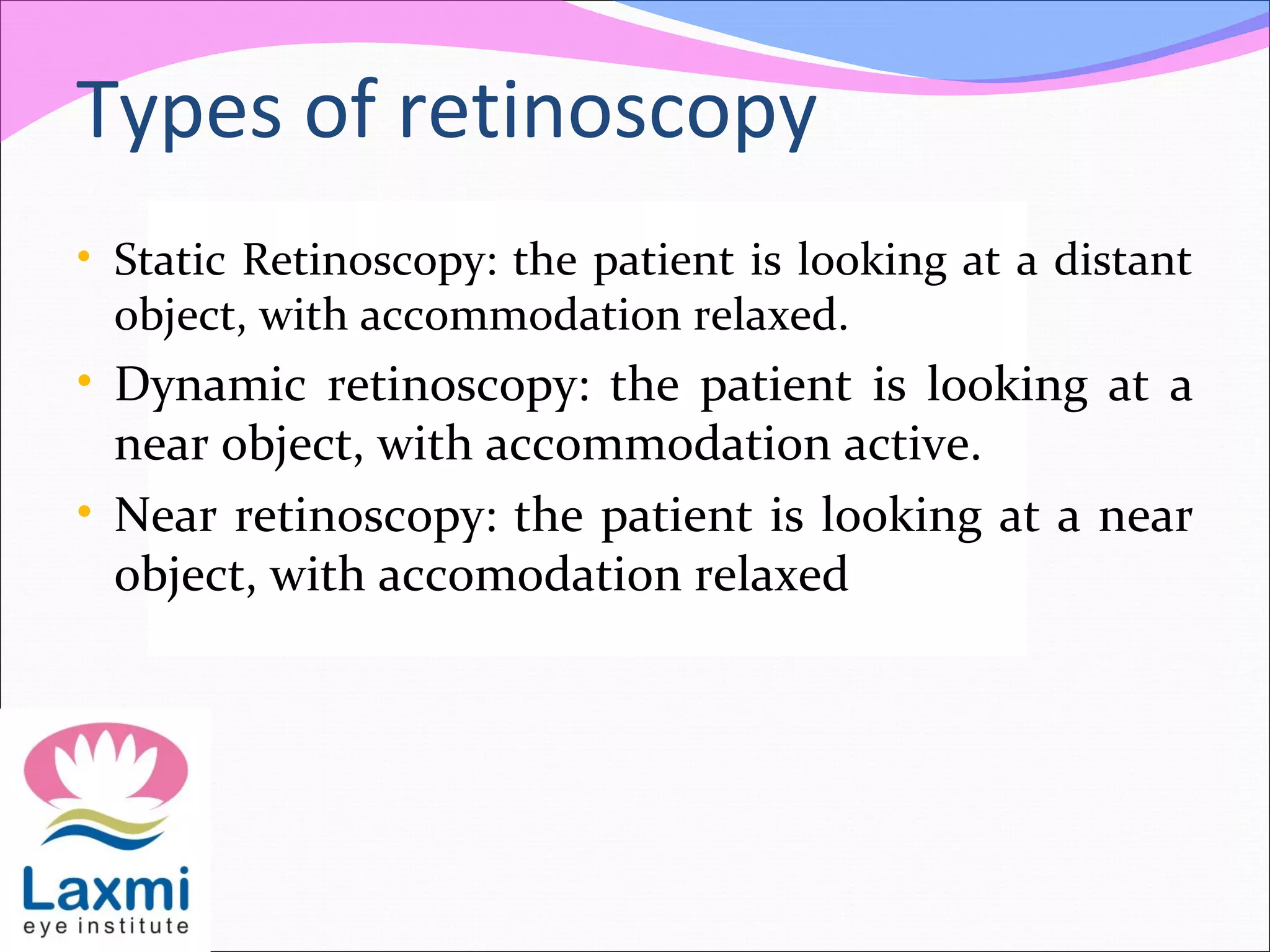

Types of retinoscopy

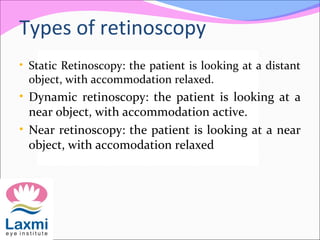

• Static Retinoscopy: the patient is looking at a distant
object, with accommodation relaxed.
• Dynamic retinoscopy: the patient is looking at a
near object, with accommodation active.
• Near retinoscopy: the patient is looking at a near
object, with accomodation relaxed

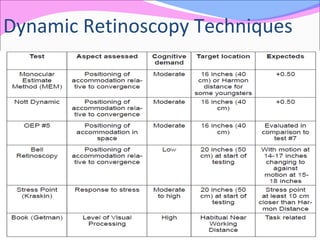

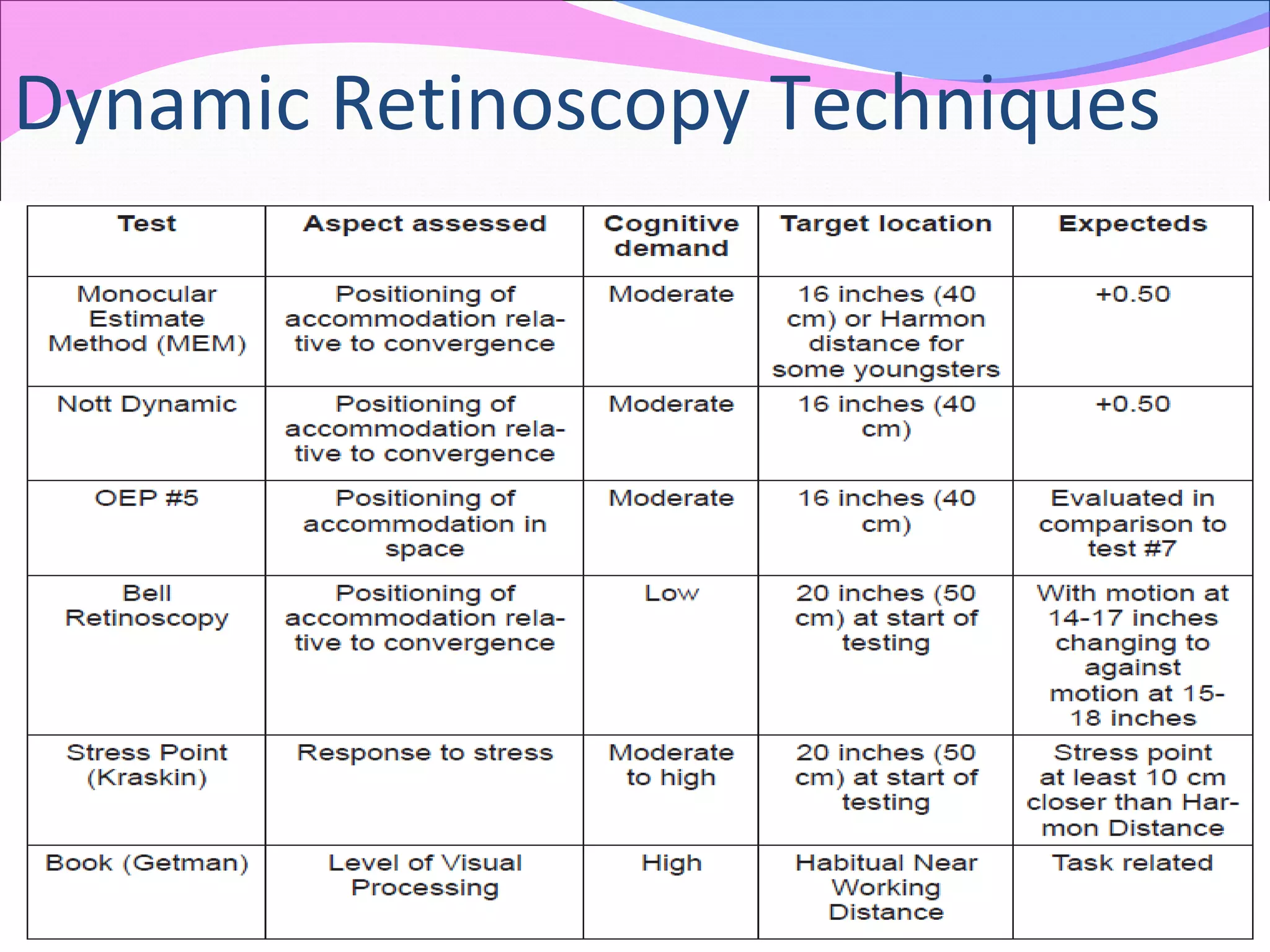

Dynamic Retinoscopy Techniques

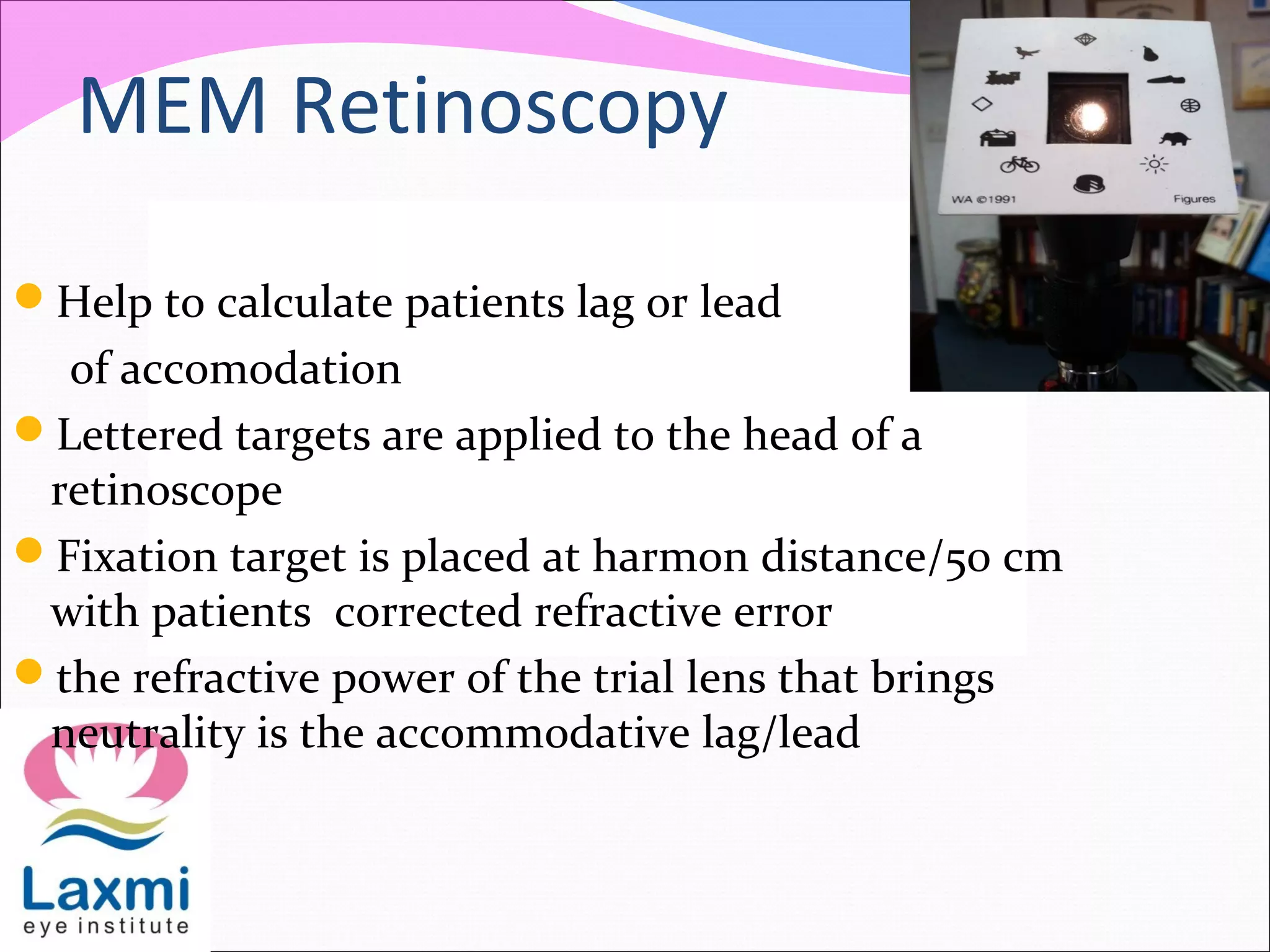

MEM Retinoscopy
Help to calculate patients lag or lead
of accomodation
Lettered targets are applied to the head of a
retinoscope
Fixation target is placed at harmon distance/50 cm
with patients corrected refractive error
the refractive power of the trial lens that brings
neutrality is the accommodative lag/lead

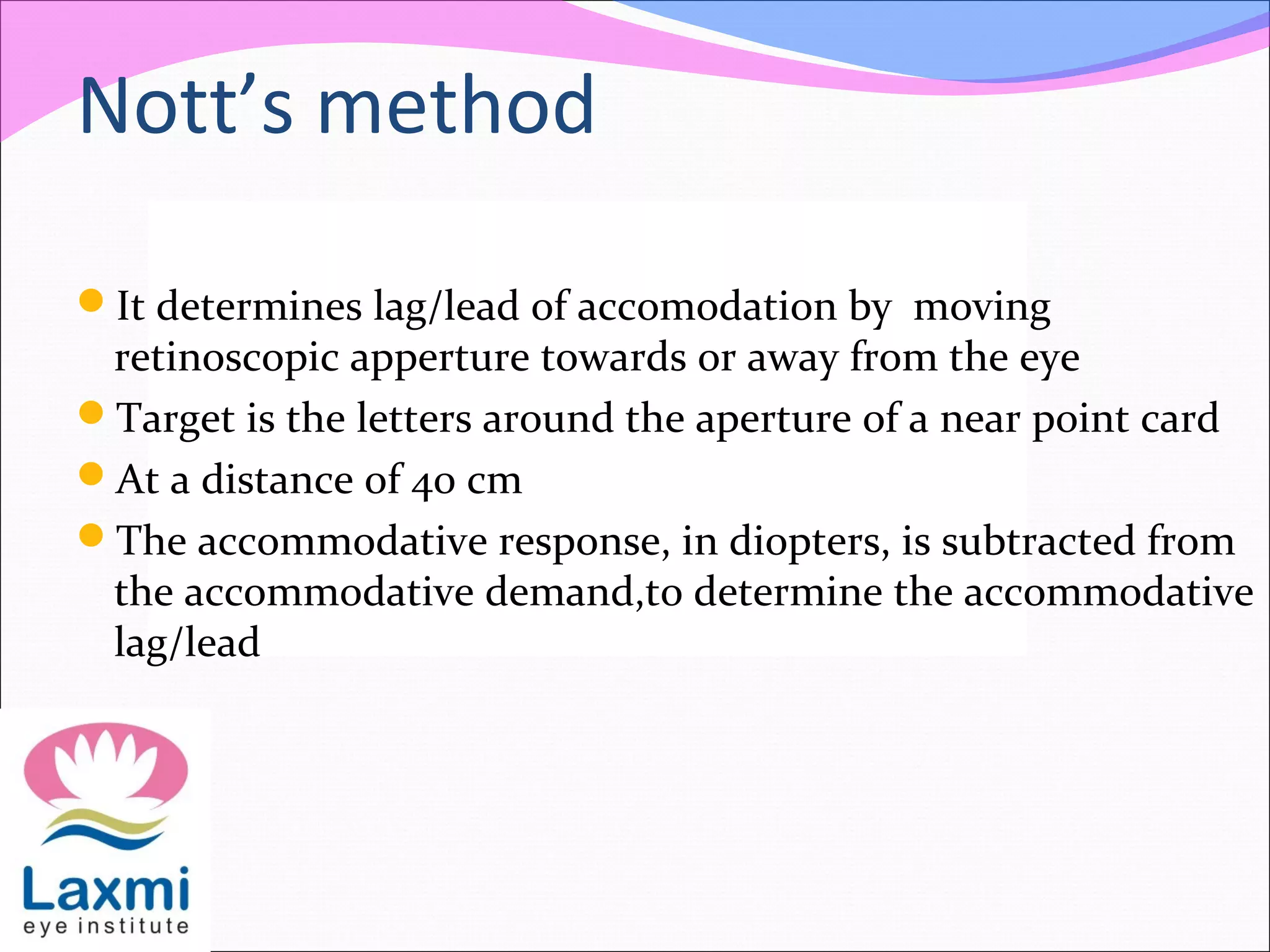

Nott’s method
It determines lag/lead of accomodation by moving
retinoscopic apperture towards or away from the eye
Target is the letters around the aperture of a near point card
At a distance of 40 cm
The accommodative response, in diopters, is subtracted from
the accommodative demand,to determine the accommodative
lag/lead

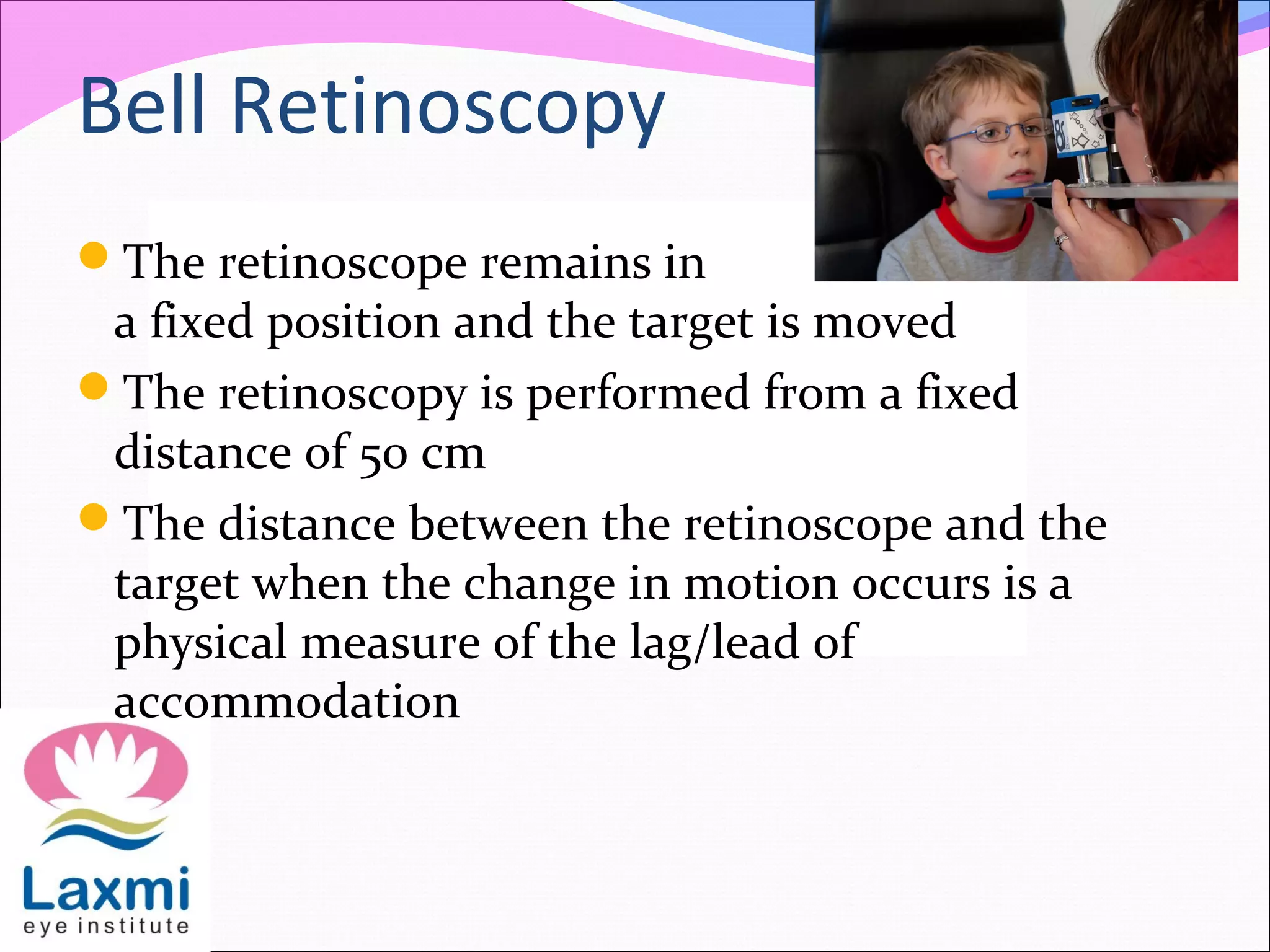

Bell Retinoscopy
The retinoscope remains in
a fixed position and the target is moved
The retinoscopy is performed from a fixed
distance of 50 cm
The distance between the retinoscope and the
target when the change in motion occurs is a
physical measure of the lag/lead of
accommodation

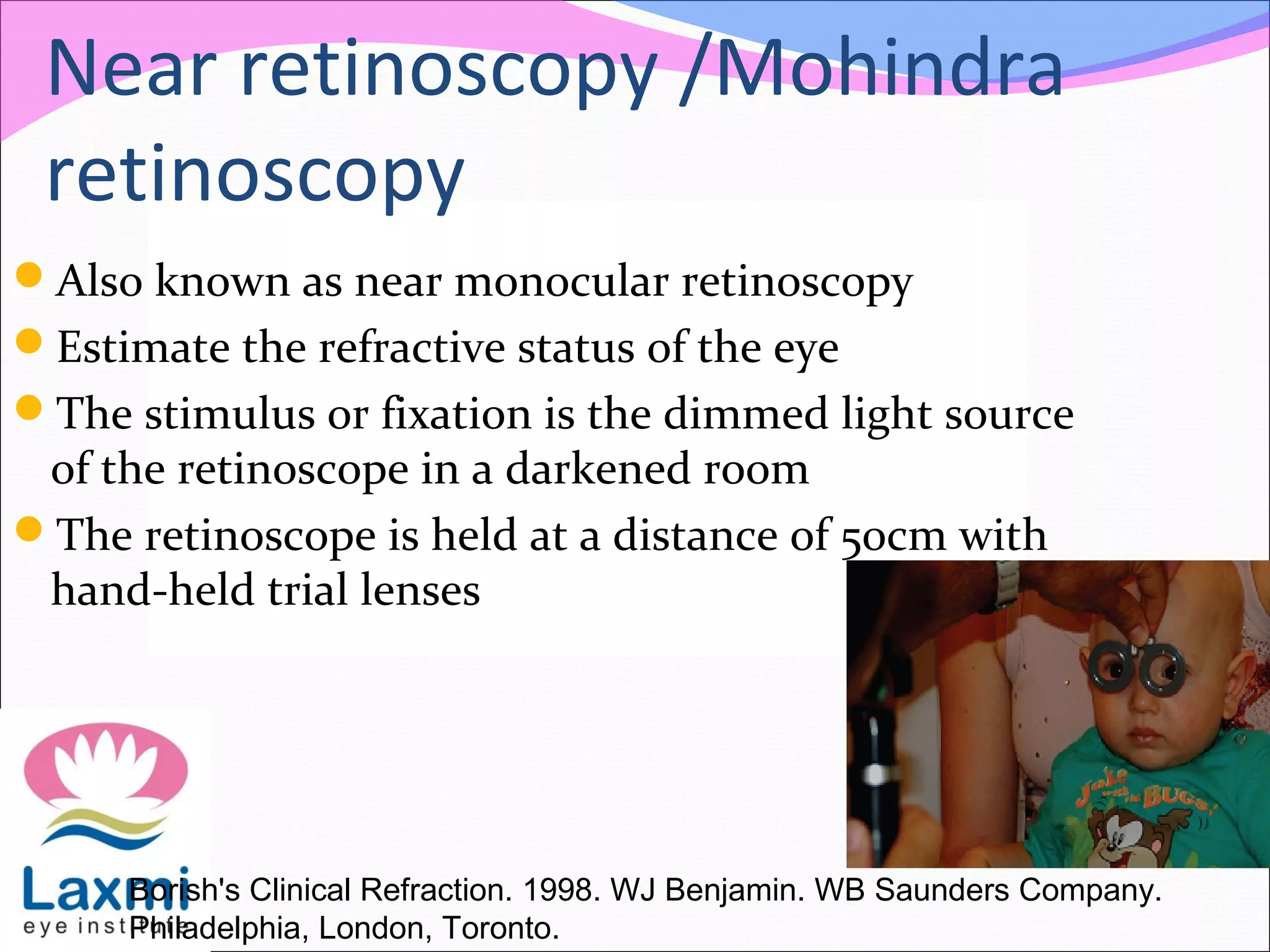

Near retinoscopy /Mohindra
retinoscopy
Also known as near monocular retinoscopy
Estimate the refractive status of the eye
The stimulus or fixation is the dimmed light source
of the retinoscope in a darkened room
The retinoscope is held at a distance of 50cm with
hand-held trial lenses
Borish's Clinical Refraction. 1998. WJ Benjamin. WB Saunders Company.
Philadelphia, London, Toronto.

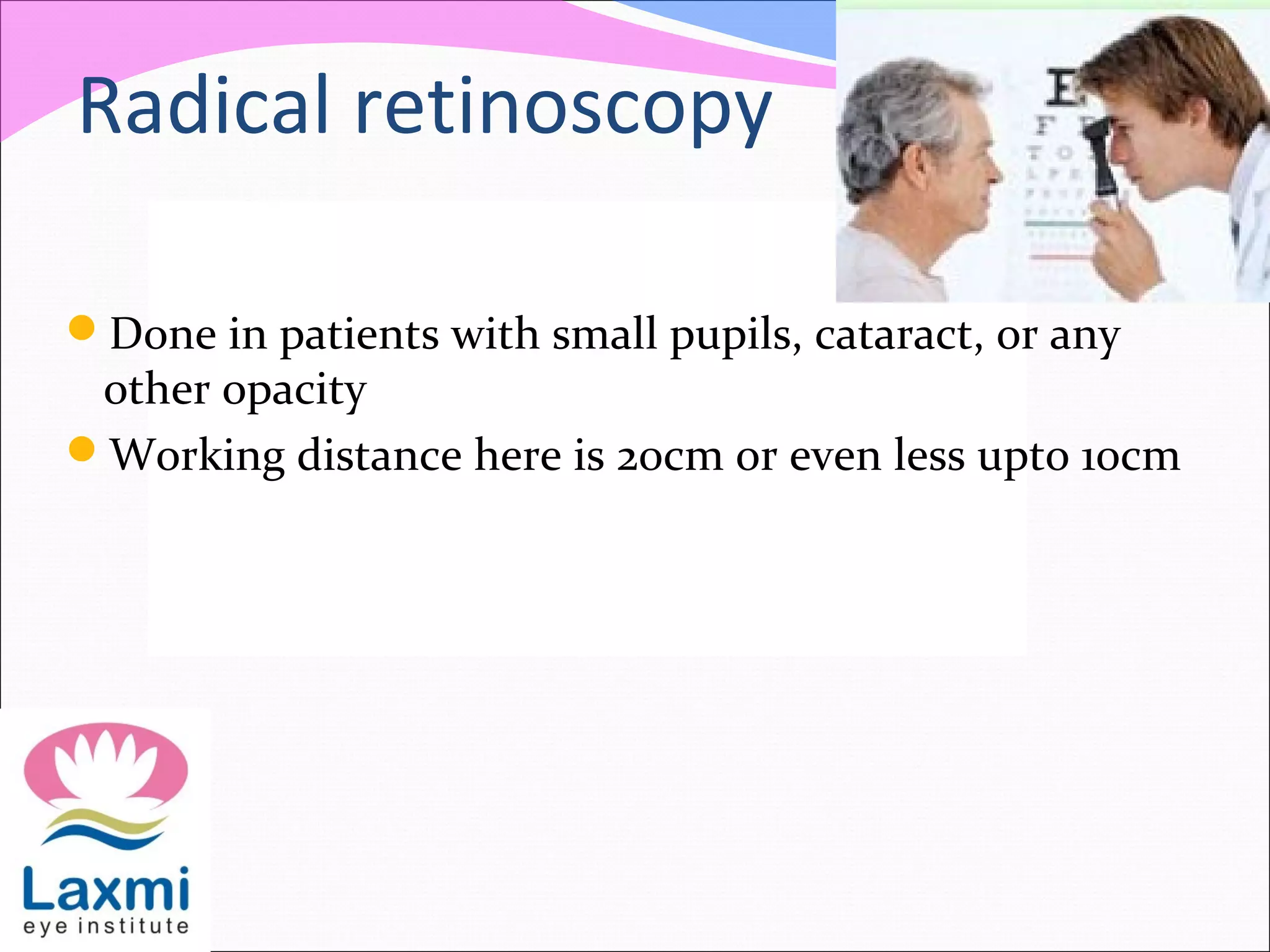

Radical retinoscopy
Done in patients with small pupils, cataract, or any
other opacity
Working distance here is 20cm or even less upto 10cm

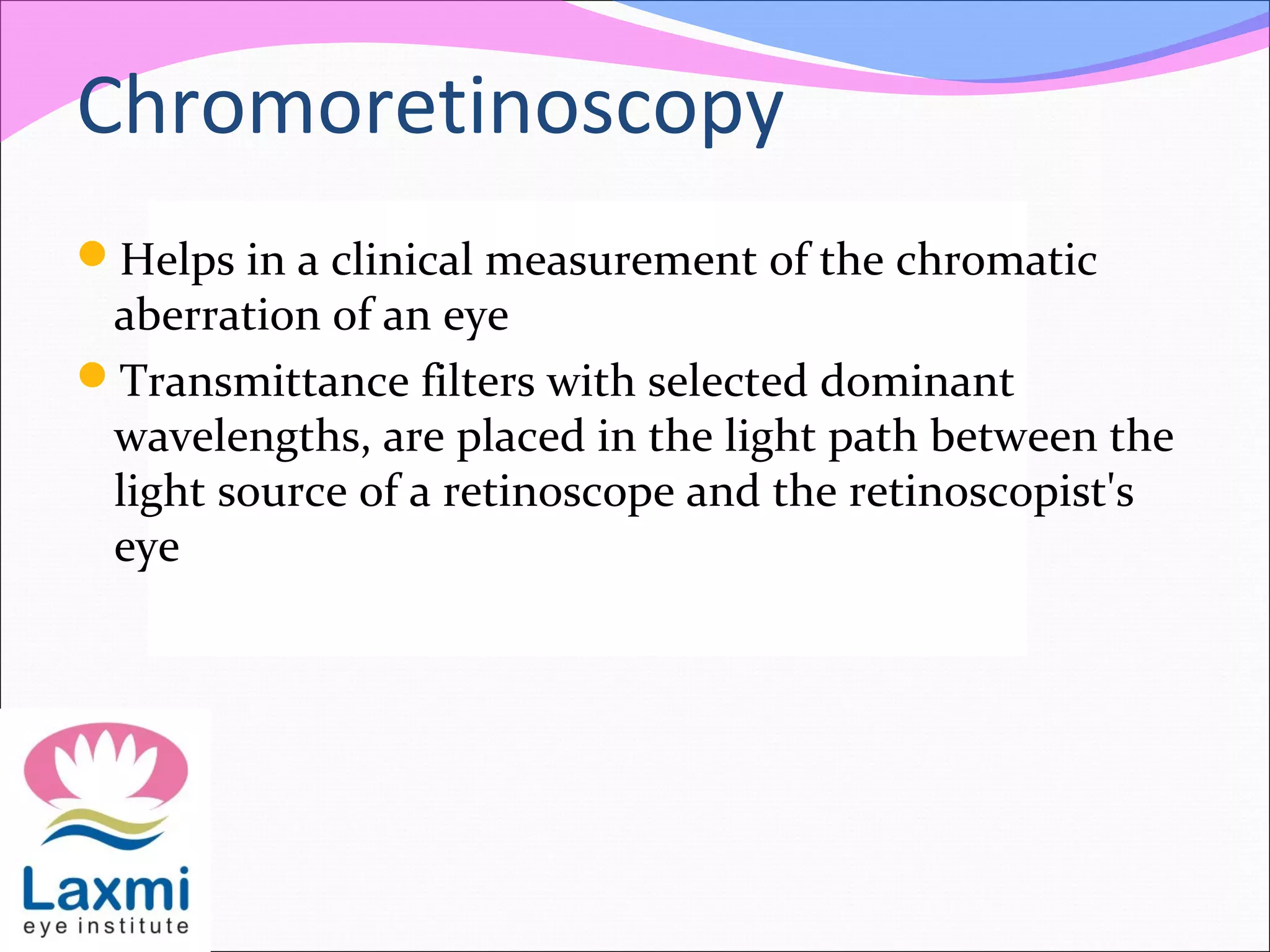

Chromoretinoscopy
Helps in a clinical measurement of the chromatic
aberration of an eye
Transmittance filters with selected dominant
wavelengths, are placed in the light path between the
light source of a retinoscope and the retinoscopist's
eye

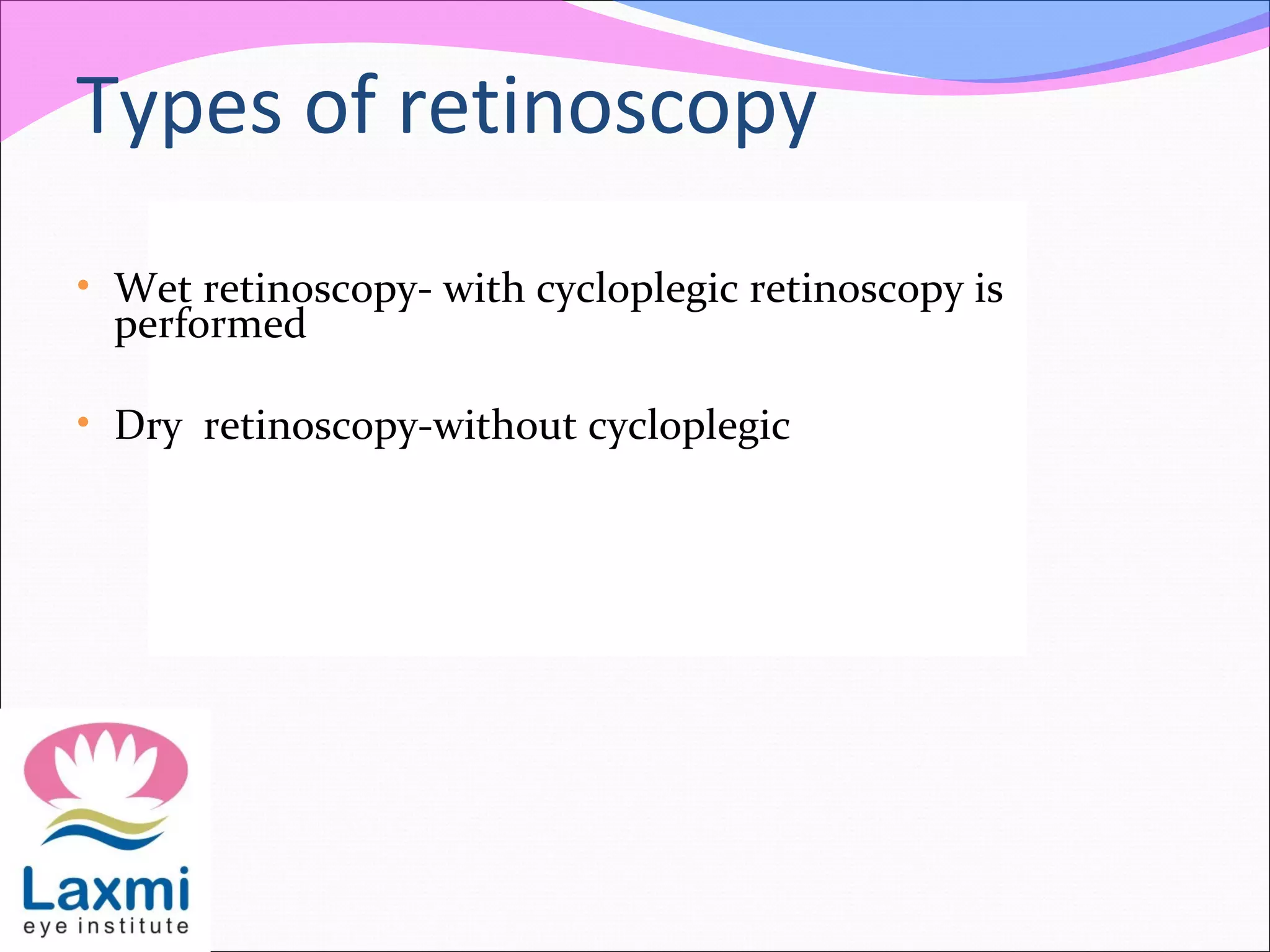

Types of retinoscopy
• Wet retinoscopy- with cycloplegic retinoscopy is
performed
• Dry retinoscopy-without cycloplegic

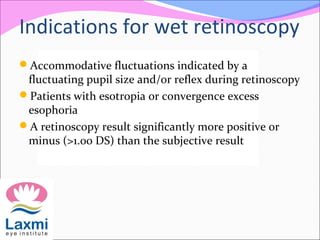

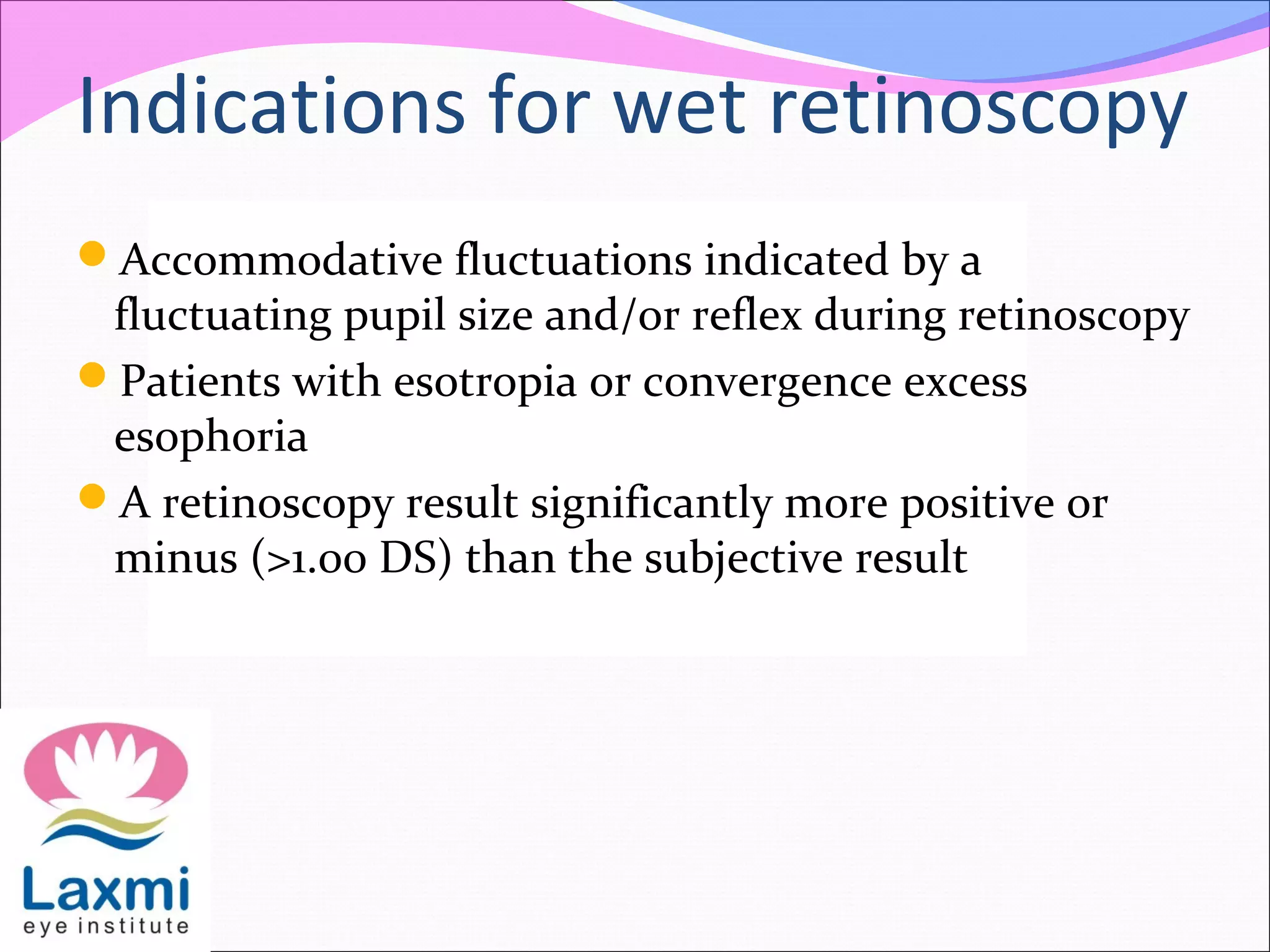

Indications for wet retinoscopy
Accommodative fluctuations indicated by a
fluctuating pupil size and/or reflex during retinoscopy
Patients with esotropia or convergence excess
esophoria
A retinoscopy result significantly more positive or
minus (>1.00 DS) than the subjective result

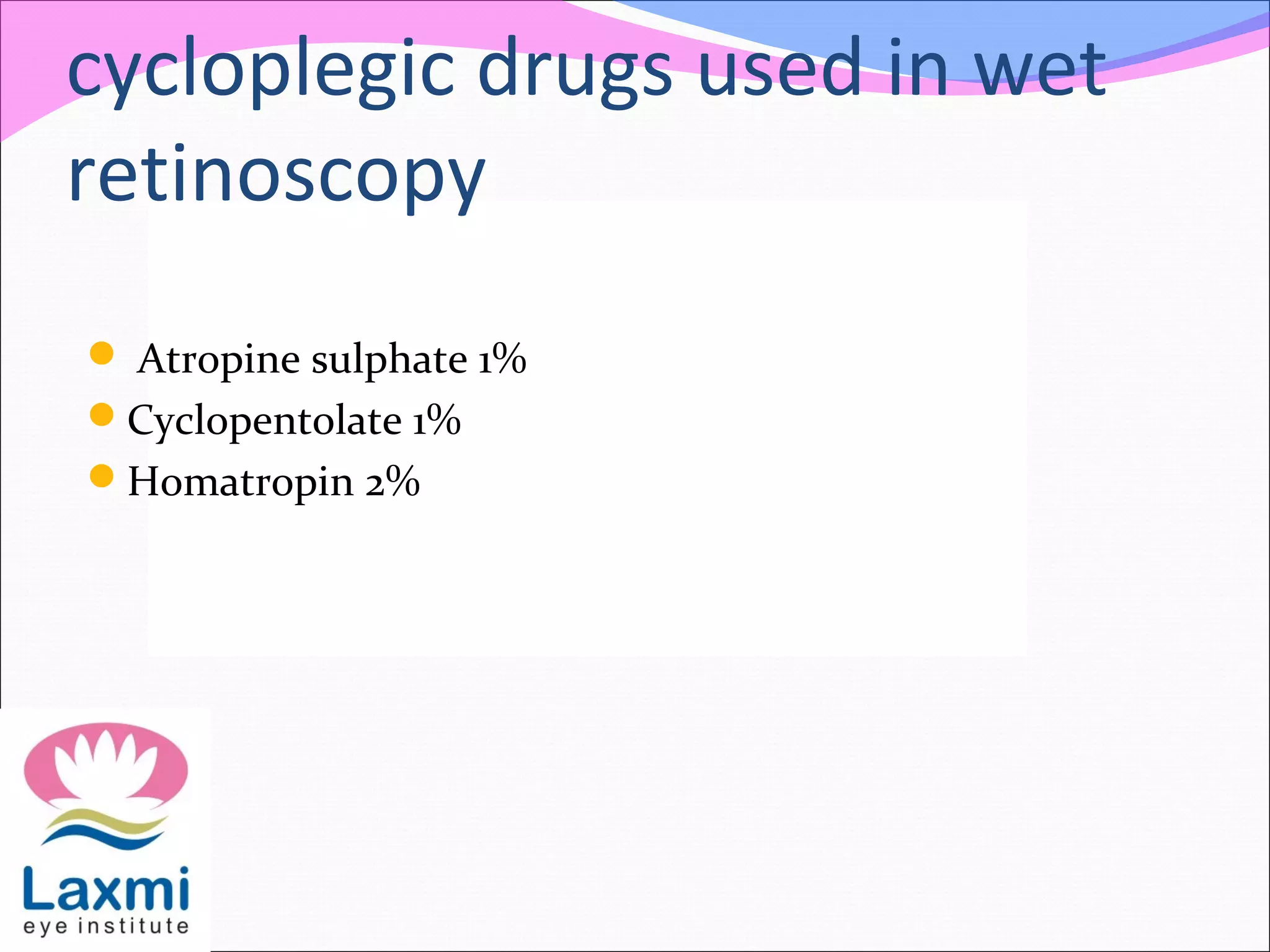

cycloplegic drugs used in wet
retinoscopy
 Atropine sulphate 1%
Cyclopentolate 1%
Homatropin 2%

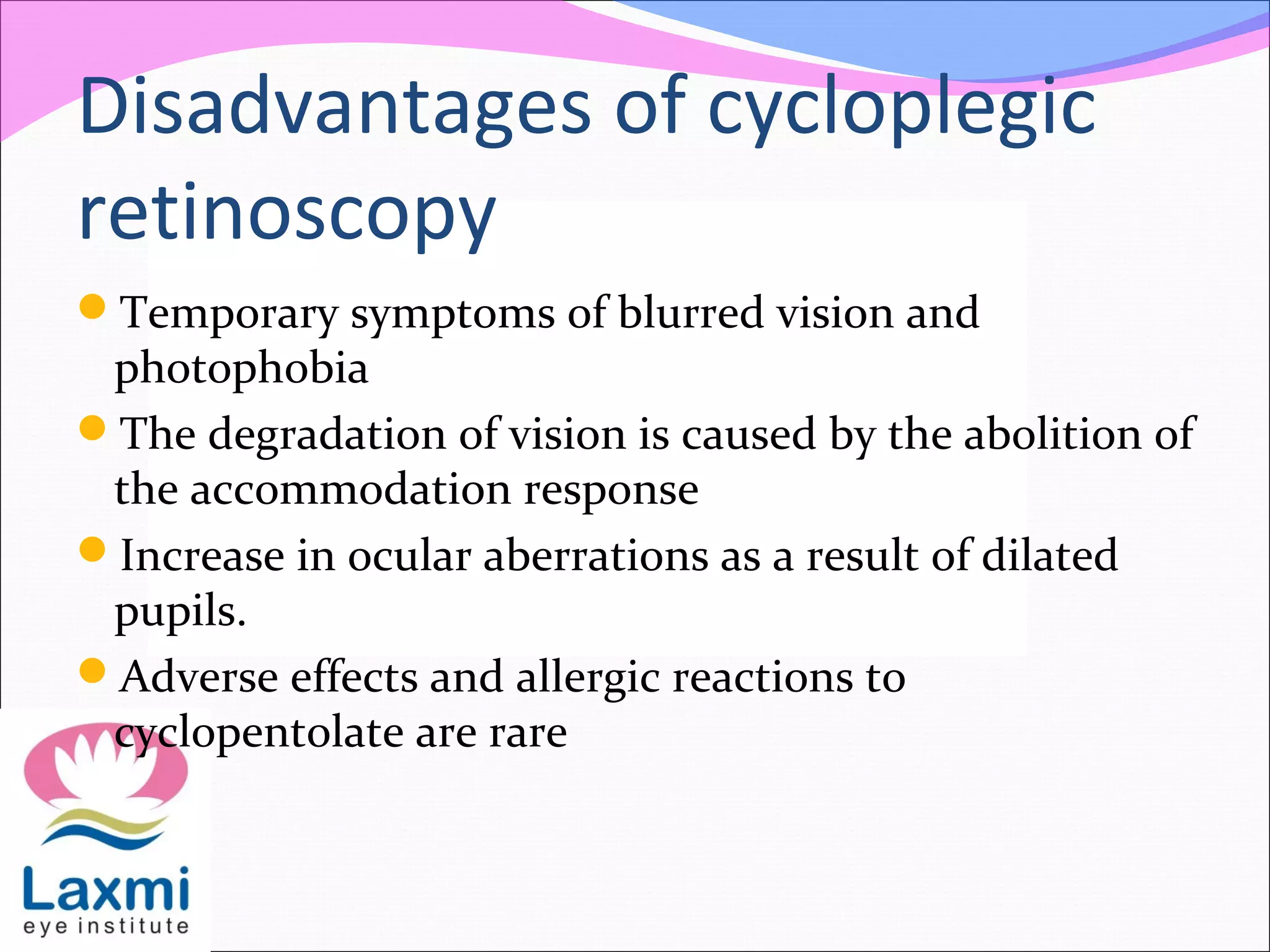

Disadvantages of cycloplegic
retinoscopy
Temporary symptoms of blurred vision and
photophobia
The degradation of vision is caused by the abolition of
the accommodation response
Increase in ocular aberrations as a result of dilated
pupils.
Adverse effects and allergic reactions to
cyclopentolate are rare

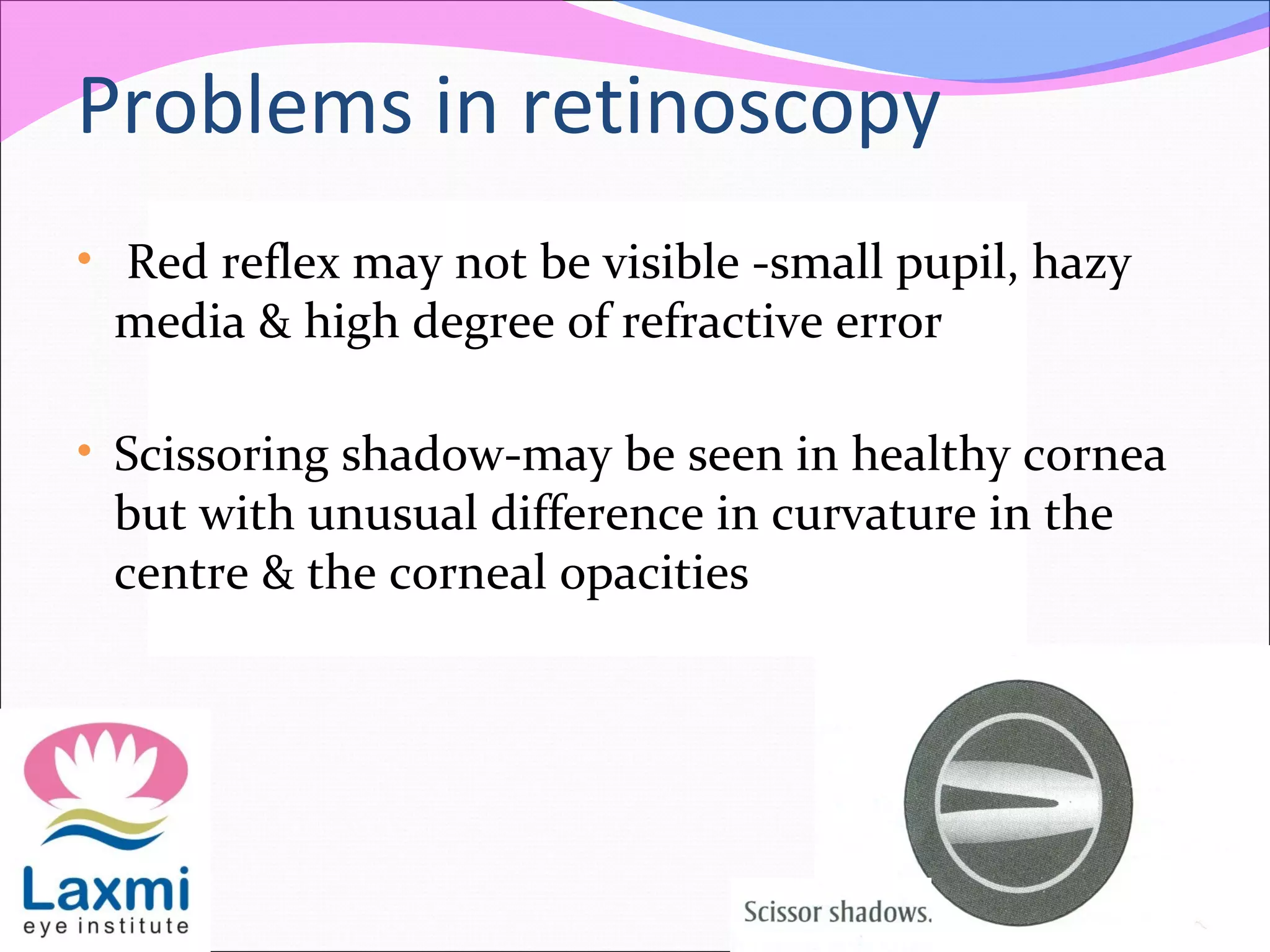

Problems in retinoscopy
• Red reflex may not be visible -small pupil, hazy
media & high degree of refractive error
• Scissoring shadow-may be seen in healthy cornea
but with unusual difference in curvature in the
centre & the corneal opacities
contd

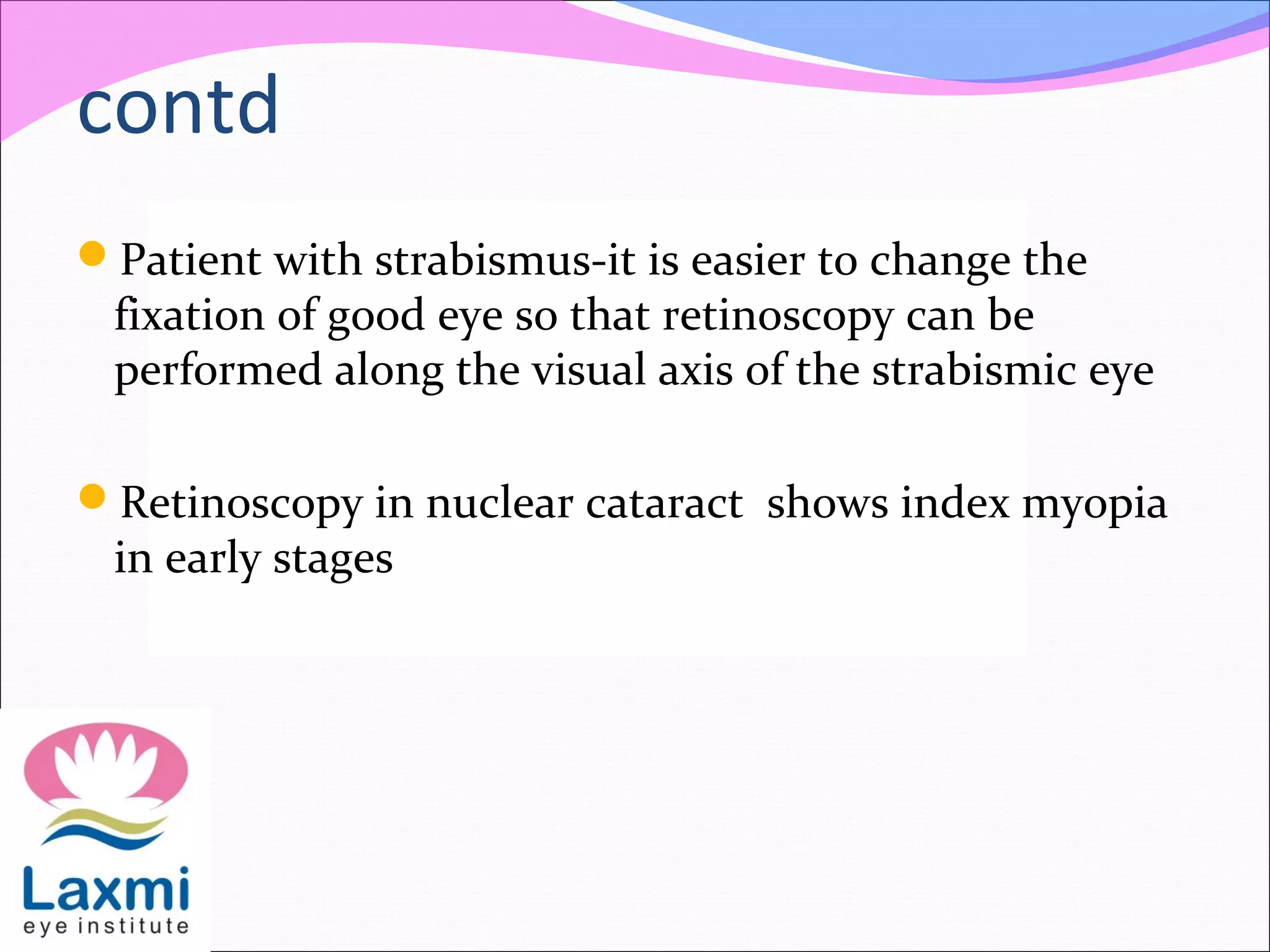

Patient with strabismus-it is easier to change the
fixation of good eye so that retinoscopy can be
performed along the visual axis of the strabismic eye
Retinoscopy in nuclear cataract shows index myopia
in early stages
contd

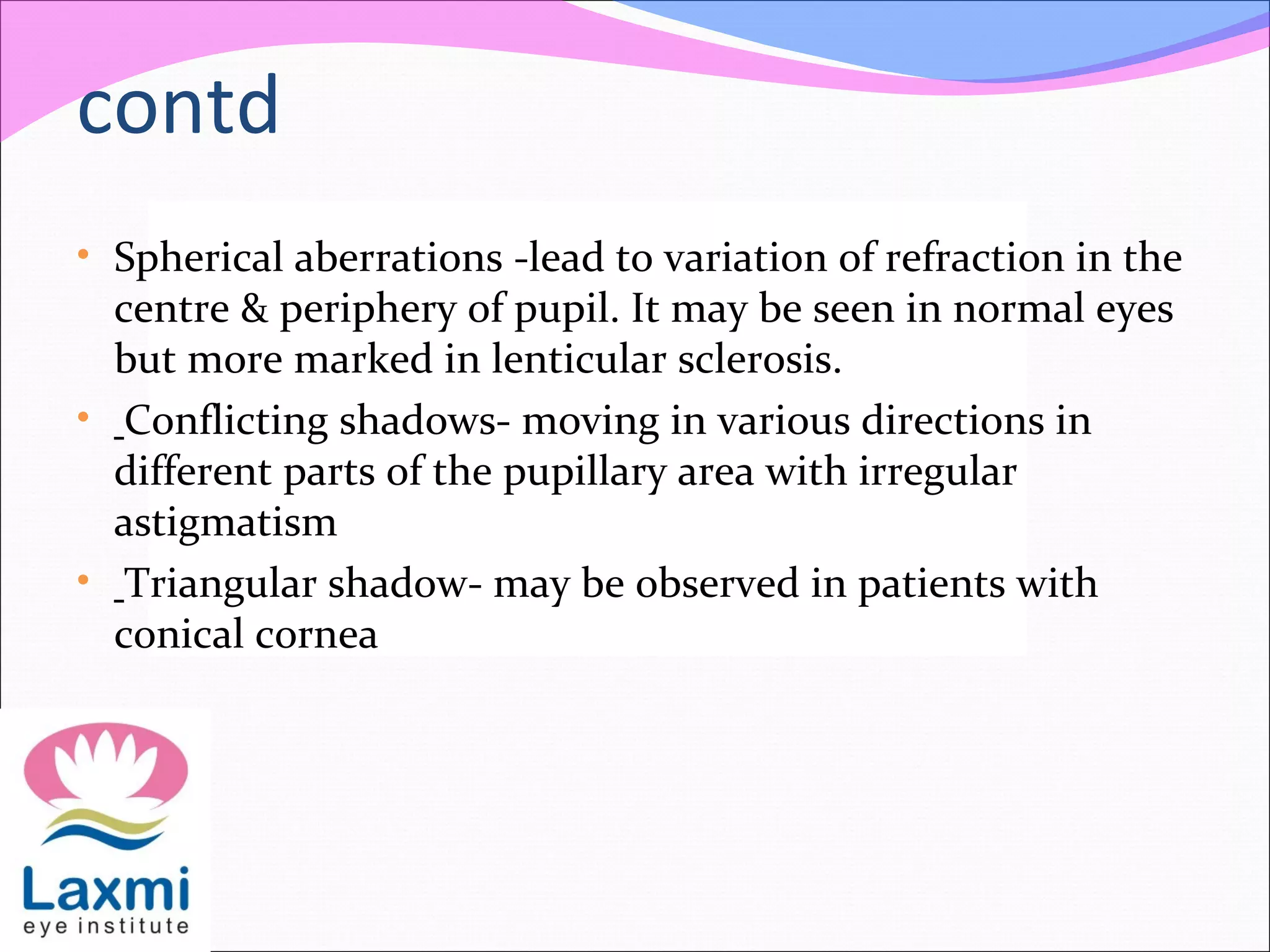

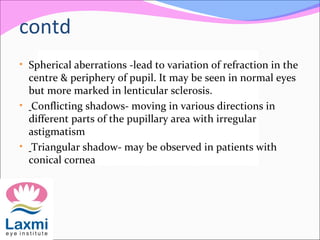

• Spherical aberrations -lead to variation of refraction in the
centre & periphery of pupil. It may be seen in normal eyes
but more marked in lenticular sclerosis.
• Conflicting shadows- moving in various directions in
different parts of the pupillary area with irregular
astigmatism
• Triangular shadow- may be observed in patients with
conical cornea

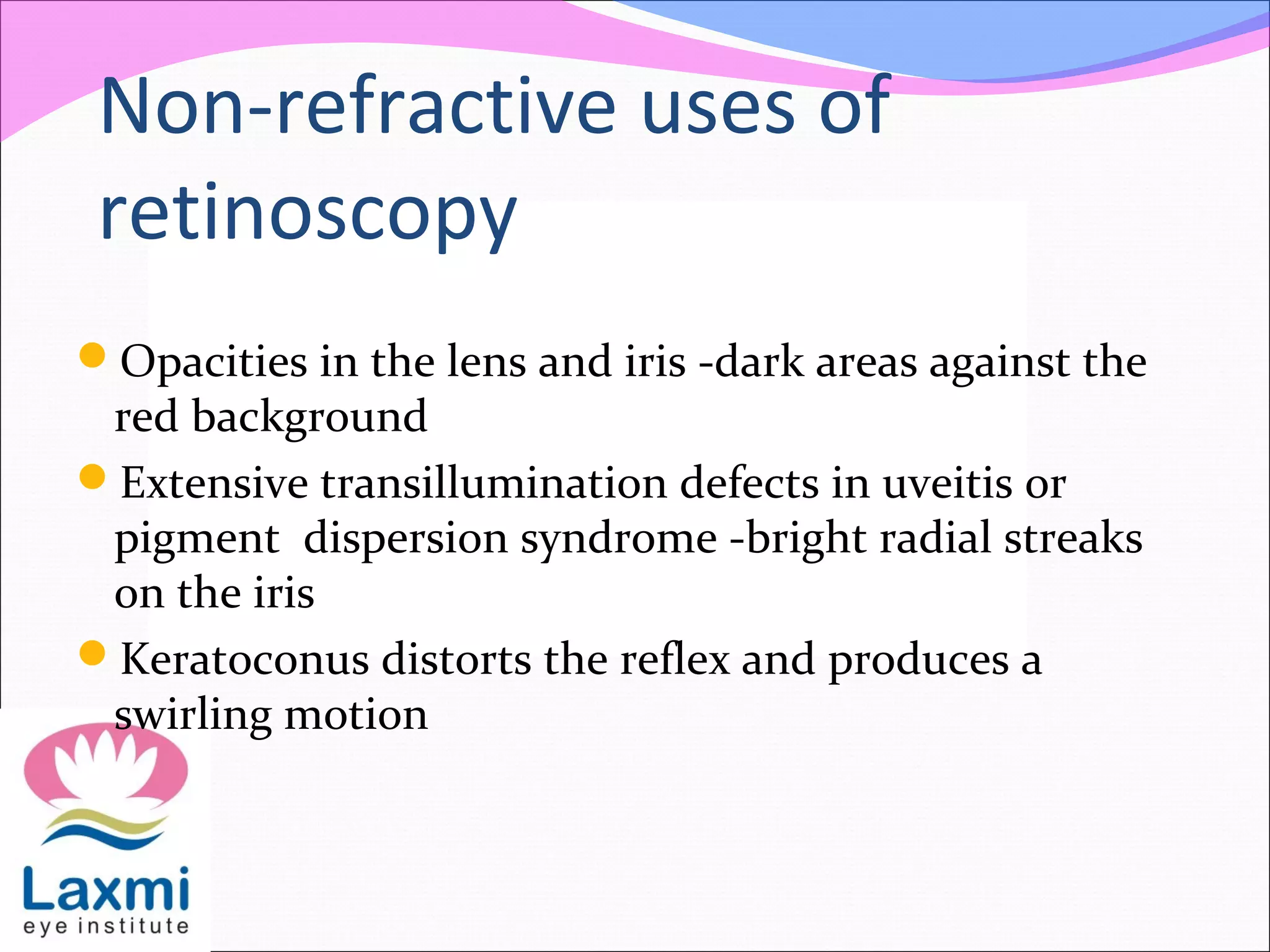

Non-refractive uses of
retinoscopy
Opacities in the lens and iris -dark areas against the
red background
Extensive transillumination defects in uveitis or
pigment dispersion syndrome -bright radial streaks
on the iris
Keratoconus distorts the reflex and produces a
swirling motion
contd

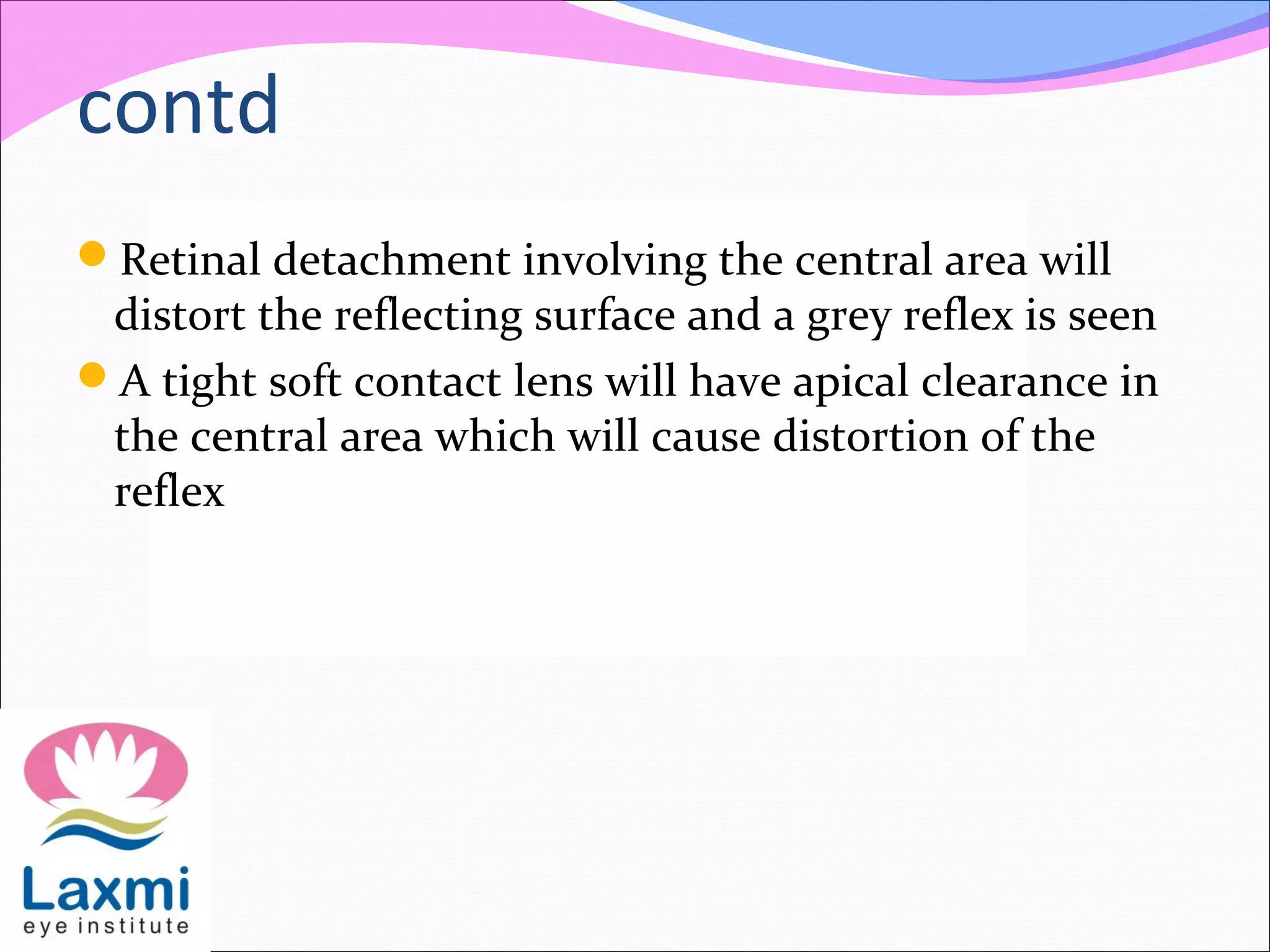

Retinal detachment involving the central area will
distort the reflecting surface and a grey reflex is seen
A tight soft contact lens will have apical clearance in
the central area which will cause distortion of the
reflex

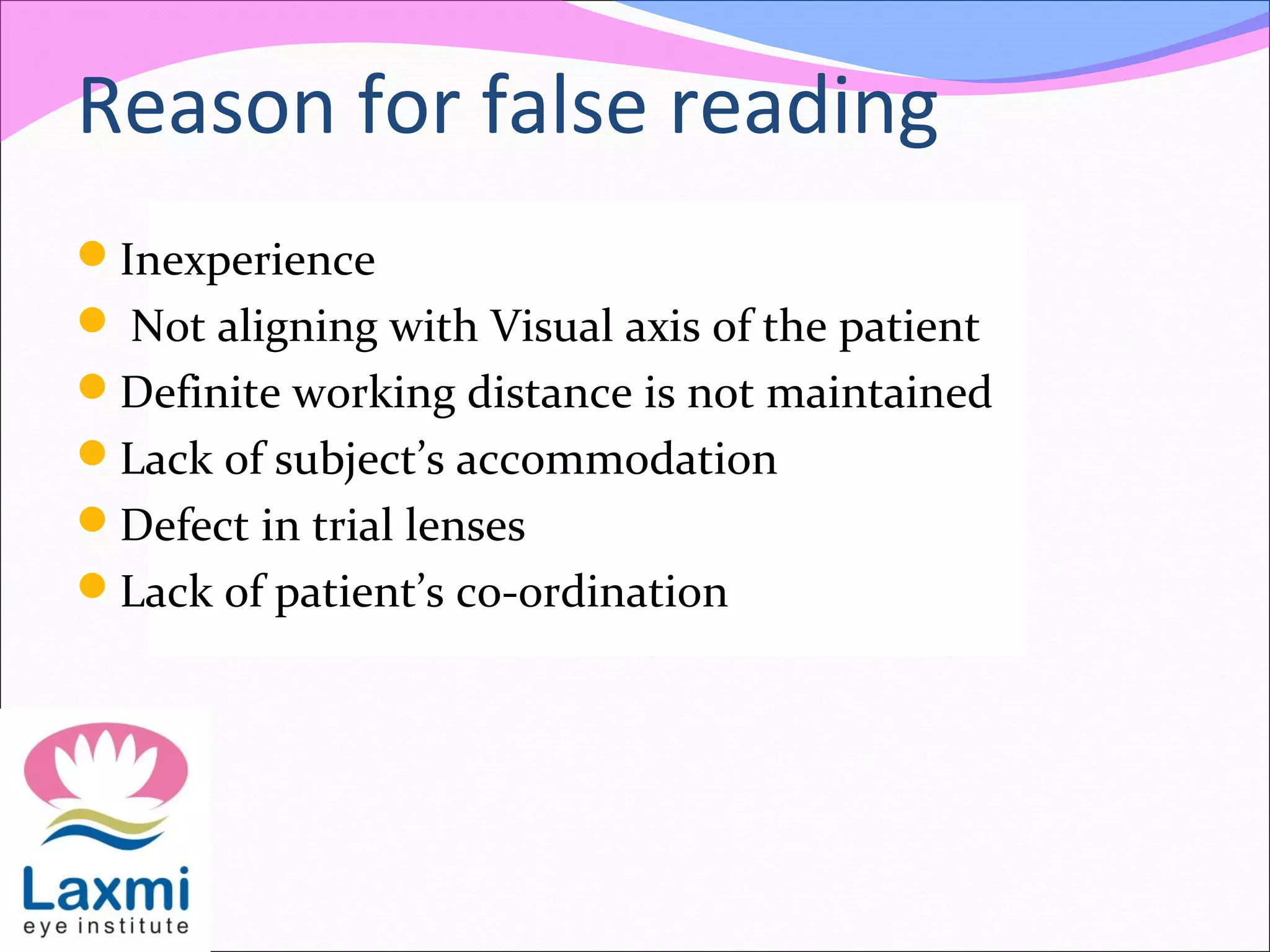

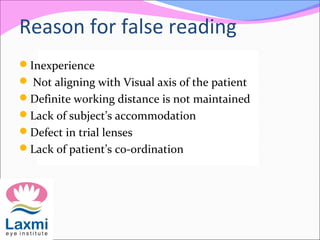

Reason for false reading
Inexperience
 Not aligning with Visual axis of the patient
Definite working distance is not maintained
Lack of subject’s accommodation
Defect in trial lenses
Lack of patient’s co-ordination
Thankyou

More Related Content

What's hot

Aphakia
AphakiaAphakia
Aphakia
KhushminaKhan

Subjective refraction
Subjective refractionSubjective refraction
Subjective refraction
Azizul Islam

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
Hira Dahal

Keratometry
KeratometryKeratometry
Keratometry
Karan Bhatia

Indirect ophthalmoscopy
Indirect ophthalmoscopyIndirect ophthalmoscopy
Indirect ophthalmoscopy
ShahanaSherin9

Visual acuity
Visual acuityVisual acuity
Visual acuity
ankita mahapatra

Slit Lamp Biomicroscopy
Slit  Lamp BiomicroscopySlit  Lamp Biomicroscopy
Slit Lamp Biomicroscopy
Manoj Aryal

Aphakia
AphakiaAphakia
Keratometry
KeratometryKeratometry
Keratometry
ankita mahapatra

Amsler grid
Amsler gridAmsler grid
Amsler grid
Suhail Wahab

Hfa
HfaHfa
Trial set
Trial setTrial set
Low Vision Aids
Low Vision AidsLow Vision Aids
Low Vision Aids
Ayinun Nahar

Indirect ophthalmoscopy
Indirect ophthalmoscopy Indirect ophthalmoscopy
Indirect ophthalmoscopy
Shruti Laddha

Direct ophthalmoscopy
Direct ophthalmoscopyDirect ophthalmoscopy
Direct ophthalmoscopy
chodup thinley

Presbyopia
PresbyopiaPresbyopia
Presbyopia
Hossein Mirzaie

ROPLAS TEST
ROPLAS TESTROPLAS TEST
ROPLAS TEST
Rajit Singh Pal

Amblyopia
AmblyopiaAmblyopia
Amblyopia
Nedhina

Lenses in ophthalmology
Lenses in ophthalmologyLenses in ophthalmology
Lenses in ophthalmology
Reshma Peter

Diplopia charting
Diplopia chartingDiplopia charting
Diplopia charting
SSSIHMS-PG


What's hot (20)

Aphakia
AphakiaAphakia
Aphakia

Subjective refraction
Subjective refractionSubjective refraction
Subjective refraction

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

Keratometry
KeratometryKeratometry
Keratometry

Indirect ophthalmoscopy
Indirect ophthalmoscopyIndirect ophthalmoscopy
Indirect ophthalmoscopy

Visual acuity
Visual acuityVisual acuity
Visual acuity

Slit Lamp Biomicroscopy
Slit  Lamp BiomicroscopySlit  Lamp Biomicroscopy
Slit Lamp Biomicroscopy

Aphakia
AphakiaAphakia
Aphakia

Keratometry
KeratometryKeratometry
Keratometry

Amsler grid
Amsler gridAmsler grid
Amsler grid

Hfa
HfaHfa
Hfa

Trial set
Trial setTrial set
Trial set

Low Vision Aids
Low Vision AidsLow Vision Aids
Low Vision Aids

Indirect ophthalmoscopy
Indirect ophthalmoscopy Indirect ophthalmoscopy
Indirect ophthalmoscopy

Direct ophthalmoscopy
Direct ophthalmoscopyDirect ophthalmoscopy
Direct ophthalmoscopy

Presbyopia
PresbyopiaPresbyopia
Presbyopia

ROPLAS TEST
ROPLAS TESTROPLAS TEST
ROPLAS TEST

Amblyopia
AmblyopiaAmblyopia
Amblyopia

Lenses in ophthalmology
Lenses in ophthalmologyLenses in ophthalmology
Lenses in ophthalmology

Diplopia charting
Diplopia chartingDiplopia charting
Diplopia charting


Similar to Retinoscopy and its principles

Retinoscopy @adi
Retinoscopy @adiRetinoscopy @adi
Retinoscopy @adi
Farhana Adi

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
Ankush Weginwar

Objective refraction
Objective refractionObjective refraction
Objective refraction
sneha_thaps

Techniques of refraction is the process of calculation of glass power.
Techniques of refraction is the process of calculation of glass power.Techniques of refraction is the process of calculation of glass power.
Techniques of refraction is the process of calculation of glass power.
drbrijeshbhu

Retinoscopy/ Objective Refraction / Retinoscopy of eye (Principle & Techniqu...
Retinoscopy/ Objective Refraction / Retinoscopy of eye  (Principle & Techniqu...Retinoscopy/ Objective Refraction / Retinoscopy of eye  (Principle & Techniqu...
Retinoscopy/ Objective Refraction / Retinoscopy of eye (Principle & Techniqu...
Bikash Sapkota

Objective retinoscopy
Objective retinoscopyObjective retinoscopy
Objective retinoscopy
Bipin Koirala

retinoscope & retinoscopy.pptx
retinoscope & retinoscopy.pptxretinoscope & retinoscopy.pptx
retinoscope & retinoscopy.pptx
MushahidRaza8

Objective Refraction and Subjective Refraction
Objective Refraction and Subjective RefractionObjective Refraction and Subjective Refraction
Objective Refraction and Subjective Refraction
AnuMusyakhwo7

CLINICAL REFRACTION.pptx
CLINICAL REFRACTION.pptxCLINICAL REFRACTION.pptx
CLINICAL REFRACTION.pptx
BARNABASMUGABI

Refraction simplified
Refraction simplifiedRefraction simplified
Refraction simplified
GauriSShrestha

Retinoscope theory.pptx
Retinoscope theory.pptxRetinoscope theory.pptx
Retinoscope theory.pptx
SHAYRI PILLAI

Objective refraction
Objective refractionObjective refraction
Objective refraction
MOHAMMEDJN

Retinoscope and retinoscopy
Retinoscope and retinoscopyRetinoscope and retinoscopy
Retinoscope and retinoscopy
Loknath Goswami

Dark room tests in ophthalmology
Dark room tests in ophthalmologyDark room tests in ophthalmology
Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
ShahanaSherin9

4 RETINOSCOPY.pptx
4 RETINOSCOPY.pptx4 RETINOSCOPY.pptx
4 RETINOSCOPY.pptx
bakanangemmahpholoan

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
Pushkar Dhir

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
Pushkar Dhir

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy
anjoichi

Accommodation
AccommodationAccommodation
Accommodation
dhara sorathiya


Similar to Retinoscopy and its principles (20)

Retinoscopy @adi
Retinoscopy @adiRetinoscopy @adi
Retinoscopy @adi

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

Objective refraction
Objective refractionObjective refraction
Objective refraction

Techniques of refraction is the process of calculation of glass power.
Techniques of refraction is the process of calculation of glass power.Techniques of refraction is the process of calculation of glass power.
Techniques of refraction is the process of calculation of glass power.

Retinoscopy/ Objective Refraction / Retinoscopy of eye (Principle & Techniqu...
Retinoscopy/ Objective Refraction / Retinoscopy of eye  (Principle & Techniqu...Retinoscopy/ Objective Refraction / Retinoscopy of eye  (Principle & Techniqu...
Retinoscopy/ Objective Refraction / Retinoscopy of eye (Principle & Techniqu...

Objective retinoscopy
Objective retinoscopyObjective retinoscopy
Objective retinoscopy

retinoscope & retinoscopy.pptx
retinoscope & retinoscopy.pptxretinoscope & retinoscopy.pptx
retinoscope & retinoscopy.pptx

Objective Refraction and Subjective Refraction
Objective Refraction and Subjective RefractionObjective Refraction and Subjective Refraction
Objective Refraction and Subjective Refraction

CLINICAL REFRACTION.pptx
CLINICAL REFRACTION.pptxCLINICAL REFRACTION.pptx
CLINICAL REFRACTION.pptx

Refraction simplified
Refraction simplifiedRefraction simplified
Refraction simplified

Retinoscope theory.pptx
Retinoscope theory.pptxRetinoscope theory.pptx
Retinoscope theory.pptx

Objective refraction
Objective refractionObjective refraction
Objective refraction

Retinoscope and retinoscopy
Retinoscope and retinoscopyRetinoscope and retinoscopy
Retinoscope and retinoscopy

Dark room tests in ophthalmology
Dark room tests in ophthalmologyDark room tests in ophthalmology
Dark room tests in ophthalmology

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

4 RETINOSCOPY.pptx
4 RETINOSCOPY.pptx4 RETINOSCOPY.pptx
4 RETINOSCOPY.pptx

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

Retinoscopy
RetinoscopyRetinoscopy
Retinoscopy

Accommodation
AccommodationAccommodation
Accommodation


More from Laxmi Eye Institute

Important trials in Glaucoma
Important trials in GlaucomaImportant trials in Glaucoma
Important trials in Glaucoma
Laxmi Eye Institute

Congenital glaucoma
Congenital glaucomaCongenital glaucoma
Congenital glaucoma
Laxmi Eye Institute

Ocular pharmacology
Ocular pharmacologyOcular pharmacology
Ocular pharmacology
Laxmi Eye Institute

Supranuclear pathways and lesions
Supranuclear pathways and lesionsSupranuclear pathways and lesions
Supranuclear pathways and lesions
Laxmi Eye Institute

IOL power calculation special situations
IOL power calculation special situations IOL power calculation special situations
IOL power calculation special situations
Laxmi Eye Institute

Corneal dystrophy
Corneal dystrophy Corneal dystrophy
Corneal dystrophy
Laxmi Eye Institute

Ice syndrome
Ice syndromeIce syndrome
Ice syndrome
Laxmi Eye Institute

Scleritis a case presentation
Scleritis a case presentationScleritis a case presentation
Scleritis a case presentation
Laxmi Eye Institute

Visual pathway
Visual pathway Visual pathway
Visual pathway
Laxmi Eye Institute

CCP
CCPCCP
Ocular tb
Ocular tbOcular tb
Causes of low vision in adult
Causes of low vision in adultCauses of low vision in adult
Causes of low vision in adult
Laxmi Eye Institute

Macular hole
Macular holeMacular hole
Macular hole
Laxmi Eye Institute

ASSESMENT OF VISUAL ACUITY IN CHILDREN
ASSESMENT OF VISUAL ACUITY IN CHILDRENASSESMENT OF VISUAL ACUITY IN CHILDREN
ASSESMENT OF VISUAL ACUITY IN CHILDREN
Laxmi Eye Institute

INTRAOCULAR FOREIGN BODY
INTRAOCULAR FOREIGN BODYINTRAOCULAR FOREIGN BODY
INTRAOCULAR FOREIGN BODY
Laxmi Eye Institute

VITAMIN A & VISUAL CYCLE
VITAMIN A & VISUAL CYCLEVITAMIN A & VISUAL CYCLE
VITAMIN A & VISUAL CYCLE
Laxmi Eye Institute

Malignant glaucoma
Malignant glaucomaMalignant glaucoma
Malignant glaucoma
Laxmi Eye Institute

Lasers in Glaucoma
Lasers in GlaucomaLasers in Glaucoma
Lasers in Glaucoma
Laxmi Eye Institute

Uveitic Glaucoma
Uveitic GlaucomaUveitic Glaucoma
Uveitic Glaucoma
Laxmi Eye Institute

Central Retinal Vein OcclUsIon (CRUISE) Study - Cruise trial
Central Retinal  Vein OcclUsIon (CRUISE) Study - Cruise trialCentral Retinal  Vein OcclUsIon (CRUISE) Study - Cruise trial
Central Retinal Vein OcclUsIon (CRUISE) Study - Cruise trial
Laxmi Eye Institute


More from Laxmi Eye Institute (20)

Important trials in Glaucoma
Important trials in GlaucomaImportant trials in Glaucoma
Important trials in Glaucoma

Congenital glaucoma
Congenital glaucomaCongenital glaucoma
Congenital glaucoma

Ocular pharmacology
Ocular pharmacologyOcular pharmacology
Ocular pharmacology

Supranuclear pathways and lesions
Supranuclear pathways and lesionsSupranuclear pathways and lesions
Supranuclear pathways and lesions

IOL power calculation special situations
IOL power calculation special situations IOL power calculation special situations
IOL power calculation special situations

Corneal dystrophy
Corneal dystrophy Corneal dystrophy
Corneal dystrophy

Ice syndrome
Ice syndromeIce syndrome
Ice syndrome

Scleritis a case presentation
Scleritis a case presentationScleritis a case presentation
Scleritis a case presentation

Visual pathway
Visual pathway Visual pathway
Visual pathway

CCP
CCPCCP
CCP

Ocular tb
Ocular tbOcular tb
Ocular tb

Causes of low vision in adult
Causes of low vision in adultCauses of low vision in adult
Causes of low vision in adult

Macular hole
Macular holeMacular hole
Macular hole

ASSESMENT OF VISUAL ACUITY IN CHILDREN
ASSESMENT OF VISUAL ACUITY IN CHILDRENASSESMENT OF VISUAL ACUITY IN CHILDREN
ASSESMENT OF VISUAL ACUITY IN CHILDREN

INTRAOCULAR FOREIGN BODY
INTRAOCULAR FOREIGN BODYINTRAOCULAR FOREIGN BODY
INTRAOCULAR FOREIGN BODY

VITAMIN A & VISUAL CYCLE
VITAMIN A & VISUAL CYCLEVITAMIN A & VISUAL CYCLE
VITAMIN A & VISUAL CYCLE

Malignant glaucoma
Malignant glaucomaMalignant glaucoma
Malignant glaucoma

Lasers in Glaucoma
Lasers in GlaucomaLasers in Glaucoma
Lasers in Glaucoma

Uveitic Glaucoma
Uveitic GlaucomaUveitic Glaucoma
Uveitic Glaucoma

Central Retinal Vein OcclUsIon (CRUISE) Study - Cruise trial
Central Retinal  Vein OcclUsIon (CRUISE) Study - Cruise trialCentral Retinal  Vein OcclUsIon (CRUISE) Study - Cruise trial
Central Retinal Vein OcclUsIon (CRUISE) Study - Cruise trial


Recently uploaded

PPT on Embryological and fetal development
PPT on Embryological and fetal developmentPPT on Embryological and fetal development
PPT on Embryological and fetal development
smileysharma63

Psychological Safety as a Foundation for Improvement 12-06-24.pdf
Psychological Safety as a Foundation for Improvement 12-06-24.pdfPsychological Safety as a Foundation for Improvement 12-06-24.pdf
Psychological Safety as a Foundation for Improvement 12-06-24.pdf
Healthcare Improvement Support

NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT
NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPTNURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT
NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT
blessyjannu21

Solution manual for managerial accounting 18th edition by ray garrison eric n...
Solution manual for managerial accounting 18th edition by ray garrison eric n...Solution manual for managerial accounting 18th edition by ray garrison eric n...
Solution manual for managerial accounting 18th edition by ray garrison eric n...
rightmanforbloodline

Know Latest Hiranandani Hospital Powai News.pdf
Know Latest Hiranandani Hospital Powai News.pdfKnow Latest Hiranandani Hospital Powai News.pdf
Know Latest Hiranandani Hospital Powai News.pdf
Dr. Sujit Chatterjee CEO Hiranandani Hospital

Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...
Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...
Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...
The Lifesciences Magazine

Correlation between surface motion and heart-breast distance for breast cance...
Correlation between surface motion and heart-breast distance for breast cance...Correlation between surface motion and heart-breast distance for breast cance...
Correlation between surface motion and heart-breast distance for breast cance...
SGRT Community

EXAMINATION OF HUMAN URINE AND FAECES.pdf
EXAMINATION OF HUMAN URINE AND FAECES.pdfEXAMINATION OF HUMAN URINE AND FAECES.pdf
EXAMINATION OF HUMAN URINE AND FAECES.pdf
Madhusmita Sahoo

Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot
Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 FaridkotFaridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot
Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot
varun0kumar00

Monopoly PCD Pharma Franchise in Tripura
Monopoly PCD Pharma Franchise in TripuraMonopoly PCD Pharma Franchise in Tripura
Monopoly PCD Pharma Franchise in Tripura
SKG Internationals

Columbia毕业证书退学办理
Columbia毕业证书退学办理Columbia毕业证书退学办理
Columbia毕业证书退学办理
ozcot

Research, Monitoring and Evaluation, in Public Health
Research, Monitoring and Evaluation, in Public HealthResearch, Monitoring and Evaluation, in Public Health
Research, Monitoring and Evaluation, in Public Health
aghedogodday

National Rural Health Mission(NRHM).pptx
National Rural Health Mission(NRHM).pptxNational Rural Health Mission(NRHM).pptx
National Rural Health Mission(NRHM).pptx
Jyoti Chand

Discover the Perfect Way to Relax - Malayali Kerala Spa Ajman
Discover the Perfect Way to Relax - Malayali Kerala Spa AjmanDiscover the Perfect Way to Relax - Malayali Kerala Spa Ajman
Discover the Perfect Way to Relax - Malayali Kerala Spa Ajman
Malayali Kerala Spa Ajman

Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA
Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPASunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA
Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA
ssuser555edf

Top 5 Benefits of Cancer Registry Services
Top 5 Benefits of Cancer Registry ServicesTop 5 Benefits of Cancer Registry Services
Top 5 Benefits of Cancer Registry Services
Cardiac Registry Support

Dr. Sherman Lai, MD — Guelph's Dedicated Medical Professional
Dr. Sherman Lai, MD — Guelph's Dedicated Medical ProfessionalDr. Sherman Lai, MD — Guelph's Dedicated Medical Professional
Dr. Sherman Lai, MD — Guelph's Dedicated Medical Professional
Sherman Lai Guelph

3. User Guide Activity Budget Tracking App Steps to apply.pptx
3. User Guide Activity Budget Tracking App Steps to apply.pptx3. User Guide Activity Budget Tracking App Steps to apply.pptx
3. User Guide Activity Budget Tracking App Steps to apply.pptx
habtegirma

𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal
𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal
𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal
garge6804

Simple Steps to Make Her Choose You Every Day
Simple Steps to Make Her Choose You Every DaySimple Steps to Make Her Choose You Every Day
Simple Steps to Make Her Choose You Every Day
Lucas Smith


Recently uploaded (20)

PPT on Embryological and fetal development
PPT on Embryological and fetal developmentPPT on Embryological and fetal development
PPT on Embryological and fetal development

Psychological Safety as a Foundation for Improvement 12-06-24.pdf
Psychological Safety as a Foundation for Improvement 12-06-24.pdfPsychological Safety as a Foundation for Improvement 12-06-24.pdf
Psychological Safety as a Foundation for Improvement 12-06-24.pdf

NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT
NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPTNURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT
NURSING MANAGEMENT OF PATIENT WITH EMPHYSEMA .PPT

Solution manual for managerial accounting 18th edition by ray garrison eric n...
Solution manual for managerial accounting 18th edition by ray garrison eric n...Solution manual for managerial accounting 18th edition by ray garrison eric n...
Solution manual for managerial accounting 18th edition by ray garrison eric n...

Know Latest Hiranandani Hospital Powai News.pdf
Know Latest Hiranandani Hospital Powai News.pdfKnow Latest Hiranandani Hospital Powai News.pdf
Know Latest Hiranandani Hospital Powai News.pdf

Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...
Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...
Cyclothymia Test: Diagnosing, Symptoms, Treatment, and Impact | The Lifescien...

Correlation between surface motion and heart-breast distance for breast cance...
Correlation between surface motion and heart-breast distance for breast cance...Correlation between surface motion and heart-breast distance for breast cance...
Correlation between surface motion and heart-breast distance for breast cance...

EXAMINATION OF HUMAN URINE AND FAECES.pdf
EXAMINATION OF HUMAN URINE AND FAECES.pdfEXAMINATION OF HUMAN URINE AND FAECES.pdf
EXAMINATION OF HUMAN URINE AND FAECES.pdf

Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot
Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 FaridkotFaridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot
Faridkot ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 7742996321 ℂ𝕒𝕝𝕝 𝔾𝕚𝕣𝕝𝕤 Faridkot

Monopoly PCD Pharma Franchise in Tripura
Monopoly PCD Pharma Franchise in TripuraMonopoly PCD Pharma Franchise in Tripura
Monopoly PCD Pharma Franchise in Tripura

Columbia毕业证书退学办理
Columbia毕业证书退学办理Columbia毕业证书退学办理
Columbia毕业证书退学办理

Research, Monitoring and Evaluation, in Public Health
Research, Monitoring and Evaluation, in Public HealthResearch, Monitoring and Evaluation, in Public Health
Research, Monitoring and Evaluation, in Public Health

National Rural Health Mission(NRHM).pptx
National Rural Health Mission(NRHM).pptxNational Rural Health Mission(NRHM).pptx
National Rural Health Mission(NRHM).pptx

Discover the Perfect Way to Relax - Malayali Kerala Spa Ajman
Discover the Perfect Way to Relax - Malayali Kerala Spa AjmanDiscover the Perfect Way to Relax - Malayali Kerala Spa Ajman
Discover the Perfect Way to Relax - Malayali Kerala Spa Ajman

Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA
Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPASunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA
Sunscreens, IP-I, Dr. M.N.CHISHTI, Asst Prof. Dept of Pharmaceutics, YBCCPA

Top 5 Benefits of Cancer Registry Services
Top 5 Benefits of Cancer Registry ServicesTop 5 Benefits of Cancer Registry Services
Top 5 Benefits of Cancer Registry Services

Dr. Sherman Lai, MD — Guelph's Dedicated Medical Professional
Dr. Sherman Lai, MD — Guelph's Dedicated Medical ProfessionalDr. Sherman Lai, MD — Guelph's Dedicated Medical Professional
Dr. Sherman Lai, MD — Guelph's Dedicated Medical Professional

3. User Guide Activity Budget Tracking App Steps to apply.pptx
3. User Guide Activity Budget Tracking App Steps to apply.pptx3. User Guide Activity Budget Tracking App Steps to apply.pptx
3. User Guide Activity Budget Tracking App Steps to apply.pptx

𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal
𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal
𝔹hopal Call Girls 7023059433 High Profile Independent Escorts 𝔹hopal

Simple Steps to Make Her Choose You Every Day
Simple Steps to Make Her Choose You Every DaySimple Steps to Make Her Choose You Every Day
Simple Steps to Make Her Choose You Every Day


Retinoscopy and its principles

  • 1. Retinoscopy and its principles Presenter : Dr.Rasika Thakur Moderator: Dr.Monica Samant Mr.Kunal Kishor
  • 2. Introduction History Types of retinoscope Far point Optical principle Types of retinoscopy Problems in retinoscopy
  • 3. Introduction An accurate objective measurement of the refractive state of an eye can be made using the retinoscope The technique is called retinoscopy Pupilloscopy, shadowscopy, skiascopy, umbrascopy, scotoscopy
  • 4. History • 1873,F.Cuigent the father of retinoscopy- first described a retinoscope 1878, M. Mengin 1880, H. Parent - retinoscopie • 1927, Copeland -streak retinoscope
  • 6. Reflecting mirror retinoscope • A perforated mirror by which the beam is reflected in to the patients eye and through a central hole the emergent rays enter the observer’s eye • Movements of the illuminated retinal area are produced by tilting a mirror, either a plane or concave
  • 9. Self illuminated retinoscope • The light source and the mirror are incorporated in one • STREAK RETINOSCOPE- Light source is a linear (uncoiled) filament
  • 11. Projecting system Main purpose: To illuminates the retina Contsists of: • Light source • Condensing lens • Mirror • Focusing sleeve • Current source
  • 12. Projecting system of Copeland type.
  • 13. Projecting system of Welch Allyn . .... .
  • 14. Observation system Main purpose: To allows the observer to see the retinal reflex of the patient.
  • 16. Advantages of Streak Retinoscope over Spot Retinoscope
  • 17. Far point • The far point of eye is defined as the point in space that is conjugate with the fovea when accomodation is relaxed
  • 19. Optical Principle • Retinoscope works on Focault's principle • Retinoscopy is based on the fact that when light is reflected from a mirror into the eye, the direction in which the light will travel across the pupil will depend upon the refractive state of the eye
  • 20. Optical Principle • The illumination stage • The reflex stage • The projection stage
  • 21. Illumination Stage Light is directed into the patient's eye to illuminate the retina
  • 22. Reflex Stage An image of the illuminated retina is formed at the patient's far-point Exercises in Refractometry. Thorofare, NJ: SLACK Incorporated; 1990
  • 23. Projection Stage The image at the far-point is located by moving the illumination across the fundus and noting the behaviour of the luminous reflex seen by the observer in the patient's pupil
  • 26. Myopia of less than 1D
  • 28. Myopia of more than 1D
  • 30. Working Distance • The distance from the retinoscope to the patient’s eye • D = 1 ÷ F • The length of the average person’s arm is 66 cm. The power of a lens that focuses parallel light rays at 66 cm is +1.50 D
  • 31. Should I use a “working lens” to compensate for the working distance? Advantages- Instant identification of myope or hyperope. Working lens might help relax accommodation. No need for mental arithmetic to allow for working distance Disadvantages- Too much blur does not necessarily relax accommodation. Working lens adds extra reflections to the view.
  • 32. Formation of the Secondary Fundus Source or "Fundus Reflex" • Light reflected from the fundus has two components: • A diffuse component, which is also called backscatter • A directed component
  • 33. Fundal reflex Properties of the fundal reflex indicate the refractive status of the eye • Brightness • direction of motion • speed of motion • Width
  • 34. Brightness of the Retinoscopic Fundus Reflex The brightness of the fundus reflex is greatest when the retinoscope aperture coincides with the far point of the eye In highly myopic and highly hyperopic eye the pupillary reflex appears dim
  • 35. Direction of Motion of the Retinoscopic Fundus Reflex No movement of red reflex indicates myopia of 1D
  • 36. Contd.. • Red reflex moves along with the movement of the retinoscope, it indicate emmetropia or hypermetropia or myopia of less than 1D.
  • 37. Contd.. • A movement of red reflex against the movement of the retinoscope, indicates myopia of more than 1D.
  • 38. Speed and width of the Retinoscopic Fundus Reflex • Indicates that how far we are from neutrality • A slow moving streak reflex - long way from neutrality.
  • 39. Finding the cylinder axis • In the presence of astigmatism, one axis is neutralized with the spherical lens & the second axis still shows the movement of reflex in the direction of axis of astigmatism
  • 40. Finding the cylinder axis Break Break in the alignment between the reflex in the pupil and the band outside it is observed when the streak is not parallel to one of the meridian
  • 41. Finding the cylinder axis Skew if the streak is not aligned with the true axis oblique motion of streak reflex will be observed on movement of the steak.
  • 42. Straddling CONFIRMATION OF THE AXIS •This is performed with approximately correct cylinder in place
  • 43. Finding the cylinder power 3 Methods- With two spheres With a sphere and cylinder With two cylinders
  • 44. With two spheres First neutralize one axis with appropriate sphere Then keep on changing the sphere till the second axis is neutralized Astigmatism is measured by the difference between the 2 spheres +2.00D +3.00D + 2.00Ds / + 1.00 Dc X 900
  • 45. With a sphere and cylinder First neutralize one axis with an appropriate spherical lens. Neutralize the other axis with a cylindrical lens at the appropriate orientation  The spherical cylindrical gross retinoscopy may be read directly from the trial lens apparatus
  • 46. Enhancement This technique is to approximately estimate the amount of refractive error with minimal use of trial lenses. If the reflex inside pupil gets more thinner by changing the sleeve width,it suggests a significant refractive error Thinnest retinal reflex is called Enhanced band
  • 47. Enhancement A rough estimation of the refractive error is possible,based on the sleeve position
  • 48. End point of retinoscopy
  • 49. Types of retinoscopy • Static Retinoscopy: the patient is looking at a distant object, with accommodation relaxed. • Dynamic retinoscopy: the patient is looking at a near object, with accommodation active. • Near retinoscopy: the patient is looking at a near object, with accomodation relaxed
  • 51. MEM Retinoscopy Help to calculate patients lag or lead of accomodation Lettered targets are applied to the head of a retinoscope Fixation target is placed at harmon distance/50 cm with patients corrected refractive error the refractive power of the trial lens that brings neutrality is the accommodative lag/lead
  • 52. Nott’s method It determines lag/lead of accomodation by moving retinoscopic apperture towards or away from the eye Target is the letters around the aperture of a near point card At a distance of 40 cm The accommodative response, in diopters, is subtracted from the accommodative demand,to determine the accommodative lag/lead
  • 53. Bell Retinoscopy The retinoscope remains in a fixed position and the target is moved The retinoscopy is performed from a fixed distance of 50 cm The distance between the retinoscope and the target when the change in motion occurs is a physical measure of the lag/lead of accommodation
  • 54. Near retinoscopy /Mohindra retinoscopy Also known as near monocular retinoscopy Estimate the refractive status of the eye The stimulus or fixation is the dimmed light source of the retinoscope in a darkened room The retinoscope is held at a distance of 50cm with hand-held trial lenses Borish's Clinical Refraction. 1998. WJ Benjamin. WB Saunders Company. Philadelphia, London, Toronto.
  • 55. Radical retinoscopy Done in patients with small pupils, cataract, or any other opacity Working distance here is 20cm or even less upto 10cm
  • 56. Chromoretinoscopy Helps in a clinical measurement of the chromatic aberration of an eye Transmittance filters with selected dominant wavelengths, are placed in the light path between the light source of a retinoscope and the retinoscopist's eye
  • 57. Types of retinoscopy • Wet retinoscopy- with cycloplegic retinoscopy is performed • Dry retinoscopy-without cycloplegic
  • 58. Indications for wet retinoscopy Accommodative fluctuations indicated by a fluctuating pupil size and/or reflex during retinoscopy Patients with esotropia or convergence excess esophoria A retinoscopy result significantly more positive or minus (>1.00 DS) than the subjective result
  • 59. cycloplegic drugs used in wet retinoscopy  Atropine sulphate 1% Cyclopentolate 1% Homatropin 2%
  • 60. Disadvantages of cycloplegic retinoscopy Temporary symptoms of blurred vision and photophobia The degradation of vision is caused by the abolition of the accommodation response Increase in ocular aberrations as a result of dilated pupils. Adverse effects and allergic reactions to cyclopentolate are rare
  • 61. Problems in retinoscopy • Red reflex may not be visible -small pupil, hazy media & high degree of refractive error • Scissoring shadow-may be seen in healthy cornea but with unusual difference in curvature in the centre & the corneal opacities
  • 62. contd Patient with strabismus-it is easier to change the fixation of good eye so that retinoscopy can be performed along the visual axis of the strabismic eye Retinoscopy in nuclear cataract shows index myopia in early stages
  • 63. contd • Spherical aberrations -lead to variation of refraction in the centre & periphery of pupil. It may be seen in normal eyes but more marked in lenticular sclerosis. • Conflicting shadows- moving in various directions in different parts of the pupillary area with irregular astigmatism • Triangular shadow- may be observed in patients with conical cornea
  • 64. Non-refractive uses of retinoscopy Opacities in the lens and iris -dark areas against the red background Extensive transillumination defects in uveitis or pigment dispersion syndrome -bright radial streaks on the iris Keratoconus distorts the reflex and produces a swirling motion
  • 65. contd Retinal detachment involving the central area will distort the reflecting surface and a grey reflex is seen A tight soft contact lens will have apical clearance in the central area which will cause distortion of the reflex
  • 66. Reason for false reading Inexperience  Not aligning with Visual axis of the patient Definite working distance is not maintained Lack of subject’s accommodation Defect in trial lenses Lack of patient’s co-ordination

Editor's Notes

  1. The term "objective refraction" is used when the refractive error of an eye is determined without input by the patient Retinoscopy is a form of objective refraction in which the judgment of a human operator is required to determine the refractive error Retinoscopy can be performed on infants, the mentally infirm, low-vision patients, and uncooperative or malingering patients.
  2. 1902 Jack C. Copeland was studying astigmatic reflexes with Wolff’s spot retinoscope, when he dropped the instrument on floor, damaging the bulb filament
  3. SPOT RETINOSCOPE- Light source is a small coiled filament
  4. The hole should be pierced and not to be formed by a defect in silvering of an in perforated mirror as the glass reflects an appreciable fraction of light,which should enter the eye. If it is pierced ,annoying reflexes may be formed at edges but these are avoided if the sides of the hole are blackened ,& are made widen out posteriorly so that it is narrowest at the mirror end.
  5. SPOT RETINOSCOPE- Light source is a small coiled filament
  6. Plano mirror effect: The light rays emanating from the retinoscope are slightly divergent and movement of the retinoscope downwards makes the image of the filament move upwards. Concave mirror effect: By using a concave mirror of focal length less than the distance between the patient and the observer and close to the patients eye, a real image of the light source is formed between the patient and the observer close to the patients eye. This image acts as a bright light source for illuminating the patients retina and there fore the illumination moves in the opposite direction to the plan mirror.
  7. Usual method of vergence control (lens is fixed). Copeland type Mechanism that controls the width of the streak also allows to switch between plane mirror and concave mirror. Copeland streak retinoscope: All the way up, plane mirror is in position with a wide streak.As it is lowered gradually , the streak decreases in width. And widens again.At the lowest adjustment the streak is again at its maximum width but with concave mirror effect.
  8. Alternative method ergence control (bulb is fixed). We.lch Allyn type American Optical and Welch Allyn: These instruments are in plane mirror mode when the mechanism is all the down rather than all the way up
  9.  Enhancement of hyperopia by raising the sleeve. Enhancement is one technique that combines changing in the illuminating system with properties of the viewing system. In hyperopic eyes, it is possible to narrow the beam on the retina sufficiently so that its borders can be seen despite the magnification (cross-hatched) of the viewing system. The amount that the sleeve is moved and the width of the facial intercept permit estimation of the amount of hyperopia. Moreover, meridional comparison is the basis for detection of hyperopic astigmatism.
  10. What the Patient Needs to Know- The retinoscope helps determine your glasses prescription Just keep both eyes open and look at the letters on the chart, even if they are blur Do not look at the light You can blink whenever you need to Let me know if I block your view of the letters
  11. PRE-REQUISITES- Semi-dark Room Trial set Lens Rack Trial Frame Phoropter or Refractor Fixating targets [distance & near charts, illuminating source etc.]
  12. A light source was located beside the patient's head, and light reflected into the patient's eye from a plane or concave mirror held by the observer. The observer viewed the patient's eye through a small hole in the mirror. The electric retinoscope has largely replaced this system. However, the principles and nomenclature have remained unchanged. When a plane mirror is used, light is moved across the patient's fundus from A to B by rotating the plane mirror from M1 to M2. Note that the illuminating rays move in the same direction as the mirror. A concave mirror of focal length less than the distance between patient and observer is occasionally used for retinoscopy. A real image of the light source is formed
  13. A ray from point A of the retina R on the principal axis of the eye, which leaves the eye along the principal axis. (2) A ray from a retinal point B, off the principal axis, which travels parallel to the principal axis as far as the principal plane, P, of the eye, where it is refracted to pass onward through the anterior principal focus, Fa, of the eye. A ray from retinal point B which passes undeviated through the nodal point, N.
  14. The observer views the image A1B1 of the illuminated retina AB from a convenient distance, usually m. Figure 14.22 depicts this and is constructed by drawing Fig. 14.21 and adding a hypothetical ray from point B1 passing through the observer's nodal point, No, to the observer's retina, Ro. This ray locates the point Bo, the image of B1 on the observer's retina, and allows completion of the diagram. The observer does not see the actual image A1B1, but rays from A1B1 are seen as an illuminated area or reflex in the patient's pupil. In hypermetropia the luminous reflex seen in the patient's pupil moves in the same direction as the illuminating light – a 'with' movement, indicated by the arrows in Fig. 14.22. Once again a 'with' movement is observed. When the patient's myopia is less than the dioptric value of the observer's working distance a 'with' movement is still obtained.
  15. This is the distance at which the eye is focused when the reflex has been neutralized (you remember that D = 1 ÷ F, right?). In other words, the eye on which you just performed retinoscopy has 1.50 D of plus-powered sphere more than it needs (unless you want to measure visual acuity at 66 cm” If the distance is between 54 and 61 cm, use 1.75 D as your working lens. Those with a working distance between 62 and 72 cm should use 1.50 D To allow the eye to focus at 20 feet (6 m), this power must be taken away from the gross retinoscopy result. This is done by dialing 1.50 D toward the minus, also known as “removing the working lens’’ “Retinoscopy lens” built into most refractors; the lens is inserted prior to performing retinoscopy and simply removed at the completion
  16. a diffuse component, which is also called backscatter, the result of light scattered because of reflection from microscopic and macroscopic particles or structures within the volume of the retina, the pigment epithelium, the choroid, or even the sclera A directed component, the result of light that has been reflected from the neighborhood of the retina/pigmented epithelium interface and is waveguided by the retinal cones
  17. The streak reflex is a diffuse reflection of light from the illuminated fundus: an elongated patch of fundus that becomes the illuminated object for refraction out of the eye.
  18. the reflected light that exits the pupil has a focal point that lies in front of the eye, as in a myopic primary meridian, or a virtual focal point that lies in back of the eye, as in a hyperopic primary meridian At neutrality, the retinoscopic refractive endpoint is reached when the focal point-or far point-has been moved to coincide with the aperture of the retinoscope The brightness of the fundus reflex is greatest when the retinoscope aperture coincides with the far point of the eye. Nearly all of the light making up the fundus image enters the pupil of the retinoscopist's eye. According to the inverse-square law, when the retinoscope aperture and the far point do not coincide, only a portion of the wavefronts will enter the retinoscope aperture to be collected by the retinoscopist's eye
  19. With movement-it indicated that the far point was behind the retinoscope aperture, in the continuum between the operator and infinity (slightly myopic and emmetropic eyes) or behind the eye (hyperopic eyes). In the case of "with" motion, lenses of progressively more plus refractive power must be inserted at the spectacle plane for neutrality to be achieved "Against" motion of the streak indicated that the far point was between the retinoscope aperture and the patient's eye (moderately to highly myopic eyes). In the case of "against" motion, lenses of progressively more minus refractive power must be inserted at the spectacle plane for neutrality to be achieved
  20. -When add plus spherical power, the streak tends to narrow & speed in its apparent motion.In high degrees of refractive error, it is narrow. -In low degree, it is wide. -At the neutralization point, the entire pupil is filled with light. Speed & prilliance- - In low degree of refractive error the shadow (red reflex) seen in the pupillary area is faint & moves rapidly with the movement of the mirror. - In high degrees of refractive error, it is very dark & moves slowly B=DxY/X where B= blur-circle diameter on the retina; D = diameter of the entrance pupil; X = distance from pupil to focus within schematic eye; and Y = distance from focus to blur circle at retina
  21. Break in the alignment between the reflex in the pupil and the band outside it is observed when the streak is not parallel to one of the meridian. The band of light in pupillary area lies in a position intermediate between the band outside the pupil and that from axis of the cylinder. The axis even in the case of low astigmatic error can thus be determined by rotating the streak until the break disappear. The correcting cylinder should placed at this axis. The oblique axis can be determined by rotating the streak until the break disappears.
  22. skew ( oblique motion of the steak reflex ) may be used to refine the axis in small cylinders. The steak and reflex will move in the same direction only when steak is aligned with one of the principal meridian. Therefore if the streak is not aligned with the true axis skewing will be observed on movement of the steak.
  23. The streak is turned 450 off axis in both directions If the axis is correct the width of the reflex should be equal in of the two positions. If the axis is not correct the widths will be unequal in the two position. In such a situation the narrower reflex serves as the guide towards which the cylinder axis should be turned
  24. Example : - if the 1800 is neutralized with + 2.00 sph. & the 900 with + 3.00D sph, the gross retinoscopy will be + 2.00Ds / + 1.00 Dc X 900 The Least positive power becomes the sphere power (+2.00DS) The amount of astigmatism is recorded as cylinder, and is the difference between the power of the two primary meridians The axis is the position of the beam in the most negative/least positive meridian
  25. Then with this spherical lens in place,
  26. the accommodative system in a young adult lags 0.50 to 0.75 behind a near target at 40 cm
  27. such that the target and retinoscopic aperture are located at the same distance from the eye MEM is unique in that lenses are primarily used to verify the observation of the doctor The amount of the “lag of accommodation” is the amount of plus lens corresponding to the movement seen the amount of lens is estimated based on the amount of movement observed
  28. Named so because small shiny bell dangling from a string that was used as a fixation target Measures the lag of accommodation as a linear measurement rather than with lenses. Typically we expect to see a change from “with” to “against” on the way in at 35 - 42 cm. (14 - 17inches) and a change from “against” to with at 37.5 - 45 cm. (15 -18 inches)
  29. In this case, The darkness of the room will facilitate the child to keep their attention on the retinoscope’s light The accommodation activity during the examination is small and the same in both eyes. It is important during the examination to keep the light of the retinoscope on the child’s pupil for only a short period of time so as not to stimulate accommodation; child-friendly and requiring less co-operation from the child The retinoscope is held at a distance of 50cm with hand-held trial lenses used to find the neutral point the result achieved by the Mohindra procedure in children between six months and four years of age is similar to wet retinoscopy (using cyclopentolate 1%), with a difference of only 0.50DS
  30. Retinoscopy may be done undercycloplegic or mydriatic drugs or without any drug Cycloplegics are the drugs which cause paralysis of accommodation & dilate the pupil These are used for retinoscopy
