RESTful web services using java and spring

By Muhammad Junaid

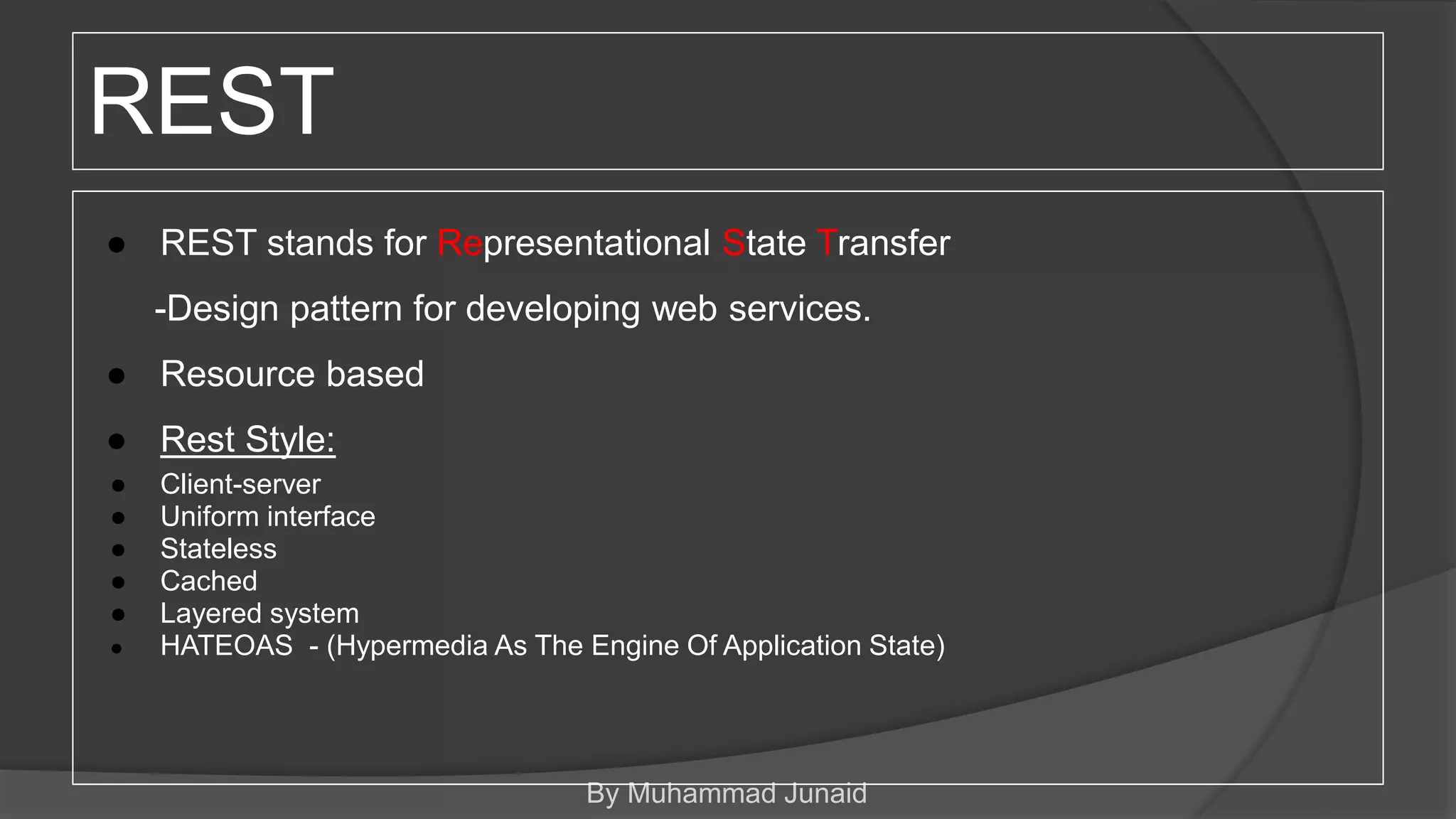

REST
● REST stands for Representational State Transfer
-Design pattern for developing web services.
● Resource based
● Rest Style:
● Client-server
● Uniform interface
● Stateless
● Cached
● Layered system
● HATEOAS - (Hypermedia As The Engine Of Application State)

By Muhammad Junaid

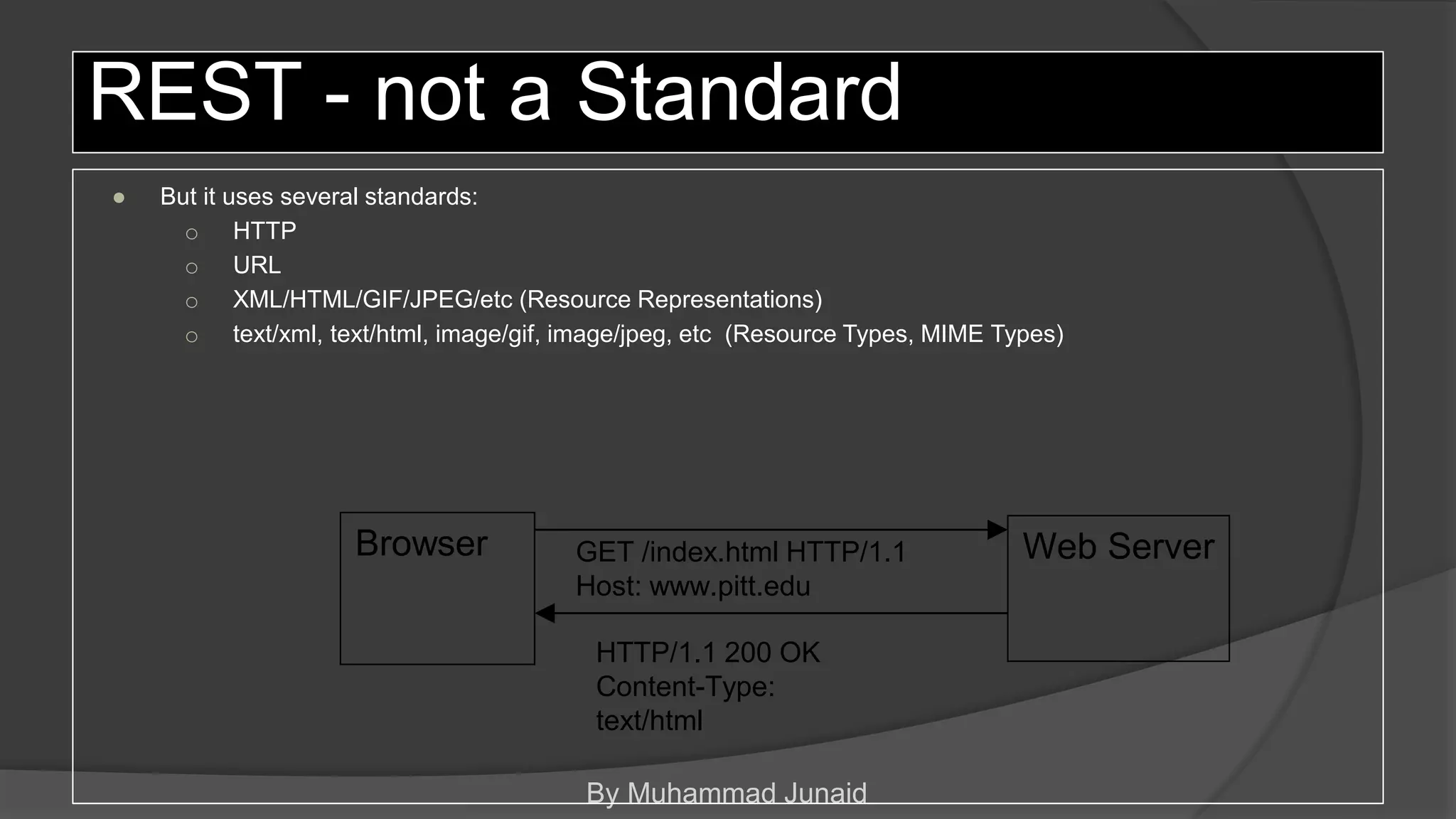

REST - not a Standard
● But it uses several standards:
o HTTP
o URL
o XML/HTML/GIF/JPEG/etc (Resource Representations)
o text/xml, text/html, image/gif, image/jpeg, etc (Resource Types, MIME Types)
Browser Web ServerGET /index.html HTTP/1.1
Host: www.pitt.edu
HTTP/1.1 200 OK
Content-Type:
text/html

By Muhammad Junaid

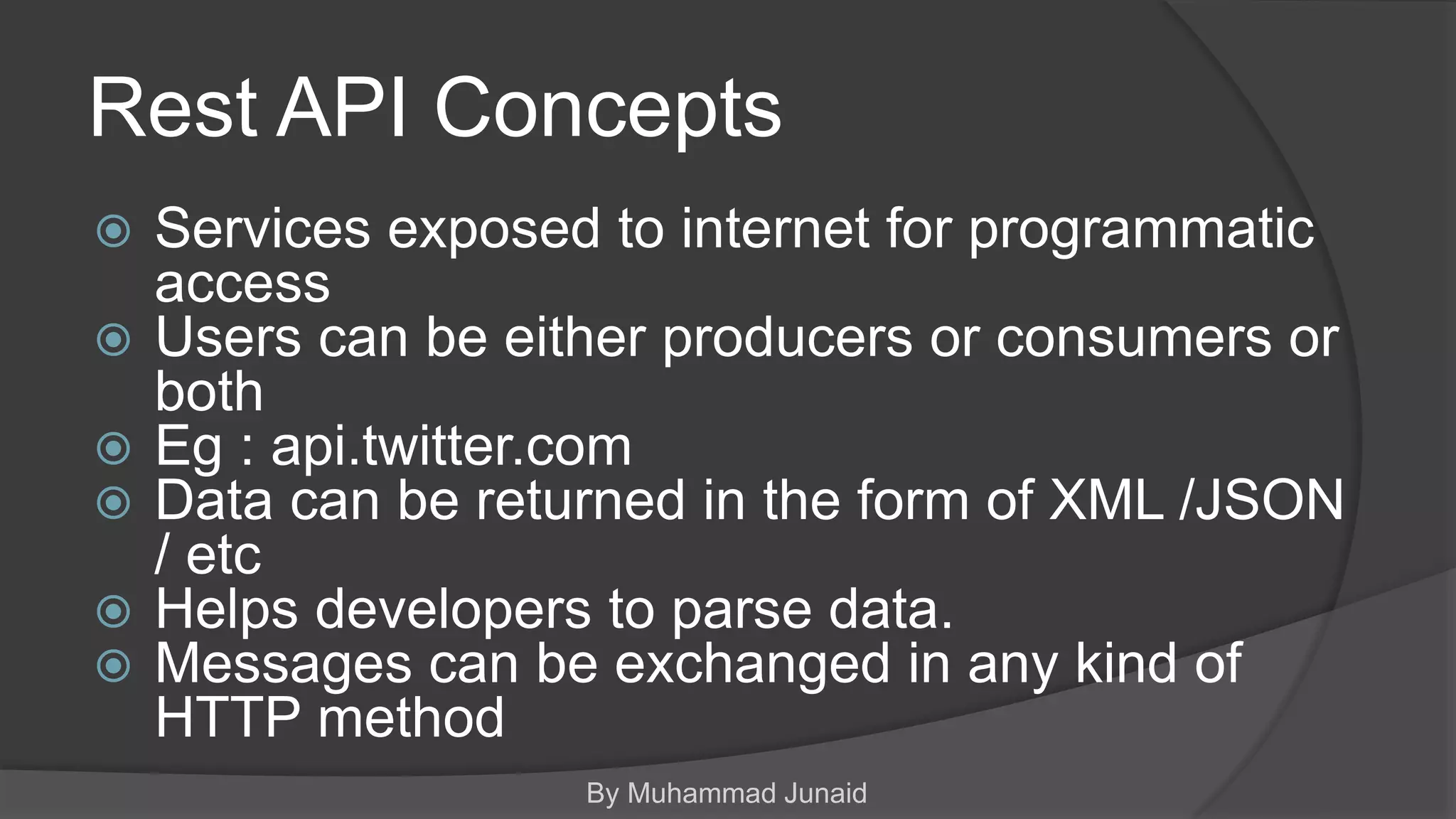

Rest API Concepts
 Services exposed to internet for programmatic
access
 Users can be either producers or consumers or
both
 Eg : api.twitter.com
 Data can be returned in the form of XML /JSON
/ etc
 Helps developers to parse data.
 Messages can be exchanged in any kind of
HTTP method

By Muhammad Junaid

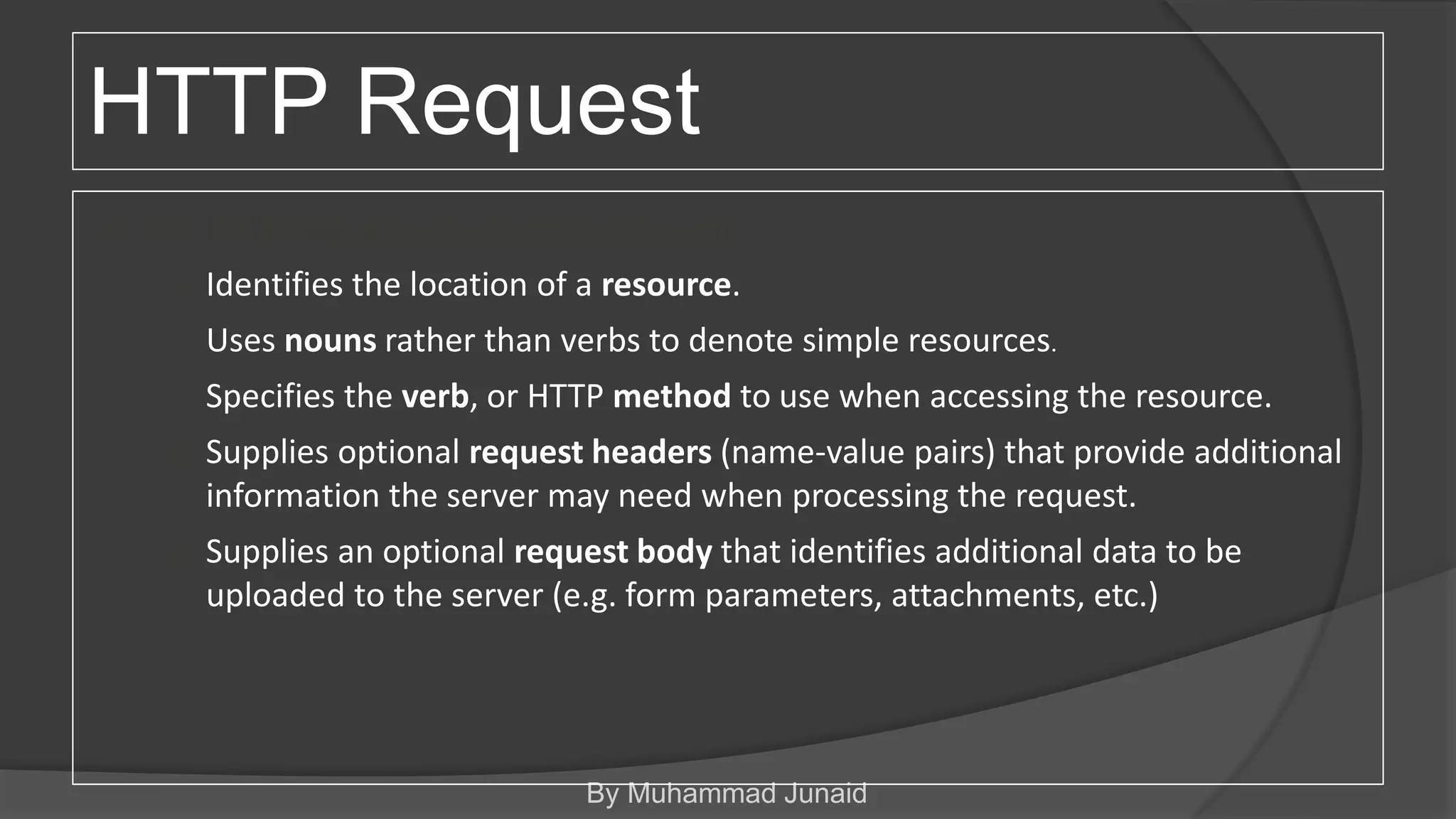

HTTP Request
• The HTTP request is sent from the client.
– Identifies the location of a resource.
– Uses nouns rather than verbs to denote simple resources.
– Specifies the verb, or HTTP method to use when accessing the resource.
– Supplies optional request headers (name-value pairs) that provide additional
information the server may need when processing the request.
– Supplies an optional request body that identifies additional data to be
uploaded to the server (e.g. form parameters, attachments, etc.)

By Muhammad Junaid

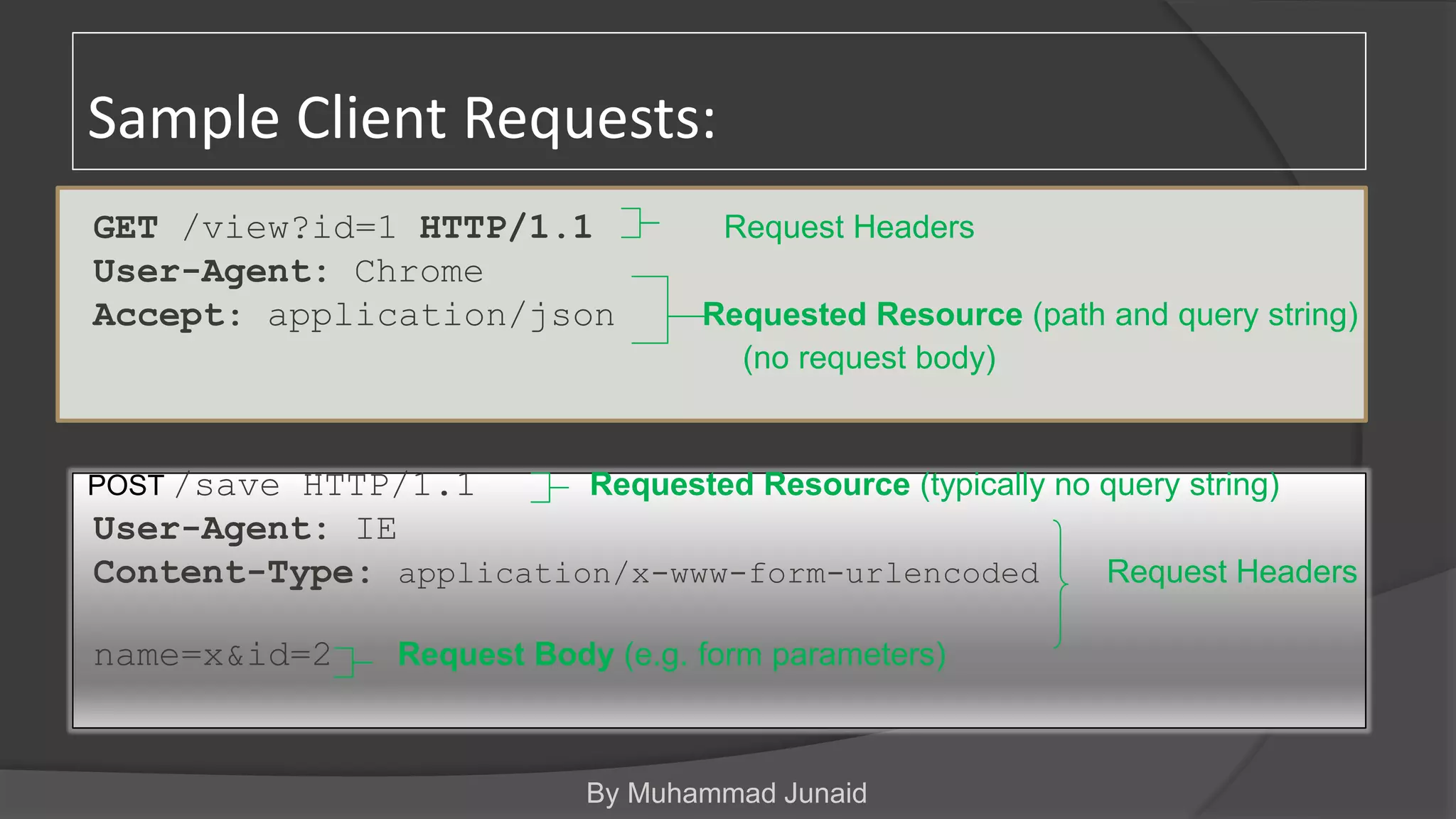

Sample Client Requests:
GET /view?id=1 HTTP/1.1 Request Headers
User-Agent: Chrome
Accept: application/json Requested Resource (path and query string)
(no request body)
POST /save HTTP/1.1 Requested Resource (typically no query string)
User-Agent: IE
Content-Type: application/x-www-form-urlencoded Request Headers
name=x&id=2 Request Body (e.g. form parameters)

By Muhammad Junaid

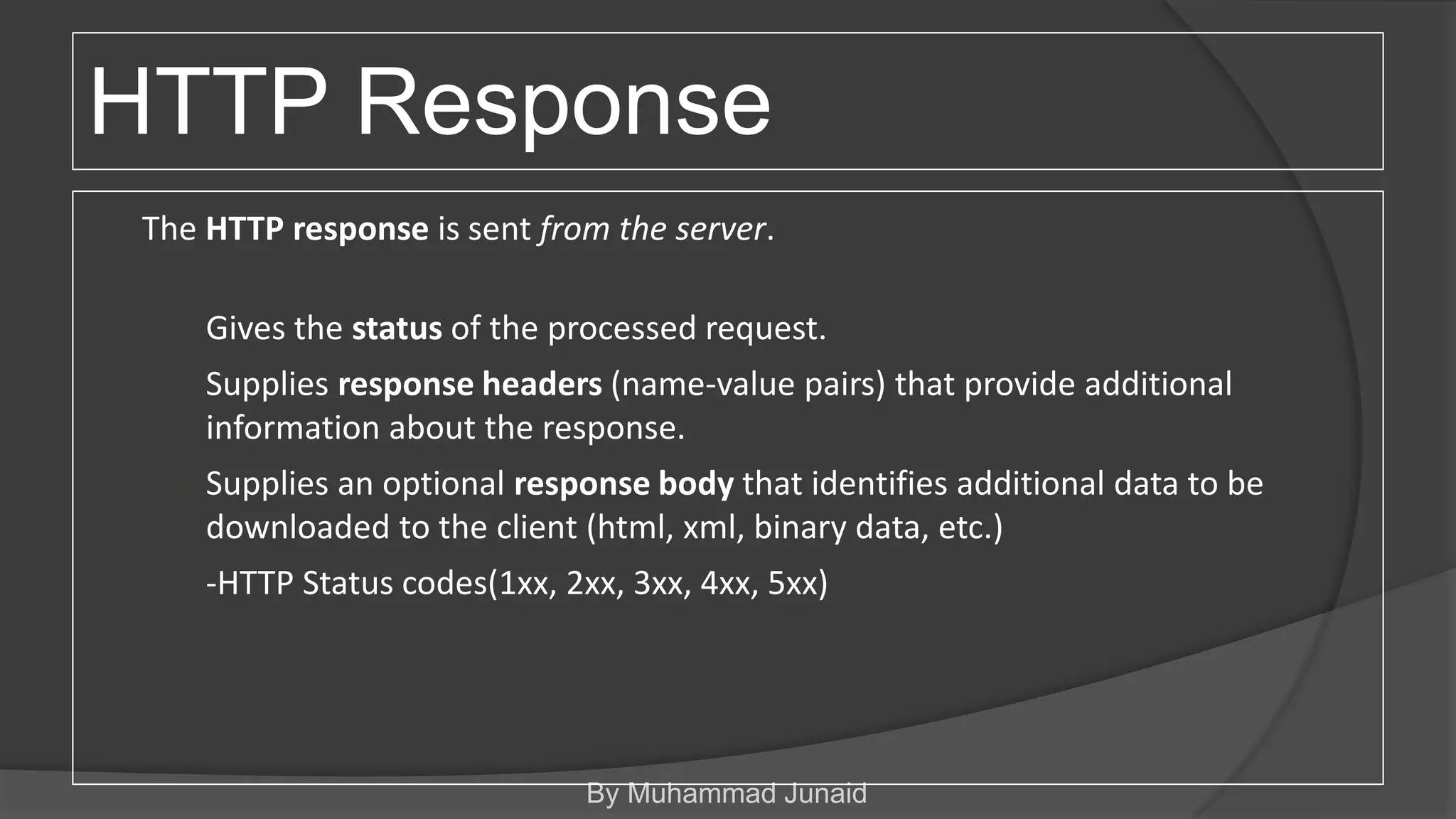

HTTP Response
• The HTTP response is sent from the server.
– Gives the status of the processed request.
– Supplies response headers (name-value pairs) that provide additional
information about the response.
– Supplies an optional response body that identifies additional data to be
downloaded to the client (html, xml, binary data, etc.)
– -HTTP Status codes(1xx, 2xx, 3xx, 4xx, 5xx)

By Muhammad Junaid

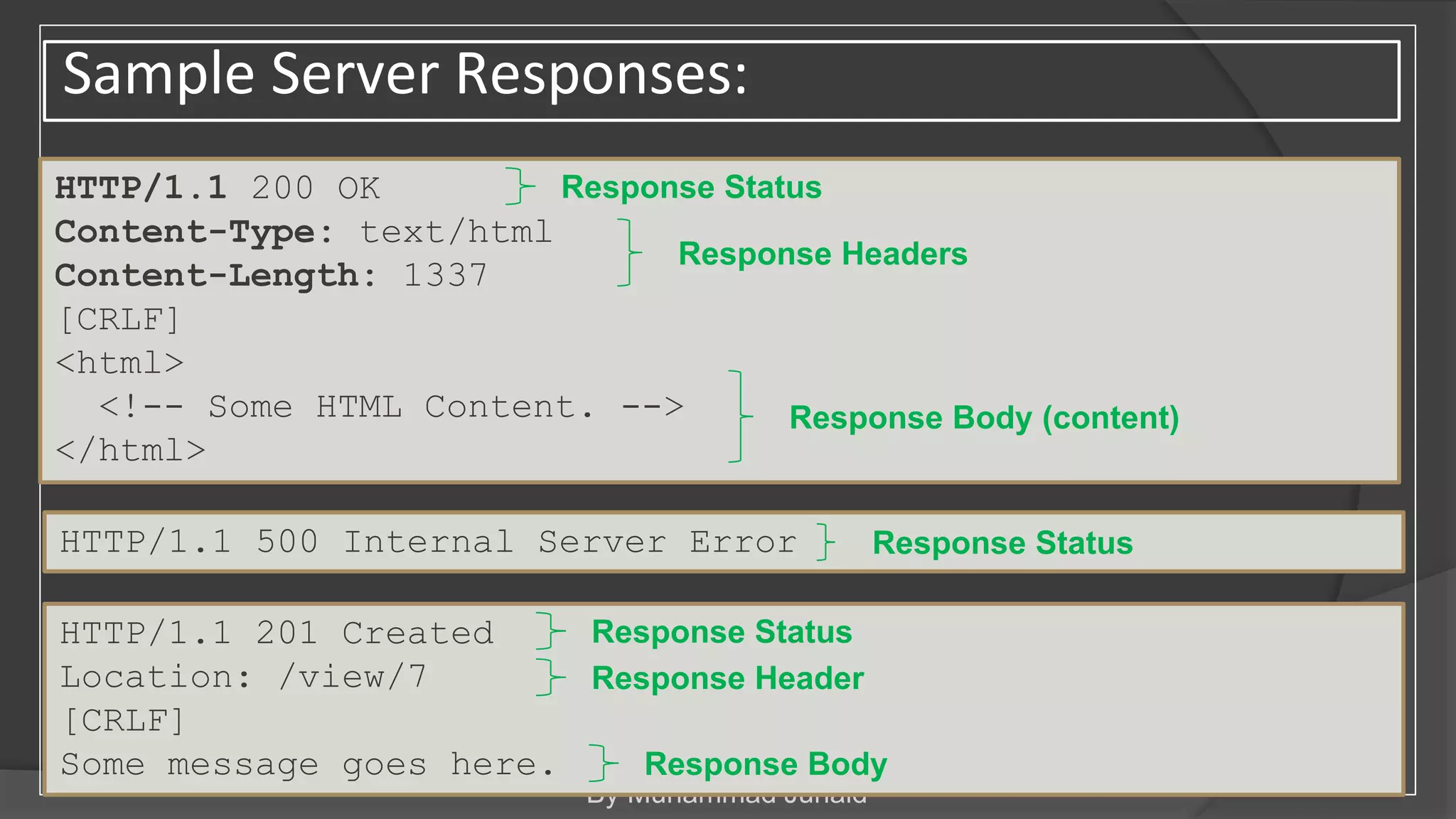

Sample Server Responses:
HTTP/1.1 200 OK
Content-Type: text/html
Content-Length: 1337
[CRLF]
<html>

</html>
HTTP/1.1 500 Internal Server Error
HTTP/1.1 201 Created
Location: /view/7
[CRLF]
Some message goes here.
Response Status
Response Headers
Response Body (content)
Response Status
Response Header
Response Body
Response Status

By Muhammad Junaid

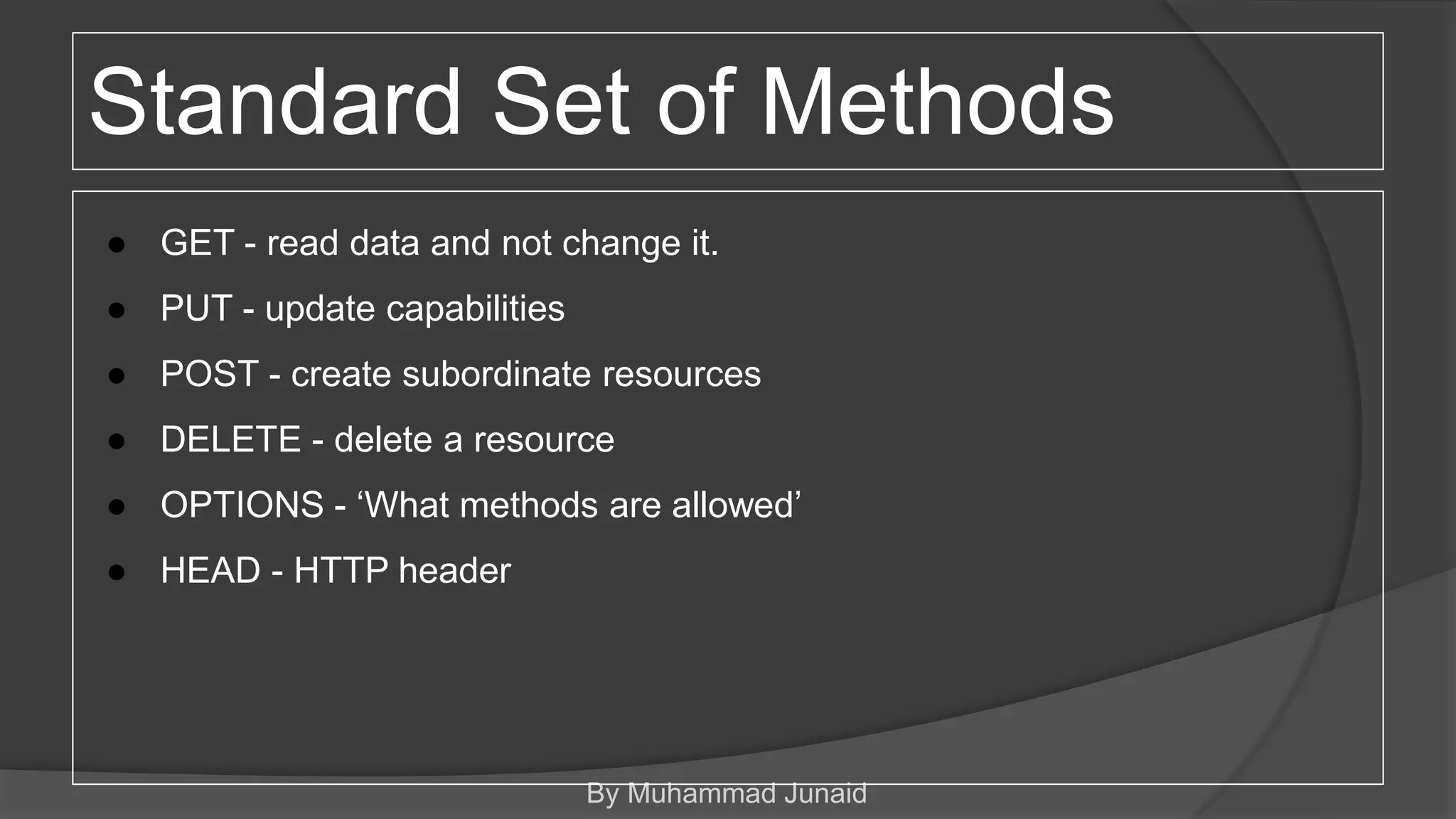

Standard Set of Methods
● GET - read data and not change it.
● PUT - update capabilities
● POST - create subordinate resources
● DELETE - delete a resource
● OPTIONS - ‘What methods are allowed’
● HEAD - HTTP header

By Muhammad Junaid

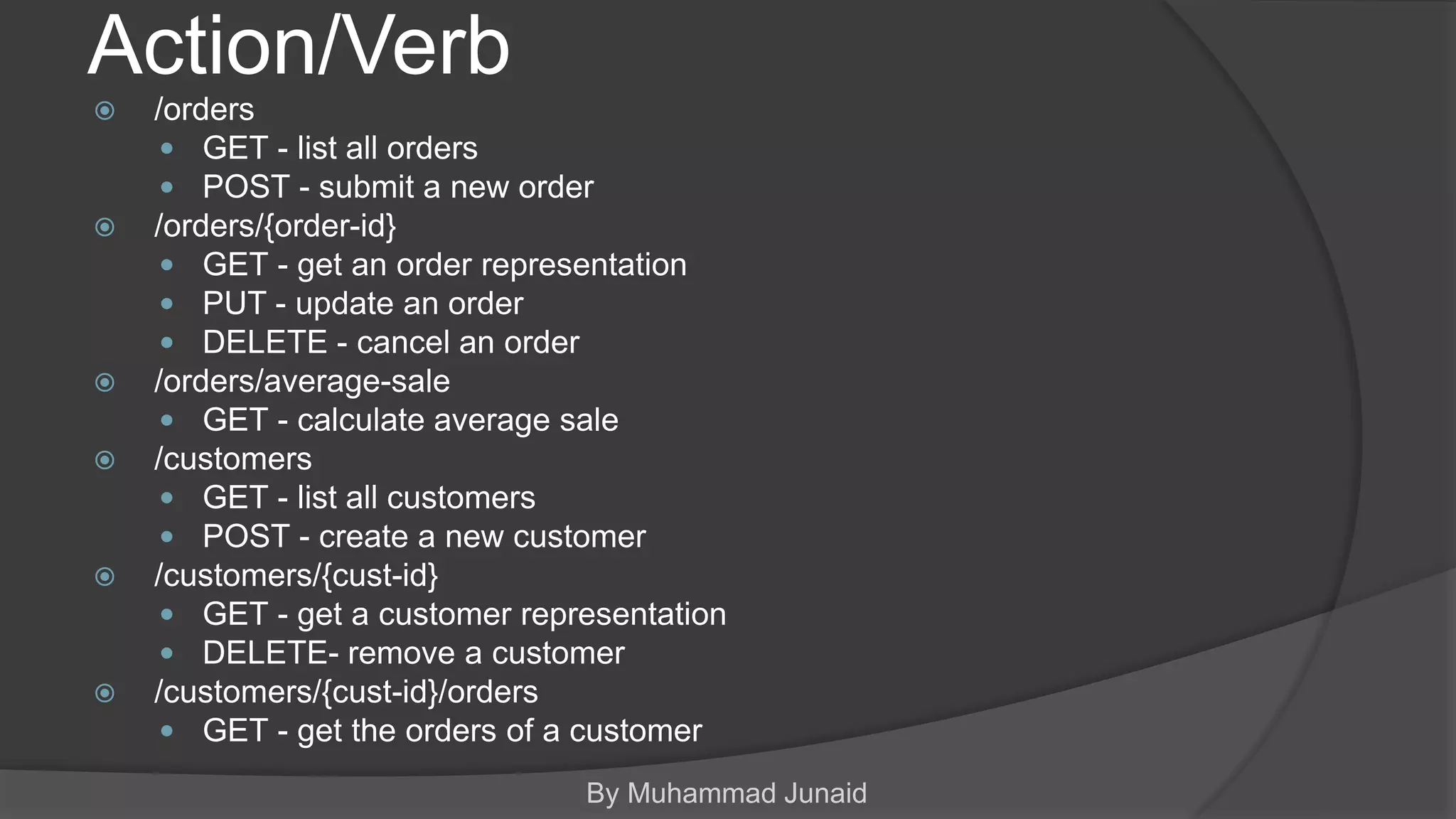

Action/Verb
 /orders
 GET - list all orders
 POST - submit a new order
 /orders/{order-id}
 GET - get an order representation
 PUT - update an order
 DELETE - cancel an order
 /orders/average-sale
 GET - calculate average sale
 /customers
 GET - list all customers
 POST - create a new customer
 /customers/{cust-id}
 GET - get a customer representation
 DELETE- remove a customer
 /customers/{cust-id}/orders
 GET - get the orders of a customer

By Muhammad Junaid

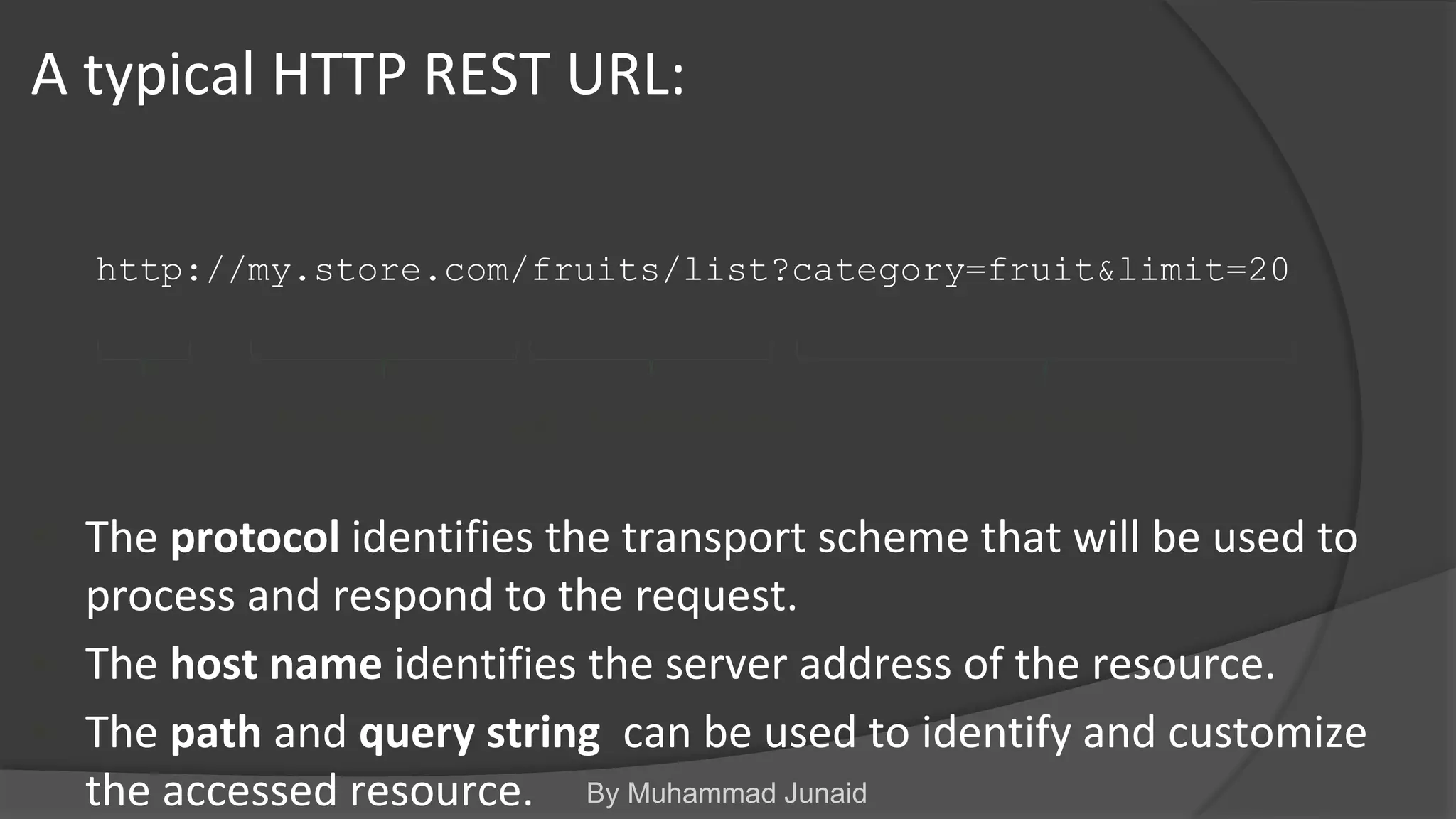

A typical HTTP REST URL:
http://my.store.com/fruits/list?category=fruit&limit=20
• The protocol identifies the transport scheme that will be used to
process and respond to the request.
• The host name identifies the server address of the resource.
• The path and query string can be used to identify and customize
the accessed resource.
protocol host name path to a resource query string

By Muhammad Junaid

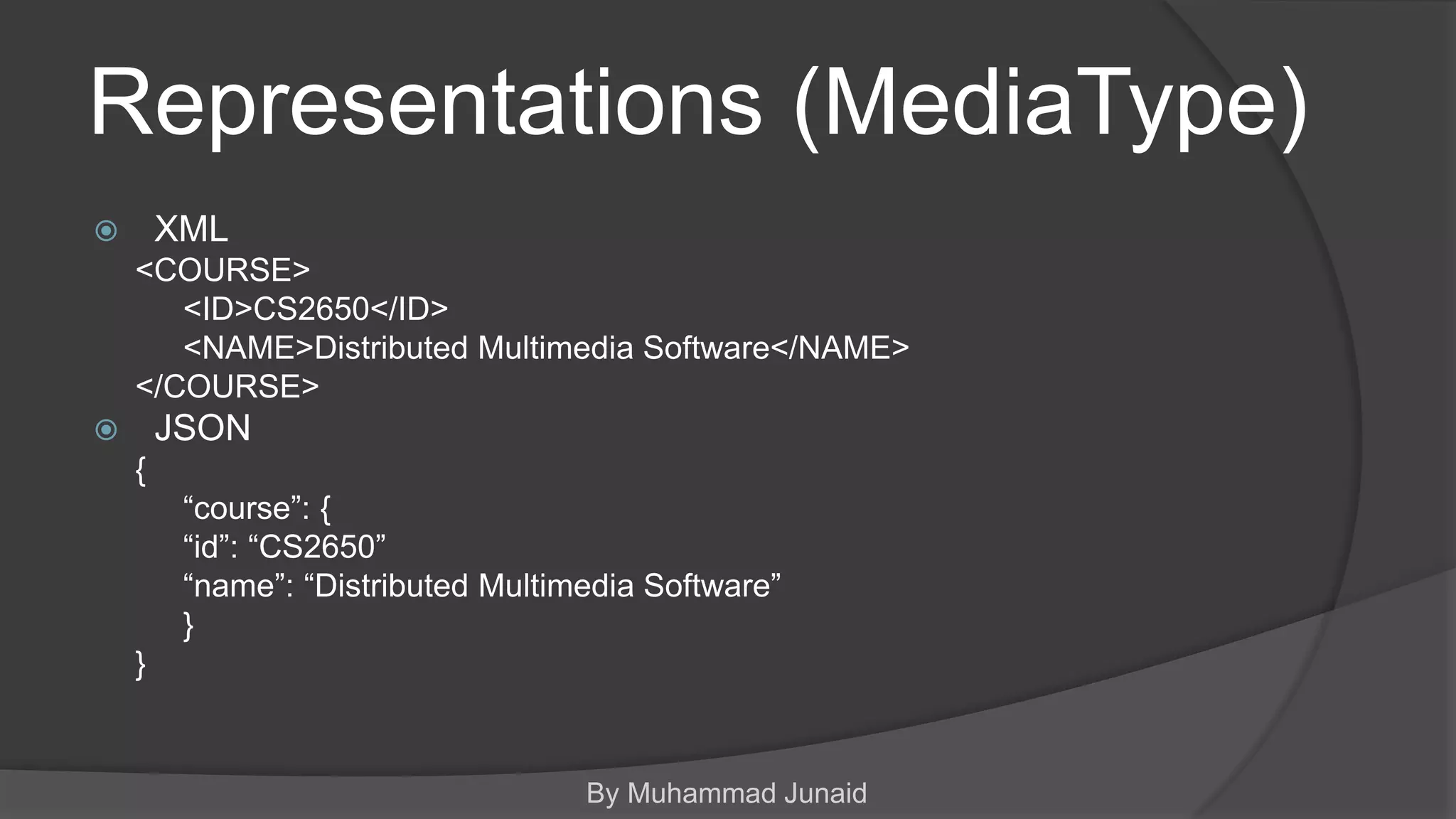

Representations (MediaType)
 XML
<COURSE>
<ID>CS2650</ID>
<NAME>Distributed Multimedia Software</NAME>
</COURSE>
 JSON
{
“course”: {
“id”: “CS2650”
“name”: “Distributed Multimedia Software”
}
}

By Muhammad Junaid

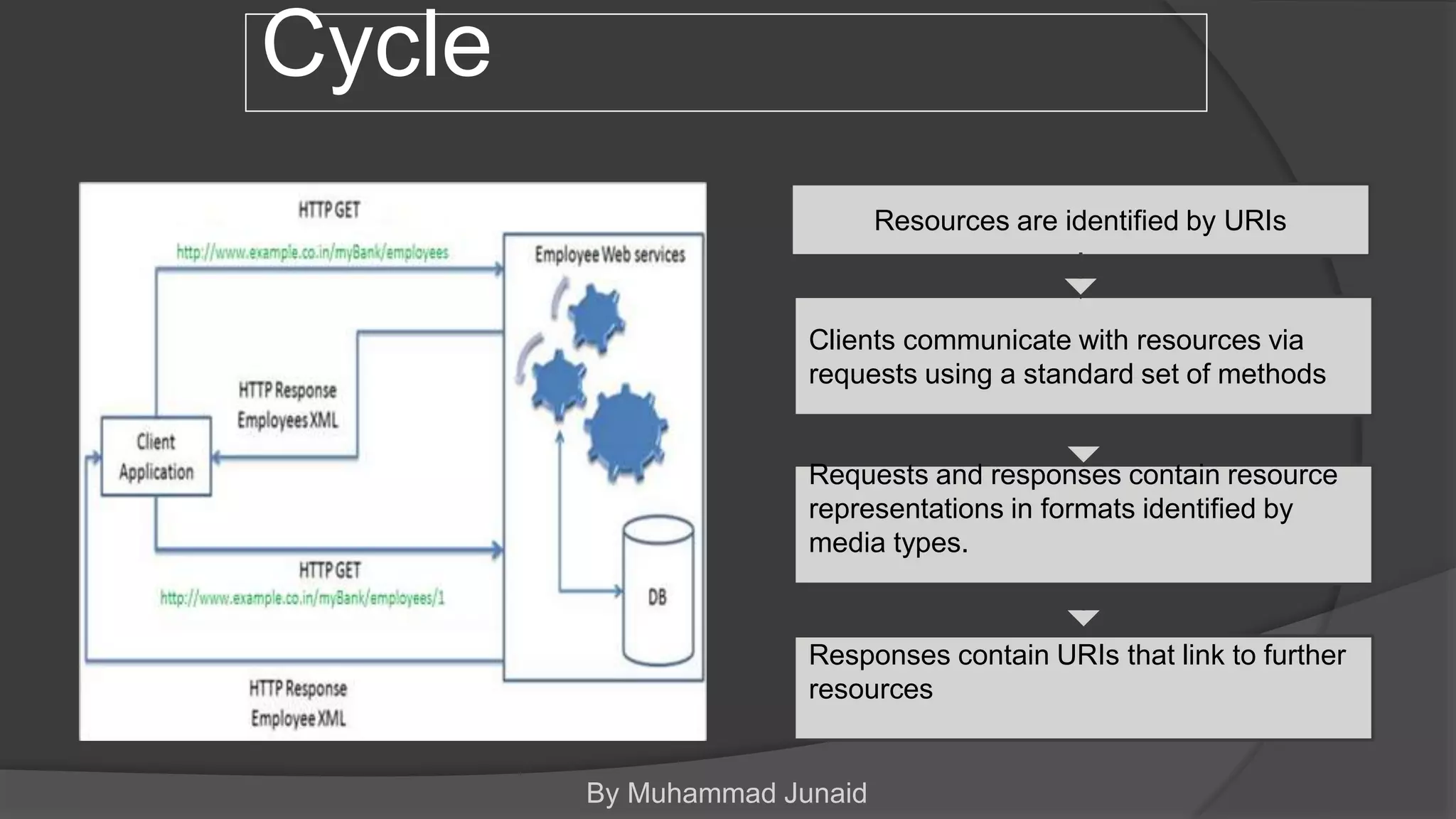

Cycle
Resources are identified by URIs
Clients communicate with resources via
requests using a standard set of methods
Requests and responses contain resource
representations in formats identified by
media types.
Responses contain URIs that link to further
resources

By Muhammad Junaid

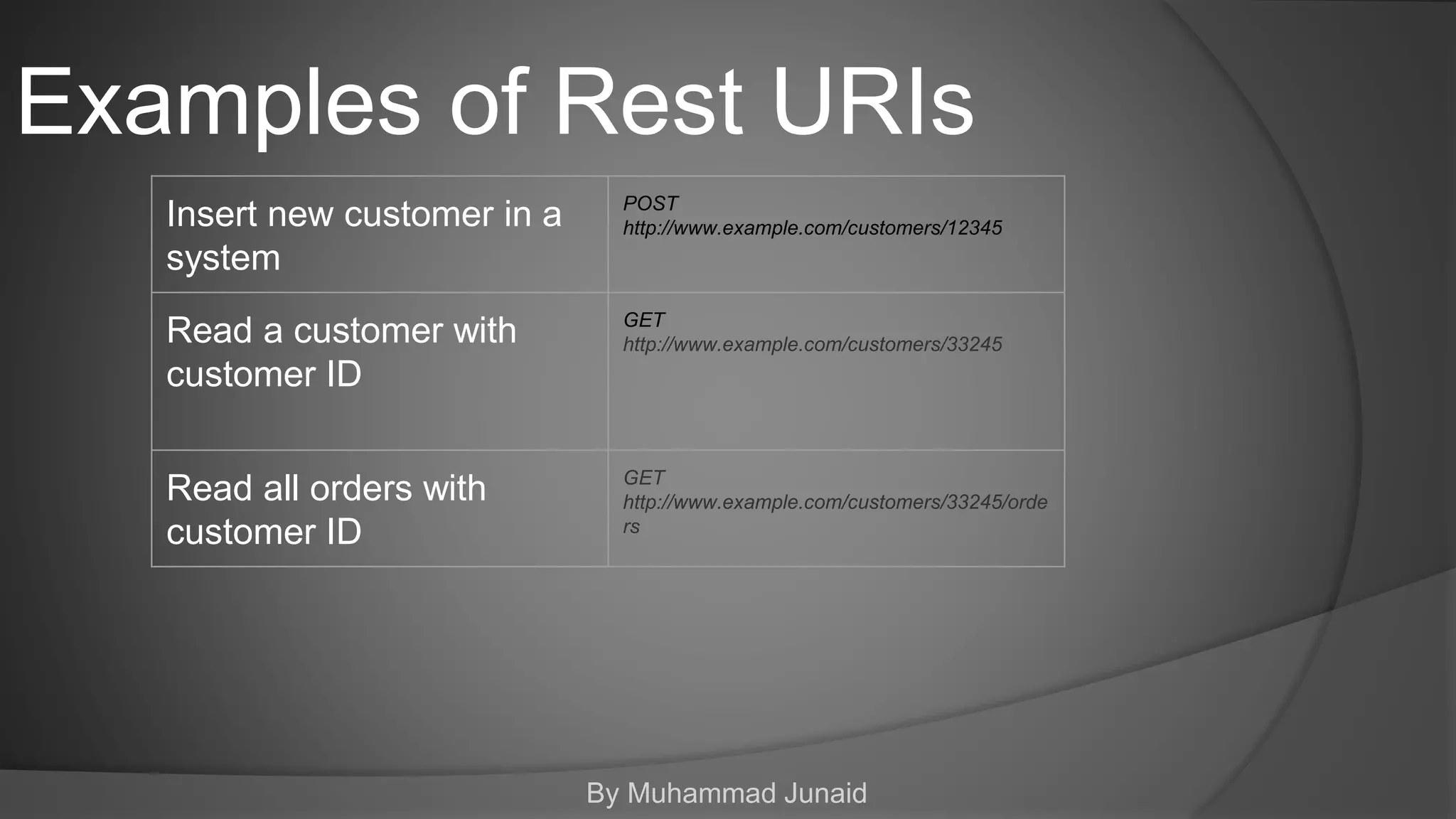

Examples of Rest URIs
Insert new customer in a
system
POST
http://www.example.com/customers/12345
Read a customer with
customer ID
GET
http://www.example.com/customers/33245
Read all orders with
customer ID
GET
http://www.example.com/customers/33245/orde
rs

By Muhammad Junaid

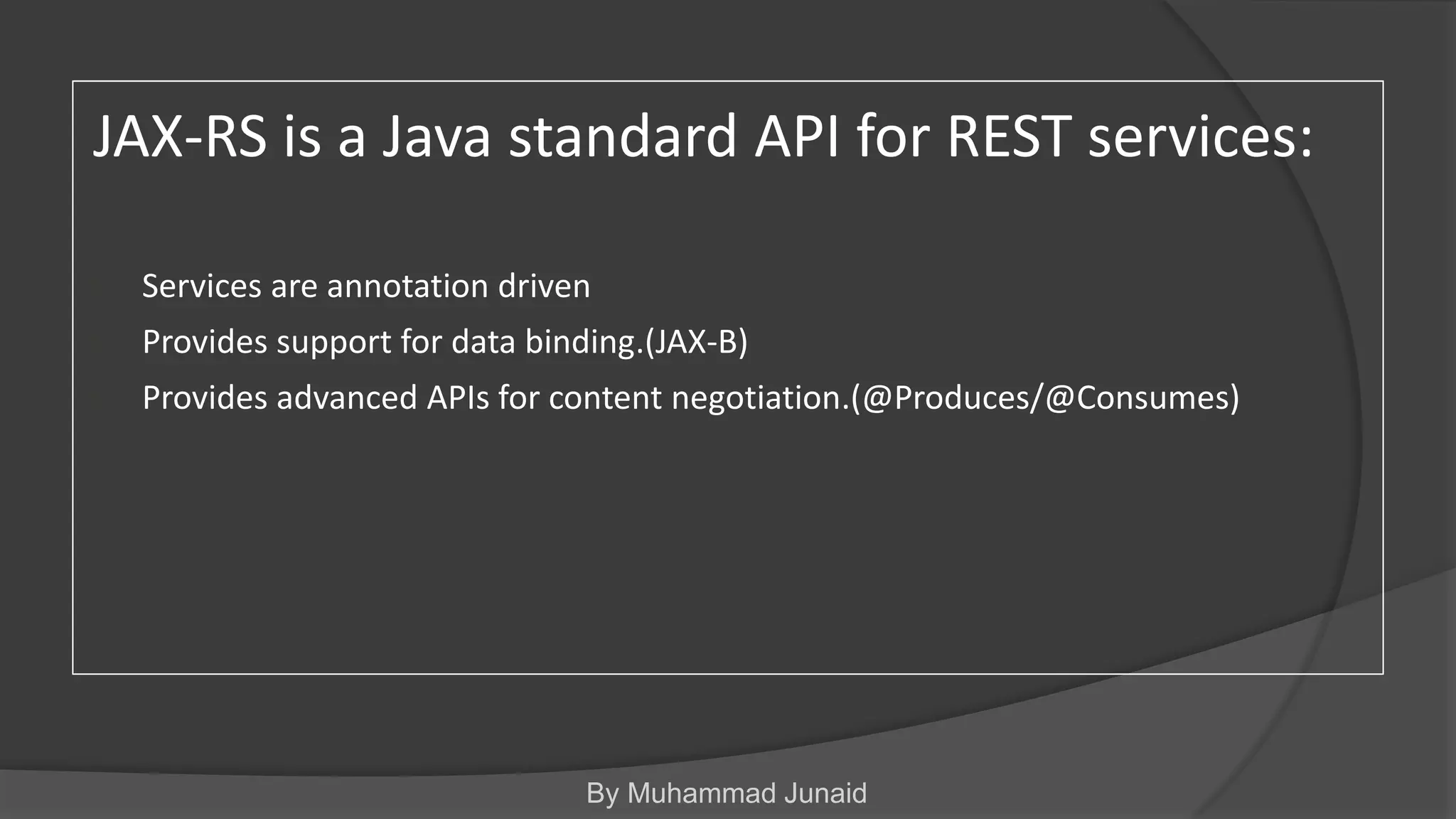

JAX-RS is a Java standard API for REST services:
• Services are annotation driven
• Provides support for data binding.(JAX-B)
• Provides advanced APIs for content negotiation.(@Produces/@Consumes)

By Muhammad Junaid

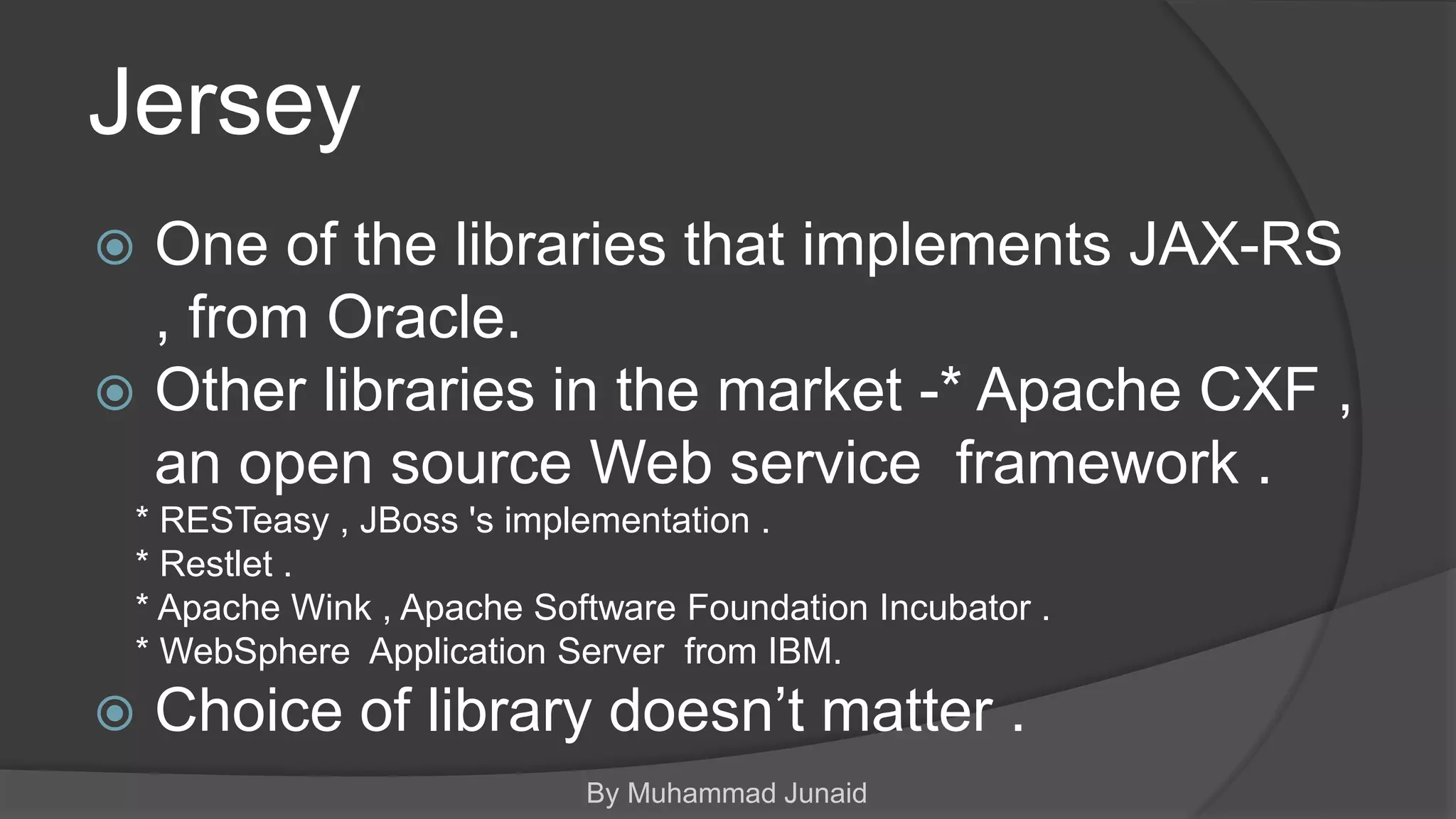

Jersey
 One of the libraries that implements JAX-RS
, from Oracle.
 Other libraries in the market -* Apache CXF ,
an open source Web service framework .
* RESTeasy , JBoss 's implementation .
* Restlet .
* Apache Wink , Apache Software Foundation Incubator .
* WebSphere Application Server from IBM.
 Choice of library doesn’t matter .

By Muhammad Junaid

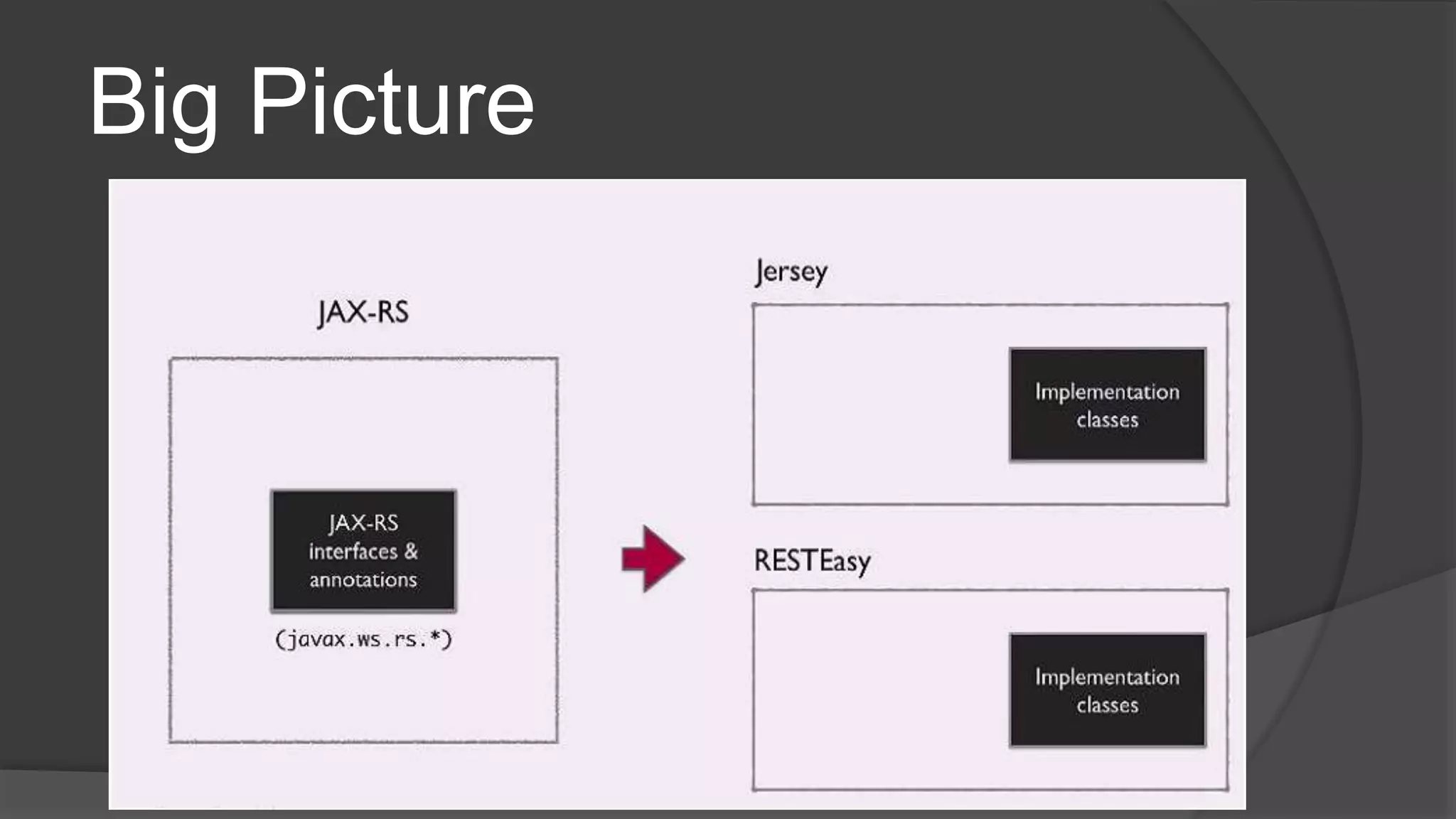

Big Picture

By Muhammad Junaid

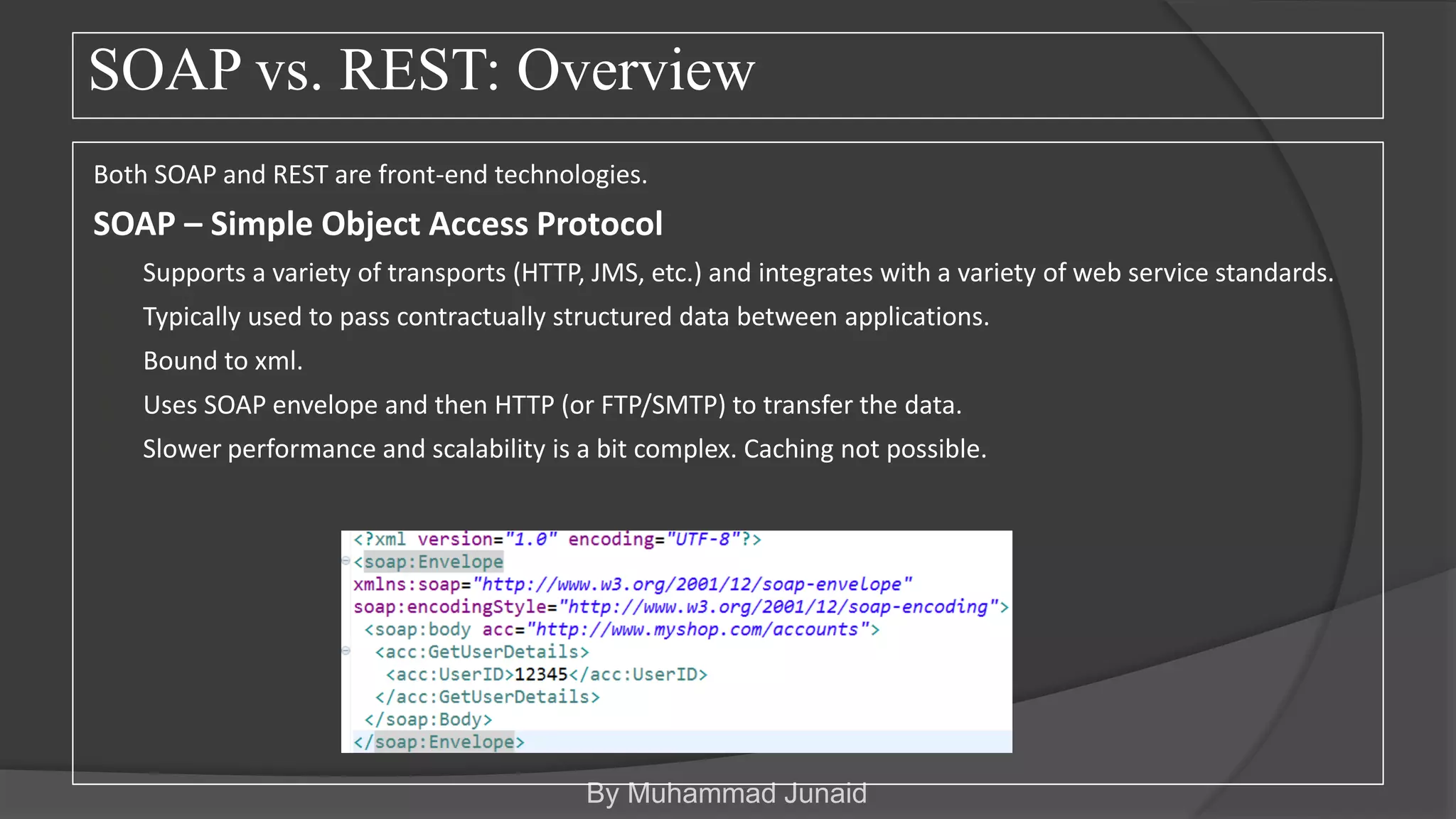

SOAP vs. REST: Overview
Both SOAP and REST are front-end technologies.
SOAP – Simple Object Access Protocol
 Supports a variety of transports (HTTP, JMS, etc.) and integrates with a variety of web service standards.
 Typically used to pass contractually structured data between applications.
 Bound to xml.
 Uses SOAP envelope and then HTTP (or FTP/SMTP) to transfer the data.
 Slower performance and scalability is a bit complex. Caching not possible.

By Muhammad Junaid

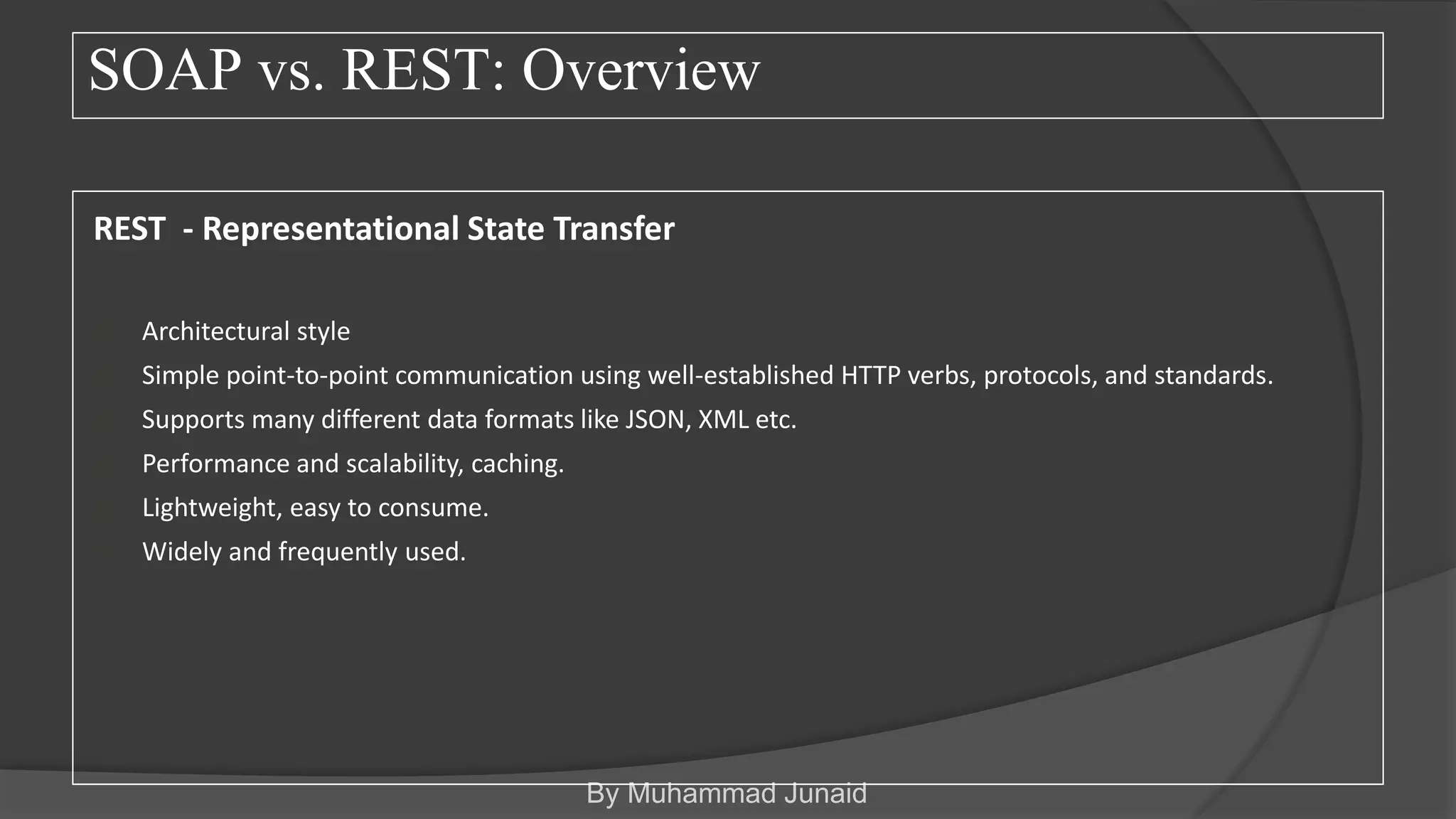

REST - Representational State Transfer
 Architectural style
 Simple point-to-point communication using well-established HTTP verbs, protocols, and standards.
 Supports many different data formats like JSON, XML etc.
 Performance and scalability, caching.
 Lightweight, easy to consume.
 Widely and frequently used.
SOAP vs. REST: Overview

By Muhammad Junaid

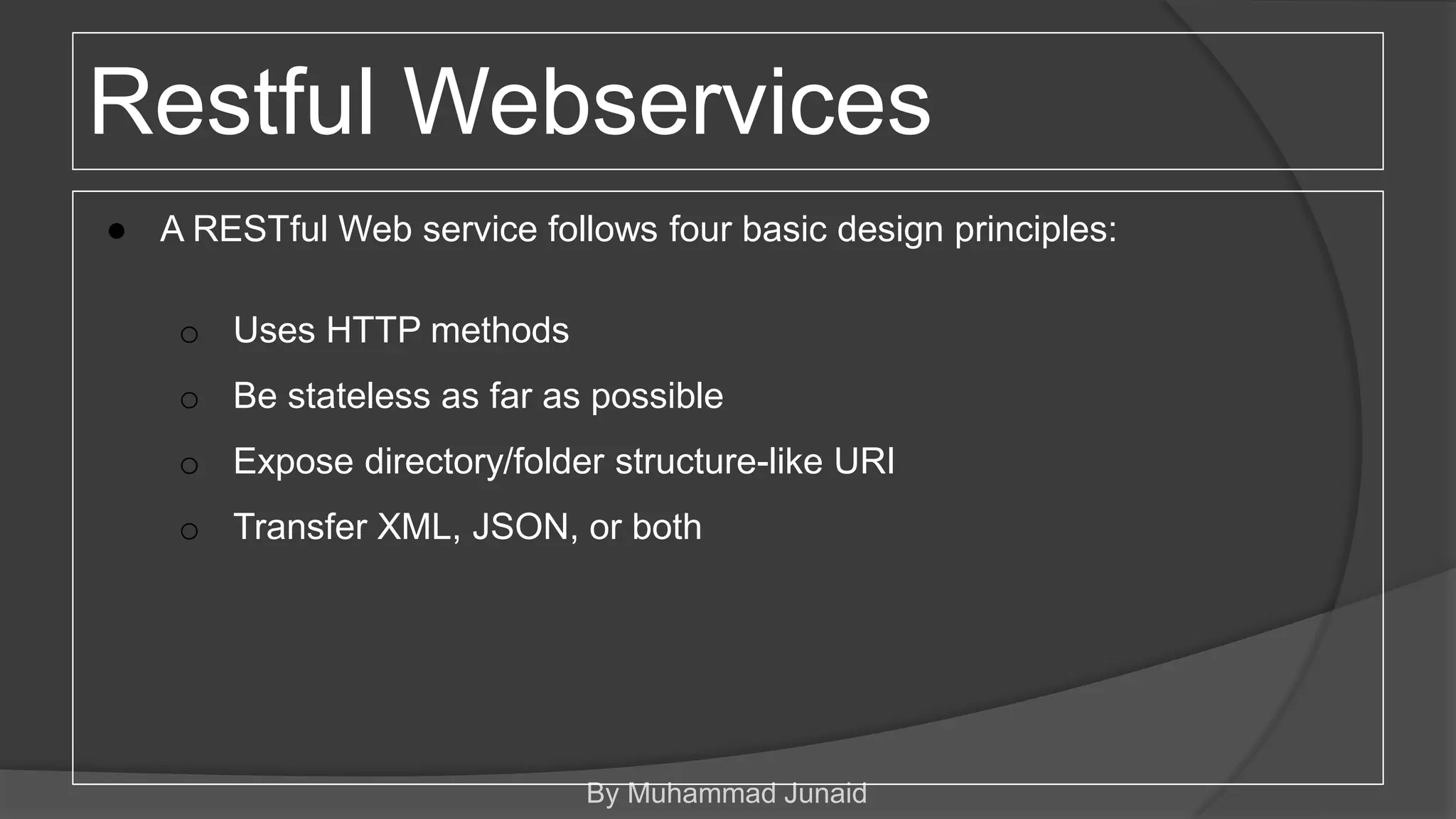

Restful Webservices
● A RESTful Web service follows four basic design principles:
o Uses HTTP methods
o Be stateless as far as possible
o Expose directory/folder structure-like URI
o Transfer XML, JSON, or both

By Muhammad Junaid

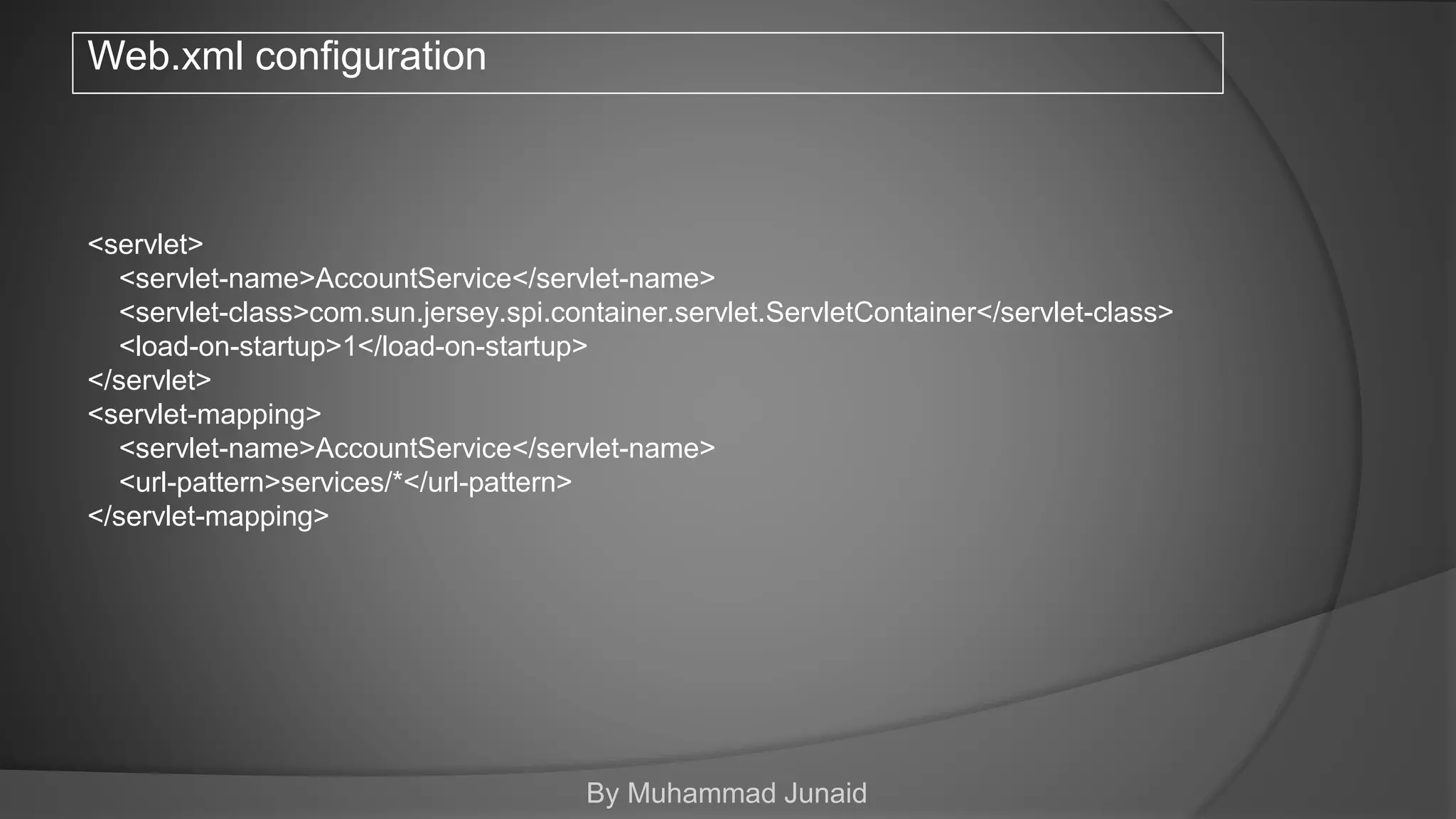

Web.xml configuration
<servlet>
<servlet-name>AccountService</servlet-name>
<servlet-class>com.sun.jersey.spi.container.servlet.ServletContainer</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>AccountService</servlet-name>
<url-pattern>services/*</url-pattern>
</servlet-mapping>

By Muhammad Junaid
@Path
 Sets the path to base URL + /your_path. The
base URL is based on your application
name, the servlet and the URL pattern from
the web.xml configuration file.

By Muhammad Junaid

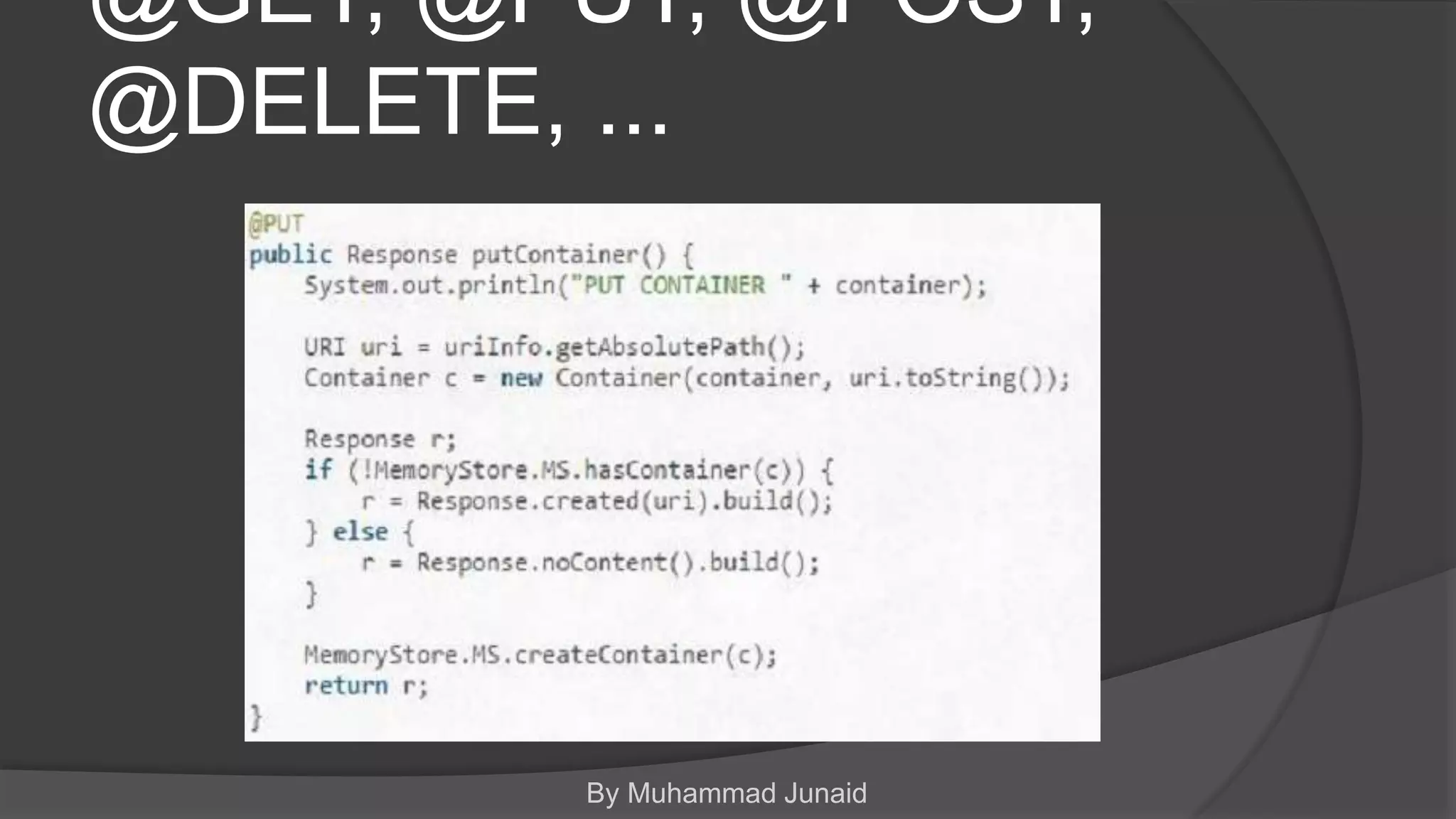

@GET, @PUT, @POST,
@DELETE, ...

By Muhammad Junaid
@Produces
 @Produces defines which MIME type is
delivered by a method annotated with
@GET. In
 the example text ("text/plain") is produced.
Other examples would be "application/xml"
 or "application/json"

By Muhammad Junaid

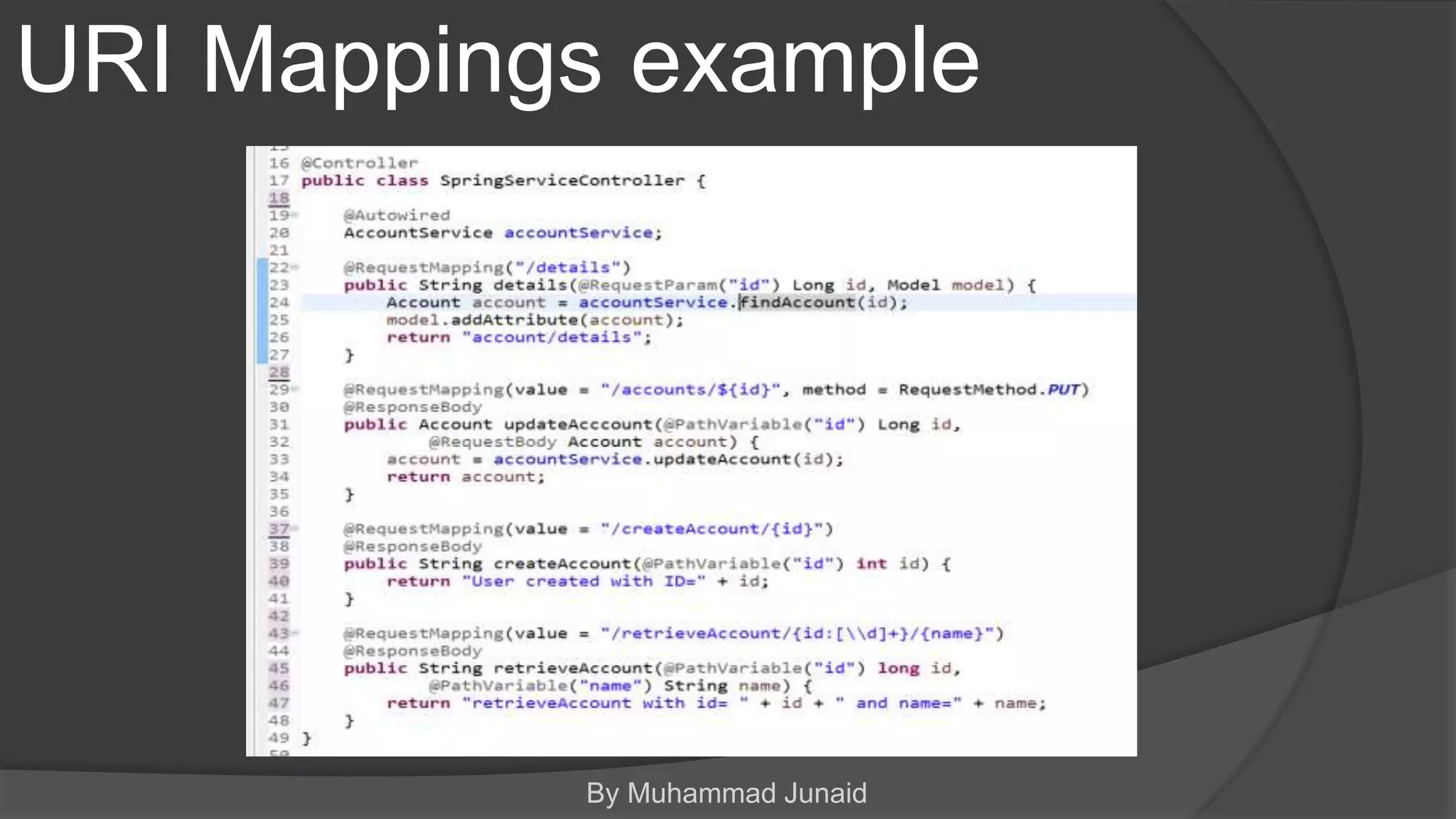

URI Mappings example
