1. HTTP
Web Technologies
piero.fraternali@polimi.it

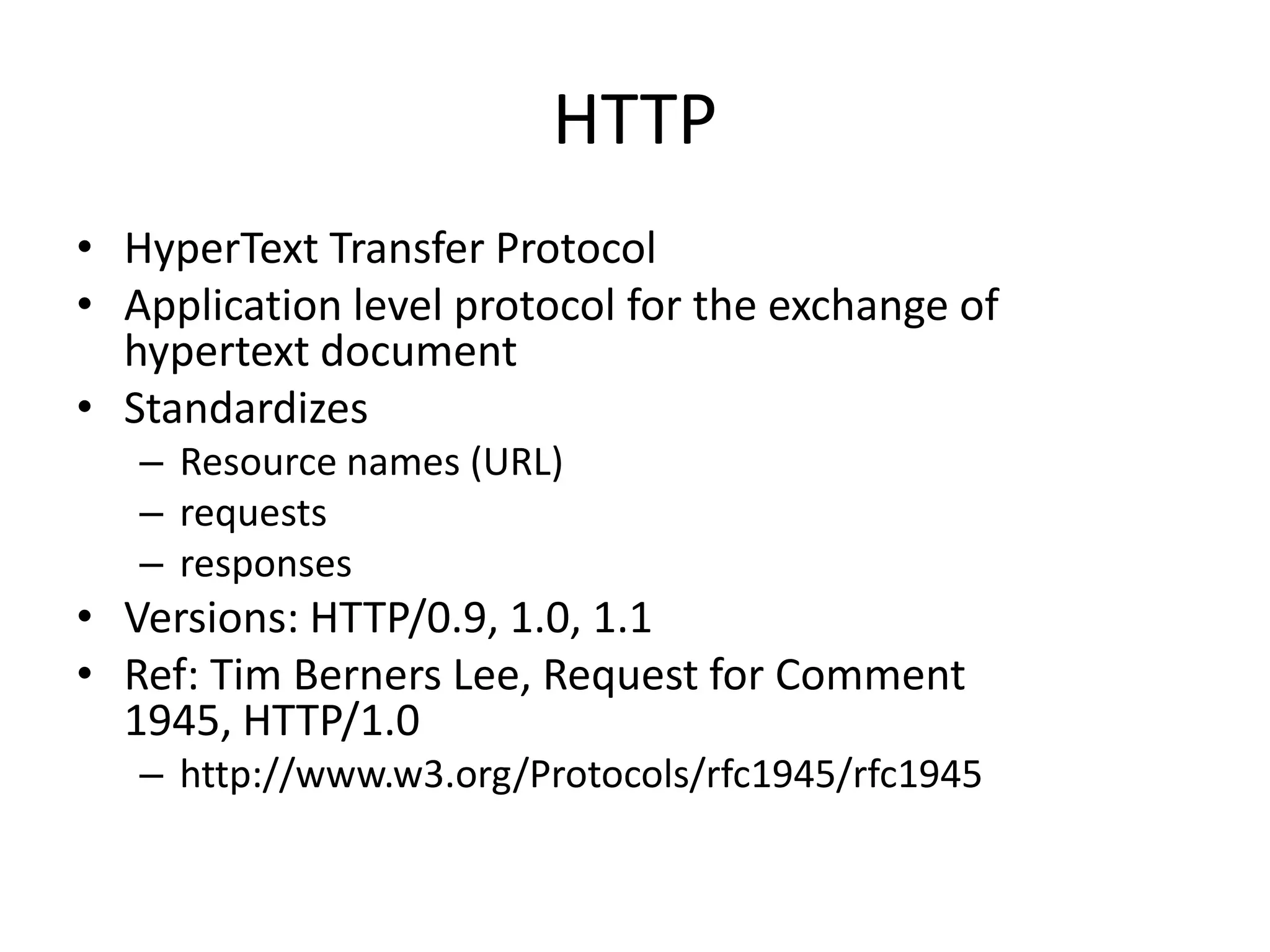

2. HTTP
• HyperText Transfer Protocol
• Application level protocol for the exchange of
hypertext document
• Standardizes
– Resource names (URL)
– requests
– responses
• Versions: HTTP/0.9, 1.0, 1.1
• Ref: Tim Berners Lee, Request for Comment
1945, HTTP/1.0
– http://www.w3.org/Protocols/rfc1945/rfc1945

3. HTTP as a client server system
• Client
– An application program that establishes connections for the purpose
of sending requests.
• Server
– An application program that accepts connections in order to service
requests by sending back responses
• User agent
– The client which initiates a request. These are often
browsers, editors, spiders (web-traversing robots), or other end user
tools
• Origin server
– The server on which a given resource resides or is to be created
• Resource
– A network data object or service which can be identified by a URI

4. The HTTP browser
• Sends HTTP requests to a server
• Receives and interprets responses
• Visualizes resources
• Timeline
http://meyerweb.com/eric/browsers/timeline-structured.html

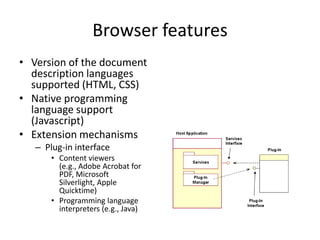

5. Browser features
• Version of the document
description languages
supported (HTML, CSS)
• Native programming
language support
(Javascript)
• Extension mechanisms
– Plug-in interface
• Content viewers
(e.g., Adobe Acrobat for
PDF, Microsoft
Silverlight, Apple
Quicktime)
• Programming language
interpreters (e.g., Java)

6. The HTTP server
• Functionality
– Network access with HTTP for
handling requests
– Access to resources in
secondary storage
– Delivery of HTTP responses
– Access control
– Server-side program execution
– Logging
– Monitoring and administration
– Virtual hosting
– URL mapping
– Connection to application
servers

7. HTTP server vs application server
Applications
Database
(with pooled connections)
Client App.
Web Application Servers
server server

8. Example

9. HTTP limitations
• HTTP is stateless
– Every HTTP request-response cycle is independent
– No data are preserved between two connections
of the same client or of different clients
– HTTP is thus sessionless
– HTTP 1.0 also closes the TCP connection between
the client and the server host at each roundtrip
(fixed in HTTP 1.1)

10. Application server features
• The application server can be stateful (e.g. a residential
process)
• It can preserve the user’s session across multiple
request-response cycles
• Can preserve session data
• Can handle shared resources (e.g, pool of database
connections)
• Can be optimized (multi-threading, multi-
processing, multi-host distribution)
• Can be multi-protocol (e.g., Corba IIOP, COM/DCOM)

11. HTTP Proxy
• An intermediary
program which acts as
both a server and a
client for the purpose
of making requests on
behalf of other clients.
• Main usage:
– Access control
(inbound, outbound)
– Resource caching

12. HTTP Gateway
• A server which acts as an
intermediary for some
other server. Unlike a
proxy, a gateway receives
requests as if it were the
origin server for the
requested resource; the
requesting client may not
be aware that it is
communicating with a
gateway.
• Usage
– protocol translators for access
to resources stored on non-
HTTP systems.

13. Uniform Resource Locator (URL)
• Structured string
– http_URL = "http:" "//" host [ ":" port ] [ abs_path ]
– http://www.elet.polimi.it:8080/people/fraterna.html
• Protocol: http, but also ftp, file
• Host address:
– symbolic: www.elet.polimi.it
– numeric (IP): 131.175.21.1
• Can include port number (e.g. :8080)
• Path: directory sequence
• Resource name: file id
– If resource is an html file, can include an internal fragment address
(e.g. fraterna.html#curriculum)
• More on the URL when introducing dynamic Web resources

14. HTTP request
• full-request :- request-line
*(general-header |
request-header |
entity-header)
CRLF [entity-body]
• request-line :- method SP URL SP version CRLF
• method :- GET | POST | HEAD | others..
• Example of request-line:
GET /pub/papers/pap101.html HTTP/1.0

15. HTTP Response
• full-response :- status-line
*(general-header |
request-header |
entity-header)
CRLF [entity-body]
• status-line :- version SP status SP message
CRLF
• status: Codici di stato:
1XX (informative), 2XX (success),
3XX (redirection), 4XX(client error),
5XX (server error)
• Example: HTTP 404 - File not found

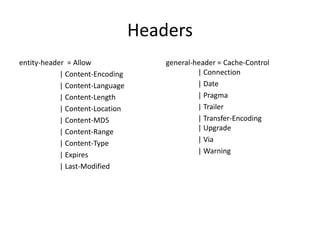

16. Headers
entity-header = Allow general-header = Cache-Control
| Content-Encoding | Connection
| Content-Language | Date
| Content-Length | Pragma
| Content-Location | Trailer
| Content-MD5 | Transfer-Encoding
| Content-Range | Upgrade
| Content-Type | Via
| Expires | Warning
| Last-Modified

17. Headers
request-header = Accept response-header = Accept-Ranges
| Accept-Charset | Age
| Accept-Encoding | ETag
| Location
| Accept-Language
| Proxy-Authenticate
| Authorization
| Retry-After
| Expect | Server
| From | Vary
| Host | WWW-Authenticate
| If-Match
| If-Modified-Since
| If-None-Match
| If-Range
| If-Unmodified-Since
| Max-Forwards
| Proxy-Authorization
| Range
| Referer Quick reference to HTTP headers
| TE http://www.cs.tut.fi/~jkorpela/http.html
| User-Agent
Test for the headers sent by the browser
http://www.tipjar.com/cgi-bin/test

18. HTTP headers in a request (examples)
Field name Description Example
Accept Content-Types that are acceptable Accept: text/plain
Accept-Charset Character sets that are acceptable Accept-Charset: utf-8
Accept-Encoding Acceptable encodings. See HTTP compression. Accept-Encoding: gzip, deflate
Accept-Language Acceptable human languages for response Accept-Language: en-US
Authorization Authentication credentials for HTTP authentication Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Used to specify directives that MUST be obeyed by all caching
Cache-Control Cache-Control: no-cache
mechanisms along the request/response chain
Connection What type of connection the user-agent would prefer Connection: keep-alive
an HTTP cookie previously sent by the server with Set-
Cookie Cookie: $Version=1; Skin=new;
Cookie (below)
Content-Length The length of the request body in octets (8-bit bytes) Content-Length: 348
A Base64-encoded binary MD5 sum of the content of the
Content-MD5 Content-MD5: Q2hlY2sgSW50ZWdyaXR5IQ==
request body
The MIME type of the body of the request (used with POST and
Content-Type Content-Type: application/x-www-form-urlencoded
PUT requests)
Date The date and time that the message was sent Date: Tue, 15 Nov 1994 08:12:31 GMT
Indicates that particular server behaviors are required by the
Expect Expect: 100-continue
client
....
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:12.0)
User-Agent The user agent string of the user agent
Gecko/20100101 Firefox/12.0

19. HTTP headers in a response
(examples)
Field name Description Example
Accept-Ranges What partial content range types this server supports Accept-Ranges: bytes
Age The age the object has been in a proxy cache in seconds Age: 12
Tells all caching mechanisms from server to client whether they
Cache-Control Cache-Control: max-age=3600
may cache this object. It is measured in seconds
Connection Options that are desired for the connection[21] Connection: close
Content-Encoding The type of encoding used on the data. See HTTP compression. Content-Encoding: gzip
Content-Language The language the content is in Content-Language: da
Content-Length The length of the response body in octets (8-bit bytes) Content-Length: 348
Content-Location An alternate location for the returned data Content-Location: /index.htm
A Base64-encoded binary MD5 sum of the content of the
Content-MD5 Content-MD5: Q2hlY2sgSW50ZWdyaXR5IQ==
response
Content-Range Where in a full body message this partial message belongs Content-Range: bytes 21010-47021/47022
Content-Type The MIME type of this content Content-Type: text/html; charset=utf-8
Date The date and time that the message was sent Date: Tue, 15 Nov 1994 08:12:31 GMT
Expires Gives the date/time after which the response is considered stale Expires: Thu, 01 Dec 1994 16:00:00 GMT
The last modified date for the requested object, in RFC
Last-Modified Last-Modified: Tue, 15 Nov 1994 12:45:26 GMT
2822 format

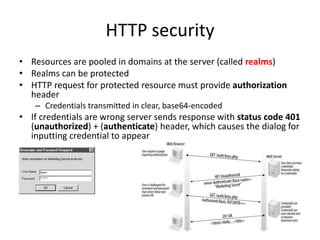

20. HTTP security
• Resources are pooled in domains at the server (called realms)
• Realms can be protected
• HTTP request for protected resource must provide authorization
header
– Credentials transmitted in clear, base64-encoded
• If credentials are wrong server sends response with status code 401
(unauthorized) + (authenticate) header, which causes the dialog for
inputting credential to appear

21. HTTP 1.1
• Calendar
– Jan 1997: HTTP/1.1 becomes Proposed Standard (RFC
2068)
– June 1999 Improvements and updates under RFC 2616 in
– Main innovations
• Tunnels
• Chunked encoding
• Multi-request connections
• Content negotiation
• Advanced cache management
• New methods
(OPTIONS, PUT, DELETE, TRACE, CONNECT, extension-method)

22. Tunnels
• Tunnel = An intermediary
program which is acting as a blind
relay between two connections.
• A tunnel is not a party to the
HTTP communication, though the
tunnel may have been initiated by
an HTTP request. It does not
change the messages;
• Tunnels are used when the
communication needs to pass
through an intermediary (such as
a firewall) even when the
intermediary cannot understand
the contents of the messages.

23. Chuncked transfer encoding
Behavior Benefits
• A data transfer mechanism in which • Allows a server to maintain
data is sent in blocks called "chunks“
• It uses the Transfer-Encoding header in an HTTP persistent
place of the Content-Length connection for dynamically
header, the sender does not need to
know the length of the content before generated content
it starts transmitting a response to the
receiver. (useful for dynamically- • Allows the sender to send
generated content). header fields after the
• Size is sent before the chunk so that the
receiver can tell when it has finished message body, in cases
receiving data for that chunk. where values cannot be
• Data transfer is terminated by a final
chunk of length zero. known until the content has
been produced (e.g., digital
signature)

24. Persistent connection
Behavior Benefits
• HTTP 1.0 required opening a new connection
for every single request/response pair
• Less CPU and memory usage
• Connection: Keep-Alive header used in HTTP (because fewer connections
1.0 to avoid dropping the connection. are open simultaneously)
• When the client sends another request, it
uses the same connection. This will continue • Enables HTTP pipelining of
until either the client or the server decides requests and responses
that the conversation is over, and one of
them drops the connection. • Reduced network congestion
• In HTTP 1.1 all connections are (fewer TCP connections)
persistent, unless otherwise specified
• Reduced latency in
subsequent requests (no
handshaking)
• Errors can be reported without
the penalty of closing the TCP
connection

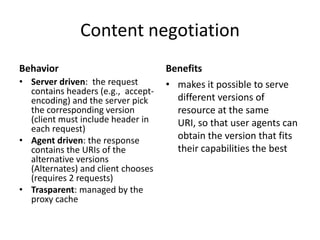

25. Content negotiation
Behavior Benefits
• Server driven: the request • makes it possible to serve
contains headers (e.g., accept-
encoding) and the server pick different versions of
the corresponding version resource at the same
(client must include header in URI, so that user agents can
each request)
• Agent driven: the response obtain the version that fits
contains the URIs of the their capabilities the best
alternative versions
(Alternates) and client chooses
(requires 2 requests)
• Trasparent: managed by the
proxy cache

26. Cache management
• Goal: minimaze network traffic and bandwidth
usage
• Mechanism: storing a duplicate of the resource in
a location closer to the client and serving that in
response to a request
• Semantic transparency:
– the client must be unaware of the cache
– Warning must be given to the client if the duplicate
may be disaligned wrt to the original resource

27. Cache operations
• Expiration
– The server can declare the validity in time of a resource
(Cache-Control and Expires header)
– Requires computing the age of a resource (in the Age
header) in presence of time zones and
differences, multiple responses
• Validation
– The cache can control the validity of the expired
copy, (e.g., based on Date and Last-Modified time, or on
explicit entity tags, i.e., version control numbers)
– Requires conditional requests and validation headers
– May produce the Warning general-header, when the
response contains a possibly stale entity

28. References
• HTTP1.0: Tim Berners Lee, Request for Comment
1945, HTTP1.0
• HTTP1.1: Internet Draft <draft-ietf-http-v11-spec-rev-06>
(November 18, 1998)
http://www.w3.org/Protocols/History.html#HTTP11
• HTTP Status codes:
http://www.w3.org/Protocols/rfc2616/rfc2616-sec10.html
• HTTP Intro: http://jmarshall.com/easy/http/
• Web info: http://www.webopedia.com
