Rapier Loom
MD SOHEL KHAN
Department of Textile Engineering
Port City International University

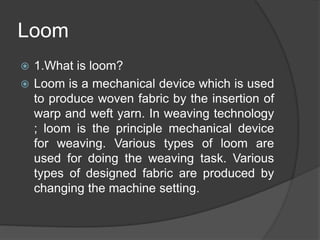

Loom
 1.What is loom?
 Loom is a mechanical device which is used
to produce woven fabric by the insertion of
warp and weft yarn. In weaving technology
; loom is the principle mechanical device
for weaving. Various types of loom are
used for doing the weaving task. Various
types of designed fabric are produced by
changing the machine setting.

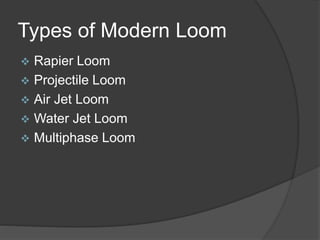

Types of Modern Loom
 Rapier Loom
 Projectile Loom
 Air Jet Loom
 Water Jet Loom
 Multiphase Loom

Recommended for you

Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...

The document discusses different types of looms and their weft insertion mechanisms, including projectile looms, rapier looms, air jet looms, and multiphase looms. It describes the torsion bar picking mechanism of projectile looms and covers topics like weft insertion, selvedges, classifications of double rapier looms, air treatment systems for air jet looms, and calculations for fabric and yarn production.

multi-phase loomprojectile loomrapier loom
Multiphase weaving
Multiphase weavingMultiphase weaving
Multiphase weaving

The document discusses multiphase weaving machines. It describes two principles of multiphase weaving: the filling direction shed wave principle and the warp direction shed wave principle. The filling direction principle involves forming multiple sheds in the filling direction to allow simultaneous insertion of multiple wefts. The warp direction principle involves opening multiple sheds simultaneously across the warp width. It then focuses on the M8300 multiphase weaving machine, which uses the warp direction principle to insert 4 picks simultaneously at speeds over 5000 m/min, significantly faster than single phase machines.

Roving
RovingRoving
Roving

The document discusses the roving frame machine, which comes after the draw frame in the spinning process. The roving frame drafts sliver from draw frame cans into a thin roving strand and applies a light twist. It operates by drafting the sliver, guiding it through the flyer to apply twist, and winding the roved strand onto bobbins. While complicated, the roving frame produces packages of roving suitable for input to the ring frame. Efforts to eliminate this step have not succeeded due to the high drafts required in ring frames.

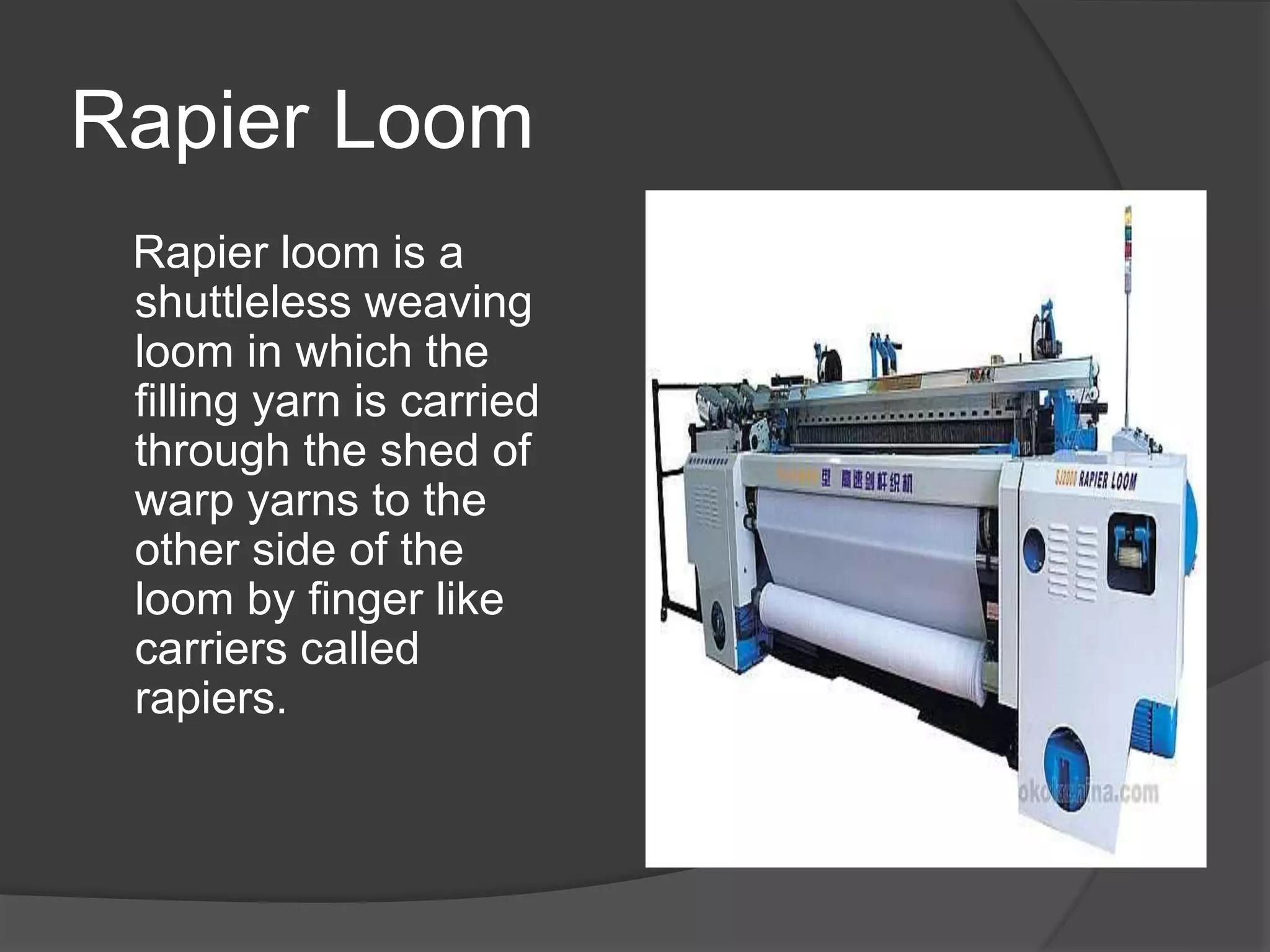

Rapier Loom
Rapier loom is a
shuttleless weaving
loom in which the
filling yarn is carried
through the shed of
warp yarns to the
other side of the
loom by finger like
carriers called
rapiers.

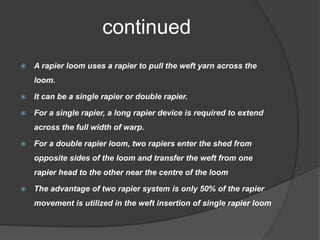

continued
 A rapier loom uses a rapier to pull the weft yarn across the
loom.
 It can be a single rapier or double rapier.
 For a single rapier, a long rapier device is required to extend
across the full width of warp.
 For a double rapier loom, two rapiers enter the shed from
opposite sides of the loom and transfer the weft from one
rapier head to the other near the centre of the loom
 The advantage of two rapier system is only 50% of the rapier
movement is utilized in the weft insertion of single rapier loom
Rapier loom

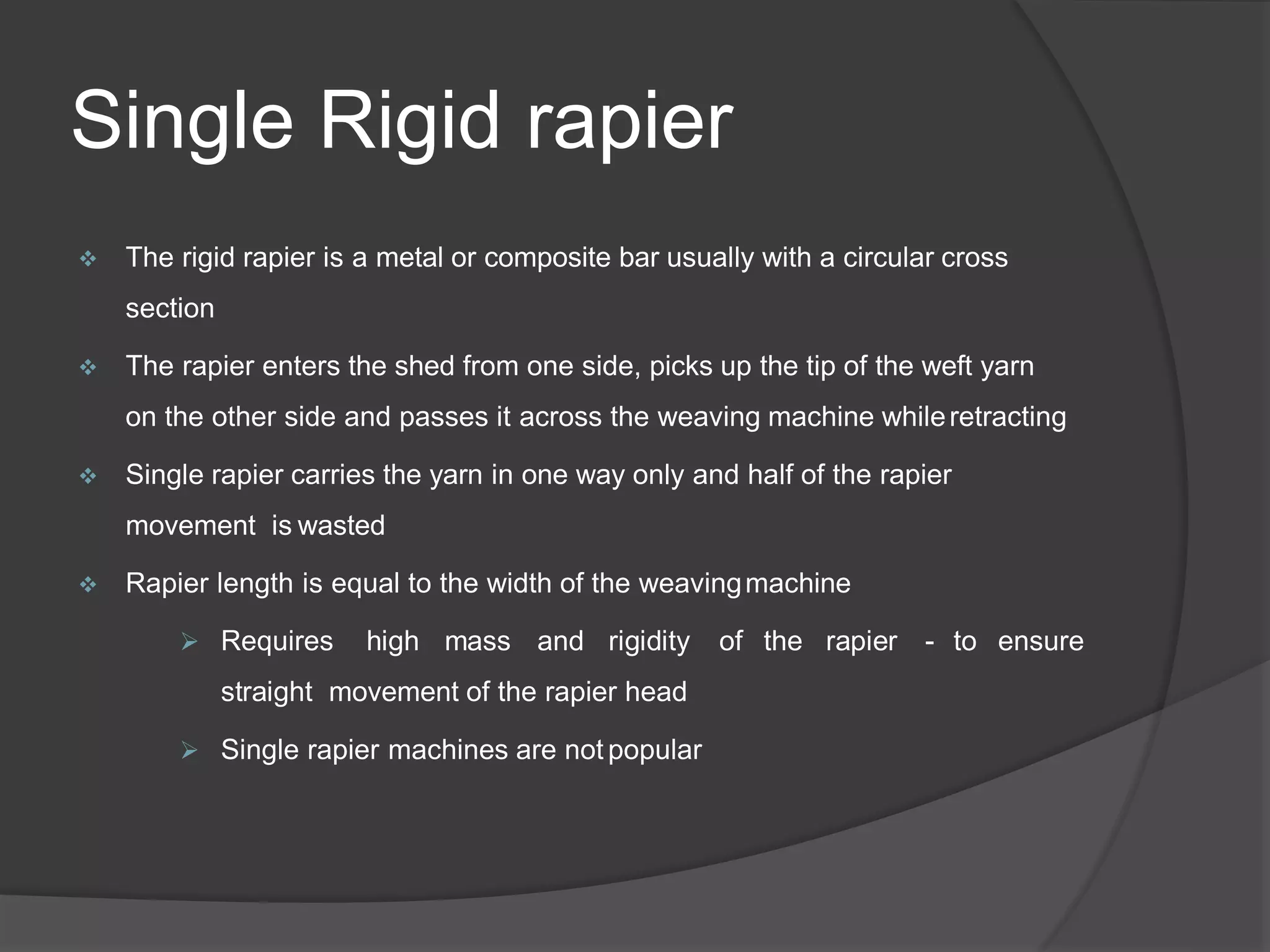

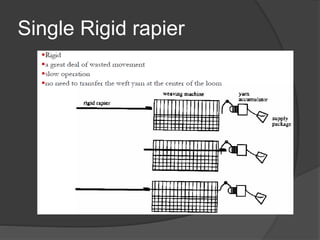

Single Rigid rapier
 The rigid rapier is a metal or composite bar usually with a circular cross
section
 The rapier enters the shed from one side, picks up the tip of the weft yarn
on the other side and passes it across the weaving machine whileretracting
 Single rapier carries the yarn in one way only and half of the rapier
movement is wasted
 Rapier length is equal to the width of the weavingmachine
 Requires high mass and rigidity of the rapier - to ensure
straight movement of the rapier head
 Single rapier machines are not popular

Recommended for you

Yarn manufacturing Process : Carding
Yarn manufacturing Process : CardingYarn manufacturing Process : Carding
Yarn manufacturing Process : Carding

The document discusses the carding process which involves opening, cleaning and assembling fibers into a sliver through different sections of a carding machine like feed, licker-in, cylinder and doffer. It explains the objectives, necessities and zones of carding along with details of components like types of clothing, their functioning and settings that are important for quality carding. The document also covers developments in carding technology and types of drives used in modern carding machines.

Picking mechnism in weaving
Picking mechnism in weavingPicking mechnism in weaving
Picking mechnism in weaving

Describes about the picking mechanism in weaving machine and types of picking in shuttle and projectile loom

pickingshuttle pickingweaving
Shuttle less weaving
Shuttle less weavingShuttle less weaving
Shuttle less weaving

This document discusses drawbacks of conventional shuttle looms and advantages of shuttleless looms. Some key drawbacks of conventional looms include large shuttle mass wasting energy, unguided shuttle flight causing damage, and varying shuttle mass affecting weft tension. Shuttleless looms overcome these issues by separating weft storage from transport, allowing for smaller, lighterweight carriers and higher loom speeds with wider reeds for improved productivity and fabric quality. Functional principles of commercially successful shuttleless systems include using partially guided solid carriers or pressurized fluid jets to transport weft across the shed in a controlled manner.

gate peparation
Single Rigid rapier
Continued….
 Advantage
• Problem of weft transfer does not arise and
normal range of fabric can be woven.
 Disadvantage
• One movement of rapier is wasted.
• Loom speed is very slow.
• The maximum weft insertion rate is 400
m/min

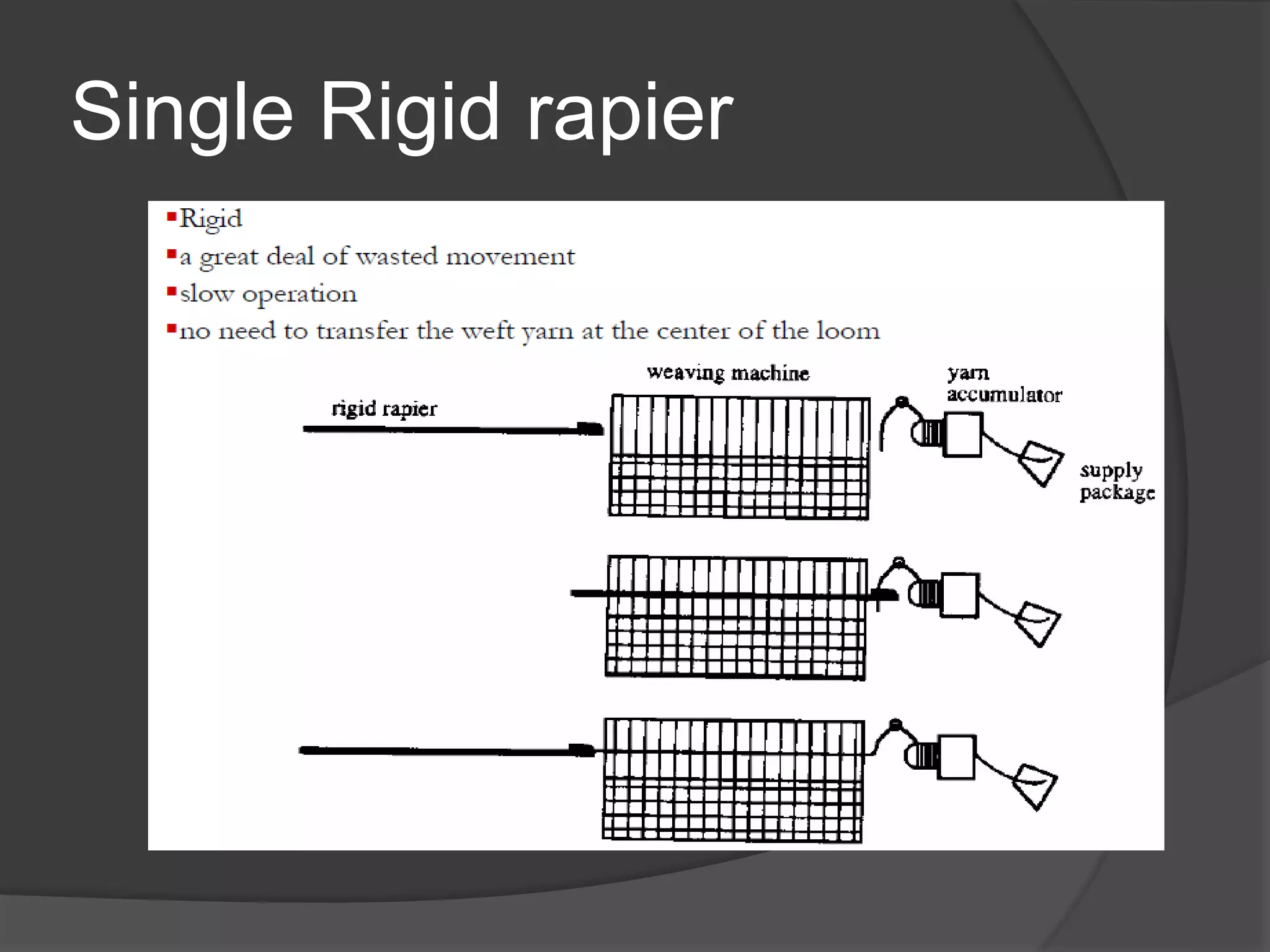

Single Rigid rapier
Double Rigid Rapier
 Two rapiers enter the shed from the opposite sides and meet at thecenter.
 The double rapier weaving machines are subdividedinto:
• One-sided weft insertion. One rapier is the transmitting rapier the other
is the taker rapier.
• Double-sided weft insertion. Each rapier acts alternately as the giver
and the taker.
 The giver picks up the yarn from the accumulator at one side, brings it
to the center of the shed, transfers it to the second rapier(taker).
 As the taker retracts, carries the yarn to the otherside.
 In a twin-rapier system, two rapiers move together from the same driving
source, as is necessary in face-to-face (i.e., double-plush) weaving

Recommended for you

RING FRAME Machine
RING FRAME MachineRING FRAME Machine
RING FRAME Machine

What is ring frame? How it Works, Purpose, Action of Ring Frame, Limitations, Faults, Shyamoli Textile Engineering College

ring frametextileengineering
Jacquad shedding
Jacquad sheddingJacquad shedding
Jacquad shedding

This presentation summarizes the Jacquard shedding mechanism. It introduces the four presenters and provides background on the Jacquard loom, which can produce complex woven designs through individual control of warp threads. The presentation then covers the scope of Jacquard shedding, including its ability to control thousands of yarns and produce intricate designs. It also classifies different types of Jacquard looms based on their lifting capacity, design capacity, shed formation, and other features. Key aspects of the single lift Jacquard mechanism are explained. Advantages and disadvantages of the Jacquard loom conclude the presentation.

technologyteachingengineering
Picking and its classification
Picking and its classificationPicking and its classification
Picking and its classification

This document discusses different types of picking and picking mechanisms used in weaving. It begins with an introduction to picking, which is the process of passing the weft yarn through the warp shed during weaving. It then describes various picking mechanisms including overpicking, underpicking, and cone overpick and underpick mechanisms. The document provides details on how these different mechanisms work to insert the weft yarn through the shed. It concludes with advantages and disadvantages of different weft insertion methods like projectile, rapier, air jet, and water jet looms.

fabric manufacturing processyarn picking processwoven fabric
Double Rigid Rapier
Mechanism of Rapier loom
 A rapier is a rod or steel tape which carries the weft
yarn. In the other end, the rapier connected to the
control system.
 The rapier moves through the warp yarn by carrying
weft yarn from one end to other.
 There are two types of rapier loom. One types of rapier
loom consist a rapier in one end.
 The rapier is then retracted, leaving the new filling in the
place.
 Other types of rapier also available, in which the rapier
carries the weft yarn to the centre and the other rapier
from the opposite side carries the weft yarn from the
centre.
Continued….
 There are two types of rapier loom. One is flexible
and other is rigid rapier loom. The rigid loom takes
more space than rigid loom.
 Flexible rapier can be coiled, if it is too flexible
than it will buckle. The double rapier is used more
frequently than single rapier.
 A rapier machines can be operate at speeds up to
1300 meters of weft per minute. This type of rapier
is efficient. The noise level is high because it
speeds about 200 to 260 ppm.

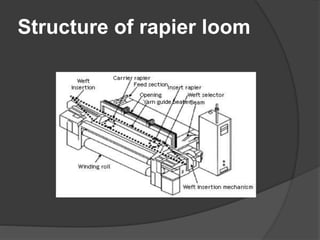

Structure of rapier loom

Recommended for you

Recent developments in speed frame
Recent developments in speed frame Recent developments in speed frame
Recent developments in speed frame

The Building mechanism of Speed frame is very complicated in the view of its mechanical drive system. So That is Why There was a big demand of development in building motion. Since Builder Motion has to perform so many task: • Reduction in RPM of Bobbin (Through Shifting of Belt) • Up-Down Movement of the bobbin Rail • Shortening of the traverse length to make ends taper

flyframespeedframe developmentsbobbin
Ring frame
Ring frame Ring frame
Ring frame

INTRODUCTION The ring spinning will continue to be the most widely used form of spinning machine in the near future, because it exhibits significant advantages in comparison with the new spinning processes. Following are the advantages of ring spinning frame • It is universally applicable, i.e. any material can be spun to any required count • It delivers a material with optimum characteristics, especially with regard to structure and strength. • It is simple and easy to master • The know-how is well established and accessible for everyone

frametextilesring
Double lift double cylinder jacquard
Double lift double cylinder jacquard Double lift double cylinder jacquard
Double lift double cylinder jacquard

This document discusses a double lift double cylinder jacquard, which uses two cylinders that move in opposite directions to control two hooks connected to each warp yarn. It operates at 180 picks per minute, with each cylinder controlling half the picks. The system forms a semi-open shed and allows for higher speeds, longer sets of cords, and less vibration than single cylinder systems. However, its main disadvantage is that if one cylinder gets out of sync with the other, it can weave the wrong design.

Main parts
 12.Crank shaft.
 3.Bottom shaft.
 4. Grippers tapes.
 5. Rapier Loom Sensors.
 6. Rapier Loom Cutters.
 7. Rapier Loom Driving Wheel
 8. Rapier Loom Tapes
 .Motor.
Features
 High on quality
 Low cost
 Stable weft insertion
 PLC Base control
panel
 Rigid design
Continued….
Specification of rapier weaving machine is given below –
Specifications Name Specifications Value
Product Category Weaving
Machine Category Loom rapier weaving machine
Product Name Rapier Loom Machine
Product Model According to Manufacturer
Product Class New
Origin China/India/Others
Brand/Manufacturer Name of Manufacturer
Agent In Bangladesh No/Yes
Power 1.5~2.2kw

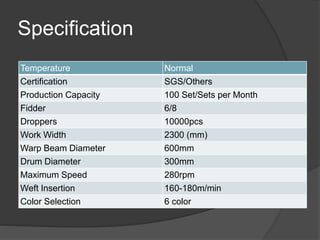

Specification
Temperature Normal
Certification SGS/Others
Production Capacity 100 Set/Sets per Month
Fidder 6/8
Droppers 10000pcs
Work Width 2300 (mm)
Warp Beam Diameter 600mm
Drum Diameter 300mm
Maximum Speed 280rpm
Weft Insertion 160-180m/min
Color Selection 6 color

Recommended for you

Presentation on single jersey fabrics
Presentation on single jersey fabrics Presentation on single jersey fabrics
Presentation on single jersey fabrics

1) Plain single jersey is a basic weft knitted fabric where the front side has face loops forming a "V" shape and the back side has back loops forming semi-circles. 2) It is produced using a plain circular latch needle machine with one set of needles knitting at each feed to form a single loop per course. 3) Single jersey fabric is lightweight, comfortable, and inexpensive to produce, making it widely used for apparel and other applications. Variations can be made by modifying the knitting order.

Warping
WarpingWarping
Warping

The parallel winding of warp ends from many winding packages (cone, cheese) on to a common package (warp beam) is called warping.

Take up mechanism
Take up mechanismTake up mechanism
Take up mechanism

The document provides information about take up motion in weaving looms. It discusses the objectives and classification of take up motion. It describes the mechanisms of 7-wheel and 5-wheel take up motions. The 7-wheel take up motion uses 7 gears to continuously wind fabric onto the cloth roller, while the 5-wheel uses 5 gears for an intermittent winding motion. Calculations are provided for determining picks per inch using the gear ratios and dimensions of each take up type.

take up mechanism in weavingweaving take up

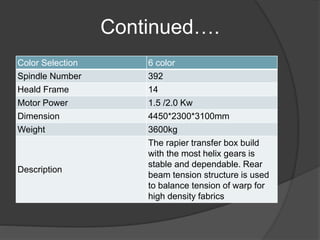

Continued….
Color Selection 6 color
Spindle Number 392
Heald Frame 14
Motor Power 1.5 /2.0 Kw
Dimension 4450*2300*3100mm
Weight 3600kg
Description
The rapier transfer box build
with the most helix gears is
stable and dependable. Rear
beam tension structure is used
to balance tension of warp for
high density fabrics

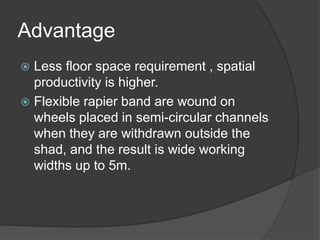

Advantage
 Less floor space requirement , spatial
productivity is higher.
 Flexible rapier band are wound on
wheels placed in semi-circular channels
when they are withdrawn outside the
shad, and the result is wide working
widths up to 5m.

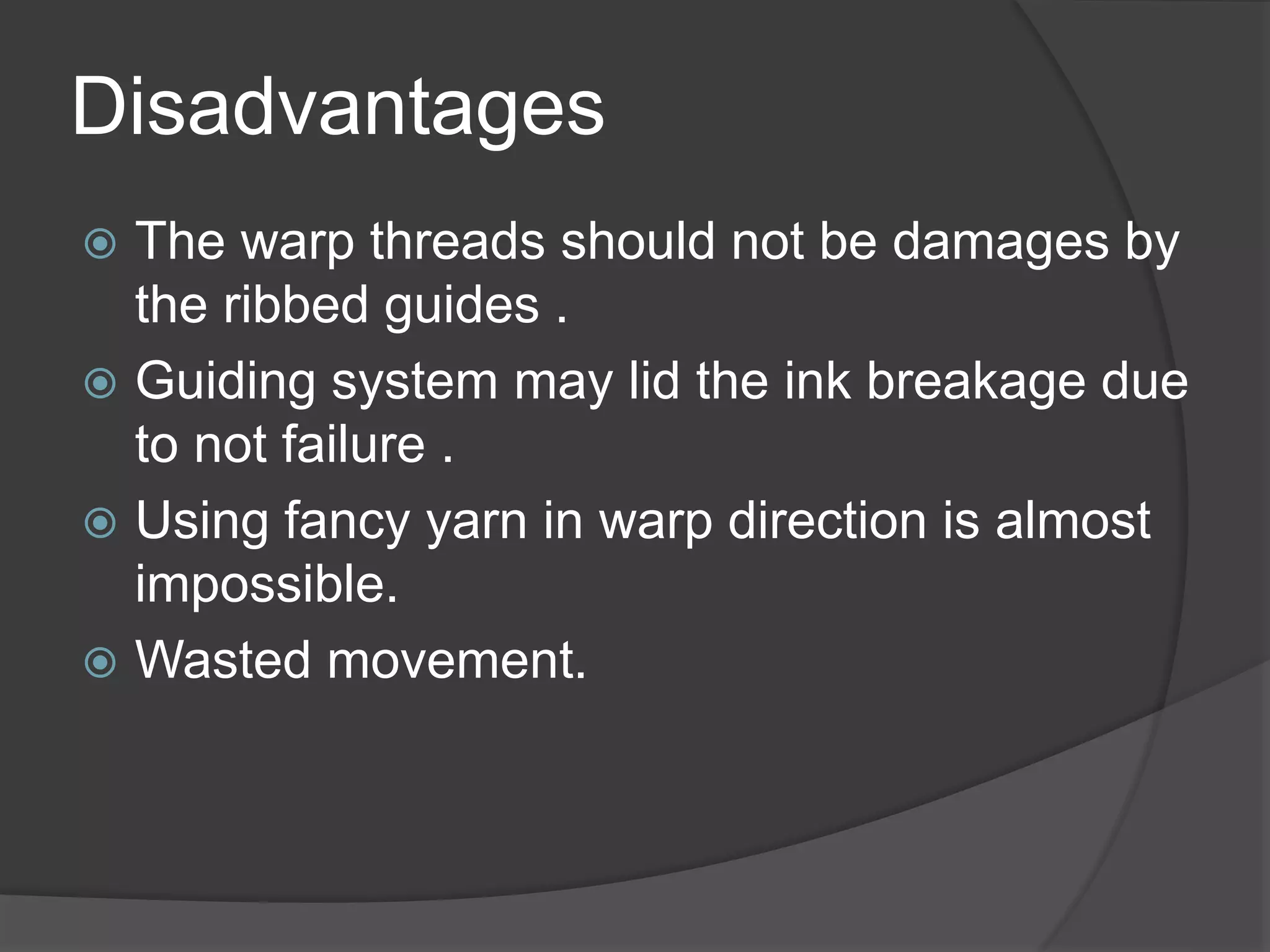

Disadvantages
 The warp threads should not be damages by
the ribbed guides .
 Guiding system may lid the ink breakage due
to not failure .
 Using fancy yarn in warp direction is almost
impossible.
 Wasted movement.

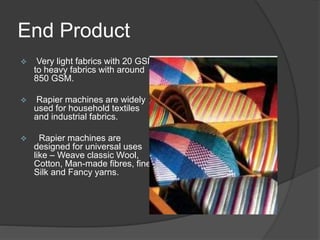

End Product
 Very light fabrics with 20 GSM
to heavy fabrics with around
850 GSM.
 Rapier machines are widely
used for household textiles
and industrial fabrics.
 Rapier machines are
designed for universal uses
like – Weave classic Wool,
Cotton, Man-made fibres, fine
Silk and Fancy yarns.

Recommended for you

Simplex comber ringframe
Simplex comber ringframe Simplex comber ringframe
Simplex comber ringframe

This document provides information about the operating principles and components of a ring frame spinning machine. The key points are: - Roving bobbins are fed into the drafting system where they are attenuated to the final yarn count. The drafting system plays an important role in yarn uniformity. - After drafting, the spindle imparts twist to the thin ribbon of fibers to provide strength. Each rotation of the ring traveler produces a twist in the yarn as it is wound onto the tube on the spindle. - The ring traveler, guided by the spinning ring, moves around the high-speed spindle to wind the yarn without a drive of its own. This converts the roving into a twisted

Beat-up Mechanism of Fabric
Beat-up Mechanism of FabricBeat-up Mechanism of Fabric
Beat-up Mechanism of Fabric

The beating-up mechanism is used in weaving to push the newly inserted weft pick to the fell of the cloth. It consists of a reed fixed to a sley that is given a quick motion towards the fell by cranks connected to a crankshaft. The main parts include the crankshaft, crank, connecting arm, reed cap, reed, sley race, sley, and sleysword. The sley receives a reciprocating motion from the rotating crankshaft via the crank and connecting arm, which pushes the reed and new weft pick to the fell. Some looms use a double beating-up mechanism with two arms to give two blows per

fabricbeat-up mechanismmachines
Rapier loom
Rapier loomRapier loom
Rapier loom

The document describes Abdullah Al Mahfuj's profile and a presentation on a rapier loom. It defines a rapier loom as using a rapier device to insert the weft yarn across the loom. There are two main types - single and double rapier looms. The presentation discusses the features, advantages and disadvantages of rapier looms, noting they can produce fancy fabrics but at a higher cost than other looms.

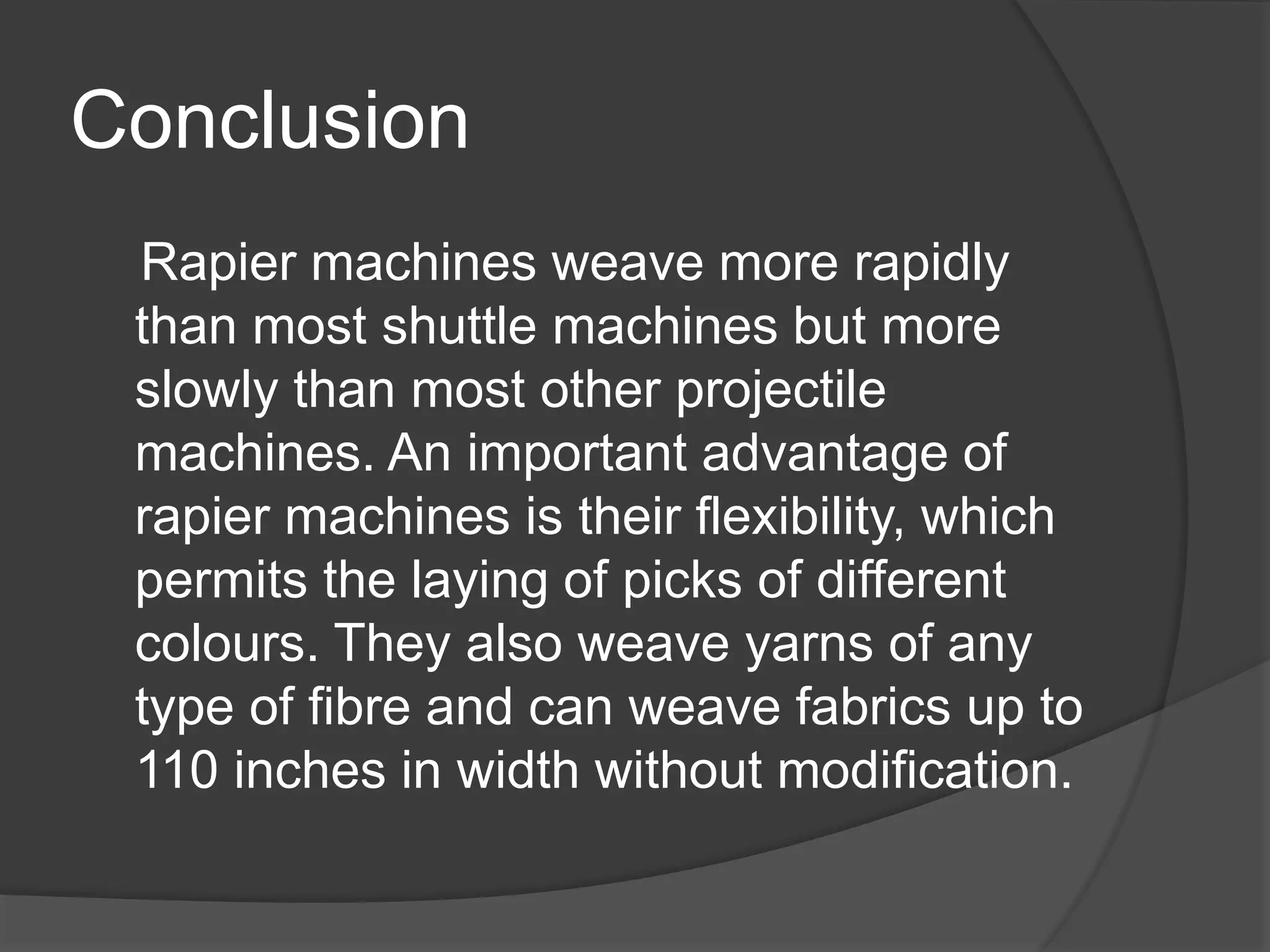

Conclusion
Rapier machines weave more rapidly
than most shuttle machines but more
slowly than most other projectile
machines. An important advantage of
rapier machines is their flexibility, which
permits the laying of picks of different
colours. They also weave yarns of any
type of fibre and can weave fabrics up to
110 inches in width without modification.
THANK YOU

More Related Content

What's hot

Projectile weaving
Projectile weavingProjectile weaving
Projectile weaving
Fuad Ahmed

Yarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part IYarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part I
SVKMs, NMIMS, MPSTME, CTF, Shirpur, Dist. Dhule

Ring frame
Ring frameRing frame
Ring frame
Zahidul Islam

Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Md Rakibul Hassan

Multiphase weaving
Multiphase weavingMultiphase weaving
Multiphase weaving
Fuad Ahmed

Roving
RovingRoving
Yarn manufacturing Process : Carding
Yarn manufacturing Process : CardingYarn manufacturing Process : Carding
Yarn manufacturing Process : Carding
SVKMs, NMIMS, MPSTME, CTF, Shirpur, Dist. Dhule

Picking mechnism in weaving
Picking mechnism in weavingPicking mechnism in weaving
Picking mechnism in weaving
Murali Krishnan

Shuttle less weaving
Shuttle less weavingShuttle less weaving
Shuttle less weaving
Ranita Paul

RING FRAME Machine
RING FRAME MachineRING FRAME Machine
RING FRAME Machine
KhandakerTowfikOmar

Jacquad shedding
Jacquad sheddingJacquad shedding
Jacquad shedding
Nafiz Antu

Picking and its classification
Picking and its classificationPicking and its classification
Picking and its classification
Md. Al Amin

Recent developments in speed frame
Recent developments in speed frame Recent developments in speed frame
Recent developments in speed frame
Harsh Kumar

Ring frame
Ring frame Ring frame
Ring frame
Sadia Textile

Double lift double cylinder jacquard
Double lift double cylinder jacquard Double lift double cylinder jacquard
Double lift double cylinder jacquard
Mehran University of Engineering and Technology Jamshoro

Presentation on single jersey fabrics
Presentation on single jersey fabrics Presentation on single jersey fabrics
Presentation on single jersey fabrics
Musa Kalimullah

Warping
WarpingWarping
Warping
atanu4607

Take up mechanism
Take up mechanismTake up mechanism
Take up mechanism
MdGolamMortuzaLimon

Simplex comber ringframe
Simplex comber ringframe Simplex comber ringframe
Simplex comber ringframe
Md. Mazadul Hasan Shishir

Beat-up Mechanism of Fabric
Beat-up Mechanism of FabricBeat-up Mechanism of Fabric
Beat-up Mechanism of Fabric
Syed Ferdous Mahmud


What's hot (20)

Projectile weaving
Projectile weavingProjectile weaving
Projectile weaving

Yarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part IYarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part I

Ring frame
Ring frameRing frame
Ring frame

Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...
Projectile Loom | Rapier Loom | Multi-Phase Loom | Weaving Technology | Study...

Multiphase weaving
Multiphase weavingMultiphase weaving
Multiphase weaving

Roving
RovingRoving
Roving

Yarn manufacturing Process : Carding
Yarn manufacturing Process : CardingYarn manufacturing Process : Carding
Yarn manufacturing Process : Carding

Picking mechnism in weaving
Picking mechnism in weavingPicking mechnism in weaving
Picking mechnism in weaving

Shuttle less weaving
Shuttle less weavingShuttle less weaving
Shuttle less weaving

RING FRAME Machine
RING FRAME MachineRING FRAME Machine
RING FRAME Machine

Jacquad shedding
Jacquad sheddingJacquad shedding
Jacquad shedding

Picking and its classification
Picking and its classificationPicking and its classification
Picking and its classification

Recent developments in speed frame
Recent developments in speed frame Recent developments in speed frame
Recent developments in speed frame

Ring frame
Ring frame Ring frame
Ring frame

Double lift double cylinder jacquard
Double lift double cylinder jacquard Double lift double cylinder jacquard
Double lift double cylinder jacquard

Presentation on single jersey fabrics
Presentation on single jersey fabrics Presentation on single jersey fabrics
Presentation on single jersey fabrics

Warping
WarpingWarping
Warping

Take up mechanism
Take up mechanismTake up mechanism
Take up mechanism

Simplex comber ringframe
Simplex comber ringframe Simplex comber ringframe
Simplex comber ringframe

Beat-up Mechanism of Fabric
Beat-up Mechanism of FabricBeat-up Mechanism of Fabric
Beat-up Mechanism of Fabric


Similar to Rapier loom

Rapier loom
Rapier loomRapier loom
Rapier loom
Abdullah Al Mahfuj

Study on modern loom
Study on modern loomStudy on modern loom
Study on modern loom
Shahadat Hosen

Working principle of rapier and essential parts
Working principle of rapier and essential partsWorking principle of rapier and essential parts
Working principle of rapier and essential parts
GKBaloch

Working principle of rapier and essential parts
Working principle of rapier and essential partsWorking principle of rapier and essential parts
Working principle of rapier and essential parts
GKBaloch

Advanced weft systems
Advanced weft systemsAdvanced weft systems
Advanced weft systems
Ashfaque Ahmed

Modern loom
Modern loomModern loom
Modern loom
SifatPhychee

Multiphase, a new concept of weaving
Multiphase, a new concept of weavingMultiphase, a new concept of weaving
Multiphase, a new concept of weaving
Ishtiaque Parvez

Bdft ii, tmt, unit-i, loom & itz types
Bdft ii, tmt, unit-i, loom & itz typesBdft ii, tmt, unit-i, loom & itz types
Bdft ii, tmt, unit-i, loom & itz types
Rai University

Modern Loom
Modern Loom Modern Loom
Modern Loom
Ibrahim Khalilullah

Unit 5.1.2 5.1.3 ppt.pptx python extra work
Unit 5.1.2  5.1.3 ppt.pptx python extra workUnit 5.1.2  5.1.3 ppt.pptx python extra work
Unit 5.1.2 5.1.3 ppt.pptx python extra work
ReshmiShaw2

Unconventional method of weft insertion
Unconventional method of weft insertionUnconventional method of weft insertion
Unconventional method of weft insertion
Mehran University of Engineering and Technology Jamshoro

Modern looms
Modern loomsModern looms
Modern looms
Arman sarker

Rapier loom by Vignesh Dhanabalan
Rapier loom by Vignesh DhanabalanRapier loom by Vignesh Dhanabalan
Rapier loom by Vignesh Dhanabalan
Vignesh Dhanabalan

Different types of loom
Different types of loomDifferent types of loom
Different types of loom
Azmir Latif Beg

woven fabric manufacturing
woven fabric manufacturingwoven fabric manufacturing
woven fabric manufacturing
MelkamuKenito

ROTOR SPINNING PROCESS
ROTOR SPINNING PROCESSROTOR SPINNING PROCESS
ROTOR SPINNING PROCESS
Mazbah Uddin

Conventional loom and modern loom
Conventional loom and modern loomConventional loom and modern loom
Conventional loom and modern loom
Md. Abdullah-Al-Masud

Warping and details
Warping and detailsWarping and details
Warping and details
Mahbubay Rabbani Mim

Different Spinning Techniques
Different Spinning TechniquesDifferent Spinning Techniques
Different Spinning Techniques
Enamul Haque

WARPING PRESENTATION
WARPING PRESENTATION WARPING PRESENTATION
WARPING PRESENTATION
R.C.Technical Institute


Similar to Rapier loom (20)

Rapier loom
Rapier loomRapier loom
Rapier loom

Study on modern loom
Study on modern loomStudy on modern loom
Study on modern loom

Working principle of rapier and essential parts
Working principle of rapier and essential partsWorking principle of rapier and essential parts
Working principle of rapier and essential parts

Working principle of rapier and essential parts
Working principle of rapier and essential partsWorking principle of rapier and essential parts
Working principle of rapier and essential parts

Advanced weft systems
Advanced weft systemsAdvanced weft systems
Advanced weft systems

Modern loom
Modern loomModern loom
Modern loom

Multiphase, a new concept of weaving
Multiphase, a new concept of weavingMultiphase, a new concept of weaving
Multiphase, a new concept of weaving

Bdft ii, tmt, unit-i, loom & itz types
Bdft ii, tmt, unit-i, loom & itz typesBdft ii, tmt, unit-i, loom & itz types
Bdft ii, tmt, unit-i, loom & itz types

Modern Loom
Modern Loom Modern Loom
Modern Loom

Unit 5.1.2 5.1.3 ppt.pptx python extra work
Unit 5.1.2  5.1.3 ppt.pptx python extra workUnit 5.1.2  5.1.3 ppt.pptx python extra work
Unit 5.1.2 5.1.3 ppt.pptx python extra work

Unconventional method of weft insertion
Unconventional method of weft insertionUnconventional method of weft insertion
Unconventional method of weft insertion

Modern looms
Modern loomsModern looms
Modern looms

Rapier loom by Vignesh Dhanabalan
Rapier loom by Vignesh DhanabalanRapier loom by Vignesh Dhanabalan
Rapier loom by Vignesh Dhanabalan

Different types of loom
Different types of loomDifferent types of loom
Different types of loom

woven fabric manufacturing
woven fabric manufacturingwoven fabric manufacturing
woven fabric manufacturing

ROTOR SPINNING PROCESS
ROTOR SPINNING PROCESSROTOR SPINNING PROCESS
ROTOR SPINNING PROCESS

Conventional loom and modern loom
Conventional loom and modern loomConventional loom and modern loom
Conventional loom and modern loom

Warping and details
Warping and detailsWarping and details
Warping and details

Different Spinning Techniques
Different Spinning TechniquesDifferent Spinning Techniques
Different Spinning Techniques

WARPING PRESENTATION
WARPING PRESENTATION WARPING PRESENTATION
WARPING PRESENTATION


Recently uploaded

RBD Cache Types explanation persistent write log cache and immutable object ...
RBD Cache Types  explanation persistent write log cache and immutable object ...RBD Cache Types  explanation persistent write log cache and immutable object ...
RBD Cache Types explanation persistent write log cache and immutable object ...
SUNIL ANGADI

CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato
CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE DonatoCONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato
CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato
Servizi a rete

Exploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative ReviewExploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative Review
sipij

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking
Md.Shohel Rana ( M.Sc in CSE Khulna University of Engineering & Technology (KUET))

CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY pptCONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
ASHOK KUMAR SINGH

Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.
Tool and Die Tech

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk
Evan Chan

IWISS Catalog 2024
IWISS Catalog 2024IWISS Catalog 2024
IWISS Catalog 2024
Iwiss Tools Co.,Ltd

Social media management system project report.pdf
Social media management system project report.pdfSocial media management system project report.pdf
Social media management system project report.pdf
Kamal Acharya

Conservation of Taksar through Economic Regeneration
Conservation of Taksar through Economic RegenerationConservation of Taksar through Economic Regeneration
Conservation of Taksar through Economic Regeneration
PriyankaKarn3

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
doner6

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf
Kamal Acharya

SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
Jim Mimlitz, P.E.

GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf
GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdfGUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf
GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf
ProexportColombia1

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
IJAEMSJORNAL

Thermodynamics Digital Material basics subject
Thermodynamics Digital Material basics subjectThermodynamics Digital Material basics subject
Thermodynamics Digital Material basics subject
JigneshChhatbar1

Rotary Intersection in traffic engineering.pptx
Rotary Intersection in traffic engineering.pptxRotary Intersection in traffic engineering.pptx
Rotary Intersection in traffic engineering.pptx
surekha1287

Synthetic Test Collections for Retrieval Evaluation (Poster)
Synthetic Test Collections for Retrieval Evaluation (Poster)Synthetic Test Collections for Retrieval Evaluation (Poster)
Synthetic Test Collections for Retrieval Evaluation (Poster)
Hossein A. (Saeed) Rahmani

Unit 1 Information Storage and Retrieval
Unit 1 Information Storage and RetrievalUnit 1 Information Storage and Retrieval
Unit 1 Information Storage and Retrieval
KishorMahale5

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control
Blesson Easo Varghese


Recently uploaded (20)

RBD Cache Types explanation persistent write log cache and immutable object ...
RBD Cache Types  explanation persistent write log cache and immutable object ...RBD Cache Types  explanation persistent write log cache and immutable object ...
RBD Cache Types explanation persistent write log cache and immutable object ...

CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato
CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE DonatoCONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato
CONVEGNO DA IRETI 18 giugno 2024 | PASQUALE Donato

Exploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative ReviewExploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative Review

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking

CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY pptCONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt

Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk

IWISS Catalog 2024
IWISS Catalog 2024IWISS Catalog 2024
IWISS Catalog 2024

Social media management system project report.pdf
Social media management system project report.pdfSocial media management system project report.pdf
Social media management system project report.pdf

Conservation of Taksar through Economic Regeneration
Conservation of Taksar through Economic RegenerationConservation of Taksar through Economic Regeneration
Conservation of Taksar through Economic Regeneration

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf

SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...
SCADAmetrics Instrumentation for Sensus Water Meters - Core and Main Training...

GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf
GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdfGUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf
GUIA_LEGAL_CHAPTER-9_COLOMBIAN ELECTRICITY (1).pdf

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...

Thermodynamics Digital Material basics subject
Thermodynamics Digital Material basics subjectThermodynamics Digital Material basics subject
Thermodynamics Digital Material basics subject

Rotary Intersection in traffic engineering.pptx
Rotary Intersection in traffic engineering.pptxRotary Intersection in traffic engineering.pptx
Rotary Intersection in traffic engineering.pptx

Synthetic Test Collections for Retrieval Evaluation (Poster)
Synthetic Test Collections for Retrieval Evaluation (Poster)Synthetic Test Collections for Retrieval Evaluation (Poster)
Synthetic Test Collections for Retrieval Evaluation (Poster)

Unit 1 Information Storage and Retrieval
Unit 1 Information Storage and RetrievalUnit 1 Information Storage and Retrieval
Unit 1 Information Storage and Retrieval

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control


Rapier loom

  • 2. MD SOHEL KHAN Department of Textile Engineering Port City International University
  • 3. Loom  1.What is loom?  Loom is a mechanical device which is used to produce woven fabric by the insertion of warp and weft yarn. In weaving technology ; loom is the principle mechanical device for weaving. Various types of loom are used for doing the weaving task. Various types of designed fabric are produced by changing the machine setting.
  • 4. Types of Modern Loom  Rapier Loom  Projectile Loom  Air Jet Loom  Water Jet Loom  Multiphase Loom
  • 5. Rapier Loom Rapier loom is a shuttleless weaving loom in which the filling yarn is carried through the shed of warp yarns to the other side of the loom by finger like carriers called rapiers.

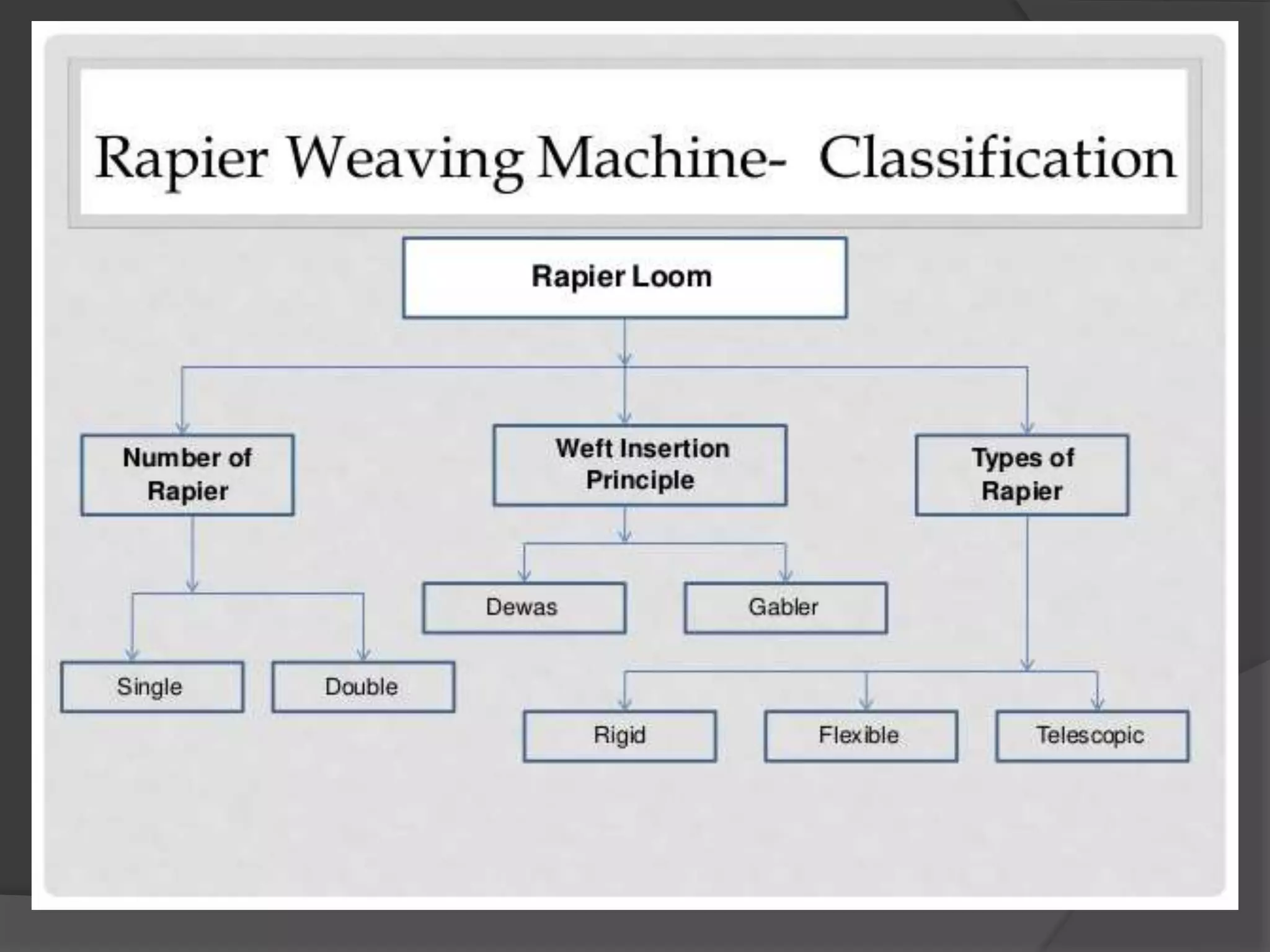

  • 6. continued  A rapier loom uses a rapier to pull the weft yarn across the loom.  It can be a single rapier or double rapier.  For a single rapier, a long rapier device is required to extend across the full width of warp.  For a double rapier loom, two rapiers enter the shed from opposite sides of the loom and transfer the weft from one rapier head to the other near the centre of the loom  The advantage of two rapier system is only 50% of the rapier movement is utilized in the weft insertion of single rapier loom
  • 8. Single Rigid rapier  The rigid rapier is a metal or composite bar usually with a circular cross section  The rapier enters the shed from one side, picks up the tip of the weft yarn on the other side and passes it across the weaving machine whileretracting  Single rapier carries the yarn in one way only and half of the rapier movement is wasted  Rapier length is equal to the width of the weavingmachine  Requires high mass and rigidity of the rapier - to ensure straight movement of the rapier head  Single rapier machines are not popular
  • 10. Continued….  Advantage • Problem of weft transfer does not arise and normal range of fabric can be woven.  Disadvantage • One movement of rapier is wasted. • Loom speed is very slow. • The maximum weft insertion rate is 400 m/min
  • 12. Double Rigid Rapier  Two rapiers enter the shed from the opposite sides and meet at thecenter.  The double rapier weaving machines are subdividedinto: • One-sided weft insertion. One rapier is the transmitting rapier the other is the taker rapier. • Double-sided weft insertion. Each rapier acts alternately as the giver and the taker.  The giver picks up the yarn from the accumulator at one side, brings it to the center of the shed, transfers it to the second rapier(taker).  As the taker retracts, carries the yarn to the otherside.  In a twin-rapier system, two rapiers move together from the same driving source, as is necessary in face-to-face (i.e., double-plush) weaving
  • 14. Mechanism of Rapier loom  A rapier is a rod or steel tape which carries the weft yarn. In the other end, the rapier connected to the control system.  The rapier moves through the warp yarn by carrying weft yarn from one end to other.  There are two types of rapier loom. One types of rapier loom consist a rapier in one end.  The rapier is then retracted, leaving the new filling in the place.  Other types of rapier also available, in which the rapier carries the weft yarn to the centre and the other rapier from the opposite side carries the weft yarn from the centre.
  • 15. Continued….  There are two types of rapier loom. One is flexible and other is rigid rapier loom. The rigid loom takes more space than rigid loom.  Flexible rapier can be coiled, if it is too flexible than it will buckle. The double rapier is used more frequently than single rapier.  A rapier machines can be operate at speeds up to 1300 meters of weft per minute. This type of rapier is efficient. The noise level is high because it speeds about 200 to 260 ppm.
  • 17. Main parts  12.Crank shaft.  3.Bottom shaft.  4. Grippers tapes.  5. Rapier Loom Sensors.  6. Rapier Loom Cutters.  7. Rapier Loom Driving Wheel  8. Rapier Loom Tapes  .Motor.
  • 18. Features  High on quality  Low cost  Stable weft insertion  PLC Base control panel  Rigid design
  • 19. Continued…. Specification of rapier weaving machine is given below – Specifications Name Specifications Value Product Category Weaving Machine Category Loom rapier weaving machine Product Name Rapier Loom Machine Product Model According to Manufacturer Product Class New Origin China/India/Others Brand/Manufacturer Name of Manufacturer Agent In Bangladesh No/Yes Power 1.5~2.2kw
  • 20. Specification Temperature Normal Certification SGS/Others Production Capacity 100 Set/Sets per Month Fidder 6/8 Droppers 10000pcs Work Width 2300 (mm) Warp Beam Diameter 600mm Drum Diameter 300mm Maximum Speed 280rpm Weft Insertion 160-180m/min Color Selection 6 color
  • 21. Continued…. Color Selection 6 color Spindle Number 392 Heald Frame 14 Motor Power 1.5 /2.0 Kw Dimension 4450*2300*3100mm Weight 3600kg Description The rapier transfer box build with the most helix gears is stable and dependable. Rear beam tension structure is used to balance tension of warp for high density fabrics
  • 22. Advantage  Less floor space requirement , spatial productivity is higher.  Flexible rapier band are wound on wheels placed in semi-circular channels when they are withdrawn outside the shad, and the result is wide working widths up to 5m.
  • 23. Disadvantages  The warp threads should not be damages by the ribbed guides .  Guiding system may lid the ink breakage due to not failure .  Using fancy yarn in warp direction is almost impossible.  Wasted movement.
  • 24. End Product  Very light fabrics with 20 GSM to heavy fabrics with around 850 GSM.  Rapier machines are widely used for household textiles and industrial fabrics.  Rapier machines are designed for universal uses like – Weave classic Wool, Cotton, Man-made fibres, fine Silk and Fancy yarns.
  • 25. Conclusion Rapier machines weave more rapidly than most shuttle machines but more slowly than most other projectile machines. An important advantage of rapier machines is their flexibility, which permits the laying of picks of different colours. They also weave yarns of any type of fibre and can weave fabrics up to 110 inches in width without modification.
