Multiple boxes on a loom allow different colored threads to be woven together to create patterned fabrics. There are two main box motion systems - the circular box system where boxes revolve on a spindle, and the drop box system where boxes rise and fall. Common fabrics made using multiple box motions include striped, checked, figured, crepe, and double cloth fabrics.

1. Multiple Box Motion

2. Introduction
• Weft threads - different colours , count and
quality
• Loom with a box motion more than one shuttle
• Two main system
• Circular box system (revolve on a spindle)
• Drop box system (rising and falling principle)
• Boxes on one side
• Boxes on both sides

3. Circular Box System

4. Drop Box System
• 2 x 1 box motion also known as weft mixing motion
• 4 x 1 drop box motion - weft patterning
• 2 x 2 or usually 4 x 4 - pick and pick system or pick-at-will
system

5. Eccle's Dropbox

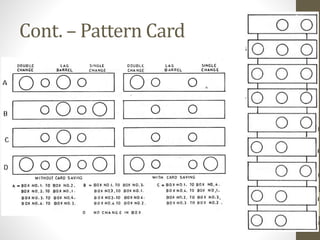

6. Cont. – Pattern Card

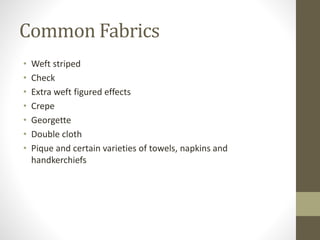

7. Common Fabrics
• Weft striped
• Check
• Extra weft figured effects
• Crepe
• Georgette
• Double cloth
• Pique and certain varieties of towels, napkins and
handkerchiefs
