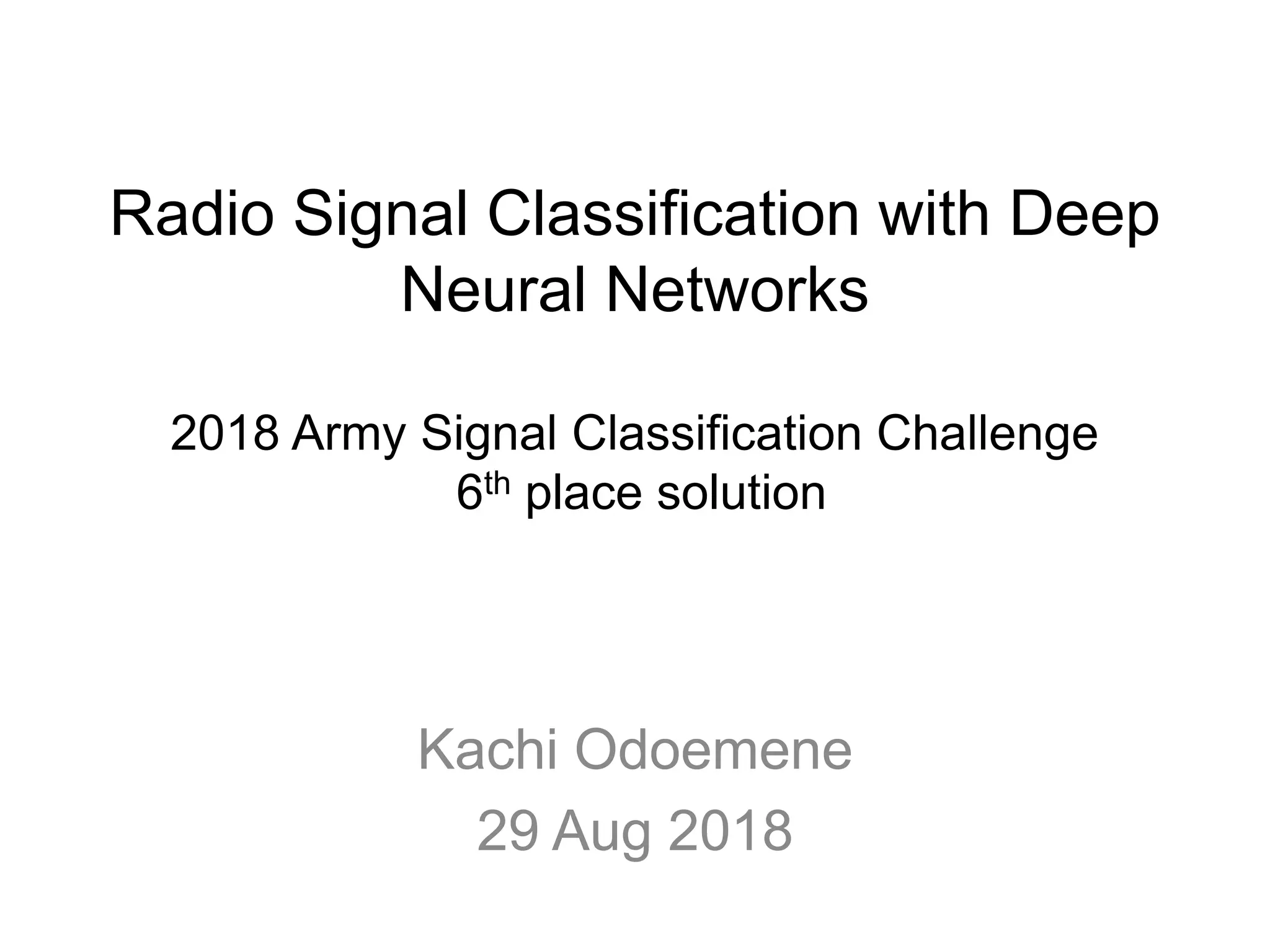

1. Radio Signal Classification with Deep
Neural Networks
2018 Army Signal Classification Challenge
6th place solution
Kachi Odoemene
29 Aug 2018

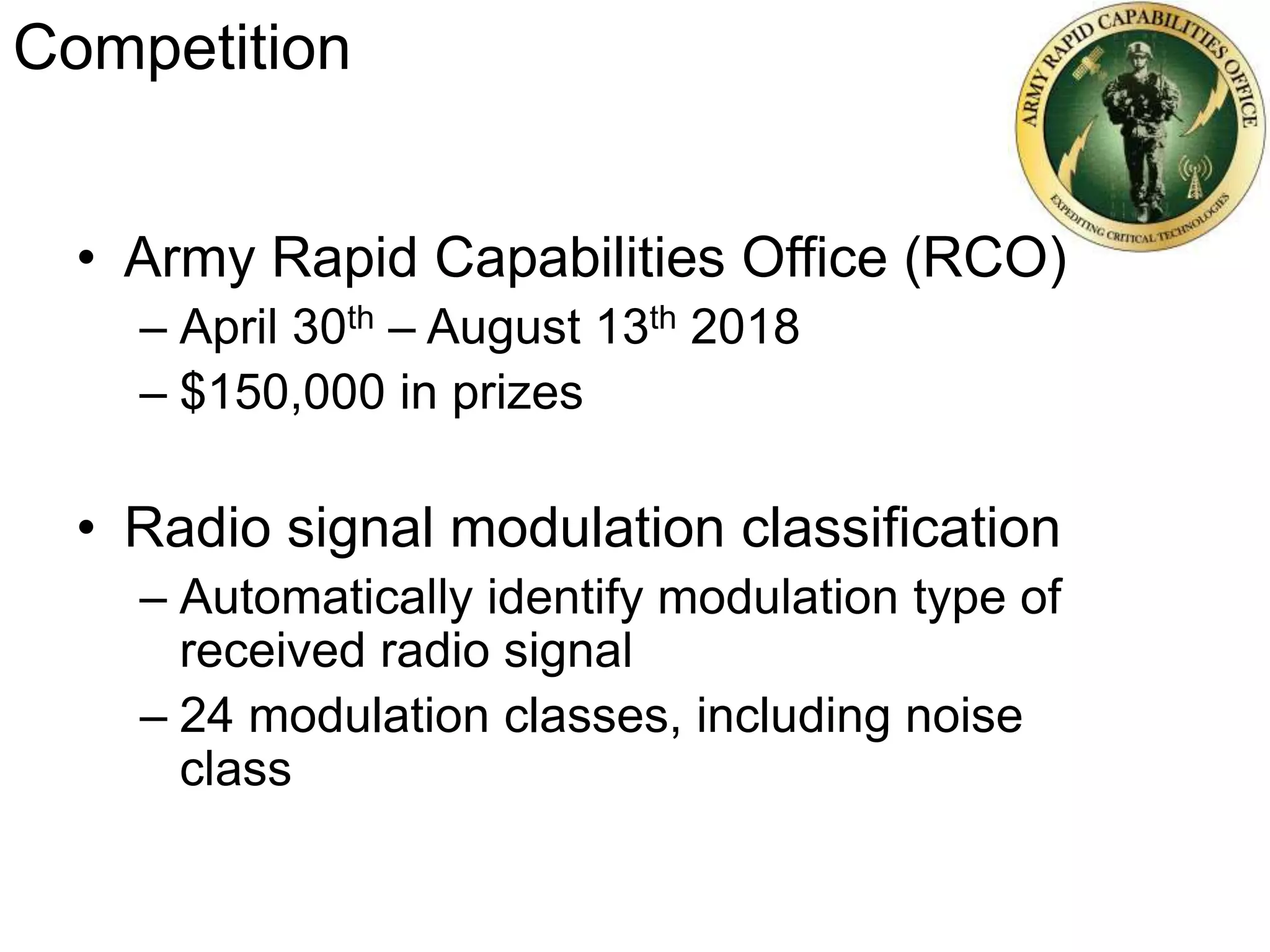

2. Competition
• Army Rapid Capabilities Office (RCO)
– April 30th – August 13th 2018
– $150,000 in prizes
• Radio signal modulation classification
– Automatically identify modulation type of
received radio signal
– 24 modulation classes, including noise
class

3. Competition
• Finished 6th place (of 161 participants)

4. Radio Signal Modulation Schemes
Binary Frequency Shift Keying (BFSK)

5. Quadrature Signals
• I/Q: In-phase and Quadrature components
• 90° shift between identical periodic signals
– e.g. sine and cosine wave
Q
I

6. I/Q Modulation
• Summation of I/Q pairs results in any modulation
(frequency, amplitude, phase, etc)
• Transmitted & received radio signal represented
as I/Q components
Modulated
RF Signal
I channel, I(t)
Q channel, Q(t)
Inputs
(Modulating waves)
Carrier
wave

7. I/Q Time Domain Examples – high SNR
PSK: phase shift keying
FSK: frequency shift keying
ASK: amplitude shift keying
MSK: Minimum (frequency) shift keying
QAM: quadrature amplitude modulation
CP: continuous phase
OQ: offset quadrature
SNR: Signal to Noise

8. I/Q Time Domain Examples – low SNR

9. Dataset
• > 30 GB
– 4.32 million I/Q instances
• Dimension: 2 x 1024
– Short time window, real world conditions
– 24 modulation classes
– White noise added to signals
• 6 signal-to-noise (SNR) levels
• Test datasets (public)
– 2 sets of 100000 I/Q instances (unlabeled)

10. Evaluation Metric
• Derived from multiclass log loss
Score =

11. Goal
• Automatically identify the modulation type
of the received radio signal
– What modulation format was employed?
– Eg. Military applications:
• Spectrum surveillance, electronic warfare, and
threat analysis
– Identify modulation type of intercepted enemy
communication

12. Traditional approach
• Hand-crafted features (feature engineering)
– Higher order statistics
– Autocorrelation and spectral correlation functions
– Measures derived from instantaneous frequency,
amplitude, phase
• Mean, standard deviation, kurtosis, etc
– Small number of features (28-32)
• SVM, decision trees, ensemble, neural
networks

13. Deep Neural Networks for Radio Modulation
Recognition
(2016)
Convolutional networks outperform
expert feature-based classifiers

14. • Proposed 3 additional architectures for
modulation recognition:
– Inception
– ResNet
– Hybrid of Convolutional, Long short term memory
(LSTM), and Fully Connected (FC) Deep Neural
Network (CLDNN)
• No source code provided
• Sparse details on architecture hyperparameters
(2017)

15. Residual Unit
Layer Input
Model 1: ResNet (original)
• Image classification
• CNNs with skip (residual or
shortcut) connections
– Feed previous representations
(activations) into downstream layers
– Prevents information loss
• Enables training of deeper
networks
– 100s to 1000s of layers
He et al Deep Residual Learning for Image Recognition (ArXiv 2015)
Skipconnection

16. Input
(2x1024)
Conv
(1x128)
D-Conv
(2x1)
Avg. Pool
“ResBlock” x4
Global Avg
Pool
FC (128) x2
Softmax (24)
(Temporal)
(Spatial)
Model 1: ResNet (modified)
• Temporal convolution on each
IQ channel separately
• Depth-wise convolution (D-
Conv)
• Batch normalization after
convolutional and fully
connected (FC) layers
• Multiple residual units within
ResBlock
• # Parameters: 255,944
He et al Deep Residual Learning for Image Recognition (ArXiv 2015)

17. Model 2: CLDNN (original)
• Speech recognition
• Unified model: CNN, LSTM, FC
• CNN: reduce spectral variations of
input data
• LSTM: learn temporal structure
• FC: transform LSTM features into
output easy to classify
Sainath et al Convolutional, Long Short-Term Memory, fully
connected Deep Neural Networks (IEEE, 2015)
Convolutional
layers
Linear
layer
LSTM
layers
Fully
Connected
layers
Output targets
(1)
(2)
C
C
L
L
D
D
Dim.
red.Xt
[Xt-l,..,Xt,…,Xt+r]

18. Model 2: CLDNN (modified)
• Temporal convolution on each IQ
channel separately
• Depth-wise convolution (D-Conv)
• Batch normalization after each
convolutional and fully connected
(FC) layers
• “ConvBlock”: Conv + BatchNorm +
ReLU
• Dropout between FC layers
• # Parameters: 147,480
Sainath et al Convolutional, Long Short-Term Memory, fully
connected Deep Neural Networks (IEEE, 2015)
Input
(2x1024)
Conv
(1x128)
D-Conv
(2x1)
Avg. Pool
ConvBlock x2
Concatenate
LSTM (48)
x2FC (128)
Softmax (24)
(Temporal)
(Spatial)

19. Data preparation
• Raw data, no preprocessing
• Trained from scratch
• Data split
– Train: 80%, Valid: 13.33%, Holdout: 6.67%

20. Implementation details
• Hyper-parameter selection
– Temporal filter kernel size
– Number of FC units
• Maximum of 25 epochs, early stopping
• Adam optimizer
• Learning rate: 1e-3
• Keras (Tensorflow)
• Hardware (Personal)
– GTX 1080Ti (11 GB) GPU
– 16 GB RAM

21. Loss curves

22. Accuracy per modulation class: all SNRs

23. Accuracy per modulation class: high SNR

24. Accuracy per SNR: pooled across classes

25. Accuracy per SNR: individual classes
PSK: phase shift keying
FSK: frequency shift keying
ASK: amplitude shift keying
MSK: Minimum (frequency) shift keying
QAM: quadrature amplitude modulation
CP: continuous phase
OQ: offset quadrature

26. Leaderboard performance
Model TestSet1 Score TestSet2 Score Final Score
CLDNN 42.09 54.22 50.58
ResNet-18 33.27 58.27 50.77
Combined 42.09 58.27 53.41
Final Score = 0.3*TestSet1 + 0.7* TestSet2

27. Ensembling

28. Ensembling
• Trained meta-learner to combine
predictions from multiple models

29. Leaderboard performance: Ensembling
Model TestSet1 Score TestSet2 Score Final Score
CLDNN 42.09 54.22 50.58
ResNet-18 33.27 58.27 50.77
Combined 42.09 58.27 53.41
Logistic
Regression
45.17 63.25 57.83
Light GBM 46.40 64.54 59.10
Final Score = 0.3*TestSet1 + 0.7* TestSet2

30. Challenges
• Structural (competition organization)
– Multiple changes to scoring procedure and test set,
submission site shutdown, etc
• Time constraint
– 1 submission/day (10am) & leaderboard update
(5pm)
– On Kaggle: up to 5 submissions/day, immediate LB
update
• Technical
– Hardware failure final week of competition
• Backup: Google Colab

31. Future Efforts
• Incorporate additional features:
– Amplitude
– Phase difference
– Magnitude of Fourier transform
– Spectrogram
• Explore other architectures & ensembling methods
– Inception-like architecture: process and combine multiple
frequency scales
• Model interpretability
– DeepLIFT (Deep Learning Important FeaTures)
– LIME (Local Interpretable Model-agnostic Explanations)
– Ablation studies

32. Acknowledgements

33. Thank You!
Questions?
