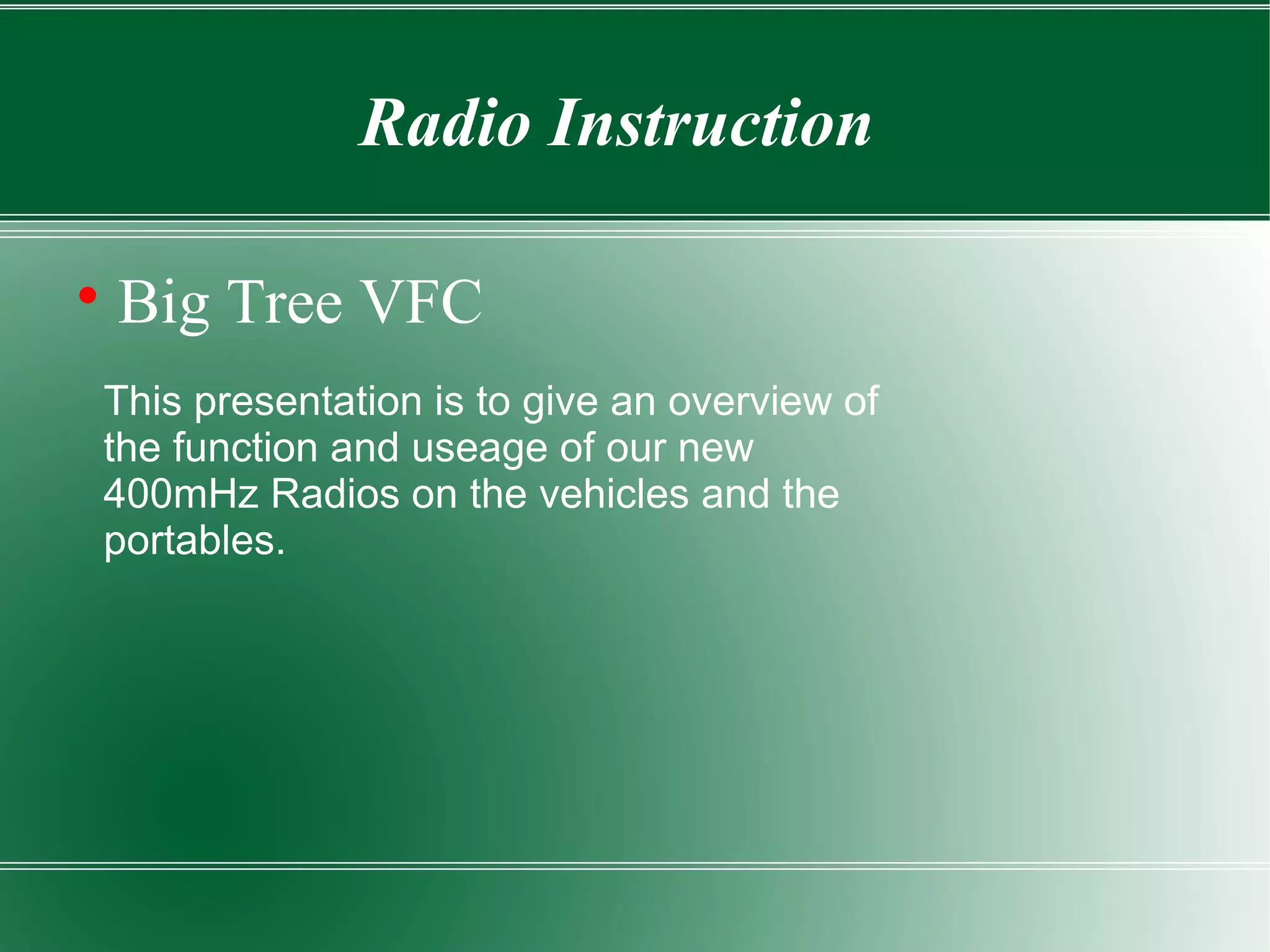

1. Radio Instruction

Big Tree VFC
This presentation is to give an overview of
the function and useage of our new
400mHz Radios on the vehicles and the
portables.

2. Radio Instruction
Power/Volume Knob
This is the
radio on #8.
Buttons: Monitor-Scan-Phone-Menu-Select

3. Radio Instruction
Power/Volume Knob
This is the Radio on Engine 1, 2, Rescue 7
Channel Selector

4. Radio Instruction
This is the style
portables BTVFC in
now moving
towards. All will be
labeled similar to
what you see here

5. Radio Instruction
Squelch button
Push to talk button
Change the Zone Button

6. Radio Instruction
Channel
selector
A: Scan Function
B: Single Channel
C: Scan Edit
Volume/Power
knob
MANDOWN BUTTON

7. Radio Instruction
CH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NAME
HAM F-1
HAM TAC-1
F-2 EAST
F-2 WEST
TAC-2
COUNTYWI DE FI RE
I NTEROP 1
I NTEROP 2
I NTEROP-3
ORCHARD PARK FI RE F-1 (DI SPATCH)
ORCHARD PARK FI RE F-2 (FI REGROUND)
ECFG CH 21
ECFG CH 22
THPSD CHANNEL # 3
ANGOLA FI RE CONTROL F-3
HAM F-1
