Radiation Therapy in Prostate
Cancer
Lokesh Viswanath M.D.
Professor, Radiation Oncology,
Kidwai Memorial Institute of Oncology 2014

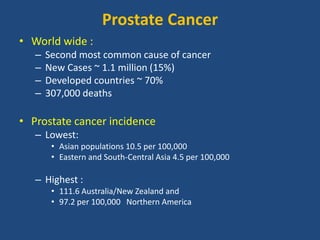

Prostate Cancer
• World wide :
– Second most common cause of cancer
– New Cases ~ 1.1 million (15%)
– Developed countries ~ 70%
– 307,000 deaths
• Prostate cancer incidence
– Lowest:
• Asian populations 10.5 per 100,000
• Eastern and South-Central Asia 4.5 per 100,000
– Highest :
• 111.6 Australia/New Zealand and
• 97.2 per 100,000 Northern America

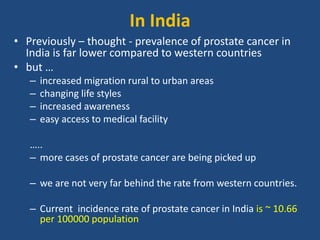

In India
• Previously – thought - prevalence of prostate cancer in
India is far lower compared to western countries
• but …
– increased migration rural to urban areas
– changing life styles
– increased awareness
– easy access to medical facility
…..
– more cases of prostate cancer are being picked up
– we are not very far behind the rate from western countries.
– Current incidence rate of prostate cancer in India is ~ 10.66
per 100000 population

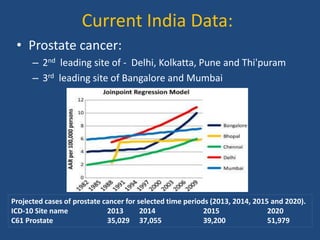

Current India Data:
• Prostate cancer:
– 2nd leading site of - Delhi, Kolkatta, Pune and Thi'puram
– 3rd leading site of Bangalore and Mumbai
Projected cases of prostate cancer for selected time periods (2013, 2014, 2015 and 2020).
ICD-10 Site name 2013 2014 2015 2020
C61 Prostate 35,029 37,055 39,200 51,979

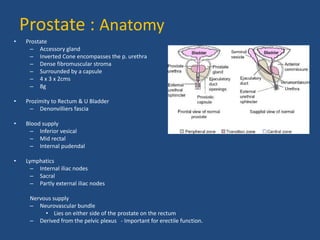

Prostate : Anatomy
• Prostate
– Accessory gland
– Inverted Cone encompasses the p. urethra
– Dense fibromuscular stroma
– Surrounded by a capsule
– 4 x 3 x 2cms
– 8g
• Prozimity to Rectum & U Bladder
– Denonvilliers fascia
• Blood supply
– Inferior vesical
– Mid rectal
– Internal pudendal
• Lymphatics
– Internal iliac nodes
– Sacral
– Partly external iliac nodes
Nervous supply
– Neurovascular bundle
• Lies on either side of the prostate on the rectum
– Derived from the pelvic plexus - Important for erectile function.

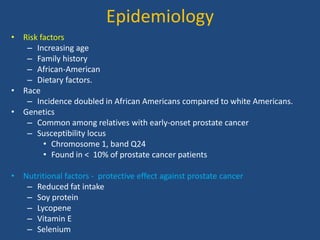

Epidemiology
• Risk factors
– Increasing age
– Family history
– African-American
– Dietary factors.
• Race
– Incidence doubled in African Americans compared to white Americans.
• Genetics
– Common among relatives with early-onset prostate cancer
– Susceptibility locus
• Chromosome 1, band Q24
• Found in < 10% of prostate cancer patients
• Nutritional factors - protective effect against prostate cancer
– Reduced fat intake
– Soy protein
– Lycopene
– Vitamin E
– Selenium

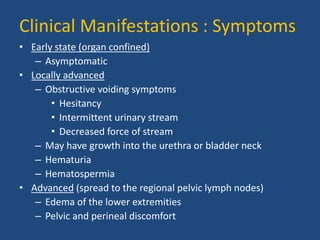

Clinical Manifestations : Symptoms
• Early state (organ confined)
– Asymptomatic
• Locally advanced
– Obstructive voiding symptoms
• Hesitancy
• Intermittent urinary stream
• Decreased force of stream
– May have growth into the urethra or bladder neck
– Hematuria
– Hematospermia
• Advanced (spread to the regional pelvic lymph nodes)
– Edema of the lower extremities
– Pelvic and perineal discomfort

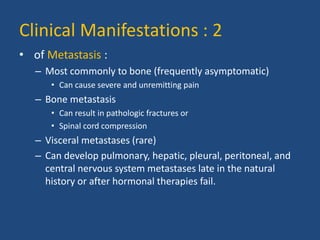

Clinical Manifestations : 2
• of Metastasis :
– Most commonly to bone (frequently asymptomatic)
• Can cause severe and unremitting pain
– Bone metastasis
• Can result in pathologic fractures or
• Spinal cord compression
– Visceral metastases (rare)
– Can develop pulmonary, hepatic, pleural, peritoneal, and
central nervous system metastases late in the natural
history or after hormonal therapies fail.

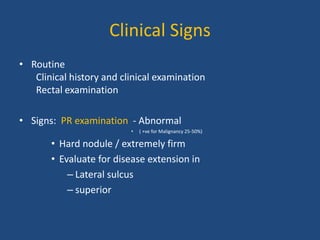

Clinical Signs
• Routine
Clinical history and clinical examination
Rectal examination
• Signs: PR examination - Abnormal
• ( +ve for Malignancy 25-50%)
• Hard nodule / extremely firm
• Evaluate for disease extension in
– Lateral sulcus
– superior

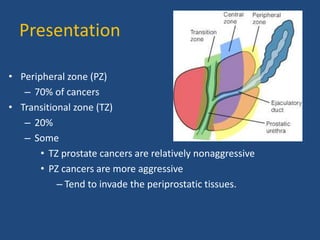

Presentation
• Peripheral zone (PZ)
– 70% of cancers
• Transitional zone (TZ)
– 20%
– Some
• TZ prostate cancers are relatively nonaggressive
• PZ cancers are more aggressive
– Tend to invade the periprostatic tissues.
Investigations
Routine: Laboratory
Complete blood cell count,
blood chemistry
Serum PSA (total, free, complex PSA:: ratio of Free : Total
PSA < 0.2 - likely Prostate Ca. )
(Normal Age-Specific Limits for PSA -
Plasma acid phosphatases (prostatic/total)
Testosterone
Other Experimental:
RT PCR for mRNA of PSA & PSMA
+ve - Extraprostatic – 72%
-ve - Organ confined - 88%

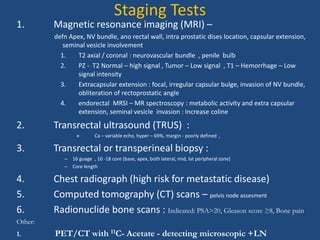

Staging Tests
1. Magnetic resonance imaging (MRI) –
defn Apex, NV bundle, ano rectal wall, intra prostatic dises location, capsular extension,
seminal vesicle involvement
1. T2 axial / coronal : neurovascular bundle , penile bulb
2. PZ - T2 Normal – high signal , Tumor – Low signal , T1 – Hemorrhage – Low
signal intensity
3. Extracapsular extension : focal, irregular capsular bulge, invasion of NV bundle,
obliteration of rectoprostatic angle
4. endorectal MRSI – MR spectroscopy : metabolic activity and extra capsular
extension, seminal vesicle invasion : Increase coline
2. Transrectal ultrasound (TRUS) :
» Ca – variable echo, hyper – 69%, margin - poorly defined ,
3. Transrectal or transperineal biopsy :
– 16 guage , 10 -18 core (base, apex, both lateral, mid, lat peripheral zone)
– Core length
4. Chest radiograph (high risk for metastatic disease)
5. Computed tomography (CT) scans – pelvis node assesment
6. Radionuclide bone scans : Indicated: PSA>20, Gleason score ≥8, Bone pain
Other:
1. PET/CT with 11C- Acetate - detecting microscopic +LN

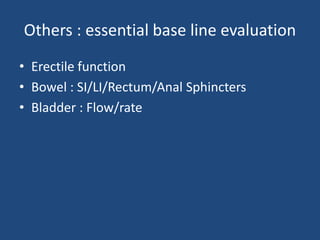

Others : essential base line evaluation
• Erectile function
• Bowel : SI/LI/Rectum/Anal Sphincters
• Bladder : Flow/rate

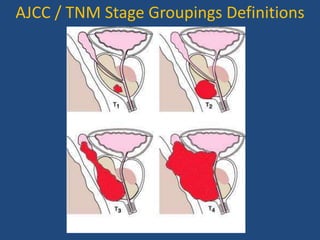

AJCC / TNM Stage Groupings Definitions

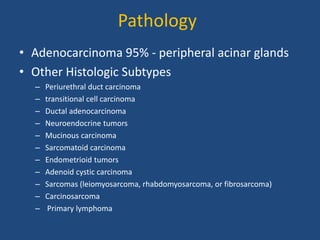

Pathology
• Adenocarcinoma 95% - peripheral acinar glands
• Other Histologic Subtypes
– Periurethral duct carcinoma
– transitional cell carcinoma
– Ductal adenocarcinoma
– Neuroendocrine tumors
– Mucinous carcinoma
– Sarcomatoid carcinoma
– Endometrioid tumors
– Adenoid cystic carcinoma
– Sarcomas (leiomyosarcoma, rhabdomyosarcoma, or fibrosarcoma)
– Carcinosarcoma
– Primary lymphoma

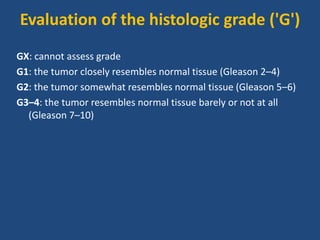

Evaluation of the histologic grade ('G')
GX: cannot assess grade
G1: the tumor closely resembles normal tissue (Gleason 2–4)
G2: the tumor somewhat resembles normal tissue (Gleason 5–6)
G3–4: the tumor resembles normal tissue barely or not at all
(Gleason 7–10)

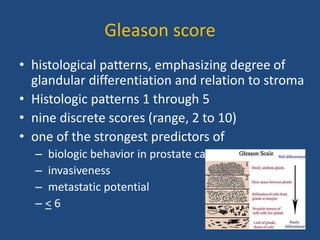

Gleason score
• histological patterns, emphasizing degree of
glandular differentiation and relation to stroma
• Histologic patterns 1 through 5
• nine discrete scores (range, 2 to 10)
• one of the strongest predictors of
– biologic behavior in prostate cancer
– invasiveness
– metastatic potential
– < 6

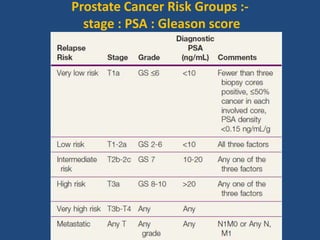

Prostate Cancer Risk Groups :-
stage : PSA : Gleason score

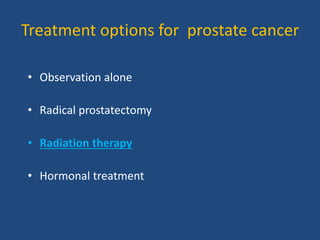

Treatment options for prostate cancer
• Observation alone
• Radical prostatectomy
• Radiation therapy
• Hormonal treatment

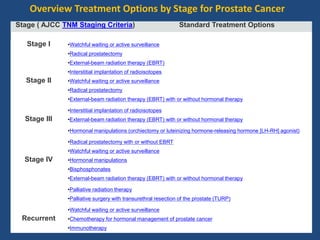

Overview Treatment Options by Stage for Prostate Cancer
Stage ( AJCC TNM Staging Criteria) Standard Treatment Options
Stage I •Watchful waiting or active surveillance
•Radical prostatectomy
•External-beam radiation therapy (EBRT)
•Interstitial implantation of radioisotopes
Stage II •Watchful waiting or active surveillance
•Radical prostatectomy
•External-beam radiation therapy (EBRT) with or without hormonal therapy
•Interstitial implantation of radioisotopes
Stage III •External-beam radiation therapy (EBRT) with or without hormonal therapy
•Hormonal manipulations (orchiectomy or luteinizing hormone-releasing hormone [LH-RH] agonist)
•Radical prostatectomy with or without EBRT
•Watchful waiting or active surveillance
Stage IV •Hormonal manipulations
•Bisphosphonates
•External-beam radiation therapy (EBRT) with or without hormonal therapy
•Palliative radiation therapy
•Palliative surgery with transurethral resection of the prostate (TURP)
•Watchful waiting or active surveillance
Recurrent •Chemotherapy for hormonal management of prostate cancer
•Immunotherapy

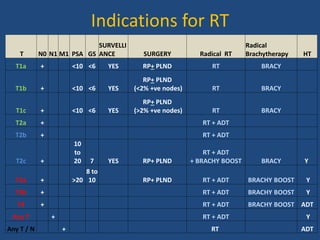

Indications for RT
T N0 N1 M1 PSA GS
SURVELLI
ANCE SURGERY Radical RT
Radical
Brachytherapy HT
T1a + <10 <6 YES RP+ PLND RT BRACY
T1b + <10 <6 YES
RP+ PLND
(<2% +ve nodes) RT BRACY
T1c + <10 <6 YES
RP+ PLND
(>2% +ve nodes) RT BRACY
T2a + RT + ADT
T2b + RT + ADT
T2c +
10
to
20 7 YES RP+ PLND
RT + ADT
+ BRACHY BOOST BRACY Y
T3a + >20
8 to
10 RP+ PLND RT + ADT BRACHY BOOST Y
T3b + RT + ADT BRACHY BOOST Y
T4 + RT + ADT BRACHY BOOST ADT
Any T + RT + ADT Y
Any T / N + RT ADT

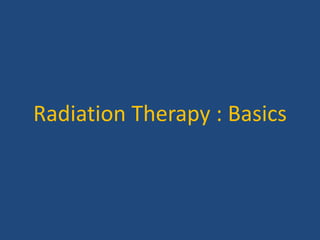

Radiation Therapy : Basics
Radiotherapy

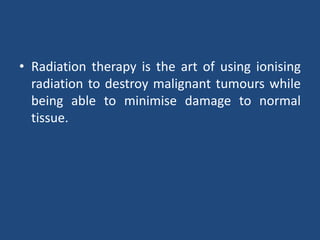

• Radiation therapy is the art of using ionising
radiation to destroy malignant tumours while
being able to minimise damage to normal
tissue.

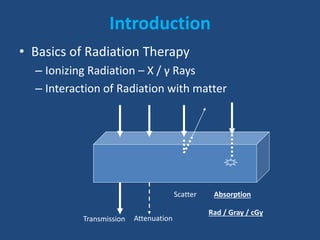

Introduction
• Basics of Radiation Therapy
– Ionizing Radiation – X / γ Rays
– Interaction of Radiation with matter
Transmission Attenuation
Scatter Absorption
Rad / Gray / cGy

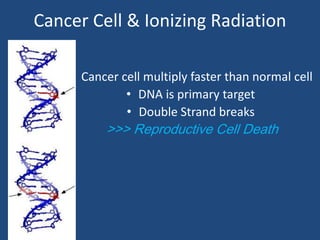

Cancer Cell & Ionizing Radiation
• Cancer cell multiply faster than normal cell
• DNA is primary target
• Double Strand breaks
>>> Reproductive Cell Death
RT is a Double Edge Sword
↑ RT Dose ↓ RT Dose
↑ T – Control ↓ T – Control
↑ Normal Tissue
Toxicitites
↓ Normal Tissue
Toxicitites

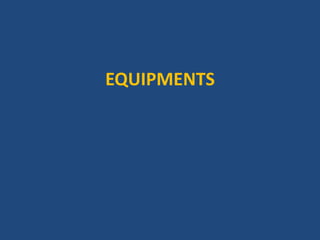

EQUIPMENTS

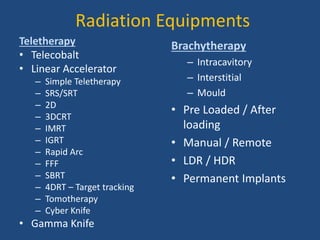

Radiation Equipments
Teletherapy
• Telecobalt
• Linear Accelerator
– Simple Teletherapy
– SRS/SRT
– 2D
– 3DCRT
– IMRT
– IGRT
– Rapid Arc
– FFF
– SBRT
– 4DRT – Target tracking
– Tomotherapy
– Cyber Knife
• Gamma Knife
Brachytherapy
– Intracavitory
– Interstitial
– Mould
• Pre Loaded / After
loading
• Manual / Remote
• LDR / HDR
• Permanent Implants

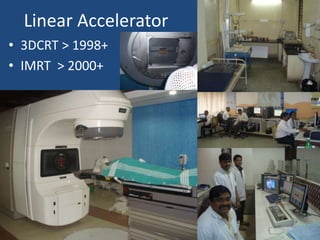

Linear Accelerator
• 3DCRT > 1998+
• IMRT > 2000+

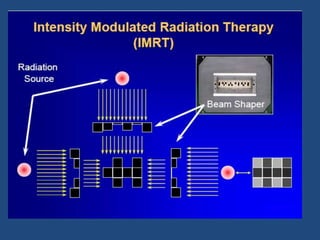

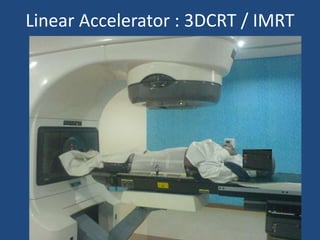

Linear Accelerator : 3DCRT / IMRT
Tomotherapy - 2003

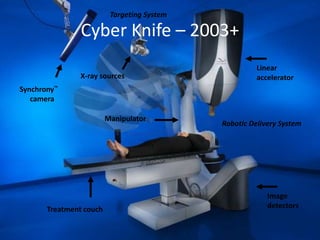

Synchrony™
camera

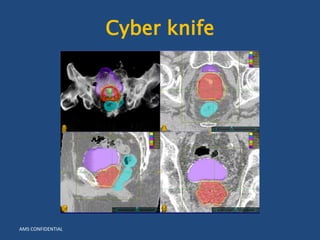

Cyber Knife – 2003+
Treatment couch
Linear
accelerator
Targeting System
Manipulator
detectors
X-ray sources
Robotic Delivery System

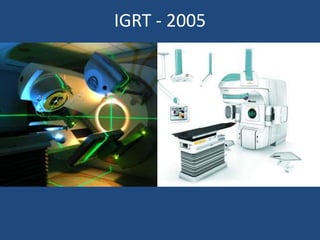

IGRT - 2005

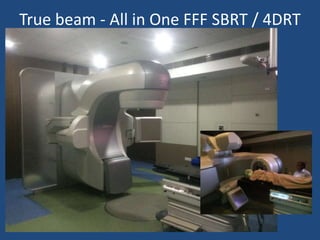

True beam - All in One FFF SBRT / 4DRT
–

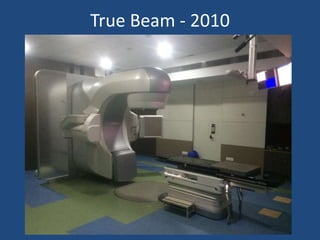

True Beam - 2010

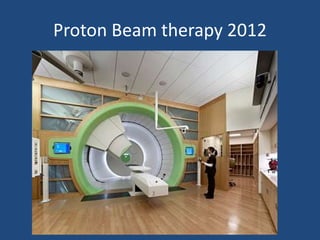

Proton Beam therapy 2012

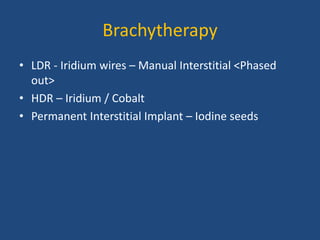

Brachytherapy
• LDR - Iridium wires – Manual Interstitial <Phased
out>
• HDR – Iridium / Cobalt

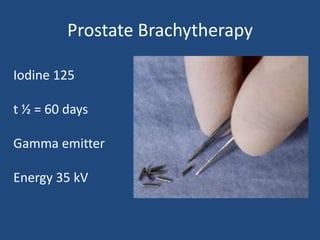

• Permanent Interstitial Implant – Iodine seeds

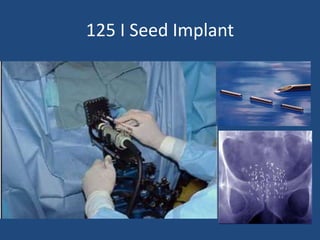

125 I Seed Implant

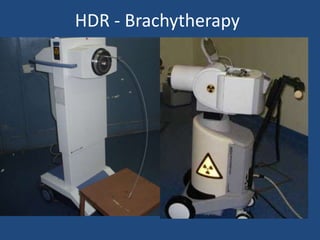

HDR - Brachytherapy

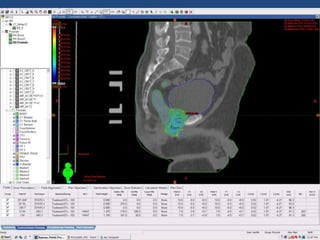

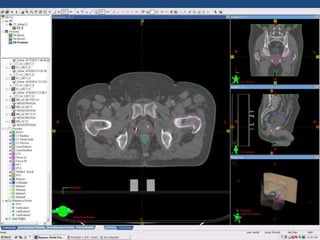

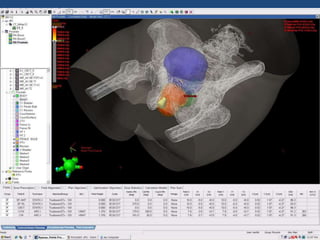

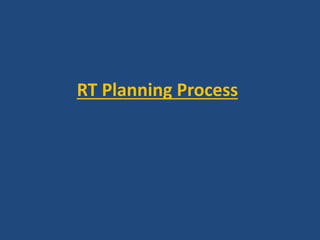

RT Planning Process

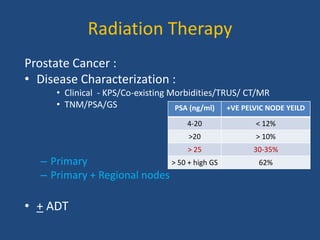

Radiation Therapy
Prostate Cancer :
• Disease Characterization :
• Clinical - KPS/Co-existing Morbidities/TRUS/ CT/MR
• TNM/PSA/GS
– Primary
– Primary + Regional nodes
• + ADT
PSA (ng/ml) +VE PELVIC NODE YEILD
4-20 < 12%
>20 > 10%
> 25 30-35%
> 50 + high GS 62%
Radiation Therapy : Intent Defn
• Radical RT
– RT alone:
– Conventional (7-8 weeks) <
– Hyperfractionation (5-6 weeks)
– Hypofractionation (1-2 Gap 1-2 weeks) < CK / SRS / SBRT
– Photons alone
– Recent adv - Photons + Particle (Protons)
– Protons alone
– RT + Hormon therapy (HT)
– RT + Radiation Protectors (Amifostine)
– Teletherapy + Brachytherapy Boost
– Brachytherapy alone
• Brachy type: Volume implants
– Temporary Implant – HDR
– Permanaent Implant – I 125
• Post Operative RT (5-7 weeks)
• Salvage RT / Re-irradiation
• Palliative RT
– Short Course (1day, 1-2 weeks)
– Saturation Technique (1-2 weeks gap 3-4 weks)

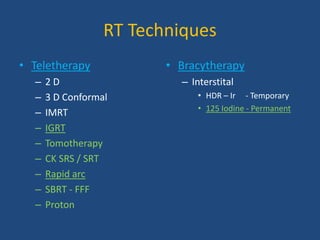

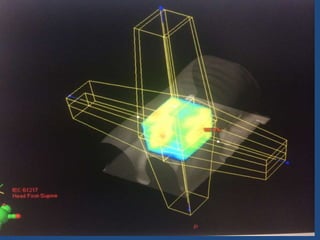

RT Techniques
• Teletherapy
– 2 D

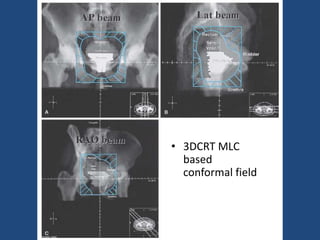

– 3 D Conformal
– IMRT
– IGRT
– Tomotherapy
– CK SRS / SRT
– Rapid arc
– SBRT - FFF
– Proton
• Bracytherapy

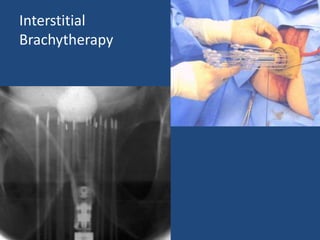

– Interstital
• HDR – Ir - Temporary
• 125 Iodine - Permanent

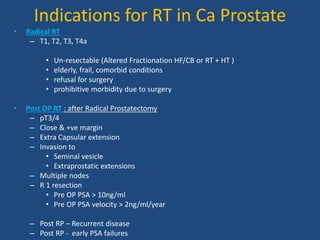

Indications for RT in Ca Prostate
• Radical RT
– T1, T2, T3, T4a
• Un-resectable (Altered Fractionation HF/CB or RT + HT )
• elderly, frail, comorbid conditions
• refusal for surgery
• prohibitive morbidity due to surgery
• Post OP RT : after Radical Prostatectomy
– pT3/4
– Close & +ve margin
– Extra Capsular extension
– Invasion to
• Seminal vesicle
• Extraprostatic extensions
– Multiple nodes
– R 1 resection
• Pre OP PSA > 10ng/ml
• Pre OP PSA velocity > 2ng/ml/year
– Post RP – Recurrent disease
– Post RP - early PSA failures
RADIOTHERAPY DOSE
1. External :
a. IMRT / IGRT / Rapid Arc / Protons :
– > 7400 cGy to 7600 cGy / 6-8 wks
– 180-200cGy / fr, 5fr/wk
b. CK / SBRT / FFF : 5 – 20 Gy / fr, 3-5 fr
c. Post-op.: 60-66 Gy / 6-7 wks
d. Palliative RT: 30Gy/10f, 20Gy/5 or 4f, 7-8Gy/1f
2. Brachytherapy :
a. Alone : 6000 - 7000 cGy in 6 to 7 days.
b. External + Brachytherapy
Ext : 46-50 Gy in 4 1/2 - 5 1/2 wks. +
Brachy : 2000-3000 cGy in 2-3 days
HDR : 9.5Gy x 2f, as mono therapy 9.5Gy bid x 4f x 2dys
I -125 : 0.2-0.9mCi, T1/2-17dy, 21Kev

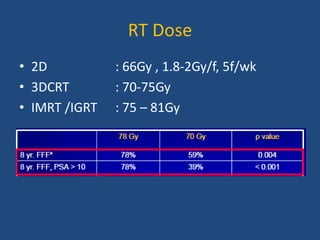

RT Dose
• 2D : 66Gy , 1.8-2Gy/f, 5f/wk
• 3DCRT : 70-75Gy
• IMRT /IGRT : 75 – 81Gy
Patient
RT Planning
• Informed Consent :
• Implant Fidutial - +/- (if GC is not favorable CBCT )
• Mould room work : Patient positioning, knee rest
• Virtual CT Simulation
• Contouring
• RT planning
• Plan evaluation and acceptance
• QA tests
Fidutial Placement
• TRUS Guided
• 1 week prior to simulation

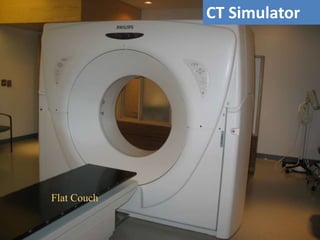

Flat Couch
CT Simulator

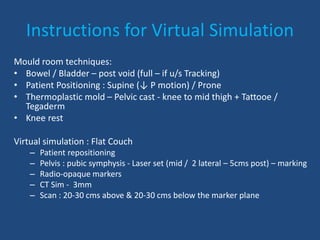

Instructions for Virtual Simulation
Mould room techniques:
• Bowel / Bladder – post void (full – if u/s Tracking)
• Patient Positioning : Supine (↓ P motion) / Prone
• Thermoplastic mold – Pelvic cast - knee to mid thigh + Tattooe /
Tegaderm
• Knee rest
Virtual simulation : Flat Couch
– Patient repositioning
– Pelvis : pubic symphysis - Laser set (mid / 2 lateral – 5cms post) – marking
– Radio-opaque markers
– CT Sim - 3mm
– Scan : 20-30 cms above & 20-30 cms below the marker plane

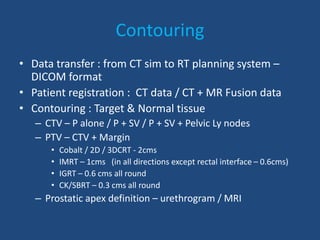

Contouring
• Data transfer : from CT sim to RT planning system –
DICOM format
• Patient registration : CT data / CT + MR Fusion data
• Contouring : Target & Normal tissue
– CTV – P alone / P + SV / P + SV + Pelvic Ly nodes
– PTV – CTV + Margin
• Cobalt / 2D / 3DCRT - 2cms
• IMRT – 1cms (in all directions except rectal interface – 0.6cms)
• IGRT – 0.6 cms all round
• CK/SBRT – 0.3 cms all round
– Prostatic apex definition – urethrogram / MRI

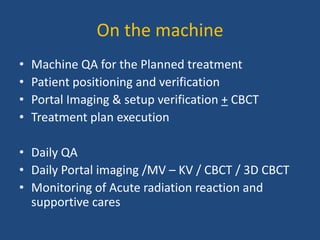

On the machine
• Machine QA for the Planned treatment
• Patient positioning and verification
• Portal Imaging & setup verification + CBCT
• Treatment plan execution
• Daily QA
• Daily Portal imaging /MV – KV / CBCT / 3D CBCT
• Monitoring of Acute radiation reaction and
supportive cares

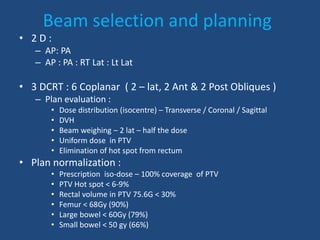

Beam selection and planning
• 2 D :
– AP: PA
– AP : PA : RT Lat : Lt Lat
• 3 DCRT : 6 Coplanar ( 2 – lat, 2 Ant & 2 Post Obliques )
– Plan evaluation :
• Dose distribution (isocentre) – Transverse / Coronal / Sagittal
• DVH
• Beam weighing – 2 lat – half the dose
• Uniform dose in PTV
• Elimination of hot spot from rectum
• Plan normalization :
• Prescription iso-dose – 100% coverage of PTV
• PTV Hot spot < 6-9%
• Rectal volume in PTV 75.6G < 30%
• Femur < 68Gy (90%)
• Large bowel < 60Gy (79%)
• Small bowel < 50 gy (66%)

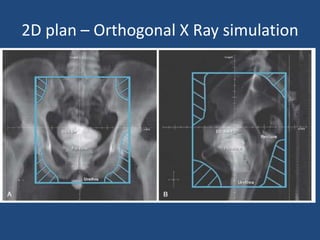

2D plan – Orthogonal X Ray simulation
• 3DCRT MLC
based
conformal field

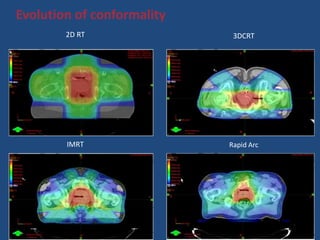

Evolution of conformality
2D RT 3DCRT
IMRT Rapid Arc

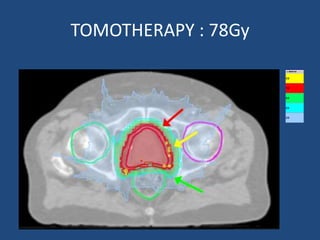

TOMOTHERAPY : 78Gy
AMS CONFIDENTIAL
Cyber knife
Rapid Arc
Patient on Treatment
Protons

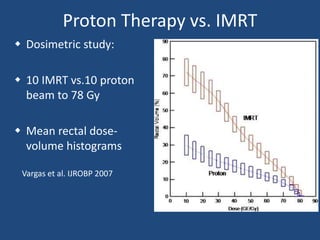

Proton Therapy vs. IMRT
 Dosimetric study:
 10 IMRT vs.10 proton
beam to 78 Gy
 Mean rectal dose-volume
histograms
Vargas et al. IJROBP 2007

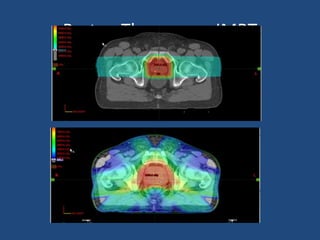

Proton Therapy vs. IMRT
Brachytherapy
Interstitial
Brachytherapy

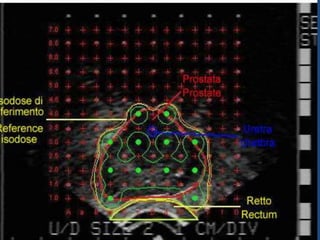

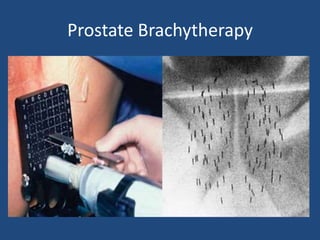

Prostate Brachytherapy
Prostate Brachytherapy
Iodine 125
t ½ = 60 days
Gamma emitter
Energy 35 kV

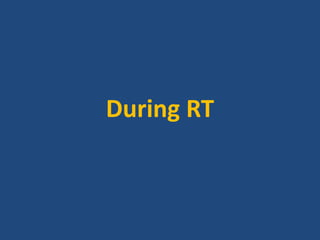

During RT

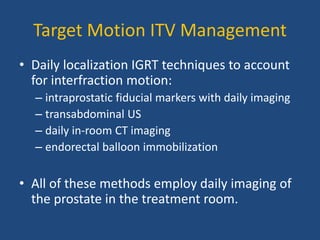

Target Motion ITV Management
• Daily localization IGRT techniques to account
for interfraction motion:
– intraprostatic fiducial markers with daily imaging
– transabdominal US
– daily in-room CT imaging
– endorectal balloon immobilization
• All of these methods employ daily imaging of
the prostate in the treatment room.
Target Tracking
• During RT
– Celing mounted Cross fired X-Ray / Fluro eg.CK, X Tack
–
• Before RT
– Orthogonal KV / MV Portal imaging – best with fidutial
– CBCT / Onrail CT – suitable for patients without
fidutials

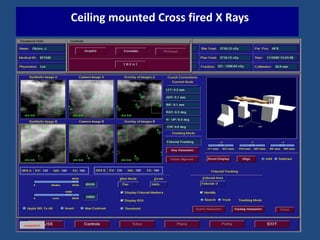

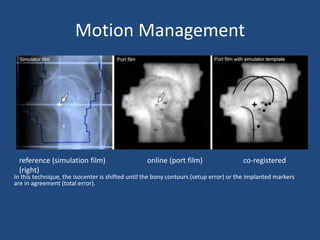

Ceiling mounted Cross fired X Rays
Motion Management
reference (simulation film) online (port film) co-registered
(right)
In this technique, the isocenter is shifted until the bony contours (setup error) or the implanted markers
are in agreement (total error).

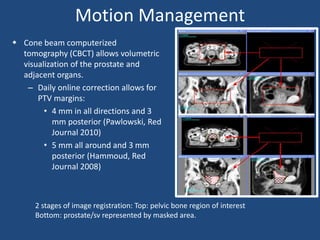

Motion Management
 Cone beam computerized
tomography (CBCT) allows volumetric
visualization of the prostate and
adjacent organs.
– Daily online correction allows for
PTV margins:
• 4 mm in all directions and 3
mm posterior (Pawlowski, Red
Journal 2010)
• 5 mm all around and 3 mm
posterior (Hammoud, Red
Journal 2008)
2 stages of image registration: Top: pelvic bone region of interest
Bottom: prostate/sv represented by masked area.

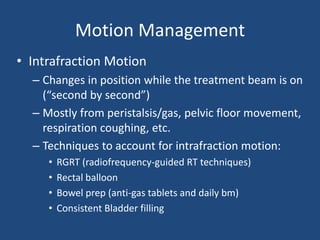

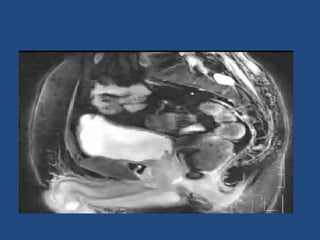

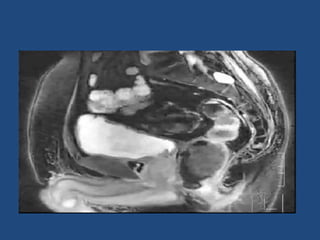

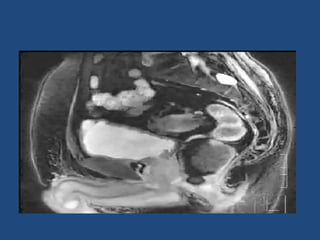

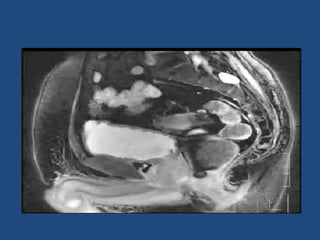

Motion Management
• Intrafraction Motion
– Changes in position while the treatment beam is on
(“second by second”)
– Mostly from peristalsis/gas, pelvic floor movement,
respiration coughing, etc.
– Techniques to account for intrafraction motion:
• RGRT (radiofrequency-guided RT techniques)
• Rectal balloon
• Bowel prep (anti-gas tablets and daily bm)
• Consistent Bladder filling

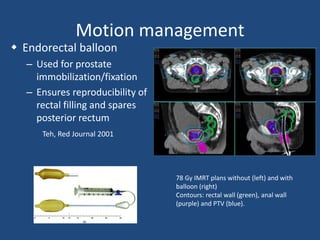

Motion management
 Endorectal balloon
– Used for prostate
immobilization/fixation
– Ensures reproducibility of
rectal filling and spares
posterior rectum
Teh, Red Journal 2001
78 Gy IMRT plans without (left) and with
balloon (right)
Contours: rectal wall (green), anal wall
(purple) and PTV (blue).

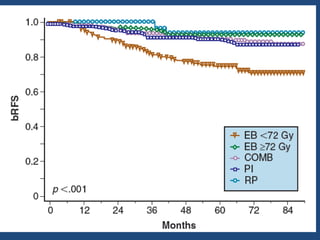

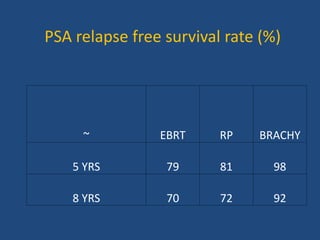

Treatment results
PSA relapse free survival rate (%)
~ EBRT RP BRACHY
5 YRS 79 81 98
8 YRS 70 72 92

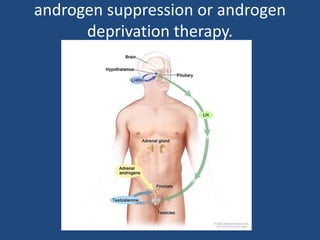

androgen suppression or androgen
deprivation therapy.
most commonly used hormone
therapies
• Orchiectomy
Medical Castration - reversible
• luteinizing hormone-releasing hormone (LHRH) agonists –
synthetic proteins - similar to LHRH and bind to the
LHRH receptor in the pitutary gland- causes the pituitary gland
to stop producing luteinizing hormone, which prevents
testosterone from being produced- leuprolide, goserelin,
and buserelin
• LHRH antagonists - act by preventing LHRH from binding to
its receptors in the pitutary gland
Toxicities
Impotence rates
• Brachy alone – 24%
• Brachy + EBRT – 40%
• EBRT alone – 45%
• Nerve sparing RP – 66%
• RP – 75%
• Cryosurgery – 87%
Urinary control
• RP – 35%
• RT – 97%
Summary and
Conclusion

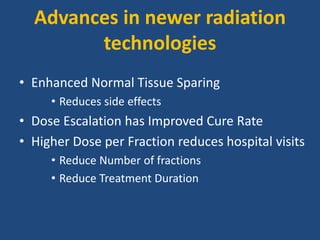

Advances in newer radiation
technologies
• Enhanced Normal Tissue Sparing
• Reduces side effects
• Dose Escalation has Improved Cure Rate
• Higher Dose per Fraction reduces hospital visits
• Reduce Number of fractions
• Reduce Treatment Duration
Thank you

More Related Content

What's hot

Radiotherapy in ca esophagus
Radiotherapy in ca esophagusRadiotherapy in ca esophagus
Radiotherapy in ca esophagus
Isha Jaiswal

Radiotherapy in carcinoma rectum
Radiotherapy in carcinoma rectumRadiotherapy in carcinoma rectum
Radiotherapy in carcinoma rectum
Sagar Raut

Quantec dr. upasna saxena (2)
Quantec   dr. upasna saxena (2)Quantec   dr. upasna saxena (2)
Quantec dr. upasna saxena (2)
Upasna Saxena

SBRT Contouring Guidelines
SBRT  Contouring  GuidelinesSBRT  Contouring  Guidelines
SBRT Contouring Guidelines
Dr Rushi Panchal

IMRT in Prostate Cancer
IMRT in Prostate CancerIMRT in Prostate Cancer
IMRT in Prostate Cancer
Dr.Ram Madhavan

brachytherapy in carcinoma prostate
brachytherapy in carcinoma prostatebrachytherapy in carcinoma prostate
brachytherapy in carcinoma prostate
Sailendra Parida

image guided brachytherapy carcinoma cervix
image guided brachytherapy carcinoma cerviximage guided brachytherapy carcinoma cervix
image guided brachytherapy carcinoma cervix
Isha Jaiswal

TARGET DELINEATION OF CANCER ESOPHAGUS
TARGET DELINEATION OF CANCER ESOPHAGUSTARGET DELINEATION OF CANCER ESOPHAGUS
TARGET DELINEATION OF CANCER ESOPHAGUS
Kanhu Charan

Radiotherapy for bladder cancers
Radiotherapy for bladder cancersRadiotherapy for bladder cancers
Radiotherapy for bladder cancersAshutosh Mukherji

Radiotherapy techniques for Breast Cancer
Radiotherapy techniques for Breast CancerRadiotherapy techniques for Breast Cancer
Radiotherapy techniques for Breast Cancer
Animesh Agrawal

BOOK ON REIRRADIATION
BOOK ON REIRRADIATIONBOOK ON REIRRADIATION
BOOK ON REIRRADIATION
Kanhu Charan

Radiotherapy lymphoma
Radiotherapy lymphoma Radiotherapy lymphoma
Radiotherapy lymphoma
vrinda singla

Prostate ca
Prostate caProstate ca
radiation therapy in ca breast
radiation therapy in ca breast   radiation therapy in ca breast
radiation therapy in ca breast
Isha Jaiswal

Srs and sbrt 2 dr.kiran
Srs and sbrt 2 dr.kiranSrs and sbrt 2 dr.kiran
Srs and sbrt 2 dr.kiran
Kiran Ramakrishna

Role of radiation in carcinoma rectum and colon
Role of radiation in carcinoma rectum and colon Role of radiation in carcinoma rectum and colon
Role of radiation in carcinoma rectum and colon Bharti Devnani

Radiation for the Treatment of Bladder Cancer
Radiation for the Treatment of Bladder CancerRadiation for the Treatment of Bladder Cancer
Radiation for the Treatment of Bladder Cancer
Robert J Miller MD

ICRU 89 summary & beyond converted
ICRU 89 summary & beyond convertedICRU 89 summary & beyond converted
ICRU 89 summary & beyond converted
Dr. Abhishek Basu

Delineation of dysphagia aspiration related structures
Delineation of dysphagia aspiration related structuresDelineation of dysphagia aspiration related structures
Delineation of dysphagia aspiration related structures
Rajesh Balakrishnan

HYPOFRACTIONATION IN RADIOTHERAPY
HYPOFRACTIONATION IN RADIOTHERAPYHYPOFRACTIONATION IN RADIOTHERAPY
HYPOFRACTIONATION IN RADIOTHERAPY
Rejil Rajan


What's hot (20)

Radiotherapy in ca esophagus
Radiotherapy in ca esophagusRadiotherapy in ca esophagus
Radiotherapy in ca esophagus

Radiotherapy in carcinoma rectum
Radiotherapy in carcinoma rectumRadiotherapy in carcinoma rectum
Radiotherapy in carcinoma rectum

Quantec dr. upasna saxena (2)
Quantec   dr. upasna saxena (2)Quantec   dr. upasna saxena (2)
Quantec dr. upasna saxena (2)

SBRT Contouring Guidelines
SBRT  Contouring  GuidelinesSBRT  Contouring  Guidelines
SBRT Contouring Guidelines

IMRT in Prostate Cancer
IMRT in Prostate CancerIMRT in Prostate Cancer
IMRT in Prostate Cancer

brachytherapy in carcinoma prostate
brachytherapy in carcinoma prostatebrachytherapy in carcinoma prostate
brachytherapy in carcinoma prostate

image guided brachytherapy carcinoma cervix
image guided brachytherapy carcinoma cerviximage guided brachytherapy carcinoma cervix
image guided brachytherapy carcinoma cervix

TARGET DELINEATION OF CANCER ESOPHAGUS
TARGET DELINEATION OF CANCER ESOPHAGUSTARGET DELINEATION OF CANCER ESOPHAGUS
TARGET DELINEATION OF CANCER ESOPHAGUS

Radiotherapy for bladder cancers
Radiotherapy for bladder cancersRadiotherapy for bladder cancers
Radiotherapy for bladder cancers

Radiotherapy techniques for Breast Cancer
Radiotherapy techniques for Breast CancerRadiotherapy techniques for Breast Cancer
Radiotherapy techniques for Breast Cancer

BOOK ON REIRRADIATION
BOOK ON REIRRADIATIONBOOK ON REIRRADIATION
BOOK ON REIRRADIATION

Radiotherapy lymphoma
Radiotherapy lymphoma Radiotherapy lymphoma
Radiotherapy lymphoma

Prostate ca
Prostate caProstate ca
Prostate ca

radiation therapy in ca breast
radiation therapy in ca breast   radiation therapy in ca breast
radiation therapy in ca breast

Srs and sbrt 2 dr.kiran
Srs and sbrt 2 dr.kiranSrs and sbrt 2 dr.kiran
Srs and sbrt 2 dr.kiran

Role of radiation in carcinoma rectum and colon
Role of radiation in carcinoma rectum and colon Role of radiation in carcinoma rectum and colon
Role of radiation in carcinoma rectum and colon

Radiation for the Treatment of Bladder Cancer
Radiation for the Treatment of Bladder CancerRadiation for the Treatment of Bladder Cancer
Radiation for the Treatment of Bladder Cancer

ICRU 89 summary & beyond converted
ICRU 89 summary & beyond convertedICRU 89 summary & beyond converted
ICRU 89 summary & beyond converted

Delineation of dysphagia aspiration related structures
Delineation of dysphagia aspiration related structuresDelineation of dysphagia aspiration related structures
Delineation of dysphagia aspiration related structures

HYPOFRACTIONATION IN RADIOTHERAPY
HYPOFRACTIONATION IN RADIOTHERAPYHYPOFRACTIONATION IN RADIOTHERAPY
HYPOFRACTIONATION IN RADIOTHERAPY


Viewers also liked

Future Developments In Radiation Therapy For Prostate Cancer
Future Developments In Radiation Therapy For Prostate CancerFuture Developments In Radiation Therapy For Prostate Cancer
Future Developments In Radiation Therapy For Prostate Cancerfondas vakalis

ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...
ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...
ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...European School of Oncology

Prostate cancer radiotherapy
Prostate cancer radiotherapyProstate cancer radiotherapy
Prostate cancer radiotherapy
mohamed alhefny

Igrt For Prostate Cancer
Igrt For Prostate CancerIgrt For Prostate Cancer
Igrt For Prostate CancerSapna Nangia

Radiation Therapy - Prostate Cancer
Radiation Therapy - Prostate CancerRadiation Therapy - Prostate Cancer
Radiation Therapy - Prostate CancerBiancz Noveno

Prostate Cancer and the Role of PostOp Radiation
Prostate Cancer and the Role of PostOp RadiationProstate Cancer and the Role of PostOp Radiation
Prostate Cancer and the Role of PostOp Radiation
Robert J Miller MD

Brachytherapy: Prostate Cancer
Brachytherapy: Prostate CancerBrachytherapy: Prostate Cancer
Brachytherapy: Prostate Cancer
Loghin Dumitru

Prostate Cancer
Prostate CancerProstate Cancer
Prostate Cancer
Robert J Miller MD

Metastatic prostate cancer
Metastatic prostate cancerMetastatic prostate cancer
Metastatic prostate cancer
prashantkumbhaj

ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...
ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...
ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...European School of Oncology

MANAGEMENT OF PROSTATE CA
MANAGEMENT OF PROSTATE CAMANAGEMENT OF PROSTATE CA
MANAGEMENT OF PROSTATE CA
radiation oncology

Radical Prostate Radiotherapy
Radical Prostate RadiotherapyRadical Prostate Radiotherapy
Radical Prostate Radiotherapy
Catherine Holborn

Prostate Cancer
Prostate CancerProstate Cancer
Prostate Cancer
Abdulaziz Alanzi

physics and clinical aspects of interstitial brachytherapy
physics and clinical aspects of interstitial brachytherapyphysics and clinical aspects of interstitial brachytherapy
physics and clinical aspects of interstitial brachytherapyVIMOJ JANARDANAN NAIR

Metastatic prostate cancer.. a guide for treatment choice
Metastatic prostate cancer.. a guide for treatment choiceMetastatic prostate cancer.. a guide for treatment choice
Metastatic prostate cancer.. a guide for treatment choice
Osama Elzaafarany, MD.

Prostate Cancer G Bauman
Prostate Cancer G BaumanProstate Cancer G Bauman
Prostate Cancer G Baumanfondas vakalis

CARCINOMA PROSTATE- Dr Manoj Kumar B, PGI
CARCINOMA PROSTATE- Dr Manoj Kumar B, PGICARCINOMA PROSTATE- Dr Manoj Kumar B, PGI
CARCINOMA PROSTATE- Dr Manoj Kumar B, PGIPGIMER, AIIMS


Viewers also liked (20)

Future Developments In Radiation Therapy For Prostate Cancer
Future Developments In Radiation Therapy For Prostate CancerFuture Developments In Radiation Therapy For Prostate Cancer
Future Developments In Radiation Therapy For Prostate Cancer

ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...
ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...
ECCLU 2011 - T. Wiegel - Prostate cancer: Managing of pelvic nodes - Radiatio...

Prostate cancer radiotherapy
Prostate cancer radiotherapyProstate cancer radiotherapy
Prostate cancer radiotherapy

Igrt For Prostate Cancer
Igrt For Prostate CancerIgrt For Prostate Cancer
Igrt For Prostate Cancer

Radiation Therapy - Prostate Cancer
Radiation Therapy - Prostate CancerRadiation Therapy - Prostate Cancer
Radiation Therapy - Prostate Cancer

Prostate Cancer and the Role of PostOp Radiation
Prostate Cancer and the Role of PostOp RadiationProstate Cancer and the Role of PostOp Radiation
Prostate Cancer and the Role of PostOp Radiation

Brachytherapy: Prostate Cancer
Brachytherapy: Prostate CancerBrachytherapy: Prostate Cancer
Brachytherapy: Prostate Cancer

Prostate Cancer
Prostate CancerProstate Cancer
Prostate Cancer

Metastatic prostate cancer
Metastatic prostate cancerMetastatic prostate cancer
Metastatic prostate cancer

D de Jong, Prostate cancer brachytherapy
D de Jong, Prostate cancer brachytherapyD de Jong, Prostate cancer brachytherapy
D de Jong, Prostate cancer brachytherapy

ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...
ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...
ECCLU 2011 - S. Supiot - Locally advanced prostate cancer: Multimodality trea...

MANAGEMENT OF PROSTATE CA
MANAGEMENT OF PROSTATE CAMANAGEMENT OF PROSTATE CA
MANAGEMENT OF PROSTATE CA

Radical Prostate Radiotherapy
Radical Prostate RadiotherapyRadical Prostate Radiotherapy
Radical Prostate Radiotherapy

Prostate Cancer
Prostate CancerProstate Cancer
Prostate Cancer

physics and clinical aspects of interstitial brachytherapy
physics and clinical aspects of interstitial brachytherapyphysics and clinical aspects of interstitial brachytherapy
physics and clinical aspects of interstitial brachytherapy

Metastatic prostate cancer.. a guide for treatment choice
Metastatic prostate cancer.. a guide for treatment choiceMetastatic prostate cancer.. a guide for treatment choice
Metastatic prostate cancer.. a guide for treatment choice

Prostate Cancer G Bauman
Prostate Cancer G BaumanProstate Cancer G Bauman
Prostate Cancer G Bauman

Radiation therapy of oral cancers
Radiation therapy of oral cancersRadiation therapy of oral cancers
Radiation therapy of oral cancers

Brachytherapy
BrachytherapyBrachytherapy
Brachytherapy

CARCINOMA PROSTATE- Dr Manoj Kumar B, PGI
CARCINOMA PROSTATE- Dr Manoj Kumar B, PGICARCINOMA PROSTATE- Dr Manoj Kumar B, PGI
CARCINOMA PROSTATE- Dr Manoj Kumar B, PGI


Similar to Radiation therapy in prostate cancer

Imaging prostate cancer astellas
Imaging prostate cancer astellasImaging prostate cancer astellas
Imaging prostate cancer astellas
Mohamed Abdulla

Prostate cancer
Prostate cancer Prostate cancer
Prostate cancer
Vinay Kumar

5 Basics of Prostate Cancer.pptx
5 Basics of Prostate Cancer.pptx5 Basics of Prostate Cancer.pptx
5 Basics of Prostate Cancer.pptx
Dr Ankur Shah

Overview of Carcinoma Prostate and Genetics
Overview of Carcinoma Prostate and GeneticsOverview of Carcinoma Prostate and Genetics
Overview of Carcinoma Prostate and Genetics
DrAyush Garg

Nasopharyngeal cancer
Nasopharyngeal cancer Nasopharyngeal cancer
Nasopharyngeal cancer
Ajay Manickam

Post Operative RT in Carcinoma prostate
Post Operative RT in Carcinoma prostatePost Operative RT in Carcinoma prostate
Post Operative RT in Carcinoma prostate
Sreekanth Nallam

Renal cell carcinoma
Renal cell carcinomaRenal cell carcinoma
Renal cell carcinoma
Robal Lacoul

RENAL CELL CARCINOMA.pptx
RENAL CELL CARCINOMA.pptxRENAL CELL CARCINOMA.pptx
RENAL CELL CARCINOMA.pptx
Dr Monica P

Renal Cell Carcinoma.pptx
Renal Cell Carcinoma.pptxRenal Cell Carcinoma.pptx
Renal Cell Carcinoma.pptx
Daniroxx

THYROID MALIGNANCIES.pptx
THYROID MALIGNANCIES.pptxTHYROID MALIGNANCIES.pptx
THYROID MALIGNANCIES.pptx
masoom parwez

Thyroid malignancies
Thyroid malignanciesThyroid malignancies
Thyroid malignancies
Shashank Bansal

Prostate presentation.Ca prostate etiology staging
Prostate presentation.Ca prostate etiology stagingProstate presentation.Ca prostate etiology staging
Prostate presentation.Ca prostate etiology staging
OSBORNMIKE

Oncoimaging: prostate cancer
Oncoimaging: prostate cancerOncoimaging: prostate cancer
Oncoimaging: prostate cancer
Thorsang Chayovan

Intern talk prostate and testis cancer 2015
Intern talk prostate and testis cancer 2015Intern talk prostate and testis cancer 2015
Intern talk prostate and testis cancer 2015
katejohnpunag

spinal metastasis
spinal metastasisspinal metastasis
spinal metastasis
DheerajJonnalagadda1

Prostate
ProstateProstate
Prostate
Parneet Singh

Haematuria & urinary tract malignancy
Haematuria & urinary tract malignancyHaematuria & urinary tract malignancy
Haematuria & urinary tract malignancy
Chea Chan Hooi

Carcinoma of prostate
Carcinoma of prostateCarcinoma of prostate
Carcinoma of prostate
Ashwini Maurya

THYROID CANCER.pptx
THYROID CANCER.pptxTHYROID CANCER.pptx
THYROID CANCER.pptx
NurAmaleezaAbdulMana


Similar to Radiation therapy in prostate cancer (20)

Imaging prostate cancer astellas
Imaging prostate cancer astellasImaging prostate cancer astellas
Imaging prostate cancer astellas

Prostate cancer
Prostate cancer Prostate cancer
Prostate cancer

5 Basics of Prostate Cancer.pptx
5 Basics of Prostate Cancer.pptx5 Basics of Prostate Cancer.pptx
5 Basics of Prostate Cancer.pptx

Overview of Carcinoma Prostate and Genetics
Overview of Carcinoma Prostate and GeneticsOverview of Carcinoma Prostate and Genetics
Overview of Carcinoma Prostate and Genetics

Nasopharyngeal cancer
Nasopharyngeal cancer Nasopharyngeal cancer
Nasopharyngeal cancer

Post Operative RT in Carcinoma prostate
Post Operative RT in Carcinoma prostatePost Operative RT in Carcinoma prostate
Post Operative RT in Carcinoma prostate

Renal cell carcinoma
Renal cell carcinomaRenal cell carcinoma
Renal cell carcinoma

RENAL CELL CARCINOMA.pptx
RENAL CELL CARCINOMA.pptxRENAL CELL CARCINOMA.pptx
RENAL CELL CARCINOMA.pptx

Renal Cell Carcinoma.pptx
Renal Cell Carcinoma.pptxRenal Cell Carcinoma.pptx
Renal Cell Carcinoma.pptx

THYROID MALIGNANCIES.pptx
THYROID MALIGNANCIES.pptxTHYROID MALIGNANCIES.pptx
THYROID MALIGNANCIES.pptx

Thyroid malignancies
Thyroid malignanciesThyroid malignancies
Thyroid malignancies

Prostate presentation.Ca prostate etiology staging
Prostate presentation.Ca prostate etiology stagingProstate presentation.Ca prostate etiology staging
Prostate presentation.Ca prostate etiology staging

Oncoimaging: prostate cancer
Oncoimaging: prostate cancerOncoimaging: prostate cancer
Oncoimaging: prostate cancer

Intern talk prostate and testis cancer 2015
Intern talk prostate and testis cancer 2015Intern talk prostate and testis cancer 2015
Intern talk prostate and testis cancer 2015

Carcinoma prostate
Carcinoma prostateCarcinoma prostate
Carcinoma prostate

spinal metastasis
spinal metastasisspinal metastasis
spinal metastasis

Prostate
ProstateProstate
Prostate

Haematuria & urinary tract malignancy
Haematuria & urinary tract malignancyHaematuria & urinary tract malignancy
Haematuria & urinary tract malignancy

Carcinoma of prostate
Carcinoma of prostateCarcinoma of prostate
Carcinoma of prostate

THYROID CANCER.pptx
THYROID CANCER.pptxTHYROID CANCER.pptx
THYROID CANCER.pptx


More from Kidwai Memorial Institute of Oncology, Bangalore

AI & Recent Advances in Radiation Oncology 2024
AI & Recent Advances in Radiation Oncology 2024AI & Recent Advances in Radiation Oncology 2024
AI & Recent Advances in Radiation Oncology 2024
Kidwai Memorial Institute of Oncology, Bangalore

Road map to eliminate Cervical Cancer in the Indian subcontinent 2023 Dr V ...
Road map to eliminate  Cervical Cancer in the Indian subcontinent  2023 Dr V ...Road map to eliminate  Cervical Cancer in the Indian subcontinent  2023 Dr V ...
Road map to eliminate Cervical Cancer in the Indian subcontinent 2023 Dr V ...
Kidwai Memorial Institute of Oncology, Bangalore

Permanent implant Brachytherapy
Permanent implant BrachytherapyPermanent implant Brachytherapy
Permanent implant Brachytherapy
Kidwai Memorial Institute of Oncology, Bangalore

Research in India Bangalore Tech Expo 2018
Research in India Bangalore Tech Expo 2018Research in India Bangalore Tech Expo 2018
Research in India Bangalore Tech Expo 2018
Kidwai Memorial Institute of Oncology, Bangalore

Motion management in Radiation Oncology - 2020
Motion management in Radiation Oncology - 2020Motion management in Radiation Oncology - 2020
Motion management in Radiation Oncology - 2020
Kidwai Memorial Institute of Oncology, Bangalore

Nutrition in cancer patients dr lokesh 2021 introduction
Nutrition in cancer patients dr lokesh 2021 introductionNutrition in cancer patients dr lokesh 2021 introduction
Nutrition in cancer patients dr lokesh 2021 introduction
Kidwai Memorial Institute of Oncology, Bangalore

Future Technological needs in Oncology
Future Technological needs in Oncology Future Technological needs in Oncology
Future Technological needs in Oncology
Kidwai Memorial Institute of Oncology, Bangalore

Radiation Therapy in Colon and Rectal Cancer - Multidisciplinary seminar 1993
Radiation Therapy in Colon and Rectal Cancer  - Multidisciplinary seminar 1993Radiation Therapy in Colon and Rectal Cancer  - Multidisciplinary seminar 1993
Radiation Therapy in Colon and Rectal Cancer - Multidisciplinary seminar 1993
Kidwai Memorial Institute of Oncology, Bangalore

Radiation Therapy in Oral Cancer 2018
Radiation Therapy in Oral Cancer 2018Radiation Therapy in Oral Cancer 2018
Radiation Therapy in Oral Cancer 2018
Kidwai Memorial Institute of Oncology, Bangalore

Radiotherapy in Cancer Oesophagus 1993
Radiotherapy in Cancer Oesophagus 1993Radiotherapy in Cancer Oesophagus 1993
Radiotherapy in Cancer Oesophagus 1993
Kidwai Memorial Institute of Oncology, Bangalore

Radiotherapy in Carcinoma of the Urinary Bladder 1993
Radiotherapy in Carcinoma of the Urinary Bladder 1993Radiotherapy in Carcinoma of the Urinary Bladder 1993
Radiotherapy in Carcinoma of the Urinary Bladder 1993
Kidwai Memorial Institute of Oncology, Bangalore

Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...
Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...
Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...
Kidwai Memorial Institute of Oncology, Bangalore

Radiotherapy and Skin reaction
Radiotherapy and Skin reaction Radiotherapy and Skin reaction
Radiotherapy and Skin reaction
Kidwai Memorial Institute of Oncology, Bangalore

Radiotherapy : Past Present Future KMIO 2015
Radiotherapy :  Past Present Future  KMIO 2015Radiotherapy :  Past Present Future  KMIO 2015
Radiotherapy : Past Present Future KMIO 2015
Kidwai Memorial Institute of Oncology, Bangalore

Radiation therapy in Cancer Oesophagus
Radiation therapy in Cancer Oesophagus Radiation therapy in Cancer Oesophagus
Radiation therapy in Cancer Oesophagus
Kidwai Memorial Institute of Oncology, Bangalore

EGFR in cervical cancer
EGFR in cervical cancerEGFR in cervical cancer
ABRAXANE in Radiation Therapy
ABRAXANE in Radiation TherapyABRAXANE in Radiation Therapy
IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC
IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLCIMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC
IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC
Kidwai Memorial Institute of Oncology, Bangalore


More from Kidwai Memorial Institute of Oncology, Bangalore (20)

AI & Recent Advances in Radiation Oncology 2024
AI & Recent Advances in Radiation Oncology 2024AI & Recent Advances in Radiation Oncology 2024
AI & Recent Advances in Radiation Oncology 2024

Road map to eliminate Cervical Cancer in the Indian subcontinent 2023 Dr V ...
Road map to eliminate  Cervical Cancer in the Indian subcontinent  2023 Dr V ...Road map to eliminate  Cervical Cancer in the Indian subcontinent  2023 Dr V ...
Road map to eliminate Cervical Cancer in the Indian subcontinent 2023 Dr V ...

Permanent implant Brachytherapy
Permanent implant BrachytherapyPermanent implant Brachytherapy
Permanent implant Brachytherapy

Research in India Bangalore Tech Expo 2018
Research in India Bangalore Tech Expo 2018Research in India Bangalore Tech Expo 2018
Research in India Bangalore Tech Expo 2018

Motion management in Radiation Oncology - 2020
Motion management in Radiation Oncology - 2020Motion management in Radiation Oncology - 2020
Motion management in Radiation Oncology - 2020

Nutrition in cancer patients dr lokesh 2021 introduction
Nutrition in cancer patients dr lokesh 2021 introductionNutrition in cancer patients dr lokesh 2021 introduction
Nutrition in cancer patients dr lokesh 2021 introduction

Future Technological needs in Oncology
Future Technological needs in Oncology Future Technological needs in Oncology
Future Technological needs in Oncology

Radiation Therapy in Colon and Rectal Cancer - Multidisciplinary seminar 1993
Radiation Therapy in Colon and Rectal Cancer  - Multidisciplinary seminar 1993Radiation Therapy in Colon and Rectal Cancer  - Multidisciplinary seminar 1993
Radiation Therapy in Colon and Rectal Cancer - Multidisciplinary seminar 1993

Radiation Therapy in Oral Cancer 2018
Radiation Therapy in Oral Cancer 2018Radiation Therapy in Oral Cancer 2018
Radiation Therapy in Oral Cancer 2018

Radiotherapy in Cancer Oesophagus 1993
Radiotherapy in Cancer Oesophagus 1993Radiotherapy in Cancer Oesophagus 1993
Radiotherapy in Cancer Oesophagus 1993

Radiotherapy in Carcinoma of the Urinary Bladder 1993
Radiotherapy in Carcinoma of the Urinary Bladder 1993Radiotherapy in Carcinoma of the Urinary Bladder 1993
Radiotherapy in Carcinoma of the Urinary Bladder 1993

Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...
Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...
Breast Cancer Radiation Therapy: RT Plan evaluation & Recent Advances - 4DCT ...

Radiotherapy and Skin reaction
Radiotherapy and Skin reaction Radiotherapy and Skin reaction
Radiotherapy and Skin reaction

Radiotherapy : Past Present Future KMIO 2015
Radiotherapy :  Past Present Future  KMIO 2015Radiotherapy :  Past Present Future  KMIO 2015
Radiotherapy : Past Present Future KMIO 2015

Radiation therapy in Cancer Oesophagus
Radiation therapy in Cancer Oesophagus Radiation therapy in Cancer Oesophagus
Radiation therapy in Cancer Oesophagus

EGFR in cervical cancer
EGFR in cervical cancerEGFR in cervical cancer
EGFR in cervical cancer

ABRAXANE in Radiation Therapy
ABRAXANE in Radiation TherapyABRAXANE in Radiation Therapy
ABRAXANE in Radiation Therapy

IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC
IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLCIMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC
IMPROVISED RADIOTHERAPY TECHNIQUES IN TELE COBALT WITHOUT MLC

Temozolomide As A Radiosensitizer Clinical Experience At Kmio
Temozolomide As A Radiosensitizer Clinical Experience At KmioTemozolomide As A Radiosensitizer Clinical Experience At Kmio
Temozolomide As A Radiosensitizer Clinical Experience At Kmio

Radiation Therapy In India
Radiation Therapy In IndiaRadiation Therapy In India
Radiation Therapy In India


Recently uploaded

Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Savita Shen $i11

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
Dr. Vinay Pareek

Triangles of Neck and Clinical Correlation by Dr. RIG.pptx
Triangles of Neck and Clinical Correlation by Dr. RIG.pptxTriangles of Neck and Clinical Correlation by Dr. RIG.pptx
Triangles of Neck and Clinical Correlation by Dr. RIG.pptx
Dr. Rabia Inam Gandapore

heat stroke and heat exhaustion in children
heat stroke and heat exhaustion in childrenheat stroke and heat exhaustion in children
heat stroke and heat exhaustion in children
SumeraAhmad5

POST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its managementPOST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its management
touseefaziz1

THOA 2.ppt Human Organ Transplantation Act
THOA 2.ppt Human Organ Transplantation ActTHOA 2.ppt Human Organ Transplantation Act
THOA 2.ppt Human Organ Transplantation Act
DrSathishMS1

Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.GawadHemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
NephroTube - Dr.Gawad

Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...
Sujoy Dasgupta

Superficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptxSuperficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptx
Dr. Rabia Inam Gandapore

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS
Krishan Murari

Antiulcer drugs Advance Pharmacology .pptx
Antiulcer drugs Advance Pharmacology .pptxAntiulcer drugs Advance Pharmacology .pptx
Antiulcer drugs Advance Pharmacology .pptx
Rohit chaurpagar

Report Back from SGO 2024: What’s the Latest in Cervical Cancer?
Report Back from SGO 2024: What’s the Latest in Cervical Cancer?Report Back from SGO 2024: What’s the Latest in Cervical Cancer?
Report Back from SGO 2024: What’s the Latest in Cervical Cancer?
bkling

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Dr KHALID B.M

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
Swetaba Besh

KDIGO 2024 guidelines for diabetologists
KDIGO 2024 guidelines for diabetologistsKDIGO 2024 guidelines for diabetologists
KDIGO 2024 guidelines for diabetologists
د.محمود نجيب

The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...
The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...
The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...
Catherine Liao

The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...
Catherine Liao

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
GL Anaacs

The Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of IIThe Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of II
MedicoseAcademics

Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyayaCharaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Dr KHALID B.M


Recently uploaded (20)

Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...
Phone Us ❤85270-49040❤ #ℂall #gIRLS In Surat By Surat @ℂall @Girls Hotel With...

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS

Triangles of Neck and Clinical Correlation by Dr. RIG.pptx
Triangles of Neck and Clinical Correlation by Dr. RIG.pptxTriangles of Neck and Clinical Correlation by Dr. RIG.pptx
Triangles of Neck and Clinical Correlation by Dr. RIG.pptx

heat stroke and heat exhaustion in children
heat stroke and heat exhaustion in childrenheat stroke and heat exhaustion in children
heat stroke and heat exhaustion in children

POST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its managementPOST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its management

THOA 2.ppt Human Organ Transplantation Act
THOA 2.ppt Human Organ Transplantation ActTHOA 2.ppt Human Organ Transplantation Act
THOA 2.ppt Human Organ Transplantation Act

Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.GawadHemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad

Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...Couples presenting to the infertility clinic- Do they really have infertility...
Couples presenting to the infertility clinic- Do they really have infertility...

Superficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptxSuperficial & Deep Fascia of the NECK.pptx
Superficial & Deep Fascia of the NECK.pptx

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS

Antiulcer drugs Advance Pharmacology .pptx
Antiulcer drugs Advance Pharmacology .pptxAntiulcer drugs Advance Pharmacology .pptx
Antiulcer drugs Advance Pharmacology .pptx

Report Back from SGO 2024: What’s the Latest in Cervical Cancer?
Report Back from SGO 2024: What’s the Latest in Cervical Cancer?Report Back from SGO 2024: What’s the Latest in Cervical Cancer?
Report Back from SGO 2024: What’s the Latest in Cervical Cancer?

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx

KDIGO 2024 guidelines for diabetologists
KDIGO 2024 guidelines for diabetologistsKDIGO 2024 guidelines for diabetologists
KDIGO 2024 guidelines for diabetologists

The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...
The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...
The POPPY STUDY (Preconception to post-partum cardiovascular function in prim...

The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...

HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...

The Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of IIThe Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of II

Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyayaCharaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya


Radiation therapy in prostate cancer

  • 1. Radiation Therapy in Prostate Cancer Lokesh Viswanath M.D. Professor, Radiation Oncology, Kidwai Memorial Institute of Oncology 2014
  • 2. Prostate Cancer • World wide : – Second most common cause of cancer – New Cases ~ 1.1 million (15%) – Developed countries ~ 70% – 307,000 deaths • Prostate cancer incidence – Lowest: • Asian populations 10.5 per 100,000 • Eastern and South-Central Asia 4.5 per 100,000 – Highest : • 111.6 Australia/New Zealand and • 97.2 per 100,000 Northern America
  • 3.
  • 4. In India • Previously – thought - prevalence of prostate cancer in India is far lower compared to western countries • but … – increased migration rural to urban areas – changing life styles – increased awareness – easy access to medical facility ….. – more cases of prostate cancer are being picked up – we are not very far behind the rate from western countries. – Current incidence rate of prostate cancer in India is ~ 10.66 per 100000 population
  • 5. Current India Data: • Prostate cancer: – 2nd leading site of - Delhi, Kolkatta, Pune and Thi'puram – 3rd leading site of Bangalore and Mumbai Projected cases of prostate cancer for selected time periods (2013, 2014, 2015 and 2020). ICD-10 Site name 2013 2014 2015 2020 C61 Prostate 35,029 37,055 39,200 51,979
  • 6. Prostate : Anatomy • Prostate – Accessory gland – Inverted Cone encompasses the p. urethra – Dense fibromuscular stroma – Surrounded by a capsule – 4 x 3 x 2cms – 8g • Prozimity to Rectum & U Bladder – Denonvilliers fascia • Blood supply – Inferior vesical – Mid rectal – Internal pudendal • Lymphatics – Internal iliac nodes – Sacral – Partly external iliac nodes Nervous supply – Neurovascular bundle • Lies on either side of the prostate on the rectum – Derived from the pelvic plexus - Important for erectile function.
  • 7. Epidemiology • Risk factors – Increasing age – Family history – African-American – Dietary factors. • Race – Incidence doubled in African Americans compared to white Americans. • Genetics – Common among relatives with early-onset prostate cancer – Susceptibility locus • Chromosome 1, band Q24 • Found in < 10% of prostate cancer patients • Nutritional factors - protective effect against prostate cancer – Reduced fat intake – Soy protein – Lycopene – Vitamin E – Selenium
  • 8. Clinical Manifestations : Symptoms • Early state (organ confined) – Asymptomatic • Locally advanced – Obstructive voiding symptoms • Hesitancy • Intermittent urinary stream • Decreased force of stream – May have growth into the urethra or bladder neck – Hematuria – Hematospermia • Advanced (spread to the regional pelvic lymph nodes) – Edema of the lower extremities – Pelvic and perineal discomfort
  • 9. Clinical Manifestations : 2 • of Metastasis : – Most commonly to bone (frequently asymptomatic) • Can cause severe and unremitting pain – Bone metastasis • Can result in pathologic fractures or • Spinal cord compression – Visceral metastases (rare) – Can develop pulmonary, hepatic, pleural, peritoneal, and central nervous system metastases late in the natural history or after hormonal therapies fail.
  • 10. Clinical Signs • Routine Clinical history and clinical examination Rectal examination • Signs: PR examination - Abnormal • ( +ve for Malignancy 25-50%) • Hard nodule / extremely firm • Evaluate for disease extension in – Lateral sulcus – superior
  • 11. Presentation • Peripheral zone (PZ) – 70% of cancers • Transitional zone (TZ) – 20% – Some • TZ prostate cancers are relatively nonaggressive • PZ cancers are more aggressive – Tend to invade the periprostatic tissues.
  • 12. Investigations Routine: Laboratory Complete blood cell count, blood chemistry Serum PSA (total, free, complex PSA:: ratio of Free : Total PSA < 0.2 - likely Prostate Ca. ) (Normal Age-Specific Limits for PSA - Plasma acid phosphatases (prostatic/total) Testosterone Other Experimental: RT PCR for mRNA of PSA & PSMA +ve - Extraprostatic – 72% -ve - Organ confined - 88%
  • 13. Staging Tests 1. Magnetic resonance imaging (MRI) – defn Apex, NV bundle, ano rectal wall, intra prostatic dises location, capsular extension, seminal vesicle involvement 1. T2 axial / coronal : neurovascular bundle , penile bulb 2. PZ - T2 Normal – high signal , Tumor – Low signal , T1 – Hemorrhage – Low signal intensity 3. Extracapsular extension : focal, irregular capsular bulge, invasion of NV bundle, obliteration of rectoprostatic angle 4. endorectal MRSI – MR spectroscopy : metabolic activity and extra capsular extension, seminal vesicle invasion : Increase coline 2. Transrectal ultrasound (TRUS) : » Ca – variable echo, hyper – 69%, margin - poorly defined , 3. Transrectal or transperineal biopsy : – 16 guage , 10 -18 core (base, apex, both lateral, mid, lat peripheral zone) – Core length 4. Chest radiograph (high risk for metastatic disease) 5. Computed tomography (CT) scans – pelvis node assesment 6. Radionuclide bone scans : Indicated: PSA>20, Gleason score ≥8, Bone pain Other: 1. PET/CT with 11C- Acetate - detecting microscopic +LN
  • 14. Others : essential base line evaluation • Erectile function • Bowel : SI/LI/Rectum/Anal Sphincters • Bladder : Flow/rate
  • 15. AJCC / TNM Stage Groupings Definitions
  • 16.
  • 17. Pathology • Adenocarcinoma 95% - peripheral acinar glands • Other Histologic Subtypes – Periurethral duct carcinoma – transitional cell carcinoma – Ductal adenocarcinoma – Neuroendocrine tumors – Mucinous carcinoma – Sarcomatoid carcinoma – Endometrioid tumors – Adenoid cystic carcinoma – Sarcomas (leiomyosarcoma, rhabdomyosarcoma, or fibrosarcoma) – Carcinosarcoma – Primary lymphoma
  • 18. Evaluation of the histologic grade ('G') GX: cannot assess grade G1: the tumor closely resembles normal tissue (Gleason 2–4) G2: the tumor somewhat resembles normal tissue (Gleason 5–6) G3–4: the tumor resembles normal tissue barely or not at all (Gleason 7–10)
  • 19. Gleason score • histological patterns, emphasizing degree of glandular differentiation and relation to stroma • Histologic patterns 1 through 5 • nine discrete scores (range, 2 to 10) • one of the strongest predictors of – biologic behavior in prostate cancer – invasiveness – metastatic potential – < 6
  • 20. Prostate Cancer Risk Groups :- stage : PSA : Gleason score
  • 21. Treatment options for prostate cancer • Observation alone • Radical prostatectomy • Radiation therapy • Hormonal treatment
  • 22. Overview Treatment Options by Stage for Prostate Cancer Stage ( AJCC TNM Staging Criteria) Standard Treatment Options Stage I •Watchful waiting or active surveillance •Radical prostatectomy •External-beam radiation therapy (EBRT) •Interstitial implantation of radioisotopes Stage II •Watchful waiting or active surveillance •Radical prostatectomy •External-beam radiation therapy (EBRT) with or without hormonal therapy •Interstitial implantation of radioisotopes Stage III •External-beam radiation therapy (EBRT) with or without hormonal therapy •Hormonal manipulations (orchiectomy or luteinizing hormone-releasing hormone [LH-RH] agonist) •Radical prostatectomy with or without EBRT •Watchful waiting or active surveillance Stage IV •Hormonal manipulations •Bisphosphonates •External-beam radiation therapy (EBRT) with or without hormonal therapy •Palliative radiation therapy •Palliative surgery with transurethral resection of the prostate (TURP) •Watchful waiting or active surveillance Recurrent •Chemotherapy for hormonal management of prostate cancer •Immunotherapy
  • 23. Indications for RT T N0 N1 M1 PSA GS SURVELLI ANCE SURGERY Radical RT Radical Brachytherapy HT T1a + <10 <6 YES RP+ PLND RT BRACY T1b + <10 <6 YES RP+ PLND (<2% +ve nodes) RT BRACY T1c + <10 <6 YES RP+ PLND (>2% +ve nodes) RT BRACY T2a + RT + ADT T2b + RT + ADT T2c + 10 to 20 7 YES RP+ PLND RT + ADT + BRACHY BOOST BRACY Y T3a + >20 8 to 10 RP+ PLND RT + ADT BRACHY BOOST Y T3b + RT + ADT BRACHY BOOST Y T4 + RT + ADT BRACHY BOOST ADT Any T + RT + ADT Y Any T / N + RT ADT
  • 26. • Radiation therapy is the art of using ionising radiation to destroy malignant tumours while being able to minimise damage to normal tissue.
  • 27. Introduction • Basics of Radiation Therapy – Ionizing Radiation – X / γ Rays – Interaction of Radiation with matter Transmission Attenuation Scatter Absorption Rad / Gray / cGy
  • 28. Cancer Cell & Ionizing Radiation • Cancer cell multiply faster than normal cell • DNA is primary target • Double Strand breaks >>> Reproductive Cell Death
  • 29. RT is a Double Edge Sword
  • 30. ↑ RT Dose ↓ RT Dose ↑ T – Control ↓ T – Control ↑ Normal Tissue Toxicitites ↓ Normal Tissue Toxicitites
  • 32. Radiation Equipments Teletherapy • Telecobalt • Linear Accelerator – Simple Teletherapy – SRS/SRT – 2D – 3DCRT – IMRT – IGRT – Rapid Arc – FFF – SBRT – 4DRT – Target tracking – Tomotherapy – Cyber Knife • Gamma Knife Brachytherapy – Intracavitory – Interstitial – Mould • Pre Loaded / After loading • Manual / Remote • LDR / HDR • Permanent Implants
  • 33. Linear Accelerator • 3DCRT > 1998+ • IMRT > 2000+
  • 34. Linear Accelerator : 3DCRT / IMRT
  • 36. Synchrony™ camera Cyber Knife – 2003+ Treatment couch Linear accelerator Targeting System Manipulator Image detectors X-ray sources Robotic Delivery System
  • 38. True beam - All in One FFF SBRT / 4DRT –
  • 39. True Beam - 2010
  • 41. Brachytherapy • LDR - Iridium wires – Manual Interstitial <Phased out> • HDR – Iridium / Cobalt • Permanent Interstitial Implant – Iodine seeds
  • 42. 125 I Seed Implant
  • 45. Radiation Therapy Prostate Cancer : • Disease Characterization : • Clinical - KPS/Co-existing Morbidities/TRUS/ CT/MR • TNM/PSA/GS – Primary – Primary + Regional nodes • + ADT PSA (ng/ml) +VE PELVIC NODE YEILD 4-20 < 12% >20 > 10% > 25 30-35% > 50 + high GS 62%
  • 46. Radiation Therapy : Intent Defn • Radical RT – RT alone: – Conventional (7-8 weeks) < – Hyperfractionation (5-6 weeks) – Hypofractionation (1-2 Gap 1-2 weeks) < CK / SRS / SBRT – Photons alone – Recent adv - Photons + Particle (Protons) – Protons alone – RT + Hormon therapy (HT) – RT + Radiation Protectors (Amifostine) – Teletherapy + Brachytherapy Boost – Brachytherapy alone • Brachy type: Volume implants – Temporary Implant – HDR – Permanaent Implant – I 125 • Post Operative RT (5-7 weeks) • Salvage RT / Re-irradiation • Palliative RT – Short Course (1day, 1-2 weeks) – Saturation Technique (1-2 weeks gap 3-4 weks)
  • 47. RT Techniques • Teletherapy – 2 D – 3 D Conformal – IMRT – IGRT – Tomotherapy – CK SRS / SRT – Rapid arc – SBRT - FFF – Proton • Bracytherapy – Interstital • HDR – Ir - Temporary • 125 Iodine - Permanent
  • 48. Indications for RT in Ca Prostate • Radical RT – T1, T2, T3, T4a • Un-resectable (Altered Fractionation HF/CB or RT + HT ) • elderly, frail, comorbid conditions • refusal for surgery • prohibitive morbidity due to surgery • Post OP RT : after Radical Prostatectomy – pT3/4 – Close & +ve margin – Extra Capsular extension – Invasion to • Seminal vesicle • Extraprostatic extensions – Multiple nodes – R 1 resection • Pre OP PSA > 10ng/ml • Pre OP PSA velocity > 2ng/ml/year – Post RP – Recurrent disease – Post RP - early PSA failures
  • 49. RADIOTHERAPY DOSE 1. External : a. IMRT / IGRT / Rapid Arc / Protons : – > 7400 cGy to 7600 cGy / 6-8 wks – 180-200cGy / fr, 5fr/wk b. CK / SBRT / FFF : 5 – 20 Gy / fr, 3-5 fr c. Post-op.: 60-66 Gy / 6-7 wks d. Palliative RT: 30Gy/10f, 20Gy/5 or 4f, 7-8Gy/1f 2. Brachytherapy : a. Alone : 6000 - 7000 cGy in 6 to 7 days. b. External + Brachytherapy Ext : 46-50 Gy in 4 1/2 - 5 1/2 wks. + Brachy : 2000-3000 cGy in 2-3 days HDR : 9.5Gy x 2f, as mono therapy 9.5Gy bid x 4f x 2dys I -125 : 0.2-0.9mCi, T1/2-17dy, 21Kev
  • 50. RT Dose • 2D : 66Gy , 1.8-2Gy/f, 5f/wk • 3DCRT : 70-75Gy • IMRT /IGRT : 75 – 81Gy
  • 52. RT Planning • Informed Consent : • Implant Fidutial - +/- (if GC is not favorable CBCT ) • Mould room work : Patient positioning, knee rest • Virtual CT Simulation • Contouring • RT planning • Plan evaluation and acceptance • QA tests
  • 53. Fidutial Placement • TRUS Guided • 1 week prior to simulation
  • 54. Flat Couch CT Simulator
  • 55. Instructions for Virtual Simulation Mould room techniques: • Bowel / Bladder – post void (full – if u/s Tracking) • Patient Positioning : Supine (↓ P motion) / Prone • Thermoplastic mold – Pelvic cast - knee to mid thigh + Tattooe / Tegaderm • Knee rest Virtual simulation : Flat Couch – Patient repositioning – Pelvis : pubic symphysis - Laser set (mid / 2 lateral – 5cms post) – marking – Radio-opaque markers – CT Sim - 3mm – Scan : 20-30 cms above & 20-30 cms below the marker plane
  • 56. Contouring • Data transfer : from CT sim to RT planning system – DICOM format • Patient registration : CT data / CT + MR Fusion data • Contouring : Target & Normal tissue – CTV – P alone / P + SV / P + SV + Pelvic Ly nodes – PTV – CTV + Margin • Cobalt / 2D / 3DCRT - 2cms • IMRT – 1cms (in all directions except rectal interface – 0.6cms) • IGRT – 0.6 cms all round • CK/SBRT – 0.3 cms all round – Prostatic apex definition – urethrogram / MRI
  • 57. On the machine • Machine QA for the Planned treatment • Patient positioning and verification • Portal Imaging & setup verification + CBCT • Treatment plan execution • Daily QA • Daily Portal imaging /MV – KV / CBCT / 3D CBCT • Monitoring of Acute radiation reaction and supportive cares
  • 58.
  • 59. Beam selection and planning • 2 D : – AP: PA – AP : PA : RT Lat : Lt Lat • 3 DCRT : 6 Coplanar ( 2 – lat, 2 Ant & 2 Post Obliques ) – Plan evaluation : • Dose distribution (isocentre) – Transverse / Coronal / Sagittal • DVH • Beam weighing – 2 lat – half the dose • Uniform dose in PTV • Elimination of hot spot from rectum • Plan normalization : • Prescription iso-dose – 100% coverage of PTV • PTV Hot spot < 6-9% • Rectal volume in PTV 75.6G < 30% • Femur < 68Gy (90%) • Large bowel < 60Gy (79%) • Small bowel < 50 gy (66%)
  • 60. 2D plan – Orthogonal X Ray simulation
  • 61. • 3DCRT MLC based conformal field
  • 62.
  • 63.
  • 64. Evolution of conformality 2D RT 3DCRT IMRT Rapid Arc
  • 65.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 77. Proton Therapy vs. IMRT  Dosimetric study:  10 IMRT vs.10 proton beam to 78 Gy  Mean rectal dose-volume histograms Vargas et al. IJROBP 2007
  • 82. Prostate Brachytherapy Iodine 125 t ½ = 60 days Gamma emitter Energy 35 kV
  • 83.
  • 84.
  • 86. Target Motion ITV Management • Daily localization IGRT techniques to account for interfraction motion: – intraprostatic fiducial markers with daily imaging – transabdominal US – daily in-room CT imaging – endorectal balloon immobilization • All of these methods employ daily imaging of the prostate in the treatment room.
  • 87. Target Tracking • During RT – Celing mounted Cross fired X-Ray / Fluro eg.CK, X Tack – • Before RT – Orthogonal KV / MV Portal imaging – best with fidutial – CBCT / Onrail CT – suitable for patients without fidutials
  • 88. Ceiling mounted Cross fired X Rays
  • 89. Motion Management reference (simulation film) online (port film) co-registered (right) In this technique, the isocenter is shifted until the bony contours (setup error) or the implanted markers are in agreement (total error).
  • 90. Motion Management  Cone beam computerized tomography (CBCT) allows volumetric visualization of the prostate and adjacent organs. – Daily online correction allows for PTV margins: • 4 mm in all directions and 3 mm posterior (Pawlowski, Red Journal 2010) • 5 mm all around and 3 mm posterior (Hammoud, Red Journal 2008) 2 stages of image registration: Top: pelvic bone region of interest Bottom: prostate/sv represented by masked area.
  • 91. Motion Management • Intrafraction Motion – Changes in position while the treatment beam is on (“second by second”) – Mostly from peristalsis/gas, pelvic floor movement, respiration coughing, etc. – Techniques to account for intrafraction motion: • RGRT (radiofrequency-guided RT techniques) • Rectal balloon • Bowel prep (anti-gas tablets and daily bm) • Consistent Bladder filling
  • 92.
  • 93.
  • 94.
  • 95.
  • 96.
  • 97.
  • 98.
  • 99.
  • 100.
  • 101. Motion management  Endorectal balloon – Used for prostate immobilization/fixation – Ensures reproducibility of rectal filling and spares posterior rectum Teh, Red Journal 2001 78 Gy IMRT plans without (left) and with balloon (right) Contours: rectal wall (green), anal wall (purple) and PTV (blue).
  • 103. PSA relapse free survival rate (%) ~ EBRT RP BRACHY 5 YRS 79 81 98 8 YRS 70 72 92
  • 104.
  • 105. androgen suppression or androgen deprivation therapy.
  • 106. most commonly used hormone therapies • Orchiectomy Medical Castration - reversible • luteinizing hormone-releasing hormone (LHRH) agonists – synthetic proteins - similar to LHRH and bind to the LHRH receptor in the pitutary gland- causes the pituitary gland to stop producing luteinizing hormone, which prevents testosterone from being produced- leuprolide, goserelin, and buserelin • LHRH antagonists - act by preventing LHRH from binding to its receptors in the pitutary gland
  • 107. Toxicities Impotence rates • Brachy alone – 24% • Brachy + EBRT – 40% • EBRT alone – 45% • Nerve sparing RP – 66% • RP – 75% • Cryosurgery – 87% Urinary control • RP – 35% • RT – 97%
  • 109. Advances in newer radiation technologies • Enhanced Normal Tissue Sparing • Reduces side effects • Dose Escalation has Improved Cure Rate • Higher Dose per Fraction reduces hospital visits • Reduce Number of fractions • Reduce Treatment Duration
