Radiotherapy in ca esophagus
1. RT Planning Techniques
In Ca Oesophagus
2D,3D,IMRT,IGRT
Presented by:Dr. Isha Jaiswal
Moderated by:Dr Shagun Misra
Date:18th April 2017

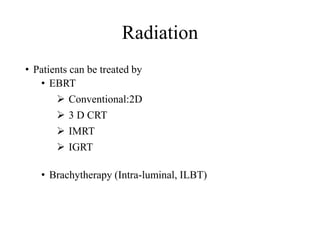

2. Radiation
⢠Patients can be treated by
⢠EBRT
ď Conventional:2D
ď 3 D CRT
ď IMRT
ď IGRT
⢠Brachytherapy (Intra-luminal, ILBT)

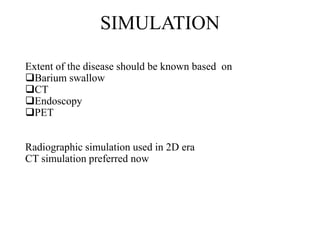

3. SIMULATION
Extent of the disease should be known based on
ďąBarium swallow
ďąCT
ďąEndoscopy
ďąPET
Radiographic simulation used in 2D era
CT simulation preferred now

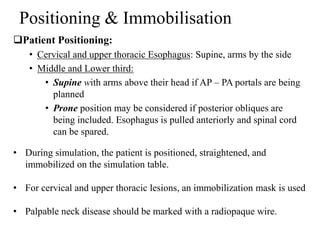

4. Positioning & Immobilisation
ďąPatient Positioning:
⢠Cervical and upper thoracic Esophagus: Supine, arms by the side
⢠Middle and Lower third:
⢠Supine with arms above their head if AP â PA portals are being
planned
⢠Prone position may be considered if posterior obliques are
being included. Esophagus is pulled anteriorly and spinal cord
can be spared.
⢠During simulation, the patient is positioned, straightened, and
immobilized on the simulation table.
⢠For cervical and upper thoracic lesions, an immobilization mask is used
⢠Palpable neck disease should be marked with a radiopaque wire.

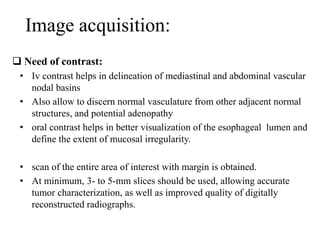

5. Image acquisition:
ďą Need of contrast:
⢠Iv contrast helps in delineation of mediastinal and abdominal vascular
nodal basins
⢠Also allow to discern normal vasculature from other adjacent normal
structures, and potential adenopathy
⢠oral contrast helps in better visualization of the esophageal lumen and
define the extent of mucosal irregularity.
⢠scan of the entire area of interest with margin is obtained.
⢠At minimum, 3- to 5-mm slices should be used, allowing accurate
tumor characterization, as well as improved quality of digitally
reconstructed radiographs.

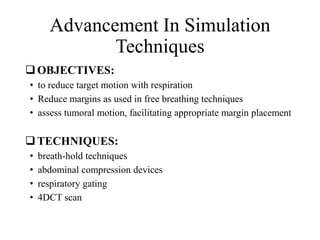

6. Advancement In Simulation
Techniques
ďąOBJECTIVES:
⢠to reduce target motion with respiration
⢠Reduce margins as used in free breathing techniques
⢠assess tumoral motion, facilitating appropriate margin placement
ďąTECHNIQUES:
⢠breath-hold techniques
⢠abdominal compression devices
⢠respiratory gating
⢠4DCT scan

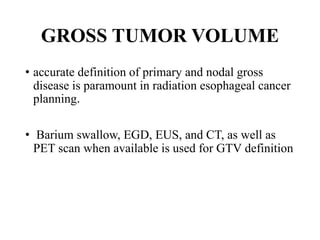

8. GROSS TUMOR VOLUME
⢠accurate definition of primary and nodal gross
disease is paramount in radiation esophageal cancer
planning.
⢠Barium swallow, EGD, EUS, and CT, as well as
PET scan when available is used for GTV definition

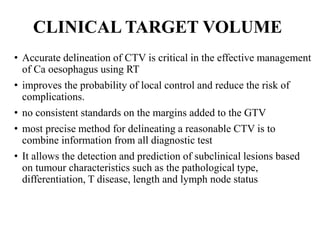

9. CLINICAL TARGET VOLUME
⢠Accurate delineation of CTV is critical in the effective management
of Ca oesophagus using RT
⢠improves the probability of local control and reduce the risk of
complications.
⢠no consistent standards on the margins added to the GTV
⢠most precise method for delineating a reasonable CTV is to
combine information from all diagnostic test
⢠It allows the detection and prediction of subclinical lesions based
on tumour characteristics such as the pathological type,
differentiation, T disease, length and lymph node status
10.
11. Subclinical lesions in ca esophagus:
⢠CTV of esophageal carcinoma should cover the primary tumor
and all detected secondary lesions
⢠secondary lesions frequently include
ďdirect invasion (DI),
ďintra-mural metastasis (IMM),
ďmulticentric occurrent lesions (MOL),
ďvascular invasion(VI),
ďmicroscopic lymph node metastasis (LNMM)
ďisolated tumor cells (ITC)
ďperineural invasion (PNI)

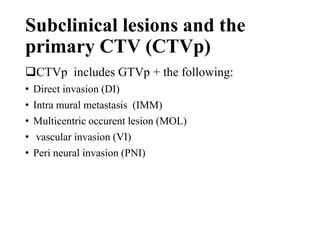

12. Subclinical lesions and the
primary CTV (CTVp)
ďąCTVp includes GTVp + the following:
⢠Direct invasion (DI)
⢠Intra mural metastasis (IMM)
⢠Multicentric occurent lesion (MOL)
⢠vascular invasion (VI)
⢠Peri neural invasion (PNI)

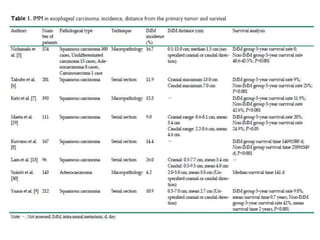

13.

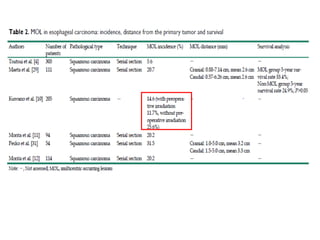

14.
15. VASCULAR INVASION
⢠defined as the infiltration of tumor cells into lymph and blood vessels, as
well as tumor embolus formation.
⢠The incidence of VI in early-stage ESCC was 13.89% (15/108) [14] and
39.1% (143/366) in advanced disease [15].
⢠The incidence of VI in esophageal adenocarcinoma was 49.9% (229/459)
[16].
⢠All of these studies demonstrated that VI is an important prognostic factor;
however, none of these studies assessed the distance of VI sites from the
primary tumor
14. Amano T et al. Subepithelial extension of squamouscell carcinoma in the esophagus: histopathological study using
D2-40 immunostaining for 108 superficial carcinomas. Pathol Int. 2007;57:759-64.
15. BrĂźcher BL et al. Lymphatic vessel invasion is an independentprognostic factor in patients with a primary resected
tumor withesophageal squamous cell carcinoma. Cancer. 2001;92:2228-33.
16. von Rahden BH, et al. Lymphatic vessel invasion as aprognostic factor in patients with primary resected
adenocarcinomas of theesophagogastric junction. J Clin Oncol. 2005;23:874-9.
17. Koenig AM, et al. Strong impact of micrometastatictumor cell load in patients with esophageal carcinoma. Ann
Surg Oncol.2009;16:454-62.

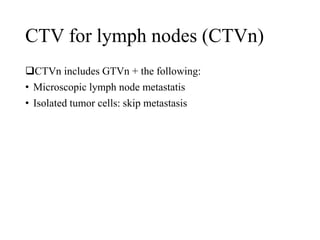

16. CTV for lymph nodes (CTVn)
ďąCTVn includes GTVn + the following:
⢠Microscopic lymph node metastatis
⢠Isolated tumor cells: skip metastasis

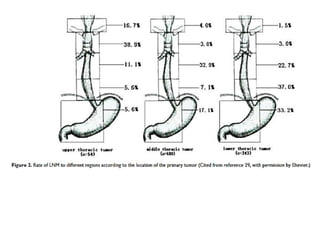

17.

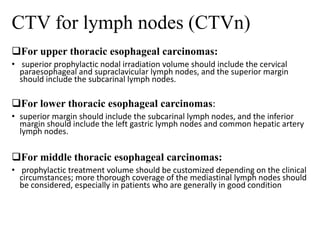

18. CTV for lymph nodes (CTVn)
ďąFor upper thoracic esophageal carcinomas:
⢠superior prophylactic nodal irradiation volume should include the cervical
paraesophageal and supraclavicular lymph nodes, and the superior margin
should include the subcarinal lymph nodes.
ďąFor lower thoracic esophageal carcinomas:
⢠superior margin should include the subcarinal lymph nodes, and the inferior
margin should include the left gastric lymph nodes and common hepatic artery
lymph nodes.
ďąFor middle thoracic esophageal carcinomas:
⢠prophylactic treatment volume should be customized depending on the clinical
circumstances; more thorough coverage of the mediastinal lymph nodes should
be considered, especially in patients who are generally in good condition

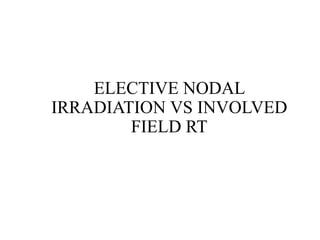

20. ELECTIVE NODAL IRRADIATION
⢠PROS
⢠High risk of
micrometastasis
⢠Skip metastasis
⢠CONS
⢠Increased risk of nodal
failure
⢠Large RT fields
⢠Increased toxicity
⢠No improvement in OS
⢠Additional diagnostic test
needed to accurately
define involved nodes
⢠Chemotherapy reduces
micrometastasis

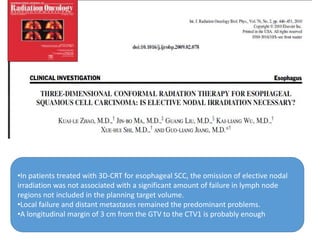

21. â˘In patients treated with 3D-CRT for esophageal SCC, the omission of elective nodal
irradiation was not associated with a significant amount of failure in lymph node
regions not included in the planning target volume.
â˘Local failure and distant metastases remained the predominant problems.
â˘A longitudinal margin of 3 cm from the GTV to the CTV1 is probably enough

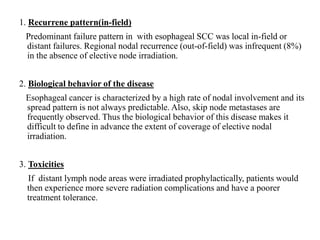

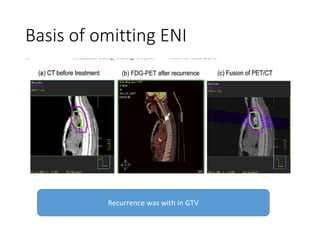

23. 1. Recurrene pattern(in-field)
Predominant failure pattern in with esophageal SCC was local in-field or
distant failures. Regional nodal recurrence (out-of-field) was infrequent (8%)
in the absence of elective node irradiation.
2. Biological behavior of the disease
Esophageal cancer is characterized by a high rate of nodal involvement and its
spread pattern is not always predictable. Also, skip node metastases are
frequently observed. Thus the biological behavior of this disease makes it
difficult to define in advance the extent of coverage of elective nodal
irradiation.
3. Toxicities
If distant lymph node areas were irradiated prophylactically, patients would
then experience more severe radiation complications and have a poorer
treatment tolerance.

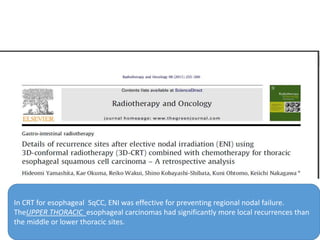

24. In CRT for esophageal SqCC, ENI was effective for preventing regional nodal failure.
TheUPPER THORACIC esophageal carcinomas had significantly more local recurrences than
the middle or lower thoracic sites.
25. ⢠Retrospective analysis
⢠79 patients with locally advanced ESCC underwent 3D-CRTor IMRT
using IFI or elective nodal irradiation (ENI) according to the target
volume.
⢠The patterns of failure were defined as local/regional,in-field, out-of-field
regional lymph node (LN) and distant failure.
⢠With a median follow-up of 32.0 months, failures were observed in 66
(83.6%) patients.
26. Target definition
⢠delineation of clinical target volume (CTV) was based on CT,
barium esophagogram, and endoscopic examination.
⢠Esophageal wall thickness of more than 0.5cm and
⢠positive LNs were included in the gross tumor volume
⢠(GTV)
⢠LNs that were well vascularized, measuredmore than 8 mm in the
short axes, and showed central necrosis or extracapsular extension
in CT were considered malignant
⢠The total dose of GTV was 58-66 Gy/29-33F. At the same time,
the volume of CTV was appropriately adjusted on the basis of the
human anatomic structure so that the maximum dosage in the
spinal cord did not exceed 45 Gy.

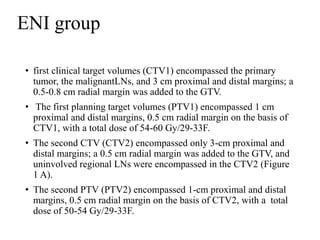

27. ENI group
⢠first clinical target volumes (CTV1) encompassed the primary
tumor, the malignantLNs, and 3 cm proximal and distal margins; a
0.5-0.8 cm radial margin was added to the GTV.
⢠The first planning target volumes (PTV1) encompassed 1 cm
proximal and distal margins, 0.5 cm radial margin on the basis of
CTV1, with a total dose of 54-60 Gy/29-33F.
⢠The second CTV (CTV2) encompassed only 3-cm proximal and
distal margins; a 0.5 cm radial margin was added to the GTV, and
uninvolved regional LNs were encompassed in the CTV2 (Figure
1 A).
⢠The second PTV (PTV2) encompassed 1-cm proximal and distal
margins, 0.5 cm radial margin on the basis of CTV2, with a total
dose of 50-54 Gy/29-33F.
28. IFI group
⢠CTV only encompassed 3 cm proximal and distal margins and
0.5-0.8 cm radial margin on the basis of GTV.
⢠Uninvolved regional LNs were not encompassed in the CTV
⢠At the same time, the volume of CTV was appropriately adjusted
on the basis of the human anatomic structure so that the maximum
dosage in the spinal cord did not exceed 45Gy.
⢠PTV encompassed 1 cm proximal and distal margins,0.5 cm radial
margin on the basis of CTV, with a total dose of 50-56Gy/29-33F.
29.

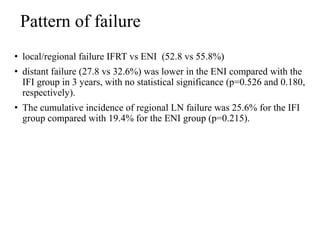

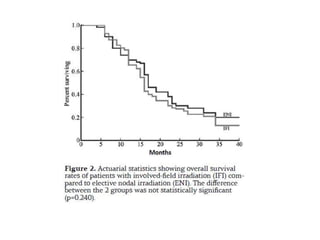

30. Pattern of failure
⢠local/regional failure IFRT vs ENI (52.8 vs 55.8%)
⢠distant failure (27.8 vs 32.6%) was lower in the ENI compared with the
IFI group in 3 years, with no statistical significance (p=0.526 and 0.180,
respectively).
⢠The cumulative incidence of regional LN failure was 25.6% for the IFI
group compared with 19.4% for the ENI group (p=0.215).

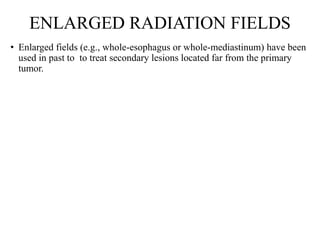

34. ENLARGED RADIATION FIELDS
⢠Enlarged fields (e.g., whole-esophagus or whole-mediastinum) have been
used in past to to treat secondary lesions located far from the primary
tumor.
35. Treatment Planning
2D Era â RTOG 8501
⢠RTOG 8501 compared CRT (50 Gy) to RT alone (64Gy)
⢠Mid/Lower Esophageal Cancers
⢠Initial Field was AP/PA to 30 Gy/15#
⢠Extended from SCV region to GE junction
⢠Omitted SCV nodes in lower esophageal tumors
⢠Boost field was tumor + 5 cm sup/inf with a 3 field or opposed
obliques to dose of 20 Gy in 10 fractions
⢠Advantages
⢠AP/PA limited lung dose
⢠Replacing PA with oblique fields limited spinal cord dose
⢠Disadvantages
⢠For distal tumors, significant cardiac volume
⢠Entire extent of the esophagus treated

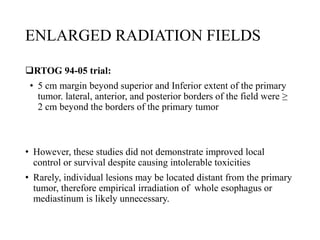

36. ENLARGED RADIATION FIELDS
ďąRTOG 94-05 trial:
⢠5 cm margin beyond superior and Inferior extent of the primary
tumor. lateral, anterior, and posterior borders of the field were âĽ
2 cm beyond the borders of the primary tumor
⢠However, these studies did not demonstrate improved local
control or survival despite causing intolerable toxicities
⢠Rarely, individual lesions may be located distant from the primary
tumor, therefore empirical irradiation of whole esophagus or
mediastinum is likely unnecessary.
37.

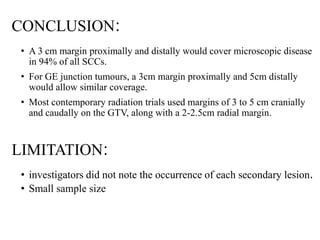

38. CONCLUSION:
⢠A 3 cm margin proximally and distally would cover microscopic disease
in 94% of all SCCs.
⢠For GE junction tumours, a 3cm margin proximally and 5cm distally
would allow similar coverage.
⢠Most contemporary radiation trials used margins of 3 to 5 cm cranially
and caudally on the GTV, along with a 2-2.5cm radial margin.
LIMITATION:
⢠investigators did not note the occurrence of each secondary lesion.
⢠Small sample size

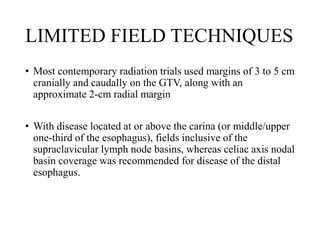

39. LIMITED FIELD TECHNIQUES
⢠Most contemporary radiation trials used margins of 3 to 5 cm
cranially and caudally on the GTV, along with an
approximate 2-cm radial margin
⢠With disease located at or above the carina (or middle/upper
one-third of the esophagus), fields inclusive of the
supraclavicular lymph node basins, whereas celiac axis nodal
basin coverage was recommended for disease of the distal
esophagus.

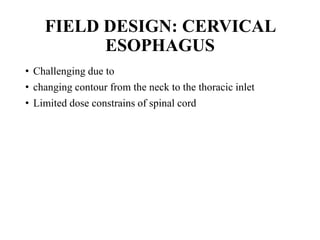

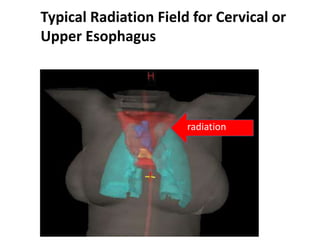

41. FIELD DESIGN: CERVICAL
ESOPHAGUS
⢠Challenging due to
⢠changing contour from the neck to the thoracic inlet
⢠Limited dose constrains of spinal cord

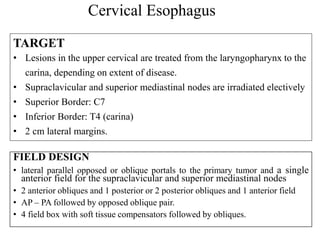

42. Cervical Esophagus
FIELD DESIGN
⢠lateral parallel opposed or oblique portals to the primary tumor and a single
anterior field for the supraclavicular and superior mediastinal nodes
⢠2 anterior obliques and 1 posterior or 2 posterior obliques and 1 anterior field
⢠AP â PA followed by opposed oblique pair.
⢠4 field box with soft tissue compensators followed by obliques.
TARGET
⢠Lesions in the upper cervical are treated from the laryngopharynx to the
carina, depending on extent of disease.
⢠Supraclavicular and superior mediastinal nodes are irradiated electively
⢠Superior Border: C7
⢠Inferior Border: T4 (carina)
⢠2 cm lateral margins.

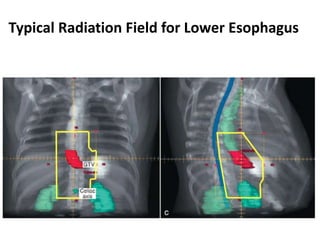

43. EBRT â Middle and Lower Third
⢠Superior Border: 5 cm proximal to superior extent of disease.
⢠Inferior Border:
⢠Middle third - GEJ as visualised by Barium swallow
⢠Lower third - Coeliac plexus (L1) to be included.
⢠AP - PA followed by 1 Anterior and 2 Posterior oblique pairs
⢠4 Field: AP - PA & opposed laterals â for mid 1/3rd lesions.
⢠AP - PA to deliver 36-44 Gy followed by posterior obliques to
reach the full dose.
44.
45. Treatment Planning â 3D Era
Definitions
⢠GTV â Gross Tumor Volume ( Tumor + grossly enlarged LN)
⢠CTV â Clinical Target Volume â Includes microscopic disease
⢠PTV â Planning Target Volume â accounts for setup error and
intra-fraction motion

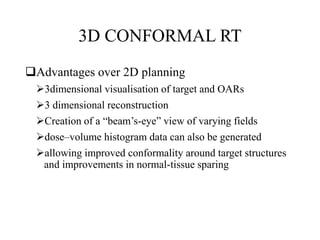

46. 3D CONFORMAL RT
ďąAdvantages over 2D planning
ď3dimensional visualisation of target and OARs
ď3 dimensional reconstruction
ďCreation of a âbeamâs-eyeâ view of varying fields
ďdoseâvolume histogram data can also be generated
ďallowing improved conformality around target structures
and improvements in normal-tissue sparing

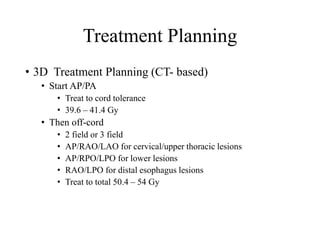

47. Treatment Planning
⢠3D Treatment Planning (CT- based)
⢠Start AP/PA
⢠Treat to cord tolerance
⢠39.6 â 41.4 Gy
⢠Then off-cord
⢠2 field or 3 field
⢠AP/RAO/LAO for cervical/upper thoracic lesions
⢠AP/RPO/LPO for lower lesions
⢠RAO/LPO for distal esophagus lesions
⢠Treat to total 50.4 â 54 Gy

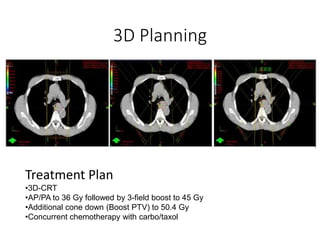

48. 3D Planning
Treatment Plan
â˘3D-CRT
â˘AP/PA to 36 Gy followed by 3-field boost to 45 Gy
â˘Additional cone down (Boost PTV) to 50.4 Gy
â˘Concurrent chemotherapy with carbo/taxol
49. Treatment Planning - Evaluation
⢠Dose Volume Histograms
⢠CT data allows to quantify dose received by tumor as
well as organs at risk

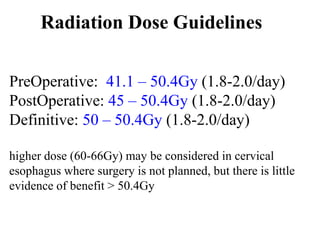

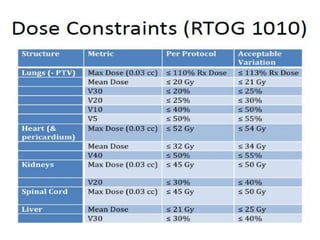

54. Radiation Dose Guidelines
PreOperative: 41.1 â 50.4Gy (1.8-2.0/day)
PostOperative: 45 â 50.4Gy (1.8-2.0/day)
Definitive: 50 â 50.4Gy (1.8-2.0/day)
higher dose (60-66Gy) may be considered in cervical
esophagus where surgery is not planned, but there is little
evidence of benefit > 50.4Gy

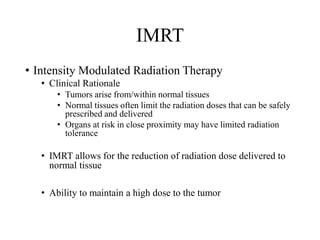

56. IMRT
⢠Intensity Modulated Radiation Therapy
⢠Clinical Rationale
⢠Tumors arise from/within normal tissues
⢠Normal tissues often limit the radiation doses that can be safely
prescribed and delivered
⢠Organs at risk in close proximity may have limited radiation
tolerance
⢠IMRT allows for the reduction of radiation dose delivered to
normal tissue
⢠Ability to maintain a high dose to the tumor

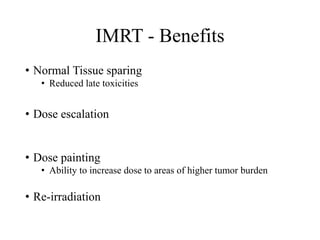

57. IMRT - Benefits
⢠Normal Tissue sparing
⢠Reduced late toxicities
⢠Dose escalation
⢠Dose painting
⢠Ability to increase dose to areas of higher tumor burden
⢠Re-irradiation

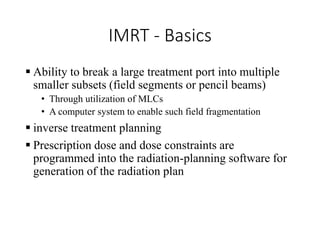

58. IMRT - Basics
ď§ Ability to break a large treatment port into multiple
smaller subsets (field segments or pencil beams)
⢠Through utilization of MLCs
⢠A computer system to enable such field fragmentation
ď§ inverse treatment planning
ď§ Prescription dose and dose constraints are
programmed into the radiation-planning software for
generation of the radiation plan

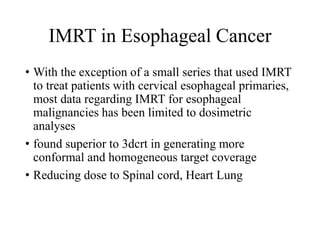

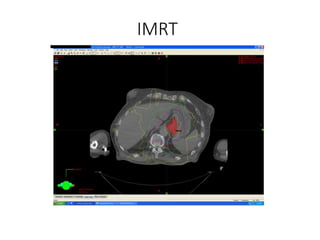

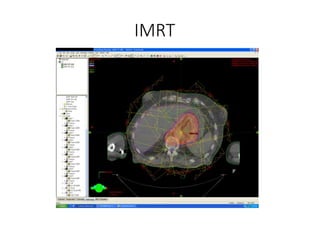

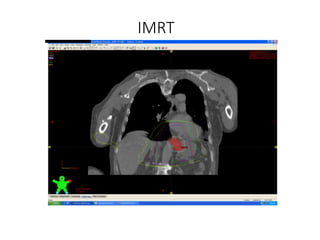

59. IMRT in Esophageal Cancer
⢠With the exception of a small series that used IMRT
to treat patients with cervical esophageal primaries,
most data regarding IMRT for esophageal
malignancies has been limited to dosimetric
analyses

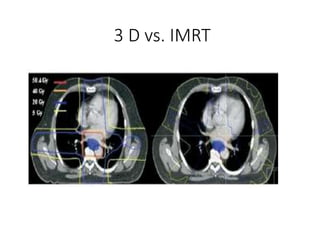

⢠found superior to 3dcrt in generating more
conformal and homogeneous target coverage
⢠Reducing dose to Spinal cord, Heart Lung
The use of respiratory gating or breath-hold techniques may help to reduce target motion with respiration and, therefore, avoid normal-tissue irradiation associated with larger margins used in free-breathing approaches, particularly for lower esophageal cancers. Additional techniques to minimize physiologic motion include. Four-dimensional CT scan may be appropriate to assess tumoral motion, facilitating appropriate margin placement on the target volumes, particularly in lower esophageal tumors and/or disease involving the stomach.
Treatment Planning
barium swallow (when available), EGD, EUS, and CT, as well as PET scan.
Lam KY, Ma LT, Wong J. Measurement of extent of spread of oesophageal
squamous carcinoma by serial sectioning. J Clin Pathol. 1996;49:124-9.
14. Amano T, Matsumoto T, Hayashi T, et al. Subepithelial extension of squamous
cell carcinoma in the esophagus: histopathological study using D2-40 immunostaining
for 108 superficial carcinomas. Pathol Int. 2007;57:759-64.
15. BrĂźcher BL, Stein HJ, Werner M, et al. Lymphatic vessel invasion is an independent
prognostic factor in patients with a primary resected tumor with
esophageal squamous cell carcinoma. Cancer. 2001;92:2228-33.
16. von Rahden BH, Stein HJ, Feith M, et al. Lymphatic vessel invasion as a
prognostic factor in patients with primary resected adenocarcinomas of the
esophagogastric junction. J Clin Oncol. 2005;23:874-9.
17. Koenig AM, Prenzel KL, Bogoevski D, et al. Strong impact of micrometastatic
tumor cell load in patients with esophageal carcinoma. Ann Surg Oncol.
2009;16:454-62.
For cervical primaries, patients are placed supine. Various field designs are possible and their choice depends on the geometry of the primary tumor in relation to the spinal cord. The ideal design is a three-field technique (two anterior obliques and a posterior). However, since the primary tumor is rarely limited to the midline, the most common approach is anteroposterior (AP)/posteroanterior (PA) to 39.6 to 41.4Â Gy (Fig. 36-3) followed by a left or right opposed oblique pair with photons to 50.4Â Gy (Fig. 36-4A-C). Since this technique will exclude the ipsilateral supraclavicular fossa, a separate electron field is added (commonly to a depth of 2 to 3Â cm depending on the patient's anatomy) thereby bringing the total dose to 50.4Â Gy. For cervical primaries, patients are placed supine. Various field designs are possible and their choice depends on the geometry of the primary tumor in relation to the spinal cord. The ideal design is a three-field technique (two anterior obliques and a posterior). However, since the primary tumor is rarely limited to the midline, the most common approach is anteroposterior (AP)/posteroanterior (PA) to 39.6 to 41.4Â Gy (Fig. 36-3) followed by a left or right opposed oblique pair with photons to 50.4Â Gy (Fig. 36-4A-C). Since this technique will exclude the ipsilateral supraclavicular fossa, a separate electron field is added (commonly to a depth of 2 to 3Â cm depending on the patient's anatomy) thereby bringing the total dose to 50.4Â Gy.
