1. Prism
Dr. Meenank. B
M.S. Ophthalmology (post-graduate )
ASRAM medical college

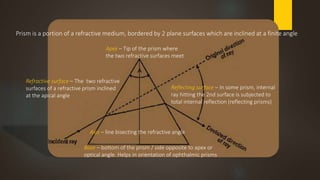

2. Prism is a portion of a refractive medium, bordered by 2 plane surfaces which are inclined at a finite angle
Apex – Tip of the prism where
the two refractive surfaces meet
Refractive surface – The two refractive
surfaces of a refractive prism inclined
at the apical angle
Reflecting surface – In some prism, internal
ray hitting the 2nd surface is subjected to
total internal reflection (reflecting prisms)
Axis – line bisecting the refractive angle
Base – bottom of the prism / side opposite to apex or
optical angle. Helps in orientation of ophthalmic prisms

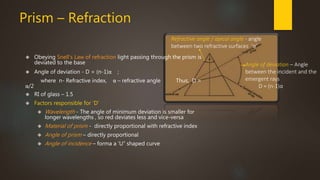

3. Prism – Refraction
Refractive angle / apical angle - angle
between two refractive surfaces ‘α’
Angle of deviation – Angle
between the incident and the
emergent rays
D = (n-1)α
 Obeying Snell's Law of refraction light passing through the prism is
deviated to the base
 Angle of deviation - D = (n-1)α ;
where n- Refractive index, α – refractive angle Thus, D =
α/2
 RI of glass – 1.5
 Factors responsible for ‘D’
 Wavelength - The angle of minimum deviation is smaller for
longer wavelengths , so red deviates less and vice-versa
 Material of prism - directly proportional with refractive index
 Angle of prism – directly proportional
 Angle of incidence – forma a ‘U” shaped curve

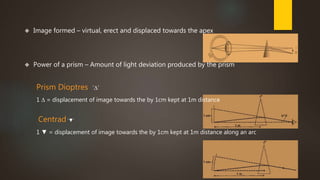

4.  Image formed – virtual, erect and displaced towards the apex
 Power of a prism – Amount of light deviation produced by the prism
Prism Dioptres ‘Δ’
1 Δ = displacement of image towards the by 1cm kept at 1m distance
Centrad ‘▼’
1 ▼ = displacement of image towards the by 1cm kept at 1m distance along an arc

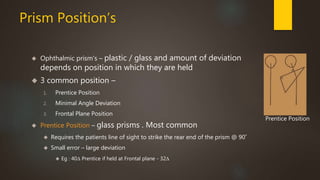

5. Prism Position’s
 Ophthalmic prism's – plastic / glass and amount of deviation
depends on position in which they are held
 3 common position –
1. Prentice Position
2. Minimal Angle Deviation
3. Frontal Plane Position
 Prentice Position – glass prisms . Most common
 Requires the patients line of sight to strike the rear end of the prism @ 90˚
 Small error – large deviation
 Eg : 40Δ Prentice if held at Frontal plane - 32Δ
Prentice Position

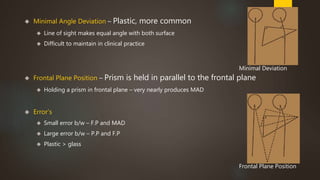

6.  Minimal Angle Deviation – Plastic, more common
 Line of sight makes equal angle with both surface
 Difficult to maintain in clinical practice
Minimal Deviation
 Frontal Plane Position – Prism is held in parallel to the frontal plane
 Holding a prism in frontal plane – very nearly produces MAD
 Error’s
 Small error b/w – F.P and MAD
 Large error b/w – P.P and F.P
 Plastic > glass
Frontal Plane Position

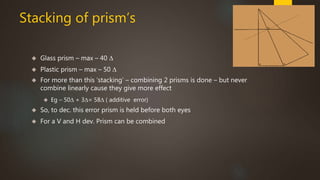

7. Stacking of prism’s
 Glass prism – max – 40 Δ
 Plastic prism – max – 50 Δ
 For more than this ‘stacking’ – combining 2 prisms is done – but never
combine linearly cause they give more effect
 Eg – 50Δ + 3Δ= 58Δ ( additive error)
 So, to dec. this error prism is held before both eyes
 For a V and H dev. Prism can be combined

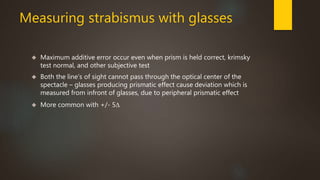

8. Measuring strabismus with glasses
 Maximum additive error occur even when prism is held correct, krimsky
test normal, and other subjective test
 Both the line’s of sight cannot pass through the optical center of the
spectacle – glasses producing prismatic effect cause deviation which is
measured from infront of glasses, due to peripheral prismatic effect
 More common with +/- 5Δ

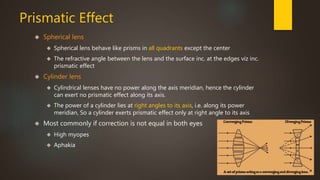

9. Prismatic Effect
 Spherical lens
 Spherical lens behave like prisms in all quadrants except the center
 The refractive angle between the lens and the surface inc. at the edges viz inc.
prismatic effect
 Cylinder lens
 Cylindrical lenses have no power along the axis meridian, hence the cylinder
can exert no prismatic effect along its axis.
 The power of a cylinder lies at right angles to its axis, i.e. along its power
meridian, So a cylinder exerts prismatic effect only at right angle to its axis
 Most commonly if correction is not equal in both eyes
 High myopes
 Aphakia

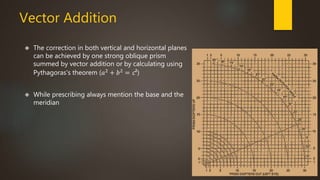

10. Vector Addition
 The correction in both vertical and horizontal planes
can be achieved by one strong oblique prism
summed by vector addition or by calculating using
Pythagoras's theorem (푎2 + 푏2 = c²)
 While prescribing always mention the base and the
meridian

11. Types of Prisms
 Ground prism’s – Permanently incorporating the prism into glasses by decentring the
present spherical lens or by mounting on them
 Fresnel prism (or) Wafer prisms – Series of plastic Prisms of 1mm
 Originally developed by French physicist Augustin-Jean Fresnel for lighthouses.
 Small prisms stacked to give an effect of a large prism to over come wt., aberration, and
achieve higher power
 Apical angle determines the strength

12. Viewing through Prism
 Prisms – Dec. image quality (or) distort
 Field of Vn – elongated at apex
 compressed at base
 Components of prismatic distortion
1. Horizontal magnification
2. Curvature of vertical line
3. Asymmetrical horizontal lines
4. Vertical magnification
5. Change in vertical magnification with horizontal
angulation

13. Viewing through Fresnel
 Poor optical quality, low resolution and contrast due to use of plastic
 Prismatic Distortion – low H and V magnification but more curvature on V and H in Fresnel
5Δ, 10Δ, 15 Δ prisms
 Fitted by cutting the membrane to the shape of the lens and placing ‘em on the inner
surface of the lens under water
 High myopes – outer side
 Commercially available in plastic of different powers from 1 – 20 giving a PD of 40
 Adv – cost effective, easy to use, light wt., flexible
 Dis-adv - glare, chromatic aberration, vision decline
 Press on prism (3M) – in changing strabismus in thyroid disease

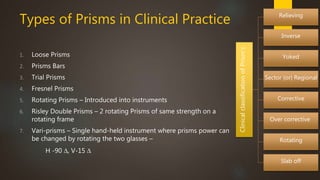

14. Types of Prisms in Clinical Practice
1. Loose Prisms
2. Prisms Bars
3. Trial Prisms
4. Fresnel Prisms
5. Rotating Prisms – Introduced into instruments
6. Risley Double Prisms – 2 rotating Prisms of same strength on a
rotating frame
7. Vari-prisms – Single hand-held instrument where prisms power can
be changed by rotating the two glasses –
H -90 Δ, V-15 Δ
Clinical classification of Prism’s

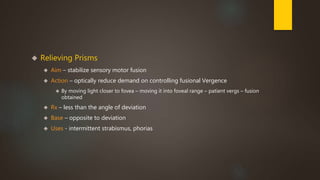

Relieving
Inverse

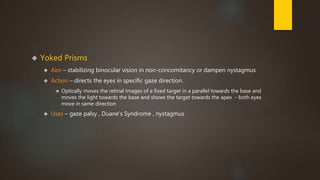

Yoked

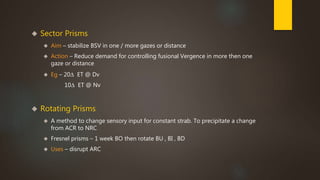

Sector (or) Regional
Corrective
Over corrective
Rotating

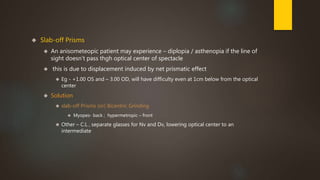

Slab off

15. Uses of Prism
 Magnitude of prisms are used in orthoptic settings, mainly for diagnosis
and management
 Diagnosis
 Conformation of BSV
 Measurement of angle of deviation
 To correct angle of deviation

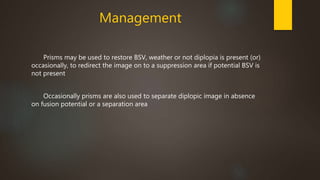

 Management
 Eso/ exo deviation of concomitant / incomitant

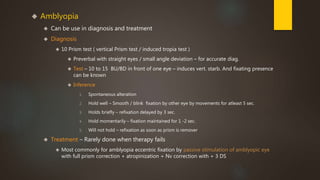

 Amblyopia, Nystagmus, Malingering, Visual Field defects

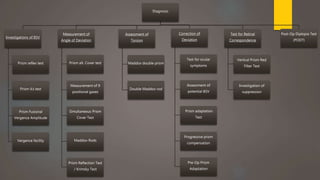

16. Diagnosis
Investigations of BSV
Prism reflex test
Prism 4Δ test
Prism Fusional
Vergence Amplitude
Vergence facility
Measurement of
Angle of Deviation
Prism alt. Cover test
Measurement of 9
positional gazes
Simultaneous Prism
Cover Test
Maddox Rods
Prism Reflection Test
/ Krimsky Test

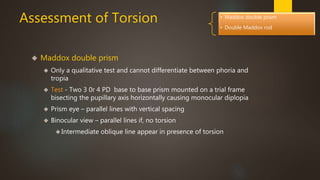

Assessment of
Torsion
Maddox double prism

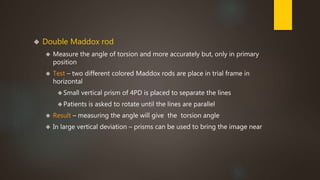

Double Maddox rod

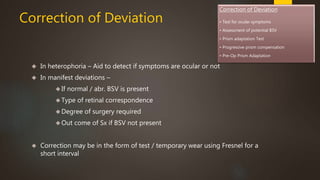

Correction of
Deviation
Test for ocular
symptoms
Assessment of
potential BSV

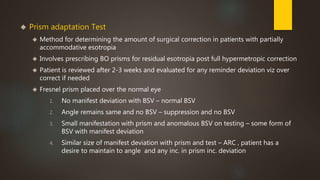

Prism adaptation
Test

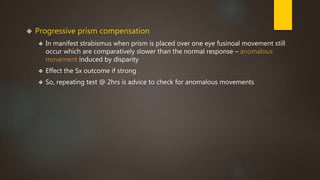

Progressive prism
compensation

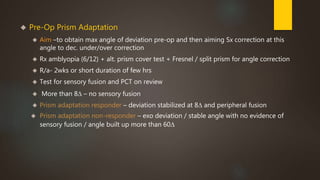

Pre-Op Prism
Adaptation

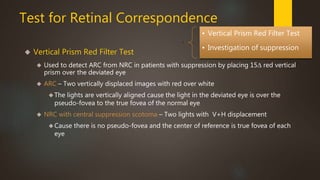

Test for Retinal
Correspondence
Vertical Prism Red
Filter Test
Investigation of
suppression

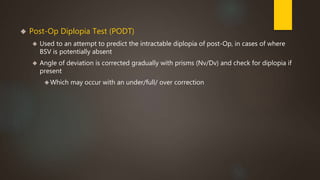

Post-Op Diplopia Test
(PODT)

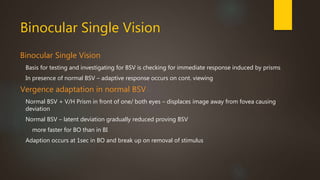

17. Binocular Single Vision
Binocular Single Vision
Basis for testing and investigating for BSV is checking for immediate response induced by prisms
In presence of normal BSV – adaptive response occurs on cont. viewing
Vergence adaptation in normal BSV
Normal BSV + V/H Prism in front of one/ both eyes – displaces image away from fovea causing
deviation
Normal BSV – latent deviation gradually reduced proving BSV
more faster for BO than in BI
Adaption occurs at 1sec in BO and break up on removal of stimulus

18. Investigations of BSV
• Prism reflex test
• Prism 4Δ test
• Prism Fusional Vergence
Amplitude
• Vergence facility

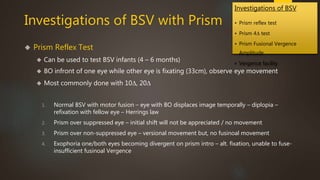

Investigations of BSV with Prism
 Prism Reflex Test
 Can be used to test BSV infants (4 – 6 months)
 BO infront of one eye while other eye is fixating (33cm), observe eye movement
 Most commonly done with 10Δ, 20Δ
1. Normal BSV with motor fusion – eye with BO displaces image temporally – diplopia –
refixation with fellow eye – Herrings law
2. Prism over suppressed eye – initial shift will not be appreciated / no movement
3. Prism over non-suppressed eye – versional movement but, no fusinoal movement
4. Exophoria one/both eyes becoming divergent on prism intro – alt. fixation, unable to fuse-insufficient
fusinoal Vergence

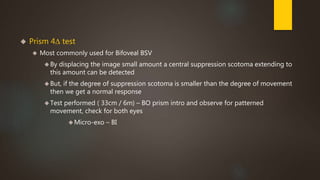

19.  Prism 4Δ test
 Most commonly used for Bifoveal BSV
By displacing the image small amount a central suppression scotoma extending to
this amount can be detected
But, if the degree of suppression scotoma is smaller than the degree of movement
then we get a normal response
Test performed ( 33cm / 6m) – BO prism intro and observe for patterned
movement, check for both eyes
Micro-exo – BI

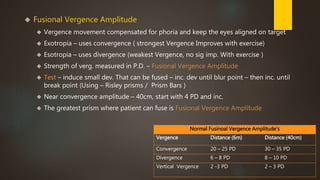

20.  Fusional Vergence Amplitude
 Vergence movement compensated for phoria and keep the eyes aligned on target
 Exotropia – uses convergence ( strongest Vergence Improves with exercise)
 Esotropia – uses divergence (weakest Vergence, no sig imp. With exercise )
 Strength of verg. measured in P.D. – Fusional Vergence Amplitude
 Test – induce small dev. That can be fused – inc. dev until blur point – then inc. until
break point (Using – Risley prisms / Prism Bars )
 Near convergence amplitude – 40cm, start with 4 PD and inc.
 The greatest prism where patient can fuse is Fusional Vergence Amplitude
Normal Fusinoal Vergence Amplitude's
Vergence Distance (6m) Distance (40cm)
Convergence 20 – 25 PD 30 – 35 PD
Divergence 6 – 8 PD 8 – 10 PD
Vertical Vergence 2 -3 PD 2 – 3 PD

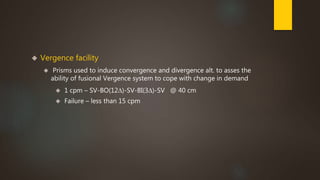

21.  Vergence facility
 Prisms used to induce convergence and divergence alt. to asses the
ability of fusional Vergence system to cope with change in demand
 1 cpm – SV-BO(12Δ)-SV-BI(3Δ)-SV @ 40 cm
 Failure – less than 15 cpm

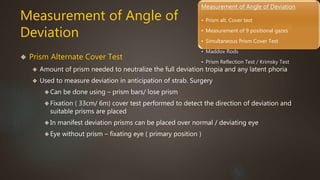

22. Measurement of Angle of Deviation
• Prism alt. Cover test

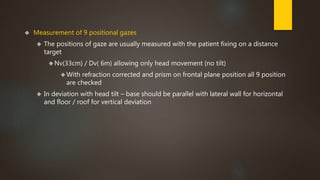

• Measurement of 9 positional gazes
• Simultaneous Prism Cover Test

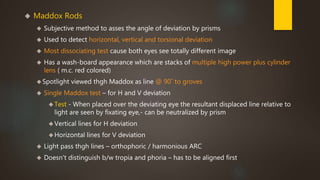

• Maddox Rods

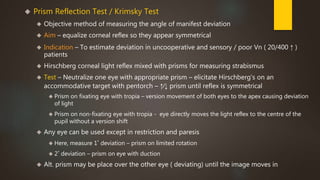

• Prism Reflection Test / Krimsky Test
Measurement of Angle of
Deviation
 Prism Alternate Cover Test
 Amount of prism needed to neutralize the full deviation tropia and any latent phoria
 Used to measure deviation in anticipation of strab. Surgery
Can be done using – prism bars/ lose prism
Fixation ( 33cm/ 6m) cover test performed to detect the direction of deviation and
suitable prisms are placed
In manifest deviation prisms can be placed over normal / deviating eye
Eye without prism – fixating eye ( primary position )

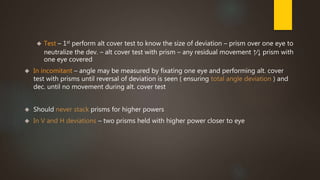

23.  Test – 1st perform alt cover test to know the size of deviation – prism over one eye to
neutralize the dev. – alt cover test with prism – any residual movement ↑∕↓ prism with
one eye covered
 In incomitant – angle may be measured by fixating one eye and performing alt. cover
test with prisms until reversal of deviation is seen ( ensuring total angle deviation ) and
dec. until no movement during alt. cover test
 Should never stack prisms for higher powers
 In V and H deviations – two prisms held with higher power closer to eye

24. Direction of prism base for correction of deviation
Deviation Prism in front of Right eye Prism in front of Left eye
Esophoria / tropia BO BO
Exophoria / tropia BI BI
Rt hyperphoria / tropia BD BU
Rt hypophoria / tropia BU BD
Lt hyperphoria / tropia BU BD
Lt hypophoria / tropia BD BU
Alt. hyperphoria / tropia BD BD
Alt. hypophoria / tropia BU BU

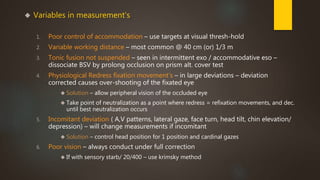

25.  Variables in measurement's
1. Poor control of accommodation – use targets at visual thresh-hold
2. Variable working distance – most common @ 40 cm (or) 1/3 m
3. Tonic fusion not suspended – seen in intermittent exo / accommodative eso –
dissociate BSV by prolong occlusion on prism alt. cover test
4. Physiological Redress fixation movement's – in large deviations – deviation
corrected causes over-shooting of the fixated eye
 Solution – allow peripheral vision of the occluded eye
 Take point of neutralization as a point where redress = refixation movements, and dec.
until best neutralization occurs
5. Incomitant deviation ( A,V patterns, lateral gaze, face turn, head tilt, chin elevation/
depression) – will change measurements if incomitant
 Solution – control head position for 1 position and cardinal gazes
6. Poor vision – always conduct under full correction
 If with sensory starb/ 20/400 – use krimsky method

26.  Measurement of 9 positional gazes
 The positions of gaze are usually measured with the patient fixing on a distance
target
Nv(33cm) / Dv( 6m) allowing only head movement (no tilt)
With refraction corrected and prism on frontal plane position all 9 position
are checked
 In deviation with head tilt – base should be parallel with lateral wall for horizontal
and floor / roof for vertical deviation

27.  Simultaneous Prism Cover Test
 Objective method which is used to measure the tropia component of the
monofixation syndrome with superadded heterophoria ( angle inc. on disassociation )
seen in small angle deviation
 Test – Performed by first estimating the size of the tropia with corneal light reflex
testing.
Appropriate prism on deviating eye; cover – non-deviating eye
Remove prism and cover simultaneously – note difference – inc. prism if needed
until there's no movement of eye behind the prism eye ( prism strength =
manifestation)

28.  Maddox Rods
 Subjective method to asses the angle of deviation by prisms
 Used to detect horizontal, vertical and torsional deviation
 Most dissociating test cause both eyes see totally different image
 Has a wash-board appearance which are stacks of multiple high power plus cylinder
lens ( m.c. red colored)
Spotlight viewed thgh Maddox as line @ 90˚ to groves
 Single Maddox test – for H and V deviation
Test - When placed over the deviating eye the resultant displaced line relative to
light are seen by fixating eye,- can be neutralized by prism
 Vertical lines for H deviation
Horizontal lines for V deviation
 Light pass thgh lines – orthophoric / harmonious ARC
 Doesn't distinguish b/w tropia and phoria – has to be aligned first

29.  Prism Reflection Test / Krimsky Test
 Objective method of measuring the angle of manifest deviation
 Aim – equalize corneal reflex so they appear symmetrical
 Indication – To estimate deviation in uncooperative and sensory / poor Vn ( 20/400 ↑ )
patients
 Hirschberg corneal light reflex mixed with prisms for measuring strabismus
 Test – Neutralize one eye with appropriate prism – elicitate Hirschberg's on an
accommodative target with pentorch – ↑∕↓ prism until reflex is symmetrical
 Prism on fixating eye with tropia – version movement of both eyes to the apex causing deviation
of light
 Prism on non-fixating eye with tropia - eye directly moves the light reflex to the centre of the
pupil without a version shift
 Any eye can be used except in restriction and paresis
 Here, measure 1˚ deviation – prism on limited rotation
 2˚ deviation – prism on eye with duction
 Alt. prism may be place over the other eye ( deviating) until the image moves in

30. Assessment of Torsion
 Maddox double prism
.
• Maddox double prism
• Double Maddox rod
 Only a qualitative test and cannot differentiate between phoria and
tropia
 Test - Two 3 0r 4 PD base to base prism mounted on a trial frame
bisecting the pupillary axis horizontally causing monocular diplopia
 Prism eye – parallel lines with vertical spacing
 Binocular view – parallel lines if, no torsion
Intermediate oblique line appear in presence of torsion

31.  Double Maddox rod
 Measure the angle of torsion and more accurately but, only in primary
position
 Test – two different colored Maddox rods are place in trial frame in
horizontal
Small vertical prism of 4PD is placed to separate the lines
Patients is asked to rotate until the lines are parallel
 Result – measuring the angle will give the torsion angle
 In large vertical deviation – prisms can be used to bring the image near

32. Correction of Deviation
 In heterophoria – Aid to detect if symptoms are ocular or not
 In manifest deviations –
 If normal / abr. BSV is present
Type of retinal correspondence
Degree of surgery required
Out come of Sx if BSV not present
 Correction may be in the form of test / temporary wear using Fresnel for a
short interval
Correction of Deviation
• Test for ocular symptoms
• Assessment of potential BSV
• Prism adaptation Test
• Progressive prism compensation
• Pre-Op Prism Adaptation

33.  Test for ocular symptoms
 To determine that weather the symptoms experienced by the patients are in
consistence with the findings
Monocular occlusion by removing the effort of controlling the heterophoria relieve
the symptoms
But – field of Vn is dec. and loss of stereopsis
 So, Fresnel prisms are used to correct the angle and relieving of symptoms if this
effort was the cause
 Assessment of potential BSV
 Correction of angle will enable to regain BSV if present
 After correction of angle and BSV obtained a cover test is performed which suggest
 If no manifest deviation – NRC and BSV
Manifest deviation – abnormal BSV

34.  Prism adaptation Test
 Method for determining the amount of surgical correction in patients with partially
accommodative esotropia
 Involves prescribing BO prisms for residual esotropia post full hypermetropic correction
 Patient is reviewed after 2-3 weeks and evaluated for any reminder deviation viz over
correct if needed
 Fresnel prism placed over the normal eye
1. No manifest deviation with BSV – normal BSV
2. Angle remains same and no BSV – suppression and no BSV
3. Small manifestation with prism and anomalous BSV on testing – some form of
BSV with manifest deviation
4. Similar size of manifest deviation with prism and test – ARC , patient has a
desire to maintain to angle and any inc. in prism inc. deviation

35.  Progressive prism compensation
 In manifest strabismus when prism is placed over one eye fusinoal movement still
occur which are comparatively slower than the normal response – anomalous
movement induced by disparity
 Effect the Sx outcome if strong
 So, repeating test @ 2hrs is advice to check for anomalous movements

36.  Pre-Op Prism Adaptation
 Aim –to obtain max angle of deviation pre-op and then aiming Sx correction at this
angle to dec. under/over correction
 Rx amblyopia (6/12) + alt. prism cover test + Fresnel / split prism for angle correction
 R/a- 2wks or short duration of few hrs
 Test for sensory fusion and PCT on review
 More than 8Δ – no sensory fusion
 Prism adaptation responder – deviation stabilized at 8Δ and peripheral fusion
 Prism adaptation non-responder – exo deviation / stable angle with no evidence of
sensory fusion / angle built up more than 60Δ

37. Test for Retinal Correspondence
 Vertical Prism Red Filter Test
.
• Vertical Prism Red Filter Test
• Investigation of suppression
 Used to detect ARC from NRC in patients with suppression by placing 15Δ red vertical
prism over the deviated eye
 ARC – Two vertically displaced images with red over white
The lights are vertically aligned cause the light in the deviated eye is over the
pseudo-fovea to the true fovea of the normal eye
 NRC with central suppression scotoma – Two lights with V+H displacement
Cause there is no pseudo-fovea and the center of reference is true fovea of each
eye

38.  Investigation of suppression
 Prisms can measure the areas of suppression by moving the image
nasally / temporally / vertically / horizontally
 Diplopia will be appreciated if the image is out side the suppression
area
 With prism –
redirect the image into suppression areas when BSV is absent
 investigate possibility of post-Op diplopia in cases where there's no
potential BSV

39.  Post-Op Diplopia Test (PODT)
 Used to an attempt to predict the intractable diplopia of post-Op, in cases of where
BSV is potentially absent
 Angle of deviation is corrected gradually with prisms (Nv/Dv) and check for diplopia if
present
Which may occur with an under/full/ over correction

41. Management
Prisms may be used to restore BSV, weather or not diplopia is present (or)
occasionally, to redirect the image on to a suppression area if potential BSV is
not present
Occasionally prisms are also used to separate diplopic image in absence
on fusion potential or a separation area

42.  Relieving Prisms
 Aim – stabilize sensory motor fusion
 Action – optically reduce demand on controlling fusional Vergence
 By moving light closer to fovea – moving it into foveal range – patient vergs – fusion
obtained
 Rx – less than the angle of deviation
 Base – opposite to deviation
 Uses - intermittent strabismus, phorias

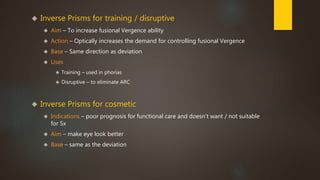

43.  Inverse Prisms for training / disruptive
 Aim – To increase fusional Vergence ability
 Action – Optically increases the demand for controlling fusional Vergence
 Base – Same direction as deviation
 Uses
 Training – used in phorias
 Disruptive – to eliminate ARC
 Inverse Prisms for cosmetic
 Indications – poor prognosis for functional care and doesn't want / not suitable
for Sx
 Aim – make eye look better
 Base – same as the deviation

44.  Yoked Prisms
 Aim – stabilizing binocular vision in non-concomitancy or dampen nystagmus
 Action – directs the eyes in specific gaze direction.
 Optically moves the retinal images of a fixed target in a parallel towards the base and
moves the light towards the base and shows the target towards the apex - both eyes
move in same direction
 Uses – gaze palsy , Duane’s Syndrome , nystagmus

45.  Sector Prisms
 Aim – stabilize BSV in one / more gazes or distance
 Action – Reduce demand for controlling fusional Vergence in more then one
gaze or distance
 Eg – 20Δ ET @ Dv
10Δ ET @ Nv
 Rotating Prisms
 A method to change sensory input for constant strab. To precipitate a change
from ACR to NRC
 Fresnel prisms – 1 week BO then rotate BU , BI , BD
 Uses – disrupt ARC

46.  Corrective Prisms
 Aim – to stabilize normal sensory fusion
 Action – Optically neutralize the demand for controlling fusional Vergence by
elimination the oculo-motor deviation
 Rx – prism = magnitude of deviation
 Residual Vergence demand = 0
 Base – Opposite to the deviation
 Over- corrective Prisms
 Aim - To disrupt ARC
 Action – Reverse the demand for controlling fusional Vergence and optically
changing the direction of deviation
 Rx – Prism power > magnitude of deviation
 A deviation reverse is seen on cover test and ACT in these cases i.e. and eso
becomes an optical exo

47.  Slab-off Prisms
 An anisometeopic patient may experience – diplopia / asthenopia if the line of
sight doesn’t pass thgh optical center of spectacle
 this is due to displacement induced by net prismatic effect
 Eg - +1.00 OS and – 3.00 OD, will have difficulty even at 1cm below from the optical
center
 Solution
 slab-off Prisms (or) Bicentric Grinding
 Myopes- back ; hypermetropic – front
 Other – C.L , separate glasses for Nv and Dv, lowering optical center to an
intermediate

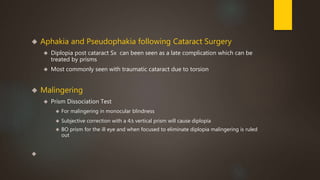

48.  Aphakia and Pseudophakia following Cataract Surgery
 Diplopia post cataract Sx can been seen as a late complication which can be
treated by prisms
 Most commonly seen with traumatic cataract due to torsion
 Malingering
 Prism Dissociation Test
 For malingering in monocular blindness
 Subjective correction with a 4Δ vertical prism will cause diplopia
 BO prism for the ill eye and when focused to eliminate diplopia malingering is ruled
out


49.  Amblyopia
 Can be use in diagnosis and treatment
 Diagnosis
 10 Prism test ( vertical Prism test / induced tropia test )
 Preverbal with straight eyes / small angle deviation – for accurate diag.
 Test – 10 to 15 BU/BD in front of one eye – induces vert. starb. And fixating presence
can be known
 Inference
1. Spontaneous alteration
2. Hold well – Smooth / blink fixation by other eye by movements for atleast 5 sec.
3. Holds briefly – refixation delayed by 3 sec.
4. Hold momentarily – fixation maintained for 1 -2 sec.
5. Will not hold – refixation as soon as prism is remover
 Treatment – Rarely done when therapy fails
 Most commonly for amblyopia eccentric fixation by passive stimulation of amblyopic eye
with full prism correction + atropinization + Nv correction with + 3 DS

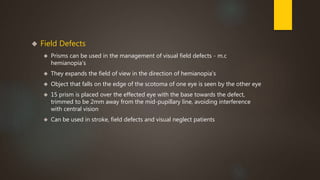

50.  Field Defects
 Prisms can be used in the management of visual field defects - m.c
hemianopia's
 They expands the field of view in the direction of hemianopia's
 Object that falls on the edge of the scotoma of one eye is seen by the other eye
 15 prism is placed over the effected eye with the base towards the defect,
trimmed to be 2mm away from the mid-pupillary line, avoiding interference
with central vision
 Can be used in stroke, field defects and visual neglect patients

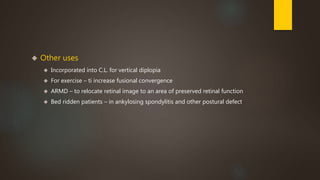

51.  Other uses
 Incorporated into C.L. for vertical diplopia
 For exercise – ti increase fusional convergence
 ARMD – to relocate retinal image to an area of preserved retinal function
 Bed ridden patients – in ankylosing spondylitis and other postural defect

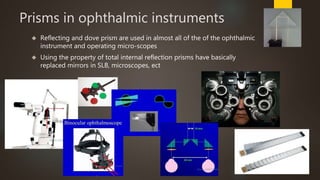

52. Prisms in ophthalmic instruments
 Reflecting and dove prism are used in almost all of the of the ophthalmic
instrument and operating micro-scopes
 Using the property of total internal reflection prisms have basically
replaced mirrors in SLB, microscopes, ect

53. Thank you
