Short answers to the following question. Why do we need ACSR conduct.pdfpasqualealvarez467
Short answers to the following question. Why do we need ACSR conductor in the overhead line
system? How to balance to transmission line impedance? How many transmission line models
are defined? Under what condition? Based on the potential energy concept, can we just control
the bus voltage higher to force power flow from generator bus to load bus? What will happen?
What are SIL and BIL? What is \"sparsity technique\" in power system analysis? Why to cause
sparse matrix? What are Y_bus and Z_bus? How are they correlated? What is the wavelength
of 60 Hz power system? What might be constraints to power system operation? What is the
surge impedance of the transmission? How is the reliability concern for radial type and network
type transmission/distribution system?
Solution
(a)
Transmission line is an important part of power system. The cost and life of transmission line
primarily depend on the material used for making conductor for transmission line.
The choice of suitable material for transmission line depends upon–
The most important and much suitable material for conductor of transmission line is copper as it
having high conductivity and high tensile strength. More ever it is having good ductility. The
only limitation is its cost. The most extensively used material in transmission line is Aluminum.
Aluminum is having sufficient conductivity. More ever it is light in weight. Which results in low
conductor weight and less sag. The only limitation is its low tensile strength. To overcome this
limitation steel core is used for increasing the tensile strength of aluminum conductor such as in
ACSR (Aluminum conductor steel reinforced) conductor. ACSR conductor is very much popular
for high voltage overhead transmission lines.
Aluminum is an element which is a silver-white, light weight, soft, non-magnetic and ductile
metal. Aluminum is the third most abundant element (after oxygen and silicon) and most
abundant metal found in earth’s crust. The main ore of aluminum is bauxite. Aluminum is having
low density, high ductility, good corrosion resistance and good conductivity, which makes it
suitable to use as electric conductor for transmission and distribution of electricity.
Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength
stranded conductor typically used inoverhead power lines. The outer strands are high-purity
aluminium, chosen for its excellent conductivity, low weight and low cost. The center strand, or
strands is/are of steel for additional strength to help support the weight of the conductor. Steel is
higher strength than aluminium which allows for increased mechanical tension to be applied on
the conductor. Steel also has lower elastic and inelastic deformation (permanent elongation) due
to mechanical loading (e.g. wind and ice) as well as a lower coefficient of thermal expansion
under current loading. These properties allow ACSR to sag significantly less than all-aluminium
conductors(AAC).
(b)
To ba.
This is the summary to choose main components of Mechanical design of Overhead T/L .
For more contacts: ranjeetkumar13el42@gmail.com
@Fb : fb/ranjeet.ray.42
RMD24 | Retail media: hoe zet je dit in als je geen AH of Unilever bent? Heid...BBPMedia1
Grote partijen zijn al een tijdje onderweg met retail media. Ondertussen worden in dit domein ook de kansen zichtbaar voor andere spelers in de markt. Maar met die kansen ontstaan ook vragen: Zelf retail media worden of erop adverteren? In welke fase van de funnel past het en hoe integreer je het in een mediaplan? Wat is nu precies het verschil met marketplaces en Programmatic ads? In dit half uur beslechten we de dilemma's en krijg je antwoorden op wanneer het voor jou tijd is om de volgende stap te zetten.
Memorandum Of Association Constitution of Company.pptseri bangash
www.seribangash.com
A Memorandum of Association (MOA) is a legal document that outlines the fundamental principles and objectives upon which a company operates. It serves as the company's charter or constitution and defines the scope of its activities. Here's a detailed note on the MOA:
Contents of Memorandum of Association:
Name Clause: This clause states the name of the company, which should end with words like "Limited" or "Ltd." for a public limited company and "Private Limited" or "Pvt. Ltd." for a private limited company.
https://seribangash.com/article-of-association-is-legal-doc-of-company/
Registered Office Clause: It specifies the location where the company's registered office is situated. This office is where all official communications and notices are sent.
Objective Clause: This clause delineates the main objectives for which the company is formed. It's important to define these objectives clearly, as the company cannot undertake activities beyond those mentioned in this clause.
www.seribangash.com
Liability Clause: It outlines the extent of liability of the company's members. In the case of companies limited by shares, the liability of members is limited to the amount unpaid on their shares. For companies limited by guarantee, members' liability is limited to the amount they undertake to contribute if the company is wound up.
https://seribangash.com/promotors-is-person-conceived-formation-company/
Capital Clause: This clause specifies the authorized capital of the company, i.e., the maximum amount of share capital the company is authorized to issue. It also mentions the division of this capital into shares and their respective nominal value.
Association Clause: It simply states that the subscribers wish to form a company and agree to become members of it, in accordance with the terms of the MOA.
Importance of Memorandum of Association:
Legal Requirement: The MOA is a legal requirement for the formation of a company. It must be filed with the Registrar of Companies during the incorporation process.
Constitutional Document: It serves as the company's constitutional document, defining its scope, powers, and limitations.
Protection of Members: It protects the interests of the company's members by clearly defining the objectives and limiting their liability.
External Communication: It provides clarity to external parties, such as investors, creditors, and regulatory authorities, regarding the company's objectives and powers.
https://seribangash.com/difference-public-and-private-company-law/
Binding Authority: The company and its members are bound by the provisions of the MOA. Any action taken beyond its scope may be considered ultra vires (beyond the powers) of the company and therefore void.
Amendment of MOA:
While the MOA lays down the company's fundamental principles, it is not entirely immutable. It can be amended, but only under specific circumstances and in compliance with legal procedures. Amendments typically require shareholder
Personal Brand Statement:
As an Army veteran dedicated to lifelong learning, I bring a disciplined, strategic mindset to my pursuits. I am constantly expanding my knowledge to innovate and lead effectively. My journey is driven by a commitment to excellence, and to make a meaningful impact in the world.
Kseniya Leshchenko: Shared development support service model as the way to ma...Lviv Startup Club
Kseniya Leshchenko: Shared development support service model as the way to make small projects with small budgets profitable for the company (UA)
Kyiv PMDay 2024 Summer
Website – www.pmday.org
Youtube – https://www.youtube.com/startuplviv
FB – https://www.facebook.com/pmdayconference
Putting the SPARK into Virtual Training.pptxCynthia Clay
This 60-minute webinar, sponsored by Adobe, was delivered for the Training Mag Network. It explored the five elements of SPARK: Storytelling, Purpose, Action, Relationships, and Kudos. Knowing how to tell a well-structured story is key to building long-term memory. Stating a clear purpose that doesn't take away from the discovery learning process is critical. Ensuring that people move from theory to practical application is imperative. Creating strong social learning is the key to commitment and engagement. Validating and affirming participants' comments is the way to create a positive learning environment.
The world of search engine optimization (SEO) is buzzing with discussions after Google confirmed that around 2,500 leaked internal documents related to its Search feature are indeed authentic. The revelation has sparked significant concerns within the SEO community. The leaked documents were initially reported by SEO experts Rand Fishkin and Mike King, igniting widespread analysis and discourse. For More Info:- https://news.arihantwebtech.com/search-disrupted-googles-leaked-documents-rock-the-seo-world/
Cracking the Workplace Discipline Code Main.pptxWorkforce Group
Cultivating and maintaining discipline within teams is a critical differentiator for successful organisations.
Forward-thinking leaders and business managers understand the impact that discipline has on organisational success. A disciplined workforce operates with clarity, focus, and a shared understanding of expectations, ultimately driving better results, optimising productivity, and facilitating seamless collaboration.
Although discipline is not a one-size-fits-all approach, it can help create a work environment that encourages personal growth and accountability rather than solely relying on punitive measures.
In this deck, you will learn the significance of workplace discipline for organisational success. You’ll also learn
• Four (4) workplace discipline methods you should consider
• The best and most practical approach to implementing workplace discipline.
• Three (3) key tips to maintain a disciplined workplace.
Digital Transformation and IT Strategy Toolkit and TemplatesAurelien Domont, MBA
This Digital Transformation and IT Strategy Toolkit was created by ex-McKinsey, Deloitte and BCG Management Consultants, after more than 5,000 hours of work. It is considered the world's best & most comprehensive Digital Transformation and IT Strategy Toolkit. It includes all the Frameworks, Best Practices & Templates required to successfully undertake the Digital Transformation of your organization and define a robust IT Strategy.
Editable Toolkit to help you reuse our content: 700 Powerpoint slides | 35 Excel sheets | 84 minutes of Video training
This PowerPoint presentation is only a small preview of our Toolkits. For more details, visit www.domontconsulting.com
Business Valuation Principles for EntrepreneursBen Wann
This insightful presentation is designed to equip entrepreneurs with the essential knowledge and tools needed to accurately value their businesses. Understanding business valuation is crucial for making informed decisions, whether you're seeking investment, planning to sell, or simply want to gauge your company's worth.
RMD24 | Debunking the non-endemic revenue myth Marvin Vacquier Droop | First ...BBPMedia1
Marvin neemt je in deze presentatie mee in de voordelen van non-endemic advertising op retail media netwerken. Hij brengt ook de uitdagingen in beeld die de markt op dit moment heeft op het gebied van retail media voor niet-leveranciers.
Retail media wordt gezien als het nieuwe advertising-medium en ook mediabureaus richten massaal retail media-afdelingen op. Merken die niet in de betreffende winkel liggen staan ook nog niet in de rij om op de retail media netwerken te adverteren. Marvin belicht de uitdagingen die er zijn om echt aansluiting te vinden op die markt van non-endemic advertising.
Affordable Stationery Printing Services in Jaipur | Navpack n PrintNavpack & Print
Looking for professional printing services in Jaipur? Navpack n Print offers high-quality and affordable stationery printing for all your business needs. Stand out with custom stationery designs and fast turnaround times. Contact us today for a quote!
Buy Verified PayPal Account | Buy Google 5 Star Reviewsusawebmarket
Buy Verified PayPal Account
Looking to buy verified PayPal accounts? Discover 7 expert tips for safely purchasing a verified PayPal account in 2024. Ensure security and reliability for your transactions.
PayPal Services Features-
🟢 Email Access
🟢 Bank Added
🟢 Card Verified
🟢 Full SSN Provided
🟢 Phone Number Access
🟢 Driving License Copy
🟢 Fasted Delivery
Client Satisfaction is Our First priority. Our services is very appropriate to buy. We assume that the first-rate way to purchase our offerings is to order on the website. If you have any worry in our cooperation usually You can order us on Skype or Telegram.
24/7 Hours Reply/Please Contact
usawebmarketEmail: support@usawebmarket.com
Skype: usawebmarket
Telegram: @usawebmarket
WhatsApp: +1(218) 203-5951
USA WEB MARKET is the Best Verified PayPal, Payoneer, Cash App, Skrill, Neteller, Stripe Account and SEO, SMM Service provider.100%Satisfection granted.100% replacement Granted.
What is the TDS Return Filing Due Date for FY 2024-25.pdfseoforlegalpillers
It is crucial for the taxpayers to understand about the TDS Return Filing Due Date, so that they can fulfill your TDS obligations efficiently. Taxpayers can avoid penalties by sticking to the deadlines and by accurate filing of TDS. Timely filing of TDS will make sure about the availability of tax credits. You can also seek the professional guidance of experts like Legal Pillers for timely filing of the TDS Return.
2. Stranded Conductors
•Flexibility
•Mechanical Strength increases
•Central strand surrounded by
successive layers
•6,12,18,24
•n=no of layers
•Total conductors=1+3n(1+n)
•Overall diameter of n layer stranded
conductor D=(1+2n)d
3. AAC ( All-Aluminium
Conductors )
Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or
more strands of hard drawn 1350 aluminum alloy.
These conductors are used in low, medium and high voltage overhead lines.
AAC has seen extensive use in urban areas where spans are usually short but
high conductivity us required.
Because its relatively poor strength to weight ratio, AAC had limited use in
transmission lines and rural distribution because of long spans utilized.
The excellent corrosion resistance of aluminium has made AAC a conductor of
choice in coastal areas. Because of its relatively poor strength to
4. AAAC ( All Aluminium Alloy
Conductors )
Concentric lay stranded Aluminium Alloy Conductors (AAAC)
are made out of high strength Aluminium-Magnesium-Silicon
Alloy.
conductors are designed to get better strength to weight ratio and
offer improved electrical properties, excellent sag-tension
characteristics, and superior corrosion resistance when compared
with ACSR.
As compared to a conventional ACSR conductor, the lighter
weight, comparable strength & current carrying capacity, lower
electrical losses and superior corrosion resistance have given
AAAC a wide acceptance in the distribution and medium & high
voltage transmission lines..

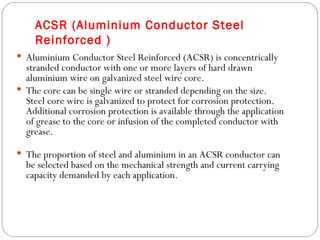

5. ACSR (Aluminium Conductor Steel
Reinforced )
Aluminium Conductor Steel Reinforced (ACSR) is concentrically
stranded conductor with one or more layers of hard drawn
aluminium wire on galvanized steel wire core.
The core can be single wire or stranded depending on the size.
Steel core wire is galvanized to protect for corrosion protection.
Additional corrosion protection is available through the application
of grease to the core or infusion of the completed conductor with
grease.
The proportion of steel and aluminium in an ACSR conductor can
be selected based on the mechanical strength and current carrying
capacity demanded by each application.

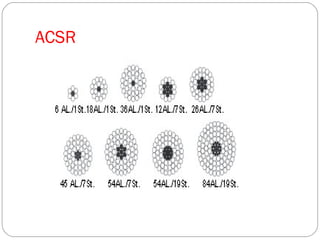

6. ACSR Contd

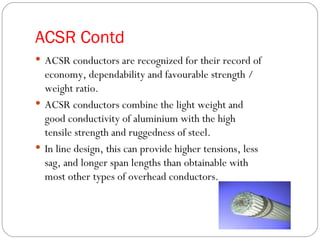

ACSR conductors are recognized for their record of
economy, dependability and favourable strength /
weight ratio.
ACSR conductors combine the light weight and
good conductivity of aluminium with the high
tensile strength and ruggedness of steel.
In line design, this can provide higher tensions, less
sag, and longer span lengths than obtainable with
most other types of overhead conductors.
8. ACAR (Aluminium Conductor
Alloy Reinforced )
Aluminium Conductor Alloy Reinforced (ACAR) is formed by
concentrically stranded wires of Aluminium on high strength Aluminium
-Magnesium -Silicon(AlMgSi) alloy core.
The number of wires of Aluminum & AlMgSi alloy depends on the cable
design. Though the general design comprises a stranded core of AlMgSi
alloy strand, in certain cable constructions , the wires of AlMgSi alloy
strands can be distributed in layers throughout the Aluminium strands.
ACAR has got a better mechanical and electrical properties as compared
to an equivalent ACSR, AAC or AAAC.
A very good balance between the mechanical and electrical properties
therefore makes ACAR the best choice where the ampacity, strength
and light weight are the main consideration of the line design.
These conductors are extensively used in overhead transmission and
distribution lines.
9. Smooth body ACSR conductor
• They are also called compacted ACSR
• The conductors are pressed through dies to flatten the aluminum
strands into segmental shape.
• The interstrand space id filled and the diameter of the conductor
is reduced without affecting electrical and mechanical properties.
• For the same aluminium area the steel core diameter is increased
so mechanical strength is increased.
• Can be used for long span length.
• ACSR/TWD is ideal for reconductoring: it offers the same
diameter for ice and wind but loading at higher ampacity than
traditional ACSR designs.

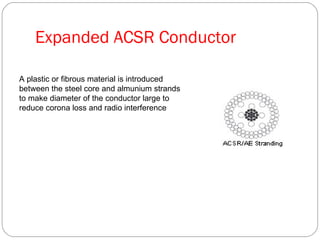

10. Expanded ACSR Conductor
A plastic or fibrous material is introduced
between the steel core and almunium strands
to make diameter of the conductor large to
reduce corona loss and radio interference
11. ACCC ® (Aluminum Conductor
Composite Core)

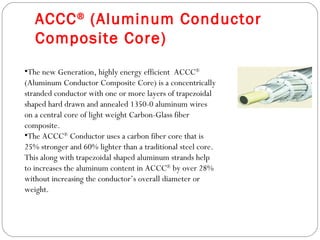

•The new Generation, highly energy efficient ACCC®
(Aluminum Conductor Composite Core) is a concentrically
stranded conductor with one or more layers of trapezoidal
shaped hard drawn and annealed 1350-0 aluminum wires
on a central core of light weight Carbon-Glass fiber
composite.
•The ACCC® Conductor uses a carbon fiber core that is
25% stronger and 60% lighter than a traditional steel core.
This along with trapezoidal shaped aluminum strands help
to increases the aluminum content in ACCC® by over 28%
without increasing the conductor’s overall diameter or
weight.
12. ACCC ® contd
ACCC® is designed to operate continuously at elevated
temperatures and has excellent sag characteristics through
out the operating range.
ACCC® is the right choice if reconductoring of the existing
lines are required to enhance the transmission capacity.
This conductor offers very low line losses and excellent self-
damping properties. Because of it's high strength to weight
ratio, ACCC® can be used with long spans which brings
down the cost of structures in new lines
