- 1. ANATOMY,PATHOLOGY,D/D, EVALUATION AND SURGICAL APPROACHTO PARAPHARYNGEAL SPACE ETIOPATHOGENESIS AND MANAGEMENT OF HEAD AND NECK PARAGANGLIOMAS MADAN GUPTA JR ENT

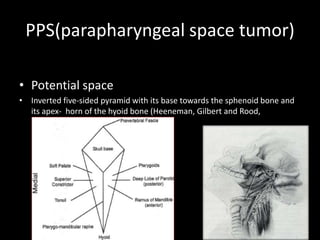

- 2. PPS(parapharyngeal space tumor) •Potential space • Inverted five-sided pyramid with its base towards the sphenoid bone and its apex- horn of the hyoid bone (Heeneman, Gilbert and Rood,

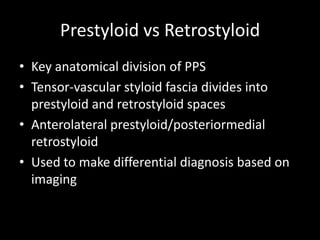

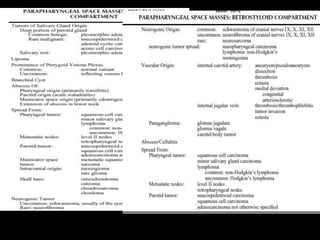

- 5. Prestyloid vs Retrostyloid •Key anatomical division of PPS • Tensor-vascular styloid fascia divides into prestyloid and retrostyloid spaces • Anterolateral prestyloid/posteriormedial retrostyloid • Used to make differential diagnosis based on imaging
- 6. prestyloid Post styloidretropharyngeal Artery maxillary ICA - Vein - IJV - Nerve Inf alveolar nerve IX,X,XI,XII - Lingual Cervical sympatheticauriculotemporal Lymph node - ++ +++ Glomus body - ++ -
- 8. Anatomical importance • Prestyloid vs Poststyloid • least resistance- the naso- and oropharynx medially. the upper neck between the tail of the parotid and the submandibular gland inferiorly. the retromandibular fossa posterolaterally. • The retropharyngeal space is connected with the parapharyngeal space in an area just medial to the carotid sheath and its contents.

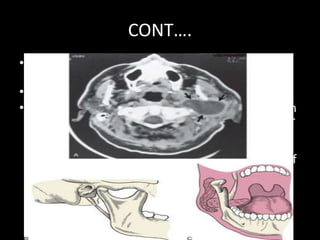

- 9. CONT…. • (node ofRouvière, 1927)- draining the nasopharynx, upper oropharynx and sinuses. • Lincoln's highway. • Patey and Thackray (1956-157) coined the term 'stylomandibular tunnel' formed by the posterior margin of the ascending ramus of the mandible anteriorly, the styloid process and stylomandibular ligament behind and the base of the skull above. This tunnel resists pressure so that tumours of the deep lobe of the parotid gland assume a dumb-bell shape as they grow

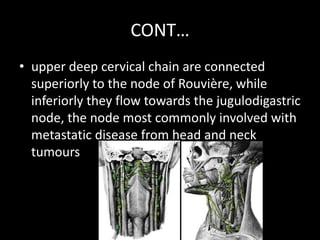

- 10. CONT… • upper deepcervical chain are connected superiorly to the node of Rouvière, while inferiorly they flow towards the jugulodigastric node, the node most commonly involved with metastatic disease from head and neck tumours
- 11. Evaluation Carrau ,Mayer, Johnson,nearly 50% of patients had a neck mass.
- 12.
- 13. Clinical symptoms • Prestyloid –Serous otitis media – Voice change – Nasal obstruction – Dyspnea • Poststyloid – Compress CN 9th, 10th, 11th, 12th or sympathetic chain – Hoarseness, dysphagia, dysarthria, Horner’s syndrome • Cranial nerve paralysis, pain, trismus suggest malignancy

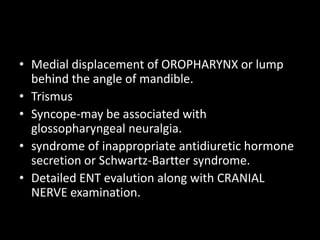

- 14. • Medial displacementof OROPHARYNX or lump behind the angle of mandible. • Trismus • Syncope-may be associated with glossopharyngeal neuralgia. • syndrome of inappropriate antidiuretic hormone secretion or Schwartz-Bartter syndrome. • Detailed ENT evalution along with CRANIAL NERVE examination.

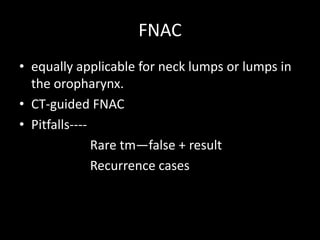

- 15. FNAC • equally applicablefor neck lumps or lumps in the oropharynx. • CT-guided FNAC • Pitfalls---- Rare tm—false + result Recurrence cases
- 16. CT scan • Locatestumor to prestyloid vs poststyloid – Prestyloid tumor displace carotid artery posteriorly – Poststyloid tumor displace carotid artery anteriorly • Fat plane between mass and parotid • Enhancement of lesion – Schwannoma, paraganglioma, hemangioma, hemangiopericytoma, aneurysm • Bone erosion due to malignancy • Limited soft tissue detail

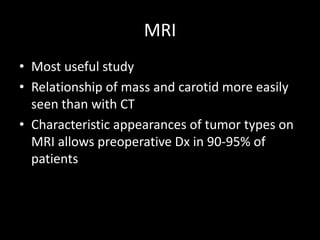

- 17. MRI • Most usefulstudy • Relationship of mass and carotid more easily seen than with CT • Characteristic appearances of tumor types on MRI allows preoperative Dx in 90-95% of patients
- 18. Primary Tumors • Threecategories: • Salivary gland tumors • Neurogenic tumors • Miscellaneous tumors
- 19. Salivary Gland Tumors •Most common PPS neoplasms: 40-50% • Prestyloid masses • Pleomorphic adenoma 80-90% • Mucoepidermoid most common malignant

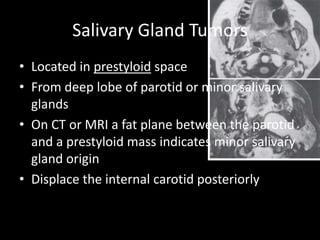

- 20. Salivary Gland Tumors •Located in prestyloid space • From deep lobe of parotid or minor salivary glands • On CT or MRI a fat plane between the parotid and a prestyloid mass indicates minor salivary gland origin • Displace the internal carotid posteriorly

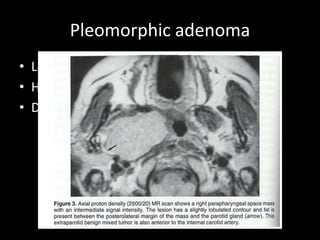

- 21. Pleomorphic adenoma • Lowsignal intensity on T1 • High signal intensity on T2 • Displace carotid posteriorly

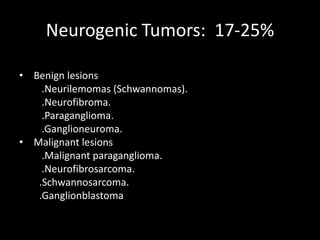

- 22. Neurogenic Tumors: 17-25% •Benign lesions .Neurilemomas (Schwannomas). .Neurofibroma. .Paraganglioma. .Ganglioneuroma. • Malignant lesions .Malignant paraganglioma. .Neurofibrosarcoma. .Schwannosarcoma. .Ganglionblastoma

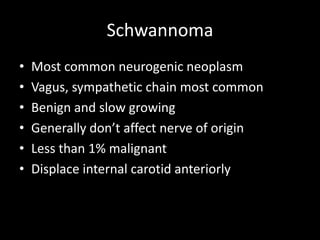

- 23. Schwannoma • Most commonneurogenic neoplasm • Vagus, sympathetic chain most common • Benign and slow growing • Generally don’t affect nerve of origin • Less than 1% malignant • Displace internal carotid anteriorly

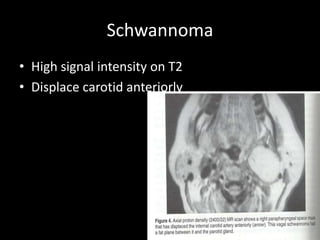

- 24. Schwannoma • High signalintensity on T2 • Displace carotid anteriorly

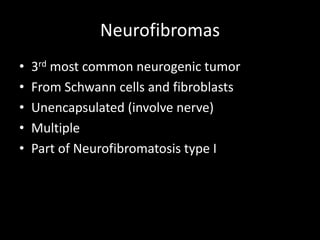

- 25. Neurofibromas • 3rd mostcommon neurogenic tumor • From Schwann cells and fibroblasts • Unencapsulated (involve nerve) • Multiple • Part of Neurofibromatosis type I
- 26. Lymphoreticular Lesions • ThePPS and retropharyngeal nodes drain the oronaso, hypopharyngeal , posterior nasal cavity, and paranasal sinuses as well the posterior oral cavity. • These are two groups, a superior lateral group (nodes of Rouviere) and an inferior medial group . • Lymphoma is the most common • metastases from thyroid cancer, and sqamous cell carcinoma, and renal cell carcinoma and osteogenic sarcoma may present in the nodes of the PPS

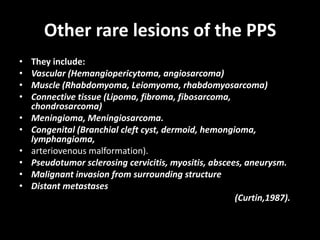

- 27. Other rare lesionsof the PPS • They include: • Vascular (Hemangiopericytoma, angiosarcoma) • Muscle (Rhabdomyoma, Leiomyoma, rhabdomyosarcoma) • Connective tissue (Lipoma, fibroma, fibosarcoma, chondrosarcoma) • Meningioma, Meningiosarcoma. • Congenital (Branchial cleft cyst, dermoid, hemongioma, lymphangioma, • arteriovenous malformation). • Pseudotumor sclerosing cervicitis, myositis, abscees, aneurysm. • Malignant invasion from surrounding structure • Distant metastases (Curtin,1987).

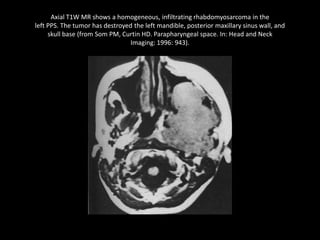

- 28. Axial T1W MRshows a homogeneous, infiltrating rhabdomyosarcoma in the left PPS. The tumor has destroyed the left mandible, posterior maxillary sinus wall, and skull base (from Som PM, Curtin HD. Parapharyngeal space. In: Head and Neck Imaging: 1996: 943).

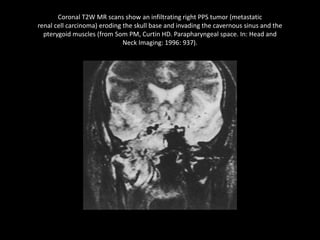

- 29. Coronal T2W MRscans show an infiltrating right PPS tumor (metastatic renal cell carcinoma) eroding the skull base and invading the cavernous sinus and the pterygoid muscles (from Som PM, Curtin HD. Parapharyngeal space. In: Head and Neck Imaging: 1996: 937).

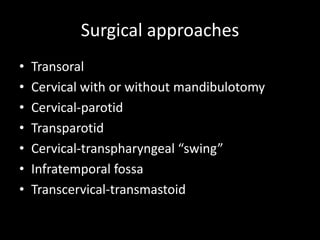

- 30. Surgical approaches • Transoral •Cervical with or without mandibulotomy • Cervical-parotid • Transparotid • Cervical-transpharyngeal “swing” • Infratemporal fossa • Transcervical-transmastoid

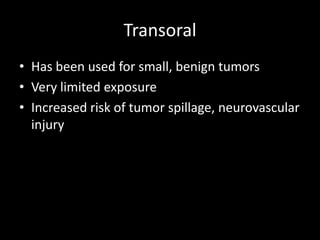

- 31. Transoral • Has beenused for small, benign tumors • Very limited exposure • Increased risk of tumor spillage, neurovascular injury

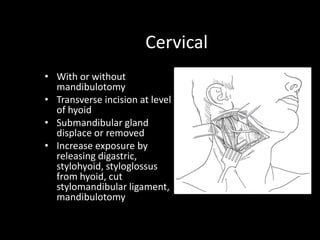

- 32. Cervical • With orwithout mandibulotomy • Transverse incision at level of hyoid • Submandibular gland displace or removed • Increase exposure by releasing digastric, stylohyoid, styloglossus from hyoid, cut stylomandibular ligament, mandibulotomy

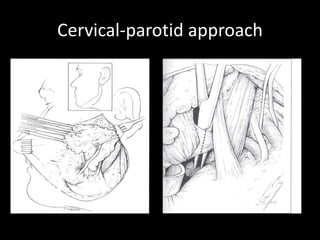

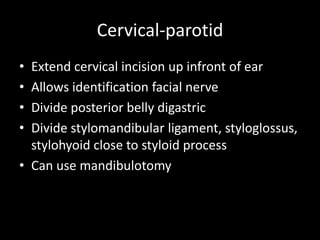

- 33. Cervical-parotid • Extend cervicalincision up infront of ear • Allows identification facial nerve • Divide posterior belly digastric • Divide stylomandibular ligament, styloglossus, stylohyoid close to styloid process • Can use mandibulotomy
- 34.
- 35. Indications • Can beused to remove majority of the parapharyngeal tumor – All deep lobe parotid tumors and extraparotid salivary tumors – Low grade malignant tumors of deep lobe of parotid – Many poststyloid tumors, including most neurogenic tumors and small paragangliomas

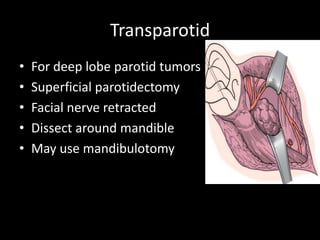

- 36. Transparotid • For deeplobe parotid tumors • Superficial parotidectomy • Facial nerve retracted • Dissect around mandible • May use mandibulotomy

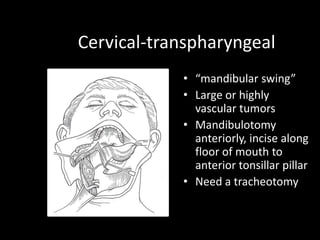

- 37. Cervical-transpharyngeal • “mandibular swing” •Large or highly vascular tumors • Mandibulotomy anteriorly, incise along floor of mouth to anterior tonsillar pillar • Need a tracheotomy
- 38. indications • All vasculartumors that extend into the superior portion of the parapharyngeal space • Malignant tumor invaded skull base or vertebral body

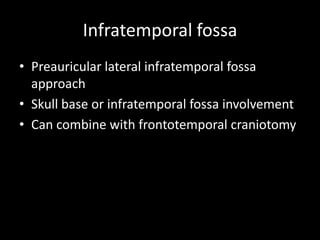

- 39. Infratemporal fossa • Preauricularlateral infratemporal fossa approach • Skull base or infratemporal fossa involvement • Can combine with frontotemporal craniotomy

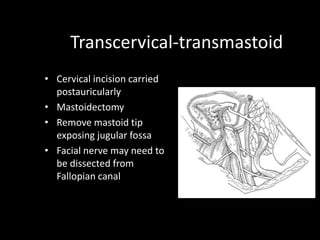

- 40. Transcervical-transmastoid • Cervical incisioncarried postauricularly • Mastoidectomy • Remove mastoid tip exposing jugular fossa • Facial nerve may need to be dissected from Fallopian canal
- 41. PARAGANGLIOMA Paraganglia are specializedneural crest cells that arise in association with the autonomic ganglia.. Classification according to the anatomic sites -Glenner and Grimley : 1. Branchiomeric (Head and neck) paraganglia 2. Intravagal paraganglia 3. Aorticosympathetic paraganglia 4. Visceral autonomic paraganglia

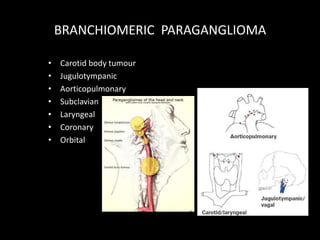

- 42. BRANCHIOMERIC PARAGANGLIOMA • Carotidbody tumour • Jugulotympanic • Aorticopulmonary • Subclavian • Laryngeal • Coronary • Orbital

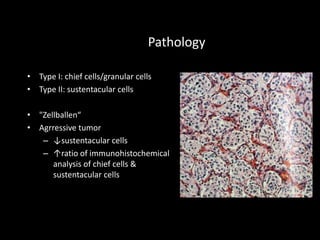

- 43. Pathology • Type I:chief cells/granular cells • Type II: sustentacular cells • "Zellballen“ • Agrressive tumor – ↓sustentacular cells – ↑ratio of immunohistochemical analysis of chief cells & sustentacular cells

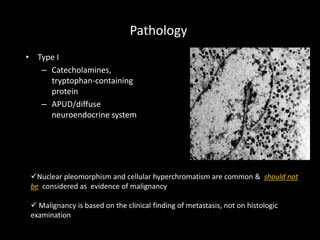

- 44. Pathology • Type I –Catecholamines, tryptophan-containing protein – APUD/diffuse neuroendocrine system Nuclear pleomorphism and cellular hyperchromatism are common & should not be considered as evidence of malignancy Malignancy is based on the clinical finding of metastasis, not on histologic examination

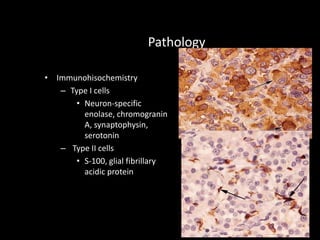

- 45. Pathology • Immunohisochemistry – TypeI cells • Neuron-specific enolase, chromogranin A, synaptophysin, serotonin – Type II cells • S-100, glial fibrillary acidic protein

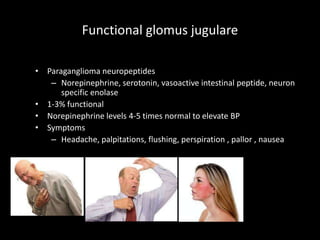

- 46. Functional glomus jugulare •Paraganglioma neuropeptides – Norepinephrine, serotonin, vasoactive intestinal peptide, neuron specific enolase • 1-3% functional • Norepinephrine levels 4-5 times normal to elevate BP • Symptoms – Headache, palpitations, flushing, perspiration , pallor , nausea

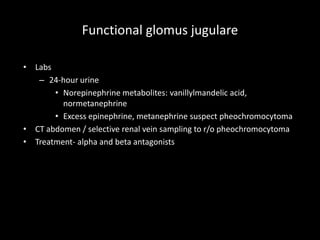

- 47. Functional glomus jugulare •Labs – 24-hour urine • Norepinephrine metabolites: vanillylmandelic acid, normetanephrine • Excess epinephrine, metanephrine suspect pheochromocytoma • CT abdomen / selective renal vein sampling to r/o pheochromocytoma • Treatment- alpha and beta antagonists
- 48. Carotid body tm •Haller –round reddish brown to tan structure found in adventia of the CCA • Post-medial wall at bifurcation • Attached by “Mayer ligament” • Normal CB-3-5mm, <15gm

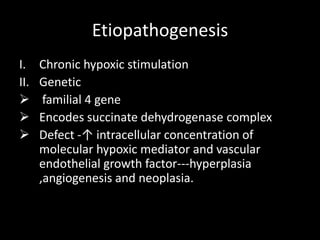

- 49. Etiopathogenesis I. Chronic hypoxicstimulation II. Genetic familial 4 gene Encodes succinate dehydrogenase complex Defect -↑ intracellular concentration of molecular hypoxic mediator and vascular endothelial growth factor---hyperplasia ,angiogenesis and neoplasia.

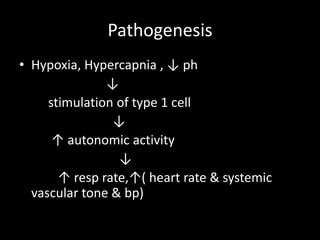

- 50. Pathogenesis • Hypoxia, Hypercapnia, ↓ ph ↓ stimulation of type 1 cell ↓ ↑ autonomic activity ↓ ↑ resp rate,↑( heart rate & systemic vascular tone & bp)

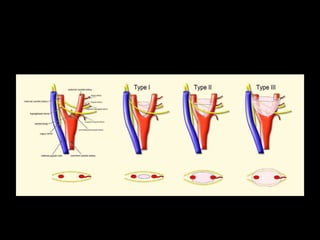

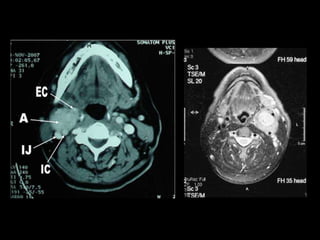

- 51. Imaging • Jansen etal o Sequencial imaging doubling time-7.13 yrs growth rate- 0.83 mm/yr SHAMBLIAN: TYPE 1-ICA circumference -<180 * TYPE 2-ICA circumference->180*-<270* TYPE 3-ICA circumference->270*

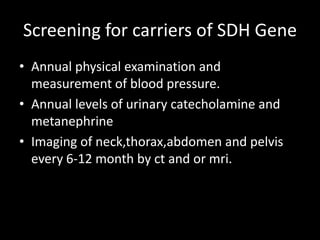

- 56. Screening for carriersof SDH Gene • Annual physical examination and measurement of blood pressure. • Annual levels of urinary catecholamine and metanephrine • Imaging of neck,thorax,abdomen and pelvis every 6-12 month by ct and or mri.

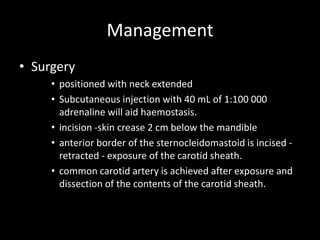

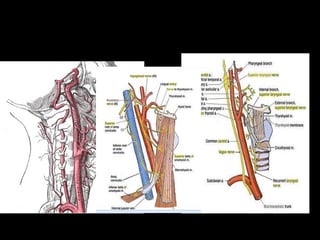

- 57. Management • Surgery • positionedwith neck extended • Subcutaneous injection with 40 mL of 1:100 000 adrenaline will aid haemostasis. • incision -skin crease 2 cm below the mandible • anterior border of the sternocleidomastoid is incised - retracted - exposure of the carotid sheath. • common carotid artery is achieved after exposure and dissection of the contents of the carotid sheath.

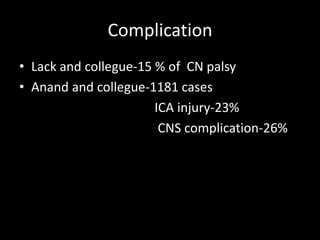

- 60. Complication • Lack andcollegue-15 % of CN palsy • Anand and collegue-1181 cases ICA injury-23% CNS complication-26%
- 61. Controversy over surgeryfor multicentric tumor • B/l carotid body tm Save atleast one vagus Resect smaller first Unilateral preexisting CN palsy-functional side operated if clinically observed Enlarged tm---RT may be option • Baroreflex failure syndrome B/L denervation-unopposed sympathetic outflow Compensation-baroreceptor aorta,regrowth of C sinus T/t-sodium nitroprusside- f/b-clonidine or phenoxybenzamine

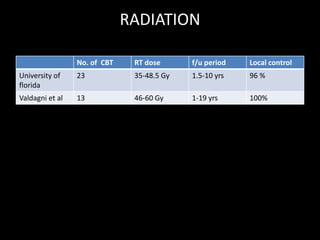

- 62. RADIATION No. of CBTRT dose f/u period Local control University of florida 23 35-48.5 Gy 1.5-10 yrs 96 % Valdagni et al 13 46-60 Gy 1-19 yrs 100%
- 63. Jugulotympanic paraganglioma • 2ndmost common temporal bone tumor • Incidence = 1:1,300,000 • Female to male ratio = 4:1 • Median age of presentation = 50-60 years • Familial form a/w higher incidence of multicentricity (25-50%) • Malignancy rate < 5% • Slow growing, spread along pathways of least resistance

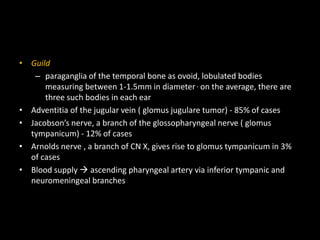

- 64. • Guild – paragangliaof the temporal bone as ovoid, lobulated bodies measuring between 1-1.5mm in diameter , on the average, there are three such bodies in each ear • Adventitia of the jugular vein ( glomus jugulare tumor) - 85% of cases • Jacobson’s nerve, a branch of the glossopharyngeal nerve ( glomus tympanicum) - 12% of cases • Arnolds nerve , a branch of CN X, gives rise to glomus tympanicum in 3% of cases • Blood supply ascending pharyngeal artery via inferior tympanic and neuromeningeal branches
- 65. Jugulotympanic Paragangliomas • Routesof spread – air cell tracts – eustachian tube – vascular lumens – neurovascular foramina including IAC – bone erosion (watch for carotid crest separating the internal carotid from the internal jugular vein)

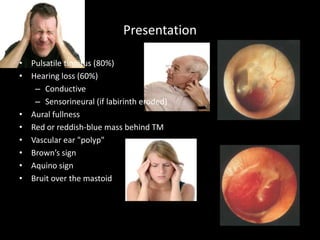

- 66. Presentation • Pulsatile tinnitus(80%) • Hearing loss (60%) – Conductive – Sensorineural (if labirinth eroded) • Aural fullness • Red or reddish-blue mass behind TM • Vascular ear "polyp" • Brown’s sign • Aquino sign • Bruit over the mastoid

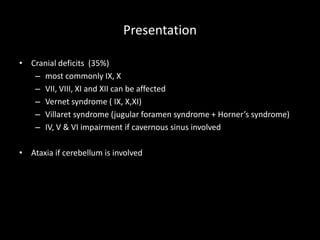

- 67. Presentation • Cranial deficits(35%) – most commonly IX, X – VII, VIII, XI and XII can be affected – Vernet syndrome ( IX, X,XI) – Villaret syndrome (jugular foramen syndrome + Horner’s syndrome) – IV, V & VI impairment if cavernous sinus involved • Ataxia if cerebellum is involved

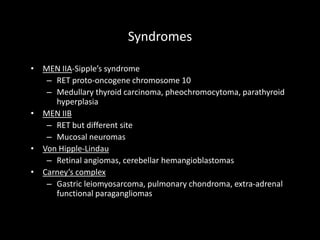

- 68. Syndromes • MEN IIA-Sipple’ssyndrome – RET proto-oncogene chromosome 10 – Medullary thyroid carcinoma, pheochromocytoma, parathyroid hyperplasia • MEN IIB – RET but different site – Mucosal neuromas • Von Hipple-Lindau – Retinal angiomas, cerebellar hemangioblastomas • Carney’s complex – Gastric leiomyosarcoma, pulmonary chondroma, extra-adrenal functional paragangliomas

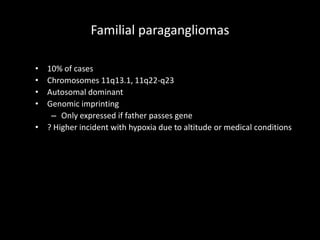

- 69. Familial paragangliomas • 10%of cases • Chromosomes 11q13.1, 11q22-q23 • Autosomal dominant • Genomic imprinting – Only expressed if father passes gene • ? Higher incident with hypoxia due to altitude or medical conditions

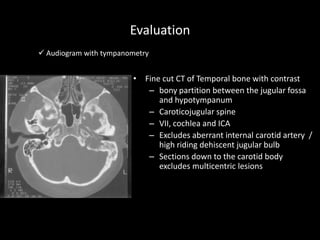

- 70. Evaluation • Fine cutCT of Temporal bone with contrast – bony partition between the jugular fossa and hypotympanum – Caroticojugular spine – VII, cochlea and ICA – Excludes aberrant internal carotid artery / high riding dehiscent jugular bulb – Sections down to the carotid body excludes multicentric lesions Audiogram with tympanometry

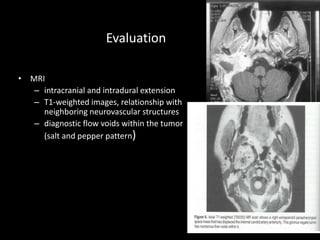

- 71. Evaluation • MRI – intracranialand intradural extension – T1-weighted images, relationship with neighboring neurovascular structures – diagnostic flow voids within the tumor (salt and pepper pattern)

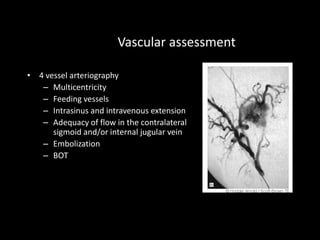

- 72. Vascular assessment • 4vessel arteriography – Multicentricity – Feeding vessels – Intrasinus and intravenous extension – Adequacy of flow in the contralateral sigmoid and/or internal jugular vein – Embolization – BOT

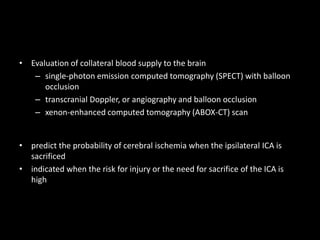

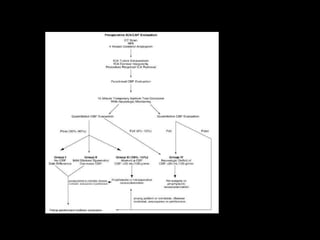

- 74. • Evaluation ofcollateral blood supply to the brain – single-photon emission computed tomography (SPECT) with balloon occlusion – transcranial Doppler, or angiography and balloon occlusion – xenon-enhanced computed tomography (ABOX-CT) scan • predict the probability of cerebral ischemia when the ipsilateral ICA is sacrificed • indicated when the risk for injury or the need for sacrifice of the ICA is high

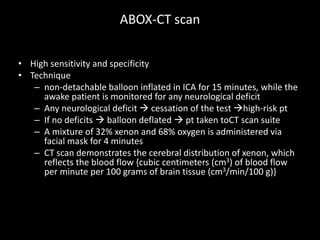

- 75. ABOX-CT scan • Highsensitivity and specificity • Technique – non-detachable balloon inflated in ICA for 15 minutes, while the awake patient is monitored for any neurological deficit – Any neurological deficit cessation of the test high-risk pt – If no deficits balloon deflated pt taken toCT scan suite – A mixture of 32% xenon and 68% oxygen is administered via facial mask for 4 minutes – CT scan demonstrates the cerebral distribution of xenon, which reflects the blood flow {cubic centimeters (cm3) of blood flow per minute per 100 grams of brain tissue (cm3/min/100 g)}
- 76. ABOX-CT scan • Highsensitivity and specificity • Technique – non-detachable balloon inflated in ICA for 15 minutes, while the awake patient is monitored for any neurological deficit – Any neurological deficit cessation of the test high-risk pt – If no deficits balloon deflated pt taken toCT scan suite – A mixture of 32% xenon and 68% oxygen is administered via facial mask for 4 minutes – CT scan demonstrates the cerebral distribution of xenon, which reflects the blood flow {cubic centimeters (cm3) of blood flow per minute per 100 grams of brain tissue (cm3/min/100 g)}

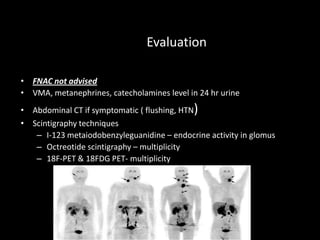

- 77. Evaluation • FNAC notadvised • VMA, metanephrines, catecholamines level in 24 hr urine • Abdominal CT if symptomatic ( flushing, HTN) • Scintigraphy techniques – I-123 metaiodobenzyleguanidine – endocrine activity in glomus – Octreotide scintigraphy – multiplicity – 18F-PET & 18FDG PET- multiplicity
- 78. Glasscock-Jackson Classification • GlomusJugulare – I. Small tumor involving jugular bulb, middle ear, and mastoid – II. Tumor extending under internal auditory canal; may have intracranial extension (ICE) – III. Tumor extending into petrous apex; may have ICE – IV. Tumor extending beyond petrous apex into clivus or infratemporal fossa; may have ICE

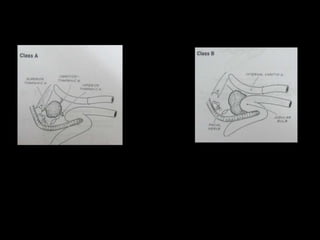

- 79. Fisch Classification (1981) •Class A - Middle ear, strictly promontory • Class B - Tympanomastoid area • Class C - Carotid – C1 Carotid Foramen – C2 Vertical segment of carotid canal – C3 Horizontal segment of carotid canal – C4 Foramen lacerum and cavernous sinus

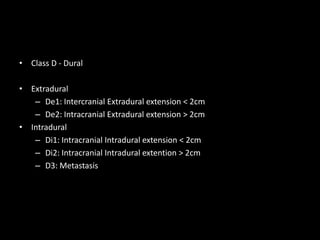

- 82. • Class D- Dural • Extradural – De1: Intercranial Extradural extension < 2cm – De2: Intracranial Extradural extension > 2cm • Intradural – Di1: Intracranial Intradural extension < 2cm – Di2: Intracranial Intradural extention > 2cm – D3: Metastasis

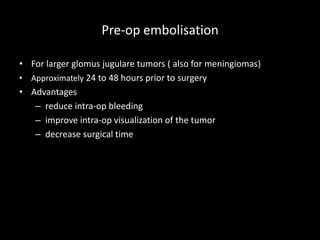

- 84. Pre-op embolisation • Forlarger glomus jugulare tumors ( also for meningiomas) • Approximately 24 to 48 hours prior to surgery • Advantages – reduce intra-op bleeding – improve intra-op visualization of the tumor – decrease surgical time

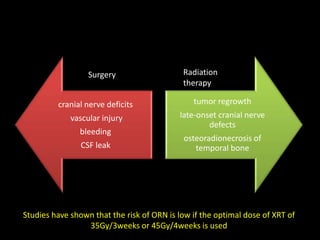

- 86. Studies have shownthat the risk of ORN is low if the optimal dose of XRT of 35Gy/3weeks or 45Gy/4weeks is used cranial nerve deficits vascular injury bleeding CSF leak tumor regrowth late-onset cranial nerve defects osteoradionecrosis of temporal bone Surgery Radiation therapy

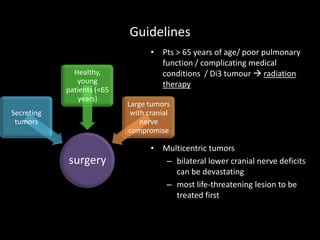

- 87. Guidelines • Pts >65 years of age/ poor pulmonary function / complicating medical conditions / Di3 tumour radiation therapy • Multicentric tumors – bilateral lower cranial nerve deficits can be devastating – most life-threatening lesion to be treated first surgery Secreting tumors Healthy, young patients (<65 years) Large tumors with cranial nerve compromise
- 88. Surgical Treatment BASIC PRINCIPLES •Exposure of all tumor margins • Identification/control of vital regional anatomy • Access to all margins of ICE

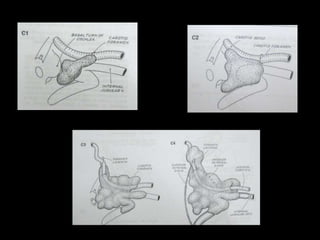

- 89. Surgical technique • Glasscockand Jackson Class I and II or Fisch C1 or C2 can be resected with extended facial recess approach • Infratemporal fossa approach for tumors beyond petrous apex or involve cavernous sinus • Tumors with intracranial extension may be resected with inratemporal fossa approach • Retrosigmoid and/or suboccipital approach may be necessary for tumors with extension into posterior cranial fossa

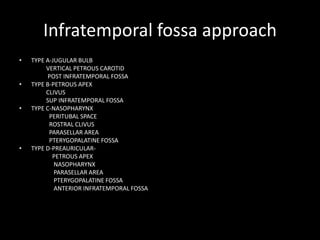

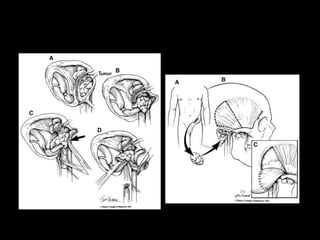

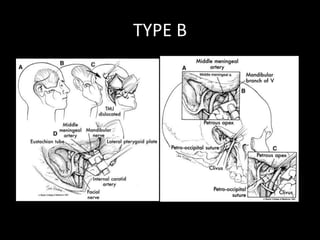

- 90. Infratemporal fossa approach •TYPE A-JUGULAR BULB VERTICAL PETROUS CAROTID POST INFRATEMPORAL FOSSA • TYPE B-PETROUS APEX CLIVUS SUP INFRATEMPORAL FOSSA • TYPE C-NASOPHARYNX PERITUBAL SPACE ROSTRAL CLIVUS PARASELLAR AREA PTERYGOPALATINE FOSSA • TYPE D-PREAURICULAR- PETROUS APEX NASOPHARYNX PARASELLAR AREA PTERYGOPALATINE FOSSA ANTERIOR INFRATEMPORAL FOSSA
- 91.
- 94.

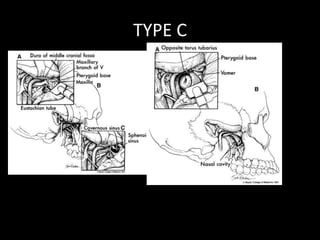

- 95.

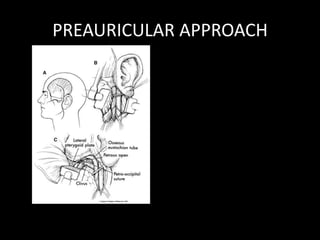

- 96.

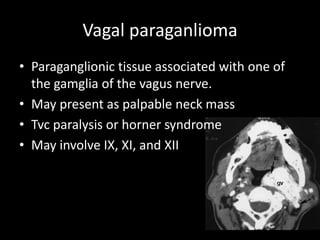

- 97. Vagal paraganlioma • Paraganglionictissue associated with one of the gamglia of the vagus nerve. • May present as palpable neck mass • Tvc paralysis or horner syndrome • May involve IX, XI, and XII
- 98.
- 99. Management • Counseled aboutsacrifice of vagus nerve • Treatment almost same as carotid body tm • Mostly by transcervical approach • For superiorly located tm-combinde trans mastoid and transcervical approach

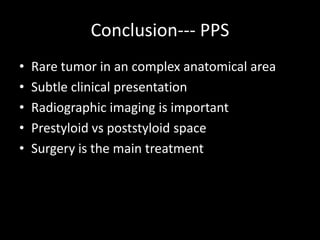

- 100. Conclusion--- PPS • Raretumor in an complex anatomical area • Subtle clinical presentation • Radiographic imaging is important • Prestyloid vs poststyloid space • Surgery is the main treatment
- 101. Conclusion--PARAGANGLOMA • Preop embolizationand imaging aid in surgery. • Experience in skull base surgery. • Proper counseling of patient regarding post op complication and rehabilitation. • Rule out functional glomus. • In Future, genetic analysis may help in early diagnosis and management.
