1. ?
Reinforced Concrete
Slab System on Steel
deck
By
Md Hachnayen Ahmed
1

2. Objectives
Show the systems of reinforced slabs on steel
deck
Advantages over conventional construction
Construction Process
2

3. Composite slabs consists
of profiled steel decking
with an-situ reinforced
concrete coating .
What is Composite Slab?
3

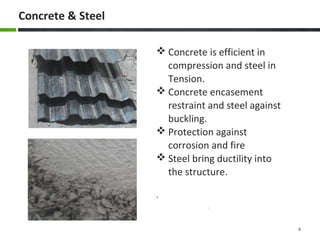

4.  Concrete is efficient in
compression and steel in
Tension.
 Concrete encasement
restraint and steel against
buckling.
 Protection against
corrosion and fire
 Steel bring ductility into
the structure.
.
Concrete & Steel
4

5. Aspects for using Composite Slab
Architectural
Economical
Functionality
Service and Flexibility
Assembly
5

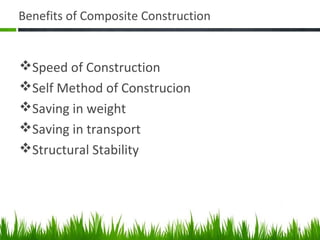

6. Benefits of Composite Construction
Speed of Construction
Self Method of Construcion
Saving in weight
Saving in transport
Structural Stability
6

7. Construction Process
Shuttering by profile sheet
Placing the design steel bar
Place the Shear bolts
7

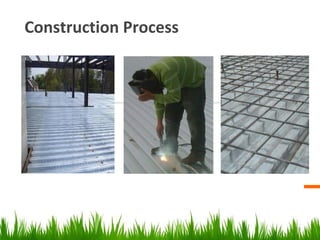

8. Construction Process
Author YourAuthor Your
PresentationPresentation
8

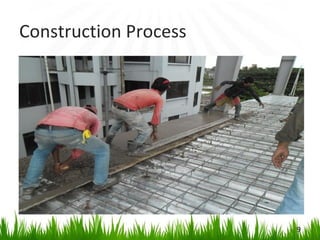

9. Construction Process
9

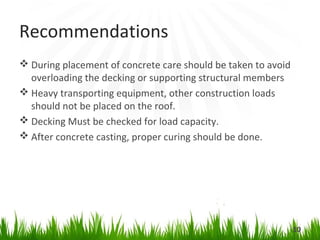

10. Recommendations
 During placement of concrete care should be taken to avoid
overloading the decking or supporting structural members
 Heavy transporting equipment, other construction loads
should not be placed on the roof.
 Decking Must be checked for load capacity.
 After concrete casting, proper curing should be done.
10

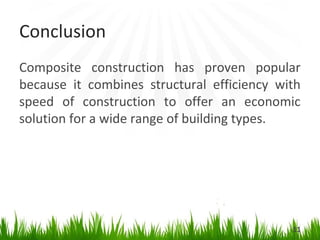

11. Conclusion
Composite construction has proven popular
because it combines structural efficiency with
speed of construction to offer an economic
solution for a wide range of building types.
11

12. Thank You for Your Attention

13. Any Questions
13
