1. Predicting the Best Classifier using Properties of
Datasets
Abhishek Vijayvargia
Supervised by: Prof. Harish Karnick
Department of Computer Science & Engineering
IIT Kanpur
June 24, 2015

2. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work

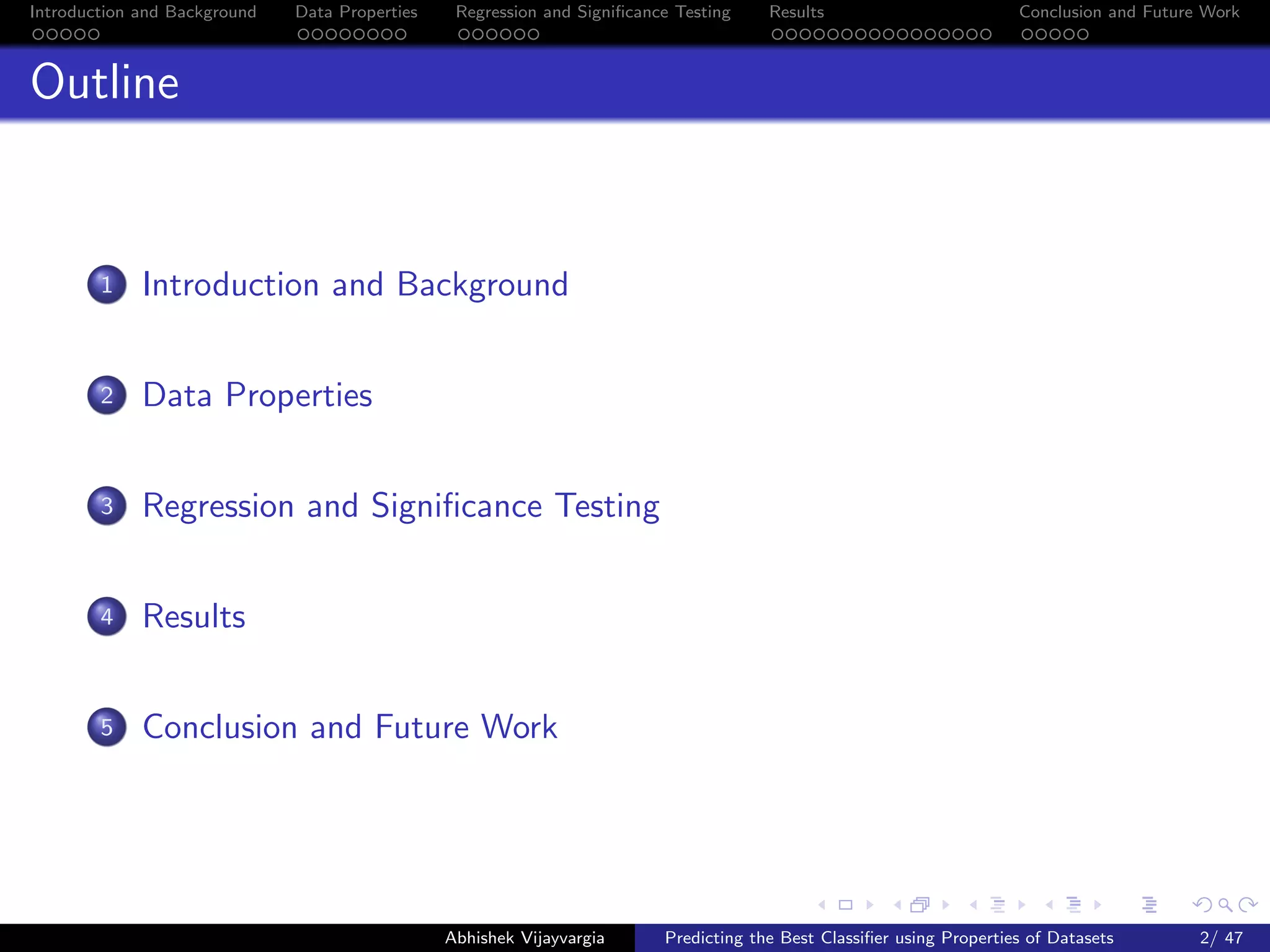

Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 2/ 47

3. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 3/ 47

4. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Classification techniques have application in different domains
Datasets contains mixture of nominal,integer,real and text attributes
Datasets have different properties
Classification algorithms performs differently on these datasets
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 4/ 47

5. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Classification techniques have application in different domains
Datasets contains mixture of nominal,integer,real and text attributes
Datasets have different properties
Classification algorithms performs differently on these datasets
No single best algorithm exists(NFL)
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 4/ 47

6. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Classification techniques have application in different domains
Datasets contains mixture of nominal,integer,real and text attributes
Datasets have different properties
Classification algorithms performs differently on these datasets
No single best algorithm exists(NFL)
Cross validation is used to find good algorithm
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 4/ 47

7. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Classification techniques have application in different domains
Datasets contains mixture of nominal,integer,real and text attributes
Datasets have different properties
Classification algorithms performs differently on these datasets
No single best algorithm exists(NFL)
Cross validation is used to find good algorithm (time consuming)
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 4/ 47

8. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Classification techniques have application in different domains
Datasets contains mixture of nominal,integer,real and text attributes
Datasets have different properties
Classification algorithms performs differently on these datasets
No single best algorithm exists(NFL)
Cross validation is used to find good algorithm (time consuming)
Takes more time with large datasets and algorithms
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 4/ 47

9. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Meta-Learning
Knowledge of datasets and performances of algorithms are stored
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 5/ 47

10. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Meta-Learning
Knowledge of datasets and performances of algorithms are stored
Predict performance of algorithms
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 5/ 47

11. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Meta-Learning
Knowledge of datasets and performances of algorithms are stored
Predict performance of algorithms
Generate ranking
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 5/ 47

12. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Meta-Learning
Knowledge of datasets and performances of algorithms are stored
Predict performance of algorithms
Generate ranking
Top-k algorithms can be chosen
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 5/ 47

13. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Introduction
Meta-Learning
Knowledge of datasets and performances of algorithms are stored
Predict performance of algorithms
Generate ranking
Top-k algorithms can be chosen
Problem Statement
Predict an optimal learning algorithm or nearly optimal learning
algorithms using a ranking paradigm in terms of performance for a
new data set by using the properties of the data set.
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 5/ 47

14. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Related Work
Characterization of Classification Algorithms [2]
Dataset characteristics
Simple Measures
Statistical Measures
Information Theoretic Measures
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 6/ 47

15. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Related Work
Characterization of Classification Algorithms [2]
Dataset characteristics
Simple Measures
Statistical Measures
Information Theoretic Measures
Used four types of models
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 6/ 47

16. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Related Work
Characterization of Classification Algorithms [2]
Dataset characteristics
Simple Measures
Statistical Measures
Information Theoretic Measures
Used four types of models
Partial Learning Curve [4]
Full learning curve from partial learning curve
Fraction of instances used (10%)
Predict best algorithm from two algorithms
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 6/ 47

17. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Related Work
Meta-Analysis [3]
Meta Features
Simple, Statistical and Information Theoretic Measures
Model Based Measures
Landmarks
Classification for algorithm selection
Synthetic dataset used
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 7/ 47

18. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Related Work
Meta-Analysis [3]
Meta Features
Simple, Statistical and Information Theoretic Measures
Model Based Measures
Landmarks
Classification for algorithm selection
Synthetic dataset used
Automatic Classifier Selection for Non-Experts [5]
Meta Features
Predicted Accuracy by regression
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 7/ 47

19. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Motivation
Empirical Comparison of Supervised Learning Algorithm [1]
Best methods performs poorly
Poor methods performs exceptionally well on some problems
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 8/ 47

20. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Motivation
Empirical Comparison of Supervised Learning Algorithm [1]
Best methods performs poorly
Poor methods performs exceptionally well on some problems
Motivation to generate ranking of algorithms
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 8/ 47

21. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 9/ 47

22. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Histogram of Standard Deviation
Creating Histogram
K standard deviation values (numerical attributes)
H histogram bins
2 histogram per dataset (binary class)
Bins from range [0,0.5] are taken (Data range [0,1])
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 10/ 47

23. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Histogram of Standard Deviation
Table 1: Standard Deviation Data
Class 0 0.228 0.215 0.2 0.187 0.135 0.15 0.116 0.154
Class 1 0.366 0.223 0.204 0.171 0.179 0.162 0.164 0.178
Table 2: Histogram
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 11/ 47

24. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
1-Norm Distance Based Comparison
Two datasets histograms compared on the basis of 1-Norm distance
Two pairwise comparison (one for each class) between datasets
Minimum distance score of two pairwise comparison is taken
Order datasets in increasing distance
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 12/ 47

25. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

26. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Score 1 : Comparing Class 0 of Dataset-1 with Class 0 of Dataset-2 and Class 1 of Dataset-1 with Class 1 of
Dataset-2.
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

27. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Score 1 : Comparing Class 0 of Dataset-1 with Class 0 of Dataset-2 and Class 1 of Dataset-1 with Class 1 of
Dataset-2.
Score − 1 = (|0 − 0| + |0 − 1| + |2 − 0| + |3 − 5| + |3 − 2| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 1| + |5 − 1| + |2 − 2| + |0 − 3| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 6 + 10 = 16
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

28. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Score 1 : Comparing Class 0 of Dataset-1 with Class 0 of Dataset-2 and Class 1 of Dataset-1 with Class 1 of
Dataset-2.
Score − 1 = (|0 − 0| + |0 − 1| + |2 − 0| + |3 − 5| + |3 − 2| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 1| + |5 − 1| + |2 − 2| + |0 − 3| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 6 + 10 = 16
Score 2 : Comparing Class 0 of Dataset-1 with Class 1 of Dataset-2 and Class 1 of Dataset-1 with Class 0 of
Dataset-2.
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

29. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Score 1 : Comparing Class 0 of Dataset-1 with Class 0 of Dataset-2 and Class 1 of Dataset-1 with Class 1 of
Dataset-2.
Score − 1 = (|0 − 0| + |0 − 1| + |2 − 0| + |3 − 5| + |3 − 2| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 1| + |5 − 1| + |2 − 2| + |0 − 3| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 6 + 10 = 16
Score 2 : Comparing Class 0 of Dataset-1 with Class 1 of Dataset-2 and Class 1 of Dataset-1 with Class 0 of
Dataset-2.
Score − 2 = (|0 − 0| + |0 − 1| + |2 − 1| + |3 − 1| + |3 − 2| + |0 − 3| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 0| + |5 − 5| + |2 − 2| + |0 − 0| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 8 + 2 = 10
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

30. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 0 2 3 3 0 0 0 0 0
Class 1 Histogram 0 0 0 5 2 0 0 1 0 0
Range .00-.05 .05-.10 0.10-.15 .15-.20 .20-.25 .25-.30 .30-.35 .35-.40 .40-.45 .45-.50
Class 0 Histogram 0 1 0 5 2 0 0 0 0 0
Class 1 Histogram 0 1 1 1 2 3 0 0 0 0
Score 1 : Comparing Class 0 of Dataset-1 with Class 0 of Dataset-2 and Class 1 of Dataset-1 with Class 1 of
Dataset-2.
Score − 1 = (|0 − 0| + |0 − 1| + |2 − 0| + |3 − 5| + |3 − 2| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 1| + |5 − 1| + |2 − 2| + |0 − 3| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 6 + 10 = 16
Score 2 : Comparing Class 0 of Dataset-1 with Class 1 of Dataset-2 and Class 1 of Dataset-1 with Class 0 of
Dataset-2.
Score − 2 = (|0 − 0| + |0 − 1| + |2 − 1| + |3 − 1| + |3 − 2| + |0 − 3| + |0 − 0| + |0 − 0| + |0 − 0| + |0 − 0|)
+ (|0 − 0| + |0 − 1| + |0 − 0| + |5 − 5| + |2 − 2| + |0 − 0| + |0 − 0| + |1 − 0| + |0 − 0| + |0 − 0|)
= 8 + 2 = 10
Distance Score = min(Score-1,Score-2) = min(16,10) = 10
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 13/ 47

31. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

32. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Calculate proportion of each value in two samples
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

33. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Calculate proportion of each value in two samples
Calculate cumulative proportion of each sample
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

34. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Calculate proportion of each value in two samples
Calculate cumulative proportion of each sample
Calculate D statistics
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

35. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Calculate proportion of each value in two samples
Calculate cumulative proportion of each sample
Calculate D statistics
Two pairwise comparison
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

36. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Kolmogorov Smirnov Test Based Comparison
Take value of histogram as a sample
Calculate proportion of each value in two samples
Calculate cumulative proportion of each sample
Calculate D statistics
Two pairwise comparison
Minimum distance score
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 14/ 47

37. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Table 3: Komogorov Smirnov test
Bin Rage Histogram-1 Histogram-2 Proportion-1 Proportion-2 Cum.Pro.-1 Cum. Pro.-2 Difference
.00-.05 0 0 0 0 0 0 0
.05-.10 1 0 0.125 0 0.125 0 0.125
.10-.15 0 2 0 0.25 0.125 0.25 0.125
.15-.20 5 3 0.625 0.375 0.75 0.625 0.125
.20-.25 2 3 0.25 0.375 1 1 0
.25-.30 0 0 0 0 1 1 0
.30-.35 0 0 0 0 1 1 0
.35-.40 0 0 0 0 1 1 0
.40-.45 0 0 0 0 1 1 0
.45-.50 0 0 0 0 1 1 0
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 15/ 47

38. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Table 3: Komogorov Smirnov test
Bin Rage Histogram-1 Histogram-2 Proportion-1 Proportion-2 Cum.Pro.-1 Cum. Pro.-2 Difference
.00-.05 0 0 0 0 0 0 0
.05-.10 1 0 0.125 0 0.125 0 0.125
.10-.15 0 2 0 0.25 0.125 0.25 0.125
.15-.20 5 3 0.625 0.375 0.75 0.625 0.125
.20-.25 2 3 0.25 0.375 1 1 0
.25-.30 0 0 0 0 1 1 0
.30-.35 0 0 0 0 1 1 0
.35-.40 0 0 0 0 1 1 0
.40-.45 0 0 0 0 1 1 0
.45-.50 0 0 0 0 1 1 0
Two datasets can be compared in two ways
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 15/ 47

39. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Table 3: Komogorov Smirnov test
Bin Rage Histogram-1 Histogram-2 Proportion-1 Proportion-2 Cum.Pro.-1 Cum. Pro.-2 Difference
.00-.05 0 0 0 0 0 0 0
.05-.10 1 0 0.125 0 0.125 0 0.125
.10-.15 0 2 0 0.25 0.125 0.25 0.125
.15-.20 5 3 0.625 0.375 0.75 0.625 0.125
.20-.25 2 3 0.25 0.375 1 1 0
.25-.30 0 0 0 0 1 1 0
.30-.35 0 0 0 0 1 1 0
.35-.40 0 0 0 0 1 1 0
.40-.45 0 0 0 0 1 1 0
.45-.50 0 0 0 0 1 1 0
Two datasets can be compared in two ways
Total 2 D values for each comparison
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 15/ 47

40. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparing Histograms
Table 3: Komogorov Smirnov test
Bin Rage Histogram-1 Histogram-2 Proportion-1 Proportion-2 Cum.Pro.-1 Cum. Pro.-2 Difference
.00-.05 0 0 0 0 0 0 0
.05-.10 1 0 0.125 0 0.125 0 0.125
.10-.15 0 2 0 0.25 0.125 0.25 0.125
.15-.20 5 3 0.625 0.375 0.75 0.625 0.125
.20-.25 2 3 0.25 0.375 1 1 0
.25-.30 0 0 0 0 1 1 0
.30-.35 0 0 0 0 1 1 0
.35-.40 0 0 0 0 1 1 0
.40-.45 0 0 0 0 1 1 0
.45-.50 0 0 0 0 1 1 0
Two datasets can be compared in two ways
Total 2 D values for each comparison
Sum both values and consider minimum D score mapping
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 15/ 47

41. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
CAV
Separate dataset based on it’s class
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 16/ 47

42. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
CAV
Separate dataset based on it’s class
Apply KMeans Clustering
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 16/ 47

43. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
CAV
Separate dataset based on it’s class
Apply KMeans Clustering
Cluster Properties
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 16/ 47

44. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
CAV
Separate dataset based on it’s class
Apply KMeans Clustering
Cluster Properties
Number of instances in each cluster
Cluster Value = Ck = ¯x∈cluster dist(¯x, centroid)
Cluster Centroid
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 16/ 47

45. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
CAV
Separate dataset based on it’s class
Apply KMeans Clustering
Cluster Properties
Number of instances in each cluster
Cluster Value = Ck = ¯x∈cluster dist(¯x, centroid)
Cluster Centroid
Moments of Data
Variance
Skewness
Kurtosis
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 16/ 47

46. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
Mixture Of Gaussians
Dataset may have overlapping clusters(non-circular shape)
For each attributes k different Gaussian
Model fit by Maximum likelihood of observed data
mean and variance of each Gaussian are stored
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 17/ 47

47. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Datasets Properties
Mixture Of Gaussians
Dataset may have overlapping clusters(non-circular shape)
For each attributes k different Gaussian
Model fit by Maximum likelihood of observed data
mean and variance of each Gaussian are stored
Multivariate Gaussian Model
N(x; µ, ) = 1
(2π)d/2 | |
−1/2
e(−1
2 (x−µ) −1
(x−µ)T
)
µ is d-length row vector
σ is d × d matrix
Singular value decomposition of covariance matrix
Values from diagonal matrix and mean vector are stored
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 17/ 47

48. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 18/ 47

49. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Regression to Predict Performance Measures
Regression Analysis
Property vector populated by meta properties
Entire vector or sub-vector can be used to predict performance
measures
Regression model is given as Y = f (X, α)
Y is dependent variable (performance measure)
X is independent variables (property vector)
α is a vector of unknown parameters
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 19/ 47

50. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Regression to Predict Performance Measures
Figure 1: Training
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 20/ 47

51. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Regression to Predict Performance Measures
Figure 2: Testing
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 21/ 47

52. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Statistical Significance Testing
Comparison of predicted sequence with random sequence
Actual sequence is taken as baseline
Probability of at least one algorithm of top-k present in actual top k:
Probability = 1 − (none of algorithm present in topk)
= 1 −
n − k
n
×
n − k − 1
n − 1
× . . . ×
n − 2k + 1
n − k + 1
Expected Number of algorithm from random sequence present in
actual top k:
Expected Value = 1 ×
k
1
n−k
k−1
n
k
+ 2 ×
k
2
n−k
k−2
n
k
+ . . . +
+ . . . k ×
k
1−k
n−k
k−k
n
k
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 22/ 47

53. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Statistical Significance Testing
Test 1
At least one algorithm of given top-k sequence is present in actual
top-k sequence
Statistical significance test between
Predicted rank-actual rank matches
Random rank-actual rank matches
Exclude prediction methods where the difference is not statistically
significant
Test 2
Number of algorithms of given top-k sequence is present in actual
top-k sequence
Statistical significance test between
Predicted rank-actual rank matches
Random rank-actual rank matches
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 23/ 47

54. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Autoencoder
Learns to construct it’s own input
Increasing dimension of data by autoencoder
Decreasing dimension of data by autoencoder
Stacked autoencoder
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 24/ 47

55. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 25/ 47

56. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Data and Algorithm Set
Real world datasets
44 binary datasets from UCI, tunedIT, keel, delve
Synthetic datasets
484 datasets are generated using univariate and multivariate
distribution
DA1 : 13 classification algorithms and 44 real datasets
DA2 : 70 classification algorithms and 44 real datasets
DA2 : 70 classification algorithms and 484 synthetic datasets
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 26/ 47

57. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Data Cleaning
Steps for Data Cleaning
Nominal to binary 0/1 attribute
PCA with maximum attributes as 8
Normalization has been done on these reduced sets of attributes
using (value−min)
(max−min) .
Class attributes are renamed to 0 and 1
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 27/ 47

58. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking from Histogram Bin
Table 4: Predicting Ranking from histogram bins using 1-Norm distance on DA1
Count Random Probability 1-Norm distance Confidence for alternative hypothesis
1 0.076923077 0.090909091 0.5583927
2 0.294871795 0.295454545 0.44665546
3 0.58041958 0.659090909 0.8166996
4 0.823776224 0.795454545 0.2378282
5 0.956487956 1 0.8587793
6 0.995920746 1 0.164608
7 1 1 0
Table 5: Predicting Ranking from histogram bins using Kolmogorov Smirnov on
DA1
Count Random Probability Kolmogorov smirnov test Confidence for alternative hypothesis
1 0.076923077 0.090909091 0.7518056
2 0.294871795 0.340909091 0.6987076
3 0.58041958 0.636363636 0.7234472
4 0.823776224 0.863636364 0.6779081
5 0.956487956 0.977272727 0.5761086
6 0.995920746 1 0.164608
7 1 1 0
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 28/ 47

59. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking from Histogram Bin
Table 6: Predicting Ranking from histogram bins using DA2
Count Random Probability 1-Norm distance Confidence for alter. hypo. Kolmogorov smirnov test Confidence for alter. hypo.
1 0.014285714 0 0 0 0
2 0.056728778 0.022727273 0.07656138 0.022727273 0.07656138
3 0.124862989 0.068181818 0.07501977 0.090909091 0.1837721
4 0.213955796 0.159090909 0.1402761 0.159090909 0.1402761
5 0.317534624 0.340909091 0.5753865 0.272727273 0.213988
6 0.428182857 0.454545455 0.5822902 0.363636364 0.1543545
7 0.538469854 0.522727273 0.3581275 0.454545455 0.1025831
8 0.641846095 0.659090909 0.5264127 0.681818182 0.6489032
9 0.733341187 0.818181818 0.8664682 0.795454545 0.77316
10 0.809949161 0.863636364 0.756462 0.863636364 0.756462
11 0.870659846 0.909090909 0.688802 0.886363636 0.5115497
12 0.916175987 0.954545455 0.7251068 0.977272727 0.8932743
13 0.948419826 0.977272727 0.6699302 0.977272727 0.6699302
14 0.969963161 1 0.7386451 1 0.7386451
15 0.983506557 1 0.5189398 1 0.5189398
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 29/ 47

60. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking from Histogram Bin
Table 7: Predicting Ranking using from histogram bins DA3
Count Random Probability 1-Norm distance Confidence for alter. hypo. Kolmogorov smirnov test Confidence for alter. hypo.
1 0.014285714 0 0 0 0
2 0.056728778 0 0 0 0
3 0.124862989 0.008264463 0 0.010330579 0
4 0.213955796 0.068181818 0 0.07231405 0
5 0.317534624 0.150826446 0 0.150826446 0
6 0.428182857 0.268595041 5.64E-14 0.27892562 3.98E-12
7 0.538469854 0.400826446 2.69E-10 0.404958678 1.49E-09
8 0.641846095 0.541322314 1.44E-06 0.530991736 2.25E-07
9 0.733341187 0.683884298 0.0066866 0.681818182 0.00504363
10 0.809949161 0.780991736 0.04829307 0.783057851 0.04829307
11 0.870659846 0.863636364 0.2945404 0.863636364 0.2945404
12 0.916175987 0.919421488 0.5609581 0.919421488 0.5609581
13 0.948419826 0.960743802 0.8715195 0.962809917 0.8715195
14 0.969963161 0.975206612 0.6958514 0.977272727 0.6958514
15 0.983506557 0.981404959 0.2801928 0.983471074 0.2801928
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 30/ 47

61. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Steps
These properties are considered:
Histogram of standard deviation of each class.
Cluster Analysis Vector(CVV).
Moments of data.
Mixture of Gaussian on each attribute.
Mean and vector of diagonal entries from Sigma matrix obtained by
singular value decomposition (SVD) of the covariance matrix of the
multivariate Gaussian model of the dataset.
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 31/ 47

62. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Steps
These properties are considered:
Histogram of standard deviation of each class.
Cluster Analysis Vector(CVV).
Moments of data.
Mixture of Gaussian on each attribute.
Mean and vector of diagonal entries from Sigma matrix obtained by
singular value decomposition (SVD) of the covariance matrix of the
multivariate Gaussian model of the dataset.
Property vector as independent variable and accuracy as dependent
variable in regression
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 31/ 47

63. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Steps
These properties are considered:
Histogram of standard deviation of each class.
Cluster Analysis Vector(CVV).
Moments of data.
Mixture of Gaussian on each attribute.
Mean and vector of diagonal entries from Sigma matrix obtained by
singular value decomposition (SVD) of the covariance matrix of the
multivariate Gaussian model of the dataset.
Property vector as independent variable and accuracy as dependent
variable in regression
One regression model for each classifier
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 31/ 47

64. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Steps
These properties are considered:
Histogram of standard deviation of each class.
Cluster Analysis Vector(CVV).
Moments of data.
Mixture of Gaussian on each attribute.
Mean and vector of diagonal entries from Sigma matrix obtained by
singular value decomposition (SVD) of the covariance matrix of the
multivariate Gaussian model of the dataset.
Property vector as independent variable and accuracy as dependent
variable in regression
One regression model for each classifier
Result compared with random sequence
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 31/ 47

65. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Table 8: Test-1 using Data Characteristics forDA1
Value of k
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
1 0.076923077 0.136363636 0.2481944 0.25 0.000392335
2 0.294871795 0.522727273 0.001277486 0.454545455 0.01802491
3 0.58041958 0.795454545 0.006170564 0.704545455 0.06290122
Table 9: Test-2 using Data Characteristics for DA1
Count
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
1 0.076923077 0.136363636 0.2481944 0.25 0.000392335
2 0.153846154 0.284090909 0.002996455 0.25 0.0128041
3 0.230769231 0.386363636 0.000394481 0.363636364 0.000394481
4 0.307692308 0.443181818 0.000343617 0.403409091 0.0159287
5 0.384615385 0.518181818 0.00032955 0.440909091 0.08601391
6 0.461538462 0.549242424 0.003806131 0.53030303 0.02680756
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 32/ 47

66. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Table 10: Test-1 using Data Characteristics for DA2
Count
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
1 0.014285714 0.045454545 0.469059 0.068181818 0.130488
2 0.056728778 0.227272727 0.000702291 0.295454545 4.23E-06
3 0.124862989 0.318181818 0.002140653 0.295454545 0.0063842
4 0.213955796 0.431818182 0.000962345 0.409090909 0.006957731
5 0.317534624 0.590909091 0.000168674 0.477272727 0.03942881
6 0.428182857 0.636363636 0.01014022 0.613636364 0.01014022
Table 11: Test-2 using Data Characteristics for DA2
Count
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
5 0.071428571 0.195454545 4.80E-08 0.25 1.92E-16
10 0.142857143 0.281818182 1.03E-12 0.327272727 8.45E-21
15 0.214285714 0.363636364 1.32E-18 0.366666667 1.32E-18
20 0.285714286 0.454545455 1.86E-26 0.422727273 3.23E-15
25 0.357142857 0.512727273 2.45E-22 0.470909091 1.99E-11
30 0.428571429 0.575 1.61E-24 0.543939394 3.85E-12
35 0.5 0.646753247 3.16E-27 0.607792208 5.06E-13
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 33/ 47

67. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Predicting Ranking by Data Property Vector
Table 12: Test-1 using Data Characteristics for DA3
Count
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
1 0.014285714 0.148760331 5.27E-49 0.237603306 2.57E-101
2 0.056728778 0.384297521 1.92E-101 0.48553719 1.66E-154
3 0.124862989 0.520661157 7.63E-97 0.657024793 8.85E-163
4 0.213955796 0.597107438 1.49E-73 0.766528926 4.31E-148
5 0.317534624 0.665289256 1.05E-54 0.830578512 3.11E-119
6 0.428182857 0.710743802 3.06E-36 0.873966942 5.45E-92
Table 13: Test-2 using Data Characteristics for DA3
Count
Random
Probability
Gaussian
Processes
p-value for
null hypo.
IBk
p-value for
null hypo.
5 0.071428571 0.321487603 1.43E-284 0.395041322 0
10 0.142857143 0.40661157 0 0.480991736 0
15 0.214285714 0.478236915 0 0.534710744 0
20 0.285714286 0.517768595 0 0.577582645 0
25 0.357142857 0.573636364 0 0.622479339 0
30 0.428571429 0.631060606 0 0.666804408 0
35 0.5 0.687839433 0 0.717532468 0
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 34/ 47

68. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Figure 3: Test-1 on DA1
Figure 4: Test-1 on DA2
Figure 5: Test-2 on DA1
Figure 6: Test-2 on DA2
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 35/ 47

69. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Figure 7: Test-1 on DA3 Figure 8: Test-2 on DA3
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 36/ 47

70. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Increasing Dimension of Data (Autoencoder)
Figure 9: Test-1 on DA2 Figure 10: Test-2 on DA2
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 37/ 47

71. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Decreasing Dimension of Data (Autoencoder)
Figure 11: Test-1 on DA2 Figure 12: Test-2 on DA2
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 38/ 47

72. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Stacked Autoencoder
Figure 13: Test-1 on DA2 Figure 14: Test-2 on DA2
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 39/ 47

73. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparison with Previous Techniques
Test-1 : Difference between Accuracy
True accuracy and predicted accuracy of a algorithm on each test
dataset is compared
Average of absolute difference of all datasets and for all algorithms
is taken
Result of best regression technique is reported
Table 14: Difference Between Accuracy
Simple Statistical
Info
Theoretic
Model
Based
Landmark DCT ALL MDDF
Difference 0.0890 0.0915 0.0648 0.0859 0.0422 0.0747 0.0525 0.0426
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 40/ 47

74. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Comparison with Previous Techniques
Test-2 : Rank Correlation
Spearman’s rank correlation coefficient between these two rankings
is calculated
Value of this coefficient is averaged over all data sets
Higher the value of this coefficient, the higher the correlation
between the actual rank and predicted rank
Table 15: Rank Correlation
Simple Statistical
Info
Theoretic
Model
Based
Landmark DCT ALL MDDF
Average
Value
0.464 0.444 0.488 0.431 0.495 0.459 0.488 0.520
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 41/ 47

75. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Outline
1 Introduction and Background
2 Data Properties
3 Regression and Significance Testing
4 Results
5 Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 42/ 47

76. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Conclusion
Methods to generate ranking of binary classification algorithms
without running them
Intrinsic properties of data
Ranking of classifiers predicted via regression
Autoencoder used for more predictive analysis
Our approach give better result than previous techniques
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 43/ 47

77. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Future Work
Multi-class classification
Datasets can be grouped together based on domain knowledge
Other performance measures like precision, recall and f-measure can
be used
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 44/ 47

78. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 45/ 47

79. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
Thank you!
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 46/ 47

80. Introduction and Background Data Properties Regression and Significance Testing Results Conclusion and Future Work
References I
[1] R. Caruana and A. Niculescu-Mizil.
An empirical comparison of supervised learning algorithms.
In Proceedings of the 23rd International Conference on Machine Learning, ICML ’06, pages
161–168, New York, NY, USA, 2006. ACM.
[2] J. Gama and P. Brazdil.
Characterization of classification algorithms.
In Proceedings of the 7th Portuguese Conference on Artificial Intelligence: Progress in
Artificial Intelligence, EPIA ’95, pages 189–200, London, UK, UK, 1995. Springer-Verlag.
[3] C. Kpf, C. Taylor, and J. Keller.
Meta-analysis: From data characterisation for meta-learning to meta-regression.
In Proceedings of the PKDD-00 Workshop on Data Mining, Decision Support,Meta-Learning
and ILP.
[4] R. Leite and P. Brazdil.
An iterative process for building learning curves and predicting relative performance of
classifiers.
In J. Neves, M. Santos, and J. Machado, editors, Progress in Artificial Intelligence, volume
4874 of Lecture Notes in Computer Science, pages 87–98. Springer Berlin Heidelberg, 2007.
[5] M. Reif, F. Shafait, M. Goldstein, T. Breuel, and A. Dengel.
Automatic classifier selection for non-experts.
Pattern Analysis and Applications, 17(1):83–96, 2014.
Abhishek Vijayvargia Predicting the Best Classifier using Properties of Datasets 47/ 47
