1. Practical Distribution & Substation Automation
(Incl. Communications) for Electrical Power Systems
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

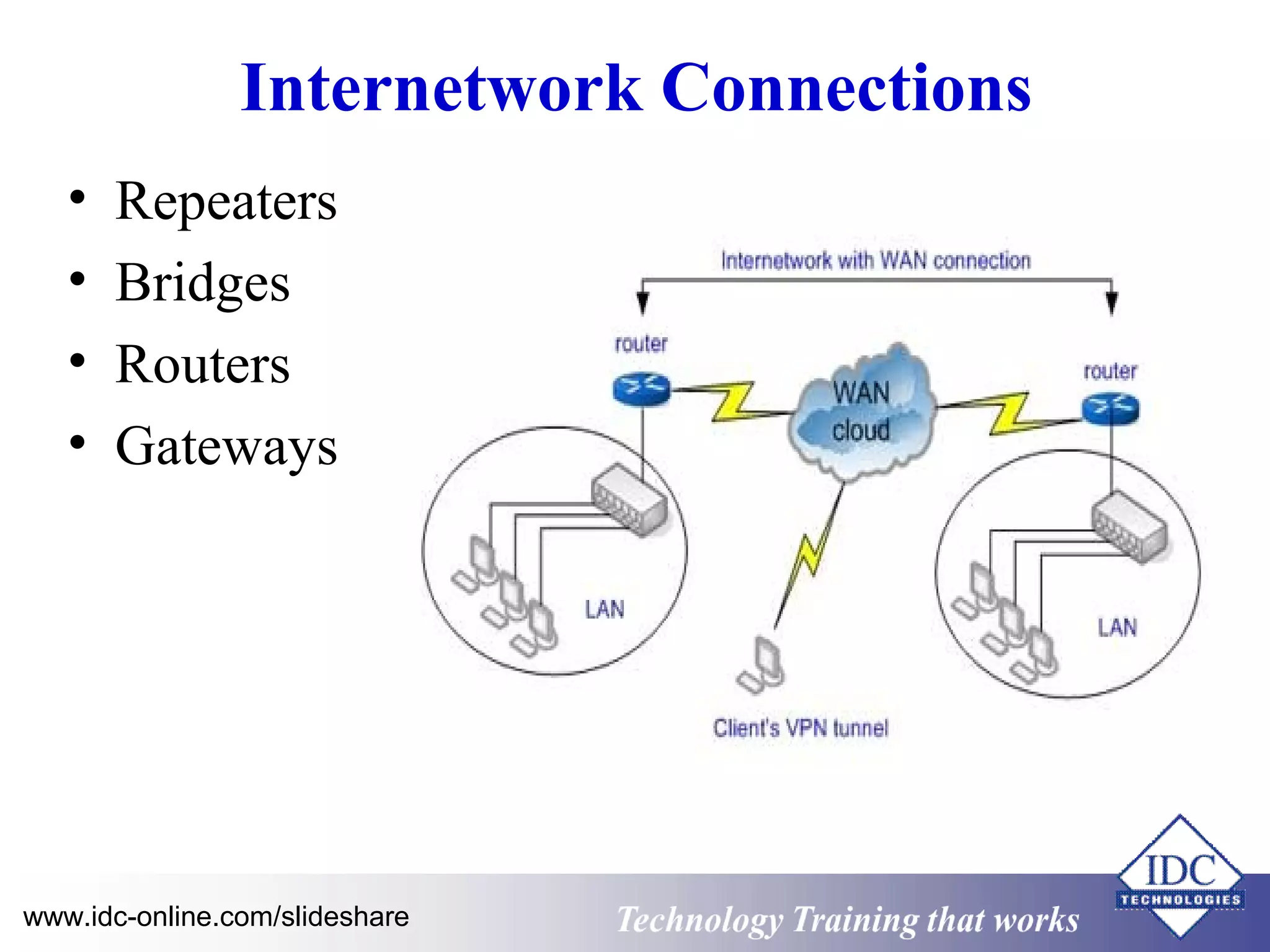

2. Internetwork Connections
• Repeaters
• Bridges
• Routers
• Gateways
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

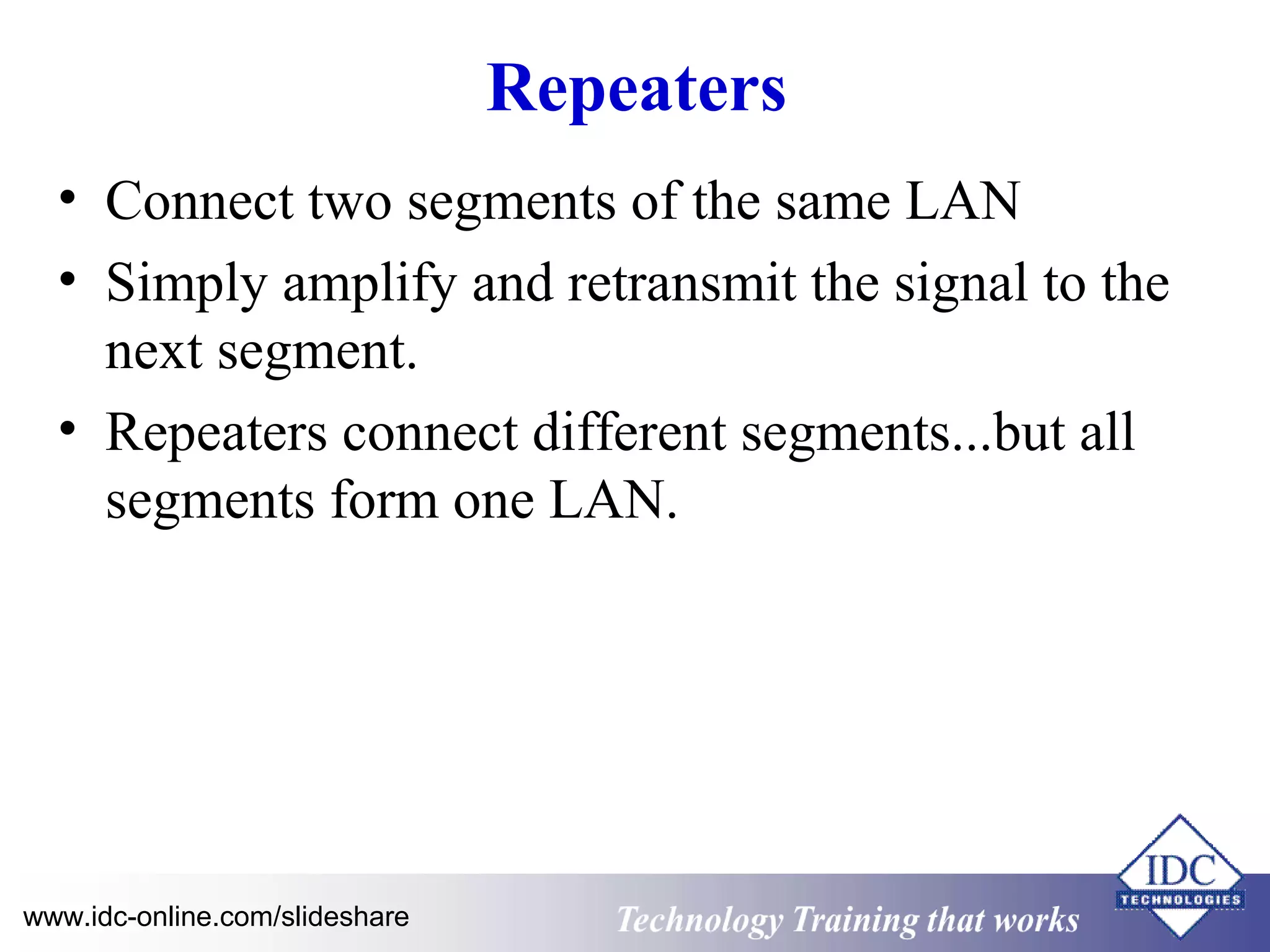

3. Repeaters
• Connect two segments of the same LAN
• Simply amplify and retransmit the signal to the
next segment.
• Repeaters connect different segments...but all
segments form one LAN.
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

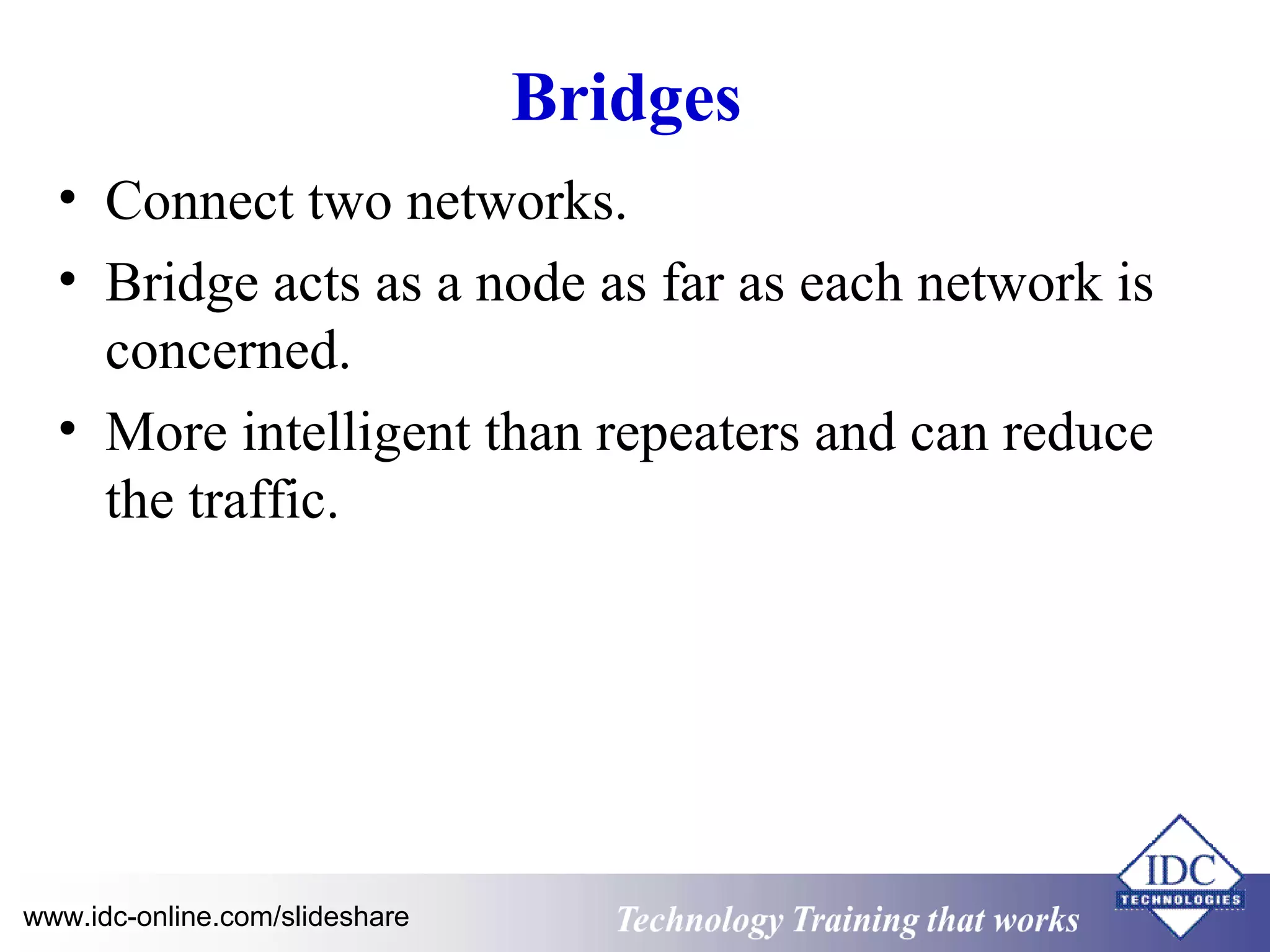

4. Bridges
• Connect two networks.
• Bridge acts as a node as far as each network is
concerned.
• More intelligent than repeaters and can reduce
the traffic.
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

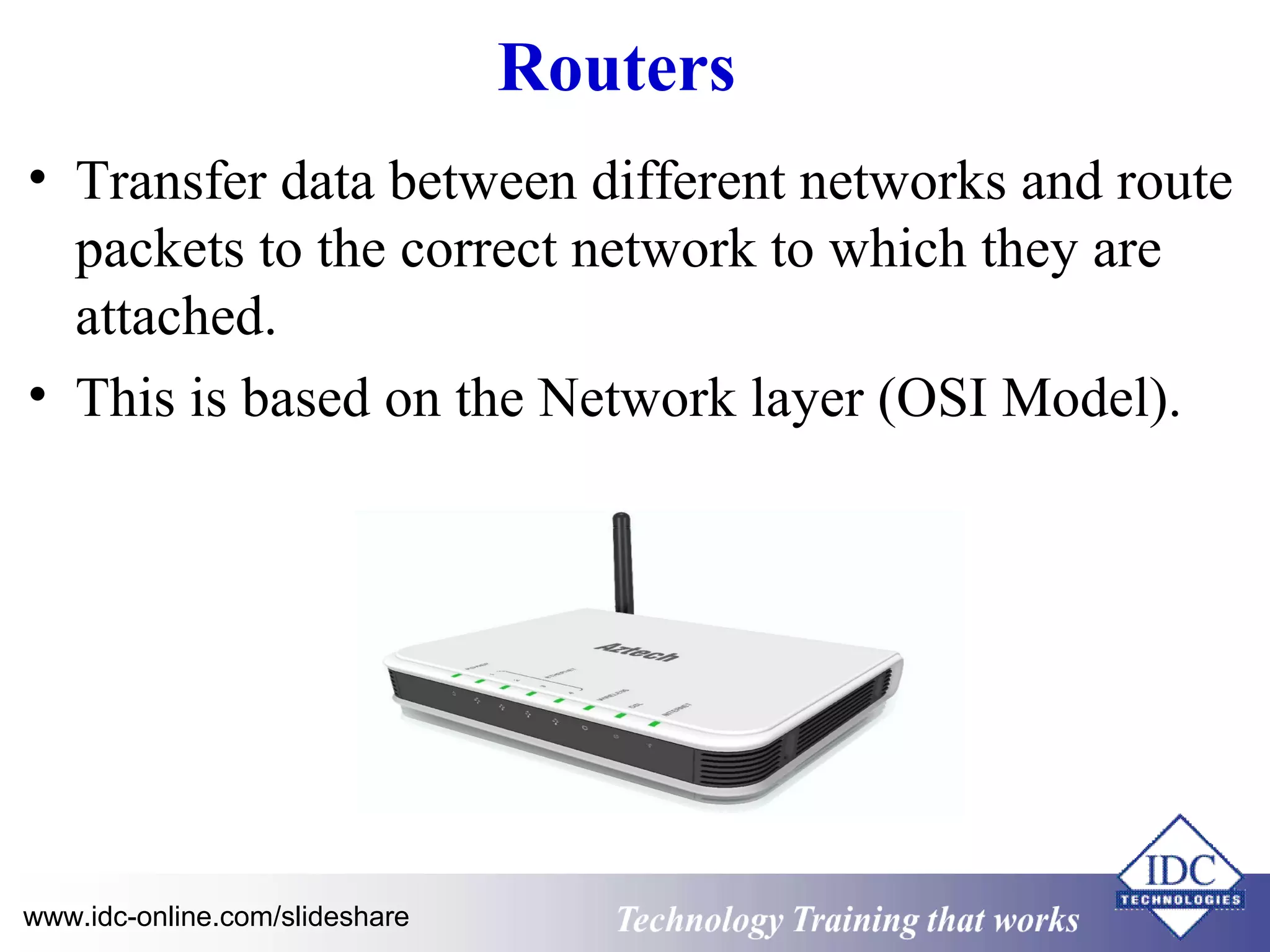

5. Routers
• Transfer data between different networks and route
packets to the correct network to which they are
attached.
• This is based on the Network layer (OSI Model).
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

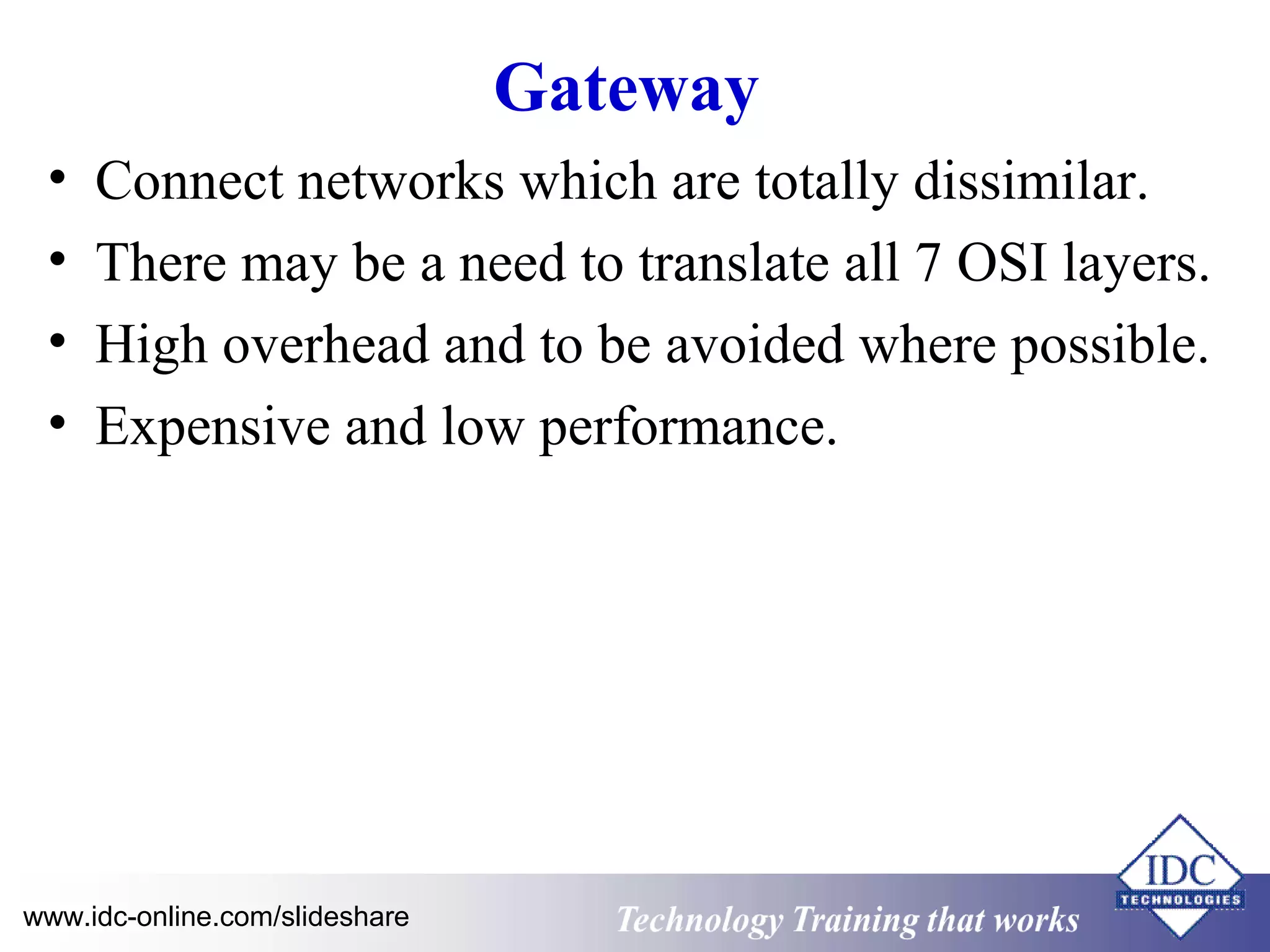

6. Gateway
• Connect networks which are totally dissimilar.
• There may be a need to translate all 7 OSI layers.
• High overhead and to be avoided where possible.
• Expensive and low performance.
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

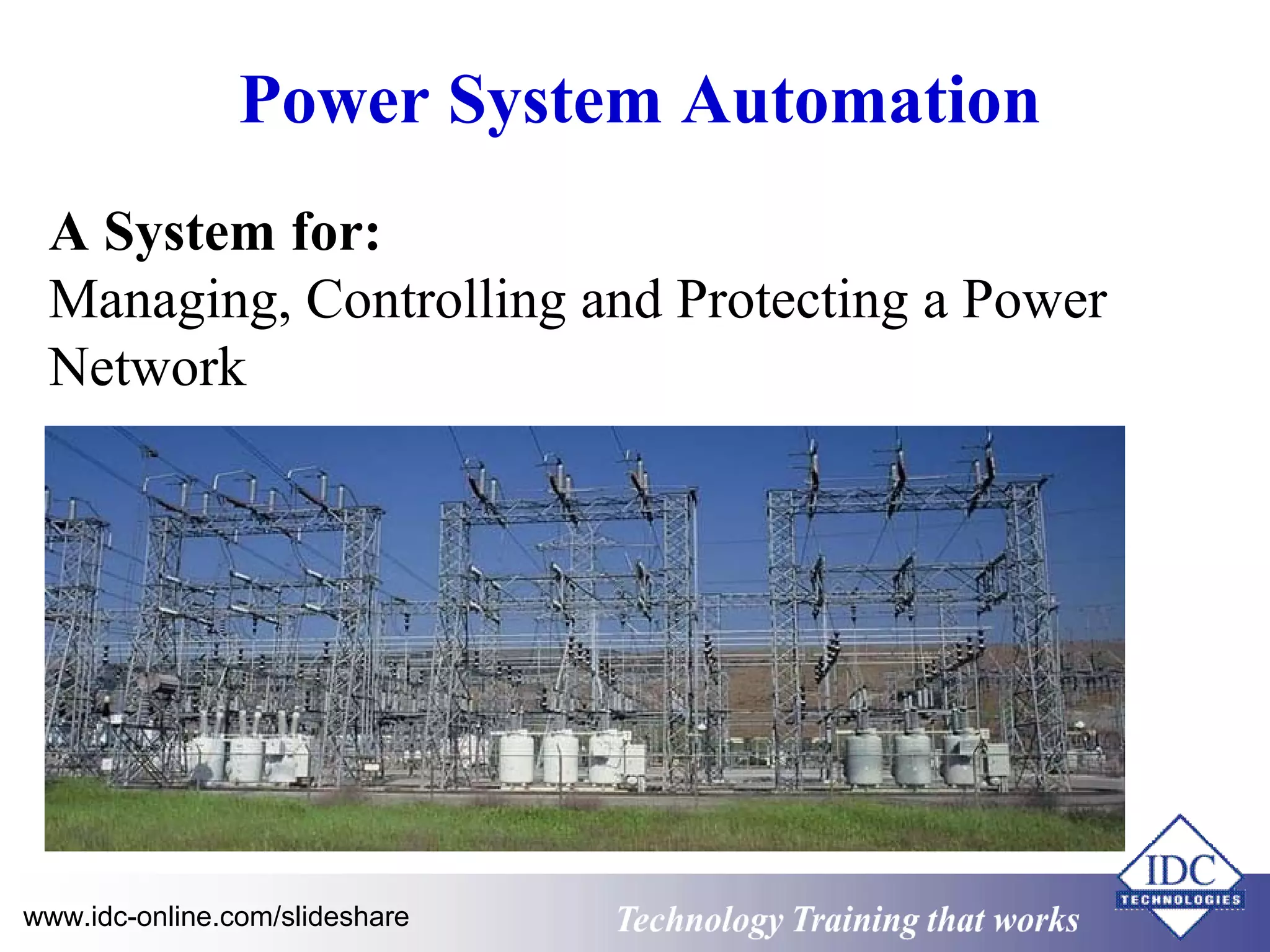

7. Power System Automation
A System for:
Managing, Controlling and Protecting a Power
Network
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

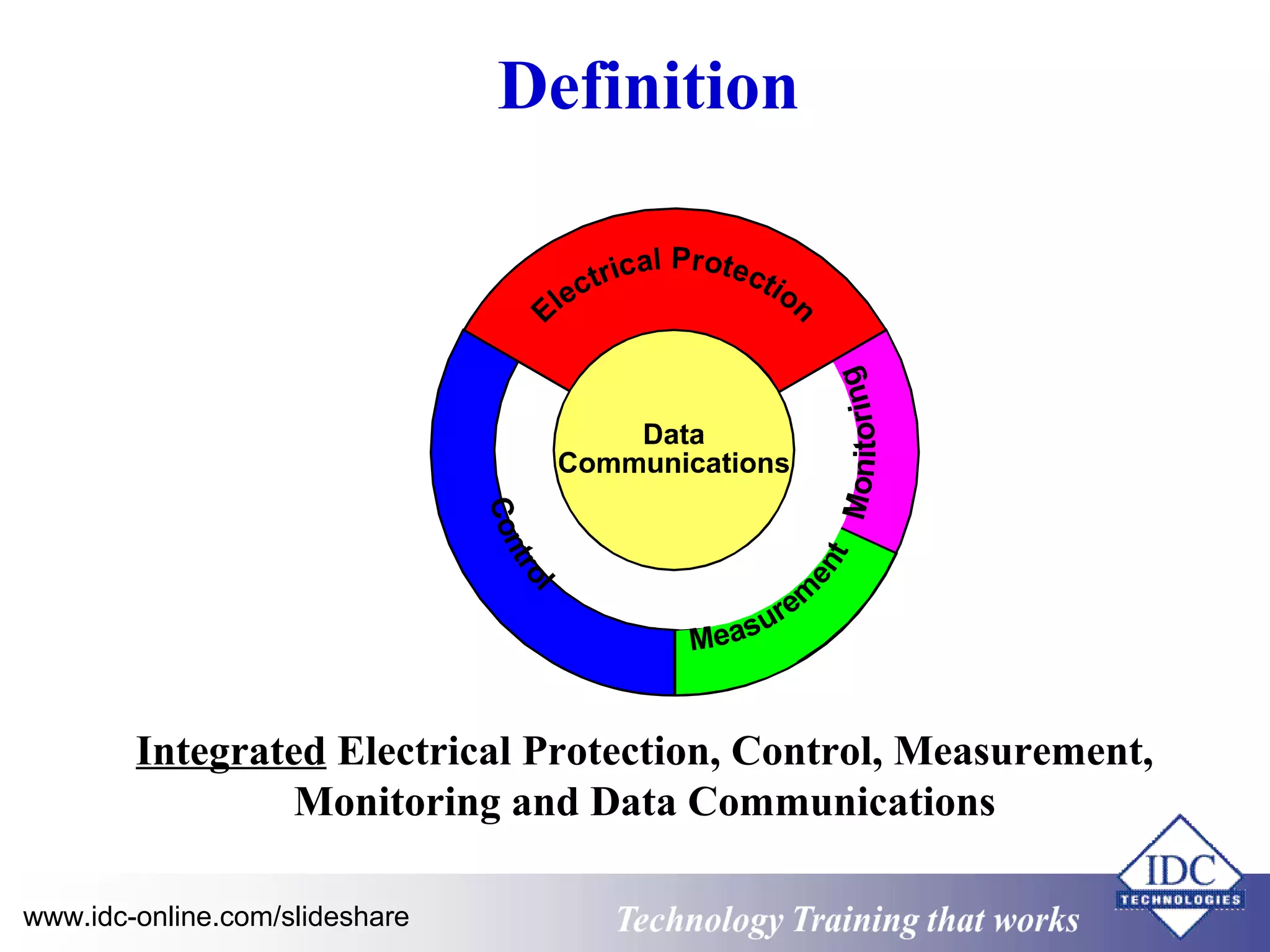

8. Definition
Integrated Electrical Protection, Control, Measurement,
Monitoring and Data Communications
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

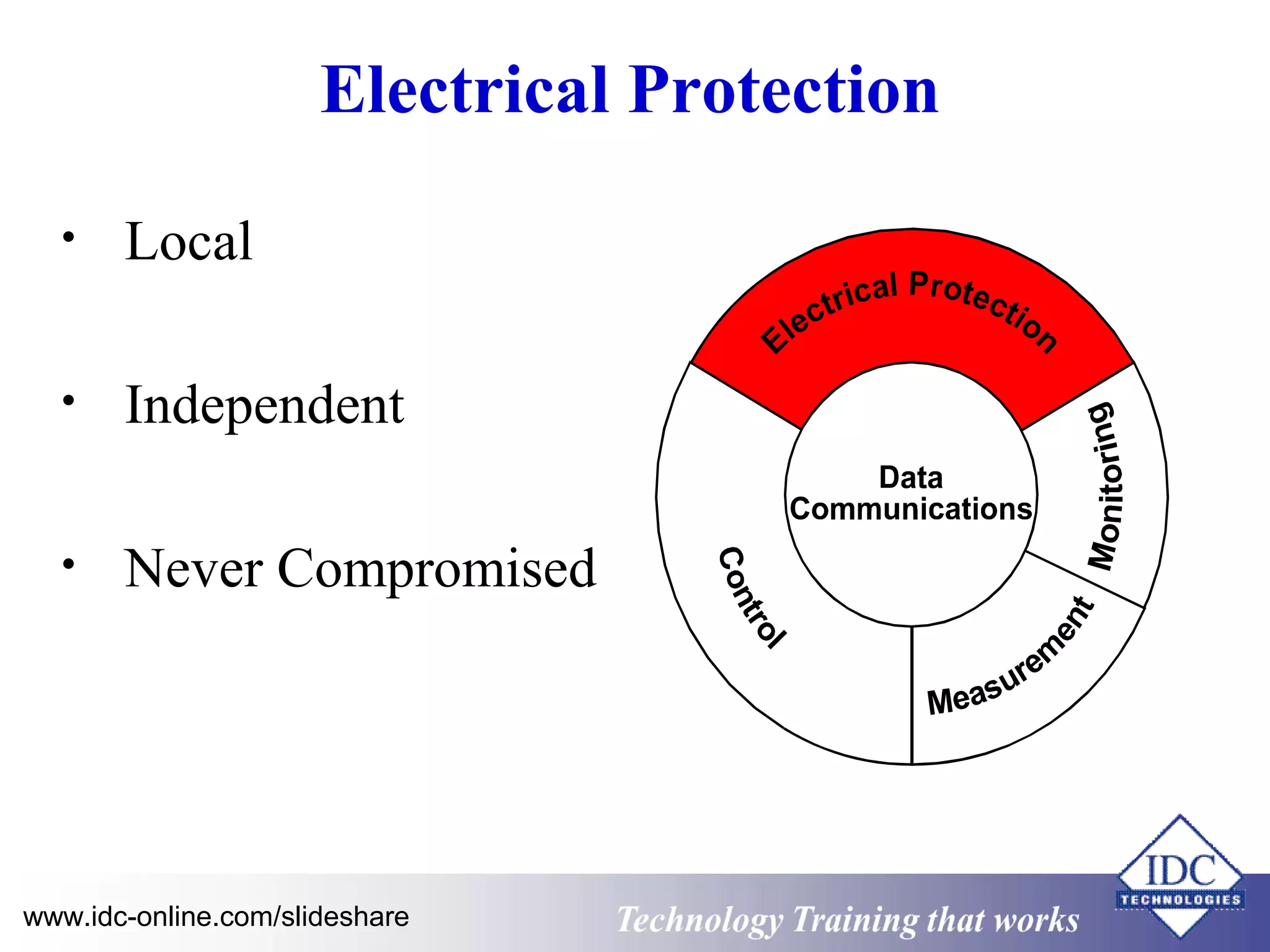

9. Electrical Protection
• Local
• Independent
• Never Compromised
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

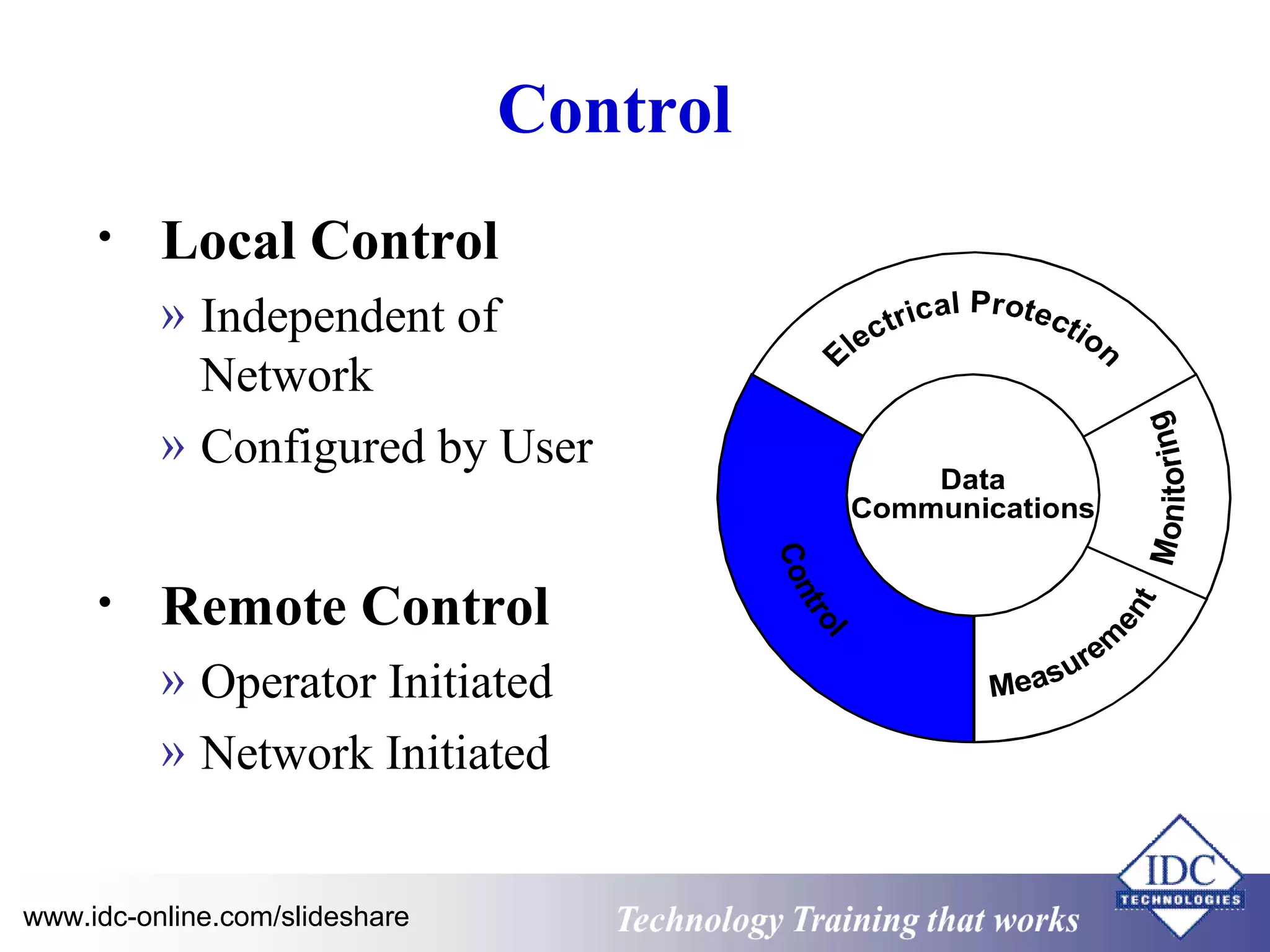

10. Control
• Local Control
» Independent of
Network
» Configured by User
• Remote Control
» Operator Initiated
» Network Initiated
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

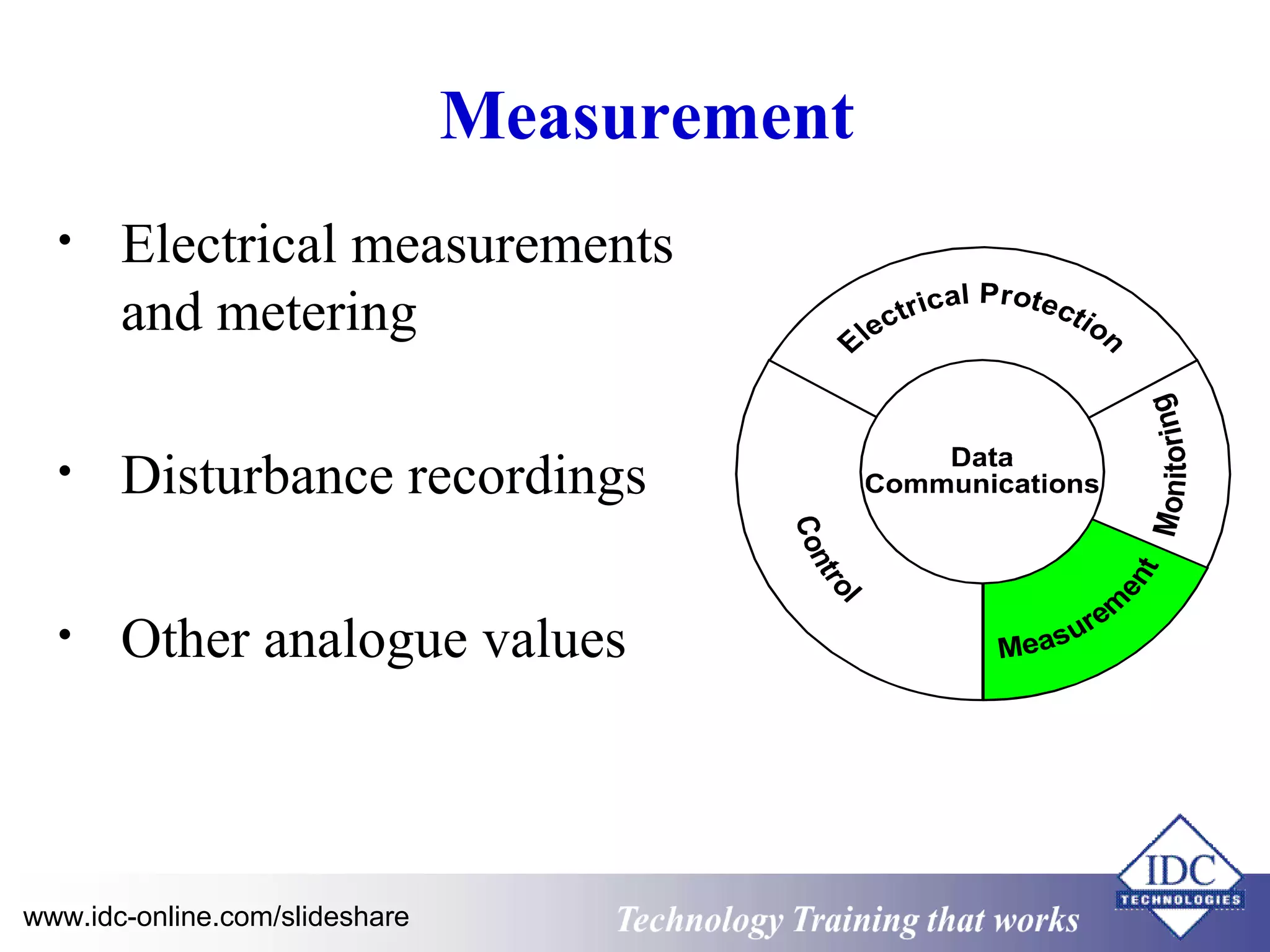

11. Measurement
• Electrical measurements
and metering
• Disturbance recordings
• Other analogue values
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

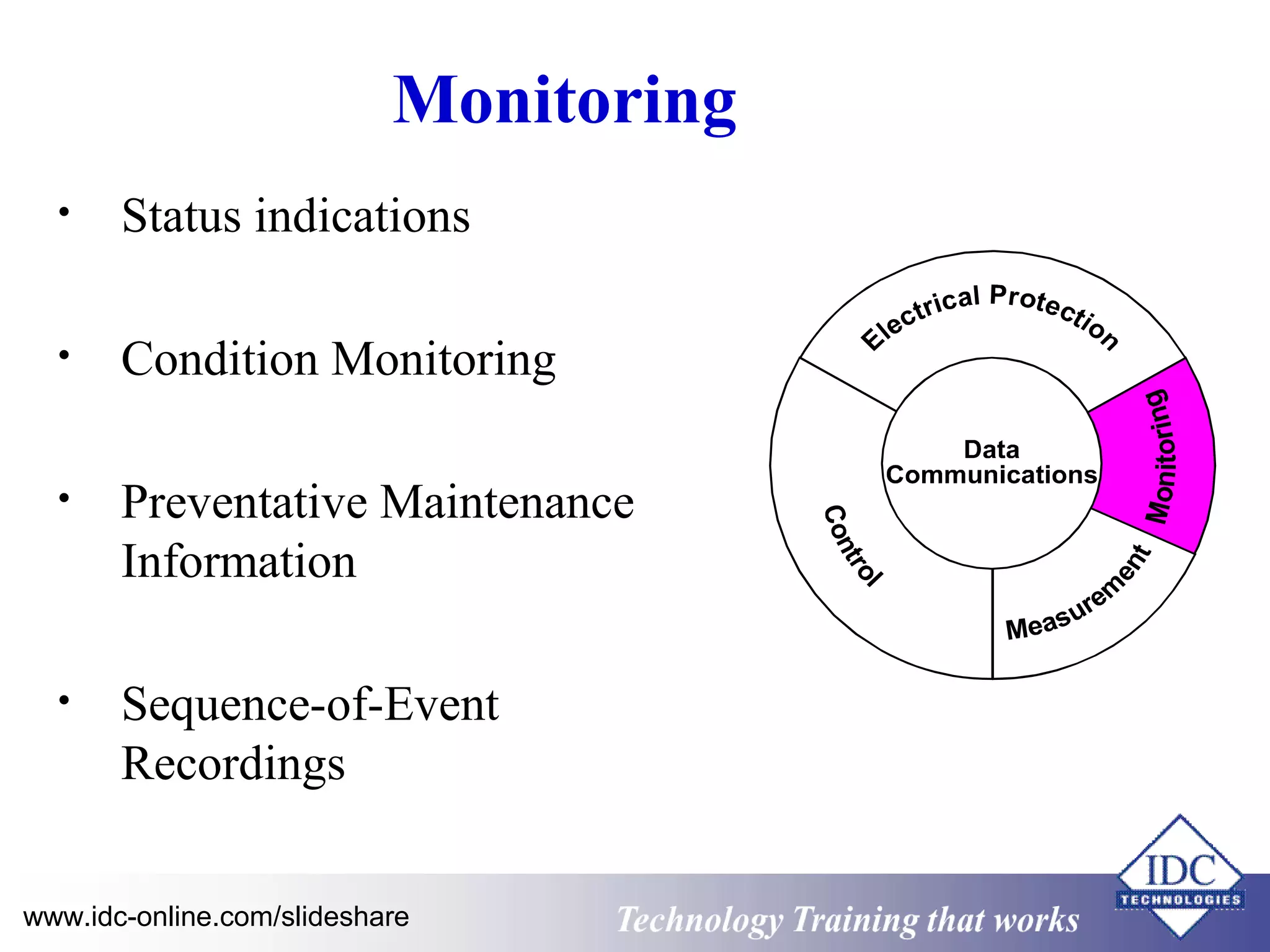

12. Monitoring
• Status indications
• Condition Monitoring
• Preventative Maintenance
Information
• Sequence-of-Event
Recordings
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

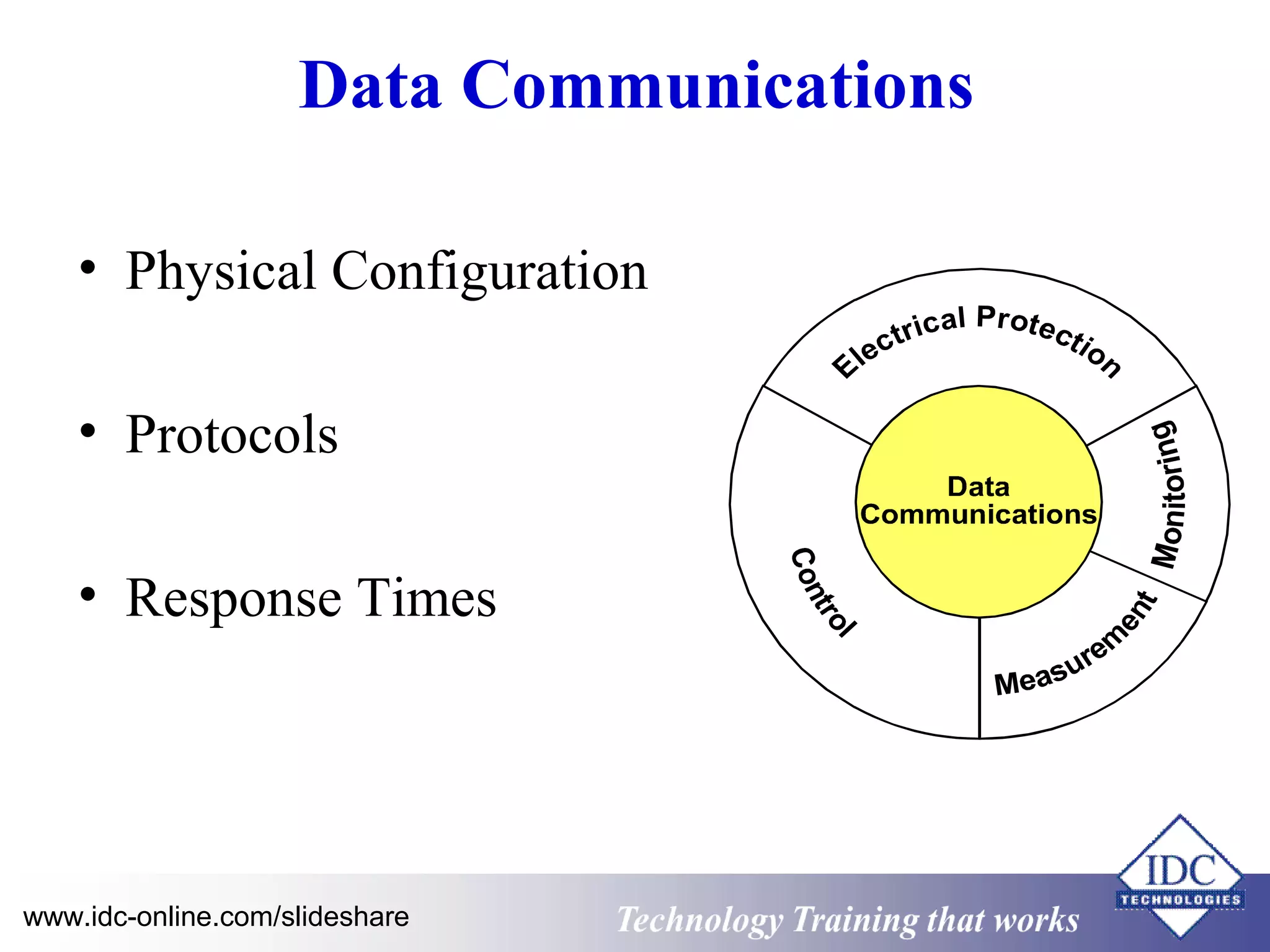

13. Data Communications
• Physical Configuration
• Protocols
• Response Times
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

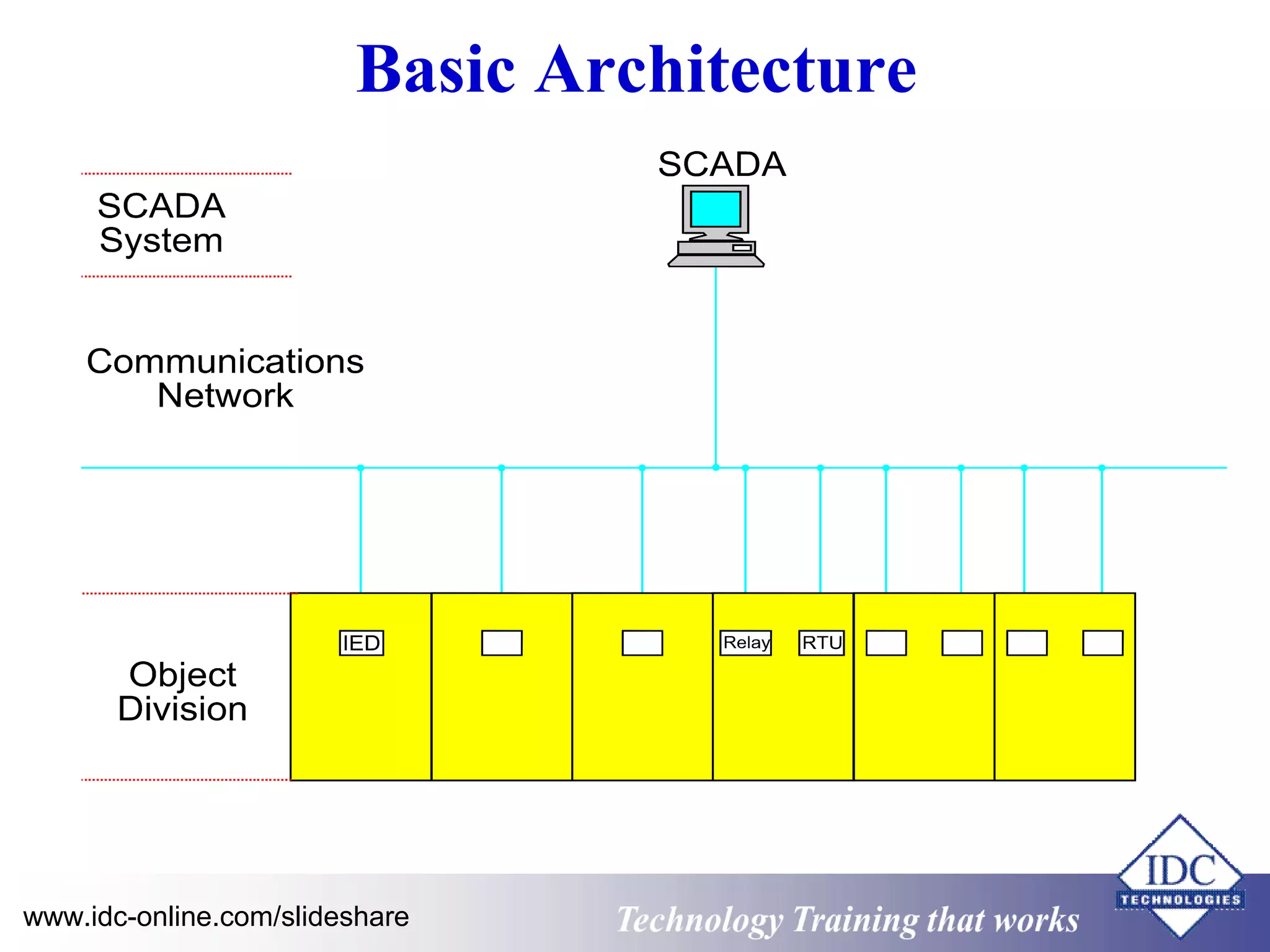

14. Basic Architecture
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

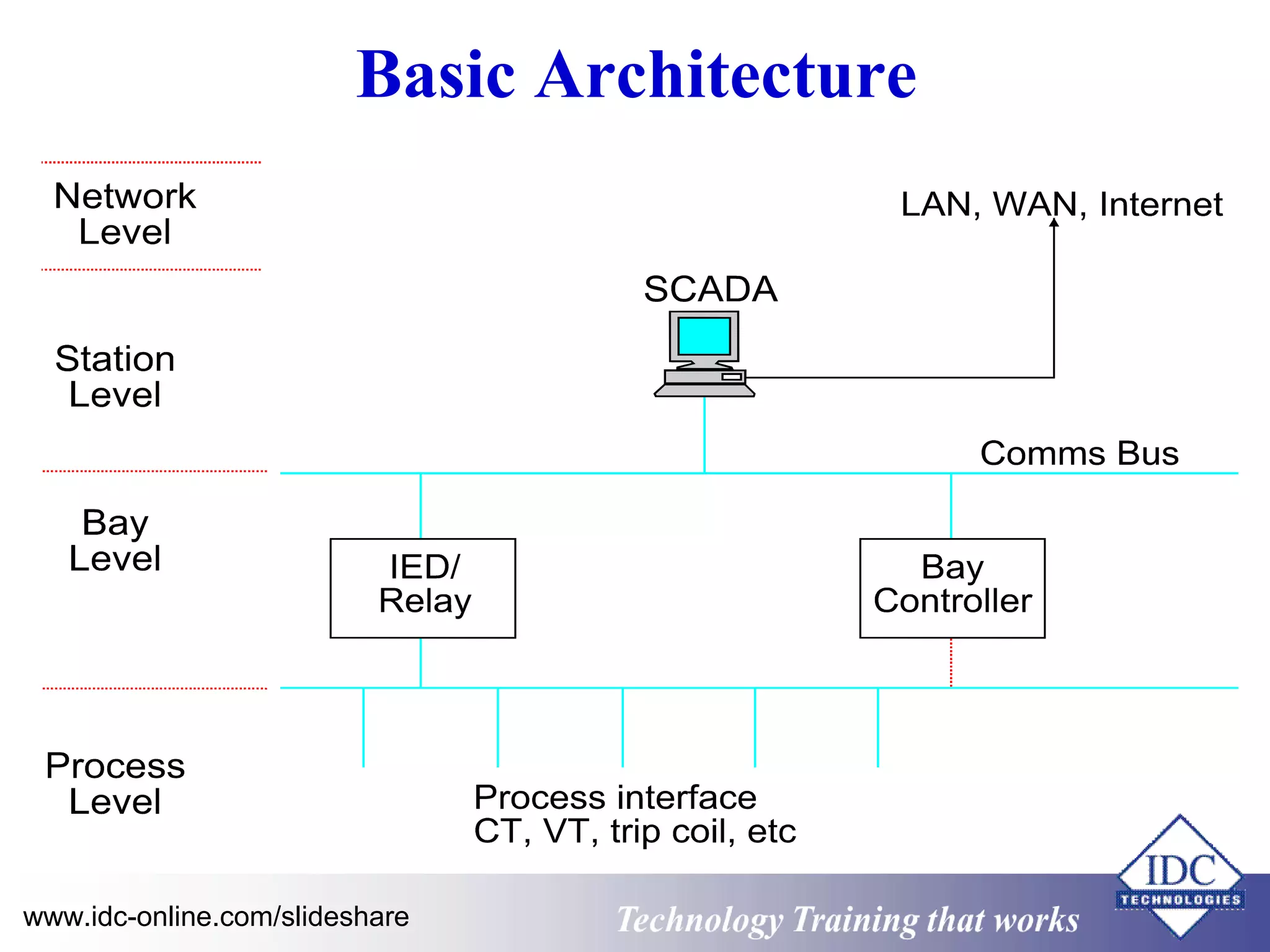

15. Basic Architecture
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

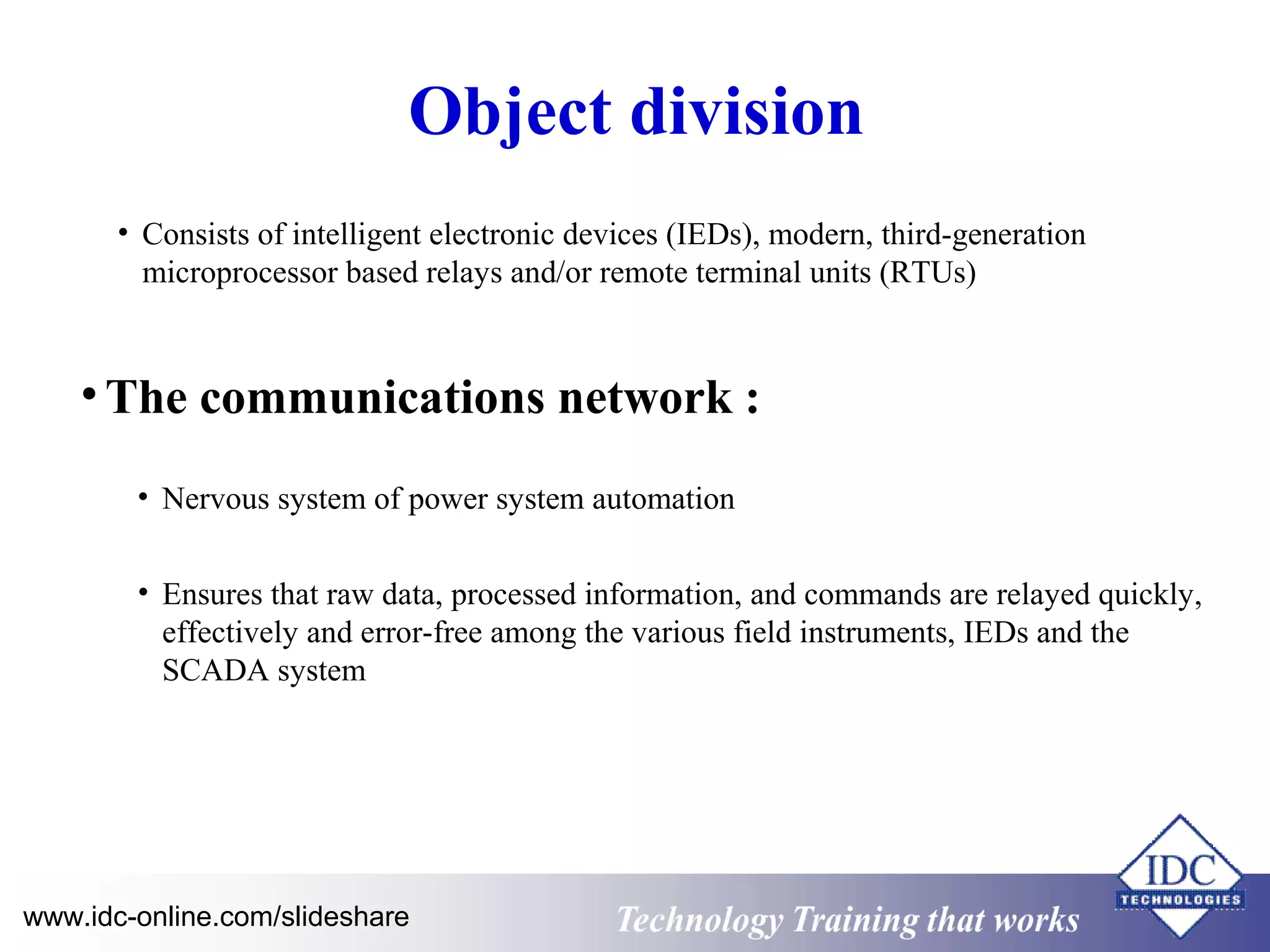

16. Object division
• Consists of intelligent electronic devices (IEDs), modern, third-generation
microprocessor based relays and/or remote terminal units (RTUs)
•The communications network :
• Nervous system of power system automation
• Ensures that raw data, processed information, and commands are relayed quickly,
effectively and error-free among the various field instruments, IEDs and the
SCADA system
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss

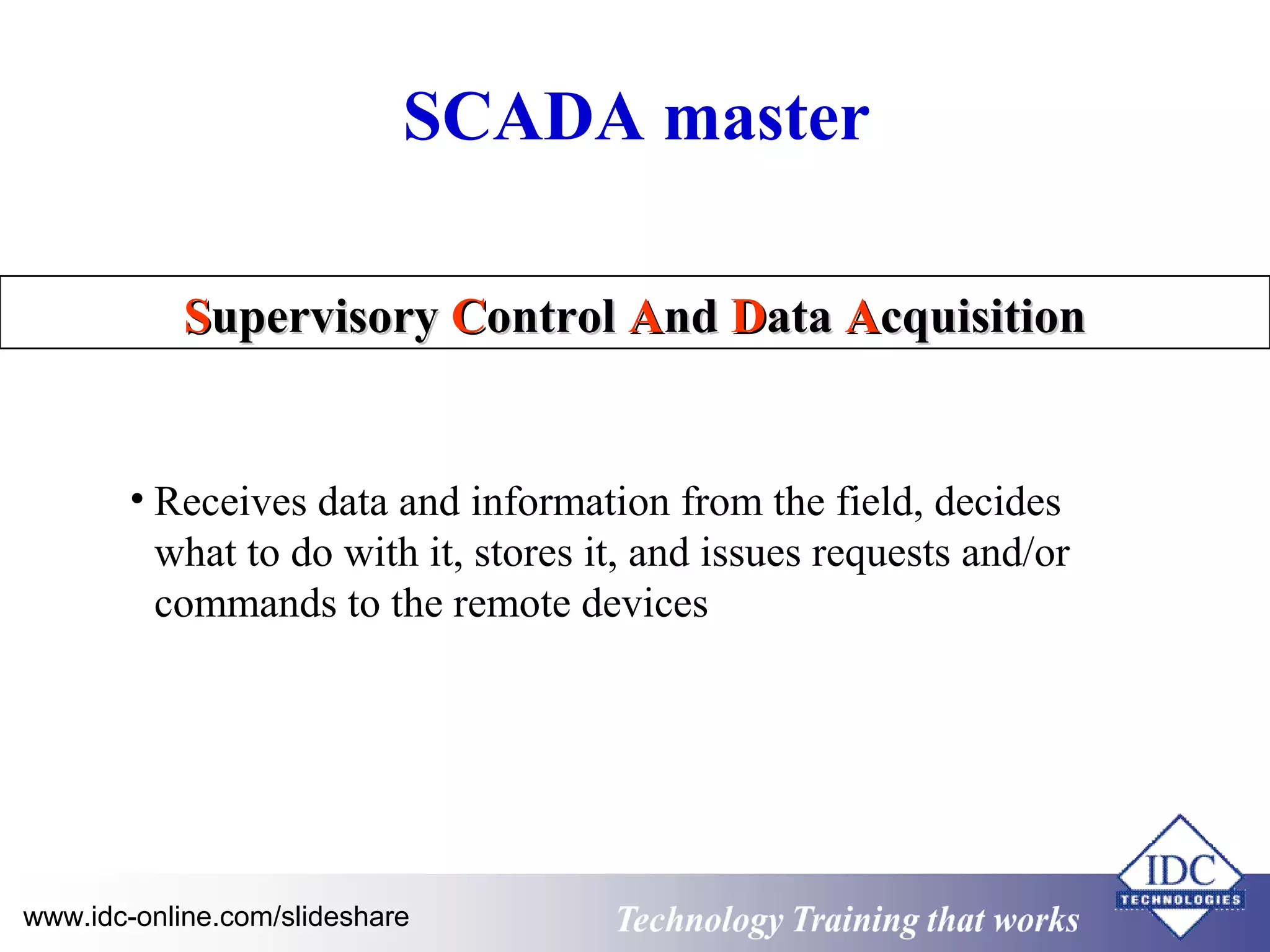

17. SCADA master
SSuuppeerrvviissoorryy CCoonnttrrooll AAnndd DDaattaa AAccqquuiissiittiioonn
• Receives data and information from the field, decides
what to do with it, stores it, and issues requests and/or
commands to the remote devices
Technology www.idc-online.com/slideshare Technology T Trraainininingg t hthaat tW Woorrkkss
