SCADA systems are used to monitor and control geographically dispersed assets, like pipelines, power grids, and water distribution systems. SCADA systems connect to physical equipment like sensors and valves and gather data which is sent to centralized data acquisition systems for monitoring and processing. Key components of SCADA systems include remote terminal units for data collection, programmable logic controllers, telemetry systems for data transfer, and human-machine interfaces for display of information. SCADA systems provide advantages like reduced costs and increased efficiency for monitoring large remote assets.

1. -by
SHAIKH SAMIULLAH M
3rd Year (5th SEMESTER)
Electrical Engineering DEPT.
Roll No. 13231

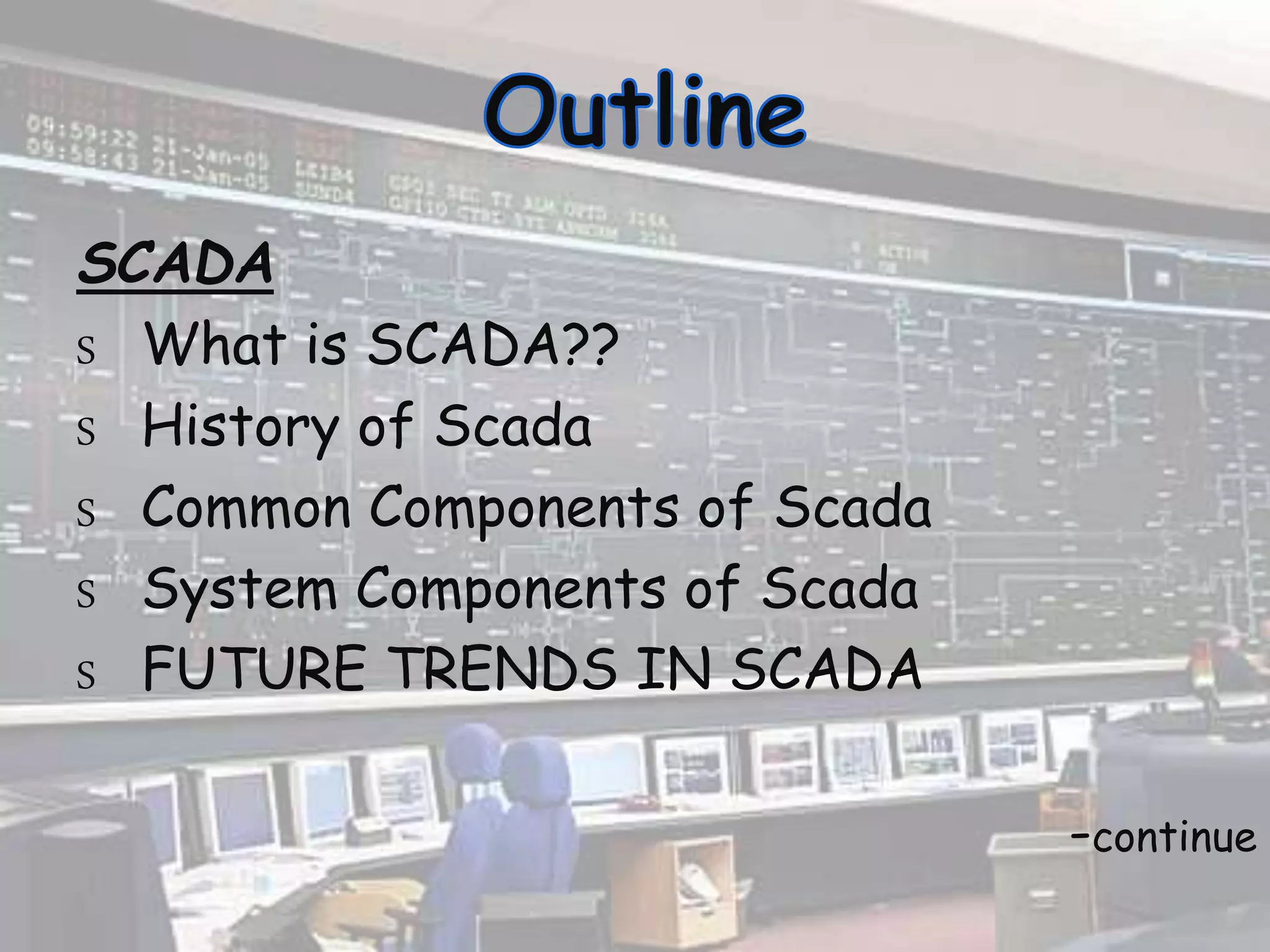

2. SCADA
S What is SCADA??
S History of Scada
S Common Components of Scada
S System Components of Scada
S FUTURE TRENDS IN SCADA
-continue

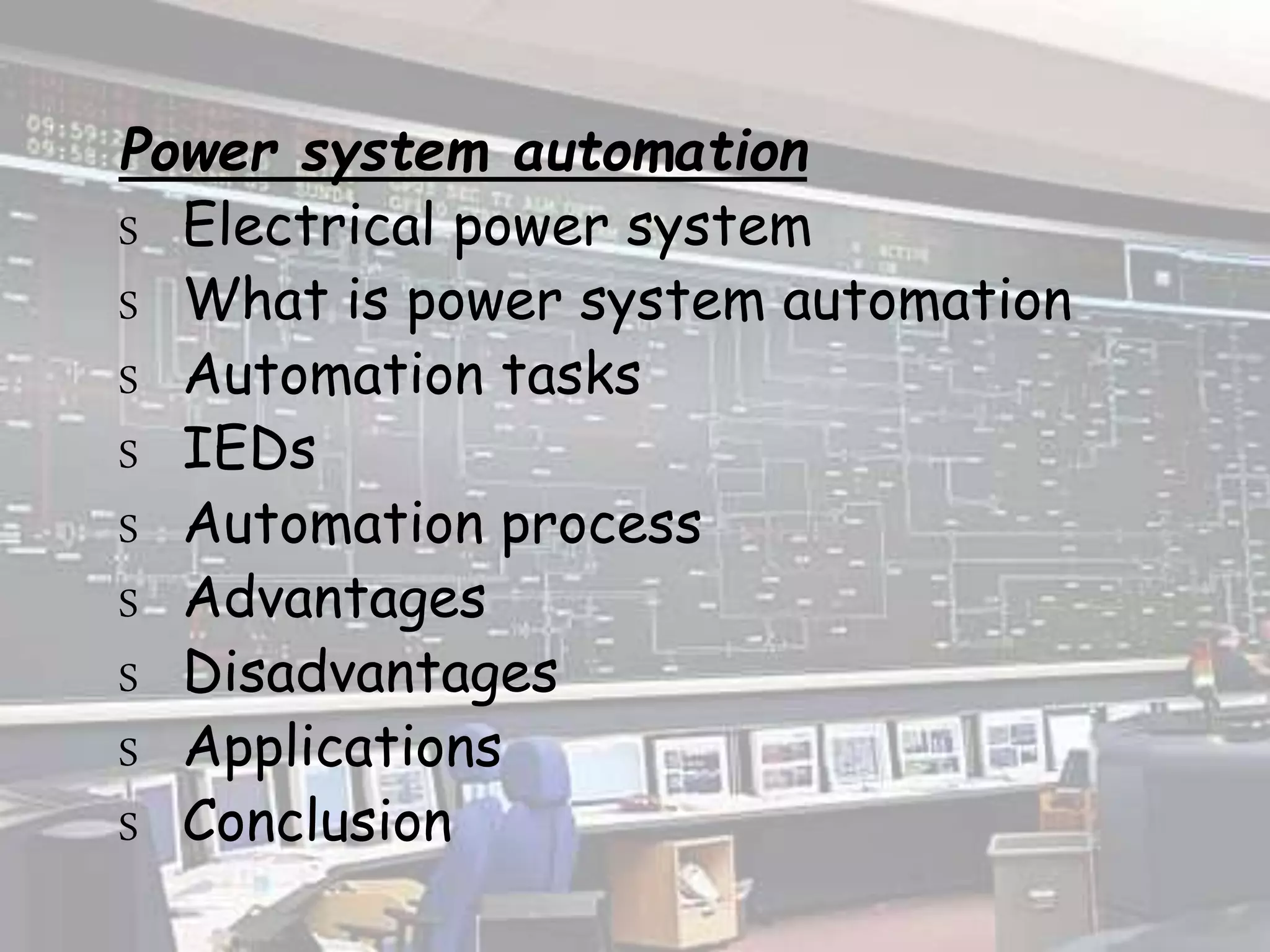

3. Power system automation

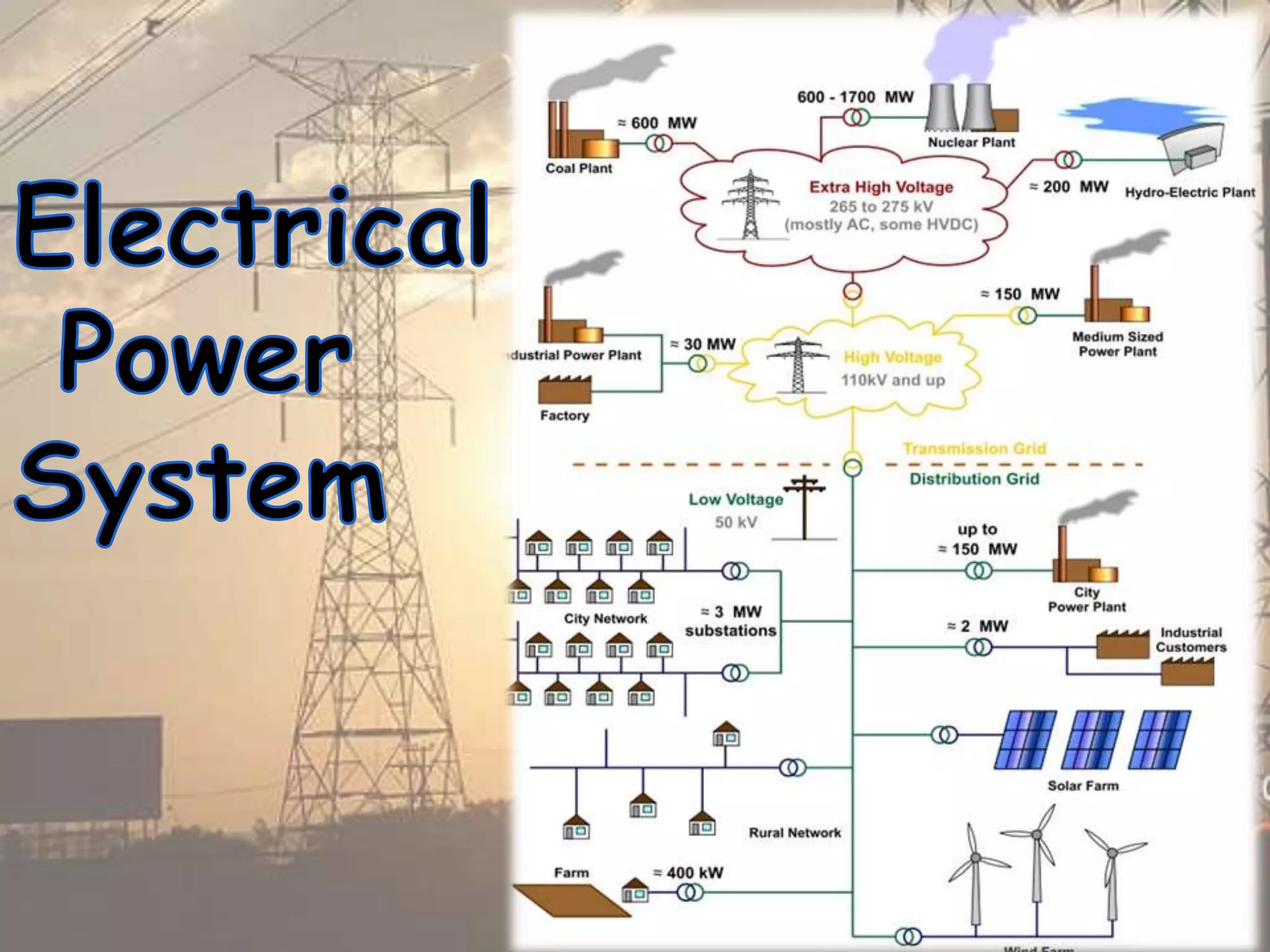

S Electrical power system
S What is power system automation
S Automation tasks
S IEDs
S Automation process

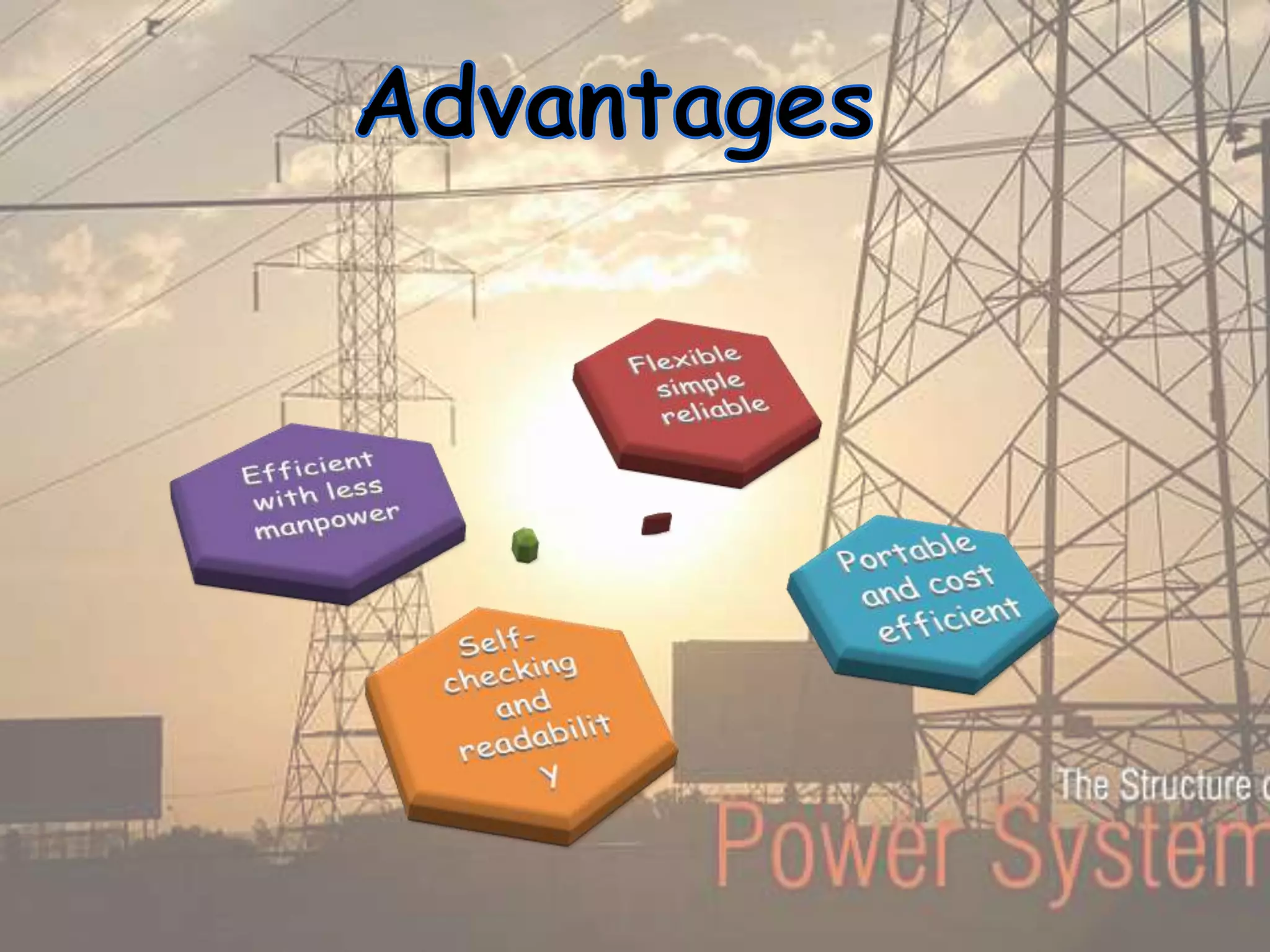

S Advantages
S Disadvantages
S Applications
S Conclusion

4. Supervisory
Control
And
Data
Acquisition

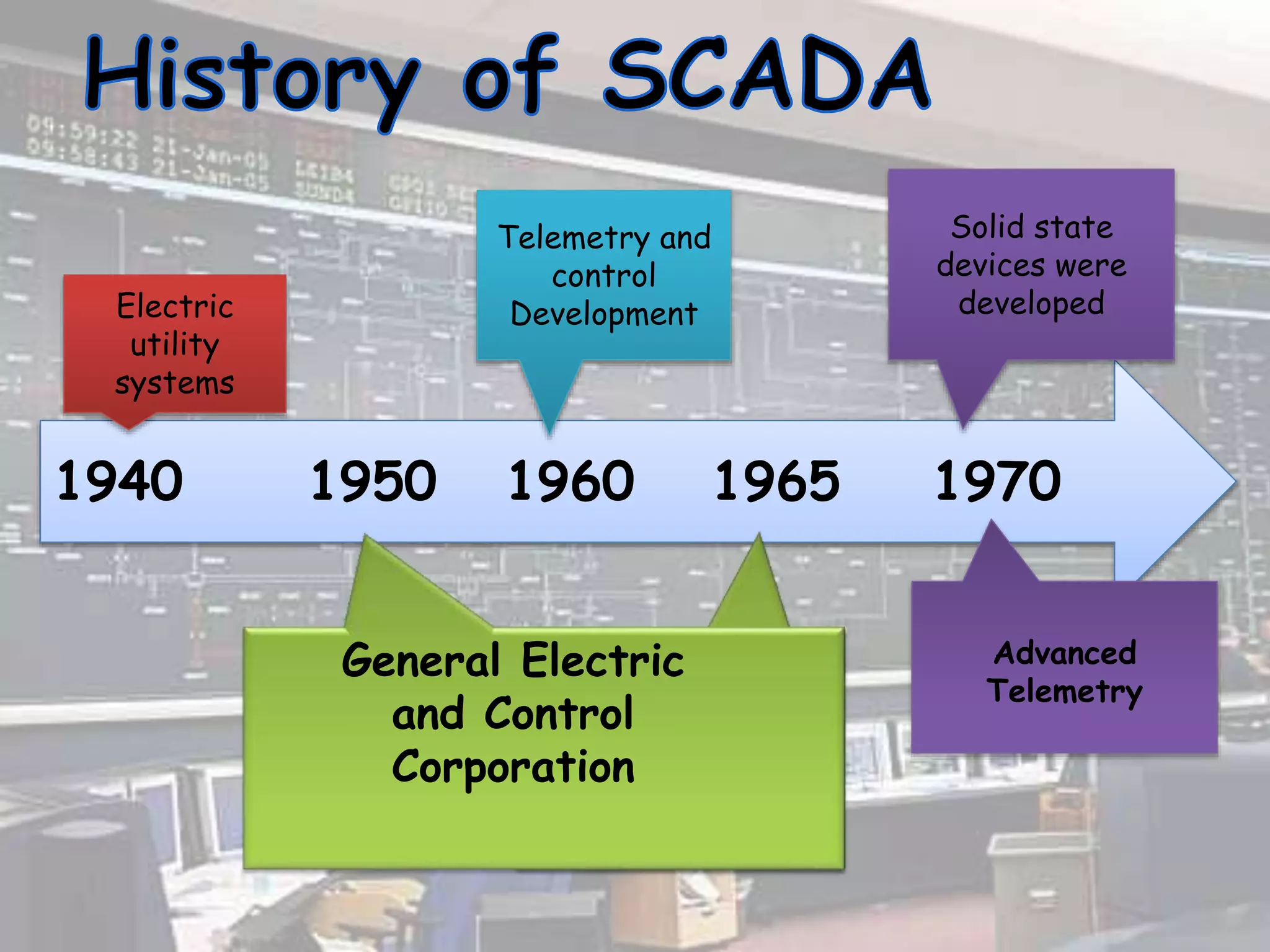

5. 1940 1950 1960 1965 1970
Electric
utility
systems
Telemetry and
control
Development
General Electric
and Control
Corporation
Solid state
devices were
developed
Advanced
Telemetry

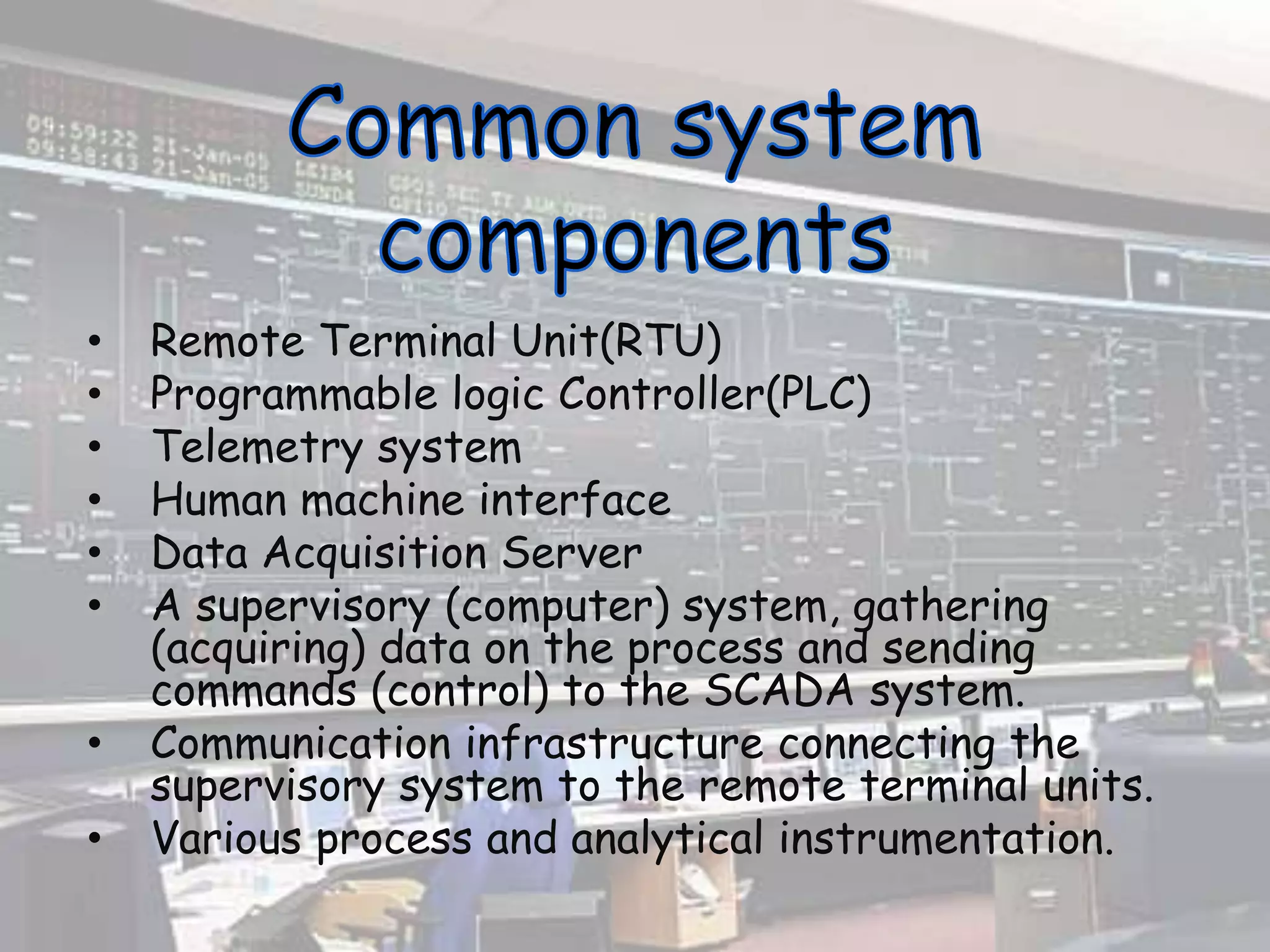

6. • Remote Terminal Unit(RTU)
• Programmable logic Controller(PLC)
• Telemetry system
• Human machine interface
• Data Acquisition Server
• A supervisory (computer) system, gathering
(acquiring) data on the process and sending
commands (control) to the SCADA system.
• Communication infrastructure connecting the
supervisory system to the remote terminal units.
• Various process and analytical instrumentation.

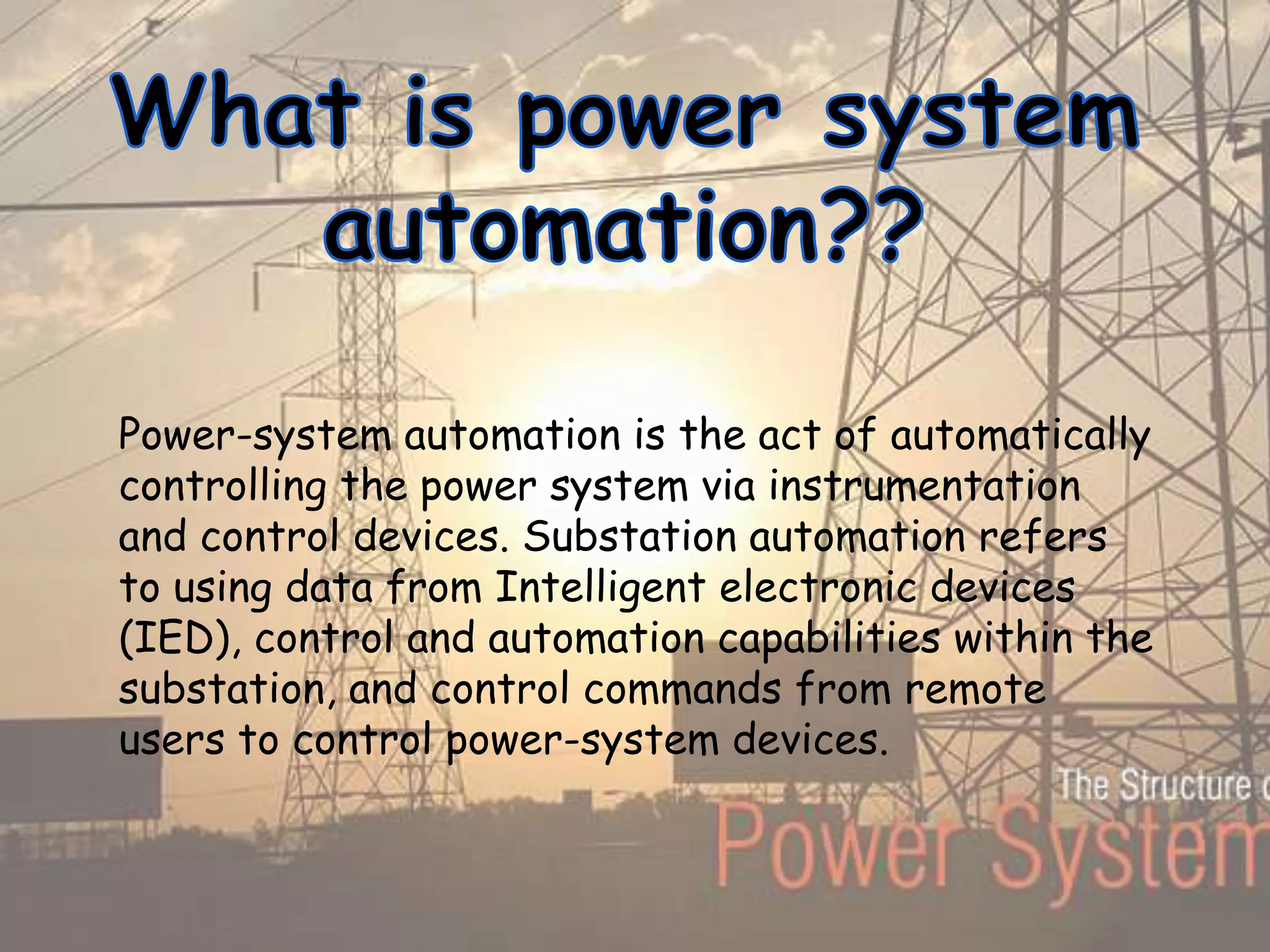

9. Power-system automation is the act of automatically
controlling the power system via instrumentation
and control devices. Substation automation refers
to using data from Intelligent electronic devices
(IED), control and automation capabilities within the
substation, and control commands from remote
users to control power-system devices.

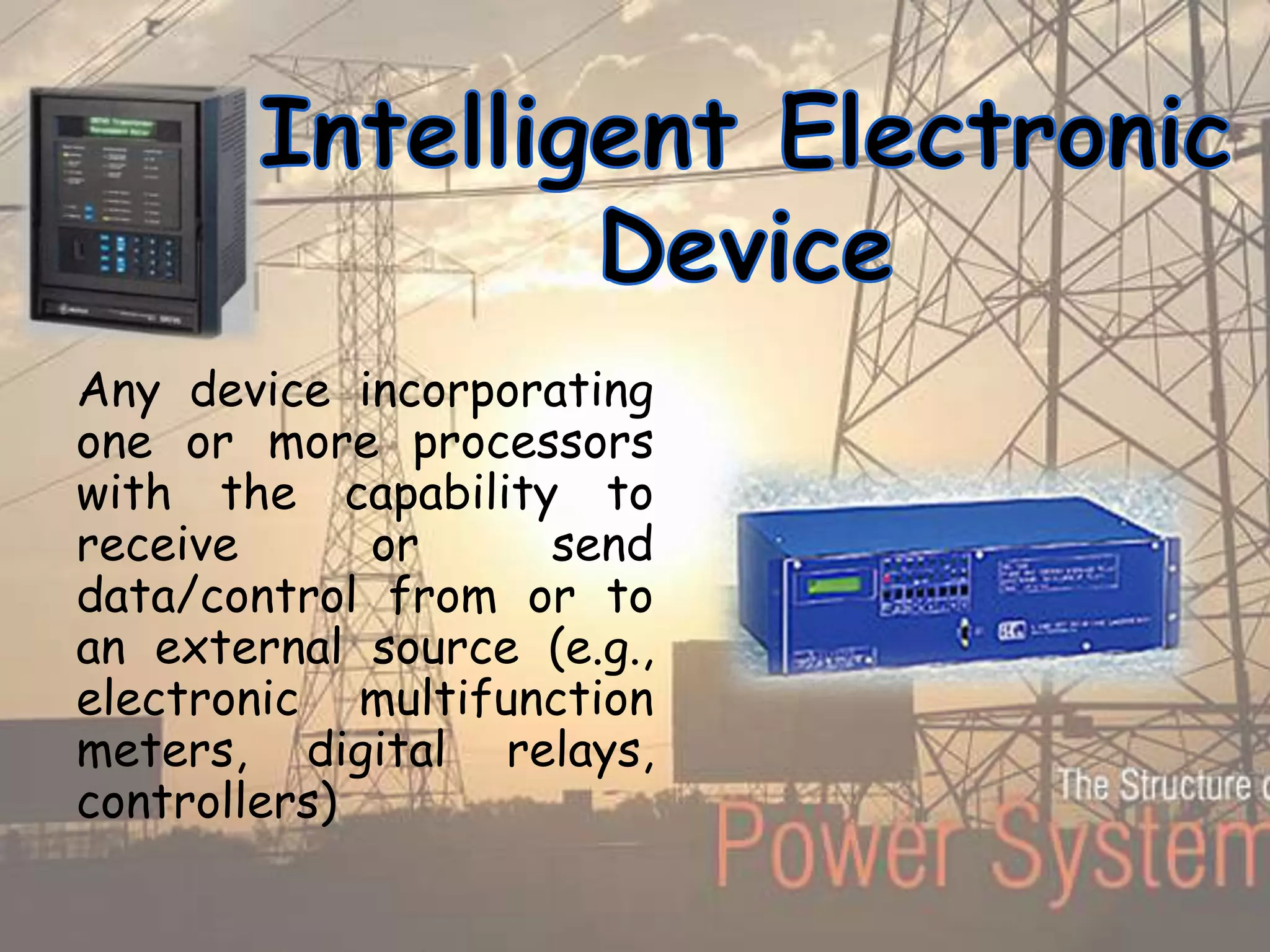

10. Any device incorporating
one or more processors
with the capability to
receive or send
data/control from or to
an external source (e.g.,
electronic multifunction
meters, digital relays,
controllers)

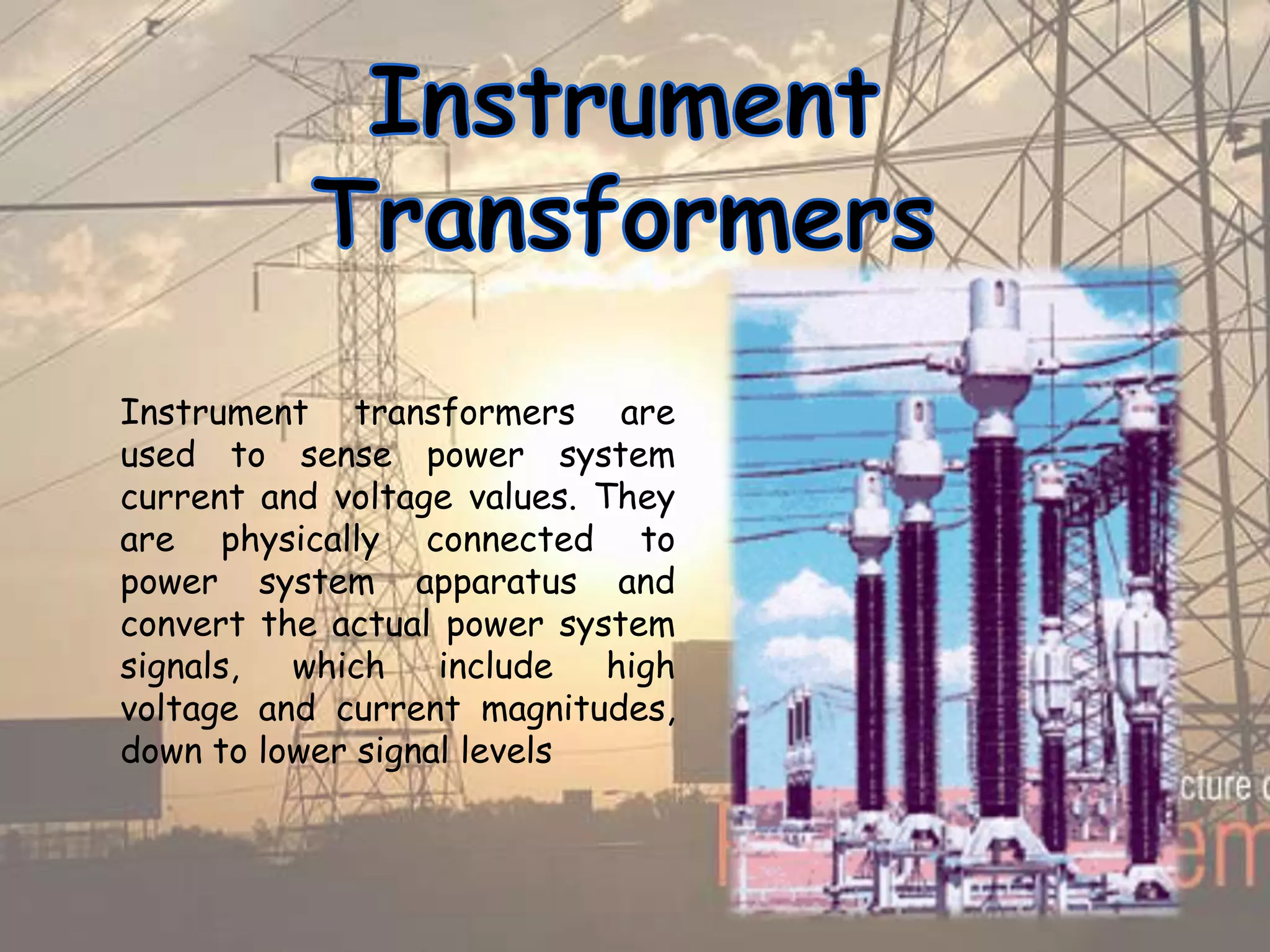

11. Instrument transformers are
used to sense power system
current and voltage values. They
are physically connected to
power system apparatus and
convert the actual power system
signals, which include high
voltage and current magnitudes,
down to lower signal levels

12. Transducers convert the
analog output of an
instrument transformer from
one magnitude to another or
from one value type to
another, such as from an ac
current to dc voltage.

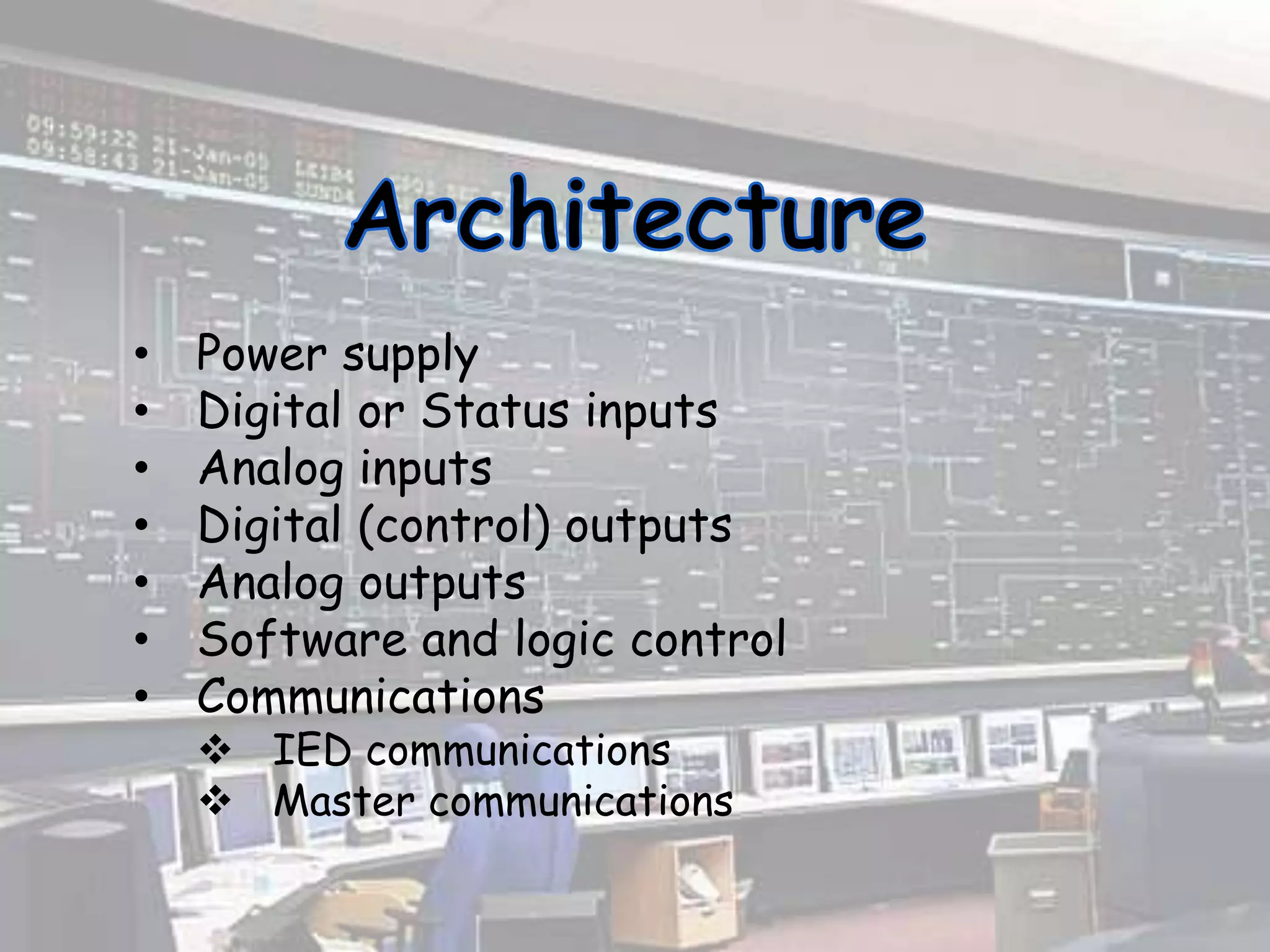

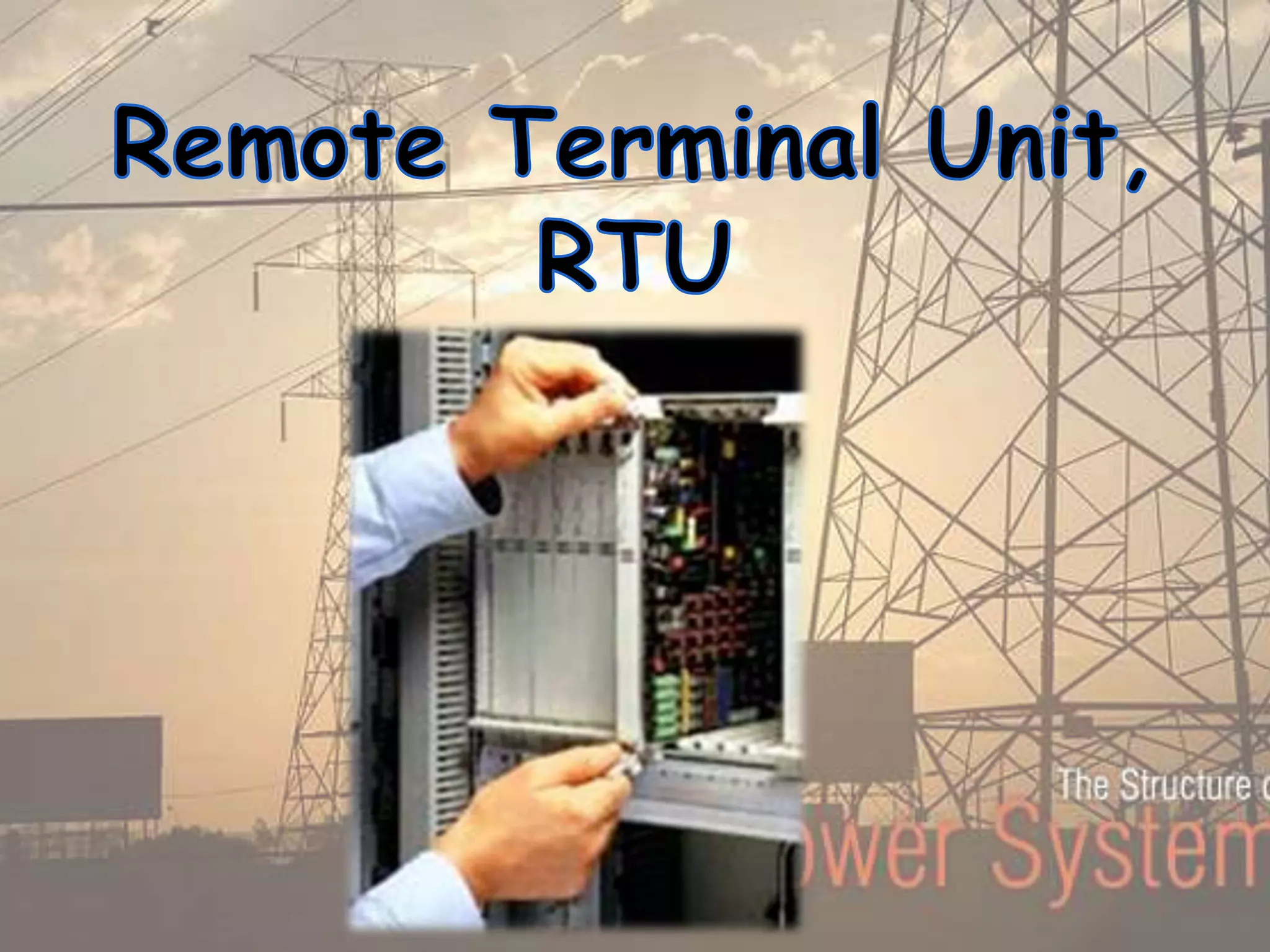

14. • Power supply
• Digital or Status inputs
• Analog inputs
• Digital (control) outputs
• Analog outputs
• Software and logic control
• Communications
 IED communications
 Master communications

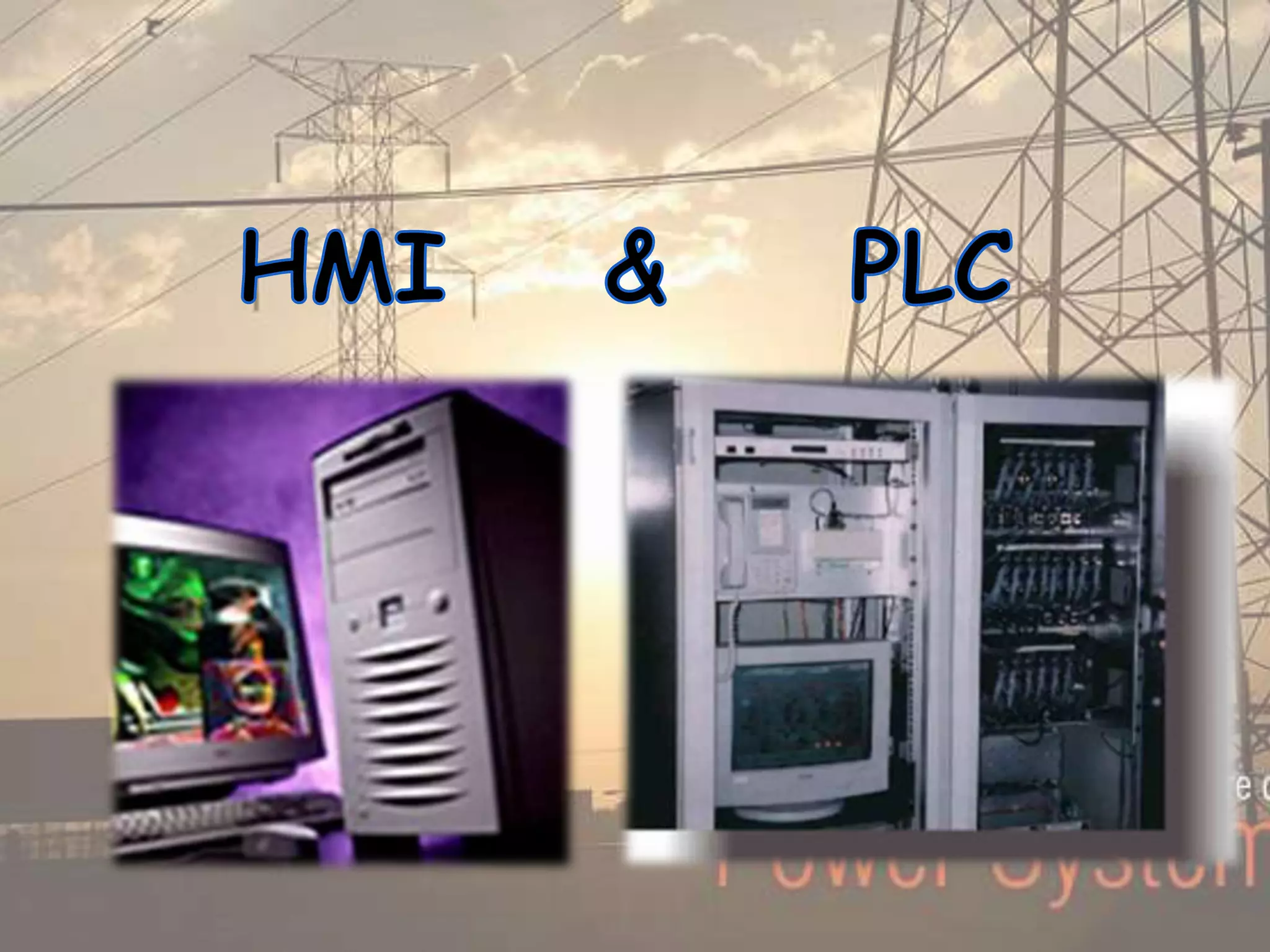

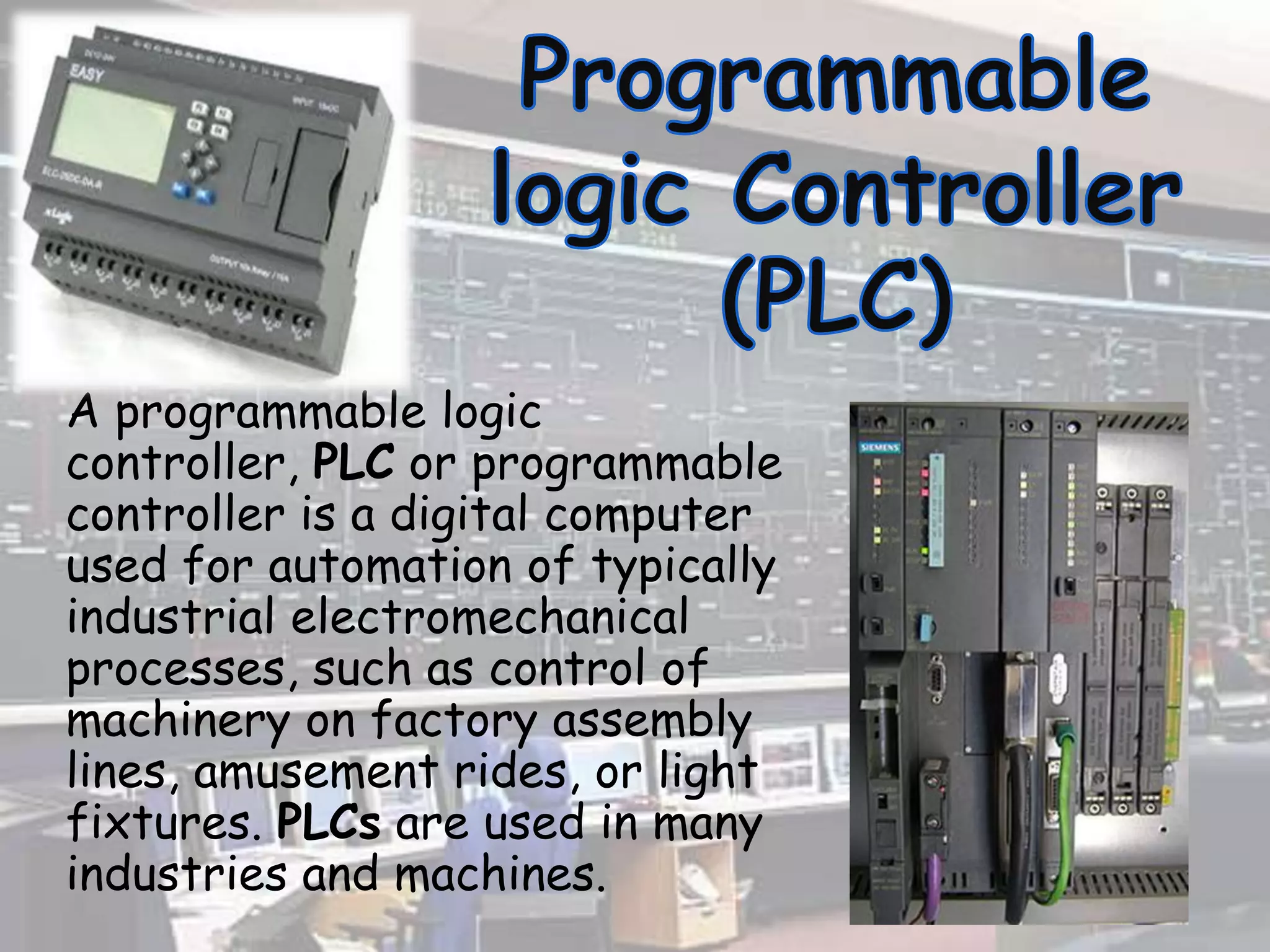

15. A programmable logic
controller, PLC or programmable
controller is a digital computer
used for automation of typically
industrial electromechanical
processes, such as control of
machinery on factory assembly
lines, amusement rides, or light
fixtures. PLCs are used in many
industries and machines.

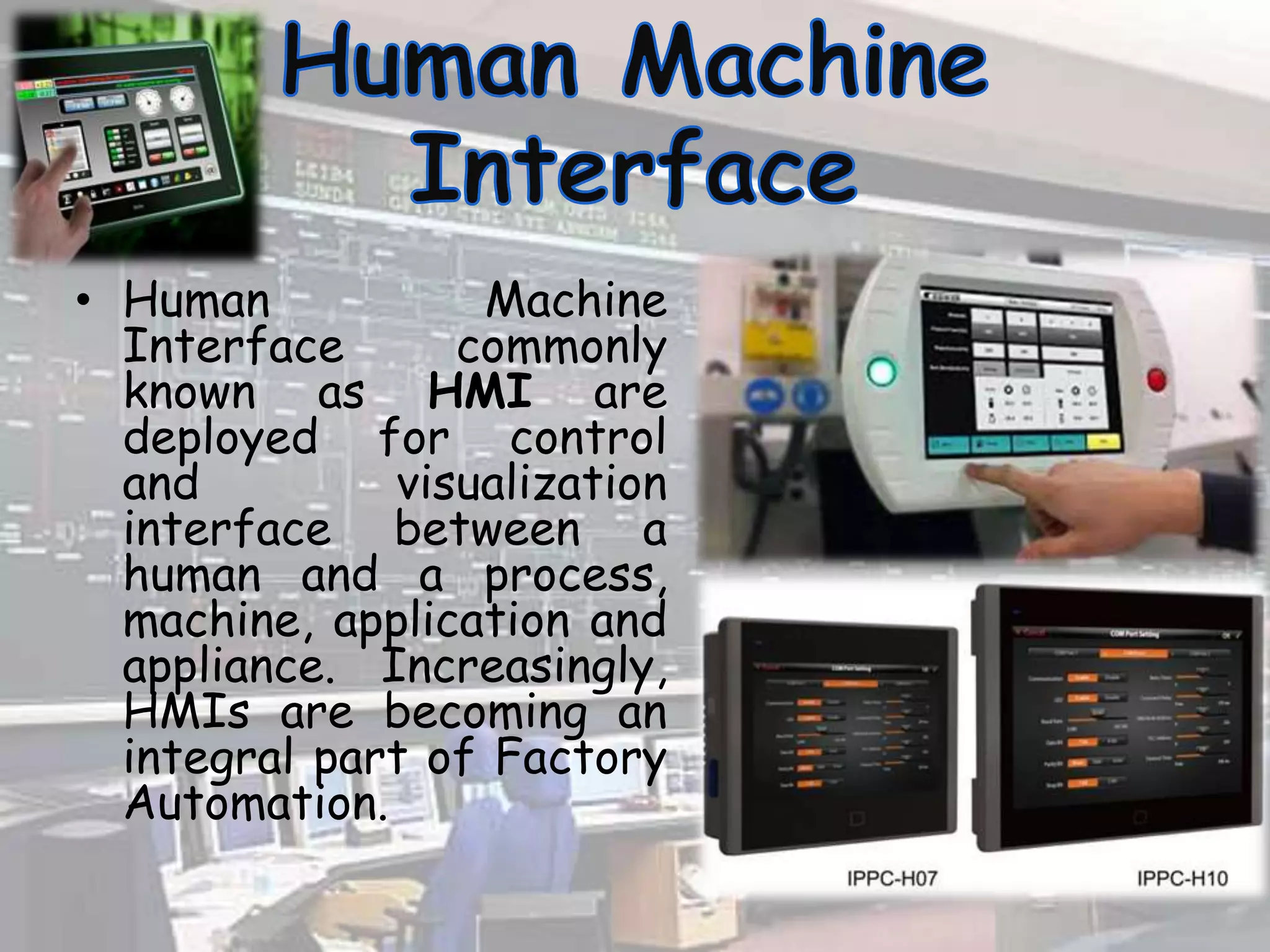

16. • Human Machine
Interface commonly
known as HMI are
deployed for control
and visualization
interface between a
human and a process,
machine, application and
appliance. Increasingly,
HMIs are becoming an
integral part of Factory
Automation.

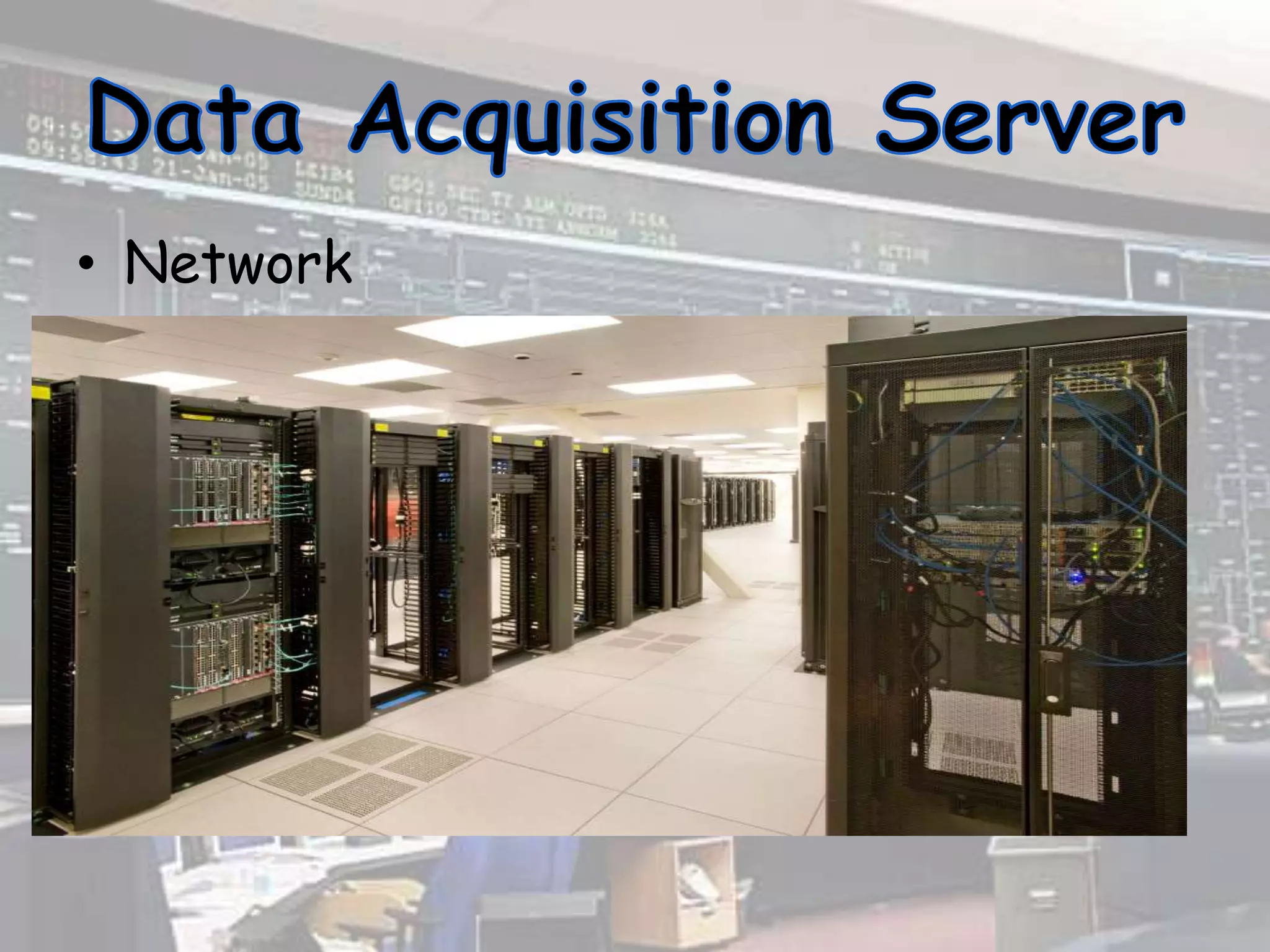

17. • Network

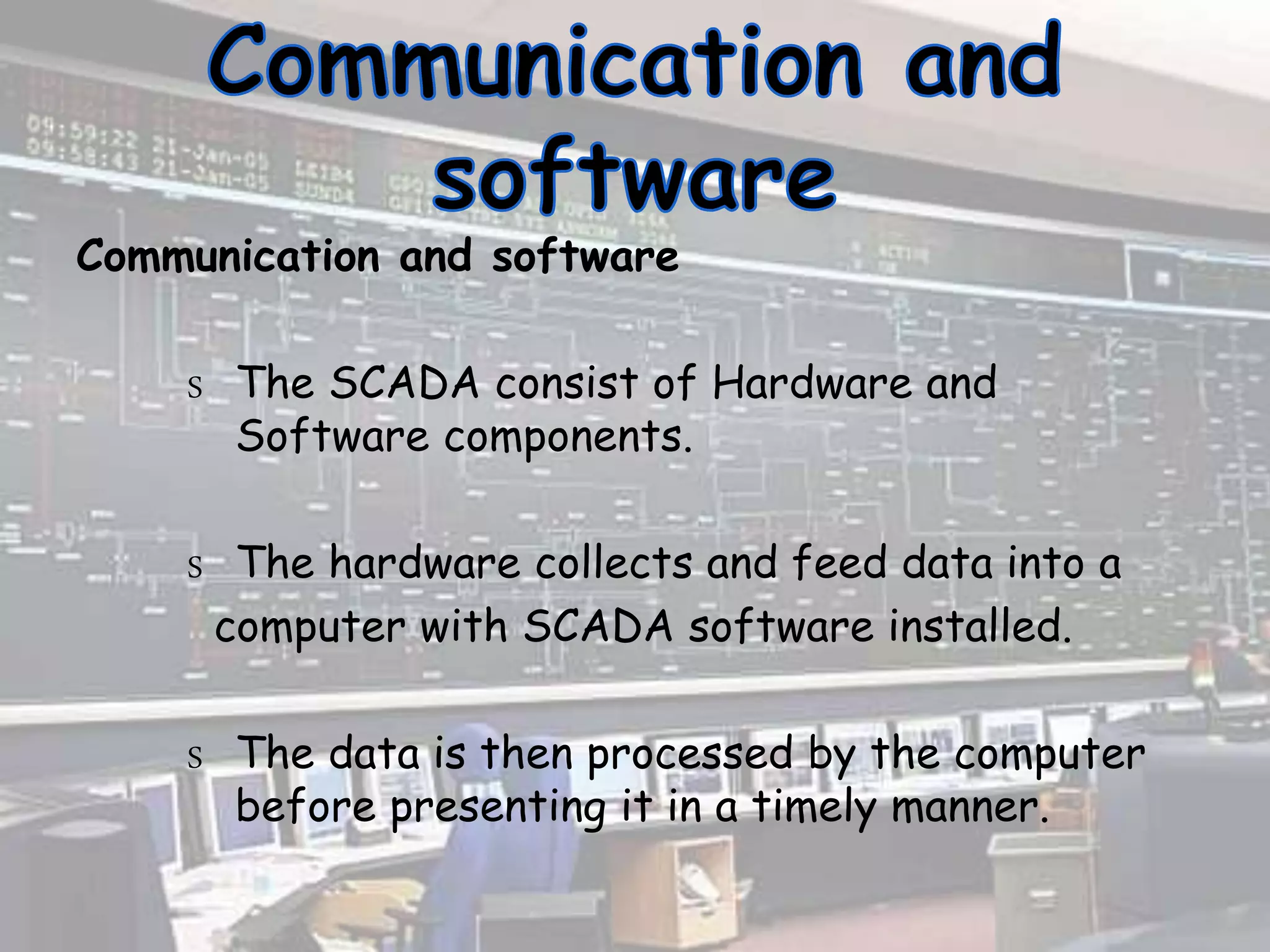

18. Communication and software
S The SCADA consist of Hardware and
Software components.
S The hardware collects and feed data into a
computer with SCADA software installed.
S The data is then processed by the computer
before presenting it in a timely manner.

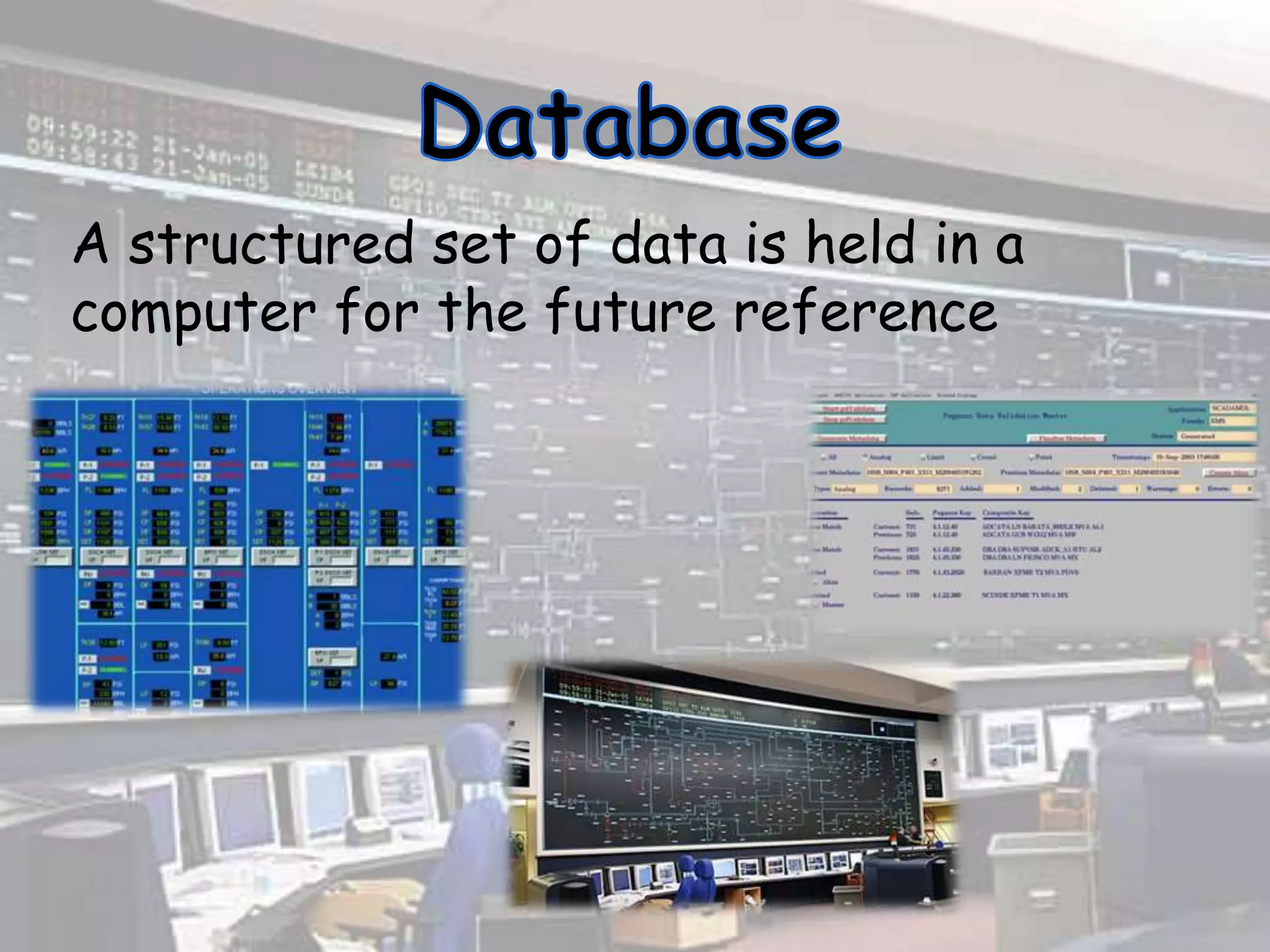

19. A structured set of data is held in a
computer for the future reference

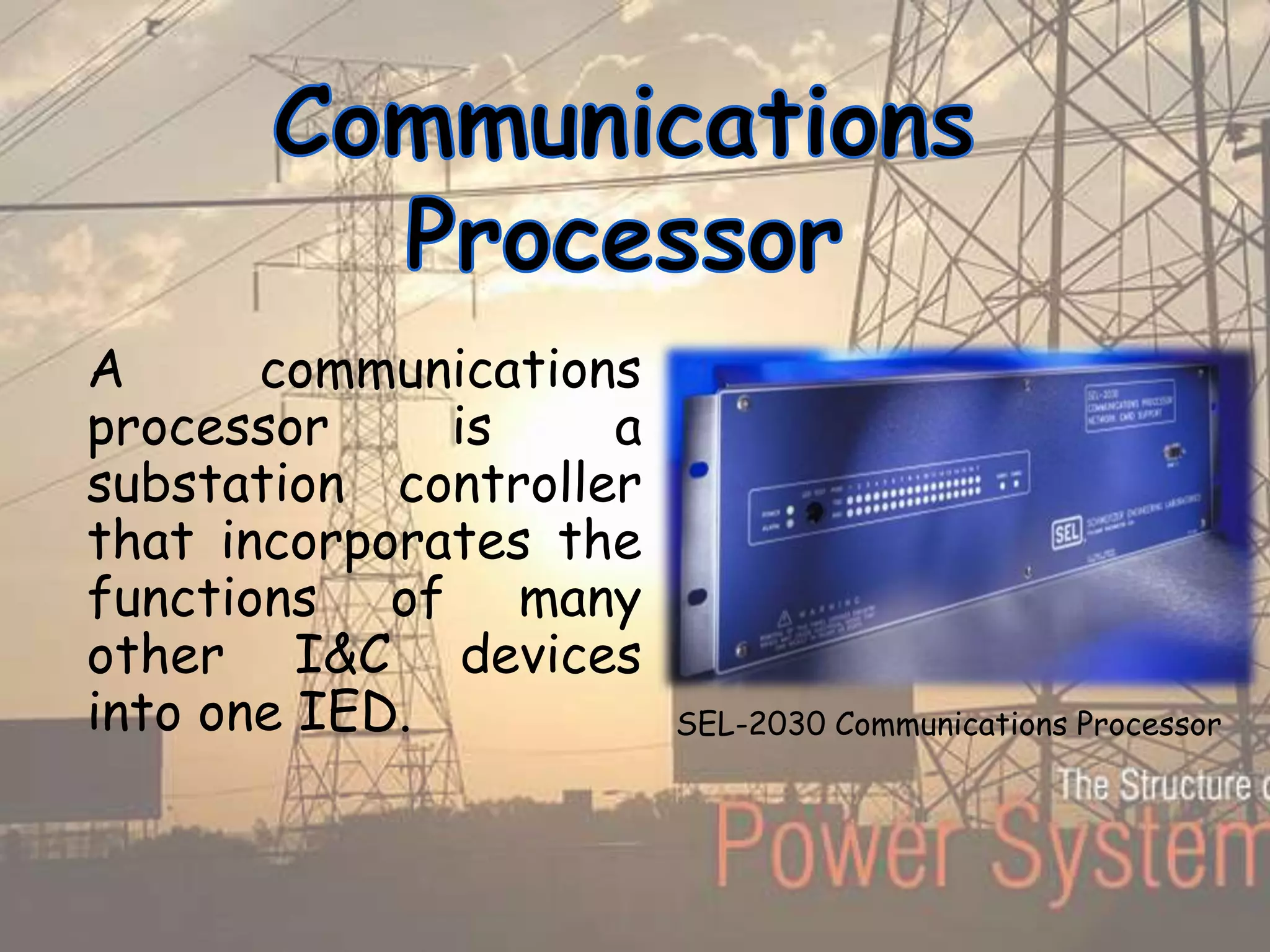

20. A communications
processor is a
substation controller
that incorporates the
functions of many
other I&C devices
into one IED. SEL-2030 Communications Processor

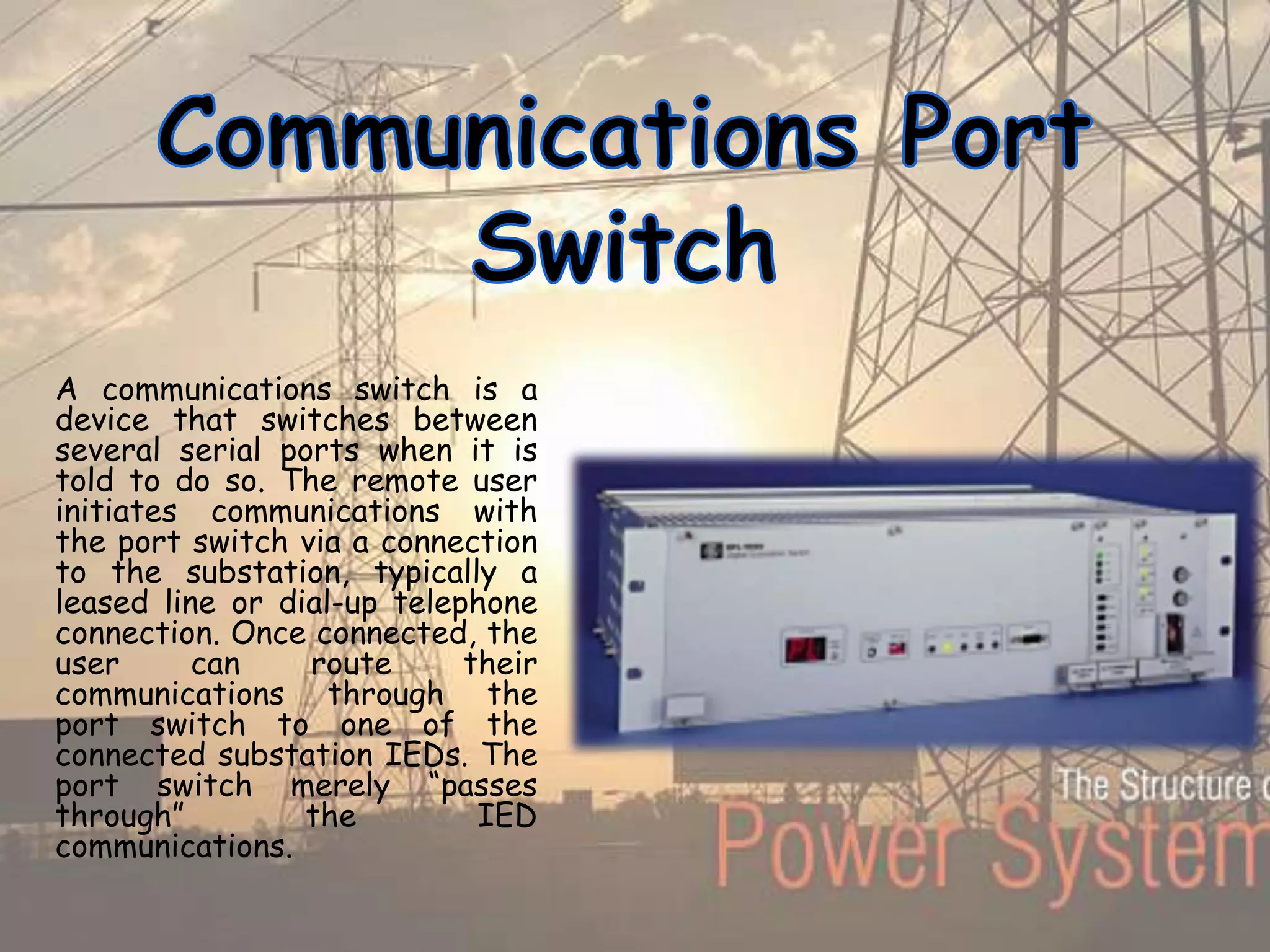

21. A communications switch is a
device that switches between
several serial ports when it is
told to do so. The remote user
initiates communications with
the port switch via a connection
to the substation, typically a
leased line or dial-up telephone
connection. Once connected, the
user can route their
communications through the
port switch to one of the
connected substation IEDs. The
port switch merely “passes
through” the IED
communications.

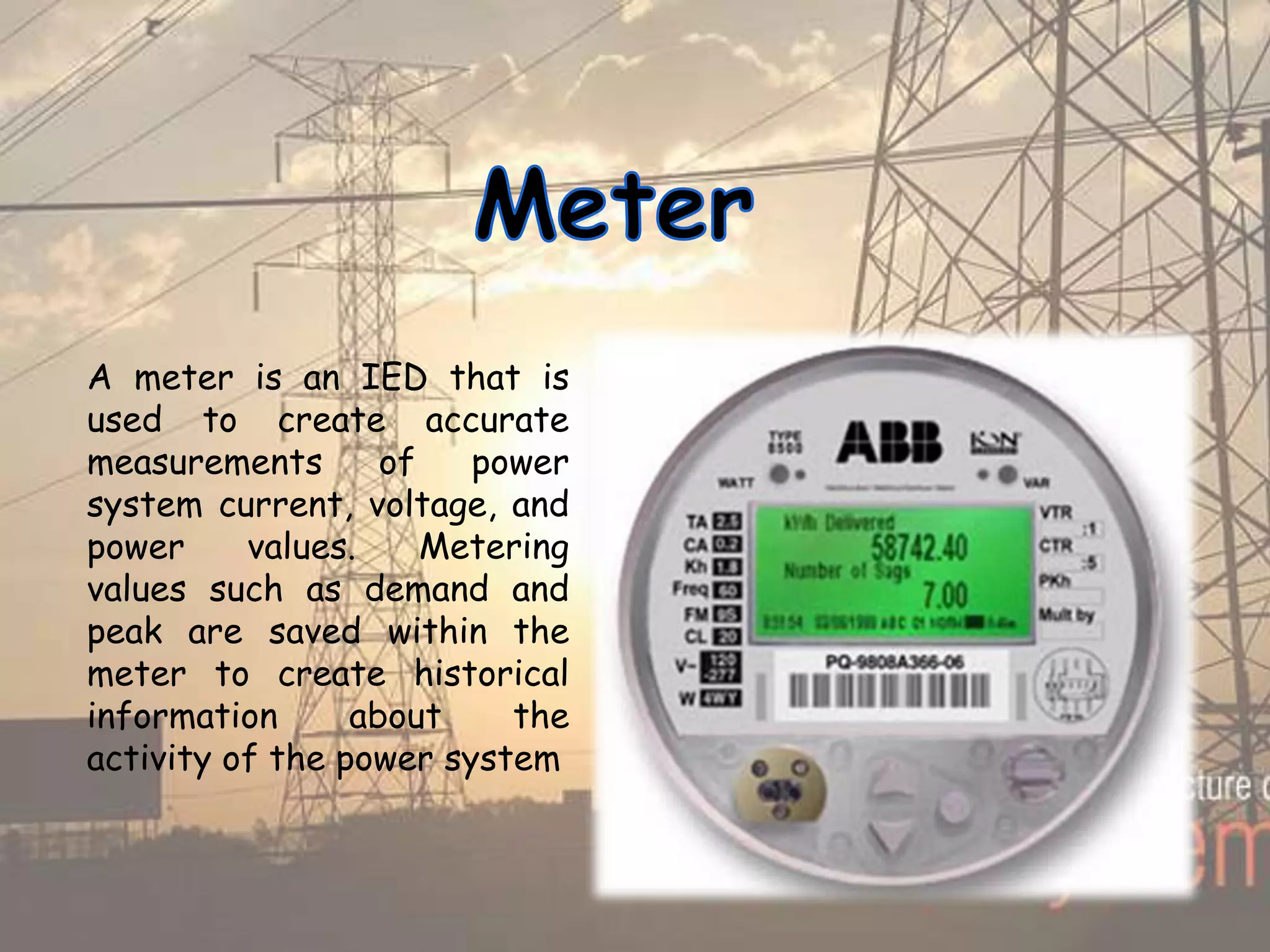

22. A meter is an IED that is
used to create accurate
measurements of power
system current, voltage, and
power values. Metering
values such as demand and
peak are saved within the
meter to create historical
information about the
activity of the power system

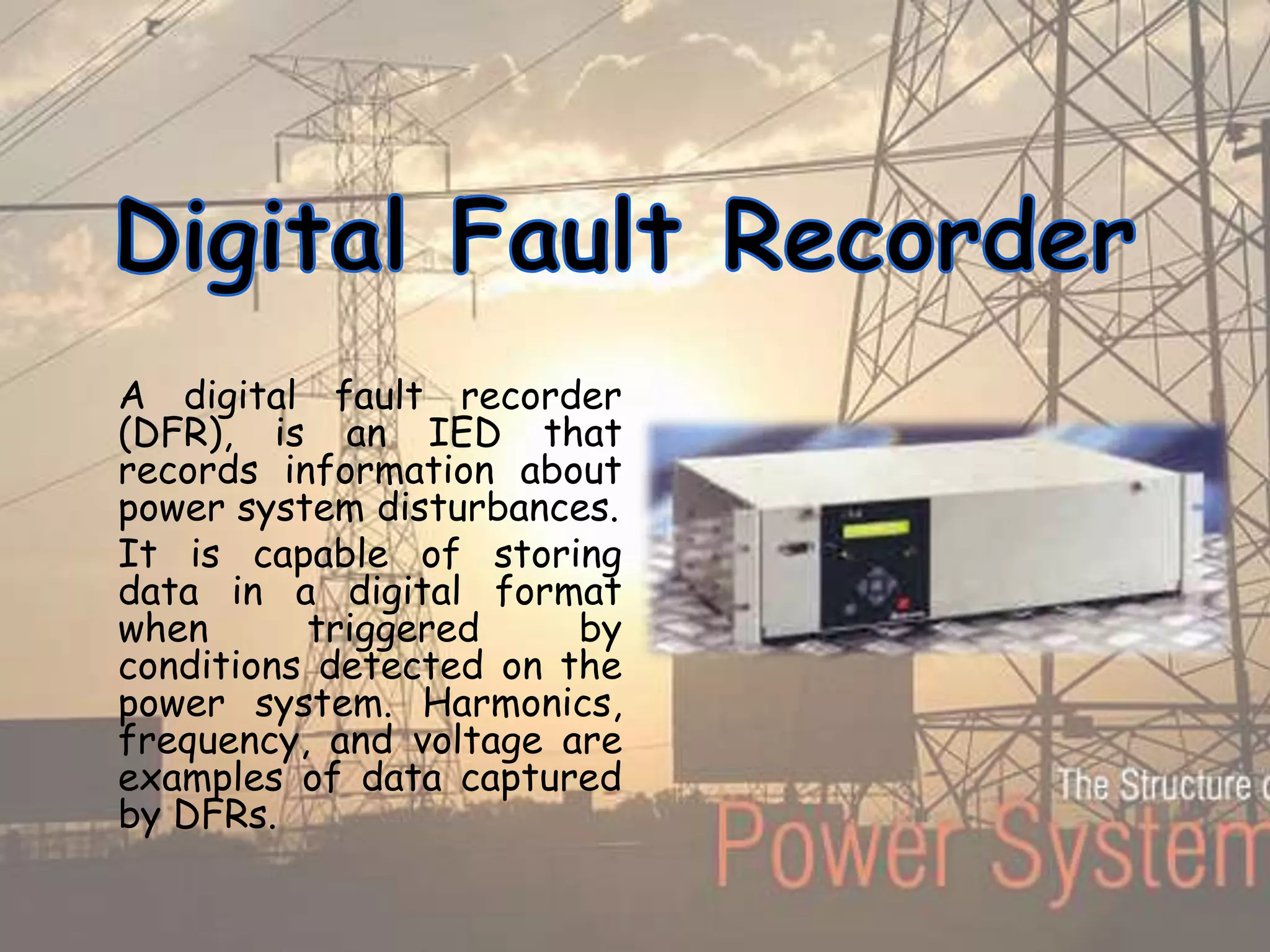

23. A digital fault recorder
(DFR), is an IED that
records information about
power system disturbances.
It is capable of storing
data in a digital format
when triggered by
conditions detected on the
power system. Harmonics,
frequency, and voltage are
examples of data captured
by DFRs.

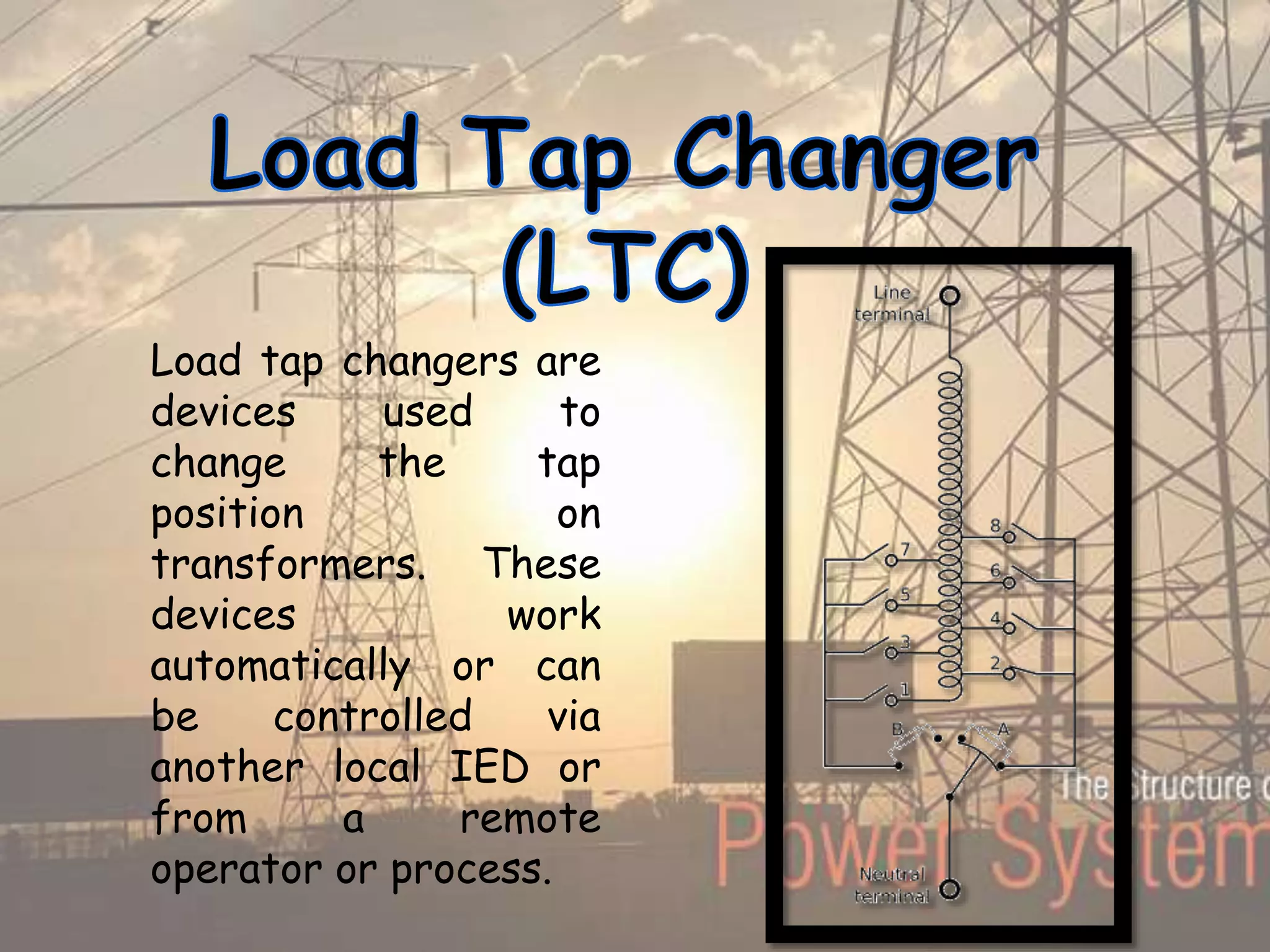

24. Load tap changers are
devices used to
change the tap
position on
transformers. These
devices work
automatically or can
be controlled via
another local IED or
from a remote
operator or process.

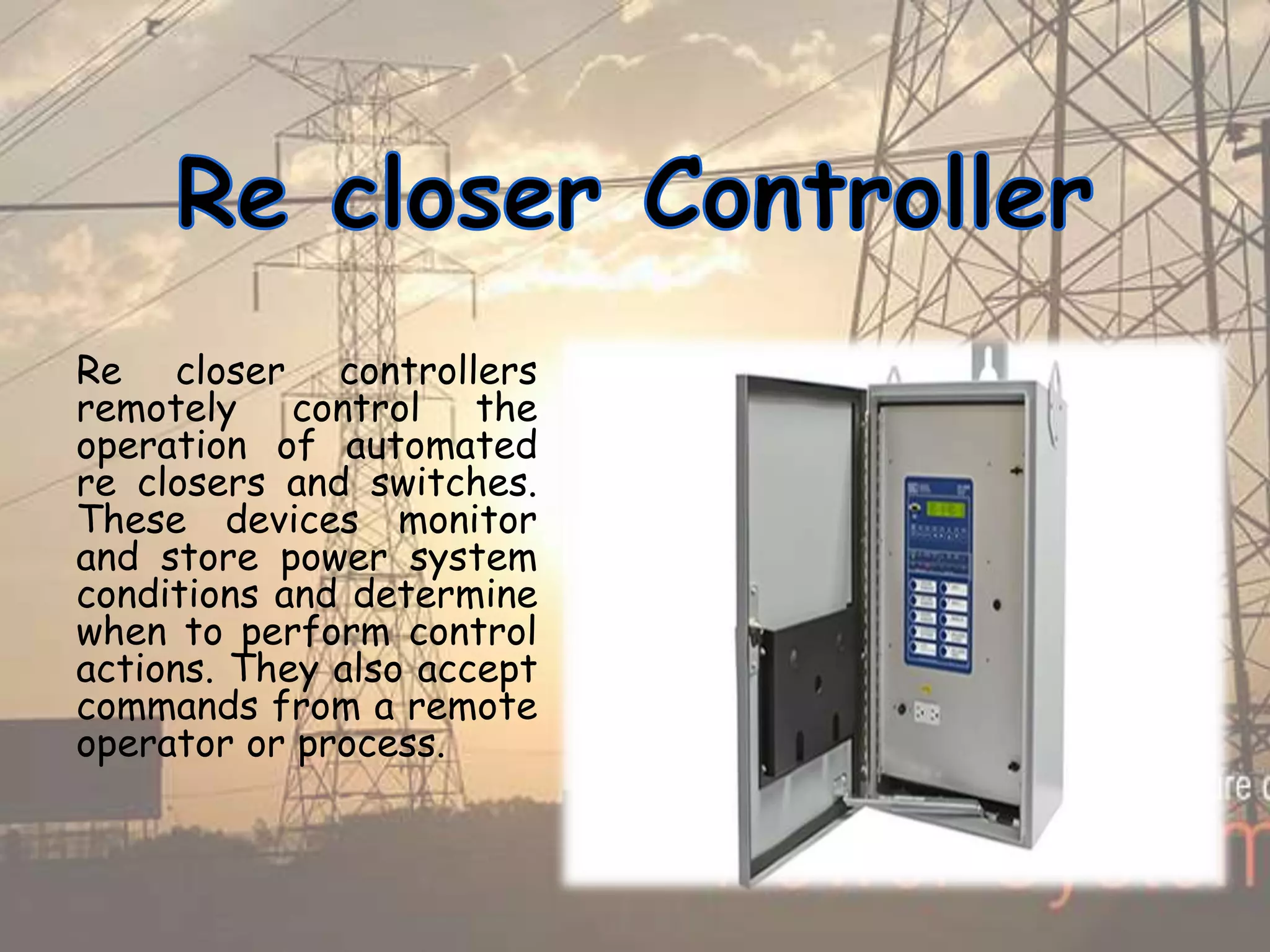

25. Re closer controllers
remotely control the
operation of automated
re closers and switches.
These devices monitor
and store power system
conditions and determine
when to perform control
actions. They also accept
commands from a remote
operator or process.

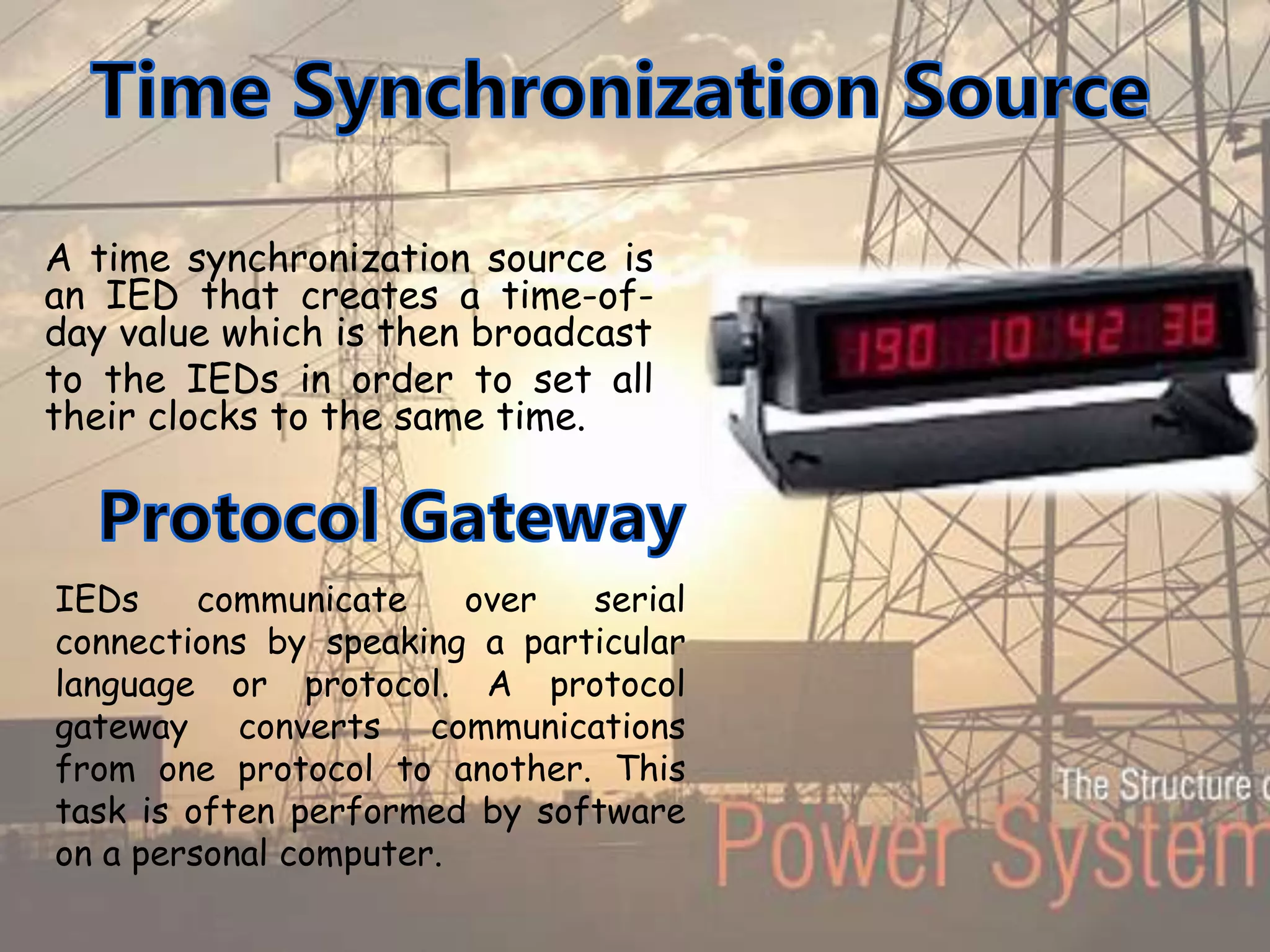

26. A time synchronization source is
an IED that creates a time-of-
day value which is then broadcast
to the IEDs in order to set all
their clocks to the same time.
IEDs communicate over serial
connections by speaking a particular
language or protocol. A protocol
gateway converts communications
from one protocol to another. This
task is often performed by software
on a personal computer.

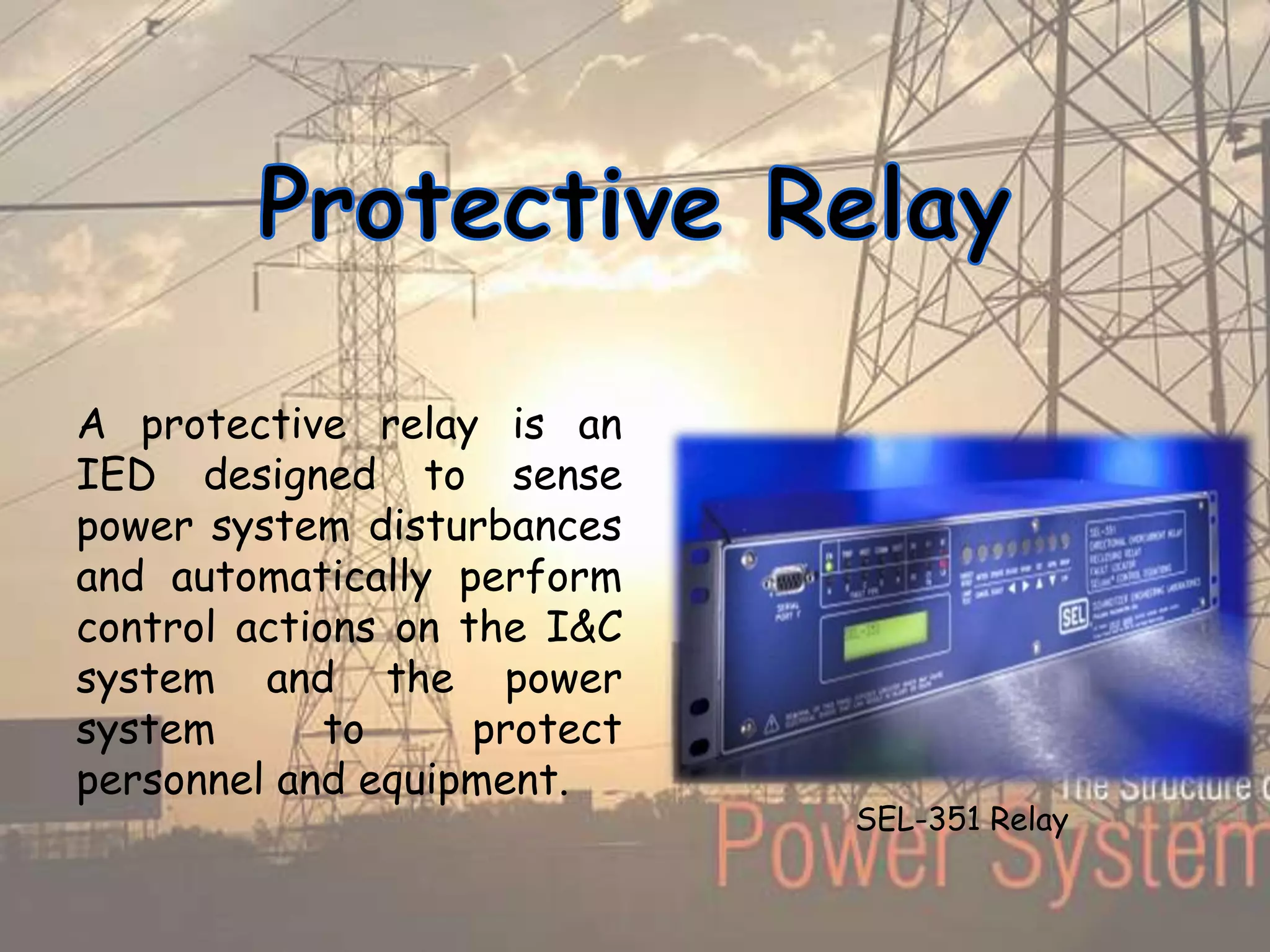

28. A protective relay is an
IED designed to sense
power system disturbances
and automatically perform
control actions on the I&C
system and the power
system to protect
personnel and equipment.
SEL-351 Relay

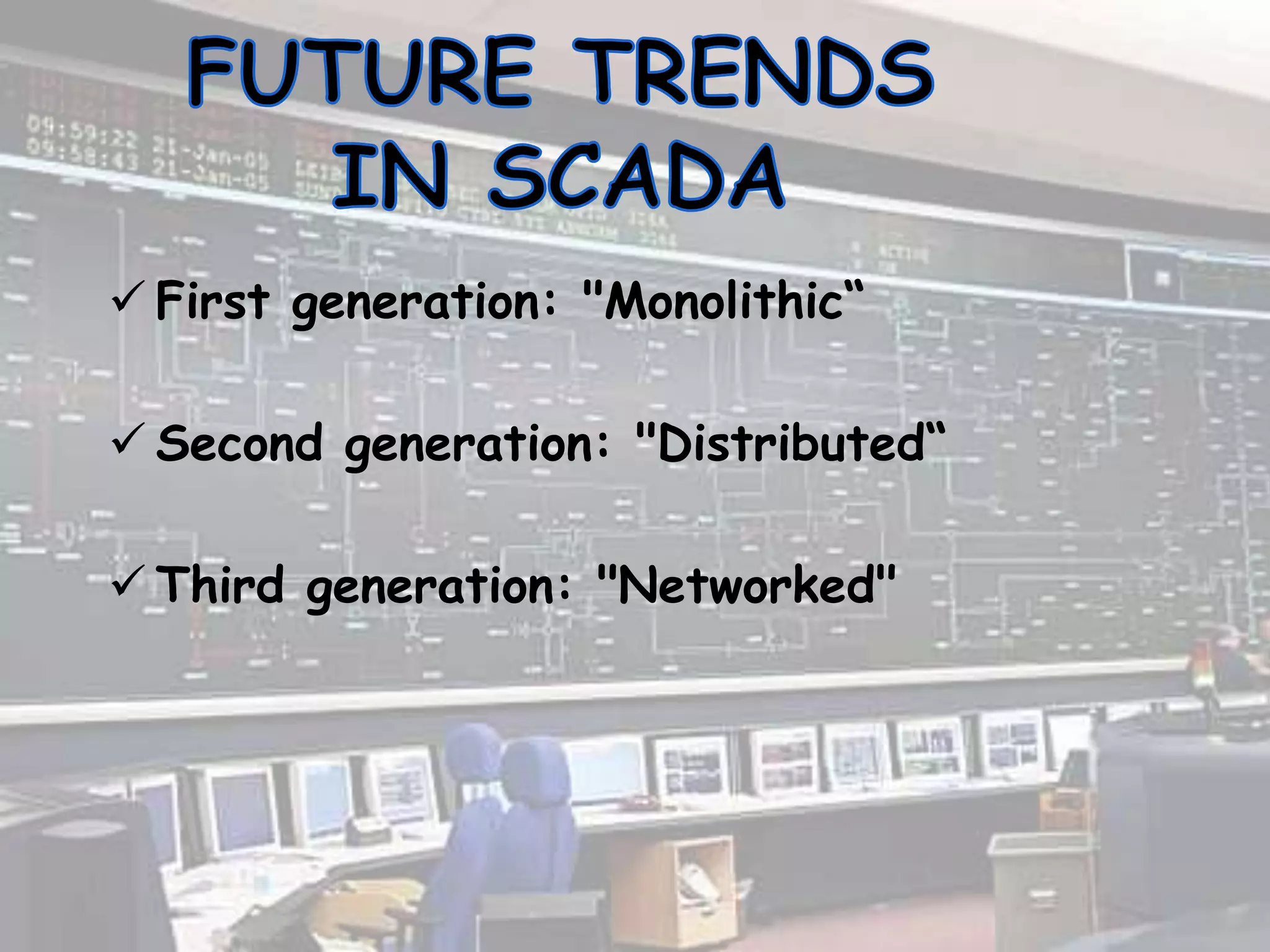

32.  First generation: "Monolithic“
 Second generation: "Distributed“
 Third generation: "Networked"

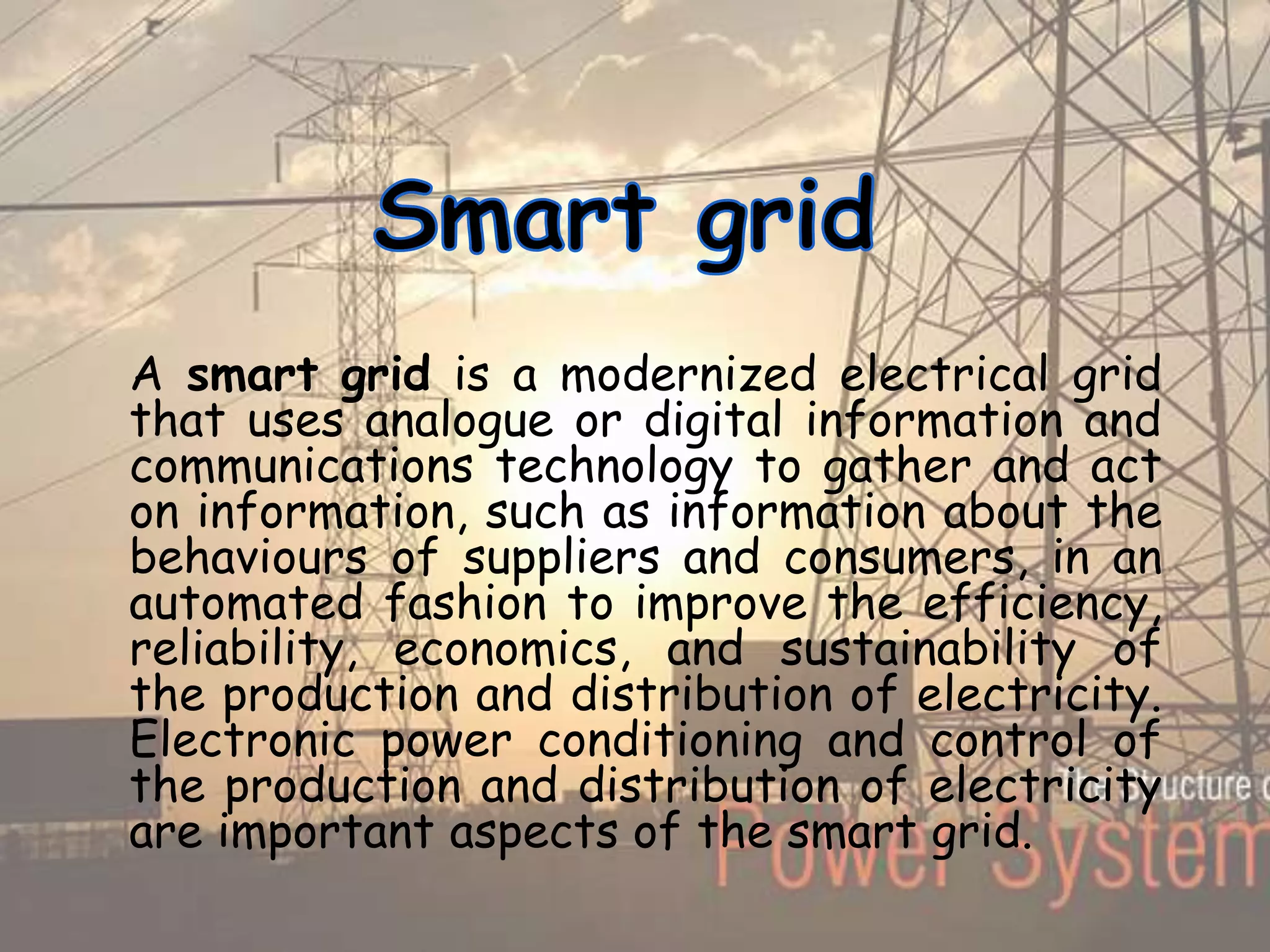

36. A smart grid is a modernized electrical grid
that uses analogue or digital information and
communications technology to gather and act
on information, such as information about the
behaviours of suppliers and consumers, in an
automated fashion to improve the efficiency,
reliability, economics, and sustainability of
the production and distribution of electricity.
Electronic power conditioning and control of
the production and distribution of electricity
are important aspects of the smart grid.

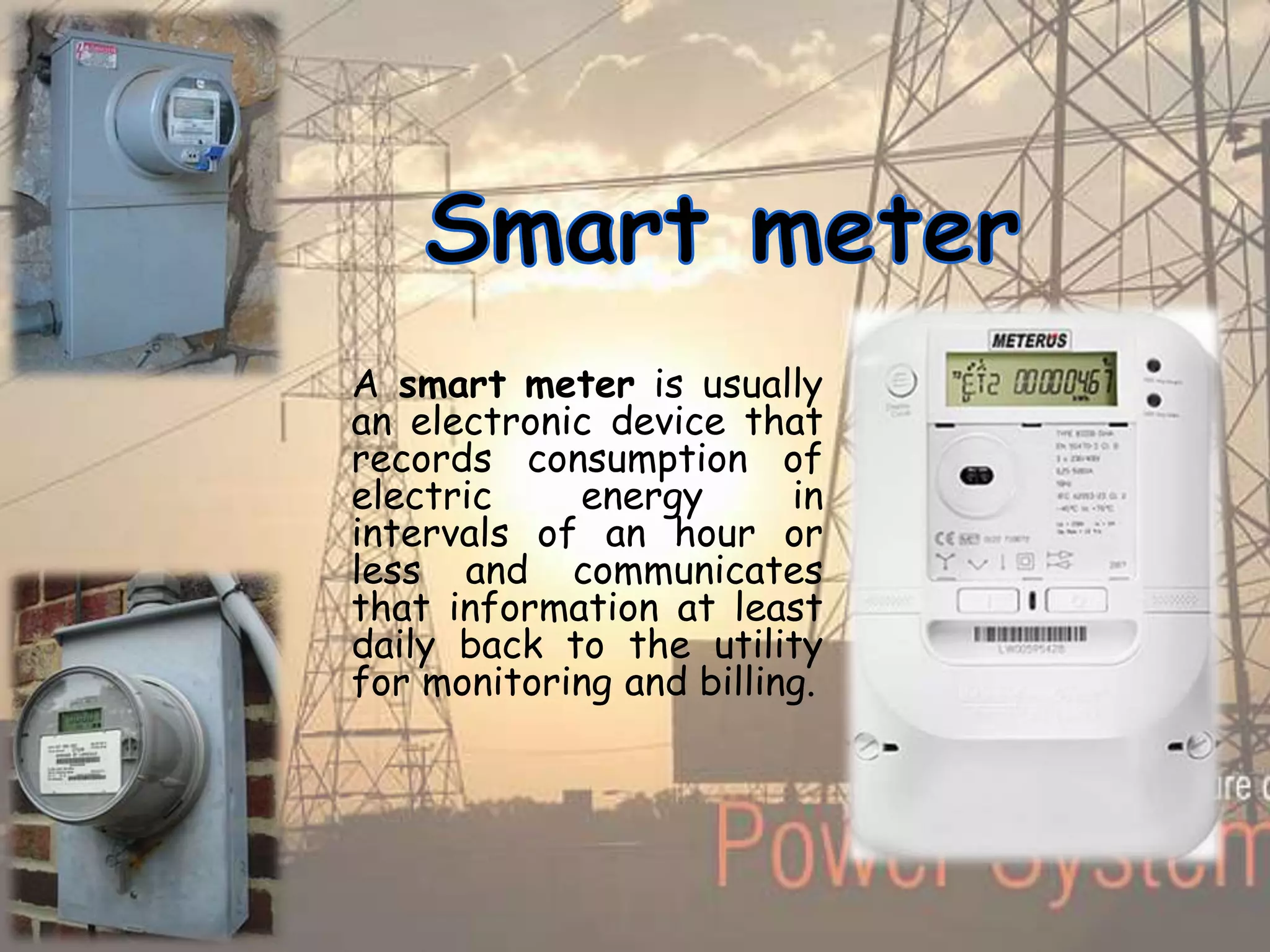

37. A smart meter is usually
an electronic device that
records consumption of
electric energy in
intervals of an hour or
less and communicates
that information at least
daily back to the utility
for monitoring and billing.

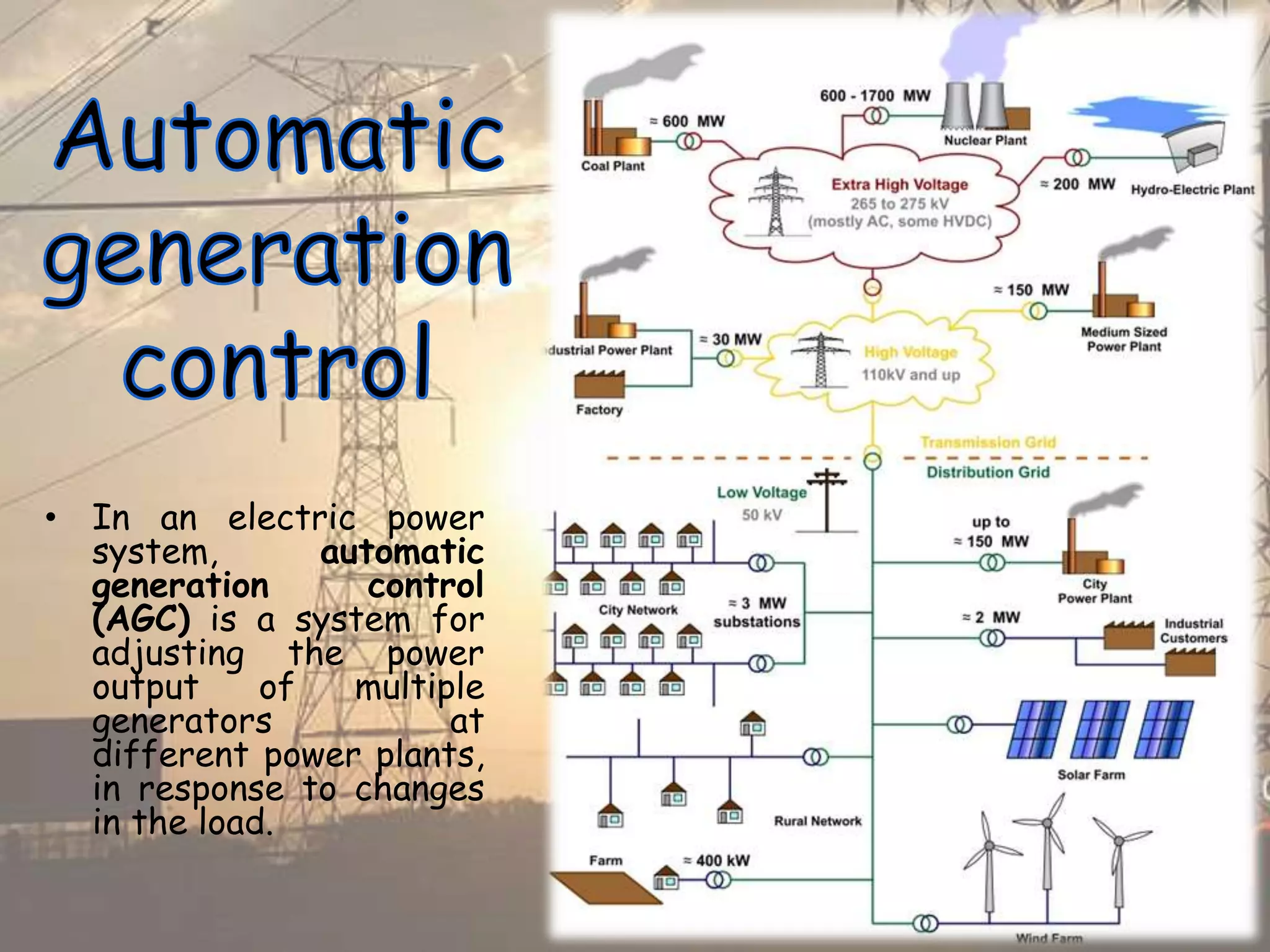

38. • In an electric power
system, automatic
generation control
(AGC) is a system for
adjusting the power
output of multiple
generators at
different power plants,
in response to changes
in the load.

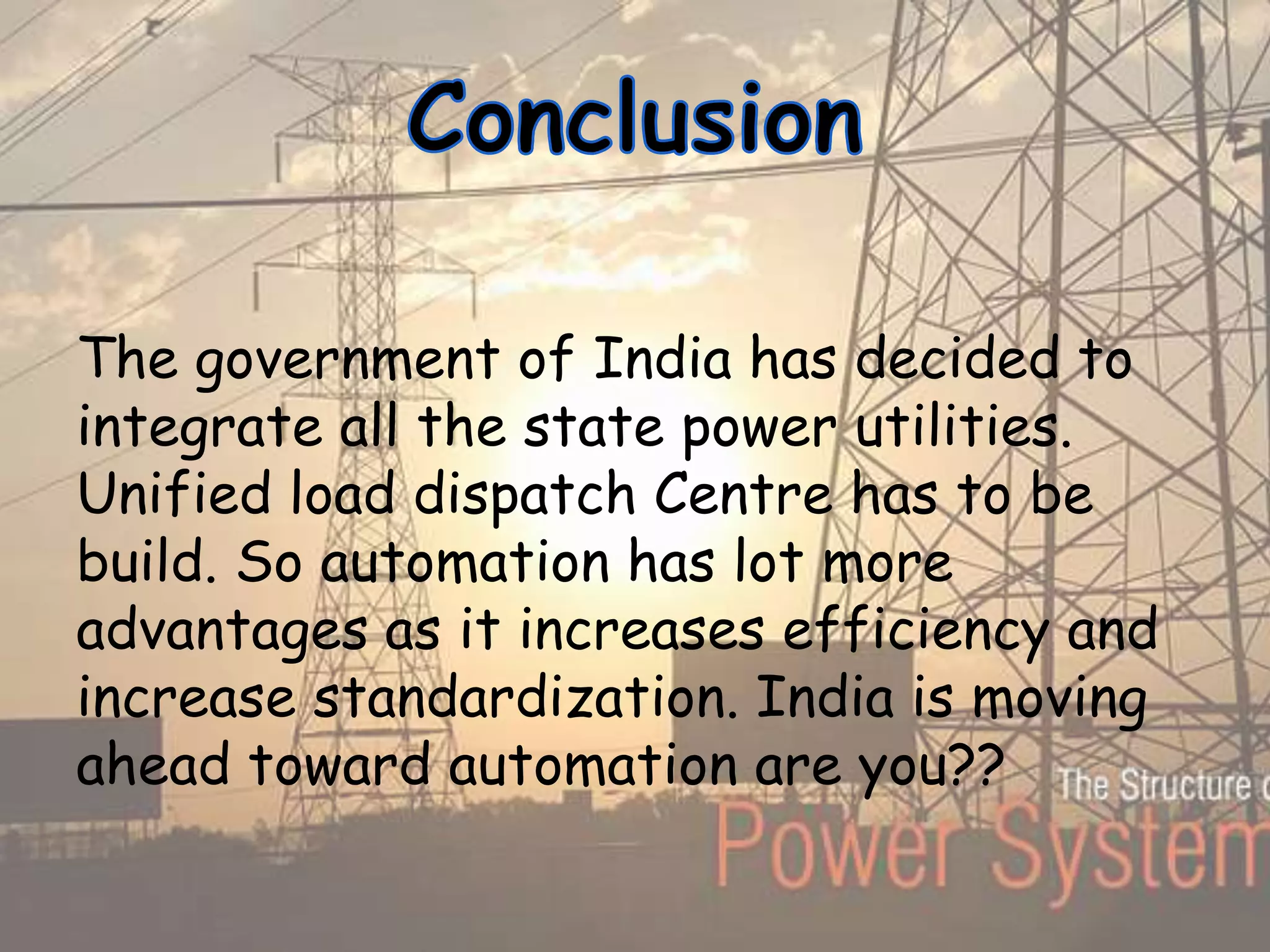

39. The government of India has decided to
integrate all the state power utilities.
Unified load dispatch Centre has to be
build. So automation has lot more
advantages as it increases efficiency and
increase standardization. India is moving
ahead toward automation are you??

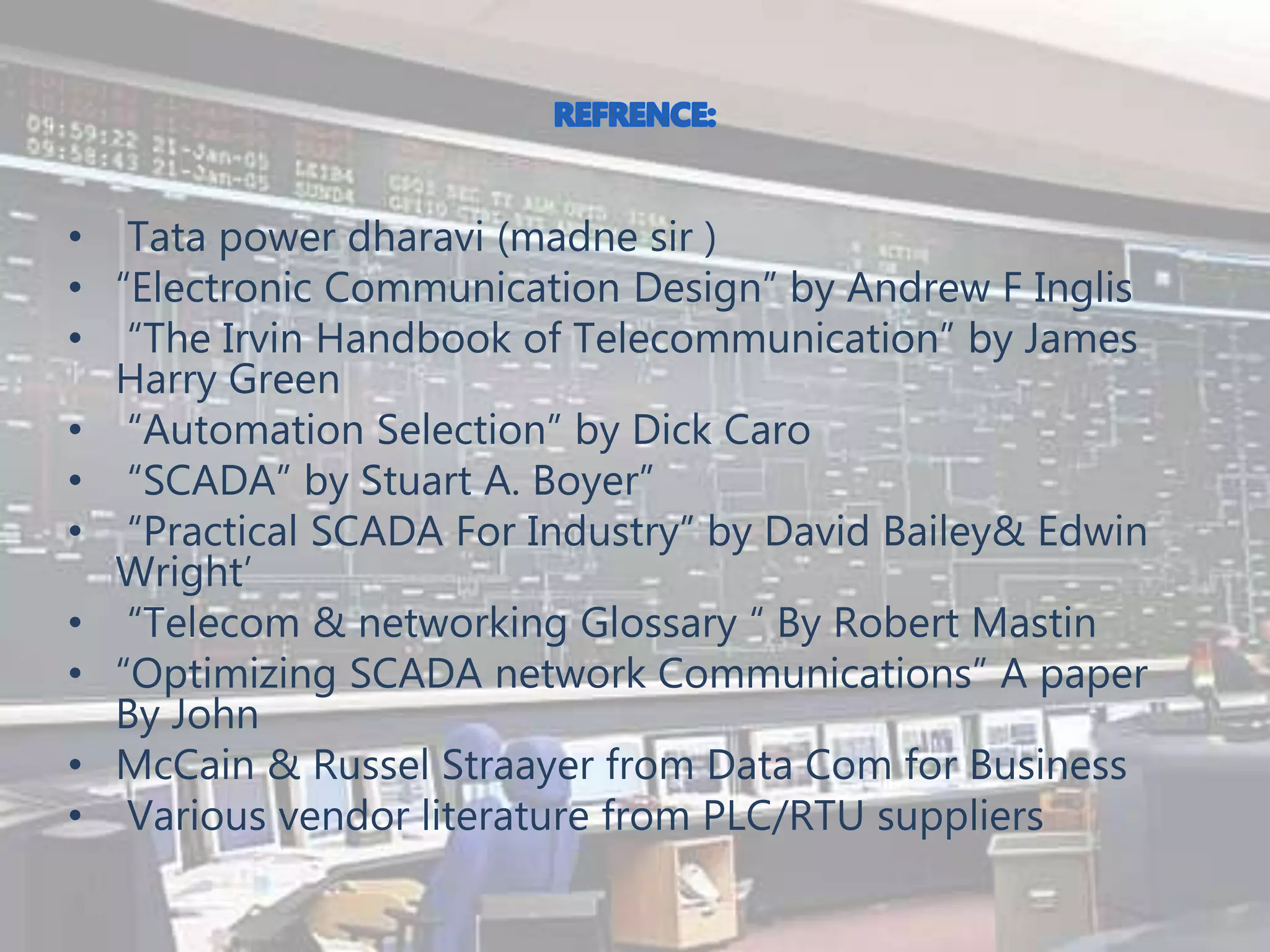

41. • Tata power dharavi (madne sir )
• “Electronic Communication Design” by Andrew F Inglis
• “The Irvin Handbook of Telecommunication” by James
Harry Green
• “Automation Selection” by Dick Caro
• “SCADA” by Stuart A. Boyer”
• “Practical SCADA For Industry” by David Bailey& Edwin
Wright’
• “Telecom & networking Glossary “ By Robert Mastin
• “Optimizing SCADA network Communications” A paper
By John
• McCain & Russel Straayer from Data Com for Business
• Various vendor literature from PLC/RTU suppliers
