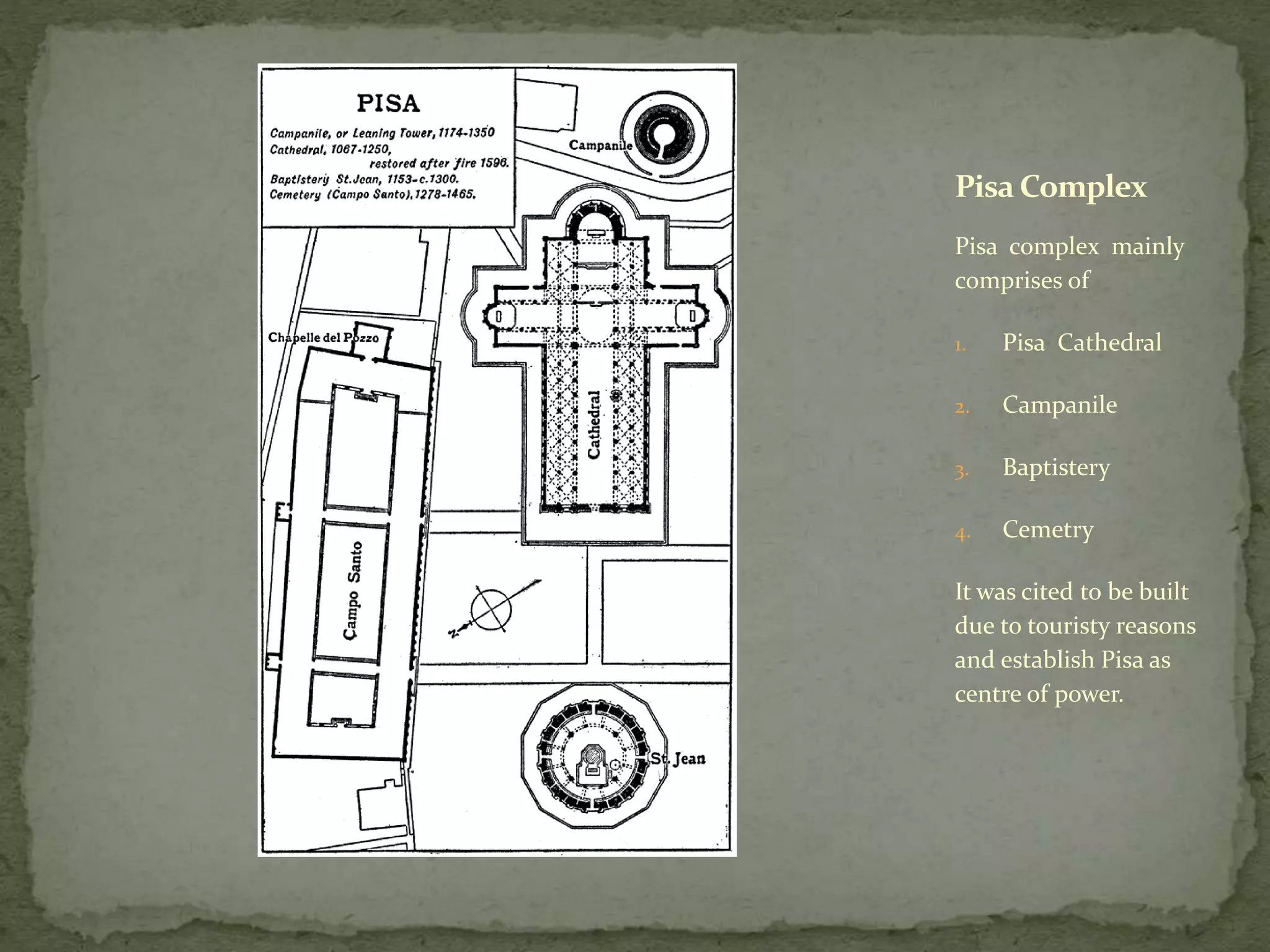

STYLE: ITALIAN ROMANESQUE
Pisa complex mainly
comprises of
1. Pisa Cathedral
2. Campanile
3. Baptistery
4. Cemetry
It was cited to be built
due to touristy reasons
and establish Pisa as
centre of power.
Pisa Complex
 The cathedral complex at Pisa dramatically testifies to the prosperity that
the busy maritime city enjoyed.
 The cathedral, its freestanding bell tower, and the baptistery, where infants
and converts were initiated into the Christian community, present an
opportunity to study a coherent group of three Romanesque buildings.
 Save for the upper portion of the baptistery, with its remodeled Gothic
exterior, the three structures are stylistically homogeneous.
 Construction of Pisa Cathedral began first—in 1063.
 Pisa Cathedral is large, with a nave and four aisles, and is one of the
most impressive and majestic of all Romanesque churches.
 According to a document of the time, the Pisans wanted their
bishop’s church not only to be a monument to the glory of God but
also to bring credit to the city.

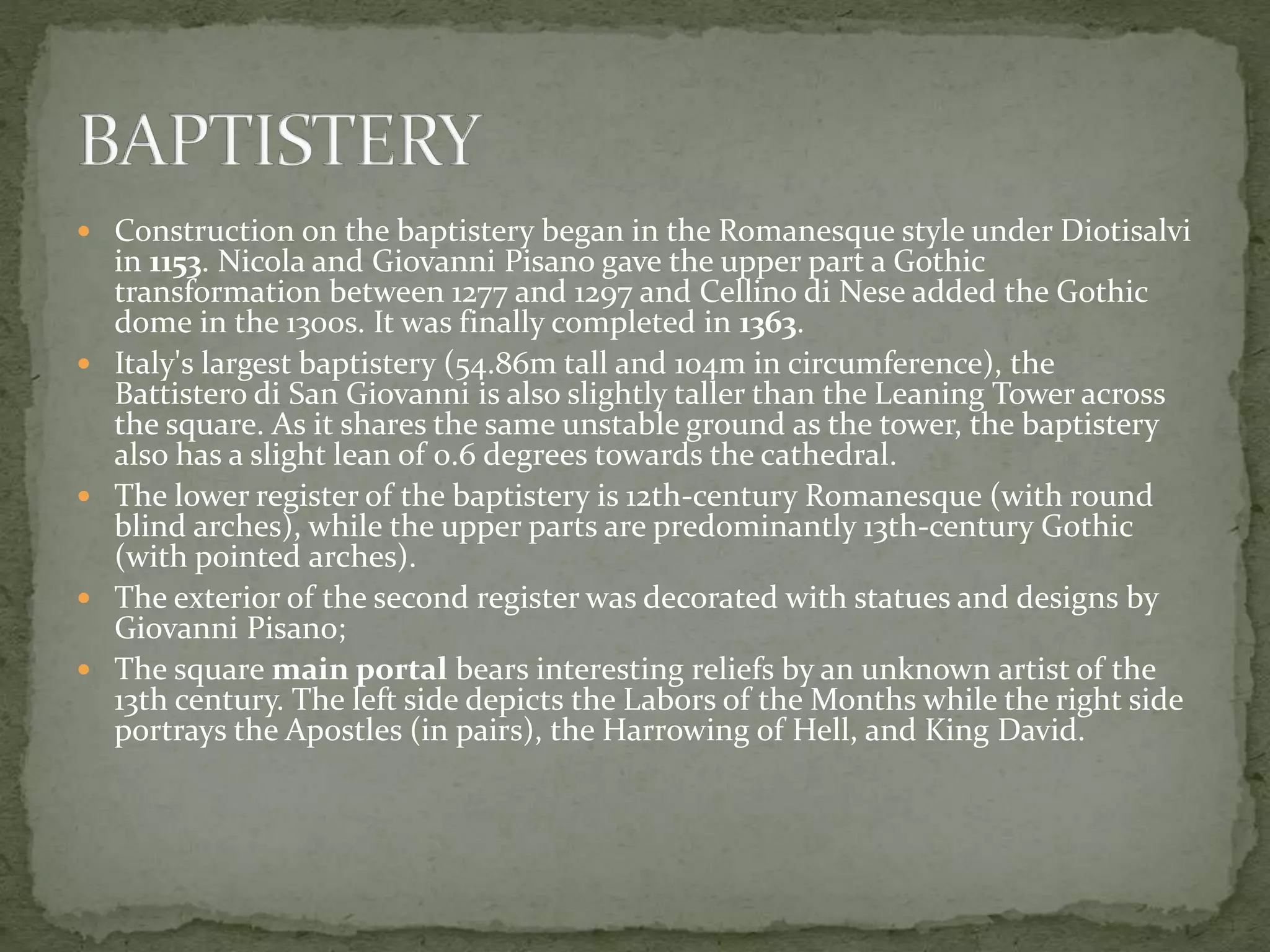

 Construction on the baptistery began in the Romanesque style under Diotisalvi
in 1153. Nicola and Giovanni Pisano gave the upper part a Gothic
transformation between 1277 and 1297 and Cellino di Nese added the Gothic
dome in the 1300s. It was finally completed in 1363.
 Italy's largest baptistery (54.86m tall and 104m in circumference), the
Battistero di San Giovanni is also slightly taller than the Leaning Tower across
the square. As it shares the same unstable ground as the tower, the baptistery
also has a slight lean of 0.6 degrees towards the cathedral.
 The lower register of the baptistery is 12th-century Romanesque (with round
blind arches), while the upper parts are predominantly 13th-century Gothic
(with pointed arches).
 The exterior of the second register was decorated with statues and designs by
Giovanni Pisano;
 The square main portal bears interesting reliefs by an unknown artist of the
13th century. The left side depicts the Labors of the Months while the right side
portrays the Apostles (in pairs), the Harrowing of Hell, and King David.
 The interior is fairly plain, dimly lit and not especially attractive, but it
includes two great treasures: the first of the great Pisano pulpits and the large
baptismal font in the centre.
 The baptistery's pulpit is a masterpiece carved in 1255-60 by Nicola Pisano. It
was the prototype for a series of four monumental pulpits he created with his
son Giovanni (the last, Giovanni's greatest work, is in Pisa's Duomo; the other
two are in Pistoia and Siena).
 The pulpit's high reliefs, which depict scenes from the life of Christ, are
strongly influenced by classical art - including the Roman sarcophagi and
Greek vase now in the Camposanto.
 The central baptismal font was carved and inlaid in 1246 by the Gothic
sculptor Guido Bigarelli da Como (active 1238-57). In the centre of the font is a
20th-century statue of St. John the Baptist, to whom the baptistery is
dedicated.
 The baptistery is renowned for its perfect acoustics - choir concerts held
inside can be heard from miles away. You can test the acoustics by arriving
when it is least crowded (such as first thing in the morning), getting as close to
the centre as possible and sounding a loud note - it will echo around the room
as it fades.

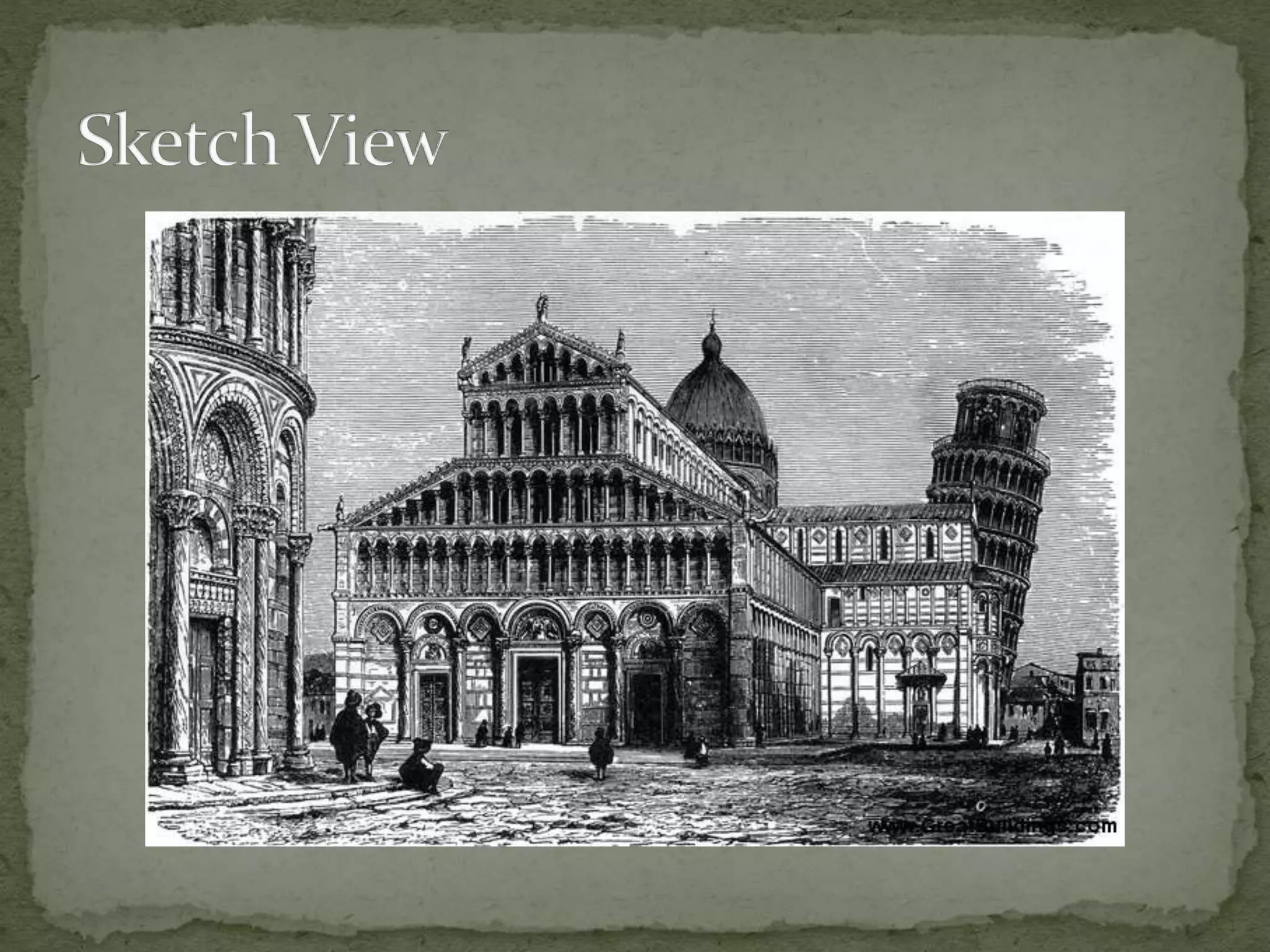

 At first glance, the cathedral resembles an Early Christian basilica with a
timber roof, columnar arcade, and clerestory but the broadly projecting
transept with apses, the crossing dome, and the facade’s multiple arcaded
galleries distinguish it as Romanesque.
 Begun in 1093, Pisa Cathedral (Duomo di Pisa) is a masterpiece of
Romanesque architecture.
 The first stone of Pisa Cathedral was laid in 1093, initiating what would
become the distinctive Pisan Romanesque style.
 The main architect was Buscheto, who is buried in the last blind arch
on the left side of the facade. The facade itself was built by Buscheto's
successor, Rainaldo.

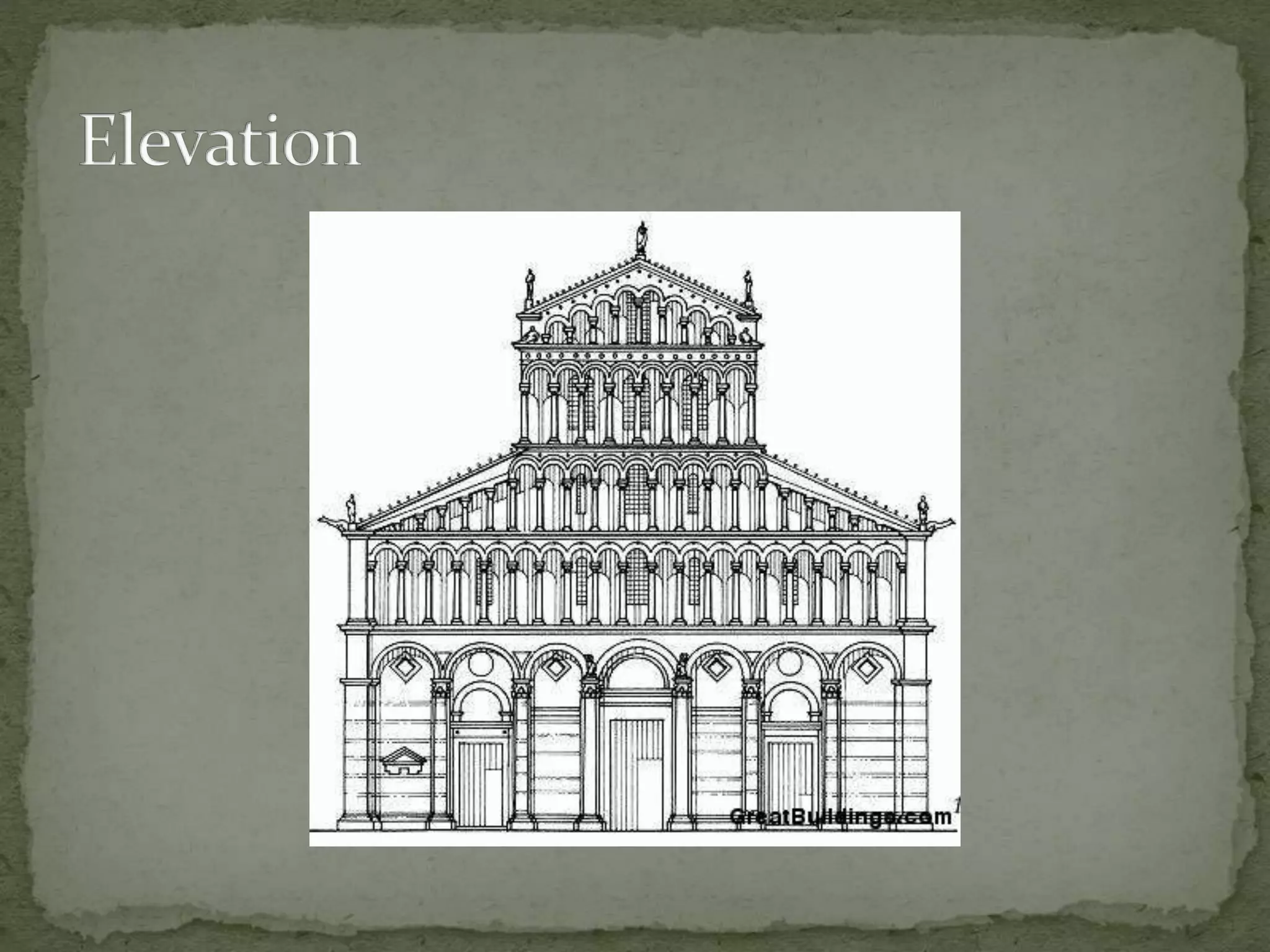

 The façade is marble.
 The bottom section has tall blind arcades with pastel-colored marble
inlay and three portals with bronze doors. Above this are four rows of
open arcades with delicate columns rising to the top of a gable that is
much taller than the cathedral roof.( use of false façade)

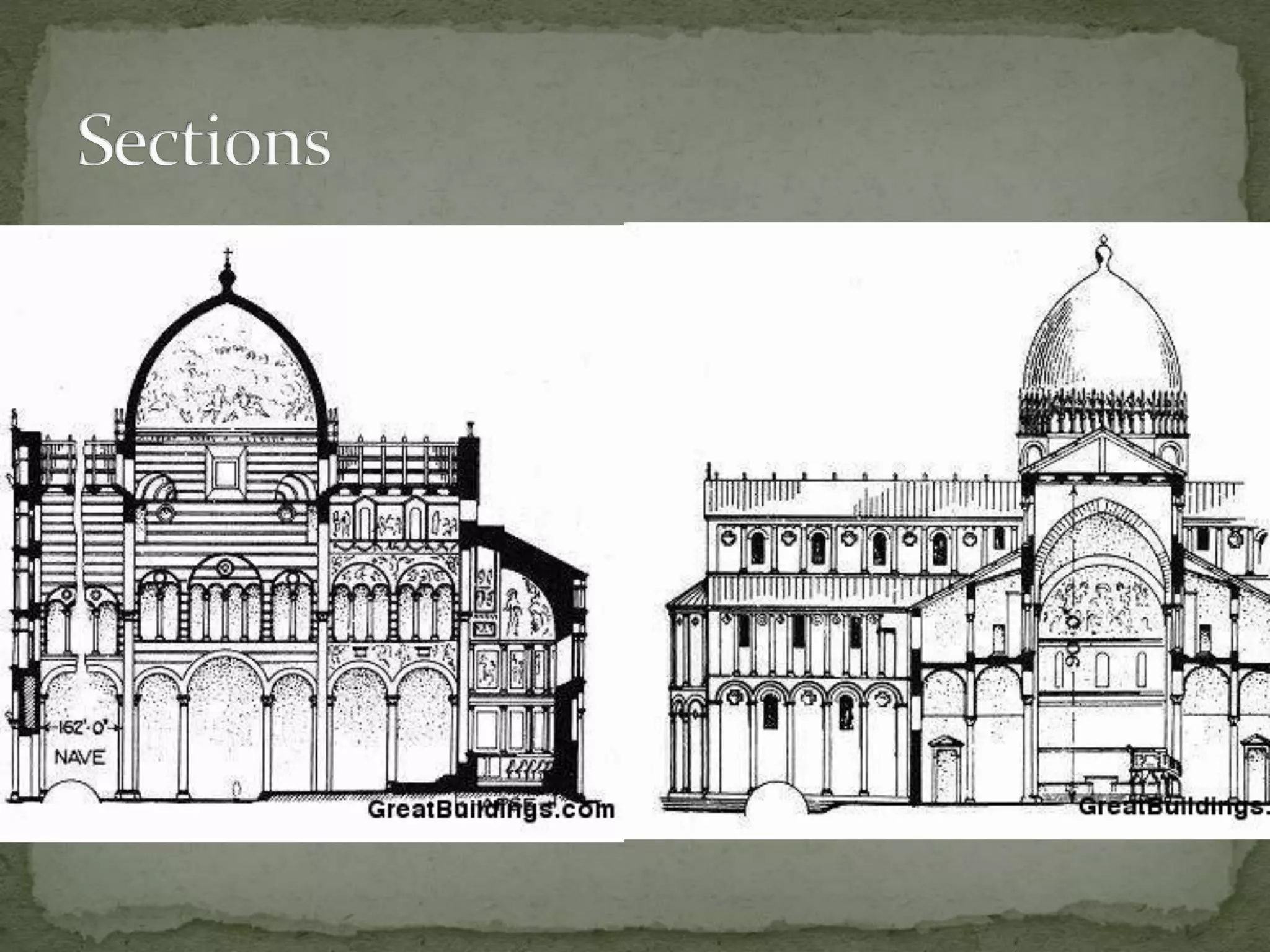

 The spacious nave has a Cosmatesquemarble pavement and two aisles
on each side; the transept crossing is covered by a painted oval dome.
 The famous medieval artwork in this church are Giovanni Pisano’s
pulpit, St. Agnes with her lamb bronze angels, mosaic of Christ
Pancrator.
 The Cathedral has a prominent role in determining the beginning of
the Pisan New Year. Between the tenth century and 1749, when the
Tuscan calendar was reformed, Pisa used its own calendar, in which the
first day of the year was March 25, the feast day of the Annunciation of
Mary. Years were counted such that the Pisan New Year begins 9
months before the ordinary one. The exact moment is determined by a
ray of sun that, through a window on the left side, falls on an egg-
shaped marble, just above the pulpit by Giovanni Pisano; this occurs at
noon.
 Some relics brought back during the Crusades can also be found in the
Cathedral: alleged remains of three Saints (Abibo, Gamaliel,
and Nicodemus), and a vase that is said to be one of the jars of Cana.
 The granite Corinthian columns between the nave and the
aisle came originally from the mosque of Palermo,
captured by the Pisans in 1063.
 Earlier the church had a coffered ceiling
 The elaborately carved pulpit (1302–1310) was made
by Giovanni Pisano, a masterwork of medieval sculpture.
The pulpit is supported by plain columns (two of which are
mounted on lion's sculptures) on one side and
by caryatids and a telamon on the other: the latter
represent St. Michael, the Evangelists, the four cardinal
virtues flanking the Church, and a bold, naturalistic
depiction of a naked Hercules. A central plinth with
the liberal arts supports the four theological virtues.
 Above the doors are four rows of open galleries with, on top,
statues of Madonna with Child and, on the corners, the Four
evangelists.
 Also in the façade is found the tomb of Buscheto (on the left
side) and an inscription about the foundation of the Cathedral
and the victorious battle against the Saracens.
 At the east end of the exterior, high on a column rising from
the gable, is a modern replica of the Pisa Griffin, the
largest Islamic metal sculpture known, the original of which was
placed there probably in the 11th or 12th century, and is now in
the Cathedral Museum.
 The interior is faced with black and white marble and has
a gilded ceiling and a frescoed dome. It was largely redecorated
after a fire in 1595, which destroyed most of the Renaissance art
works.

 The Leaning Tower of Pisa (Torre Pendente di Pisa in Italian) is one of the great icons of
Europe. Begun in 1173, the bell tower of Pisa Cathedral is famous for the shifting of its
sandy foundations that has led to a significant lean of 5.5 degrees.
 The campanile was begun in 1173 as the final structure of the magnificent cathedral
complex on the Campo dei Miracoli in Pisa. The settling of its foundations and resulting
lean became apparent before it was even finished - after only three stories were
completed. The engineer, believed to be Bonnano Pisano, tried to compensate by making
the new stories a little taller on one side. However, the extra materials caused the tower to
sink even more.
 Made of gleaming white and pastel marbles, the Leaning Tower has a diameter of 52 feet
(16 m) at the base and would stand 185 feet (56 metres) high if it were straight. It
currently leans 5.5 degrees, which amounts to about 15 feet or 4.5 metres from vertical.
 The famous lean of the bell tower often overshadows its magnificent architecture, which
is an exceptional example of the Romanesque style. The round tower is made of fine
multi-coloured marble and has eight stories in all, each surrounded by an arcaded
gallery. The repeating registers of arches give the tower an exceptionally harmonious and
rhythmic appearance.
 The bottom register of the tower has a blind arcade
and an ornately carved portal, which features
grotesque sculptures of animals. The second through
seventh stories have open arcaded galleries and the
eighth story houses the bell chamber. The
medieval bells remain in place, but for stability
reasons are no longer rung.
 Inside the tower is a 294-step spiral staircase leading
to the bell chamber. Happily visitors are once again
allowed to climb the tower in small groups, which
provides not only a close look at the iconic tower but a
fine view of the Piazza del Duomo.
 The Camposanto Monumentale (Monumental Cemetery), also known
as Campo Santo is located at the northern edge of the square. This
walled cemetery is said to have been built around a shipload of sacred
soil from Calvary, brought back to Pisa from the Fourth Crusade by
Ubaldo de' Lanfranchi, the archbishop of Pisa in the 12th century. This
is where the name Campo Santo (Holy Field) originates.
 The outer wall is composed of 43 blind arches. There are two doorways.
The one on the right is crowned by a gracious Gothic tabernacle and
contains the Virgin Mary with Child surrounded by four saints. It is the
work from the second half of the 14th century by a follower of Giovanni
Pisano. Most of the tombs are under the arcades, although a few are on
the central lawn. The inner court is surrounded by elaborate round
arches with slender mullions and plurilobed tracery.
 The Camposanto Monumentale once contained a large collection of
Roman sculptures and sarcophagi, but now there are only 84
remaining. The walls were once covered in frescoes, the first were
applied in 1360, the last about three centuries later.
 The Opera Palace is a complex of houses in the north
east[ corner of the square. They have been built in
different periods, with the main building dating back
to at least the XIV century and the latest to the XIX
century.
 Originally these houses belonged to the workmen of
the cathedral complex: the tailor, the gardener, the bell
ringers, etc.
 The Ospedale Nuovo di Santo Spirito (New Hospital of
Holy Spirit) is located on the southeast corner of the
square. Built in 1257 by Giovanni di Simone over a
preexisting smaller hospital, the function of this
hospital was to help pilgrims, poor, sick people, and
abandoned children by providing a shelter..
Pisa complex
Pisa complex

More Related Content

What's hot

What's hot (20)

Early christian architecture
Early christian architectureEarly christian architecture
Early christian architecture

Gothic architecture
Gothic architectureGothic architecture
Gothic architecture

Romanesque architecture
Romanesque architectureRomanesque architecture
Romanesque architecture

Gothic architecture
Gothic architectureGothic architecture
Gothic architecture

Romanesque architecture
Romanesque architectureRomanesque architecture
Romanesque architecture

gothic architecture
gothic architecturegothic architecture
gothic architecture

Renaissance Architecture
Renaissance ArchitectureRenaissance Architecture
Renaissance Architecture

romanesque style, Durham cathedral
 romanesque style, Durham cathedral romanesque style, Durham cathedral
romanesque style, Durham cathedral

Renaissance
RenaissanceRenaissance
Renaissance

pisa cathedral.pptx
pisa cathedral.pptxpisa cathedral.pptx
pisa cathedral.pptx

Early christian architecture
Early christian architectureEarly christian architecture
Early christian architecture

Baroque Architecture
Baroque ArchitectureBaroque Architecture
Baroque Architecture

Baroque architecture
Baroque architectureBaroque architecture
Baroque architecture

Romanesque Architecture
Romanesque ArchitectureRomanesque Architecture
Romanesque Architecture

Introduction to Gothic Architecture
Introduction to Gothic ArchitectureIntroduction to Gothic Architecture
Introduction to Gothic Architecture

History of islamic architecture
History of islamic architectureHistory of islamic architecture
History of islamic architecture

Byzantine architecture ppt
Byzantine architecture pptByzantine architecture ppt
Byzantine architecture ppt

St peter basilica
St peter basilica St peter basilica
St peter basilica

St Peter’s Basilica
St Peter’s BasilicaSt Peter’s Basilica
St Peter’s Basilica

Byzantine architecture
Byzantine architectureByzantine architecture
Byzantine architecture


Viewers also liked (9)

The Leaning Tower Of Pisa
The Leaning Tower Of PisaThe Leaning Tower Of Pisa
The Leaning Tower Of Pisa

Villa capra
Villa capraVilla capra
Villa capra

Renaissance Humanism
Renaissance HumanismRenaissance Humanism
Renaissance Humanism

Expressionism
ExpressionismExpressionism
Expressionism

Baroque & Rococo architecture
Baroque & Rococo architectureBaroque & Rococo architecture
Baroque & Rococo architecture

Realism art
Realism artRealism art
Realism art

St paul's london
St paul's londonSt paul's london
St paul's london

Colonial architecture in india
Colonial architecture in india Colonial architecture in india
Colonial architecture in india

Mannerism Architecture
Mannerism ArchitectureMannerism Architecture
Mannerism Architecture


Similar to Pisa complex

PISA CATHEDRAL COMPLEX new.pptx
PISA CATHEDRAL COMPLEX new.pptxPISA CATHEDRAL COMPLEX new.pptx
PISA CATHEDRAL COMPLEX new.pptxpamohammedadil

pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdf
pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdfpisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdf
pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdfAdeIqbalPradhana

Churches power point
Churches power pointChurches power point
Churches power pointmartanna

English version of foligno e la basilica
English version of foligno e la basilicaEnglish version of foligno e la basilica
English version of foligno e la basilicaMy own sweet home

Learning history of saint peter basilica
Learning  history of saint peter basilicaLearning  history of saint peter basilica
Learning history of saint peter basilicaJDGaming2

English version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaEnglish version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaMy own sweet home

English version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaEnglish version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaMy own sweet home

Religious building around the world
Religious building around the worldReligious building around the world
Religious building around the worldLY97

Epc final presentation
Epc final presentationEpc final presentation
Epc final presentationhongbinng

HISTORY AND THEORIES OF ARCHITECTURE
HISTORY AND THEORIES OF ARCHITECTURE HISTORY AND THEORIES OF ARCHITECTURE
HISTORY AND THEORIES OF ARCHITECTURE Nicolas Jaaar

Il duomo di siena gli interni
Il duomo di siena gli interniIl duomo di siena gli interni
Il duomo di siena gli interniMy own sweet home

Leon battista alberti
Leon battista albertiLeon battista alberti
Leon battista albertiNikhar Mehra

English version of the church of s. eligio maggiore
English version  of the church of s. eligio maggioreEnglish version  of the church of s. eligio maggiore
English version of the church of s. eligio maggioreMy own sweet home

English version s maria degli angeli e la porziuncola
English version s maria degli angeli e la porziuncolaEnglish version s maria degli angeli e la porziuncola
English version s maria degli angeli e la porziuncolaMy own sweet home

St Denis, Paris - The Beginning of the Gothic Architecture.
St Denis, Paris - The Beginning of the Gothic Architecture.St Denis, Paris - The Beginning of the Gothic Architecture.
St Denis, Paris - The Beginning of the Gothic Architecture.Jerry Daperro

English version of la basilica di s. chiara
English version of la basilica di s. chiaraEnglish version of la basilica di s. chiara
English version of la basilica di s. chiaraMy own sweet home


Similar to Pisa complex (20)

PISA CATHEDRAL COMPLEX new.pptx
PISA CATHEDRAL COMPLEX new.pptxPISA CATHEDRAL COMPLEX new.pptx
PISA CATHEDRAL COMPLEX new.pptx

pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdf
pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdfpisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdf
pisacathedralcomplexnew-230120113101-d5c8d7ff-1.pdf

Churches power point
Churches power pointChurches power point
Churches power point

English version of foligno e la basilica
English version of foligno e la basilicaEnglish version of foligno e la basilica
English version of foligno e la basilica

Learning history of saint peter basilica
Learning  history of saint peter basilicaLearning  history of saint peter basilica
Learning history of saint peter basilica

English version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaEnglish version of basilica di s . biagio a maratea
English version of basilica di s . biagio a maratea

English version of basilica di s . biagio a maratea
English version of basilica di s . biagio a marateaEnglish version of basilica di s . biagio a maratea
English version of basilica di s . biagio a maratea

Religious building around the world
Religious building around the worldReligious building around the world
Religious building around the world

Epc final presentation
Epc final presentationEpc final presentation
Epc final presentation

Renaissance architecture
Renaissance architectureRenaissance architecture
Renaissance architecture

HISTORY AND THEORIES OF ARCHITECTURE
HISTORY AND THEORIES OF ARCHITECTURE HISTORY AND THEORIES OF ARCHITECTURE
HISTORY AND THEORIES OF ARCHITECTURE

Romanesque Architecture
Romanesque ArchitectureRomanesque Architecture
Romanesque Architecture

Il duomo di siena gli interni
Il duomo di siena gli interniIl duomo di siena gli interni
Il duomo di siena gli interni

The Cathedral of Siena
The Cathedral of SienaThe Cathedral of Siena
The Cathedral of Siena

Leon battista alberti
Leon battista albertiLeon battista alberti
Leon battista alberti

English version of the church of s. eligio maggiore
English version  of the church of s. eligio maggioreEnglish version  of the church of s. eligio maggiore
English version of the church of s. eligio maggiore

English version s maria degli angeli e la porziuncola
English version s maria degli angeli e la porziuncolaEnglish version s maria degli angeli e la porziuncola
English version s maria degli angeli e la porziuncola

St Denis, Paris - The Beginning of the Gothic Architecture.
St Denis, Paris - The Beginning of the Gothic Architecture.St Denis, Paris - The Beginning of the Gothic Architecture.
St Denis, Paris - The Beginning of the Gothic Architecture.

English version of la basilica di s. chiara
English version of la basilica di s. chiaraEnglish version of la basilica di s. chiara
English version of la basilica di s. chiara

Pisa
PisaPisa
Pisa


Recently uploaded

Software testing for project report .pdf
Software testing for project report .pdfSoftware testing for project report .pdf
Software testing for project report .pdfKamal Acharya

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxheathfieldcps1

Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17Celine George

Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjStl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjMohammed Sikander

Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General QuizPragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General QuizPragya - UEM Kolkata Quiz Club

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Mohamed Rizk Khodair

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽中 央社

MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...Krashi Coaching

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptxPoojaSen20

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppCeline George

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxMohamed Rizk Khodair

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptxPoojaSen20

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/siemaillard

An Overview of the Odoo 17 Discuss App.pptx
An Overview of the Odoo 17 Discuss App.pptxAn Overview of the Odoo 17 Discuss App.pptx
An Overview of the Odoo 17 Discuss App.pptxCeline George

Financial Accounting IFRS, 3rd Edition-dikompresi.pdf
Financial Accounting IFRS, 3rd Edition-dikompresi.pdfFinancial Accounting IFRS, 3rd Edition-dikompresi.pdf
Financial Accounting IFRS, 3rd Edition-dikompresi.pdfMinawBelay

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...Nguyen Thanh Tu Collection

philosophy and it's principles based on the life
philosophy and it's principles based on the lifephilosophy and it's principles based on the life
philosophy and it's principles based on the lifeNitinDeodare

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnershipsexpandedwebsite

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project researchCaitlinCummins3

How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17Celine George


Recently uploaded (20)

Software testing for project report .pdf
Software testing for project report .pdfSoftware testing for project report .pdf
Software testing for project report .pdf

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptx

Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17

Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjStl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj

Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General QuizPragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz
Pragya Champions Chalice 2024 Prelims & Finals Q/A set, General Quiz

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽

MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptx

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge App

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptx

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptx

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/

An Overview of the Odoo 17 Discuss App.pptx
An Overview of the Odoo 17 Discuss App.pptxAn Overview of the Odoo 17 Discuss App.pptx
An Overview of the Odoo 17 Discuss App.pptx

Financial Accounting IFRS, 3rd Edition-dikompresi.pdf
Financial Accounting IFRS, 3rd Edition-dikompresi.pdfFinancial Accounting IFRS, 3rd Edition-dikompresi.pdf
Financial Accounting IFRS, 3rd Edition-dikompresi.pdf

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT VẬT LÝ 2024 - TỪ CÁC TRƯỜNG, TRƯ...

philosophy and it's principles based on the life
philosophy and it's principles based on the lifephilosophy and it's principles based on the life
philosophy and it's principles based on the life

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research

How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17


Pisa complex

  • 2.
  • 3.
  • 4. Pisa complex mainly comprises of 1. Pisa Cathedral 2. Campanile 3. Baptistery 4. Cemetry It was cited to be built due to touristy reasons and establish Pisa as centre of power. Pisa Complex
  • 5.  The cathedral complex at Pisa dramatically testifies to the prosperity that the busy maritime city enjoyed.  The cathedral, its freestanding bell tower, and the baptistery, where infants and converts were initiated into the Christian community, present an opportunity to study a coherent group of three Romanesque buildings.  Save for the upper portion of the baptistery, with its remodeled Gothic exterior, the three structures are stylistically homogeneous.
  • 6.  Construction of Pisa Cathedral began first—in 1063.  Pisa Cathedral is large, with a nave and four aisles, and is one of the most impressive and majestic of all Romanesque churches.  According to a document of the time, the Pisans wanted their bishop’s church not only to be a monument to the glory of God but also to bring credit to the city.
  • 7.  Construction on the baptistery began in the Romanesque style under Diotisalvi in 1153. Nicola and Giovanni Pisano gave the upper part a Gothic transformation between 1277 and 1297 and Cellino di Nese added the Gothic dome in the 1300s. It was finally completed in 1363.  Italy's largest baptistery (54.86m tall and 104m in circumference), the Battistero di San Giovanni is also slightly taller than the Leaning Tower across the square. As it shares the same unstable ground as the tower, the baptistery also has a slight lean of 0.6 degrees towards the cathedral.  The lower register of the baptistery is 12th-century Romanesque (with round blind arches), while the upper parts are predominantly 13th-century Gothic (with pointed arches).  The exterior of the second register was decorated with statues and designs by Giovanni Pisano;  The square main portal bears interesting reliefs by an unknown artist of the 13th century. The left side depicts the Labors of the Months while the right side portrays the Apostles (in pairs), the Harrowing of Hell, and King David.
  • 8.  The interior is fairly plain, dimly lit and not especially attractive, but it includes two great treasures: the first of the great Pisano pulpits and the large baptismal font in the centre.  The baptistery's pulpit is a masterpiece carved in 1255-60 by Nicola Pisano. It was the prototype for a series of four monumental pulpits he created with his son Giovanni (the last, Giovanni's greatest work, is in Pisa's Duomo; the other two are in Pistoia and Siena).  The pulpit's high reliefs, which depict scenes from the life of Christ, are strongly influenced by classical art - including the Roman sarcophagi and Greek vase now in the Camposanto.  The central baptismal font was carved and inlaid in 1246 by the Gothic sculptor Guido Bigarelli da Como (active 1238-57). In the centre of the font is a 20th-century statue of St. John the Baptist, to whom the baptistery is dedicated.  The baptistery is renowned for its perfect acoustics - choir concerts held inside can be heard from miles away. You can test the acoustics by arriving when it is least crowded (such as first thing in the morning), getting as close to the centre as possible and sounding a loud note - it will echo around the room as it fades.
  • 9.
  • 10.
  • 11.
  • 12.  At first glance, the cathedral resembles an Early Christian basilica with a timber roof, columnar arcade, and clerestory but the broadly projecting transept with apses, the crossing dome, and the facade’s multiple arcaded galleries distinguish it as Romanesque.  Begun in 1093, Pisa Cathedral (Duomo di Pisa) is a masterpiece of Romanesque architecture.  The first stone of Pisa Cathedral was laid in 1093, initiating what would become the distinctive Pisan Romanesque style.  The main architect was Buscheto, who is buried in the last blind arch on the left side of the facade. The facade itself was built by Buscheto's successor, Rainaldo.  The façade is marble.  The bottom section has tall blind arcades with pastel-colored marble inlay and three portals with bronze doors. Above this are four rows of open arcades with delicate columns rising to the top of a gable that is much taller than the cathedral roof.( use of false façade)
  • 13.  The spacious nave has a Cosmatesquemarble pavement and two aisles on each side; the transept crossing is covered by a painted oval dome.  The famous medieval artwork in this church are Giovanni Pisano’s pulpit, St. Agnes with her lamb bronze angels, mosaic of Christ Pancrator.  The Cathedral has a prominent role in determining the beginning of the Pisan New Year. Between the tenth century and 1749, when the Tuscan calendar was reformed, Pisa used its own calendar, in which the first day of the year was March 25, the feast day of the Annunciation of Mary. Years were counted such that the Pisan New Year begins 9 months before the ordinary one. The exact moment is determined by a ray of sun that, through a window on the left side, falls on an egg- shaped marble, just above the pulpit by Giovanni Pisano; this occurs at noon.  Some relics brought back during the Crusades can also be found in the Cathedral: alleged remains of three Saints (Abibo, Gamaliel, and Nicodemus), and a vase that is said to be one of the jars of Cana.
  • 14.  The granite Corinthian columns between the nave and the aisle came originally from the mosque of Palermo, captured by the Pisans in 1063.  Earlier the church had a coffered ceiling  The elaborately carved pulpit (1302–1310) was made by Giovanni Pisano, a masterwork of medieval sculpture. The pulpit is supported by plain columns (two of which are mounted on lion's sculptures) on one side and by caryatids and a telamon on the other: the latter represent St. Michael, the Evangelists, the four cardinal virtues flanking the Church, and a bold, naturalistic depiction of a naked Hercules. A central plinth with the liberal arts supports the four theological virtues.
  • 15.  Above the doors are four rows of open galleries with, on top, statues of Madonna with Child and, on the corners, the Four evangelists.  Also in the façade is found the tomb of Buscheto (on the left side) and an inscription about the foundation of the Cathedral and the victorious battle against the Saracens.  At the east end of the exterior, high on a column rising from the gable, is a modern replica of the Pisa Griffin, the largest Islamic metal sculpture known, the original of which was placed there probably in the 11th or 12th century, and is now in the Cathedral Museum.  The interior is faced with black and white marble and has a gilded ceiling and a frescoed dome. It was largely redecorated after a fire in 1595, which destroyed most of the Renaissance art works.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.   The Leaning Tower of Pisa (Torre Pendente di Pisa in Italian) is one of the great icons of Europe. Begun in 1173, the bell tower of Pisa Cathedral is famous for the shifting of its sandy foundations that has led to a significant lean of 5.5 degrees.  The campanile was begun in 1173 as the final structure of the magnificent cathedral complex on the Campo dei Miracoli in Pisa. The settling of its foundations and resulting lean became apparent before it was even finished - after only three stories were completed. The engineer, believed to be Bonnano Pisano, tried to compensate by making the new stories a little taller on one side. However, the extra materials caused the tower to sink even more.  Made of gleaming white and pastel marbles, the Leaning Tower has a diameter of 52 feet (16 m) at the base and would stand 185 feet (56 metres) high if it were straight. It currently leans 5.5 degrees, which amounts to about 15 feet or 4.5 metres from vertical.  The famous lean of the bell tower often overshadows its magnificent architecture, which is an exceptional example of the Romanesque style. The round tower is made of fine multi-coloured marble and has eight stories in all, each surrounded by an arcaded gallery. The repeating registers of arches give the tower an exceptionally harmonious and rhythmic appearance.
  • 24.  The bottom register of the tower has a blind arcade and an ornately carved portal, which features grotesque sculptures of animals. The second through seventh stories have open arcaded galleries and the eighth story houses the bell chamber. The medieval bells remain in place, but for stability reasons are no longer rung.  Inside the tower is a 294-step spiral staircase leading to the bell chamber. Happily visitors are once again allowed to climb the tower in small groups, which provides not only a close look at the iconic tower but a fine view of the Piazza del Duomo.
  • 25.
  • 26.  The Camposanto Monumentale (Monumental Cemetery), also known as Campo Santo is located at the northern edge of the square. This walled cemetery is said to have been built around a shipload of sacred soil from Calvary, brought back to Pisa from the Fourth Crusade by Ubaldo de' Lanfranchi, the archbishop of Pisa in the 12th century. This is where the name Campo Santo (Holy Field) originates.  The outer wall is composed of 43 blind arches. There are two doorways. The one on the right is crowned by a gracious Gothic tabernacle and contains the Virgin Mary with Child surrounded by four saints. It is the work from the second half of the 14th century by a follower of Giovanni Pisano. Most of the tombs are under the arcades, although a few are on the central lawn. The inner court is surrounded by elaborate round arches with slender mullions and plurilobed tracery.  The Camposanto Monumentale once contained a large collection of Roman sculptures and sarcophagi, but now there are only 84 remaining. The walls were once covered in frescoes, the first were applied in 1360, the last about three centuries later.
  • 27.  The Opera Palace is a complex of houses in the north east[ corner of the square. They have been built in different periods, with the main building dating back to at least the XIV century and the latest to the XIX century.  Originally these houses belonged to the workmen of the cathedral complex: the tailor, the gardener, the bell ringers, etc.
  • 28.  The Ospedale Nuovo di Santo Spirito (New Hospital of Holy Spirit) is located on the southeast corner of the square. Built in 1257 by Giovanni di Simone over a preexisting smaller hospital, the function of this hospital was to help pilgrims, poor, sick people, and abandoned children by providing a shelter..
