Pipeline Hazards _
- 1.

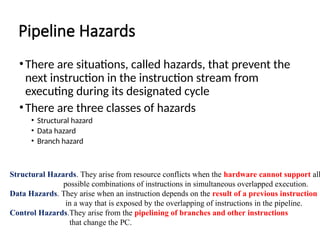

- 2. Pipeline Hazards •There aresituations, called hazards, that prevent the next instruction in the instruction stream from executing during its designated cycle •There are three classes of hazards • Structural hazard • Data hazard • Branch hazard Structural Hazards. They arise from resource conflicts when the hardware cannot support all possible combinations of instructions in simultaneous overlapped execution. Data Hazards. They arise when an instruction depends on the result of a previous instruction in a way that is exposed by the overlapping of instructions in the pipeline. Control Hazards.They arise from the pipelining of branches and other instructions that change the PC.
- 3. What Makes PipeliningHard? • Power failing, • Arithmetic overflow, • I/O device request, • OS call, • Page fault 3

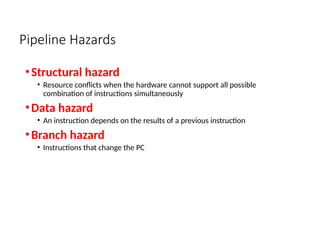

- 4. Pipeline Hazards •Structural hazard •Resource conflicts when the hardware cannot support all possible combination of instructions simultaneously •Data hazard • An instruction depends on the results of a previous instruction •Branch hazard • Instructions that change the PC

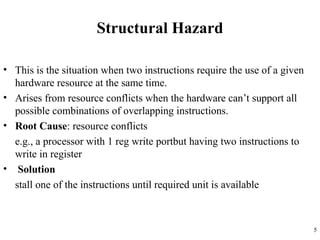

- 5. Structural Hazard • Thisis the situation when two instructions require the use of a given hardware resource at the same time. • Arises from resource conflicts when the hardware can’t support all possible combinations of overlapping instructions. • Root Cause: resource conflicts e.g., a processor with 1 reg write portbut having two instructions to write in register • Solution stall one of the instructions until required unit is available 5

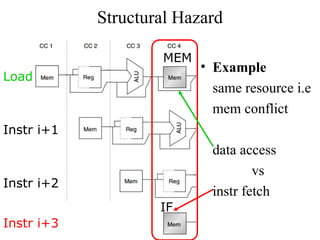

- 6. Structural Hazard • Example sameresource i.e mem conflict data access vs instr fetch Load Instr i+3 Instr i+2 Instr i+1 MEM IF

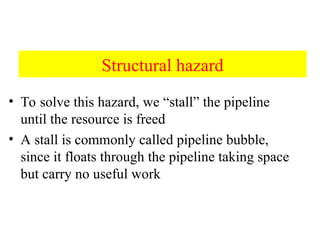

- 7. Structural hazard • Tosolve this hazard, we “stall” the pipeline until the resource is freed • A stall is commonly called pipeline bubble, since it floats through the pipeline taking space but carry no useful work

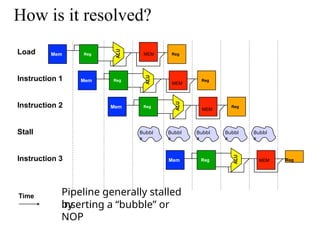

- 8. How is itresolved? Time Reg Mem Reg Load Instruction 1 Instruction 2 Stall Instruction 3 Bubbl e Bubbl e Bubbl e Bubbl e Bubbl e Pipeline generally stalled by inserting a “bubble” or NOP Reg Mem MEM Reg Reg Mem Reg Reg Mem Reg MEM MEM MEM

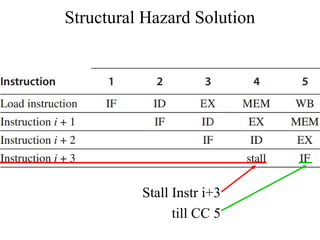

- 9. Structural Hazard Solution StallInstr i+3 till CC 5

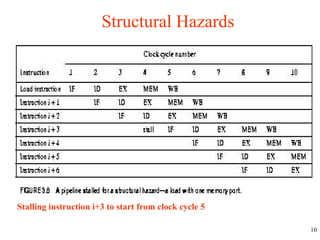

- 10. 10 Structural Hazards Stalling instructioni+3 to start from clock cycle 5

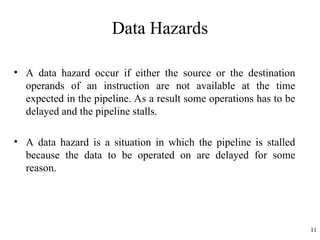

- 11. Data Hazards • Adata hazard occur if either the source or the destination operands of an instruction are not available at the time expected in the pipeline. As a result some operations has to be delayed and the pipeline stalls. • A data hazard is a situation in which the pipeline is stalled because the data to be operated on are delayed for some reason. 11

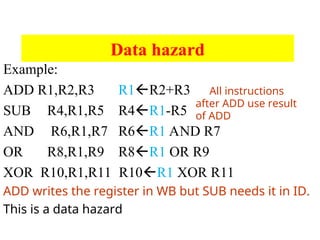

- 12. Data hazard Example: ADD R1,R2,R3R1R2+R3 SUB R4,R1,R5 R4R1-R5 AND R6,R1,R7 R6R1 AND R7 OR R8,R1,R9 R8R1 OR R9 XOR R10,R1,R11 R10R1 XOR R11 ADD writes the register in WB but SUB needs it in ID. This is a data hazard All instructions after ADD use result of ADD

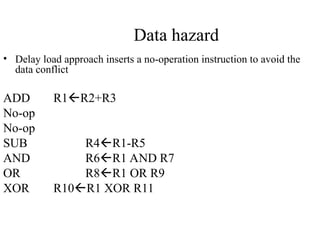

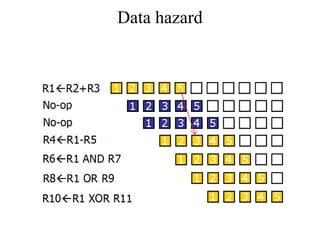

- 13. Data hazard • Delayload approach inserts a no-operation instruction to avoid the data conflict ADD R1R2+R3 No-op No-op SUB R4R1-R5 AND R6R1 AND R7 OR R8R1 OR R9 XOR R10R1 XOR R11
- 14.

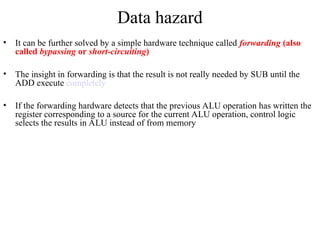

- 15. Data hazard • Itcan be further solved by a simple hardware technique called forwarding (also called bypassing or short-circuiting) • The insight in forwarding is that the result is not really needed by SUB until the ADD execute completely • If the forwarding hardware detects that the previous ALU operation has written the register corresponding to a source for the current ALU operation, control logic selects the results in ALU instead of from memory

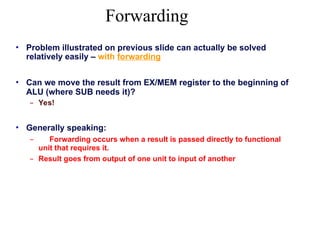

- 16. Forwarding • Problem illustratedon previous slide can actually be solved relatively easily – with forwarding • Can we move the result from EX/MEM register to the beginning of ALU (where SUB needs it)? – Yes! • Generally speaking: – Forwarding occurs when a result is passed directly to functional unit that requires it. – Result goes from output of one unit to input of another

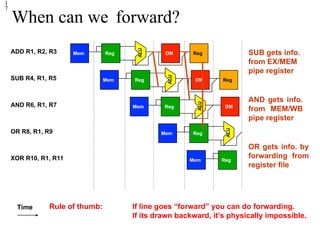

- 17. When can weforward? Reg Mem DM Reg Reg Mem DM Reg Reg Mem DM Reg Mem Time ADD R1, R2, R3 SUB R4, R1, R5 AND R6, R1, R7 OR R8, R1, R9 XOR R10, R1, R11 Reg Mem SUB gets info. from EX/MEM pipe register 1 7 AND gets info. from MEM/WB pipe register OR gets info. by forwarding from register file Rule of thumb: If line goes “forward” you can do forwarding. If its drawn backward, it’s physically impossible.
- 18.

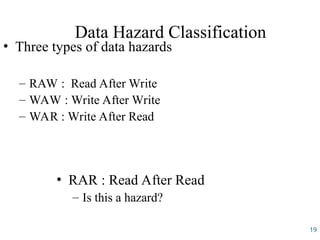

- 19. 19 Data Hazard Classification •Three types of data hazards – RAW : Read After Write – WAW : Write After Write – WAR : Write After Read • RAR : Read After Read – Is this a hazard?

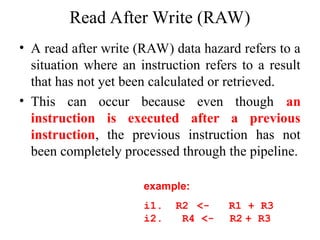

- 20. Read After Write(RAW) • A read after write (RAW) data hazard refers to a situation where an instruction refers to a result that has not yet been calculated or retrieved. • This can occur because even though an instruction is executed after a previous instruction, the previous instruction has not been completely processed through the pipeline. example: i1. R2 <- R1 + R3 i2. R4 <- R2 + R3
- 21. Write After Read(WAR) • A write after read (WAR) data hazard represents a problem with concurrent execution. For example: i1. R4 <- R1 + R5 i2. R5 <- R1 + R2
- 22. Write After Write(WAW • A write after write (WAW) data hazard may occur in a concurrent execution environment. example: i1. R2 <- R4 + R7 i2. R2 <- R1 + R3 We must delay the WB (Write Back) of i2 until the execution of i1

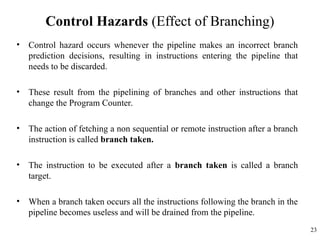

- 23. Control Hazards (Effectof Branching) • Control hazard occurs whenever the pipeline makes an incorrect branch prediction decisions, resulting in instructions entering the pipeline that needs to be discarded. • These result from the pipelining of branches and other instructions that change the Program Counter. • The action of fetching a non sequential or remote instruction after a branch instruction is called branch taken. • The instruction to be executed after a branch taken is called a branch target. • When a branch taken occurs all the instructions following the branch in the pipeline becomes useless and will be drained from the pipeline. 23

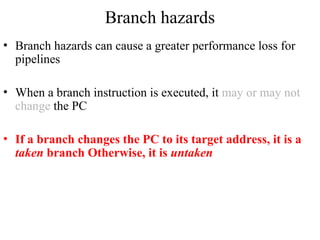

- 24. Branch hazards • Branchhazards can cause a greater performance loss for pipelines • When a branch instruction is executed, it may or may not change the PC • If a branch changes the PC to its target address, it is a taken branch Otherwise, it is untaken

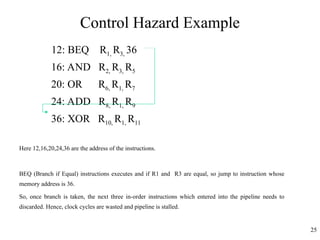

- 25. Control Hazard Example 12:BEQ R1, R3, 36 16: AND R2, R3, R5 20: OR R6, R1, R7 24: ADD R8, R1, R9 36: XOR R10, R1, R11 Here 12,16,20,24,36 are the address of the instructions. BEQ (Branch if Equal) instructions executes and if R1 and R3 are equal, so jump to instruction whose memory address is 36. So, once branch is taken, the next three in-order instructions which entered into the pipeline needs to discarded. Hence, clock cycles are wasted and pipeline is stalled. 25

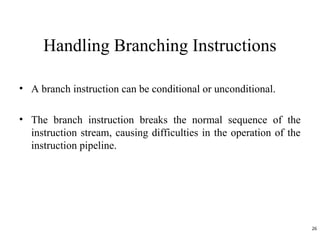

- 26. • A branchinstruction can be conditional or unconditional. • The branch instruction breaks the normal sequence of the instruction stream, causing difficulties in the operation of the instruction pipeline. Handling Branching Instructions 26

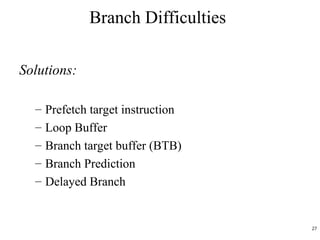

- 27. Branch Difficulties Solutions: – Prefetchtarget instruction – Loop Buffer – Branch target buffer (BTB) – Branch Prediction – Delayed Branch 27

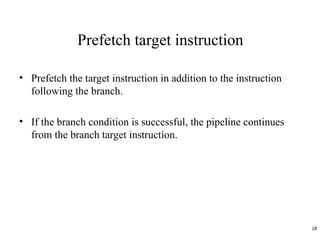

- 28. Prefetch target instruction •Prefetch the target instruction in addition to the instruction following the branch. • If the branch condition is successful, the pipeline continues from the branch target instruction. 28

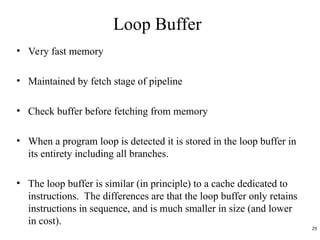

- 29. Loop Buffer • Veryfast memory • Maintained by fetch stage of pipeline • Check buffer before fetching from memory • When a program loop is detected it is stored in the loop buffer in its entirety including all branches. • The loop buffer is similar (in principle) to a cache dedicated to instructions. The differences are that the loop buffer only retains instructions in sequence, and is much smaller in size (and lower in cost). 29

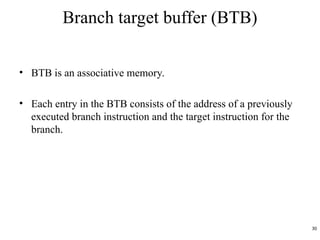

- 30. Branch target buffer(BTB) • BTB is an associative memory. • Each entry in the BTB consists of the address of a previously executed branch instruction and the target instruction for the branch. 30
- 31. Branch Prediction • Apipeline with branch prediction uses some additional logic to guess the outcome of a conditional branch instruction before it is executed. 31

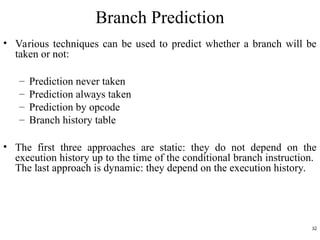

- 32. Branch Prediction • Varioustechniques can be used to predict whether a branch will be taken or not: – Prediction never taken – Prediction always taken – Prediction by opcode – Branch history table • The first three approaches are static: they do not depend on the execution history up to the time of the conditional branch instruction. The last approach is dynamic: they depend on the execution history. 32
- 33. Delayed Branch • Inthis procedure, the compiler detects the branch instruction and rearrange the machine language code sequence by inserting useful instructions that keep the pipeline operating without interrupts. 33

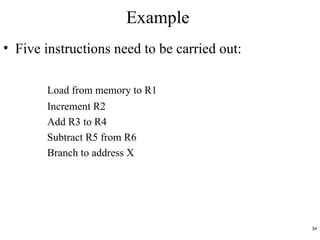

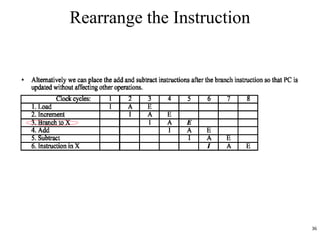

- 34. Example • Five instructionsneed to be carried out: Load from memory to R1 Increment R2 Add R3 to R4 Subtract R5 from R6 Branch to address X 34
- 35.
- 36.
Editor's Notes
- #6 Here’s an example of structural hazard due to memory conflict. Assume the processor has only memory port. A structural hazard will arise in clock cycle 4 when the load instruction reads data from memory and instruction i plus 3 fetches instruction from memory.
- #9 The solution to this structural hazard is stall instruction i+3 for one clock cycle.
