1. BCS-DS-427B: PYTHON
Ms. Swati Hans
Assistant Professor, CSE
Manav Rachna International Institute of Research and Studies, Faridabad
1

2. PYTHON
Unit-4
INHERITANCE, ITS
TYPES

3. INHERITANCE
Inheritance is the capability of one class to derive or inherit the properties
from some another class.
Parent class is termed as base class
Child class is also termed as derived class
The benefits of inheritance are:
▪Code reusability
We don’t have to write the same code again and again. Also, it allows us to
add more features to a class without modifying it.
▪Transitivity
It means that if class B inherits from another class A, then all the subclasses
of B would automatically inherit from class A.

4. SINGLE LEVEL INHERITANCE
When a child class inherits from only
one parent class which is not derived
from any other class, it is called as
single level inheritance.
Here A is a base class, B is child class of
A as it is inheriting features of A
class.55d xc ./
+
A
B

5. SINGLE LEVEL INHERITANCE
CODE
class A:
def funA(self):
print("in A")
class B(A):
def funB(self):
print("in B")
b1=B()
b1.funA
b1.funB()
Here,B class is inheriting class A .So class A
functions will
Become members of class B.
So,when object b1 of class B is created, all
functions of
Class A and B are called from it.

6. MULTILEVEL INHERITANCE
Multi-level inheritance is when a
derived class inherits another derived
class. There is no limit on the number
of levels up to which, the multi-level
inheritance can be achieved.
Here Person is a base class, Employee
is child class of Person and Manager is
a child class of Employee.
Person
Employee
Manager

7. MULTILEVEL INHERITANCE
CODE
class Person:
name=""
def getName(self): # To get
name
return self.name
def setName(self,s): # To set
the name
self.name=s
class Manager(Employee):
projectstatus=""
def getProjectStatus(self): # To get
project status
return self.projectstatus
def setProjectStatus(self,st): # To set
project status
self.projectstatus=st
Here,we created three classes
Employee class is inheriting Person class and
Manager class
is inheriting Employee class.
class Employee(Person):
salary=0
def getSalary(self): # To get
salary
return self.salary
def setSalary(self,num): # To set
#Python Program to depict multilevel inheritance

8. MULTILEVEL CONTINUE…..
Output
m=Manager()
m.setName("Rahul") # calling its setter methods to initialize variables
m.setSalary(155000)
m.setProjectStatus("Half completed")
print("Name is ",m.getName()) # calling all getter functions
print("Salary is ",m.getSalary())
print("Project status is ",m.getProjectStatus())
Creating object of child class and calling its functions

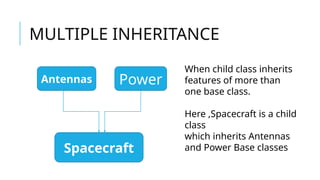

9. MULTIPLE INHERITANCE
When child class inherits
features of more than
one base class.
Here ,Spacecraft is a child
class
which inherits Antennas
and Power Base classes
Antennas Power
Spacecraft

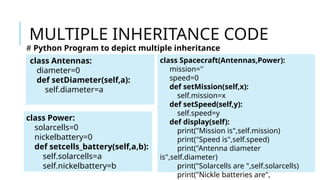

10. MULTIPLE INHERITANCE CODE
class Power:
solarcells=0
nickelbattery=0
def setcells_battery(self,a,b):
self.solarcells=a
self.nickelbattery=b
class Spacecraft(Antennas,Power):
mission=''
speed=0
def setMission(self,x):
self.mission=x
def setSpeed(self,y):
self.speed=y
def display(self):
print("Mission is",self.mission)
print("Speed is",self.speed)
print("Antenna diameter
is",self.diameter)
print("Solarcells are ",self.solarcells)
print("Nickle batteries are",
class Antennas:
diameter=0
def setDiameter(self,a):
self.diameter=a
# Python Program to depict multiple inheritance

11. MULTIPLE INHERITANCE EXAMPLE CODE…
s1 = Spacecraft() # creating space craft object
s1.setMission("Weather Forecasting") # call its setter methods t initialize variables
s1.setSpeed(61000)
s1.setDiameter(6)
s1.setcells_battery(3200,2)
s1.display() # call its display method
Outp
ut
Creating object of child class and calling its functions

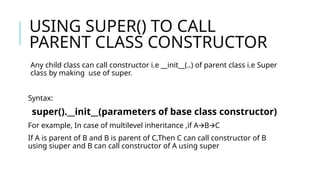

12. USING SUPER() TO CALL
PARENT CLASS CONSTRUCTOR
Any child class can call constructor i.e __init__(..) of parent class i.e Super
class by making use of super.
Syntax:
super().__init__(parameters of base class constructor)
For example, In case of multilevel inheritance ,if A B C
🡪 🡪
If A is parent of B and B is parent of C,Then C can call constructor of B
using siuper and B can call constructor of A using super

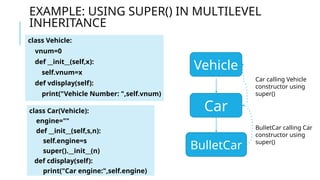

13. EXAMPLE: USING SUPER() IN MULTILEVEL
INHERITANCE
class Vehicle:
vnum=0
def __init__(self,x):
self.vnum=x
def vdisplay(self):
print("Vehicle Number: ",self.vnum)
Vehicle
Car
BulletCar
BulletCar calling Car
constructor using
super()
Car calling Vehicle
constructor using
super()
class Car(Vehicle):
engine=""
def __init__(self,s,n):
self.engine=s
super().__init__(n)
def cdisplay(self):
print("Car engine:",self.engine)

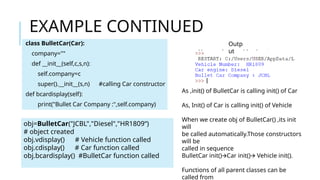

14. EXAMPLE CONTINUED
class BulletCar(Car):
company=""
def __init__(self,c,s,n):
self.company=c
super().__init__(s,n) #calling Car constructor
def bcardisplay(self):
print("Bullet Car Company :",self.company)
Outp
ut
As ,init() of BulletCar is calling init() of Car
As, Init() of Car is calling init() of Vehicle
When we create obj of BulletCar() ,its init
will
be called automatically.Those constructors
will be
called in sequence
BulletCar init() Car init() Vehicle init().
🡪 🡪
Functions of all parent classes can be
called from
obj=BulletCar("JCBL","Diesel","HR1809“)
# object created
obj.vdisplay() # Vehicle function called
obj.cdisplay() # Car function called
obj.bcardisplay() #BulletCar function called

15. MRO(METHOD RESOLUTION ORDER)
I
Method Resolution Order (MRO) is the order in which Python looks for a method in a hierarchy of
classes. Especially it plays vital role in the context of multiple inheritance as single method may be
found in multiple super classes.
In the multiple inheritance scenario, any specified attribute is searched first in the current class.
If not found, the search continues into parent classes in depth-first, left-right fashion without
searching same class twice and then finally in object class. As every class in Python is derived
from the class object.
So, In above example , MRO will be
GermanShephard, Dog, GoodAnimals, Object
Dog GoodAnimals
GermanShepar
d

16. MRO OF A CLASS(In case of Multiple Inheritance):
class GoodAnimals(object):
def __init__(self):
print("They're all good dogs")
super().__init__()
class GermanShepard(Dog,GoodAnimals):
def __init__(self):
print("init GermanShepard")
super().__init__() # calling base class
constructor
obj = GermanShepard()
print(GermanShephard.__mro__)
print(GermanShephard.mro())
MRO of a class can be viewed by using __mro__ attribute or mro() method. Create class Dog,GoodAnimals
, GermanShephard inherits Dog and Goodanimals. Then display MRO of GermanShephard
class Dog:
def __init__(self):
print("init Dog")
super().__init__()

17. MRO IN CASE OF MULTIPLE INHERITANCE
class GoodAnimals(object):
def __init__(self):
print("They're all good dogs")
super().__init__()
class Dog:
def __init__(self):
print("init Dog")
super().__init__() #pass the call to
#next class in
#MRO
class GermanShepard(Dog,GoodAnimals):
def __init__(self):
print("init GermanShepard")
super().__init__() # calling base class
constructor
obj = GermanShepard()
Output
• When the GermanShepard object is created,
MRO searches for __init__() firstly in
GermanShepard itself.
• GermanShepard init is calling super init() will
call
init of next class in MRO i.e. Dog class init
• Dog class init is calling super init() again
which will call
init of next class in MRO i.e. GoodAnimals
class init
In multiple inheritance, if you want constructor of child should call constructor of all
parent classes.
Then all parent and Child classes should call super().__init__()
