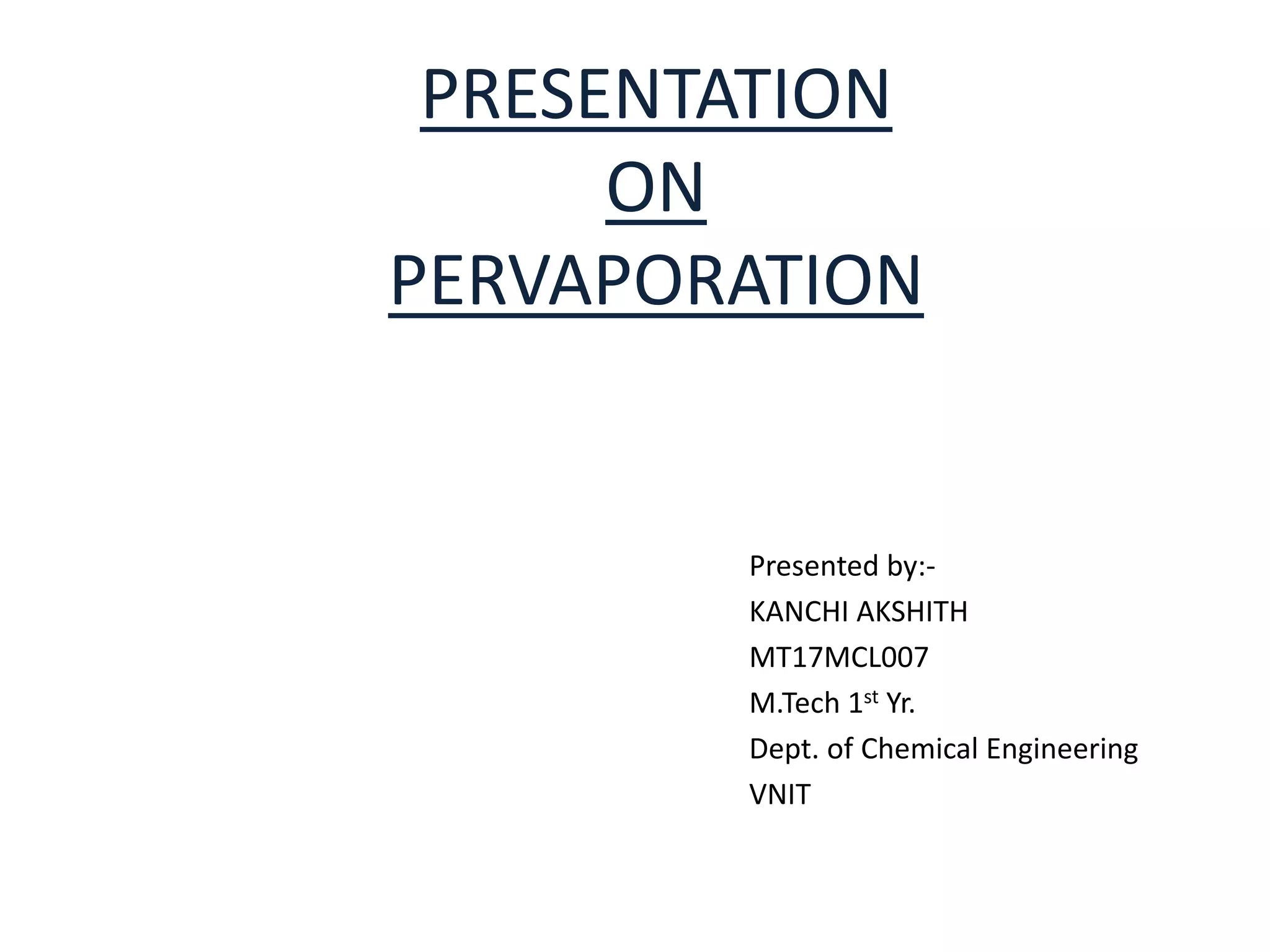

This presentation provides an overview of pervaporation. Pervaporation involves the partial vaporization of a liquid mixture through a nonporous membrane, driven by a concentration gradient. The membrane retains one component more strongly than the other, allowing separation. Common applications include dehydrating ethanol/water mixtures and removing organic solvents from wastewater. The presentation discusses the basic process, membrane types including organic and inorganic options, design of pervaporation modules, and mathematical models. Typical industrial uses aim to concentrate flavors or break azeotropes in distillation.
