1. Paper Reading

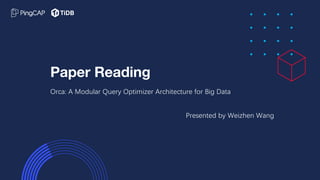

Orca: A Modular Query Optimizer Architecture for Big Data
Presented by Weizhen Wang

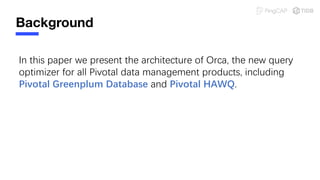

2. Background
In this paper we present the architecture of Orca, the new query
optimizer for all Pivotal data management products, including
Pivotal Greenplum Database and Pivotal HAWQ.

3. ORCA = GPORCA = Greenplum ORCA = ...
Jul 2015, PQO: Pivotal Query Optimizer (Released in GPDB 4.3.5.0)
Jun 2014, ORCA: SIGMOD 2014 Paper
https://github.com/greenplum-db/gporca
In source code GPOPT
src/backend/gpopt
psql: select gp_opt_version();

4. High level GPDB architecture
• Storage and processing of large amounts of data are handledby distributing the load across several
servers or hosts to create an array of individual databases. all working together to present a single
database image.
• The master is the entry point to GPDB, where clients connect and submit SQL statements. The
master coordinates work with other database instances, called segments, to handle data processing
and storage.
• When a query is submitted to the master, it is optimized and broken into smaller components
dispatched to segments to work together on delivering the final results.
• The interconnect is the networking layer responsible for inter-process communication between the
segments. The interconnect uses a standard Gigabit Ethernet switching fabric.

5. High level GPDB architecture

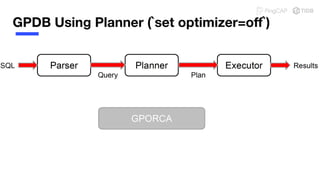

6. GPDB Using Planner (`set optimizer=off`)

7. GPDB Using GPORCA (`set optimizer=on`)

8. Orca architecture
DXL： Data exchange
Language

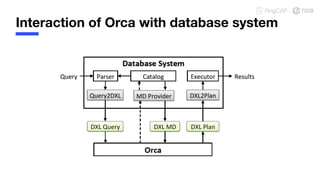

9. Interaction of Orca with database system

10. Five Optimization Steps in Orca
● [Step 0] Pre-Process: e.g., predicates pushdown
● [Step 1] Exploration: All equivalent logical plans
● [Step 2] Statistics Derivation: histograms
● [Step 3] Implementation: Logical to Physical
● [Step 4] MPP Optimization: Enforcing and Costing

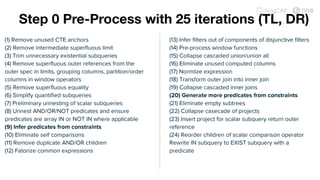

11. Step 0 Pre-Process with 25 iterations (TL, DR)

12. Step 1 Exploration 1/2: Memoization
Compact in-memory data
structure
capturing plan space:
Group: Container of equivalent
expressions
Group Expression: Operator
that has
other groups as its children

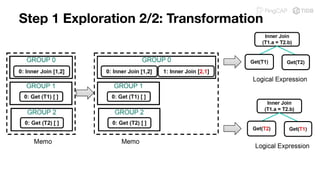

13. Step 1 Exploration 2/2: Transformation

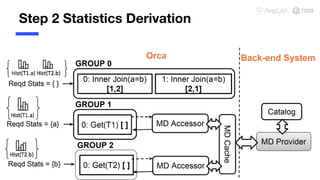

14. Step 2 Statistics Derivation

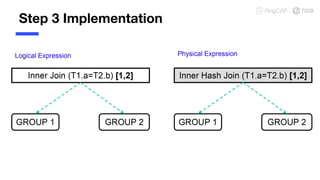

15. Step 3 Implementation

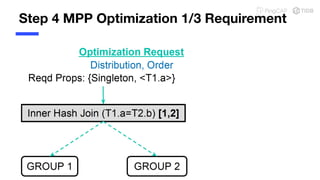

16. Step 4 MPP Optimization 1/3 Requirement

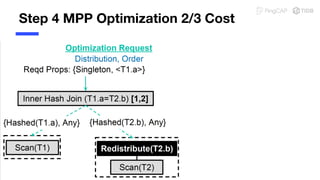

17. Step 4 MPP Optimization 2/3 Cost

18. Step 4 MPP Optimization 3/3 Enforcement

19. Processing optimization requests in the Memo

20. Parallel Query Optimization
Exp(g): Generate logically equivalent expressions of all group expressions in group g.
Exp(gexpr): Generate logically equivalent expressions of a group expression gexpr.
Imp(g): Generate implementations of all group expressions in group g.
Imp(gexpr): Generate implementation alternatives of a group expression gexpr.
Opt(g, req): Return the plan with the least estimated cost that is rooted by an operator in
group g and satises optimization request req.
Opt(gexpr, req): Return the plan with the least estimated cost that is rooted by gexpr and
satises optimization request req.
Xform(gexpr, t): Transform group expression gexpr using rule t.
Optimization process is broken to small work units called optimization jobs.
Orca currently has seven different types of optimization jobs:

21. Parallel Query Optimization
Optimization jobs dependency graph

22. Test

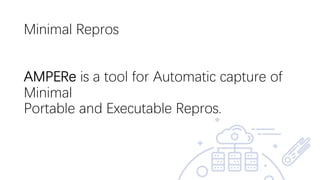

23. Minimal Repros
AMPERe is a tool for Automatic capture of
Minimal
Portable and Executable Repros.

24. Replay of AMPERe dump

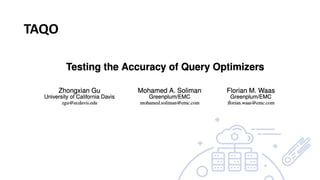

25. TAQO

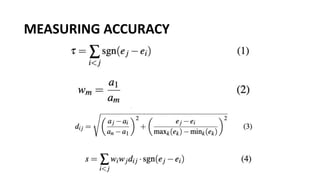

26. MEASURING ACCURACY
• Discordance of plan pairs.
• Relevance of plan
• Pairwise distance

27. MEASURING ACCURACY

28. PingCAP.com
TAQO components
● Configuration Generator
● Execution Tracker
● Plan Deduplicator
● Ranker

29. Great Query Performance of Orca vs Planner
(TPC-DS 10TB)
