1. TECHNICAL INTRODUCTION TO RHEL 8
Antonio C. Vélez Báez
Cloud Security Consultant
OSCP, RHCE, RHCI, RHCX, RHCSA-RHOS, Linux+
August 30, 2019

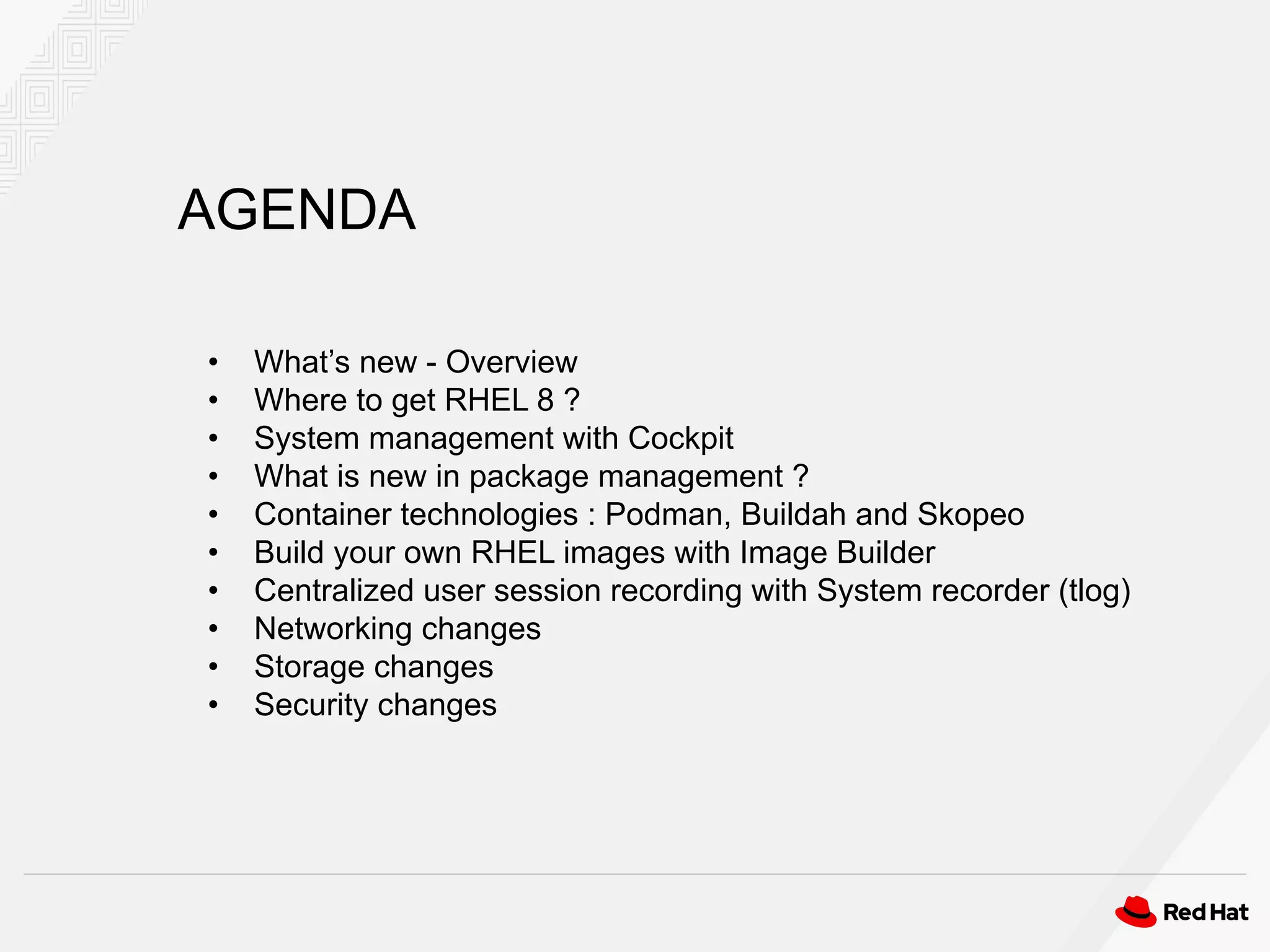

2. AGENDA
• What’s new - Overview
• Where to get RHEL 8 ?
• System management with Cockpit
• What is new in package management ?
• Container technologies : Podman, Buildah and Skopeo
• Build your own RHEL images with Image Builder
• Centralized user session recording with System recorder (tlog)
• Networking changes
• Storage changes
• Security changes

3. :: WHAT’S NEW ?

4. WHAT’S NEW IN RHEL 8 ?
• Cockpit improvements
• YUM 4 , Application stream and Flatpak
• Python 3.6 (**note on Ansible, 2.8+)
• Kernel 4.18 (RHEL 7 : Kernel 3.10)
• 5-level page table (up to 4 PB ram)
• Networking changes
• Security Changes
• Nvdimm storage support
• Containers : Podman, Buildah and Skopeo
• Composer ( build custom RHEL images )
• System purpose ( record the intended use )
• Wayland ( xorg replacement )
• Stratis ( lvm replacement )
• Leapp ( release upgrade tool )
• New patches schedule
• And more ...

5. :: WHERE TO GET RHEL 8 ?

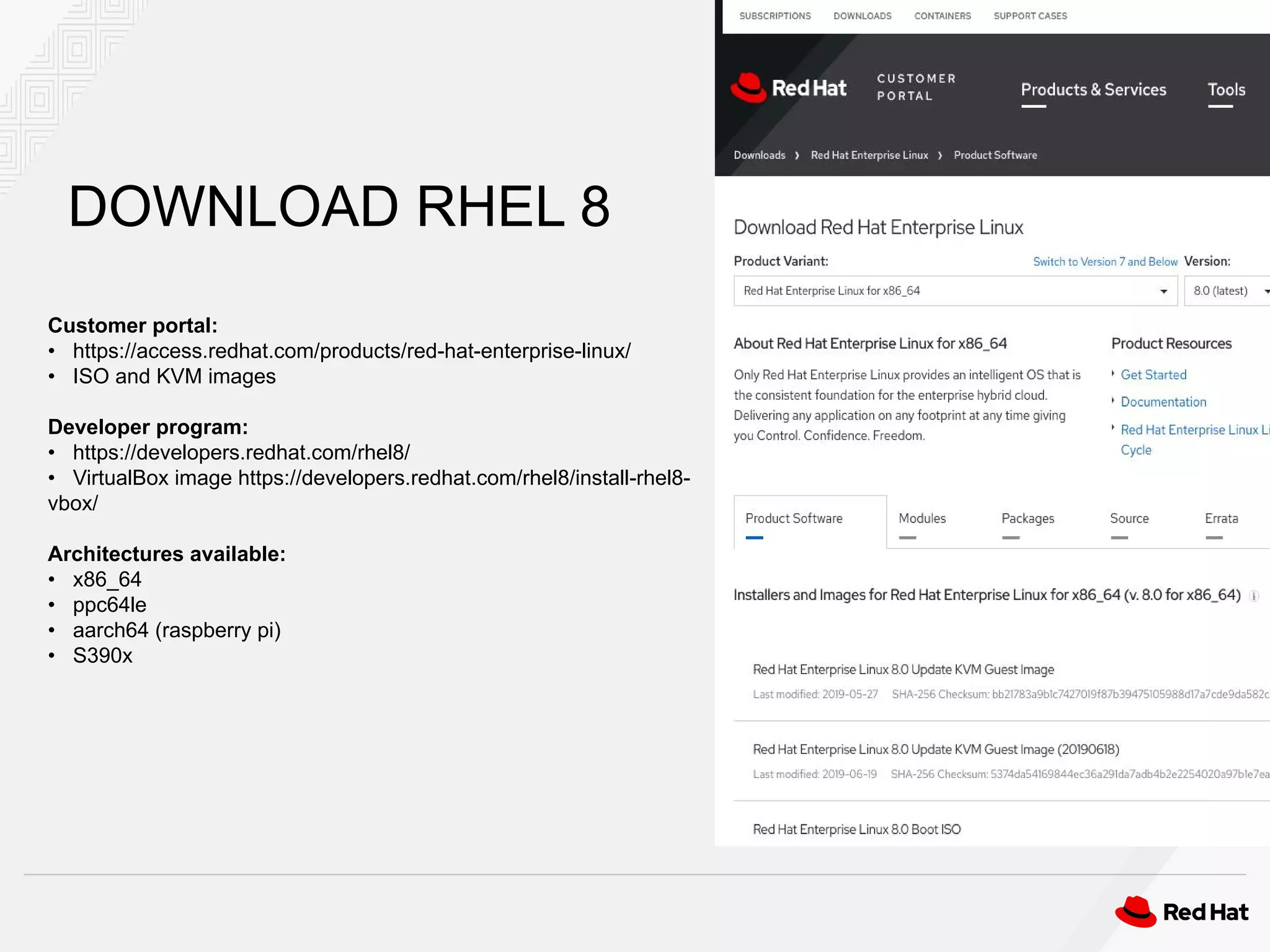

6. Customer portal:
• https://access.redhat.com/products/red-hat-enterprise-linux/
• ISO and KVM images
Developer program:
• https://developers.redhat.com/rhel8/
• VirtualBox image https://developers.redhat.com/rhel8/install-rhel8-
vbox/
Architectures available:
• x86_64
• ppc64le
• aarch64 (raspberry pi)
• S390x
DOWNLOAD RHEL 8

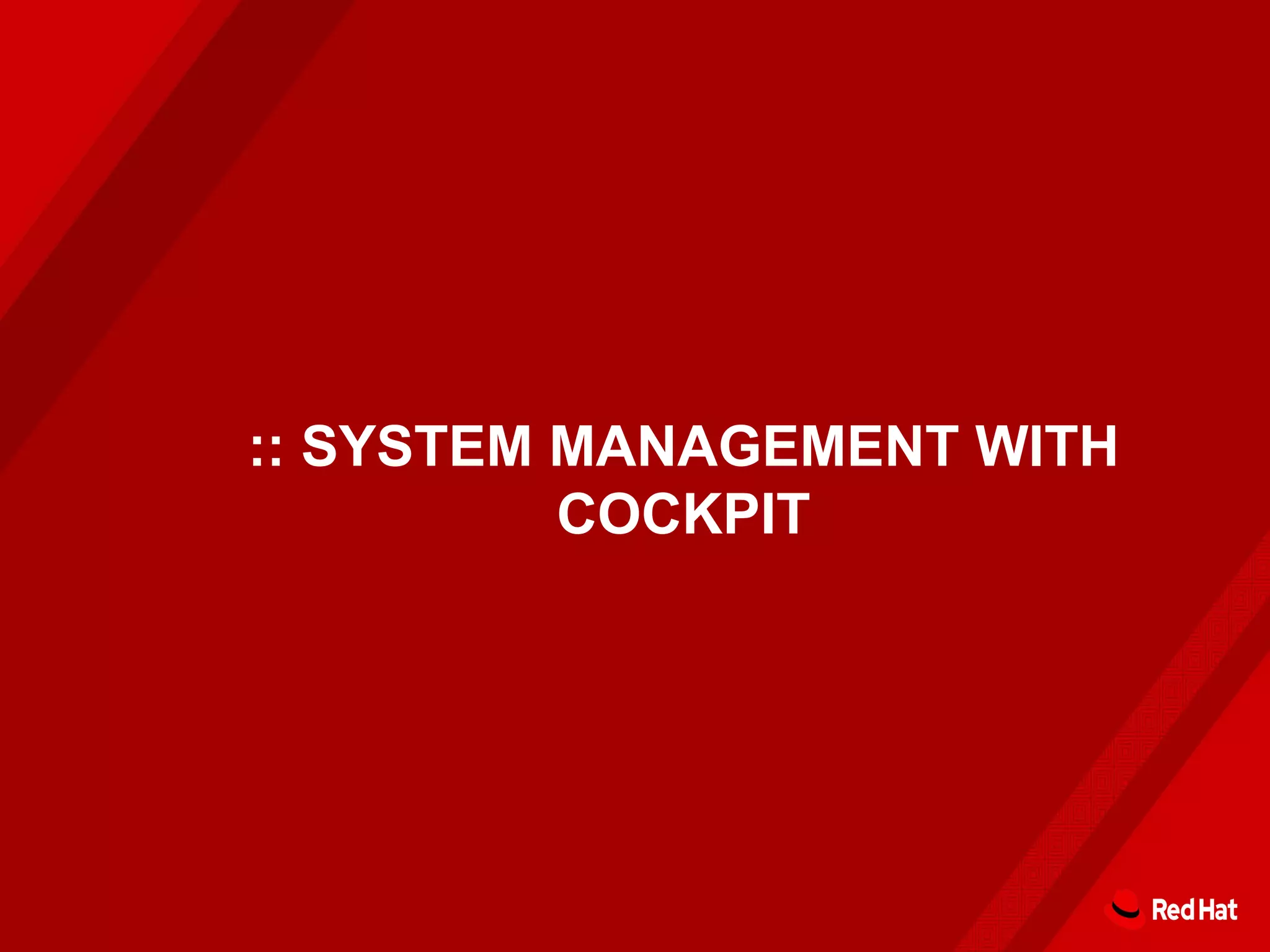

7. :: SYSTEM MANAGEMENT WITH
COCKPIT

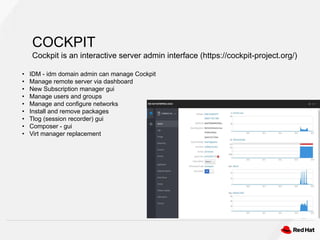

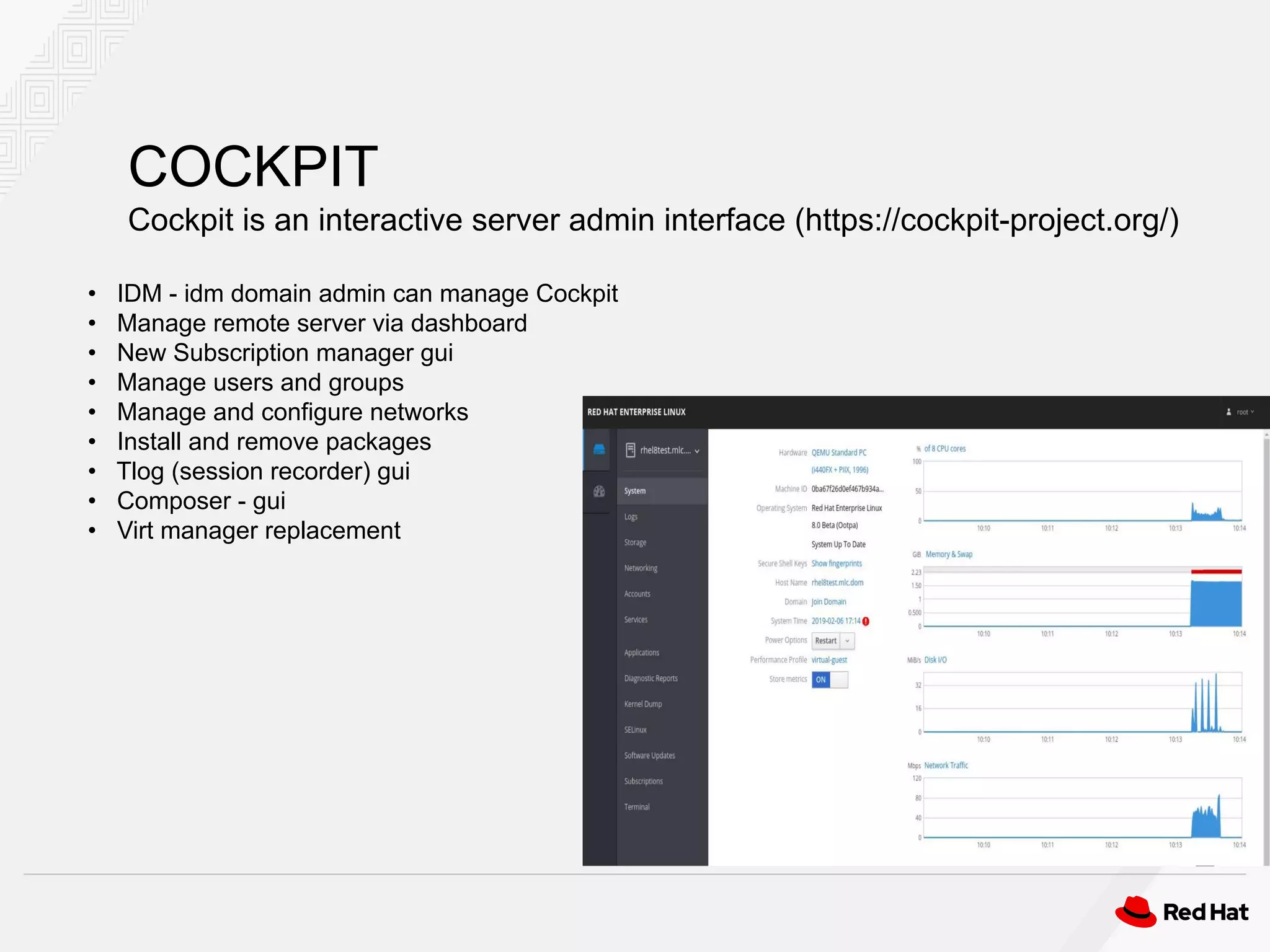

8. COCKPIT
Cockpit is an interactive server admin interface (https://cockpit-project.org/)
• IDM - idm domain admin can manage Cockpit
• Manage remote server via dashboard
• New Subscription manager gui
• Manage users and groups
• Manage and configure networks
• Install and remove packages
• Tlog (session recorder) gui
• Composer - gui
• Virt manager replacement

9. :: WHAT IS NEW IN PACKAGE
MANAGEMENT ?

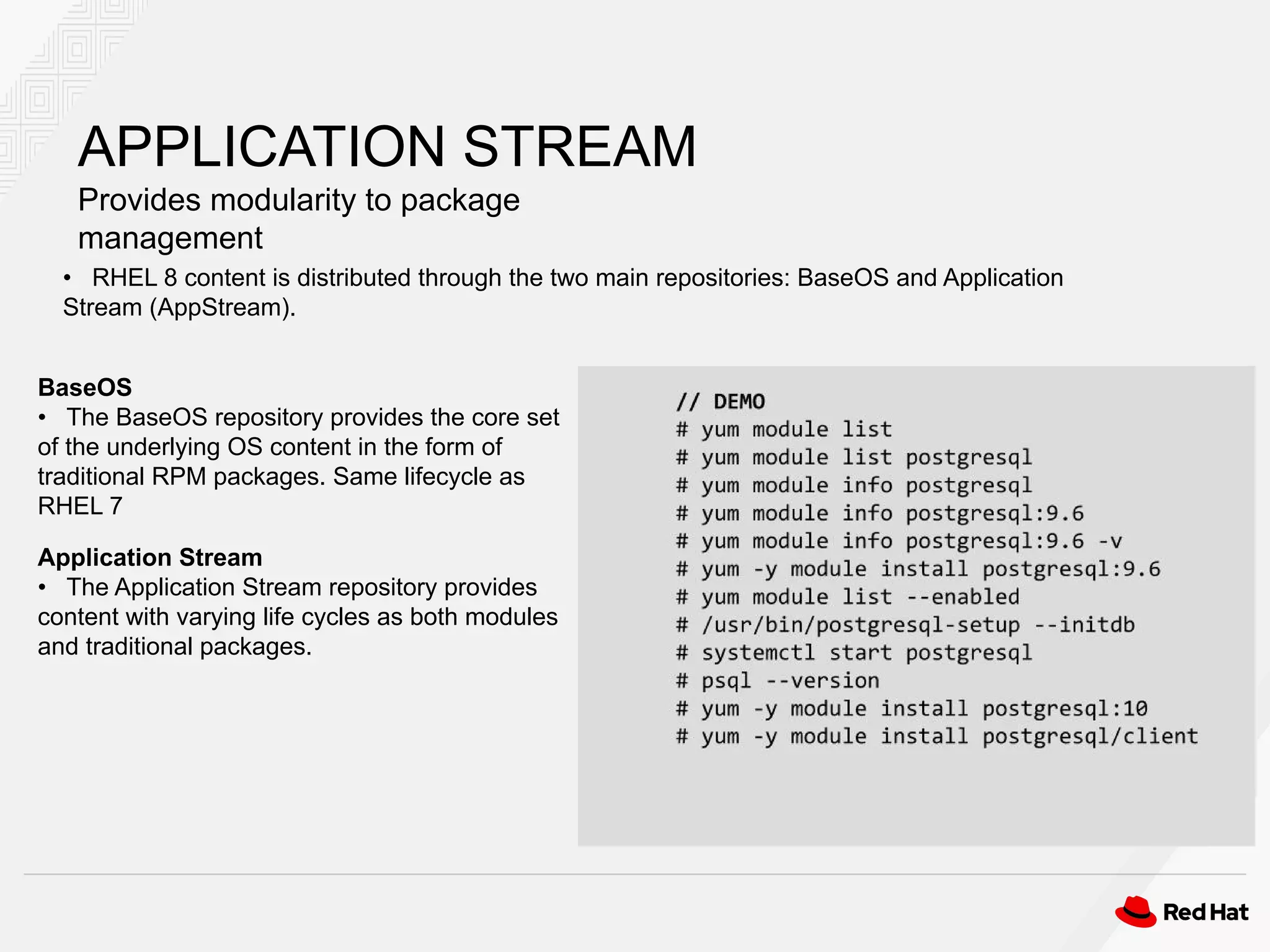

10. APPLICATION STREAM
Provides modularity to package
management
• RHEL 8 content is distributed through the two main repositories: BaseOS and Application
Stream (AppStream).
BaseOS
• The BaseOS repository provides the core set
of the underlying OS content in the form of
traditional RPM packages. Same lifecycle as
RHEL 7
Application Stream
• The Application Stream repository provides
content with varying life cycles as both modules
and traditional packages.

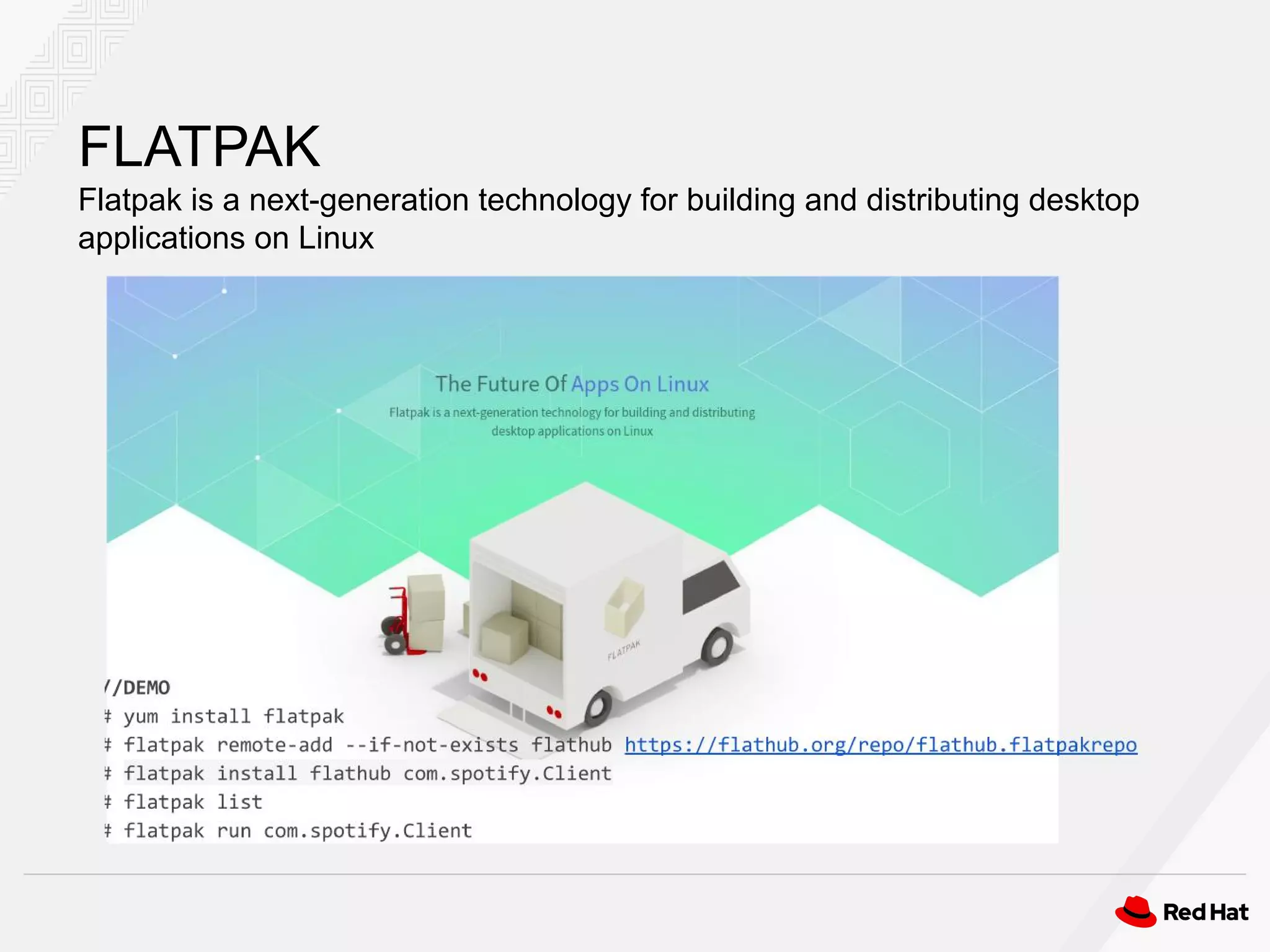

11. FLATPAK
Flatpak is a next-generation technology for building and distributing desktop
applications on Linux

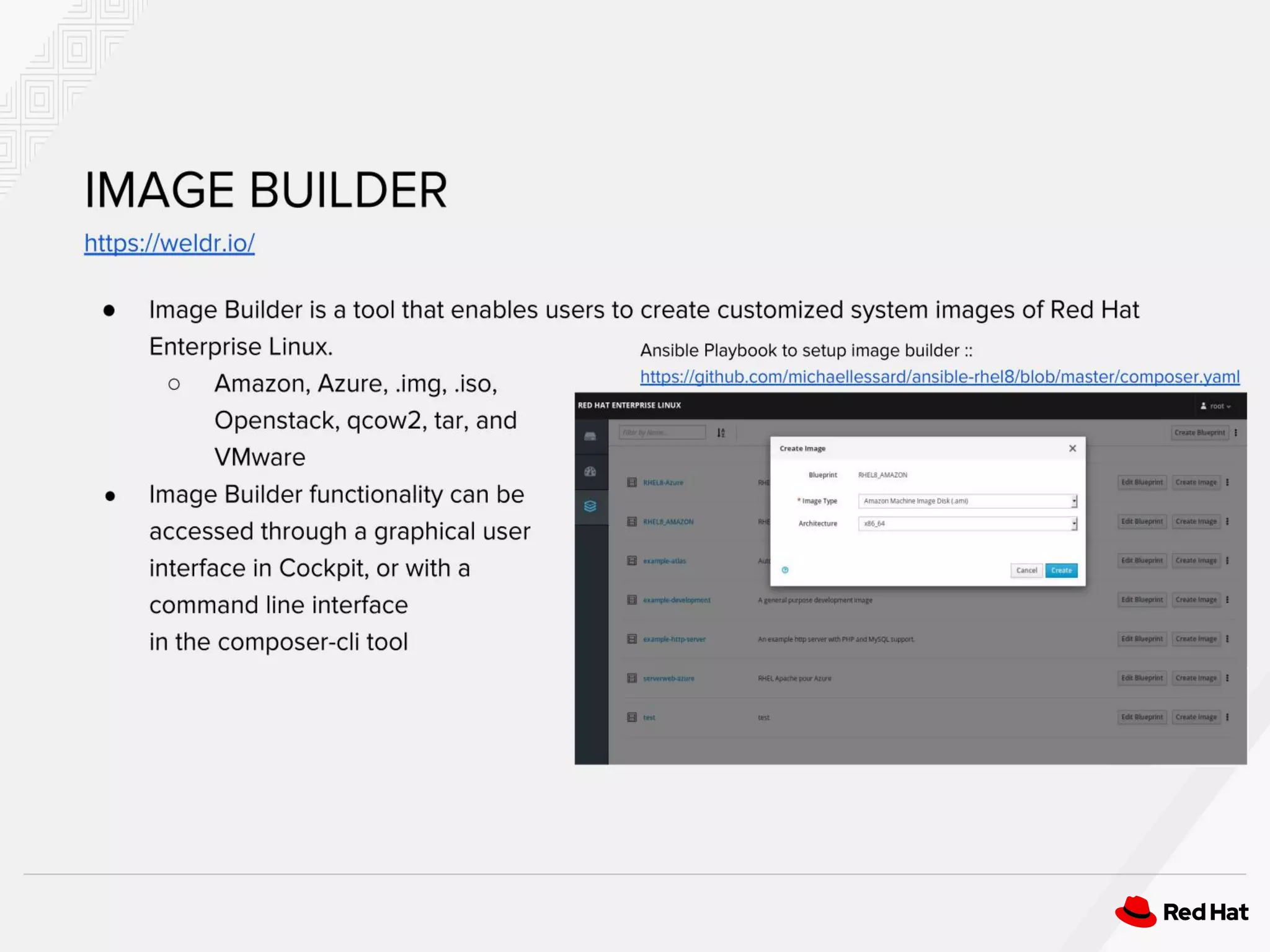

12. :: BUILD YOUR OWN RHEL IMAGES
WITH IMAGE BUILDER

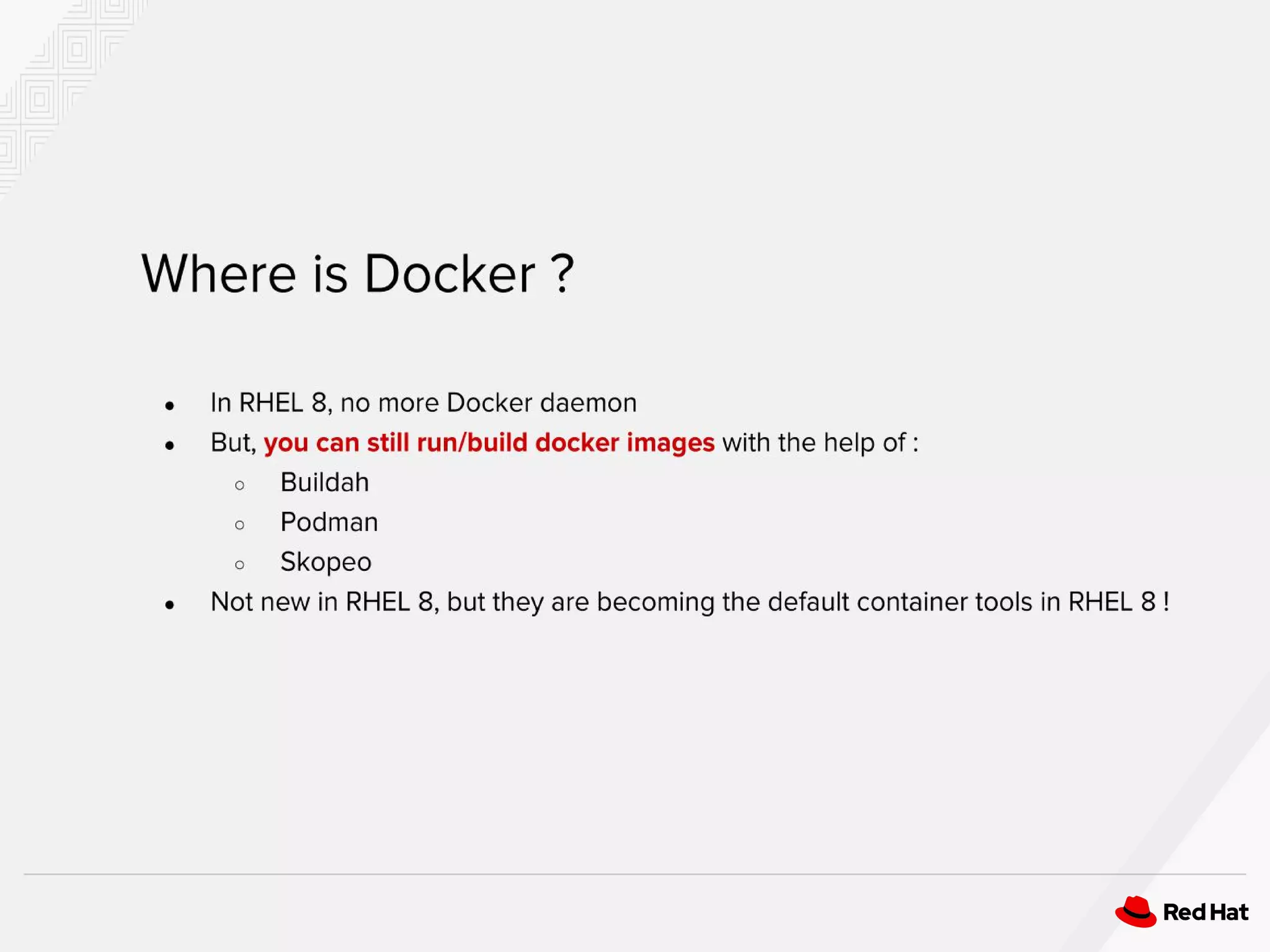

14. :: CONTAINER TECHNOLOGIES

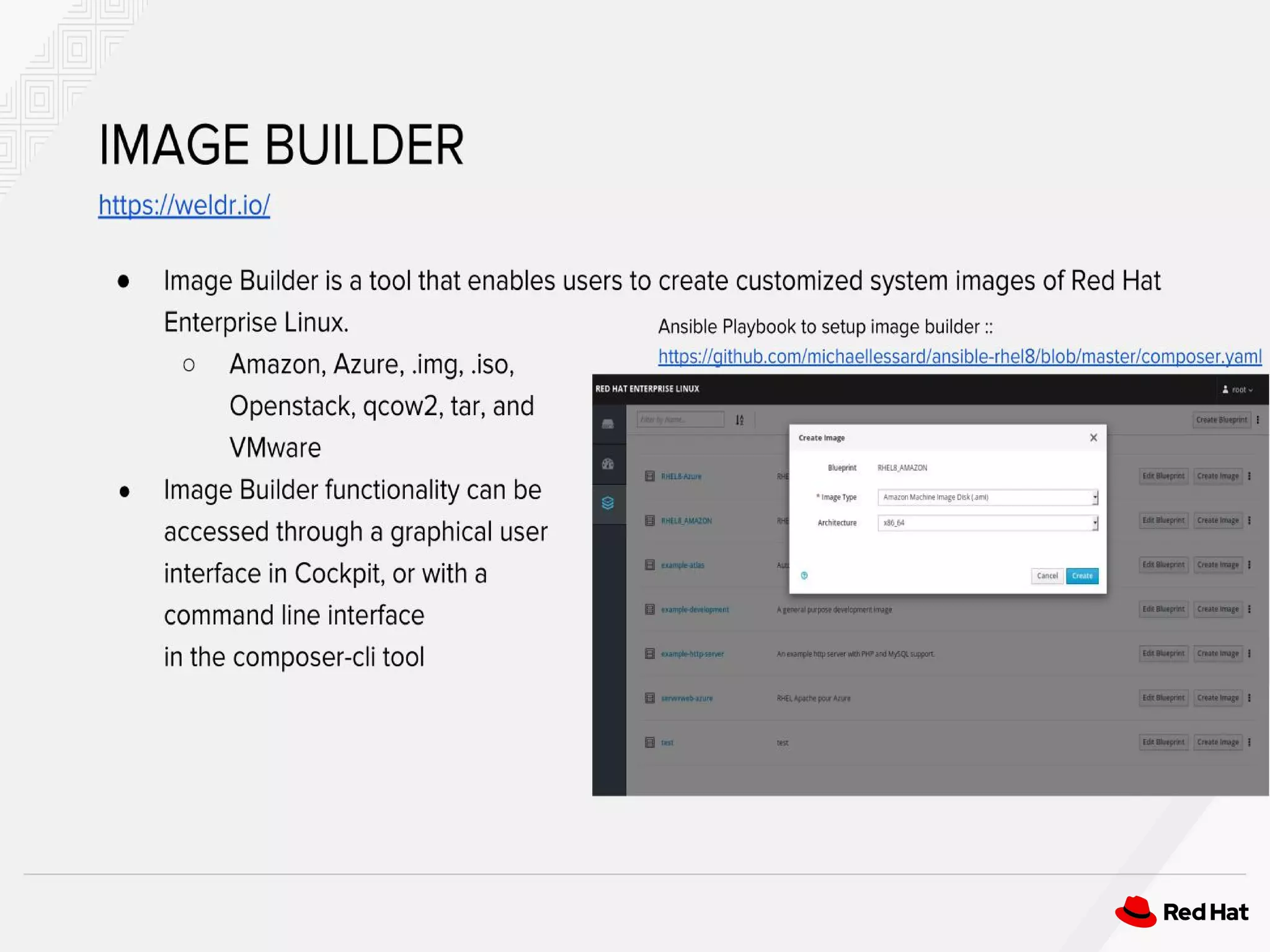

20. :: BUILD YOUR OWN RHEL IMAGES
WITH IMAGE BUILDER

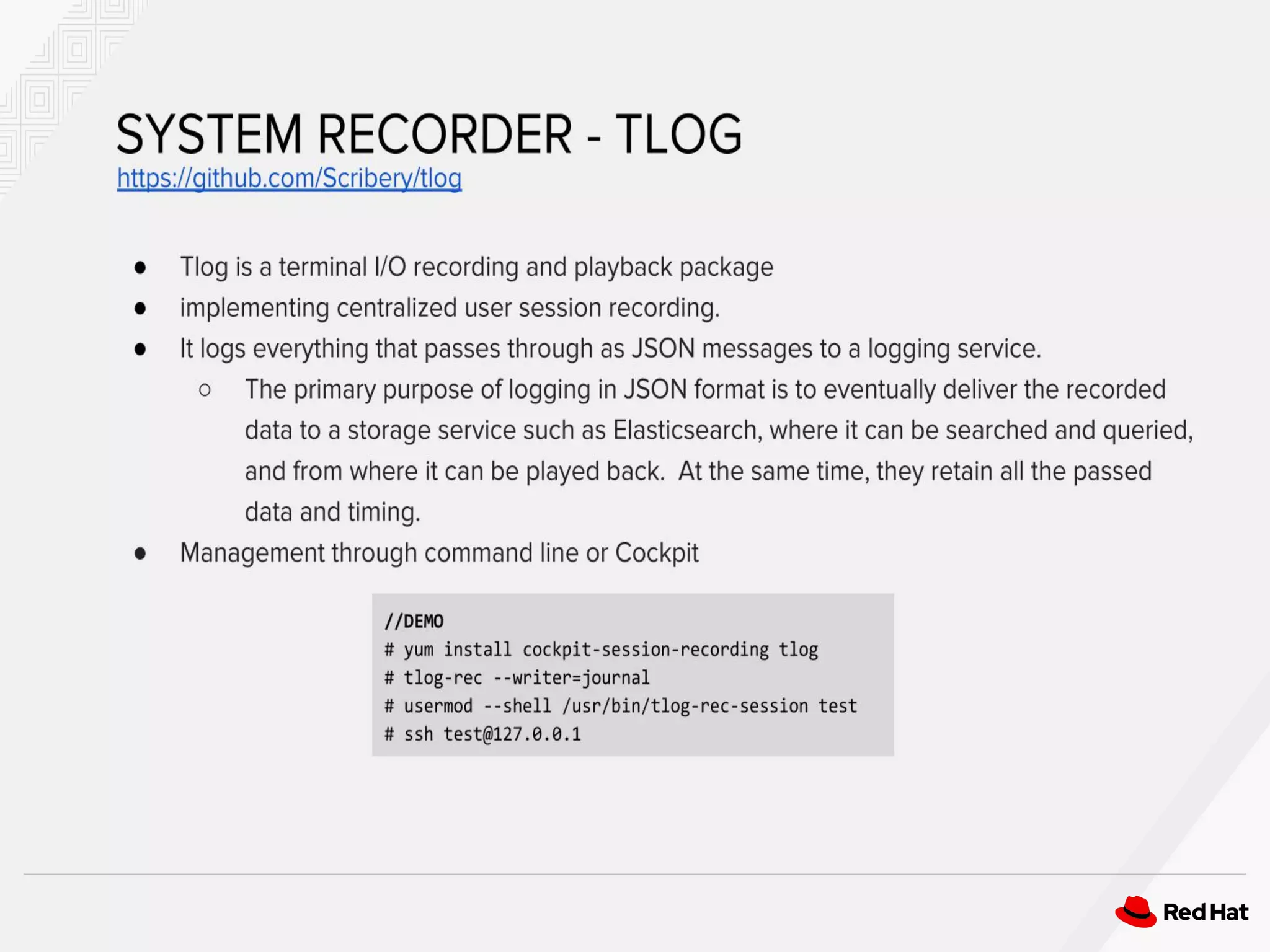

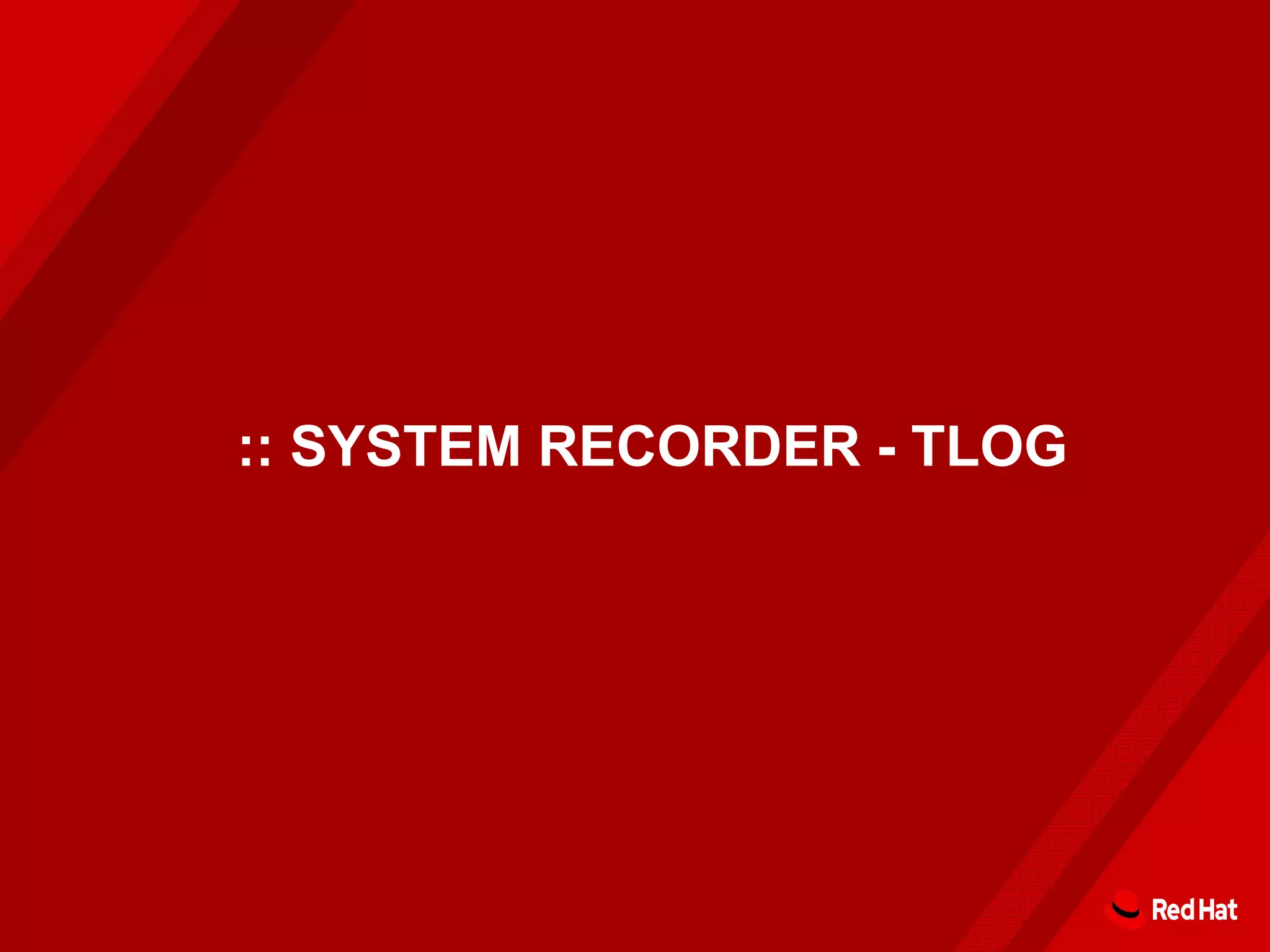

22. :: SYSTEM RECORDER - TLOG

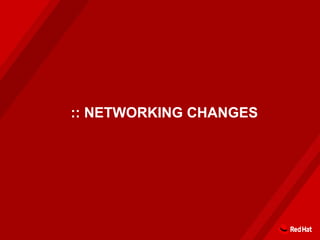

24. :: NETWORKING CHANGES

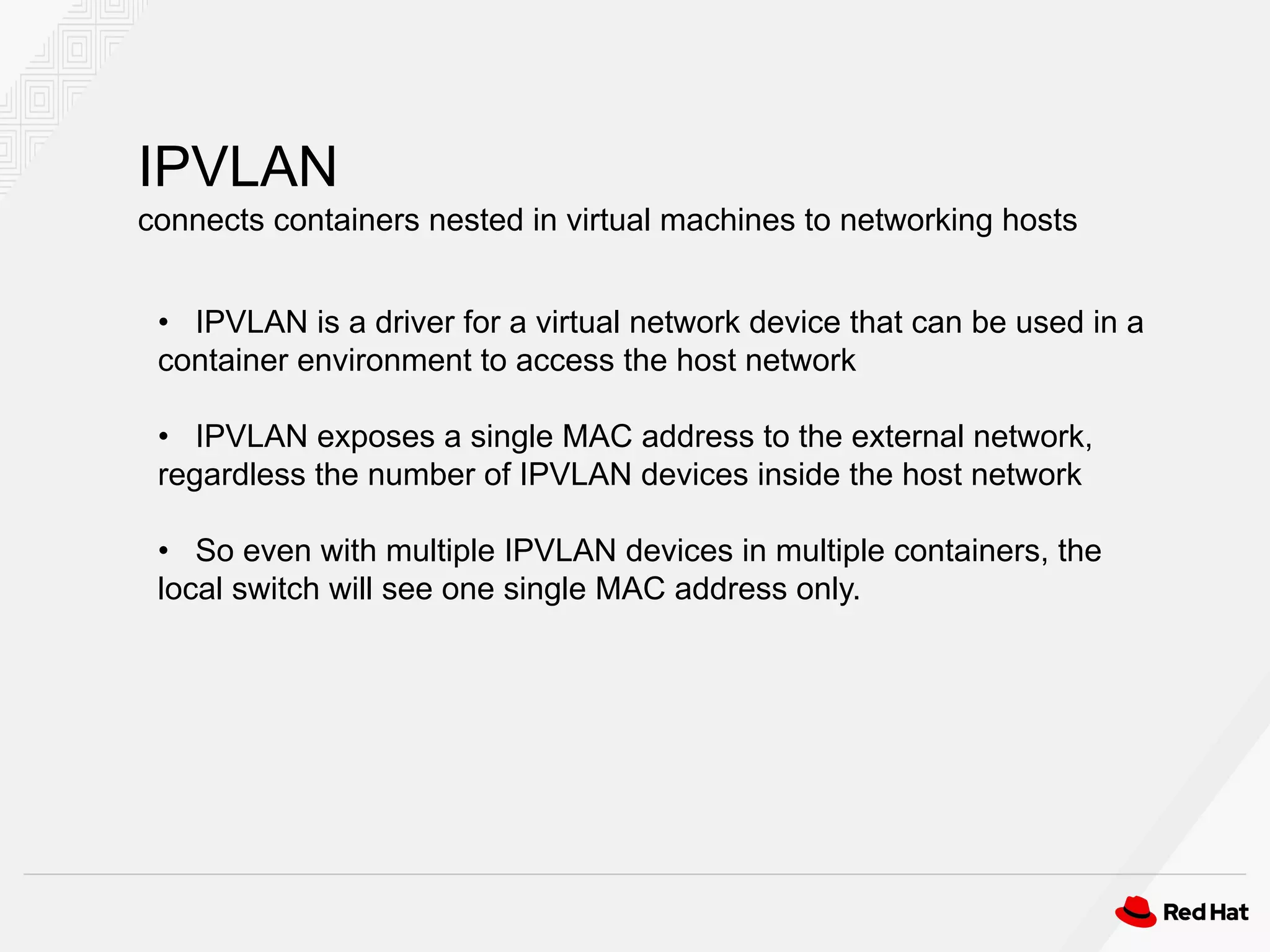

26. IPVLAN
connects containers nested in virtual machines to networking hosts
• IPVLAN is a driver for a virtual network device that can be used in a
container environment to access the host network
• IPVLAN exposes a single MAC address to the external network,
regardless the number of IPVLAN devices inside the host network
• So even with multiple IPVLAN devices in multiple containers, the
local switch will see one single MAC address only.

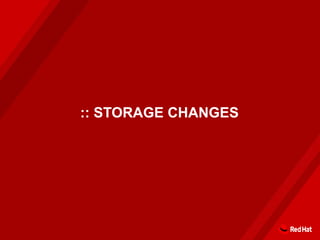

27. :: STORAGE CHANGES

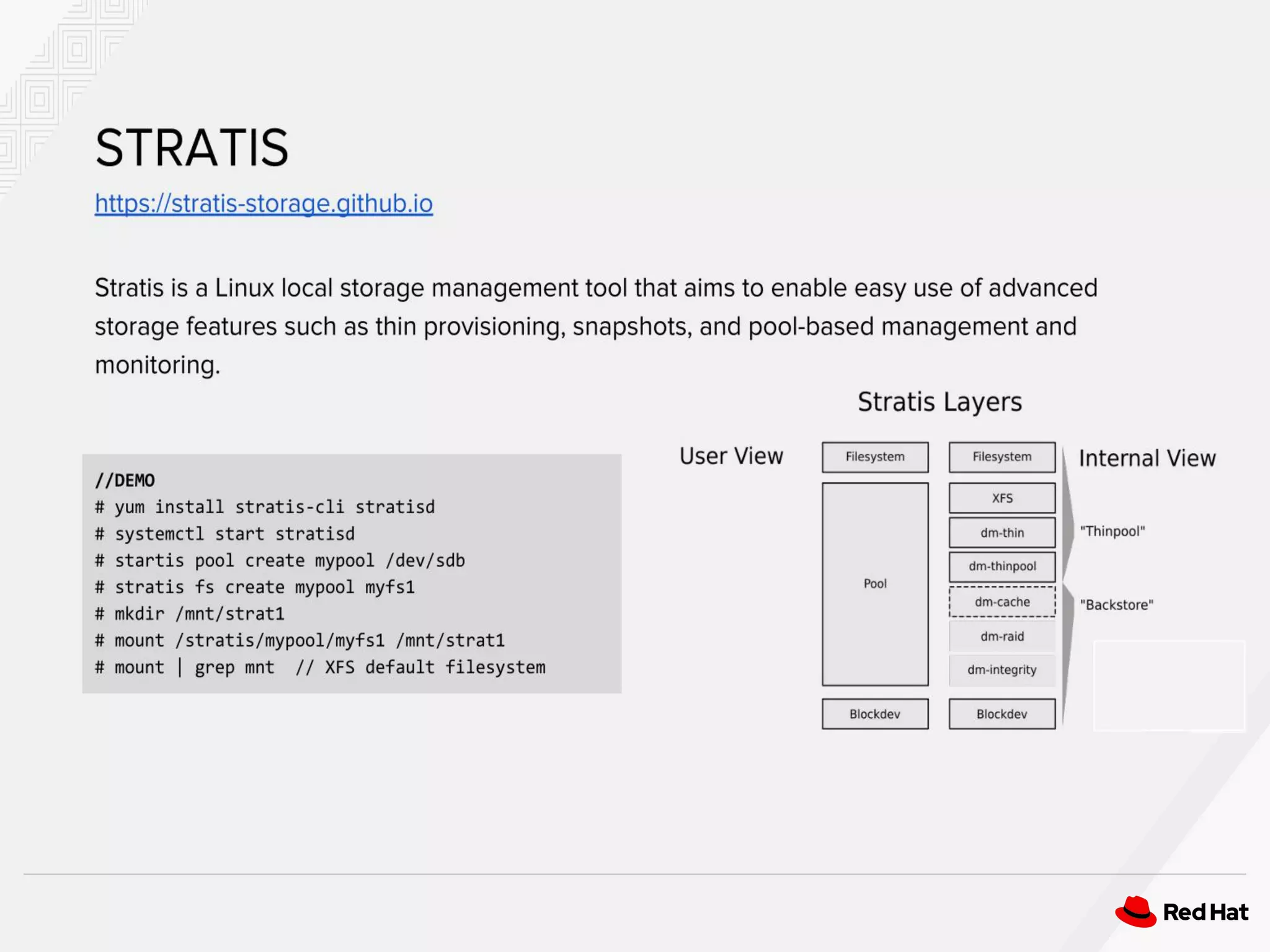

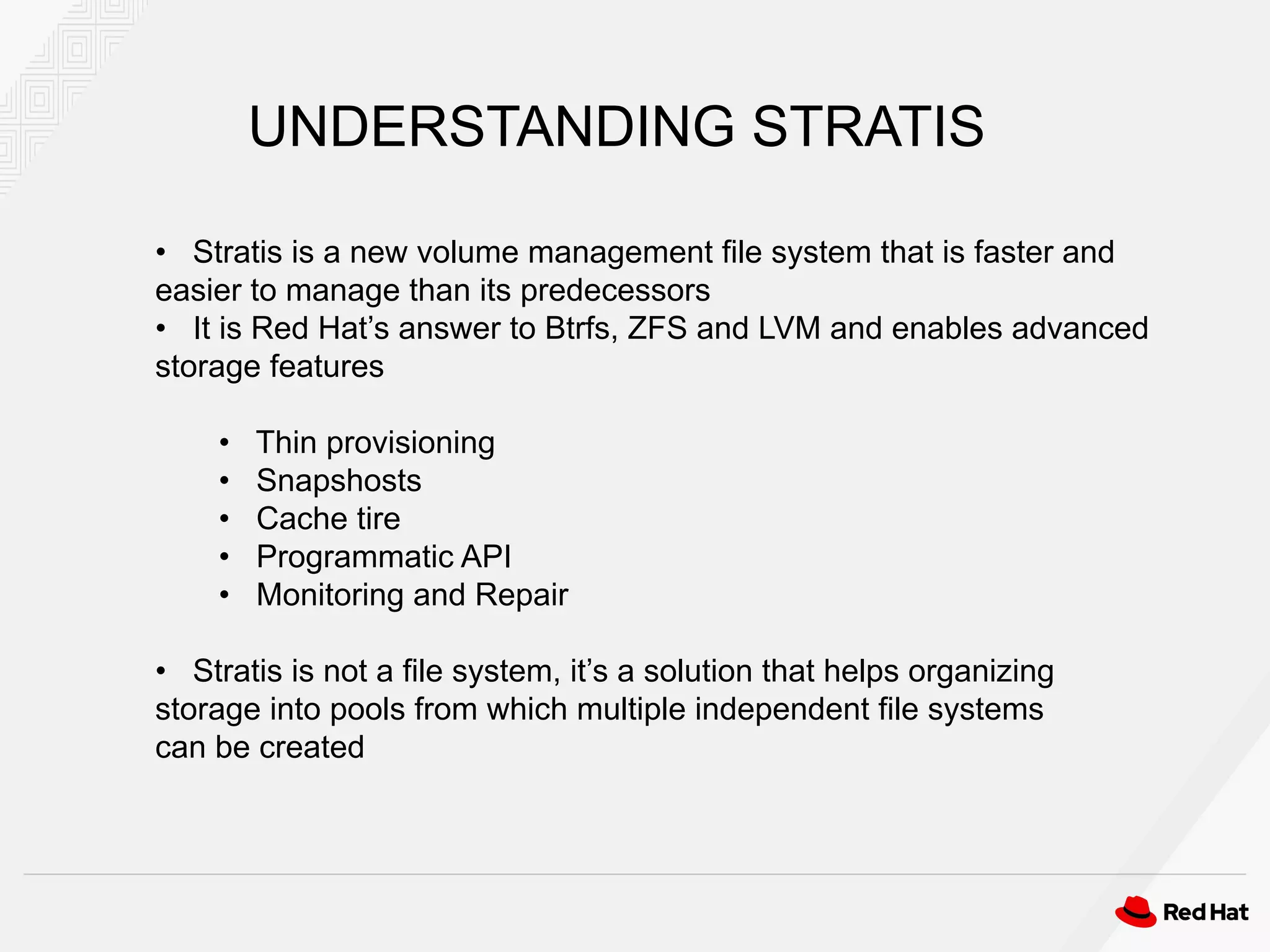

29. • Stratis is a new volume management file system that is faster and
easier to manage than its predecessors
• It is Red Hat’s answer to Btrfs, ZFS and LVM and enables advanced
storage features
• Thin provisioning
• Snapshosts
• Cache tire
• Programmatic API
• Monitoring and Repair
• Stratis is not a file system, it’s a solution that helps organizing
storage into pools from which multiple independent file systems
can be created
UNDERSTANDING STRATIS

30. :: SECURITY NFS TABLES

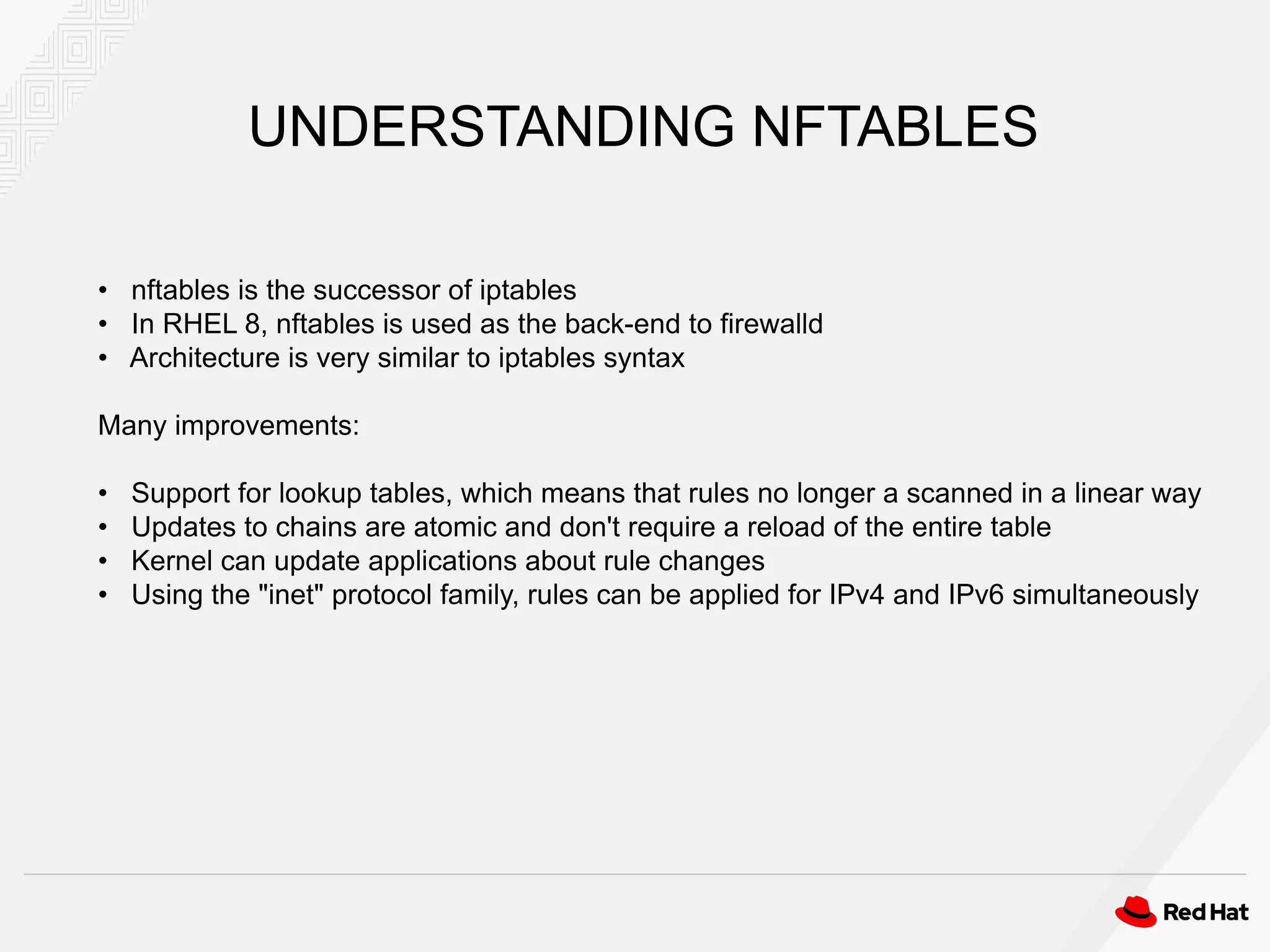

31. • nftables is the successor of iptables
• In RHEL 8, nftables is used as the back-end to firewalld
• Architecture is very similar to iptables syntax
Many improvements:
• Support for lookup tables, which means that rules no longer a scanned in a linear way
• Updates to chains are atomic and don't require a reload of the entire table
• Kernel can update applications about rule changes
• Using the "inet" protocol family, rules can be applied for IPv4 and IPv6 simultaneously
UNDERSTANDING NFTABLES
