1. Flexible Paxos
Quorum Intersection Revisited

2. Part I - Basic Paxos

3. Basic Paxos
● Three Roles:
○ Proposer: a process who wishes to have a particular value chosen
○ Acceptor: a process which agrees and persists decided values or the learner
○ Learner: a process wishing to learn the decided value
● Two Phase Process:
○ Prepare / Promise
○ Accept / Commit

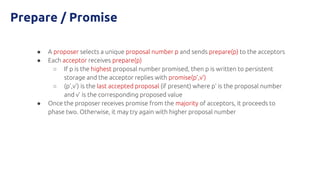

4. Prepare / Promise
● A proposer selects a unique proposal number p and sends prepare(p) to the acceptors
● Each acceptor receives prepare(p)
○ If p is the highest proposal number promised, then p is written to persistent
storage and the acceptor replies with promise(p’,v’)
○ (p’,v’) is the last accepted proposal (if present) where p’ is the proposal number
and v’ is the corresponding proposed value
● Once the proposer receives promise from the majority of acceptors, it proceeds to
phase two. Otherwise, it may try again with higher proposal number

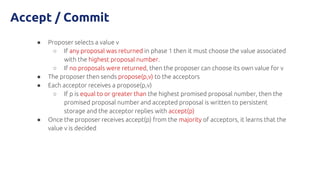

5. Accept / Commit
● Proposer selects a value v
○ If any proposal was returned in phase 1 then it must choose the value associated
with the highest proposal number.
○ If no proposals were returned, then the proposer can choose its own value for v
● The proposer then sends propose(p,v) to the acceptors
● Each acceptor receives a propose(p,v)
○ If p is equal to or greater than the highest promised proposal number, then the
promised proposal number and accepted proposal is written to persistent
storage and the acceptor replies with accept(p)
● Once the proposer receives accept(p) from the majority of acceptors, it learns that the
value v is decided

6. Basic Paxos - Normal
OperationP: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P:
C:
X: 1
P:
C:
X: 2
P:
C:
X: 3
Acceptor Acceptor
Proposer, Acceptor

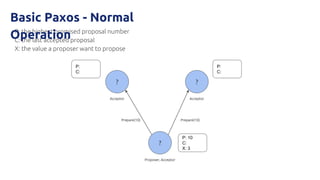

7. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P:
C:
P:
C:
P: 10
C:
X: 3
Acceptor Acceptor
Proposer, Acceptor
Prepare(10) Prepare(10)
Basic Paxos - Normal
Operation

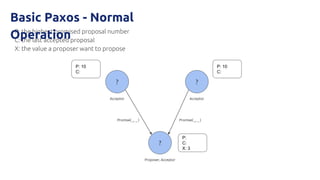

8. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
P: 10
C:
P:
C:
X: 3
Acceptor Acceptor
Proposer, Acceptor
Promise( _, _ ) Promise( _, _ )
Basic Paxos - Normal
Operation

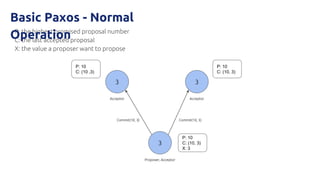

9. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
3 3
3
P: 10
C: (10 ,3)
P: 10
C: (10, 3)
P: 10
C: (10, 3)
X: 3
Acceptor Acceptor
Proposer, Acceptor
Commit(10, 3) Commit(10, 3)
Basic Paxos - Normal
Operation

10. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
P: 10
C:
P: 10
C: (10, 3)
X: 3
Acceptor Acceptor
Proposer, Acceptor
Commit(10, 3) Commit(10, 3)
Basic Paxos - Normal
Operation

11. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
X: 1
P: 10
C:
P:
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 1

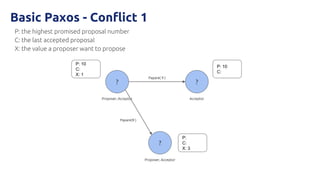

12. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
X: 1
P: 10
C:
P:
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 1
Papare(9 )
Papare( 9 )

13. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
X: 1
P: 10
C:
P:
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 1
Reject
Reject

14. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C:
X: 1
P: 10
C:
P: 10
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 2
Papare(11 )
Papare( 11 )

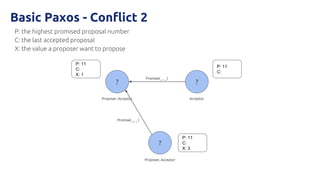

15. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 11
C:
X: 1
P: 11
C:
P: 11
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 2
Promise( _, _ )
Promise( _, _ )

16. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 11
C:
X: 1
P: 11
C:
P: 11
C:
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 2
Commit(11, 1)
Commit(11, 1)

17. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
1 1
1
P: 11
C: (11, 1)
X: 1
P: 11
C: (11, 1)
P: 11
C: (11, 1)
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 2

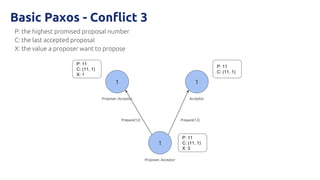

18. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
1 1
1
P: 11
C: (11, 1)
X: 1
P: 11
C: (11, 1)
P: 11
C: (11, 1)
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 3
Prepare(12) Prepare(12)

19. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
1 1
1
P: 12
C: (11, 1)
X: 1
P: 12
C: (11, 1)
P: 11
C: (11, 1)
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 3
Promise(11, 1) Promise(11, 1)

20. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
1 1
1
P: 12
C: (11, 1)
X: 1
P: 12
C: (11, 1)
P: 11
C: (11, 1)
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 3
Commit(12, 1) Commit(12, 1)

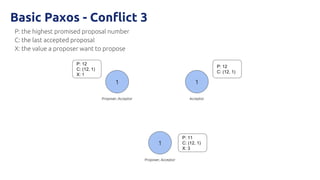

21. P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
1 1
1
P: 12
C: (12, 1)
X: 1
P: 12
C: (12, 1)
P: 11
C: (12, 1)
X: 3
Proposer, Acceptor Acceptor
Proposer, Acceptor
Basic Paxos - Conflict 3

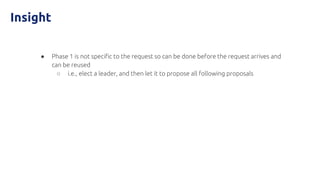

22. Insight
● Phase 1 is not specific to the request so can be done before the request arrives and
can be reused
○ i.e., elect a leader, and then let it to propose all following proposals

23. Part II - Flexible Paxos

24. ● It is only necessary for phase 1 quorums (Q1) and phase 2 quorums (Q2) to intersect
○ no need to require that Q1’s intersect with each other nor Q2’s intersect with
each other
○ Q1 + Q2 > N (N is the number of acceptors)
Observation

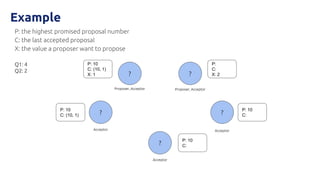

25. Example
P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C: (10, 1)
X: 1
P:
C:
X: 2
P: 10
C:
Proposer, Acceptor Proposer, Acceptor
Acceptor
? ?
Acceptor Acceptor
Q1: 4
Q2: 2
P: 10
C:
P: 10
C: (10, 1)

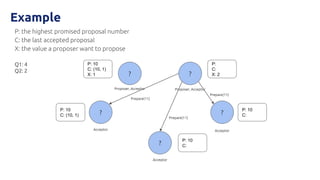

26. Example
P: the highest promised proposal number
C: the last accepted proposal
X: the value a proposer want to propose
? ?
?
P: 10
C: (10, 1)
X: 1
P:
C:
X: 2
P: 10
C:
Proposer, Acceptor Proposer, Acceptor
Acceptor
? ?
Acceptor Acceptor
Q1: 4
Q2: 2
P: 10
C:
P: 10
C: (10, 1)
Prepare(11)
Prepare(11)
Prepare(11)

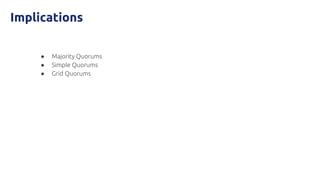

27. Implications
● Majority Quorums
● Simple Quorums
● Grid Quorums

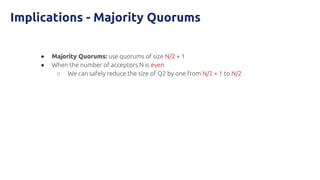

28. Implications - Majority Quorums
● Majority Quorums: use quorums of size N/2 + 1
● When the number of acceptors N is even
○ We can safely reduce the size of Q2 by one from N/2 + 1 to N/2

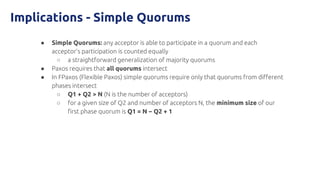

29. Implications - Simple Quorums
● Simple Quorums: any acceptor is able to participate in a quorum and each
acceptor’s participation is counted equally
○ a straightforward generalization of majority quorums
● Paxos requires that all quorums intersect
● In FPaxos (Flexible Paxos) simple quorums require only that quorums from different
phases intersect
○ Q1 + Q2 > N (N is the number of acceptors)
○ for a given size of Q2 and number of acceptors N, the minimum size of our
first phase quorum is Q1 = N − Q2 + 1

30. Implications - Grid Quorums
● Grid Quorums: arrange the N nodes into a matrix of N1 columns by N2 rows,
where N1 ×N2 = N
● Paxos requires that all quorums intersect
○ then it requires one row and one column to form a quorum
● In FPaxos, we can safely reduce our quorums to one row of size N1 for Q1 and one
column of size N2 for Q2
Paxos FPaxos

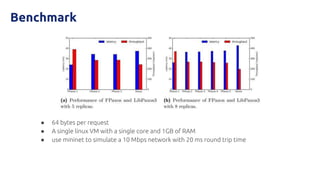

31. Benchmark
● 64 bytes per request
● A single linux VM with a single core and 1GB of RAM
● use mininet to simulate a 10 Mbps network with 20 ms round trip time

32. Any Questions ?
Thank You!
