The document outlines packaging guidelines for fast-moving consumer goods (FMCG), detailing necessary materials and techniques for ensuring the protection and convenience of products during transit. It specifies the appropriate types of packaging, such as bubble wrap and branded boxes, based on the product's weight and material, and emphasizes the importance of proper sealing and labeling. Additionally, it provides instructions for ordering packaging materials and highlights the need for attaching invoices properly to meet courier requirements.

1. Packaging guidelines for
FMCG
In this module we will discuss :-
1. Packaging guidelines for FMCG
2. Steps to order packaging materials

2. Protection
Information
Convenience
Some products need more
care & protection than
others
Follow our packaging guidelines & don’t worry!
Your product goes through a tough journey until
delivered...

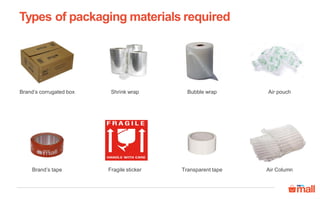

3. Brand’s corrugated box
Brand’s tape
Shrink wrap
Fragile sticker
Bubble wrap
Transparent tape Air Column
Air pouch
Types of packaging materials required

4. Hair Care Oral CareBath
Types of products
Make upFragrances
Shampoo

5. Shaving Skin Care Food Paint
Types of products

6. 1. There is no need of double seal for products which are
already shrink wrapped
All other products should be individually sealed on the lid with
Tape
2. All the product should be shrink wrapped
Packaging guidelines for FMCG

7. 3. Product should be wrapped by bubble wrap. You have to choose
bubble wrapper according to given table
Type of item Criteria Material to be used for bubble wrap
Non Liquid
Product(Non
Glass)
All
Wrap the product with 3 to 5 layer of bubble
wrap(Bubble size 5/16” inches)
Liquid Product
Less than 500
grams
Wrap the product with 3 to 5 layer of bubble
wrap(Bubble size 5/16” inches)
Liquid Product
Above 500
grams
Wrap the product with 2 to 3 layer of bubble
wrap(Bubble size1/2” inches)
Glass Product All
Wrap with the Air column( Air column gsm should
be of 70 Micron)
Packaging guidelines for FMCG

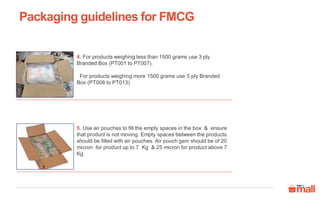

8. 4. For products weighing less than 1500 grams use 3 ply
Branded Box (PT001 to PT007).
For products weighing more 1500 grams use 5 ply Branded
Box (PT008 to PT013)
5. Use air pouches to fill the empty spaces in the box & ensure
that product is not moving. Empty spaces between the products
should be filled with air pouches. Air pouch gsm should be of 20
micron for product up to 7 Kg & 25 micron for product above 7
Kg
Packaging guidelines for FMCG

9. 6. Paste the required sticker( Fragile, Class 3 label for
flammable liquid, Orientation arrow label )
7. Separate the Invoice from the packing slip
Packaging guidelines for FMCG

10. Note- Courier partner will not accept the packet if the invoice is not attached outside the box.
8. Now place the packing slip on front side of the brand's
corrugated box & cover horizontally with transparent tape
9. Now fold the invoice from centre so that details are towards
inside
Paste the invoice pouch on the back side of the brand's
corrugated boxes and insert the invoice in the invoice pouch
White side of the invoice should be in front.
Top view
Bottom view
Packaging guidelines for FMCG

11. To order packaging materials from paytmmall.com, click here and follow this step:
Select your required
product and then
simply order it
1.
How can you order packaging materials ?
Note- Once ordered it takes 7-10 working days to deliver your packaging material.
1

12. Thanks everyone!
For any query please raise a ticket on support
