The document describes various box styles including straight tuck end boxes, reverse tuck end boxes, seal end boxes, and others. Each box style is defined in 1-3 sentences explaining their key features such as closure mechanisms, uses, and benefits over similar styles. Diagrams are also provided to illustrate the designs.

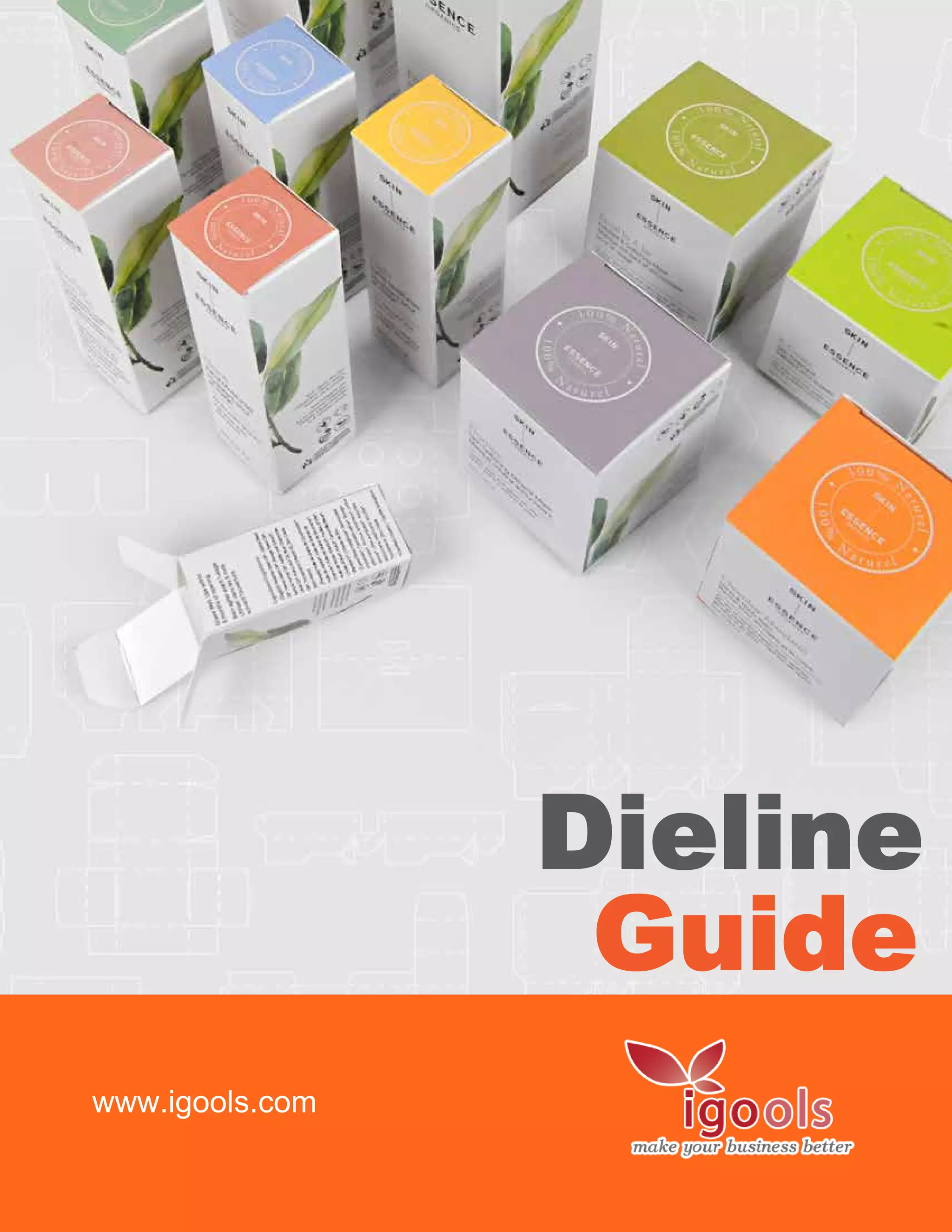

1. Dieline
Guide
www.igools.com

2. Straight Tuck End B03
Sometimes abbreviated as the STE, our straight tuck end boxes are the
right choice for an array of products in which a primary display panel and
spacious window is required. Thanks to the fold/tuck closures located in
the back of these straight tuck end boxes, the raw edge located along both
ends of the display panel in the front are cleverly concealed. Our straight
tuck end boxes are designed to ensure there is never any interference
between the tuck and the window film, a common problem with reverse
tuck style boxes. These boxes can be conveniently used as manual or au-
tomated assembly.
Full Cut Crease Perforation Glue Assistance
Box Style: Straight Tuck End
LW
H
REAR PANEL FRONT PANELSIDE PANEL SIDE PANEL
DUST FLAPDUST FLAP TOP CLOSURE PANEL
TOP TUCK FLAP
DUST FLAPDUST FLAP BOTTOM CLOSURE PANEL
BOTTOM TUCK FLAP

3. Reverse Tuck End B02
Also known as the RTE, our reverse tuck end boxes features a top closure
that tucks back from the rear to the front while the bottom closure is de-
signed to tuck from the front to the rear of the box. The friction lock top
closure of these boxes allow for easy opening and reclosing. With its slit
lock tuck bottom, these reverse tuck end boxes are ensured of being more
secure. As a result, they are also less likely to become disengaged due to
the weight of the product. Suitable to be assembled both by hand as well
as by machine, these reverse tuck end boxes are ideal for use within a
variety of industries.
Full Cut Crease Perforation Glue Assistance
Box Style: Reverse Tuckend
L W
H
REAR PANEL
BOTTOM CLOSURE PANEL
BOTTOM TUCK FLAP
FRONT PANELSIDE PANEL SIDE PANEL
DUST FLAPDUST FLAP TOP CLOSURE PANEL
TOP TUCK FLAP
DUST FLAP DUST FLAP

4. Seal End B01
Our distinctive seal end box features a quality structure with convenient
panels attached to the flap that stick together to save you time during
the assembly process. Thanks to the high quality of the locking strength
of the structure on these seal end boxes, you can be assured that it will
hold up well in transit and storage. The design of this box allows it to be
assembled, filled, and then sealed with the use of packaging equipment.
Whatever your needs may be, this reliable seal end box will ensure that
your packaging holds
Full Cut Crease Perforation Glue Assistance
Box Style: Seal End
LW
H
REAR PANEL FRONT PANELSIDE PANEL SIDE PANEL
DUST FLAPDUST FLAP TOP CLOSURE PANELTOP CLOSURE PANEL
BOTTOM CLOSURE PANEL BOTTOM CLOSURE PANELDUST FLAP DUST FLAP

5. 1-2-3 Bottom B06
Also known as the RTE, our reverse tuck end boxes features a top closure
that tucks back from the rear to the front while the bottom closure is
designed to tuck from the front to the rear of the box. The friction lock
top closure of these boxes allow for easy opening and reclosing. With its
slit lock tuck bottom, these reverse tuck end boxes are ensured of being
more secure. As a result, they are also less likely to become disengaged
due to the weight of the product. Suitable to be assembled both by hand
as well as by machine, these reverse tuck end boxes are ideal for use
within a variety of industries.
Full Cut Crease Perforation Glue Assistance
Box Style: 123 Bottom
LW
HRear Panel Front Panel
Top Closure Panel
Top Tuck Flap
Dust Flap Dust Flap
Closure FlapClosure Flap Bottom Closure PanelBottom Closure Panel
Side Panel Side Panel
GlueFlap

6. Tuck EndAuto Bottom B10
These tuck end auto bottom boxes feature a pre-glued folding carton along
with quality bottom construction. The bottom of these tuck end auto bot-
tom boxes can be conveniently folded into a flat shape. Additionally, the
bottoms of these boxes can also be restored automatically back to their
sealing status once the box is stretched. Thanks to the complex structure
of these tuck end auto bottom boxes, you can be assured of a convenient
and sturdy packaging solution. A locked in or friction position is used to
hold the extended top flap in place once it is tucked in. The tucks on these
auto bottom boxes may have either shore locks or friction fit to ensure a
more secure closure.
Full Cut Crease Perforation Glue Assistance
Box Style: Tuckend Autobottom
LW
H
REAR PANEL FRONT PANEL
BOTTOM CLOSURE PANELBOTTOM CLOSURE PANEL
TOP CLOSURE PANEL
TOP TUCK FLAP
DUST FLAP DUST FLAP
SIDE PANEL SIDE PANEL

7. Five Panel Hanger B05
Perfect for creating a display that is certain to attract attention, these five
panel hanger boxes feature a basic hanger tab. Constructed of a basic die-
cut tab that is folded out from the rear panel on the top end of the carton,
these five panel hanger boxes can be used in a variety of different ways
to suit your specific needs. Perfect for products that require the use of a
primary display panel featuring a large window, these five panel hanger
boxes can be conveniently displayed in any location when placed on hooks
or used with clip strips.
Full Cut Crease Perforation Glue Assistance
Box Style: Five Panle Hanger
W L
H
REAR PANEL
GLUEFLAP
FRONT PANELSIDE PANEL SIDE PANEL
BOTTOM CLOSURE PANEL
BOTTOM TUCK FLAP
TOP TUCK FLAP
DUST FLAP DUST FLAP
DUST FLAPDUST FLAPHANGER PANEL
HANGER PANEL
TOP CLOSURE FLAP

8. Seal EndAuto Bottom B11
Featuring a strong structure with panels securely attached to the flap,
these seal end auto bottom boxes offer improved seal strength over the
tuck end auto bottom boxes and are designed for fast assembly and con-
venience. The convenient design of these boxes allows the flaps to stick
together for greater time savings. With outstanding locking strength and
a seal end with secure reliability, these boxes are ideal for a variety of
products. The bottom and body of these seal end auto bottom boxes can
be conveniently folded into a flat shape for increased space savings. Ad-
ditionally, these boxes feature bottoms that can be restored automatically
when the box is stretched.
Full Cut Crease Perforation Glue Assistance
Box Style: Sealend Autobottom
LW
H
REAR PANEL FRONT PANEL
TOP CLOSURE PANELTOP CLOSURE PANEL DUST FLAP
CLOSURE FLAP CLOSURE FLAP
BOTTOM CLOSURE PANEL BOTTOM CLOSURE PANEL
DUST FLAP
SIDE PANEL SIDE PANEL

9. Bookend B04
When you need a box that offers an elegant display and convenient pack-
aging solution in one, our bookend boxes fit the bill nicely. Based on the
same style as straight tuck end boxes, these boxes feature an additional
double-thick glued panel on the front that will open beautifully like a book.
A straight tuck end feature is also included with these bookend boxes
for additional convenience. Typically used for heavy weight items, these
bookend boxes offer the look and feel of a high quality presentation piece,
making them an excellent choice for retail display in a variety of settings.
Full Cut Crease Perforation Glue Assistance
Box Style: Book End
L W
H
Rear PanelSide Panel Side PanelInternale Front Panel
Top Closure Panel
Top Tuck Flap
Bottom Tuck Flap
Dust Flap Dust Flap
Bottom Closure Panel Dust Flap Dust Flap
Front Panel Internal Front Panel

10. 1-2-3 Bottom Display Lid B40
Our consumer products display boxes are a great choice for packaging and
displaying a variety of different types of consumer products. When you are
in need of a packaging solution that contains plastic windows to provide
increased visibility or features informational flaps to provide consumers
with more information about your product, these packaging options can
provide you with just the solution that you need.They are a great choice for
point of sale displays. Additionally, thanks to the high quality construction
of these consumer products display boxes, you can be assured that your
products will be completely safe during shipping.
Box Style:
Full Cut Crease Perforation Glue Assistance
L W
H
1-2-3 Bottom Display Lid
TOP PANEL
REAR PANELSIDE PANELFRONT PANELSIDE PANEL

11. Double Wall Tuck Front B22
These double wall tuck front boxes come complete with a non-glued lid
and tray. The presence of side panels fill the role of both the foot and lock
portion of the box.As part of the innovative design of these double wall tuck
front boxes, the male lock is smaller in size than the female portion of the
lock portion. An additional front panel extends from the lid of these double
wall tuck front boxes and includes two locking tabs. The durable structure
of these boxes makes them ideal for use with heave load contents.
Full Cut Crease Perforation Glue Assistance
Box Style: Double Wall Tuck Front
W H
L
FRONT CLOSURE PANEL
TOP CLOSURE PANEL
REAR PANEL
BOTTOM PANEL
INTERNAL FRONT PANELCLOSURE FLAP CLOSURE FLAP
SIDE
CLOSURE
PANEL
SIDE
CLOSURE
PANEL
SIDE PANEL SIDE PANEL
CLOSURE FLAP CLOSURE FLAP
SIDE
CLOSURE
PANEL
SIDE
CLOSURE
PANEL
FRONT
TUCK FLAP
FRONT
TUCK FLAP

12. Four Corner with Display Lid B24
These four corner with display lid boxes feature a display box that is based
on the four corner tray style design. The tray portion is folded flat during
the manufacturing process to allow for greater economy of transit and
space saving benefits. Each of the four corners of these display lid boxes
features a diagonal score that makes it possible for the tray sides to be
folded inward to create a collapsed position.These four corner with display
lid boxes include a display tuck panel lid as well as a crease in the middle
that allows the lid to be folded in half.
Full Cut Crease Perforation Glue Assistance
Box Style: 4 Corner With Display Lid
L H
W
FRONT
TUCK FLAP TOP CLOSURE PANEL BOTTOM PANEL FRONT PANELREAR PANEL
SIDE PANEL
CLOSURE FLAP
CLOSURE FLAP
CLOSURE FLAP CLOSURE FLAP
CLOSURE FLAPCLOSURE FLAP
SIDE PANEL

13. Double Wall Tray B19
As the name implies, these durable trays feature a double wall design with
the structure of the wall doubled. Designed to be used as a single tray or
even as a two-piece telescoping carton, these double wall trays are both
durable as well as aesthetically pleasing. Featuring glued sidewalls, these
trays offer the benefits of convenient and easy setup. Certain parts of these
trays can be completely folded for even greater economy of storage.When
you need a carton that offers reliable strength as well as a great presenta-
tion, these double wall trays are the ideal choice.
Full Cut Crease Perforation Glue Assistance
Box Style: Double Wall Tray
W
L
H
BOTTOM PANEL
FRONT PANEL
JOINT PANEL JOINT PANEL
JOINT PANEL JOINT PANEL
REAR PANEL
REAR CLOSURE PANEL
FRONT CLOSURE PANEL
FRONT LCOK FLAP
REAR LCOK FLAP
SIDE PANEL SIDE PANEL
SIDECLOSUREPANEL
SIDECLOSUREPANEL

14. Foot Lock Tray B20
These convenient foot lock trays feature a non-glued tray design with side
panels that form the foot and lock portion of the box.The innovative design
of these foot lock trays features a male lock that is smaller in size than the
female lock portion of the lock structure to allow for enhanced security.The
four fixed flaps on these foot lock tray cartons will not affect the lock in any
way when they are folded. Frequently used as a convenient bakery carton,
these foot lock trays also work well with garments.
Full Cut Crease Perforation Glue Assistance
Box Style: Double Wall Foot Lock
W H
L
Bottom Panel
Closure Flap Closure FlapFront Panel
Closure Flap Closure FlapRear Panel
Side Panel Side PanelSide Closure Panel Side Closure Panel

15. Four Corner Tray B16
Designed to reflect a simple, yet valuable box template these four cor-
ner trays are also sometimes known as Beers trays. With the ability to be
folded flat, these four corner trays offer the greatest level of efficiency for
storage and shipping. Each corner of these trays features a diagonal score
that makes it possible for the sides of these cartons to be folded inward to
form a collapsed position.While in other tray designs, the lid must be larger
than the bottom, with this distinctive tray, both the bottom and top of the lid
can be the same size to create a perfect match.
Full Cut Crease Perforation Glue Assistance
Box Style: 4 Corner Tray
L
W H
FRONT PANEL
CLOSURE FLAP CLOSURE FLAP
CLOSURE FLAPCLOSURE FLAP
REAR PANEL
BOTTOM PANELSIDE PANEL SIDE PANEL
